Thermo mate Otdfptthmar94 Installation guide

Rectangular Fire Pit/BBQ

Assembly Instructions

[Revision 2.0 October 2015]

SKU: OTDFPTTHMAR94

Rectangular Fire Pit/BBQ

Table of Contents

INCLUDED ITEMS......................................................................................... 1

WARNING AND PRECAUTIONS....................................................................... 2

OPERATION INSTRUCTIONS .......................................................................... 3

CARE AND MAINTENANCE ............................................................................ 3

ASSEMBLY INSTRUCTIONS ........................................................................... 4

FURTHER WARNINGS AND PRECAUTIONS....................................................... 6

CARE AND MAINTENANCE ............................................................................ 7

Rectangular Fire Pit/BBQ

Included Items

Please check the carton and packing materials before disposing to make sure that you

have all the parts for this product.

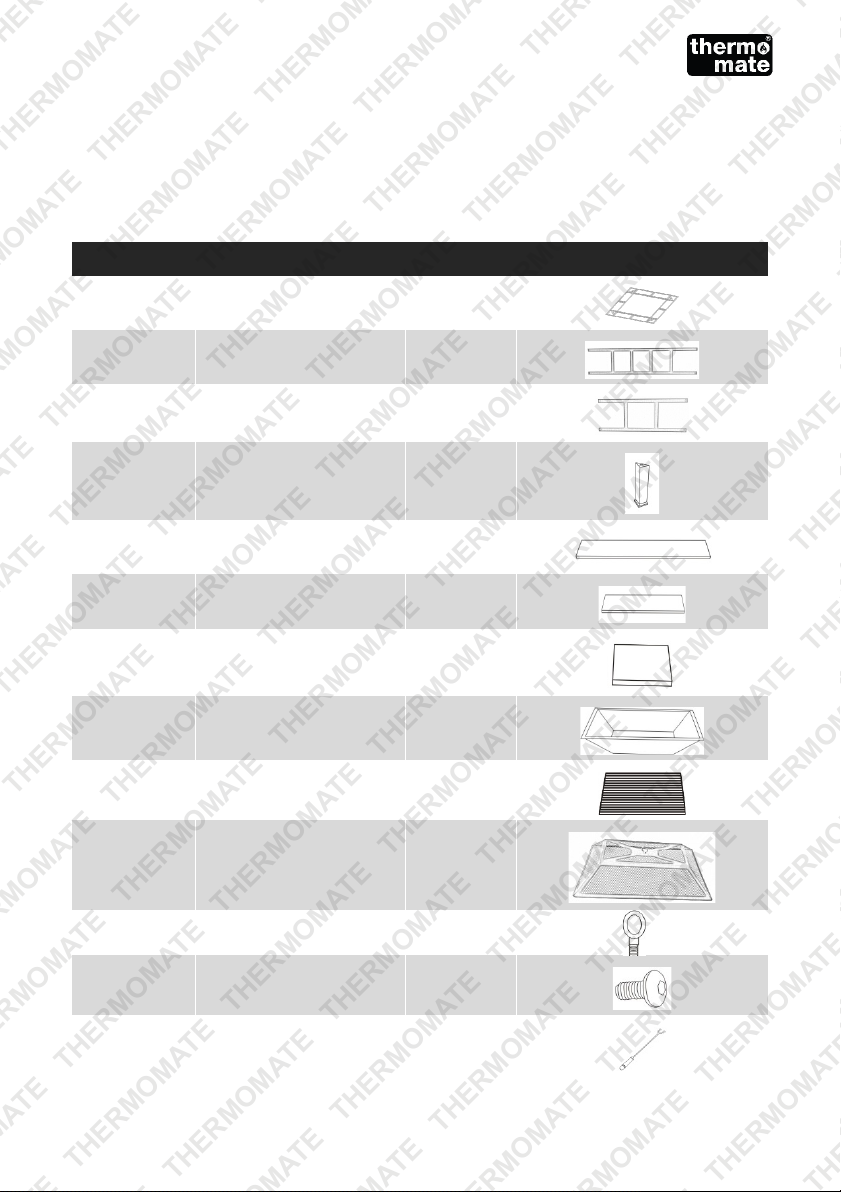

Part List Description Qty. Drawings

A Top Frame 1

B1 Long – Frame Support 2

B2 Short – Frame Support 2

C Corner Post/Leg 4

D1 Long – Ceramic Tile Slat 4

D2 Short – Ceramic Tile Slat 4

E Corner – Ceramic Tile

Square 4

F Fire Bowl 1

G Log Grate 1

H Mesh Lid 1

I Lid Ring 1

J Screws 20

K Iron Poker 1

THERMOMATE THERMOMATE THERMOMATE THERMOMATE THERMOMATE THERMOMATE THERMOMATE THERMOMATE THERMOMATE THERMOMATE THERMOMATE THERMOMATE THERMOMATE THERMOMATE THERMOMATE THERMOMATE THERMOMATE THERMOMATE THERMOMATE THERMOMATE THERMOMATE THERMOMATE THERMOMATE `

Rectangular Fire Pit/BBQ

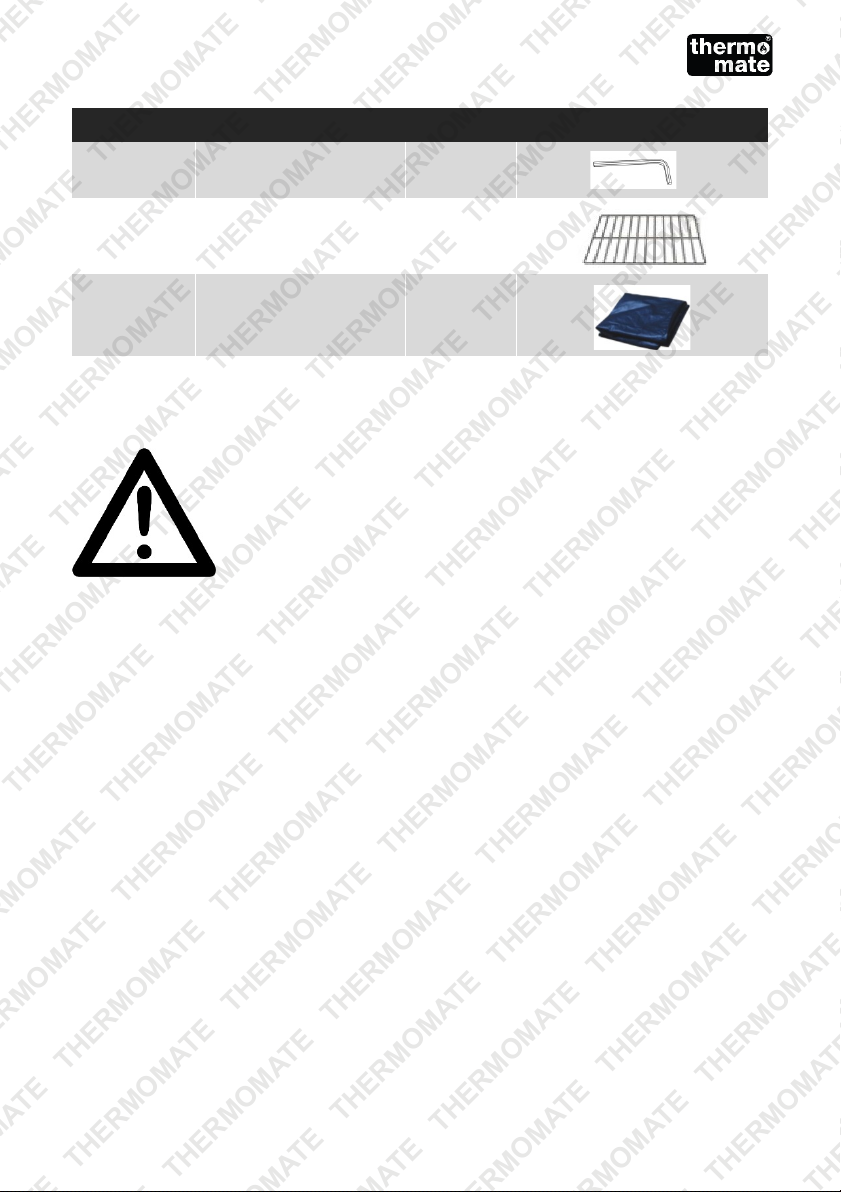

Part List Description Qty. Drawings

L Allen Key 1

M BBQ Grill 1

N Protective Cover 1

Warning and Precautions

•Check local councils before using the fire pit.

•This fire pit is intended for Outdoor Use Only! DO NOT use on wooden decks.

•This fire pit is intended to Burn Wood Logs Only! DO NOT burn coal, leaves or

other combustible materials in the fire pit.

•NOT for use by children. Keep children and pets away from the fire pit.

•Fire pit is hot, use with caution. NEVER touch hot fire pit with bare hands.

•NEVER leave burning fire pit unattended and always extinguish fire completely

before leaving the fire pit.

•Maintain a minimum of 5 FT from any structure!

•DO NOT use near flammable or combustible objects or materials.

•Only CHROME PLATED BBQ GRILL is intended for cooking.

•LOG GRATE is NOT intended for cooking and SHOULD NOT be used for this

purpose.

Rectangular Fire Pit/BBQ

Operation Instructions

•Place wood logs on grate and light with match. DO NOT overload logs.

•Please use Poker (provided) when handling burning and hot log.

•We do not recommend pouring water over the fire unless necessary as this will

increased chances of metal oxidation.

•The fire should be allowed to expire on its own or by suffocating with sand.

•Tile is fragile so handle with care.

Care and Maintenance

•The frame structure of this unit is made of powder-coated steel extrusion and

should resist rusting under normal use.

•Should rusting occur, we suggest using a steel brush on the affected area followed

by a spray coating of high temperature anti-rust paint.

•For additional rust proofing of the bowl, grate or mesh lid we recommend that a

coat of high temperature primer is applied before use.

•You may cover the fire pit with a Protective Cover when the fire pit is not in use.

Ensure the fire pit has completely cooled down before using the Protective Cover.

Rectangular Fire Pit/BBQ

Assembly Instructions

Please check all packing material carefully before discarding, as some parts may be

encased in the packing material.

Step 1

Attach the top frame (A) to the

4pcs of corner posts/legs (C) by

using screws (J) and tighten by

hand and do not fully tighten all

bolts yet.

Step 2

Attach the long/short frame

supports (B1 & B2) to the corner

posts/legs (C) by using screws

(J).Tighten by hand and do not

fully tighten all bolts.

Rectangular Fire Pit/BBQ

Step 3

Fully tighten all screws with

provided allen key.

Place the tile slats (D1 & D2) and

corner squares (E) in their

correctly fitted spaces.

Step 4

Place fire bowl (F) on the base as

shown, and put Log Grate (G) and

BBQ Grill (M) in the Square Bowl

(F).

Step 5

Screw Lid Ring (I) in to the Mesh

Lid (H).

Place the mesh lid on the square

bowl and use as cover.

Rectangular Fire Pit/BBQ

Step 6:

Cover the fire pit with a Protective

Cover (N) when the fire pit is not

in use. Ensure the fire pit has

completely cooled down before

using the Protective Cover

Further Warnings and Precautions

•FOR OUTDOOR USE ONLY.

•KEEP THE OUTDOOR FIRE PIT AT LEAST 20 FEET AWAY FROM ANY

FLAMMABLE SURFACE OR DWELLING.

•KEEP AWAY FROM CHILDREN AND PETS.

•CHECK WITH LOCAL COUNCIL FOR ORDINANCES REGARDING THE USE OF

OUTDOOR FIRE PITS.

•NEVER USE GASOLINE, KEROSENE, LIGHTER FLUID, ALCOHOL OR ANY

OTHER FLAMMABLE MATERIAL TO LIGHT YOUR FIRE.

•ALWAYS USE GLOVES AND PROTECTIVE GLASSES WHEN LOADING THE

FIRE PIT OR EXTINGUISHING THE FIRE.

•NEVER LEAVE THE FIREPIT UNATTENDED WHEN NOT IN USE.

•DO NOT MOVE THE FIRE PIT WHEN HOT OR LIT.

•ALWAYS SET THE OUTDOOR FIREPIT ON A LEVEL NON-FLAMMABLE

SURFACE.

•NEVER OVER LOAD THE OUTDOOR FIREPIT.

•ALWAYS MAKE SURE THE FIRE AND ASHES ARE COMPLETELY

EXTINGUISHED WHEN NOT IN USE OR UNATTENDED.

•HAVE A FIRE EXTINGUISHER AVAILABLE NEAR THE FIRE PIT IN CASE OF

EMERGENCY.

Rectangular Fire Pit/BBQ

•THE LOG GRATE IS NOT INTENDED FOR COOKING, AND SHOULD NOT BE

USED FOR THIS PURPOSE.

•DO NOT BURN COAL, LEAVES OR OTHER COMBUSTIBLE MATERIALS IN

THE FIRE PIT.

Care and Maintenance

This fire pit is made of powder coated steel and under normal use and conditions, is

rust resistant. However if scratched, or under certain atmospheric conditions rust may

occur. Should rust occur, we suggest using a steel brush or steel wool to remove the

rust on the affected area. When the area is clean, apply a coat of primer an when dry

spray a high heat anti rust metal paint onto the frame.

We also recommend that after each use, the fire pit be cleaned, and when not in use

the fire pit be covered.

content, concepts, ideas, diagrams or images may be reproduced or transmitted in any

form or by any means, electronic or mechanical, including photocopying, scanning or

recording, or any information storage and retrieval system, without express permission

or consent from the publisher.
