Crafstman 139.18570DM User manual

1/2 HP
GARAGE DOOR OPENER
For Residential Use Only
Models • 139.18570DM
Read and follow all safety rules and
operating instructions before first use of
this product.
Fasten the manual near the garage door
after installation.
Periodic checks of the opener are
required to ensure safe operation.
Owner’s Manual
ENGLISH
Sears Canada, Inc., Toronto, Ontario M5B 2B8
■Safety Precautions
■Assembly
■Installation
■Adjustment
■Maintenance
■Operation
■Troubleshooting
■Parts List

2
TABLE OF CONTENTS
When you see these Safety Symbols and Signal Words on the
following pages, they will alert you to the possibility of serious
injury or death if you do not comply with the warnings that
accompany them. The hazard may come from something
mechanical or from electric shock. Read the warnings carefully.
When you see this Signal Word on the following pages, it will
alert you to the possibility of damage to your garage door and/
or the garage door opener if you do not comply with the
cautionary statements that accompany it. Read them carefully.
INTRODUCTION
Safety Symbol and Signal Word Review
This garage door opener has been designed and tested to offer safe service provided it is installed, operated, maintained and tested in
strict accordance with the instructions and warnings contained in this manual.
Mechanical
Electrical
Introduction 2-7
Safety symbol and signal word review . . . . . . . . . . . . . . . . . . . .2
Preparing your garage door . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Tools needed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Planning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-5
Carton inventory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Hardware inventory. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Assembly 8-11
Assemble the rail and install the trolley . . . . . . . . . . . . . . . . . . .8
Fasten the rail to the motor unit and
install the idler pulley . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Install the chain/cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Tighten the chain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Installation 11-26
Installation safety instructions . . . . . . . . . . . . . . . . . . . . . . . . .11
Determine the header bracket location . . . . . . . . . . . . . . . . . . .12
Install the header bracket . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Attach the rail to the header bracket. . . . . . . . . . . . . . . . . . . . .14
Position the opener. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Hang the opener . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Install the door control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Install the lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Attach the emergency release rope and handle . . . . . . . . . . . .18
Electrical requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
Install The Protector System®. . . . . . . . . . . . . . . . . . . . . . 20-22
Fasten the door bracket . . . . . . . . . . . . . . . . . . . . . . . . . . . 23-24
Connect the door arm to the trolley . . . . . . . . . . . . . . . . . . 25-26
Adjustment 27-29
Adjust the travel limits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Adjust the force . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Test the safety reversal system. . . . . . . . . . . . . . . . . . . . . . . . . 29
Test The Protector System®. . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Operation 30-34
Operation safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Using your garage door opener . . . . . . . . . . . . . . . . . . . . . . . . 30
Using the wall-mounted door control . . . . . . . . . . . . . . . . . . . . 31
To open the door manually. . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Care of your garage door opener . . . . . . . . . . . . . . . . . . . . . . . 32
Having a problem? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Diagnostic chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Programming 35-36
To add or reprogram a hand-held remote control . . . . . . . . . . 35
To erase all codes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
3-Function Remotes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
To add, reprogram or change
a Keyless Entry PIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Repair Parts 37-38
Rail assembly parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Installation parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Motor unit assembly parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Accessories 39
Warranty 39
Repair Parts and Service 40

3
To prevent damage to garage door and opener:
ALWAYS disable locks BEFORE installing and operating the• opener.
ONLY operate garage door opener at 120V, 60 Hz to avoid• malfunction and damage.
Preparing your garage door
Before you begin:
Disable locks.•
Remove any ropes connected to garage door.•
Complete the following test• to make sure your garage door is
balanced and is not sticking or binding:
Lift the door about halfway as shown. Release the door. If1. balanced, it should stay in place, supported entirely by its
springs.
Raise and lower the door to see if there is any binding or2. sticking.
If your door binds, sticks, or is out of balance, call a trained door
systems technician.
Tools needed
During assembly, installation and adjustment of the opener,
instructions will call for hand tools as illustrated below.
To prevent possible SERIOUS INJURY or DEATH:
ALWAYS call a trained door systems technician if garage• door binds, sticks, or is out of balance. An unbalanced
garage door may not reverse when required.
NEVER try to loosen, move or adjust garage door, door• springs, cables, pulleys, brackets or their hardware, ALL of
which are under EXTREME tension.
Disable ALL locks and remove ALL ropes connected to• garage door BEFORE installing and operating garage door
opener to avoid entanglement.
2
1
Pliers
Wire Cutters
Claw Hammer
Hack Saw
Screwdriver
Adjustable End Wrench
Sockets and Wrench
1/2", 5/8", 7/16", 9/16"
and 1/4"
Drill
Tape Measure
2
1
Stepladder
Pencil
Drill Bits
3/16", 5/16"
and 5/32"
Carpenter’s
Level (optional)
Sectional Door
One-Piece Door

4
Safety Reversing Sensor
Header Wall
Access Door
— — — — — — — —
Safety Reversing
Sensor
Gap between floor
and bottom of door
must not exceed 1/4" (6 mm).
Extension Spring
Horizontal and vertical reinforcement
is needed for lightweight garage doors
(fiberglass, steel, aluminum, door with
glass panels, etc.). See page 23 for details.
Support bracket &
fastening hardware
is required.
See page 16.
FINISHED CEILING
Motor unit
Wall-mounted
Door Control
OR
Torsion Spring
Slack in chain tension
is normal when
garage door is closed.
Vertical
Centerline
of Garage
Door
SECTIONAL DOOR INSTALLATION
Planning
Identify the type and height of your garage door. Survey your
garage area to see if any of the conditions below apply to your
installation. Additional materials may be required. You may find it
helpful to refer back to this page and the accompanying
illustrations as you proceed with the installation of your opener.
Depending on your requirements, there are several installation
steps which may call for materials or hardware not included in
the carton.
Installation Step 1 – Look at the wall or ceiling above the• garage door. The header bracket must be securely fastened to
structural supports.
Installation Step 5 – Do you have a finished ceiling in your• garage? If so, a support bracket and additional fastening
hardware may be required.
Installation Step 10 – Depending upon garage construction,• extension brackets or wood blocks may be needed to install
sensors.
Installation Step 10 – Alternate floor mounting of the safety• reversing sensor will require hardware not provided.
Do you have an access door in addition to the garage door? If• not, Model 18752 Emergency Key Release is required. See
Accessories page.
Trolley
Header
Wall
Garage
Door
Header
Bracket
Straight
Door
Arm
Emergency
Release
Rope & Handle
Door
Bracket
Curved
Door
Arm
Garage
Door
Spring Chain
Trolley
Stop Bolt
CLOSED POSITION
Look at the garage door where it meets the floor. Any gap• between the floor and the bottom of the door must not exceed
1/4" (6 mm). Otherwise, the safety reversal system may not
work properly. See Adjustment Step 3. Floor or door should be
repaired.
Sectional Door Installations
Do you have a steel, aluminum, fiberglass or glass panel door?• If so, horizontal and vertical
reinforcement is required (Installation Step 11).
The opener should be installed above the center of the door. If• there is a torsion spring or center bearing plate in the way of
the header bracket, it may be installed within 4 feet (1.22 m)
to the left or right of the door center. See Installation Steps 1
and 11.
If your door is more than 7 feet (2.13 m) high, see rail• extension kits listed on Accessories page.

5
Access
Door
Safety
Reversing Sensor
Safety
Reversing
Sensor
Gap between floor
and bottom of door
must not exceed 1/4" (6 mm).
Door
Bracket Straight
Door
Arm
Garage
Door
CLOSED POSITION
Header
Bracket
Curved
Door Arm
Chain
Emergency
Release
Rope &
Handle
Cable
Rail
Trolley Stop Bolt
Header
Wall
Planning (Continued)
ONE-PIECE DOOR INSTALLATIONS
Generally, a one-piece door does not require reinforcement. If• your door is lightweight, refer to the information relating to
sectional doors in Installation Step 11.
Depending on your door’s construction, you may need• additional mounting hardware for the door bracket (Step 11).
Safety Reversing
Sensor
Access
Door
FINISHED CEILING
Support bracket
& fastening
hardware is required.
See page 16.
Safety Reversing
Sensor
Header Wall
Gap between floor
and bottom of door
must not exceed 1/4" (6 mm).
Wall-mounted
Door Control
Rail
Motor Unit
Slack in chain tension
is normal when garage
door is closed.
ONE-PIECE DOOR WITHOUT TRACK
Header
Bracket
Trolley
Straight
Door
Arm
Emergency
Release
Rope & Handle
Door Bracket
Curved
Door
Arm
Header
Wall
Cable
Rail
Garage Door
Trolley Stop Bolt
CLOSED POSITION
Without a properly working safety reversal system, persons
(particularly small children) could be SERIOUSLY INJURED or
KILLED by a closing garage door.
The gap between the bottom of the garage door and the• floor MUST NOT exceed 1/4" (6 mm). Otherwise, the safety
reversal system may not work properly.
The floor or the garage door MUST be repaired to eliminate• the gap.
ONE-PIECE DOOR WITH TRACK

6
Straight Door
Arm Section
Curved Door
Arm Section
Safety Labels
and
Literature
2-Conductor Bell Wire
White & White/Red
Idler Pulley
Motor Unit with 2 Light Lenses
Chain and Cable
Hanging Brackets
The Protector System®
(2) Safety Reversing Sensors
(1 Sending Eye and 1 Receiving Eye)
with 2-Conductor White & White/Black
Bell Wire attached
Door Bracket
SECURITY✚®
3-Function Remote Control (2)
Trolley
Safety Sensor
Bracket (2)
Rail
Center/Back
Sections
"U" Bracket
Rail
Front (header)
Section
Header Bracket
Chain Spreader
SECURITY✚®
Keyless Entry
®
Surge Protector
LOCK
LIGHT
Premium Control Console
Your garage door opener is packaged in one carton which
contains the motor unit and all parts illustrated below.
Accessories will depend on the model purchased. If anything is
missing, carefully check the packing material. Parts may be stuck
in the foam. Hardware for assembly and installation is shown on
the next page. Save the carton and packing material until
installation and adjustment is complete.
Carton Inventory

7
Master
Link (2)
Idler Bolt (1)
Nut
3/8" (1)
Trolley Threaded Shaft (1)
Bolt 1/4"-20x1-3/4" (2)
Lock Washer
3/8" (1)
Lock Nut
1/4"-20 (2)
Spacer (2)
Wing Nut
1/4"-20 (2)
Carriage Bolt
1/4"-20x1/2" (2) Handle
Nut 5/16"-18 (8)
Ring
Fastener (3)
Insulated
Staples (30)
Drywall Anchors (2)
Clevis Pin
5/16"x1" (1)
Rope
Carriage Bolt
5/16"-18x2-1/2" (2)
Lock Washer 5/16" (7)
Lag Screw
5/16"-9x1-5/8" (2) Hex Bolt 5/16"-18x7/8" (4)
Clevis Pin
5/16"x1-1/4" (1)
Lag Screw
5/16"-18x1-7/8" (2) Screw
6ABx1-1/4" (2) Screw 6-32x1" (2)
Clevis Pin
5/16"x1-1/2" (1)
Screw 6ABx1-1/2"
Spacer (2)
Washer 5/8" (2)
Bolt 1/4"-20x2-1/2 (1)
Chain Extension Link Parts
Hardware Inventory
Separate all hardware and group as shown below for the assembly and installation procedures.
ASSEMBLY HARDWARE
INSTALLATION HARDWARE

8
Front Rail
(TO DOOR)
Window
Cut-Out
Screwdriver
Idler
Pulley
Hole
Tabs
Back Rails
(TO MOTOR UNIT)
Trolley
Tapered
End
Tapered
End
Inner Trolley
Wear Pads
Outer Trolley
Tapered
End
Tapered
End
FRONT RAIL
(TOP)
KEEP LARGER
HOLE ON TOP

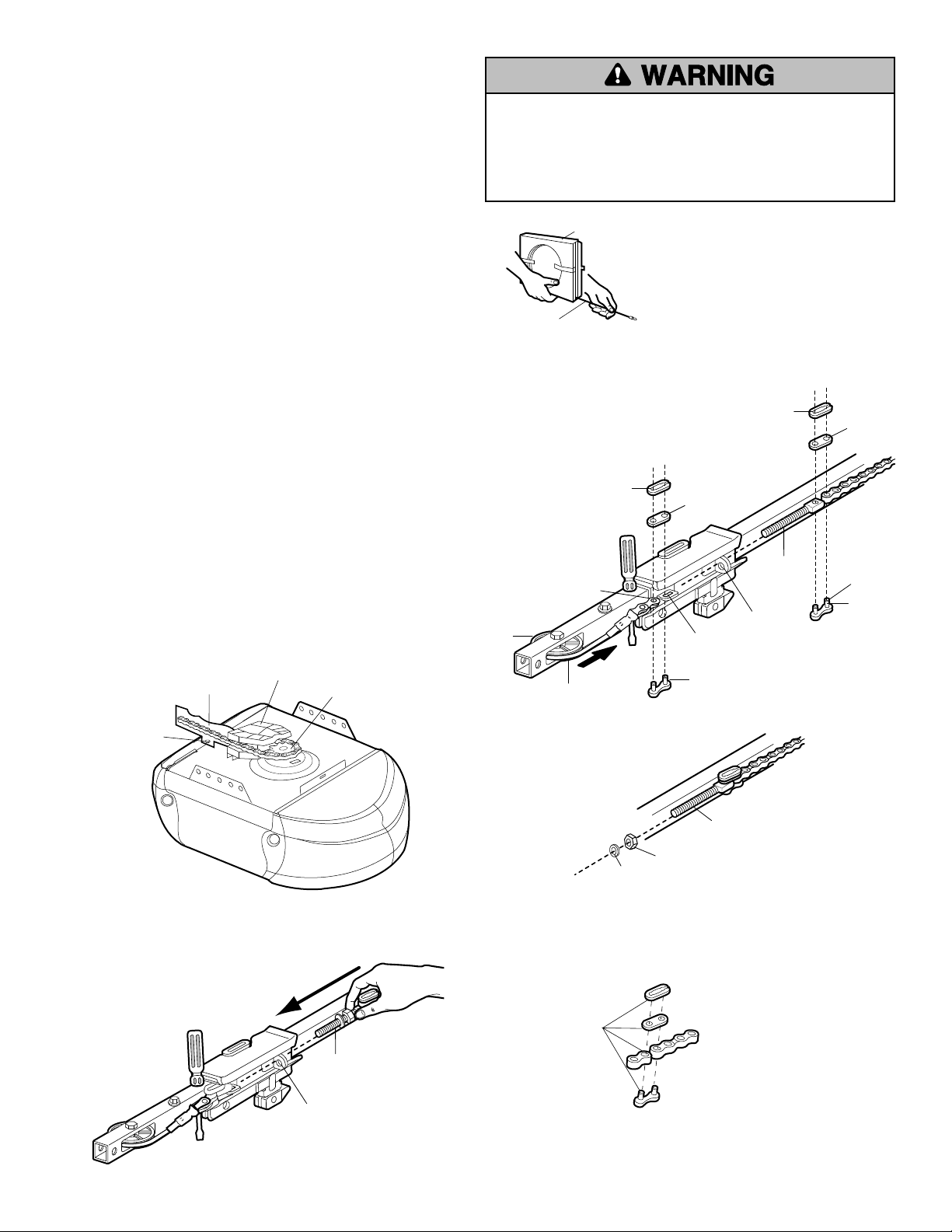

ASSEMBLY STEP 1
Assemble the Rail & Install the Trolley
To avoid installation difficulties, do not run the garage door
opener until instructed to do so.
To prevent INJURY from pinching, keep hands and fingers
away from the joints while assembling the rail.
The front rail has a cut out “window” at the door end (see
illustration). The hole above this window is larger on the top of
the rail than on the bottom. A smaller hole 3-1/2" (8.9 cm) away
is close to the rail edge. Rotate the back rail so it has a similar
hole close to the opposite edge, about 4-3/4" (12 cm) from the far
end.
Remove the straight door arm and hanging bracket packaged1. inside the front rail and set aside for Installation Step 5 and 12.
NOTE: To prevent INJURY while unpacking the rail carefully
remove the straight door arm stored within the rail section.
Align the rail sections on a flat surface as shown and slide the2. tapered ends into the larger ones. Tabs along the side will lock
into place.
Place the motor unit on packing material to protect the cover,3. and rest the back end of the rail on top. For convenience, put a
support under the front end of the rail.
As a temporary trolley stop, insert a screwdriver into the hole4. 10" (25 cm) away from the front of the rail, as shown.
Check to be sure there are 4 plastic wear pads inside the inner5. trolley. If they became loose during shipping, check all packing
material. Snap them back into position as shown.
Slide the trolley assembly along the rail from the back end to6. the screwdriver.

9
To avoid SERIOUS damage to garage door opener, use ONLY
those bolts/fasteners mounted in the top of the opener.
ASSEMBLY STEP 3
Install the Idler Pulley
Lay the chain/cable beside the rail, as shown. Grasp the end of• the cable and pass approximately 12" (30 cm) of cable through
the window. Allow it to hang until Assembly Step 5.
Remove the tape from the idler pulley. The inside center• should be pre-greased. If dry, regrease to ensure proper
operation.
Place the idler pulley into the window as shown.•
Insert the idler bolt from the top through the rail and pulley.• Tighten with a 3/8" lock washer and nut underneath the rail
until the lock washer is compressed.
Rotate the pulley to be sure it spins freely.•
Insert a 1/4"-20x1-3/4 bolt into the trolley stop hole in the• front of the rail as shown. Tighten securely with a 1/4"-20 lock
nut.
Lock
Washer
3/8" Nut 3/8"
Cable Link
Idler
Bolt
Chain and
Cable Pulley Rail
Bolt
Nut
Washer
Trolley
Idler
Pulley
Idler
Pulley
Grease
Inside Pulley
Screwdriver
Trolley
Stop Hole
Bolt
Lock
Nut
Nut 3/8"
Idler Bolt Lock Nut 1/4"-20
Bolt 1/4"-20x1-3/4" Lock Washer 3/8"
HARDWARE SHOWN ACTUAL SIZE
ASSEMBLY STEP 2
Fasten the Rail to the Motor Unit
Insert a 1/4"-20x2-1/2 bolt, washer and spacer into the cover• protection bolt hole on the back end of the rail as shown.
Install lower spacer and washer then tighten securely with a
1/4"-20 lock nut. Do NOT overtighten.
Remove the two bolts from the top of the motor unit.•
Place the “U” bracket, flat side down onto the motor unit and• align the bracket hole with the bolt holes. Fasten with the
previously removed bolts.
Align the rail assembly with the top of the motor unit. Slide the• rail end onto the “U” bracket, all the way to the stops that
protrude on the top and sides of the bracket.
Attach spreader to the motor unit with two screws.•
Hex Screws
8-32x7/16"
Chain
Spreader
Motor Unit
Sprocket
SLIDE RAIL TO STOPS
ON TOP AND SIDES
OF BRACKET
Bolts
"U" Bracket
Cover
Protection
Bolt Hole
Spacer
Spacer
Bolt
1/4"-20x2-1/2
Washer 5/8"
Washer 5/8"
Lock Nut
1/4"-20
Bolt 1/4"-20x2-1/2
Spacer
Washer 5/8" Lock Nut 1/4"-20
HARDWARE SHOWN ACTUAL SIZE

10
ASSEMBLY STEP 4
Install the Chain/Cable
Pull the cable around the idler pulley and toward the trolley.1.
Connect the cable to the retaining slot on the trolley, as2. shown (Figure 1):
From below, push pins of master link bar up through cable• link and trolley slot.
Push master link cap over pins and past pin notches.•
Slide clip-on spring over cap and onto pin notches until• both pins are securely locked in place.
With the trolley against the screwdriver, dispense the3. remainder of the cable/chain along the rail toward the
motor unit into the slot on the chain spreader, around the
sprocket onto the chain spreader and continuing to the
trolley assembly. The sprocket teeth must engage the
chain (Figure 2).
Check to make sure the chain is not twisted, then connect it4. to the threaded shaft with the remaining master link.
NOTE: If needed, the length of the chain/cable can be
increased by using the chain extension link parts (Figure 5).
Thread the inner nut and lock washer onto the trolley5. threaded shaft (Figure 3).
Insert the trolley threaded shaft through the hole in the6. trolley. Be sure the chain is not twisted (Figure 4).
Loosely thread the outer nut onto the trolley threaded shaft.7.
Remove the screwdriver.8.
Idler
Pulley
Round
Hole
Master Link
Clip-On Spring Master
Link Cap
Trolley
Threaded
Shaft
Master
Link Bar
Cable
Link
Cable
Pin
Notch
Master Link
Clip-On Spring Master
Link Cap
Slotted
Hole
Master
Link Bar
Round
Hole
Trolley
Threaded
Shaft
To avoid possible SERIOUS INJURY to fingers from moving
garage door opener:
ALWAYS keep hand clear of sprocket while operating• opener.
Securely attach chain spreader BEFORE operating.•
Leave Chain and Cable
Inside Dispensing
Carton to Prevent Kinking.
Dispensing Carton
Keep Chain and Cable
Taut When Dispensing
"U" Bracket Motor Unit
Sprocket
Chain
Spreader
Bolt
Figure 1
Figure 2
Trolley
Threaded
Shaft
Inner Nut
5/16"
Lock
Washer
5/16"
Figure 3
Figure 4 Chain
Extension
Link Parts
Figure 5

11
INSTALLATION
ASSEMBLY STEP 5
Tighten the Chain
Spin the inner nut and lock washer down the trolley threaded• shaft, away from the trolley.
To tighten the chain, turn outer nut in the direction shown• (Figure 1).
When the chain is approximately 1/4" (6 mm) above the base• of the rail at its midpoint, re-tighten the inner nut to secure the
adjustment.
Sprocket noise can result if chain is too loose.
When installation is complete, you may notice some chain droop
with the door closed. This is normal. If the chain returns to the
position shown in Figure 2 when the door is open, do not
re-adjust the chain.
NOTE: During future maintenance, ALWAYS pull the emergency
release handle to disconnect trolley before adjusting chain.
NOTE: You may notice loosening of chain after Adjustment Step 3
(Test the Safety Reversal System). Check for proper tension and
readjust chain if necessary. Then repeat Adjustment Step 3.
You have now finished assembling your garage door opener.
Please read the following warnings before proceeding to the
installation section.
Outer
Nut Lock
Washer
Trolley
Threaded
Shaft
Inner Nut
To Tighten
Inner Nut
To Tighten Outer Nut
Base of Rail Mid length of Rail
Chain
1/4" (6 mm)
Figure 1
Figure 2
IMPORTANT INSTALLATION INSTRUCTIONS
To reduce the risk of SEVERE INJURY or DEATH:
WARNING
WARNING
WARNINGWARNING
READ AND FOLLOW ALL INSTALLATION WARNINGS1. AND INSTRUCTIONS.
Install garage door opener ONLY on properly balanced2. and lubricated garage door. An improperly balanced door
may not reverse when required and could result in
SEVERE INJURY or DEATH.
ALL repairs to cables, spring assemblies and other3. hardware MUST be made by a trained door systems
technician BEFORE installing opener.
Disable4. ALL locks and remove ALL ropes connected to
garage door BEFORE installing opener to avoid
entanglement.
Install garage door opener 7 feet (2.13 m) or more above5. floor.
Mount emergency release handle 6 feet (1.83 m) above6. floor.
NEVER connect garage door opener to power source until7. instructed to do so.
NEVER wear watches, rings or loose clothing while8. installing or servicing opener. They could be caught in
garage door or opener mechanisms.
Install wall-mounted garage door control:9.
within sight of the garage door.•
out of reach of children at minimum height of 5 feet• (1.5 m).
away from ALL moving parts of the door.•
Place entrapment warning label on wall next to garage10. door control.
Place manual release/safety reverse test label in plain view11. on inside of garage door.
Upon completion of installation, test safety reversal12. system. Door MUST reverse on contact with a 1-1/2"
(3.8 cm) high object (or a 2x4 laid flat) on the floor.

12

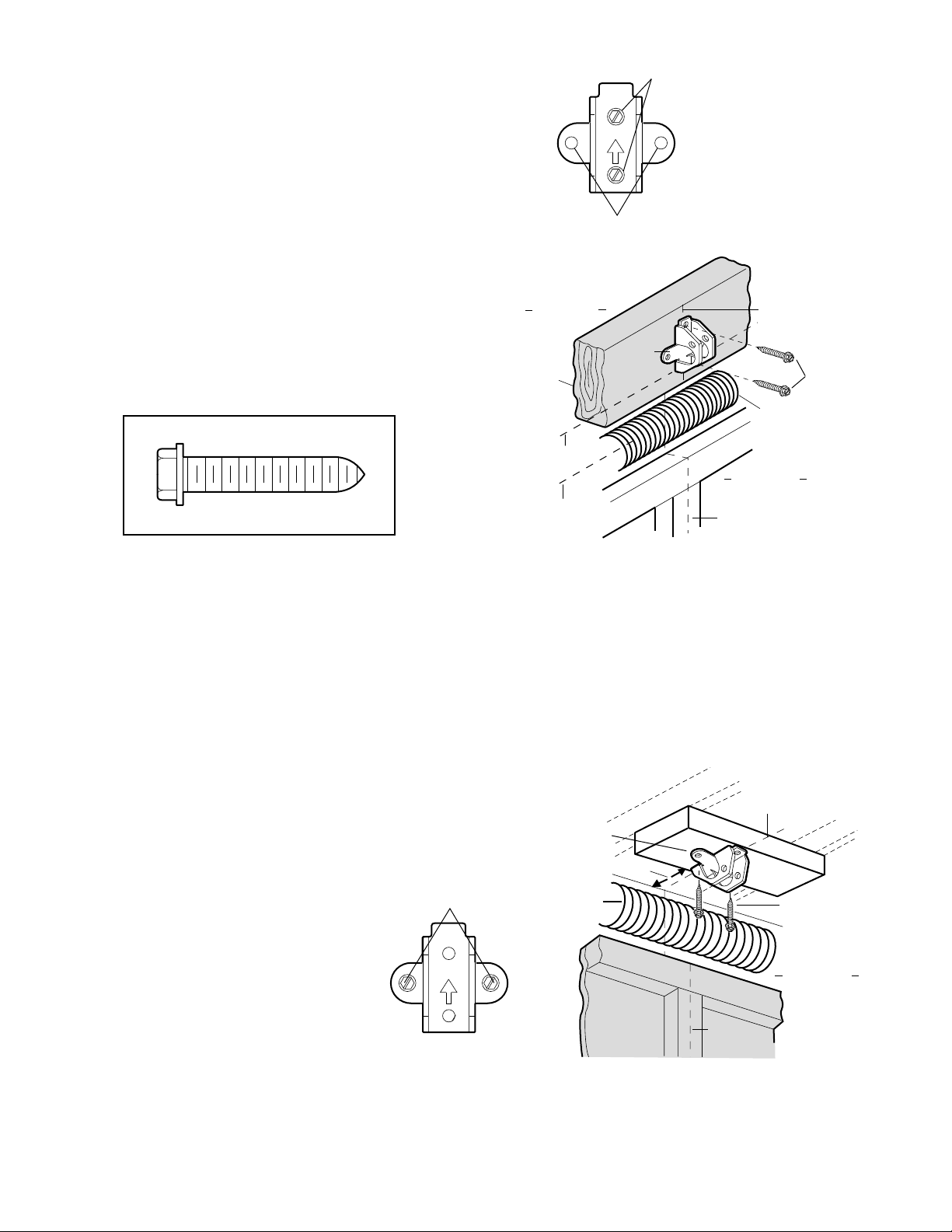

INSTALLATION STEP 1
Determine the Header Bracket Location
Installation procedures vary according to garage door types.
Follow the instructions which apply to your door.
Close the door and mark the inside vertical centerline of the1. garage door.
Extend the line onto the header wall above the door.2.
You can fasten the header bracket within 4 feet
(1.22 m) of the left or right of the door center only if a
torsion spring or center bearing plate is in the way; or you
can attach it to the ceiling (see page 13) when clearance is
minimal. (It may be mounted on the wall upside down if
necessary, to gain approximately 1/2" (1 cm).)
If you need to install the header bracket on a 2x4 (on wall or
ceiling), use lag screws (not provided) to securely fasten the
2x4 to structural supports as shown here and on page 13.
Open your door to the highest point of travel as shown. Draw3. an intersecting horizontal line on the header wall above the
high point:
2" (5 cm) above the high point for sectional door and one-• piece door with track.
8" (20 cm) above the high point for one-piece door without• track.
This height will provide travel clearance for the top edge of the
door.
NOTE: If the total number of inches exceeds the height
available in your garage, use the maximum height possible, or
refer to page 13 for ceiling installation.
To prevent possible SERIOUS INJURY or DEATH:
Header bracket• MUST be RIGIDLY fastened to structural
support on header wall or ceiling, otherwise garage door
might not reverse when required. DO NOT install header
bracket over drywall.
Concrete anchors• MUST be used if mounting header bracket
or 2x4 into masonry.
NEVER• try to loosen, move or adjust garage door, springs,
cables, pulleys, brackets, or their hardware, ALL of which
are under EXTREME tension.
ALWAYS• call a trained door systems technician if garage
door binds, sticks, or is out of balance. An unbalanced
garage door might not reverse when required.
Header Wall
Sectional door with curved track
Highest Point
of Travel
Door
2" (5 cm)
One-piece door with horizontal track
Door
Track
Header Wall
Highest Point
of Travel
2" (5 cm)
Track
Header Wall
Vertical Centerline
of Garage Door
Level
(optional)
2x4
2x4
Structural
Supports
OPTIONAL
CEILING
MOUNT
FOR
HEADER
BRACKET
Unfinished
Ceiling
Door
Jamb
Hardware
One-piece door without track:
jamb hardware
8" (20 cm)
Highest
Point
of Travel Door
Pivot
8" (20 cm)
One-piece door without track:
pivot hardware
Highest
Point
of Travel
Header Wall
Header Wall

13
Lag Screws
5/16"x9x1-5/8"
– Finished Ceiling –
Door
Spring
Header Wall
UP
Ceiling Mounting Holes
6" (15 cm) Maximum
Header
Bracket
Vertical
Centerline
of Garage Door
Garage Door
Vertical Centerline
of Garage Door
INSTALLATION STEP 2
Install the Header Bracket
You can attach the header bracket either to the wall above the
garage door, or to the ceiling. Follow the instructions which will
work best for your particular requirements. Do not install the
header bracket over drywall. If installing into masonry, use
concrete anchors (not provided).
Wall Header Bracket Installation
Center the bracket on the vertical centerline with the bottom• edge of the bracket on the horizontal line as shown (with the
arrow pointing toward the ceiling).
Mark the vertical set of bracket holes. Drill 3/16" pilot holes• and fasten the bracket securely to a structural support with the
hardware provided.
Lag Screw
5/16"x9x1-5/8"
HARDWARE SHOWN ACTUAL SIZE
Ceiling Header Bracket Installation
Extend the vertical centerline onto the ceiling as shown.•
Center the bracket on the vertical mark, no more than• 6" (15 cm) from the wall. Make sure the arrow is pointing
away from the wall. The bracket can be mounted flush against
the ceiling when clearance is minimal.
Mark the side holes. Drill 3/16" pilot holes and fasten bracket• securely to a structural support with the hardware provided.
UP
Wall Mount
Optional
Mounting Holes
Lag Screws
5/16"x9x1-5/8"
Highest Point of
Garage Door Travel
Vertical
Centerline
of Garage Door
Header Wall
Garage Door
Door Spring
2x4
Structural
Support
Vertical
Centerline
of Garage Door
Header
Bracket
Horizontal
Line

14
Opener Carton or
Temporary
Support
Garage
Door
OPTION WITH
SOME EXISTING
INSTALLATIONS
Header Bracket
Idler Pulley
Header Wall
Header
Bracket
Mounting
Hole
Existing
Header Bracket
Spacer
Mounting
Hole
Existing
Clevis Pin
Clevis Pin 5/16"x1-1/2" Ring Fastener

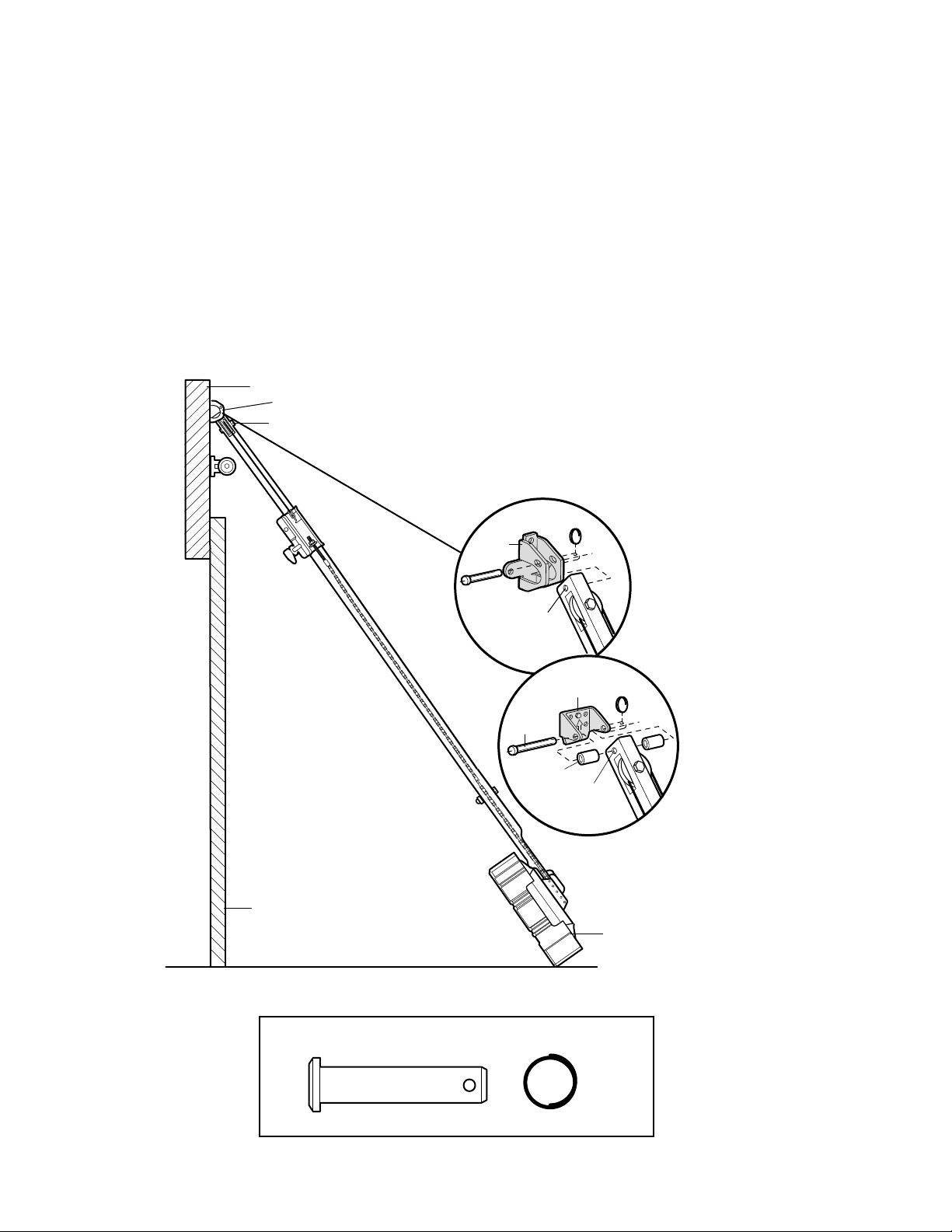

INSTALLATION STEP 3
Attach the Rail to the Header Bracket
NOTE: (Optional) With some existing installations, you may
re-use the old header bracket with the two plastic spacers
included in the hardware bag. Place the spacers inside the
bracket on each side of the rail, as illustrated.
Position the opener on the garage floor below the header• bracket. Use packing material as a protective base. NOTE: If
the door spring is in the way you’ll need help. Have someone
hold the opener securely on a temporary support to allow the
rail to clear the spring.
Position the rail bracket against the header bracket.•
Align the bracket holes and join with a clevis pin 5/16"x1-1/2"• as shown.
Insert a ring fastener to secure.•
HARDWARE SHOWN ACTUAL SIZE

15
ONE-PIECE DOOR WITHOUT TRACK
A 2x4 on its side is convenient for setting an ideal
door-to-rail distance.
Remove foam packaging.•
Raise the opener onto a stepladder. You will need help at this• point if the ladder is not tall enough.
Open the door all the way and place a 2x4 on its side on the• top section of the door beneath the rail.
The top of the door should be level with the top of the motor• unit. Do not position the opener more than 4" (10 cm) above
this point.
INSTALLATION STEP 4
Position the Opener
Follow instructions which apply to your door type as illustrated.
SECTIONAL DOOR OR ONE-PIECE DOOR WITH TRACK
A 2x4 laid flat is convenient for setting an ideal door-to-rail
distance.
Remove foam packaging.•
Raise the opener onto a stepladder. You will need help at this• point if the ladder is not tall enough.
Open the door all the way and place a 2x4 laid flat on the top• section beneath the rail.
If the top section or panel hits the trolley when you raise• the door, pull down on the trolley release arm to disconnect
inner and outer sections. Slide the outer trolley toward the
motor unit. The trolley can remain disconnected until
Installation Step 12 is completed.
To prevent damage to garage door, rest garage door opener
rail on 2x4 placed on top section of door.
Header
Bracket
Top of Door
2x4 is used to determine
the correct mounting height
from ceiling.
Rail
2x4 is used to determine
the correct mounting height
from ceiling.
Door
ENGAGED RELEASED
Trolley
Release Arm

16
INSTALLATION STEP 5
Hang the Opener
Three representative installations are shown. Yours may be
different. Hanging brackets should be angled (Figure 1) to provide
rigid support. On finished ceilings (Figure 2 and Figure 3), attach
a sturdy metal bracket to structural supports before installing the
opener. This bracket and fastening hardware are not provided.
Measure the distance from each side of the motor unit to the1. structural support.
Cut both pieces of the hanging bracket to required lengths.2.
Drill 3/16" pilot holes in the structural supports.3.
Attach one end of each bracket to a support with4. 5/16"-18x1-7/8" lag screws.
Fasten the opener to the hanging brackets with 5/16"-18x7/8"5. hex bolts, lock washers and nuts.
Check to make sure the rail is centered over the door (or in6. line with the header bracket if the bracket is not centered
above the door).
Remove the 2x4. Operate the door manually. If the door hits7. the rail, raise the header bracket.
NOTE: DO NOT connect power to opener at this time.
To avoid possible SERIOUS INJURY from a falling garage door
opener, fasten it SECURELY to structural supports of the
garage. Concrete anchors MUST be used if installing ANY
brackets into masonry.
Lag Screw 5/16"-18x1-7/8"
Hex Bolt
5/16"-18x7/8" Nut 5/16"-18 Lock Washer 5/16"
HARDWARE SHOWN ACTUAL SIZE
Measure
Distance Lag Screws
5/16"-18x1-7/8"
Structural
Supports
Bolt 5/16"-18x7/8"
Lock Washer 5/16"
Nut 5/16"-18
Bracket
(Not Provided)
Lag Screws
5/16"-18x1-7/8"
(Not Provided)
Bolt 5/16"-18x7/8"
Lock Washer 5/16"
Nut 5/16"-18
Hidden
Support
Bolt 5/16"-18x7/8"
Lock Washer 5/16"
Nut 5/16"-18
Bolt 5/16"-18x7/8"
Lock Washer 5/16"
Nut 5/16"-18
Lag Screws
5/16"-18x1-7/8"
(Not Provided)
Bolt 5/16"-18x7/8"
Lock Washer 5/16"
Nut 5/16"-18
FINISHED CEILING
FINISHED CEILING
Figure 1
Figure 2
Figure 3

17
To prevent possible SERIOUS INJURY or DEATH from
electrocution:
Be sure power is not connected BEFORE installing door• control.
Connect ONLY to 24 VOLT low voltage wires.•
To prevent possible SERIOUS INJURY or DEATH from a closing
garage door:
Install door control within sight of garage door, out of reach• of children at a minimum height of 5 feet (1.5 m), and away
from ALL moving parts of door.
NEVER permit children to operate or play with door control• push buttons or remote control transmitters.
Activate door ONLY when it can be seen clearly, is properly• adjusted, and there are no obstructions to door travel.
ALWAYS keep garage door in sight until completely closed.• NEVER permit anyone to cross path of closing garage door.
INSTALLATION STEP 6
Install the Door Control
Locate door control within sight of door, at a minimum height of
5 feet (1.5 m) where small children cannot reach, away from
moving parts of door and door hardware. If installing into drywall,
drill 5/32" holes and use the anchors provided. For pre-wired
installations (as in new home construction), it may be mounted to
a single gang box (Figure 2).
Strip 7/16" (11 mm) of insulation from one end of bell wire1. and connect to the two screw terminals on back of door
control by color: white wire to 2 and white/red wire to the 1.
Remove cover by gently prying at slot in top of the cover with2. a small flat head screwdriver. Fasten with 6ABx1-1/4"
self-tapping screws (drywall installation) or 6-32x1" machine
screws (into gang box) as follows:
Install bottom screw, allowing 1/8" (3 mm) to protrude• above wall surface.
Position bottom of door control on screw head and slide• down to secure. Adjust screw for snug fit.
Drill and install top screw with care to avoid cracking• plastic housing. Do not overtighten.
Insert top tabs and snap on cover.•
(For standard installation only)3. Run bell wire up wall and
across ceiling to motor unit. Use insulated staples to secure
wire in several places. Do not pierce wire with a staple,
creating a short or open circuit.
Strip 7/16" (11 mm) of insulation from end of bell wire.4. Connect bell wire to the quick-connect terminals as follows:
white to white and white/red to red.
NOTE: When connecting multiple door controls to the
opener, twist same color wires together. Insert wires into
quick-connect holes: white to white and red/white to red.
Position the antenna wire as shown.5.
Use tacks or staples to permanently attach entrapment6. warning label to wall near door control, and manual
release/safety reverse test label in a prominent location on
inside of garage door.
NOTE: DO NOT connect power and operate opener at this time.
The trolley will travel to the full open position but will not return
to the close position until the sensor beam is connected and
properly aligned.
Drywall Anchors
Insulated
Staples
Screw 6ABx1-1/4"
(std installation)
Screw 6-32x1"
(pre-wired)
HARDWARE SHOWN ACTUAL SIZE
To Replace,
Insert Top
Tabs First
To Remove,
Twist
Here
PRE-WIRED
INSTALLATION
REMOVE & REPLACE COVER
LOCK
24 Volt
2-Conductor
Bell Wire
LIGHT
LIGHT
PREMIUM
CONTROL CONSOLE
Terminal
Screws
(BACK VIEW)
Top
Mounting
Hole
Bottom
Mounting
Hole
WHITE
2
RED
1
Bell
Wire
Strip wire 7/16" (11 mm)
7/16" (11 mm)
Red GreyWhite
Lock
Lighted
Push Button 2-Conductor
Bell Wire
Quick-Connect
Terminals
Antenna
To release or insert wire,
push in tab with screwdriver tip
Door Control
Connections
LOCK
LIGHT
Figure 2Figure 1

18
To prevent possible SERIOUS INJURY or DEATH from a falling
garage door:
If possible, use emergency release handle to disengage• trolley ONLY when garage door is CLOSED. Weak or broken
springs or unbalanced door could result in an open door
falling rapidly and/or unexpectedly.
NEVER use emergency release handle unless garage• doorway is clear of persons and obstructions.
NEVER use handle to pull door open or closed. If rope knot• becomes untied, you could fall.
Lens
Hinge
Release Tab
100 Watt (Max)
Standard
Light Bulb
Lens
Hinge
Release Tab
100 Watt (Max)
Standard
Light Bulb
Trolley
Release arm
NOTICE
Emergency
Release Handle
Overhand
Knot
Trolley
INSTALLATION STEP 7
Install the Lights
Press the release tabs on both sides of lens. Gently rotate lens• back and downward until the lens hinge is in the fully open
position. Do not remove the lens.
Install a 100 watt maximum light bulb in each socket. Light• bulb size should be A19, standard neck only. The lights will
turn ON and remain lit for approximately 4-1/2 minutes when
power is connected. Then the lights will turn OFF.
Reverse the procedure to close the lens.•
Use A19, standard neck garage door opener bulbs for• replacement.
NOTE: Use only standard light bulbs. The use of short neck or
speciality light bulbs may overheat the endpanel or light socket.
To prevent possible OVERHEATING of the endpanel or light
socket:
DO NOT use short neck or specialty light bulbs.•
DO NOT use halogen bulbs. Use ONLY incandescent.•
To prevent damage to the opener:
DO NOT use bulbs larger than 100W.•
ONLY use A19 size bulbs.•
INSTALLATION STEP 8
Attach the Emergency Release Rope and Handle
Thread one end of the rope through the hole in the top of the• red handle so “NOTICE” reads right side up as shown. Secure
with an overhand knot at least 1" (2.5 cm) from the end of the
rope to prevent slipping.
Thread the other end of the rope through the hole in the release• arm of the outer trolley.
Adjust rope length so the handle is 6 feet (1.83 m) above the• floor. Ensure that the rope and handle clear the tops of all
vehicles to avoid entanglement. Secure with an overhand knot.
NOTE: If it is necessary to cut the rope, heat seal the cut end with
a match or lighter to prevent unraveling.

19
INSTALLATION STEP 9
Electrical Requirements
To avoid installation difficulties, do not run the opener at this
time.
To reduce the risk of electric shock, your garage door opener has
a grounding type plug with a third grounding pin. This plug will
only fit into a grounding type outlet. If the plug doesn't fit into the
outlet you have, contact a qualified electrician to install the proper
outlet.
If permanent wiring is required by your local code, refer to the
following procedure.
To make a permanent connection through the 7/8" hole in the top
of the motor unit:
Remove the motor unit cover screws and set the cover aside.•
Remove the attached 3-prong cord.•
Connect the black (line) wire to the screw on the brass• terminal; the white (neutral) wire to the screw on the silver
terminal; and the ground wire to the green ground screw. The
opener must be grounded.
Reinstall the cover.•
To avoid installation difficulties, do not run the opener at this
time.
RIGHT WRONG
To prevent possible SERIOUS INJURY or DEATH from
electrocution or fire:
Be sure power is not connected to the opener, and• disconnect power to circuit BEFORE removing cover to
establish permanent wiring connection.
Garage door installation and wiring MUST be in compliance• with ALL local electrical and building codes.
NEVER use an extension cord, 2-wire adapter, or change• plug in ANY way to make it fit outlet. Be sure the opener is
grounded.
Ground Tab
Green
Ground Screw
Ground Wire
Black Wire
PERMANENT WIRING
CONNECTION
White Wire
Black
Wire

20
Invisible Light Beam
Protection Area
Safety Reversing Sensor
6" (15 cm) max. above floor Safety Reversing Sensor
6" (15 cm) max. above floor
Facing the door from inside the garage
INSTALLATION STEP 10
Install The Protector System®
The safety reversing sensor must be connected and aligned
correctly before the garage door opener will move in the down
direction.
IMPORTANT INFORMATION ABOUT
THE SAFETY REVERSING SENSOR
When properly connected and aligned, the sensor will detect an
obstacle in the path of its electronic beam. The sending eye (with
an amber indicator light) transmits an invisible light beam to the
receiving eye (with a green indicator light). If an obstruction
breaks the light beam while the door is closing, the door will stop
and reverse to full open position, and the opener lights will flash
10 times.
The units must be installed inside the garage so that the sending
and receiving eyes face each other across the door, no more than
6" (15 cm) above the floor. Either can be installed on the left or
right of the door as long as the sun never shines directly into the
receiving eye lens.
The mounting brackets are designed to clip onto the track of
sectional garage doors without additional hardware.
If it is necessary to mount the units on the wall, the brackets
must be securely fastened to a solid surface such as the wall
framing. Extension brackets (see accessories) are available if
needed. If installing in masonry construction, add a piece of wood
at each location to avoid drilling extra holes in masonry if
repositioning is necessary.
The invisible light beam path must be unobstructed. No part of
the garage door (or door tracks, springs, hinges, rollers or other
hardware) may interrupt the beam while the door is closing.
Be sure power is not connected to the garage door opener
BEFORE installing the safety reversing sensor.
To prevent SERIOUS INJURY or DEATH from a closing garage
door:
Correctly connect and align the safety reversing sensor. This• required safety device MUST NOT be disabled.
Install the safety reversing sensor so beam is NO HIGHER• than 6" (15 cm) above garage floor.
