Craftmade Civic Unipack CIU52 User manual

Installation Guide
For Model:
CIU52 Table of Contents:
Safety Tips. pg. 1
Unpacking Your Fan. pg. 2
Parts Inventory. pg. 2
Installation Preparation. pg. 3
Hanging Bracket Installation. pg. 3
Fan Assembly. pgs.4 - 5
Wiring. pg. 5
Canopy Assembly. pg. 6
Blade Assembly. pg. 6
Light Kit Assembly. pg. 7
Testing Your Fan. pg. 8
Troubleshooting. pg. 9
Parts Replacement. pg. 9
Warranty. pg. 9
net weight of fan: 18.83 lb. (8.54 kg) PRINTED IN CHINA
READ THESE INSTRUCTIONS AND
SAVE THEM FOR FUTURE USE
E192641
Civic Unipack
Federal regulations require ceiling fans
with light kits manufactured or imported
after January 1, 2009, to limit total
wattage consumed by the light kit to
190W. Therefore, this fan is equipped
with a wattage limiting device.

SAFETY TIPS.
page 1
WARNING: To reduce the risk of electrical shock, turn off the electricity to the fan at the main fuse box or circuit
panel before you begin the fan installation or before servicing the fan or installing accessories.
1. READ ALL INSTRUCTIONS AND SAFETY INFORMATION CAREFULLY BEFORE INSTALLING YOUR FAN
AND SAVE THESE INSTRUCTIONS.
CAUTION: To avoid personal injury, the use of gloves may be necessary while handling fan parts with sharp
edges.
2. Make sure all electrical connections comply with Local Codes or Ordinances, the National Electrical Code,
and ANSI/NFPA 70-1999. If you are unfamiliar with electrical wiring or if the house/building wires are
different colors than those referred to in the instructions, please use a qualified electrician.
3. Make sure you have a location selected for your fan that allows clear space for the blades to rotate,and at
least seven (7) feet (2.13 meters) of clearance between the floor and the fan blade tips. The fan should be
mounted so that the tips of the blades are at least thirty (30) inches (76 centimeters) from walls or other
upright structures.
4. The outlet box and ceiling support joist used must be securely mounted and capable of supporting at least
35 pounds (16 kilograms). The outlet box must be supported directly by the building structure. Use only
outlet boxes listed CETL or CUL in Canada or ETL or UL in USA that are marked "FOR FAN SUPPORT."
WARNING: To reduce the risk of fire,electrical shock, or personal injury, mount to the outlet box marked
"Acceptable for Fan Support of 15.9 kg (35 lb) or less," and use the mounting screws provided with the outlet box.
Most outlet boxes commonly used for the support of lighting fixtures are not acceptable for fan support and may
need to be replaced. Consult a qualified electrician if in doubt.
WARNING: To reduce the risk of fire,electrical shock, or personal injury, wire connectors provided with this fan are
designed to accept only one 12 gauge house wire and two lead wires from the fan.If your house wire is larger
than 12 gauge or there is more than one house wire to connect to the corresponding fan lead wires, consult an
electrician for the proper size wire connectors to use.
5. Electrical diagrams are for reference only. Light kits that are not packed with the fan must be CETL- or
CUL-listed (Canada) or ETL- or UL-listed (USA) and marked suitable for use with the model fan you are
installing. Switches must be CETL or CUL (Canada) or ETL or UL (USA) general use switches. Refer to the
instructions packaged with the light kits and switches for proper assembly.
6. After installation is complete, check that all connections are absolutely secure.
7. After making electrical connections, spliced conductors should be turned upward and pushed carefully up
into the outlet box. The wires should be spread apart with the grounded conductor and the
equipment-grounding conductor on opposite sides of the outlet box.
WARNING: To reduce the risk of electrical shock or fire, do not use this fan with any solid state speed control
device or control fan speed with a full range dimmer switch. [Using a full range dimmer switch to control fan
speed will cause a loud humming noise from fan.] (Note:This fan is suitable for use with remote control.)
8. Do not operate the reverse switch until fan has come to a complete stop.
9. Do not insert anything between the fan blades while they are rotating.
WARNING: To reduce the risk of personal injury, do not bend the blade arms during assembly or after installation.
Do not insert objects into the path of the blades.
WARNING: To avoid personal injury or damage to the fan and other items, be cautious when working around or
cleaning the fan.
10. Do not use water or detergents when cleaning the fan or fan blades.A dry dust cloth or lightly dampened
cloth will be suitable for most cleaning.
WARNING: To reduce the risk of personal injury, use only parts provided with this fan. The use of parts OTHER
than those provided with this fan will void the warranty.
NOTE: The important safety precautions and instructions appearing in the manual are not meant to cover all
possible conditions and situations that may occur. It must be understood that common sense and caution are
necessary factors in the installation and operation of this fan.

page 2
1. Unpacking Your Fan.
Carefully open the packaging.Remove items
from Styrofoam inserts. Remove motor housing
and place on carpet or Styrofoam to avoid
damage to finish. Do not discard fan carton or
Styrofoam inserts should this fan need to be
returned for repairs.
Check against parts inventory that all parts have
been included.

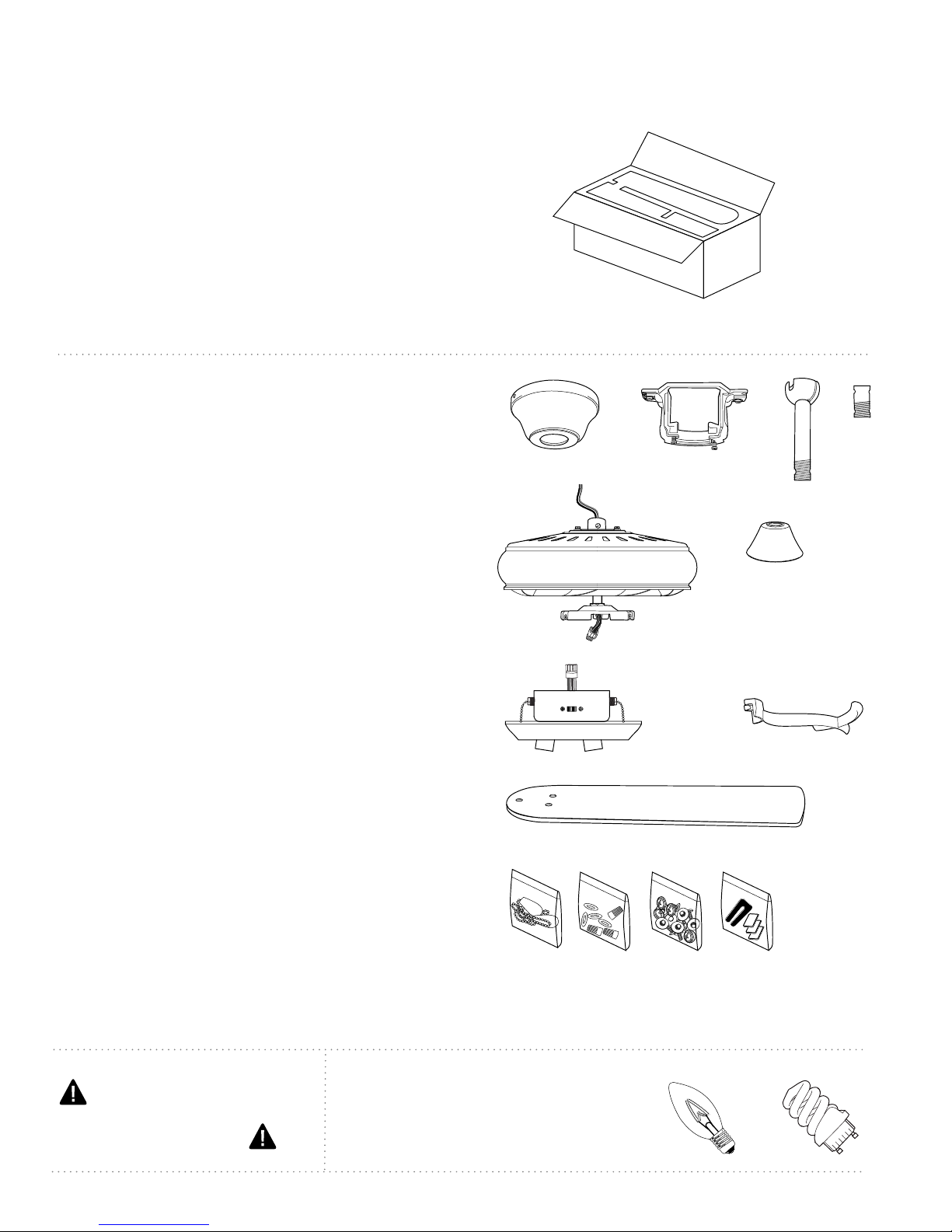

2. Parts Inventory.
a. canopy. 1 piece
b. hanging bracket. 1 piece
c. 6in. downrod and hanging ball.1 piece
d. 2in. downrod. 1 piece
e. motor housing. 1 piece
f. yoke cover. 1 piece
g. light kit fitter. 1 piece
h. blade arm. 5 pieces
i. blade. 5 pieces
j. hardware packs
a
ef
g
bc
IMPORTANT REMINDER: You must
use the parts provided with this fan for
proper installation and safety.
h
d
j
i
required bulbs:
2 x 40 watt max. candelabra base bulbs
(included with CIU52xxx5);
or 2 x 9 watt compact fluourescent GU24
bulbs (included with CUI52xxx5A)
or

3. Installation Preparation.
4. Hanging Bracket Installation.
page 3
ON
OFF
ON
OFF
Vaulted ceiling
angle is not to
exceed 25 degrees.
downrod
installation flushmount installation
12ft. - 20ft.
12ft. - 20ft.
(3.66m - 6.1m)
(3.66m - 6.1m)
blade edge
7 feet
(2.13m)
(76cm)
30
inches

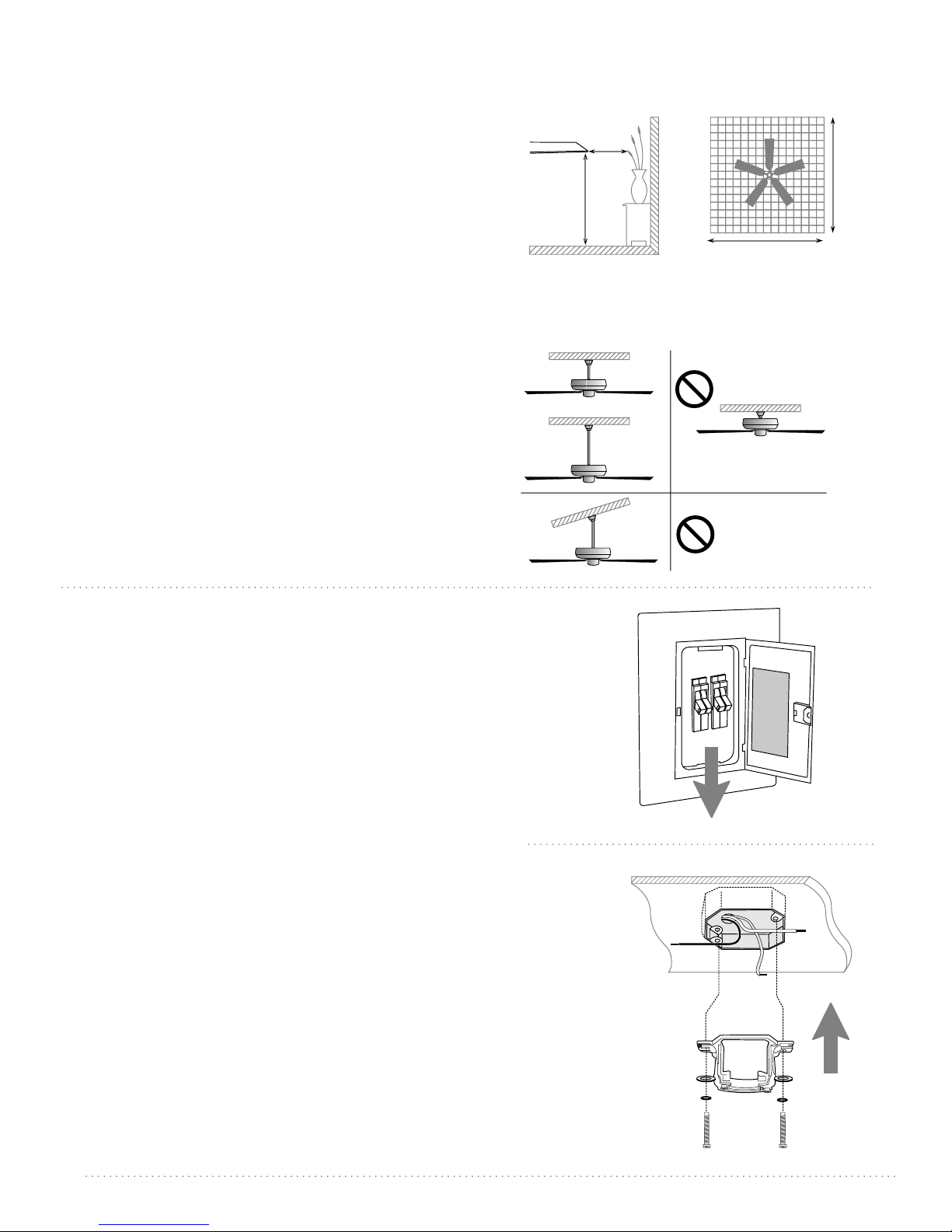

To prevent personal injury and damage,ensure
that the hanging location allows the blades a
clearance of 7ft. (2.13m) from the floor and 30in.
(76cm) from any wall or obstruction.
This fan is suitable for room sizes up to 400 square
feet (37.2 square meters).
Installation requires these tools:
Phillips screwdriver, flat-head screwdriver,
adjustable pliers or wrench, stepladder, wire
cutters, and rated electrical tape.
Turn off circuit breakers to current fixture from
breaker panel and be sure operating light switch is
turned to the OFF position.
WARNING: Failure to disconnect power supply prior to
installation may result in serious injury.
Remove existing fixture.
WARNING: When using an existing outlet box, be sure
the outlet box is securely attached to the building
structure and can support the full weight of the fan.
Ensure outlet box is clearly marked "Suitable for Fan
Support." If not, it must be replaced with an approved
outlet box. Failure to do so can result in serious injury.
CAUTION: Be sure outlet box is grounded properly and
that a ground wire (GREEN or bare) is present.
Install hanging bracket to outlet box using original
screws, spring washers and flat washers provided
with new or original outlet box.*If installing on a
vaulted ceiling, face opening of hanging bracket
towards high point of ceiling. Arrange electrical
wiring around the back of the hanging bracket and
away from the hanging bracket opening.
*Note: It is very important that you use the proper
hardware when installing the hanging bracket as this
will support the fan.
hanging bracket
spring washers
outlet box screws
flat washers
This fan can be mounted with a downrod
on a regular (no-slope) or vaulted ceiling.The
hanging length can be extended by purchasing
a longer downrod (0.5in./1.27cm diameter).
Other installation, such as flushmount, is NOT
available for this fan.

page 4
5. Fan Assembly.

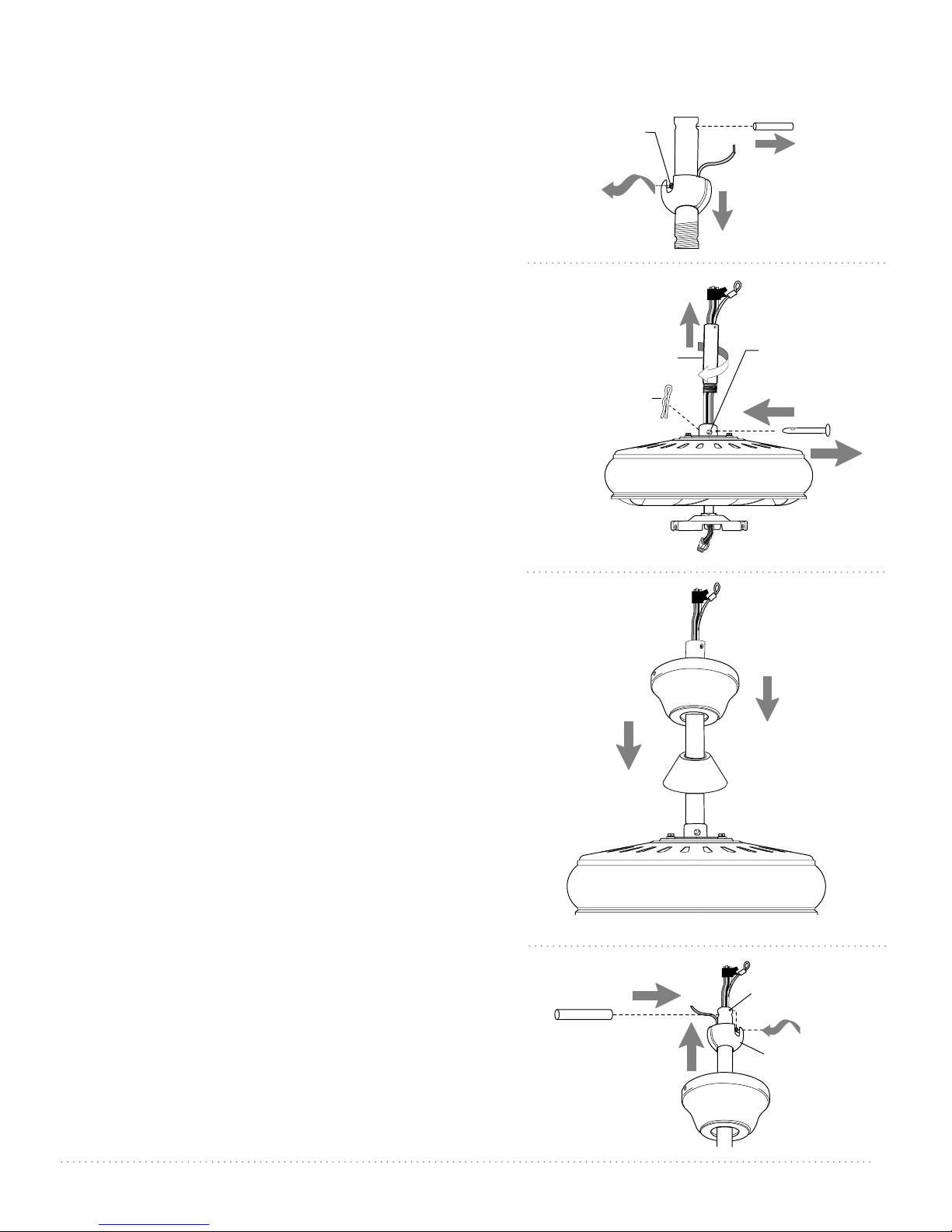

Remove hanging ball from downrod provided by
loosening set screw on hanging ball. Lower hanging
ball and remove stop pin and then slide hanging
ball off of the downrod. [Refer to diagram 1.]
Loosen yoke set screws and nuts at top of motor
housing. Remove pin and clip from motor housing
yoke. [Refer to diagram 2.]
Tip: To prepare for threading electrical wires
through downrod, apply a small piece of electrical
tape to the ends of the electrical wires--this will
keep the wires together when threading them
through the downrod. [Refer to diagram 2.]
Determine the length of downrod you wish to use.
Thread safety cable and electrical wires through
threaded end of downrod and pull extra wire slack
from the upper end of the downrod. [Refer to
diagram 2.]
Thread downrod into the motor housing yoke until
holes for pin and clip in downrod align with holes in
yoke--make sure wires do not get twisted. Re-insert
pin and clip that were previously removed. Tighten
yoke set screws and nuts securely. [Refer to
diagram 2.]
Slide yoke cover and canopy over downrod. [Refer
to diagram 3.]
Thread safety cable and wires through hanging ball;
then slide hanging ball over downrod--the top of
the downrod should be noted as having a set screw
hole; use this hole when setting the set screw. Insert
stop pin into top of downrod and raise hanging ball.
Be sure stop pin aligns with slots on the inside of
the hanging ball.Tighten set screw securely. [Refer to
diagram 4.]
WARNING: Failure to tighten set screw (on hanging
ball) completely could result in the fan becoming
loose and possibly falling.
["Fan Assembly" continued on next page.]
NOTE: The important safety precautions and instructions
appearing in the manual are not meant to cover all possible
conditions and situations that may occur. It must be
understood that common sense and caution are necessary
factors in the installation and operation of this fan.
set screw
hanging ball
stop pin
diagram 2
diagram 1
diagram 3
diagram 4
canopy
motor
housing
yoke cover
downrod
downrod
electrical wiring safety cable
yoke set screw
and nut
pin
clip
set screw hole
hanging ball
stop pin
motor
housing

WARNING:Turn off circuit breakers to current fixture
from breaker panel and be sure switch is turned to the
OFF position.
CAUTION: Be sure outlet box is properly grounded and
that a ground wire (GREEN or Bare) is present.
Make sure all electrical connections comply with Local
Codes or Ordinances and the National Electrical Code.If
you are unfamiliar with electrical wiring or if the
house/building wires are different colors than those
referred to in the instructions below, please use a qualified
electrician.
Note: Excess lead wire length from the fan can be cut to
the desired length and then stripped.
When downrod is secured in place on the hanging
bracket, electrical wiring can be made as follows:
Connect BLACK and BLUE wires from fan to BLACK
wire from ceiling with wire connector provided.
Connect WHITE wire from fan to WHITE wire from
ceiling with wire connector provided.
Connect all GROUND (GREEN) wires together from fan
to BARE/GREEN wire from ceiling with wire connector
provided.
If you intend to control the fan light with a separate
light switch, connect BLUE wire from fan to the BLACK
(or RED) supply from the independent switch.
page 5
5. Fan Assembly. (cont.)
With the hanging bracket secured to the outlet box and
able to support the fan, you are now ready to hang your
fan. Grab the fan firmly with two hands. Slide downrod
through opening in hanging bracket and let hanging ball
rest on the hanging bracket.Turn the hanging ball slot
until it lines up with the hanging bracket tab.
WARNING: Failure to align slot in hanging ball with tab in
hanging bracket may result in serious injury or death.
Tip: Seek the help of another person to hold the
stepladder in place and to lift the fan up to you once you
are set on the ladder.
Find a secure attachment point (wood ceiling joist highly
recommended) and secure safety cable. It will be necessary
to use a heavy duty wood screw, washer and lock washer
(not supplied) with the safety cable loop. If necessary,
adjust the loop at the end of the safety cable.The loop at
the end of the safety cable should just fit over the threads
on the wood screw. Test safety cable by pulling on loose end
with pliers. If the safety cable slips, the loop must be adjusted
tighter. Extra cable slack can be left in ceiling area.
hanging ball slot
hanging bracket tab
safety
cable
safety cable loop
wood
ceiling
joist
wood screw
and washer
6.Wiring.
white supply wire
*
black
black
white
white
blue
black supply wire
from
ceiling
from fan
ground
(green
or bare)
ground
(green or bare)
* Wrap each wire connector separately with
electrical tape as an extra safety measure.
This fan is remote control adaptable (remote
control sold separately).
motor housing

page 6
7. Canopy Assembly.
Locate 2 screws on underside of hanging bracket
and remove screw closest to the open end of the
hanging bracket. Partially loosen the other screw.
Lift canopy to hanging bracket. Place rounded part
of slotted hole in canopy over loosened screw in
hanging bracket and push up.Twist canopy to
lock. Re-insert screw that was removed and then
tighten both screws securely. canopy
screw
hanging bracket
screw
8. Blade Assembly.
Time Saver:Washers for blade screws can be set
on each blade screw prior to installing blades.
Locate 15 blade attachment screws and washers
in hardware pack.Hold blade arm up to blade
and align holes.Insert 3 blade attachment
screws (along with washers) with fingers first
and then tighten screws securely with a Phillips
screwdriver. Repeat for the remaining blades.
Remove blade arm screws and lock washers
from underside of motor. If plastic motor locks
are installed with blade arm screws, discard
plastic motor locks (save blade arm screws and
lock washers to secure blade arms).Align blade
arm holes with motor screw holes and attach
blade arm with lock washers and blade arm
screws. [Note: Use slot located on switch
housing plate for easy access to motor screw
holes with screwdriver.] Before securing screws
permanently, repeat with remaining blade arms.
Securely tighten all screws.
Important:Tighten blade arm screws twice a
year.
blade attachment
screws and washers
motor housing
blade arm
blade
plastic
motor
lock
blade arm screws
lock washers

page 7
9. Light Kit Assembly.
switch
housing
plate
switch
housing
female plug
motor housing
Remove 3 screws from switch housing plate.
Connect male plug from fan to female plug
from light kit fitter, matching up the colors on
the male plug with the colors on the female
plug for correct fit. Be sure that the plugs
connect completely.
Align holes in switch housing (at top of light
kit fitter) with holes in switch housing plate.
Re-insert screws that were just removed and
securely tighten all 3 screws with a Phillips
screwdriver.
Install two 40 watt max.candelabra base
bulbs (included with CIU52xxx5); or two
9 watt compact flourescent GU24 bulbs
(included with CIU52xxx5A).
Important:When replacing bulbs, please
allow bulb(s) and glass shade to cool down
before touching them.
Align grooves on glass shade with nodules on
inside of light kit fitter and push up gently on
glass shade.Twist glass shade to the RIGHT
(clockwise) until glass shade locks into place.
Pull down VERY GENTLY on glass shade to make
sure that glass shade is secure.
male plug
light kit
fitter
bulb
glass shade
nodule
slot
Hg LAMP CONTAINS MERCURY
Manage in accordance with Spills,Disposal and Site Cleanup
Requirements.In case of breakage,follow clean-up
procedures provided by contacts below.
www.epa.gov/cflcleanup
1-866-284-4010

page 8
10. Testing Your Fan.
fan
pull chain
extension
reverse
switch
It is recommended that you test fan before
finalizing installation. Restore power from circuit
box and light switch (if applicable).Test fan
speeds with pull chain labeled SPEED. (diagram 1)
Start at the OFF position (no blade movement).
First pull will set the fan to HI. Second pull will set
the fan to MEDIUM.Third pull will set the fan to
LOW. Fourth pull will again set the fan to the OFF
setting.Test light with the pull chain labeled
LIGHT. If fan and/or light do (does) not function,
please refer to "Troubleshooting" section to solve
any issues before contacting Customer Service.
Turn fan completely off before moving the reverse
switch. Set reverse switch to recirculate air
depending on the season:
- LEFT position in summer (diagram 2)
- RIGHT position in winter (diagram 3)
A ceiling fan will allow you to raise your
thermostat setting in summer and lower your
thermostat setting in winter without feeling a
difference in your comfort.
Important: Reverse switch must be set either
completely to the LEFT or completely to the RIGHT
for fan to function. If the reverse switch is set in
the middle position (diagram 4), fan will not
operate.
Attach pull chain extensions supplied or custom
pull chain extensions (sold separately) to the end
of the pull chains.

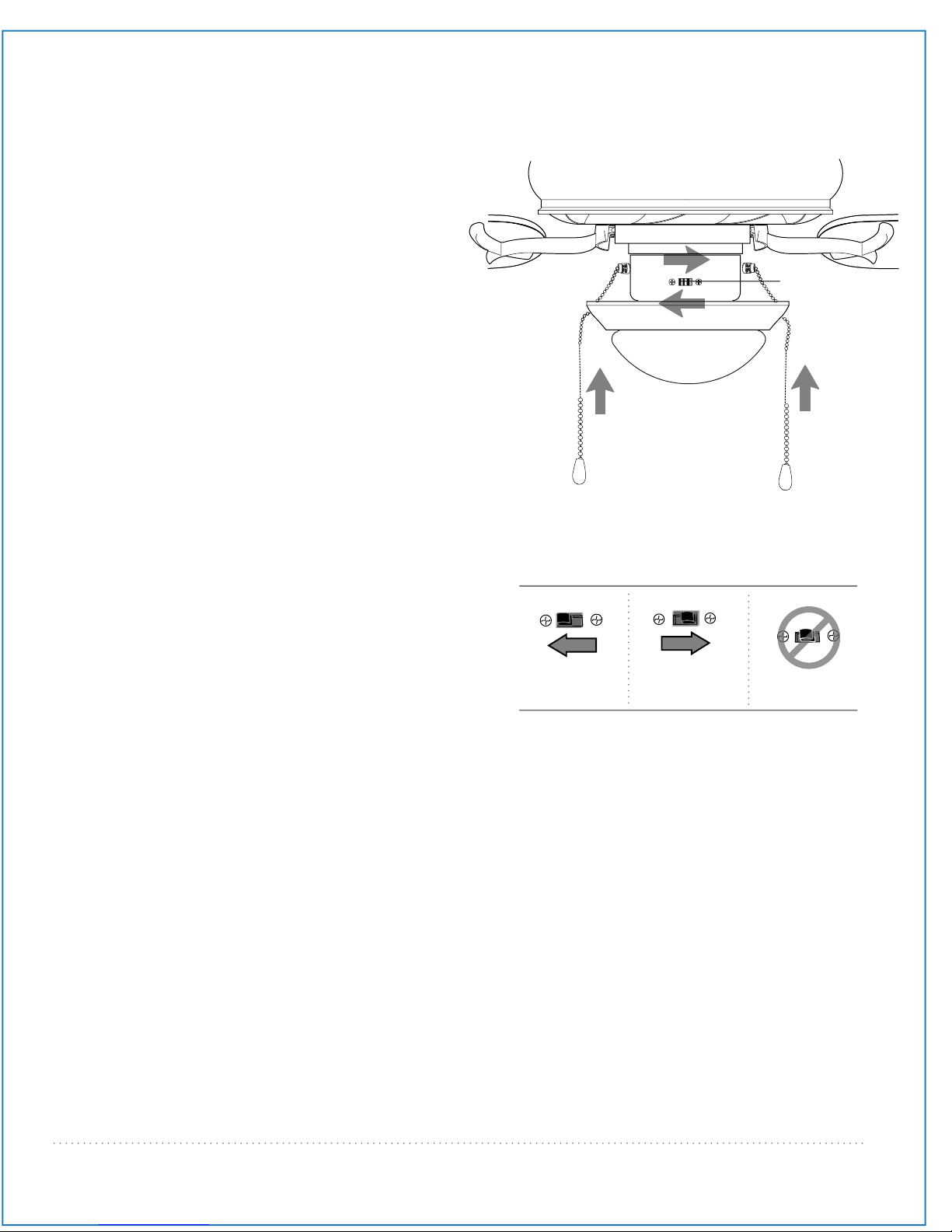

diagram 1
diagram 2 diagram 3 diagram 4
light
pull chain
extension

page 9
Troubleshooting. Warranty.
Problem: Fan fails to operate.
Solutions:
1. Check wall switch to fan.
2.Verify that reverse switch is set completely in either
direction.
3. Check to be sure fan is wired properly.
4.Verify that male and female plugs are connected
properly in switch housing.
Problem: Light kit not lighting.
Solutions:
1. Check wall switch to fan.
2. Check that bulbs are installed correctly.
3. Check to be sure wires in canopy are wired properly.
4.Verify that male and female plugs are connected
properly in switch housing.
Problem: Fan operates but light fails.
Solutions:
1. Check that bulbs are installed correctly.
2. Check to be sure wires in canopy are wired properly.
3.Verify that male and female plugs are connected
properly in switch housing.
4. Replace defective bulbs with same type of bulb.
Problem: Lighting source (up-light, down-light or
both), if applicable, not functioning.
Solution:
Wattage Limiting Device has interrupted the flow of
electricity to the light source.Ensure bulbs total no
more than 190W in the light source.
Problem: Fan wobbles.
Solutions:
1. Use the balancing kit provided in one of the
hardware packs. If no blade balancing kit is provided,
please call Customer Support,1-800-486-4892,to request
one.
2. Check to make sure set screw(s) on motor housing
yoke is (are) tightened securely.
3. Check to be sure set screw on hanging ball is
tightened securely.
Parts Replacement.
For parts and information, please refer to
"Parts Inventory" on page 2.
Craftmade/Ellington Customer Support:
1-800-486-4892
www.craftmadebrands.com
WARNING: Failure to disconnect power supply
prior to troubleshooting any wiring issues may
result in serious injury.
CRAFTMADE/ELLINGTON LIFETIME WARRANTY:
CRAFTMADE/ELLINGTON warrants this fan to the original
household purchaser for indoor use under the following
provisions:
1-YEAR WARRANTY: CRAFTMADE/ELLINGTON will replace
or repair any fan which has faulty performance due to a
defect in material or workmanship.Contact
Craftmade/Ellington Customer Service at 1-800-486-4892
to arrange for return of fan. Return fan, shipping prepaid, to
Craftmade/Ellington.We will repair or ship you a
replacement fan,and we will pay the return shipping cost.
5-YEAR WARRANTY: CRAFTMADE/ELLINGTON will repair or
replace at no charge to the original purchaser any fan
motor that fails to operate satisfactorily when failure
results from normal use.
RETURN FAN MOTOR ONLY, shipping prepaid, to
Craftmade/Ellington.We will repair or ship purchaser a
replacement motor and Craftmade/Ellington will pay the
return shipping cost.
6-YEAR to LIFETIME LIMITED WARRANTY:
CRAFTMADE/ELLINGTON will repair the fan, at no charge
for labor only to the original purchaser, if the fan motor
fails to operate satisfactorily when failure results from
normal use.Parts used in the repair will be billed to the
purchaser at prevailing prices at time of repair.
The purchaser shall be responsible for all costs incurred
in the removal, reinstallation and shipping of the product
for repairs.
This warranty does not apply when damage from
mechanical, physical, electrical or water abuse results in
causing the malfunction. Deterioration of finishes or other
parts due to time or exposure to salt air is specifically
exempted under this warranty.
Neither Craftmade/Ellington nor the manufacturer will
assume any liability resulting from improper installation or
use of this product. In no case shall the company be liable
for any consequential damages for breach of this, or any
other warranty expressed or implied whatsoever.This
limitation as to consequential damages shall not apply in
states where prohibited.
NOLI1409
