Craftmade CXL52 User manual

DIMENSIONS
Limited Lifetime Warranty
WARRANTY
SPECIFICATIONS STANDARD
OPERATION

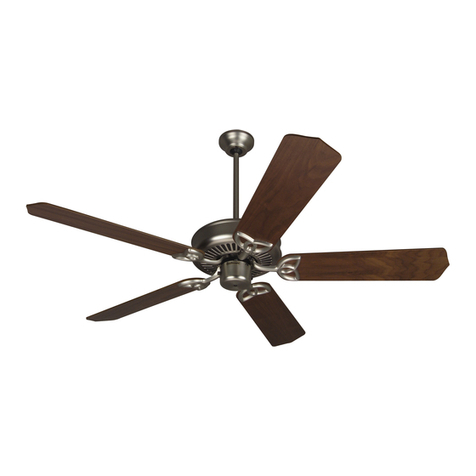

CXL52AB with B5/52S-WB6 and LKE116
Antique Brass CXL and light kit with Walnut blades.
A (2” DR) – 113⁄8
A (6” DR) – 153⁄8
B (2” DR) – 91⁄2
B (6” DR) – 131⁄2
C – 111⁄2
D – 51⁄8
E – 41⁄2
Blade Sweep – 52” or 56”
# of Blades – 5
Blade Pitch – 14°
Motor Size – 188 x 15
AMPS (HI Speed) – .70
Watts (HI Speed) – 80
RPM (HI⁄MED⁄LO) – 210/120/78
CFM (HI Speed) – 7680
Almond, Antique Brass, Antique White, Bronze, Bronze,
Brownstone, Brushed Nickel, English Toffee, European Bronze,
Flat Black, Galvinized, Graystone, Mocha, Morrocan Gold,
Old Iron, Pearl Essence, Pewter, Polished Brass, Rust, Rustic Iron,
Sandstone White, Textured White, Verde Green, White,
White Brass, Oiled Bronze, Aged Bronze, Burnt Sienna,
Saddle Leather
FINISHES
MODEL CXL52
All Craftmade fans are shipped with
two down rods, a 2” for mounting
close to the ceiling, a 6” rod for
mounting farther away.
CXL
