Craftmade FRM52 User manual

PRINTED IN CHINA
Table of Contents:
Safety Tips. pg. 2
Unpacking Your Fan. pg. 3
Parts Inventory. pg. 3
Installation Preparation. pg. 4
Hanging Bracket Installation. pg. 4
Fan Assembly. pgs. 5 - 6
Wiring. pgs. 6 - 7
Canopy Assembly. pg. 7
Blade Assembly. pg. 8
Switch Housing Plate Assembly. pg. 9
Handheld Remote Control Assembly. pg. 10
Automated Learning Process./
Activating Code. pg. 11
Remote/Wall Control Operation. pg. 11
Smart WiFi Remote Control (Optional). pg.12
Testing Your Fan. pg. 12
Troubleshooting. pg. 13
Warranty. pg. 13
Parts Replacements. pg. 13
net weight of fan: 18.26 lb. (8.3 kg)
READ THESE INSTRUCTIONS
AND SAVE THEM FOR FUTURE USE
For Model:
FRM52
Forum
E192641
page 1
Installation Guide

SAFETY TIPS
page 2
WARNING: To reduce the risk of electrical shock, turn off the electricity to the fan at the main fuse box or circuit panel before you begin the fan
installation or before servicing the fan or installing accessories.
1. READ ALL INSTRUCTIONS AND SAFETY INFORMATION CAREFULLY BEFORE INSTALLING YOUR FAN AND SAVE THESE INSTRUCTIONS.
CAUTION: To avoid personal injury, the use of gloves may be necessary while handling fan parts with sharp edges.
2. Make sure all electrical connections comply with Local Codes or Ordinances, the National Electrical Code, and ANSI/NFPA 70-1999. If you are
unfamiliar with electrical wiring or if the house/building wires are different colors than those referred to in the instructions, please use a
qualified electrician.
3. Make sure you have a location selected for your fan that allows clear space for the blades to rotate,and at least seven (7) feet (2.13 meters) of
clearance between the floor and the fan blade tips. The fan should be mounted so that the tips of the blades are at least thirty (30)
inches (76 centimeters) from walls or other upright structures.
4. The outlet box and ceiling support joist used must be securely mounted, and capable of supporting at least 35 pounds (16 kilograms). The
outlet box must be supported directly by the building structure. Use only CUL (Canada) or UL (USA) listed outlet boxes marked "FOR
FAN SUPPORT."
WARNING: To reduce the risk of fire, electrical shock, or personal injury, mount to the outlet box marked "Acceptable for Fan Support of 15.9 kg (35
lb) or less," and use the mounting screws provided with the outlet box. Most outlet boxes commonly used for the support of lighting fixtures are
not acceptable for fan support and may need to be replaced. Consult a qualified electrician if in doubt.
WARNING: To reduce the risk of fire, electrical shock, or personal injury, wire connectors provided with this fan are designed to accept only one 12
gauge house wire and two lead wires from the fan.If your house wire is larger than 12 gauge or there is more than one house wire to connect to
the corresponding fan lead wires, consult an electrician for the proper size wire connectors to use.
5. Electrical diagrams are for reference only.
6. After installation is complete, check that all connections are absolutely secure.
7. After making electrical connections, spliced conductors should be turned upward and pushed carefully up into the outlet box. The wires
should be spread apart with the grounded conductor and the equipment-grounding conductor on opposite sides of the outlet box.
WARNING: To reduce the risk of fire or electrical shock, do not use this fan with any solid state speed control device or control fan speed with a full
range dimmer switch. [Using a full range dimmer switch to control fan speed will cause a loud humming noise from fan.]
8. Do not operate the reverse switch until fan has come to a complete stop.
9. Do not insert anything between the fan blades while they are rotating.
WARNING: To reduce the risk of personal injury,do not bend the blade arms during assembly or after installation. Do not insert objects into the
path of the blades.
WARNING: To avoid personal injury or damage to the fan and other items, be cautious when working around or cleaning the fan.
10. Do not use water or detergents when cleaning the fan or fan blades.A dry dust cloth or lightly dampened cloth will be suitable for most
cleaning.
WARNING: To reduce the risk of personal injury,use only parts provided with this fan. The use of parts OTHER than those provided with this
fan will void the warranty.
WARNING: This fan MUST be installed with the safety cable provided with the fan. Failure to use the safety cable provided may result in personal
injury, damage to the fan or damage to other property.
Modifications not approved by the party responsible for compliance could void the user's authority to operate the equipment. [The equipment
refers to the remote and/or wall control and/or LED light kit.]
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following measures:
* Reorient or relocate the receiving antenna.
* Increase the separation between the equipment and receiver.
* Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
* Consult the dealer or an experienced radio/TV technician for help.
The remote and wall control complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this remote and wall
control may not cause harmful interference, (2) this remote and wall control must accept any interference received, including interference that
may cause undesired operation.
Distributed by: Craftmade, 650 S. Royal Lane, Coppell,TX, 75019; 1-800-486-4892
NOTE: The important safety precautions and instructions appearing in the manual are not meant to cover all possible conditions and situations
that may occur. It must be understood that common sense and caution are necessary factors in the installation and operation of this fan.

page 3

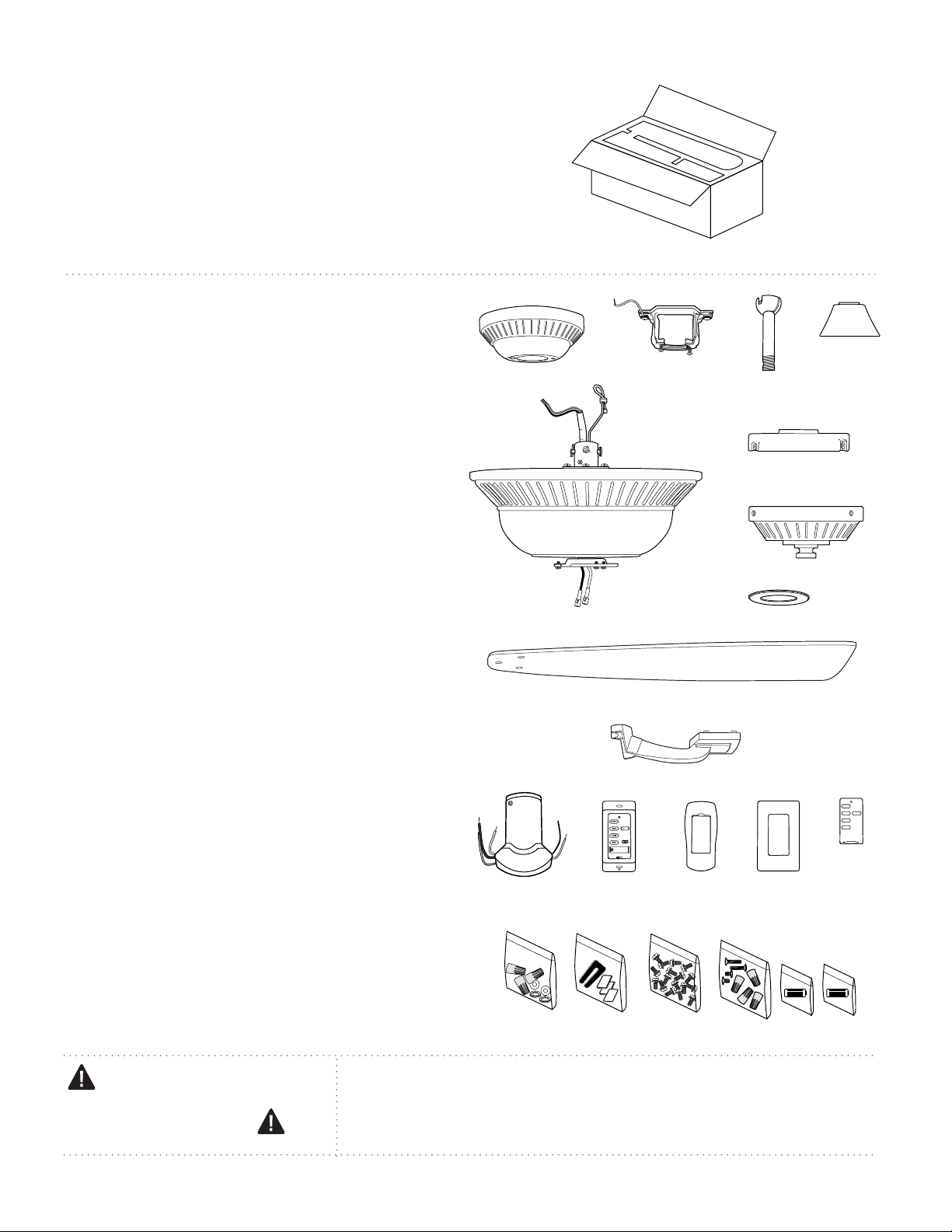

1. Unpacking Your Fan.
2. Parts Inventory.
Carefully open the packaging. Remove items from
Styrofoam inserts. Remove motor housing and place
on carpet or Styrofoam to avoid damage to finish.
Do not discard fan carton or Styrofoam inserts
should this fan need to be returned for repairs.
Check against parts inventory that all parts have
been included.
IMPORTANT REMINDER: You must
use the parts provided with this fan for
proper installation and safety.
f
h
i
j
e
a. canopy. 1 piece
b. hanging bracket.1 piece
c. downrod and hanging ball. 1 piece
d. yoke cover. 1 piece
e. motor housing. 1 piece
f.fitter plate. 1 piece
g. switch housing plate. 1 piece
h. canopy cover. 1 piece
i. blade. 5 pieces
j. blade arm. 5 pieces
k. remote control receiver. 1 piece
l. wall control. 2 pieces
m. remote control cover. 1 piece
n. plate. 1 piece
o. faceplate. 3 pieces
p. hardware packs
ad
bc
g
mn
kl
p
o
11
-
DIM ON

page 4
3. Installation Preparation.
4. Hanging Bracket Installation.
Vaulted ceiling
angle is not to
exceed 25 degrees.
downrod
installation flushmount
installation
7 feet
(2.13 m) (76 cm)
30
inches
12 ft. - 20 ft.
(3.66 m - 6.1 m)
(3.66 m - 6.1 m)
blade edge
To prevent personal injury and damage, ensure
that the hanging location allows the blades a
clearance of 7 feet (2.13m) from the floor and
30 in (76cm) from any wall or obstruction.
This fan is suitable for room sizes up to 400 square
feet (37.2 square meters).
Installation requires these tools:
Phillips screwdriver, flathead screwdriver,
adjustable pliers or wrench, stepladder, wire
cutters, and rated electrical tape.
This fan can be mounted with a downrod
on a regular (no-slope) or vaulted ceiling. The
hanging length can be extended by purchasing
a longer downrod (0.5in. /1.27cm diameter).
Other installation, such as flushmount, is not
available for this fan.
12 ft. - 20 ft.
outlet box screws
ON
OFF
ON
OFF
hanging bracket
spring washers
flat washers
Turn off circuit breakers to current fixture from
breaker panel and be sure operating light switch is
turned to the OFF position.
WARNING: Failure to disconnect power supply prior
to installation may result in serious injury.
Remove existing fixture.
WARNING: When using an existing outlet box, be
sure the outlet box is securely attached to the
building structure and can support the full weight of
the fan. Ensure outlet box is clearly marked "Suitable
for Fan Support." If not, it must be replaced with an
approved outlet box. Failure to do so can result in
serious injury.
CAUTION: Be sure outlet box is grounded properly
and that a ground wire (GREEN or bare) is present.
Install hanging bracket to outlet box using original
screws, spring washers and flat washers provided
with new or original outlet box.* If installing on a
vaulted ceiling, face opening of hanging bracket
towards high point of ceiling. Arrange electrical
wiring around the back of the hanging bracket
and away from the bracket opening.
*Note: It is very important that you use the proper
hardware when installing the hanging bracket as
this will support the fan.

page 5

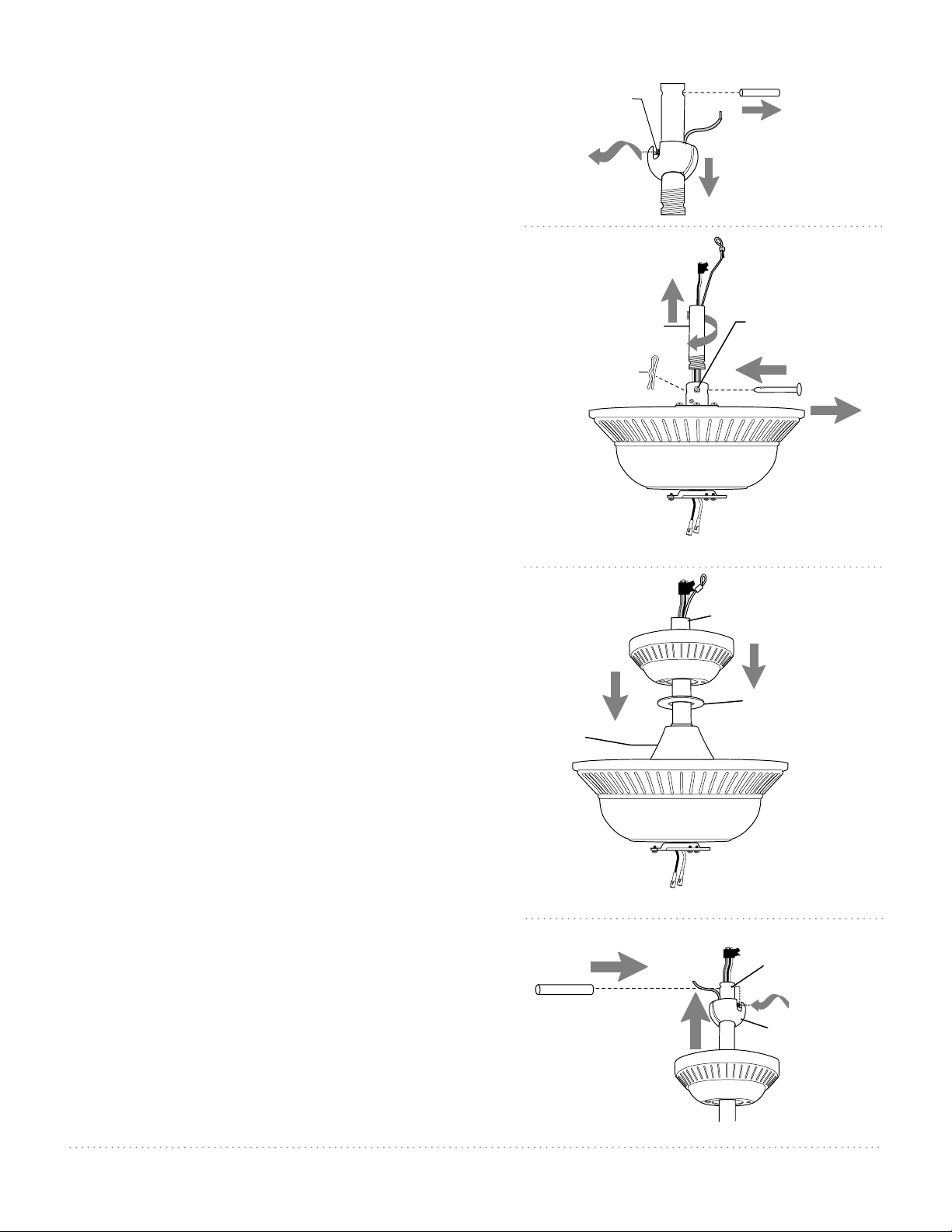

5. Fan Assembly.
NOTE: The important safety precautions and instructions
appearing in the manual are not meant to cover all possible
conditions and situations that may occur. It must be
understood that common sense and caution are necessary
factors in the installation and operation of this fan.
Remove hanging ball from downrod provided by
loosening set screw on hanging ball. Lower hanging
ball and remove stop pin and then slide hanging
ball off of the downrod. [Refer to diagram 1.]
Loosen yoke set screws and nuts at top of motor
housing. Remove pin and clip from motor housing
yoke. [Refer to diagram 2.]
Tip:To prepare for threading electrical wires
through downrod, apply a small piece of electrical
tape to the ends of the electrical wires--this will
keep the wires together when threading them
through the downrod. [Refer to diagram 2.]
Determine the length of downrod you wish to use.
Thread safety cable and electrical wires through
threaded end of downrod and pull extra wire slack
from the upper end of the downrod. [Refer to
diagram 2.]
Thread downrod into the motor housing yoke until
holes for pin and clip in downrod align with holes in
yoke--make sure wires do not get twisted. Re-insert
pin and clip that were previously removed.Tighten
yoke set screws and nuts securely. [Refer to
diagram 2.]
Slide yoke cover, canopy cover and canopy over
downrod. [Refer to diagram 3.] (Note: Canopy cover
must be turned with shiny side toward the motor
housing.)
Thread safety cable and wires through hanging ball
and then slide hanging ball over downrod--the top
of the downrod should be noted as having a set
screw hole; use this hole when setting the set screw.
Insert stop pin into top of downrod and raise
hanging ball. Be sure stop pin aligns with slots on
the inside of the hanging ball.Tighten set screw
securely. [Refer to diagram 4.]
WARNING: Failure to tighten set screw (on hanging
ball) completely could result in the fan becoming
loose and possibly falling.
["Fan Assembly" continued on next page.]
set screw
hanging ball
stop pin
diagram 2
diagram 1
diagram 3
diagram 4
motor
housing
downrod
electrical wiring safety cable
pin
clip
canopy
canopy cover
downrod
yoke
cover
motor
housing
set screw hole
stop pin
hanging ball
yoke set screw
and nut

5. Fan Assembly. (cont.)
page 6
With the hanging bracket secured to the outlet box
and able to support the fan, you are now ready to
hang your fan. Grab the fan firmly with two hands.
Slide downrod through opening in hanging bracket
and let hanging ball rest on the hanging bracket.Turn
the hanging ball slot until it lines up with the hanging
bracket tab. [Refer to diagram 5.]
WARNING: Failure to align slot in hanging ball with
tab in hanging bracket may result in serious injury or
death.
Tip: Seek the help of another person to hold the
stepladder in place and to lift the fan up to you once
you are set on the ladder.
Find a secure attachment point (wood ceiling joist
highly recommended) and secure safety cable. It will
be necessary to use a heavy duty wood screw, washer
and lock washer (not supplied) with the safety cable
loop. If necessary, adjust the loop at the end of the
safety cable.The loop at the end of the safety cable
should just fit over the threads on the wood screw.
Test safety cable by pulling on loose end with pliers. If
the safety cable slips, the loop must be adjusted tighter.
Extra cable slack can be left in ceiling area.
hanging ball slot
hanging bracket tab
safety cable
wood screw
and washer
safety cable loop
wood
ceiling
joist
diagram 5
6.Wiring.
WARNING: Turn off circuit breakers to current fixture from
breaker panel and be sure switch is turned to the OFF position.
CAUTION: Be sure outlet box is properly grounded and that a
ground wire (GREEN or Bare) is present.
Make sure all electrical connections comply with Local Codes or
Ordinances and the National Electrical Code. If you are unfamiliar
with electrical wiring or if the house/building wires are different
colors than those referred to in the diagram to the right, please use a
qualified electrician.
Note: Excess lead wire length from the fan can be cut to the desired
length and then stripped.
When downrod is secured in place on the hanging bracket, WIRE
THE RECEIVER with wire connectors provided as shown in
diagram at right.
Tip: While you are wiring, keep in mind that wires must not
obstruct receiver from sliding into hanging bracket.
Since this fan does not come with a light kit, you will need to cap
off the BLUE wire with a wire connector (as shown with arrow in
diagram). [Note: If you elect to purchase a light kit for the fan, the
BLUE wire from the fan must be connected to the BLUE wire
from the receiver.]
* Wrap each wire connector separately with electrical tape as an
extra safety measure.
Gently insert receiver (flat side up) into hanging bracket and
carefully push taped wire connectors into outlet box. Allow
antenna from remote control receiver to hang outside of hanging
bracket.
ground (green
or bare)
white supply wire
black supply wire
black
black
white
blue
white
from receiver
black
AC IN L
AC IN N
white
white
ground (green
or bare)
from fan
from receiver
from ceiling
receiver
black
*
(wiring for receiver)

page 7
7. Canopy Assembly.
screw
hanging bracket
[PLEASE NOTE:Wall and/or handheld remote
control must be used for fan to operate. If you do
not wish to use the wall control,please proceed to
Section 7 to continue with fan installation.]
To install wall control, remove existing wall
switch.Wire one of the wall controls with wire
connectors provided as shown in diagram at
right.
*Wrap each wire connector separately with
electrical tape as an extra safety measure. Gently
push wires and taped wire connectors into
outlet box.
Install one 12-volt battery (included) in wall
control.
IMPORTANT: Wall control will not function
unless battery is installed.
Since this fan does not come with a light kit, the
dimmer switch (labeled DIM and ON) has been
pre-set to the "OFF" position (ON). If you wish to
have dimming capability, please move the
switch to the "ON" position (DIM).
Select a faceplate (almond or white) and press
firmly onto front of wall control. Attach wall
control to outlet box and secure with screws
from original wall switch. Attach plate (included)
to wall control using 2 screws provided with the
wall control.
canopy
Locate 2 screws on underside of hanging
bracket and remove screw closest to the open
end of the hanging bracket. Partially loosen the
other screw. Lift canopy to hanging bracket.
Place rounded part of slotted hole in canopy
over loosened screw in hanging bracket and
push up.Twist canopy to lock. Re-insert screw
that was removed and then tighten both
screws securely.
Slide canopy cover up to canopy, aligning
rounded part of slotted holes in canopy cover
with screwheads in bottom of canopy.Turn
canopy cover to the right (clockwise) until it
stops.
canopy cover
screw
6.Wiring. (cont.)
(wiring for wall control)
black (OUT to fan)
green
black
(AC IN from
breaker box)
black
(TO POWER supply)
black
green/
green/
bare
bare
ground
ground
green/
bare
ground
outlet box wall
control
face-
plate
12V battery
dimmer
switch
wall plate
DIM ON

page 8
8. Blade Assembly.
WARNING: To reduce the risk of serious bodily
injury, DO NOT use power tools to assemble the
blades. If overtightened, blades may crack and
break.
Locate 15 blade attachment screws/washers in
hardware pack. Hold blade arm up to blade and
align holes. Insert 3 blade attachment
screws/washers with fingers first and then
tighten screws securely with a Phillips
screwdriver. Repeat for the remaining blades.
Remove blade arm screws and lock washers
from underside of motor. If plastic motor locks
are installed with blade arm screws, discard
plastic motor locks (save blade arm screws and
lock washers to secure blade arms). Align blade
arm holes with motor screw holes and attach
blade arm with lock washers and blade arm
screws. Before securing screws permanently,
repeat with remaining blade arms. Securely
tighten all screws.
Note:Tighten blade arm screws twice a year.
blade arm
plastic
motor
lock
motor housing
blade arm screws
lock washers and
blade
blade attachment
screws/washers

page 9
9. Switch Housing Plate Assembly.
motor housing
fitter plate
switch
housing
plate
motor
plate
molex
connections
diagram 2
diagram 3
diagram 1
Remove 4 screws from outer edge of fitter
plate (save screws for later use).
Remove 1 screw from motor plate on
underside of motor assembly and partially
loosen the other 2 screws. Align slotted holes
in center of fitter plate with loosened screws in
motor plate, allowing molex connections from
motor housing to come through hole in
middle of fitter plate. Twist fitter plate to lock.
Re-insert screw that was just removed and
securely tighten all 3 screws with a Phillips
screwdriver. [Refer to diagram 1.]
Align holes in fitter plate with holes in switch
housing plate. [Refer to diagram 2.]
Re-insert screws that were previously removed
and use a Phillips screwdriver to secure all
screws. [Refer to diagram 3.]
motor
housing
fitter plate
switch
housing
plate
motor
housing
fitter plate

page 10
10. Handheld Remote Control Assembly.
IN ORDER TO USE THE HANDHELD REMOTE CONTROL,
PLEASE CONTINUE WITH SECTION 10 for remote control
assembly instructions.If you have already installed the wall
control but do not wish to use the handheld remote control,
please proceed to Section 11.
Gently pull on remote control cover to separate top and
bottom parts. [Refer to diagram 1.]
In order to use wall control as a handheld remote control,
cut each wire on wall control (that was not previously
used)--use wire cutters to cut off each wire as close to the
wall control as possible.[Refer to diagram 2.]
Install one 12-volt battery (included) in wall control. [Refer
to diagram 2.]
The dimmer switch (labeled DIM and ON/OFF) has been
pre-set to the "OFF" position (ON). If you wish to have
dimming capability, please move the switch to the "ON"
position (DIM). [Refer to diagram 2.]
Attach black faceplate to front of wall control; press
down firmly. [Refer to diagram 3.]
Align holes in wall control with posts located on inside of
TOP part of remote control cover and press together
firmly. Place wall control into BOTTOM part of remote
control cover, aligning posts in top of remote control
cover with post holes in the bottom. [Refer to diagram 3.]
(NOTE: Make sure to align narrower ends of remote
control cover before closing.) Squeeze top and bottom of
remote control cover together until you hear a click at
each end, indicating that the remote control cover has
closed completely.
IMPORTANT: Store the remote control away from excess
heat or humidity.To prevent damage to remote control,
remove the battery if remote control will not be used for
long periods.
CAUTION:“DO NOT DISPOSE OF BATTERIES IN FIRE,
BATTERIES MAY EXPLODE OR LEAK.” - When disposing of
household alkaline batteries, it is best to check with your
local and state recycling or household hazardous waste
coordinators concerning the specifics of the program in
your area.You may also locate a recycling center by
calling 1-800-8-BATTERY or 1-877-2-RECYCLE or visit
www.epa.gov/epawaste/index.htm or www.earth911.org
for more information.
WARNING: Choking Hazard - Small parts. Keep battery
away from children.
WARNING: Non-rechargeable batteries are not to be
recharged; Do not mix different types of batteries such as
alkaline, carbon-zinc, or rechargeable batteries; Do not
mix old and new batteries; Batteries are to be inserted
with the correct polarity; Exhausted batteries are to be
removed from the product.
(top)
(bottom)
remote
control
cover
diagram 1
diagram 2
diagram 3
dimmer
switch
wall control
wire
wire
wire
12V battery
DIM ON
DIM ON
wall
control
face-
plate
remote control
cover, BOTTOM
post
hole
post
hole
remote control
cover, TOP

page 11
11. Automated Learning Process./Activating Code.
CAUTION:The wall and/or handheld remote control can be programmed to multiple receivers or fans.If this is not
desired,turn wall switch off to any other programmable receiver or fan.
Restore electrical power and then, if using wall control, set slider switch on wall control to the ON position.
Within 60 seconds of turning on the wall control, press and hold the fan OFF button on the wall control for 5
seconds or until light blinks twice.
Turn power off again for at least 5 seconds and then turn power back on. Within 60 seconds of restoring the
power, press and hold the fan OFF button on the front of the handheld remote control for 5 seconds or until
light blinks twice.
Test the light and fan functions to confirm the learning process is complete--see Section 14.
12. Remote/Wall Control Operation.
wall control handheld
remote control
ON/OFF slider switch - turns wall control ON or OFF
(switch not functional on handheld remote)
HIGH button - turns fan to HIGH speed
MED button - turns fan to MEDIUM speed
LOW button - turns fan to LOW speed
OFF button - turns fan OFF
L button - turns light kit ON/OFF when pressed once;
dims light kit when pressed and help down.

page 12
14.Testing Your Fan.
motor
housing
13. Smart WiFi Remote Control (Optional)
To enjoy all the potential of your new
device, you will need to download the
Craftmade app, available on the Google Play
Store and Apple App Store, or use the QR code
to download the app if you have not already
done so.
Once you download the app, register new
account and password.
NOTE: Please keep this account information.
You will use this account when you connect with
your smart speaker.
When you log into the main page you will see
the ‘ + ‘on the right side of the top space. You
will see the add a new device screen, then
choose fan. Follow the conguration Wi-Fi
process to continue pairings.
After the paring process with Wi-Fi receiver, you
can control the fan speed and light functions on
the app. If you cannot nd the fan, please see
“Help” section on the add a new device screen.
or
It is recommended that you test fan before finalizing
installation. Restore power from circuit box and light switch (if
applicable). Test wall control (optional installation) by locating
ON/OFF slider switch on wall control, then set to the ON
position. Test light and dimmer function and then test fan
speeds. Next, locate handheld remote control. Test the light
ON/OFF function by pressing the L button; test the dimmer
function by pressing the L button and holding it down for up to
5 seconds. Test fan speeds with the different fan speed buttons.
If the wall and/or handheld remote control operates all of the
functions of the fan, battery (batteries) has (have) been installed
correctly. If the wall and/or handheld remote control do (does)
not operate all of the fan/light functions, refer to
"Troubleshooting" section to solve any issues before contacting
Customer Service.
Turn fan completely off before moving the reverse switch
(located on top of motor housing). Set reverse switch to
recirculate air depending on the season:
- LEFT position in summer (diagram 1)
- RIGHT position in winter (diagram 2)
A ceiling fan will allow you to raise your thermostat setting in
summer and lower your thermostat setting in winter without
feeling a difference in your comfort.
Important: Reverse switch must be set either completely LEFT or
completely RIGHT for fan to function. If the reverse switch is set in
the middle position (diagram 3), fan will not operate.
NOTE: If the wall control/handheld remote control interferes
with other appliances, turn power off first and then go back to
the instructions in Section 11. diagram 1 diagram 2 diagram 3
reverse
switch

Troubleshooting. Warranty.
Parts Replacement.
WARNING: Failure to disconnect power supply
prior to troubleshooting any wiring issues may
result in serious injury.
page 13
JMLI2010
For parts and information, please refer to
"Parts Inventory" on page 3.
Craftmade Customer Support:
1-800-486-4892
www.craftmade.com
CRAFTMADE™ LIFETIME LIMITED WARRANTY:
CRAFTMADE warrants this fan to the original household
purchaser for indoor use under the following provisions:
1-YEAR WARRANTY: CRAFTMADE will replace or repair any
fan which has faulty performance due to a defect in
material or workmanship.Contact Craftmade Customer
Service at 1-800-486-4892 to arrange for return of fan.
Return fan, shipping prepaid, to Craftmade. We will repair
or ship you a replacement fan, and we will pay the return
shipping cost.
5-YEAR WARRANTY: CRAFTMADE will repair or replace, at
no charge to the original purchaser, any fan motor that fails
to operate satisfactorily when failure results from normal
use.
RETURN FAN MOTOR ONLY, shipping prepaid, to Craftmade
Industries.We will repair or ship purchaser a replacement
motor and Craftmade will pay the return shipping cost.
6-YEAR to LIFETIME LIMITED WARRANTY: CRAFTMADE will
repair the fan, at no charge for labor only to the original
purchaser, if the fan motor fails to operate satisfactorily
when failure results from normal use. Parts used in the
repair will be billed to the purchaser at prevailing prices at
time of repair.
The purchaser shall be responsible for all costs incurred
in the removal, reinstallation and shipping of the product
for repairs.
This warranty does not apply when damage from
mechanical, physical, electrical or water abuse results in
causing the malfunction. Deterioration of finishes or other
parts due to time or exposure to salt air is specifically
exempted under this warranty.
Neither Craftmade nor the manufacturer will assume any
liability resulting from improper installation or use of this
product. In no case shall the company be liable for any
consequential damages for breach of this, or any other
warranty expressed or implied whatsoever.This limitation
as to consequential damages shall not apply in states
where prohibited.
Problem: Fan fails to operate.
Solutions:
1. Check power to wall switch/wall control.
2.Verify that reverse switch is set completely in
either direction.
3.Verify that wall control (optional use) is wired
properly.
4. Check to be sure fan is wired properly.
5.Verify that receiver is wired properly.
6. Learning process between fan, handheld remote
control and, if applicable, wall control may not
have been successful and code was not activated.
Turn off power and repeat instructions for SET
button in Section 11 (page 11).
7. Check that red light on handheld remote control
turns on when a button is pressed indicating that
the battery is good.
Problem: Fan fails to operate with handheld
remote control and/or wall control.
Solutions:
1. Check battery power to handheld remote
control.
2. Learning process between fan, handheld remote
control and, if applicable, wall control may not
have been successful and code was not activated.
Turn off power and repeat instructions for SET
button in Section 11 (page 11).
3. If using optional wall control, check that battery
in wall control is still good.
Problem: Fan wobbles.
Solutions:
1. Use the balancing kit in one of the hardware
packs. If no blade balancing kit is provided, please
call Customer Support, 1-800-486-4892, to request
one.
2. Check to be sure set screw(s) on motor housing
yoke is (are) tightened securely.
3. Check to be sure set screw on hanging ball is
tightened securely.
