CRAFTOP NTB260D User manual

Owner’s Manual
Petrol Brush Cutter & Grass Trimmer
NTB260D
EXPERTS
IN EQUIPMENTS OF
GARDENING AND AGRICULTURE
ENGLISH
VERSION: 00-202109

We thank you for buying CRAFTOP Brush cutter & Grass Trimmer
This brush cutter & grass trimmer provides advanced technology in incorporating many convenient features for you to
perform your daily cutting or trimming work.
Before attempting to use this brush cutter & grass trimmer, please read this manual carefully until you
completely understand and can follow all safety rules, precautions, operating and maintenance instructions.
It will help you both to become more familiar with this brush cutter & grass trimmer and to recognize and avoid
situations that could endanger you and others. Careless or improper use may cause serious or even fatal injury!
If you have any question about your brush cutter & grass trimmer and this manual, please contact CRAFTOP
authorized dealer or service center for your area. They always welcome your questions, suggestions, and
constructive criticism.
We hope you enjoy this brush cutter & grass trimmer and wish you many years of safe and enjoyable cutting or
trimming work.
CRAFTOP CANADA LTD.

|-1-
Table of contents
Guide to use this manual .............................................1
Product overview..........................................................4
Technical specification .................................................5
Safety precautions and instructions .............................6
Assembly....................................................................13
Fuel and fueling..........................................................15
Start and stop the engine ...........................................16
Operation....................................................................19
Working techniques....................................................21
Maintenance and care................................................23
Repair.........................................................................26
Storage....................................................................... 26
Disposal......................................................................27
Troubleshooting guide................................................28
Guide to use this manual
This Owner’s Manual refers to a CRAFTOP brush
cutter & grass trimmer grass trimmer, also called a
machine in this Owner’s Manual.
All information, specifications, descriptions and
illustrations in this manual are as accurate as known at
the time of publication, but are subject to change
without notice. Due to ongoing product development,
there may be difference between your machine and the
information in this manual. No legal obligations or
commitments can be delivered from the information,
specifications, descriptions, or illustrations in this
manual.
Illustrations are only for orientation and are merely used
to help explain the text descriptions and instructions.
Illustrations may include optional equipment and
accessories, and may not include all standard
equipment.
Some signs or symbols on the machine may be a little
different refer to special certification requirements for
certain markets.
Any technical modifications to the machine that were
introduced after the editorial deadline please consult
your local dealer for more supplementary information.
All safety precautions and instructions described in this
manual should be observed during operation of the
brush cutter & grass trimmer, and all applicable federal,
state and local safety regulations, standards, and
ordinances should be observed as well.
Do not sell, lend or rent the machine without this
owner’s manual. Always be sure to include this owner’s
manual together with the machine, and make sure that
anyone using it understands all the information and
follows all the instruction contained in this manual.
Signs and symbols in this manual
DANGER
Texts with this symbol contain information regarding
hazardous situations which will cause death or severe
injures if not avoided.
WARNING
Texts with this symbol contain information regarding
hazardous situations which could cause death or
severe injures if not avoided.
CAUTION
Texts with this symbol contain information regarding
hazardous situations which could cause minor or
moderate injures if not avoided.
NOTICE
Texts with this symbol information regarding situation
which could cause brush cutter & grass trimmer
damage if not avoided.
information
Texts with this symbol contain supplementary
information.
Read and understand the
Owner’s Manual.
It is very important that you read
this Owner’s Manual carefully,
make sure that you completely
understand and can follow all safety
rules, precautions, operating and
maintenance instructions before
attempting to use this brush cutter &
grass trimmer , failure to do so may
cause serious or even fatal injury!
Special safety precautions must be
observed to reduce personal injury
because of the very high speed of
its cutting attachment.
Wear proper clothing.
Wear eye, ear and head
protection.
Always wear appropriate personal
protective equipments for brush
cutter & grass trimmer operation,
inclusive of eye protection, ear
protection, and head protection.
Face mask required.
Operators who are sensitive to dust
or other common airborne allergens
may need to wear a dust mask.

|-2-
Wear a face shield.
Hands protection.
Always wear appropriate gloves for
brush cutter & grass trimmer
operation.
Foot protection required.
Steel toe shoes with anti-slip sole
required in working area.
Fire hazard.
Risk of fire.
Highly flammable material.
No smoking.
Do not smoke in this area.
Hot surface.
Do not touch.
Regular cleaning is required.
Visual check.
Protective glasses or a visor must
be worn.
Signs and symbols on the machine
For the purpose of safety operation and maintenance,
the meanings of signs and symbols may be attached to
or embossed on the machine.
Please read the instructions
carefully and make sure you
understand them before using the
brush cutter & grass trimmer.
Brush cutter & grass trimmers can
be dangerous! Careless or incorrect
use can result in serious or even
fatal injury to the operator or others.
Risk of fire / flammable materials
A distance of at least 15 m must be
observed.
Keep other people out of working
area during operation.
Throwing objects can hit the user or
bystanders. Always ensure that
other persons and pets remain at a
safe distance from the brush cutter
when it is in operation. In general,
children must not come near the
area where the garden power tool
is.
To avoid potential electric shock, do
not use the unit in humid or wet
conditions.
Hot surface, do not touch. The high
temperatures on the product's
surfaces and structural parts could
cause burns if touched. The product
can also remain hot for a long
period of time after operation!
This garden power tool produces
noxious exhaust fumes. If the
product is not used properly, these
fumes can lead to poisoning, a loss
of consciousness or death!
Switch the product off and
disconnect the spark plug
connector before assembly,
cleaning, inspection, adjustments,
maintenance, transportation and
storage.

|-3-
Inspect the area where the product
is to be used and remove all objects
which can be thrown by the product.
If objects are hidden while operating
stop the engine and remove the
object.
Location of starter handle: pull
upwards
Do not touch the cutting device until
it stops completely.
xxx
Guaranteed sound power level.
Beware of blade thrust: Continued
movement of cutting blade after
cutting through log.
Only use petrol/oil mixture with a
ratio of 40:1. Do not use any other
mixture ratio. Always switch the
product off and let it cool down,
before refueling it.
Choke control.
Choke closed.
“Cold start” position.
Choke control.
Choke open.
“Run” position.
Other signs or decals on the machine refer to special
certification requirements for certain markets.

|-4-

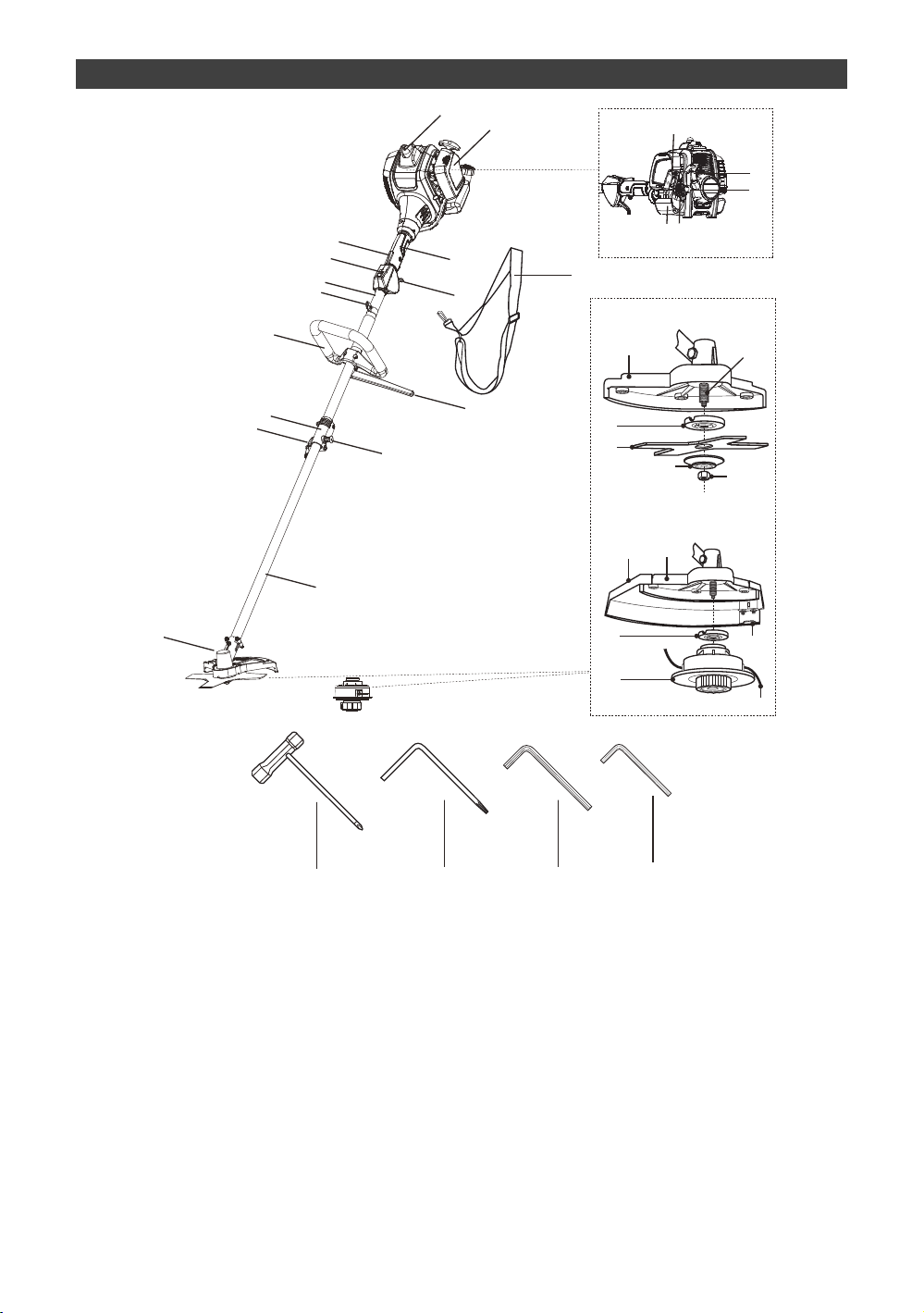

Product overview
1
4
2
6
Cutting blade
Trimmer head
22
22
24
23
23
28
25 26
27
30
3
5
10
9
20
19
13
16
17
18
14
15
12
29
21
11
78
31
32
33 34 35 36
1. Power unit
2. Recoil starter handle
3. Spark plug connector
4. Choke
5. Air filter case
6. Primer
7. Fuel tank cap
8. Fuel tank
9. Ring
10. Harness
11. Upper drive shaft tube
12. Front handle
13. Barrier bar
14. Shaft clamp
15. Locking nut
16. Lock pin
17. Bottom drive shaft tube
18. Gear head
19. Throttle trigger
20. Stop switch
21. Throttle trigger lockout
22. Cutting attachment guard
23. Backing flange
24. Cutting blade (with transport
cover)
25. Locking flange
26. Securing nut
27. Trimming guard
28. String trimmer head
29. Rear handle
30. Spindle

|-5-
31. Cutting line
32. Cutting line cutter
33. Multi-tool I (Cross-head
screwdriver/socket wrench)
34. Multi-tool II
(Torx-screwdriver/round rod)
35. Hex key 5mm
36. Hex key 4mm
Technical specification
Model NTB260D
Item Description Unit Specification
Overall
Net weight kg 5.7
Maximum output power kW 0.75
Idle speed rpm 3,000
Maximum spindle speed rpm 8,000
Maximum engine speed rpm 10,500
Displacement ml 26
Cutting blade
Dimension of cutting blade mm 4 tooth, Φ230
Maximum cutting width
(brush cutter) mm Φ230
Cutting line
Cutting line diameter mm 2.0
Maximum cutting width
(grass trimmer) mm 430
Fuel
Type Mixed gasoline and oil with ratio 40:1
Tank capacity ml 400
Noise level
Measured sound pressure
level dB(A) 80.4 (K = 3)
Measured sound power level dB(A) 110.5 (K = 1.83)
Guaranteed Sound Power
Level dB(A) 112
Vibration Vibration level m/s² 10.220 (K=1.5)
information
The declared vibration value has been measured in accordance with a standard test method and may be used for
comparing one tool with another. The declared vibration value may also be used in a preliminary assessment of
exposure.
information
Specifications, descriptions and illustrations in this manual are as accurate as known at the time of publication, but are
subject to change without notice.

|-6-
Safety precautions and instructions
Special safety precautions must be
observed when working with a brush
cutter & grass trimmer because of the
very high speed of its cutting
attachment. Careless or improper use
may cause serious or even fatal
injury.
Before attempting to use this brush
cutter & grass trimmer, please read
this manual carefully until you
completely understand and can follow
all safety rules, precautions, operating
and maintenance instructions.
Safety precautions
WARNING
•
Observe all applicable local safety regulations,
standards and ordinances.
•
If you have not used this type of brush cutter & grass
trimmer before, have your dealer or other
experienced user show you how to operate your
machine.
•
Because a brush cutter & grass trimmer is high-speed
wood-cutting tool, some special precautions must be
observed to reduce the risk of accident and personal
injury. Careless or improper use may cause serious
or even fatal injury.
•
The use of this brush cutter & grass trimmer may be
hazardous. The cutting attachments has many sharp
edges. If the sharp edge contacts your body, they will
cut you, even if the cutting attachment is not moving.
•
Pay special attention to reactive forces, inclusive of
kickback, because it is very dangerous.
•
The exhaust from this machine may contain
chemicals known by the State of California to cause
cancer, birth defects or other reproductive harm.
•
The noise emitted from this machine may be
restricted to certain times by national or local
regulations.
•
This machine is designed for cutting brush and
trimming grass. Do not use it for other purpose, since
misuse may result in personal injury or property
damage, including damage to the brush cutter &
grass trimmer.
•
Your brush cutter & grass trimmer is a
one-person-operated machine. Do not allow other
persons in the general work area, even when starting.
Stop the engine immediately if you are approached.
•
Minors should never be allowed to use this brush
cutter & grass trimmer.
•
The cutting attachment may catch and fling objects a
great distance and cause injury. Do not allow other
persons near the brush cutter & grass trimmer when
starting or cutting. Keep bystanders, especially
children, and animals out of the work area. Keep
bystanders, children, and animals a minimum of 50
feet (15m) from the work area. Also, maintain this
distance from other objects (vehicles, windows, etc.).
Even maintaining a distance of 50 feet (15m) or more
can not avoid the potential danger.
•
The person who use this brush cutter & grass trimmer
must be in good physical condition and mental health,
and not under the influence of alcohol and drugs.
Never use this brush cutter & grass trimmer when you
are fatigued, sick, or upset. If you feel tired, take a
break.
•
The components of this machine generate an
electromagnetic field during operation, which may
interfere with some pacemakers. To reduce the risk of
serious or fatal injury, persons with pacemakers
should consult with their physician and the
pacemaker manufacturer before operating this
machine. In the absence of such information,
CRAFTOP does not recommend the use of this
machine by anyone who has a pacemaker.
•
The owner of this machine is responsible for avoiding
injury to third parties or damage to their property.
CAUTION
The vibration emission value during actual use of the
tool can differ from the declared value depending on the
ways in which the tool is used. Identify safety measures
to protect the operator that are based on an estimation
of exposure in the actual conditions of use (taking
account of all parts of the operating cycle such as the
times when the tool is switched off and when it is
running idle in addition to the trigger time).
The sound intensity level for the operator may exceed
85dB(A) and ear protection measures are necessary.
CAUTION
Prolonged exposure to cold and/or vibration may result
in injury. Read and follow all safety and operation
instructions to minimize risk of injury. Failure to follow
instructions may result in painful wrist/hand/arm
injuries.
Raynaud’s Phenomenon may affect the fingers of
certain individual if a person is exposed to vibration and
cold. Exposure to vibration and cold may cause tingling
and burning sensations, followed by loss of color and
numbness in the fingers. The following precautions are
strongly recommended:
•
Keep your body warm, especially the head, neck,
hands, wrists, ankles and feet, ,.
•
Maintain good blood circulation by performing
vigorous arm exercises during frequent work breaks.
•
Limit the hours of operation, have a rest when you
feel tired or fatigued.
•
If you experience discomfort, redness, and swelling of
the fingers followed by whitening and loss of feeling,
consult your physician before continuing exposing
yourself to cold and vibration.
Overusing the muscles and tendons of the fingers,
hands, arms, and shoulders may cause soreness,
swelling, numbness, weakness, and extreme pain in
those areas.
•
Avoid using your wrist in a bent, extended, or twisted
posture. Instead, try to maintain a straight wrist
position. Also, when grasping, use your whole hand,
not just the thumb and index finger.

|-7-
•
Take periodic breaks to minimize repetition and let
your hands have a rest.
•
Reduce the speed and force with which you do the
repetitive movement.
•
Do exercise to strengthen your hands and arm
muscles.
•
Immediately stop using the machine and other power
tools, and consult a doctor if you feel tingling,
numbness, or pain in the fingers, hands, wrists, or
arms.
DANGER
All electrical conductors and communications wires can
have electricity flow with high voltages. This machine is
not insulated against electrical current. Never touch
wires directly or indirectly, otherwise serious injury or
even death may result.
DANGER
Do not operate this machine indoors or in inadequately
ventilated areas. Engine exhaust contains poisonous
emissions and can cause serious injury or death.
Clothing and PPE
Wear proper clothing.
Wear eye, ear and head
protection.
Always wear appropriate personal
protective equipments for brush
cutter & grass trimmer operation,
inclusive of eye protection, ear
protection, and head protection.
Face mask required.
Operators who are sensitive to dust
or other common airborne allergens
may need to wear a dust mask.
Hands protection.
Always wear appropriate gloves for
brush cutter & grass trimmer
operation.
Foot protection required.
Steel toe shoes with anti-slip sole
required in working area.
WARNING
Most brush cutter & grass trimmer accidents happen
when the cutting attachments or objects thrown touch
the operator. You must wear approved clothing and
approved personal protective equipments (PPE)
whenever you use a brush cutter & grass trimmer.
Wear proper clothing.
Avoid clothing that could get caught
on branches or brush or moving
parts of the machine. Do not wear a
scarf, necktie or jewelry. Tie up long
hair so that it is above shoulder
level.
Ear, eye and head protection
Always wear appropriate personal
protective equipments for brush
cutter & grass trimmer operation,
inclusive of eye protection, ear
protection, and head protection.
Wear a face shield and make sure it
is a good fit. A face shield alone
does not provide adequate eye
protection.
Hands protection
Always wear heavy-duty work
gloves made of durable material for
brush cutter & grass trimmer
operation.
Foot protection.
Wear sturdy boots with steel toe
and non-slip soles in your working
area.
Always have a first aid kit at your
working place
Personal protective equipments can not eliminate the
risk of injury, but it will reduce the degree of injury if an
accident does happen. Ask your brush cutter & grass
trimmer dealer for help in choosing the right
equipments.
Long-time or continuous exposure to high noise levels
may cause permanent hearing impairment. Always
wear approved hearing protection when operating a
brush cutter & grass trimmer.
Handle your brush cutter & grass
trimmer safely
WARNING
This machine is designed for cutting brushes and
trimming grass. Do not use it for other purpose, since
misuse may result in personal injury or property
damage, including damage to the brush cutter & grass
trimmer.
Do not use the brush cutter & grass trimmer as a lever
to lift, move or break objects, nor lock it on fixed
supports.

|-8-

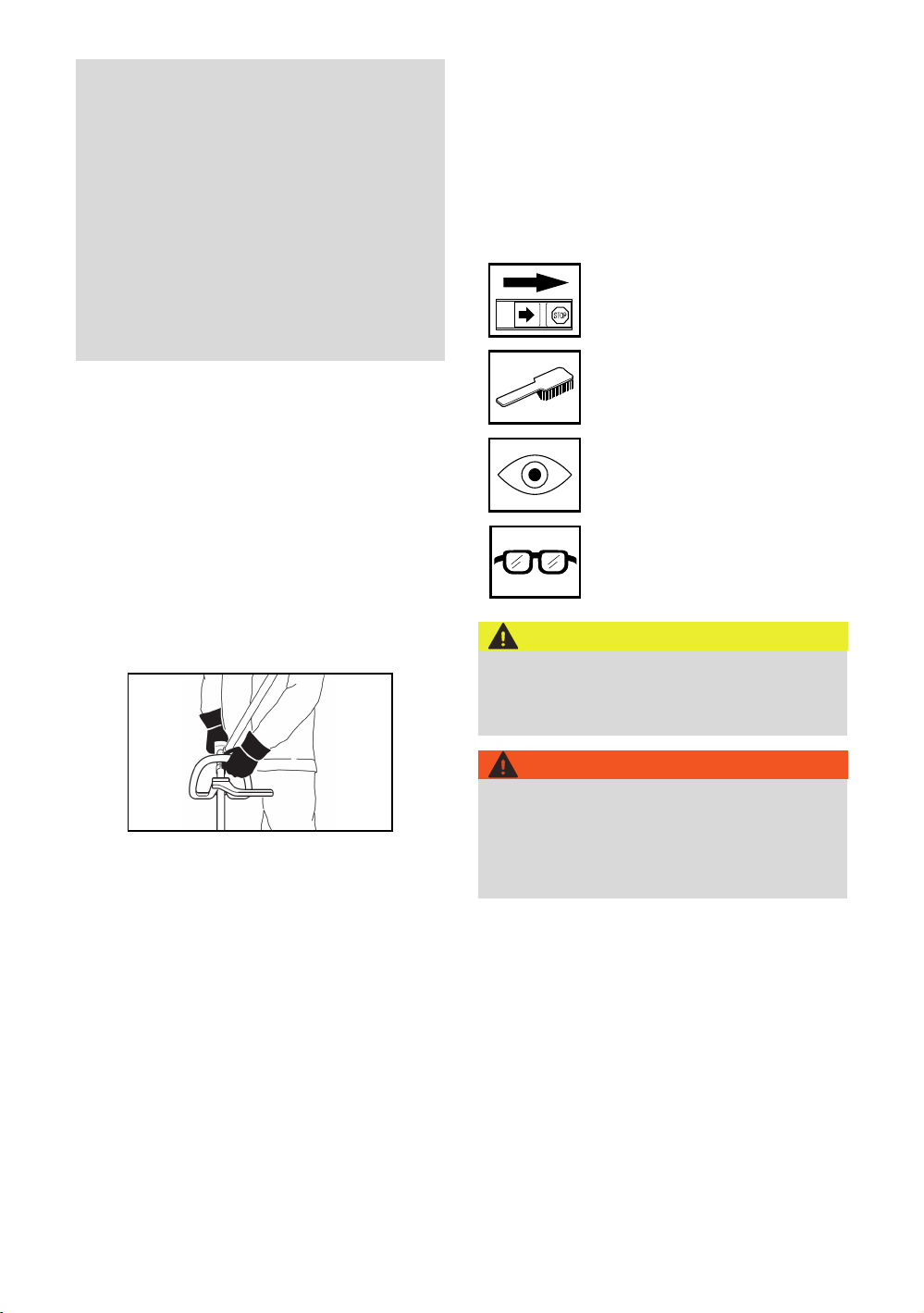

Under any circumstance, you should not modify the
original design of the brush cutter & grass trimmer
without approval from CRAFTOP. Always use genuine
cutting attachments and spare parts. Unauthorized
modifications or accessories may lead to serious or
even fatal injury.
Under any circumstance, you should not operate your
brush cutter & grass trimmer if it is damaged,
improperly adjusted or maintained, or not completely or
securely assembled. Always inspect the brush cutter &
grass trimmer before each use, and replace the parts
immediately if it is worn, loose, damaged or missing.
The deflector on this machine can not protect the
operator from all objects thrown by the cutting
attachment (stones, woods, glass, wire, etc.). Such
objects may ricochet and then hit the operator.
•
Always disconnect spark plug wire and place wire
where it can not contact spark plug to prevent
accidental starting when setting up, transporting,
adjusting or making repairs except carburetor
adjustments.
•
Always hold the brush cutter & grass trimmer firmly
with two hands on the handles when the engine is
running. Do not operate a brush cutter & grass
trimmer with one hand. Serious injury to the operator,
helpers, bystanders or any combination of these
persons may result from one-handed operation. The
brush cutter & grass trimmer MUST be used with
two hands! Place your left hand on the loop handle
and your right hand on the control handle, with your
thumbs and fingers tightly encircling the handles. This
applies to both right-handers and left-handers.
•
Operate the brush cutter & grass trimmer only in a
well-ventilated outdoor area. Never start or run the
engine inside a closed room or building. Exhaust
fumes contain dangerous carbon monoxide.
•
Never operate the machine at night, at times of heavy
fog, or at any other times when your field of vision
might be limited and it would be difficult to maintain a
clear view of the working area.
•
During rain, storms at times of strong or gale-force
winds, or at any other times when weather conditions
might make it unsafe to use this machine.
•
Carefully plan your cutting or trimming operation in
advance. Never start cutting or trimming until you
have a clear work area.
•
Maintain footing and balance at all times. Do not
stand on slippery, uneven or unstable surfaces. Do
not operate the brush cutter & grass trimmer in odd
position or on a ladder or ladders.
•
Always shut off the engine before putting the brush
cutter & grass trimmer down.
•
Keep exhaust area clear of flammable debris. Avoid
contact hot surfaces during and immediately after
operation.
•
Use a damp cloth, soft bristle brush, and/or air
compressor (Max 25 PSI) to clear your brush cutter &
grass trimmer. Do not use a pressure washer to clean
brush cutter & grass trimmer as the solid jet of high
pressure water may damage parts of the machine.
Maintain in good work order
Switch off the engine by moving the
stop switch to the STOP position
before carrying out any checks or
maintenance.
Regular cleaning is required.
Visual check.
Protective glasses or a visor must
be worn.
CAUTION
All brush cutter & grass trimmer service, other than the
items listed in the maintenance section of this manual,
should be performed by authorized service dealer or
competent brush cutter & grass trimmer service
personnel.
WARNING
Only use high-quality replacement parts in order to
avoid the risk of accidents and damage to the power
tool. If you have any questions in this respect, consult
an authorized dealer or service center. CRAFTOP
recommends the use of genuine spare parts. They are
specifically designed to match your model and meet
your performance requirements.
•
Perform the inspection and maintenance at regular
intervals according to this manual.
•
Under no circumstances should you ever take apart
the brush cutter & grass trimmer or alter it in any way.
Doing so might result in the brush cutter & grass
trimmer becoming damaged during operation or the
brush cutter & grass trimmer becoming unable to
operate properly.
•
The correct engine idle speed is important to make
sure that the cutting attachment stops rotating when
the throttle control trigger is released.
•
Always be sure to turn off the engine before
performing any maintenance or checking procedures.
•
Keep the handles dry, clean, and free of oil or fuel
mixture.
•
Keep fuel and oil caps, screws, and fasteners
securely tightened.

|-9-
•
To reduce the risk of injury, always shut off the engine
before carrying out any maintenance or repairs or
cleaning the machine, only excepts carburetor and
idle speed adjustments.
•
Check the machine for loose/missing nuts, bolts, and
screws. Tighten and/or replace as needed.
•
Check that the cutting attachment is firmly attached
and in safe operating condition.
•
Do not turn the engine over on the starter with the
spark plug boot or spark plug removed since there is
otherwise a risk of fire from uncontained sparking.
•
Check fuel system for leaks due to fuel tank damage,
especially if the machine is dropped accidently. If
damages or leaks are found, do not use the machine
any more, otherwise serious personal injury or
property damage may occur. Have your machine
repaired by authorized dealer or service center before
next use.
•
Check the fuel filler cap for leaks at regular intervals.
•
To reduce the risk of fire, do not service or store your
machine near open flames.
•
Use only a spark plug type which is approved by
CRAFTOP and make sure it is in good condition.
•
Check the condition of the muffler. To reduce the risk
of fire and damage to hearing, do not operate your
machine if the muffler is damaged or missing.
•
Do not touch muffler, spark plug, or other metallic
parts of the engine while the engine is running or
immediately shutting down, otherwise burn injury will
result.
•
Clean grass and plant residue off the cutting
attachment, remove any build up of material from the
cutting attachment and deflector at regular intervals.
•
Keep the cutting attachment always sharp.
•
Filling the cutting edges, keep the end corner sharp
and round the root of the edge.
Reduce the chance of kickback
WARNING
A dangerous reaction may occur when the spinning
cutting attachment contacts a solid object in the critical
area. It is called kickback. As a result, the operator can
lose control of the machine, which can cause serious or
even fatal injury.
Recognize that kickback can happen. With a basic
understanding of kickback, you can reduce the element
of surprise which contributes to accidents.
•
Keep the working area free from obstructions such as
other trees, branches, rocks, fences, stumps, etc.
Eliminate or avoid any obstruction that your cutting
attachment could hit while you are cutting.
•
Hold the bike handles firmly by your both hands. Do
not grip other parts except the handles.
•
Never take your eyes off. If you need, place the
throttle into the idling position.
•
Do not let the machine get closer to your feet, nor
raise the machine above your waist.
WARNING
The risk of kickback is increased if you use the wrong
cutting equipment or the one that is not sharpened
correctly.
Maintain good control of brush cutter &
grass trimmer
WARNING
To reduce the risk of serious or even fatal injury to the
operator or bystanders from loss of control, never use
the brush cutter & grass trimmer with one hand. Always
hold the brush cutter & grass trimmer firmly with both
hands when the engine is running.
WARNING
To reduce the risk of cutting injuries, keep hands and
feet away from the cutting tool. Never touch a moving
tool with your hand or any other part of your body.
Keep a good, firm grip on the brush cutter & grass
trimmer with both hands when the engine is running
and Don’t let go. A firm grip will help you reduce
kickback and maintain control of the machine.
•
Always place your left hand on the left handle and
your right hand on the right handle.
•
Wrap your fingers and thumb around the hand- les.
You should use this grip whether you are
right-handed or left- handed. This grip minimizes the
effect of kickback and lets you keep the brush cutter
& grass trimmer under control. Do not let go of the
handles!
•
Keep proper footing and balance at all times. Stand
with your weight evenly balanced on both feet.
•
Always stand on the ground while working, never on
a ladder, work platform or any other insecure support.
•
Pay special caution when working on slippery ground,
slopes, or uneven ground.
Transporting your brush cutter & grass
trimmer
WARNING
Always stop the engine before you transport the brush
cutter & grass trimmer. Carrying a brush cutter & grass
trimmer with the engine running may be extremely
dangerous.
•
When transporting your brush cutter & grass trimmer
by hand, the engine must be shut off, and the cutting
attachment must be covered with the protective cover,
even when carrying the machine for short distance.
•
Carry the machine by gripping the drive tube near
loop handle, in a manner that the machine is properly
balanced horizontally.
•
Avoid touching hot parts of the machine, especially
the muffler and gear housing, otherwise you could
suffer serious burns.

|-10-
•
When transporting your brush cutter & grass trimmer
in a vehicle, the cutting attachment should be covered
with the transport guard and properly secured to
avoid turnover, fuel spillage and damage to your
machine.
•
Never transport the brush cutter & grass trimmer over
rough roads over long distances without removing all
fuel from the fuel tank firstly. If doing so, it may cause
fuel to leak from the tank.
•
Do not transport the machine by bicycle or motorcycle
because it is very dangerous.
Handle fuel with caution
You brush cutter & grass trimmer use a gasoline-oil
mixture for fuel.
WARNING
Gasoline is an extremely flammable fuel. Pay high
attention when mixing, storing or handling, otherwise
serious personal injury may result.
If spilled and ignited by a spark or
other ignition source, gasoline can
cause fire and serious burn injury or
property damage.
Do not smoke or bring any fire or
flame while handling fuel or while
operating the brush cutter & grass
trimmer. Note that combustible fuel
vapor may escape from the fuel
system.
•
Mix and pour fuel in a well ventilated outdoor area on
bare ground; store fuel in a cool, dry well ventilated
place; and use an approved, marked container for all
fuel purposes. Wipe up all fuel spills before starting
the brush cutter & grass trimmer.
•
Eliminate all sources of sparks or flame(i.e. smoking,
open flames, or work that can cause sparks) in the
areas where fuel is mixed, poured, or stored.
•
Always use with caution when handling fuel. Wipe up
all spills and then move the brush cutter & grass
trimmer at least 10feet (3 meters) from the fueling
point before starling the engine.
•
To reduce the risk of fire and explosion, fuel your
machine only in a well-ventilated area, outdoors away
from flames, pilot lights, heaters, electric motors, and
other sources of ignition
•
Always shut off the engine before refueling, let the
machine cool down in a non-combustible area, not on
dry leaves, straw, paper, etc. Do not fuel a hot engine
because fuel may spill out and cause a fire.
•
Loose a bit of the fuel cap carefully so as to allow any
pressure build-up in the fuel tank to release slowly
and avoid fuel spillage.. Never remove the fuel cap
when engine is running!
•
Always use suitable aids such as funnels and filler
necks. Do not spill any fuel on the machine or its
exhaust system.
•
If fuel is spilled, do not attempt to start the machine,
but wipe the machine immediately. If fuel spills on
your clothing, change it immediately.
•
After fueling, tighten the fuel cap securely to the
proper position, make sure it does not loosen or come
off due to the machine vibrations.
•
To reduce the risk of serious or fatal burn injuries,
check for fuel leakage. If fuel leakage is found, do not
start or run the engine until leak is fixed.
•
Do not inhale fuel fumes as exhaust gases and fuel
fumes are noxious. Avoid your skin contact with
petrol.
•
Do not eat or drink, while you are refueling the
machine.
•
Store the machine and fuel in an area where fuel
vapors cannot reach sparks or open flames from
water heaters, electric motors or switches, furnaces,
etc.
Before starting the engine
WARNING
To reduce the risk of injury, avoid contact with the
cutting attachment.
The machine must be fully assembled before operation!
Do not use a machine that is only partly assembled or
assembled with damaged parts.
A area within a minimum radius of 50feet (15m) from
the using the machine should be considered as a
hazardous area, into which on one should enter. If
necessary, yellow warning rope and warning signs
should be placed around the perimeter of the area.
When work is to be performed simultaneously by two or
more persons, special care should also be taken to
constantly look around or otherwise check for the
presence and locations of other people working, so as
to maintain sufficient safety distance between each
person.
Before starting the engine, check that your machine is
properly assembled and in good condition
•
Check cutting attachment is correctly fitted and
adjusted.
•
Check protective devices (e.g. deflector for cutting
attachment or riding plate) for damage or wear. If
damage or wear, place it before next use.
•
To reduce the risk of accidents, operate your machine
only if it is in a safe condition, do not operate your
machine if it is damaged or not properly assembled.
•
Check the fuel system for leaks, paying high attention
to visible parts such as the fuel tank cap, hose
connections and the manual fuel pump (if equipped).
If there are any leaks or damage, do not start the
engine because of potential risk of fire. Have your
machine repaired by an authorized dealer or service
center before using it again.

|-11-
•
Check that the spark plug boot is secure – a loose
boot may cause arcing that could ignite combustible
fumes and cause a fire.
•
The engine stop switch must move easily in direction
of STOP position and START position.
•
Smooth action of throttle trigger lockout and throttle
trigger (if fitted) - The throttle trigger must return
automatically to the idle position by itself.
•
Never attempt to modify the controls or safety devices
in any way.
•
Always ensure that all handles and guards are fitted
when using the product. Never attempt to use an
incomplete product or one fitted with an unauthorized
modification.
•
Keep all handles dry and clean, free from oil and dirt
– for safe control of the machine.
•
Use only an approved combination of cutting
attachment, deflector, handle and harness. All parts
must be assembled properly and securely.
•
Adjust the harness and handles to suit your height
and reach.
•
If you use a shoulder strap or full harness, practice
moving and putting down the machine as you may
involve in an emergency. To avoid damage of your
machine, do not throw it to the ground when
practicing.
•
Be careful when handling any cutting attachment /
sharp edge fitted for trimming the filament line length.
Ensure a new filament trimming line is installed
correctly before turning the engine on.
•
Check the bolt to fasten the spool and be sure the
cutting attachment rotates smoothly without abnormal
noise.
When starting the engine
WARNING
To reduce the risk of injury, avoid contact with the
cutting attachment.
•
Your machine is designed to be operated by one
person only. Do not allow other persons in the work
area even when starting.
•
Start the engine at least 10feet (3m) from the fueling
spot, outdoors only.
•
Keep bystanders, especially children and animals at
least 50feet (15m) from the operating point. If you are
approached, immediately stop the engine.
•
Place the machine on firm ground in an open and well
ventilated area. Make sure you have good balance
and secure footing. Hold the machine securely. The
cutting attachment must not contact the ground and
all other obstructions because they may begin to run
when the engine starts.
•
Do not drop start the power tool, just follows the way
and start the engine as described in this manual.
•
Never start the engine by standing on the cutting
attachments side.
•
Place the throttle into the idling position when starting
the engine.
•
Check idle speed setting: The cutting attachment
must not rotate when the engine is idling with the
throttle trigger released. If it continues to rotate even
after the throttle trigger has been completely released,
shut off the engine and take the machine to your
authorized dealer or service center for inspection
and/or repair.
During operation
WARNING
Moving parts can amputate fingers or cause severe
injuries. Keep hands, clothing and loose objects away
from all moving parts. Always stop engine, disconnect
spark plug, and make sure all moving parts have come
to a complete stop before removing obstructions,
clearing debris, or servicing the machine. If the cutting
attachments become jammed by thick branches or
other obstructions, switch off the engine immediately
before attempting to free it – there is otherwise a risk of
injury.
WARNING
Inspect the working area: Stones, piece of metal or
other solid objects may be thrown more than 50 feet
(15m) and cause personal injury or damage the cutting
attachment and property (vehicles, windows, etc.).
Hot surface.
Do not touch.
•
This machine should not be used for any other
purpose than described.
•
Always carry related tools, equipments, spare parts,
and consumables with you:
-
Attached tools in the product package.
-
Personal protective equipments.
-
Properly reserved fuel
-
Spare parts.
-
Things to notify your working are (rope, warning
signs, etc.).
-
Whistle (for collaboration or emergency).
-
Hatchet or saw (for removal of obstacles).
•
Check that there are no bystanders, children, and
animals in the general work area. If someone comes:
-
Guard against hazardous situations at all times.
Warn adults to keep children and pets away from
your working area. Be careful if you are approached.
Injury may result from flying debris.
-
If someone calls out or otherwise interrupts you
while working, always be sure to shut off the engine
before turning around. Avoid operating which
people, especially children are nearby.
•
Always be aware of surroundings and stay alert for
possible hazards that you may not hear due to the
noise of the machine.
•
When work is to be performed simultaneously by two
or more persons, always check the presence and

|-12-
locations of others so as to maintain a sufficient safe
distance between each other.
•
Make sure you always have good balance and secure
footing. Place your feet slightly apart (slightly further
apart than the width of your shoulders), so that your
weight is distributed evenly across both legs, and
always be sure to maintain a steady, even posture
while working.
•
Take special care in slippery conditions (ice, wet
ground, snow), over-grown terrain, on slopes or
uneven ground.
•
Keep your body upright during operation. Do not lean
forward. Make regular breaks and change your
working position to stay concentrated.
•
Watch out for obstacles (roots, tree stumps or holes)
which could cause you to trip or stumble.
•
Clear away fallen branches, scrub and cuttings.
•
Never operate the product with damaged guards or
without the guards in place.
•
Watch the brush cutter & grass trimmer at all times,
do not cut areas that you cannot see clearly. Check
the conditions of working area to avoid any accident
by hitting hidden obstacles, such as stumps, stones,
cans, or broken glass.
•
Inspect work area to avoid damaging the cutting
attachment:
-
Remove stones, rocks, pieces of metal and other
solid objects.
-
When working close to the ground, make sure that
no sand, grit or stones get between the cutting
attachment.
-
Take particular care when cutting grass next to or
against wire fences.
•
Make sure the idle speed setting is correct. The
cutting attachment must not rotate when the engine is
idling with the throttle trigger released. If the cutting
attachment still rotate, have your machine checked
by an authorized dealer or service center, to make
proper adjustments or repairs. Check and correct the
idle speed setting regularly.
•
Maintain the speed of the engine at the level required
to perform cutting work, and never raise the speed of
the engine above the level necessary.
•
If the grass gets caught in the cutting attachment
during operation, make sure to turn off the engine
before you perform any inspection or cleaning work.
•
If the cutting attachment touches a hard object like
stone, immediately stop the engine and check if
something is wrong with the cutting attachment. If
damage, replace the cutting attachment by new one.
•
If the machine starts making any unusual noise or
vibration, shut off the engine and allow the machine
to stop completely. Disconnect the spark plug
connector from the spark plug, Inspect for any
damage, check and tighten any loose parts, have any
damaged parts replaced or repaired with parts having
equivalent specifications.
•
Never touch the spark plug or plug cord while the
engine is in operation. Doing so may result in an
electrical shock.
•
When you finish cutting in one location and wish to
continue work in another spot, turn off the engine and
turn the machine as the cutting attachment faces
away from your body.
•
Note that the cutting attachment continue to run for a
short period after you let go of the throttle trigger, due
to flywheel effect.
•
The gearbox becomes hot during operation. To
reduce the risk of burn injury, do not touch the
gearbox housing.
•
Never touch metallic parts while the machine is in
operation or shortly thereafter, these parts such as
gearbox, engine, exhaust pipe and other surfaces are
extremely hot.
•
Never touch the muffler, spark plug, or other metallic
parts of the engine while the engine is in operation or
immediately after shutting down the engine. Doing so
may result I serious burns.
•
Be particularly alert and cautious when wearing
hearing protection because your ability to hear
warnings (shouts, alarms, etc.) is restricted.
•
To reduce the risk of accidents, take sufficient break
in good time to avoid tiredness or exhaustion.
•
Work calmly and carefully in daylight conditions and
only when visibility is good. Stay alert so as not to
endanger others.
•
To reduce the risk of serious or fatal injury from
breathing toxic fumes, ensure proper ventilation when
working in trenches, hollows or other confined
locations.
•
To reduce the risk of accidents, stop work
immediately in the event of nausea, headache, visual
disturbances (e.g. reduced field of vision), problems
with hearing, dizziness, deterioration in ability to
concentrate. Apart from other possibilities, these
symptoms may be caused by an excessively high
concentration of exhaust gases in the work area.
•
Operate your machine so that it produces a minimum
of noise and emissions. Do not run the engine
unnecessarily, accelerate the engine only when
working. To avoid noise complaints, in general
operate the machine between 8AM and 5PM on
weekdays, and 9AM to 5PM on weekends, detail
please refer to your local regulations.
•
Do not operate your machine in the starting throttle
position because engine speed cannot be controlled
in this position.
•
To reduce the risk of fire, do not smoke while
operating or standing near your machine. Note that
combustible fuel vapor may escape from the fuel
system. Always clean plant residue, chips, debris,
leaves and excess lubricant off the engine and
muffler. Note that stop the engine before you perform
the cleaning work.
•
If your power tool is subjected to unusually high loads
for which it was not designed (e.g. heavy impact or a
fall), always check that it is in good condition before
continuing work. Check the fuel system in particular
for leaks and make sure the safety devices are
working properly. Do not continue operating your
machine if it is damaged. In case of doubt, consult
your local authorized deal or service center.

|-13-
•
During operation, this machine may generate dust,
fumes and smoke containing chemicals that may be
harmful to your health, so be careful when using your
machine and protect yourself properly. Also, avoid
breathing exhaust fumes voluntarily; always hold the
product properly during operation.
•
Always ensure that air vents are kept clear of debris.
•
Before leaving the machine unattended, always shut
off the engine.
•
Check the cutting attachment at regular short
intervals during operation or immediately if there is a
noticeable change in cutting behavior:
-
Shut off the engine.
-
Wait until the cutting attachment have come to a
complete standstill.
-
Check condition and tightness, look for cracks.
-
Check sharpness.
WARNING
The dust that occurs during brush
cutter & grass trimmer operation
may be harmful to health. Operators
who are sensitive to dust or other
common airborne allergens may
need to wear a dust mask.
After finishing your work
•
Always clean dust and dirt off the machine. Do not
use any grease solvents for this purpose.
•
Do not use a pressure washer to clean brush cutter &
grass trimmer. The solid jet of high pressure water
may damage parts of the machine.
•
When the machine is not in use, shut it off so that it
does not endanger others. Secure it against
unauthorized use.
Maintenance and storage
•
Follow the maintenance and repair instructions for
this product. Never carry out any modifications of the
product.
•
Never change the preset rotary speed or the engine
and product settings. Information about maintenance
and repair is provided in this user manual.
•
When the product is stopped for servicing, inspection
or storage, shut off the power source, disconnect the
spark plug connector from the spark plug and make
sure all moving parts have come to a stop. Allow the
product to cool before making any inspections,
adjustments, etc.
•
Inspect the product before each use, after dropping
the product or exposing to other impacts to identify
significant defects.
•
Store the machine where the fuel vapor will not reach
an open flame or spark. Always allow the product to
cool down before storing.
•
When not in use store the product out of the reach of
children.
•
Use only manufacturers recommended replacement
parts and accessories.
•
Secure the product during transport to prevent loss of
fuel, damage and injury.
•
Clean and maintain the product as described in these
instructions before storage. Always use guards on
cutting attachments when storing.
•
Make sure that the air intake of the combustion
engine is clear. Keep the air intake free of dust, dirt
particles, gases and fumes.
•
Make sure that air circulation is adequate and good.
The product must be easily accessible from all sides.
Assembly
WARNING
Always shut off the engine and allow it cool down
before carrying out any work on the brush cutter &
grass trimmer.
Always wear appropriate gloves
when handling the cutting
attachments, in order to protect
your hands from injury. The cutting
attachment is sharp and can cut
you even when it is not moving!
If you received the brush cutter & grass trimmer in
completely assembled status, repeat all steps to ensure
your brush cutter & grass trimmer is properly
assembled and all fasteners are secured.

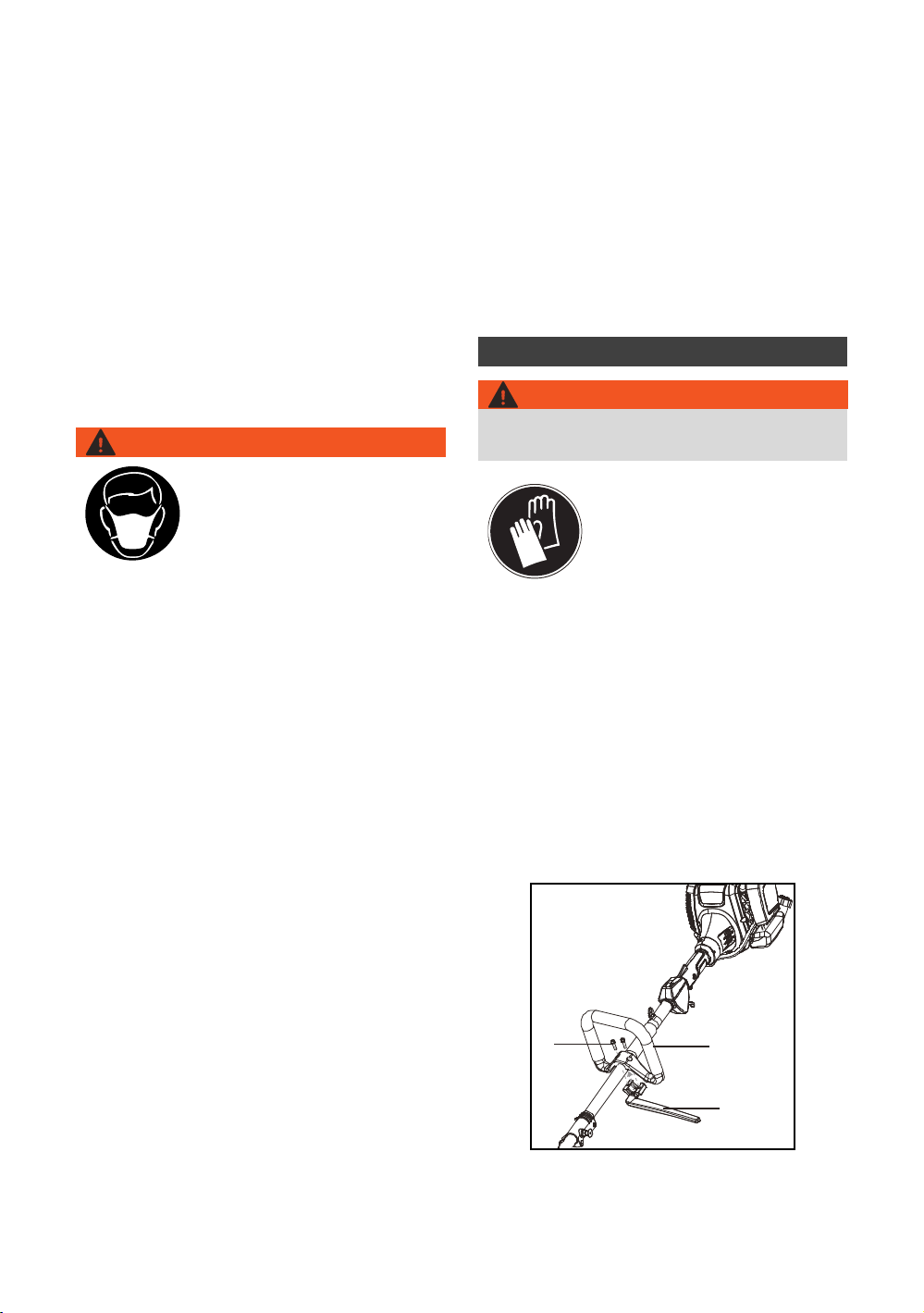

Assembly P handle
1. Loosen two pieces of screws (2) on P handle (1).
2. There are holes on the bottom side of the upper
shaft above the clamp for adjusting the position of
the handle. Align the step guard with the screw to
one of the holes in the shaft and insert the screw
into the hole.
3. Locate the handle (3) to the upper side of the shaft
and securely tighten the screws with hex key 4#.
1
2
3
Assembling shaft
1. Align the lower shaft(4) with the clamp(2) so that
the hole in the extension is orientated to the locking
pin.

|-14-

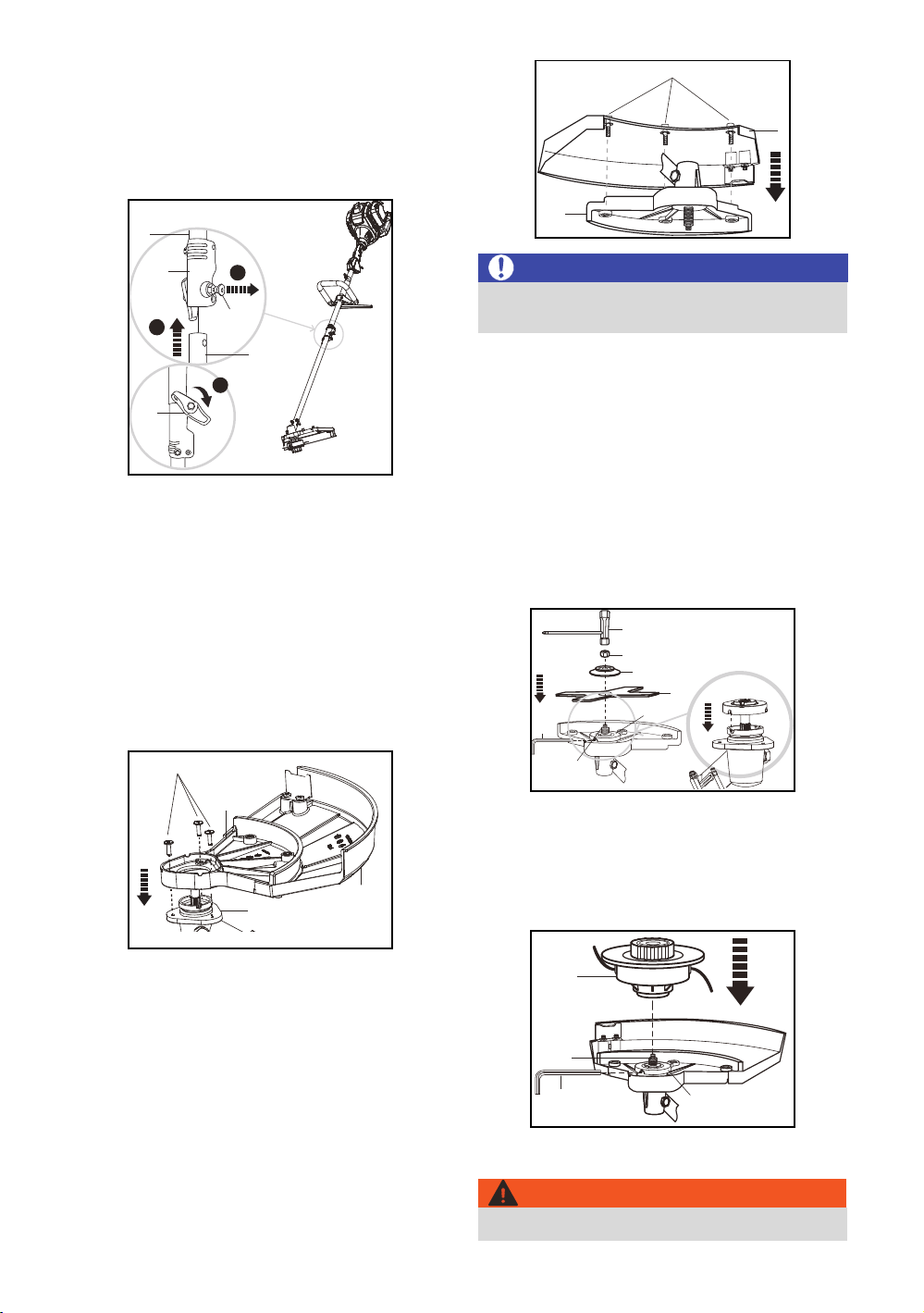

2. Pull out the locking pin (3) and insert the lower
shaft(4) into the clamp (2). Rotate the lower shaft
slightly to let the locking pin engage in the hole.
Release the locking pin. Always ensure the locking
pin engages in the hole.
3. Secure the connection by tightening the locking
knob (5) clockwise.
1
1
2
3
3
1
2
4
5
Assembling safety guard
1. Loosen the three pre-assembled screws (3) on the
gear head.
2. Rotate the backing flange until one of the notches is
aligned with the hole in the gear head.
3. Insert the spindle lock rod end of multi tool II into
the hole to lock the spindle.
4. Pull the pin out, loosen the nut and take it off
together with the locking and backing flange .
5. Place the cutting guard (2) onto the support (4) and
fix it with the screws removed from the gear head
earlier. Pay attention to the alignment of the guard.
1
3
2
4
6. If you intend to use the petrol brush cutter and
trimmer with the brush cutter blade remove the
screws and washers from the outer edge of the
guard and proceed under the heading “Cutting
options” below.
7. If you intend to use the petrol brush cutter and
trimmer with the trimmer head you will need to
additionally attach the trimming guard. Remove the
screws and washers from the outer edge of the
guard , locate the trimming guard and secure using
the screws and washers removed previously.
2
3
1
NOTICE
Local regulations might restrict the size of the cutting
guard so that it might be necessary to use the bigger
trimming guard for cutting. Ask your local authorities.
Installing cutting blade
1. Make sure that the inside guard has been attached
properly and the screws have been removed from
the outer edge.
2. Put the backing flange on the spindle.
3. Fit the cutting blade on the spindle. The direction of
rotation indicated on the guard must match the one
on the cutting blade. Ensure that the cutting blade
sits firmly on the extruded ring on the backing
flange.
4. Put the locking flange on the blade.
5. Secure the blade with the nut and insert the pin
3
2
4
5
6
1
7
Installing spool assembly
1. Make sure that the inside guard and outside guard
has been attached properly.
2. Put the backing flange on the spindle then screw
the cutting spool onto it.
1
4
2
3
Fitting and adjusting the harness
WARNING
Always attach the product to the harness. Do not carry
it just by hand!

|-15-
1. The harness helps the operator to carry this
product.
2. Take the harness by opening the karabiner.
3. The harness can attached to the upper shaft at one
of the two eyelets.
4. Place the harness so that is runs over the left
shoulder, crossing breast and back. The karabiner
must be place at the right hip.
5. Adjust the length of the harness so that the hook is
about 15cm below your waist and the cutting device
is parallel to the ground.
6. In case of emergency, release the product from the
harness by opening the karabiner.
1
2
NOTICE
This machine is not supplied with fuel in the engine!
Before operating this machine it is essential to fill in
fuel!
Fuel and fueling
Fuel
WARNING
Gasoline is very flammable. Avoid smoking or bringing
any flame or sparks near fuel. Make sure to stop the
engine and allow it cool down before refueling the
machine. Select well-ventilated outdoor bare ground for
fueling and move at least 3 m (10 ft) away from the
fuming point before starting the engine.
NOTICE
The brush cutter & grass trimmer is equipped with a
two-stroke engine, and it is certified to operate on
regular unleaded gasoline and two-stroke air cooled
engine oil at a recommended mix ratio of 40:1. It is
important to accurately measure the amount of oil to be
mixed to ensure that the correct mixture is obtained.
When mixing small amount of fuel, even small
inaccuracies can drastically affect the ratio of the
mixture.
40:1
Gasoline: Use good quality unleaded or leaded petrol.
Gasoline may contain up to 10% Ethanol (grain alcohol)
or 15% MTBE (methyl tertiary-butyl ether). Gasoline
containing methanol (wood alcohol) is NOT approved.
•
Poor quality gasoline or oil may damage sealing rings,
fuel lines or fuel tank of the engine.
•
Unleaded gasoline is recommended to reduce the
contamination of the air for the sake of your health
and the environment.
•
Regular gasoline is recommended is for mixture fuel.
If you run the engine on a lower octane grade than
regular, knocking can occur. This gives rise to a high
engine temperature, which can result in serious
engine damage.
•
If you use a gasoline of a Iower octane value than
prescribed, there is a danger that the engine
temperature may rise and an engine problem such as
piston seizing may consequently occur.
•
When working with continuous high speed (e.g.
delimbing), a higher octane grade is recommended.
•
Exhaust emission are controlled by the fundamental
engine parameters and components (for example,
carburetion, ignition timing and port timing) without
addition of any major hardware or the introduction of
an inert material during combustion.
•
Take care when handling gasoline. Avoid direct
contact with the skin and avoid inhaling fuel vapor
Two-stroke oil: A two-stroke air-cooled engine oil
meeting ISO EGC GRADE or JASO FC GRADE OIL
standards must be used. Do not use BIA or TCW (2
stroke water cooling type) mixed oil.
•
Never use two-stroke oil intended for water cooled
outboard motors, so-called, outboard oil.
•
Never use oil intended for four-stroke engines.
Mixing
1. Measure out the quantities of gasoline and oil to be
mixed.
2. Put half of the gasoline into a clean container
approved for fuel use.
3. Pour in entire amount of oil and agitate well.
4. Pour in the remaining amount of gasoline and
agitate again for at least one minute. As some oil
may be difficult to agitate depending on oil
ingredients, sufficient agitation is necessary for the
engine to last long. Be careful that, if the agitation is
insufficient, there is an increase danger of early
piston seizing due to abnormal lean mixture.

|-16-
5. Put a clear indication on the outside of the
container to avoid mixing up with gasoline or other
containers.
6. Indicate the contents on outside of container for
easy identification.
NOTICE
Do not mix more than max. one month’s supply of fuel.
If your machine is not used for some time the fuel tank
should be emptied and cleaned.
Fueling
WARNING
•
Do not smoke or place warm objects in the vicinity of
the fuel.
•
Select bare ground for fueling.
•
Always shut off the engine and allow it cool down
before refueling the machine.
•
Move at least 10 feet (3 meters) away from the fueling
point before starting the engine.
1. Place the machine on a stable and level surface.
We recommend laying an inflammable sheet under
the machine.
2. Before fueling, clean the filler cap and the area
around it to ensure that no dirt falls into the tank.
3. Loose a bit of the fuel cap carefully so as to allow
any pressure build-up in the fuel tank to release
slowly. Never remove the fuel cap when engine is
running!
4. Use proper a funnel with filter to put mixed fuel into
the fuel tank. Do not overfill. Leave approximately
5mm of space to the lower edge for fuel expansion.
Make sure the fuel is well mixed by shaking the
container before fuelling. Take care not to spill fuel
while fueling and do not overfill the tank.
5. Tighten the fuel cap securely after fuelling.
6. Wipe up any fuel spillage around the fuel cap and
fuel tank.
NOTICE
Experience indicates that alcohol blended fuels (called
gasohol or using ethanol or methanol) can attract
moisture which leads to separation and formation of
acids during storage. Acidic gas can damage the fuel
system of an engine while in storage. To avoid engine
problems, empty the fuel system before storage for 30
days or longer Drain the gas tank, start the engine and
let it run until the fuel lines and carburetor are empty
Use fresh fuel next season. Never use engine or
carburetor cleaner products in the fuel tank, otherwise
permanent damage may occur.
•
If fuel without mixing of oil (raw gasoline), it will cause
severe damage to the internal engine parts very
quickly.
•
Do not use gasohol, otherwise it can cause
deterioration of rubber and/or plastic parts and
disruption of engine lubrication.
•
Do not use 4-cycle engine oil, otherwise it can cause
spark plug fouling, exhaust port blocking, or piston
ring sticking.
•
Mixed fuels which have been Ieft unused for a period
of one month or more may clog the carburetor and
result in the engine failing to operate properly.
•
In the case of storing the product for a long period of
time, clean the fuel lank after rendering it empty. Next,
activate the engine and empty the carburetor of the
composite fuel.
•
In the case of scrapping the used mixed oil container,
scrap it only at an authorized repository site.
NOTICE
If your fuel cap can not be tightened properly, it may be
damaged or broken. Stop using the brush cutter &
grass trimmer and take it to your authorized dealer or
service center for repair.
WARNING
Always dispose fuel, used oil and objects soiled with
those according to local regulations.
Start and stop the engine
WARNING
To reduce the risk of fire and burn injuries, start the
engine at least 10feet (3m) from the fueling spot,
outdoors only.
WARNING
The cutting attachment has very sharp edges and they
will start rotating upon the engine starts. Touching them
may lead to severe personal injury. Avoid touching
cutting attachment whenever possible, and always
wear gloves to protect hands.
WARNING
To reduce the risk of serious or even fatal injury:
•
Never allow children or unauthorized persons access
to the machine.

|-17-
•
Do not allow children or other unauthorized persons
to attempt to start or otherwise use the machine.
•
Never leave the machine unattended while working or
during work breaks.
•
After work, store the machine in a safe, secure
location out of the reach of children and other
unauthorized persons.
•
Observe safety precautions and instructions.
Pre-operation checklist
Follow the steps below before using the machine every
time:
1. Check and make sure you wear proper clothing and
PPE.
2. Check the starting location.
3. Keep children or other unauthorized persons well
away from work area where you plan to start the
machine.
4. Make sure that all the parts including cutting
attachment and deflector are installed properly, and
there is no broken parts or lacks of any parts.
5. Check the fuel level to make sure there is sufficient
mixed fuel in the fuel tank.
6. Check there is no leakage of fuel and oil.
7. Remove the protective cover.
8. Make sure that the cutting attachments are not
touching ground or any other obstacles.
9. Double-check and observe all safety precautions
and instructions in this manual prior to starting the
machine.
WARNING
Do not use drop start. This method is very dangerous
because you may lose control of the brush cutter &
grass trimmer, and result in serious or even fatal injury.
Start cold engine
WARNING
When starting the engine, make sure that your body
does not contact with the muffler. A hot muffler can
cause serious burns.
1. If necessary, fill fuel into the fuel tank and tighten
the fuel cap securely.
2. Set the ignition switch to START position “I”.
3. Move the choke lever to the CLOSE position.
4. Pump primer bulb until fuel is visible and flows
freely in the clear fuel tank return line. Pump bulb
an additional 6 times.
5. Place the machine on a flat and firm ground in a
clear area. It must rest securely on the engine
support and the deflector. Make sure that the
cutting attachment is not touching ground or any
other obstacles.
6. Hold the clutch housing of brush cutter & grass
trimmer firmly on the ground with you left hand and
press down, with your thumb under the fan housing.
NOTICE
Do not touch the throttle trigger and/or throttle lockout.
Do not stand or kneel on the drive tube.
7. Grip the starter rope handle securely with your right
hand, pull it slowly until resistance is felt, then pull it
rapidly. Pull the recoil starter 3~4 times until start
the engine.

|-18-
NOTICE
Do not pull out the starter rope all the way, otherwise it
might break.
Do not let the starter rope snap back by itself. Guide it
slowly back into the housing, so that the starter rope
can rewind properly.
information
If the engine is new or after a long out-of-service period,
it may be necessary to pull the starter rope several
times to prime the fuel system.
8. Move in the choke lever to the OPEN position
immediately when the engine ignites and make
repeated starting attempts.
9. Restart engine if necessary and allow the machine
to warm up at idle engine speed for several
minutes.
NOTICE
If engine does not start with choke control lever in
“OPEN” position after 5 pulls, repeat steps 2~ 10.
NOTICE
When restarting the engine immediately after stopping
it, leave the choke lever in “OPEN” position.
WARNING
The cutting attachment must not rotate at idle speed,
otherwise serious personal injury may result. Periodic
carburetor adjustment may be necessary to assure
cutting attachment does not rotate at idle speed. If
cutting attachment rotates at idle speed, have the
carburetor readjusted by your local authorized dealer or
service center.
Start warm engine
The WARM starting procedure is almost same as
COLD starting except the choke knob position.
To start warm engine, move the choke lever to OPEN
position.
WARNING
When starting the engine, make sure that your body
does not contact with the muffler. A hot muffler can
cause serious burns.
1. If necessary, fill fuel into the fuel tank and tighten
the fuel cap securely.
2. Set the ignition switch to START position “I”.
3. Move the choke lever to the OPEN position.
4. Depress throttle interlock (A), and then depress
throttle trigger (B).
A
B
5. Place the machine on a flat and firm ground in a
clear area. It must rest securely on the engine
support and the deflector. Make sure that the
cutting attachment is not touching ground or any
other obstacles.
6. Hold the clutch housing of brush cutter & grass
trimmer firmly on the ground with you left hand and
press down, with your thumb under the fan housing.
NOTICE
Do not touch the throttle trigger and/or throttle lockout.
Do not stand or kneel on the drive tube.
7. Grip the starter rope handle securely with your right
hand, pull it slowly until resistance is felt, then pull it
rapidly until start the engine.
Table of contents
Other CRAFTOP Trimmer manuals
