Craftsman 917.388570 User manual

Owner's Manual
IC..FTSMnWl
ROTARY LAWN MOWER
6.5 Horsepower
21" Rear Discharge
Model No.
917.388570
• EspaSol, p. 18
CAUTION:
Read and follow all
Safety Rules and Instructions
before operating this equipment
Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.
Visit our Craftsman website: www.sears.com/craftsman

Warranty ................................................... 2
Safety Rules .......................................... 2-4
Product Specifications .............................. 4
Assembly /Pre-Operation ........................ 6
Operation ............................................. 7-10
Maintenance Schedule ........................... 11
Maintenance ...................................... 11-13
Service and Adjustments ........................ 14
Storage .............................................. 15-16
Troubleshooting ................................. 16-17
Repair Parts ....................................... 34-39
Sears Service .......................... Back Cover
LIMITED TWO YEAR WARRANTY ON CRAFTSMAN POWER MOWER
For two years from date of purchase, when this Craftsman Lawn Mower is maintained,
lubricated, and tuned up according to the operating and maintenance instructions in the
owner's manual, Sears will repair free of charge any defect in material or workmanship.
If this Craftsman Lawn Mower is used for commercial or rental purposes, this warranty
applies for only 90 days from the date of purchase.
This Warranty does not cover:
• Expendable items which become worn during normal use, such as rotary mower
blades, blade adapters, belts, air cleaners and spark plug.
• Repairs necessary because of operator abuse or negligence, including bent crank-
shafts and the failure to maintain the equipment according to the instructions con-
tained in the owner's manual.
Warranty service is available by returning the Craftsman power mower to the nearest
Sears Parts & Repair Center in the United States. This warranty applies only while this
product is used in the United States.
This Warranty gives you specific legal rights, and you may also have other rights which
vary from state to state.
Sears, Roebuck And Co., D/817 WA, Hoffman Estates, Illinois 60179
IMPORTANT: This cutting machine is capable of amputating hands and feet and throw-
ing objects. Failure to observe the following safety instructions could result in serious
injury or death.
_,Look for this symbol to point out
important safety precautions. It means
CAUTION!H BECOME ALERT!H
YOUR SAFETY IS INVOLVED.
&WARNING: In order to prevent ac-
cidental starting when setting up, trans-
porting, adjusting or making repairs,
always disconnect spark plug wire and
place wire where it cannot come in con-
tact with plug.
_,WARNING: Battery posts, terminals and
related accessories contain lead and lead
compounds, chemicals known to the State
of California to cause cancer and birth
defects or other reproductive harm. Wash
hands after handling.
_,WARNING: Engine exhaust, some of its
constituents, and certain vehicle compo-
nents contain or emit chemicals known
to the State of California to cause cancer
and birth defects or other reproductive
harm. 2
_, CAUTION: Muffler and other engine
parts become extremely hot during
operation and remain hot after engine has
stopped. To avoid severe burns on contact,
stay away from these areas.

I. GENERAL OPERATION
• Read, understand, and follow all
instructions on the machine and in the
manual(s) before starting. Be thoroughly
familiar with the controls and the proper
use of the machine before starting.
• Do not put hands or feet near or under
rotating parts. Keep clear of the dis-
charge opening at all times.
• Only allow responsible individuals, who
are familiar with the instructions, to
operate the machine.
• Clear the area of objects such as rocks,
toys, wire, bones, sticks, etc., which
could be picked up and thrown by the
blade.
• Be sure the area is clear of other people
before mowing. Stop machine if anyone
enters the area.
• Do not operate the mower when bare-
foot or wearing open sandals. Always
wear substantial foot wear.
• Do not pull mower backwards unless
absolutely necessary. Always look down
and behind before and while moving
backwards.
• Do not operate the mower without
proper guards, plates, grass catcher or
other safety protective devices in place.
• See manufacturer's instructions for
proper operation and installation of
accessories. Only use accessories ap-
proved by the manufacturer.
• Stop the blade(s) when crossing gravel
drives, walks, or roads.
• Stop the engine (motor) whenever you
leave the equipment, before cleaning
the mower or unclogging the chute.
• Shut the engine (motor) off and wait
until the blade comes to complete stop
before removing grass catcher.
• Mow only in daylight or good artificial
light.
• Do not operate the machine while under
the influence of alcohol or drugs.
• Never operate machine in wet grass.
Always be sure of your footing: keep a
firm hold on the handle and walk; never
run.
• Disengage the self-propelled mech-
anism or drive clutch on mowers so
equipped before starting the engine
(motor).
• If the equipment should start to vibrate
abnormally, stop the engine (motor) and
check immediately for the cause. Vibra-
tion is generally a warning of trouble.
• Always wear safety goggles or safety
glasses with side shields when oper-
ating mower. 3
II. SLOPE OPERATION
Slopes are a major factor related to slip
and fall accidents which can result in
severe injury. All slopes require extra cau-
tion. If you feel uneasy on a slope, do not
mow it.
DO:
• Mow across the face of slopes: never
up and down. Exercise extreme caution
when changing direction on slopes.
• Remove obstacles such as rocks, tree
limbs, etc.
• Watch for holes, ruts, or bumps. Tall
grass can hide obstacles.
DO NOT:
• Do not trim near drop-offs, ditches or
embankments. The operator could lose
footing or balance.
• Do not trim excessively steep slopes.
• Do not mow on wet grass. Reduced foot-
ing could cause slipping.
III. CHILDREN
Tragic accidents can occur if the operator
is not alert to the presence of children.
Children are often attracted to the machine
and the mowing activity. Never assume
that children will remain where you last
saw them.
• Keep children out of the trimming area
and under the watchful care of another
responsible adult.
• Be alert and turn machine off if children
enter the area.
• Before and while walking backwards,
look behind and down for small children.
• Never allow children to operate the ma-
chine.
• Use extra care when approaching blind
corners, shrubs, trees, or other objects
that may obscure vision.
IV. SERVICE
•Use extra care in handling gasoline and
other fuels. They are flammable and
vapors are explosive.
-Use only an approved container.
-Never remove gas cap or add fuel
with the engine running.
Allow engine to cool before refueling.
Do not smoke.
-Never refuel the machine indoors.
-Never store the machine or fuel
container inside where there is an
open flame, such as a water heater.
•Never run amachine inside a closed area.
•Never make adjustments or repairs with
the engine (motor) running. Disconnectthe
spark plug wire, and keep the wire away
from the plug toprevent accidental starting.

° Keepnutsandbolts,especiallyblade
attachmentbolts,tightand keepequip-
mentingoodcondition.
° Nevertamperwith safetydevices.Check
theirproperoperationregularly.
• Keep machinefree of grass, leaves,or
otherdebrisbuild-up.Cleanoilorfuelspill-
age.Allowmachinetocoolbeforestoring.
° Stopandinspecttheequipmentifyou
strikean object.Repair,if necessary,
beforerestarting.
° Neverattempttomakewheelheightadjust-
mentswhiletheengine(motor)isrunning.
° Grasscatchercomponentsaresubject
to wear,damage,anddeterioration,
whichcouldexposemovingpartsor
allowobjectsto be thrown.Frequently
checkcomponentsand replacewith
manufacturer'srecommendedparts,
whennecessary.
° Mowerbladesare sharpandcan cut.
Wraptheblade(s)orweargloves,and
useextracautionwhenservicingthem.
° Donotchangethe enginegovernorset-
ting oroverspeedtheengine.
SerialNumber:
Dateof Purchase:
GasolineCapacity/Type: 1.6Quarts(UnleadedRegular)
OilType(API-SF-SJ): SAE30 (above32°F);SAE5W-30(below32°F)
OilCapacity: 20 Ounces
SparkPlug(Gap: .030") Champion RJ19LM or J19LM
Blade Bolt Torque: 35-40 ft. Ibs.
The model and serial numbers will be found on a decal on the rear of the lawn mower
housing. Record both serial number and date of purchase in space provided above.
Repair Protection Agreements
Congratulations on making a smart pur-
chase. Your new Craftsman® product is
designed and manufactured for years of
dependable operation. But like all prod-
ucts, it may require repair from time to
time. That's when having a Repair Protec-
tion Agreement can save you money and
aggravation.
Purchase a Repair Protection Agreement
now and protect yourself from unexpected
hassle and expense.
Here's what's included in the Agreement:
•Expert service by our 12,000 profe-
sional repair specialists.
• Unlimited service and no charge for
parts and labor on all covered repairs.
• Product replacement if your covered
product can't be fixed.
•Discount of 10% from regular price of
service and service-related parts not
covered by the agreement; also, 10%
off regular price of preventive mainte-
nance check.
Fast help by phone - phone support
from a Sears technician on products
requiring in-home repair, plus conve-
nient repair scheduling.
Once you purchase the Agreement, a
simple phone call is all that it takes for you
to schedule service. You can call anytime
day or night, or schedule a service ap-
pointment online.
Sears has over 12,000 professional repair
specialists, who have access to over 4.5
million quality parts and accessories.
That's the kind of professionalism you can
count on to help prolong the life of your
new purchase for years to come. Purchase
your Repair Protection Agreement today{
Some limitations and exclusions apply.
For prices and additional information
call 1-800-827-6655.
Sears Installation Service
For Sears professional installation of home
appliances, garage door openers, water
heaters, and other major home items, in
the U.S.A. call 1-800-4-MY-HOME®.
4

These accessories were available when this lawn mower was produced. They are not
shipped with your mower, They are also available at most Sears retail outlets and
service centers. Some of these accessories may not apply to your lawn mower.
LAWN MOWER PERFORMANCE
CLIPPING
DEFLECTORS
FOR
REAR DISCHARGE
LAWN MOWERS
\\ GRASS CATCHERS
_\_ \\\ FOR
REAR DISCHARGE
LAWN MOWERS
STABILIZER
GRASS CATCHERS
FOR
SIDE DISCHARGE
LAWN MOWERS
LAWN MOWER MAINTENANCE
MUFFLERS AIR FILTERS SPARK PLUGS
BELTS BLADES BLADE ADAPTERS WHEELS ENGINE OIL
5

Read these instructions and this manual in its entirety before you attempt to assemble or
operate your new lawn mower.
IMPORTANT: This lawn mower is shipped WITHOUT OIL OR GASOLINE in the engine.
Your new lawn mower has been assembled at the factory with the exception of those
parts left unassembled for shipping purposes. To ensure safe and proper operation of
your lawn mower, all parts and hardware you assemble must be tightened securely. Use
the correct tools as necessary to ensure proper tightness. All parts such as nuts, wash-
ers, bolts, etc., necessary to complete the assembly have been placed in the parts bag.
TO REMOVE LAWN MOWER FROM
CARTON
1. Remove loose parts included with
mower.
2. Cut down two end corners of carton
and lay end panel down flat.
3. Remove all packing materials except
padding between upper and lower
handle and padding holding operator
presence control bar to upper handle.
4. Roll lawn mower out of carton and
check carton thoroughly for additional
loose parts.
HOWTO SET UPYOUR MOWER
TO UNFOLD HANDLE
IMPORTANT: Unfold handle carefully so
as not to pinch or damage control cables.
1. Raise lower handle section to operat-
ing position and squeeze the bottom
ends of lower handle towards each
other until the pin in handle can be
inserted into one of the three height
adjustment holes.
2. Remove protective padding, raise up-
per handle section into place on lower
handle and tighten both handle knobs.
3. Remove any packing material from
around control bar.
Your lawn mower handle can be adjusted
for your mowing comfort. Refer to "AD-
JUST HANDLE" in the Service and Adjust-
merits section of this manual.
SQL
Handle
bracket
Handle pin
J
TO ASSEMBLE GRASS CATCHER
1. Put grass catcher frame into grass bag
with rigid part of bag on the bottom.
Make sure the frame handle is outside
of the bag top.
2. Slip vinyl bindings over frame.
NOTE: If vinyl bindings are toe stiff, hold
them in warm water for a few minutes. If
bag gets wet, let it dry before using.
Catcher
frame
handle
Operator presence
control bar
LIFT
UF Frame opening
Mowing
position
Lower handle 6
TO INSTALL ATTACHMENTS
Your lawn mower was shipped ready to
be used as a mulcher. To convert to bag-
ging, see "TO CONVERT MOWER" in the
Operation section of this manual.

KNOWYOUR LAWN MOWER
READ THIS OWNER'S MANUAL AND ALL SAFETY RULES BEFORE OPERATING
YOUR LAWN MOWER. Compare the illustrations with your lawn mower to familiarize
yourself with the location of various controls and adjustments. Save this manual for
future reference.
These symbols may appear on your lawn mower or in literature supplied with the
product. Learn and understand their meaning.
CAUTION ENGINE ENGINE FAST SLOW CHOKE FUEL OIL DANGER, KEEP HANDS
OR WARNING ON OFF AND FEET AWAY
Operator presence control bar
Starter
handle
Grass
Housing
Gasoline filler ca
Air filte_
Wheel adjuster
Primer (on each wheel)
IMPORTANT: This lawn mower is shipped WITHOUT OIL OR GASOLINE in the engine.
MEETS CPSC SAFETY REQUIREMENTS
Sears rotary walk-behind power lawn mowers conform to the safety standards of the
American National Standards Institute and the U.S. Consumer Product Safety Com-
mission. The blade turns when the engine is running,
Operator presence control bar - must Primer - pumps additional fuel from the
be held down to the handle to start the carburetor to the cylinder for use when
engine. Release to stop the engine, starting a cold engine.
Starter handle- used for starting engine. 7

Theoperationof any lawn
mowercan resultin foreign
objectsthrownintothe
eyes,whichcan resultin
severeeye damage.Always
wearsafetyglassesoreyeshieldswhile
operatingyour lawnmoweror performing
anyadjustmentsor repairs.We recom-
menda standardsafetyglassesorwide
visionsafetymaskwornoverspectacles.
HOWTO USEYOUR LAWN MOWER
ENGINE SPEED
The engine speed was set at the factory
for optimum performance. Speed is not
adjustable.
ENGINE ZONE CONTROL
[LCAUTION: Federal regulations require
an engine control to be installed on this
lawn mower in order to minimize the
risk of blade contact injury. Do not under
any circumstances attempt to defeat the
function of the operator control. The blade
turns when the engine is running.
• Your lawn mower is equipped with an
operator presence control bar which
requires the operator to be positioned
behind the lawn mower handle to start
and operate the lawn mower.
TO ADJUST CUTTING HEIGHT
Raise wheels for low cut and lower wheels
for high cut, adjust cutting height to suit
your requirements. Medium position is
best for most lawns.
• To change cutting height, squeeze ad-
juster lever toward wheel. Move wheel
up or down to suit your requirements.
Be sure all wheels are in the same set-
ting.
NOTE: Adjuster is properly positioned
when plate tab inserts into hole in lever.
Also, 9-position adjusters (if so equipped)
allow lever to be positioned between the
plate tabs.
LEVER BACKWARD
TO LOWER MOWER Plate t_
TO CONVERT MOWER
Your lawn mower was shipped ready to be
used as a mulcher. To convert to bagging:
• Lift rear door of the lawn mower and
place the grass catcher frame hooks
onto the door pivot pins.
• To convert to mulching operation, re-
move grass catcher and close rear door.
CAUTION: Do not run your lawn mower
without rear door closed, clipping deflector
or approved grass catcher in place. Never
attempt to operate the lawn mower with
the rear door removed or propped open.
Pivot Rear Grass
catcher
handle
Catcher frame hook
TO EMPTY GRASS CATCHER
1. Lift up on grass catcher using the
frame handle.
2. Remove grass catcher with clippings
from under lawn mower handle.
3. Empty clippings from bag using both
frame handle and bag handle.
NOTE: Do not drag the bag when empty-
ing; it will cause unnecessary wear.
/
Grass
catcher
frame
handle
Bag
handle
LEVER FORWARD TO RAISE MOWER Lever
8

BEFORE STARTING ENGINE
ADD OIL
Your lawnmower is shipped without oil in
the engine. For type and grade of oil to
use, see "ENGINE" in the Maintenance
section of this manual.
_i, CAUTION: DO NOT overfill engine with
oil, or it will smoke heavily from the muffler
on startup.
1. Be sure lawnmower is level.
2. Remove oil dipstick from oil fill spout.
3. You receive a container of oil with the
unit. Slowly pour the entire container
down the oil fill spout into the engine.
4. Insert and tighten dipstick.
IMPORTANT:
•Check oil level before each use. Add oil
if needed. Fill to full line on dipstick.
° Change the oil after every 25 hours of
operation or each season. You may
need to change the oil more often
under dusty, dirty conditions. See "TO
CHANGE ENGINE OIE' in the Mainte-
nance section of this manual.
ADD GASOLINE
° Fill fuel tank to bottom of tank filler neck.
Do not overfill. Use fresh, clean, regular
unleaded gasoline with a minimum of
87 octane. Do not mix oil with gasoline.
Purchase fuel in quantities that can be
used within 30 days to assure fuel fresh-
Ness.
/i, CAUTION: Wipe off any spilled oil or
fuel. Do not store, spill or use gasoline
near
. an open flame.
CAUTION: Alcohol blended fuels
(called gasohol or using ethanol or metha-
nol) can attract moisture which leads to
separation and formation of acids during
storage. Acidic gas can damage the fuel
system of an engine while in storage. To
avoid engine problems, the fuel system
should be emptied before storage of 30
days or longer. Empty the gas tank, start
the engine and let it run until the fuel lines
and carburetor are empty. Use fresh fuel
next season. See Storage Instructions for
additional information. Never use engine
or carburetor cleaner products in the fuel
tank or permanent damage may occur.
Engine
oil cap
Gasoline
filler cap
Prime_
TO STOP ENGINE
• To stop engine, release operator pres-
ence control bar.
TO START ENGINE
NOTE: Due to protective coatings on the
engine, a small amount of smoke may be
present during the initial use of the prod-
uct and should be considered normal.
1. To start a cold engine, push primer
three (3) times before trying to start.
Use a firm push. This step is not
usually necessary when starting an
engine which has already run for a few
minutes.
2. Hold operator presence control bar
down to the handle and pull starter
handle quickly. Do not allow starter
rope to snap back.
NOTE: In cooler weather it may be neces-
sary to repeat priming steps. In warmer
weather over priming may cause flooding
and engine will not start. If you do flood
engine, wait a few minutes before attempt-
ing to start and do not repeat priming
steps.
9

MOWING TIPS
•Under certain conditions, such as very
tall grass, it may be necessary to raise
the height of cut to reduce pushing
effort and to keep from overloading the
engine and leaving clumps of grass clip-
pings. It may also be necessary to re-
duce ground speed and/or run the lawn
mower over the area a second time.
° For extremely heavy cutting, reduce the
width of cut by overlapping previously
cut path and mow slowly.
° For better grass bagging and most cut-
ting conditions, the engine speed should
be set in the FAST position.
° When using a rear discharge lawn
mower in moist, heavy grass, clumps
of cut grass may not enter the grass
catcher. Reduce ground speed (pushing
speed) and/or run the lawn mower over
the area a second time.
° If a trail of clippings is left on the right
side of a rear discharge mower, mow in
a clockwise direction with a small over-
lap to collect the clippings on the next
pass.
° Pores in cloth grass catchers can be-
come filled with dirt and dust with use
and catchers will collect less grass. To
prevent this, regularly hose catcher off
with water and let dry before using.
° Keep top of engine around starter clear
and clean of grass clippings and chaff.
This will help engine air flow and extend
engine life.
MULCHING MOWING TIPS
IMPORTANT: For best performance,
keep mower housing free of built-up
grass and trash. See "CLEANING" in the
Maintenance section of this manual.
° The special mulching blade will recur
the grass clippings many times and
reduce them in size so that as they fall
onto the lawn they will disperse into
the grass and not be noticed. Also, the
mulched grass will biodegrade quickly
to provide nutrients for the lawn. Always
mulch with your highest engine (blade)
speed as this will provide the best recut-
ting action of the blades.
° Avoid cutting your lawn when it is wet.
Wet grass tends to form clumps and
interferes with the mulching action. The
best time to mow your lawn is the early
afternoon. At this time the grass has
dried, yet the newly cut area will not be
exposed to direct sunlight.
° For best results, adjust the lawn mower
cutting height so that the lawn mower
cuts off only the top one-third of the
grass blades. If the lawn is overgrown it
will be necessary to raise the height of
cut to reduce pushing effort and to keep
from overloading the engine and leaving
clumps of mulched grass. For extremely
heavy grass, reduce your width of cut
by overlapping previously cut path and
mow slowly.
MAX 1/3
• Certain types of grass and grass
conditions may require that an area be
mulched a second time to completely
hide the clippings. When doing a sec-
ond cut, mew across (perpendicular) to
the first cut path.
• Change your cutting pattern from week
to week. Mew north to south one week
then change to east to west the next
week. This will help prevent matting and
graining of the lawn.
10

MAINTENANCE eEPOREA rER EVE.V EVE.Y EVE.VeEPO.E
EACH EACH 10 2 .OURS 100
SCHEDULE use use .ou.s O.SEASO..ou.s STORAGE
Check for Loose Fasteners
_ Clean /Inspect Grass Catcher *
Check Tires
_ Check Drive Wheels
Clean Lawn Mower ****
M Clean under Drive Cover ***
O Check Drive Belt/Pulteys ***
_ Check /Sharpen /Replace Blade
R Lubrication
Clean and Recharge Battery **
Check Engine Oil level
Change Engine Oit
Clean Air Filter
Inspect Muffler
Replace Spark Plug
Replace Air Fitter Paper Cartridge
Empty fuel system or add Stabilizer
,/
lI_,2
14
t/
*(if so equipped)
** Electric_Start mowers
*_* Power_Propeiledmowers
**** Use a scraper
to clean under dock
1_Change more often if operating under a heavy load or in high outdoor temperatures,
2 - Service more often if operating in dirty or dusty conditions,
3_Replace blades more often when mowing in sandy soil
4 _Charge 48 hours at end of season,
5 _And after each 5 hours of use.
GENERAL RECOMMENDATIONS
The warranty on this lawn mower does not
cover items that have been subjected to
operator abuse or negligence. To receive
full value from the warranty, operator must
maintain unit as instructed in this manual.
LUBRICATION CHART
Wheel
adjuster (on
each wheel)
Some adjustments will need to be made
periodically to properly maintain your unit. ine oil
At least once a season, check to see if
you should make any of the adjustments
described in the Service and Adjustments
section of this manual.
• At least once a year, replace the spark
plug, clean or replace air filter element
and check blade for wear. A new spark
plug and clean/new air filter element
assure proper air-fuel mixture and help
your engine run better and last longer.
• Follow the maintenance schedule in this
manual.
BEFORE EACH USE
• Check engine oil level.
° Check for loose fasteners.
LU BRICATION
Keep unit well lubricated
(See "LUBRICATION CHART").
Rear door
hinge
Handle bracket mounting pins
_sPray lubricant
See ENGINE in Maintenance section.
IMPORTANT: Do not oil or grease plastic
wheel bearings. Viscous lubricants will
attract dust and dirt that will shorten the life of
the self-lubricating bearings. If you feel they
must be lubricated, use only adry, powdered
11graphite type lubricant sparingly.

LAWN MOWER
Always observe safety rules when per-
forming any maintenance.
TIRES
° Keep tires free of gasoline, oil, or insect
control chemicals which can harm rubber.
° Avoid stumps, stones, deep ruts, sharp
objects and other hazards that may
cause tire damage.
BLADE CARE
For best results, mower blade must be kept
sharp. Replace bent or damaged blades.
TO REMOVE BLADE
1. Disconnect spark plug wire from spark
plug and place wire where it cannot
come in contact with plug.
2. Turn lawn mower on its side. Make
sure air filter and carburetor are up.
3. Use a wood block between blade and
mower housing to prevent blade from
turning when removing blade bolt.
NOTE." Protect your hands with gloves
and/or wrap blade with heavy cloth.
4. Remove blade bolt by turning counter-
clockwise.
5. Remove blade and attaching hardware
(bolt, Iock washer and hardened washer).
TO REPLACE BLADE
1. Position blade on the blade adapter
aligning the two (2) holes in the blade
with the raised lugs on the adapter.
2. Be sure the trailing edge of blade (oppo-
site sharp edge) is up toward the engine.
3. Install the blade bolt with the lock
washer and hardened washer into
blade adapter and crankshaft.
4. Use block of wood between blade and
lawn mower housing and tighten the
blade bolt, turning clockwise.
° The recommended tightening torque is
35-40 ft. Ibs.
IMPORTANT: Blade bolt is heat treated.
If bolt needs replacing, replace only with
approved bolt shown in the Repair Parts
section of this manual.
Blade adapter Crankshaft
Key ..... keyway
Blade /
/
/
Blade
bolt washer
TO SHARPEN BLADE
NOTE: We de not recommend sharpening
the blade - but if you do, be sure the blade
is balanced.
Care should be taken to keep the blade
balanced. An unbalanced blade will
cause eventual damage to lawn mower or
engine.
° The blade can be sharpened with a file
or on a grinding wheel. Do not attempt
to sharpen while on the mower.
° To check blade balance, drive a nail into
a beam or wall. Leave about one inch of
the straight nail exposed. Place center
hole of blade over the head of the nail.
If blade is balanced, it should remain in
a horizontal position. If either end of the
blade moves downward, sharpen the
heavy end until the blade is balanced.
GRASS CATCHER
• The grass catcher may be hosed with
water, but must be dry when used.
• Check your grass catcher often for dam-
age or deterioration. Through normal
use it will wear. If catcher needs replac-
ing, replace only with approved replace-
ment catcher shown in the Repair Parts
section of this manual. Give the lawn
mower model number when ordering.
ENGINE
LUBRICATION
Use only high quality detergent oil rated with
API service classification SF-SJ. Select the
oil's SAE viscosity grade according to your
expected operating temperature.
SAE VISCOSITY GRADES
NOTE: Although multi-viscosity oils
(5W30, 10W30 etc.) improve starting in
cold weather, these multi-viscosity oils will
result in increased oil consumption when
used above 32°F. Check your engine oil
level more frequently to avoid possible
engine damage from running low on oil.
Check the crankcase oil level before
starting the engine and after each five (5)
hours of continuous use. Tighten oil plug
securely each time you check the oil level.
shaft
/\
Trailing edge Blade adapter 12

TO CHANGE ENGINE OIL
NOTE: Before tipping lawn mower to drain
oil, empty fuel tank by running engine until
fuel tank is empty.
1. Disconnect spark plug wire from spark
plug and place wire where it cannot
come in contact with plug.
2. Remove engine oil cap; lay aside on a
clean surface.
3. Tip lawn mower on its side as shown
and drain oil into a suitable container.
Rock lawn mower back and forth to re-
move any oil trapped inside of engine.
_i,CAUTION: Petroleum solvents, such
as kerosene, are not to be used to clean
cartridge. They may cause deterioration
of the cartridge. Do not oil cartridge. Do
not use pressurized air to clean or dry
cartridge.
4. Install cartridge, then replace cover
making sure the tabs are aligned with
the slots in the back plate. Fasten
screw securely.
Back
4. Wipe off any spilled oil from lawn
mower or side of engine.
5. Slowly pour oil down the oil fill spout,
stopping every few ounces to check the
oil level with the dipstick.
6. Stop adding oil when you reach the
FULL mark on the dipstick. Wait a
minute to allow oil to settle.
7. Continue adding small amounts of oil,
rechecking the dipstick until oil level
settles at FULL. DO NOT overfill, or
engine will smoke heavily from the
muffler on startup.
8. Always be sure to retighten oil dipstick
before starting engine.
9. Reconnect spark plug wire to spark plug.
AIR FILTER
Your engine will not run properly and may
be damaged by using a dirty air filter.
Replace the air filter cartridge every 100
hours of operation or every season, which-
ever occurs first. Service air cleaner more
often under dusty conditions.
TO CLEAN AIR FILTER
1. Loosen screw and tilt cover to remove.
2. Carefully remove cartridge.
3. Clean by gently tapping on a flat sur-
face. If very dirty, replace cartridge.
Cover
Cartridge Cover tabs
MUFFLER
Inspect and replace corroded muffler as it
could create a fire hazard and/or damage.
SPARK PLUG
Replace spark plug at the beginning of
each mowing season or after every 100
hours of operation, whichever occurs
first. Spark plug type and gap setting
are shown in the "PRODUCT SPECIFIC-
ATIONS" section of this manual.
13
CLEANING
IMPORTANT: For best performance,
keep mower housing free of built-grass
and trash. Clean the underside of your
mower after each use.
_LCAUTION: Disconnect spark plug wire
from spark plug and place wire where it
cannot come in contact with plug.
• Clean the underside of your lawn
mower by scraping to remove build-up
of grass and trash.
• Clean engine often to keep trash from
accumulating. A clogged engine runs
hotter and shortens engine life.
• Keep finished surfaces and wheels free
of all gasoline, oil, etc.
• We do not recommend using a garden
hose to clean lawn mower unless the
electrical system, muffler, air filter and
carburetor are covered to keep water
out. Water in engine can result in short-
ened engine life.

_I, WARNING: To avoid serious injury,
before performing any service and
adjustments:
1. Release control bar and stop engine.
2. Make sure the blade and all moving
parts have completely stopped.
3. Disconnect spark plug wire from spark
plug and place wire where it cannot
come in contact with plug.
LAWN MOWER
TO ADJUST CUTTING HEIGHT
See "TO ADJUST CUTTING HEIGHT" in
the Operation section of this manual.
REAR DEFLECTOR
The rear deflector, attached between the
rear wheels of your mower, is provided to
minimize the possibility that objects will
be thrown out of the rear of the mower
into the operator mowing position. If the
deflector becomes damaged, it should be
replaced.
TO ADJUST HANDLE
The handle on your lawn mower has three
(3) height positions - adjust to height that
suits you.
° Squeeze the bottom ends of lower
handle towards each other until the pin
in handle can be inserted into one of the
three height adjustment holes.
Hi Handle pin
Medium.
SQL
ENGINE
ENGINE SPEED
Your engine speed has been factory set.
Do not attempt to increase engine speed
or it may result in personal injury. If you
believe that engine is running too fast or
too slow, take your mower to a Sears or
other qualified service center for repair
and adjustment.
CARBURETOR
Your carburetor is not adjustable. If your
engine does not operate properlydue to sus-
pected carburetor problems, take your lawn
mower to a Sears or other qualified service
center for repair and/or adjustment.
IMPORTANT: Never tamper with the
engine governor, which is factory set
for proper engine speed. Overspeeding
the engine above the factory high speed
setting can be dangerous. If you think
the engine-governed high speed needs
adjusting, contact a Sears or other
qualified service center, which has proper
equipment and experience to make any
necessary adjustments.
Low
Handle
bracket
14

Immediately prepare your lawn mower for storage at the end of the season or if the unit
will not be used for 30 days or more.
LAWN MOWER
When lawn mower is to be stored for a
period of time, clean it thoroughly, remove
all dirt, grease, leaves, etc. Store in a
clean, dry area.
1. Clean entire lawn mower (See
"CLEANING" in the Maintenance sec-
tion of this manual).
2. Lubricate as shown in the Maintenance
section of this manual.
3. Be sure that all nuts, belts, screws, and
pins are securely fastened. Inspect
moving parts for damage, breakage
and wear. Replace if necessary.
4. Touch up all rusted or chipped paint
surfaces; sand lightly before painting.
HANDLE
You can fold your mower handle for storage.
NOTE: The upper handle has an "anti-fold"
bracket located onthe right side ofthe handle.
This bracket prevents the upper handle from
folding forward, which helps protect control
cable(s) from damage.
1. Loosen the two (2) handle knobs on
sides of the upper handle and allow
handle to fold down to the rear.
2. Squeeze the bottom ends of lower
handle toward each other until pins
in handle clear the brackets and pivot
entire handle assembly forward and
allow it to rest on mower.
• When setting up your handle from the
storage position, you must manually
lock lower handle into mowing position.
IMPORTANT: When folding the handle for
storage or transportation, be sure to fold
the handle as shown or you may damage
the control cables.
Operator presence
contro! bar
Lower
SQL
Handle
bracket
Handle pin
/
ENGINE
FUEL SYSTEM
IMPORTANT: It is important to prevent
gum deposits from forming in essential
fuel system parts such as carburetor, fuel
filter, fuel hose, or tank during storage.
Also, alcohol blended fuels (called gasohol
or using ethanol or methanol) can attract
moisture which leads to separation and
formation of acids during storage. Acidic
gas can damage the fuel system of an
engine while in storage.
• Empty the fuel tank by starting the en-
gine and letting it run until the fuel lines
and carburetor are empty.
• Never use engine or carburetor cleaner
products in the fuel tank or permanent
damage may occur.
• Use fresh fuel next season.
NOTE: Fuel stabilizer is an acceptable
alternative in minimizing the formation of
fuel gum deposits during storage. Add
stabilizer to gasoline in fuel tank or stor-
age container. Always follow the mix ratio
found on stabilizer container. Run engine
at least 10 minutes after adding stabilizer
to allow the stabilizer to reach the car-
buretor. Do not empty the gas tank and
carburetor if using fuel stabilizer.
ENGINE OIL
Drain oil (with engine warm) and replace
with clean engine oil. (See "ENGINE" in
the Maintenance section of this manual).
Mowing
position 15

CYLINDER
1. Remove spark plug.
2. Pour one ounce (29 ml) of oil through
spark plug hole into cylinder.
3. Pull starter handle slowly a few times to
distribute oil,
4. Replace with new spark plug,
OTHER
° Do not store gasoline from one season
to another.
° Replace your gasoline can if your can
starts to rust. Rust and/or dirt in your
gasoline will cause problems.
• If possible, store your unit indoors and
cover it to protect it from dust and dirt.
• Cover your unit with a suitable protec-
tive cover that does not retain moisture.
Do not use plastic. Plastic cannot
breathe, which allows condensation to
form and will cause your unit to rust.
IMPORTANT: Never cover mower while
engine and exhaust areas are still warm,
_[I,CAUTION: Never store the lawn mower
with gasoline in the tank inside a building
where fumes may reach an open flame
or spark, Allow the engine to cool before
storing in any enclosure.
TROUBLESHOOTING - See appropriate section in manual unless directed
to a Sears Service Center.
PROBLEM CAUSE CORRECTION
Does not start 1. Dirty air filter.
2. Out of fuel.
3. Stale fuel.
4. Water in fuel.
5. Spark plug wire is
disconnected.
6. Bad spark plug.
7. Loose blade or broken
blade adapter.
8. Control bar in released
position.
9. Control bar defective.
10. Fuel valve lever (if so
equipped) in OFF position.
11.Weak battery (if equipped).
12. Disconnected battery
connector (if equipped).
.
2.
3.
4.
5.
6.
7.
8.
9.
Clean/replace air filter.
Fill fuel tank.
Empty fuel tank and refill tank
with fresh, clean gasoline.
Empty fuel tank and refill tank
with fresh, clean gasoline.
Connect wire to plug.
Replace spark plug.
Tighten blade bolt or
replace blade adapter.
Depress control bar to
handle,
Replace control bar,
10,Turn fuel valve lever
to the ON position.
11,Charge battery.
12.Connect battery to engine.
16

TROUBLESHOOTING - See appropriate section in manual unless directed
to a Sears Service Center.
PROBLEM ICAUSE
Loss of power 1. Rear of lawn mower
Poor cut -
uneven
Excessive
vibration
Starter rope
hard to pull
Grass catcher
not filling
(If so equipped)
Hard to push
housing or cutting blade
dragging in heavy grass.
2. Cutting too much grass.
3. Dirty air filter.
4. Buildup of grass, leaves,
and trash under mower.
5. Too much oil in engine.
6. Walking speed too fast.
1. Worn, bent or loose blade.
2. Wheel heights uneven.
3. Buildup of grass, leaves
and trash under mower.
1. Worn, bent or loose blade.
2. Bent engine crankshaft.
1. Engine flywheel brake is on
when control bar is released.
2. Bent engine crankshaft.
3. Blade adapter broken.
4. Blade dragging in grass.
1. Cutting height too low.
2. Lift on blade worn off.
3. Catcher not venting air.
1. Grass is too high or wheel
height is too low.
2. Rear of lawn mower
housing or cutting blade
dragging in grass.
3. Grass catcher too full.
4. Handle height position not
right for you.
CORRECTION
1. Raise cutting height.
2. Raise cutting height.
3. Clean/replace air filter.
4. Clean underside of mower
housing.
5. Check oil level.
6. Cut at slower walking speed.
1. Replace blade. Tighten
blade bolt.
2. Set all wheels at same
height.
3. Clean underside of
mower housing.
1. Replace blade. Tighten
blade bolt.
2. Contact a Sears or other
qualified service center.
1. Depress control bar to
upper handle before
pulling starter rope.
2. Contact a Sears or other
qualified service center.
3. Replace blade adapter.
4. Move lawn mower to cut
grass or to hard surface.
1. Raise cutting height.
2. Replace blade.
3. Clean grass catcher.
1. Raise cutting height.
2. Raise rear of lawn mower
housing one (1) setting
higher.
3. Empty grass catcher.
4. Adjust handle height to suit.
17

Garantia ......................................................... 18
Reglas de Seguridad ................................ 18-20
Especificaciones del Producto ....................... 20
Montaje /Pre-Operaci6n ............................... 22
Operaci6n ................................................. 23-26
Mantenimiento .......................................... 27-29
Programa de Mantenimiento ......................... 27
Servicio y Adjustes ........................................ 30
AImaeenamiento ....................................... 31-32
IdentificaciSn de problemas ...................... 32-33
Partes de repuesto .................................. 34-39
Servicio Sears .................................. Contratapa
GARANTfA LIMITADA DE DOS AltOS PARA LA SEGADORA A MOTOR CRAFTSMAN
Pot dos (2) aSos, a partir de la fecha de compra, cuando esta Segadora Craftsman se mantenga,
Iubrique y aline segL_nlas instrucciones para la operaci6n y e! mantenimiento en el manual del
dueSo, Sears repararA gratis todo defeeto en el material y Ia mano de obra.
Si la Segadora Craftsman se usa para fines eomereiales o de arriendo, esta garantia s61ose apIica
pot noventa (90) dfas a partir de la fecha de compra.
Esta Garantia no cubre:
• Artieulos que se desgastan durante el uso normal tales como las cuchillas segadoras rotatorias,
los adaptadores de la euchilla, las correas, los filtros de aire y las bujias.
• Reparaciones necesarias debido aI abuso o a la negligencia del operador, incluyendose a los
cigQeSales doblados y a la falta de mantenimiento del equipo segL_nlas instrucciones que se
incluyen en el manual del dueSo.
El servicio de garantia esta disponible al devolver Ia segadora a motor Craftsman al Centro/Depart-
mento de Servicio Sears mas cercano en los Estados Unidos. Esta garantia se aplica solamente
mientras el producto este en uso en los Estados Unidos.
Esta Garantia le otorga derechos Iegales especfficos, y puede que tambi6n tenga otros derechos
que varian de estado a estado.
Sears, Roebuck and Co., Di817WA, Hoffman Estates, IL 60179 USA
IMPORTANTE: Esta maquina cortadaora es capaz de amputar las manos y los manos y los pies y
de lanzar objetos. Si no se observan las instrucciones de seguridad siguientes se pueden producir
lesiones graves o la muerte.
_Busque este s_mbolo que seSala las precau-
ciones de seguridad de importaneia. Quiere
decir - iiiATENCION!% iESTE ALERTO!!!
SU SEGURIDAD ESTA COMPROMETIDA.
d_,DVERTENCIA: Siempre desconecte el
alambre de la bujla y p6ngalo donde no pueda
entrar en contacto con la bujia, para evitar el
arranque pot accidente, durante la preparaciSn,
el transporte, el ajuste o cuando se hacen
reparaciones.
_JADVERTENClA: Los bornes, terminales y
accesorios relativos de la baten'a contienen
plomo o compuestos de plomo, produetos
qu[micos eonocidos en el Estado de California
como causa de cancer y defeetos al nacimiento
u otros daSos reproductivos. Lavar las manos
despues de manipularlos.
A_ILPRECAUCI(_N: El tubo de escape del motor,
algunos de sus eonstituyentes y algunos com-
ponentes del vehieulo contienen o desprenden
productos quimicos conocidos en el Estado de
California eomo eausa de cancer y defeetos al
nacimiento u otros daSos reproduetivos.
_PRECAUCI6N: El sitenciador y otras
piezas del motor Ilegan a sre extremadamente
calientes durante Ia operacibn y siguen siendo
calientes despu_s de que el motor haya parado.
Para evitar quemaduras severas, permanezca
Iejos de estas Areas.
18

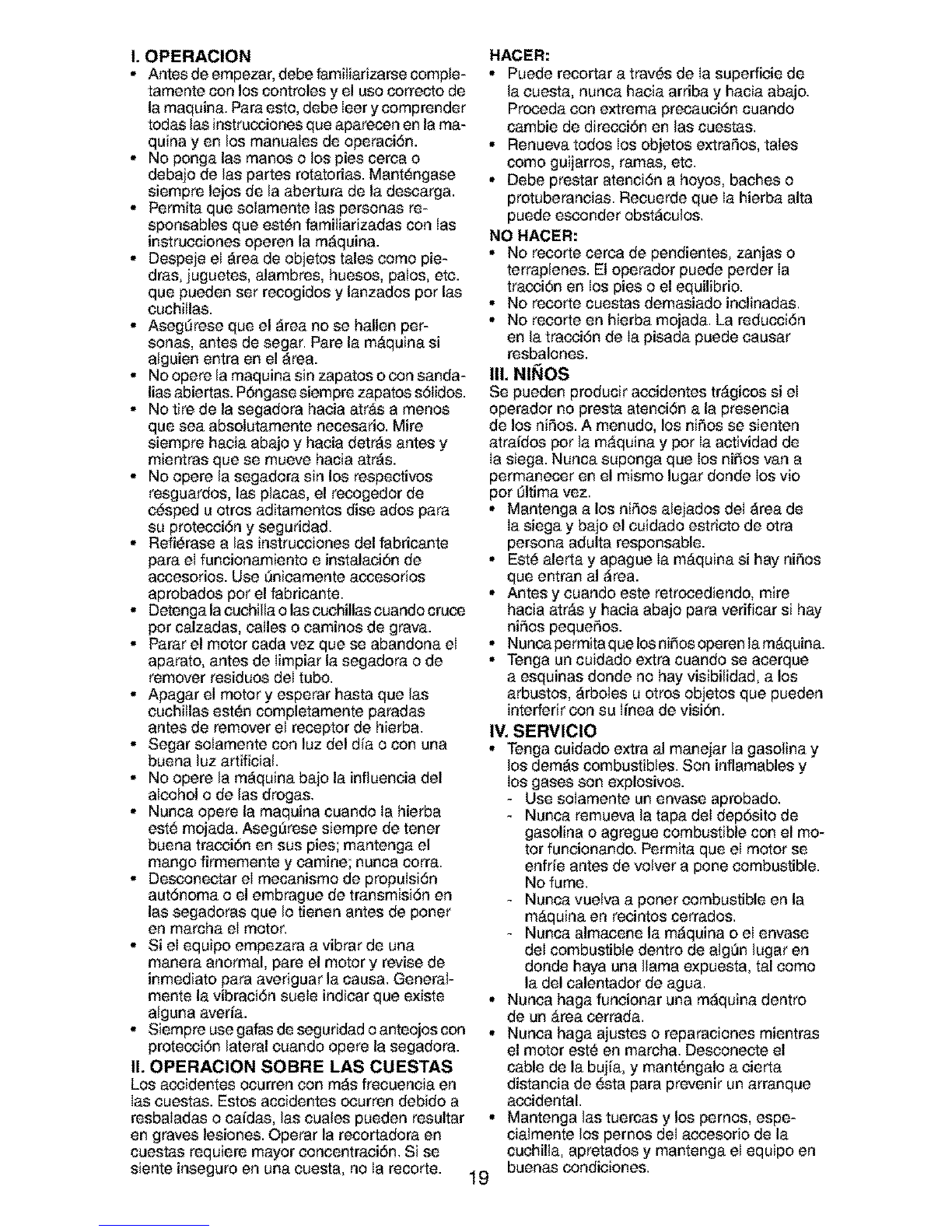

I, OPERAClON
* Antesdeempezar, debefamiliarizarsecomple-
tamente con los controles y el uso correcto de
la maquina. Para esto, debe leer y comprender
todas las instrucciones que aparecen en la ma-
quina yen los manuales de operaciSn.
,No ponga las manos o los pies cerea o
debajo de las partes rotatorias. Mant_ngase
siempre lejos de la abertura de la descarga.
,Permita que solamente las personas re-
sponsables que est#n famitiarizadas con Ias
instrucciones operen la maquina.
,Despeje el area de objetos tales como pie-
dras, juguetes, alambres, huesos, palos, etc.
que pueden ser recogidos y lanzados por las
cuchillas.
,Aseg_rese que el area no se hallen per-
sonas, antes de segar. Pare la mAquina si
alguien entra en el area.
,Nooperelamaquinasinzapatosoconsanda-
lias abiertas. POngase siempre zapatos sSlidos.
,No tire de la segadora hacia atrAs a menos
que sea absolutamente necesario. Mire
siempre hacia abajo y hacia detrAs antes y
mientras que se mueve hacia atrAs.
,No opere la segadora sin los respectivos
resguardos, las placas, el reccgedor de
c_sped u otros aditamentos dise ados para
su protecciSn y seguridad.
,Refi_rase alas instrucciones del fabricante
para el funcionamiento e instalaci6n de
accesorios. Use _nicamente accesorios
aprobados por el fabricante.
,Detenga la cuchilta o las cuchillas euando cruce
pot calzadas, ealles o caminos de grava.
,Parar el motor cada vez que se abandona el
aparato, antes de Iimpiar la segadora o de
remover residuos del tubo.
,Apagar el motor y esperar hasta que las
cuchillas est_n completamente paradas
antes de remover el receptor de hierba.
,Segar solamente con luz del dia o con una
buena luz artificial.
, No opere la maquina ba]o la influencia del
alcohol o de las drogas.
, Nunca opere la maquina cuando Ia hierba
est_ mojada. AsegOrese siempre de tener
buena tracci6n en sus pies; mantenga el
mango firmemente y eamine; nunca corra.
, Desconeetar el mecanismo de propulsiSn
autSnoma o el embrague de transmisiSn en
las segadoras que Io tienen antes de porter
en marcha el motor.
, Si el equipo empezara a vibrar de una
manera anormal, pare el motor y revise de
inmediato para averiguar la causa. General-
mente la vibraciSn suele indicar que existe
alguna averia.
,Siempre use gafas de seguridad o anteojos con ,
protecci6n lateral cuando opere la segadora.
II, OPERAClON SOBRE LAS CUESTAS
Los accidentes ocurren con mas frecuencia en
Ias euestas. Estos accidentes ccurren debido a
resbaladas o caidas, las cuales pueden resultar •
en graves lesiones. Operar la recortadora en
cuestas requiere mayor concentraci6n. Si se
siente inseguro en una cuesta, no Ia recorte. 19
HACER:
•Puede recortar a tray,s de Ia superfieie de
la cuesta, nunca hacia arriba y hacia abajo.
Prcceda con extrema precauci6n cuando
cambie de direcci6n en las cuestas.
•Renueva todos los objetos extraSos, tales
como guijarros, ramas, etc.
•Debe prestar atenci6n a hoyos, baches o
protuberaneias. Recuerde que Ia hierba alta
puede esconder obstaculos.
NO HACER:
•No recorte cerea de pendientes, zanjas o
terraplenes. El operador puede perder Ia
tracci6n en los pies o el equilibrio.
•No recorte cuestas demasiado inelinadas.
•No recorte en hierba mojada. La reducciSn
en la tracciSn de Ia pisada puede causar
resbalones.
III, NI_IOS
Se pueden producir accidentes trAgicos si el
operador no presta atenciSn a la presencia
de los niSos. A menudo, los niSos se sienten
atraidos por la mAquina y por Ia actividad de
Ia siega. Nunca suponga que los niSos van a
permanecer en el mismo lugar donde los vio
por Oltima vez.
•Mantenga a los niSos alejados del area de
Ia siega y bajo el cuidado estricto de otra
persona adulta responsable.
•Est_ alerta y apague Ia mAquina si hay niSos
que entran al area.
•Antes y euando este retrccediendo, mire
hacia atrAs y hacia abajo para verificar si hay
niSos pequeSos.
•Nunca permita que los ni_os operen la mAquina.
•Tenga un cuidado extra cuando se acerque
aesquinas donde no hay visibitidad, a los
arbustos, arboles u otros objetos que pueden
interferir con su linea de visi6n.
IV, SERMIClO
•Tenga cuidado extra al manejar la gasolina y
los demas combustibles. Son inflamables y
los gases son explosivos.
-Use solamente un envase aprobado.
-Nunca remueva la tapa deI dep_,sito de
gasolina o agregue combustible con el mo-
tor funcionando. Permita que el motor se
enfrie antes de volver a pone combustible.
No fume.
-Nunca vuetva a porter combustible en la
mAquina en recintos cerrados.
-Nunca almacene la maquina o el envase
del combustible dentro de alg_n lugar en
donde haya una llama expuesta, tal como
la del calentador de agua.
Nunca haga funcionar una maquina dentro
de un Area eerrada.
Nunea haga ajustes o reparaciones mientras
el motor est_ en marcha. Desccnecte el
cable de la bujia, y mant_ngalo a eierta
distancia de _sta para prevenir un arranque
accidental.
Mantenga las tuercas y los pemos, espe-
cialmente los pernos del accesorio de la
cuchilla, apretados y mantenga el equipo en
buenas condiciones.

• Nuncamanipuledeformaindebidalos
dispositivosdeseguridad.Controleregular-
mentesufuncionamientocorrecto.
• Mantengalam_quinaIibredehierba,hojas
uotrasacumulacionesdedesperdicio.
Limpielosderramesdeaceiteocombustible.
Permitaquelam_quinaseenfrie antes de
almacenarla.
• Pare einspeccione el equipo si le pega a un
objeto. RepArelo, si es necesario, antes de
hacerlo arrancar.
• En ning_n caso hay que regular Ia altura de
las ruedas mientras el motor est,. en marcha.
• Los componentes del receptor de la hierba
van sujetos a desgaste, daSos y deterioro,
que pueden exporter las partes en mov-
imiento o permitir que objetos sean dispara-
dos. Controlar frecuentemente y cuando sea
necesario sustituir con partes aconsejadas
pot el fabricante.
• Las cuchillas de la segadora estAn afiladas y
pueden cortar. Cubrir las hojas o Ilevar guantes,
y utilizar precauciones especiales cuando se
electra mantenimiento sobre Ias mismas.
° No cambie el ajuste det regulador del motor
ni exceda su velocidad.
NSmero de Serie:
Fecha de Compra:
Capacidad y Tipo de Gasolina: 1.6 Cuartos (Regular sin Plomo)
Tipo de Aceite (API-SF-SJ): SAE 30 (Sobre 32°F); SAE 5W-30 (Debajo 32°F)
Capacidad de Aceite: 20 Onzas
Bujfa (Abertura: .030") Champion RJ19LM o J19LM
Torsi6n del Perno de la Cuchilla: 35-40 ft. Ibs.
El n_mero deInodelo y el de serie se encuentran en la calcomania adjunta a la parte trasera
de la caja de la segadora. Debe registrar tanto el nLimerode serie come la fecha decompra y
mantengalos en un lugar seguro para refencia en el futuro.
Acuerdos de Protecci6n para la Reparaci6n
Congratutaciones per su buena compra. Su
nuevo producto Craftsman@ est_ diseSado
y fabricado para funcionar de modo liable pot
muchos aSos. Pero como todos los productos,
puede necesitar alguna reparaci6n de tanto
en tanto. En este caso tenet un Acuerdo de
Protecci6n para la Reparaci6n puede hacerles
ahorrar dinero y fastidios.
Compre ahem un Acuerdo de Proteccidn para
ta Repamcidn y prot_gese de motestias y gas-
tos inespetados.
Un Acuerdo incluye los puntos siguientes:
•Servieio experto de nuestros 12.000 espe-
cialistas profesionales en la reparaci6n.
• Servieio ilimitado sin cargo atguno para
las partes y la mano de obra sobre todas Ias
reparaciones garantizadas.
•Sustitucibn del producto si su producto
garantizado no puede set arreglado.
•Descuento de110% sobre el precio cor-
riente del servicio y de las partes relativas aI
servicio no cubiertas pot el acuerdo; tambi_,.n
el 10% menos sobre el precio corriente de
un control de mantenimiento preventivo.
•Ayuda r_pida pot tel_fono - soporte tele-
f6nico pot parte de un t_cnico Sears sobre
productos que requieren un arreglo en casa,
y adem_s una programaci6n sobre los a
reglos m_s convenientes.
Cuando se ha comprado el Acuerdo, basta con
una Ilamada telef6nica para programar el servi-
cio. Puede Ilamar cuando quiera, diay noche o
fijar en linea una cita para obtener el servicio.
Sears tiene m&s de 12.000 especialistas
profesionales en la reparaci6n, que tienen
acceso a mAs de 4.5 millones de partes y
accesorios de calidad. Este es el tipo de
profesionalidad con que puede contar para
ayudar a alargar la vida del producto que acaba
de comprar, pot muchos aSos. iCompre h(_j su
Acuerdo de Protecci6n para la Reparaci6n!
Se apliean algunas limitaciones y exelu-
siones. Para conocer los precios y tenet
mds informaci6n, Ilame at 1-800-827-6655.
Servieio de Instalaei6n Seats
Para ta instatacidn profesionat Seats de
aparatos de casa, puertas de garaje,
calentadores de agua y otros importantes
articulos para la casa, en U.S.A. Ilamar a
1-800-4-MY-HOME®.
2O
