Craig CKR1307 User manual

Model: CKR1307
PLEASE READ BEFORE OPERATING THIS EQUIPMENT.
Owner's Manual
UNDERCABINET CD PLAYER
with AM/FM Alarm Clock Radio and
Bluetooth® Wireless Technology
UNDERCABINET CD PLAYER
with AM/FM Alarm Clock Radio and
Bluetooth® Wireless Technology

1
This equipment must be installed and operated in accordance with provided instructions and
the antenna(s) used for this transmitter must be installed to provide a separation distance of at
least 20 cm from all persons and must not be co-located or operating in conjunction with any
other antenna or transmitter. End-users and installers must be provided with antenna
installation instructions and transmitter operating conditions for satisfying RF exposure
compliance.

2

3

PREPARATION FOR USE
Power Sources
1.
2.
3.
4
Main Unit:
Unwind the AC power cord and extend it to its full length. Insert
the AC plug of the cord into any convenient
AC 120V~ 60Hz household
outlet as the illustrated on right:
NOTES:
This unit is equipped with a polarized AC plug which has one blade wider
than the other. This is a safety feature to reduce the likelihood of electric
shock. This polarized AC plug will only fit in a polarized AC outlet. If you find
that you cannot insert this plug you’re your outlet, you may have an obsolete
non-polarized outlet. Please do not try to defeat this safety feature by using
a non-polarized adaptor or by filling the wider blade to make it fit into your
outlet. If this plug does not fit into your outlet, you should contact a qualified
licensed electrician to replace your obsolete outlet
If the AC power failure, this electronic clock is designed to continue operat-
ing internally (without showing the time on the Clock Display) with three (3)
AAA size batteries (not included). Install the batteries as follows:
Open the battery door on the left side of the
unit by sliding it out and then lifting it as the
illustrated on right:
Insert three (3) AAA size batteries (not
included) according to the polarity diagram
inside the battery compartment. (Alkaline
batteries are recommended.)
Replace the battery door.

PULL
CR2025
OPEN
PUSH
5
To replace the button cell if it is consume:
BATTERY PRECAUTIONS:
1. Push and slide out the battery tray as the illustrated below.
2. Replace the button cell by a new CR2025 button cell with the polarity “+” face up as
the illustrated below and the marking on the rear of Remote Control.
3. Close the battery tray.
Follow these precautions when using a battery in this device:
1. Use only the size and type of battery specified.
2. Be sure to follow the correct polarity when installing the battery as indicated
in the battery compartment. A reversed battery may cause damage to the
device.
3. Do not mix different types of batteries together (e.g. Alkaline and
Carbon-zinc) or old batteries with fresh ones.
4. If the batteries in the device are consumed or the device is not to be used for
a long period of time, remove the batteries to prevent damage or injury from
possible battery leakage.
5. Do not try to recharge the battery not intended to be recharged; it can
overheat and rupture. (Follow battery manufacturer’s instructions.)
6. Do not dispose of battery in fire. Battery may explodes or leak.
7. Clean the battery contacts and also those of the device prior to battery
installation.
8. This product contains a coin/button cell battery. If the coin/button cell battery
is swallowed, it can cause severe internal burn in just 2 hours and can lead to
death. Keep new and used batteries away from children. If the battery
compartment does not close securely, stop using the product and keep it
away from children. If you think batteries might have been swallowed or
placed inside any part of the body, seek immediate medical attention.
Remote Control:

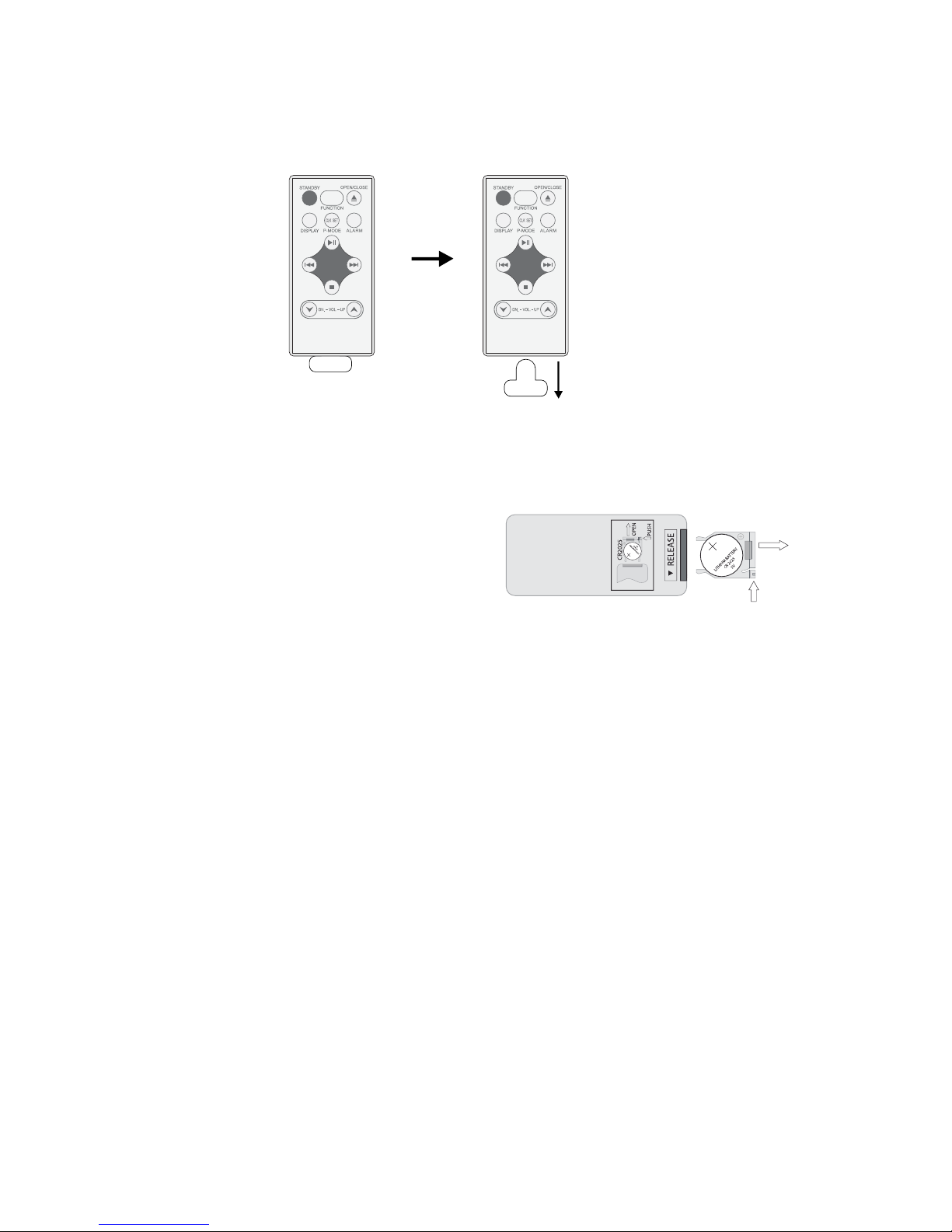

In first time use, remove and discard the insulation film on the battery compartment
as the illustrated follows:
PULL
PAIRPAIR

PULL
Main Unit:
Remote Controls:
LOCATION OF CONTROLS
STANDB
STANDBY Indicator
Y Button
P-MODE/CLK SET
(Program-Mode/Clock set) Button
DISPLAY Button
LCD Display
FUNCTION Button
AUX IN Jack
TUNING Knob
ALARM Button
4
5
3
1
4
7
8
9
12
13
2
5
6
10
11
6
7
8
2
1
9
12
10 11 13 17
14 16
3
15
18
19
20
21
PAIR
6
CD Door Open/Close Button
CD Door
Forward Button
Fast Search Forward/Skip
/PAIR (Play-Pause/BT Pair) Button
Fast Search Backward/Skip Backward
Stop Button
(Remote) SENSOR
VOL - (Volume down) Button
VOL + (Volume up) Button
Battery Compartment
AC Cord
FM Antenna
1. (CD Door) OPEN/CLOSE Button
2. STANDBY Button
3. FUNCTION Button
4. ALARM Button
5. DISPLAY Button
6. CLK SET/P-MODE (Clock set/Program-Mode) Button
7. /PAIR (Play-Pause/BT Pair) Button
8. Fast Search Forward/Skip Forward Button
9. Stop Button
10. Fast Search Backward/Skip Backward Button
11. VOL DN (Volume down) Button
12. VOL UP (Volume up) Button
13. Battery Tray

INSTALLATION
7

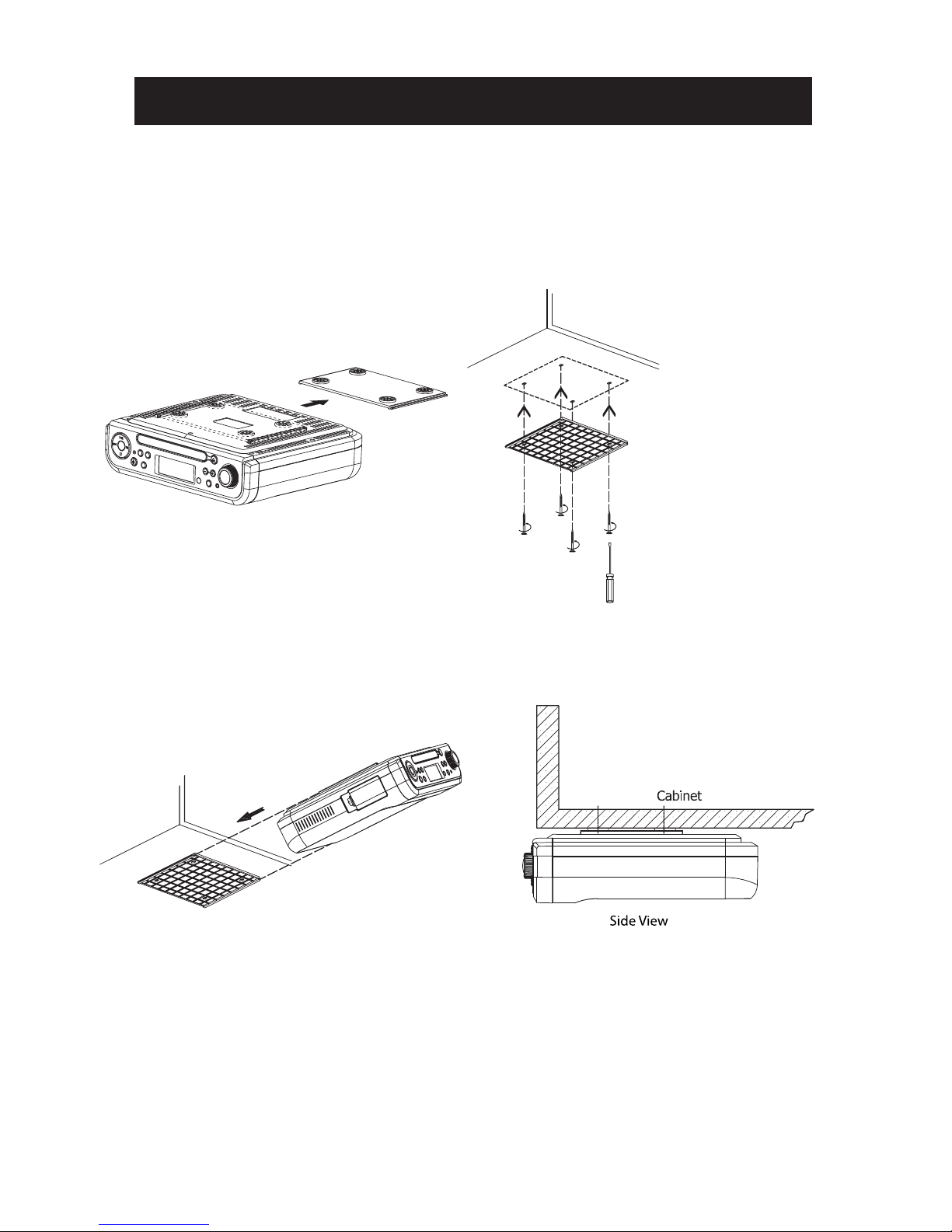

1. Detach the Plastic Assemble
Install the unit to the bottom of cabinet (if need) as follows:
Plate from the top of unit by slide
it to rear of unit as the illustrated:
2. Mount the Plastic Assemble
Plate on the desired location as
follows illustrated:
3. Replace the unit to the
mounted Plastic Assemble
Plate as follows illustrated:
CAUTION:
To reduce the risk of fire, never mount the unit near any heat elements such like
stoves; oven … etc.

OPERATION
GENERAL OPERATION:
ACTUAL TIME SETTINGS:
8
1. Connected the unit to AC power as instructed earlier. The Red
Indicator will illuminate.
2. Press the Button on the unit or Remote Control to power on the
unit from standby mode. The Red Indicator will not light and the LCD
Display will illuminate.
3. Press the FUNCTION Button on the unit or Remote Control
repeatedly to select the playback source.
4. Press the VOL +/- Buttons on the unit or the VOL DN/UP Buttons on the
Remote Control to adjust volume level as desire.
5. When finished listening, press the Button on the unit or Remote
Control to turn off (standby) the unit. The Red Indicator will illuminate.
To set or reset the actual time:
1. In power off (Standby) mode. Press and hold the P-MODE/CLK SET
Button on the unit or Remote Control approximate 2 seconds until the
digit of Hour on the LCD Display is blinking.
2. Press the or Button on the unit or Remote Control repeatedly to
set hour. (Make sure the PM Indicator appear on the display if the
time is PM and the AM Indicator is appear on the display if the time is
AM).
3. Press the P-MODE/CLK SET Button again, the digit of Minute will
blink.
4. Press the or Button repeatedly to set minute.
5. When finished, press the P-MODE/CLK SET Button to save the
settings and exit. The display will stop blinking.
BT (BLUE TOOTH)
In first time use or re-pairing to a new BT Device, pairing it as below:
1. In standby mode, press the Button to power on the unit.
2. Press the FUNCTION Button repeatedly until the indicator
display and blink.
3. Power on the external BT Device and enter to BT searching mode. Start
pairing as the on screen instructions on the external BT Device. After
paired, the indicator will stop blinking. (For details pairing
procedures, please refer to the user’s manual of your BT Device.).
4. Plays the music in the paired BT Device as usual.
appear on the

9
When the external BT Device searched the unit, our model number
“CKR1307” will appear on the display of external BT Device.
Pairing code “0000” or “1234” may need to enter.
Notes:
Note:
Normal operation after paired:
CD:
1. Turn on the BT function of the external BT Device.
2. Power on the unit and enter to BT mode as the instructed earlier. The
indicator will appear on the display and blink.
3. Wait a few seconds until the unit auto paired to the external BT Device.
(The indicator will stop blinking).
4. Plays the music in the paired BT Device as usual.
5. During playback:
1. In standby mode, press the  Button to power on the unit.
2. Press the FUNCTION Button repeatedly until “---” or “no” (No Disc)
appear on the display.
3. Press the Button to open the CD door then place a CD disc on the
tray, with the printed label side up.
If the unit already paired to an external BT Device and you wants to pair
the unit to another new external BT Device in BT paired mode.
Press and hold the PAIR/ Button on the unit or Remote Control
approximate 2 seconds until the indicator on the display start
And then pair the new BT Device to the unit as the instructed earlier.
Press the PAIR/ Button to pause; press again to resume normal
playback.
Press the /HR or /MIN Button to skip tracks.





blinking to unpaired it.

10
4. Close the CD door by press the Button; the unit will start playback
Repeat Playback:
automatically.
5. During playback:
A. Press the PAIR/ Button to pause; press again to resume normal
playback.
B. Press the or Buttons repeatedly to skip tracks.
C. Press and hold the or Buttons to fast searching the specific
section then release the button to resume normal playback.
D. Press the DISPLAY Button to read the actual time.
 


 
6. To stop CD playback, press the ■ Button. The total number of tracks
will appear on the display.
7. When finished listening, press the Button to power off
(standby mode) the unit.
1. During playback, press the P-MODE/CLK SET Button once. The
repeat indicator “REPEAT 1” will appear on the display. The current
track will playback repeatedly.
2. During playback, press the P-MODE/CLK SET Button twice. The
repeat all indicator “REPEAT ALL” will appear on the display. All the
tracks on the current disc (or program) will be playback repeatedly.
3. To cancel the repeat function, press the P-MODE/CLK SET Button
repeatedly until all the repeat indicators disappear on the display.
Programmed Playback:
Up to 20 tracks can be programmed playback as follows:
1. In CD STOP playback mode, press and hold the P-MODE/CLK SET
Button until “PROG 00” appear on the display.
2. Select the first specific track to be programmed by press the
or Buttons.
3. Press the P-MODE/CLK SET Button again to store the selected track
into the memory.
4. Repeat steps 2 and 3 until all the specific tracks were stored into the
memory.
5. Press the PAIR/ Button to start playback.
6. To stop playback, press the ■ Button.
7. To cancel the program, press the ■ Button again in stop mode. Indicator
“PROG” will disappear on the display.

RADIO:
FM Band:
11
1. In standby mode, press the Button to power on the unit.
2. Press the FUNCTION Button repeatedly until “FM XX.X MHz” appear
on the display.
3. Turn the TUNING Knob to receive the desired FM station.
4. To read the actual time during listening, press the DISPLAY Button once.
Note: If the receiving FM station is stereo, the unit will auto plays it in
stereo mode.
AM Band:
1. In standby mode, press the Button to power on the unit.
2. Press the FUNCTION Button repeatedly until “AM XXX kHz” appear
on the display.
3. Turn the TUNING Knob to receive the desired AM station.
4. To read the actual time during listening, press the DISPLAY Button once.
Antennas:
AM:
This unit has a build in ferrite rod antenna, which provides adequate
reception in most areas. If reception is weak, reassemble the unit
to other location to improve reception.
FM:
The FM Antenna Wire on the rear of unit is for FM reception only. If
reception is weak, unwind it to full length and/or relocation.
AUX IN
Listen music from the external Audio Player as follows:
1. Connected the external Audio Player by an audio connection cable
with 3.5mm stereo plugs (Cable not included).
2. Insert one end to the AUX IN Jack on the front of unit.
3. Insert the other end to the Phones Jack; Line Out Jack or AUX Out
Jack on the external Audio Player.
4. Press the  Button to power on the unit from standby mode.
5. Press the FUNCTION Button repeatedly until indicator “AUX” appear
on the display.
6. Plays the music on the connected external Audio Player as usual.
Note: Make sure the volume level of the external Audio Player was set
to high. Otherwise, sound from this unit may weak.

ALARM SET:
Important:
Shut off alarm:
12
1. In power off (Standby) mode. Press and hold the ALARM Button on the unit
or Remote Control approximate 2 seconds until indicator "TIMER" and alarm
display and the digit of hour of it is blinking.
2. Press the or Button on the unit or Remote Control repeatedly to set
the Hour of alarm. (Make sure the PM Indicator appear on the display if the
alarm time is PM and the AM Indicator is appear on the display if the alarm
time is AM).
3. Press the ALARM Button again, the digit of Minute will blink.
4. Press the or Buttons repeatedly to set minute.
5. Press the ALARM Button again, “Cd” will appear on the display.
Press the or Buttons repeatedly to select the weak up mode as desire as
below:
7. When finished setting, press ALARM Button again to save the settings and
exit. The actual time will appear on the display and the indicator “TIMER”
will stop blinking.
Cd= CD Mode
FM rd= FM Radio
AM rd= AM Radio
bu= Buzzer
If radio AM/FM was selected as the weak up mode, received the desired
radio station before activate alarm. Otherwise, when Alarm goes off,
no sound output from the speaker or sound weak.
If CD was selected as weak up mode, make sure you were place the CD
disc into the CD disc tray before activate alarm. Otherwise, when Alarm
goes off, no sound output from the speaker.
In power on mode, alarm will not functioning.
When alarm goes off, press the ALARM Button to turn off alarm, the
alarm will be reset for next day. (The indicator “TIMER” will keep in
display).
To turn off the alarm completely (not reset for next day). Press the
ALARM Button repeatedly until the indicator “TIMER” disappear on the
display.




 
time appear on the

13
CARE AND MAINTENANCE

Symptom
Power
Radio
BT
CD
No power
Noise or
sound distorted
on radio
broadcasts
No sound
BT not functioning
Sound
CD not play Unit not set to CD mode.
CD is installed incorrectly.
In power on mode, press the
FUNCTION Button repeatedly
until “---” or “no” (No Disc)
appear on the display to enter
to CD playback mode.
Place the CD disc on the CD
tray, with the printed label side up.
Distortion or
Intermittent sound
Dirty or defective disc. Try others CD disc.
distortion
Possible Cause Solution
TROUBLE SHOOTING GUIDE
14
Plug from AC Power Cord
had not inserted to AC
wall outlet.
Station not tuned properly. Retune the radio
station.
The location not good for
radio reception.
Volume at minimum.
The BT Device had not
paired to the unit.
The BT Device too far
from the unit.
Paired the BT Device to
the unit as page 8-9
Place the BT Device
close to the unit.
Unwind the FM Antenna
Wire on the rear of to full
length and/or relocation it.
Reassembly the unit to
another location for better
Radio reception.
Increase Volume level by
press the VOL + (VOL
UP) Button.
Insert the plug to wall
outlet having
AC 120V~, 60 Hz.

Power Source: AC 120V~, 60 Hz, 15W
Clock back up: DC 4.5V, 3 x AAA size batteries;
Not included
Audio Power: 1.2 W (RMS) x 2
Impendence of Speakers: 8 Ohm; 2W
Radio Band Coverage: AM 520 - 1710 kHz
FM 87.5 - 108 MHz
BT Version: 2.1 + EDR
BT Effective Range: 32 feet in open area
ACCESSORY:
1 x User’s Manual
4 X Assembly screws (3 x 18)
SPECIFICATIONS AND ACCESSORY ARE SUBJECT TO CHANGE
WITHOUT NOTICE
GENERAL SPECIFICATIONS:
15
