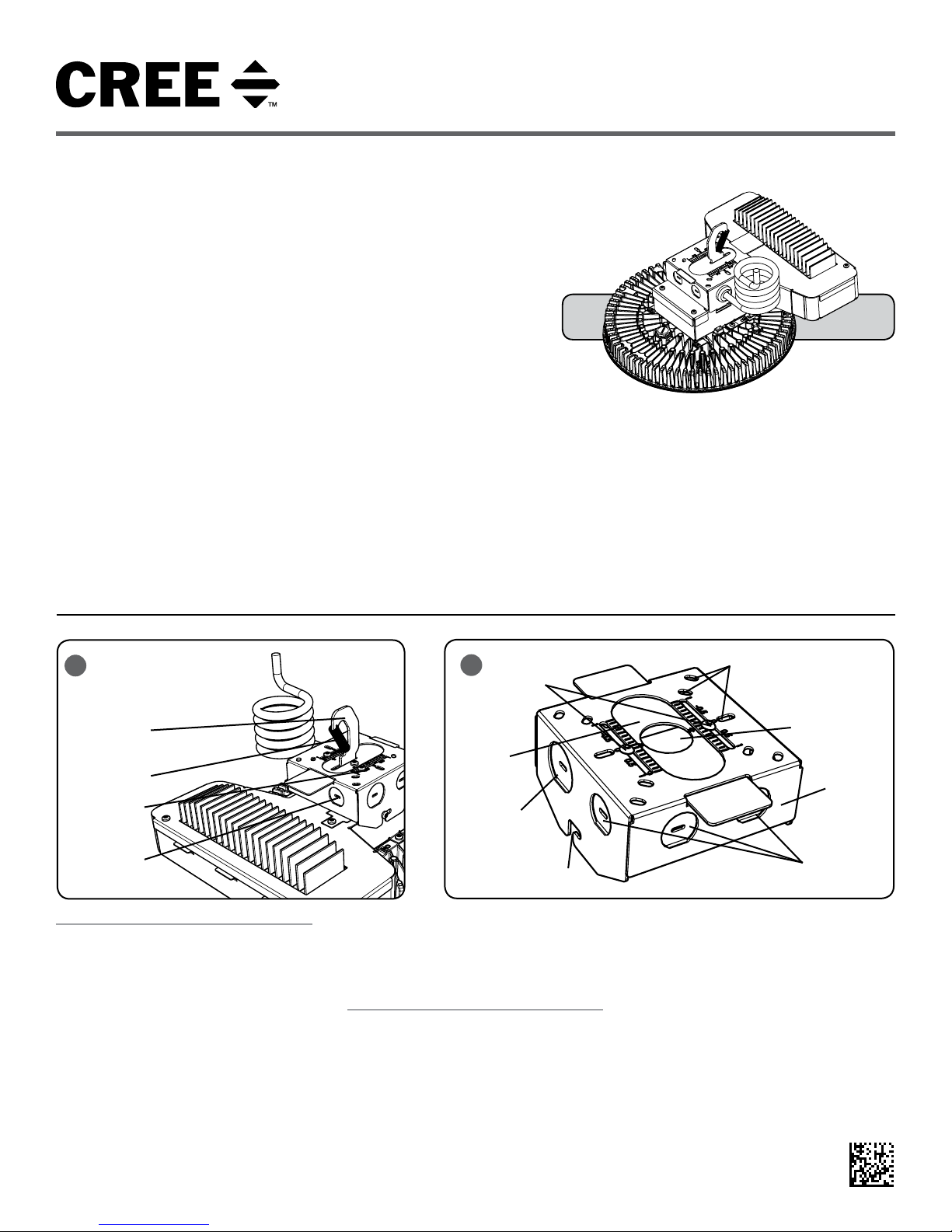

Cree KBL Series User manual

KBL Series
LED Luminaire
Universal Hook and Cord, and Optional Junction box or Pendant Mount
1 of 3 LPN00502X0001A1_A
INSTALLATION INSTRUCTIONS
INSTRUCTIONS D’INSTALLATION
IMPORTANT SAFEGUARDS
When using electrical equipment, basic safety precautions should always be followed
including the following:
READ AND FOLLOW ALL SAFETY
INSTRUCTIONS
1. DANGER- Risk of shock- Disconnect power before installation.
DANGER – Risque de choc – Couper l’alimentation avant l’installation.
2. This luminaire must be installed in accordance with the NEC or your local
electrical code. If you are not familiar with these codes and requirements, consult
a qualied electrician.
Ce produit doit être installé conformément à NEC ou votre code électrique local.
Si vous n’êtes pas familier avec ces codes et ces exigences, veuillez contacter
un électricien qualié.
3. Suitable for damp location.
Convient aux emplacements humides.
4. Maximum ambient operating temperature: Medium Lumen Package = 50°C and
High Lumen Package= 40°C.
Température ambiante maximale de fonctionnement: Paquet Moyen Lumens =
50°C et Paquet de Lumen Élevé = 40°C.
5. MIN 90°C SUPPLY CONDUCTORS
LES FILS D’ALIMENTATION 90°C MIN.
6. Check to make sure that all input power connections have been properly made
and the module is grounded to avoid potential electrical shock.
7. DO NOT lift luminaire by the cord.
SAVE THESE INSTRUCTIONS FOR FUTURE
REFERENCE
TO INSTALL:
NOTES:
• For each mounting application below, when
mounting to surface ensure that the mounting
surface and customer supplied hardware is
capable of supporting the weight of the luminaire.
• The center of mounting is NOT the same as the
center of luminaire.
2
“L” Channel
Holes for Junction Box Mounting
Pendant Mount Hole
3/4” (19mm) IP, 1.125”
(29mm) O.D.
1/2” (13mm) IP,
0.875” (22mm)
O.D. Knockouts
3/4” (19mm) IP,
1.125” (29mm)
O.D. Knockouts
Pendant Adjustment
Hinged Splice
Box
Pendant Slider
Plate
1
Luminaire Hook
Hook Adjustment
Screws
Retainer Spring
1/2” (13mm) IP,
0.875” (22mm)
O.D. Knockout
HOOK AND CORD MOUNT
STEP 1:
Push down on retainer spring until top of
spring is free of luminaire hook. See Figure 1.
STEP 2:
Slide hook into securely mounted customer
supplied eye hanger and return retainer
spring to original position.
NOTE: The luminaire should already be factory
set for correct balance. If necessary, the
fixture may be balanced by loosening the hook
adjustment screws on the top of the housing
and sliding the hook as necessary for correct
balance. Tighten hook adjustment screws
when finished. See Figure 1.
STEP 3:
Make wiring connections per the Electrical
Connections section.
JUNCTION BOX MOUNT / PENDANT
MOUNT
STEP 1:
Remove hinged splice box from top of housing
by loosening screw and sliding box to the right
and up from “L” channel. Unhook from hinge
holes. See Figure 2.
STEP 2:
Remove hook, slider plate and cord and
discard. Plug junction box knockout hole with
provided junction box plug.
For pendant entering the hinged splice box:
Attach the supplied pendant mount slider
plate using (2) supplied screws. Use 3/4”
threaded pendant, along with two customer
supplied locknuts (one for inside the hinged
splice box and one for outside the splice box).
Pull supply leads into position from customer
supplied conduit.
Note: If necessary, the luminaire may be
balanced by loosening (2) screws for pendant
adjustment on the top of the hinged splice box
and sliding the adjustment plate as necessary
for correct balance. Tighten (2) screws when
finished. See Figure 2.

2 of 3 LPN00502X0001A1_A
Keyhole Slots
5
6
Reflector Hinge Retainer
Frame Hinge
Loosen
Screws
4
Hinged
J-box
3
Class 2 Wiring
Compartment Plate
Plastic Plug
Mounting Ring
Reflector
Lens with V-band
Screw
7

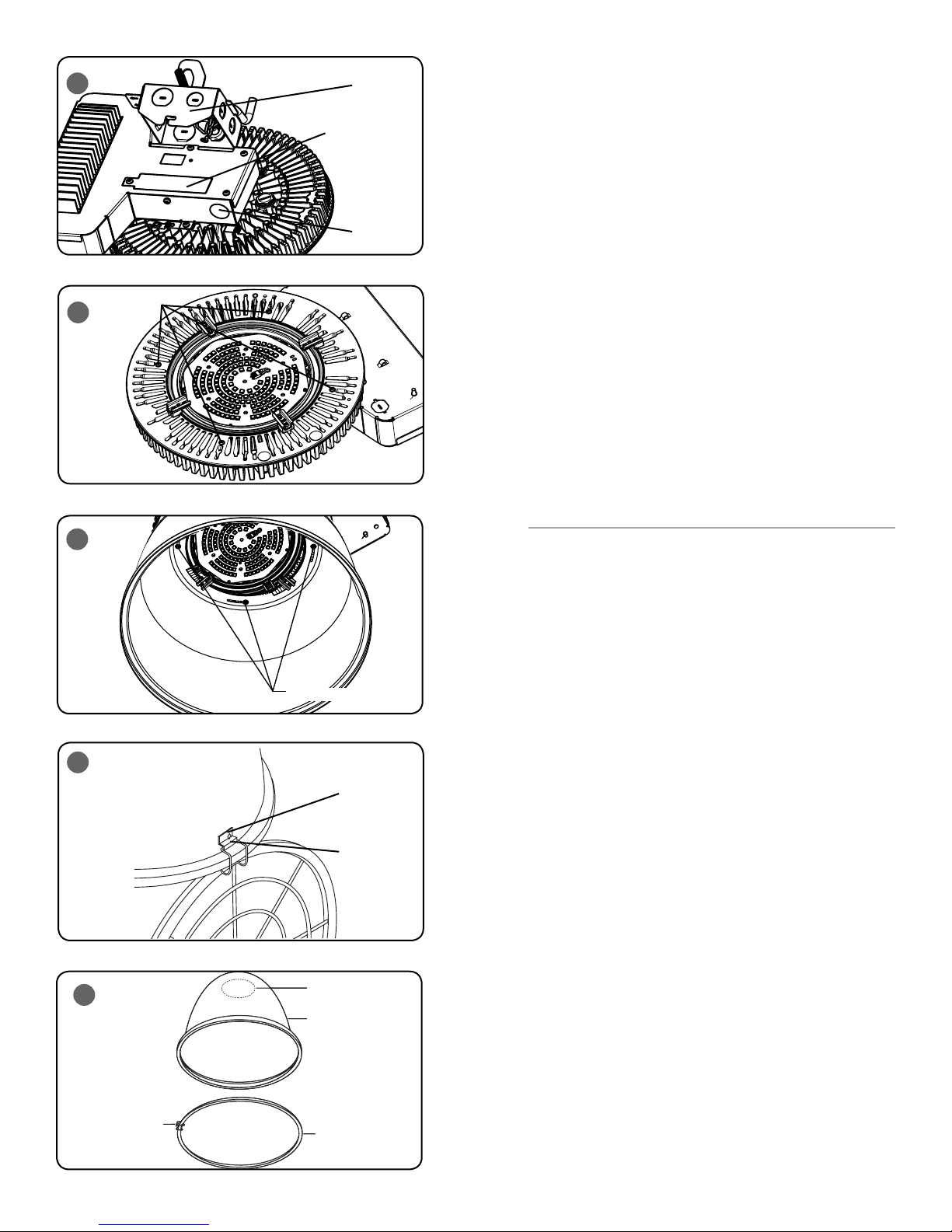

For junction box mounting the hinged splice box:
Use designated mounting holes on top of hinged splice box. See
Figure 2. For conduit entering the hinged splice box from the
side, use appropriately-sized threaded conduit (1/2” or 3/4”), and
conduit fitting.
STEP 3:
Attach one end of the hinged splice box to luminaire by aligning
hinge slots on Mounting Bracket with hinges (on splice box), and
then inserting the hinges into the slots.
STEP 4:
Make wire connections per Electrical Connections and then push
the leads into hinged splice box. For dimming loosen the hinged
J-box screw and open the hinged j-box as shown in Figure 3.
Remove the class 2 wiring compartment screw and plate and
remove the plastic plug. Install conduit or dimming input cable
with strain relief into hole. Connect customer dimming wires to
driver dimming leads in the class 2 chamber with the supplied
Wago connectors per Electrical Connections section. Replace the
plate and screw. Close the hinged J-box and re-tighten the screw.
See Figure 3.
STEP 5:
Secure other end of the hinged splice box to luminaire by sliding
screw on Mounting Bracket up and over in “L” channel on the
hinged splice box. See Figure 2.
STEP 6:
Secure luminaire to hinged splice box by tightening screw.
REFLECTOR INSTALLATION
STEP 1:
Loosen the (4) screws, shown in Figure 4, at least 0.1 inch from
the heatsink.
NOTE: The view in Figure 3 is of the underside of the luminaire.
STEP 2:
Bring trim into housing and line up the (4) screws from Step 1, with
the keyhole slots on the reflector. See Figure 5.
STEP 3:
Rotate trim, turn clockwise and tighten the (4) screws from Step 1.
See Figure 5.
Mounting Lens or Wire Guard To Aluminum Reflector
STEP 1:
Secure the hinge retainer and frame hinge to the reflector using
supplied screw and lock nut. See Figure 6.
NOTE: Reflector is pre-punched at position of this installation.
STEP 2:
Swing the wire guard into place and secure to the reflector with
the attached spring latch. See Figure 6.
Mounting Lens or Wire Guard To Prismatic Reflector
STEP 1:
Place lens or wire guard onto the bottom of reflector, and place
V-band around lens and reflector. See Figure 7.
STEP 2:
Secure lens or wire guard to reflector by tightening screw on
V-band. See Figure 7.

3 of 3
LPN00502X0001A1_A
lighting.cree.com
© 2017 Cree, Inc. All rights reserved. For informational purposes only. Content is subject to change.
See http://lighting.cree.com/warranty for warranty and specifications. Cree®is a registered trademark, and the Cree logo is a
trademark of Cree, Inc.

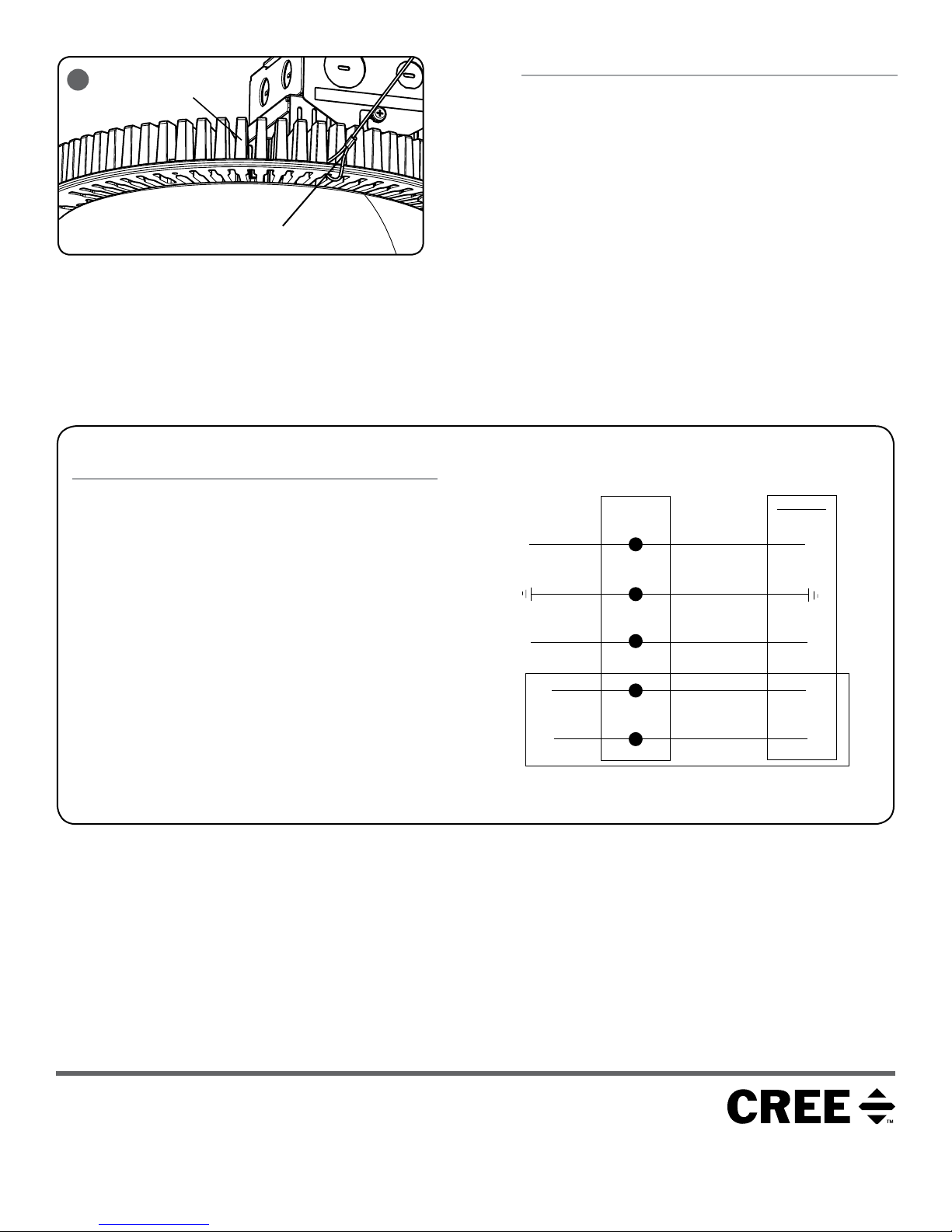

ELECTRICAL CONNECTIONS
STEP 1:
Make the following Electrical Connections :
a. Connect the black fixture lead to the voltage supply or
Hot 1.
b. Connect the white fixture lead to the neutral supply or
Hot 2.
c. Connect the green or green/yellow ground lead to the
green wire position of the terminal block.
STEP 2:
For Dimming make the following Electrical Connections:
NOTE: The incoming signal cable needs to pass through the 1/2"
knockout shown in Figure 3 on page 2.
d. If Dimming is an option; connect the violet dimming
positive lead to the supply dimming positive lead.
e. If Dimming is an option; connect the grey dimming
negative lead to the supply dimming negative lead.
LINE
OR HOT 1
GREEN
LINE-BLACK
GROUND-GREEN
NEUTRAL-WHITE
DIM (-) GREY
DIM (+) VIOLET
NEUTRAL
OR HOT 2
VIOLET
GREY
SUPPLY WIRING
(DIMMING OPTIONAL)
LUMINAIRE
8
Safety Cable
Heatsink
INSTALLING SAFETY CABLE
NOTE: Safety Cable is sold separately as an accessory, please refer
to installation sheet in safety cable packaging for complete installing
instructions.
STEP 1:
Attach one end of the safety cable through the fin of the heatsink.
See Figure 8.
STEP 2:
Attach other end of the safety cable to mounting surfaces using
customer supplied hardware.
