Crosley CR7021A-BK User manual
English
2
Safety Instructions
Read and understand this entire manual before using this product. Keep these
instructions for future reference.
1. Do not use this product near water.
2. This product should be operated only by the type of power source indicated
on the marking label or in this instruction manual.
3. Do not defeat the safety purpose of the polarized plug. A polarized plug has
two blades with one blade wider than the other. This plug will fit into the
power outlet only one way. If you are unable to insert the plug fully into the
outlet try reversing the plug. If the plug should still fail to fit, contact your
electrician.
4. Protect the power cord from being walked on or pinched particularly at plugs,
convenience receptacles, and the point where they exit from the product.
5. Do not overload wall outlets, extension cords, or integral convenience
receptacles as this can result in a risk of fire or electric shock.
6. Never push objects of any kind into this product through openings as they
may touch dangerous voltage points or short-out parts that could result in a
fire or electric shock. Never spill liquid of any kind on the product.
7. Do not attempt to service this product yourself as opening or removing
covers may expose you to dangerous voltage or other hazards. Refer all
servicing to qualified service personnel.
8. Changes or modifications to this unit not expressly approved by the party
responsible for compliance could void the user’s authority to operate the
equipment.
9. Do not use attachments not recommended by the product manufacturer as
they may cause hazards.
10. A product and cart combination should be moved with care. Quick stops,
excessive force, and uneven surfaces may cause the product and cart
combination to overturn.
11. Slots and openings in the cabinet are provided for ventilation and to ensure
reliable operation of the product and to protect it from overheating. Do not
block or cover these openings.
12. Unplug the product during lightning storm or when unused for long periods of
time.
English
3
Items in this package
Before throwing away any packaging materials, please check thoroughly and
make sure you find the following items that come along with this package:
Turntable
45 RPM adapter
3.5mm aux in cable
Please contact Crosley customer service if there is any accessory missing from the
package. Retain the original packaging materials for exchange or return
purposes.
Specifications
Power 120V, 60Hz
Power consumption 15W
Speaker 4”, 8Ω, 5W x 2
Turntable speed 331/3, 45, 78 RPM
Replacement needle Crosley NP6
Note:
•Design and specifications are subject to change without notice.
•To help save power consumption, some models will comply with ERP energy
saving standard. When there is no audio input for 20 minutes, their powers will
automatically cut-off. To turn power back on and resume playing, you will need
to turn off the power and turn it on again.
English
4

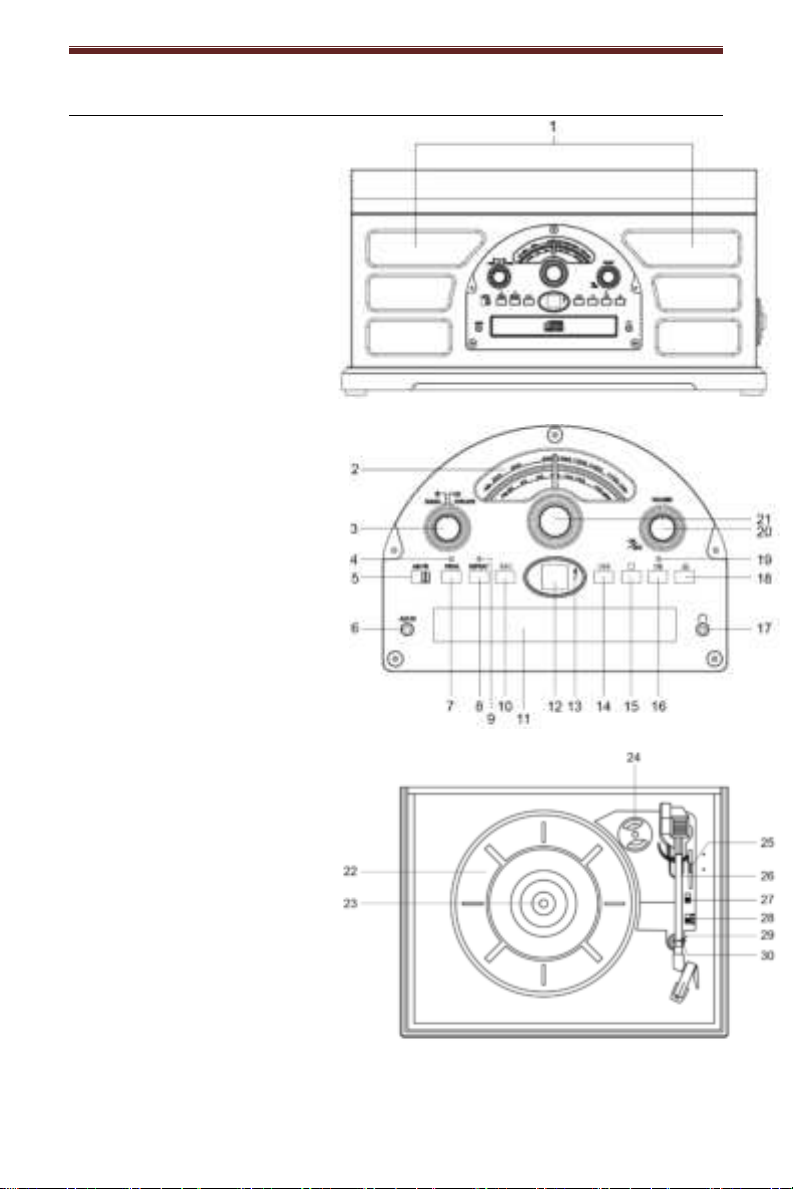

Product Description
1. Speakers
2. Dial Scale
3. Function Knob
4. Program Indicator
5. AM/FM Switch
6. Aux In Jack
7. Program Button
8. Repeat Button
9. Repeat Indicator
10. Backward Skip Button
11. CD Tray
12. LED Display
13. Bluetooth Indicator
14. Forward Skip Button
15. Stop Button
16. Play/Pause Button
17. Headphone Jack
18. CD Door Open/Close
Button
19. Play Indicator
20. On/Off Volume Knob
21. Tuning Knob
22. Turntable Platter
23. Turntable Spindle
24. 45 RPM Adapter
25. Tonearm Lever
26. Tonearm
27. Auto-stop Switch
28. Speed Switch
29. Hold Down Clip
30. Tonearm Rest
English
5

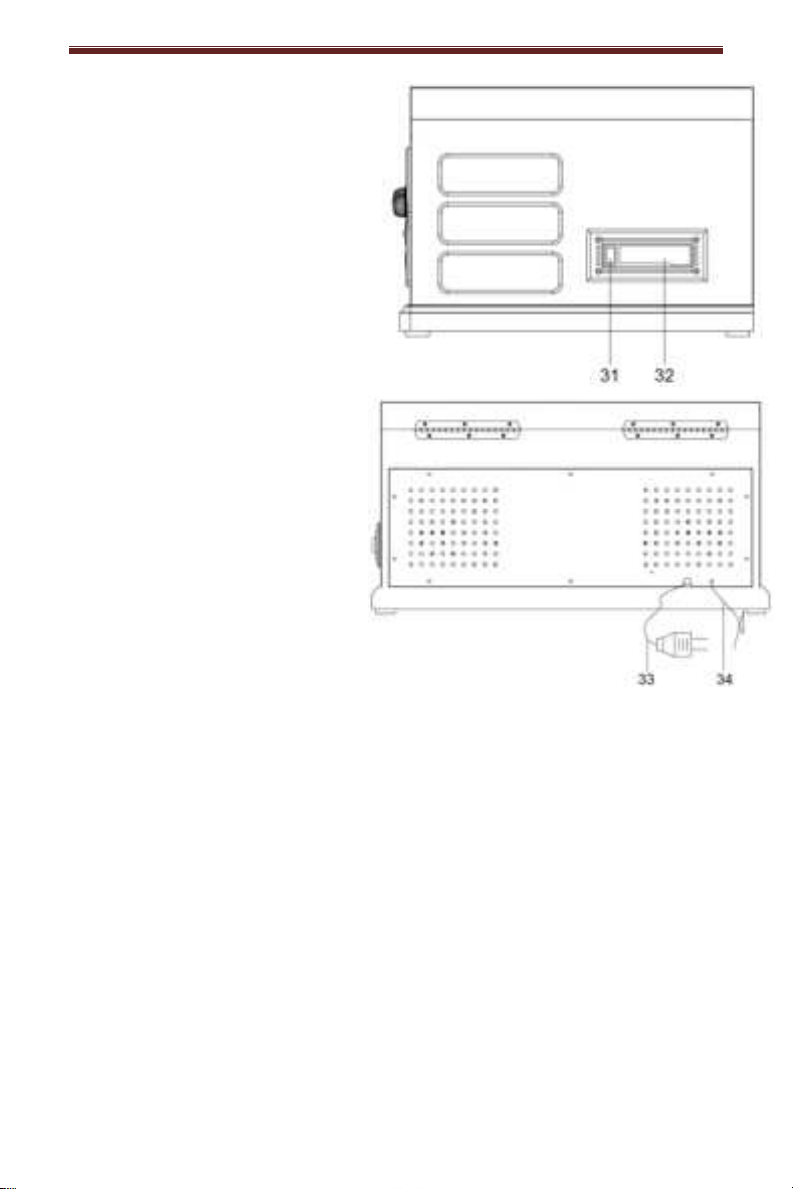

31. Cassette Eject/Fast Forward
Button
32. Cassette Door
33. Power Cord Plug
34. External Antenna
English
6
Initial Setup
Essential Setup
1. Place the unit on a flat and level surface. The selected location should be
stable and free from vibration.
2. Remove the tie-wrap that is holding the tonearm.
3. Plug the power cord to the power outlet.
Aux Input Connection
You can connect an audio device to this unit and play your music through its
speakers. To do this, connect the 3.5mm auxiliary cable between your audio
device and the Aux In Jack of this unit and start playing the music.
Note: The aux in connection has the highest priority of all the functions. When there is an
auxiliary cable plugged in, the aux in connection will automatically override the Bluetooth,
turntable, CD, radio or cassette mode. To resume using the other features of the unit,
unplug the auxiliary cable from the aux in jack.
Bluetooth Operation
1. Set the Function Knob to the Bluetooth position, you will hear an activation
sound from the unit.
2. Turn on the Bluetooth feature of your audio device, search for “CROSLEY
CR7021A” and pair.
3. Once your device is successfully paired with the unit, you will hear a short
confirmation sound from the unit.
4. Play and stream music from your device to the unit.
Note: Bluetooth version –5.0
English
7
Turntable Operation
1. Rotate the On/Off Volume Knob to turn on the power.
2. Set the Function Knob to the PHONO/TAPE (PH/TAPE) position.
Note: If a tape is inserted the tape will play instead of the turntable.
3. Set the Speed Switch accordingly.
4. Place the record on the turntable. Use the 45 RPM Adapter if necessary.
5. Remove the stylus protector from the stylus assembly.
Note: To avoid stylus damage, make certain the included stylus guard is in place
whenever the turntable is being moved or cleaned.
6. Release the tonearm Hold Down Clip.
Note: When the turntable is not in use, remember to lock back the hold down clip.
7. Use the Tonearm Lever to lift up the tonearm.
8. Gently move the tonearm over the record where play is desired to begin. Set the
Tonearm Lever back to the down position, the tonearm will descend slowly onto
the record and begin to playback.
9. When the record is finished playing, use the Tonearm Lever again to raise the
tonearm and then return it to the Tonearm Rest. Release the lever to let the
tonearm sit back at its rest. To suspend the playback, repeat the same steps.
10.Lock the Hold Down Clip to secure the tonearm.
Platter Auto-stop
If the Auto-stop Switch is set to ON position, the platter will stop spinning
automatically when the record plays to the end. In some rare occasion, if the
turntable stops playing before the end of the record, set the switch to OFF
position the turntable should overcome this issue.
English
8

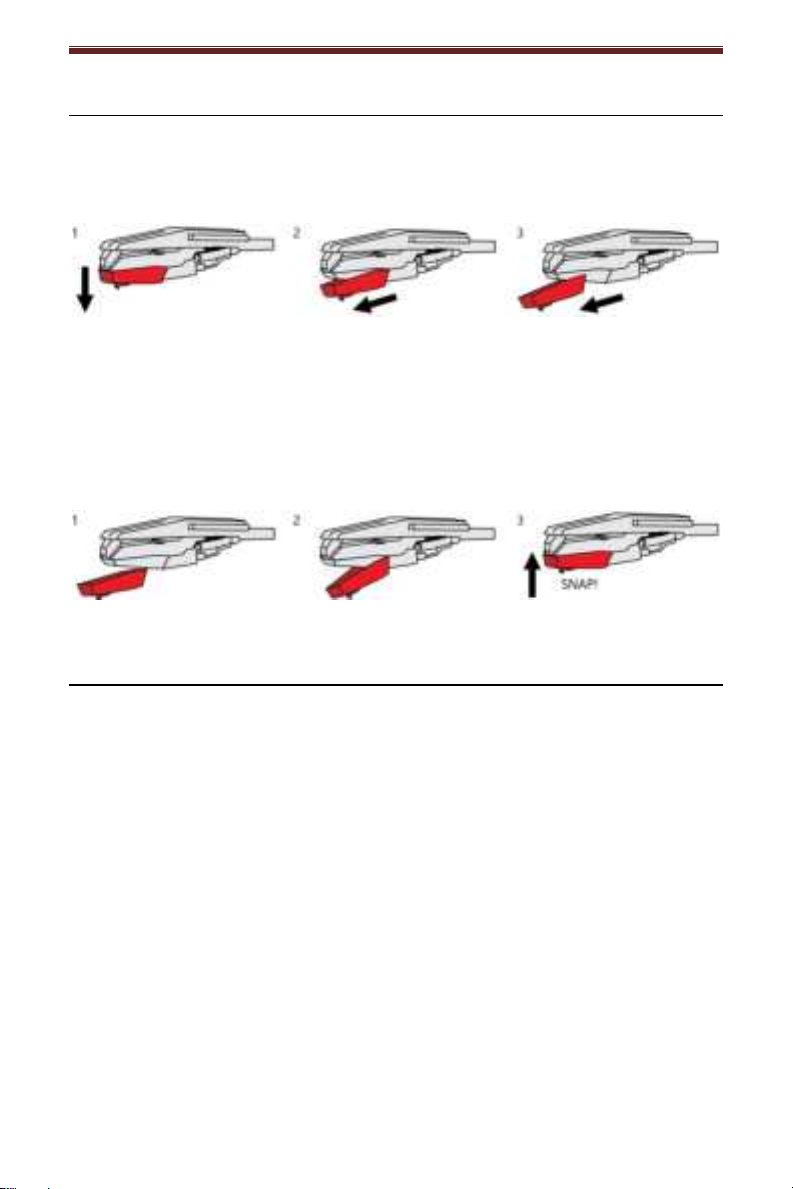

Needle Replacement
Removing Needle
1. Gently pull down the front edge of the needle.
2. Pull needle forward.
3. Pull out and remove.
Installing Needle
1. Position the needle with its tip facing down.
2. Line up the back of the needle with the cartridge.
3. Insert the needle with its front end at a downward angle and gently lift the
front of the needle upward until it snaps into place.
Radio Operation
1. Set the Function Knob to RADIO position, set the AM/FM switch to the
desired radio band.
2. Rotate the Tuning Knob for desired radio station.
Note:
•The unit is equipped with a FM wire antenna. To improve FM reception, move
the
wire
around until the reception is clear without interferences. Do not connect the wire
to any additional antenna.
•The AM antenna is built inside the unit. If AM reception is poor, try to rotate the unit
for better reception.
English
9
CD Playback Operation
1. Set the Function Knob to CD position.
2. Press the Open/Close button to open the CD tray and put the CD in the tray
with the labeled side facing up.
3. Press the Open/Close button again to close the tray. The LED display will
show “--“ for a few seconds, then the total number of tracks on the CD. If it is
a blank CD or an unrecognizable CD, it will show “00”.
Note: MP3 or similar types of digital audio files can not be read by the CD player.
4. Press the Play/Pause button to start the playback. The Play Indicator will light
up.
5. During the playback, press the Play/Pause button to pause and the Play
Indicator will starting flashing. Press it again to resume playback.
6. To skip to the next or previous track, press the Forward Skip or Backward Skip
button correspondingly.
7. To search fast forward or backward a track, press and hold the Forward Skip
or Backward Skip button correspondingly until you reach the desired time.
Release the button and the playback will resume.
8. To repeat a specific track, press Repeat button once while that track is
playing and the Repeat Indicator will start flashing. To repeat all the tracks,
press the Repeat button twice and the Repeat Indicator will remain on. To
cancel repeat function, press the Repeat button until the Repeat Indicator is
off.
9. Press the Stop button if you want to completely stop playback.
Programmed Playback
1. Before starting the playback, press the Program button once to enter
program mode. Program Indicator will start flashing. The LED display will
flash “01” as the track sequence which is to be edited.
2. Press the Forward Skip or Backward Skip buttons to select the desired
track that you would like to play. The LED’s number will turn steady
instead of flashing, showing the sound track number at selection.
3. Press the Program button to confirm the selected track. The LED’s
number will start flashing again showing the next track sequence which is
to be edited.
4. Repeat steps 2 & 3 for additional sound tracks that you would like to play.
The tracks can be in any number and repeated. A maximum of 20 tracks can
be programmed at one time.
5. Press Play/Pause button to start the programmed playback. The tracks
will play in the same sequence that you programmed earlier.
6. To exit the program mode, press the Stop button twice and the Program
Indicator will be off.
English
10
Cassette Operation
1. Set the Function Knob to PHONO/TAPE (PH/TAPE) position.
2. Insert the prerecorded cassette through the cassette door and it will start
playing automatically.
3. To fast forward, press the cassette Eject/F.F button half way in. To stop fast
forwarding and return to the playback mode, press the button again.
Note: To rewind the cassette, you would need to eject the tape and flip it over to the
other side and fast forward.
4. To stop the playback and eject the cassette, press the Eject/F.F. button all the
way in.
5. When one side of the cassette finishes playing, it will stop automatically.
Note: Remove the cassette from the cassette holder when it is not in use.
Turntable Maintenance
1. Do not touch the stylus tip with your fingers. Avoid bumping the stylus on the
turntable mat or a record’s edge.
2. Clean the stylus frequently with a soft brush with a back-to-front motion only.
3. Clean the records to get rid of dust or grease with a record cleaning brush
and record cleaning solution.
4. Clean the turntable lid and turntable cabinet with a slightly damped microfiber
cloth.
Note: Do not use cleanser that contains alcohol, benzene or any other harsh
chemicals, which might damage the paint and finish of the turntable.
** Crosley offers a product line of different cleaning accessories. Please
ask your retailer or check out our website www.crosleyradio.com for
more cleaning product information.
English
11
Troubleshooting
There is no power
•No power at the power outlet.
•To help save power consumption, some models will comply with ERP energy
saving standard. When there is no audio input for 20 minutes, its powers will
automatically cut-off. To turn power back on and resume playing, turn off the
main power switch and turn it on again.
Power is on, but the platter does not turn
•Function switch is not set to Phono/Tape.
•Turntable’s drive belt has slipped off.
•An aux in cable is plugged into the aux in jack, unplug it.
•Cassette Tape is inserted, eject it.
Turntable is spinning, but there is no sound, or sound not loud enough
•Stylus protector is still on.
•Tone arm is lift up by the lever.
•Headphone is plugged in.
CD does not play
•Function switch is not set to CD.
•The CD is blank.
•The CD is placed on the tray incorrectly with the label side facing down.
•The CD has unsupported digital audio files like MP3 and similar types of
format.
•The CD has too many scratches or dirty.
Can not pause the cassette
•The feature is not available and you have to stop the cassette completely.
English
12
FCC Statements
NOTE:Changes or modifications not expressly approved by the party responsible for compliance could
void the user's authority to operate the equipment.
This equipment has been testedand found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits aredesigned to provide reasonable protection
against harmful interferencein a residential installation. This equipment generates uses and can radiate
radio frequency energy and, if not installed and used in accordance with the instructions, maycause
harmful interference to radio communications. However, there is no guarantee that interference will not
occurin a particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off andon, the user is encouraged to tryto
correct the interference by one or more of the following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
•Consult the dealer or an experienced radio/TV technician for help
This device complieswith Part 15 of theFCC Rules. Operation is subject to thefollowing two conditions:
1. this device may not cause harmful interference, and
2. this device must accept any interference received,including interference that may cause
undesired operation.
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance 20cm
between the radiator & your body.
CR7021A
Centro de entretenimiento Rochester
Manual de instrucciones
¿Tiene preguntas, ha tenido problemas o hay piezas faltantes?
Antes de devolver el producto a la tienda, comuníquese con nuestro Servicio al Cliente
de 8 a. m. a 6 p. m., hora del este, de lunes a viernes
1-888-CROSLEY
www.crosleyradio.com
Español
2
Instrucciones de seguridad
Lea y comprenda este manual en su totalidad antes de usar este producto.
Conserve estas instrucciones para consultarlas en el futuro.
1. No use este producto cerca del agua.
2. Este producto debe ser utilizado solo con el tipo de fuente de alimentación
indicado en la etiqueta o en este manual de instrucciones.
3. No subestime el propósito de seguridad del enchufe polarizado. Un enchufe
polarizado posee dos hojas; una de ellas es más ancha que la otra. Este
enchufe encajará en el tomacorriente en un solo sentido. Si no logra insertar
completamente el enchufe en el tomacorriente, pruebe invirtiendo el
enchufe. Si aún así el enchufe no encaja, comuníquese con su electricista.
4. Proteja el cable de alimentación de ser pisado o pinzado, en especial en los
enchufes, los tomacorrientes y en el punto donde el cable sale del producto.
5. No sobrecargue los tomacorrientes de pared, cables de alargue, o
receptáculos integrales, ya que puede generar un riesgo de incendio o
descarga eléctrica.
6. No introduzca objetos de ningún tipo en el producto a través de las ranuras,
ya que pueden hacer contacto con puntos de alto voltaje o provocar un
cortocircuito que ocasione fuego o una descarga eléctrica. No derrame
líquidos de ningún tipo sobre el producto.
7. No intente realizar tareas de mantenimiento por su cuenta, ya que abrir o
remover la cubierta puede exponerlo a un voltaje peligroso y a otros riesgos.
Deje toda tarea de mantenimiento en manos de un técnico de servicio
calificado.
8. Los cambios o las modificaciones que no tengan la aprobación expresa de
la parte responsable del cumplimiento pueden anular el permiso del usuario
para utilizar el equipo.
9. No utilice accesorios que no son recomendados por los fabricantes del
producto porque pueden ser peligrosos.
10. Cualquier combinación de carro y producto debe moverse con cuidado. Las
paradas súbitas, el uso de fuerza excesiva y las superficies irregulares
pueden causar que el producto y el carro se vuelquen.
11. Las ranuras de ventilación y las aberturas del gabinete son provistas para la
ventilación y para asegurar el correcto funcionamiento del producto y evitar
el recalentamiento. No bloquee ni cubra estas aberturas.
12. Desconecte el producto durante las tormentas eléctricas o cuando no se
utilice durante períodos extendidos.
Español
3
Artículos en este empaque
Antes de deshacerse de cualquier material del empaque, revíselo con atención y
asegúrese de encontrar los siguientes artículos que se incluyen en este paquete:
•Tocadiscos
•Adaptador de 45 rpm
•Cable de entrada de 3.5 mm
Comuníquese con el Servicio al Cliente de Crosley en caso de que faltara algún
accesorio en el empaque. Conserve el material de embalaje original para
realizar cambios o devoluciones.
Especificaciones
Fuente de energía 120V, 60Hz
Consumo de energía 15 W
Potencia del altavoz 4”, 8Ω, 5W x 2
Altavoz 331/3, 45, 78 RPM
Aguja de repuesto Crosley NP6
Nota:
•El diseño y las especificaciones están sujetos a cambios sin previo aviso.
•Con el fin de ahorrar en el consumo de energía, algunos modelos cumplirán con
el estándar de ahorro de energía ERP (productos relacionados con la energía).
En el caso de que no se produzca la entrada de audio durante 20 minutos, estos
equipos se desactivarán automáticamente. Para volver a encenderlos y reanudar
la reproducción, deberá apagar la unidad primero y luego volver a encenderla.
Español
4
Descripción del producto
1. Altavoces
2. Indicador de estaciones
3. Perilla de funciones
4. Indicador de
programación
5. Interruptor AM/FM
6. Conector de entrada
auxiliar
7. Botón de programa
8. Botón de repetición
9. Indicador de repetición
10.Botón de salto hacia
atrás
11.Bandeja para CD
12.Pantalla LED
13.Indicador Bluetooth
14.Botón de salto hacia
delante
15.Botón de detención
16.Botón de
reproducción/pausa
17.Conector de auriculares
18.Botón de apertura/cierre
de la puerta para CD
19.Indicador de reproducción
20.Perilla de volumen
Encendido/Apagado
21.Perilla de sintonización
22.Bandeja del tocadiscos
23.Eje del tocadiscos
24.Adaptador de 45 rpm
25.Palanca del brazo
26.Brazo del tocadiscos
27.Interruptor de detención
automática
28.Interruptor de velocidad
29.Broche de sujeción
30.Soporte del brazo del
tocadiscos
Español
5
31.Botón expulsar casete/avance
rápido
32.Puerta para casete
33.Enchufe del cable eléctrico
34.Antena externa
Español
6
Instalación inicial
Instalación indispensable
1. Coloque la unidad en una superficie plana y nivelada. El lugar seleccionado
debe ser estable y estar libre de vibraciones.
2. Quite la banda de sujeción que sostiene el brazo del tocadiscos.
3. Enchufe el cable de alimentación en un tomacorriente.
Conexión de entrada auxiliar
Puede conectar un dispositivo de audio a esta unidad y reproducir su música a
través de los parlantes. Para hacerlo, conecte el cable auxiliar de 3.5 mm entre
su dispositivo de audio y el Conector de entrada auxiliar de esta unidad y
comience a reproducir la música.
Nota: la conexión de entrada auxiliar tiene la mayor prioridad entre todas las funciones.
Cuando un cable auxiliar está enchufado, la conexión de entrada auxiliar invalidará
automáticamente el modo Bluetooth, tocadiscos, CD, radio o casete. Para volver a utilizar
las otras funciones de la unidad, desconecte el cable auxiliar del conector de entrada
auxiliar.
Funcionamiento de Bluetooth
1. Coloque el perilla de funciones en modo Bluetooth . La unidad emitirá un
sonido de activación.
2. Active la conexión de Bluetooth en el dispositivo de audio, busque
“CROSLEY CR7021A”y conéctelo.
3. Una vez que el dispositivo quede conectado correctamente, la unidad emitirá
un sonido corto de confirmación.
4. Reproduzca música en forma inalámbrica desde el dispositivo hacia la
unidad.
Nota: Versión de Bluetooth –5.0
Español
7
Funcionamiento del tocadiscos
1. Gire la perilla de volumen de encendido / apagado para encender la unidad.
2. Coloque el perilla de funciones en la posición PHONO/TAPE (PH/TA).
Nota: Si se inserta un casete, el casete se reproducirá en lugar de la plataforma
giratoria.
3. Ajuste el Interruptor de velocidad según corresponda.
4. Coloque el disco en el tocadiscos. De ser necesario, utilice el Adaptador de
45 rpm.
5. Quite el protector de la aguja fonográfica de su ensamblaje.
Nota: Para evitar los daños de la aguja fonográfica, asegúrese de que el protector esté
ubicado correctamente cada vez que mueva o limpie el tocadiscos.
6. Suelte el Broche de sujeción del tocadiscos.
Nota: Cuando el tocadiscos no se utilice, recuerde volver a trabar el broche de
sujeción.
7. Use la Palanca del brazo del tocadiscos para levantar el brazo.
8. Mueva suavemente el brazo del tocadiscos sobre el disco en la parte que
desea comenzar a reproducir. Ajuste la Palanca del brazo del tocadiscos de
vuelta a la posición hacia abajo. El brazo bajará lentamente hacia el disco y
se comenzará a reproducir.
9. Cuando el disco termine de reproducirse, utilice la Palanca del brazo del
tocadiscos una vez más para levantar el brazo y volver a colocarlo en el
Soporte del brazo. Suelte la palanca para permitir que el brazo vuelva a
apoyarse sobre su soporte. Para suspender la reproducción, siga los mismos
pasos.
10.Trabe el Broche del brazo del tocadiscos para asegurarlo.
Detención automática de la bandeja
Si el Interruptor de detención automática se encuentra en la posición
ENCENDIDO, la bandeja dejará de girar automáticamente cuando el disco
termine de reproducirse. En raras ocasiones, si el tocadiscos deja de reproducir
el disco antes de que termine, ajuste el interruptor a la posición APAGADO. El
problema se debería solucionar de esta manera.
Español
8
Reemplazo de la aguja
Quitar la aguja
1. Tire del borde delantero de la aguja con suavidad.
2. Tire la aguja hacia adelante.
3. Tire hacia fuera y quítela.
Instalar la aguja
1. Coloque la aguja de manera tal que la punta quede hacia abajo.
2. Alinee la parte trasera de la aguja con la cápsula.
3. Introduzca la aguja con el extremo delantero en un ángulo descendente y
suavemente levante la parte delantera de la aguja hacia arriba hasta que se
trabe en su lugar.
Funcionamiento de la radio
1. Ajuste el perilla de funciones a la posición RADIO, ajuste el interruptor
AM/FM para elegir la banda deseada.
2. Gire la Perilla de sintonización para elegir la estación de radio deseada.
Nota:
•En la unidad se incluye una antena de hilo FM. Para mejorar la recepción FM,
mueva el hilo hasta que la recepción sea clara y sin interferencias. No conecte el hilo
a ninguna antena adicional.
•La antena AM está incorporada dentro de la unidad. Si la recepción AM no fuera
buena, intente girar la unidad para lograr una mejor recepción.
Table of contents
Languages:
Other Crosley Home Theater System manuals
