Crown FT-30MC User manual
12 INCH TABLE FAN
FT-30MC
AC 220-240V 50Hz 35W
INSTRU TION MANUAL
C
SAFETY PRECAUTIONS
When using any electrical appliance, basic safety precautions should always be followed, including the following:
1. Read all instructions and keep for future reference.
2. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction
concerning use of the appliance by a person responsible for their safety.
3. Young children should be supervised to ensure that they do not play with the appliance.
4. Always unplug the appliance from the mains when not in use.
5. To disconnect the appliance, switch the control to OFF, then unplug from the mains.
6. To unplug the appliance, always grasp the plug; do not pull the cord.
7. If the supply cord is damaged it must be replaced by the manufacturer, its service agent or a similarly
qualified person in order to avoid a hazard.
8. Do not use outdoors. This appliance is designed for household use only.
9. Place the power cable away from areas where people walk so that it cannot be stepped on or tripped over.
10. Always use the appliance on a flat, stable surface.
11. Never clean this appliance when it is plugged in .Do not immerse it in water, clean the outside surface with a
damp cloth or soft brush and dry with a soft dry cloth.
12. Use the appliance only as directed in this manual. Misuse could void your warranty.
13. Avoid contact with moving parts, never insert any objects through the grille when the fan is in operation

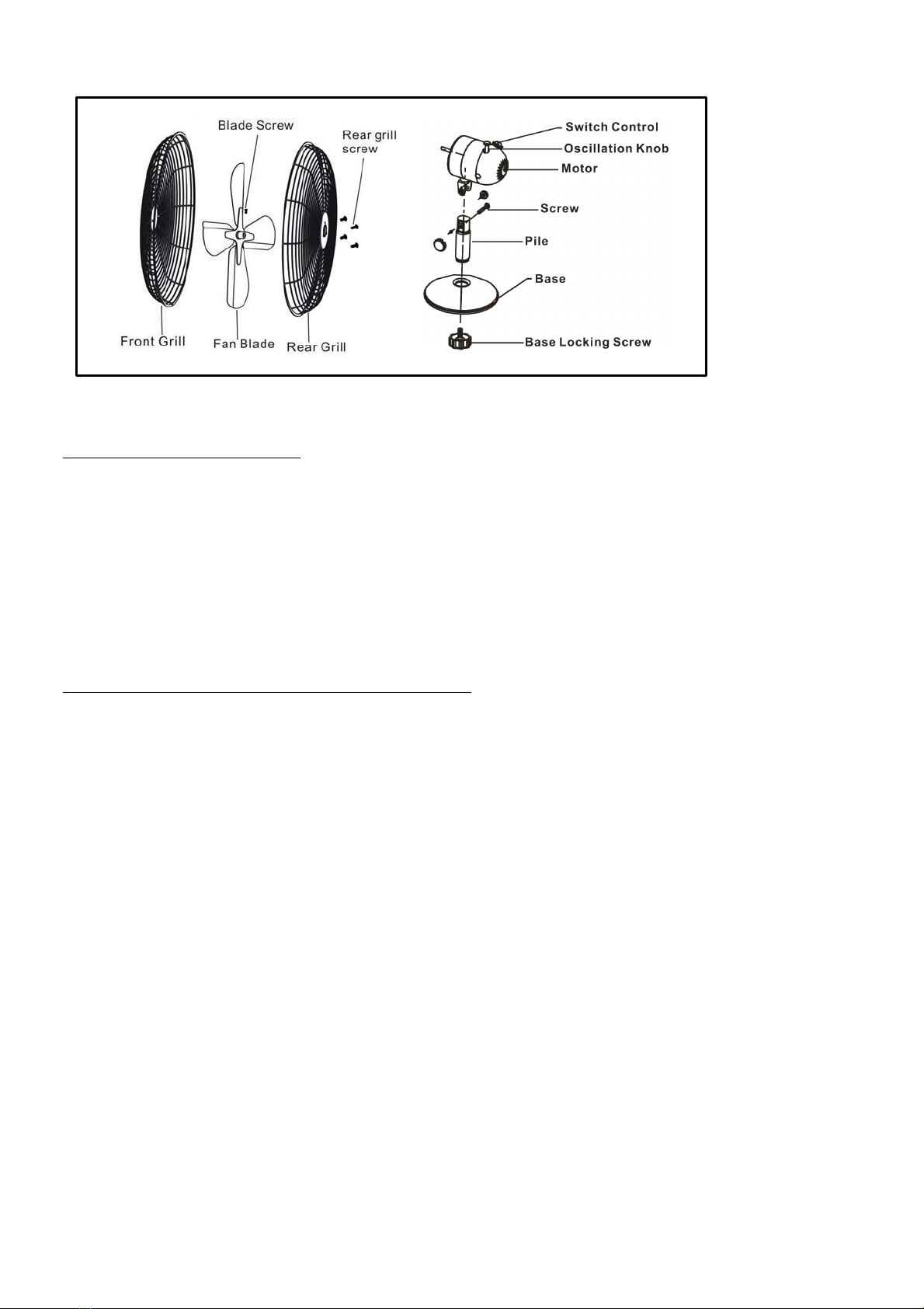

ASSEMBLY INSTRUCTIONS
Body Assembly
1. Unscrew the Ring and Base Locking Screw from the Pipe.
2. Insert the Pipe through the hole in the center of the Base and twist into positio
3. Tighten the Base by Ring and Base Locking. Screw
4. Unscrew the Locking Nut from the Fan Head.
5. Put the Fan Head into the Pipe, and using the Screw to tighten the Fan Head and the Pipe.
Fan Grill Assembly
1. Fasten the rear grill onto the motor with four screws.
2. Install the Blade onto the Motor Shaft by tightening the blade screw.
3. Centre the Front Grill by aligning the logo on the grill Hub so it is horizontal and parallel to the floor. Then
secure the Front and Rear Grills completely together by snapping grill clips into place. Lastly, tighten the grill locking
screw at the bottom of the Rear Grill.
OPERATING INSTRUCTIONS
Ensure voltage used corresponds with the voltage indicated.
a) Use the switch control to select the speed.
b) Press down the Oscillation Knob to start oscillation; pull it up to stop.
c) Never touch the blades with hand or any object!
d) Do not pull the cord grip the plug itself. If the cord or plug is damaged, they must be checked by a qualified
repairer before further use.
CLEANING AND MAINTENANCE INSTRUCTIONS:
To clean: Disconnect the power cord from the mains. Remove the guard and the blades carefully. Do not drop the
blades! First use soft cloth with light soap to clean off oil stains. Then wipe and polish with dry cloth. Never use
polish or any corrosive liquid that will damage the paint, metal or plastic! Put back the blades and lock the guard
securely before use.
WARNING: Unplug from electrical supply source before cleaning. After servicing, any safety device (including
grilles and blades) must be reinstalled or remounted as previously installed. Use soft damp cloth then wipe with dry
cloth. Do not use harmful cleaners. Do not bend the blades.
If the plug and supply cord are damaged, it must be replaced by the manufacturer, its service agent or a
suitable qualified person in order to avoid a hazard.
NOTE: As a result of continual improvements, the design and specifications of the product within may differ slightly
to the unit illustrated on the packaging.
