Crown QR-23 User manual

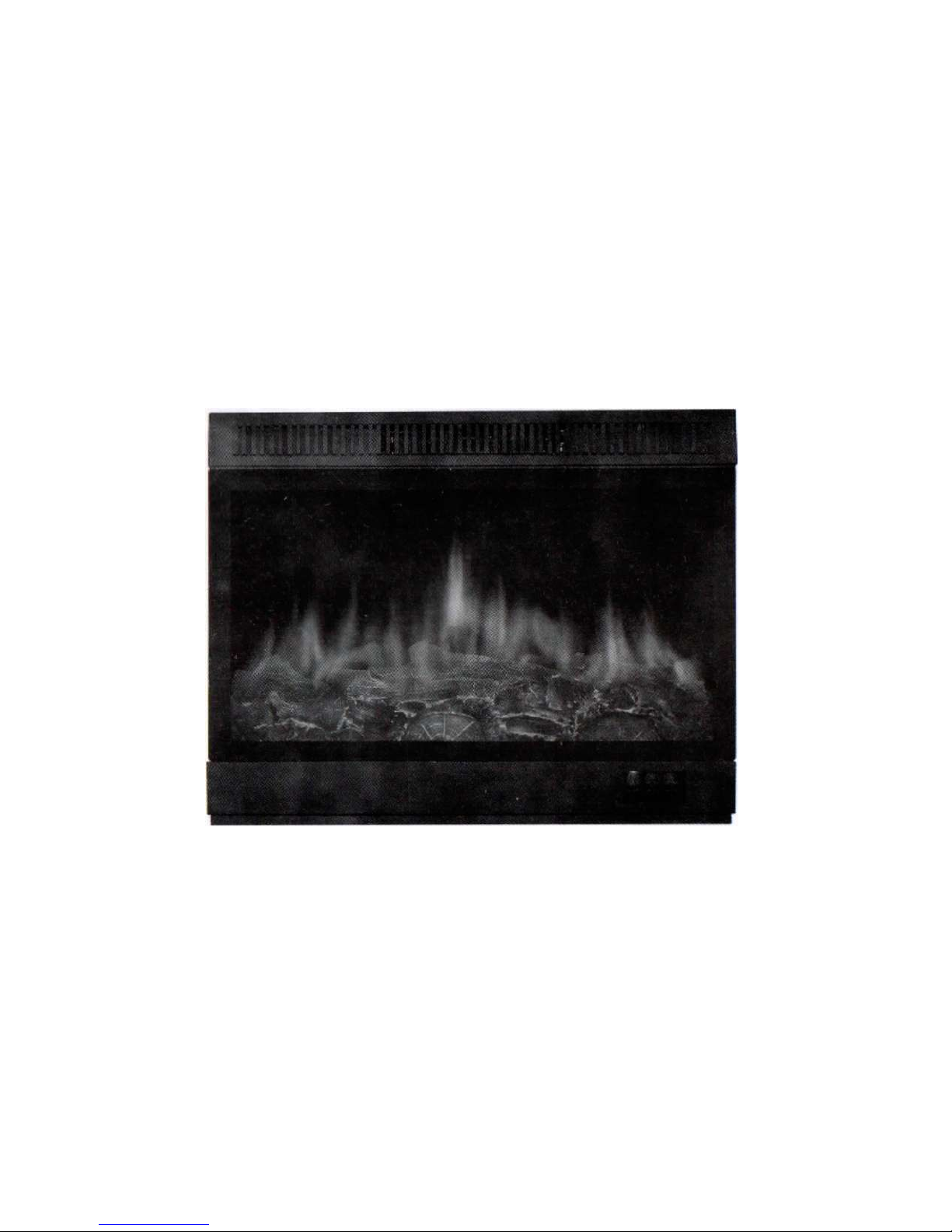

EmbeddedElectricFireplace
InstructionManual
MODEL:QR-23
AC110-120V~60Hz1500W
PLEASEREADALLINSTRUCTIONSCAREFULLY
ANDRETAINTHISMANUALFORFUTURE
REFERENCE

QUICKREFERENCEGUIDE
I.Removethefireplacefromthebox.
II.Removeallthepackagingandplaceitinsidetheboxand
eitherstoreordisposeofsafely.
III.Priortoinstallation,pleaseensure:
1.Theratedvoltageofyourfireplacefitstheoutput
voltageofyouroutlet;
2.Thelightbulbsinyourfireplaceisingood
condition.Forcheckingthis,pleasefollowthe
instructionsforreplacingthelightbulbsonsection
MAINTENANCE.
IV.Theheateronyourfireplacemayemita slight,harmless
odorwhenfirstused.Thisodorisa normalcondition
causedbytheinitialheatingofinternalheaterpartsand
willnotoccuragain.
V.Ifyourheaterdoesnotemitheat,pleaseensurethe
HeaterSwitchison.Forfurtherinformation,please
consultsectionOperationofthePracticalUser'sGuide.
Marks
NOTE
Proceduresandtechniques,thatareconsideredimportant
enoughtoemphasize.
CAUTION
Procedures,whichifnotcarefullyfollowed,willresultin
damagetotheequipment.
WARNING
Procedures,whichifnotcarefullyfollowed,willexposethe
usertotheriskofseriousinjury,illnessordeath.
1

IMPORTANTINSTRUCTIONS
WARNING
Youshouldreadandalwaysfollowtheinstructions
mentionedbelowtoreducetheriskoffire,electricshock,
andinjury.
1.Readallinstructionsbeforeusingthisfireplace.
2.Thisfireplaceishotwheninuse.Toavoidburns,donot
letbareskintouchhotsurfaces,suchassurfacesnearthe
fireplaceoutletorlightbulbs.Keepcombustiblematerials,
suchasclothes,pillows,furniture,bedding,papersand
curtainsatleast3 feetfromthefrontoftheunit.Donot
coverorblockfireplaceoutletoranyventilationorexhaust
openingatanytime.Donotuseonsoftoruneven
surfaceswhereopeningsmaybecomeblocked.
3.Extremecautionisnecessarywhenanyfireplaceisused
byornearchildrenorinfants.
4.Fireplaceshouldneverbeleftunattended.
5.Donotinstallthefireplacedirectlyoncarpetora similar
surface,whichmayrestrictaircirculationbeneaththeunit.
6.Alwaysunplugfireplacewhennotinuse.
7.Todisconnectfireplace,turncontrolsoff,thenremove
plugfromoutlet.
8.Donotuseoutdoors.
9.Thisfireplaceisnotintendedforuseinwetlocations,such
asbathrooms,laundryareasandsimilarindoorlocations.
Neverlocatefireplacewhereitmayfallintowater
containerfrom.
10.Donotoperatethefireplacewitha damagedcordorplug,
orifthefireplacehasmalfunctioned,orifthefireplacehas
beendroppedordamagedinanymanner.Contact
CustomerServiceandseekassistance.
11.Keepfurniture,curtainsandotherflammablematerialat
least40inchesawayfromthefireplace.
2

12.Donotruncordundercarpeting.Donotcovercordwith
throwrugs,runners,orthelike.Arrangecordawayfrom
trafficareaandwhereitwillnotbetrippedover.
13.Donotinsertorallowforeignobjectstoenterany
ventilationorexhaustopeningasthismaycausean
electricshockorfire,ordamagethefireplace.
14.Topreventa possiblefire,donotblockairintakesor
exhaustinanymanner.Donotuseonsoftsurfaces,likea
bed,whereopeningsmaybecomeblocked.
15.Allelectricalfireplaceshavehotandsparkingpartsinside.
Donotuseitinareaswheregasoline,paint,orflammable
liquidsareusedorstoredorwheretheunitwillbe
exposedtoflammablevapors.
16.Donotmodifythisfireplace.Useitonlyasdescribedin
thismanual.Anyotherusenotrecommendedbythe
manufacturermaycausefire,electricshockorinjuryto
persons.
17.Avoidtheuseofanextensioncordbecausetheextension
cordmayoverheatandcausea riskoffire.However,if
youhavetouseanextensioncord,thecordshallbe
16AWGminimumsizeandratednotlessthan125V/15A
or2000watts.
18.Donotburnwoodorothermaterialsinthisfireplace.
19.Ifthesupplycordisdamaged,itmustbereplacedbya
specialcordorassemblyavailablefromthemanufacturer
oritsserviceagent.
20.Donotstrikefireplaceglass.
21.Alwaysusea certifiedelectricianshouldnewcircuitsor
outletsberequired.
22.Alwaysuseproperlygrounded,fusedandpolarizedoutlets.
23.Alwaysusegroundfaultprotectionwhererequiredby
electricalcode.
24.Thefireplacemustnotbelocatedimmediatelybelowa
power-outlet
25.Alwaysdisconnectpowerbeforeperforminganycleaning,
maintenanceorrelocatingthefireplace.
3

26.Whentransportingorstoringthefireplaceandcord,keep
ina dryplace,freefromexcessivevibrationtoavoid
damagetothefireplace.
27.WARNING:Inordertoavoidoverheating,donot
coverthefireplace.
28.Thisfireplaceisnotintendedforusebypersons
(includingchildren)withreducedphysical,sensoryor
mentalcapabilities,orlackofexperienceandknowledge,
unlesstheyhavebeengivensupervisionorinstruction
concerninguseofthefireplacebya personresponsiblefor
theirsafety.
29.Childrenshouldbesupervisedtoensurethattheydonot
playwiththefireplace.
30.Indoorandhouseholduse
31.CAUTION:Inordertoavoida hazardduetoinadvertent
resettingofthethermalcutout,thisfireplacemustnotbe
connectedtoanexternalswitchingdevice,suchasa timer,
orconnectedtoa circuitthatisregularlyswitchedonand
offbytheutility.
32.Donotusethisapparatusnearwater.
33.Protectthepowercordfrombeingwalkedonorpinched
particularlyatplugs,conveniencereceptacles,andthe
pointwheretheyexitfromtheapparatus.
34.Onlyuseattachments/accessoriesspecifiedbythe
manufacturer.
35.Thisunitisnotintendedforusebypersons(including
children)withreducedphysical,sensoryormental
capabilitiesorlackofexperienceorknowledge.They
shouldbegivenappropriatesupervisionandinstructions
abouttheuseoftheunitbya personresponsiblefortheir
safety.
36.Closesupervisionisrecommendedwhenusingthisunit
nearyoungchildren.
SAVETHESEINSTRUCTIONS
4

Installation
Thissectionprovidesstep-by-stepinstructionsforinstallationof
yourfireplace.
WARNING
Theoutletmustbe15A/125V.
CAUTION
Donotremovethefourrubberfeetatthebottomofthe
fireplaceinsertorinstallthefireplaceinsertdirectlyonsoft
surfaces,whichmayrestrictaircirculation.Otherwise,it
maycausea riskoffireordamage.
1.Selecta suitablelocation,whichisnotsusceptibletomoisture,
safe,dustfree,awayfromhightrafficandawayfromthings
maycatchfireorblockopeningssuchasdrapes,furniture,etc.
NOTE
Thisfireplaceisbuilt-inapplianceandforhousehold
useonly.
Itisa goodideatoplaceyourfireplacenearan
existingoutlet,foreaseofelectricalhookup.
2.Placethefireplaceinthedesiredlocationtoseehowitwill
lookintheroom.
3.Placethemantelinthedesiredlocationorbuilda wall
constructioninthedesiredlocation.
4.Thesizeofspaceforinsertingshouldbe610mm(Wide)X
550mm(High)X230mm(Deep) ����
CAUTION
5

Storeyourfireplaceinsertina dry,safeand
dustlessplacewhenplacingthemantelorbuilding
thewallconstruction.
5.Ifthere'sno15A/125Voutletnearthedesiredlocation,installa
newonenearorbehindmantel.
WARNING
Donotattempttowireyouownnewoutletsor
circuits.Toreducetheriskoffire,electricshockor
injurytopersons,alwaysusea licensedelectrician.
6.Makesurethefireplaceinsertisswitchedoff(referto
operationinstructionsection).
7.Plugthefireplaceintoa 15A/125Voutlet.Wiringthecordalong
thecornerofwall.
8.Pushthefireplaceinsertintoplacesothatthepanelandthe
finishedmantelsurroundorwallsurfaceareinthesameplane.
Instructionforuse
Thefireplacecanbeoperatedeitherwiththeswitcheslocatedonthe
toprighthandsideofthefireplaceorwiththesuppliedremotecontrol.

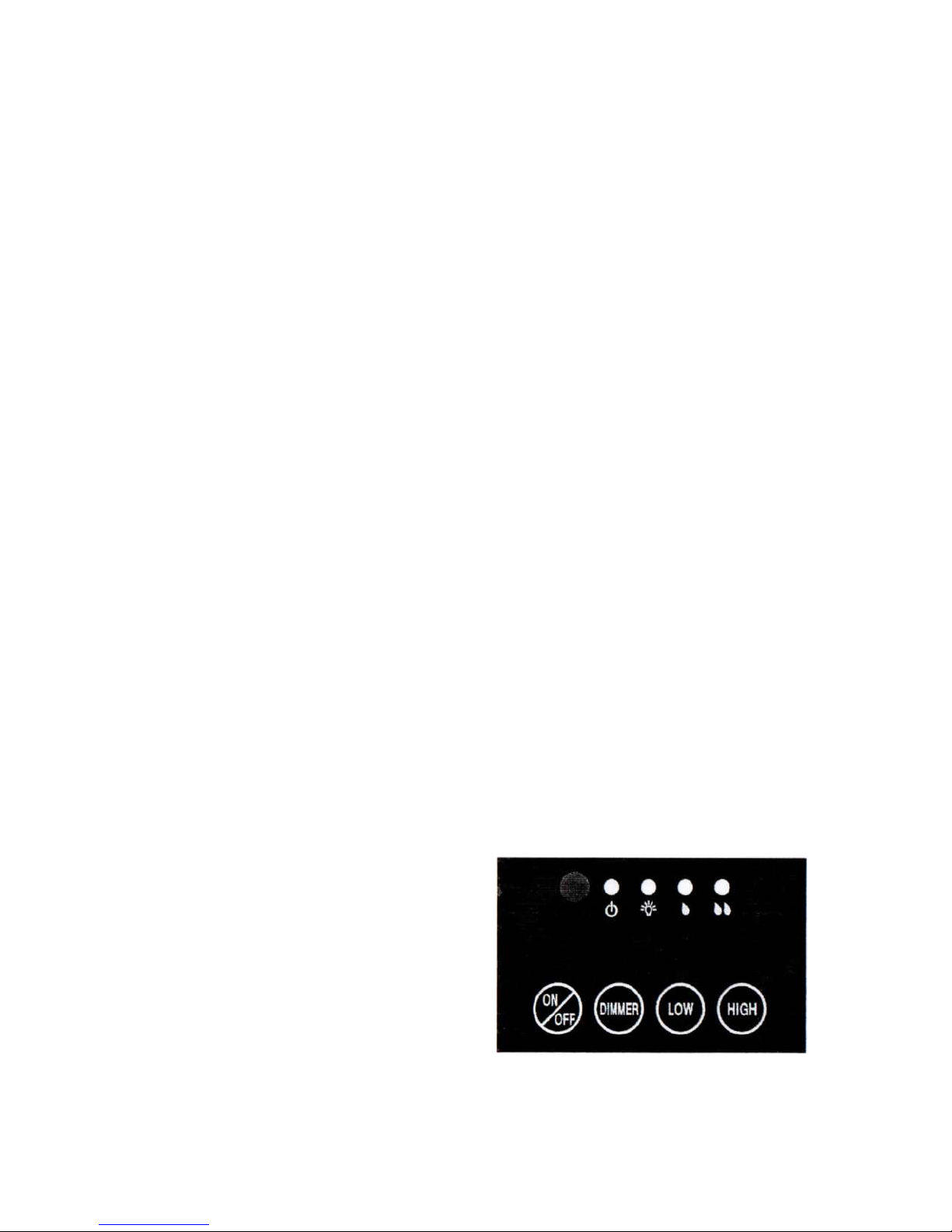

ManualOperation
•Thisisdonebyoperating
theswitcheslocatedatthe
bottomrighthandsideof
thefire.Thestandbyswitch
mustfirstbeswitchedon.
Thefireplacewillbeepto
indicatethatitispowered

up.
•Presstheon/offbuttononcetoturnonthefireplacewithfire
effect.A redindicatorlightwillilluminatetoindicatethatthe
fireplaceison.
•Pressthelowbuttononce,tolowertheheat;presstwiceto
switchofftheheatcompletely.
•Pressthehighbuttononcetoincreasetheheat;presstwice
toswitchofftheheatcompletely.
•Pressthedimmerbuttontooperatethedimmermode.
Repeatedpressingwillautomaticallyraiseandlowerthe
brightnessofthefireeffect.
RemoteOperation
•Thestandbyswitchmustfirstbe
switchedon.Thefireplacewillbeep
toindicatethatitispoweredup.
•Ittakesa littletimeforthereceiver
torespondtothetransmitter.Donot
pressthebuttonsmorethanonce
withintwoseconds,forthefireplace
tooperatenormally.
•Presstheon/offbuttononcetoturn
onthefireplacewithfireeffect.
•Pressthelowbuttononce,tolower
theheat;presstwicetoswitchofftheheatcompletely.
•Pressthehighbuttononce,toincreasetheheat;presstwice
toswitchofftheheatcompletely.
•Pressthedimmer+buttontooperatethedimmermodeto
raisethebrightnessofthefireeffect.
•Pressthedimmer-buttontooperatethedimmermodeto
lowerthebrightnessofthefireeffect..
7

•PresstheLampbuttonisonoroffthebrightnessofthefire
effect.
SafetyCut-Off
•Thisfireplaceisequippedwithsafetycut-offfeaturewhichwill
operateifthefireplaceoverheats(e.g.Duetoblockedair
vents).Forsafetyreasons,thefireplacewillNOT
automaticallyrestart.
•Torestartthefireplace,disconnectitfromthepowersupply
foratleast15minutes.Reconnecttothepowersupplyand
switchonthefireplace.
Troubleshooting
Symptom PossibleSolution
Nooperation/ nofan Checkforsafetycut-off
operation
Nofireeffectlight Checkthebulbforreplacement
RemoteNotWorking
Checkifbatterieshavebeen
installedasperindicated
polarity
RemoteNotWorking Checkifbatteriesneedtobe
replaced
RemoteNotWorking
PointtheRemoteControl
directlyatthefireplace
MAINTENANCE
WARNING
Disconnectpowerbeforeattemptinganymaintenanceor
cleaningtoreducetheriskoffire,electricshocktopersons
ordamage.
LightBulbReplacement
Lightbulbsneedtobereplacedwhenyounoticea darksectionof

theflameorwhentheclarityanddetailofthelogexterior
disappears.Therearetwobulbsunderthelogset.
WARNING
Allowatleast5 minutesforlightbulbstocooloffbefore
touchingbulbstoavoidburningofskin.
I.BulbRequirements
Quantityof2 clearchandelierorcandelabrabulbswithan
E-12socketbase,ratingvoltage125volts,ratingpower
40watts.
CAUTION
Donotexceed40wattsperbulb
II.Operation
1.Openthelightbulbarea:
Thelightbulbareaisatthebackofelectricfireplace,
see"E". thereare4 screwsonit.loosenthescrewby
sometool,thenyoucanopenit.(Figurebelow)
2.Examinethebulbstodeterminewhichbulbsrequire
replacement.
3.Removeoldbulbandreplacea newone.Holdthe
socketwhileunscrewingorscrewingbulbs.(Figure
below)
4.Replacethecoveroflightbulbs.
5.Done.
9

CleaningandMaintenance
•Warning:Alwaysdisconnectfromthepowersupplybefore
cleaningthefireplace.
•Forgeneralcleaningusea soft,cleanduster.Neveruse
harshabrasivesorcleaners.Theglassscreenshouldbe
cleanedcarefullywitha softcloth.DONOTuse
proprietaryglasscleaners.
TechnicalSpecification
•Supply:110-120V~60Hz
•Ratedpower:1500W
.Lighting:2x40WE12Bulbs
CorrectDisposalofthisproduct
X Thismarkingindicatesthatthisproductshould
notbedisposedwithotherhouseholdwastes
throughouttheEU.Topreventpossibleharmto
theenvironmentorhumanhealthfrom
uncontrolledwastedisposal,recycleit
responsiblytopromotethesustainablereuseof
materialresources.Toreturnyouruseddevice,
pleaseusethereturnandcollectionsystemsor
contacttheretailerwheretheproductwas
purchased.Theycantakethisproductfor
environmentalsaferecycling.
