Crystal Image Technologies RM-111-19WH User manual

UM-CV-751-19W-Q113V1 www.rackmountsales.com
19” Widescreen LCD 1440 x 900
User Manual
1U LCD Console Drawer
RM-111-19WH
Includes :
- 1, 6' USB/VGA Cable (Part# KVM-B-6A)
- 1, 6' USB/DVI Cable (Part# KVM-X-6A)
- 1, 6' IEC Power Cord
- Mounting Brackets & Hardware
dedicated KVM switch and rackmount screen technology
Tech Support - 800-542-2489
Email - [email protected]

UM-CV-751-19W-Q113V1 www.rackmountsales.com
Legal Information
First English printing, October 2002
Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness
of the contents. The information in this document is subject to change without notice. We are not liable for any injury or
loss that results from the use of this equipment.
Safety Instructions
Please read all of these instructions carefully before you use the device. Save this manual for
future reference.
■ Unplug equipment before cleaning. Don’t use liquid or spray detergent; use a moist cloth.
■ Keep equipment away from excessive humidity and heat. Preferably, keep it in an air-conditioned environment with
temperatures not exceeding 40º Celsius (104º Fahrenheit).
■ When installing, place the equipment on a sturdy, level surface to prevent it from accidentally falling and causing
damage to other equipment or injury to persons nearby.
■ When the equipment is in an open position, do not cover, block or in any way obstruct the gap between it and the
power supply. Proper air convection is necessary to keep it from overheating.
■ Arrange the equipment’s power cord in such a way that others won’t trip or fall over it.
■ If you are using a power cord that didn’t ship with the equipment, ensure that it is rated for the voltage and current
labeled on the equipment’s electrical ratings label. The voltage rating on the cord should be higher than the one listed
on the equipment’s ratings label.
■ Observe all precautions and warnings attached to the equipment.
■ If you don’t intend on using the equipment for a long time, disconnect it from the power outlet to prevent being
damaged by transient over-voltage.
■ Keep all liquids away from the equipment to minimize the risk of accidental spillage. Liquid spilled on to the power
supply or on other hardware may cause damage, fi re or electrical shock.
■ Only qualifi ed service personnel should open the chassis. Opening it yourself could damage the equipment and
invalidate its warranty.
■ If any part of the equipment becomes damaged or stops functioning, have it checked by qualifi ed service personnel.
What the warranty does not cover
■ Any product, on which the serial number has been defaced, modifi ed or removed.
■ Damage, deterioration or malfunction resulting from:
□ Accident, misuse, neglect, fi re, water, lightning, or other acts of nature, unauthorized product modifi cation, or
failure to follow instructions supplied with the product.
□ Repair or attempted repair by anyone not authorized by us.
□ Any damage of the product due to shipment.
□ Removal or installation of the product.
□ Causes external to the product, such as electric power fl uctuation or failure.
□ Use of supplies or parts not meeting our specifi cations.
□ Normal wear and tear.
□ Any other causes which does not relate to a product defect.
■ Removal, installation, and set-up service charges.
Regulatory Notices Federal Communications Commission (FCC)
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of
the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation.
Any changes or modifi cations made to this equipment may void the user’s authority to operate this equipment. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following measures:
■ Re-position or relocate the receiving antenna.
■ Increase the separation between the equipment and receiver.
■ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

UM-CV-751-19W-Q113V1 www.rackmountsales.com
Options
3.1 3G / HD / SD-SDI Broadcast-grade input
3.2 HDMI, S-Video + BNC & Audio
3.3 48V, 24V or 12VDC power
< Part. 3 >
P.13
P.14
P.15
< Part. 2 > Specifi cations / OSD
2.1 Product Specifi cations
2.2 Keyboard / Mouse Specifi cations
2.3 On-screen Display Operation ( OSD )
P.8 - 9
P.10
P.11 - 12
< Part. 1 > RM-111-19WH
1.1 Package Content
1.2 Structure Diagram & Dimension
1.3 Installation
1.4 Connection
Contents
P. 1
P.1 - 2
P.3 - 5
P.6 - 7

UM-CV-751-19W-Q113V1 www.rackmountsales.com
10
9
8
7
10
7
1
2
6
LCD interchangeable module kit
Installation Slides
LCD membrane
Membrane switch (KVM option)
Micro switch for screen auto power off
Audio speaker ( for HDMI or Audio option )
1
2
3
8
Keyboard interchangeable module kit
Mouse interchangeable module kit
Blue Power LED
Front USB port for device access ( USB Hub KVM only )
Ruggedized front handle
4
3
9
11
4
11
5
< 1.2 > Structure Diagram
5
6
RM-111-19WH unit X 1
1 - DVI-6 6ft DVI-D/USB console cable X 1
1 - KVM-B-6 6ft VGA/USB console cable X 1
1 - 6ft IEC Power cord
1 - Set of adjustable mounting brackets
8 8 - M6 screw, cage nut & cup washer
The above package content is only for the single console models.
It varies with options such as KVM, SDI, HDMI, AV, audio & DC Power
< 1. Package Contents
P. 1
< Part 1 >

UM-CV-751-19W-Q113V1 www.rackmountsales.com
The weight is only for the single console models. It varies with accessories & options
such as KVM, SDI, HDMI, AV, audio & DC power.

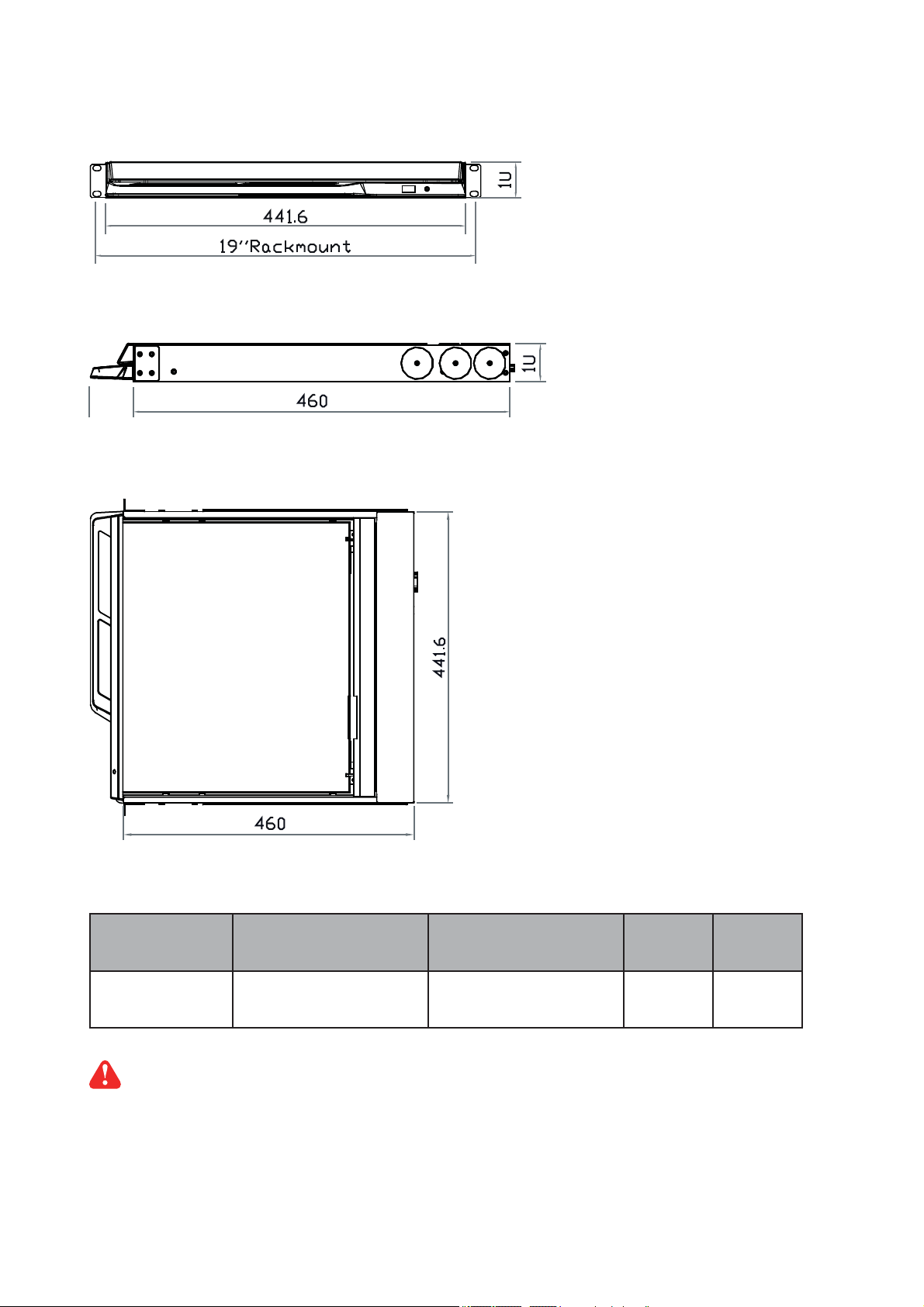

Front View
Side View UNIT : mm
1mm = 0.03937 inch
Top View
Model Product Dimension
(W x D x H)
Packing Dimension
(W x D x H)
Net
Weight
Gross
Weight
RM-111-19WH441.6 x 460 x 44 mm
17.4 x 18.1 x 1.73"
590 x 823 x 140 mm
23.2 x 32.4 x 5.5”
11.5 kg
25 lb
16.5 kg
36 lb
< 1.2 > Dimension
P. 2
(18.1")
1.97"

UM-CV-751-19W-Q113V1 www.rackmountsales.com
< 1.3 > Installation - How to install Installation Slides
■ Fix the display drawer into the rack.
Complete the installation
Step 3
■ Insert the left and right rear mounting brackets into
the LCD console drawer.
Step 1
P. 3
Step 2
■ Measure the depth of the front and rear mounting rails.
■ Align each rear mounting bracket to a suitable length.
M6 screw, cage nut & cup washer x 8 are provided.

UM-CV-751-19W-Q113V1 w ww.rackmountsales.com

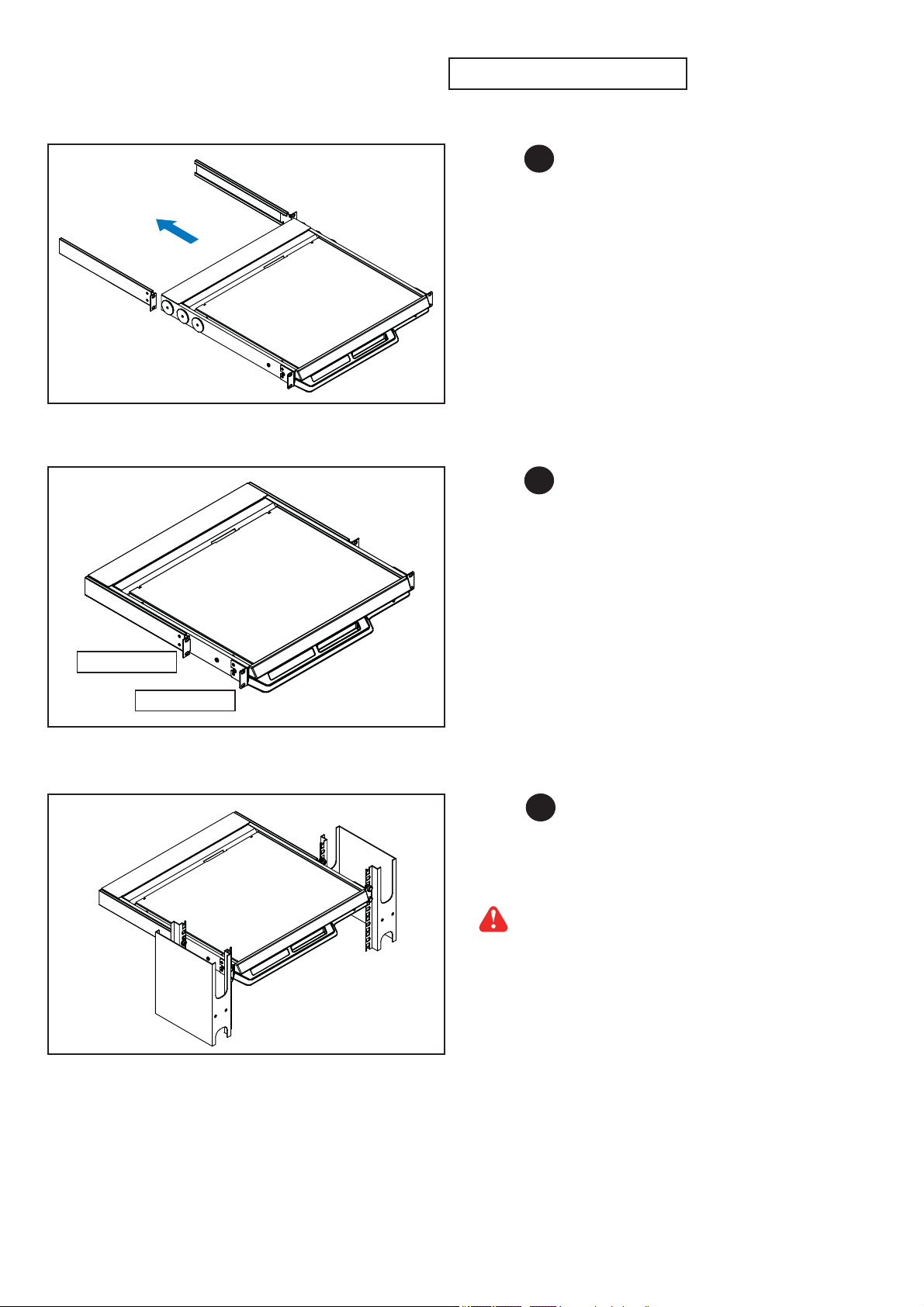

< 1.3 > Installation - How to install 2 post rack brackets
Step 2
■ Align each rear mounting bracket to a suitable length.
■ Fix the LCD console drawer into the 2 post rack.
Complete the installation
Step 3
■ Insert the left and right rear mounting brackets into
the LCD console drawer in the reverse direction.
Step 1
P. 3
M6 screw, cage nut & cup washer x 8
are not provided.
Rear mounting
Front mounting
P. 4
Option
Model : MB-751-12

UM-CV-751-19W-Q113V1 www.rackmountsales.com
P. 5
■ Hold the handle and slide the drawer out
■ Operate the LCD console drawer.
■ Flip up the LCD to a suitable angle.
< 1.3 > Installation- How to use the drawer

UM-CV-751-19WH-Q419V2 www.rackmountsales.comP. 7
Caution : The LCD console drawer is hot-pluggable, but components of connected devices, such
as the servers and KVM switch, may not be hot-pluggable. Plugging and unplugging cables while
servers and KVM are powered on may cause irreversible damage to the servers, KVM and LCD
console drawer. Before attempting to connect anything to the LCD console drawer, we suggest
turning offthe power to all devices. Apply power to connected devices again only after the LCD
console drawer is receiving power. The company is not responsible for damage caused in this way.
< 1.4 > Connection to USB Server via KVM-X-6A cable
< 1.4 > Connection to external KVM via KVM-X-6A cable
AC Input
100~240V
LCD Console Drawer
USB server
KVM-X-6A DVI-D
console cable
DVI-DUSB
POWER
DVI-D
USB
POWER
DVI console KVM
LCD Console Drawer
KVM-X-6A DVI-D
console cable
DVI-D
DVI-D
USB
USB
AC Input
100~240V

UM-CV-751-19WH-Q419V2 www.rackmountsales.comP. 8
AC Input
100~240V
< 1.4 > Connection to USB Server via KVM-B-6A cable
< 1.4 > Connection to external KVM via KVM-B-6A cable
Caution : The LCD console drawer is hot-pluggable, but components of connected devices, such
as the servers and KVM switch, may not be hot-pluggable. Plugging and unplugging cables while
servers and KVM are powered on may cause irreversible damage to the servers, KVM and LCD
console drawer. Before attempting to connect anything to the LCD console drawer, we suggest
turning offthe power to all devices. Apply power to connected devices again only after the LCD
console drawer is receiving power. The company is not responsible for damage caused in this way.
VGA console KVM
LCD Console Drawer
KVM-B-6A VGA
console cable
USB
POWER VGA USB
VGA
AC Input
100~240V
POWER
USB server
LCD Console Drawer
KVM-B-6A VGA
console cable
VGA
VGA
USB
USB

UM-CV-751-19W-Q113V1 www.rackmountsales.com
LCD
Panel
Manufacturer
Panel Size ( diagonal ) 19-inch Widescreen TFT color LCD
Display pixel ( dots x lines ) 1440 x 900
Brightness ( typ. ) 250
Contrast Ratio ( typ. ) 1000:1
Color 16.7 M
Viewing Angle ( L/R/U/D ) 80/80/80/80
Response Time ( ms ) 5
Dot pitch ( mm ) 0.2835
Display Area ( mm ) 408.24H x 255.15V
Surface treatment Haze 25%, Hard-coating
Surface hardness 3H
Backlight Type LED
MTBF ( hrs ) 30,000
< 2.1 > Product Specifi cations
P. 8
< Part 2 >
RM-111-19WH
Video
Connectivity
Digital HDMI HDMI 1.1, CEA-861-D
DVI DVI-D, TMDS single link
Analog VGA Analog 0.7Vp-p
Composite ( BNC ) NTSC & PAL
S-Video ( 4-pin ) NTSC & PAL
Plug & Play DVI / VGA VESA EDID structure 1.3
Synchronization VGA Separate, Composite & SOG
Audio
Connectivity
Audio Input Connector 3.5mm stereo jack
Impedance / Power level 30kΩ / 750mV
Audio Output Connector 3.5mm stereo jack
Resistance / Power level 30kΩ / 2.8V
Speaker Output Power 2 x 2W
*When the audio output is connected, speaker output is OFF
Power Power Supply Range Auto-sensing 100 to 240VAC,
50 / 60Hz
Power Consumption Screen display ON 25W or less
Power saving mode 4W or less
Power button OFF 1W or less
Regulatory Safety Approval cUL, FCC & CE

UM-CV-751-19W-Q113V1 www.rackmountsales.com
P. 9
Physical
Specifi cation
Product ( W x D x H ) 441.6 x 460 x 44 mm
17.4 x 18.1 x 1.73 inch
Packing ( W x D x H ) 590 x 823 x 140 mm
23.2 x 32.4 x 5.5 inch
Net Weight 11.5 kgs / 25 lbs
Gross Weight 16.5 kgs / 36 lbs
Applicable
Format
DVI-D / VGA Input PC Signal 1440 x 900 x 60Hz
1280 x 1024 x 60 / 75Hz
1280 x 960 x 60Hz
1280 x 760 x 60 / 75Hz
1152 x 864 x 75Hz
1024 x 768 x 60 / 70 / 75Hz
848 x 480 x 60Hz
800 x 600 x 60 / 72 / 75Hz
720 x 400 x 70Hz
640 x 480 x 60 / 72 / 75Hz
640 x 400 x 70Hz
640 x 350 x 70Hz
Environmental
Conditions
Operating Temp󾪢rature 0 to 50°C degree
Humidity 20~90%, non-condensing
Storage Temperature -5 to 60°C degree
Humidity 5~90%, non-condensing
Shock 10G acceleration (11ms duration)
Vibration 5~500Hz 1G RMS random

UM-CV-751-19W113V1 www.rackmountsales.com
< 2.2 > Keyboard / Mouse Specifi cations
keyboard integrated with trackball
tb
Supporting layouts
America
United States
EMEA
United Kingdom Germany France Spain Norway
Italy Russia Switzerland Netherlands Portugal
Asia
China Japan Korea Arabia Turkey
Key force 55 ± 5g
Travelling distance 3 ± 0.3mm
Switch life > 10 million life cycle time
Software support MS Windows 7 / 2008 / 2003 / 2000 / XP / ME / 98 / DOC
Linux / Mac
keyboard integrated with touchpad
tp
P.10

UM-CV-751-19W-Q113V1 www.rackmountsales.com
P. 11

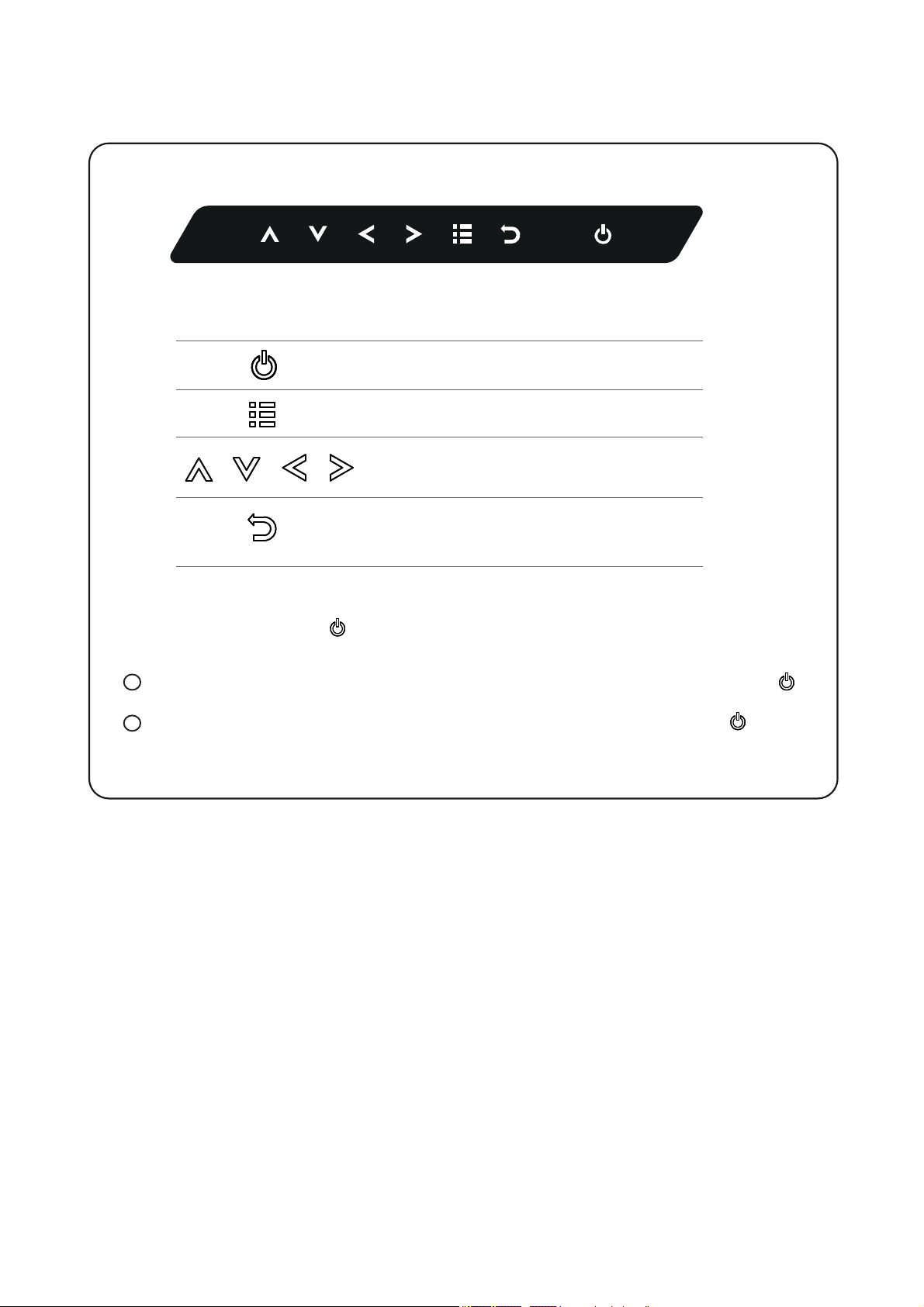

< 2.3 > On-screen Display Operation ( OSD )
Exit the OSD screen
Go back to the previous on-screen sub-menu or
main menu
Scroll through menu options and adjust
the displayed control
Display the OSD menu
Act as an Enter key to select screen setting options
Turn the monitor on or off
Membrane Switch Function
Remark : All LED touch buttons in WHITE light.
The LED of Power touch button will fl ash continuously when there is no signal input.
All the LED touch buttons will automatically turn off after 10 minutes of idle status ( except the Power ).
Light up all membrane buttons, please press any button for 1 - 2 seconds ( except the Power ).
1
2

UM-CV-751-19W-Q113V1 www.rackmountsales.com
< 2.3 > On-screen Display Operation ( OSD )
P.12
OSD Confi guration Page
Image:
for the brightness, contrast, color temp, red, green, and blue
Geometry:
for the auto adjust, H position, V position, phase and clock
Video:
for the colour, tint, sharpness, noise reduction, DCDi and TV Setup
Audio:
for volume, bass, treble, balance, AVL and mute
Misc:
for the language, OSD position, graphic mode, ratio, reset and timer

UM-CV-751-19W-Q113V1 www.rackmountsales.com
Crystal Imagee’ SDI input is an ideal solution for the broadcast-
grade video and high resolution CCTV market.
Designed for use with CIT Full HD 1080p and ultra high
resolution 1920 x 1200 LCD displays, Crystal Image provides a
SDI input module without using additional space or power and it
comes standard with a 2-year warranty.
< 3.1 > Options : 3G / HD / SD-SDI input
P.13
INPUT 3G-SDI IN BNC x 1 / 0.8Vp-p ( 75 ohm )
3G-SDI OUT BNC x 1 / Active through, equalized & relocked
Standard Compliance Video SMPTE 425M / 274M / 296M / 125M
ITU-R BT.656
Audio SMPTE 299M / 272M-C
Compatible Audio Format 3G-SDI 48kHz, 16 / 20 / 24 bit, 2 CH, Synchronized Video
HD-SDI 48kHz, 16 / 20 / 24 bit, 2 CH, Synchronized Video
SD-SDI 48kHz, 16 / 20 / 24 bit, 2 CH, Synchronized /
Asynchronized Video
Compatible Video Format 3G-SDI 1080p
1080p
1080i
720p
@60 / 50Hz, 4:2:2
@30 / 25 / 24Hz, 4:4:4
@60 / 50Hz, 4:4:4
@60 / 50Hz, 4:4:4
HD-SDI 1080p
1080i
720p
@30 / 25 / 24Hz, 4:2:2
@60 / 50Hz, 4:2:2
@60 / 50Hz, 4:2:2
SD-SDI 480i @60Hz, 4:2:2
ITU-R BT.656 576i @50Hz, 4:2:2
Max. Transmission Distance
75 ohm coaxial cable
3G-SDI 150m at 2.97Gb/s
HD-SDI 250m at 1.485Gb/s
SD-SDI 480m at 270Mb/s
< Part 3 >
SDI
in - out
Power
KVM
DVI-DHDMI
Audio
in - in - out
S-Video BNC
PC Video
*** For SDI option, casing depth will be changed from 480mm ( 18.9” ) to 530mm ( 20.9” )

UM-CV-751-19W-Q113V1 www.rackmountsales.com
( 1 ) For AV2.2 upgrade, either HDMI or DVI-D is provided.
( 2 ) For the above options, casing depth will be extended from 460mm ( 18.1" ) to 530mm ( 20.9" )
Audio
Power
KVM
DVI-DHDMI
S-Video BNC
in - in - out
PC Video
- AV
- Audio
( S-Video + Composite, BNC )
( 3.5mm audio jacks for audio in & out, and 2W + 2W speakers )
- HDMI ( HDMI 1.1, CEA-861-D )
< 3.2 > Options :
P.14

UM-CV-751-19W-Q113V1 www.rackmountsales.com
( 1 ) Option excludes 1 x power cord and 1 x AC power adapter.
( 2 ) Casing depth will be extended from 460mm ( 18.1" ) to 530mm ( 20.9" )
*** For DC power option :
KVM
DVI-D
DC power
< 3.3 > Options : DC Power
Model 12V 24V 48V
Input rating
Input voltage: 12-Volt 24-Volt 48-Volt
Input range: 9 ~ 18V 18 ~ 36V 36 ~ 75V
Input current
- No load 50 mA 50 mA 50 mA
- Full load 4950 mA 2450 mA 1220 mA
Output rating
Output voltage: 12-Volt 12-Volt 12-Volt
Output current: 4.16A 4.16A 4.16A
Effi ciency 84% 85% 85%
P.15
The company reserves the right to modify product specifi cations without prior notice and assumes no responsibility
for any error which may appear in this publication.
