CTS MultiPump CTS2024 User manual

4
ASSEMBLY DIAGRAM
PART CODE: CTS2024
※ Read all instructions and precautions before use.
Centre Tank Services Ltd
Unit 41 Minworth Industrial Park, Forge Lane,
Sutton Coldifled, West Midlands, B76 1AH
MultiPump
ELECTRIC DRUM PUMP
INSTRUCTIONS AND PRECAUTIONS
NO
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
Q`TY
1
1
1
1
1
1
2
2
9
2
1
1
1
1
1
1
1
4
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
3
2
3
2
1
1
1
1
1
1
1
1
1
1
1
1
FRONT COVER
BACK COVER
PCB ASS`Y
TOGGLE SWITCH
LED LAMP
WATERPROOF CAP
CONNECTER WIRE
CONNECTER PIN
SCREW
SCREW
BODY PACKING
BODY
O-RING(BODY)
DRUM BUNG ADAPTER
LOCK NUT
STAINLESS STEEL INNER PIPE
SUCTION PIPE(INNER)
O-RING(SUCTION PIPE(INNER), MOTOR COVER)
JOINT NUT(PIPE)
O-RING(PIPE)
SUCTION PIPE(OUTER)
MOTOR WIRE
MOTOR COVER PACKING
MOTOR COVER
O-5ING(MOTOR COVER TOP)
O-RING(MOTOR)
MOTOR
MOTOR PACKING
MOTOR CASE
IMPELLER
IMPELLER CASING
FILTER
END CAP
O-RING(HOSE ADAPTER, SPOUT)
HOSE ADAPTER
JOINT NUT(HOSE ADAPTER, SPOUT)
HOSE CLAMP
DISCHARGE HOSE
HANDLE
NOZZLE CAP
O-RING(NOZZLE CAP)
NOZZLE SPRING
NOZZLE PISTON
O-RING(PISTON L)
O-RING(PISTON S)
NOZZLE HOOK
SPOUT
NOZZLE LEVER
RIVET
PART NAME
• Specications are subject to change without notice.

9

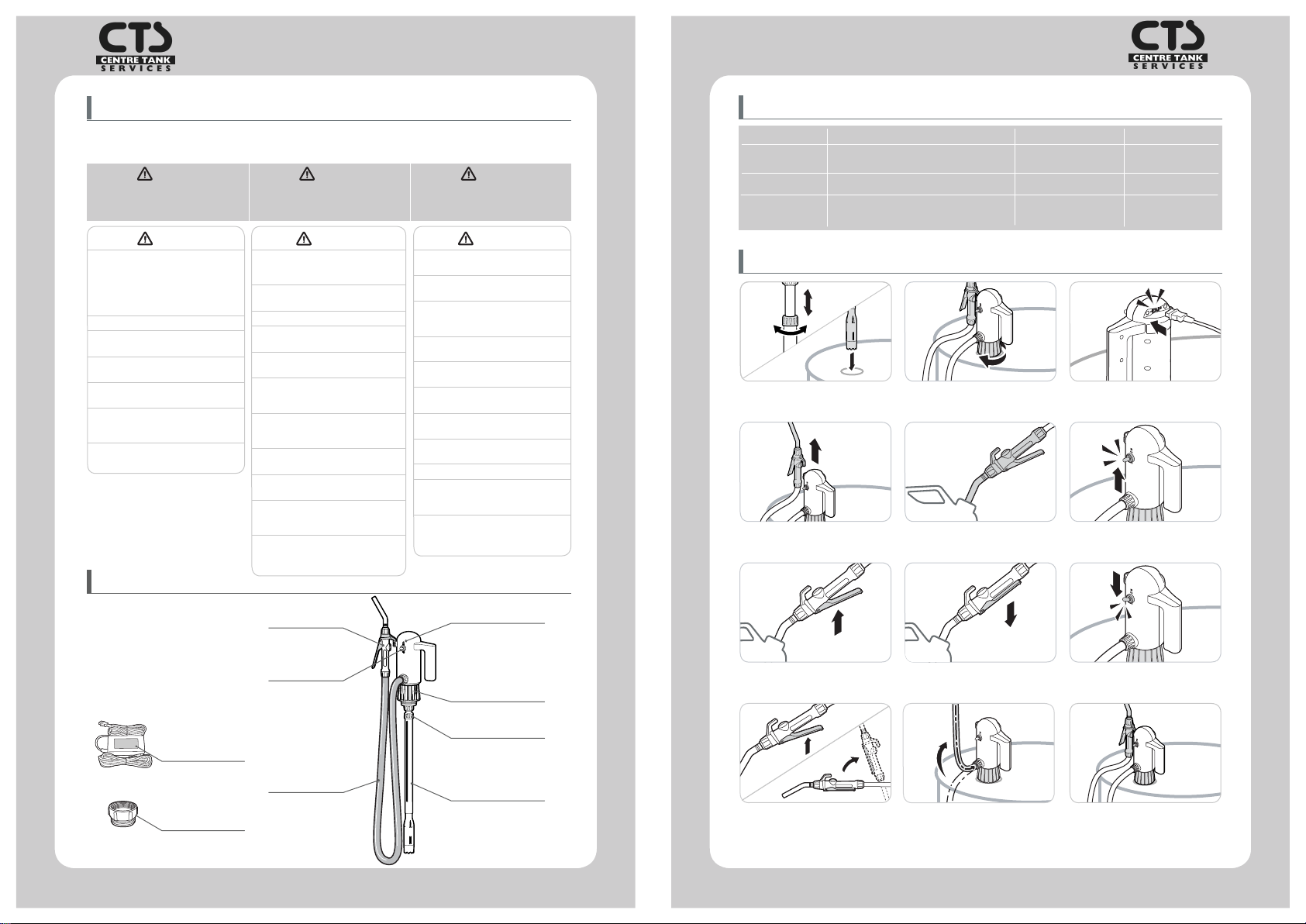

Specifications (PART CODE: CTS2024)
Directions for Use
7 8
6
5A
Max 15min. run, 30min. o
Operating temperature
Operating voltage
DC 12V
AC 230V (with transformer)
Approx. 615 ~ 905mm
Approx. 2m (6.6ft)
Delivery volume
Suction pipe length
Discharge hose length
Applicable liquids
Fuse
Duty Cycle (how long can the
pump be used continuously)
+5˚C ~ 40˚C (41˚F ~ 104˚F)
DEF(AdBlue), Water, Antifreeze,
Windshield washer fluid, Mild detergents,
Agricultural chemicals, Light oils.
11
2
Tighten the drum bung adapter.
Pull out the nozzle from the
nozzle holder.
Place the nozzle into the receiving
container to transfer liquid.
Toggle switch ON(Up).
Pull the nozzle lever and start
supplying the liquid.
Release the lever when the liquid
supply is completed.
Toggle switch OFF(Down).
Pulling the lever of the nozzle,
lift it up.
Let the left-over liquid in the hose
ow back into the drum (tank).
Insert the nozzle in the nozzle holder
for storage.
2 3
4
10 12
5
Approx. 16 LPM (4.2 GPM) - DC12V at Water
Toggle Switch
Nozzle
Drum bung adapter
Suction pipe
Discharge hose
Operating lamp(LED)
Adjustment nut
Precautions for Use
DANGER WARNING CAUTION
CAUTIONDANGER WARNING
If the directions of this sign are not
followed, fatal accidents can happen and
the user may die or get seriously injured.
Do not use this pump for transferring the
following liquids; Aceton, Benzen, Cresol,
Ethyl, Phenol, Methyl ethyl, Concentrated
caustic soda liquid, Nitric acid,
Hydrochloric acid, Sulfuric- acid, thinner
or solvents, Etc.
Do not use for concentrated acids.
Only use on applicable liquids written on
the specications.
Make sure to use the pump on even
surface.
Do not use when the cable and plug is
damaged or if plug is loose on outlet.
Keep the power supply adapter out of
direct sunlight, water vapor, soft coal,
dust, and damp air etc.
Do not touch and operate any plug or
power supply units with wet hands.
These instructions are to ensure the product is used correctly, safely, and to prevent any possible risk or damage to the user
and/or others people. Our company shall not take any responsibility for any failure of product, malfunction and damages
caused by improper use by the user or third parties.
Make sure the pump is tightly secured
to the drum(tank) before turning the
pump on.
Do not refuel directly while the vehicle
or equipment is turned on.
Do not leave the pump unattended.
Do not allow children to operate the
product without adult supervision.
Wash and clean out the outlet, plug,
and plug blades regularly.
If the power supply adapter falls into
the water, pull the plug out and do not
reuse it.
Make sure to hold on the plug and pull
it out from the outlet. (Do not pull o
the cable)
Do not get power cord damaged, bent,
pulled, twisted, or bound.
Do not get the plug and outlet wet in
any case.
When disposing of pump, make sure to
have it completely destroyed so that
others won’t use it again.
When you hand it over to another
person, be sure to give them the
instructions too.
Do not use deteriorated or contaminated
liquids and fuels.
Do not use this pump for hot liquids
above 40°C (104°F ).
Use it in a well-ventilated area since the
power supply adaptor becomes a little
hot.
Do not run the pump ‘dry’ or let the pump
idle without transferring.
Do not run the pump for longer than 15
minutes.
Make sure to turn o the power after
using the pump.
Make sure to remove any left-over liquid
in the discharge hose after each use.
After using the pump, do not keep it on
its side or upside down.
Do not alter or disassemble the pump.
Do not shock the pump and power
supply adapter. Also do not make the
power cord tense.
When cleaning up the pump, do not use
thinner, benzene, organic solvent, or
glass cleaners.
If the directions of this sign are not
followed, accidents can happen or
the user can get injured.
If the directions of this sign are not
followed, the product can get damaged
or the user can get injured.
Names of Parts
Buttress adapter
AC/DC adapter
1
Adjust the length of the suction pipe
to t the drum (tank). Insert the
suction pipe into the drum (tank).
3
Connect the power supply to
the Pump.
