INSTRUCTIONS FOR USE
SELF-PRIMING ELECTRIC PUMP
FOR TRANSFERRING VARIOUS LIQUIDS

© S.p.A.
PRODUCT DESCRIPTION
TECHNICAL DETAILS
APPLICATIONS
FLUIDS ALLOWED / NOT ALLOWED
ØTransfer of diesel fuel between tanks, refuelling of tractors and earth moving
equipment
Øtransfer of water
Øtransfer of light weight lube oils, antifreeze.
There are numerous fields of applications for the pump, however only exclusively with the
allowed liquids mentioned:
2
Tab.1 EN
CODE TYPE VOLT
164 002 12-US 12 10
164 002 13-US 24 5
IP 67 Protection
(*) Internal tube Ø 1/2 in / (**) Length up to 6.6 ft
A 4.0gpm psi 29 3.1lbUP3-P AWG 16
WEIGHT WIRE SIZE (**)FUSE FLOW RATE (*) PRESSURE
Self-priming electric pump for the transfer of liquids of varied nature. The pumping elements
are made up of PTFE gears which can possibly even run dry for brief periods. Equipped with
in-line filter on the inlet side.
Tab.2 EN
WATER (max 40 °C-104 °F)
DIESEL FUEL (*)
PETROL (GASOLINE) •
FLAMMABLE LIQUIDS with PM< 38 °C-100 °F •
LIQUIDS WITH VISCOSITY > 20 cSt •
CORROSIVE CHEMICAL PRODUCTS • •
SOLVENTS • •
LIQUIDS DANGERS
WARRANTY EXPIRES IF MAX FLUID
TEMPERATURE IS EXCEEDED
FIRE / EXPLOSION
MOTOR
OVERHEATING
PUMP CORROSION
ISO 8846 Compliant Device
INJURY TO
PERSONNEL
DAMAGE TO SEALS
OK
NO
(*) Minimum flashpoint (PM): 38 °C-100 °F

© S.p.A.
TRANSPORTATION AND HANDLING
INSTALLATION
PRELIMINARY CHECKS
POSITIONING
AMBIENT CONDITIONS
TEMPERATURE: RELATIVE HUMIDITY:min.-10°C/14°F - max.60°C/140°F max. 90 %
OPERATING CYCLE
Due to limited weight and dimensions the pump does not require the use of any special
handling or lifting equipment. When handling manually, normal personal protective gear
should be worn (safety shoes with toe piece, etc.). The pump is carefully packed prior to
shipment. Upon receiving, the packaging should be inspected for damages and the pump
stored in a dry area at a temperature between -30°C /-22°F and 70°C/158°F.
It is recommended that the use of the pump be according to normative safety standards
and also as per the precautions listed below.
The pump can be mounted in any position. Fix the pump utilizing suitable diameter screws
corresponding to the holes.
Check that there has been no damage to the pump during transportation or storage. Both
inlet and outlet ports should be carefully cleaned removing possible dust or residual
packaging material. Verify that the available electrical power supply corresponds to the
specification requirements.
The pump can operate on a continuous cycle with the following conditions:
It is possible to operate at higher pressures/ampere draw if On/Off cycles are used. This will
allow the motor to cool down to the indicated temperatures.
Long pipelines and / or reduced diameters, bottlenecks and dispensing guns, affect the
operating pressure (which is not automatically limited): in these cases, check that the
pressure and the electrical draw do not exceed the values of the attached diagrams.
Ø
Ø
pressures not exceeding 50% of the maximum pressure indicated in the technical
data
temperature of the motor below 60/70 °C - 140/158 °F
WARNING: the above indicated temperature ranges are applicable to all components
of the pump and these limits must be respected in order to avoid any possible damage
or malfunctioning.
3

© S.p.A.
To ensure the correct directional flow of the fluid as indicated by the arrow on the top plate, it is
necessary to connect the positive pole (+) of the battery supply to the red wire on the motor
end-cap and the negative pole (-) to the black wire. Electrical connections must be made
using adequate terminal blocks and connectors ensuring a tight fitment of the electrical
cables. Bad wiring can cause power losses and/or overheating of the cabling itself.
Ø
Ø
Ø
Prior to making any tube/hose connections, check that the inlet ports have no end
caps;
Do not position the pump at a excessive height with respect to the minimum level of
the fluid to be transferred. Damage may occur if this height is exceeded as the pump
may not draw fluid. Make sure that the outlet tube is empty and without chokes;
Avoid choking the inlet or outlet tubes so that efficiency is optimized.
The use of an inlet filter is recommended especially with fluids containing impurities
(mesh ASTM no. 35).
Utilize tubes and connection pieces that are resistant to the fluid types handled and
avoid any possible environmental dispersion.
Ø
Ø
In this case frequent cleaning and maintenance of the filter is
advisable. The standard filter withstands a maximum positive pressure of 0.5 bar.
The electrical installation of the pump must include a protection fuse which is suitably rated
as indicated on the motor label.
Always mount the anti vibration rubber fittings supplied with the pump kit. Their usage
ensures a consistent reduction in noise and vibration levels. Electrical cabling size should
depend on the distance between pump and battery/power supply (see Tab.1 EN). The use of
undersized cabling can cause overheating of the electrical wiring and subsequent fire
hazard. There will also be a voltage drop at the motor terminals with a consequent reduction
in efficiency. The flow rate value indicated on the motor label is obtained with internal tube
diameter indicated on Tab.1 EN. Tubes with inferior diameters will cause an increase in
current with potential risk of motor overheating.
WARRANTY EXPIRES IF NO FUSE IS UTILIZED
WARNING: it is the responsibility of the installation technician to ensure a correctly
designed circuit installation fitted according to regulations. Environmental risks must
be taken into account with the installation.
WARNING: DUE TO THE EMI FILTER THE PUMP IS NOT SUITABLE FOR
SWITCHING APPLICATIONS (PWM DRIVER)
4

© S.p.A.
TROUBLESHOOTING
WHY THE PUMP WILL NOT PRIME ITSELF?
CHECK POINTS IF THE PUMP HAS STOPPED OR WILL NOT START
GOOD PRACTICES ENSURING A WELL FUNCTIONING PUMP
Ø
Ø
Ø
Ø
Ø
Check the effectiveness of the battery power supply (voltage activity);
Check if the fuse has blown;
Check for any foreign matter present in the pump body. To do this, disconnect the
power supply and unscrew the four fixing screws, remove the front cover plate and
inspect the chamber. Replace the cover plate in the same initial position after
inspection;
Avoid running the pump dry for more than a few minutes. Pumps found defective
that have run dry in the absence of fluid are not covered by warranty;
The average life span of the motor commutator brushes is approximately 2500
hours under normal operating conditions. Stoppages are possible due to brush
wear and tear after such a time period.
Ø
Ø
Ø
Ø
Ø
Ø
Ø
Ø
The pump is fitted at an excessive height above the fluid level
The pump has run dry for too long a period
Long periods of inactivity. In this case it is advisable to add liquid directly into the
chamber before start-up
Air leak at the suction pipe due to the following reasons, possible cuts in the pipe,
inadequate hose clamps, malfunctioning of the filter due to defective/worn seals or
filter clogged
Air leak at the front plate cover due to the following reasons, loose fixing screws,
poor effectiveness of the seal
Faulty electrical cable connections
Presence of obstructions or restrictions in the suction or delivery pipes or the use of
special devices (eg. automatic spray pistol or Aquastop)
Presence of liquid loops in the outlet tube
ØDirty bypass valve (VP45 series)
If it is expected that the pump will not be used for a period of at least 30 days, especially in the
case of usage with water, it is advisable to run fresh water through it and to then loosen the
front plate screws. Upon re-use, run the pump briefly (a few seconds) and tighten the screws
again. Check under conditions of maximum operating pressure that the motor current value
is within the motor label specifications.
5

© S.p.A.
NORMAL MAINTENANCE
INDICATORS THAT THE PUMP IS FUNCTIONING CORRECTLY
TO OPEN THE PUMP
ENVIRONMENTAL DISPOSAL
WARRANTY
PACKAGING ENVIRONMENTAL DISPOSAL
Ø
Ø
Ø
Check frequently and keep the inlet filter clean.
Check every month the chamber and keep clean from any foreign matter.
Check every month that electrical wiring is in good condition.
ØReplace the rubber impeller every season or every 500 hours (for UP1 series).
Ø
Ø
Ø
Temperature of body and motor frame is within 60°C and 70°C (140 °F - 158 °F);
Regular flow and constant noise levels;
Amp-draw within the limits indicated in the diagrams.
ØIt is recommended that a specialized service technician be consulted for any
repair work or the replacement of worn out internal components, exclusively with
original spare parts; during the warranty period, only by authorized Marco S.p.A.
personnel, failing which the warranty will expire.
It is the responsibility of the owner to dispose of this product by means of the specific refuse
collection structures indicated by the government or the local governing authorities.
The user is invited to effect a proper waste separation, in order to facilitate the recycling
of the materials of which the packing is composed.
1) The Warranty period is 2 years from date of purchase on production of the
appropriate sales invoice.
2) Should the original sales invoice not be available, then the 2 year warranty
period will be valid from production date.
3) The Warranty becomes null and void in the case of incorrect utilization or
disregard of the instructions contained herein.
4) The Warranty only covers original production defects.
5) The Warranty does not cover any related installation costs involved.
6) Transport costs are refundable only in the case where warranty has been duly
accepted by Marco Spa and they will be limited to the actual shipment costs
between Marco Spa warehouse and the client's delivery address.
7) No credit notes or replacement items will be issued prior to the receipt and
proper testing of any Marco goods that are deemed faulty.
6

© S.p.A.

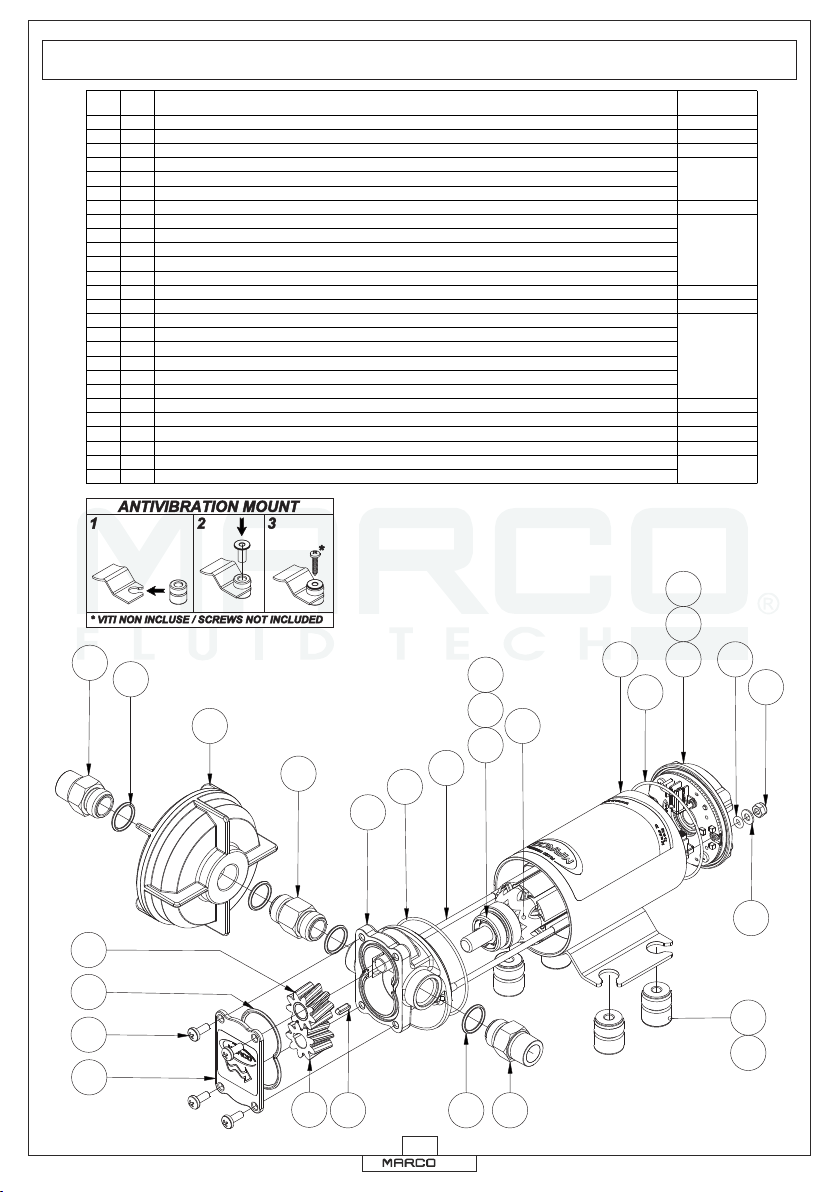

EXPLODED VIEW
Pos. Q.tà Description Spare Part
11PUMP BODY
22ROD
31PUMP FRAME
41 RUBBER LIP SEAL
X5 1WASHER
61BALL BEARING
71ARMATURE
82O-RING
X
91BRUSH HOLDER
10 1BALL BEARING
11 1COMPENSATION SPRING
12 2O-RING
13 2WASHER
14 2NUT
15 1KEY
X
16 1IDLE GEAR
17 1DRIVING GEAR
18 1O-RING
19 1TOP PLATE
20 4SCREW
21 2NIPPLE
22 2O-RING
23 1NIPPLE
24 1FILTER X
25 4ANTIVIBRATION MOUNT X
26 4ANTIVIBRATION INSERT
1
7
8
2
3
8
9 12
14
13
25
23
24
22
21
16
20
19
17 15
18
22 21
10
11
4
5
6
26
7

© S.p.A.
DIMENSIONS
10 3/8" 50 2"
60 2 3/8" 41 1 5/8"
101 4"
151 6"
80 3 1/8"
Ø64 2 1/2"
102 4"
38 1 1/2" 60 2 3/8"
41 1 5/8" 118 4 5/8"
159 6 1/4"
Ø51/4"
Ø17 5/8"
NPT 3/8"
8

© S.p.A.
DIAGRAMS
FLOW RATE DIAGRAM
AMPERE-DRAW DIAGRAM
9
0
1
2
3
4
5
0 14,5 29 43,5
psi
gpm
0
5
10
15
0 14,5 29 43,5
psi
A
A (12V) A (24V)

164 002 12-US - UP3-P 12V Gear Pump
164 002 13-US - UP3-P 24V Gear Pump
