Cub Cadet 18.5HP Z-Force 42 Setup guide

HydrostaticZero-Turn
ResidentialRidingMower
Turf Equipment
ILLUSTRATED PARTS LIST
MODEL
18.5HP Z-Force 42
20HP Z-Force 44
22HP Z-Force 48

18 5 HP Engine Parts Breakdown
29
18
.
5
HP
Engine
Parts
Breakdown
20 HP Engine Parts Breakdown
29
39
22 HP Engine Parts Breakdown 48

3

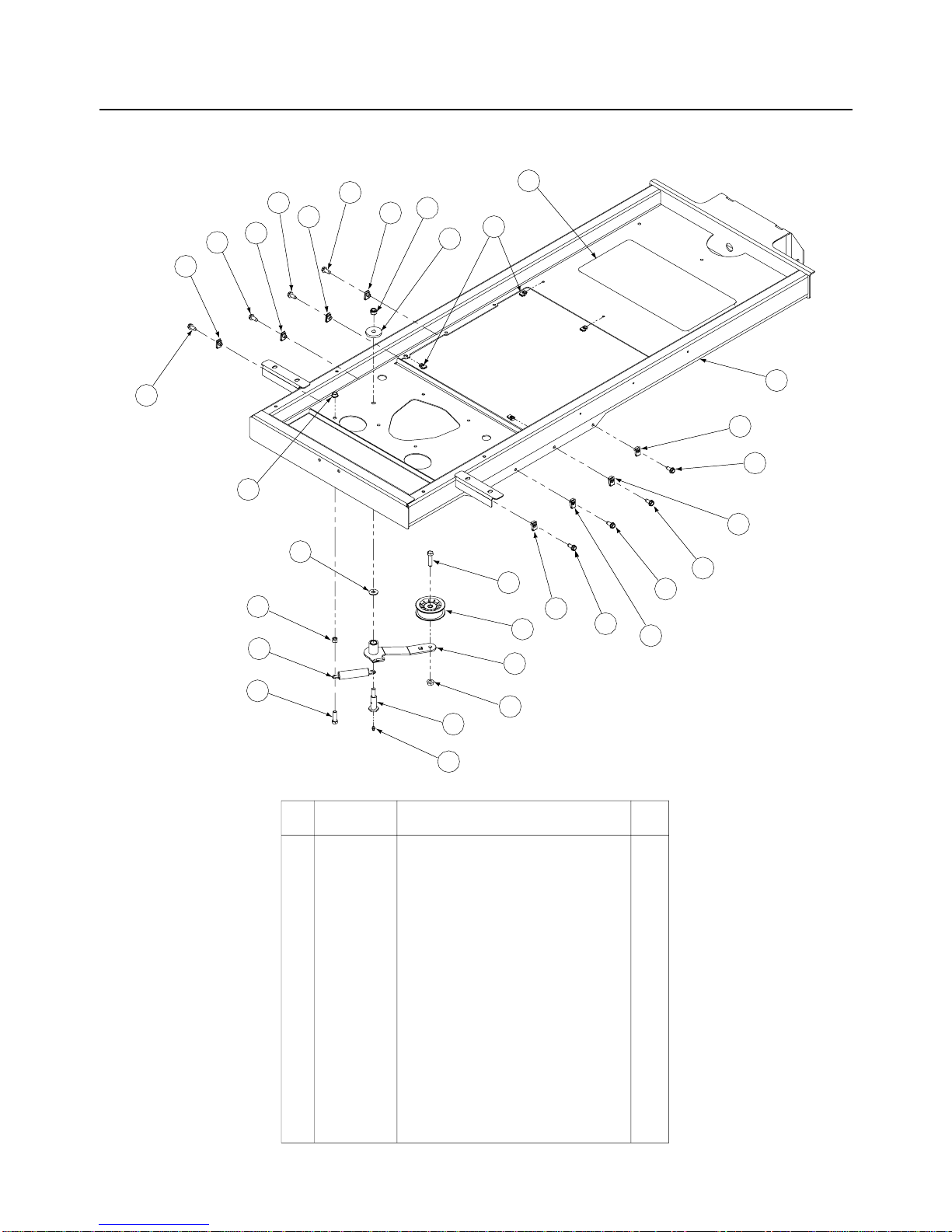

Frame Assembly- Figure 1 and Parts List
Ref.
No. Part No. Description Qty.
1 00012166 Hex Nut, 5/16-18 1
2 00011438 Hex Cap Screw, 3/8-16 x 1-1/2 1
3 00013116 Hex Cap Screw, 5/16-18 x 1-1/4 1
4 00006168 Flat Washer, 3/8 zinc 1
5 00022560 Hex Nut, 3/8-16 Flange Lock 1
6 00027279 Nylock Nut, 7/16-14 1
7 00030782 Flat Idler Pully w/ adaptor 1
8 00060078 Grease Fitting, 1/4-28 x 3/16 1
9 01000505 Shoulder Bolt 1
10 01002874 Extension Spring, .865 OD x 4.68 lg 1
11 01003269 Flat Washer, 7/16 ID x 1.75 OD 1
12 01003563 U-Nut, 5/16-18 8
13 01008480 Frame Assembly Weldment 1
14 01008399 Idler Arm Assembly 1
15 01008764 Hex Washer Screw 5/16-18 x .750 8
16 01000635 Nut, 5/16-18, Hexflange Lock 1
17 01006528 Abrasive Foot Pad 1
18 01008539 U-Nut, 1/4-20 5
12
15 12
15 12
15
12
15
6
16
11
4
1
3
10
8
95
14
7
2
12 15 12
15
15
12
15
12
13
17
18
GD: 01008104-P00

4
42" Formed Cutter Deck - Figure 2
53
27
36
4
37
7
35
42
33
23
8
47
11
39
26
3
34
29
31 13
15
10 16 29 51
48
22
9
9
22
15
44
54
43 21
15
14
32
25
20
41
38
18
40
49
45
19
12
6
57
31
24
28
1
55
37
46
30
2
50
56
GD: 01009714-P02

5
42" Formed Cutter Deck - Parts List for Figure 2
Ref.
No. Part No. Description Qty. Ref. No. Part No. Description Qty.
1 -- 42" Spindle Assembly 2 27 00003107 Cotter Pin, .125 Dia. x 1.0 1
618-3129B Blade Spindle Assembly 2 28 00010958 Washer, 1/2 Zinc 1
710-1336A Blade Bolt 2 29 00013291 Nut, 1/4-20 3
712-3078 Flange Nut 2 30 00013406 Hex Cap Screw, 5/16-18 x 3/4 1
737-3000 Grease Fitting 2 31 00022560 Nut, 3/8-16 6
748-3065 Spacer 4 32 00023287 Nut, 1/2-20, Center Lock 1
756-3106 Pulley 2 33 01000338 Hex Cap Screw, 1/4-20 x.620 2
2 01004863 Stop Bracket 1 34 01000372 Carriage Bolt, 3/8-16 x .75 2
3 710-0136 Hex Cap Screw, 1/4-20 x 1.75 1 35 01000375 Roller Pin, 1/2 Dia. x 7.31 1
4 710-0650 Self Tapping Screw, 5/16-18 x 7/8 8 36 01000385 Front Roller 1
5 710-1238 Hex Screw w/ washer, 5/16-18 x 7/8 137 01000635 Nut, 5/16-18 3
601000960 Bell Washer, .325 x .930 x .045 1 38 01000873 Washer, .536 ID x .930 OD x .05 1
7 712-0324 Nut, 1/4-20 1 39 01000930 Washer, .508 ID x 1.0 OD x .020 2
8 715-3003 Heavy Duty Spirol Spring Pin 2 40 00010980 Hex Cap Screw, 3/8-16 x 1.50 1
9 716-3020 Internal Snap Ring 2 41 01002874 Extension Spring, .865 OD x 4.68 2
10 731-1032B Chute Assembly 1 42 01005338 Blade, 21.0, Hi-Lift, .756 ID 2
11 732-0802 Compression Spring. .63 OD x 6.3 2 43 01008404 Spacer, .635 ID x .28 1
12 734-0973 Deck Wheel, 5.0 x 1.38 2 44 01008530 Hex Cap Screw, 5/8-18 x 2.00 1
13 736-0100 Washer, .531 ID x 1.25 OD 1 45 01008538 Deck Handle Weldment 1
14 736-0179 Washer, .531 x 1.25 x .10 1 46 01008620 Self Tapping Screw, 5/16-18 x 3/4 4
15 736-0188 Washer, .76 x 1.49 x .06 4 47 01008590 Deck Mount Plate Assembly 1
16 736-0270 Bell Washer, .265 x .75 x .062 2 48 01008589 Idler Assembly 1
17 737-3000 Grease Fitting 1 49 01009711 Idler Bracket 1
18 738-0372B Spacer, 1.0 x .38 x .38 1 50 01009723 Left Hand Belt Cover 1
19 738-0373 Screw, .498 x 1.53, 3/8-16 2 51 01009719 Belt, V-Section 1
20 738-0213 Screw, .498 x 1.445 1 52 01009742 Right Hand Belt Cover 1
21 741-0338 Flange Bearing, 3/4 ID x .52 2 53 01009791 Deck Weldment 1
22 741-0524 Bearing, .625 ID x 1.574 OD x .47 2 54 01009904 Double Pulley 1
23 747-3013 Support Pin 2 55 01009907 Belt, V-Section 1
24 750-0150 Spacer, .550 ID x .75 OD 1 56 01009937 Washer, 5/16 x 1.06 1
25 750-0656 Spacer, .50 OD x .75 ID x 2.25 1 57 00013092 Hex Cap Screw, 5/16-18 x 1.0 1
26 756-0542 Idler Pulley 1

6

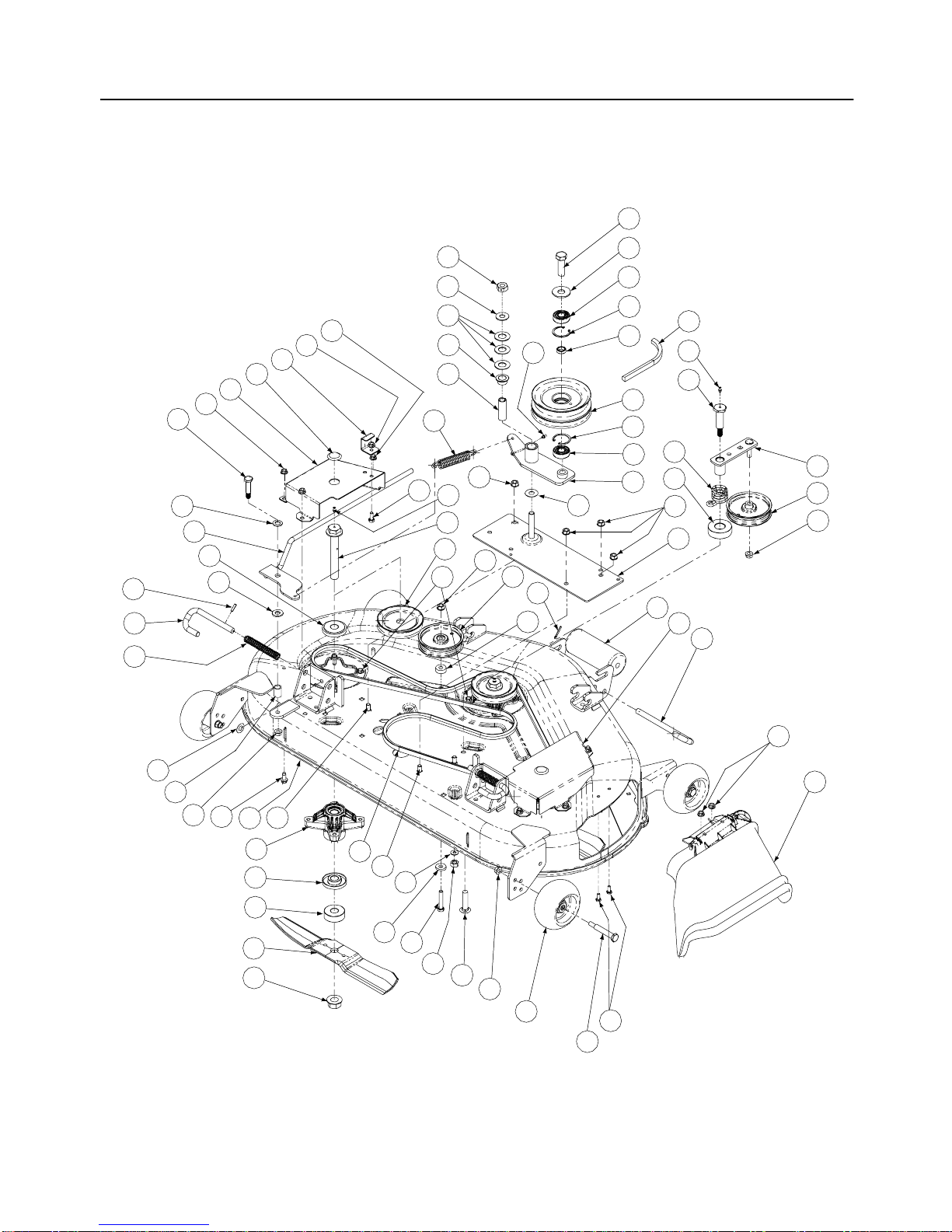

44" Formed Cutter Deck - Figure 2
48
23
7
45
41
39
47
54
49
36
51
28
30
4
31
49
8
10
45
34
56
16
29
13
30
21
20
42
15
9
63
25
63
55
59 26
33
58
46
19
18
22
14
61
11
18
27
57
22
24
27
3
60
14
45
1
53
32
45
2
38
5
44
50
52 6
40
35
38
45
43 17
10
37
12
22
62
45
GD: 01008112-P02

7
44" Formed Cutter Deck - Parts List for Figure 2
Ref.
No. Part No. Description Qty. Ref. No. Part No. Description Qty.
1 01008590 Deck Mounting Plate Assembly 1 33 750-0656 Spacer .50 OD x .75 ID 1
2 01008593 Idler Arm Assembly 1 34 750-0150 Spacer .550 ID x .750 OD 1
3 01008589 Idler Assembly 1 35 750-3119 Spacer .406 ID x 1.0 OD 1
4 618-3129B Spindle Assembly 3 36 754-3039 Belt 1
5 631-0094A Chute Assembly 1 37 756-3089 Pulley 3
6 01008587 Belt Cover Right Hand 1 38 01004081 Flat Pulley 2
7 703-1890 Deck Wheel 4 39 00002528 Hex Cap Screw 3/8-16 x 2.00 1
8 01008481 Deck Assembly 44" 1 40 00003107 Cotter Pin .125 Dia x 1.0 1
9 01008586 Belt Cover Left Hand 1 41 00027279 Nut 7/16-14, Nylock 1
10 01008620 Self Tapping Screw 5/16-18 x .750 18 42 00010958 Flat Washer .50 ID x 1.065 OD 1
11 01008530 Hex Cap Screw 5/8-18 x 2.00 1 43 00013406 Hex Cap Screw 5/16-18 x .75 1
12 710-1852 Spindle Bolt 3/4-16 x 5.37 3 44 01002766 Nut, 1/4-20, hexflange Lock 2
13 715-3003 Pin 2 45 00022560 Hex Nut, 3/8-16, Flange Lock 11
14 716-3020 Internal Snap Ring 2 46 00023287 Nut, 1/2-20, Center Lock 1
15 726-3045 Button Plug 2 47 00083192 Idler Washer 1
16 732-0802 Compression Spring .63 OD x 6.3 2 48 01000338 Hex Cap Screw 1/4-20 x .620 2
17 736-0100 Flat Washer .531 ID x 1.25 OD 1 49 01000372 Carriage Bolt 3/8-16 x .75 3
18 736-0188 Flat Washer .76 ID x 1.49 OD 4 50 01000375 Roller Pin 1/2 x 7.31 1
19 736-0179 Flat Washer .50 ID x 1.25 OD 1 51 01000380 Nut, 3/4-16, Hex Flange 3
20 01000873 Flat Washer .536 ID x .93 OD 1 52 01000385 Front Roller 1
21 01008538 Deck Handle Weldment 1 53 732-3067 Idler Torsion Spring 1
22 737-3000 Grease Fitting 5 54 01000393 Flat Washer, .469 ID x .875 OD x .105 1
23 738-3056 Shoulder Screw 1/2 x 2.5 4 55 01000635 Lock Nut 5/16-18 Hex Flange 1
24 738-3172 Shoulder Screw .68 x 2.11 1 56 01000930 Flat Washer .508 ID x 1.0 OD 2
25 738-0213 Shoulder Screw .498 x 1.445 1 57 01002391 Belt 1
26 741-0338 Flange Bearing .75 ID x .52 2 58 01002874 Extension Spring .865 OD x 4.68 1
27 741-0524 Bearing .625 ID x 1.574 OD 2 59 01004863 Tension Rod Stop Bracket 1
28 01008616 Blade 3 60 01008376 Double Pulley 1
29 747-3013 Support Pin 2 61 01008404 Spacer .635 ID x .88 OD 1
30 748-3065 Spindle Spacer 6 62 00030276 Carriage Bolt 3/8-16 x 1.50 1
31 748-3020 Blade Spacer 3 63 00012166 Hex Nut, 5/16-18 6
32 01008456 Spacer .760 ID x 1.5 OD 1

8
48" Formed Cutter Deck - Figure 3
4
16
23
13
15
29
20
5
30
33
8
38
25
34
7
37
21
31
14
36
28
35
32
19
2
24
11
3
9
10
17
6
1
22
12
26
27
30
40
39
41
42
GD: 01009779-P02

9
48" Formed Cutter Deck - Parts List for Figure 3
Ref.
No. Part No. Description Qty.
1 00003107 Cotter Pin .125 Dia x 1.0 2
2 00008495 Capscrew, 3/8-16 x 1-3/4 2
3 00011925 Capscrew, 3/8-16 x 4.00 2
4 00012470 Cable Tie, 3/16 x .05 x 7.4 1
5 00013406 Hex Cap Screw 5/16-18 x .75 1
6 00022560 Hex Nut, 3/8-16, Flange Lock 24
7 00030633 Decal, Rotating Blade 1
8 00030635 Decal, Warning Shield Missing 2
9 01000343 Complete Wheel, 5.00 Dia. 2
10 01000368 Hex Cap Screw, 3/8-16 x .88 4
11 01000372 Carriage Bolt 3/8-16 x .75 10
12 01000375 Roller Pin 1/2 x 7.31 1
13 01009102 Hinge Pin, .375 x 14.06 1
14 01000385 Front Roller 3
15 01009705 Chute Deflector 1
16 01003253 Torsion Spring 1
17 01000398 Wheel Spacer 2
18 01000635 Lock Nut 5/16-18 Hex Flange 1
19 01000643 Carriage Bolt, 3/8-16 x 1 2
20 01000960 Washer, .325 x .930 x .045 2
21 01001169 Grass Catcher Roller 2
22 01006574 Front Roller Bracket 1
23 01006575 Chute Mounting Bracket 1
24 01006576 Castor Bracket 2
25 01006577 Left Hand Belt Cover 1
26 01006578 Right Hand Belt Cover 1
27 01002166 Decal, Danger Hands & Feet 2
28 01006581 Baffle 1
29 01003560 Thumb Screw, 5/16-18 x 1.0 2
30 01003563 U-Nut, 5/16-18 2
31 01004751 Roller Rod 1
32 01006583 Finger Guard 1
33 01006490 Right Hand Belt Cover Support Bracket 1
34 01006492 Left Hand Belt Cover Support Bracket 1
35 01006530 Deck Baffle 1
36 01006573 Spacer, .437 ID x .625 OD x .75 2
37 01009780 48" Deck Weldment 1
38 01004863 Tension Rod Stop Bracket 1
39 01000930 Washer, .508 ID x 1.00 OD x .020 2
40 715_3003 Heavy Duty Spring Pin 2
41 732_0802 Compression Spring, .63 OD x 6.3 Lg 2
42 747_3013 Support Pin 2

10
48" Spindle Assembly - Figure 4
25
21
5
4
35
2
22
3
18
2
43
18
20
17
9
18
29
1
24
30
32
13
10
16
11
16
16
37
8
38
28
33
15
14
41
40
647 7
42
27
31
19
40
14
39
19
38
37
18
36
34
23
18
12
14
44
26
45
46
GD: 01009778-P00

11
48" Spindle Assembly - Parts List for Figure 4
Ref.
No. Part No. Description Qty.
1 00008495 Capscrew, 3/8-16 x 1-3/4 1
2 00022560 Hex Nut, 3/8-16, Flange Lock 25
3 00034167 Capscrew, 3/8-16 x 5.00 1
4 00060078 Grease Fitting, 1/4-28 x 3/16 1
5 01000199 Extension Spring, 1.0 OD x 5.00 1
6 01000302 Shoulder Screw, 7/16-14 1
7 01000364 Hex Carriage Screw, 3/8-16 x 1.75 1
8 01000369 Capscrew, 3/8-16 x 1.25 9
9 01000372 Carriage Bolt 3/8-16 x .75 9
10 01000379 Hex Nut, 7/16-14 1
11 01000380 Nut, 3/4-16, Hex Flange 3
12 01000387 Idler Spring 1
13 01000389 Lock Washer, 7/16 1
14 01000392 Flat Washer, .781 ID x 2.00 OD x .105 3
15 01000399 Belt, A Section x 107.3 1
16 01000643 Carriage Bolt, 3/8-16 x 1 4
17 01009906 Carriage Bolt, 3/8-16 x 5.0 1
18 01000723 Flat Washer, .406 ID x 1.0 OD x .105 14
19 01002564 Spacer, .76 ID x 2.00 OD x .477 4
20 01003245 Spacer, .39 ID x .625 OD x 2.75 1
21 01005692 Spring Tension Rod Assembly 1
22 01004065 Spacer, .405 x .75 x 3.875 1
23 01004081 Flat Pulley 1
24 01004101 Idler Pulley, 4.06 OD 1
25 01004118 Shoulder Screw, .50 x .27 Lg., 3/8-16 1
26 01004129 Spacer, .385 ID x .75 OD x .875 2
27 01004185 Capscrew, 3/4-16 x 6.50 1
28 01004415 Spacer, .760 ID x 2.00 OD x 0.9 3
29 01004772 Hi-Lift Blade, 16.5, 0.756 ID 3
30 01005103 Idler Arm Assembly, Flat Top Bearing 1
01000308 Bearing Sleeve 2
31 01005202 V-Pulley, 4.75 OD 1
32 01006469 Idler Arm Mounting Plate 1
33 01006440 Spindle Support Plate 2
34 01006442 RH Spindle Support PLate 1
35 01006468 Idler Arm Mounting Bracket 1
36 01006470 Housing Assembly 3
37 01006533 Spacer, .76 ID x 1.25 OD x .44 6
38 01006534 Spindle Spacer 6
39 01006535 V-Pulley, 5.0 OD 3
40 01006590 Capscrew, 3/4-16 x 5.50 2
41 01006760 Idler Arm Assembly, Deck Spindle 1
01000308 Bearing Sleeve 2
42 00050441 V-Belt, B-Section 1
43 01001539 Spacer, .39 ID x .875 OD x 1.100 1
44 01002750 Carriage Bolt, 3/8-16 x 3.5 1
45 01005314 Washer, 7/16 ID x 1.75 OD x .25 1
46 756_0542 Pulley, 1.0 OD 1
47 00012226 Grease Fitting, 1/4-28, 90 degree 1

12

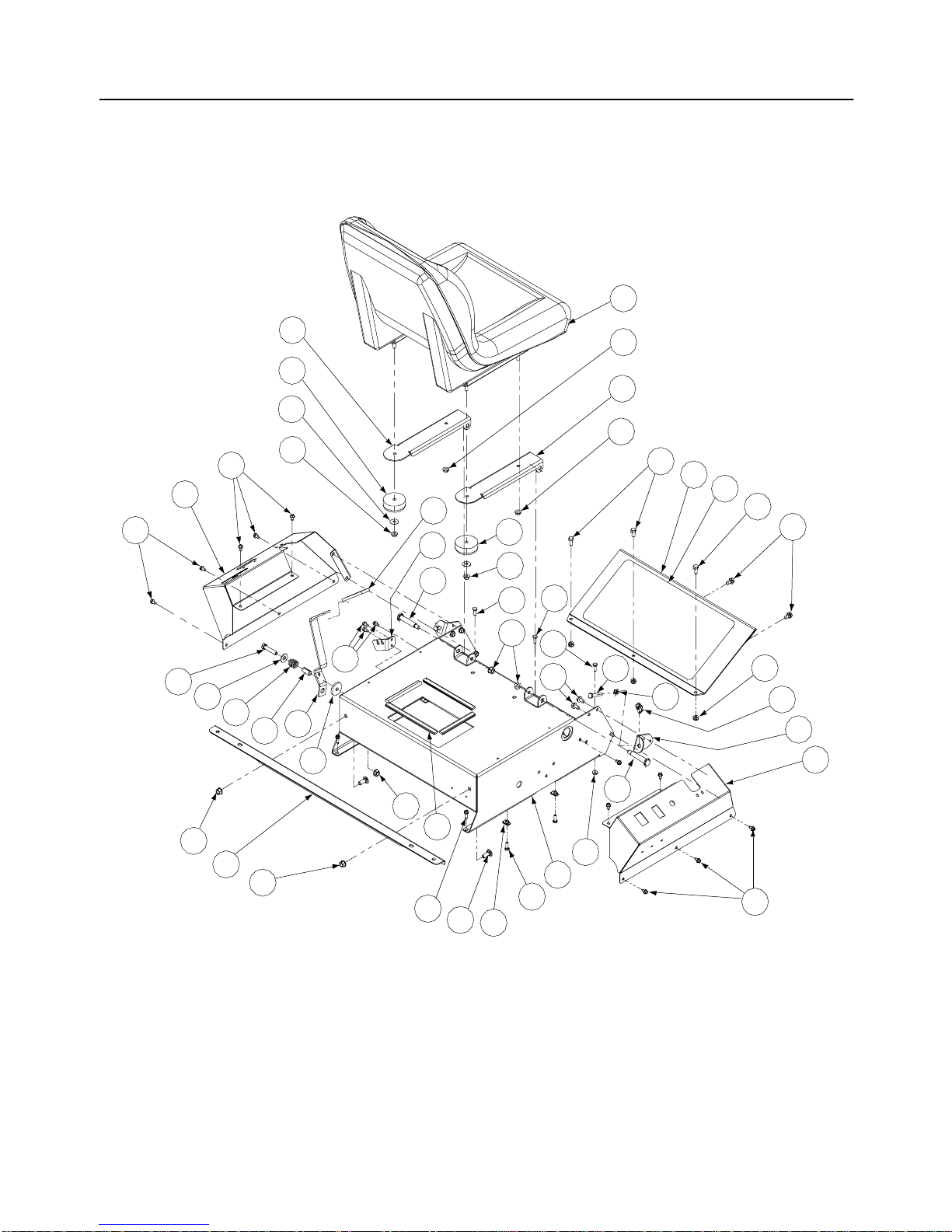

42"/44" Control Assembly - Figure 5
6
5
19
30
26
12
15
17
23
7
31
10 32
10
29
10
11
27
18
9
2
3
12
25
12
12
33
16
13
24
13
33
13
6
20
6
1
7
7
12
13
7
10
16
28
15
8
34
74
35
36
GD: 01008105-P06

13
44" Control Assembly
- Parts List for Figure 5
Ref.
No. Part No. Description Qty.
1 00012382 Hex Cap Screw, 5/16-18 x 1-1/2 2
2 00083192 Idler Washer 1
3 00008495 Capscrew, 3/8-16 x 1-3/4 1
4 01000372 Carriage Bolt, 3/8-16 2
5 00012165 Nylock Nut, 5/16-18 3
6 01008620 Self Tapping Screw, 5/16-18 x 3/4 5
7 01000629 Self Tapping Screw, 1/4-20 x .75 9
8 00013595 Parking Brake Grip 1
9 00021797 Spring, .85 OD x 1 Lg 1
10 00022560 Hex Nut, 3/8-16 Flange Lock 5
11 01000872 Flat Washer, 1.25 x .411 x .100 1
12 01000628 Screw, 1/4-20 x 1/2 20
13 01000635 Hex Nut, 5/16-18 Flange Lock 4
14 -- -- --
15 01002634 Shoulder Screw, 3/8-16, .5 x 2.345 2
16 01002753 Groment, 2.5 OD x 1.0 Lg 2
17 01002766 Hex Nut, 1/4-20 Flange Lock 3
18 01002772 Spacer, .375 x .50 x 1.02 1
19 01003563 U-Nut, 5/16-18 2
20 01008464 Foot Rest Bracket 1
21 01008198 Left Hand Brake Cable (not shown) 1
22 01008199 Right Hand Brake Cable (not shown) 1
23 01008482 Control Housing Weldment 1
24 01008413 Seat Adjust 1
25 01010006 Left Hand Control Console 1
26 01010007 Right Hand Control Console 1
27 01008487 Parking Brake Lever 1
28 01008488 Brake Cable Bracket 1
29 01008491 Front Tank Mounting Bracket 1
30 01008528 Lapbar Stop Bracket 2
31 01008539 U-Nut, 1/4-20 4
32 01008572 Battery Edge Trim 4
33 01008583 Seat Mounting Bracket 2
34 00012166 Hex Nut, 5/16-18 2
35 01000960 Washer, .325 x .930 x .045 2
36 01006528 Abrasive Foot Pad 1

14
48" Control Assembly - Figure 6
6
5
19
30
26
12
15
17
23
7
31
10 32
10
29
10
11
27
18
9
2
3
12
25
12
12
33
16
13
24
13
33
13
6
20
6
1
7
7
12
13
7
10
16
28
15
8
34
74
35
36
14
14
14
14
GD: 01009777-P01

15
48" Control Assembly
- Parts List for Figure 6
Ref.
No. Part No. Description Qty.
1 00012382 Hex Cap Screw, 5/16-18 x 1-1/2 2
2 00083192 Idler Washer 1
3 00008495 Capscrew, 3/8-16 x 1-3/4 1
4 01000372 Carriage Bolt, 3/8-16 2
5 00012165 Nylock Nut, 5/16-18 3
6 01008620 Self Tapping Screw, 5/16-18 x 3/4 5
7 01000629 Self Tapping Screw, 1/4-20 x .75 9
8 00013595 Parking Brake Grip 1
9 00021797 Spring, .85 OD x 1 Lg 1
10 00022560 Hex Nut, 3/8-16 Flange Lock 5
11 01000872 Flat Washer, 1.25 x .411 x .100 1
12 01000628 Screw, 1/4-20 x 1/2 18
13 01000635 Hex Nut, 5/16-18 Flange Lock 4
14 -- Kit, Armrest (Available through Whole goods) 1
15 01002634 Shoulder Screw, 3/8-16, .5 x 2.345 2
16 01002753 Groment, 2.5 OD x 1.0 Lg 2
17 01002766 Hex Nut, 1/4-20 Flange Lock 3
18 01002772 Spacer, .375 x .50 x 1.02 1
19 01003563 U-Nut, 5/16-18 2
20 01008464 Foot Rest Bracket 1
21 01008198 Left Hand Brake Cable (not shown) 1
22 01008199 Right Hand Brake Cable (not shown) 1
23 01008482 Control Housing Weldment 1
24 01008413 Seat Adjust 1
25 01010006 Left Hand Control Console 1
26 01010007 Right Hand Control Console 1
27 01008487 Parking Brake Lever 1
28 01008488 Brake Cable Bracket 1
29 01008491 Front Tank Mounting Bracket 1
30 01008528 Lapbar Stop Bracket 2
31 01008539 U-Nut, 1/4-20 4
32 01008572 Battery Edge Trim 4
33 01008583 Seat Mounting Bracket 2
34 00012166 Hex Nut, 5/16-18 2
35 01000960 Washer, .325 x .930 x .045 2
36 01006528 Abrasive Foot Pad 1

16

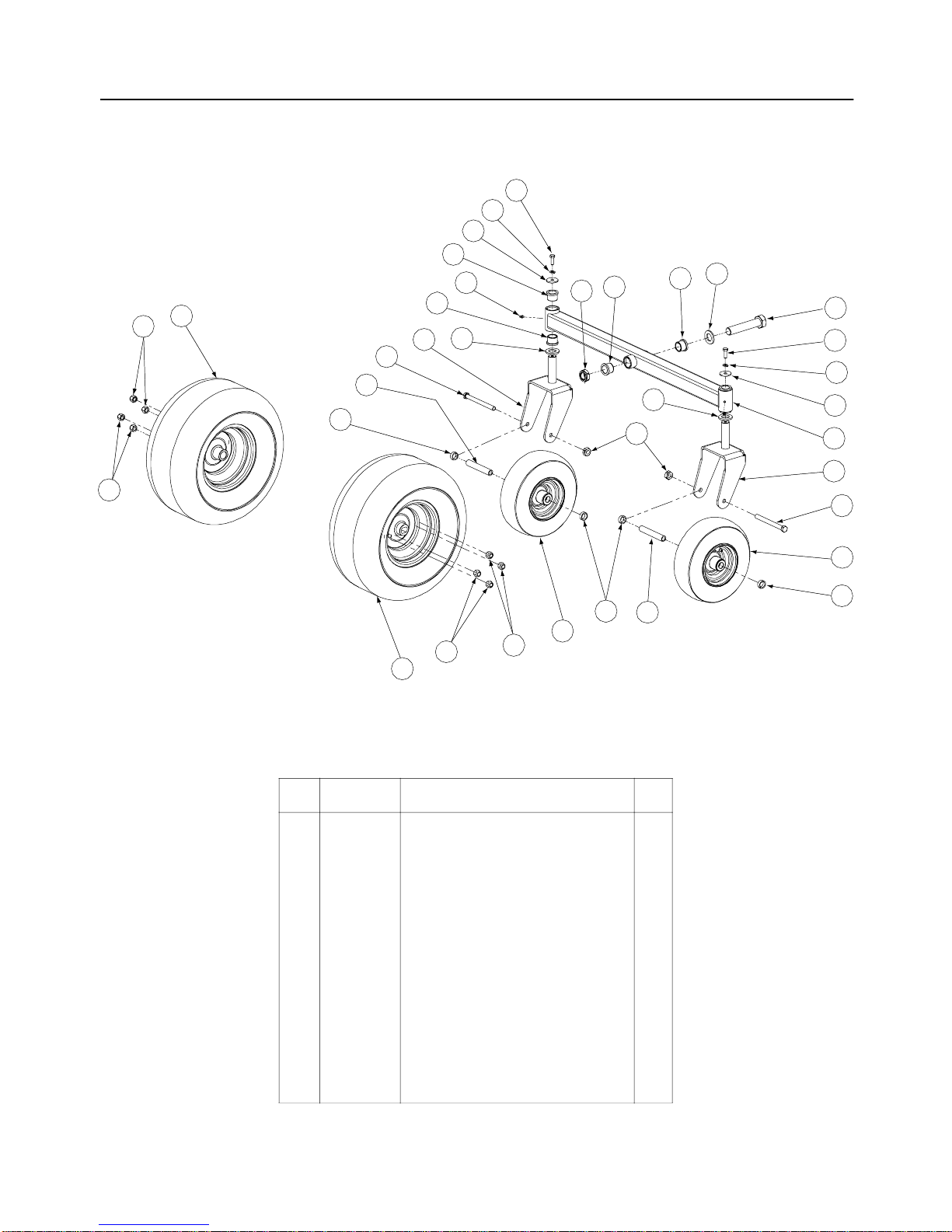

42" Front Caster & Tire Assembly - Figure 7 and Parts List
Ref.
No. Part No. Description Qty.
1 00012157 Lock Washer, 3/8 Zinc 2
2 01000368 Hex Cap Screw, 3/8-16 x .88 2
3 00012187 Lug Nut, 1/2-20 8
4 00023822 Washer Special 3
5 00060078 Grease Fitting, 1/4-28 x 3/16 2
6 01000678 Nut Jam, 1.0-14, Nylon Insert 1
7 01000745 Hex Cap Screw, 1/2-20 x 5.50 2
8 00023287 Nut, 1/2-20, Center Lock 2
9 01006309 Hex Cap Screw, 1-14 x 5.0 1
10 01009827 Wheel Assembly, 18 x 6.5 2
11 01008405 Front Axle Assembly 1
12 634-3163 Front Wheel Assembly 2
13 01008550 Castor Wheel Mounting Bracket 2
14 731-0374 Flange Bearing, 1.0 ID 6
15 01009253 Flat Washer, .390 x 1.5 x .134 2
16 00023649 Spacer, .790 ID x .347 Lg 4
17 750-3197A Wheel Spacer 2
9
2
1
15
11
13
7
12
16
4
14
14
6
2
1
15
14
13
5
4
14
7
16
17
10
3
3
10 3312
16 17
8
4
GD: 01009790-10/30/03

17
44" Front Caster & Tire Assembly - Figure 8 and Parts List
Ref.
No. Part No. Description Qty.
1 00012157 Lock Washer, 3/8 Zinc 2
2 01000368 Hex Cap Screw, 3/8-16 x .88 2
3 00012187 Lug Nut, 1/2-20 8
4 00023822 Washer Special 3
5 00060078 Grease Fitting, 1/4-28 x 3/16 2
6 01000678 Nut Jam, 1.0-14, Nylon Insert 1
7 01000745 Hex Cap Screw, 1/2-20 x 5.50 2
8 00023287 Nut, 1/2-20, Center Lock 2
9 01006309 Hex Cap Screw, 1-14 x 5.0 1
10 01008320 Wheel Assembly, 18 x 8.5 2
11 01008405 Front Axle Assembly 1
12 634-3163 Front Wheel Assembly 2
13 01008550 Castor Wheel Mounting Bracket 2
14 731-0374 Flange Bearing, 1.0 ID 6
15 01009253 Flat Washer, .390 x 1.5 x .134 2
16 00023649 Spacer, .790 ID x .347 Lg 4
17 750-3197A Wheel Spacer 2
9
2
1
15
11
13
7
12
16
4
14
14
6
2
1
15
14
13
5
4
14
7
16
17
10
3
3
10 3312
16 17
8
4
GD: 01008107-P01

18
48" Front Caster & Tire Assembly - Figure 9 and Parts List
Ref.
No. Part No. Description Qty.
1 00012157 Lock Washer, 3/8 Zinc 2
2 01000368 Hex Cap Screw, 3/8-16 x .88 2
3 00012187 Lug Nut, 1/2-20 8
4 00023822 Washer Special 3
5 00060078 Grease Fitting, 1/4-28 x 3/16 2
6 01000678 Nut Jam, 1.0-14, Nylon Insert 1
7 01000745 Hex Cap Screw, 1/2-20 x 5.50 2
8 00023287 Nut, 1/2-20, Center Lock 2
9 01006309 Hex Cap Screw, 1-14 x 5.0 1
10 01009828 Wheel Assembly, 18 x 9.5 2
11 01008405 Front Axle Assembly 1
12 634-3163 Front Wheel Assembly 2
13 01008550 Castor Wheel Mounting Bracket 2
14 731-0374 Flange Bearing, 1.0 ID 6
15 01009253 Flat Washer, .390 x 1.5 x .134 2
16 00023649 Spacer, .790 ID x .347 Lg 4
17 750-3197A Wheel Spacer 2
9
2
1
15
11
13
7
12
16
4
14
14
6
2
1
15
14
13
5
4
14
7
16
17
10
3
3
10 3312
16 17
8
4
GD: 01009776-10/14/03

19

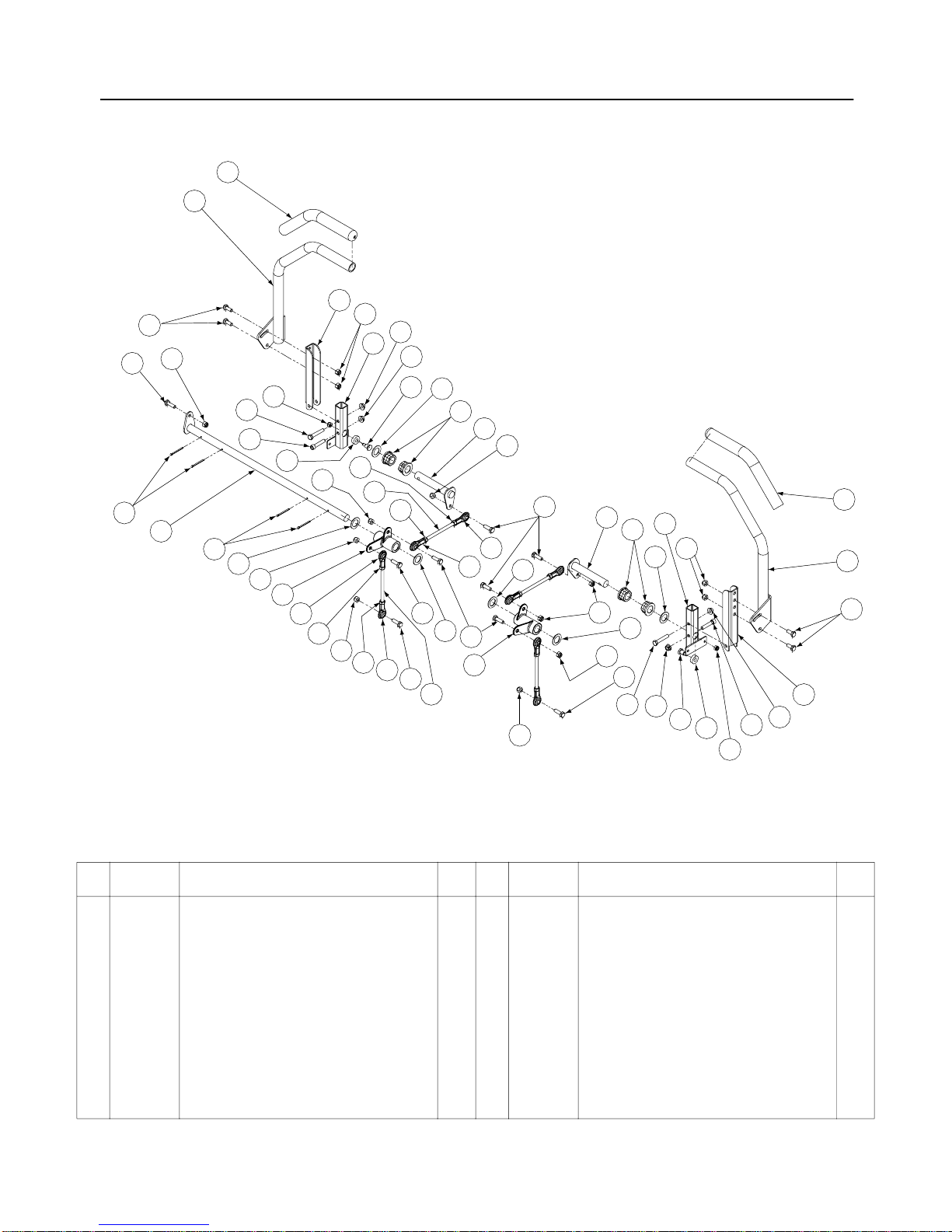

Steering Assembly -Figure 10 and Parts List
Ref.
No. Part No. Description Qty. Ref. No. Part No. Description Qty.
1 00006129 Hex Cap Screw, 5/16-18 x 1-3/4 2 14 01008432 Bellcrank Steering Shaft Assembly 1
2 00012165 Nut, 5/16-18, Nylock 13 15 01008840 Steering Bellcrank Assembly Left Hand 1
3 01000635 Nut, 5/16-18, Lock 4 16 01008841 Steering Bellcrank Assembly Right Hand 1
4 00012167 Hex Nut, 5/16-24 4 17 01008425 Steering Handle Assembly Left Hand 1
5 00012179 Hex Cap Screw, 5/16-18 x 3/4 4 18 01008426 Steering Handle Assembly Right Hand 1
6 01008600 Capscrew, 5/16-18 x 1.50, Socket Head 2 19 01008165 Steering Pivot Bracket 2
7 00013092 Hex Cap Screw, 5/16-18 x 1.0 9 20 01008410 RodEnd,5/16, RightHand 4
8 00014081 Nut, 1/4-28, SS, Nylon Insert 2 21 01008551 Rod End, 5/16, Left Hand 4
9 00071691 Control Rod Spacer 2 22 01008552 Lap Bar Grip 2
10 01001919 Shoulder Screw, 1/4-28 2 23 01008458 Pivot Bracket Weldment 2
11 00003107 CotterPin,.125 Dia.x1.0 4 24 01008576 Hex Nut,5/16-24,Left Hand 4
12 01008433 Steering Input Shaft Assembly 2 25 736-0287 Flat Washer, .793 ID x 1.24 OD x .060 6
13 01008149 Steering Link Rod 4 26 741-0598 Hex Flange Bearing, .752 ID 4
22
17
5
2
7
11
14 11 25
A
B
2
2
15
24
21
420 7
7
13
2
16
7
25
7
2
225
1310 9
8
63
19
5
18
22
2
23
25
26
12
25
4
20
7
A
B
8
1
62
21
12
26
25
3
3
23
2
19
9
10
224
13
GD: 01008108-P00

20

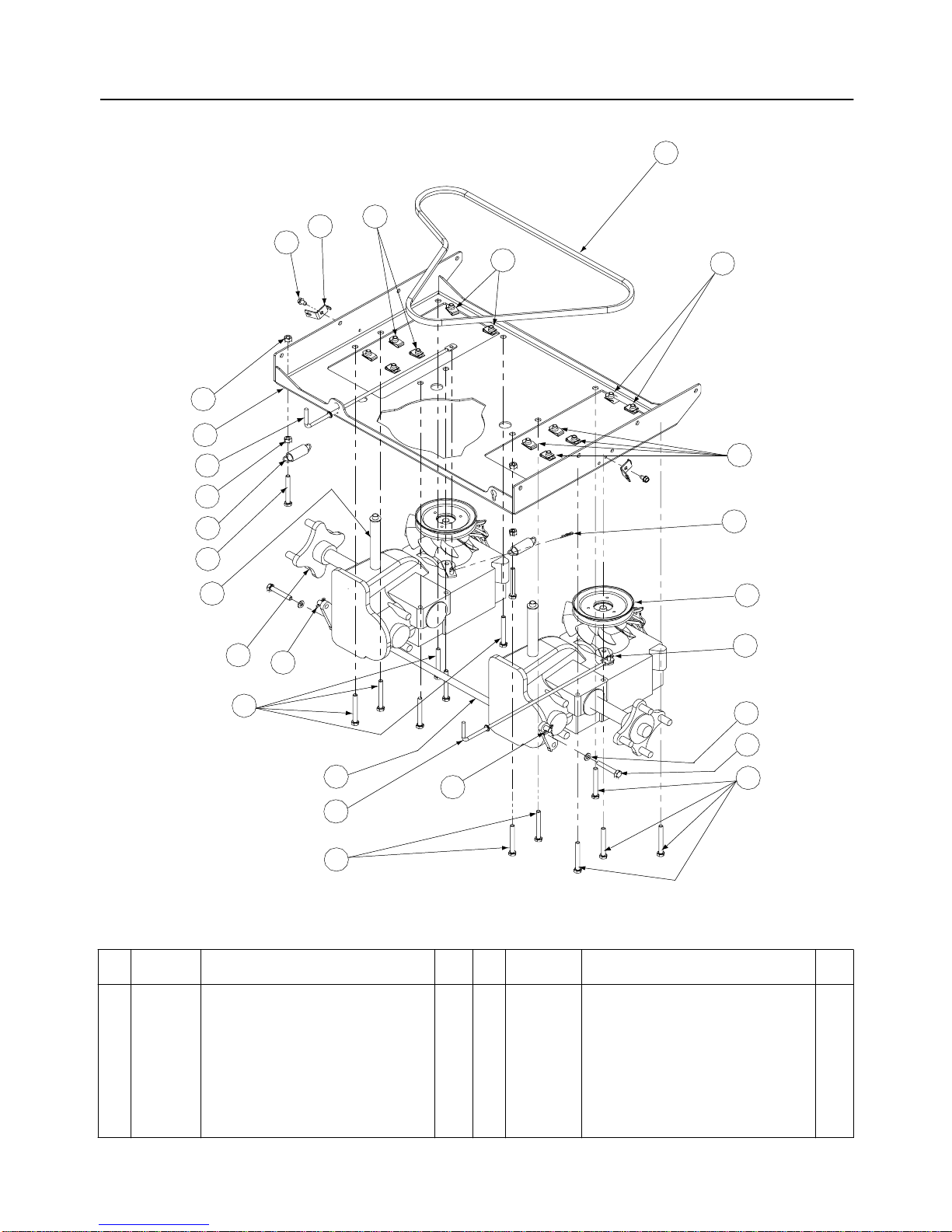

Drive Train Assembly- Figure 11 and Parts List
Ref.
No. Part No. Description Qty. Ref. No. Part No. Description Qty.
1 00013198 Hex Cap Screw, 5/16-18 x 2.0 2 10 01008380 Pump Rod 2
2 00012169 Flat Washer, .320 ID x .591 OD 2 11 01008414 Transmission Brace Tube 1
3 01002771 Cotter Pin, .072 x 1.12 Lg 4 12 00012166 Nut, 5/16-18 4
4 01003563 U-Nut, 5/16-18 12 13 01000628 Screw, 1/4-20 x 1/2 2
5 01007122 Hex Cap Screw, 5/16-18 x 2.5 14 14 01008758 Extension Spring, 1.0 OD x 5.000 2
6 01008192 IZT Transmission, Left Hand 1 15 01008611 Brake Cable Mounting Bracket 2
7 01008193 IZT Transmission, Right Hand 1 16 HG-51401 Hose, 1/2 Dia. x 4" Long includes: 1
8 01008349 V-Belt, 56.00 1 HG-70110 O-Ring Fitting Assembly 1
9 01008461 Transmission Mounting Bracket 1 HG-70109 Cap Vent Assembly 1
8
4
4
3
7
3
5
5
10
5
6
10
9
4
4
12
14
5
12
11
2
1
15
13
3
3
16
GD: 01008106-2/11/03
