Currys Essentials C16LDVB11 User manual

Optimum Viewing Angles
Reception and Tuning Tips
Power Saving Function
Power Up Time
Thank you for purchasing your new Currys Essentials TV.
Your new TV incorporates the latest technology to enhance your
viewing experience. We would suggest that you allow about 20
mins for initial setup.
Please follow this guide for a successful rst time installation.
The diagrams below demonstrate the optimum viewing angles for this TV.
This TV is tted with the latest eco friendly power saving
technology, which will save power consumption. If you do not
wish to use this functionality please follow the instruction manual
(Time Setting Section). Please be aware that this functionality will
cause this TV to switch o after 4 hours if no remote keys are
pressed.
Indoor
Aerial
Portable
Aerial
Side View Top View
Getting The Best From Your New Small Screen TV
16” LED BACKLIT LCD TV
AND DVD COMBI
QUICK START GUIDE
C16LDVB11
45°
45°
15 Seconds
red
green
There is a short delay when you power up your TV, this is normal.
Check that the standby light switches from red to green, and wait
for the screen to load.
In some areas your
signal strength will
be weak.
15°
15°
3. Now adjust the alignment and position of your aerial until you get
the best picture. The ideal alignment would be approximately in line
with your outdoor aerial.
1. If you intend to use an indoor aerial, we recommend that you
connect the TV to your main (outside) aerial for the rst tuning.
2. Once tuning has nished, set your TV channel to BBC1, then move
your TV to it's required location, connect the indoor aerial and switch
on.
C16LDVB11_QSG_Running Change_120816_Annie.pdf 1 12年8月16日 下午2:08

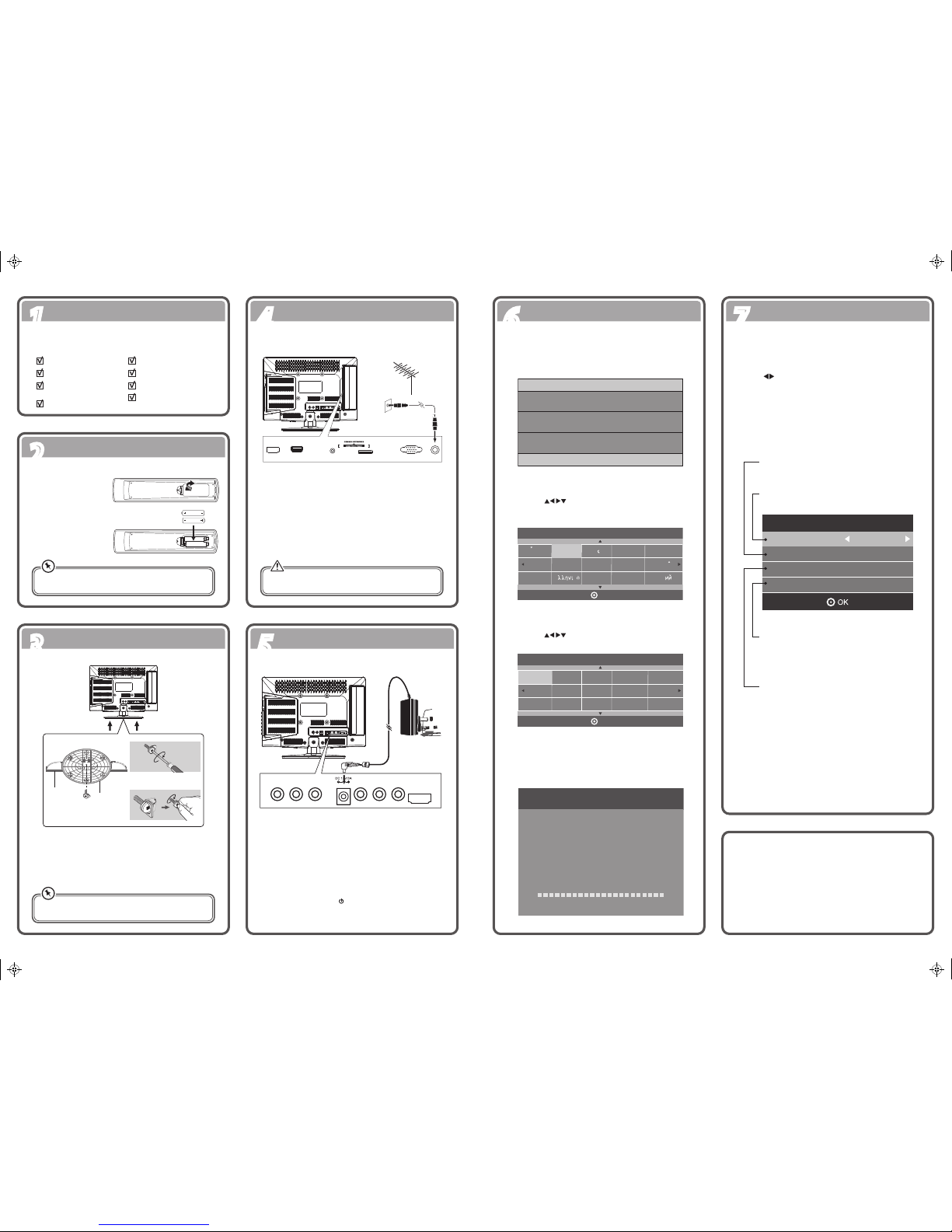

Unpacking
11
Installing the Base Stand
33Connecting to the Mains Socket 55
Connecting the Aerial
44
Turning the TV On for the First Time
66Target Region Descriptor 77
Operating Your Remote Control
22
Target Region Setting
Country Code GBR
Primary Region England
Secondary Region
Tertiary Region
London
Do not connect the TV to the mains supply until you have
completed all the connections.
HDMI1USBPC AUDIOPC IN RF
SCART
1. Lay the TV down on a at surface with the back side facing up.
Please make sure a soft cushioned material (such as a pillow or thick
piece of foam) is placed beneath the screen.
2. To install the base stand, align the screw hole and then secure the
base stand by hand or using a screwdriver with the provided 1
screw.
1. Press and lift the back
cover up to open the
battery compartment of
the remote control.
2. Insert two AAA size
batteries. Close the
battery compartment
cover.
Screw A
(P.N.: 20912223101)
TV Front
screw
screw
OR
Base Stand
Front
Connect one end of the RF coaxial cable to the aerial socket on the wall
and the other end of the cable to the RF (75Ω) socket at the rear right
side of your TV.
1. Connect the mains adapter to the mains socket after you have
completed all the connections.
2. At this stage, the TV switches to standby mode. The red LED
indicator will illuminate on the front panel of the TV.
3. In standby mode, press the button on the right side panel of the
TV or on the remote control to turn the TV on. The red LED indicator
will turn green.
Well done, your new TV is now ready to use. You will
nd that there are many exciting features available. To get to
know all these features, please take some time to read the
instruction manual provided with your TV.
If after reading the instruction manual you have additional
questions related to the use of your TV please call our UK Call
Centre on 0844 561 1234. Our UK Customer Contact Centre is
open Monday-Saturday 8am-8pm or Sunday 8am-6pm.
(P.N.: 4033C163614)
During tuning your TV may have received signals from more than
one transmitter. If this has occurred the Target Region Descriptor
screen will be displayed. This will enable you to select the correct
regional transmission for the local news service that you require.
Press the buttons to adjust each option's setting and then press
the OK button to conrm.
This will be shown as GBR for the UK.
This will show the regional country
(e.g. England, Wales, Scotland, NI).
This will allow you to set the region for
your local news service.
You may receive signals from more than one
transmitter within the Secondary Region,
(e.g Beds and Cambs may have Luton or
Sandy Heath).
Remove all packaging from the TV. Retain the packaging. If you
dispose of it please do so according to any local regulations.
The rst time you turn the TV on, it will go straight into First Time
Installation.
Channel Tuning
TV : 3 Channel(s)
DTV : 0 Channel(s)
Radio : 0 Channel(s)
Data : 0 Channel(s)
36%... 668.75MHz (TV)
Please press MENU to skip.
4. Channel tuning will commence. This operation may take up to 6
minutes. The display will show the progress of the tuning and the
number of channels found.
Make sure the (+) and ( - ) ends of the batteries match the
(+) and ( - ) ends indicated in the battery compartment.
The screw holes will only align if the front of the base stand
is at the front of the TV.
RF Coaxial Cable
(not included)
OR
VIDEO L R Y Pb Pr
HDMI2
To mains
socket
Mains
Adapter
(included)
1. Press the OK button to start First Time Installation.
First Time Installation
Please ensure aerial is plugged in!
Then press OK button.
2. Press the buttons to select English as your desired
language to be displayed on the menu. Press the OK button to
conrm.
Dans k
Deut sch
Hrva tski
Ital iano
OSD Language
OK
Magy ar
Nede rlands
Nors k
Pols kiEnglish
Cesk y
E k
Espanol
~
Fran a is
Portugues
Pycck
3. Press the buttons to select UK as the country where
you will operate the TV. Press the OK button to conrm.
Fran ce
Gree ce
UK
Aust ralia
Aust ria
Czec h
Denm ark
Finland
Country
OK
Belg ium
Bulg aria
Croa tia
Hung ary
Ital y
Luxe mbourg
Germany
TV
Base Stand
Remote Control /
AAA Batteries x 2
Mains Adapter
Instruction Manual
Quick Start Guide
Screw A
SCART Adapter Cable
