CYP CMX-112 User manual

Operation Manual
Operation Manual
CMX-112
HD/SD Digital AV Mixer
All manuals and user guides at all-guides.com
all-guides.com

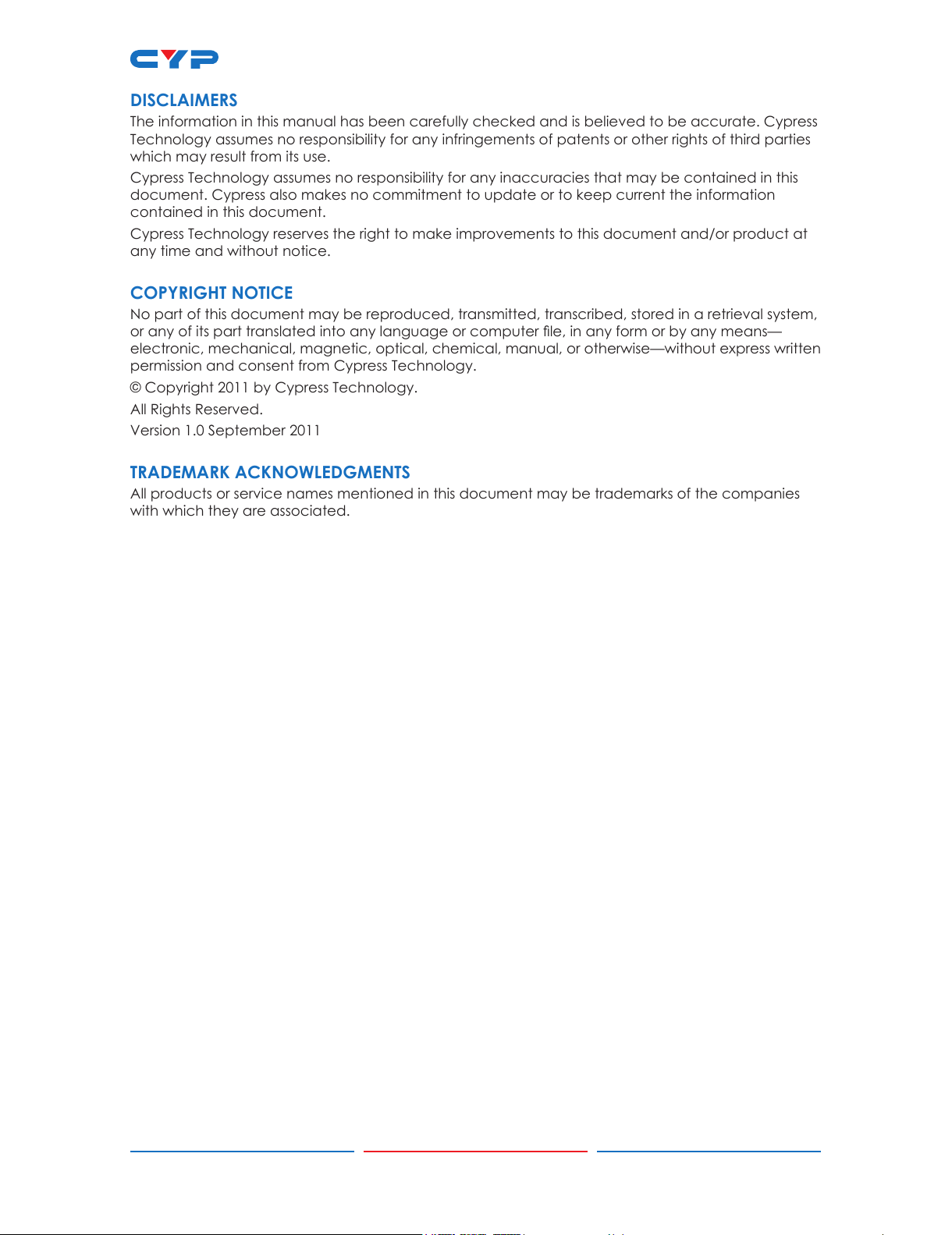

DISCLAIMERS
The information in this manual has been carefully checked and is believed to be accurate. Cypress
Technology assumes no responsibility for any infringements of patents or other rights of third parties
which may result from its use.
Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this
document. Cypress also makes no commitment to update or to keep current the information
contained in this document.
Cypress Technology reserves the right to make improvements to this document and/or product at
any time and without notice.
COPYRIGHT NOTICE
No part of this document may be reproduced, transmitted, transcribed, stored in a retrieval system,
or any of its part translated into any language or computer le, in any form or by any means—
electronic, mechanical, magnetic, optical, chemical, manual, or otherwise—without express written
permission and consent from Cypress Technology.
© Copyright 2011 by Cypress Technology.
All Rights Reserved.
Version 1.0 September 2011
TRADEMARK ACKNOWLEDGMENTS
All products or service names mentioned in this document may be trademarks of the companies
with which they are associated.
All manuals and user guides at all-guides.com

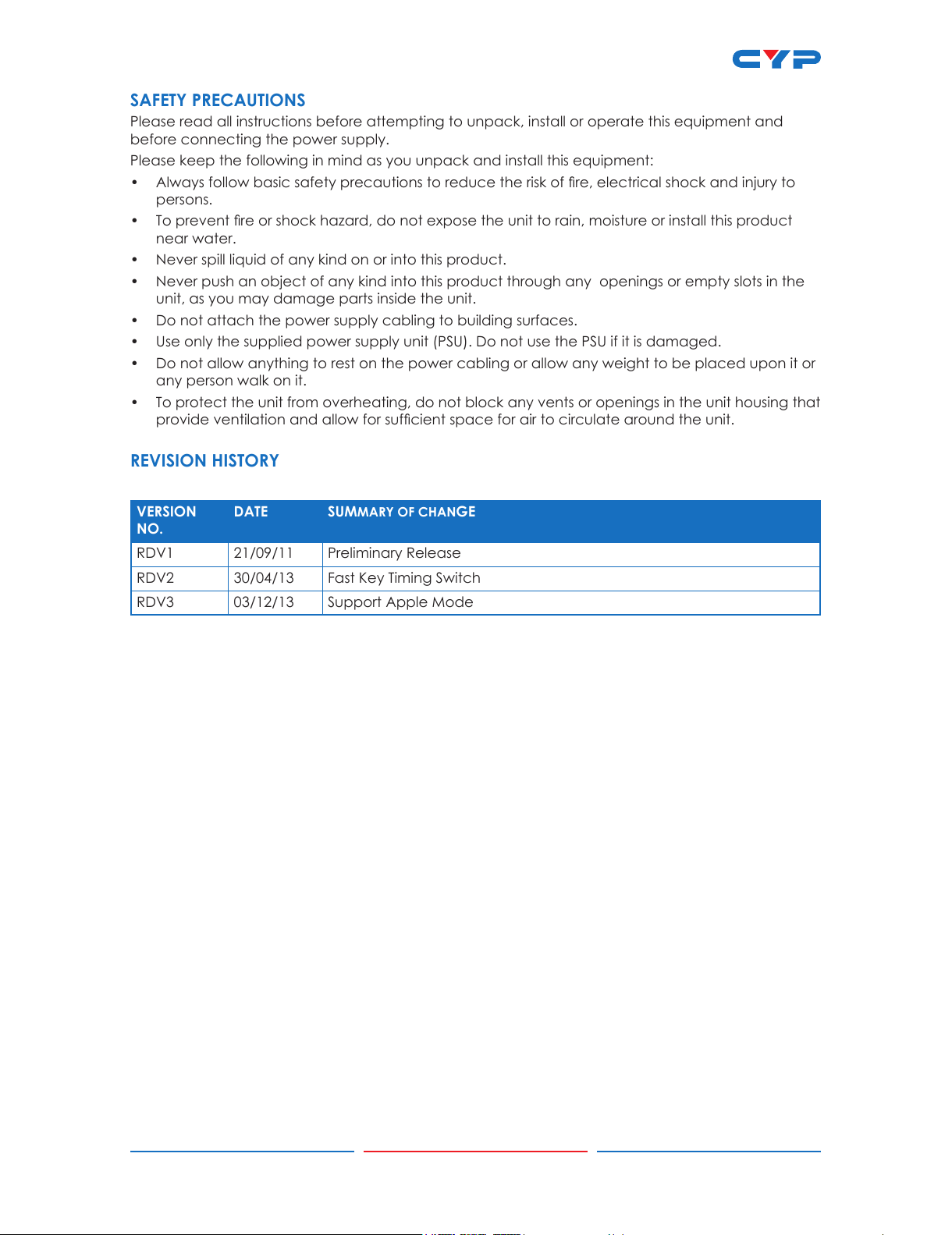

SAFETY PRECAUTIONS
Please read all instructions before attempting to unpack, install or operate this equipment and
before connecting the power supply.
Please keep the following in mind as you unpack and install this equipment:
• Always follow basic safety precautions to reduce the risk of re, electrical shock and injury to
persons.
• To prevent re or shock hazard, do not expose the unit to rain, moisture or install this product
near water.
• Never spill liquid of any kind on or into this product.
• Never push an object of any kind into this product through any openings or empty slots in the
unit, as you may damage parts inside the unit.
• Do not attach the power supply cabling to building surfaces.
• Use only the supplied power supply unit (PSU). Do not use the PSU if it is damaged.
• Do not allow anything to rest on the power cabling or allow any weight to be placed upon it or
any person walk on it.
• To protect the unit from overheating, do not block any vents or openings in the unit housing that
provide ventilation and allow for sufcient space for air to circulate around the unit.
REVISION HISTORY
VERSION
NO.
DATE SUMMARY OF CHANGE
RDV1 21/09/11 Preliminary Release
RDV2 30/04/13 Fast Key Timing Switch
RDV3 03/12/13 Support Apple Mode
All manuals and user guides at all-guides.com

CONTENTS 1. INTRODUCTION.......................................................................1
2. FEATURES ................................................................................1
3. MAJOR OPERATING CONTROLS AND THEIR FUNCTIONS ....2
3.1 POSITION/TIME .................................................................2
3.2 FUNCTIONS .......................................................................2
3.3 MODE CONTROL .............................................................3
3.4 DIGITAL EFFECTS ..............................................................4
3.5 ADJUST .............................................................................5
3.6 VIDEO/AUDIO MIXER ......................................................6
3.7 AUDIO MIXER ...................................................................7
3.8 VIDEO SOURCE SELECT ...................................................7
3.9 AUDIO LEVEL ....................................................................8
4. HARDWARE DESCRIPTION .....................................................8
4.1 FRONT PANEL ...................................................................8
4.2 REAR PANEL .....................................................................9
5. BASIC OPERATION ...............................................................10
5.1 INPUT SIGNAL SELECTION AND BACK COLOR ................
SELECTION ......................................................................10
5.2 VIDEO MIX ......................................................................11
5.3 VIDEO WIPE ....................................................................11
5.3.1 WIPE PATTERN SELECTION ....................................12
5.3.2 MULTIPLE PATTERN SELECTION .............................13
5.3.3 ONE-WAY WIPE .....................................................12
5.3.4 REVERSE WIPE .......................................................12
5.4 PICTURE-IN-PICTURE .......................................................14
5.5 KEY ................................................................................15
5.6 AUTO/WIPE SELECTION .................................................16
5.7 DIGITAL EFFECT ..............................................................16
5.8 AUDIO MIXER .................................................................16
5.9 OSD ADJUST ..................................................................17
6. CONNECTION AND INSTALLATION ....................................19
7. SPECIFICATIONS ..................................................................20
8. ACRONYMS .........................................................................21
All manuals and user guides at all-guides.com

1
1. INTRODUCTION
This High Denition HD/SD digital A/V Mixer has two
input BUSES, each with six inputs (2 x HDMITM’s, 2 x
Components and 2 x S-Video/Composite video) and also
a Background Color feature for greater efciency. The
device has 1 x HDMI, 2 x Components, 2 x S-Video and 2 x
Composite video output ports and also allows you to make
adjustments to the position of your video. The compatible
output resolutions are HD/SD, NTSC, NTSC-4.43, PAL, PAL-M,
PAN-N, SECAM, 480i, 576i, 480p, 576p, 720p 50/60 and
1080i 50/60. The output resolutions can also be manually
adjusted so it is more consistent. Please refer to the diagram on the right side for additional
information.
2. FEATURES
• Selective size and position for digital effects area and PIP windows.
• Automatic fade and wipe with speed preset control.
• Digital effects-Still, Mosaic, Paint, Negative.
• 96 wipe patterns.
• Chroma key & Luminance key.
• High Picture Quality.
• 3x8 back color.
• Joystick control for digital effect position.
• Fade control for Video and Audio.
• Video and Audio mixing.
• Two HDMI source inputs.
• Two Component source inputs.
• Two Composite and S-Video source inputs.
• One HDMI recording output.
• Two Component recording outputs
• One Composite and S-Video recording outputs.
• One Composite and S-Video preview outputs (OSD).
• Auxiliary audio input.
• Microphone input and headphone output.
• Picture and Picture control. (3 window sizes)
• Each A/B BUS can adjust the Contrast/ Brightness/ Color/ HUE/ Detail & Aspect Ratio.
• Supports Lip-Sync delay up to 170ms.
• Composite supports 3D comb lter and YC separation.
• Motion and Edge Adaptive De-interlacing.
Note: When receiving content that has HDCP encryption there will be no video output, the
image will show with Blue screen.
INPUT OUTPUT
Digital video--480i,576i,480p,576p,720p50,720p60,1080i50,1080i60
Analog video--NTSC,NTSC4.43,PAL,PAL-M,PAL-N,SECAM
Analog video--480i,576i,480p,576p,720p50,720p60,1080i50,1080i60
S-Video
Component
Composite
HDMI
S-Video
Component
Composite
HDMI
All manuals and user guides at all-guides.com

2

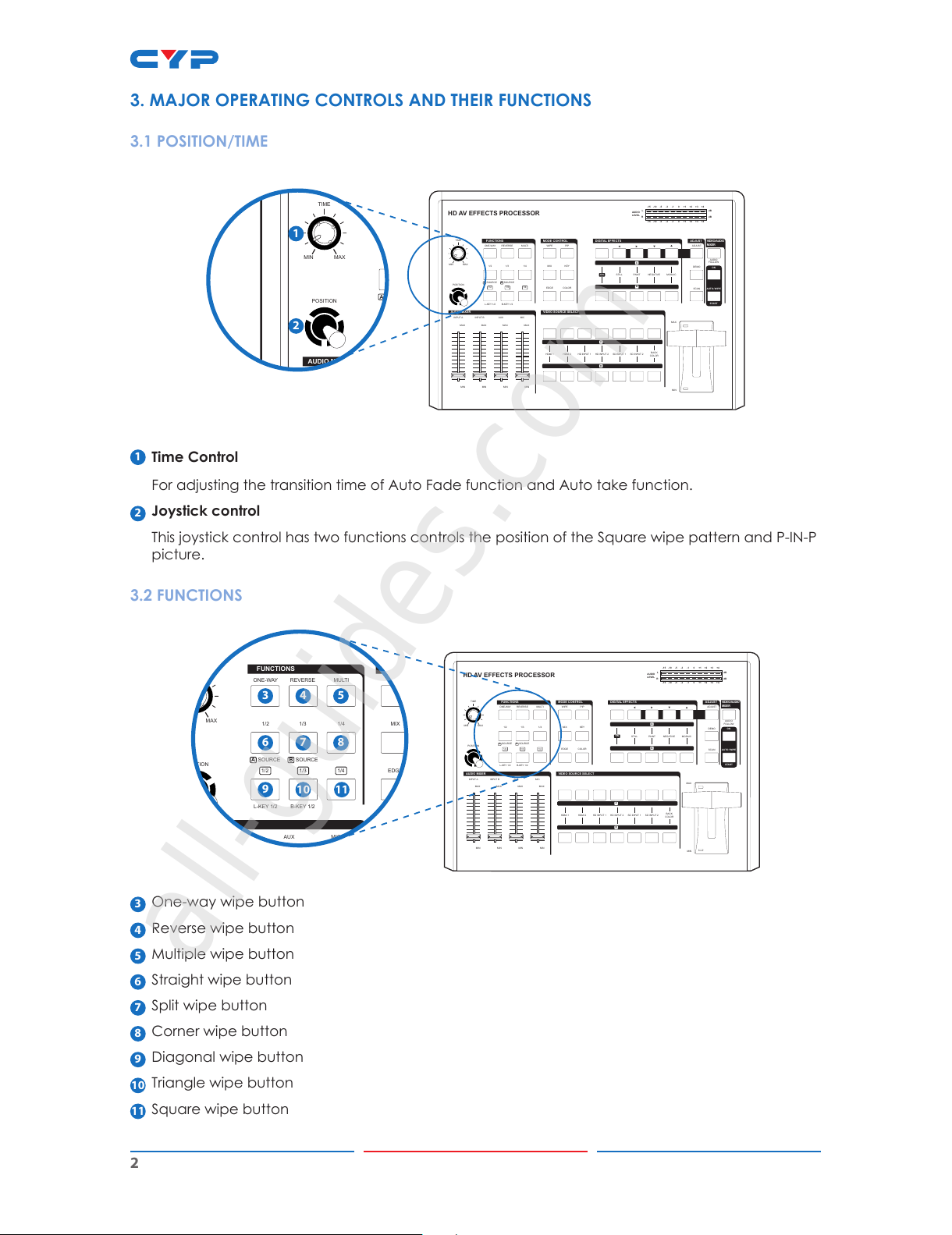

3. MAJOR OPERATING CONTROLS AND THEIR FUNCTIONS
3.1 POSITION/TIME
AUDIO
FOLLOW
AUTO/WIPE
START
ON
INPUT A
MAX
MIN
INPUT B
MAX
MIN
AUX
MAX
MIN
MIC
MAX
MIN
MAX
MIN
AUDIO MIXER
MODE CONTROL
KEYMIX
PIP
COLOR
WIPE
EDGE
FUNCTIONS
1/41/31/2
MULTIREVERSEONE-WAY
B-KEY 1/2L-KEY 1/2
1/41/2
ASOURCE
1/3
BSOURCE
ADJUST
DEMO
ADJUST
SCAN
VIDEO SOURCE SELECT
BACK
COLOR
SD INPUT 2SD INPUT 1HD INPUT 2HD INPUT 1HDMI 2HDMI 1
B
A


DIGITAL EFFECTS
STILL NEGATIVEPA INT MOSAIC
ON
A
B
-15
L
AUDIO
LEVEL R
dB
dB
-10 -5 -3 +3 +4+20+1-1
-15 -10 -5 -3 +3 +4+20+1-1
VIDEO/AUDIO
MIXER
HD AV EFFECTS PROCESSOR
TIME
MIN MAX
POSITION
AUDIO
FOLLOW
AUTO/WIPE
START
ON
INPUT A
MAX
MIN
INPUT B
MAX
MIN
AUX
MAX
MIN
MIC
MAX
MIN
MAX
MIN
AUDIO MIXER
MODE CONTROL
KEYMIX
PIP
COLOR
WIPE
EDGE
FUNCTIONS
1/41/31/2
MULTIREVERSEONE-WAY
B-KEY 1/2L-KEY 1/2
1/41/2
ASOURCE
1/3
BSOURCE
ADJUST
DEMO
ADJUST
SCAN
VIDEO SOURCE SELECT
BACK
COLOR
SD INPUT 2SD INPUT 1HD INPUT 2HD INPUT 1HDMI 2HDMI 1
B
A


DIGITAL EFFECTS
STILL NEGATIVEPAINT MOSAIC
ON
A
B
-15
L
AUDIO
LEVEL R
dB
dB
-10 -5 -3 +3 +4+20+1-1
-15 -10 -5 -3 +3 +4+20+1-1
VIDEO/AUDIO
MIXER
HD AV EFFECTS PROCESSOR
TIME
MIN MAX
POSITION
2
1
1Time Control
For adjusting the transition time of Auto Fade function and Auto take function.
2Joystick control
This joystick control has two functions controls the position of the Square wipe pattern and P-IN-P
picture.
3.2 FUNCTIONS
AUDIO
FOLLOW
AUTO/WIPE
START
ON
INPUT A
MAX
MIN
INPUT B
MAX
MIN
AUX
MAX
MIN
MIC
MAX
MIN
MAX
MIN
AUDIO MIXER
MODE CONTROL
KEYMIX
PIP
COLOR
WIPE
EDGE
FUNCTIONS
1/41/31/2
MULTIREVERSEONE-WAY
B-KEY 1/2L-KEY 1/2
1/41/2
ASOURCE
1/3
BSOURCE
ADJUST
DEMO
ADJUST
SCAN
VIDEO SOURCE SELECT
BACK
COLOR
SD INPUT 2SD INPUT 1HD INPUT 2HD INPUT 1HDMI 2HDMI 1
B
A


DIGITAL EFFECTS
STILL NEGATIVEPA INT MOSAIC
ON
A
B
-15
L
AUDIO
LEVEL R
dB
dB
-10 -5 -3 +3 +4+20+1-1
-15 -10 -5 -3 +3 +4+20+1-1
VIDEO/AUDIO
MIXER
HD AV EFFECTS PROCESSOR
TIME
MIN MAX
POSITION
AUDIO
FOLLOW
AUTO/WIPE
START
ON
INPUT A
MAX
MIN
INPUT B
MAX
MIN
AUX
MAX
MIN
MIC
MAX
MIN
MAX
MIN
AUDIO MIXER
MODE CONTROL
KEYMIX
PIP
COLOR
WIPE
EDGE
FUNCTIONS
1/41/31/2
MULTIREVERSEONE-WAY
B-KEY 1/2L-KEY 1/2
1/41/2
ASOURCE
1/3
BSOURCE
ADJUST
DEMO
ADJUST
SCAN
VIDEO SOURCE SELECT
BACK
COLOR
SD INPUT 2SD INPUT 1HD INPUT 2HD INPUT 1HDMI 2HDMI 1
B
A


DIGITAL EFFECTS
STILL NEGATIVEPAINT MOSAIC
ON
A
B
-15
L
AUDIO
LEVEL R
dB
dB
-10 -5 -3 +3 +4+20+1-1
-15 -10 -5 -3 +3 +4+20+1-1
VIDEO/AUDIO
MIXER
HD AV EFFECTS PROCESSOR
TIME
MIN MAX
POSITION
3
6
9
4
7
5
8
10 11
3One-way wipe button
4Reverse wipe button
5Multiple wipe button
6Straight wipe button
7Split wipe button
8Corner wipe button
9Diagonal wipe button
10 Triangle wipe button
11 Square wipe button
All manuals and user guides at all-guides.com
all-guides.com

3
3.3 MODE CONTROL
AUDIO
FOLLOW
AUTO/WIPE
START
ON
INPUT A
MAX
MIN
INPUT B
MAX
MIN
AUX
MAX
MIN
MIC
MAX
MIN
MAX
MIN
AUDIO MIXER
MODE CONTROL
KEYMIX
PIP
COLOR
WIPE
EDGE
FUNCTIONS
1/41/31/2
MULTIREVERSEONE-WAY
B-KEY 1/2L-KEY 1/2
1/41/2
ASOURCE
1/3
BSOURCE
ADJUST
DEMO
ADJUST
SCAN
VIDEO SOURCE SELECT
BACK
COLOR
SD INPUT 2SD INPUT 1HD INPUT 2HD INPUT 1HDMI 2HDMI 1
B
A


DIGITAL EFFECTS
STILL NEGATIVEPA INT MOSAIC
ON
A
B
-15
L
AUDIO
LEVEL R
dB
dB
-10 -5 -3 +3 +4+20+1-1
-15 -10 -5 -3 +3 +4+20+1-1
VIDEO/AUDIO
MIXER
HD AV EFFECTS PROCESSOR
TIME
MIN MAX
POSITION
AUDIO
FOLLOW
AUTO/WIPE
START
ON
INPUT A
MAX
MIN
INPUT B
MAX
MIN
AUX
MAX
MIN
MIC
MAX
MIN
MAX
MIN
AUDIO MIXER
MODE CONTROL
KEYMIX
PIP
COLOR
WIPE
EDGE
FUNCTIONS
1/41/31/2
MULTIREVERSEONE-WAY
B-KEY 1/2L-KEY 1/2
1/41/2
ASOURCE
1/3
BSOURCE
ADJUST
DEMO
ADJUST
SCAN
VIDEO SOURCE SELECT
BACK
COLOR
SD INPUT 2SD INPUT 1HD INPUT 2HD INPUT 1HDMI 2HDMI 1
B
A


DIGITAL EFFECTS
STILL NEGATIVEPAINT MOSAIC
ON
A
B
-15
L
AUDIO
LEVEL R
dB
dB
-10 -5 -3 +3 +4+20+1-1
-15 -10 -5 -3 +3 +4+20+1-1
VIDEO/AUDIO
MIXER
HD AV EFFECTS PROCESSOR
TIME
MIN MAX
POSITION
12
14
16
13
15
17
12 Wipe button
For selecting the wipe effect.
13 PIP button
Picture in picture mode can be selected by pressing this button.
14 Mix(Fade) button
Press this button to select the fade In/Out mode.
15 KEY button
This button allows you to tune in a best performance point for the blue key
and luma key effects.
16 EDGE button
Press WIPE button, can select sharp edge / soft edge or color edge.
17 COLOR button
Press color edge, can select eight different color of frame.
All manuals and user guides at all-guides.com

4
3.4 DIGITAL EFFECTS
AUDIO
FOLLOW
AUTO/WIPE
START
ON
INPUT A
MAX
MIN
INPUT B
MAX
MIN
AUX
MAX
MIN
MIC
MAX
MIN
MAX
MIN
AUDIO MIXER
MODE CONTROL
KEYMIX
PIP
COLOR
WIPE
EDGE
FUNCTIONS
1/41/31/2
MULTIREVERSEONE-WAY
B-KEY 1/2L-KEY 1/2
1/41/2
ASOURCE
1/3
BSOURCE
ADJUST
DEMO
ADJUST
SCAN
VIDEO SOURCE SELECT
BACK
COLOR
SD INPUT 2SD INPUT 1HD INPUT 2HD INPUT 1HDMI 2HDMI 1
B
A


DIGITAL EFFECTS
STILL NEGATIVEPA INT MOSAIC
ON
A
B
-15
L
AUDIO
LEVEL R
dB
dB
-10 -5 -3 +3 +4+20+1-1
-15 -10 -5 -3 +3 +4+20+1-1
VIDEO/AUDIO
MIXER
HD AV EFFECTS PROCESSOR
TIME
MIN MAX
POSITION
AUDIO
FOLLOW
AUTO/WIPE
START
ON
INPUT A
MAX
MIN
INPUT B
MAX
MIN
AUX
MAX
MIN
MIC
MAX
MIN
MAX
MIN
AUDIO MIXER
MODE CONTROL
KEYMIX
PIP
COLOR
WIPE
EDGE
FUNCTIONS
1/41/31/2
MULTIREVERSEONE-WAY
B-KEY 1/2L-KEY 1/2
1/41/2
ASOURCE
1/3
BSOURCE
ADJUST
DEMO
ADJUST
SCAN
VIDEO SOURCE SELECT
BACK
COLOR
SD INPUT 2SD INPUT 1HD INPUT 2HD INPUT 1HDMI 2HDMI 1
B
A


DIGITAL EFFECTS
STILL NEGATIVEPAINT MOSAIC
ON
A
B
-15
L
AUDIO
LEVEL R
dB
dB
-10 -5 -3 +3 +4+20+1-1
-15 -10 -5 -3 +3 +4+20+1-1
VIDEO/AUDIO
MIXER
HD AV EFFECTS PROCESSOR
TIME
MIN MAX
POSITION
18
23
19
24
20
25
21
26
22
27
18 A-bus digital effect ON button.
19 A-bus Still button and osd left adjust.
20 A-bus Paint button and osd right adjust.
21 A-bus Negative button and osd up adjust.
22 A-bus Mosaic button and osd down adjust.
23 B-bus digital effect ON button.
24 B-bus Still button.
25 B-bus Paint button.
26 B-bus Negative button.
27 B-bus Mosaic button.
All manuals and user guides at all-guides.com

5
3.5 ADJUST
AUDIO
FOLLOW
AUTO/WIPE
START
ON
INPUT A
MAX
MIN
INPUT B
MAX
MIN
AUX
MAX
MIN
MIC
MAX
MIN
MAX
MIN
AUDIO MIXER
MODE CONTROL
KEYMIX
PIP
COLOR
WIPE
EDGE
FUNCTIONS
1/41/31/2
MULTIREVERSEONE-WAY
B-KEY 1/2L-KEY 1/2
1/41/2
ASOURCE
1/3
BSOURCE
ADJUST
DEMO
ADJUST
SCAN
VIDEO SOURCE SELECT
BACK
COLOR
SD INPUT 2SD INPUT 1HD INPUT 2HD INPUT 1HDMI 2HDMI 1
B
A


DIGITAL EFFECTS
STILL NEGATIVEPAINT MOSAIC
ON
A
B
-15
L
AUDIO
LEVEL R
dB
dB
-10 -5 -3 +3 +4+20+1-1
-15 -10 -5 -3 +3 +4+20+1-1
VIDEO/AUDIO
MIXER
HD AV EFFECTS PROCESSOR
TIME
MIN MAX
POSITION
AUDIO
FOLLOW
AUTO/WIPE
START
ON
INPUT A
MAX
MIN
INPUT B
MAX
MIN
AUX
MAX
MIN
MIC
MAX
MIN
MAX
MIN
AUDIO MIXER
MODE CONTROL
KEYMIX
PIP
COLOR
WIPE
EDGE
FUNCTIONS
1/41/31/2
MULTIREVERSEONE-WAY
B-KEY 1/2L-KEY 1/2
1/41/2
ASOURCE
1/3
BSOURCE
ADJUST
DEMO
ADJUST
SCAN
VIDEO SOURCE SELECT
BACK
COLOR
SD INPUT 2SD INPUT 1HD INPUT 2HD INPUT 1HDMI 2HDMI 1
B
A


DIGITAL EFFECTS
STILL NEGATIVEPA INT MOSAIC
ON
A
B
-15
L
AUDIO
LEVEL R
dB
dB
-10 -5 -3 +3 +4+20+1-1
-15 -10 -5 -3 +3 +4+20+1-1
VIDEO/AUDIO
MIXER
HD AV EFFECTS PROCESSOR
TIME
MIN MAX
POSITION
28
29
30
28 Adjust button
When LED switched off, the SDP review output side will show AB-bus / output source and output
format. When LED illuminate, the suer can press 19 / 20 / 21 and 22 buttons to adjust the values.
29 DEMO button
When LED illuminate, the auto DEMO will switch to ON and the system will auto sequence Demo
96 wipe patterns, press 1 TIME button to adjust the auto sequence.
30 SCAN button
Press SCAN button for 3 seconds, the system will enter into SCAN function and will SCAN the input
ports from 1 to 6 and record each port's format to the system.
All manuals and user guides at all-guides.com

6
3.6 VIDEO/AUDIO MIXER
AUDIO
FOLLOW
AUTO/WIPE
START
ON
INPUT A
MAX
MIN
INPUT B
MAX
MIN
AUX
MAX
MIN
MIC
MAX
MIN
MAX
MIN
AUDIO MIXER
MODE CONTROL
KEYMIX
PIP
COLOR
WIPE
EDGE
FUNCTIONS
1/41/31/2
MULTIREVERSEONE-WAY
B-KEY 1/2L-KEY 1/2
1/41/2
ASOURCE
1/3
BSOURCE
ADJUST
DEMO
ADJUST
SCAN
VIDEO SOURCE SELECT
BACK
COLOR
SD INPUT 2SD INPUT 1HD INPUT 2HD INPUT 1HDMI 2HDMI 1
B
A


DIGITAL EFFECTS
STILL NEGATIVEPAINT MOSAIC
ON
A
B
-15
L
AUDIO
LEVEL R
dB
dB
-10 -5 -3 +3 +4+20+1-1
-15 -10 -5 -3 +3 +4+20+1-1
VIDEO/AUDIO
MIXER
HD AV EFFECTS PROCESSOR
TIME
MIN MAX
POSITION
AUDIO
FOLLOW
AUTO/WIPE
START
ON
INPUT A
MAX
MIN
INPUT B
MAX
MIN
AUX
MAX
MIN
MIC
MAX
MIN
MAX
MIN
AUDIO MIXER
MODE CONTROL
KEYMIX
PIP
COLOR
WIPE
EDGE
FUNCTIONS
1/41/31/2
MULTIREVERSEONE-WAY
B-KEY 1/2L-KEY 1/2
1/41/2
ASOURCE
1/3
BSOURCE
ADJUST
DEMO
ADJUST
SCAN
VIDEO SOURCE SELECT
BACK
COLOR
SD INPUT 2SD INPUT 1HD INPUT 2HD INPUT 1HDMI 2HDMI 1
B
A


DIGITAL EFFECTS
STILL NEGATIVEPA INT MOSAIC
ON
A
B
-15
L
AUDIO
LEVEL R
dB
dB
-10 -5 -3 +3 +4+20+1-1
-15 -10 -5 -3 +3 +4+20+1-1
VIDEO/AUDIO
MIXER
HD AV EFFECTS PROCESSOR
TIME
MIN MAX
POSITION
31
52
32
33
31 AUDIO FOLLOW
When turn on the Audio Follow A/B bus's sound indicator will follow the VIDEO slider 52
movement. When turn off the Audio Follow, the audio indicator will become independent to
adjust from 34 and 35 .
32 AUTO/WIPE
AUTO FADE/WIPE can be performed with START 33 button when the button 32 is set to ON.
33 START button
Automatic MIX and WIPE operation can be performed by pressing the START button. Transition
time can be adjusted via TIME 1. When transition time lapsed, the LED goes off.
52 VIDEO slide
Wipe, PIP and Key effects could be controlled by this Video slide which moves A/B bus outputs
horizontally or vertically.
All manuals and user guides at all-guides.com

7
3.7 AUDIO MIXER
AUDIO
FOLLOW
AUTO/WIPE
START
ON
INPUT A
MAX
MIN
INPUT B
MAX
MIN
AUX
MAX
MIN
MIC
MAX
MIN
MAX
MIN
AUDIO MIXER
MODE CONTROL
KEYMIX
PIP
COLOR
WIPE
EDGE
FUNCTIONS
1/41/31/2
MULTIREVERSEONE-WAY
B-KEY 1/2L-KEY 1/2
1/41/2
ASOURCE
1/3
BSOURCE
ADJUST
DEMO
ADJUST
SCAN
VIDEO SOURCE SELECT
BACK
COLOR
SD INPUT 2SD INPUT 1HD INPUT 2HD INPUT 1HDMI 2HDMI 1
B
A


DIGITAL EFFECTS
STILL NEGATIVEPA INT MOSAIC
ON
A
B
-15
L
AUDIO
LEVEL R
dB
dB
-10 -5 -3 +3 +4+20+1-1
-15 -10 -5 -3 +3 +4+20+1-1
VIDEO/AUDIO
MIXER
HD AV EFFECTS PROCESSOR
TIME
MIN MAX
POSITION
AUDIO
FOLLOW
AUTO/WIPE
START
ON
INPUT A
MAX
MIN
INPUT B
MAX
MIN
AUX
MAX
MIN
MIC
MAX
MIN
MAX
MIN
AUDIO MIXER
MODE CONTROL
KEYMIX
PIP
COLOR
WIPE
EDGE
FUNCTIONS
1/41/31/2
MULTIREVERSEONE-WAY
B-KEY 1/2L-KEY 1/2
1/41/2
ASOURCE
1/3
BSOURCE
ADJUST
DEMO
ADJUST
SCAN
VIDEO SOURCE SELECT
BACK
COLOR
SD INPUT 2SD INPUT 1HD INPUT 2HD INPUT 1HDMI 2HDMI 1
B
A


DIGITAL EFFECTS
STILL NEGATIVEPAINT MOSAIC
ON
A
B
-15
L
AUDIO
LEVEL R
dB
dB
-10 -5 -3 +3 +4+20+1-1
-15 -10 -5 -3 +3 +4+20+1-1
VIDEO/AUDIO
MIXER
HD AV EFFECTS PROCESSOR
TIME
MIN MAX
POSITION

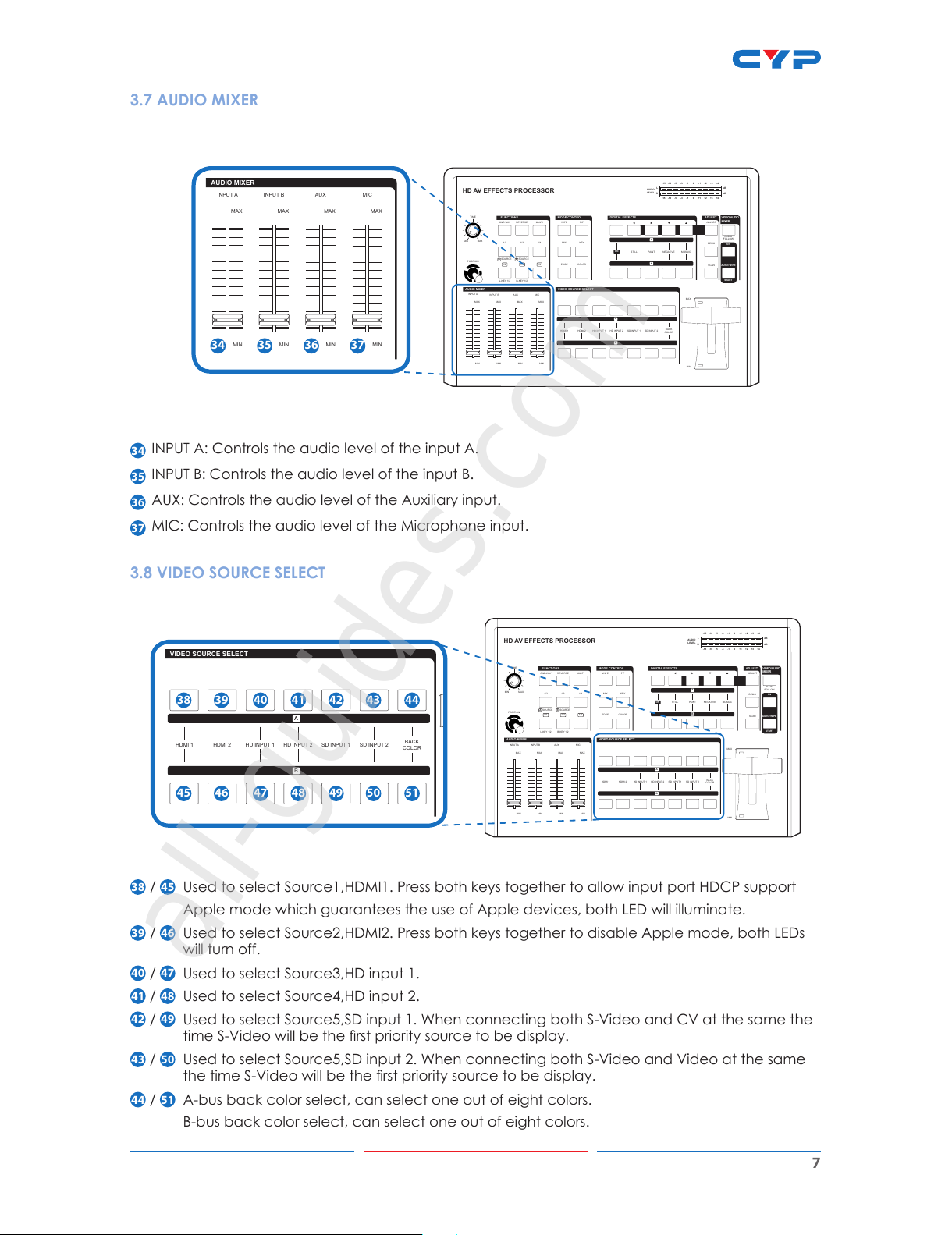

34 35 36 37
34 INPUT A: Controls the audio level of the input A.
35 INPUT B: Controls the audio level of the input B.
36 AUX: Controls the audio level of the Auxiliary input.
37 MIC: Controls the audio level of the Microphone input.
3.8 VIDEO SOURCE SELECT
AUDIO
FOLLOW
AUTO/WIPE
START
ON
INPUT A
MAX
MIN
INPUT B
MAX
MIN
AUX
MAX
MIN
MIC
MAX
MIN
MAX
MIN
AUDIO MIXER
MODE CONTROL
KEYMIX
PIP
COLOR
WIPE
EDGE
FUNCTIONS
1/41/31/2
MULTIREVERSEONE-WAY
B-KEY 1/2L-KEY 1/2
1/41/2
ASOURCE
1/3
BSOURCE
ADJUST
DEMO
ADJUST
SCAN
VIDEO SOURCE SELECT
BACK
COLOR
SD INPUT 2SD INPUT 1HD INPUT 2HD INPUT 1HDMI 2HDMI 1
B
A


DIGITAL EFFECTS
STILL NEGATIVEPA INT MOSAIC
ON
A
B
-15
L
AUDIO
LEVEL R
dB
dB
-10 -5 -3 +3 +4+20+1-1
-15 -10 -5 -3 +3 +4+20+1-1
VIDEO/AUDIO
MIXER
HD AV EFFECTS PROCESSOR
TIME
MIN MAX
POSITION
AUDIO
FOLLOW
AUTO/WIPE
START
ON
INPUT A
MAX
MIN
INPUT B
MAX
MIN
AUX
MAX
MIN
MIC
MAX
MIN
MAX
MIN
AUDIO MIXER
MODE CONTROL
KEYMIX
PIP
COLOR
WIPE
EDGE
FUNCTIONS
1/41/31/2
MULTIREVERSEONE-WAY
B-KEY 1/2L-KEY 1/2
1/41/2
ASOURCE
1/3
BSOURCE
ADJUST
DEMO
ADJUST
SCAN
VIDEO SOURCE SELECT
BACK
COLOR
SD INPUT 2SD INPUT 1HD INPUT 2HD INPUT 1HDMI 2HDMI 1
B
A


DIGITAL EFFECTS
STILL NEGATIVEPAINT MOSAIC
ON
A
B
-15
L
AUDIO
LEVEL R
dB
dB
-10 -5 -3 +3 +4+20+1-1
-15 -10 -5 -3 +3 +4+20+1-1
VIDEO/AUDIO
MIXER
HD AV EFFECTS PROCESSOR
TIME
MIN MAX
POSITION
38 39 40 41 42 43 44
45 46 47 48 49 50 51
38 / 45 Used to select Source1,HDMI1. Press both keys together to allow input port HDCP support
Apple mode which guarantees the use of Apple devices, both LED will illuminate.
39 / 46 Used to select Source2,HDMI2. Press both keys together to disable Apple mode, both LEDs
will turn off.
40 / 47 Used to select Source3,HD input 1.
41 / 48 Used to select Source4,HD input 2.
42 / 49 Used to select Source5,SD input 1. When connecting both S-Video and CV at the same the
time S-Video will be the rst priority source to be display.
43 / 50 Used to select Source5,SD input 2. When connecting both S-Video and Video at the same
the time S-Video will be the rst priority source to be display.
44 / 51 A-bus back color select, can select one out of eight colors.
B-bus back color select, can select one out of eight colors.
All manuals and user guides at all-guides.com
all-guides.com

8
3.9 AUDIO LEVEL
AUDIO
FOLLOW
AUTO/WIPE
START
ON
INPUT A
MAX
MIN
INPUT B
MAX
MIN
AUX
MAX
MIN
MIC
MAX
MIN
MAX
MIN
AUDIO MIXER
MODE CONTROL
KEYMIX
PIP
COLOR
WIPE
EDGE
FUNCTIONS
1/41/31/2
MULTIREVERSEONE-WAY
B-KEY 1/2L-KEY 1/2
1/41/2
ASOURCE
1/3
BSOURCE
ADJUST
DEMO
ADJUST
SCAN
VIDEO SOURCE SELECT
BACK
COLOR
SD INPUT 2SD INPUT 1HD INPUT 2HD INPUT 1HDMI 2HDMI 1
B
A


DIGITAL EFFECTS
STILL NEGATIVEPA INT MOSAIC
ON
A
B
-15
L
AUDIO
LEVEL R
dB
dB
-10 -5 -3 +3 +4+20+1-1
-15 -10 -5 -3 +3 +4+20+1-1
VIDEO/AUDIO
MIXER
HD AV EFFECTS PROCESSOR
TIME
MIN MAX
POSITION
AUDIO
FOLLOW
AUTO/WIPE
START
ON
INPUT A
MAX
MIN
INPUT B
MAX
MIN
AUX
MAX
MIN
MIC
MAX
MIN
MAX
MIN
AUDIO MIXER
MODE CONTROL
KEYMIX
PIP
COLOR
WIPE
EDGE
FUNCTIONS
1/41/31/2
MULTIREVERSEONE-WAY
B-KEY 1/2L-KEY 1/2
1/41/2
ASOURCE
1/3
BSOURCE
ADJUST
DEMO
ADJUST
SCAN
VIDEO SOURCE SELECT
BACK
COLOR
SD INPUT 2SD INPUT 1HD INPUT 2HD INPUT 1HDMI 2HDMI 1
B
A


DIGITAL EFFECTS
STILL NEGATIVEPAINT MOSAIC
ON
A
B
-15
L
AUDIO
LEVEL R
dB
dB
-10 -5 -3 +3 +4+20+1-1
-15 -10 -5 -3 +3 +4+20+1-1
VIDEO/AUDIO
MIXER
HD AV EFFECTS PROCESSOR
TIME
MIN MAX
POSITION
53
53 Audio level indicator.(Audio level)
This indicator shows the audio output level of REC out 1 and REC out 2.
4. HARDWARE DESCRIPTION
4.1 FRONT PANEL
54 55
54 PHONES
Connect ear phone to listen the audio signal.
55 MIC
Connect the MIC to insert the voice.
All manuals and user guides at all-guides.com

9

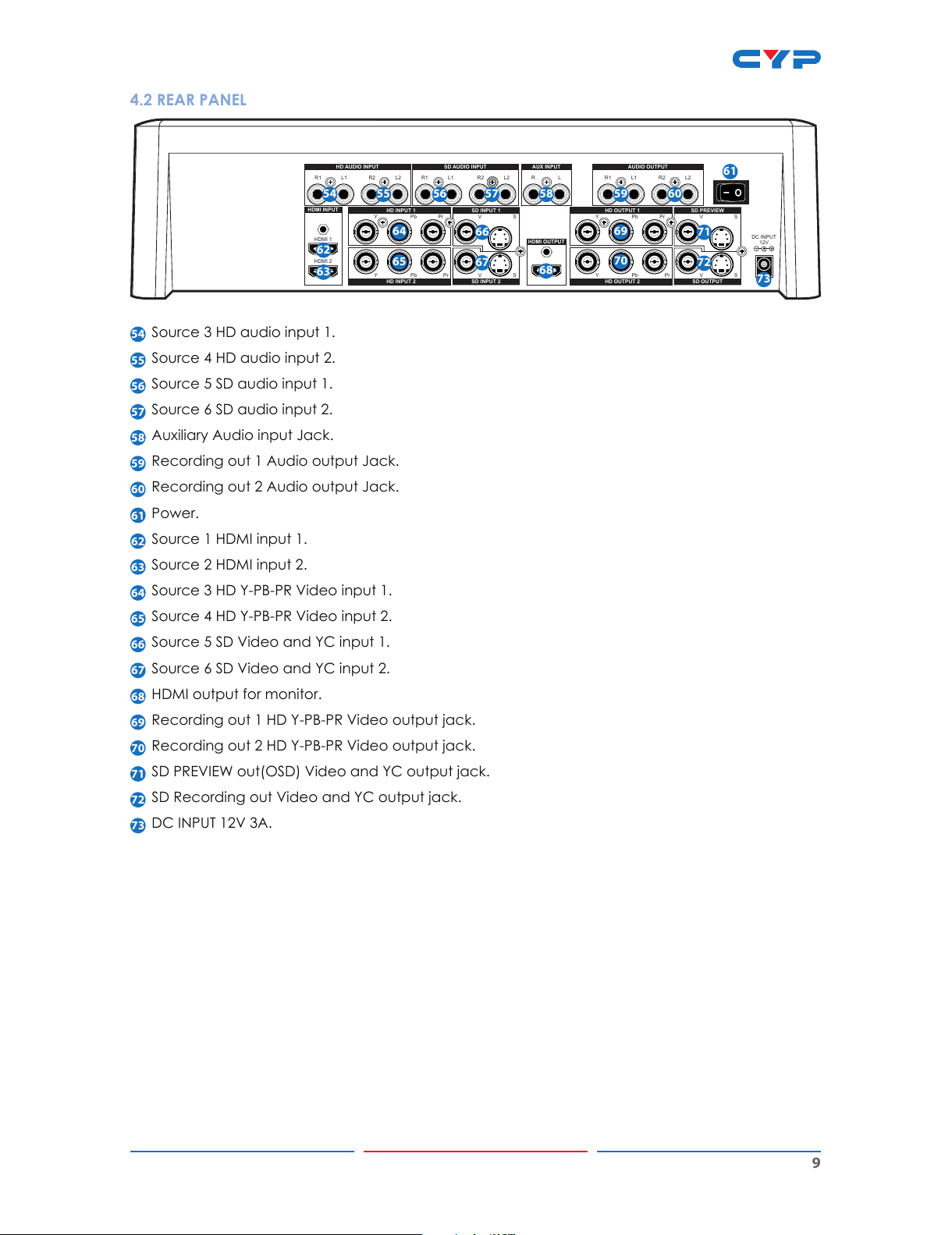

4.2 REAR PANEL
DC INPUT
12V
R1 L1 L2R2
HDMI 2
HDMI 1
RL
AUX INPUT
R1 R2L1 L2
SD AUDIO INPUT
R1 R2L1 L2
HD AUDIO INPUT
VS
VS
SD INPUT 1
SD INPUT 2
PrPbY
Pr
Pb
Y
HD INPUT 1
HD INPUT 2
VS
VS
SD PREVIEW
SD OUTPUT
PrPbY
Pr
Pb
Y
HD OUTPUT 1
HD OUTPUT 2
AUDIO OUTPUT
HDMI OUTPUT
HDMI INPUT
54
62
64 66
68
69
70
71
72
73
67
65
63
5655 57 58 59 60
61
54 Source 3 HD audio input 1.
55 Source 4 HD audio input 2.
56 Source 5 SD audio input 1.
57 Source 6 SD audio input 2.
58 Auxiliary Audio input Jack.
59 Recording out 1 Audio output Jack.
60 Recording out 2 Audio output Jack.
61 Power.
62 Source 1 HDMI input 1.
63 Source 2 HDMI input 2.
64 Source 3 HD Y-PB-PR Video input 1.
65 Source 4 HD Y-PB-PR Video input 2.
66 Source 5 SD Video and YC input 1.
67 Source 6 SD Video and YC input 2.
68 HDMI output for monitor.
69 Recording out 1 HD Y-PB-PR Video output jack.
70 Recording out 2 HD Y-PB-PR Video output jack.
71 SD PREVIEW out(OSD) Video and YC output jack.
72 SD Recording out Video and YC output jack.
73 DC INPUT 12V 3A.
All manuals and user guides at all-guides.com

10
5. BASIC OPERATION
Press the power switch on the rear panel to the PN Position. The LED’s on the operation panel light
up and the unit is now in initial mode for operation.

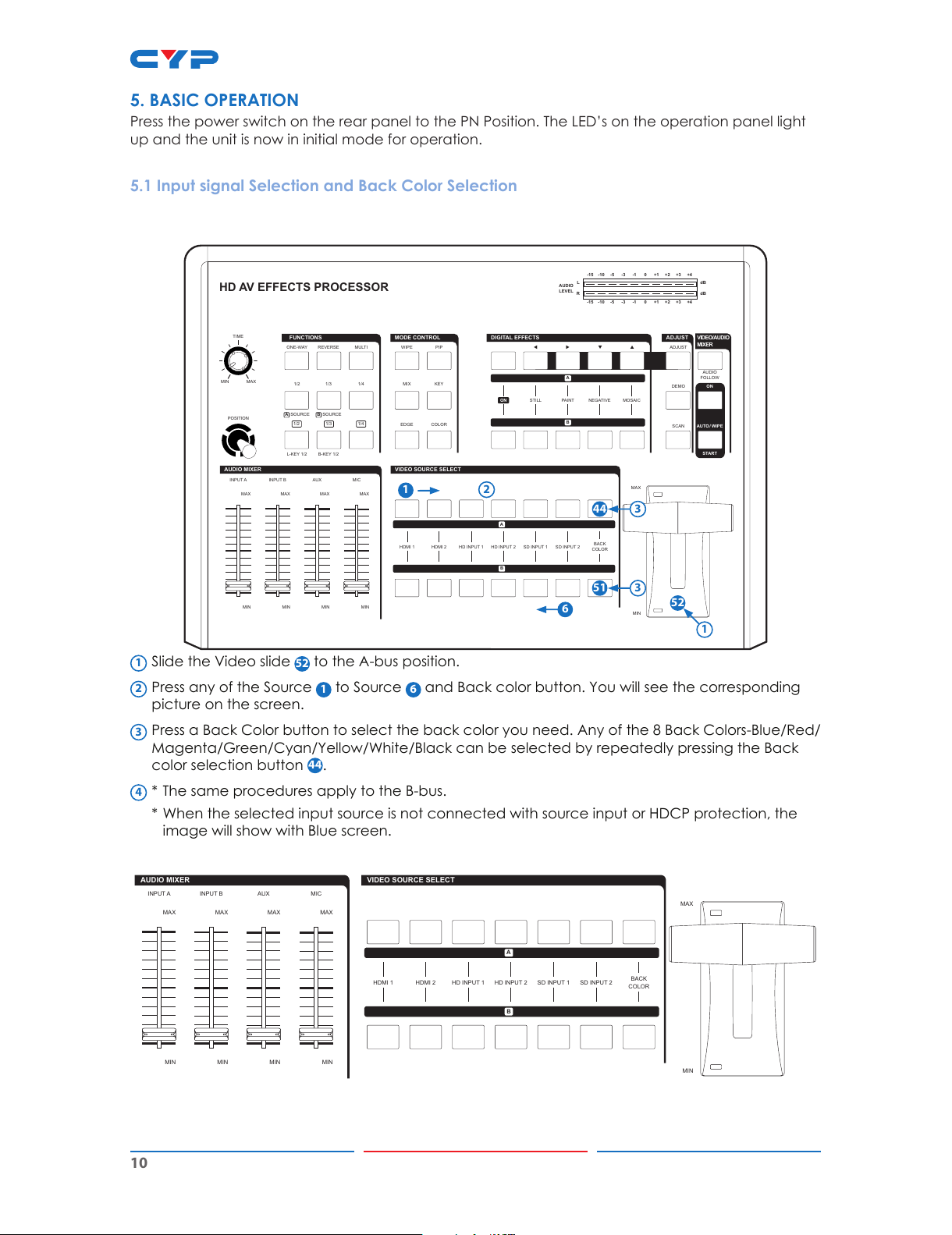

5.1 Input signal Selection and Back Color Selection
AUDIO
FOLLOW
AUTO/WIPE
START
ON
INPUT A
MAX
MIN
INPUT B
MAX
MIN
AUX
MAX
MIN
MIC
MAX
MIN
MAX
MIN
AUDIO MIXER
MODE CONTROL
KEYMIX
PIP
COLOR
WIPE
EDGE
FUNCTIONS
1/41/31/2
MULTIREVERSEONE-WAY
B-KEY 1/2L-KEY 1/2
1/41/2
ASOURCE
1/3
BSOURCE
ADJUST
DEMO
ADJUST
SCAN
VIDEO SOURCE SELECT
BACK
COLOR
SD INPUT 2SD INPUT 1HD INPUT 2HD INPUT 1HDMI 2HDMI 1
B
A


DIGITAL EFFECTS
STILL NEGATIVEPAINT MOSAIC
ON
A
B
-15
L
AUDIO
LEVEL R
dB
dB
-10 -5 -3 +3 +4+20+1-1
-15 -10 -5 -3 +3 +4+20+1-1
VIDEO/AUDIO
MIXER
HD AV EFFECTS PROCESSOR
TIME
MIN MAX
POSITION
52
44
51
1
6
1
3
2
3
1Slide the Video slide 52 to the A-bus position.
2Press any of the Source 1to Source 6and Back color button. You will see the corresponding
picture on the screen.
3Press a Back Color button to select the back color you need. Any of the 8 Back Colors-Blue/Red/
Magenta/Green/Cyan/Yellow/White/Black can be selected by repeatedly pressing the Back
color selection button 44.
4* The same procedures apply to the B-bus.
* When the selected input source is not connected with source input or HDCP protection, the
image will show with Blue screen.
AUDIO
FOLLOW
AUTO/WIPE
START
ON
INPUT A
MAX
MIN
INPUT B
MAX
MIN
AUX
MAX
MIN
MIC
MAX
MIN
MAX
MIN
AUDIO MIXER
MODE CONTROL
KEYMIX
PIP
COLOR
WIPE
EDGE
FUNCTIONS
1/41/31/2
MULTIREVERSEONE-WAY
B-KEY 1/2L-KEY 1/2
1/41/2
ASOURCE
1/3
BSOURCE
ADJUST
DEMO
ADJUST
SCAN
VIDEO SOURCE SELECT
BACK
COLOR
SD INPUT 2SD INPUT 1HD INPUT 2HD INPUT 1HDMI 2HDMI 1
B
A


DIGITAL EFFECTS
STILL NEGATIVEPAINT MOSAIC
ON
A
B
-15
L
AUDIO
LEVEL R
dB
dB
-10 -5 -3 +3 +4+20+1-1
-15 -10 -5 -3 +3 +4+20+1-1
VIDEO/AUDIO
MIXER
HD AV EFFECTS PROCESSOR
TIME
MIN MAX
POSITION
All manuals and user guides at all-guides.com

11

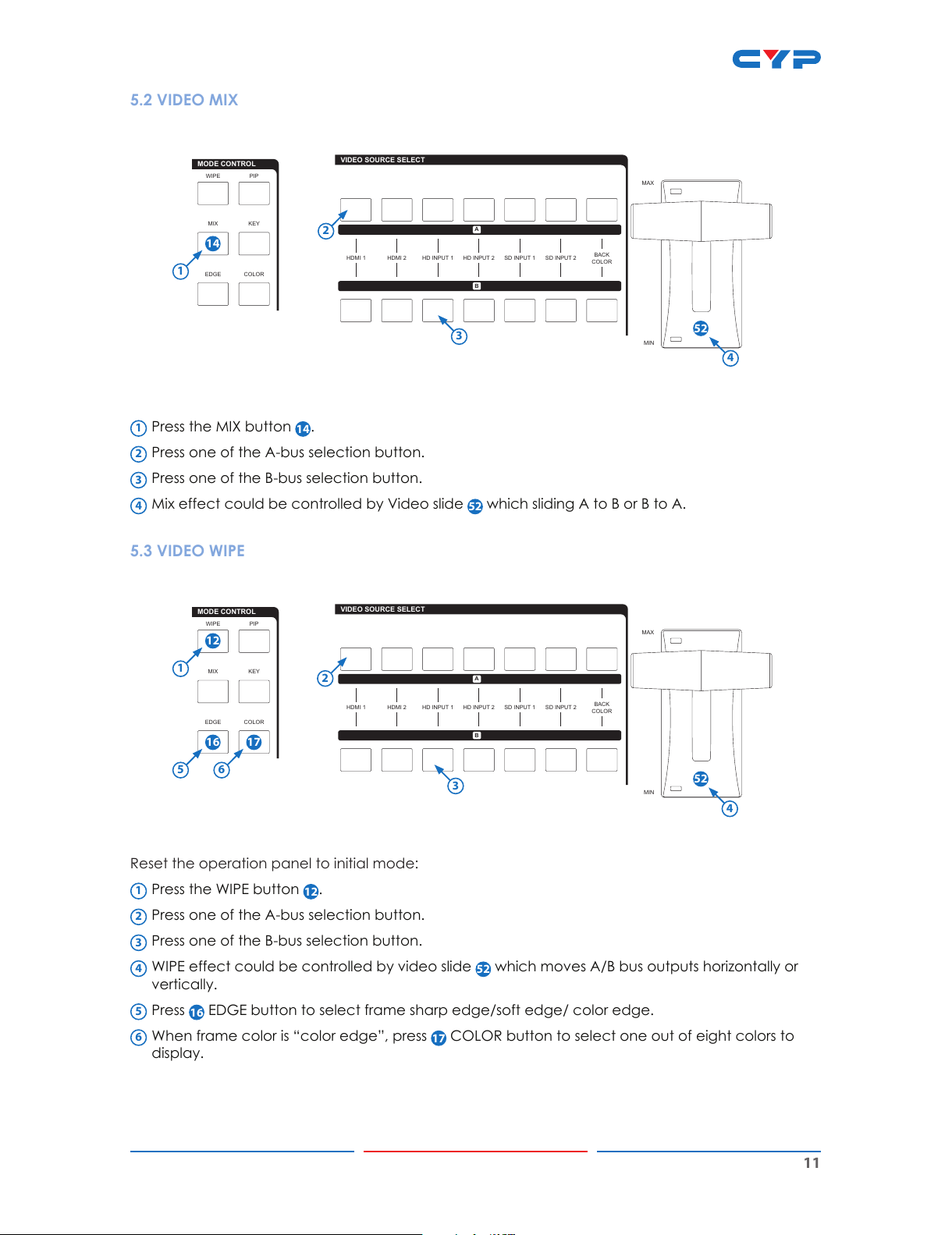

5.2 VIDEO MIX
AUDIO
FOLLOW
AUTO/WIPE
START
ON
INPUT A
MAX
MIN
INPUT B
MAX
MIN
AUX
MAX
MIN
MIC
MAX
MIN
MAX
MIN
AUDIO MIXER
MODE CONTROL
KEYMIX
PIP
COLOR
WIPE
EDGE
FUNCTIONS
1/41/31/2
MULTIREVERSEONE-WAY
B-KEY 1/2L-KEY 1/2
1/41/2
ASOURCE
1/3
BSOURCE
ADJUST
DEMO
ADJUST
SCAN
VIDEO SOURCE SELECT
BACK
COLOR
SD INPUT 2SD INPUT 1HD INPUT 2HD INPUT 1HDMI 2HDMI 1
B
A


DIGITAL EFFECTS
STILL NEGATIVEPAINT MOSAIC
ON
A
B
-15
L
AUDIO
LEVEL R
dB
dB
-10 -5 -3 +3 +4+20+1-1
-15 -10 -5 -3 +3 +4+20+1-1
VIDEO/AUDIO
MIXER
HD AV EFFECTS PROCESSOR
TIME
MIN MAX
POSITION
14
AUDIO
FOLLOW
AUTO/WIPE
START
ON
INPUT A
MAX
MIN
INPUT B
MAX
MIN
AUX
MAX
MIN
MIC
MAX
MIN
MAX
MIN
AUDIO MIXER
MODE CONTROL
KEYMIX
PIP
COLOR
WIPE
EDGE
FUNCTIONS
1/41/31/2
MULTIREVERSEONE-WAY
B-KEY 1/2L-KEY 1/2
1/41/2
ASOURCE
1/3
BSOURCE
ADJUST
DEMO
ADJUST
SCAN
VIDEO SOURCE SELECT
BACK
COLOR
SD INPUT 2SD INPUT 1HD INPUT 2HD INPUT 1HDMI 2HDMI 1
B
A


DIGITAL EFFECTS
STILL NEGATIVEPAINT MOSAIC
ON
A
B
-15
L
AUDIO
LEVEL R
dB
dB
-10 -5 -3 +3 +4+20+1-1
-15 -10 -5 -3 +3 +4+20+1-1
VIDEO/AUDIO
MIXER
HD AV EFFECTS PROCESSOR
TIME
MIN MAX
POSITION
52
4
3
1
2
1Press the MIX button 14.
2Press one of the A-bus selection button.
3Press one of the B-bus selection button.
4Mix effect could be controlled by Video slide 52 which sliding A to B or B to A.
5.3 VIDEO WIPE
AUDIO
FOLLOW
AUTO/WIPE
START
ON
INPUT A
MAX
MIN
INPUT B
MAX
MIN
AUX
MAX
MIN
MIC
MAX
MIN
MAX
MIN
AUDIO MIXER
MODE CONTROL
KEYMIX
PIP
COLOR
WIPE
EDGE
FUNCTIONS
1/41/31/2
MULTIREVERSEONE-WAY
B-KEY 1/2L-KEY 1/2
1/41/2
ASOURCE
1/3
BSOURCE
ADJUST
DEMO
ADJUST
SCAN
VIDEO SOURCE SELECT
BACK
COLOR
SD INPUT 2SD INPUT 1HD INPUT 2HD INPUT 1HDMI 2HDMI 1
B
A


DIGITAL EFFECTS
STILL NEGATIVEPAINT MOSAIC
ON
A
B
-15
L
AUDIO
LEVEL R
dB
dB
-10 -5 -3 +3 +4+20+1-1
-15 -10 -5 -3 +3 +4+20+1-1
VIDEO/AUDIO
MIXER
HD AV EFFECTS PROCESSOR
TIME
MIN MAX
POSITION
12
16 17
AUDIO
FOLLOW
AUTO/WIPE
START
ON
INPUT A
MAX
MIN
INPUT B
MAX
MIN
AUX
MAX
MIN
MIC
MAX
MIN
MAX
MIN
AUDIO MIXER
MODE CONTROL
KEYMIX
PIP
COLOR
WIPE
EDGE
FUNCTIONS
1/41/31/2
MULTIREVERSEONE-WAY
B-KEY 1/2L-KEY 1/2
1/41/2
ASOURCE
1/3
BSOURCE
ADJUST
DEMO
ADJUST
SCAN
VIDEO SOURCE SELECT
BACK
COLOR
SD INPUT 2SD INPUT 1HD INPUT 2HD INPUT 1HDMI 2HDMI 1
B
A


DIGITAL EFFECTS
STILL NEGATIVEPAINT MOSAIC
ON
A
B
-15
L
AUDIO
LEVEL R
dB
dB
-10 -5 -3 +3 +4+20+1-1
-15 -10 -5 -3 +3 +4+20+1-1
VIDEO/AUDIO
MIXER
HD AV EFFECTS PROCESSOR
TIME
MIN MAX
POSITION
52
4
3
1
5 6
2
Reset the operation panel to initial mode:
1Press the WIPE button 12.
2Press one of the A-bus selection button.
3Press one of the B-bus selection button.
4WIPE effect could be controlled by video slide 52 which moves A/B bus outputs horizontally or
vertically.
5Press 16 EDGE button to select frame sharp edge/soft edge/ color edge.
6When frame color is “color edge”, press 17 COLOR button to select one out of eight colors to
display.
All manuals and user guides at all-guides.com

12
5.3.1 WIPE PATTERN Selection
Six Wipe modes can be selected as follows:
AUDIO
FOLLOW
AUTO/WIPE
START
ON
INPUT A
MAX
MIN
INPUT B
MAX
MIN
AUX
MAX
MIN
MIC
MAX
MIN
MAX
MIN
AUDIO MIXER
MODE CONTROL
KEYMIX
PIP
COLOR
WIPE
EDGE
FUNCTIONS
1/41/31/2
MULTIREVERSEONE-WAY
B-KEY 1/2L-KEY 1/2
1/41/2
ASOURCE
1/3
BSOURCE
ADJUST
DEMO
ADJUST
SCAN
VIDEO SOURCE SELECT
BACK
COLOR
SD INPUT 2SD INPUT 1HD INPUT 2HD INPUT 1HDMI 2HDMI 1
B
A


DIGITAL EFFECTS
STILL NEGATIVEPA INT MOSAIC
ON
A
B
-15
L
AUDIO
LEVEL R
dB
dB
-10 -5 -3 +3 +4+20+1-1
-15 -10 -5 -3 +3 +4+20+1-1
VIDEO/AUDIO
MIXER
HD AV EFFECTS PROCESSOR
TIME
MIN MAX
POSITION
1110
9
6
3
7 8
4 5
1 3 5
24 6
1Press the straight wipe button 6repeatedly,
four patterns are available.
2Press the corner wipe button 7repeatedly,
four patterns are available.
3Press the diagonal wipe button 8
repeatedly, for patterns are available.
4Press the triangle wipe button 9repeatedly,
for patterns are available.
5Press the split wipe button 10 repeatedly, for
patterns are available.
6Press the square wipe button 11 repeatedly.
For patterns below are available. Each
pattern position in this section could be set
by joystick 2.
All manuals and user guides at all-guides.com
all-guides.com

13
5.3.2 MULTIPLE PATTERN Selection
AUDIO
FOLLOW
AUTO/WIPE
START
ON
INPUT A
MAX
MIN
INPUT B
MAX
MIN
AUX
MAX
MIN
MIC
MAX
MIN
MAX
MIN
AUDIO MIXER
MODE CONTROL
KEYMIX
PIP
COLOR
WIPE
EDGE
FUNCTIONS
1/41/31/2
MULTIREVERSEONE-WAY
B-KEY 1/2L-KEY 1/2
1/41/2
ASOURCE
1/3
BSOURCE
ADJUST
DEMO
ADJUST
SCAN
VIDEO SOURCE SELECT
BACK
COLOR
SD INPUT 2SD INPUT 1HD INPUT 2HD INPUT 1HDMI 2HDMI 1
B
A


DIGITAL EFFECTS
STILL NEGATIVEPAINT MOSAIC
ON
A
B
-15
L
AUDIO
LEVEL R
dB
dB
-10 -5 -3 +3 +4+20+1-1
-15 -10 -5 -3 +3 +4+20+1-1
VIDEO/AUDIO
MIXER
HD AV EFFECTS PROCESSOR
TIME
MIN MAX
POSITION
AUDIO
FOLLOW
AUTO/WIPE
START
ON
INPUT A
MAX
MIN
INPUT B
MAX
MIN
AUX
MAX
MIN
MIC
MAX
MIN
MAX
MIN
AUDIO MIXER
MODE CONTROL
KEYMIX
PIP
COLOR
WIPE
EDGE
FUNCTIONS
1/41/31/2
MULTIREVERSEONE-WAY
B-KEY 1/2L-KEY 1/2
1/41/2
ASOURCE
1/3
BSOURCE
ADJUST
DEMO
ADJUST
SCAN
VIDEO SOURCE SELECT
BACK
COLOR
SD INPUT 2SD INPUT 1HD INPUT 2HD INPUT 1HDMI 2HDMI 1
B
A


DIGITAL EFFECTS
STILL NEGATIVEPAINT MOSAIC
ON
A
B
-15
L
AUDIO
LEVEL R
dB
dB
-10 -5 -3 +3 +4+20+1-1
-15 -10 -5 -3 +3 +4+20+1-1
VIDEO/AUDIO
MIXER
HD AV EFFECTS PROCESSOR
TIME
MIN MAX
POSITION
6
5
12
52
54
6
133
3
3
2
4

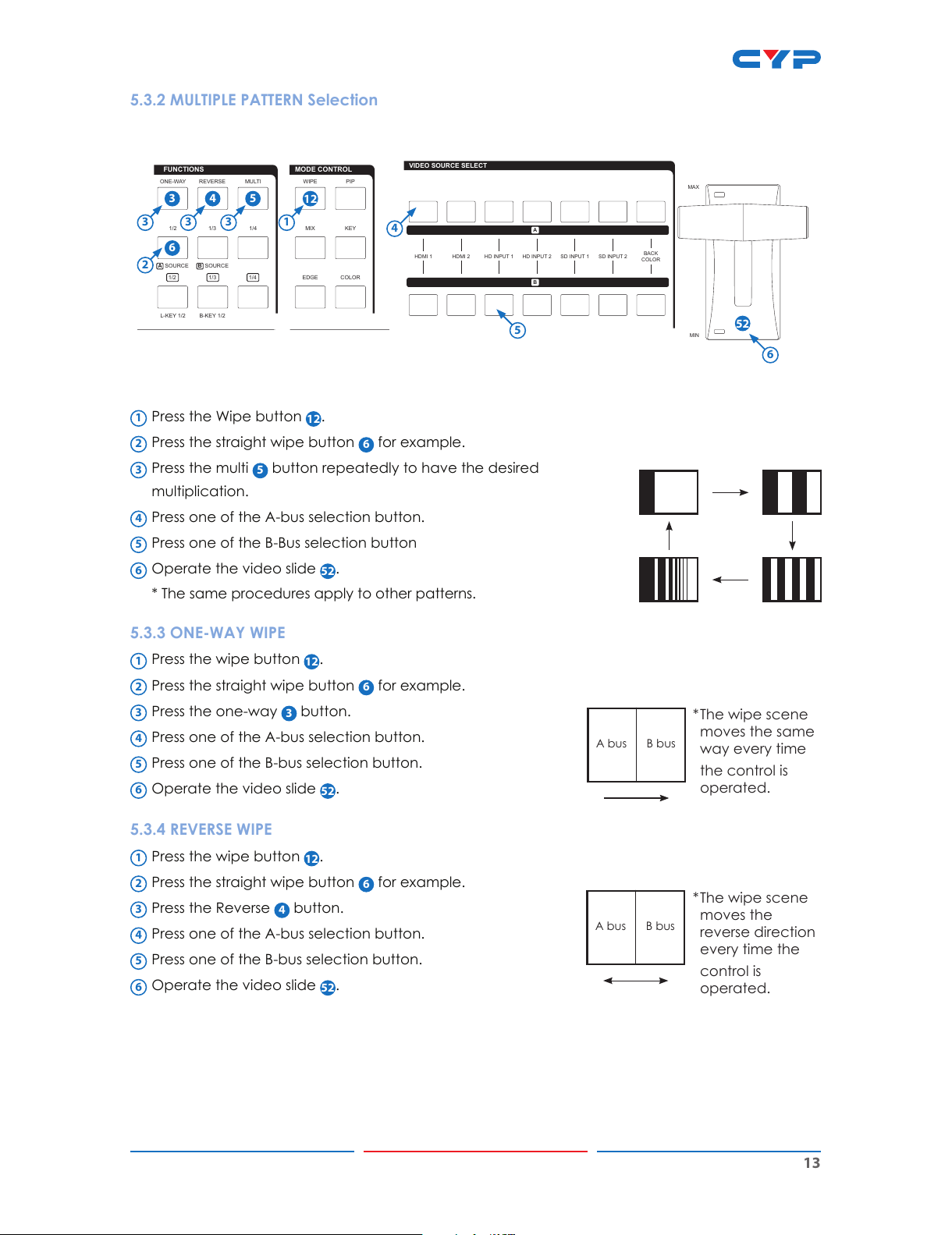

1Press the Wipe button 12.
2Press the straight wipe button 6 for example.
3Press the multi 5button repeatedly to have the desired
multiplication.
4Press one of the A-bus selection button.
5Press one of the B-Bus selection button
6Operate the video slide 52.
* The same procedures apply to other patterns.
5.3.3 ONE-WAY WIPE
1Press the wipe button 12.
2Press the straight wipe button 6 for example.
3Press the one-way 3button.
4Press one of the A-bus selection button.
5Press one of the B-bus selection button.
6Operate the video slide 52.
5.3.4 REVERSE WIPE
1Press the wipe button 12.
2Press the straight wipe button 6 for example.
3Press the Reverse 4button.
4Press one of the A-bus selection button.
5Press one of the B-bus selection button.
6Operate the video slide 52.
A bus B bus
*The wipe scene
moves the same
way every time
the control is
operated.
A bus B bus
*The wipe scene
moves the
reverse direction
every time the
control is
operated.
All manuals and user guides at all-guides.com

14
5.4 Picture-In-Picture
AUDIO
FOLLOW
AUTO/WIPE
START
ON
INPUT A
MAX
MIN
INPUT B
MAX
MIN
AUX
MAX
MIN
MIC
MAX
MIN
MAX
MIN
AUDIO MIXER
MODE CONTROL
KEYMIX
PIP
COLOR
WIPE
EDGE
FUNCTIONS
1/41/31/2
MULTIREVERSEONE-WAY
B-KEY 1/2L-KEY 1/2
1/41/2
ASOURCE
1/3
BSOURCE
ADJUST
DEMO
ADJUST
SCAN
VIDEO SOURCE SELECT
BACK
COLOR
SD INPUT 2SD INPUT 1HD INPUT 2HD INPUT 1HDMI 2HDMI 1
B
A


DIGITAL EFFECTS
STILL NEGATIVEPAINT MOSAIC
ON
A
B
-15
L
AUDIO
LEVEL R
dB
dB
-10 -5 -3 +3 +4+20+1-1
-15 -10 -5 -3 +3 +4+20+1-1
VIDEO/AUDIO
MIXER
HD AV EFFECTS PROCESSOR
TIME
MIN MAX
POSITION
AUDIO
FOLLOW
AUTO/WIPE
START
ON
INPUT A
MAX
MIN
INPUT B
MAX
MIN
AUX
MAX
MIN
MIC
MAX
MIN
MAX
MIN
AUDIO MIXER
MODE CONTROL
KEYMIX
PIP
COLOR
WIPE
EDGE
FUNCTIONS
1/41/31/2
MULTIREVERSEONE-WAY
B-KEY 1/2L-KEY 1/2
1/41/2
ASOURCE
1/3
BSOURCE
ADJUST
DEMO
ADJUST
SCAN
VIDEO SOURCE SELECT
BACK
COLOR
SD INPUT 2SD INPUT 1HD INPUT 2HD INPUT 1HDMI 2HDMI 1
B
A


DIGITAL EFFECTS
STILL NEGATIVEPAINT MOSAIC
ON
A
B
-15
L
AUDIO
LEVEL R
dB
dB
-10 -5 -3 +3 +4+20+1-1
-15 -10 -5 -3 +3 +4+20+1-1
VIDEO/AUDIO
MIXER
HD AV EFFECTS PROCESSOR
TIME
MIN MAX
POSITION
1
3
13
52
6 7 8
9
4
5
2
1110

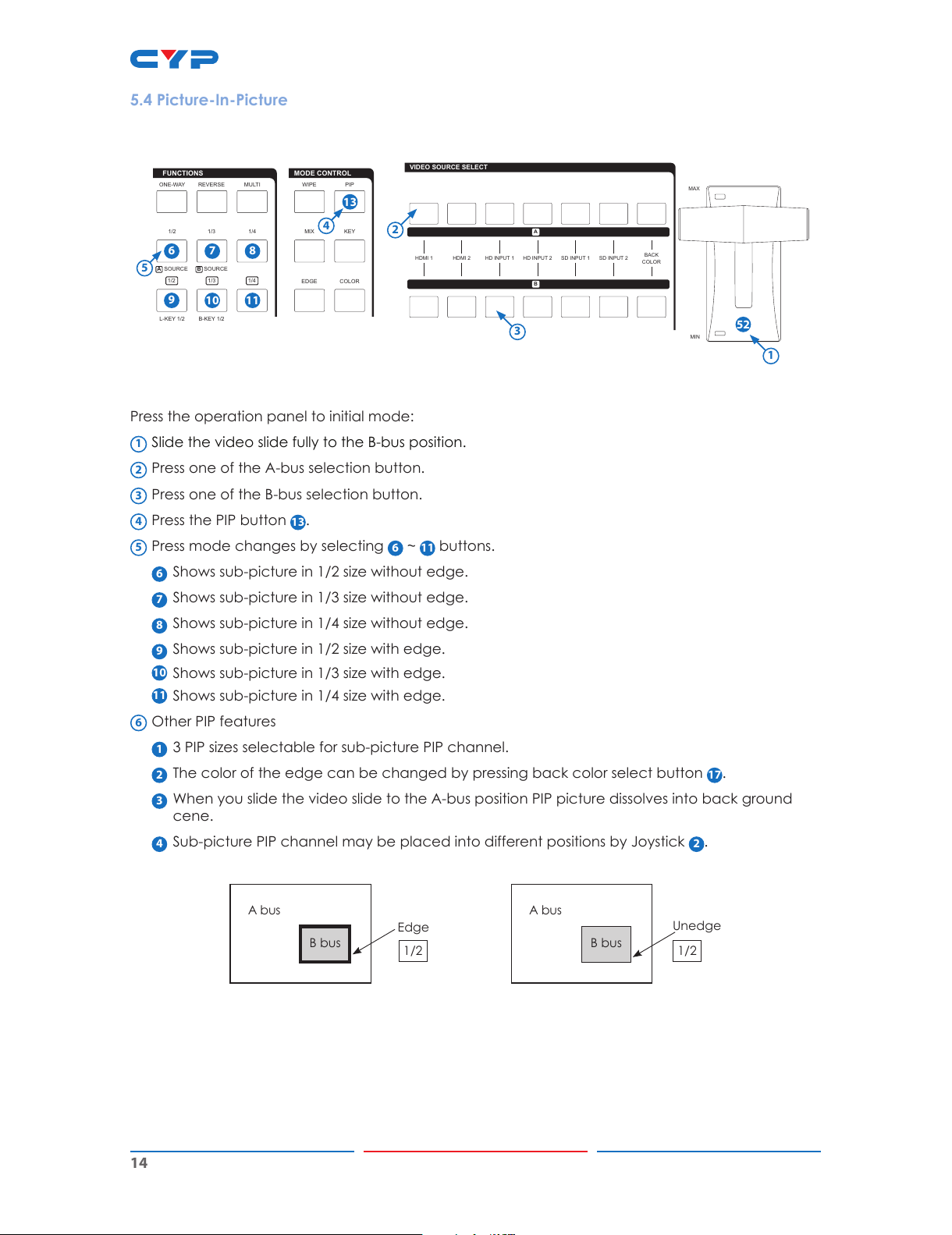

Press the operation panel to initial mode:
1Slide the video slide fully to the B-bus position.
2Press one of the A-bus selection button.
3Press one of the B-bus selection button.
4Press the PIP button 13.
5Press mode changes by selecting 6~ 11 buttons.
6Shows sub-picture in 1/2 size without edge.
7Shows sub-picture in 1/3 size without edge.
8Shows sub-picture in 1/4 size without edge.
9Shows sub-picture in 1/2 size with edge.
10 Shows sub-picture in 1/3 size with edge.
11 Shows sub-picture in 1/4 size with edge.
6Other PIP features
13 PIP sizes selectable for sub-picture PIP channel.
2The color of the edge can be changed by pressing back color select button 17 .
3When you slide the video slide to the A-bus position PIP picture dissolves into back ground
cene.
4Sub-picture PIP channel may be placed into different positions by Joystick 2.
A bus
Edge
B bus 1/2
A bus
Unedge
B bus 1/2
All manuals and user guides at all-guides.com

15
5.5 KEY
AUDIO
FOLLOW
AUTO/WIPE
START
ON
INPUT A
MAX
MIN
INPUT B
MAX
MIN
AUX
MAX
MIN
MIC
MAX
MIN
MAX
MIN
AUDIO MIXER
MODE CONTROL
KEYMIX
PIP
COLOR
WIPE
EDGE
FUNCTIONS
1/41/31/2
MULTIREVERSEONE-WAY
B-KEY 1/2L-KEY 1/2
1/41/2
ASOURCE
1/3
BSOURCE
ADJUST
DEMO
ADJUST
SCAN
VIDEO SOURCE SELECT
BACK
COLOR
SD INPUT 2SD INPUT 1HD INPUT 2HD INPUT 1HDMI 2HDMI 1
B
A


DIGITAL EFFECTS
STILL NEGATIVEPAINT MOSAIC
ON
A
B
-15
L
AUDIO
LEVEL R
dB
dB
-10 -5 -3 +3 +4+20+1-1
-15 -10 -5 -3 +3 +4+20+1-1
VIDEO/AUDIO
MIXER
HD AV EFFECTS PROCESSOR
TIME
MIN MAX
POSITION
AUDIO
FOLLOW
AUTO/WIPE
START
ON
INPUT A
MAX
MIN
INPUT B
MAX
MIN
AUX
MAX
MIN
MIC
MAX
MIN
MAX
MIN
AUDIO MIXER
MODE CONTROL
KEYMIX
PIP
COLOR
WIPE
EDGE
FUNCTIONS
1/41/31/2
MULTIREVERSEONE-WAY
B-KEY 1/2L-KEY 1/2
1/41/2
ASOURCE
1/3
BSOURCE
ADJUST
DEMO
ADJUST
SCAN
VIDEO SOURCE SELECT
BACK
COLOR
SD INPUT 2SD INPUT 1HD INPUT 2HD INPUT 1HDMI 2HDMI 1
B
A


DIGITAL EFFECTS
STILL NEGATIVEPAINT MOSAIC
ON
A
B
-15
L
AUDIO
LEVEL R
dB
dB
-10 -5 -3 +3 +4+20+1-1
-15 -10 -5 -3 +3 +4+20+1-1
VIDEO/AUDIO
MIXER
HD AV EFFECTS PROCESSOR
TIME
MIN MAX
POSITION
5
3
15
52
1
2
6 7 8
9
4
1110
6
Reset the operation panel to initial mode:
■How to use the Luma key effect:
1Press the KEY button 15.
2Press one of the A-bus selection button.
3Press one of the B-bus selection button.
4Press the LUMA KEY button 9.
5Use slide bar to control the Luma key level.
6Press button 6or 7to change the source that is being keyed.
7Press the LUMA KEY 9once again to achieve Negative Luma Key.
AUDIO
FOLLOW
AUTO/WIPE
START
ON
INPUT A
MAX
MIN
INPUT B
MAX
MIN
AUX
MAX
MIN
MIC
MAX
MIN
MAX
MIN
AUDIO MIXER
MODE CONTROL
KEYMIX
PIP
COLOR
WIPE
EDGE
FUNCTIONS
1/41/31/2
MULTIREVERSEONE-WAY
B-KEY 1/2L-KEY 1/2
1/41/2
ASOURCE
1/3
BSOURCE
ADJUST
DEMO
ADJUST
SCAN
VIDEO SOURCE SELECT
BACK
COLOR
SD INPUT 2SD INPUT 1HD INPUT 2HD INPUT 1HDMI 2HDMI 1
B
A


DIGITAL EFFECTS
STILL NEGATIVEPAINT MOSAIC
ON
A
B
-15
L
AUDIO
LEVEL R
dB
dB
-10 -5 -3 +3 +4+20+1-1
-15 -10 -5 -3 +3 +4+20+1-1
VIDEO/AUDIO
MIXER
HD AV EFFECTS PROCESSOR
TIME
MIN MAX
POSITION
AUDIO
FOLLOW
AUTO/WIPE
START
ON
INPUT A
MAX
MIN
INPUT B
MAX
MIN
AUX
MAX
MIN
MIC
MAX
MIN
MAX
MIN
AUDIO MIXER
MODE CONTROL
KEYMIX
PIP
COLOR
WIPE
EDGE
FUNCTIONS
1/41/31/2
MULTIREVERSEONE-WAY
B-KEY 1/2L-KEY 1/2
1/41/2
ASOURCE
1/3
BSOURCE
ADJUST
DEMO
ADJUST
SCAN
VIDEO SOURCE SELECT
BACK
COLOR
SD INPUT 2SD INPUT 1HD INPUT 2HD INPUT 1HDMI 2HDMI 1
B
A


DIGITAL EFFECTS
STILL NEGATIVEPAINT MOSAIC
ON
A
B
-15
L
AUDIO
LEVEL R
dB
dB
-10 -5 -3 +3 +4+20+1-1
-15 -10 -5 -3 +3 +4+20+1-1
VIDEO/AUDIO
MIXER
HD AV EFFECTS PROCESSOR
TIME
MIN MAX
POSITION
5
3
15
52
6 7 8
9
1
4
2
1110
6
■How to use the Blue key effect:
1Press the KEY button 15.
2Press one of the A-bus selection button.
3Press one of the B-bus selection button.
4Press the Blue KEY button 10.
5Use slide bar to control the Blue key level.
6Press button 6or 7to change the source that is being keyed.
7Press the Blue KEY 10 once again to achieve Negative Blue Key.
All manuals and user guides at all-guides.com

16
5.6 AUTO FADE/WIPE Selection
Reset the operation panel to initial mode:
1Press the ON button to enter into AUTO FADE/WIPE mode.
2FADE/WIPE transition time can be adjusted by operating
TIME control 1.
3Press the WIPE button 12 for wipe effect.
4Press the MIX button 14 for mix (fade) effect.
5Press the START button to start Auto wipe or fade effect.
5.7 DIGITAL EFFECT
■Digital effect section which generates digital special effects
for the A-bus and B-bus source video signals. The selected
effect(s) can be added to either the A-bus or B-bus at one
time.
■The mosaic effects is not available in sub-picture under PIP
mode.
18 / 23 A-bus and B-bus digital effect ON button.
19 / 24 STILL button.
20 / 25 PAINT button – 3 steps.
21 / 26 NEGATIVE button.
22 / 27 MOSAIC button – 3 steps.
5.8 AUDIO MIXER
AUDIO
FOLLOW
AUTO/WIPE
START
ON
INPUT A
MAX
MIN
INPUT B
MAX
MIN
AUX
MAX
MIN
MIC
MAX
MIN
MAX
MIN
AUDIO MIXER
MODE CONTROL
KEYMIX
PIP
COLOR
WIPE
EDGE
FUNCTIONS
1/41/31/2
MULTIREVERSEONE-WAY
B-KEY 1/2L-KEY 1/2
1/41/2
ASOURCE
1/3
BSOURCE
ADJUST
DEMO
ADJUST
SCAN
VIDEO SOURCE SELECT
BACK
COLOR
SD INPUT 2SD INPUT 1HD INPUT 2HD INPUT 1HDMI 2HDMI 1
B
A


DIGITAL EFFECTS
STILL NEGATIVEPAINT MOSAIC
ON
A
B
-15
L
AUDIO
LEVEL R
dB
dB
-10 -5 -3 +3 +4+20+1-1
-15 -10 -5 -3 +3 +4+20+1-1
VIDEO/AUDIO
MIXER
HD AV EFFECTS PROCESSOR
TIME
MIN MAX
POSITION
AUDIO
FOLLOW
AUTO/WIPE
START
ON
INPUT A
MAX
MIN
INPUT B
MAX
MIN
AUX
MAX
MIN
MIC
MAX
MIN
MAX
MIN
AUDIO MIXER
MODE CONTROL
KEYMIX
PIP
COLOR
WIPE
EDGE
FUNCTIONS
1/41/31/2
MULTIREVERSEONE-WAY
B-KEY 1/2L-KEY 1/2
1/41/2
ASOURCE
1/3
BSOURCE
ADJUST
DEMO
ADJUST
SCAN
VIDEO SOURCE SELECT
BACK
COLOR
SD INPUT 2SD INPUT 1HD INPUT 2HD INPUT 1HDMI 2HDMI 1
B
A


DIGITAL EFFECTS
STILL NEGATIVEPAINT MOSAIC
ON
A
B
-15
L
AUDIO
LEVEL R
dB
dB
-10 -5 -3 +3 +4+20+1-1
-15 -10 -5 -3 +3 +4+20+1-1
VIDEO/AUDIO
MIXER
HD AV EFFECTS PROCESSOR
TIME
MIN MAX
POSITION
AUDIO
FOLLOW
AUTO/WIPE
START
ON
INPUT A
MAX
MIN
INPUT B
MAX
MIN
AUX
MAX
MIN
MIC
MAX
MIN
MAX
MIN
AUDIO MIXER
MODE CONTROL
KEYMIX
PIP
COLOR
WIPE
EDGE
FUNCTIONS
1/41/31/2
MULTIREVERSEONE-WAY
B-KEY 1/2L-KEY 1/2
1/41/2
ASOURCE
1/3
BSOURCE
ADJUST
DEMO
ADJUST
SCAN
VIDEO SOURCE SELECT
BACK
COLOR
SD INPUT 2SD INPUT 1HD INPUT 2HD INPUT 1HDMI 2HDMI 1
B
A


DIGITAL EFFECTS
STILL NEGATIVEPAINT MOSAIC
ON
A
B
-15
L
AUDIO
LEVEL R
dB
dB
-10 -5 -3 +3 +4+20+1-1
-15 -10 -5 -3 +3 +4+20+1-1
VIDEO/AUDIO
MIXER
HD AV EFFECTS PROCESSOR
TIME
MIN MAX
POSITION
31
34 35 36 37
52
■Audio can be processed either separately or in combination with a video source.
31 When the AUDIO FOLLOW’s LED illuminate the Audio may be adjust by Video slider 52 along with
the video. When the LED is off the Audio will be adjusted by 34 , 35.
34 Adjust A-bus’s audio level.
35 Adjust B-bus’s audio level.
36 AUX: Controls the audio level of the auxiliary input.
37 MIC: Controls the audio level of the microphone input.
AUDIO
FOLLOW
AUTO/WIPE
START
ON
INPUT A
MAX
MIN
INPUT B
MAX
MIN
AUX
MAX
MIN
MIC
MAX
MIN
MAX
MIN
AUDIO MIXER
MODE CONTROL
KEYMIX
PIP
COLOR
WIPE
EDGE
FUNCTIONS
1/41/31/2
MULTIREVERSEONE-WAY
B-KEY 1/2L-KEY 1/2
1/41/2
ASOURCE
1/3
BSOURCE
ADJUST
DEMO
ADJUST
SCAN
VIDEO SOURCE SELECT
BACK
COLOR
SD INPUT 2SD INPUT 1HD INPUT 2HD INPUT 1HDMI 2HDMI 1
B
A


DIGITAL EFFECTS
STILL NEGATIVEPA INT MOSAIC
ON
A
B
-15
L
AUDIO
LEVEL R
dB
dB
-10 -5 -3 +3 +4+20+1-1
-15 -10 -5 -3 +3 +4+20+1-1
VIDEO/AUDIO
MIXER
HD AV EFFECTS PROCESSOR
TIME
MIN MAX
POSITION
AUDIO
FOLLOW
AUTO/WIPE
START
ON
INPUT A
MAX
MIN
INPUT B
MAX
MIN
AUX
MAX
MIN
MIC
MAX
MIN
MAX
MIN
AUDIO MIXER
MODE CONTROL
KEYMIX
PIP
COLOR
WIPE
EDGE
FUNCTIONS
1/41/31/2
MULTIREVERSEONE-WAY
B-KEY 1/2L-KEY 1/2
1/41/2
ASOURCE
1/3
BSOURCE
ADJUST
DEMO
ADJUST
SCAN
VIDEO SOURCE SELECT
BACK
COLOR
SD INPUT 2SD INPUT 1HD INPUT 2HD INPUT 1HDMI 2HDMI 1
B
A


DIGITAL EFFECTS
STILL NEGATIVEPA INT MOSAIC
ON
A
B
-15
L
AUDIO
LEVEL R
dB
dB
-10 -5 -3 +3 +4+20+1-1
-15 -10 -5 -3 +3 +4+20+1-1
VIDEO/AUDIO
MIXER
HD AV EFFECTS PROCESSOR
TIME
MIN MAX
POSITION
AUDIO
FOLLOW
AUTO/WIPE
START
ON
INPUT A
MAX
MIN
INPUT B
MAX
MIN
AUX
MAX
MIN
MIC
MAX
MIN
MAX
MIN
AUDIO MIXER
MODE CONTROL
KEYMIX
PIP
COLOR
WIPE
EDGE
FUNCTIONS
1/41/31/2
MULTIREVERSEONE-WAY
B-KEY 1/2L-KEY 1/2
1/41/2
ASOURCE
1/3
BSOURCE
ADJUST
DEMO
ADJUST
SCAN
VIDEO SOURCE SELECT
BACK
COLOR
SD INPUT 2SD INPUT 1HD INPUT 2HD INPUT 1HDMI 2HDMI 1
B
A


DIGITAL EFFECTS
STILL NEGATIVEPA INT MOSAIC
ON
A
B
-15
L
AUDIO
LEVEL R
dB
dB
-10 -5 -3 +3 +4+20+1-1
-15 -10 -5 -3 +3 +4+20+1-1
VIDEO/AUDIO
MIXER
HD AV EFFECTS PROCESSOR
TIME
MIN MAX
POSITION
1
5
4
3
2
32
33
12
14
1
AUDIO
FOLLOW
AUTO/WIPE
START
ON
INPUT A
MAX
MIN
INPUT B
MAX
MIN
AUX
MAX
MIN
MIC
MAX
MIN
MAX
MIN
AUDIO MIXER
MODE CONTROL
KEYMIX
PIP
COLOR
WIPE
EDGE
FUNCTIONS
1/41/31/2
MULTIREVERSEONE-WAY
B-KEY 1/2L-KEY 1/2
1/41/2
ASOURCE
1/3
BSOURCE
ADJUST
DEMO
ADJUST
SCAN
VIDEO SOURCE SELECT
BACK
COLOR
SD INPUT 2SD INPUT 1HD INPUT 2HD INPUT 1HDMI 2HDMI 1
B
A


DIGITAL EFFECTS
STILL NEGATIVEPA INT MOSAIC
ON
A
B
-15
L
AUDIO
LEVEL R
dB
dB
-10 -5 -3 +3 +4+20+1-1
-15 -10 -5 -3 +3 +4+20+1-1
VIDEO/AUDIO
MIXER
HD AV EFFECTS PROCESSOR
TIME
MIN MAX
POSITION
18 19 20 21 22
23 24 25 26 27
All manuals and user guides at all-guides.com
