CYP CMX-12 User manual

CMX-12
HD/SD Digital AV Mixer
OPERATIONS MANUAL

3
DISCLAIMERS
The information in this manual has been carefully checked and is believed to be accurate. CYP (UK) Ltd assumes no
responsibility for any infringements of patents or other rights of third parties which may result from its use.
CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be contained in this document. CYP (UK) Ltd
also makes no commitment to update or to keep current the information contained in this document.
CYP (UK) Ltd reserves the right to make improvements to this document and/or product at any time and without
notice.
COPYRIGHT NOTICE
No part of this document may be reproduced, transmitted, transcribed, stored in a retrieval system, or any of its
part translated into any language or computer le, in any form or by any means—electronic, mechanical, magnetic,
optical, chemical, manual, or otherwise—without express written permission and consent from CYP (UK) Ltd.
© Copyright 2011 by CYP (UK) Ltd.
All Rights Reserved.
Version 1.1 August 2011
TRADEMARK ACKNOWLEDGMENTS
All products or service names mentioned in this document may be trademarks of the companies with which they
are associated.

4
SAFETY PRECAUTIONS
Please read all instructions before attempting to unpack, install or operate this equipment and before connecting
the power supply.
Please keep the following in mind as you unpack and install this equipment:
• Always follow basic safety precautions to reduce the risk of re, electrical shock and injury to persons.
• To prevent re or shock hazard, do not expose the unit to rain, moisture or install this product near water.
• Never spill liquid of any kind on or into this product.
• Never push an object of any kind into this product through any openings or empty slots in the unit, as you may
damage parts inside the unit.
• Do not attach the power supply cabling to building surfaces.
• Use only the supplied power supply unit (PSU). Do not use the PSU if it is damaged.
• Do not allow anything to rest on the power cabling or allow any weight to be placed upon it or any person walk
on it.
• To protect the unit from overheating, do not block any vents or openings in the unit housing that provide
ventilation and allow for sucient space for air to circulate around the unit.
REVISION HISTORY
VERSION NO. DATE SUMMARY OF CHANGE
RDV1 15/02/2012 Preliminary Release

5
CONTENTS 1. Introduction ................................................................ 6
2. Applications ................................................................ 6
3. Package Contents ....................................................... 6
4. System Requirements ................................................ 6
5. Features .......................................................................6
6. Operation Controls and Functions ............................ 7
6.1 Position/Time ......................................................................... 7
6.2 Wipe Modes ............................................................................ 8
6.3 Mode Control ......................................................................... 9
6.4 Digital Eects .......................................................................10
6.5 Adjust ......................................................................................11
6.6 Video Source Select ...........................................................12
6.7 Audio/Video Mixer .............................................................13
6.8 Audio Level ...........................................................................14
6.9 Rear Panel ..............................................................................15
7. Operation ..................................................................16
7.1 Basic Operation ...................................................................16
7.2 Input Signal Selection and Back Color Selection ....16
7.3 Video Mix ...............................................................................17
7.4 Video Wipe ............................................................................17
7.5 WIPE PATTERN Selection ..................................................18
7.6 Multiple Pattern Selection ...............................................19
7.7 ONE-WAY WIPE ....................................................................19
7.8 REVERSE WIPE ......................................................................19
7.7 Picture-In-Picture ................................................................20
7.8 KEY ...........................................................................................21
7.9 AUTO FADE/WIPE Selection ............................................22
7.10 DIGITAL EFFECT.................................................................22
7.11 AUDIO MIXER .....................................................................22
7.11 OSD ADJUST ......................................................................23
8. Connector and Installation ......................................24
8.1 Front Panel Connections ..................................................24
8.2 Rear Panel Connections ...................................................24
8.3 Output Resolutions ............................................................24
9. Specications ............................................................25

6
1. INTRODUCTION
The CMX-12 is a high-quality Standard and High Dention Digital Audio/Video Mixer. Each input BUS supports up
to 6 inputs (2×HDMI, 2×Component (SD/HD), 2×S-Video and Composite video). Eects can be added such as wipes,
fades, mixes and speacial digital eects.
The CMX-12 can support HD or SD resolutions (480p, 576p, 720p 50/60, 1080i 50/60), most of the worlds video
standards (NTSC, NTSC-4.43, PAL, PAL-M, PAN-N, SECAM) and HDMI, Component, S-Video or Composite video
outputs, it also supports position adjustment and recording. The output resolution can automatically adjust to input
resolution or be manually adjusted (please refer to the diagram above).
2. APPLICATIONS
Amatuer/Professional Video and Audio Mixing.
3. PACKAGE CONTENTS
CMX-12 SD/HD Video and Audio Mixer.
Cable Pack: 1× HDMI Cable/1× S-Video Cable/1× Stereo Audio and Composite Video Cable/1× Stereo Audio to 3.5 mm
Jack cable/1× Component (YPbPr) Cable.
1× Metal Joystick (screw attchment) for Position control.
12 V/5.0 A DC power adaptor.
User Manual.
4. SYSTEM REQUIREMENTS
HDMI (Non-HDCP), HD (YPbPr) or SD (Composite or S-Video) Source.
HDMI (Non-HDCP), HD (YPbPr) or SD (Composite or S-Video) Recording Device.
HDMI (Non-HDCP), HD (YPbPr) or SD (Composite or S-Video) Monitor or display.
5. FEATURES
Selective size and position for digital eects area and PIP windows.
Automatic fade and wipe with speed preset control.
Digital eects- Still,Mosaic,Paint and Negative.
96 wipe patterns.
Chroma key & Luminance key.
High Picture Quality.
3×8 back color.
Joystick control for digital eect position.
Fade control for Video and Audio.
Video and Audio mixing.
2× HDMI source inputs.
2× Component (YPbPr) source inputs.
2× Composite and S-Video source inputs.
1× HDMI recording output.
2× Component (YPbPr) recording outputs.
1× Composite and S-Video recording outputs.
1× Composite and S-Video preview outputs with On-screen Display.
Auxiliary audio input.
Microphone input and headphone output.
Picture in Picture control (3 window sizes).
Each A/B BUS can adjust the Contrast/Brightness/Color/Hue/Detail and Aspect Ratio.
Supports Lip-Sync delay up to 170 ms.
Composite supports 3D comb lter and YC separation.
Motion and Edge Adaptive De-interlacing.
Note: When receiving content that has HDCP encryption there will be no video output same as for HDMI output
port.

7
6. OPERATION CONTROLS AND FUNCTIONS
6.1 Position/Time

AUDIO FOLLOW
AUTO / WIPE
START
ON
-15
L
AUDIO
LEVEL R
DB
DB
-10 -5 -3 +3 +4+20 +1-1
-15 -10 -5 -3 +3 +4+20 +1-1
INPUT A
MAX
MIN
INPUT B
MAX
MIN
AUX
MAX
MIN
MIC
MAX
MIN
VIDEO
VIDEO/AUDIO MIXERVIDEO SOURCE SELECT
BACK
COLOR
SD INPUT 2SD INPUT 1HD INPUT 2HD INPUT 1HDMI 2HDMI 1
DIGITAL EFFECTS ADJUSTFUNCTIONS MODE CONTROL
KEYMIX1/41/31/2
PIP
COLOR
WIPE
EDGE
MULTIREVERSEONE-WAY
B-KEY 1/2L-KEY 1/2
1/2 1/3 1/4
A SOURCE B SOURCE
STILL
TIME
POSITION
MIN MAX
CMX-12
VIDEO EFFECTS MIXER
DEMO
ADJUST
SCAN
NEGATIVEPAINT MOSAIC
B
A
A
B
ON
FUNC
1/
ONE-
L-KE
1/
A S
TIME
POSITION
MIN MAX
➊
➊

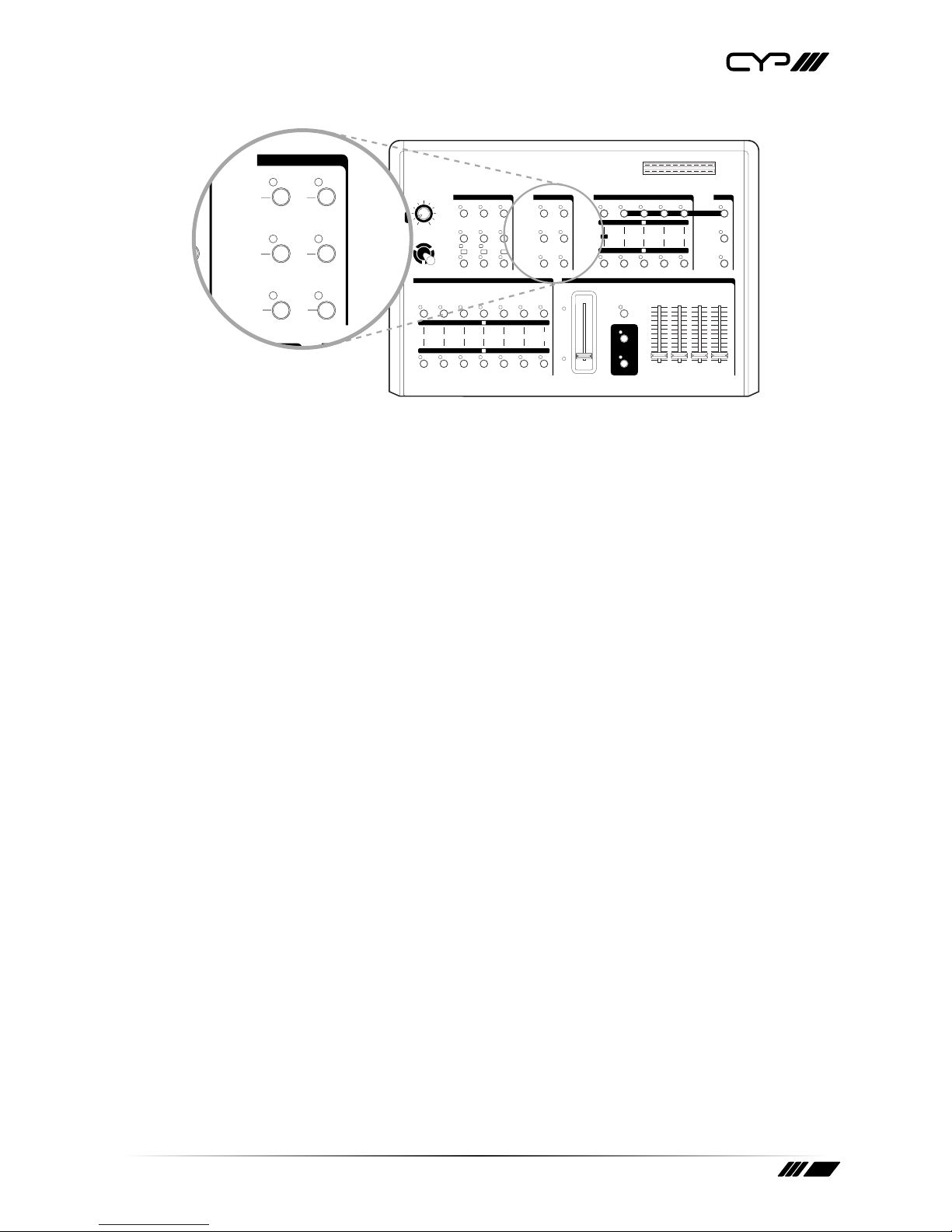

➊ Time Control
For adjusting the transition time of the Auto Fade and the Auto Wipe functions.
➊ Joystick control
The joystick control has two functions, it controls the position of the 'Shape' wipe pattern (button ➊) and the
on-screen location of the picture-in-picture box (button ➊).

8
6.2 Wipe Modes

AUDIO FOLLOW
AUTO / WIPE
START
ON
-15
L
AUDIO
LEVEL R
DB
DB
-10 -5 -3 +3 +4+20 +1-1
-15 -10 -5 -3 +3 +4+20 +1-1
INPUT A
MAX
MIN
INPUT B
MAX
MIN
AUX
MAX
MIN
MIC
MAX
MIN
VIDEO
VIDEO/AUDIO MIXERVIDEO SOURCE SELECT
BACK
COLOR
SD INPUT 2SD INPUT 1HD INPUT 2HD INPUT 1HDMI 2HDMI 1
DIGITAL EFFECTS ADJUSTFUNCTIONS MODE CONTROL
KEYMIX1/41/31/2
PIP
COLOR
WIPE
EDGE
MULTIREVERSEONE-WAY
B-KEY 1/2L-KEY 1/2
1/2 1/3 1/4
A SOURCE B SOURCE
STILL
TIME
POSITION
MIN MAX
CMX-12
VIDEO EFFECTS MIXER
DEMO
ADJUST
SCAN
NEGATIVEPAINT MOSAIC
B
A
A
B
ON
URCE SELECT
FUNCTIONS
1/41/31/2
MULTIREVERSEONE-WAY
B-KEY 1/2L-KEY 1/2
1/2 1/3 1/4
A SOURCE B SOURCE
X
VIDEO EFFECTS MIXER
➊➊ ➊
➊➊ ➊
➊➊ ➊

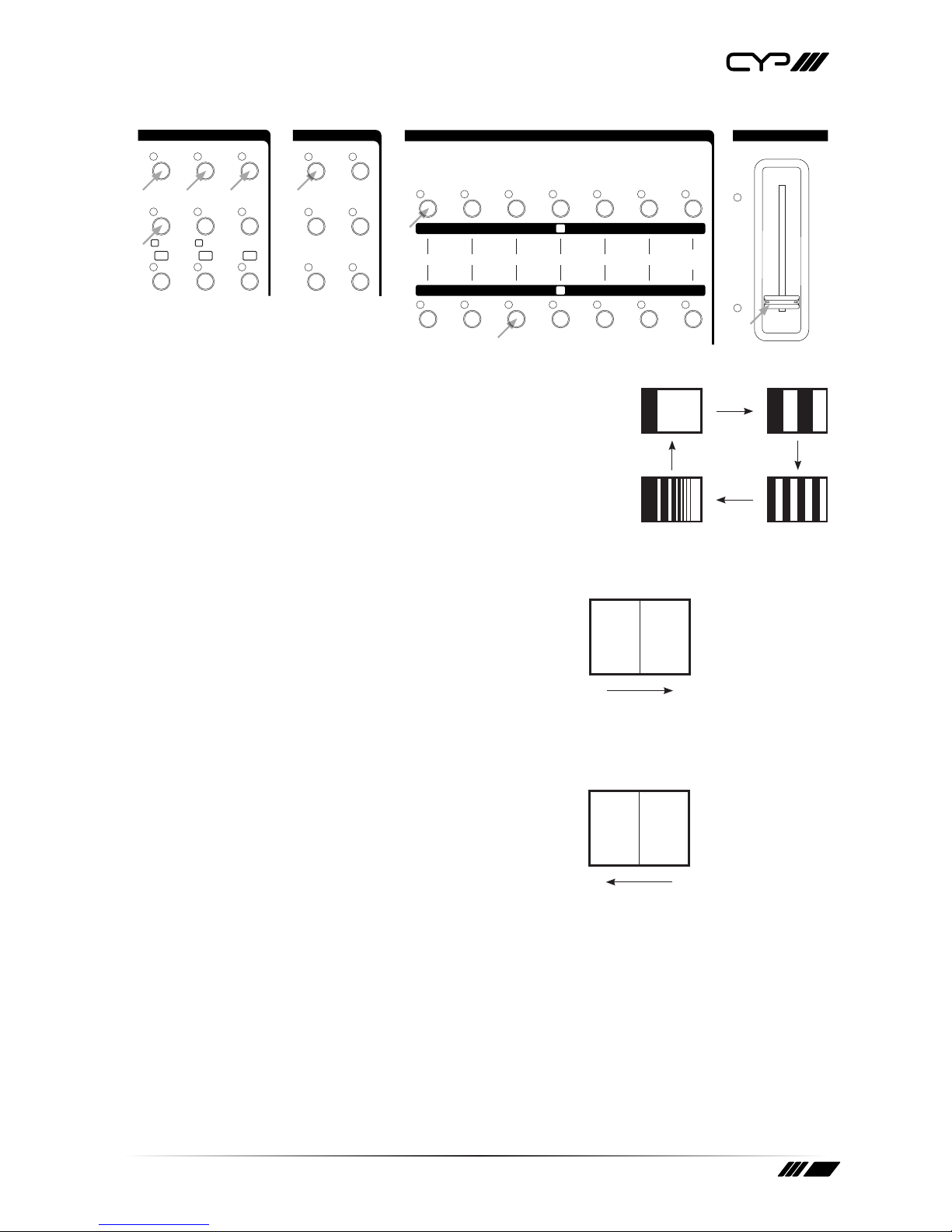

➊ One-way wipe button
Selects the standard direction for the wipe pattern.
➊ Reverse wipe button
Selects the reverse direction for the wipe pattern.
➊ Multiple wipe button
Adds multiple wipes to the wipe pattern (up to 4 wipes).

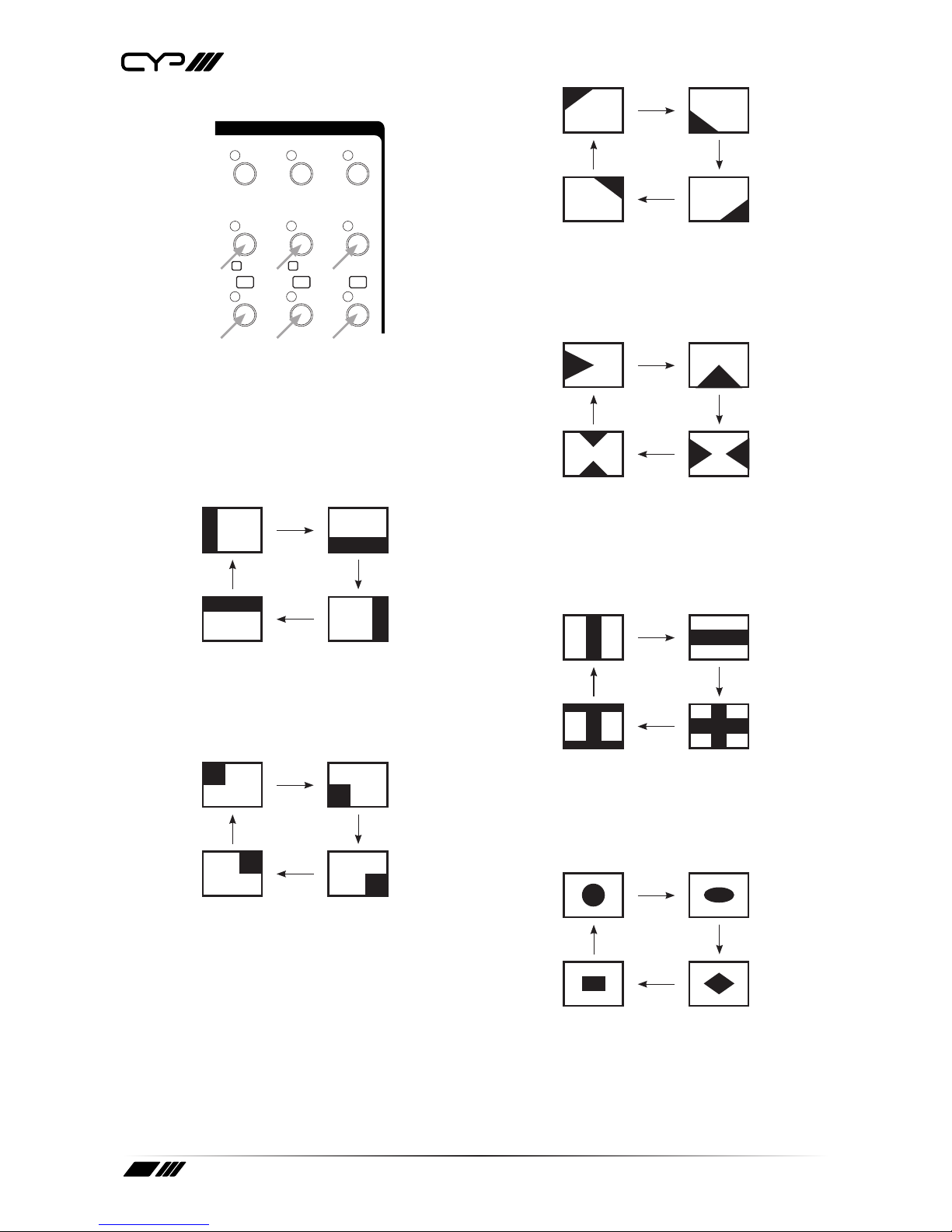

➊ Straight wipe button
Selects and toggles between 4 straight vertical or horizontal wipe patterns.
➊ Split wipe button
Selects and toggles between 4 split wipe patterns.
➊ Corner wipe button
Selects and toggles between 4 wipe patterns that originate from a corner.
➊ Diagonal wipe button
Selects and toggles between diagonal style wipe patterns.
➊ Triangle wipe button
Selects and toggles between triangle style wipe patterns.
➊ 'Shape' wipe button
Selects and toggles between 4 dierently 'shaped' wipes patterns (circle, oval, diamond and square). The
position of the wipe can be adjusted using the Position Joystick (➊)

9
6.3 Mode Control

AUDIO FOLLOW
AUTO / WIPE
START
ON
-15
L
AUDIO
LEVEL R
DB
DB
-10 -5 -3 +3 +4+20 +1-1
-15 -10 -5 -3 +3 +4+20 +1-1
INPUT A
MAX
MIN
INPUT B
MAX
MIN
AUX
MAX
MIN
MIC
MAX
MIN
VIDEO
VIDEO/AUDIO MIXERVIDEO SOURCE SELECT
BACK
COLOR
SD INPUT 2SD INPUT 1HD INPUT 2HD INPUT 1HDMI 2HDMI 1
DIGITAL EFFECTS ADJUSTFUNCTIONS MODE CONTROL
KEYMIX1/41/31/2
PIP
COLOR
WIPE
EDGE
MULTIREVERSEONE-WAY
B-KEY 1/2L-KEY 1/2
1/2 1/3 1/4
A SOURCE B SOURCE
STILL
TIME
POSITION
MIN MAX
CMX-12
VIDEO EFFECTS MIXER
DEMO
ADJUST
SCAN
NEGATIVEPAINT MOSAIC
B
A
A
B
ON
VIDEO/AUDIO MIXER
DIGMODE CONTROL
KEYMIX4
PIP
COLOR
WIPE
EDGE
LTI
4
➊ ➊
➊ ➊
➊ ➊
➊ Wipe button
Selects the wipe mode.
➊ PIP button
Selects the picture-in-picture mode.
➊ Mix (Fade) button
Selects the fade in/out mode.
➊ KEY button
Selects the blue key and luma key eects mode.
➊ EDGE button
In wipe mode, toggles between sharp/soft or colored edge.
➊ COLOR button
Toggles the edge colour when the EDGE button is set to coloured edge mode.

10
6.4 Digital Eects

AUDIO FOLLOW
AUTO / WIPE
START
ON
-15
L
AUDIO
LEVEL R
DB
DB
-10 -5 -3 +3 +4+20 +1-1
-15 -10 -5 -3 +3 +4+20 +1-1
INPUT A
MAX
MIN
INPUT B
MAX
MIN
AUX
MAX
MIN
MIC
MAX
MIN
VIDEO
VIDEO/AUDIO MIXERVIDEO SOURCE SELECT
BACK
COLOR
SD INPUT 2SD INPUT 1HD INPUT 2HD INPUT 1HDMI 2HDMI 1
DIGITAL EFFECTS ADJUSTFUNCTIONS MODE CONTROL
KEYMIX1/41/31/2
PIP
COLOR
WIPE
EDGE
MULTIREVERSEONE-WAY
B-KEY 1/2L-KEY 1/2
1/2 1/3 1/4
A SOURCE B SOURCE
STILL
TIME
POSITION
MIN MAX
CMX-12
VIDEO EFFECTS MIXER
DEMO
ADJUST
SCAN
NEGATIVEPAINT MOSAIC
B
A
A
B
ON

DIGITAL EFFECTS
STILL NEGATIVEPAINT MOSAIC
A
B
ON
➊ ➊ ➊ •• ••
•• •• •• •• ••
➊ A-bus digital eect ON button.
➊ A-bus Still button/OSD left adjust.
➊ A-bus Paint button/OSD right adjust.
•• A-bus Negative button/OSD up adjust.
•• A-bus Mosaic button/OSD down adjust.
•• B-bus digital eect ON button.
•• B-bus Still button.
•• B-bus Paint button.
•• B-bus Negative button.
•• B-bus Mosaic button.

11
6.5 Adjust

AUDIO FOLLOW
AUTO / WIPE
START
ON
-15
L
AUDIO
LEVEL R
DB
DB
-10 -5 -3 +3 +4+20 +1-1
-15 -10 -5 -3 +3 +4+20 +1-1
INPUT A
MAX
MIN
INPUT B
MAX
MIN
AUX
MAX
MIN
MIC
MAX
MIN
VIDEO
VIDEO/AUDIO MIXERVIDEO SOURCE SELECT
BACK
COLOR
SD INPUT 2SD INPUT 1HD INPUT 2HD INPUT 1HDMI 2HDMI 1
DIGITAL EFFECTS ADJUSTFUNCTIONS MODE CONTROL
KEYMIX1/41/31/2
PIP
COLOR
WIPE
EDGE
MULTIREVERSEONE-WAY
B-KEY 1/2L-KEY 1/2
1/2 1/3 1/4
A SOURCE B SOURCE
STILL
TIME
POSITION
MIN MAX
CMX-12
VIDEO EFFECTS MIXER
DEMO
ADJUST
SCAN
NEGATIVEPAINT MOSAIC
B
A
A
B
ON

ADJUST
DEMO
ADJUST
SCAN
MOSAIC
••
••
••
•• ADJUST button
When activated, the Setup Menu is displayed through the SD Preview output. In this mode, the menu can be
navigated and values adjusted using the cursor buttons (➊ t ➊ u ••  and •• p ). When deactivated the
SD Preview output will show A-bus/B-bus output source and format.
•• DEMO button
When pressed, this button places the unit into DEMO mode and will cycle through all 96 wipe patterns. The
speed of the DEMO mode can be controlled with the Time Control (➊). Press the DEMO button again to cancel
DEMO mode.
•• SCAN button
If the SCAN button is pressed for 3 seconds, the system will enter SCAN mode and will SCAN the input ports from
1 to 6 and record each port's format to the system memory.

12
6.6 Video Source Select

AUDIO FOLLOW
AUTO / WIPE
START
ON
-15
L
AUDIO
LEVEL R
DB
DB
-10 -5 -3 +3 +4+20 +1-1
-15 -10 -5 -3 +3 +4+20 +1-1
INPUT A
MAX
MIN
INPUT B
MAX
MIN
AUX
MAX
MIN
MIC
MAX
MIN
VIDEO
VIDEO/AUDIO MIXERVIDEO SOURCE SELECT
BACK
COLOR
SD INPUT 2SD INPUT 1HD INPUT 2HD INPUT 1HDMI 2HDMI 1
DIGITAL EFFECTS ADJUSTFUNCTIONS MODE CONTROL
KEYMIX1/41/31/2
PIP
COLOR
WIPE
EDGE
MULTIREVERSEONE-WAY
B-KEY 1/2L-KEY 1/2
1/2 1/3 1/4
A SOURCE B SOURCE
STILL
TIME
POSITION
MIN MAX
CMX-12
VIDEO EFFECTS MIXER
DEMO
ADJUST
SCAN
NEGATIVEPAINT MOSAIC
B
A
A
B
ON
VIDEO SOURCE SELECT
BACK
COLOR
SD INPUT 2SD INPUT 1HD INPUT 2HD INPUT 1HDMI 2HDMI 1
B
A
•• •• •• •• •• •• ••
•• •• •• •• •• •• ••
••/•• Selects Source 1, HDM I 1 for A-bus/B-bus.
••/•• Selects Source 2, HDMI 2 for A-bus/B-bus.
••/•• Selects Source 3, HD input 1 for A-bus/B-bus.
••/•• Selects Source 4, HD input 2 for A-bus/B-bus.
••
/•• Selects Source 5, SD input 1 for A-bus/B-bus. When both S-Video and Composite Video
sources are connected at the same time, S-Video will be the rst source to be displayed.
••/•• Selects Source 5, SD input 2 for A-bus/B-bus. When both S-Video and Composite Video
sources are connected at the same time, S-Video will be the rst source to be displayed.
•• Selects the A-bus background color, one of eight colors can be selected.
•• Selects the B-bus background color, one of eight colors can be selected.

13
6.7 Audio/Video Mixer

AUDIO FOLLOW
AUTO / WIPE
START
ON
-15
L
AUDIO
LEVEL R
DB
DB
-10 -5 -3 +3 +4+20 +1-1
-15 -10 -5 -3 +3 +4+20 +1-1
INPUT A
MAX
MIN
INPUT B
MAX
MIN
AUX
MAX
MIN
MIC
MAX
MIN
VIDEO
VIDEO/AUDIO MIXERVIDEO SOURCE SELECT
BACK
COLOR
SD INPUT 2SD INPUT 1HD INPUT 2HD INPUT 1HDMI 2HDMI 1
DIGITAL EFFECTS ADJUSTFUNCTIONS MODE CONTROL
KEYMIX1/41/31/2
PIP
COLOR
WIPE
EDGE
MULTIREVERSEONE-WAY
B-KEY 1/2L-KEY 1/2
1/2 1/3 1/4
A SOURCE B SOURCE
STILL
TIME
POSITION
MIN MAX
CMX-12
VIDEO EFFECTS MIXER
DEMO
ADJUST
SCAN
NEGATIVEPAINT MOSAIC
B
A
A
B
ON
AUDIO FOLLOW
AUTO / WIPE
START
ON
INPUT A
MAX
MIN
INPUT B
MAX
MIN
AUX
MAX
MIN
MIC
MAX
MIN
VIDEO
VIDEO/AUDIO MIXER
••
••
••
••
•• •• •• •• ••
••

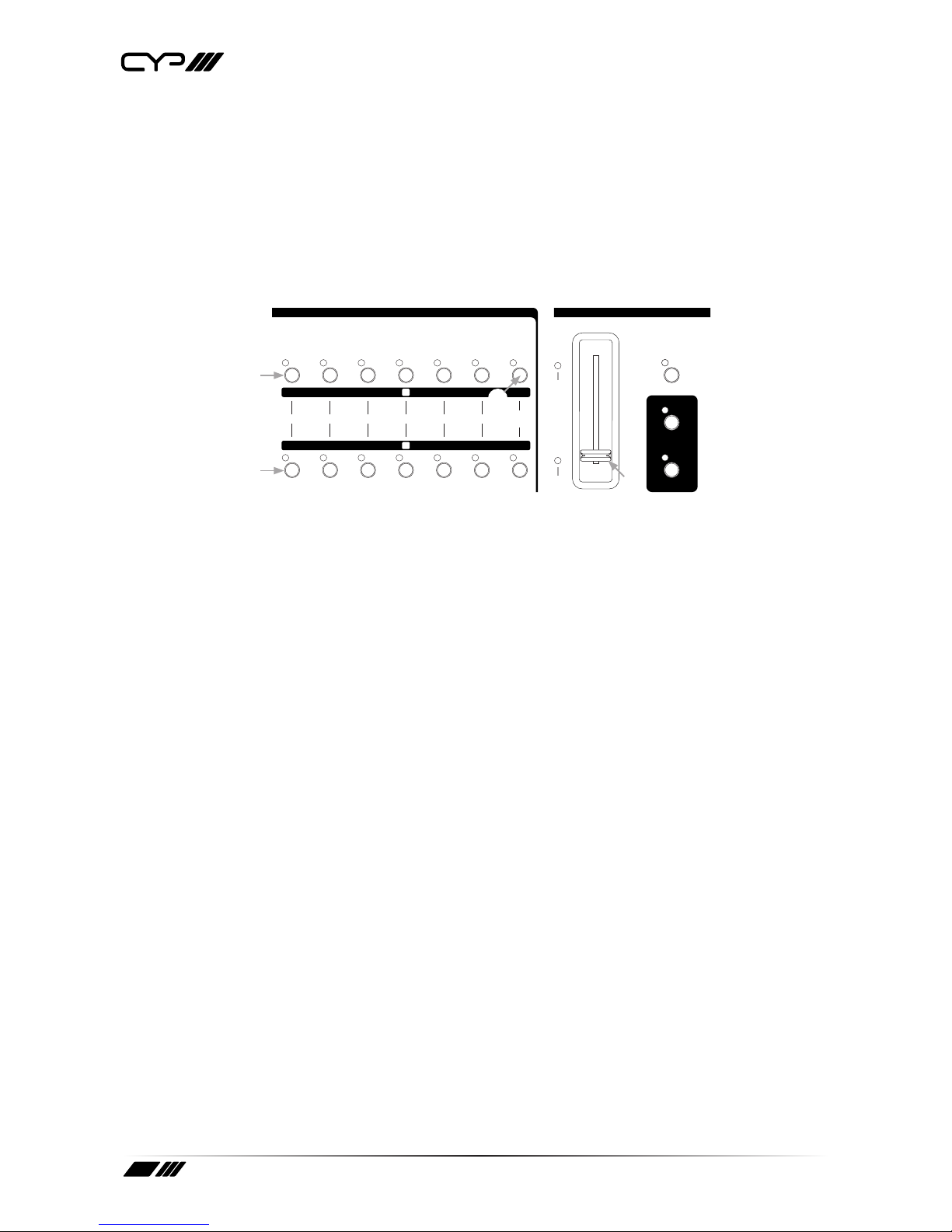

•• A-bus LED indicator/•• B-bus LED indicator.
Indicates which input signal is currently in use and displayed. When the Video Slider is at the top, A-bus input
signal is selected/displayed and the A-bus indicator •• is lit. When the Video Slider is at the bottom, the B-bus
input signal is selected/displayed and the B-bus indicator is lit. When the Video Slider is at anypoint between, the
two LEDs will ash in squence to indicate that wipe/fade/mix is in progress.
•• VIDEO slider
Controls the Wipe, PIP and Key eects. Move the slider to control the position of a wipe, the degree of fade or
mix, or the strength of a Luma key or blue key eect.
•• AUDIO FOLLOW
Controls manual or automatic audio mixing. When activated the audio mix between A-bus and B-bus audio
inputs is controlled by the Video Slider (••). When deactivated, the audio mix between the A-bus and B-bus can
be independently controlled •• and ••.
Note: AUDIO FOLLOW only aects the Input A or Input B audio mix, the AUX or MIC inputs remain unaected.
•• AUTO/WIPE
When pressed, puts the unit into AUTO/WIPE mode and disables the Video Slider.
•• START button
When the start button is pressed, the most recently programmed wipe/fade/mix is initiated. The TIME control (➊)
can be used to adjust the length of the transition. The LED will be lit for the duration of the transition and will go
out when complete.
•• INPUT A
Controls the audio level of Input A.
•• INPUT B
Controls the audio level of Input B.
•• AUX
Controls the audio level of the Auxiliary input.
•• MIC
Controls the audio level of the Microphone input.

14
6.8 Audio Level

AUDIO FOLLOW
AUTO / WIPE
START
ON
-15
L
AUDIO
LEVEL R
DB
DB
-10 -5 -3 +3 +4+20 +1-1
-15 -10 -5 -3 +3 +4+20 +1-1
INPUT A
MAX
MIN
INPUT B
MAX
MIN
AUX
MAX
MIN
MIC
MAX
MIN
VIDEO
VIDEO/AUDIO MIXERVIDEO SOURCE SELECT
BACK
COLOR
SD INPUT 2SD INPUT 1HD INPUT 2HD INPUT 1HDMI 2HDMI 1
DIGITAL EFFECTS ADJUSTFUNCTIONS MODE CONTROL
KEYMIX1/41/31/2
PIP
COLOR
WIPE
EDGE
MULTIREVERSEONE-WAY
B-KEY 1/2L-KEY 1/2
1/2 1/3 1/4
A SOURCE B SOURCE
STILL
TIME
POSITION
MIN MAX
CMX-12
VIDEO EFFECTS MIXER
DEMO
ADJUST
SCAN
NEGATIVEPAINT MOSAIC
B
A
A
B
ON
-15
L
AUDIO
LEVEL R
DB
DB
-10 -5 -3 +3 +4+20 +1-1
-15 -10 -5 -3 +3 +4+20 +1-1
••

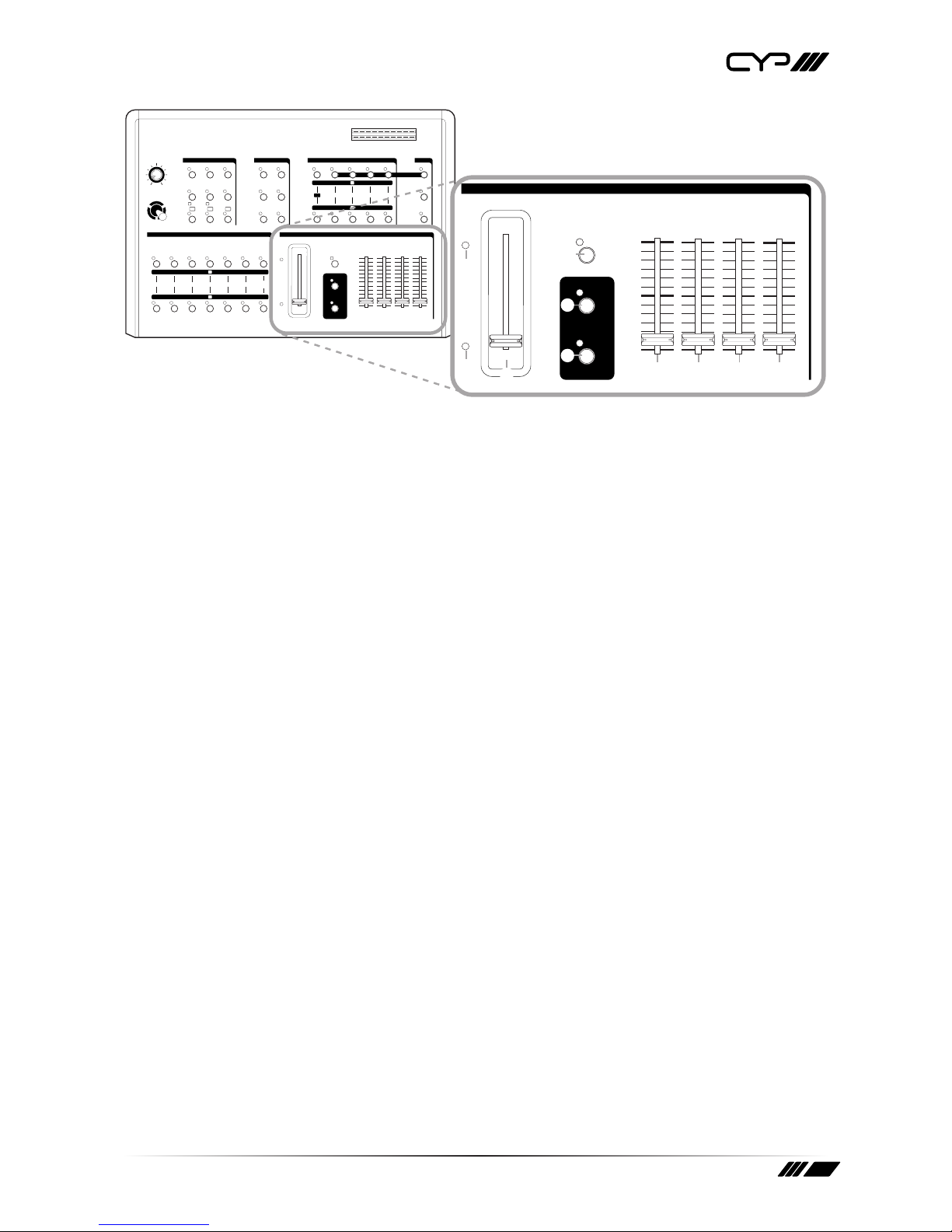

•• Audio level indicator (Audio level)
This indicator shows the audio output level of REC out 1 and REC out 2.

15
6.9 Rear Panel
DC INPUT
12V
R1 R1R2 R2 RR 1L1 L1L2 L2 LL 1L 2
Pr
Pb VS
VS
Y
R2
VSPr
Pb
Y
VSPr
Pb
Y
HDMI 1 HDMI 2
Pr
Pb
Y
AUX INPUT
SD INPUT 1
SD INPUT 2
SD AUDIO INPUTHD AUDIO INPUT
HD OUTPUT 1
HD OUTPUT 2
HD INPUT 1
HD INPUT 2
AUDIO OUTPUT
SD OUTPUT
SD PREVIEW
HDMI OUTPUTHDMI INPUT
•• •• •• •• •• •• ••
•• •••••• •• •• ••••
••
•• •• ••••
•• Source 3 HD audio input 1.
•• Source 4 HD audio input 2.
•• Source 5 SD audio input 1.
•• Source 6 SD audio input 2.
•• Auxiliary Audio input Jack.
•• Recording out 1 Audio output Jack.
•• Recording out 2 Audio output Jack.
•• Power Switch
•• Source 1 HDMI input 1.
•• Source 2 HDMI input 2.
•• Source 3 HD Y-PB-PR Video input 1.
•• Source 4 HD Y-PB-PR Video input 2.
•• Source 5 SD Video and YC input 1.
•• Source 6 SD Video and YC input 2.
•• HDMI output for monitor.
•• Recording out 1 HD YPb-Pr Video output jack.
•• Recording out 2 HD YPb-Pr Video output jack.
•• SD PREVIEW out (OSD) Video and YC output jack.
•• SD Recording out Video and YC output jack.
•• DC INPUT 12V 3.0A.

16
7. OPERATION
7.1 Basic Operation
Turn the power switch at the rear panel to the ON Position. The LEDs on the operation panel will light up and the
unit is now in inital mode for operation.
7.2 Input Signal Selection and Back Color Selection

AUDIO FOLLOW
AUTO / WIPE
START
ON
-15
L
AUDIO
LEVEL R
DB
DB
-10 -5 -3 +3 +4+20 +1-1
-15 -10 -5 -3 +3 +4+20 +1-1
INPUT A
MAX
MIN
INPUT B
MAX
MIN
AUX
MAX
MIN
MIC
MAX
MIN
VIDEO
VIDEO/AUDIO MIXERVIDEO SOURCE SELECT
BACK
COLOR
SD INPUT 2SD INPUT 1HD INPUT 2HD INPUT 1HDMI 2HDMI 1
DIGITAL EFFECTS ADJUSTFUNCTIONS MODE CONTROL
KEYMIX1/41/31/2
PIP
COLOR
WIPE
EDGE
MULTIREVERSEONE-WAY
B-KEY 1/2L-KEY 1/2
1/2 1/3 1/4
A SOURCE B SOURCE
STILL
TIME
POSITION
MIN MAX
CMX-12
VIDEO EFFECTS MIXER
DEMO
ADJUST
SCAN
NEGATIVEPAINT MOSAIC
B
A
A
B
ON
➊
➊➊
➊••
••
q
Move the Video slider (Button ••) to the A-bus position. The A-bus LED •• will turn on, B-bus LED •• will turn
o.
w
Select your source for A-bus from any of the Sources (HDMI 1, HDMI 2, HD Input 1, HD Input 2, SD Input 1 or SD
Input 2) and Back color button. You will see the corresponding picture on the screen.
➊
Press a Back Color button to select the background color required. Repeatedly pressing the Back Color selection
button •• will cycle through the available background colors (Blue, Red, Magenta, Green, Cyan, Yellow, White
or Black).
➊
The same procedures apply to the B-bus.
NOTE: When the selected source input is not connected or has HDCP protection, only a blank, blue screen will
be displayed.

17
7.3 Video Mix

AUDIO FOLLOW
AUTO / WIPE
START
ON
-15
L
AUDIO
LEVEL R
DB
DB
-10 -5 -3 +3 +4+20 +1-1
-15 -10 -5 -3 +3 +4+20 +1-1
INPUT A
MAX
MIN
INPUT B
MAX
MIN
AUX
MAX
MIN
MIC
MAX
MIN
VIDEO
VIDEO/AUDIO MIXER
VIDEO SOURCE SELECT
BACK
COLOR
SD INPUT 2SD INPUT 1HD INPUT 2HD INPUT 1HDMI 2HDMI 1
DIGITAL EFFECTS ADJUSTFUNCTIONS MODE CONTROL
KEYMIX1/41/31/2
PIP
COLOR
WIPE
EDGE
MULTIREVERSEONE-WAY
B-KEY 1/2L-KEY 1/2
1/2 1/3 1/4
A SOURCE B SOURCE
STILL
TIME
POSITION
MIN MAX
CMX-12
VIDEO EFFECTS MIXER
DEMO
ADJUST
SCAN
NEGATIVEPAINT MOSAIC
B
A
A
B
ON

AUDIO FOLLOW
AUTO / WIPE
START
ON
-15
L
AUDIO
LEVEL R
DB
DB
-10 -5 -3 +3 +4+20 +1-1
-15 -10 -5 -3 +3 +4+20 +1-1
INPUT A
MAX
MIN
INPUT B
MAX
MIN
AUX
MAX
MIN
MIC
MAX
MIN
VIDEO
VIDEO/AUDIO MIXER
VIDEO SOURCE SELECT
BACK
COLOR
SD INPUT 2SD INPUT 1HD INPUT 2HD INPUT 1HDMI 2HDMI 1
DIGITAL EFFECTS ADJUSTFUNCTIONS MODE CONTROL
KEYMIX1/41/31/2
PIP
COLOR
WIPE
EDGE
MULTIREVERSEONE-WAY
B-KEY 1/2L-KEY 1/2
1/2 1/3 1/4
A SOURCE B SOURCE
STILL
TIME
POSITION
MIN MAX
CMX-12
VIDEO EFFECTS MIXER
DEMO
ADJUST
SCAN
NEGATIVEPAINT MOSAIC
B
A
A
B
ON

AUDIO FOLLOW
AUTO / WIPE
START
ON
-15
L
AUDIO
LEVEL R
DB
DB
-10 -5 -3 +3 +4+20 +1-1
-15 -10 -5 -3 +3 +4+20 +1-1
INPUT A
MAX
MIN
INPUT B
MAX
MIN
AUX
MAX
MIN
MIC
MAX
MIN
VIDEO
VIDEO/AUDIO MIXERVIDEO SOURCE SELECT
BACK
COLOR
SD INPUT 2SD INPUT 1HD INPUT 2HD INPUT 1HDMI 2HDMI 1
DIGITAL EFFECTS ADJUSTFUNCTIONS
MODE CONTROL
KEYMIX
1/41/31/2
PIP
COLOR
WIPE
EDGE
MULTIREVERSEONE-WAY
B-KEY 1/2L-KEY 1/2
1/2 1/3 1/4
A SOURCE B SOURCE
STILL
TIME
POSITION
MIN MAX
CMX-12
VIDEO EFFECTS MIXER
DEMO
ADJUST
SCAN
NEGATIVEPAINT MOSAIC
B
A
A
B
ON
➊
➊➊
➊

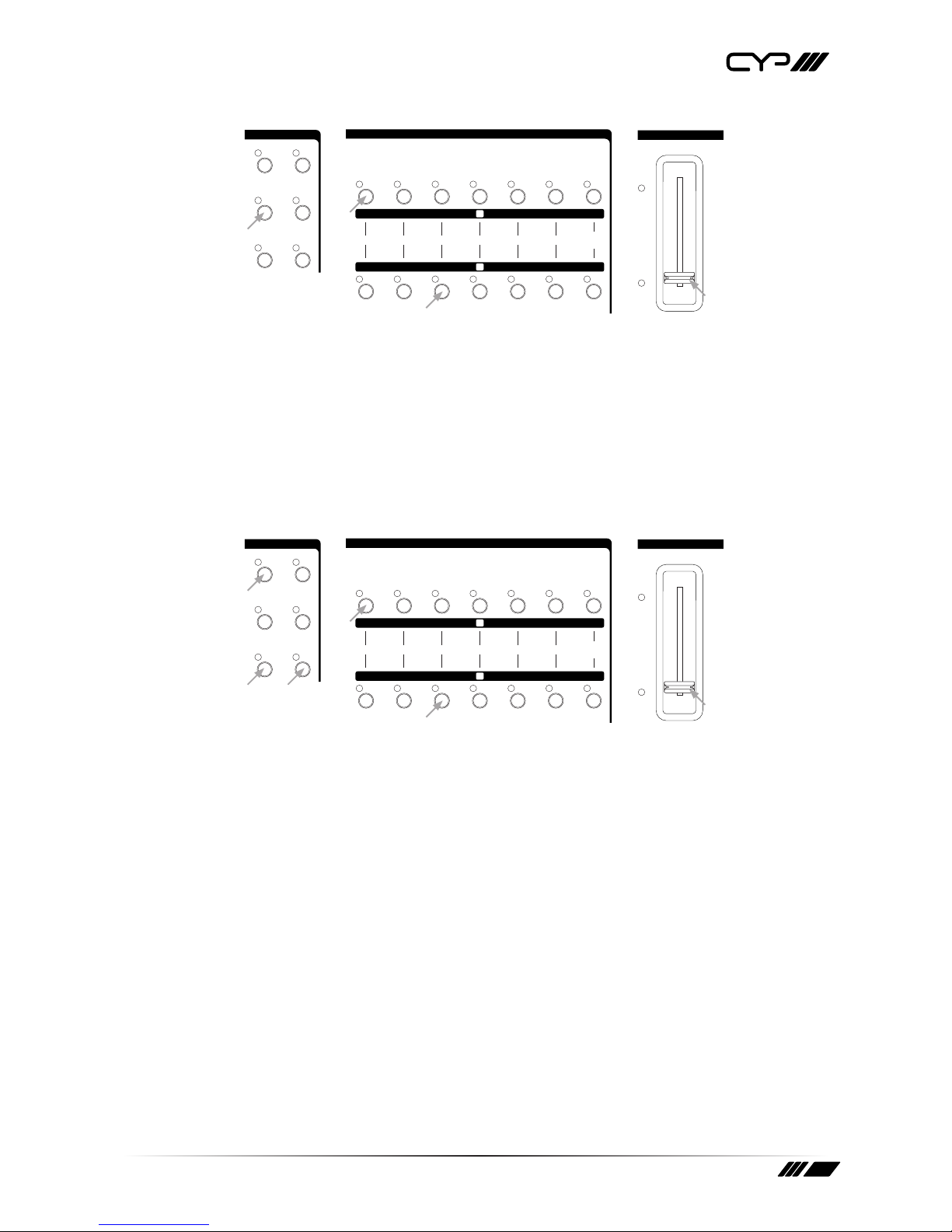

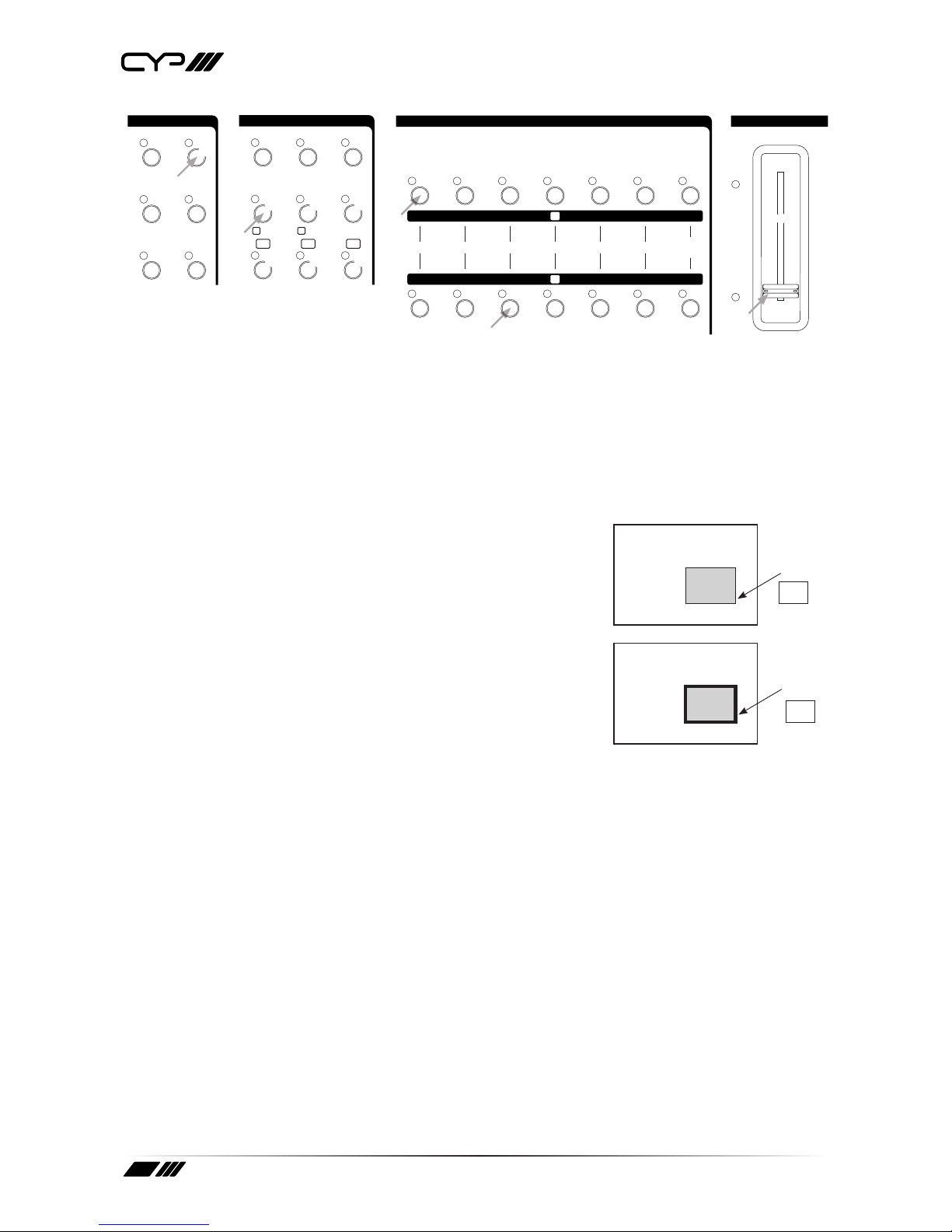

Reset the operation panel to initial mode:
q
Press the MIX button •• to put the unit into mix mode
➊
Press one of the A-bus selection buttons to select a source.
e
Press one of the B-bus selection buttons to select a source.
r
The Mix eect can be controlled by the Video slider •• by moving it from A to B or B to A.
7.4 Video Wipe

AUDIO FOLLOW
AUTO / WIPE
START
ON
-15
L
AUDIO
LEVEL R
DB
DB
-10 -5 -3 +3 +4+20 +1-1
-15 -10 -5 -3 +3 +4+20 +1-1
INPUT A
MAX
MIN
INPUT B
MAX
MIN
AUX
MAX
MIN
MIC
MAX
MIN
VIDEO
VIDEO/AUDIO MIXER
VIDEO SOURCE SELECT
BACK
COLOR
SD INPUT 2SD INPUT 1HD INPUT 2HD INPUT 1HDMI 2HDMI 1
DIGITAL EFFECTS ADJUSTFUNCTIONS MODE CONTROL
KEYMIX1/41/31/2
PIP
COLOR
WIPE
EDGE
MULTIREVERSEONE-WAY
B-KEY 1/2L-KEY 1/2
1/2 1/3 1/4
A SOURCE B SOURCE
STILL
TIME
POSITION
MIN MAX
CMX-12
VIDEO EFFECTS MIXER
DEMO
ADJUST
SCAN
NEGATIVEPAINT MOSAIC
B
A
A
B
ON

AUDIO FOLLOW
AUTO / WIPE
START
ON
-15
L
AUDIO
LEVEL R
DB
DB
-10 -5 -3 +3 +4+20 +1-1
-15 -10 -5 -3 +3 +4+20 +1-1
INPUT A
MAX
MIN
INPUT B
MAX
MIN
AUX
MAX
MIN
MIC
MAX
MIN
VIDEO
VIDEO/AUDIO MIXER
VIDEO SOURCE SELECT
BACK
COLOR
SD INPUT 2SD INPUT 1HD INPUT 2HD INPUT 1HDMI 2HDMI 1
DIGITAL EFFECTS ADJUSTFUNCTIONS MODE CONTROL
KEYMIX1/41/31/2
PIP
COLOR
WIPE
EDGE
MULTIREVERSEONE-WAY
B-KEY 1/2L-KEY 1/2
1/2 1/3 1/4
A SOURCE B SOURCE
STILL
TIME
POSITION
MIN MAX
CMX-12
VIDEO EFFECTS MIXER
DEMO
ADJUST
SCAN
NEGATIVEPAINT MOSAIC
B
A
A
B
ON

AUDIO FOLLOW
AUTO / WIPE
START
ON
-15
L
AUDIO
LEVEL R
DB
DB
-10 -5 -3 +3 +4+20 +1-1
-15 -10 -5 -3 +3 +4+20 +1-1
INPUT A
MAX
MIN
INPUT B
MAX
MIN
AUX
MAX
MIN
MIC
MAX
MIN
VIDEO
VIDEO/AUDIO MIXERVIDEO SOURCE SELECT
BACK
COLOR
SD INPUT 2SD INPUT 1HD INPUT 2HD INPUT 1HDMI 2HDMI 1
DIGITAL EFFECTS ADJUSTFUNCTIONS
MODE CONTROL
KEYMIX
1/41/31/2
PIP
COLOR
WIPE
EDGE
MULTIREVERSEONE-WAY
B-KEY 1/2L-KEY 1/2
1/2 1/3 1/4
A SOURCE B SOURCE
STILL
TIME
POSITION
MIN MAX
CMX-12
VIDEO EFFECTS MIXER
DEMO
ADJUST
SCAN
NEGATIVEPAINT MOSAIC
B
A
A
B
ON
➊
t ➊
➊r
w
Reset the operation panel to initial mode:
q
Press the WIPE button ➊.
➊
Press one of the A-bus selection buttons to select a source.
e
Press one of the B-bus selection buttons to select a source.
r
The WIPE eect can be controlled by the Video Slider •• by moving it from A to B or B to A, horizontally or
vertically depending on the type of wipe used.
t
Press EDGE button ➊ to select sharp/soft/colored wipe edge.
y
When the colored edge option for the wipe is selected, press COLOR button ➊ to select one of the eight colors
available.

18
7.5 WIPE PATTERN Selection

AUDIO FOLLOW
AUTO / WIPE
START
ON
-15
L
AUDIO
LEVEL R
DB
DB
-10 -5 -3 +3 +4+20 +1-1
-15 -10 -5 -3 +3 +4+20 +1-1
INPUT A
MAX
MIN
INPUT B
MAX
MIN
AUX
MAX
MIN
MIC
MAX
MIN
VIDEO
VIDEO/AUDIO MIXERVIDEO SOURCE SELECT
BACK
COLOR
SD INPUT 2SD INPUT 1HD INPUT 2HD INPUT 1HDMI 2HDMI 1
DIGITAL EFFECTS ADJUST
FUNCTIONS
MODE CONTROL
KEYMIX
1/41/31/2
PIP
COLOR
WIPE
EDGE
MULTIREVERSEONE-WAY
B-KEY 1/2L-KEY 1/2
1/2 1/3 1/4
A SOURCE B SOURCE
STILL
TIME
POSITION
MIN MAX
CMX-12
VIDEO EFFECTS MIXER
DEMO
ADJUST
SCAN
NEGATIVEPAINT MOSAIC
B
A
A
B
ON
➊
➊
➊ ➊
➊➊
There are Six wipe modes available can be selected as
follows:
q

Press the straight wipe button ➊ repeatedly to
toggle through the available wipe patterns. Four
are available: Left to right, right to left, top to
bottom and bottom to top
➊
Press the corner wipe button ➊ repeatedly to
toggle through the available wipe patterns. Four
are available: Top right to bottom left, bottom right
to top left, bottom left to top right and top left to
bottom right.
➊
Press the diagonal wipe button ➊ repeatedly to
toggle through the available wipe patterns. Four
are available: Top right to bottom left, bottom right
to top left, bottom left to top right and top right to
bottom left.
r
Press the triangle wipe button ➊ repeatedly to
toggle through the available wipe patterns. Four
are available: Left to right, Bottom to top, top
and bottom simultaneously and left and right
simultaneously.
➊
Press the split wipe button ➊ repeatedly to
toggle through the available wipe patterns. Four
are available: Left and right simultaneously, top
and bottom simultaneously, all four corners
simultaneously and rectangles from left and right
simultaneously.
➊
Press the 'Shape' wipe button ➊ repeatedly to
toggle through the available wipe patterns. Four
are available: Circle, oval, diamond and rectangle.
The position of each wipe pattern in this section
can be set via the Joystick Control ➊.

19
7.6 Multiple Pattern Selection

AUDIO FOLLOW
AUTO / WIPE
START
ON
-15
L
AUDIO
LEVEL R
DB
DB
-10 -5 -3 +3 +4+20 +1-1
-15 -10 -5 -3 +3 +4+20 +1-1
INPUT A
MAX
MIN
INPUT B
MAX
MIN
AUX
MAX
MIN
MIC
MAX
MIN
VIDEO
VIDEO/AUDIO MIXERVIDEO SOURCE SELECT
BACK
COLOR
SD INPUT 2SD INPUT 1HD INPUT 2HD INPUT 1HDMI 2HDMI 1
DIGITAL EFFECTS ADJUST
FUNCTIONS
MODE CONTROL
KEYMIX
1/41/31/2
PIP
COLOR
WIPE
EDGE
MULTIREVERSEONE-WAY
B-KEY 1/2L-KEY 1/2
1/2 1/3 1/4
A SOURCE B SOURCE
STILL
TIME
POSITION
MIN MAX
CMX-12
VIDEO EFFECTS MIXER
DEMO
ADJUST
SCAN
NEGATIVEPAINT MOSAIC
B
A
A
B
ON
➊
➊ ➊
➊
➊
➊➊

AUDIO FOLLOW
AUTO / WIPE
START
ON
-15
L
AUDIO
LEVEL R
DB
DB
-10 -5 -3 +3 +4+20 +1-1
-15 -10 -5 -3 +3 +4+20 +1-1
INPUT A
MAX
MIN
INPUT B
MAX
MIN
AUX
MAX
MIN
MIC
MAX
MIN
VIDEO
VIDEO/AUDIO MIXERVIDEO SOURCE SELECT
BACK
COLOR
SD INPUT 2SD INPUT 1HD INPUT 2HD INPUT 1HDMI 2HDMI 1
DIGITAL EFFECTS ADJUSTFUNCTIONS
MODE CONTROL
KEYMIX
1/41/31/2
PIP
COLOR
WIPE
EDGE
MULTIREVERSEONE-WAY
B-KEY 1/2L-KEY 1/2
1/2 1/3 1/4
A SOURCE B SOURCE
STILL
TIME
POSITION
MIN MAX
CMX-12
VIDEO EFFECTS MIXER
DEMO
ADJUST
SCAN
NEGATIVEPAINT MOSAIC
B
A
A
B
ON

AUDIO FOLLOW
AUTO / WIPE
START
ON
-15
L
AUDIO
LEVEL R
DB
DB
-10 -5 -3 +3 +4+20 +1-1
-15 -10 -5 -3 +3 +4+20 +1-1
INPUT A
MAX
MIN
INPUT B
MAX
MIN
AUX
MAX
MIN
MIC
MAX
MIN
VIDEO
VIDEO/AUDIO MIXERVIDEO SOURCE SELECT
BACK
COLOR
SD INPUT 2SD INPUT 1HD INPUT 2HD INPUT 1HDMI 2HDMI 1
DIGITAL EFFECTS ADJUSTFUNCTIONS MODE CONTROL
KEYMIX1/41/31/2
PIP
COLOR
WIPE
EDGE
MULTIREVERSEONE-WAY
B-KEY 1/2L-KEY 1/2
1/2 1/3 1/4
A SOURCE B SOURCE
STILL
TIME
POSITION
MIN MAX
CMX-12
VIDEO EFFECTS MIXER
DEMO
ADJUST
SCAN
NEGATIVEPAINT MOSAIC
B
A
A
B
ON
➊
➊

Press the WIPE button ➊ to place the unit in WIPE mode.
➊

Select a wipe pattern e.g. straight wipe by pressing button ➊.
➊

Press the MULTI button ➊ repeatedly to have the desired multiplication
eect. Four options are available: x1, x2, x4 and x8
➊

Press one of the A-bus selection buttons to select a source.
➊

Press one of the B-bus selection buttons to select a source.
➊

Use the Video Slider •• to control the wipe pattern.
*The same procedure applies to the other wipe patterns.
7.7 ONE-WAY WIPE
➊

Press the WIPE button ➊ to place the unit in WIPE mode.
➊

Select a wipe pattern e.g. straight wipe by pressing button ➊.
➊

Press the ONE-WAY ➊ button.
➊

Press one of the A-bus selection buttons to select a source.
➊

Press one of the B-bus selection buttons to select a source.
➊

Use the Video Slider •• to control the wipe pattern.
7.8 REVERSE WIPE
➊
Press the WIPE button ➊ to place the unit in WIPE mode.
➊
Select a wipe pattern e.g. straight wipe by pressing button ➊.
➊
Press the REVERSE ➊ button.
➊
Press one of the A-bus selection buttons to select a source.
➊
Press one of the B-bus selection buttons to select a source.
➊
Use the Video Slider •• to control the wipe pattern.
A bus B bus
*The wipe pattern
moves in the normal
direction the Video
Slider control •• is
operated.
A bus B bus
*The direction of
the wipe pattern is
reversed when the
Video Slider control
•• is operated.

20
7.7 Picture-In-Picture

AUDIO FOLLOW
AUTO / WIPE
START
ON
-15
L
AUDIO
LEVEL R
DB
DB
-10 -5 -3 +3 +4+20 +1-1
-15 -10 -5 -3 +3 +4+20 +1-1
INPUT A
MAX
MIN
INPUT B
MAX
MIN
AUX
MAX
MIN
MIC
MAX
MIN
VIDEO
VIDEO/AUDIO MIXERVIDEO SOURCE SELECT
BACK
COLOR
SD INPUT 2SD INPUT 1HD INPUT 2HD INPUT 1HDMI 2HDMI 1
DIGITAL EFFECTS ADJUSTFUNCTIONS
MODE CONTROL
KEYMIX
1/41/31/2
PIP
COLOR
WIPE
EDGE
MULTIREVERSEONE-WAY
B-KEY 1/2L-KEY 1/2
1/2 1/3 1/4
A SOURCE B SOURCE
STILL
TIME
POSITION
MIN MAX
CMX-12
VIDEO EFFECTS MIXER
DEMO
ADJUST
SCAN
NEGATIVEPAINT MOSAIC
B
A
A
B
ON
r

AUDIO FOLLOW
AUTO / WIPE
START
ON
-15
L
AUDIO
LEVEL R
DB
DB
-10 -5 -3 +3 +4+20 +1-1
-15 -10 -5 -3 +3 +4+20 +1-1
INPUT A
MAX
MIN
INPUT B
MAX
MIN
AUX
MAX
MIN
MIC
MAX
MIN
VIDEO
VIDEO/AUDIO MIXERVIDEO SOURCE SELECT
BACK
COLOR
SD INPUT 2SD INPUT 1HD INPUT 2HD INPUT 1HDMI 2HDMI 1
DIGITAL EFFECTS ADJUST
FUNCTIONS
MODE CONTROL
KEYMIX
1/41/31/2
PIP
COLOR
WIPE
EDGE
MULTIREVERSEONE-WAY
B-KEY 1/2L-KEY 1/2
1/2 1/3 1/4
A SOURCE B SOURCE
STILL
TIME
POSITION
MIN MAX
CMX-12
VIDEO EFFECTS MIXER
DEMO
ADJUST
SCAN
NEGATIVEPAINT MOSAIC
B
A
A
B
ON
➊➊
➊

AUDIO FOLLOW
AUTO / WIPE
START
ON
-15
L
AUDIO
LEVEL R
DB
DB
-10 -5 -3 +3 +4+20 +1-1
-15 -10 -5 -3 +3 +4+20 +1-1
INPUT A
MAX
MIN
INPUT B
MAX
MIN
AUX
MAX
MIN
MIC
MAX
MIN
VIDEO
VIDEO/AUDIO MIXERVIDEO SOURCE SELECT
BACK
COLOR
SD INPUT 2SD INPUT 1HD INPUT 2HD INPUT 1HDMI 2HDMI 1
DIGITAL EFFECTS ADJUSTFUNCTIONS MODE CONTROL
KEYMIX1/41/31/2
PIP
COLOR
WIPE
EDGE
MULTIREVERSEONE-WAY
B-KEY 1/2L-KEY 1/2
1/2 1/3 1/4
A SOURCE B SOURCE
STILL
TIME
POSITION
MIN MAX
CMX-12
VIDEO EFFECTS MIXER
DEMO
ADJUST
SCAN
NEGATIVEPAINT MOSAIC
B
A
A
B
ON
➊
➊ ➊ ➊
➊ ➊ ➊
➊
••

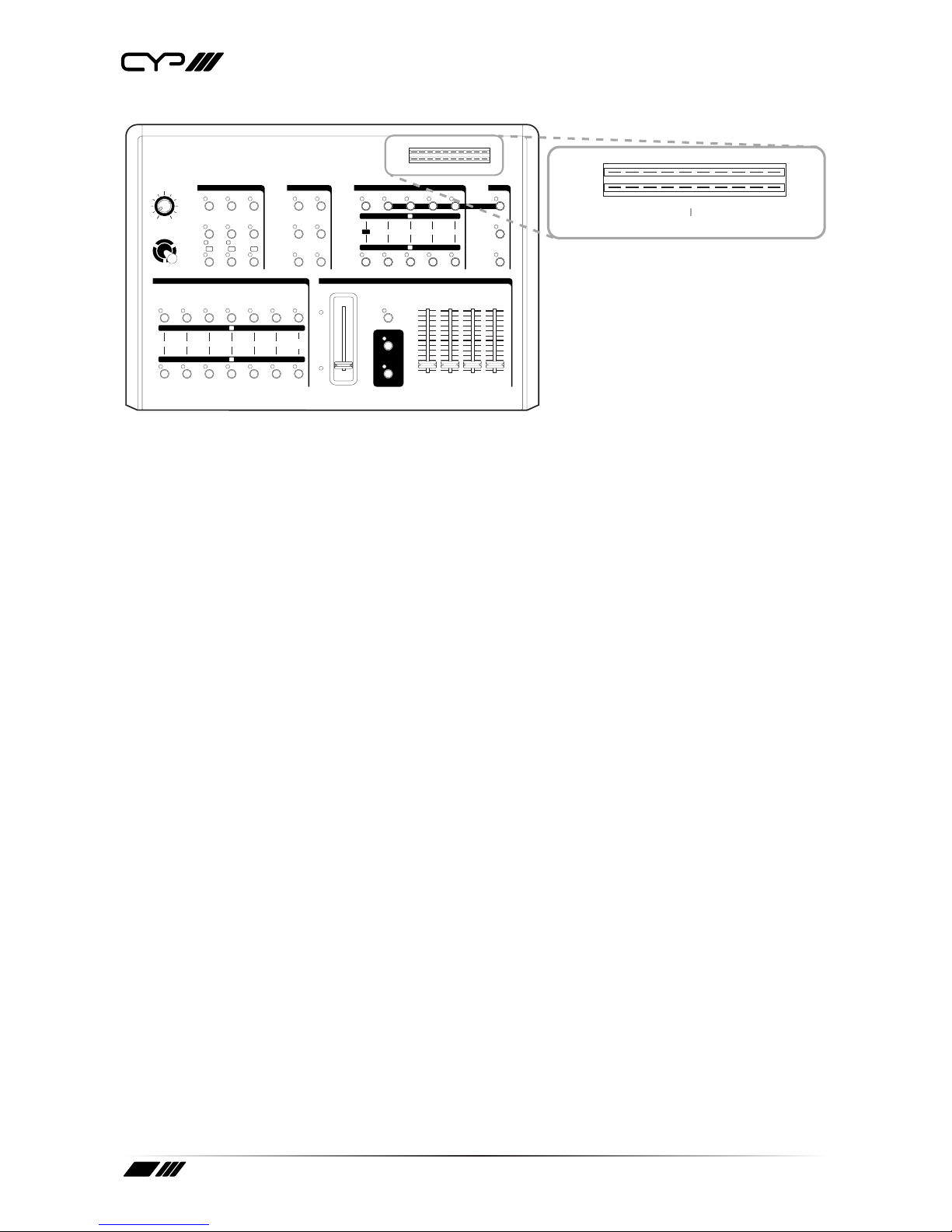

Press the operation panel to initial mode:
q
Move the Video Slider •• fully to the B-bus position.
➊
Press one of the A-bus selection buttons to select a source.
➊
Press one of the B-bus selection buttons to select a source.
➊
Press the PIP button •• to put the unit into picture-in-picture mode.
➊
The PIP mode can be selected by pressing ➊ ~ ➊ buttons:
➊ Shows the picture-in-picture box at 1⁄2 size without the frame
edge.
➊ Shows the picture-in-picture box at 1⁄3 size without the frame
edge.
➊ Shows the picture-in-picture box at 1⁄4 size without the frame
edge.
➊ Shows the picture-in-picture box at 1⁄2 size with the frame edge.
➊ Shows the picture-in-picture box at 1⁄3 size with the frame edge.
➊ Shows the picture-in-picture box at 1⁄4 size with the frame edge.
NOTE:
• The color of the frame edge can be changed by using the back
color select button ••.
• When you move the Video Slider •• to the A-bus position PIP picture dissolves into background scene.
• The position of the PIP frame can be controlled by the Joystick Control ➊.
A bus
Edge
B bus 1/2
A bus
No edge
B bus 1/2
