CYP PU-507RX-SCD User manual

PU-507RX-SCD
5-Play™ HDBaseT™ Receiver with Integrated Video Scaling
& Audio Breakout (inc. PoE & single LAN, up to 100m) -
Stereo Audio only
OPERATION MANUAL

3
DISCLAIMERS
The information in this manual has been carefully checked and is
believed to be accurate. CYP (UK) Ltd assumes no responsibility for any
infringements of patents or other rights of third parties which may result
from its use.
CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be
contained in this document. CYP (UK) Ltd also makes no commitment to
update or to keep current the information contained in this document.
CYP (UK) Ltd reserves the right to make improvements to this document
and/or product at any time and without notice.
COPYRIGHT NOTICE
No part of this document may be reproduced, transmitted, transcribed,
stored in a retrieval system, or any of its part translated into any language
or computer le, in any form or by any means—electronic, mechanical,
magnetic, optical, chemical, manual, or otherwise—without express
written permission and consent from CYP (UK) Ltd.
© Copyright 2011 by CYP (UK) Ltd.
All Rights Reserved.
Version 1.1 August 2011
TRADEMARK ACKNOWLEDGMENTS
All products or service names mentioned in this document may be
trademarks of the companies with which they are associated.

4
SAFETY PRECAUTIONS
Please read all instructions before attempting to unpack, install or operate
this equipment and before connecting the power supply.
Please keep the following in mind as you unpack and install this
equipment:
• Always follow basic safety precautions to reduce the risk of re,
electrical shock and injury to persons.
• To prevent re or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
• Never spill liquid of any kind on or into this product.
• Never push an object of any kind into this product through any
openings or empty slots in the unit, as you may damage parts inside
the unit.
• Do not attach the power supply cabling to building surfaces.
• Use only the supplied power supply unit (PSU). Do not use the PSU if
it is damaged.
• Do not allow anything to rest on the power cabling or allow any
weight to be placed upon it or any person walk on it.
• To protect the unit from overheating, do not block any vents or
openings in the unit housing that provide ventilation and allow for
sucient space for air to circulate around the unit.
REVISION HISTORY
VERSION NO. DATE SUMMARY OF CHANGE
v1.00 06/11/2013 First release

5
CONTENTS
1. Introduction...........................................6
2. Applications ...........................................6
3. Package Contents ..................................6
4. System Requirements ...........................6
5. Features..................................................7
6. Operation Controls and Functions .......8
6.1 Front Panel................................................... 8
6.2 Rear Panel..................................................... 9
6.3 IR Cable Pin Assignment .......................10
6.4 D-Sub 9 Pin Denitions .........................10
6.5 Remote Control........................................11
6.6 OSD Menu ..................................................12
7. Connection Diagram .......................... 15
8. Specications...................................... 16
9. Acronyms............................................. 17

6
1. INTRODUCTION
The PU-507RX-SCD Receiver allows uncompressed HDMI signals and
IP data to be received over a Single CAT5e/6/7 cable. With full 5-Play
convergence, this solution features RS-232, 2-way IR control functionality,
and LAN serving over the same CAT5e/6/7 cable for transmission
distances up to 100m. This receiver also features an on-board scaler
with audio breakout enabling the installer to maximise video resolution
support to the display whilst de-embedding stereo audio via an optical
connection within the zone.
2. APPLICATIONS
Extend the operating distance of an HDMI signal
Up scale standard denition video to High-Denition TVs/displays
Lecture room/Showroom/Meeting room/Classroom display and
control
Up scale HDMI output to HDTV/PC resolutions
3. PACKAGE CONTENTS
CAT5e/6 to HDMI with LAN/IR/RS-232/Bidirectional PoE Receiver
1×IR Receiver
1×IR Blaster
24V/2.7 A DC Power Adaptor
Remote control (CR-128)
Operation Manual
4. SYSTEM REQUIREMENTS
HDBaseT compatible Transmitter (input) and output to display with an
HDMI input connection.

7
5. FEATURES
Supports all v1.3 HDMI resolutions
Supports uncompressed video/audio up to 10.2Gbps
Video scaling ensuring maximum compatibility and optimum video
resolution support.
Supports Audio breakout via Optical output: Note: This device
supports stereo audio input/output only.
Common supported resolutions: HDTV: 480p, 576p, 720p, 1080i,
1080p, 1080p24; PC: VGA, SVGA, XGA, WXGA, SXGA, UXGA, WUXGA.
HDMI, HDCP, & DVI compliant
Supports HDCP repeating and CEC functions
Uncompressed data transfer over single CAT cable (100m - CAT6/7;
80m - CAT5e)
Uncompressed video 1080p, 60Hz, 48bits
5-Play™ convergence: HDMI, LAN, POE & Control (IR & RS232)
Supports 3D signals
Note:
1. This system was tested with CAT6/23AWG cables, results may vary with
cables of a dierent specication.
2. The PoE function is designed for powering compatible Transmitter units
only—non-PoE Transmitters will need their own power supply. Transmitters
from other brands may not be compatible.
3. DO NOT connect the LAN connection to the CAT5e/6/7 port. Doing so may
cause a power shutdown and may damage the device

8
6. OPERATION CONTROLS AND FUNCTIONS

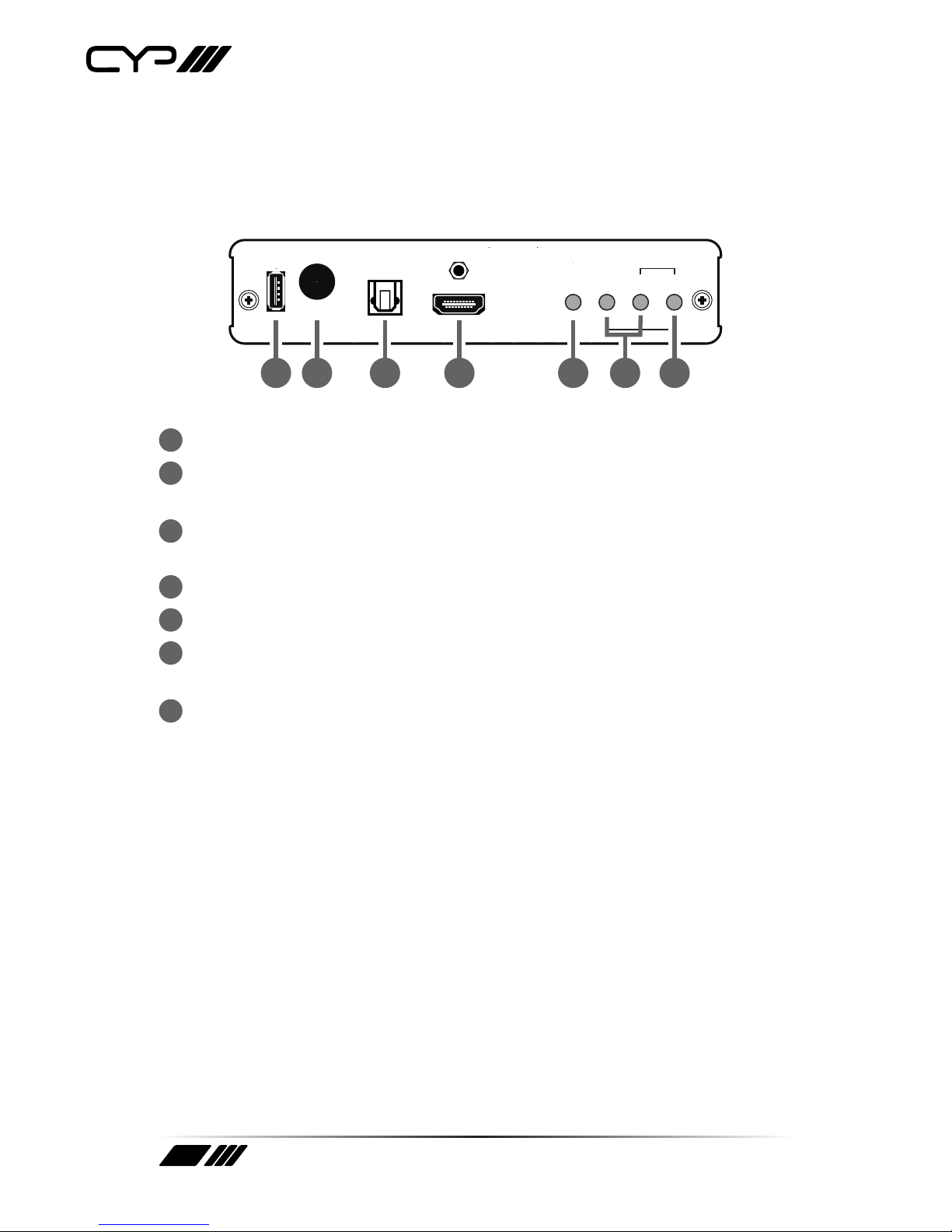

6.1 Front Panel
XGA
MENU ENTER
- +
720P
SERVICE HDMI OUT
OPTICAL OUT
2 3 4 5 6 71
1SERVICE: Reserved for manufacturer use only.
2IR Receiver window: Receives only the IR signal from the supplied
remote control.
3OPTICAL OUT: Connect to an amplier or active speaker with an
optical cable.
4HDMI OUT: Connect to an HDMI TV/Monitor
5MENU: Press this button to enter the On-Screen Display (OSD) menu.
6−/+: Use these buttons to navigate down and up in the on-screen
menu.
7ENTER: Press this button to conrm the selection.
Note:
Pressing '−' (MINUS) and ENTER simultaneously will immediately switch
the output resolution of the device to 720p60.
Pressing '+' (PLUS) and ENTER simultaneously will immediately switch the
output resolution of the device to XGA (1024×768)..

9
6.2 Rear Panel
IR
Blaster
IR
Extender
CAT5e/6 IN
MODE LINK
LANRS232 OUT
DC 24V
POWER
21 3 4 5 6 7
1Power LED: This LED will illuminate when the device is connected to
an active power supply.
2DC 24V: Connect the 24V DC power supply to the unit and plug the
adaptor into an AC outlet. Only one unit requires powering if both the
Transmitter and Receiver are both PoE compatible.
3RS-232 OUT: Connect to the device that is to be controlled (via D-Sub
9 pin female cable) by RS-232 commands.
4LAN: Connect to an active network for LAN serving. When any
compatible LAN equipped receivers are connected, this allows the
network access (including internet access if available) to be shared
between any connected LAN equipped receivers. Connect any
Ethernet equipped device e.g. a Smart TV or games console to the
LAN port of a receiver for that device to share the network/internet
access.
Warning: DO NOT connect the LAN connection to the CAT5e/6/7 port.
Doing so may cause a power shutdown and may damage the device.
5IR Blaster: Connect the supplied IR Blaster cable for IR signal
transmission. Place the IR Blaster in direct line-of-sight of the
equipment to be controlled.
6IR Extender: Connect to the supplied IR Receiver cables for IR signal
reception. Ensure that remote being used is within the direct line-of-
sight of the IR Extender.
7MODE LED: This LED will illuminated when the power is connected.
8Link LED: This LED will illuminate when connected to a Transmitter
unit that is connected to a source that is outputting a signal.
9CAT5e/6 IN: Connect to the Transmitter unit with a Single CAT5e/6
cable for receiving all data signals.

10
6.3 IR Cable Pin Assignment
3
1
3
1
2
2
Power 5V
IR Blaster Signal
NC
IR Signal
Power 5V
Ground
IR Extender
IR Blaster
6.4 D-Sub 9 Pin Denitions
Pin Dene TX / RX
1 N/C
2 TxD/RxD
3 RxD/TxD
4 NC
5 GND
6 NC
7 NC
8 NC
9 NC

11
6.5 Remote Control
1INPUT: Not functional
2EXIT:Press this button to exit the
menu or escape the current selection
under OSD.
3MENU:Press this button to exit the
menu or the current selection in the
on-screen menu.
4RESET: Press this button to return the
device to the factory default settings.
5AUTO ADJUST: Press this button
to optimise the positioning of the
picture (picture centering) on the
screen.
6ENTER & ▲▼◄►: Press ENTER to conrm the selection or use the
directional buttons to navigate the on-screen menus.
CR-128
INPUT
EXIT MENU
AUTO
ADJUST
RESET
ENTER
1
2
3 5
6
4

12
6.6 OSD Menu
1st Layer 2nd layer 3rd Layer
DISPLAY
OUTPUT
Native
640x480 60
800x600 60
1024x768 60
1360x768 60
1280x720 60
1280x800 60
1280x1024 60
1440x900 60
1400x1050 60
1680x1050 60
1600x1200 60
1920x1080 60
1920x1200 60
720x480p 60
1280x720p 60
1920x1080i 60
1920x1080p 60
720x576p50
1280x720p 50
1920x1080i 50
1920x1080p 50

13
1st Layer 2nd layer 3rd Layer
COLOUR
SIZE
OVER SCAN
FULL
ASPECT RATIO
PAN SCAN
LETTER BOX
UNDER 2
UNDER 1
MODE INFO
INFO
ON
OFF
COLOUR
R
G
B
R OFFSET
G OFFSET
B OFFSET
CONTRAST 0~60
BRIGHTNESS 0~60
HUE 0~60
SATURATION 0~60
SHARPNESS 0~60
NR.
OFF
LOW
MIDDLE
HIGH

1st Layer 2nd layer 3rd Layer
AUDIO
VOLUME 0~100
DELAY
OFF
40mS
110mS
150mS
SOUND ON
MUTE
SETUP
FACTORY RESET NO
YES
KEY LOCK OFF
ON
INFORMATION INPUT
OUTPUT
REVISION
Note: Items in Bold are the default setting.

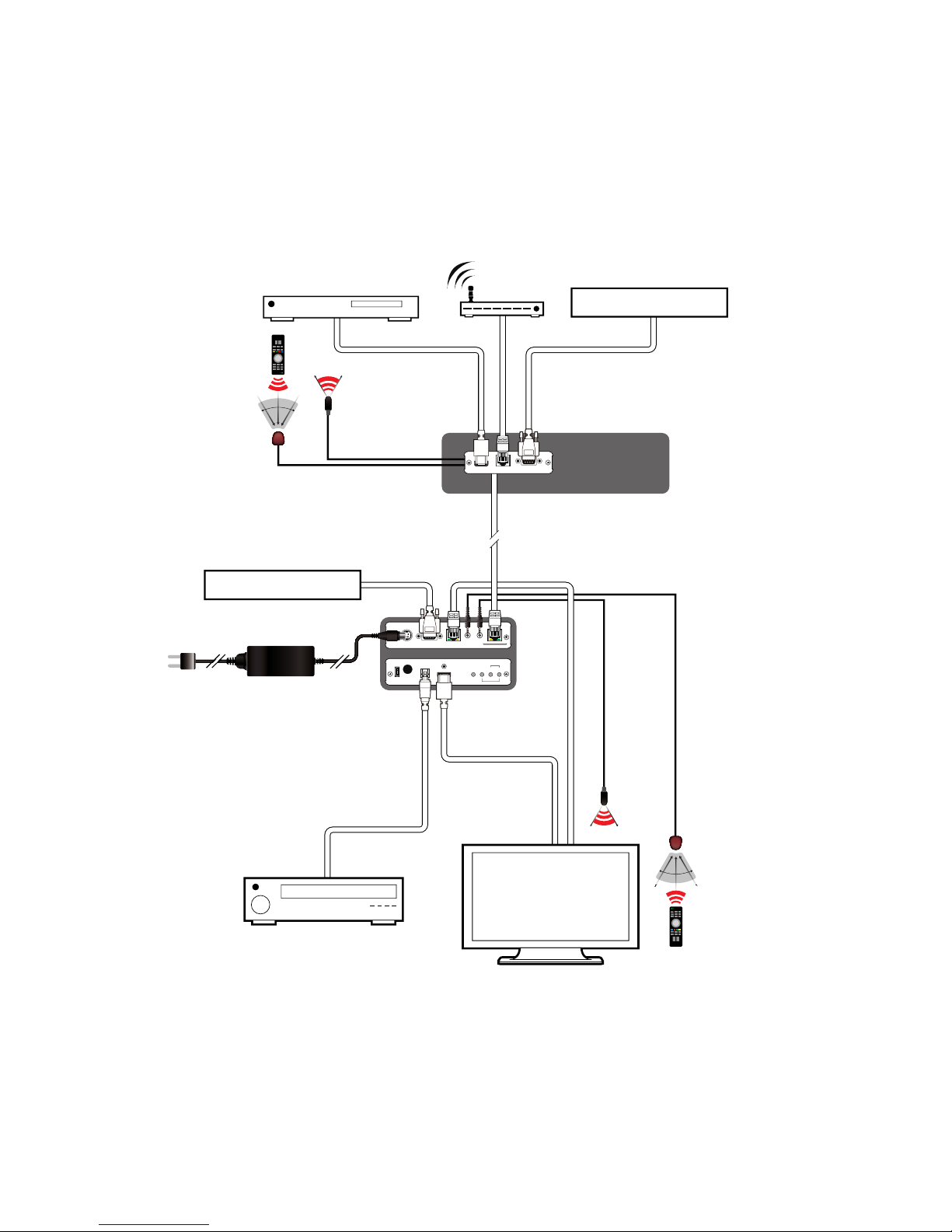

7. CONNECTION DIAGRAM
XGA
MENU ENTER
- +
720P
SERVICE HDMI OUT
OPTICAL OUT
IR
Blaster
IR
Extender
CAT5e/6 IN
MODE LINK
LANRS232 OUT
DC 24V
POWER
1.5m
60°
1.5m
60°
RS-232 In
LAN
HDMI In
HDMI to CAT5e/6 with LAN/IR/RS232
Transmitter
7m3m 3m
60°
m
m
m
7m3m 3m
60°
m
m
3m
Digital Audio
Output (Optical)
RS-232 Control System
RS-232 Device
Router with internet
connection
CAT 5e/6/7
Up to 100m
DVD Player
Smart TV
AV Receiver
HDMI
Output
LAN
LAN
RS-232
IR Blaster
IR Blaster
IR Extender
IR Extender
Compatible
Transmitter

16
8. SPECIFICATIONS
Ethernet Speed 100 Mbps
Input Video Bandwidth 300 MHz /10.2 Gbps
Output Video bandwidth 165 MHz /1.65 Gbps
Input Ports 1×CAT5e/6,
1×IR Extender
Output Ports 1×HDMI,
1×IR Blaster,
1×Optical ,
1×RS-232,
1×LAN
CAT5e/6 Output Cable
Distance
Up to 100 Meters
HDMI output Resolution HD: Up to 1080p@60Hz
PC: Up to WUXGA(RB)
Audio Sampling Rate Up to 48 kHz/LCPM 2CH
CAT5e/6 Output Resolu-
tion
HD: Up to 1080p@60Hz
PC: Up to WUXGA(RB)
IR Frequency 30~50 kHz
ESD Protection Human body model:
±8 kV (air-gap discharge)
±6 kV (contact discharge)
Dimensions (mm) 145 mm (W) x 201.5 mm (D) x 30 mm (H)
Weight (g) 608 g
Chassis Material Aluminum
Colour Black
Operating Temperature 0 ˚C~40 ˚C/32 ˚F~104 ˚F
Storage Temperature −20 ˚C~60 ˚C/−4 ˚F ~140 ˚F
Relative Humidity 20~90 % RH (non-condensing)
Power Consumption 14 W

17
9. ACRONYMS
ACRONYM COMPLETE TERM
CAT5e Category 5 Cable
CAT6 Category 6 Cable
HDMI High-Definition Multimedia Interface
IR Infrared
WUXGA (RB) Widescreen Ultra Extended Graphics Array (Reduce
blanking)

CYP (UK) Ltd., Unit 7, Shepperton Business Park, Govett Avenue, Shepperton,
Middlesex, TW17 8BA
Tel: [phone] | Fax: [phone]
Email: [email protected]
www.cypeurope.com
v1.00
