Marantz CINEMA 70S User manual

Network Stereo Receiver
Owner’s Manual
1

Accessories 8
Inserting the batteries 9
Operating range of the remote control unit 9
Features 10
High quality sound 10
High performance 10
Easy operation 15
Part names and functions 16
Front panel 16
Display 18
Rear panel 20
Remote control unit 23
Connections
Speaker installation 27
Connecting speakers 28
Before connecting speakers 28
Connecting 2.1-channel speakers 30
Second pair of speaker 31
Bi-wiring connection 32
Connecting a TV 34
Connection 1 : TV equipped with an HDMI connector and
compatible with the ARC (Audio Return Channel) 35
Connection 2 : TV equipped with an HDMI connector and
incompatible with the ARC (Audio Return Channel) 36
Connecting a playback device 37
Connecting a set-top box (Satellite tuner/cable TV) 38
Connecting a media player 39
Connecting a Blu-ray Disc player or DVD player 40
Connecting a game console or player device compatible with 8K 41
Connecting a turntable 42
Connecting a USB memory device to the USB port 43
Connecting a DAB/FM antenna 44
Connecting to a home network (LAN) 45
Wired LAN 45
Wireless LAN 46
Connecting an external control device 47
REMOTE CONTROL jacks 47
FLASHER IN jack 49
Connecting the power cord 50
Contents Connections Playback Settings Tips Appendix
2
Front panel Display Rear panel Remote Index

Playback
Basic operation 52
Turning the power on 52
Selecting the input source 52
Adjusting the volume 53
Turning off the sound temporarily (Muting) 53
Playback a Blu-ray Disc player/DVD player 53
Playing a USB memory device 54
Playing files stored on USB memory devices 55
Listening to music on a Bluetooth device 58
Playing music from Bluetooth device 59
Pairing with other Bluetooth devices 60
Reconnecting to this unit from a Bluetooth device 61
Listening to audio on Bluetooth headphones 62
Listening to audio on Bluetooth headphones 63
Adjusting the volume of Bluetooth headphones 64
Reconnecting to a Bluetooth headphones 64
Disconnecting Bluetooth headphones 65
Listening to FM/DAB broadcasts 66
Listening to FM broadcasts 67
Tuning in by entering the frequency (Direct Tune) 69
RDS Search 69
PTY Search 70
TP Search 71
Radio text 71
Changing the tune mode (Tune Mode) 72
Tuning in to stations and presetting them automatically (Auto
Preset Memory) 72
Listening to DAB broadcasts 73
Auto scanning DAB broadcast stations (Auto Scan) 74
Checking the reception intensity of stations (Tuning Aid) 75
Setting the order of broadcasting station (Station Order) 75
Suppressing the dynamic range (DRC) 76
Resetting the DAB settings (DAB Initialize) 76
Presetting the current FM/DAB broadcast station (Preset Memory) 77
Listening to preset stations 78
Specify a name for the preset broadcast station (Preset Name) 78
Skipping preset broadcast stations (Preset Skip) 79
Cancelling Preset Skip 80
Contents Connections Playback Settings Tips Appendix
3
Front panel Display Rear panel Remote Index

Listening to Internet Radio 81
Listening to Internet Radio 82
Playing back files stored on a PC or NAS 83
Playing back files stored on a PC or NAS 84
Getting the HEOS App 87
HEOS Account 88
Playing from streaming music services 89
Listening to the same music in multiple rooms 92
AirPlay function 96
Playing songs from your iPhone, iPod touch or iPad 97
Playing iTunes music with this unit 97
Play a song from your iPhone, iPod touch or iPad on multiple
synced devices (AirPlay 2) 98
Spotify Connect function 99
Playing Spotify music with this unit 99
Convenience functions 100
Playing back HEOS Favorites 101
Adding to HEOS Favorites 102
Deleting a HEOS Favorites 102
Adjust the sound output balance of left and right speakers
(Balance) 102
Adjust the subwoofer output (Subwoofer) 103
Adjusting the tone (Tone) 104
Adjusting audio delay (Audio Delay) 105
Displaying your desired video during audio playback (Video
Select) 106
Playing the same music in all zones (All Zone Stereo) 107
Selecting a sound mode 108
Selecting a sound mode 108
Description of sound mode types 109
HDMI Control function 110
Setting procedure 110
Sleep timer function 111
Using the sleep timer 112
Contents Connections Playback Settings Tips Appendix
4
Front panel Display Rear panel Remote Index

Smart select function 113
Calling up the settings 114
Changing the settings 115
Panel lock function 117
Disabling all knob operations 117
Disabling all knob operations except VOLUME 118
Canceling the Panel lock function 118
Remote lock function 119
Disabling the sensor function of the remote control unit 119
Enabling the remote sensor function 120
Web control function 121
Controlling the unit from a web control 121
Playback in ZONE2 (Another room) 123
Connecting ZONE2 124
Playback the source in ZONE2 125
Adjusting the Volume in ZONE2 128
Settings
Menu map 129
Menu operations 134
Audio 135
M-DAX 135
Volume 136
Video 137
HDMI Setup 137
HDMI Upscaler 141
On-Screen Display 142
Screensaver 143
4K/8K Signal Format 143
HDCP Setup 145
Inputs 146
Input Assign 146
Source Rename 149
Hide Sources 149
Source Level 149
Speakers 150
Speaker Layout 150
Distances 151
Levels 152
Advanced 152
Contents Connections Playback Settings Tips Appendix
5
Front panel Display Rear panel Remote Index

Network 153
Information 153
Connection 153
Wi-Fi Setup 154
Settings 155
Network Control 157
Friendly Name 157
Diagnostics 158
AirPlay 159
Spotify Connect 159
Wi-Fi and Bluetooth 160
HEOS 161
You have not signed in 161
You have already signed in 161
General 162
Language 162
Owner's Manual 162
ECO 162
Bluetooth Transmitter 166
ZONE2 Setup 167
Zone Rename 168
Smart Select 168
Front Display 169
Firmware 169
Information 171
Usage Data 174
Save & Load 174
Setup Lock 175
Reset 175
Operating CD player with the remote control unit 176
Limiting the operating zone with the remote control 177
Setting the back light of the remote control unit 178
Disabling the backlight 178
Contents Connections Playback Settings Tips Appendix
6
Front panel Display Rear panel Remote Index

Tips
Tips 180
Troubleshooting 181
Power does not turn on / Power is turned off 182
Operations cannot be performed through the remote control unit 183
Display on this unit shows nothing 183
No sound comes out 184
Desired sound does not come out 185
Sound is interrupted or noise occurs 187
No video is shown on the TV 188
The menu screen is not displayed on the TV 189
The color of the menu screen and operations content displayed
on the television is different from normal 189
AirPlay cannot be played back 190
USB memory devices cannot be played back 191
Bluetooth cannot be played back 192
The Internet radio cannot be played back 194
Music files on PC or NAS cannot be played back 195
Various online services cannot be played 196
The HDMI Control function does not work 196
Cannot connect to a wireless LAN network 197
Update error messages 198
Resetting factory settings 199
Resetting network settings 200
Factory Restore 201
Appendix
About HDMI 202
Relationship between video signals and TV output 205
Playing back a USB memory devices 207
Playing back a Bluetooth device 208
Playing back a file saved on a PC or NAS 209
Playing back Internet Radio 210
Personal memory plus function 210
Last function memory 210
Explanation of terms 211
Trademark information 215
Specifications 217
Audio section 217
Tuner section 218
DAB tuner section 218
Wireless LAN section 219
Bluetooth section 220
General 221
Index 223
Contents Connections Playback Settings Tips Appendix
7
Front panel Display Rear panel Remote Index

Thank you for purchasing this Marantz product.
To ensure proper operation, please read this owner’s manual carefully before using the product.
After reading this manual, be sure to keep it for future reference.

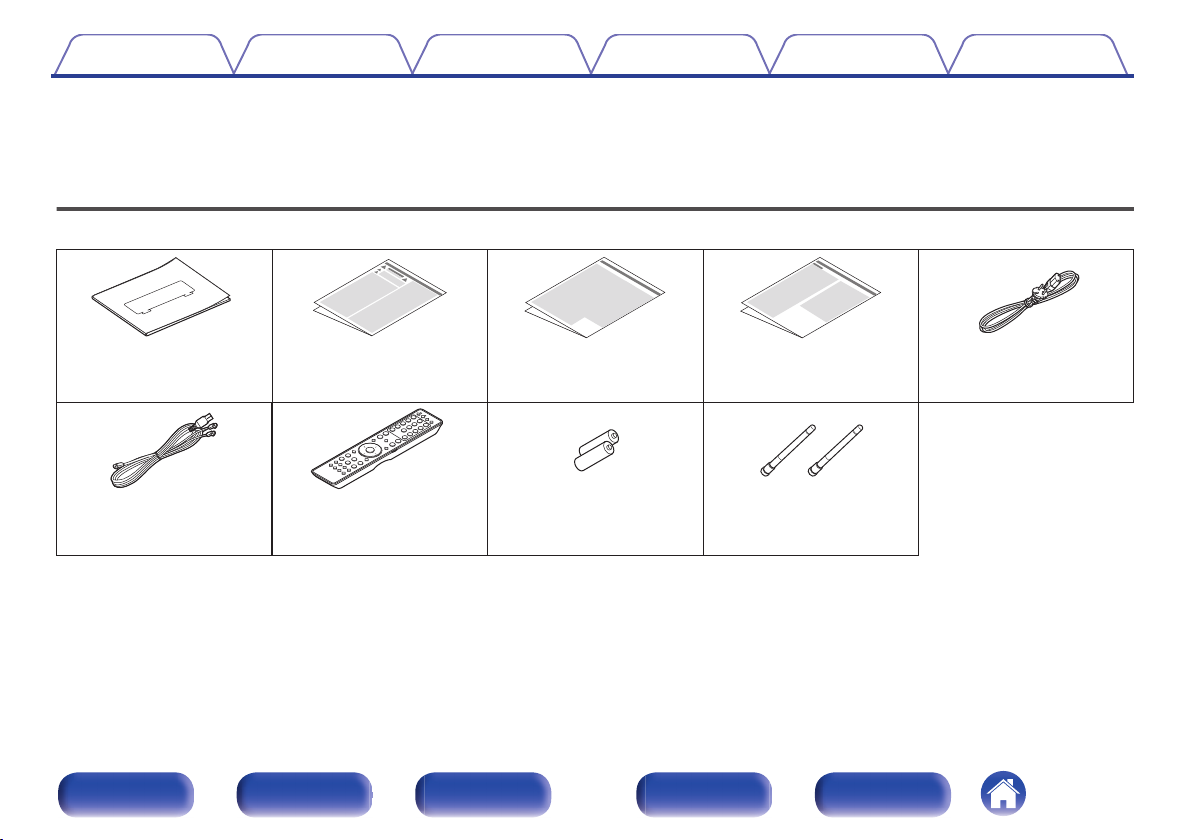

Accessories
Check that the following parts are supplied with the product.
Notes on radioSafety InstructionsQuick Start Guide
External antennas for
Bluetooth/wireless
connectivity
2× R03/AAA batteries
Cautions on Using Batteries
DAB/FM indoor antenna
Power cord
Remote control unit
(RC052SR)
Contents Connections Playback Settings Tips Appendix
8
Front panel Display Rear panel Remote Index

Inserting the batteries
1Remove the rear lid in the direction of the arrow and
remove it.
2Insert two batteries correctly into the battery
compartment as indicated.
Batteries
3Put the rear cover back on.
NOTE
0To prevent damage or leakage of battery fluid:
0Do not use a new battery together with an old one.
0Do not use two different types of batteries.
0Remove the batteries from the remote control unit if it will not be in use for long
periods.
0If the battery fluid should leak, carefully wipe the fluid off the inside of the battery
compartment and insert new batteries.
Operating range of the remote control
unit
Point the remote control unit at the remote sensor when operating it.
30°
Approx. 7 m
30°
Contents Connections Playback Settings Tips Appendix
9
Front panel Display Rear panel Remote Index

Features
High quality sound
0High-power amplifier (100 Watts x 2-channels)
The power amplifier circuit is made with a power transformer and power
supply capacitors designed for stereo receivers and uses a discrete
part structure, achieving powerful, high-quality sound reproduction.
0Double-differential D/A converter circuit
A double-differential circuit is used to reduce noise, achieving clearer
audio playback.
High performance
08K 60Hz input/output supported
8K,
4K 120Hz
8K,
4K 120Hz
When 8K Ultra HD (High Definition) is used, an input/output speed of 60
frames per second (60p) is achieved for video signals. When connected
to 8K Ultra HD and 60p video signal input compatible TV, you can enjoy
the sense of realism only available from high-definition images, even
when viewing fast-moving video.
This unit supports a wide range of HDR content, delivering even higher
definition video.
0HDCP 2.3
This unit is compatible with HDCP 2.3 copyright protection standard.
Contents Connections Playback Settings Tips Appendix
10
Front panel Display Rear panel Remote Index

0Digital video processor upscales 1080p / 4K to 8K
8K Ultra HD
8K 8K
1080p/4K 60Hz
8K
up scaling
This unit is equipped with a 8K video upscaling function that allows
1080p/4K video to be output via HDMI at 8K (7680 × 4320 pixels)
resolution. This function enables the device to be connected to a TV
using a single HDMI cable, and produces high definition images for any
video source.
0HDMI connections enable connection to various digital AV
devices (6 inputs, 1 output)
61
OutIn
This unit is equipped with 6 HDMI inputs and 1 HDMI output enabling
connection to various HDMI compatible devices such as Blu-ray Disc
players, game consoles and HD video camcorders.
Contents Connections Playback Settings Tips Appendix
11
Front panel Display Rear panel Remote Index

0The device is equipped with a AirPlay® function in addition to
network functions such as Internet radio etc. (v p. 96)
You can enjoy a wide variety of content, including listening to Internet
Radio, playing audio files stored on your PC.
This unit also supports Apple AirPlay which lets you stream your music
library from an iPhone®, iPad®, iPod touch® or iTunes®.
0Supports AirPlay 2® wireless audio
Sync multiple AirPlay 2 compatible devices/speakers for simultaneous
playback.
This unit supports AirPlay 2 and requires iOS 11.4 or later.
0Playback of DSD and FLAC files via USB and networks
This unit supports the playback of high resolution audio formats such as
DSD (5.6 MHz) and FLAC 192 kHz files. It provides high quality
playback of high resolution files.
0Wireless connection with Bluetooth devices can be carried out
easily (v p. 58)
You can enjoy music simply by connecting wirelessly with your
smartphone, tablet, PC, etc.
Contents Connections Playback Settings Tips Appendix
12
Front panel Display Rear panel Remote Index

0Connect Bluetooth headphones
This unit can transmit Bluetooth so you can enjoy audio wirelessly
through your Bluetooth headphones.
Playback can be performed using connected speakers and Bluetooth
headphones simultaneously, or only using Bluetooth headphones.
0Multi-Room audio (v p. 107)
GMAIN ZONEHGZONE2H
You can select and play back the respective inputs in MAIN ZONE and
ZONE2.
In addition, when the All Zone Stereo function is used, the music being
played back in MAIN ZONE can be enjoyed in all the zones at the same
time. This is useful when you want to let the BGM propagate throughout
the whole house.
0Energy-saving design
This unit is equipped with an ECO Mode function that allows you to
enjoy music and movies while reducing the power consumption during
use, and also an auto-standby function that automatically turns off the
power supply when the unit is not in use. This helps reduce
unnecessary power use.
Contents Connections Playback Settings Tips Appendix
13
Front panel Display Rear panel Remote Index

0Compatible with the “Marantz AVR Remote” Appz for performing
basic operations of the unit with an iPad, iPhone or Android™
devices (Google, Amazon Kindle Fire)
The Marantz AVR Remote app gives you full control of this unit as well
as access to its setup menu for detailed adjustments from your phones
or tablets. “Marantz AVR Remote” App also gives you quick access to
the receiver's status display, option menus, Marantz Blu-ray Disc player
control, and online owner's manual for your convenience.
zDownload the appropriate “Marantz AVR Remote” App for your iOS or Android
devices. This unit needs to be connected to the same LAN or Wi-Fi (wireless
LAN) network that the iPad, iPhone or Android™ is connected to.
0HEOS provides streaming music from your favorite online music
sources
HEOS wireless multi-room sound system that enables you to enjoy your
favorite music anywhere and everywhere around your home. By utilizing
your existing home network and the HEOS App (available for iOS,
Android and Amazon devices), you can explore, browse, and play
music from your own music library or from many online streaming music
services.
When multiple products with HEOS Built-in are connected to the same
network, they can be grouped to play the same music on all products
simultaneously, or different music can be played on each one.
Contents Connections Playback Settings Tips Appendix
14
Front panel Display Rear panel Remote Index

Easy operation
0“Setup Assistant” provides easy-to-follow setup instructions
First select the language when prompted. Then simply follow the
instructions displayed on the TV screen to set up the speakers, network,
etc.
0Easy to use Graphical User Interface
This unit is equipped with a Graphical User Interface for improved
operability.
Contents Connections Playback Settings Tips Appendix
15
Front panel Display Rear panel Remote Index

Part names and functions
Front panel
uy Q
1
i o Q
0
q w te r
For details, see the next page.
Contents Connections Playback Settings Tips Appendix
16
Front panel Display Rear panel Remote Index

y Q
1
u i o Q
0
tqerw
APower operation button (X)
Used to turn the power of the MAIN ZONE (room where this unit is
located) on/off (standby). (v p. 52)
BDisplay
This displays various pieces of information. (v p. 18)
CRemote control sensor
This receives signals from the remote control unit. (v p. 9)
DProtection circuit indicator
This blinks when the protection circuit has operated. (v p. 182)
EHeadphones jack (PHONES)
This is used to connect headphones.
When the headphones are plugged into this jack, audio will no longer
be output from the connected speakers or from the SUBWOOFER
connectors.
NOTE
0To prevent hearing loss, do not raise the volume level excessively when using
headphones.
FINPUT selector knob
This selects the input source. (v p. 52)
GSpeaker switching knob (SPEAKERS)
This selects the speaker for audio output.
HBalance knob (BALANCE)
This adjusts the balance of the volume output from the left and right
speakers.
IBass control knob (BASS)
This setting adjusts the volume level for the bass.
JTreble control knob (TREBLE)
This setting adjusts the volume level for the treble.
KVOLUME knob
This adjusts the volume level. (v p. 53)
Contents Connections Playback Settings Tips Appendix
17
Front panel Display Rear panel Remote Index

Display
The input source name, sound mode, setting values and other information are displayed here.
nStandard display
B
lu-ray
0.0
SLEEP
ZONE2
e rq
w
AInput source indicator
The currently selected input source name is displayed.
If the input source name has been changed using “Source Rename” in
the menu, the input source name after the change is displayed.
(v p. 149)
BSleep timer indicator
This lights when the sleep mode is selected. (v p. 111)
CVolume indicator
DZONE2 power on display
Lights up when ZONE2 power is turned on.
Contents Connections Playback Settings Tips Appendix
18
Front panel Display Rear panel Remote Index

nTuner display
These light up according to the reception conditions when the input
source is set to “Tuner”.
01 FM
87 . 50MHz
TUNED ST
ty
ELights up when the broadcast is properly tuned in.
FLights up when receiving FM stereo broadcasts.
Contents Connections Playback Settings Tips Appendix
19
Front panel Display Rear panel Remote Index

Rear panel
qqerwy
tu
Q
2
Q
3
Q
4
Q
1
ioQ
0
For details, see the next page.
Contents Connections Playback Settings Tips Appendix
20
Front panel Display Rear panel Remote Index
