D.A.S. DASNET-SPLITTER User manual

DASNET-SPLITTER / DASNET-SPLITTER-TR1
User's Manual
Antes de utilizar el equipo, lea la sección
“Precauciones de seguridad” de este manual.
Conserve este manual para futuras consultas.
Before operating the device, please read the
“Safety precautions” section of this manual.
Retain this manual for future reference.
DASnet

CONTENTS
6
7 - 8
9 AERO-40A + 6 LX-218CA
12 AERO-40A + 9 LX-218CA
INTRODUCTION
LINE DRAWINGS
3
4
5
10
9
11
SPECIFICATIONS
ANNEX
CONFIGURATIONS
DASnet cables
SAFETY PRECAUTIONS
WARRANTY
DECLARATION OF CONFORMITY
Manual del Usuario / DASnet Splitter / User’s Manual

3
Manual del Usuario / DASnet Splitter / User’s Manual
DASnet Splitter Precauciones de Seguridad
Safety Precautions
Caja de distribución para DASnet / DASnet Splitter
Desconecte este aparato durante tormentas eléctricas,
terremotos o cuando no se vaya a emplear durante largos
periodos.
Unplug this apparatus during lightning storms, earthquakes or
when unused for long periods of time.
Equipo diseñado para funcionar entre 15ºC y 45ºC con una
humedad relativa máxima del 95%, con un rango de ±10% de la
tensión nominal de alimentación indicada en la etiqueta trasera
(según IEC 60065). Si debe sustituir el fusible preste atención al
tipo y rango.
Working temperature ranges from 15ºC to 45ºC with a relative
humidity of 95%, with ±10% of the rated main voltage value
indicated on the rear label (according to IEC 60065). If the fuse
needs to be replaced, please pay attention to correct type and
ratings.
No instale el aparato cerca de ninguna fuente de calor como
radiadores, estufas u otros aparatos que produzcan calor. Debe
instalarse siempre sin bloquear la libre circulación de aire por las
aletas del radiador.
Do not install near any heat sources such as radiators, heat
registers, stoves or other apparatus that produce heat.
The circulation of air through the heatsink must not be blocked.
No exponga este equipo a la lluvia o humedad sin el protector
de lluvia recomendado. No exponga el equipo a salpicaduras sin
el protector de lluvia recomendado, ni coloque sobre él objetos
que contengan líquidos, tales como vasos y botellas.
Do not expose this device to rain or moisture without the rain
protector supplied. Do not place any objects containing liquids,
such as bottles or glasses, on the top of the unit. Do not splash
liquids on the unit without the rain protector supplied.
Este símbolo indica que el presente producto no puede ser
tratado como residuo doméstico normal, sino que debe
entregarse en el correspondiente punto de recogida de equipos
eléctricos y electrónicos.
This symbol on the product indicates that this product should
not be treated as household waste. Instead it shall be handed
over to the appicable collection point for the recycling of
electrical and electronic equipment.
El cableado exterior conectado al equipo requiere de su
instalación por una persona instruida o el uso de cables flexibles
ya preparados.
The outer wiring connected to the device requires installation by
an instructed person or the use of a flexible cable already
prepared.
Si el aparato es conectado permanentemente, la instalación
eléctrica del edificio debe incorporar un interruptor multipolar con
separación de contacto de al menos 3mm en cada polo.
If the apparatus is connected permanently, the electrical system
of the building must incorporate a multipolar switch with a
separation of contact of at least 3mm in each pole.
Limpie con un paño seco. No use limpiadores con disolventes. Clean only with a dry cloth. Do not use any solvent based
cleaners.
No existen partes ajustables por el usuario en el interior de este
equipo. Cualquier operación de mantenimiento o reparación
debe ser realizada por personal cualificado. Es necesario el
servicio técnico cuando el equipo se haya dañado de alguna
forma, como que haya caído líquido o algún objeto en el interior
del aparato, haya sido expuesto a lluvia o humedad, no funcione
correctamente, haya recibido un golpe o su cable de red esté
dañado.
No user serviceable parts inside. Refer all servicing to qualified
service personnel. Servicing is required when the apparatus has
been damaged in any way, such as power-supply cord or plug is
damaged, liquid has been spilled or objects have fallen into the
apparatus, the apparatus has been exposed to rain or moisture,
does not operate normally or has been dropped.
El signo de exclamación dentro de un triángulo indica la
existencia de importantes instrucciones de operación y
mantenimiento en la documentación que acompaña al producto.
Conserve y lea todas estas instrucciones. Siga las advertencias.
ATENCIÓN: Es un producto clase A, por lo que en entornos
domésticos puede causar radio-interferencias, en cuyo caso el
usuario tendrá que tomar las medidas oportunas.
De acuerdo con EN55103-2, usar el equipo sólo en entornos E1,
E2, E3 ó E4.
The exclamation point inside an equilateral triangle is intended to
alert the users to the presence of important operating and
maintenance (servicing) instructions in the literature
accompanying the product.
Heed all warnings. Follow all instructions. Keep these
instructions.
WARNING: This is a class A product. In a domestic environment
this product my cause radio interferences in which case the user
may be required to take adequate measures.
Use this product only in E1, E2, E3 or E4 environments
according to EN55103-2.
No desconecte la tierra en el conector de alimentación pues es
peligroso e ilegal. Equipo de Clase I. El producto debe ser
conectado a un enchufe con toma de tierra. Sólo use este
equipo con el cable de red de alimentación adecuado para su
país.
El signo del rayo con la punta de flecha, alerta contra la
presencia de voltajes peligrosos no aislados. Para reducir el
riesgo de choque eléctrico, no retire la cubierta.
Do not remove mains connector ground, it is dangerous and
illegal. Class I device. The product must be connected to a
mains socket outlet with protective earth connection. Only use
this equipment with an appropriate mains cord for your country.
The lightning and arrowhead symbol warns about the presence
of uninsulated dangerous voltage. To reduce the risk of electric
shock, do not remove the cover.

4Manual del Usuario / DASnet Splitter / User’s Manual
GARANTÍA
WARRANTY
Todos nuestros productos están garantizados por un periodo de 24
meses desde la fecha de compra.
Las garantías sólo serán válidas si son por un defecto de
fabricación y en ningún caso por un uso incorrecto del producto.
Las reparaciones en garantía pueden ser realizadas,
exclusivamente, por el fabricante o el servicio de asistencia técnica
autorizado.
Otros cargos como portes y seguros, son a cargo del comprador
en todos los casos.
Para solicitar reparación en garantía es imprescindible que el
producto no haya sido previamente manipulado e incluir una
fotocopia de la factura de compra.
All our products are warrantied against any manufacturing defect
for a period of 2 years from date of purchase.
The warranty excludes damage from incorrect use of the product.
All warranty repairs must be exclusively undertaken by the factory
or any of its authorised service centers.
To claim a warranty repair, do not open or intend to repair the
product.
Return the damaged unit, at shippers risk and freight prepaid, to
the nearest service center with a copy of the purchase invoice.

5
Manual del Usuario / DASnet Splitter / User’s Manual
Y es conforme a las siguientes Normas Armonizadas Europeas:
In accordance with Harmonized European Norms:
l EN 60065:2014.- Audio, video and similar electronic apparatus. Safety
requirements.
l EN 55032:2012.- Electromagnetic compatibility of multimedia equipment.
Emission requirements.
l EN 55103-2:2009.- Electromagnetic compatibility. Product family
standard for audio, video, audio-visual and entertainment lighting control
apparatus for professional use. Part 2:Immunity.
l EN 50581:2012.- Technical documentation for the assessment of
electrical and electronic products with respect to the restriction of
hazardous substances.
Cumple con los objetivos esenciales de las Directivas:
Abide by essential objectives relating Directives:
l de Baja Tensión (Low Voltage Directive) 2014/35/UE
l de Compatibilidad Electromagnética (EMC) 2014/30/UE
l RoHS 2011/65/UE
l RAEE (WEEE) 2012/19/UE
DECLARACIÓN DE CONFORMIDAD
DECLARATION OF CONFORMITY
DAS Audio Group, S.L.
C/ Islas Baleares, 24 - 46988 - Pol. Fuente del Jarro - Valencia. España
(Spain).
Declara que DASNET-SPLITTER / DASNET-SPLITTER-TR1:
Declares that DASNET-SPLITTER / DASNET-SPLITTER-TR1:

INTRODUCTION
6
DASNET-SPLITTER and DASNET-SPLITTER-TR1 are intended for the distribution of analog audio,
monitoring data (DASnet) and power to multiple devices, with simplicity. The first uses
PowerCon NAC3MPB output mains connectors, and the second, PowerCon True1
connectors.
For more information about DASnet, typical configurations, DASNET-RACK, or DASnet cables
see our website www.dasaudio.com.
The DASNET-SPLITTER (or the DASNET-SPLITTER-TR1) is a steel case intended for the
distribution of analog audio, monitoring data (DASnet) and power to multiple devices (the
maximum number of units will depend on the system´s current consumption).
It includes one power input by means of one powercon true 1 connector (black-yellow) and
one analog audio plus monitoring data input by the use of an ethercon connector.
It includes three power outputs by means of three powercon NAC3MPB connectors
(white), (PowerCon True1 in the DASNET-SPLITTER-TR1) and three analog audio plus monitoring
data outputs consisting of three ethercon connectors.
The main use of the splitter is with the LX-218CA-NET subwoofers. As the audio is routed in
parallel inside the splitter never combine different speaker models in a single DASNET-SPLITTER.
Features
OPEN
Manual del Usuario / DASnet Splitter / User’s Manual
CLOSE
CONNECT
eCP_xx cables eCP_xx cables
eCP_xx cables

CONFIGURATIONS
7

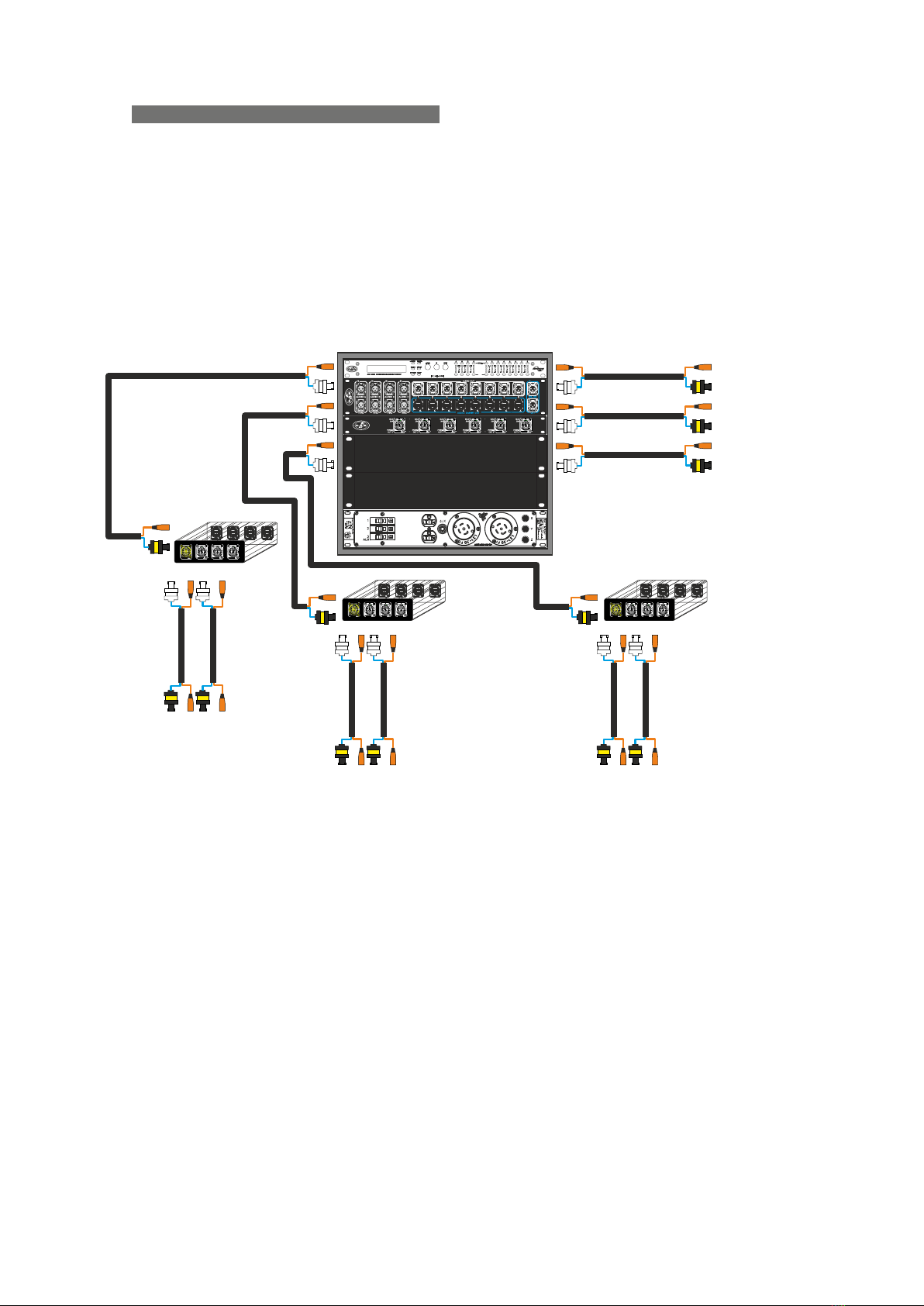

To continue, two configuration examples. You will find more on the web page.
Manual del Usuario / DASnet Splitter / User’s Manual
EDIT
1
3
2
1
3
2
1
3
2
1
3
2
1
3
2
1
3
2
1
3
21
3
21
3
21
3
21
3
2
2
3
1
PUSH
2
3
1
PUSH
2
3
1
PUSH
2
3
1
PUSH
1
3
21
3
21
3
21
3
21
3
21
3
2
1
3
21
3
2
2
3
1
PUSH
eCP_20 eCP_20
eCP_20
eCP_20
IN OUT1 OUT2 OUT3
IN OUT1 OUT2 OUT3 IN OUT1 OUT2 OUT3
2 x LX-218CA-NET
(2 x 6,2A = 12,4A RMS)
(2 x 40A = 80A Peak)
2 x LX-218CA-NET
(2 x 6,2A = 12,4A RMS)
(2 x 40A = 80A Peak)
2 x LX-218CA-NET
(2 x 6,2A = 12,4A RMS)
(2 x 40A = 80A Peak)
3 x AERO-40A
(3 x 6A = 18A RMS)
(3 x 16A = 48A Peak)
3 x AERO-40A
(3 x 6A = 18A RMS)
(3 x 16A = 48A Peak)
3 x AERO-40A
(3 x 6A = 18A RMS)
(3 x 16A = 48A Peak)

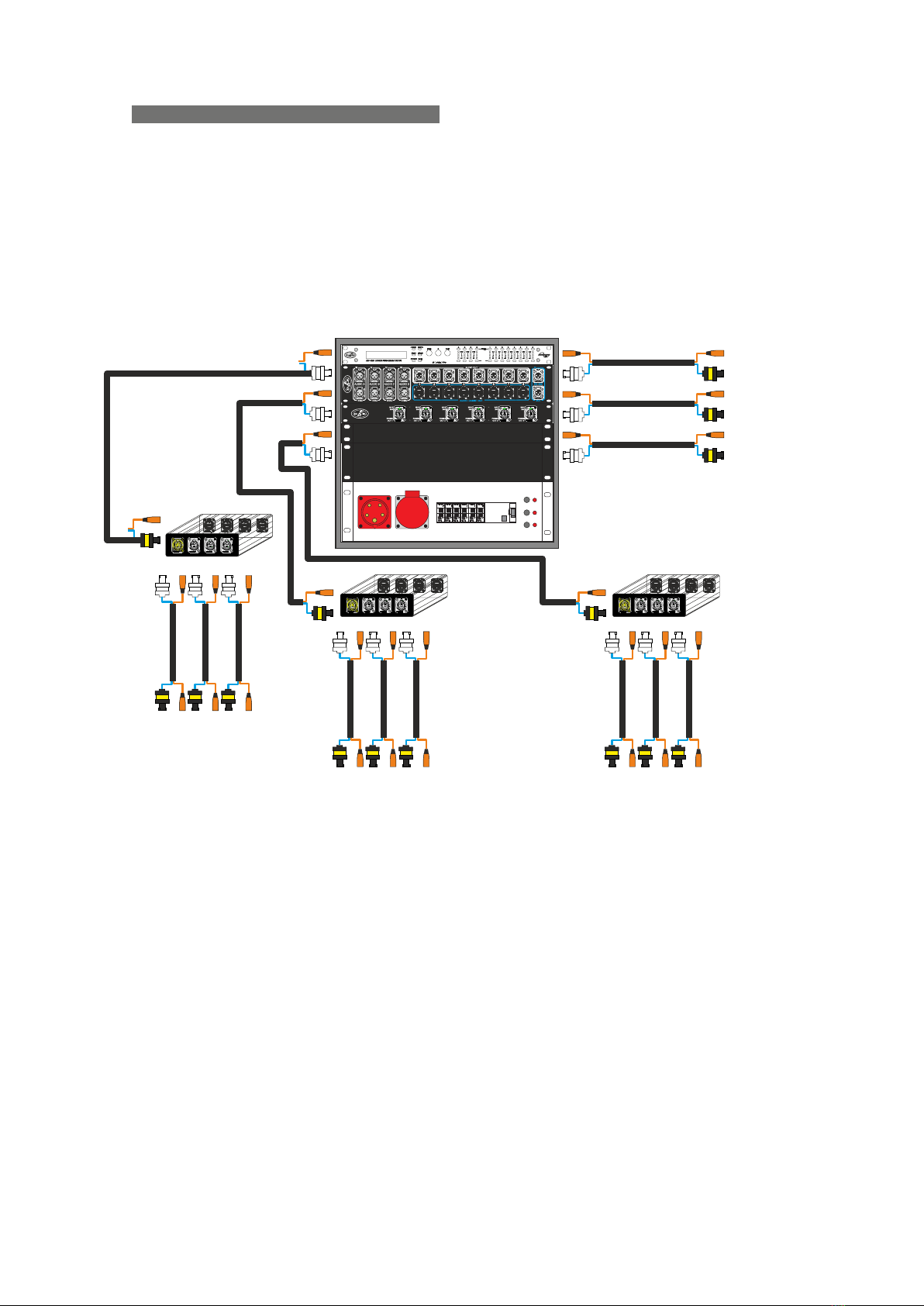

115V DASNET-RACK: maximum number of cabinets - 9 AERO-40A + 6 LX-218CA-NET
With these values, in one phase we will have:
RMS current: 3 x AERO-40A and 2 x LX-218CA-NET --> 18A + 12,4A RMS = 30,4A RMS,
phase max RMS current is 30A.
Peak current: 3 x AERO-40A and 2 x LX-218CA-NET --> 48A + 80A peak = 128A Peak, each
circuit breaker can stand 10In < I < 20In, that is to say between 200A< I < 400A.

CONFIGURATIONS (cont´d)
Note: You will find more configurations on the web page.
8
EDIT
L1
L2
L3
I
o
FI40 30mA 4pol.
FI-Schalter
6 x MCB 16A “C” 1pol.
1 x RCD 40A 30mA 4pol.
1
3
2
1
3
2
1
3
2
1
3
2
1
3
2
1
3
2
1
3
21
3
21
3
21
3
21
3
2
2
3
1
PUSH
2
3
1
PUSH
2
3
1
PUSH
2
3
1
PUSH
1
3
21
3
21
3
21
3
21
3
21
3
2
1
3
21
3
2
2
3
1
PUSH
eCP_20 eCP_20
eCP_20
eCP_20
IN O UT1 OU T2 OUT3
IN O UT1 OU T2 OUT3 IN O UT1 OU T2 OUT3
3 x LX-218CA-NET
(3 x 3,1A = 9,3A RMS)
(3 x 20A peak = 60A)
3 x LX-218CA-NET
(3 x 3,1A = 9,3A RMS)
(3 x 20A peak = 60A)
3 x LX-218CA-NET
(3 x 3,1A = 9,3A RMS)
(3 x 20A peak = 60A)
4 x AERO-40A
(4 x 3A RMS = 12A)
(4 x 16A peak = 64A)
4 x AERO-40A
(4 x 3A RMS = 12A)
(4 x 16A peak = 64A)
4 x AERO-40A
(4 x 3A RMS = 12A)
(4 x 16A peak = 64A)
With these values, in one phase we will have:
RMS current: 4 x AERO-40A and 3 x LX-218CA-NET --> 12A + 9,3A RMS = 21,3A RMS, phase
max RMS current is 32A.
Peak current: 4 x AERO-40A and 3 x LX-218CA-NET --> 64A + 60A peak = 124A Peak, each
circuit breaker can stand 5In < I < 10In, that is to say between 80A< I < 160A.
230V DASNET-RACK: maximum number of cabinets - 12 AERO-40A + 9 LX-218CA-NET
Manual del Usuario / DASnet Splitter / User’s Manual

9
SPECIFICATIONS
How many “devices” can be connected to a single DASNET-SPLITTER?
The answer to this question will depend on three different factors; first of all the models of the system,
second the power consumption (RMS and Peak) of it and third the power distro that provides power to
the splitter.
LX-218CA-NET
230V distro
115V distro
Power Consumption:
Power Distros (included in DASnet Racks)
AERO-40A
RMS current (measured at
1/3 of the power)
32A three phase
30A three phase
RMS current (measured at
1/3 of the power)
RMS current (measured at
1/3 of the power)
RMS current (measured at
1/3 of the power)
PEAK current (measured at
full power)
PEAK current (measured at
full power)
PEAK current (measured at
full power)
PEAK current (measured at
full power)
3,1A
6 outputs x 16A each
6 outputs x 15A each
RMS current 16A
RMS current 15A
Breakers type C, 16A
Breakers type D, 20A
Short term current (peak)
5In<I<10In
Short term current (peak)
10In<I<20In
3A
6,2A
6A
20A
16A
40A
32A
230V
230V
115V
115V
230V
230V
115V
115V
Important considerations
Check the system´s configurations (AERO-20A, AERO-40A) for more information regarding the quantity
of cabinets that should be connected to the DASNET-SPLITTER.
Consider, if you are using different power distros than the ones provided by DAS Audio, that the type
of breakers and their nominal current (In) is fundamental to define the number of cabinets connected to a
single DASNET-SPLITTER.
Consider that there is also a current limitation in the PowerCon connectors. 20A is the maximum
RMS current for NAC3MPB and 16A for TRUE 1.
System´s power consumption will depend on the level at which the system is driven: all the given
current values are valid when operating with music or in a live sound event and have been measured at
the maximum system´s level (DSP limiters).
Manual del Usuario / DASnet Splitter / User’s Manual

10
LINE DRAWINGS
ALL DIMENSIONS IN MILLIMETERS
ALL DIMENSIONS IN MILLIMETERS
OPENED
CLOSED
Top View
Top View
Front View
Front View
Left View
Left View
Rear View
Rear View
Manual del Usuario / DASnet Splitter / User’s Manual
250
276
206
65
250
197

ANNEX : DASnet cables
11
With each system, cabling and patch panels are provided. It is very important to use the system
with the intended cables to prevent electromagnetic interferences between the analog audio signal,
the DASnet data and the power. Be sure to check the specifications provided by the cable
manufacturer. It is also especially important when installing connectors yourself, to note that when
termination is not accurate, a cable will be unable to achieve its maximum performance and could
have interferences.
There are 4 different types of cables.
- The main feeds which include power and a STP, CAT7 cable. These cables are named
eCP_xx (xx refers to cable length).
- The links between cabinets (aero40A/Convert15A/LX-218CAnet), which are STP CAT7
cables. Cable code eC_09
- Power Links between cabinets.Cable code Plink1_09
- Links for RoadNet series. Power+STP CAT7. eCPk_1/eCPk_5
The main feed cable eCP_xx has the following structure:
AL Shield
2 2
ecP_xx: Power cable 3x2,5mm + CAT7 4x (2 x 0,14mm )
Jacket
Jacket
STP CAT 7 cable with Aluminium Shield for
each individual pair and a main aluminium
Shield.
The main Shield has to be soldered to the
etherCon housing.
The eC_09 cable is a CAT5e cable with
global Aluminium Shield.
Important
The pin out of the EtherCon to XLR is the following on the eCP cables:
1 Orange-White Audio+ 2
2 Orange Audio- 3
3 Green-White Audio Earth 1
4 Blue
5 Blue-White
6 Green Data Earth 1
7 Brown-White Data- (A) 3
8 Brown Data+ (B) 2
etherCon XLR
Manual del Usuario / DASnet Splitter / User’s Manual

UM_SPLITTER_02_EN
www.dasaudio.com
DAS Audio of America, INC.
6900 NW 52th Street
Miami, FL. 33166 - U.S.A.
TOLL FREE: 1 888 DAS 4 USA
DAS Audio Asia PTE. LTD.
3 Temasek Avenue, Centennial
Tower #34-36
Singapore 039190
Tel. [phone]
DAS Audio Group, S.L.
C/. Islas Baleares, 24
46988 Fuente del Jarro
Valencia, SPAIN
Tel. [phone]
DAS do Brasil LTDA.
Rua Dos Andradas, 382 SL
Santa Efigênia, São Paulo
Brasil. CEP: 01208-000
Tel. [phone]
