D-Link DHD-131 User manual

iD-Link DHD-131 User Manual
D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to notify any person or organization
of such revisions or changes.
Manual Revisions
Trademarks
D-Link and the D-Link logo are trademarks or registered trademarks of D-Link Corporation or its subsidiaries in the United States or other countries.
All other company or product names mentioned herein are trademarks or registered trademarks of their respective companies.
Copyright © 2011 by D-Link Systems, Inc.
All rights reserved. This publication may not be reproduced, in whole or in part, without prior expressed written permission from D-Link Systems,
Inc.
Revision Date Description
1.0 June 10, 2011 • Initial release
Preface

iiD-Link DHD-131 User Manual
Table of Contents
Preface .................................................................................................i
Manual Revisions ...............................................................................................i
Trademarks ..........................................................................................................i
Product Overview ..............................................................................1
Package Contents ...........................................................................................1
System Requirements .................................................................................... 1
Introduction ...................................................................................................... 2
Hardware Overview ........................................................................................ 3
Connections .............................................................................................3
Installation .........................................................................................4
WiDi Settings ..................................................................................... 7
Behavior Properties ........................................................................................7
Adapter Properties..........................................................................................8
Resize TV Picture.....................................................................................9
Test Audio ...............................................................................................10
About .................................................................................................................11
Help/Troubleshooting .....................................................................12
Technical Specications ..................................................................14
Contacting Technical Support ........................................................15
Warranty ...........................................................................................16
Registration .....................................................................................22
Table of Contents

1D-Link DHD-131 User Manual
Section 1 - Product Overview
Product Overview
Package Contents
Note: Using a power supply with a dierent voltage rating than the one included with the DHD-131 will cause damage and void the warranty. If any of the above items
are missing, please contact your reseller.
DHD-131 MainStage™ TV Adapter
HDMI Cable
Power Adapter
System Requirements
Requirements
• Laptop featuring Intel® Wireless Display and powered by a 2nd
generation Intel® Core™ processor.
• TV with an HDMI or AV Composite input
Full HD 1080P Resolution
To view full 1080P HD on your TV, you will need the following:
• Laptop with 1920 x 1080 screen in Clone mode or Huron River
platform in Extend mode.
• Firmware version 2.1.11.0 or higher (refer to Adapter Settings)
• A 1080P HDTV using an HDMI connection only

2D-Link DHD-131 User Manual
Section 1 - Product Overview

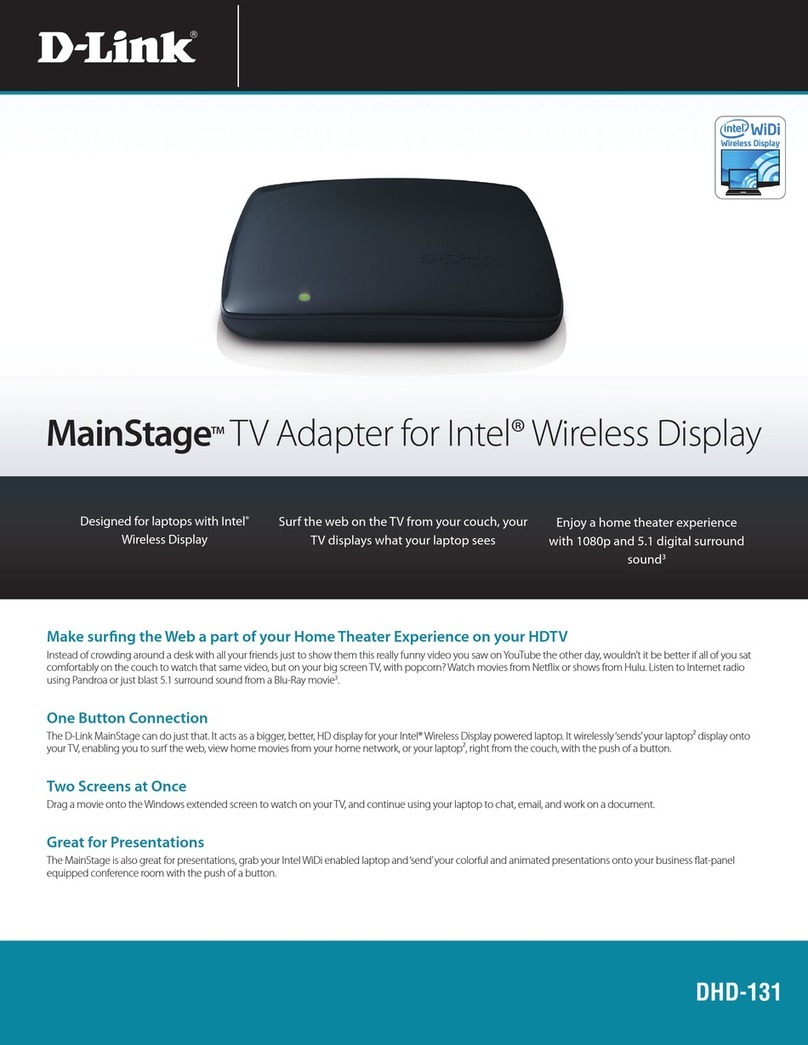

Introduction
Make surng the Web a part of your Home Theater Experience on your HDTV
Instead of crowding around a desk with all your friends just to show them this really funny video you saw on YouTube the other day, wouldn’t it be
better if all of you sat comfortably on the couch to watch that same video, but on your big screen TV, with popcorn? Watch movies from Netix or
shows from Hulu. Listen to Internet radio using Pandora or just blast 5.1 surround sound from a Blu-Ray movie3.
One Button Connection
The D-Link MainStage™ adapter can do just that. It acts as a bigger, better, HD display for your Intel® Wireless Display powered laptop. It wirelessly
‘sends’ your laptop² display onto your TV, enabling you to surf the web, view home movies from your home network, or your laptop², right from
the couch, with the push of a button.
Two Screens at Once
Drag a movie onto the Windows extended screen to watch on your TV, and continue using your laptop to chat, email, and work on a document.
Great for Presentations
The D-Link MainStage™ adapter is also great for presentations. Just grab your Intel WiDi enabled laptop and ‘send’ your colorful and animated
presentations onto your business at-panel equipped conference room with the push of a button.
Features Include
• Quick and easy secure setup
• Surf the web from your couch
• View what’s on your laptop², on your TV1
• HDMI Connection
• Composite A/V Connections
• No Codec Limitations4
• No DRM Issues4
• Play movies in 1080p3
• Full 5.1 digital surround sound3
• 24/7 Basic Installation Support5
• 1-Year Warranty6
1 Any device, content, or application you can access on your home network or your PC .
2 Works only with laptops with Intel® Wireless Display powered by the Intel® Core™ Processor Family.
3 1080p resolution and digital surround sound available only if supported by le format. Requires TV that supports 1080p and an audio system that supports digital surround sound.
4 Codec Limitations and DRM issues are based o of what your laptop can and cannot play.
5 24/7 Basic Installation Support is available only in the USA for the rst 30 days from date of original purchase.
6 1-Year Limited Warranty available only in the USA and Canada.

3D-Link DHD-131 User Manual
Section 1 - Product Overview
Hardware Overview
Connections
1Reset
There are 3 functions available:
• Press for about 1/2 second to cycle forward through dierent display languages*. Press and hold for
more than 1 second (less than 5 seconds) to cycle back.
• Press and hold for 5 seconds to restore the router to its original default settings.
• To reset to the original shipping rmware and default settings, turn the adapter o. Hold in the reset
button and power on the adapter. Keep holding for about 5 seconds after you powered on.
2HDMI Port Connect to your TV’s HDMI input port using the included HDMI cable. Must be used for 720P or higher HD
resolution. Use for the best audio and video quality.
3Composite Ports
Connect to your TV’s composite input ports if you do not have or want to use HDMI. The yellow port is for
video, and the white and red ports are for audio. Note for 720P or higher HD resolution, you must use an
HDMI connection.
4S/PDIF Port Connect to your Audio system that uses an S/PDIF (Sony/Phillips Digital Interface Format) audio connection.
5On/O Button Press the power button to power the device on and o.
6Power Receptor Receptor for the supplied power adapter.
123456
* Refer to page 13 for language display information.

4D-Link DHD-131 User Manual
Section 2 - Installation
Step 3
Power on your TV and select the correct TV input source. Please refer to your TV documentation for instructions on how to change your input source.
Step 4
The Startup screen displays on your TV within 30 seconds. If this screen does not appear, make sure your TV
is set to the correct video input and all the cables are rmly secured.
Installation
Below are steps to install and set up your MainStage™ TV Adapter.
Step 1
Connect an HDMI cable to the HDMI port on your MainStage TV Adapter and the other end into the HDMI Input on your TV. You may instead connect
using composite connections if HDMI is not available.
Step 2
Connect the supplied power adapter to the back of the MainStage™ TV adapter and the other end to a power outlet or surge protector. The MainStage™
TV adapter LED is red when it powers up. Then the LED turns yellow to indicate it is ready, but is not yet wirelessly connected to your computer.
DC IN
DC IN
HDMI
DC IN
DC IN
HDMI
HDMI Connection Composite Connection

5D-Link DHD-131 User Manual
Section 2 - Installation
Step 6
Use the Intel® Wireless Display software to scan and nd the MainStage™ TV adapter. The screen below shows that the Intel® Wireless Display
software has found the wireless adapter. Select the MainStage™ TV adapter listed under Detected Adapters and click Connect. The LED on the TV
adapter will start ashing green.
If a device is not detected, click the Scan for available adapters button.
Previously used connections will show an orange circle on
the TV icon. A grey circle indicates a new device.
Displays the name of the adapter. You can rename the
adapter during or after setup.
Displays the ID of the adapter.
Displays the model of the WiDi adapter.
Displays the signal strength on a scale of 1 bar (weakest) to
5 bars (strongest).
Type:
Name:
ID:
Model:
Signal:
During rst-time set up the following may appear:
• Firewall Alert - Your rewall software may block the WiDi connection and alert you. If this appears, you will need to allow access
for both private and public networks. Please refer to your rewall software for more information.
• License Agreement - Read the license agreement. If you agree, click I agree to the terms of this license to continue. If you do
not agree, click I do not agree and the software will close.
Step 5
Launch the Intel® Wireless Display software on your Intel WiDi compatible laptop. Some laptops may have a WiDi Launch button or key
or you can launch from Windows. Click Start > Programs > Intel Corporation > Intel WiDi.

6D-Link DHD-131 User Manual
Section 2 - Installation
Step 8
The TV screen will display your laptop screen and the LED on the MainStage™ TV adapter will turn solid green.
Step 9
The following window will appear. Click Finished to complete setup. Your device is now ready to use.
Step 7
If you are connecting the laptop to the MainStage™ TV adapter for the rst time, it will display a 4-digit security code on the TV. Enter this 4-digit
security code into the Intel® Wireless Display software.

7D-Link DHD-131 User Manual
Section 3 - Conguration

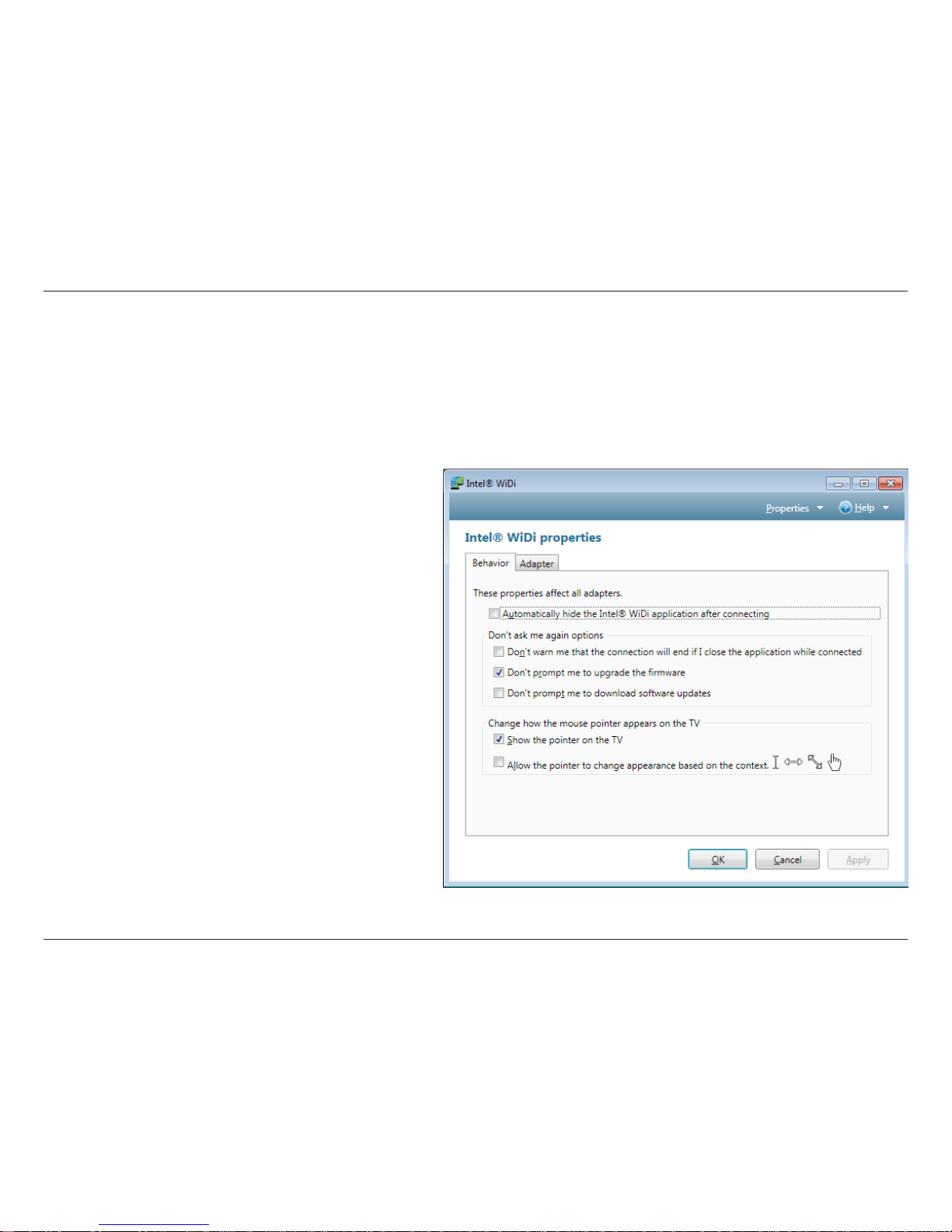

Behavior Properties
Click this box to hide the WiDi software after
connecting to the MainStage™ TV adapter.
Check the boxes of the options you want to disable.
Note: The ‘upgrade the rmware’ option refers to
the rmware on the MainStage™ TV adapter. The
‘download software updates’ option refers to the
Intel® WiDi software on your laptop.
Check the boxes of the mouse pointer behaviors you
want enabled.
Click to save your settings.
Automatically hide the
Intel WiDi application after
connecting:
Don’t ask me again options:
Change how the mouse
pointer appears on the TV:
OK:
WiDi Settings
When you are connected to an adapter, you may click the Properties menu to congure your WiDi adapter’s settings.

8D-Link DHD-131 User Manual
Section 3 - Conguration
Enter a name for the MainStage™ TV adapter.
Displays the IP address of the MainStage™ TV adapter.
The IP address cannot be changed.
Displays the adapter ID.
Displays the MainStage™ TV adapter’s manufacturer
(D-Link).
Displays the model number of the MainStage™ TV
adapter.
Displays the hardware version of the adapter.
Displays the firmware version currently on the
MainStage™ TV adapter.
If there is new firmware available, the Update
available button will appear (as seen in the image
to the right). Click the button to begin the update
process. Once the update begins, the TV screen
will display an Updating Adapter message. After
the update is complete, the adapter automatically
disconnects from the laptop. Re-scan and connect
to the adapter.
Check this box to automatically have your laptop
connect to the MainStage™ TV adapter when you
launch the Intel WiDi software.
Click Register to open the D-Link registration website and enter your information.
Click to adjust the image on your TV (refer to page 9).
Click to test and adjust your audio settings (refer to page 10).
Click to save your settings.
Adapter Name:
Network address:
Adapter ID:
Adapter manufacturer:
Adapter model:
Adapter hardware version:
Adapter rmware version:
Automatically connect to
this adapter:
Register:
Resize TV picture:
Test audio:
OK:

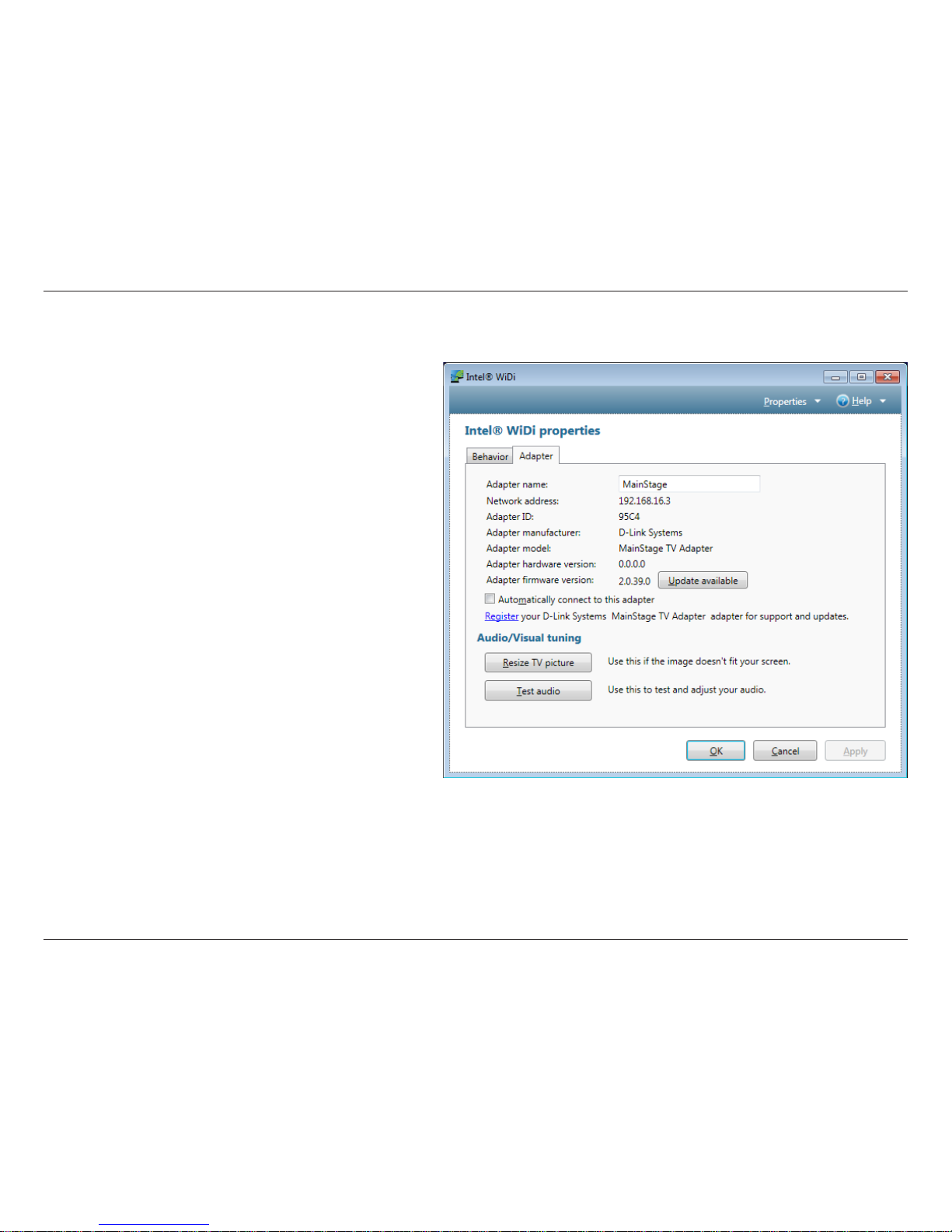

Adapter Properties

9D-Link DHD-131 User Manual
Section 3 - Conguration

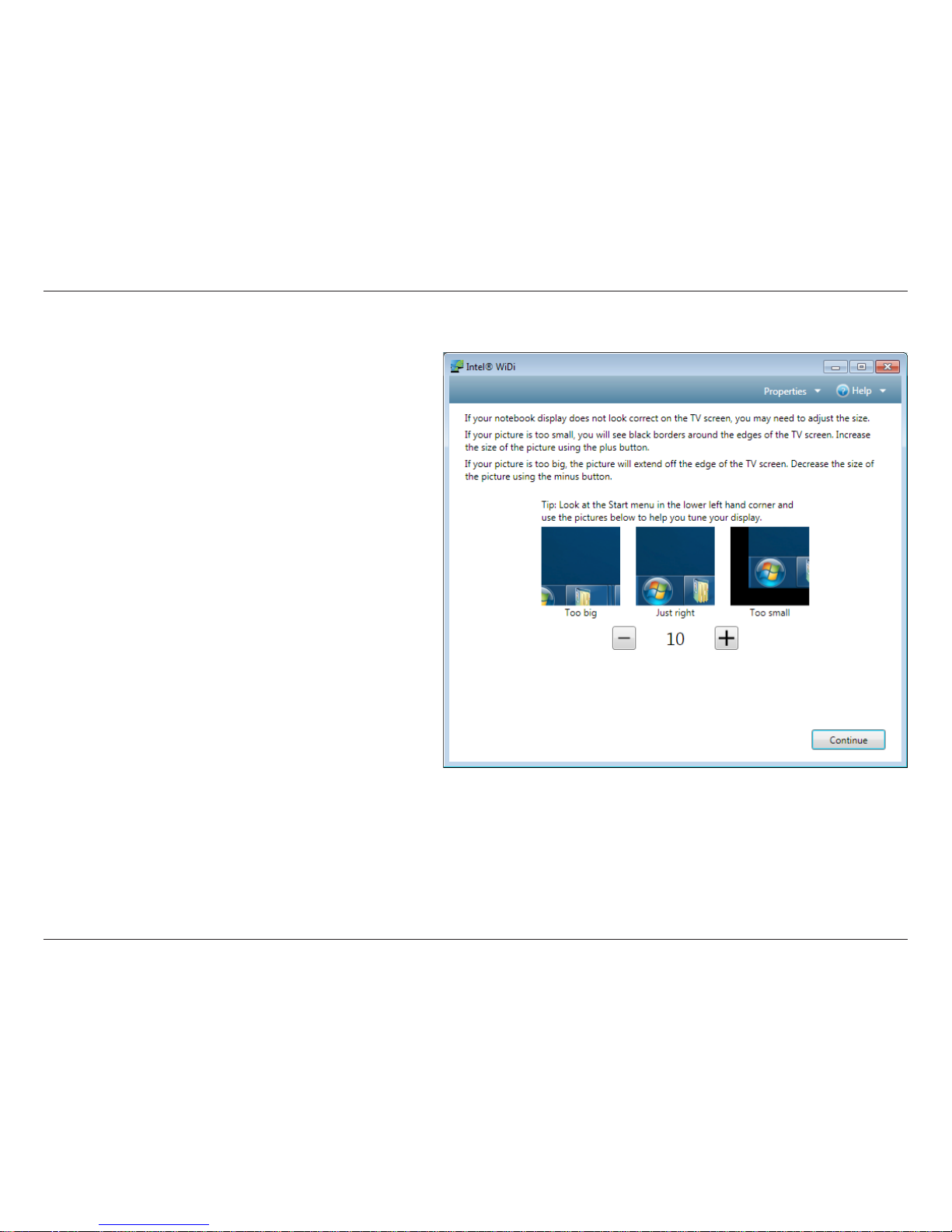

Resize TV Picture
If your display does not look correct on your TV, you can adjust
the size here. Click the - button to decrease the size and click the
+ button to increase the size.
Click Continue to save your settings.

10D-Link DHD-131 User Manual
Section 3 - Conguration

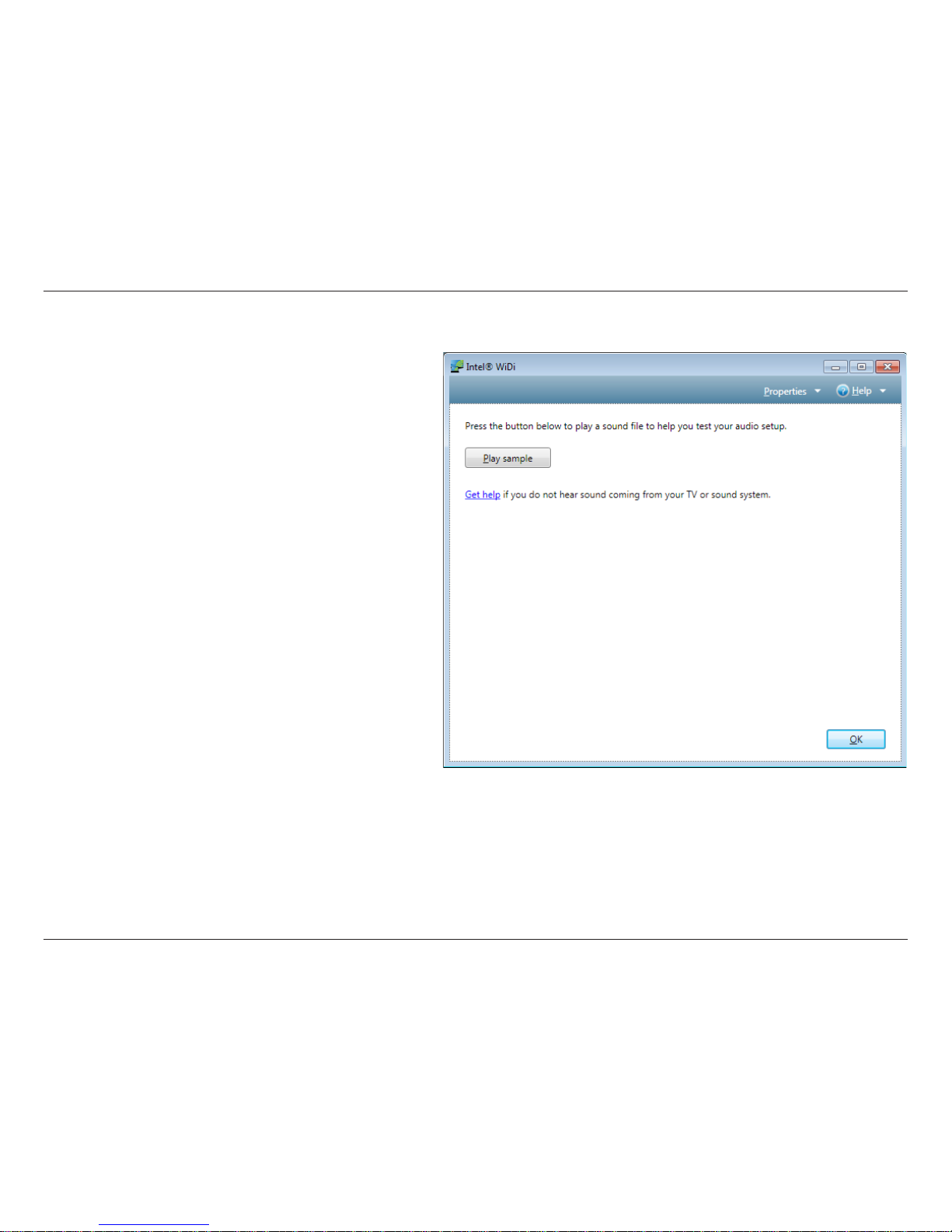

Test Audio
Once you connect to the MainStage™ TV adapter, the sound on
your laptop should mute. On some occasions, an application may
enable the sound on your laptop. To turn the laptop’s audio o,
click the speaker icon in the system tray (lower-right corner). You
can either slide the volume all the way down or click the speaker
icon to mute.
Click the Play Sample button to hear an audio le. You can then
adjust your TV or audio system settings. If you do not hear any
sound, click Get Help for troubleshooting steps.
Click OK to save your settings.

11D-Link DHD-131 User Manual
Section 3 - Conguration

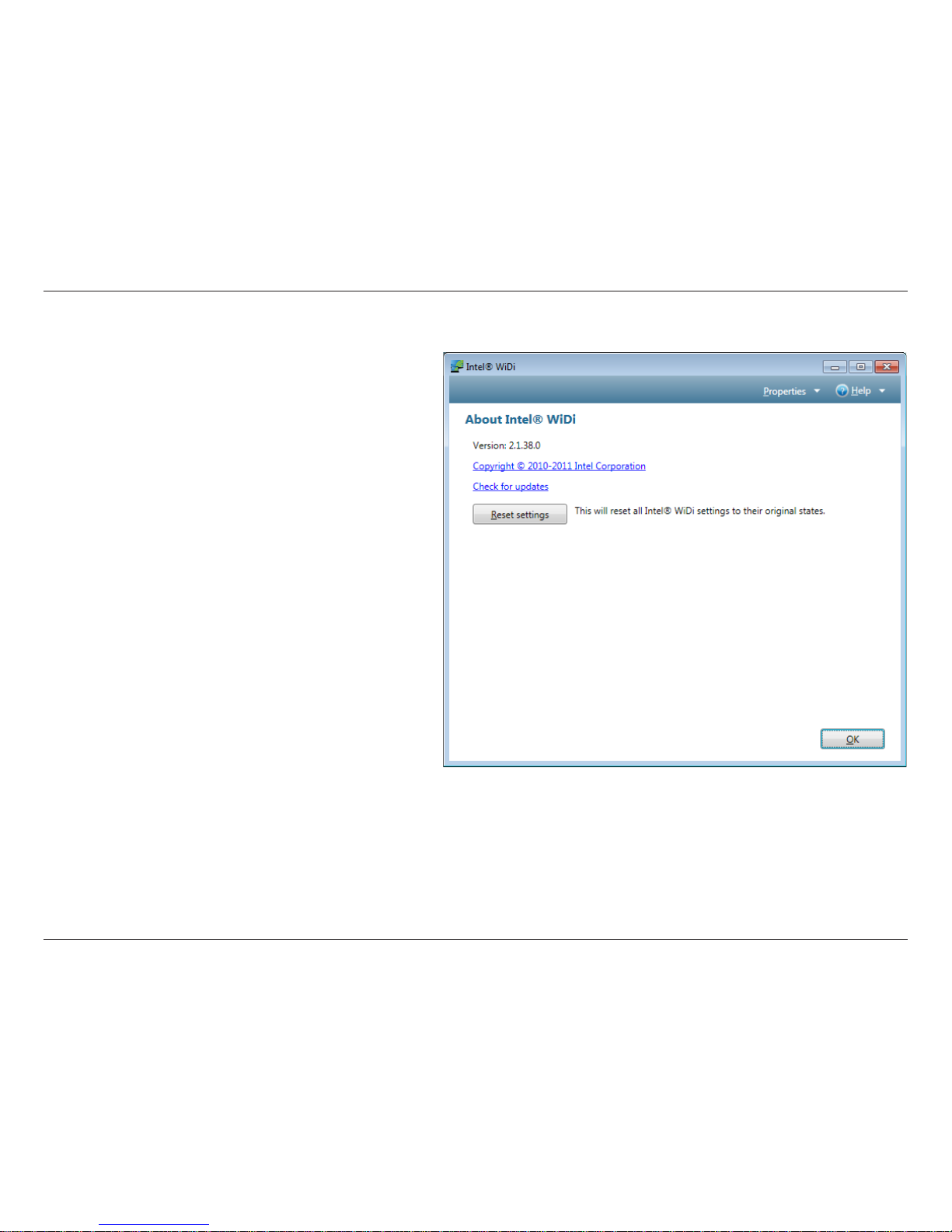

About
The About screen will display the current version of your Intel®
WiDi software.
Click OK to close the window.
If you are having some issues or accidentally changed a setting
you shouldn’t have, you can reset the application back to the
default settings. To reset, click Help and then click About. Click
the Reset Settings button.
When you restart the WiDi display, all detected adapters will
be displayed as not previously connected. You will not need to
re-enter the security code since that information is stored in the
MainStage™ TV adapter.

12D-Link DHD-131 User Manual
Section 3 - Conguration
For support/information regarding your Intel® WiDi software, visit http://www.intel.com/go/wirelessdisplayupdate.
Click Help for FAQs and solutions to many questions you may have with the WiDi software. Below are a few common questions:
Why is my Laptop and TV displaying dierent images?
If you are connected, but the image is dierent, the laptop’s rewall may be blocking the connection.
Why is the color on your laptop look dierent than on my TV?
On occasion the color on your TV screen and your laptop may look dierent. Try changing the color settings on your TV to match the colors on your
laptop. Refer to your TV manual for more information.
Why am I getting an ‘Incorrect Security Code Entered’ message?
If you receive a message saying the security code is not correct, make sure to type the code exactly as shown on your TV. The security code number
will change after an incorrect entry. If the connection fails right after a correct security code is entered, reconnect and type in the security code.
What do I do if no adapters are detected?
Click the Scan for available adapters button. If you continue to not detect the MainStage™ TV adapter, make sure the adapter is on and the TV
is displaying the Get Started screen. Also, try moving the laptop or the adapter to a dierent location. The adapter and TV should be in the same
room to work correctly.
How do I reset the Intel WiDi software to the default settings?
If you are having some issues or accidentally changed a setting you shouldn’t have, you can reset the application back to the default settings. To
reset, click Help and then click About. Click the Reset Settings button. When you restart the WIDi display, all detected adapters will be displayed
as not previously connected. You will not need to re-enter the security code since that information is stored in the MainStage™ TV adapter.
When I close the laptop cover/lid the connection drops. How do I continue connectivity to my WiDi adapter with my laptop closed?
Closing the cover of the laptop may go into sleep mode or turn the laptop o, and as a result, will disconnect the Intel Wireless Display session.
To close the cover and continue using the WiDi application, you must access your power options:
1. Click Start > Control Panel > Hardware and Sound (if in Category mode) > Power Options. You may also click the battery icon in the taskbar.
2. Click the Change what closing the lid does on the left side.
3. Next to When I close the lid, select Do nothing from the drop-down menu for both On battery and Plugged in.
4. Click the Save changes button to activate your settings.
Help/Troubleshooting

13D-Link DHD-131 User Manual
Section 3 - Conguration
How do I change the language display on my MainStage™ TV adapter?
Once you are connected and the D-Link WiDi adapter is displayed on your TV, you can change the language display. With a paper clip, press the
reset button on the back of the WiDi adapter for about 1/2 second to cycle forward. Press and hold for more than 1 second (less than 5 seconds) to
cycle back. Below are the available languages:
English (default), Arabic, Czech, Danish, Dutch, Finnish, French, German, Greek, Hebrew, Hungarian, Italian, Japanese, Korean, Norwegian, Polish,
Portuguese (Brazil), Portuguese (Portugal), Russian, Simplied Chinese, Spanish, Swedish, Thai, Traditional Chinese, and Turkish.
How do I auto-connect to my MainStage™ TV adapter when I start the Intel® WiDi software?
Once you have successfully connected to your MainStage™ TV adapter, you can set your Intel® WiDi software to automatically connect to the adapter
when started. There are two ways to auto-connect to your adapter:
1. In the list of detected WiDi adapters, right-click the MainStage™ TV adapter and select Auto-connect. Make sure there is a check
mark next to it to verify that it is active.
2. Once you are connected to the MainStage™ TV adapter, click Properties and then click Adapter. Check the Automatically connect
to this adapter box. Refer to page 8.
How do I view video at 1080p HDTV resolution?
You must have an 1080p HDTV (using the HDMI connection to the WiDi adapter) and a 2nd generation WiDi laptop (based on Intel’s Huron River
platform) with 1920 x 1080 screen in Clone mode or Extend mode.
To view DVD or Blu-Ray discs you must have Firmware version 2.1.11.0 or higher on the MainStage™ TV adapter (refer to the Adapter Settings section).

14D-Link DHD-131 User Manual
Appendix A - Technical Specications
Technical Specications
LEDs
• Power/Connectivity
Video Output
• 1080p @ 30 FPS using H.264 compression
• HDMI Output
• Composite Video Output
Audio Output
• Stereo, 5.1 Surround
• HDMI out
• S/PDIF out
• Analog audio (RCA L/R)
Wireless Connectivity
• 802.11a
• 802.11n (2.4GHz/5GHz)
• 802.11g
Power Consumption
• 12V / 1.25A
Operating Temperature
• 32˚ to 104 ˚F (0˚ to 40˚ C)
Storage Temperature
• -4˚ to 158˚ F (-20˚ to 60˚C)
Storage Humidity
• 0 - 80% RH non-condensing
Certications
• FCC
• CE
• C-Tick
• RoHS
• WEEE
• HDMI
Dimensions
• 6.4” x 4.8” x 1.2” (162.56mm x 121.92mm x 30.48mm)
Weight
• 0.5 lbs (226.8 grams)
Warranty
• 1-Year Warranty
* Maximum wireless signal rate derived from IEEE Standard 802.11a, 802.11g and 802.11n specications. Actual data throughput will vary. Network conditions and environmental
factors, including volume of network trac, building materials and construction, and network overhead, lower actual data throughput rate. Environmental factors will adversely
aect wireless signal range.

15D-Link DHD-131 User Manual
Appendix B - Contacting Technical Support
Contacting Technical Support
U.S. and Canadian customers can contact D-Link technical support through our web site or by phone.
Before you contact technical support, please have the following ready:
• Model number of the product (e.g. DHD-131)
• Hardware Revision (located on the label on the bottom of the router (e.g. rev A1))
• Serial Number (s/n number located on the label on the bottom of the router).
You can nd user documentation on the D-Link website as well as frequently asked questions and answers to technical issues.
For customers within the United States:
Phone Support:
[phone]
Internet Support:
http://support.dlink.com
For customers within Canada:
Phone Support:
[phone]
Internet Support:
http://support.dlink.ca

16D-Link DHD-131 User Manual
Appendix C - Warranty
Warranty
Subject to the terms and conditions set forth herein, D-Link Systems, Inc. (“D-Link”) provides this Limited Warranty:
• Only to the person or entity that originally purchased the product from D-Link or its authorized reseller or distributor, and
• Only for products purchased and delivered within the fty states of the United States, the District of Columbia, U.S. Possessions
or Protectorates, U.S. Military Installations, or addresses with an APO or FPO.
Limited Warranty:
D-Link warrants that the hardware portion of the D-Link product described below (“Hardware”) will be free from material defects in workmanship
and materials under normal use from the date of original retail purchase of the product, for the period set forth below (“Warranty Period”), except
as otherwise stated herein.
• Hardware: One (1) year
• Spare parts and spare kits: Ninety (90) days
The customer’s sole and exclusive remedy and the entire liability of D-Link and its suppliers under this Limited Warranty will be, at
D-Link’s option, to repair or replace the defective Hardware during the Warranty Period at no charge to the original owner or to refund the actual
purchase price paid. Any repair or replacement will be rendered by D-Link at an Authorized D-Link Service Oce. The replacement hardware
need not be new or have an identical make, model or part. D-Link may, at its option, replace the defective Hardware or any part thereof with any
reconditioned product that D-Link reasonably determines is substantially equivalent (or superior) in all material respects to the defective Hardware.
Repaired or replacement hardware will be warranted for the remainder of the original Warranty Period or ninety (90) days, whichever is longer,
and is subject to the same limitations and exclusions. If a material defect is incapable of correction, or if D-Link determines that it is not practical
to repair or replace the defective Hardware, the actual price paid by the original purchaser for the defective Hardware will be refunded by D-Link
upon return to D-Link of the defective Hardware. All Hardware or part thereof that is replaced by D-Link, or for which the purchase price is refunded,
shall become the property of D-Link upon replacement or refund.
Limited Software Warranty:
D-Link warrants that the software portion of the product (“Software”) will substantially conform to D-Link’s then current functional specications
for the Software, as set forth in the applicable documentation, from the date of original retail purchase of the Software for a period of ninety (90)
days (“Software Warranty Period”), provided that the Software is properly installed on approved hardware and operated as contemplated in its
documentation. D-Link further warrants that, during the Software Warranty Period, the magnetic media on which D-Link delivers the Software will
be free of physical defects. The customer’s sole and exclusive remedy and the entire liability of D-Link and its suppliers under this Limited Warranty
will be, at D-Link’s option, to replace the non-conforming Software (or defective media) with software that substantially conforms to D-Link’s
functional specications for the Software or to refund the portion of the actual purchase price paid that is attributable to the Software.

17D-Link DHD-131 User Manual
Appendix C - Warranty
Except as otherwise agreed by D-Link in writing, the replacement Software is provided only to the original licensee, and is subject to the terms and
conditions of the license granted by D-Link for the Software. Replacement Software will be warranted for the remainder of the original Warranty
Period and is subject to the same limitations and exclusions. If a material non-conformance is incapable of correction, or if D-Link determines in
its sole discretion that it is not practical to replace the non-conforming Software, the price paid by the original licensee for the non-conforming
Software will be refunded by D-Link; provided that the non-conforming Software (and all copies thereof) is rst returned to D-Link. The license
granted respecting any Software for which a refund is given automatically terminates.
Non-Applicability of Warranty:
The Limited Warranty provided hereunder for Hardware and Software portions of D-Link’s products will not be applied to and does not cover any
refurbished product and any product purchased through the inventory clearance or liquidation sale or other sales in which D-Link, the sellers, or
the liquidators expressly disclaim their warranty obligation pertaining to the product and in that case, the product is being sold “As-Is” without
any warranty whatsoever including, without limitation, the Limited Warranty as described herein, notwithstanding anything stated herein to the
contrary.
Submitting A Claim:
The customer shall return the product to the original purchase point based on its return policy. In case the return policy period has expired and
the product is within warranty, the customer shall submit a claim to D-Link as outlined below:
• The customer must submit with the product as part of the claim a written description of the Hardware defect or Software
nonconformance in sucient detail to allow D-Link to conrm the same, along with proof of purchase of the product (such as a
copy of the dated purchase invoice for the product) if the product is not registered.
• The customer must obtain a Case ID Number from D-Link Technical Support (USA 1-877-453-5465 or Canada 1-800-361-5265), who
will attempt to assist the customer in resolving any suspected defects with the product. If the product is considered defective, the
customer must obtain a Return Material Authorization (“RMA”) number by completing the RMA form. Enter the assigned Case ID
Number at https://rma.dlink.com/ (USA only) or https://rma.dlink.ca (Canada only).
• After an RMA number is issued, the defective product must be packaged securely in the original or other suitable shipping package
to ensure that it will not be damaged in transit, and the RMA number must be prominently marked on the outside of the package.
Do not include any manuals or accessories in the shipping package. D-Link will only replace the defective portion of the product
and will not ship back any accessories.
• The customer is responsible for all in-bound shipping charges to D-Link. No Cash on Delivery (“COD”) is allowed. Products sent COD
will either be rejected by D-Link or become the property of D-Link. Products shall be fully insured by the customer and shipped
to D-Link Systems, Inc.
