D-Link Technical Support –How to configure MAC Filtering. Page 1of 4
MAC Filtering
This document will detail how to configure MAC Filtering on the following models
DSL-2730B Revision T1 Firmware AU_2.00
DSL-2740B Revision F1 Firmware AU_2.00
DSL-2750B Revision B1 Firmware AU_2.00

D-Link Technical Support –How to configure MAC Filtering. Page 2of 4

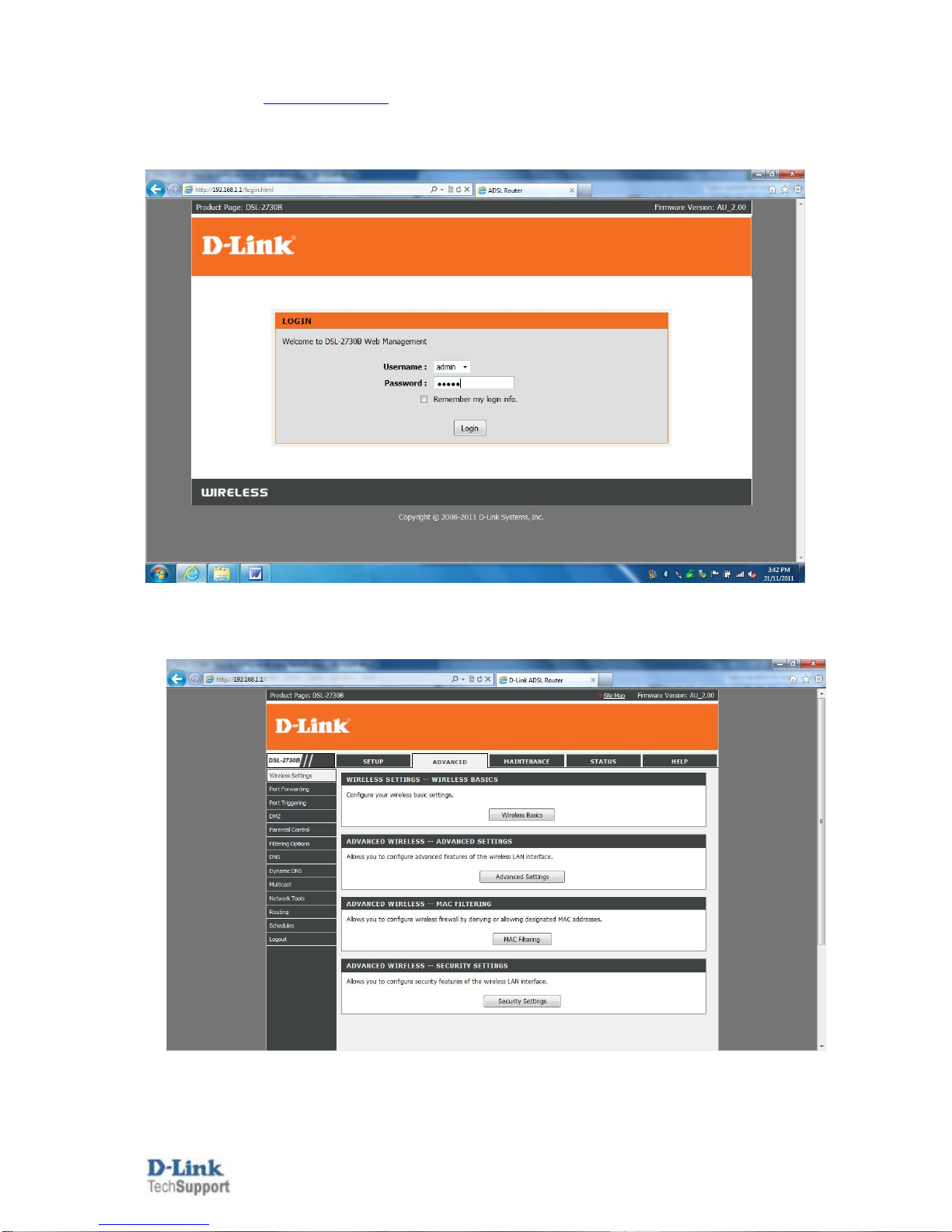

1. Log in to the modem with the computer connected to the modem via Ethernet.
-URL: http://192.168.1.1 (default)
-Username: admin
-Password: admin (default)
2. Select the ADVANCED button in the top menu.

D-Link Technical Support –How to configure MAC Filtering. Page 3of 4

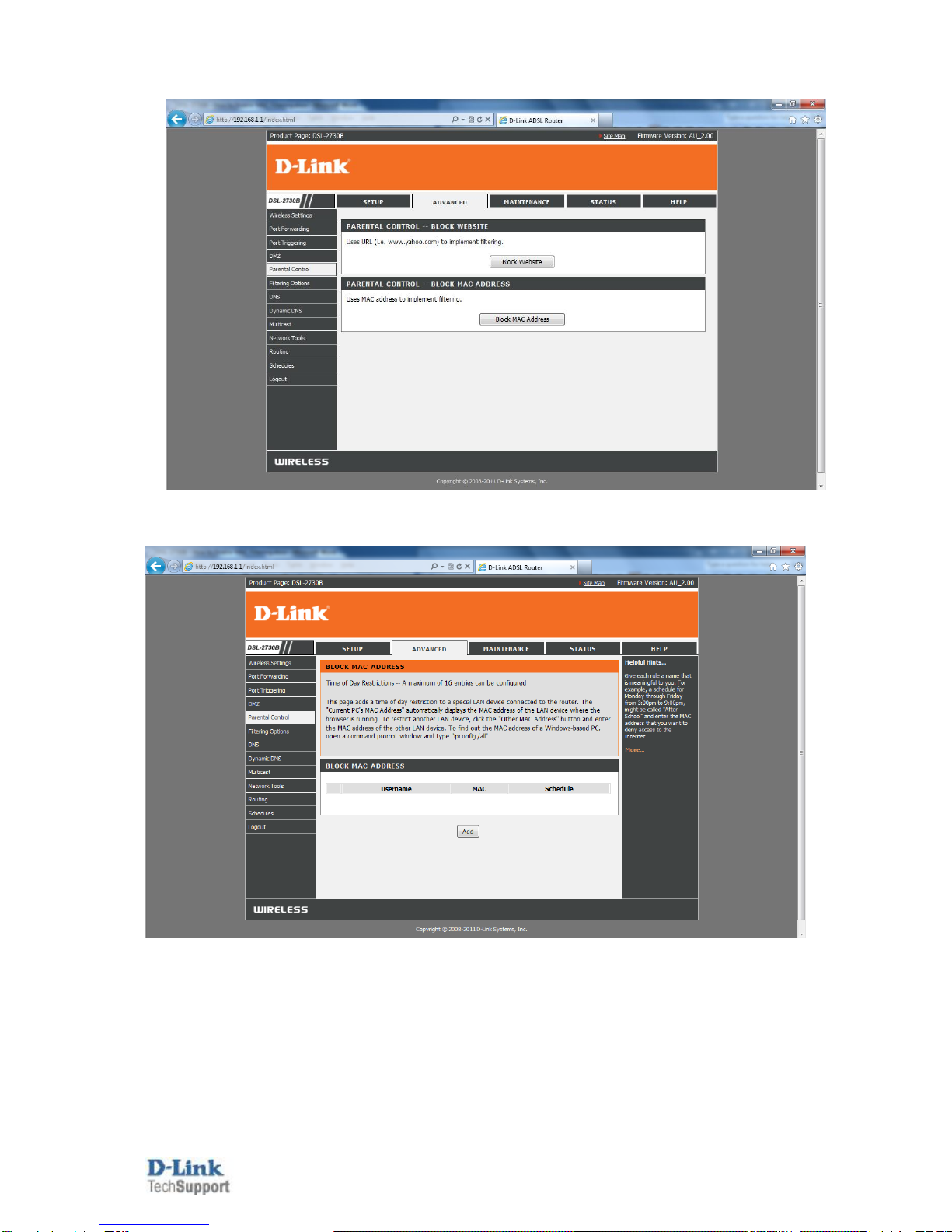

3. Select PARENTAL CONTROL in the left menu, followed by the Block Mac Address button.
4. Click ADD to create a new rule.

D-Link Technical Support –How to configure MAC Filtering. Page 4of 4

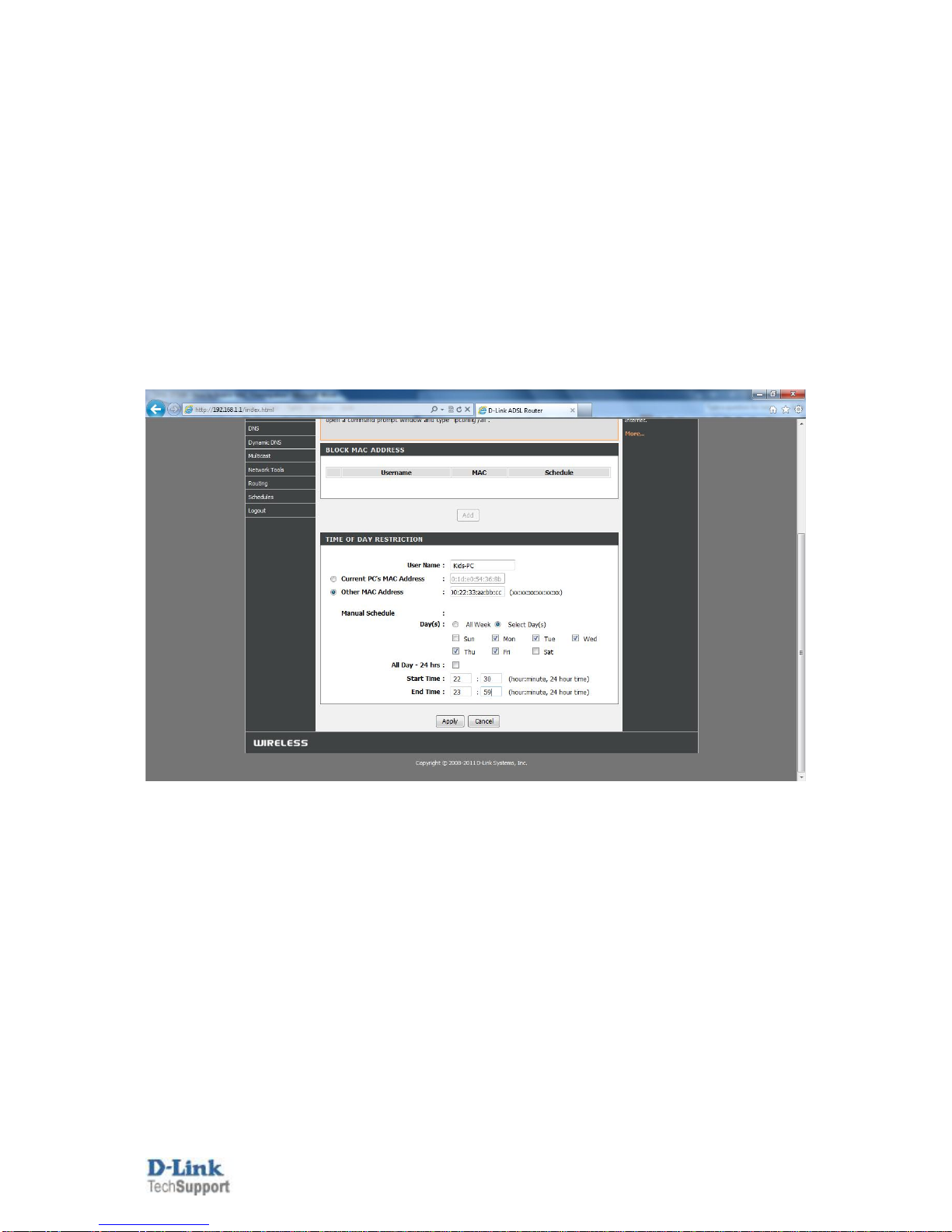

5. Enter a name (User Name) for the rule e.g. Kids-PC
-Select Current PC’s MAC Address if you wish to create the rule for the PC you are currently
working from.
-Select Other MAC Address to create the rule for another computer on the network such as
e.g. the Kids PC.
-Enter the MAC Address in the correct format for the Kids PC (xx:xx:xx:xx:xx)
-Select Manual Schedule to create a new schedule to block the computer from accessing the
internet at specific times or select the pre-configured Schedule Rule (Always) if you wish
to block the PC constantly.
6. Once all information is set, click on APPLY to save the changes.
