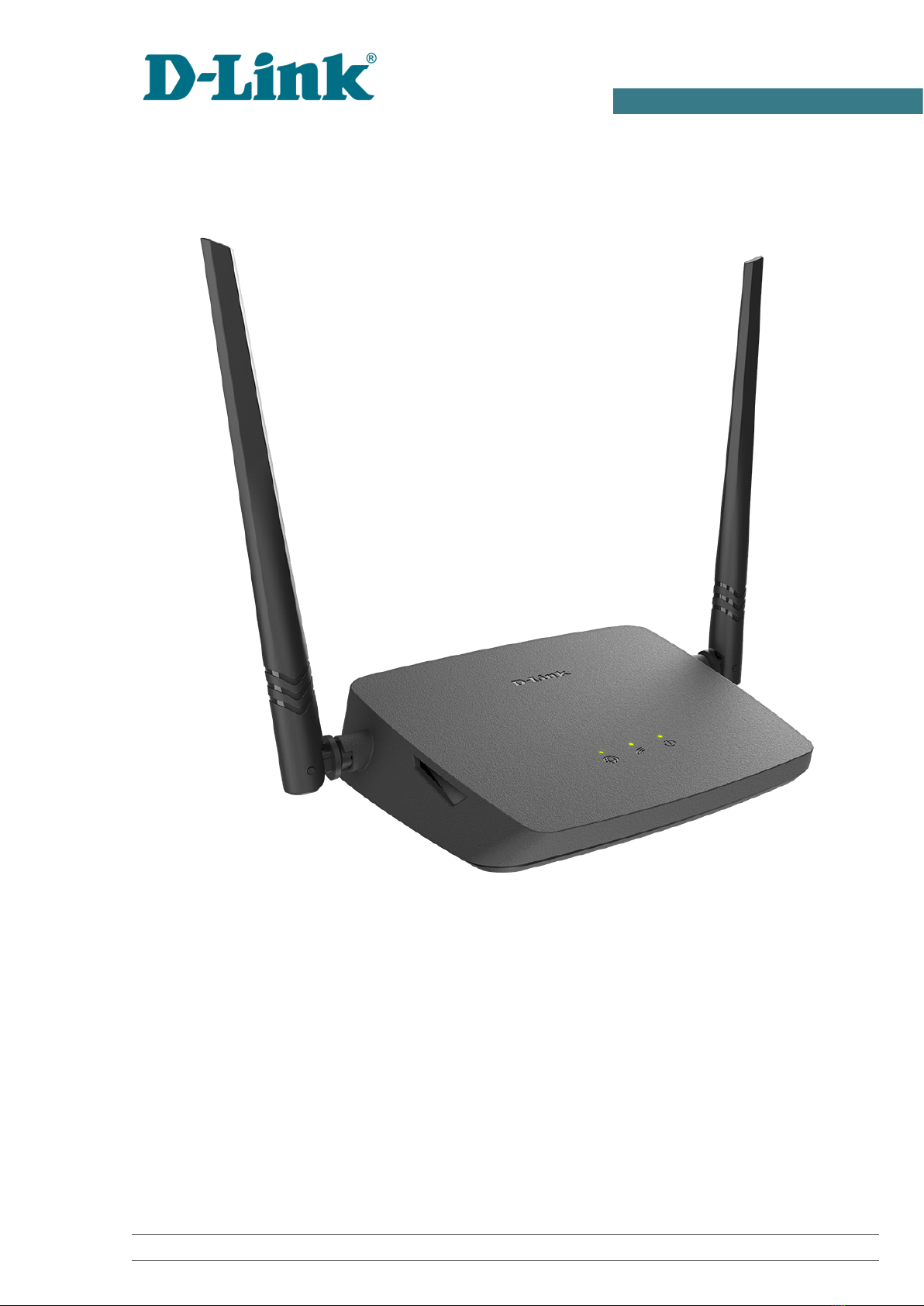

D-Link DIR-615 - Wireless N Router User manual

User Manual
DIR-615
Wireless N300 Router
December 2019

DIR-615 Wireless N300 Router
User Manual
Contents
Chapter 1. Introduction.........................................5
Contents and Audience.......................................................5
Conventions.................................................................5
Document Structure..........................................................5
Chapter 2. Overview.............................................6
General Information.........................................................6
Specifications..............................................................
Product Appearance.........................................................10

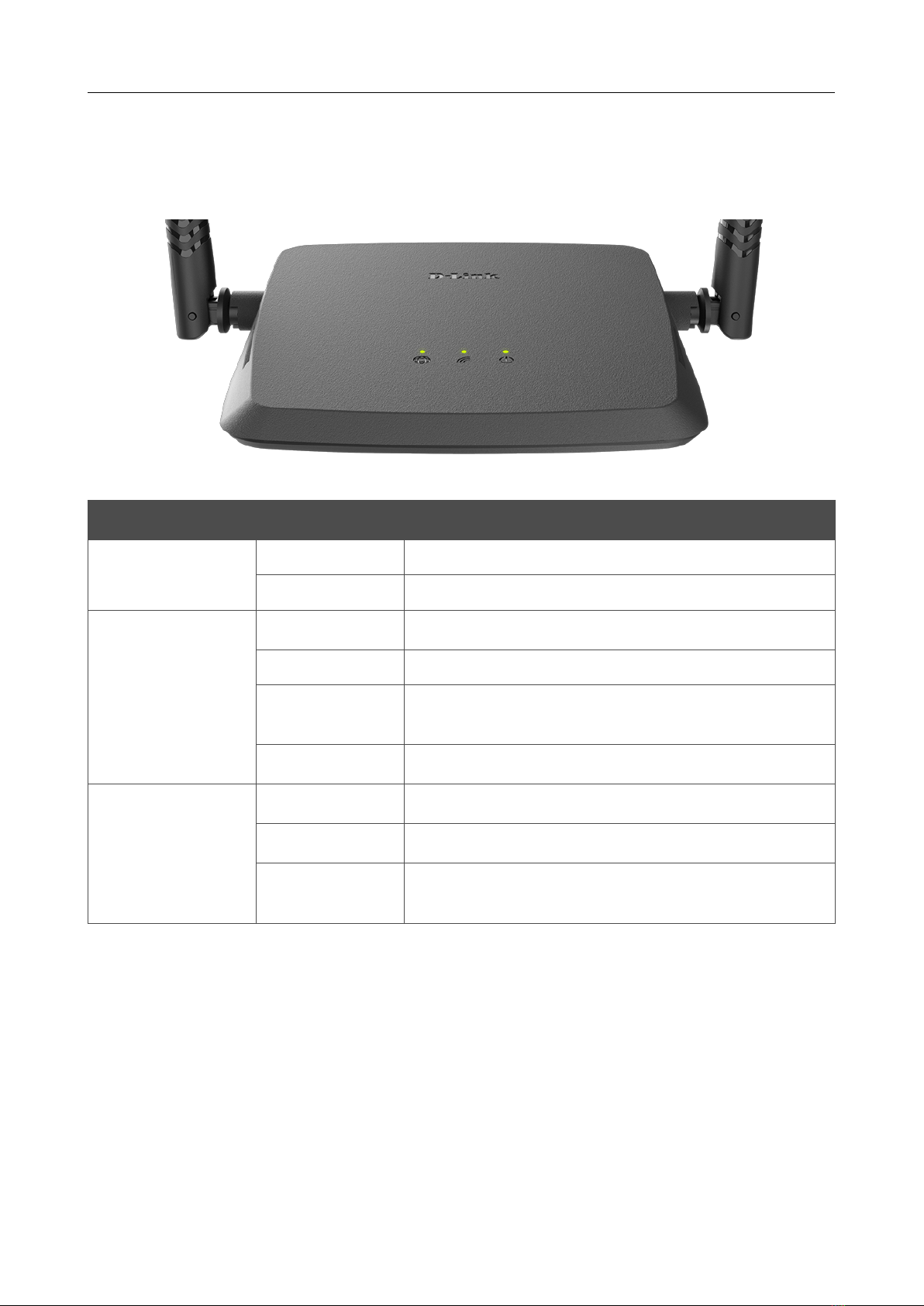

Top Panel................................................................10

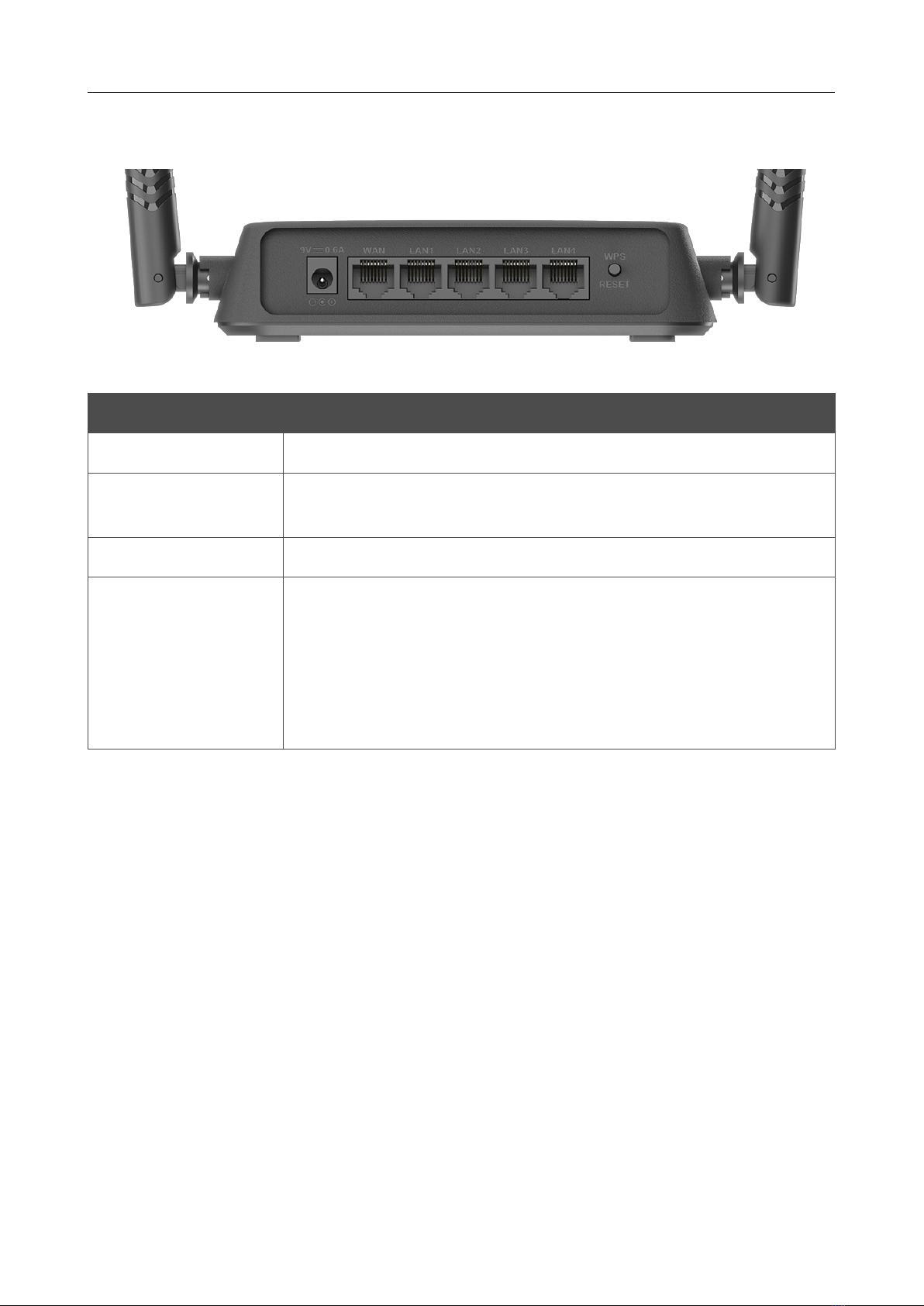

Back Panel...............................................................11
Delivery Package...........................................................12
Chapter 3. Installation and Connection.........................13
Before You Begin...........................................................13
Connecting to PC...........................................................14
PC with Ethernet Adapter.................................................14

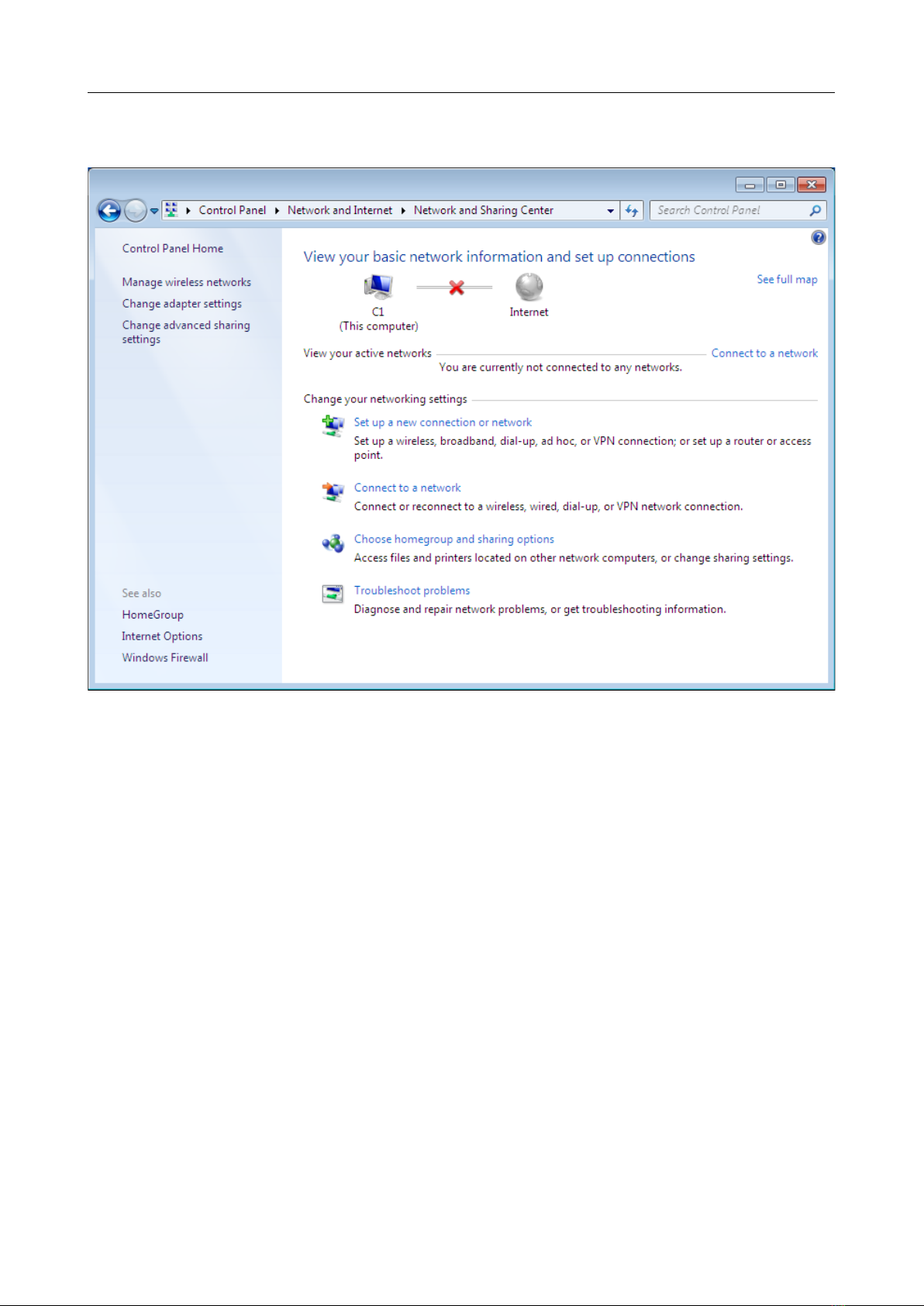

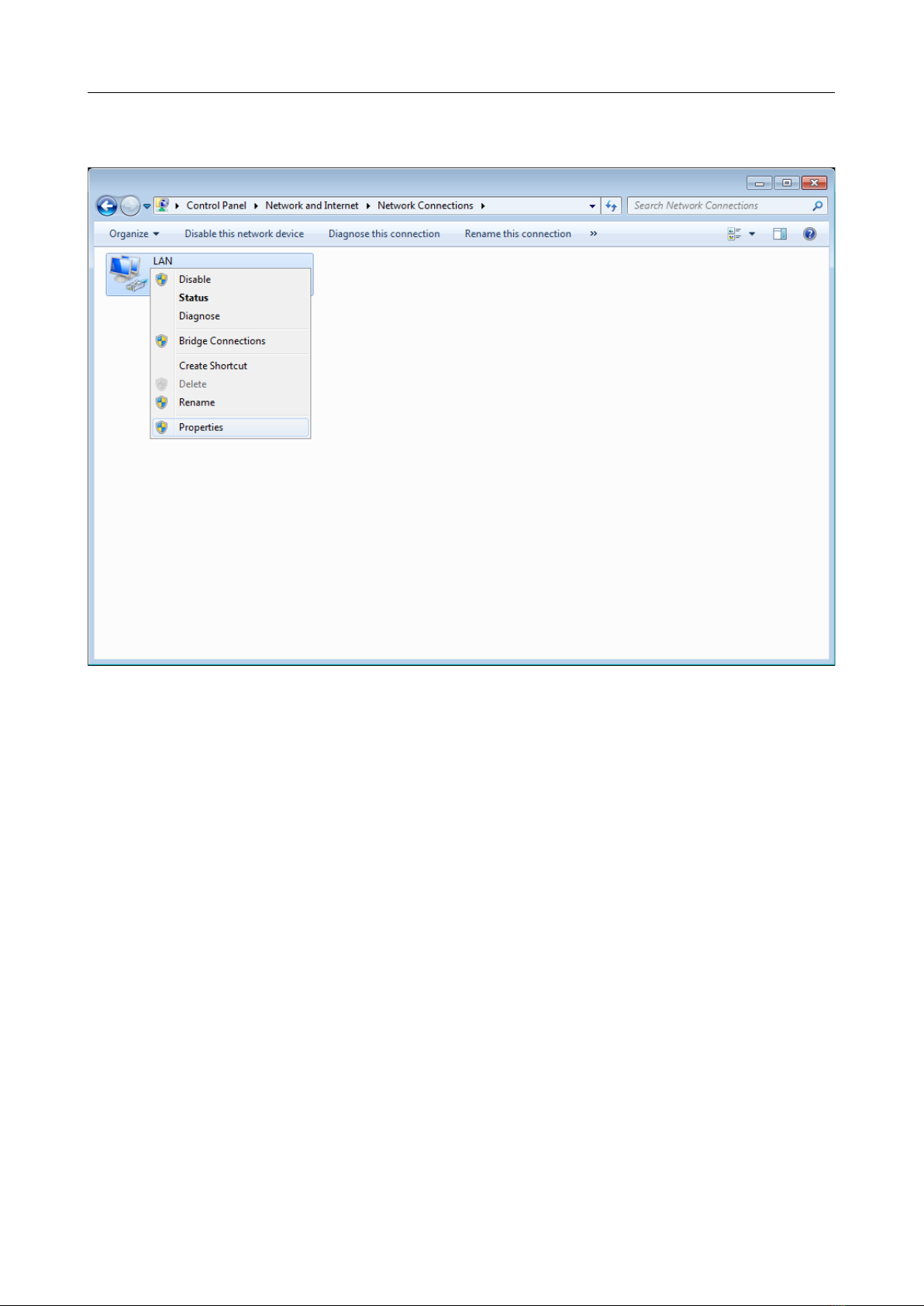

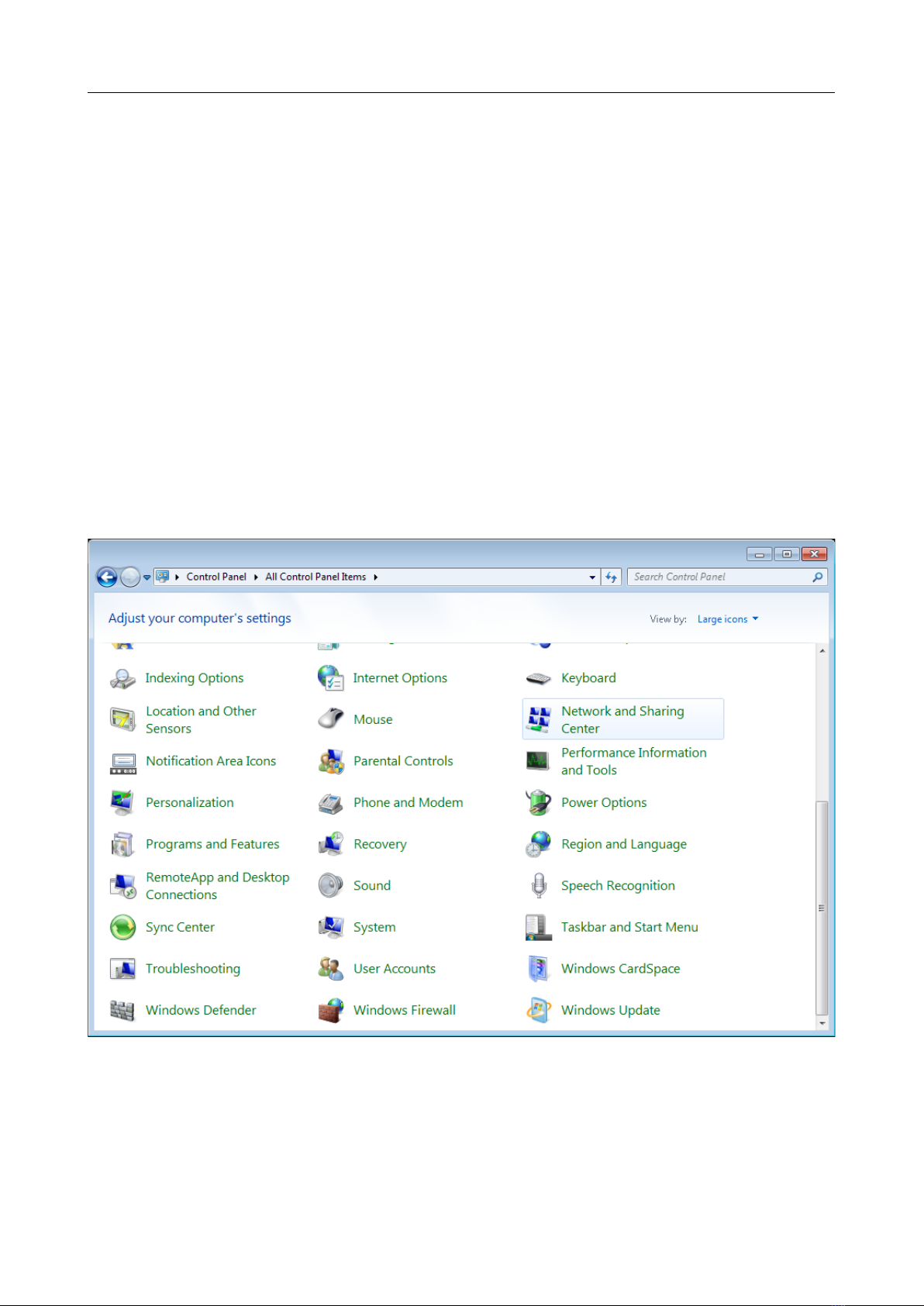

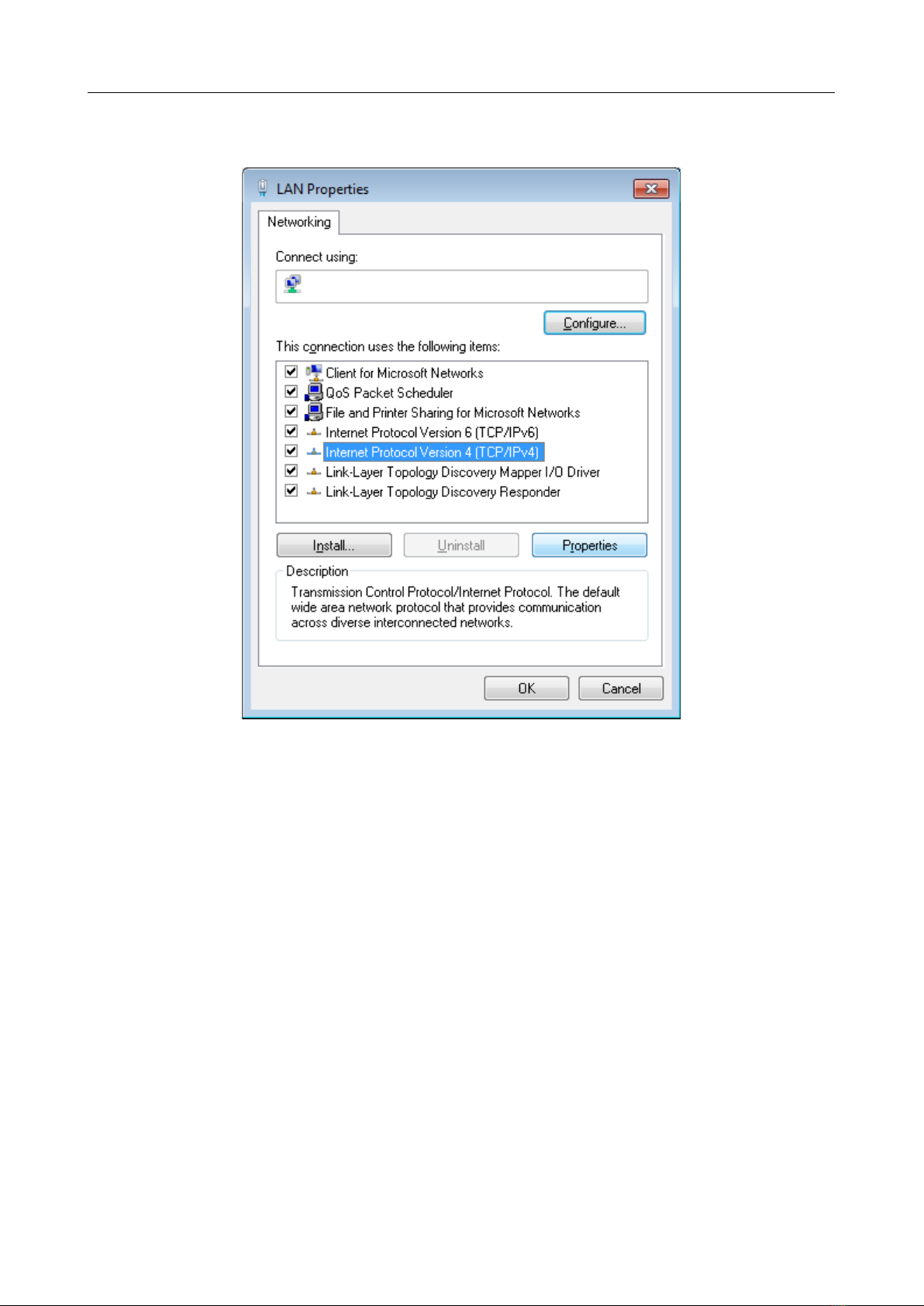

Obtaining IP Address Auto atically (OS Windows 7)........................14
PC with Wi-Fi Adapter....................................................19

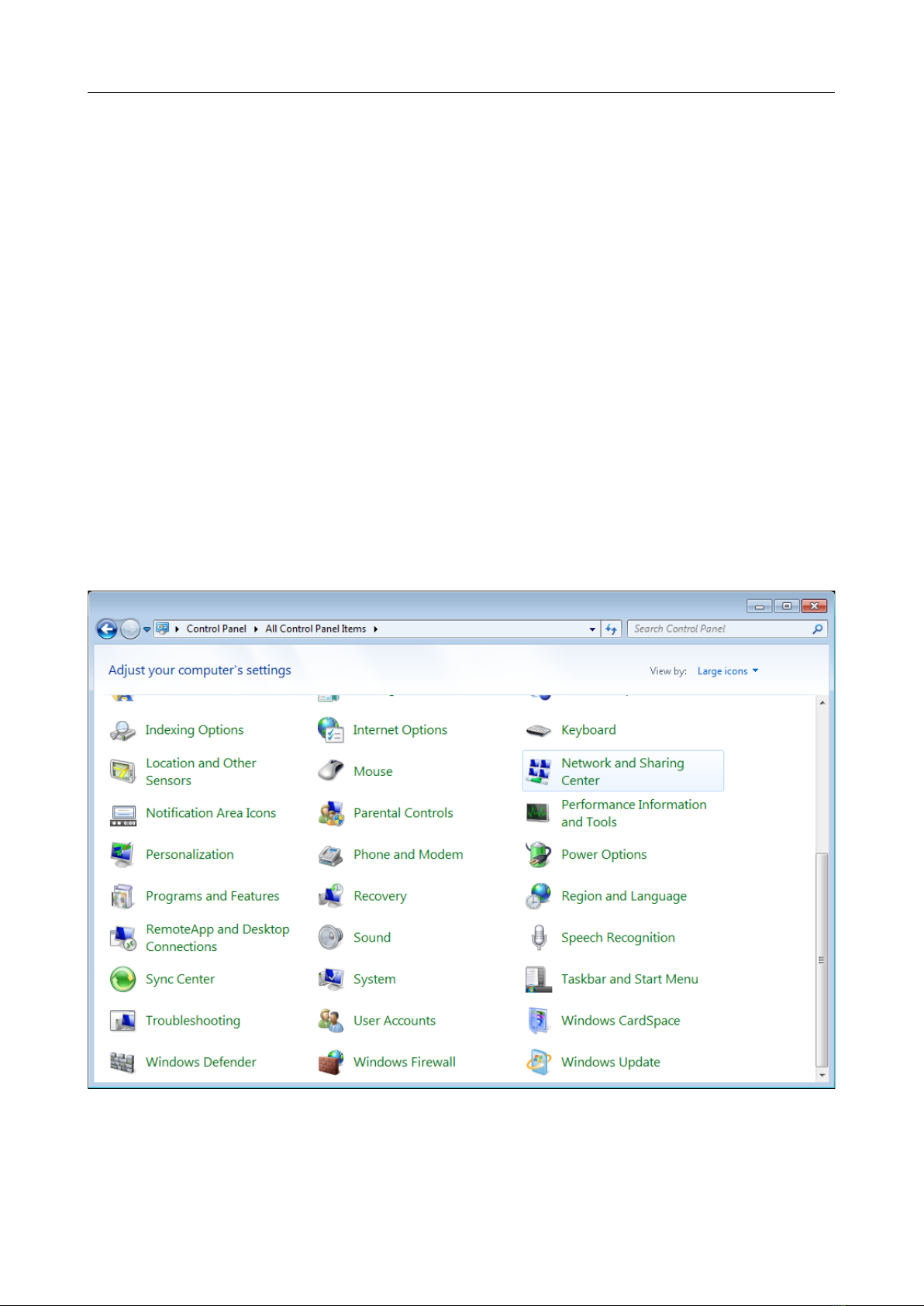

Obtaining IP Address Auto atically and Connecting to Wireless Network (OS
Windows 7)...............................................................19
Connecting to Web-based Interface..........................................22
Web-based Interface Structure..............................................24
Ho e Page................................................................24
Internet Section.......................................................25
DIR-615 Section........................................................26
Connected Clients Section..............................................27
Menu Sections............................................................28
Notifications............................................................29
Chapter 4. Configuring via Web-based Interface.................30
Setup Wizard...............................................................30
Selecting Operation Mode.................................................32
Router.................................................................32
Access Point or Repeater...............................................33
Changing LAN IPv4 Address................................................35
Wi-Fi Client.............................................................36
Creating WAN Connection..................................................38
Static IPv4 Connection.................................................3
Static IPv6 Connection.................................................40
PPPoE, IPv6 PPPoE, PPPoE Dual Stack, PPPoE + Dynamic IP (PPPoE Dual
Access) Connections....................................................41
PPPoE + Static IP (PPPoE Dual Access) Connection.......................42
PPTP + Dynamic IP or L2TP + Dynamic IP Connection......................43
PPTP + Static IP or L2TP + Static IP Connection........................44
Configuring Wireless Network.............................................45
Configuring LAN Ports for IPTV/VoIP......................................47
Changing Web-based Interface Password....................................49
Page 2 of 163

DIR-615 Wireless N300 Router
User Manual
Settings / Internet........................................................51
WAN......................................................................51
Creating Dynamic IPv4 or Static IPv4 WAN Connection....................53
Creating Dynamic IPv6 or Static IPv6 WAN Connection....................57
Creating PPPoE WAN Connection..........................................61
Creating PPPoE IPv6 or PPPoE Dual Stack WAN Connection.................66
Creating PPTP or L2TP WAN Connection...................................72
VLAN.....................................................................76
DNS......................................................................78
Settings / WAN Failover....................................................80
Settings / Wireless network................................................82
Settings / Network.........................................................90
IPv4................................................................... 0
IPv6................................................................... 4
Functions / Firewall.......................................................9
IP Filter................................................................97
DMZ.....................................................................100
MAC Filter..............................................................101
Web Site Filter.........................................................103
DoS Protection..........................................................105
Functions / Wi-Fi.........................................................10
Client Manage ent.......................................................107
WPS.....................................................................108
Using WPS Function via Web-based Interface............................110
Using WPS Function without Web-based Interface........................110
WMM.....................................................................111
Client..................................................................113
Client Shaping..........................................................115
Additional..............................................................117
MAC Filter..............................................................119
Functions / Advanced......................................................121
UPnP IGD................................................................121
Re ote Access...........................................................122
Virtual Servers.........................................................124
TR-069 Client...........................................................127
Static Route............................................................129
Dyna ic DNS.............................................................131
Bandwidth Control.......................................................133
Ports Settings..........................................................134
Redirect................................................................137
IGMP....................................................................138
ALG/Passthrough.........................................................139
Page 3 of 163

DIR-615 Wireless N300 Router
User Manual
Management................................................................141
Syste Ti e.............................................................141
Syste Log..............................................................143
Ad inistration..........................................................145
Telnet..................................................................147
Yandex.DNS..............................................................148
Settings..............................................................148
Devices and Rules.....................................................14
Fir ware Update.........................................................151
Local Update..........................................................152
Remote Update.........................................................153
Statistics..............................................................154
Network Statistics....................................................154
Port Statistics.......................................................154
Routing Table.........................................................155
DHCP..................................................................155
Multicast Groups......................................................155
Diagnostics.............................................................156
Ping..................................................................156
Traceroute............................................................158
Chapter 5. Operation Guidelines...............................160
Safety Rules and Conditions...............................................160
Wireless Installation Considerations......................................161
Chapter 6. Abbreviations and Acronyms.........................162
Page 4 of 163

DIR-615 Wireless N300 Router
User Manual Introduction
CH PTER 1. INTRODUCTION
Contents and Audience
This manual describes the router DIR-615 and explains how to configure and operate it.
This manual is intended for users familiar with basic networking concepts who create an in-home
local area network and system administrators who install and configure networks in offices.
Conventions
Example Description
text The body text of the manual.
Before You Begin A reference to a chapter or section of this manual.
“Quick Installation
Guide” A reference to a document.
Change A name of a menu menu item control (field checkbox drop-down
list button etc.).
192.168.0.1 Data that you should enter in the specified field.
!Information An important note.
Document Structure
Chapter 1 describes the purpose and structure of the document.
Chapter 2 gives an overview of the router's hardware and software features describes its
appearance and the package contents.
Chapter 3 explains how to install the router DIR-615 and configure a PC in order to access its web-
based interface.
Chapter 4 describes all pages of the web-based interface in detail.
Chapter 5 includes safety instructions and tips for networking.
Chapter introduces abbreviations and acronyms used in this manual.
Page 5 of 163

DIR-615 Wireless N300 Router
User Manual Overview
CH PTER 2. OVERVIEW
General Information
Wireless Interface
Using the DIR-615 device you are able to quickly create a wireless network at home or in your
office which lets computers and mobile devices access the Internet virtually anywhere (within the
operational range of your wireless network). The router can operate as a base station for connecting
wireless devices of the standards 802.11b 802.11g and 802.11n (at the rate up to 300Mbps).
Secure Wireless Connection
The router supports multiple functions for the wireless interface: several security standards (WEP
WPA/WPA2) MAC address filtering WPS WMM.
Advanced Capabilities of Wireless Network
Support of guest Wi-Fi network allows you to create a separate wireless network with individual
security settings and maximum rate limitation. Devices connected to the guest network will be able
to access the Internet but will be isolated from the devices and resources of the router's LAN.
4-port Switch
The built-in 4-port switch enables you to connect Ethernet-enabled computers game consoles and
other devices to your network.
Security
The wireless router DIR-615 includes a built-in firewall. The advanced security functions minimize
threats of hacker attacks prevent unwanted intrusions to your network and block access to
unwanted websites for users of your LAN.
Built-in Yandex.DNS service protects against malicious and fraudulent web sites and helps to block
access to adult content on children's devices.
Easy configuration and update
You can configure the settings of the wireless router DIR-615 via the user-friendly web-based
interface (the interface is available in several languages).
The configuration wizard allows you to quickly switch DIR-615 to one of the following modes:
router (for connection to a wired or wireless ISP) access point repeater or client and then
configure all needed setting for operation in the selected mode in several simple steps.
Also DIR-615 supports configuration and management via mobile application for Android and
iPhone smartphones.
You can simply update the firmware: the router itself finds approved firmware on D-Link update
server and notifies when ready to install it.
Page 6 of 163

DIR-615 Wireless N300 Router
User Manual Overview
Specifications*
Hardware
Processor ·RTL8196E (400MH )
R M ·32MB, DDR SDRAM
Flash ·4MB, SPI
Interfaces ·10/100BASE-TX WAN port
·4 10/100BASE-TX LAN ports
LEDs ·POWER
·WLAN / WPS
·INTERNET
Buttons ·WPS/RESET button to set up wireless connection and restore factory default
settings
ntenna ·Two external non-detachable omnidirectional antennas (5dBi gain)
MIMO ·2 x 2
Power connector ·Power input connector (DC)
Software
W N connection types ·PPPoE
·IPv6 PPPoE
·PPPoE Dual Stack
·Static IPv4 / Dynamic IPv4
·Static IPv6 / Dynamic IPv6
·PPPoE + Static IP (PPPoE Dual Access)
·PPPoE + Dynamic IP (PPPoE Dual Access)
·PPTP/L2TP + Static IP
·PPTP/L2TP + Dynamic IP
Network functions ·DHCP server/relay
·Advanced configuration of built-in DHCP server
·Stateful/Stateless mode for IPv6 address assignment, IPv6 prefix delegation
·Automatic obtainment of LAN IP address (for access point/repeater/client
modes)
·DNS relay
·Dynamic DNS
·Static IPv4/IPv6 routing
·IGMP Proxy
·Support of UPnP IGD
·Support of VLAN
·WAN ping respond
·Support of SIP ALG
·Support of RTSP
·WAN failover
·Autonegotiation of speed, duplex mode, and flow control/Manual speed and
duplex mode setup for each Ethernet port
·Setup of maximum TX rate for each port of the router
·Built-in UDPXY application
* The device features are subject to change without notice. For the latest versions of the firmware and relevant
documentation visit www.dink.com.
Page 7 of 163

DIR-615 Wireless N300 Router
User Manual Overview
Software
Firewall functions ·Network Address Translation (NAT)
·Stateful Packet Inspection (SPI)
·IPv4/IPv6 filter
·MAC filter
·URL filter
·DMZ
·Prevention of ARP and DDoS attacks
·Virtual servers
·Built-in Yandex.DNS web content filtering service
VPN ·IPsec/PPTP/L2TP/PPPoE pass-through
Management and monitoring ·Local and remote access to settings through TELNET/WEB (HTTP/HTTPS)
·Multilingual web-based interface for configuration and management
·Support of D-Link Assistant application for Android and iPhone smartphones
·Notification on connection problems and auto redirect to settings
·Firmware update via web-based interface
·Automatic notification on new firmware version
·Saving/restoring configuration to/from file
·Support of logging to remote host
·Automatic synchroni ation of system time with NTP server and manual
time/date setup
·Ping utility
·Traceroute utility
·TR-069 client
·Automatic reboot on schedule
Wireless Module Parameters
Standards ·IEEE 802.11b/g/n
Frequency range
The frequency range depends upon the
radio frequency regulations applied in your
country
·2400 ~ 2483.5MH
Wireless connection security ·WEP
·WPA/WPA2 (Personal/Enterprise)
·МАС filter
·WPS (PBC)
dvanced functions ·Support of client mode
·WMM (Wi-Fi QoS)
·Information on connected Wi-Fi clients
·Advanced settings
·Guest Wi-Fi / support of MBSSID
·Rate limitation for wireless network/separate MAC addresses
·Periodic scan of channels, automatic switch to least loaded channel
·Autonegotiation of channel bandwidth in accordance with environment
conditions (20/40 Coexistence)
Wireless connection rate ·IEEE 802.11b: 1, 2, 5.5, and 11Mbps
·IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, and 54Mbps
·IEEE 802.11n: from 6.5 to 300Mbps (from MCS0 to MCS15)
Transmitter output power
The maximum value of the transmitter
output power depends upon the radio
frequency regulations applied in your
country
·802.11b (typical at room temperature 25 °C)
15dBm at 1, 2, 5.5, 11Mbps
·802.11g (typical at room temperature 25 °C)
15dBm at 6, 9, 12, 18, 24, 36, 48, 54Mbps
·802.11n (typical at room temperature 25 °C)
HT20/HT40
15dBm at MCS0/1/2/3/4/5/6/7
Page 8 of 163

DIR-615 Wireless N300 Router
User Manual Overview
Wireless Module Parameters
Receiver sensitivity ·802.11b (typical at PER = 8% at room temperature 25 °C)
-96dBm at 1Mbps
·802.11g (typical at PER = 10% at room temperature 25 °C)
-76.5dBm at 54Mbps
·802.11n (typical at PER = 10% at room temperature 25 °C)
HT20
-74dBm at MCS7/15
HT40
-71.5dBm at MCS7/15
Modulation schemes ·802.11b: DQPSK, DBPSK, and CCK
·802.11g: BPSK, QPSK, 16QAM, 64QAM, OFDM
·802.11n: BPSK, QPSK, 16QAM, 64QAM with OFDM
Physical Parameters
Dimensions (L x W x H) ·131 x 130 x 34 mm (5.2 x 5.1 x 1.3 in)
Operating Environment
Power ·Output: 9V DC, 0.6A
Temperature ·Operating: from 0 to 40 °C
·Storage: from -20 to 65 °C
Humidity ·Operating: from 10% to 90% (non-condensing)
·Storage: from 5% to 90% (non-condensing)
Page 9 of 163

DIR-615 Wireless N300 Router
User Manual Overview
Product Appearance

Figure 1. Top panel view.
LED Mode Description
POWER
Solid green The router is powered on.
No light The router is powered off.
WL N / WPS
Solid green The router's WLAN is on.
Fast blinking green Data transfer through the Wi-Fi network.
Slow blinking green Attempting to add a wireless device via the WPS
function.
No light The router's WLAN is off.
INTERNET
Solid green The default WAN connection is active.
linking green Data transfer through the WAN port.
No light There are no WAN connections created or the default
WAN connection is not active.
Page 10 of 163

DIR-615 Wireless N300 Router
User Manual Overview

Figure 2. ack panel view.
Name Description
9V=0.6 Power connector.
W N A port to connect to a cable or DSL modem or to a private Ethernet line
(it is recommended to use the cable included in the delivery package).
L N 1-4 4 Ethernet ports to connect computers or network devices.
WPS/RESET
A button to set up a wireless connection (the WPS function) and to
restore the factory default settings.
To use the WPS function: with the device turned on push the button and
release. The W AN/WPS LED should start blinking slowly.
To restore the factory defaults: with the device turned on push the
button hold it for 10 seconds and then release the button.
The device is also equipped with two external non-detachable Wi-Fi antennas.
Page 11 of 163

DIR-615 Wireless N300 Router
User Manual Overview
Delivery Package
The following should be included:
•Router DIR-615
•Power adapter DC 9V/0.6A
•Ethernet cable
•“Quick Installation Guide” (brochure).
The “User Manual” documents is available on D-Link website (see www.dlink.com).
!Using a power supply with a different voltage rating than the one included will cause
damage and void the warranty for this product.
Page 12 of 163

DIR-615 Wireless N300 Router
User Manual Installation and Connection
CH PTER 3. INST LL TION ND CONNECTION
Before You Begin
Please read this manual prior to installing the device. Make sure that you have all the necessary
information and equipment.
Operating System
Configuration of the wireless router DIR-615 with a built-in 4-port switch (hereinafter referred to as
“the router”) is performed via the built-in web-based interface. The web-based interface is available
from any operating system that supports a web browser.
Web Browser
The following web browsers are recommended:
•Apple Safari 8 and later
•Google Chrome 48 and later
•Microsoft Internet Explorer 10 and later
•Microsoft Edge 20.10240 and later
•Mozilla Firefox 44 and later
•Opera 35 and later.
For successful operation JavaScript should be enabled on the web browser. Make sure that
JavaScript has not been disabled by other software (such as virus protection or web user security
packages) running on your computer.
Wired or Wireless NIC (Ethernet or Wi-Fi Adapter)
Any computer that uses the router should be equipped with an Ethernet or Wi-Fi adapter (NIC). If
your computer is not equipped with such a device install an Ethernet or Wi-Fi adapter prior to
using the router.
Wireless Connection
Wireless workstations from your network should be equipped with a wireless 802.11b g or n NIC
(Wi-Fi adapter). In addition you should specify the values of SSID channel number and security
settings defined in the web-based interface of the router for all these wireless workstations.
Page 13 of 163

DIR-615 Wireless N300 Router
User Manual Installation and Connection
Connecting to PC

1. Connect an Ethernet cable between any of LAN ports located on the back panel of the router
and the Ethernet port of your PC.
2. Connect the power cord to the power connector port on the back panel of the router then
plug the power adapter into an electrical outlet or power strip.
Then make sure that your PC is configured to obtain an IP address automatically (as DHCP client).
 !"
1. Click the Start button and proceed to the Control Panel window.
2. Select the Network and Sharing Center section. (If the Control Panel has the category
view (the Category value is selected from the View by drop-down list in the top right
corner of the window) choose the View network status and tasks line under the
Network and Internet section.)
Figure 3. The Control Panel window.
Page 14 of 163

DIR-615 Wireless N300 Router
User Manual Installation and Connection
3. In the menu located on the left part of the window select the Change adapter settings
line.
Figure 4. The Net ork and Sharing Center window.
Page 15 of 163

DIR-615 Wireless N300 Router
User Manual Installation and Connection
4. In the opened window right-click the relevant Local rea Connection icon and select
the Properties line in the menu displayed.
Figure 5. The Net ork Connections window.
Page 16 of 163

DIR-615 Wireless N300 Router
User Manual Installation and Connection
5. In the Local rea Connection Properties window on the Networking tab select the
Internet Protocol Version 4 (TCP/IPv4) line. Click the Properties button.
Figure 6. The Local Area Connection Properties window.
Page 17 of 163

DIR-615 Wireless N300 Router
User Manual Installation and Connection
6. Make sure that the Obtain an IP address automatically and Obtain DNS server
address automatically choices of the radio buttons are selected. Click the OK button.

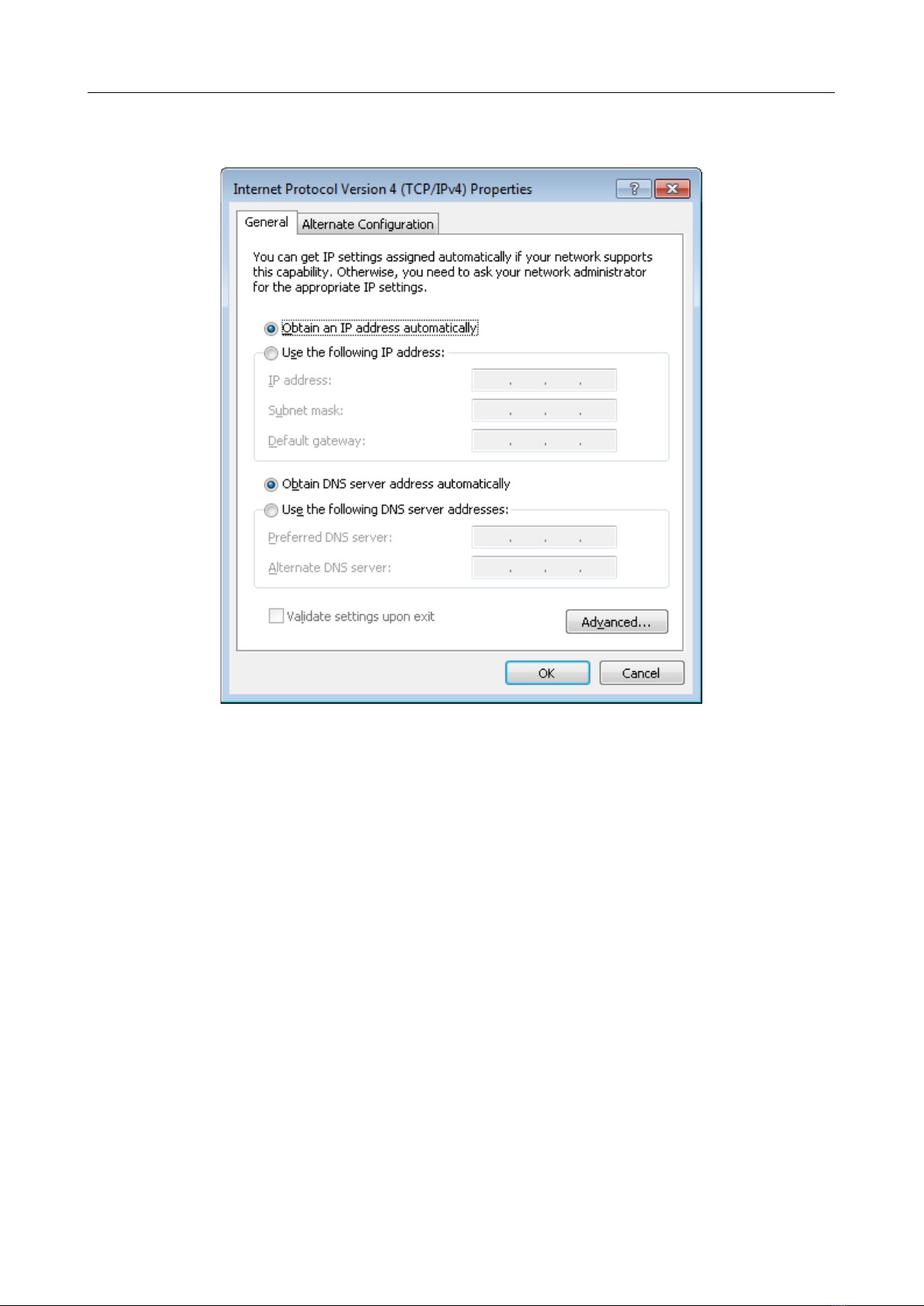

Figure 7. The Internet Protocol Version 4 (TCP/IPv4) Properties window.
7. Click the OK button in the connection properties window.
Page 18 of 163

DIR-615 Wireless N300 Router
User Manual Installation and Connection
 #$
1. Connect the power cord to the power connector port on the back panel of the router then
plug the power adapter into an electrical outlet or power strip.
2. Make sure that your Wi-Fi adapter is on. As a rule modern notebooks with built-in wireless
NICs are equipped with a button or switch that turns on/off the wireless adapter (refer to
your PC documents). If your PC is equipped with a pluggable wireless NIC install the
software provided with your Wi-Fi adapter.
Then make sure that your Wi-Fi adapter is configured to obtain an IP address automatically (as
DHCP client).
        
 % !"
1. Click the Start button and proceed to the Control Panel window.
2. Select the Network and Sharing Center section. (If the Control Panel has the category
view (the Category value is selected from the View by drop-down list in the top right
corner of the window) choose the View network status and tasks line under the
Network and Internet section.)
Figure 8. The Control Panel window.
Page 19 of 163

DIR-615 Wireless N300 Router
User Manual Installation and Connection
3. In the menu located on the left part of the window select the Change adapter settings
line.
4. In the opened window right-click the relevant Wireless Network Connection icon.
Make sure that your Wi-Fi adapter is on then select the Properties line in the menu
displayed.
5. In the Wireless Network Connection Properties window on the Networking tab
select the Internet Protocol Version 4 (TCP/IPv4) line. Click the Properties button.
6. Make sure that the Obtain an IP address automatically and Obtain DNS server
address automatically choices of the radio buttons are selected. Click the OK button.

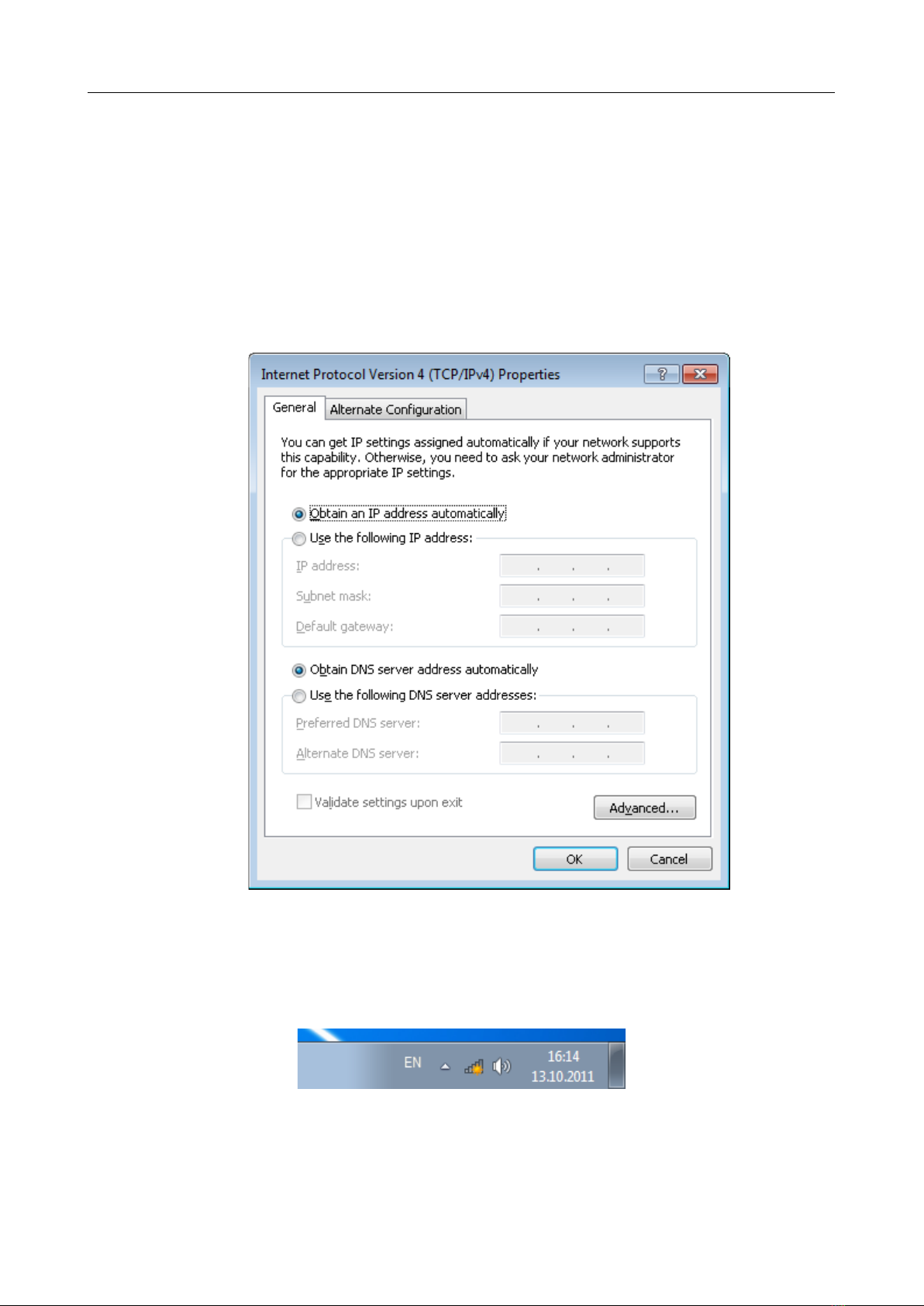

Figure 9. The Internet Protocol Version 4 (TCP/IPv4) Properties window.
7. Click the OK button in the connection properties window.
8. To open the list of available wireless networks select the icon of the wireless network
connection and click the Connect To button or left-click the network icon in the
notification area located on the right side of the taskbar.
Figure 10. The notification area of the taskbar.
Page 20 of 163
