DA VINCH 4561 User manual

4561
4561S
DOUBLE DOOR REFRIGERATOR
Freezer - Fridge
User manual

EN -1-
Index
INSTRUCTIONS PREALABLES ....................................................2
General warnings ........................................................................................2
Old and out-of-order fridges ........................................................................4
Safety warnings ...........................................................................................4
Installing and operating your fridge ............................................................. 5
Before Using your Fridge............................................................................. 5
THE VARIOUS FUNCTION AND POSSIBILITIES .........................6
Thermostat setting.......................................................................................6
Warnings for Temperature Settings ............................................................. 6
Super freeze and low ambient switch.......................................................... 7
Accesories ...................................................................................................7
Making ice cubes......................................................................................................... 7
Plastic scraper ............................................................................................................. 7
If turbo fan is available on your product ;..................................................... 8
ARRANGING FOOD IN THE APPLIANCE ....................................8
Refrigerator compartment............................................................................ 8
Freezer compartment ..................................................................................9
CLEANING AND MAINTENANCE ................................................12
Defrosting ...................................................................................................13
Refrigerator compartment........................................................................................... 13
Freezer compartment ................................................................................................. 13

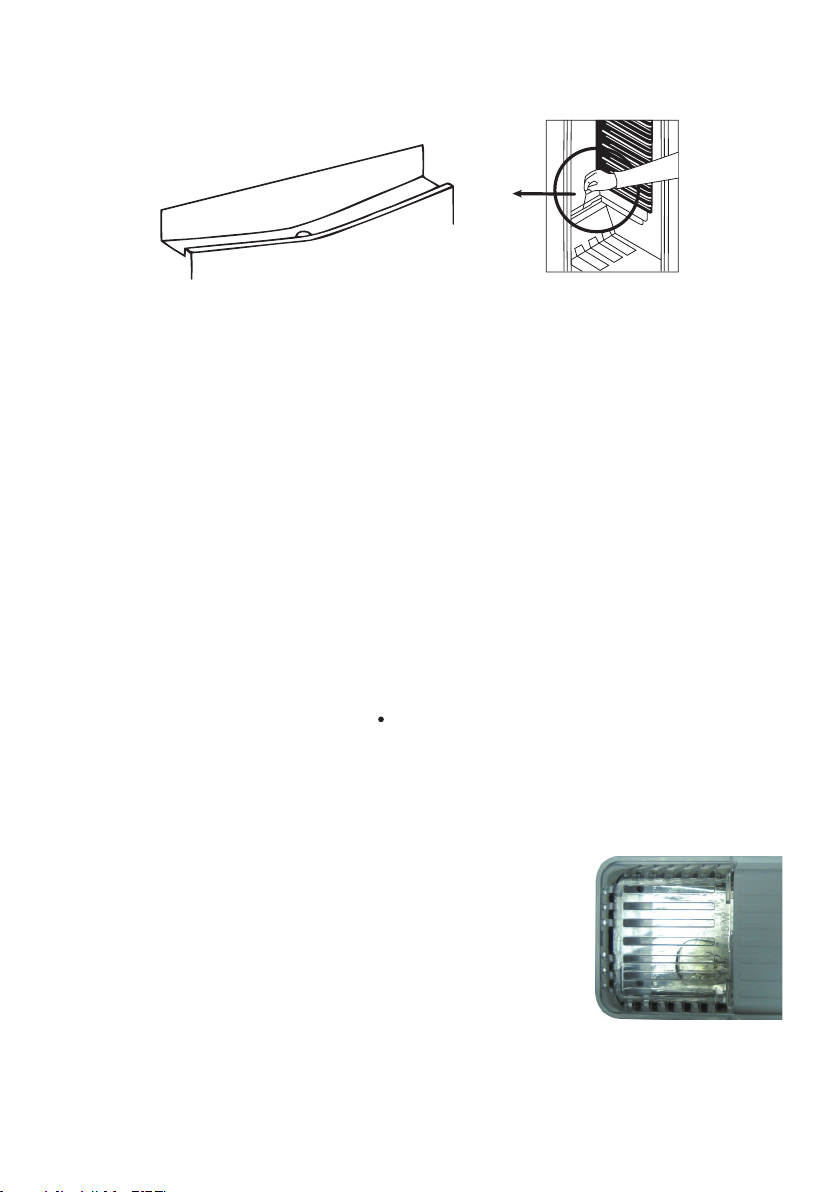

Replacing the light bulb ..............................................................................13
SHIPMENT AND REPOSITIONING...............................................14
Repositioning the door................................................................................ 14
BEFORE CALLING YOU'RE AFTER SALES SERVICE ..............14
Tips For Saving Energy ..............................................................................16

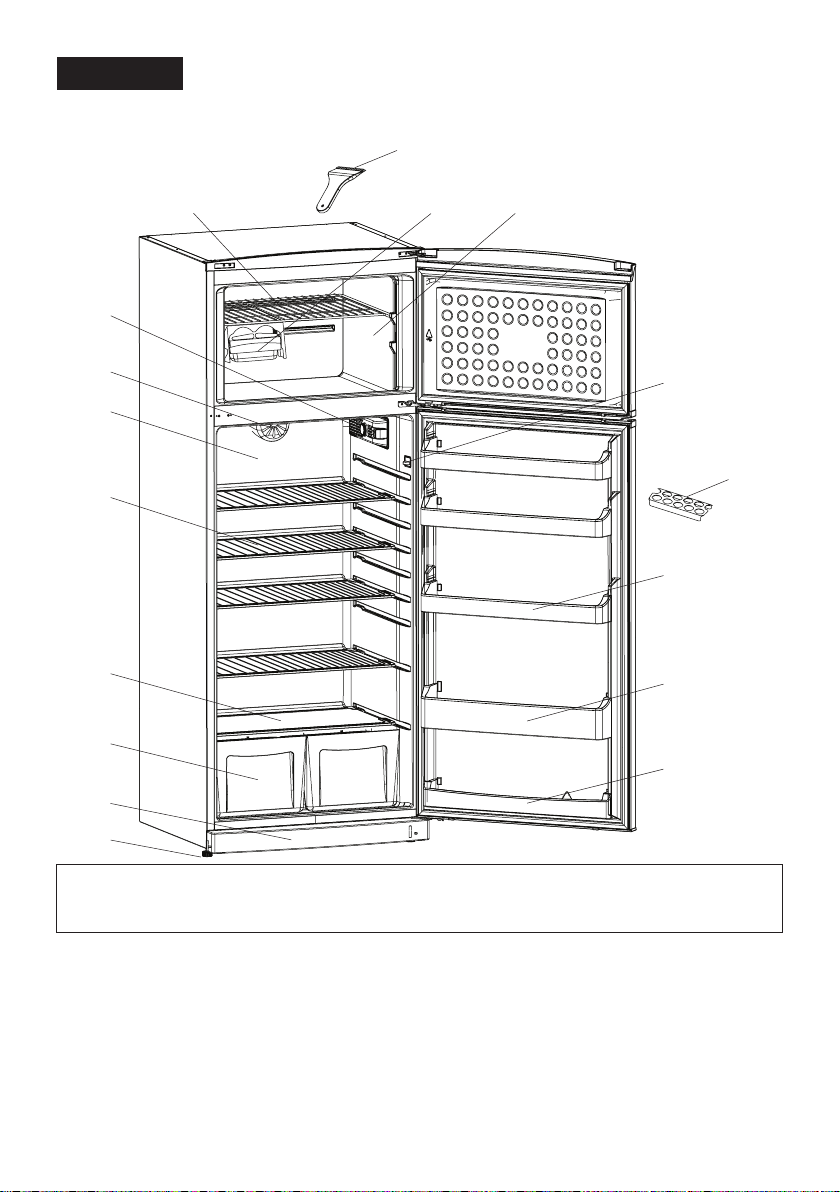

THE PARTS OF THE APPLIANCE AND THE COMPARTMENTS17

EN -2-
General warnings
WARNING: Keep ventilation openings, in the appliance enclosure or
in the built-in structure, clear of obstruction.
WARNING: Do not use mechanical devices or other means to
accelerate the defrosting process, other than those recommended by
the manufacturer.
WARNING: Do not use electrical appliances inside the food
storage compartments of the appliance, unless they are of the type
recommended by the manufacturer.
WARNING: Do not damage the refrigerant circuit.
WARNING: To avoid a hazard due to the instability of the appliance,
it must be xed in accordance with the instructions.
• If your appliance uses R600a as a refrigerant – you can learn this
information from the label on the cooler- you should be careful
during shipment and montage to prevent your appliance’s cooler
elements from being damaged. Although R600a is a environmental
friendly and natural gas, as it is explosive, in case of a leakage to
be occurred due to a damage in the cooler elements move your
fridge from open ame or heat sources and ventilate the room
where the appliance is located for a few minutes.
• While carrying and positioning the fridge, do not give damage to
the cooler gas circuit.
• Do not store explosive substances such as aerosol cans with a
ammable propellant in this appliance.
• This appliance is intended to be used in household and similar
applications such as;
- staff kitchen areas in shops, ofces and other working environments
- farm houses and by clients in hotels and other residential type
environments
- bed and breakfast type environments
- catering and similar non-retail applications
INSTRUCTIONS PREALABLESPART - 1.

EN -3-
• If the socket does not match the refrigerator plug, it must be
replaced by the manufacturer, service agent or similar qualied
persons in order to avoid a hazard.
• This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities, or
lack of experience and knowledge, unless they have been given
supervision or instruction concerning use of the appliance by a
person responsible for their safety. Children should be supervised
to ensure that they do not play with the appliance.
• A specially grounded plug has been connected to the power cable
of your refrigerator. This plug should be used with a grounded
socket rated at 16 Amps. If there is no such socket in your house,
please have it installed by an qualied electrician.
• This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have been
given supervision or instruction concerning use of the appliance
in a safe way and understand the hazard involved. Children shall
not play with the appliance. Cleaning and user maintenance, shall
not be made by children without supervision.
• If the supply cord is damaged, it must be replaced by the
manufacturer, service agent or similar qualied persons in order
to avoid a hazard.

EN -4-
Old and out-of-order fridges
• If your old fridge has a lock, break or remove the lock before discarding it, because
children may get trapped inside it and may cause an accident.
• Old fridges and freezers contain isolation material and refrigerant with CFC. Therefore,
take care not to harm environment when you are discarding your old fridges.
Please ask your municipal authority about the disposal of the WEEE for the
reuse, recycle and recovery purposes.
Notes:
• Please read the instruction manual carefully before installing and using your appliance.
We are not responsible of the damage occurred due to misuse.
• Follow all instructions on your appliance and instruction manual, and keep this manual
in a safe place to resolve the problems that may occur in the future.
• This appliance is produced to be used at houses and it can only be used in house and
for the specied purposes. It is not suitable for commercial or common use. Such use
will cause the guarantee of the appliance to be cancelled and our company will not be
responsible for the losses to be occurred.
• This appliance is produced to be used in houses and it is only suitable for cooling / storing
foods. It is not suitable for commercial or common use and/or for storing substances
except for food. Our company is not responsible for the losses to be occurred in the
contrary case.
Safety warnings
• Do not use multiple receptacles or extension cord.
• Do not plug in damaged, torn or old plugs.
• Do not pull, bend or damage the cord.
• This appliance is designed for use by adults, do not allow children
to play with the appliance or let them to hang over the door.
• Do not plug-in or out the plug from the receptacle with wet hands
to prevent electrocution!
• Do not place glass bottles or beverage cans in the freezer
department. Bottles or cans may explode.
• Do not place explosive or ammable material in your fridge for
your safety. Place drinks with higher alcohol amount vertically and
by closing their necks tightly in the fridge department.

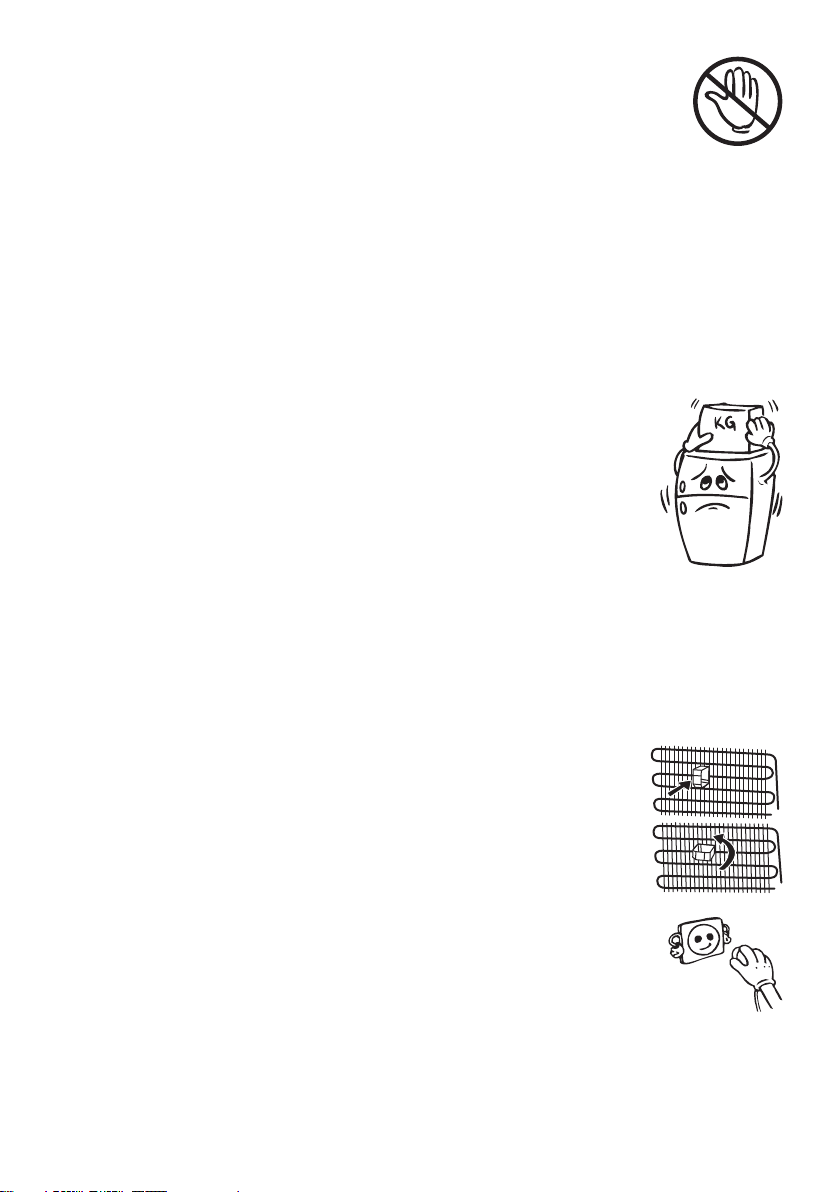

• When taking ice made in the freezer department, do not touch it,

EN -5-
ice may cause ice burns and/or cuts.
• Do not touch frozen goods with wet hands! Do not eat ice-cream and ice
cubes immediately after you take them out of the freezer department!
• Do not re-freeze the frozen goods after being melted. This may cause
health issues like food poisoning.
• Do not cover the body or top of fridge with lace. This affects the performance of your
fridge.
• Fix the accessories in the fridge during transportation to prevent damage to accessories.
Installing and operating your fridge
Before starting to use your fridge, you should pay attention to the following points:
• Operating voltage for your fridge is 220-240 V at 50Hz.
• We do not take the responsibility of the damages that occur due to ungrounded usage.
• Place your fridge in a place that it would not be exposed to direct sunlight.
• Your appliance should be at least 50 cm away from stoves,
Gas ovens and heaters, and should be at least 5 cm away from
electrical ovens.
• Your fridge should never be used outdoors or left in the rain.
• When your fridge is placed next to a deep freezer, there should
be at least 2 cm between them to prevent humidity on the outer
surface.
• Do not place anything on your fridge, and install your fridge in a suitable place so that at
least 15 cm is available on the upper side.
• The adjustable front legs should stabilized in an appropriate height to allow your fridge
operate in a stable and proper way. You can adjust the legs by turning them clockwise
(or in the opposite direction). This should be done before placing food in the fridge.
• Before using your fridge, wipe all parts with warm water added with a tea spoonful
of sodium bicarbonate, and then rinse with clean water and dry. Place all parts after
cleaning.
• Install the distance adjustment plastic (the part with black vanes
at the rear) by turning it 90° as shown in the gure to prevent the
condenser from touching the wall.
• Refrigerator should be placed against a wall with a free distance
not exceeding 75 mm.
Before Using your Fridge
• When it is operated for the rst time or after transportation, keep
your fridge in the upright position for 3 hours and plug it on to allow
efcient operation. Otherwise, you may damage the compressor.
• Your fridge may have a smell when it is operated for the rst time; the smell will fade
away when your fridge starts to cool.

EN -6-
THE VARIOUS FUNCTION AND POSSIBILITIESPART - 2.

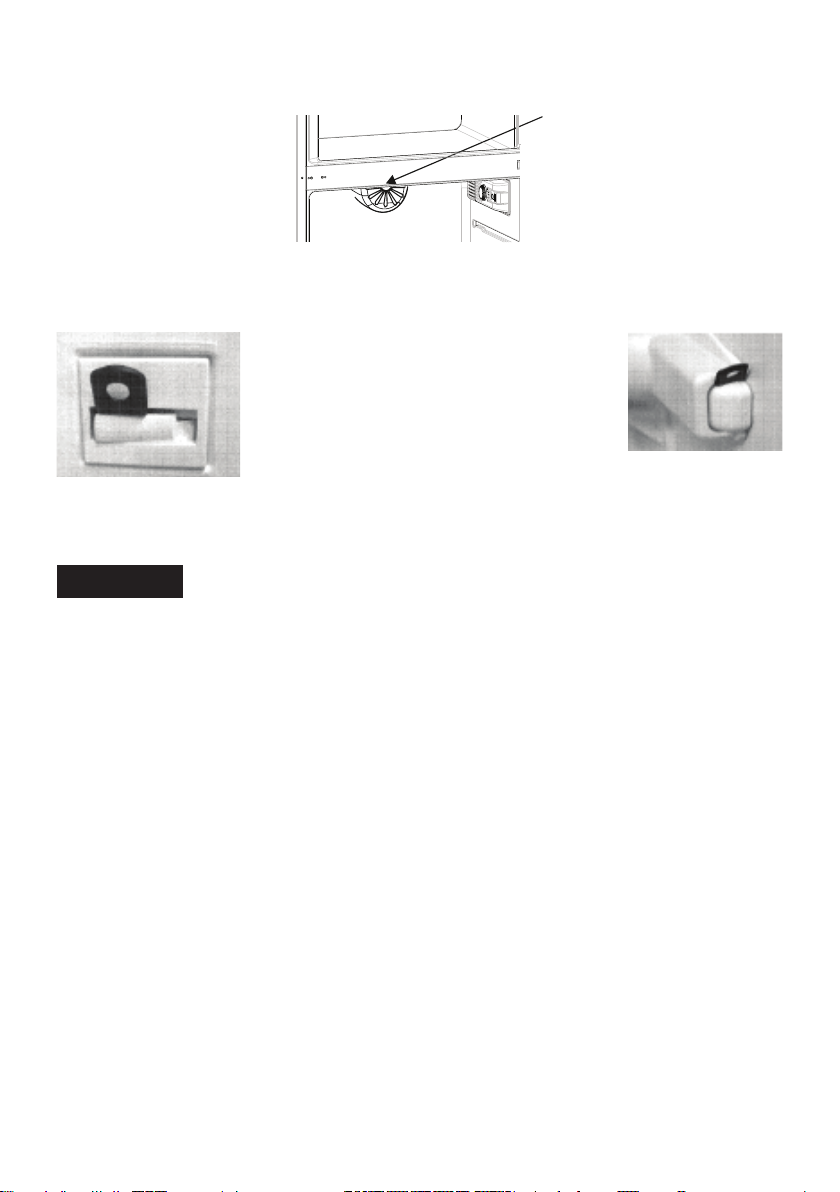

Thermostat setting
• Thermostat automatically regulates the inside
temperature of the refrigerator compartment and
freezer compartment.By rotating the knob from
position 1 to 5, colder temperatures can be obtained.
« » position shows thermostat is closed and no
cooling will be avaible.
• For short-term storage of food in the freezer
compartment, you can set the knob between 1 and
3 position.
• For long-term storage of food in the freezer compartment, you can set knop 3-4 position.
Warnings for Temperature Settings
• The ambiant temperature, temperature of the freshly stored food and how often the door
is opened, affects the temperature in the refrigerator compartment. If required,change
the temperature setting.
• It is not recommended that you operate your fridge in environments colder than 10°C in
terms of its efciency.
• The thermostat setting should be done by taking into consideration how often the
fresh food and freezer doors are opened and closed, how much food is stored in the
refrigerator, and the environment in which the refrigerator is located.
• Your fridge should be operated up to 24 hours according to the ambient temperature
without interruption after being plugged in to be completely cooled. Do not open doors
of your fridge frequently and do not place much food inside it in this period.
• A 5 minute delaying function is applied to prevent damage to the compressor of your
fridge, when you take the plug off and then plug it on again to operate it or when an
energy breakdown occurs. Your fridge will start to operate normally after 5 minutes.
• Your fridge is designed to operate
in the ambient temperature intervals
stated in the standards, according
to the climate class stated in
the information label. It is not
recommended that your fridge is
operated in the environments which
are out of the stated temperature
intervals in terms of cooling
efciency.
Climate class Ambient Temperature (oC)
TBetween 16 and 43 oC
ST Between 16 and 38 oC
NBetween 16 and 32 oC
SN Between 10 and 32 oC

EN -7-

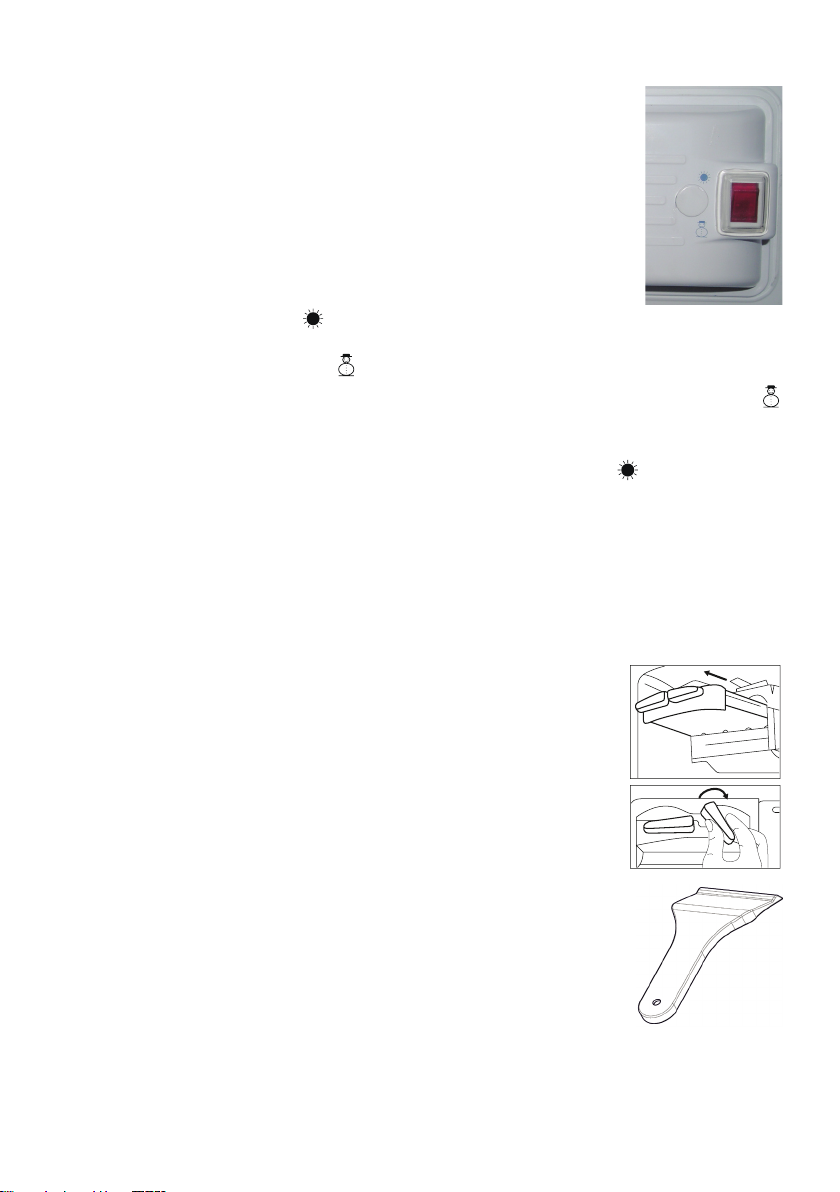

Super freeze and low ambient switch
a) Super freezing: If ambient temparature is more than 16°C, This switch
can be used as superfreeze switch. Super freeze switch should be used
for freezing the fresh food or when the lamp on the head panel is ON.
(Lamp on the head panel becomes ON when there is insufcient cooling).
The appliance will work longer when you activate this switch. So after
you get the cold condition (or the lamp on the head panel is off) you must
return to previous position. At the ambient temperature more than 18°C,
if superfreezing function doesn't want to be used, it must always be set to
OFF position.
b) Low ambient performance:
• Normally set this switch to ' ' position. Except when the ambient temperature is low like
in winter (ie.below 16°C) or when the freezer temperature needs to be maintained lower.
In that case, turn the switch to ' ’ position ON.
• To set super switch ON that is on the thermostat box, press the switch down to ' ’
position. The switch will lit.
• When the freezer compartment is cooled down to sufcient temperature, or the weather
gets hot, turn the super switch off to save electrical consumption. ( )
• When you rst switch on the appliance, for starting a suitable cooling, the appliance
should work 24 hours continuously until it cools down to sufcient temperature.
• In this time do not open the door so often and place a lot of food inside the appliance. If
the unit is switched off or unplugged, you must allow at least 5 minutes before restarting
or re-plugged the unit in order not to damage the compressor.
(If super freeze switch is available)
Making ice cubes
• Take out the ice making tray
• Fill the water in level of line.
• Place the ice making tray in its original position
• When ice cubes are formed, twist the lever to drop off ice cubes into
the icebox.
Do not ll the icebox with water in order to make ice. It can be
broken.
(In some models)
Accesories
Plastic scraper
After a period of time, frost will build up in certain areas in the freezer
compartment. The frost, accumulated in the freezer, should be
removed periodically. Use the plastic scraper provided if necessary.
Do not use sharp metal objects for this operation. They could puncture
the refrigerator circuit and cause irreparable damage to the unit.

EN -8-
If turbo fan is available on your product ;
• Do not block air inlet and outlet openings when storing food, otherwise air circulation that
provided by turbo fan will be impaired.
Turbo fan
Sabbath mode
To activate “sabbath” mode, insert the lever
into slot on top of the switch rmly as shown
in the picture. To deactivate “sabbath” mode,
remove the lever gently.
Visual and text descriptions on the accessories section may
vary according to the model of your appliance.
ARRANGING FOOD IN THE APPLIANCEPART - 3.
Refrigerator compartment
• To reduce humidity and consequent increase of frost never place liquids in unsealed
containers in the refrigerator. Frost tends to concentrate in the coldest parts of the
evaporator and in time will require more frequent defrosting.
• Never place warm food in the refrigerator. Warm food should be allowed to cool at
room temperature and should be arranged to ensure adequate air circulation in the
refrigerator compartment.
• Nothing should touch on the back wall as it will cause frost and the packages can stick
on the back wall. Do not open the refrigerator door too frequently.
• Arrange the meat and cleaned sh(wrapped in packages or sheets of plastic) which you
will use in 1-2 days,in the bottom section of the refrigerator compartment(that is above
the crisper) as this is the coldest section and will ensure the best storing conditions.
• You can put the fruits and vegetables into crisper without packing.
Some suggestions on the placing and storing of your food in the fridge compartment are
supplied below.

EN -9-
Food Maximum Storing time Where to place in the
fridge department
Vegetables and fruits 1 week Vegetable bin
Meat and sh 2 - 3 Days
Wrapped in plastic foil or bags or in
a meat container
(on the glass shelf)
Fresh cheese 3 - 4 Days In special door shelf
Butter and margarine 1 week In special door shelf
Bottled products
milk and yoghurt
Until the expiry date
recommended by the
producer
In special door shelf
Eggs 1 month In the egg shelf
Cooked food All shelves
Freezer compartment
• The use of freezer is, storing of deep-frozen or frozen foods for long periods of time and
making ice cubes.
• To freeze fresh food, ensure that as much of the surface as possible of food to be frozen
is in contact with the cooling surface.
• Do not put fresh food with frozen on side by side as it can thaw the frozen food.
• While freezing fresh foods(i.e meat,sh and mincemeat), divide them in parts you will
use in one time.
• Once the unit has been defrosted replace the foods into freezer and remember to
consume them in as short period of time.
• Never place warm food in the freezer compartment. As it will disturb the frozen foods.
• For storing the frozen foods;the instructions shown on frozen food packages should
always be followed carefully and if no information is provided food should not be stored
for more than 3 months from the purchased date.
• When buying frozen foods ensure that these have been frozen at suitable temperatures
and that the packing is intact.
• Frozen foods should be transported in appopriate containers to maintain the quality
of the food and should be returned to the freezing surfaces of the unit in the shortest
possible time.
• If a package of frozen food shows the sign of humidity and abnormal swelling it is
probable that it has been previously stored at an unsuitable temperature and that the
contents have deteriorated.
• The strorage life of froozen foods depends on the room temperature, thermostat setting,
how often the door is opened, the type of food and the length of time required to transport
the product from the shop to your home. Always follow the instruductions printed on the
package and never exceed the maximum storage life indicated.
Not that; if you want to open again immediately after closing the freezer door, it will not be
opened easily. It’s quite normal! After reaching equilibrium condition, the door will be opened
easily.

EN -10-
Some suggestions on the placing and storing of your food in the freezer compartment are
supplied pages 10, 11 and 12.
Meat and sh Preparation
Maximum
Storing time
(month)
Steak Wrapping in a foil 6 - 8
Lamb meat Wrapping in a foil 6 - 8
Veal roast Wrapping in a foil 6 - 8
Veal cubes In small pieces 6 - 8
Lamb cubes In pieces 4 - 8
Minced meat In packages without using spices 1 - 3
Giblets (pieces) In pieces 1 - 3
Bologna sausage/salami Should be packaged even if it has
membrane
Chicken and turkey Wrapping in a foil 4 - 6
Goose and Duck Wrapping in a foil 4 - 6
Deer, Rabbit, Wild Boar In 2.5 kg portions and as llets 6 - 8
Fresshwater shes (Salmon,
Carp, Crane, Siluroidea) After cleaning the bowels and
scales of the sh, wash and dry it;
and if necessary, cut the tail and
head.
2
Lean sh; bass, turbot,
ounder 4
Fatty shes (Tunny, Mackarel,
bluesh, anchovy) 2 - 4
Shellsh Cleaned and in bags 4 - 6
Caviar In its package, aluminium or
plastic container 2 - 3
Snail In salty water, aluminum or plastic
container 3
Note: Frozen meat should be cooked as fresh meat after being thawed. If the meat is not
cooked after being thawed, it should never be frozen again.

EN -11-
Vegetables and Fruits Preparation
Maximum
Storing time
(months)
String beans and beans Wash and cut to small pieces and boil in
water 10 - 13
Beans Hull and wash and boil in water 12
Cabbage Cleaned and boil in water 6 - 8
Carrot Clean and cut to slices and boil in water 12
Pepper Cut the stem, cut into two pieces and
remove the core and boil in water 8 - 10
Spinach Washed and boil in water 6 - 9
Cauliower
Take the leaves apart, cut the heart into
pieces, and leave it in water with a little
lemon juice for a while
10 - 12
Eggplant Cut to pieces of 2cm after washing 10 - 12
Corn Clean and pack with its stem or as sweet
corn 12
Apple and pear Peel and slice 8 - 10
Apricot and Peach Cut into two pieces and remove the stone 4 - 6
Strawberry and
Blackberry Wash and hull 8 - 12
Cooked fruits Adding 10 % of sugar in the container 12
Plum, cherry, sourberry Wash and hull the stems 8 - 12
Dairy Products Preparation Maximum Storing
time (months) Storing Conditions
Packet
(Homogenize) Milk In its own packet 2 - 3 Pure Milk – In its own packet
Cheese-excluding
white cheese In slices 6 - 8
Original package may
be used for short storing
period. It should be
wrapped in foil for longer
periods.
Butter, margarine In its package 6

EN -12-
CLEANING AND MAINTENANCEPART - 4.
• Make sure to unplug the fridge before starting to clean it.
• Do not wash your fridge by pouring water.
• You can wipe the inner and outer sides with a soft cloth or a sponge
using warm and soapy water.
• Remove the parts individually and clean with
soapy water. Do not wash in washing machine.
• Never use ammable, explosive or corrosive material like thinner,
gas, acid for cleaning.
• You should clean the condenser with broom at least once
a year in order to provide energy saving and increase the
productivity.
Make sure that your fridge is unplugged while cleaning.
Maximum Storing
time (months)
Thawing time in
room temperature
(hours)
Thawing time in oven
(minutes)
Bread 4 - 6 2 - 3 4-5 (220-225 °C)
Biscuits 3 - 6 1 - 1,5 5-8 (190-200 °C)
Pastry 1 - 3 2 - 3 5-10 (200-225 °C)
Pie 1 - 1,5 3 - 4 5-8 (190-200 °C)
Phyllo dough 2 - 3 1 - 1,5 5-8 (190-200 °C)
Pizza 2 - 3 2 - 4 15-20 (200 °C)

EN -13-
Defrosting
Refrigerator compartment
• Defrosting occurs automatically in refrigerator compartment during operation; the defrost
water is collected by the evaporating tray and evoparates automatically.
• The evaporating tray and the defrost water drain hole should be cleaned periodically with
defrost drain plug to prevent the water from collecting on the bottom of the refrigerator
instead of owing out.
• You can also pour 1/2 glass of the water to drain hole to clean inside.
Freezer compartment
The frost, accumulated in the freezer compartment, should be removed periodically. (Use
the plastic scraper provided) The freezer compartment should be cleaned in the way as the
refrigerator compartment, with the defrost operations of the compartment at least twice a
year.
For this;
• The day before you defrost, set the thermostat dial to “5” position to freeze the foods
completely.
• During defrosting, frozen foods should be wrapped in several layers of paper and kept in
a cool place. The inevitable rise in temperature will shorten their storage life. Remember
to use these foods within a relatively short period of time.
• Set thermostat knob to position « » or unplug the unit; leave the door open until
completely defrosted.
• To accelerate the defrosting process one or more basins of warm water can be placed
in the freezer compartment.
• Dry the inside of the unit carefully and set the thermostat knob to MAX position.
Replacing the light bulb
To replace the bulb in freezer and fridge departments;
1- Unplug your fridge.
2- Remove the cover of the box from the claws using a
screwdriver.
3- Replace with a bulb of maximum 15 Watts.
4- Install the cover.
5- Wait for 5 minutes before re-plugging and bring the thermostat to its original position.
Replacing The Light Led (If the illumination is occured via LED strip)
Please call the service man.

EN -14-
SHIPMENT AND REPOSITIONINGPART - 5.
BEFORE CALLING YOU'RE AFTER SALES
SERVICE
PART - 6.
What to do if your refrigerator does not operate;
Check that;
• There is no power ,
• The general switch in your home is disconnected ,
• The thermostat setting is on« »position ,
• The socket is not sufcient. To check this, plug in another appliance that you know which
is working into the same socket.
What to do if your refrigerator performs poorly;
Check that;
• You have not overloaded the appliance ,
• The doors are closed perfectly ,
• There is no dust on the condenser ,
• There is enough place at the rear and side walls.
If there is noise;
The cooling gas which circulates in the refrigerator circuit may make a slight noise (bubbling
sound) even when the compressor is not running. Do not worry this is quite normal. If these
sounds are different check that;
• The appliance is well levelled
Repositioning the door
• It is not possible to change the opening direction of your fridge door, if the door handles
on your fridge are installed from the front surface of the door.
• It is possible to change the opening direction of the door on models without any handles.
• If the door opening direction of your fridge may be changed, you should contact the
nearest Authorized Service to have the opening direction changed.
Transportation and Changing of Installation Position
• Original package and foam may be kept for re-transportation (optionally).
• You should fasten your fridge with thick package, bands or strong cords and follow the
instructions for transportation on the package for re-transportation.
• Remove movable parts (shelves,
accessories, vegetable bins etc.) or x them
into the fridge against shocks using bands
during re-positioning and transportation.
Carry your fridge in the upright position.

EN -15-
• Nothing is touching the rear.
• The stuffs on the appliance are vibrating.
If humidity builds up inside the fridge;
• Are all food packed properly? Are the containers dried before placing them in the fridge?
• Are the fridge doors opened frequently? Humidity of the room gets in the fridge when
the doors are opened. Humidity build up will be faster when you open the doors more
frequently, especially if the humidity of the room is high.
• Building up of water drops on the rear wall after automatic defrosting is normal. (in Static
Models)
If the doors are not opened and closed properly;
• Do the food packages prevent closing of the door?
• Are the door compartments, shelves and drawers placed properly?
• Are door joints broken or torn?
• Is your fridge on a level surface?
IMPORTANT NOTES:
• In case of a sudden power loss or disconnecting and reconnecting of the plug to the
electrical socket, the compressor protective thermal element will be opened as the
pressure of the gas in the cooling system of your refrigerator has not yet been balanced.
4 or 5 minutes later, your refrigerator will start to operate; this is normal.
• If you won’t be using your refrigerator for a long time (such as on summer holidays),
please disconnect the plug from the socket. Clean your refrigerator as per Part 4 of this
document and leave the door open to prevent any humidication or odor formation.
• If there is still a problem with your refrigerator although you have followed the instructions
in this book, please consult your nearest authorized service center.
Conformity Information
• This appliance is designed for use at an ambient temperature within the 16°C - 43°C
range.
• The appliance is designed in compliance with the EN62552, IEC60335-1 / IEC60335-2-
24, 2004/108/EC standards.

EN -16-
Tips For Saving Energy
1– Install the appliance in a coll, well vantilated room , but not in direct sunlight and not near
heat source (radiator, cooker.. etc). Otherwise use an insulating plate.
2– Allow ward food and drinks to cool down outside the appliance.
3– When thawing frozen food, place it in the refrigerator compartment. The low temperature
of the frozen food will help to cool the refrigerator compartment when it is thawing. So it
causes energy saving. If the frozen food is put out, it causes wastage of energy.
4– When placing, drinks and slops they must be covered. Otherwise humidity increases at
the appliance. Therefore the working time gets longer. Also covering drinks and slops
helps to save smell and taste.
5– When placing food and drinks, open the appliance door as briey as possible.
6– Keep close the covers of any different temrepature compartment in the appliance (crisper,
chiller ...etc ).
7– Door gasket must be clean and pliable. Replace gaskets if worn.

EN -17-
THE PARTS OF THE APPLIANCE AND THE
COMPARTMENTS
PART - 7.
This presentation is only for information about the parts of the appliance.
Parts may vary according to the appliance model.
2
1A3
14
4
5
B
6
7
8
9
10
11
12
13
15
A) Freezer compartment
B) Refrigerator compartment
1) Ice matic*
2) Plastic scraper
3) Freezer shelf
4) Thermostat box & Refrigerator light
5) Turbo fan (If available)
6) Refrigerator shelves
7) Crisper cover
8) Crispers
9) Kick plate *
10) Leveling feet
11) Bottom shelf *
12) Bottle shelf
13) Door shelves
14) Egg holder
15) Light button
* (In some models)
