Nordcap M180 User manual

M150 / 180 / 190
GB Instructions for use
DE Bedienungsanleitung
FR Mode d’emploi
DK Brugsanvisning

2
GB
As the appliance contains a
ammable refrigerant, it is es-
sential to ensure that the refrig-
erant pipes are not damaged.
The quantity and type of the
refrigerant used in your appli-
ance is indicated on the rating
plate.
Standard EN378 species that
the room in which you install
your appliance must have a
volume of 1m³ per 8 g of hydro-
carbon refrigerant used in the
appliances. This is to avoid the
formation of ammable gas/air
mixtures in the room where the
appliance is located in the event
of a leak in the refrigerant circuit.
WARNING:
Keep ventilation openings in
the appliance’s cabinet or in the
built-in structure clear of obstruc-
tion
WARNING:
Do not use other mechanical
devices or other means to ac-
celerate the defrosting process
than those recommended by the
manufacturer
WARNING:
Do not damage the refrigerant
system
WARNING:
Do not use electrical appli-
ances inside the refrigerated
storage compartment, unless
they are of a type recommended
by the manufacturer
WARNING:
Do not expose the appliance to
rain
WARNING:
This appliance is not intended
for use by children and above
and persons with reduced physi-
cal, sensory or mental capabili-
ties or lack of experience and
knowledge if they have been
given supervision or instruction
concerning use of the appliance
in a safe way and understand
the hazards involved
WARNING:
Danger risk of re or explosion if
ammable refrigerant are used.
To be repaired only by trained
personnel.
Warning

3
GB
WARNING:
Do not store explosives, such
as aerosol cans with ammable
propellants in the unit.
WARNING:
Cleaning and user maintenance
shall not be made by children
without supervision
●Always keep the keys in a sep-
arate place and out of reach of
children
●Before servicing or clean-
ing the appliance, unplug the
appliance from the mains or
disconnect the electrical power
supply
●If the supply cord is damaged,
it must be replaced by the
manufacturer, its service agent,
or similarly qualied persons in
order to avoid a hazard
●Relevant for Australia: Sup-
ply cord tted with a plug com-
plies with AS/NZS 3112.
●Frost formation on the interior
evaporator wall and upper
parts is a natural phenom-
enon. Therefore, the appliance
should be defrosted during
normal cleaning or mainte-
nance.
●Please note that changes to
the appliance construction will
cancel all warranty and product
liability
CLASS 1 LED PRODUCT

4
GB
Before operating your new appliance,
please read the following instructions care-
fully as they contain important information
on safety, installation, operation and main-
tenance. Keep the instructions for future
reference.
On receipt, check to ensure that the appli-
ance has not been damaged during trans-
port. Transport damage should be reported
to the local distributor before the appliance
is put to use.
Remove the transport protector before the
appliance is put to use. Hang it on one of
the shelves as it can be used to readjust the
door.
Before starting the appliance
Contents
Transport protection
Warning ..................................................2
Before starting the appliance ..................4
Get to know ............................................5
Electrical connection...............................6
Installation ..............................................6
Ventilation ...............................................7
Controller ................................................8
Reversing the door .................................9
Fault nding ..........................................15
Defrosting, cleaning and maintenance . 16
Warranty, spare parts ...........................17
Disposal ................................................18

5
GB

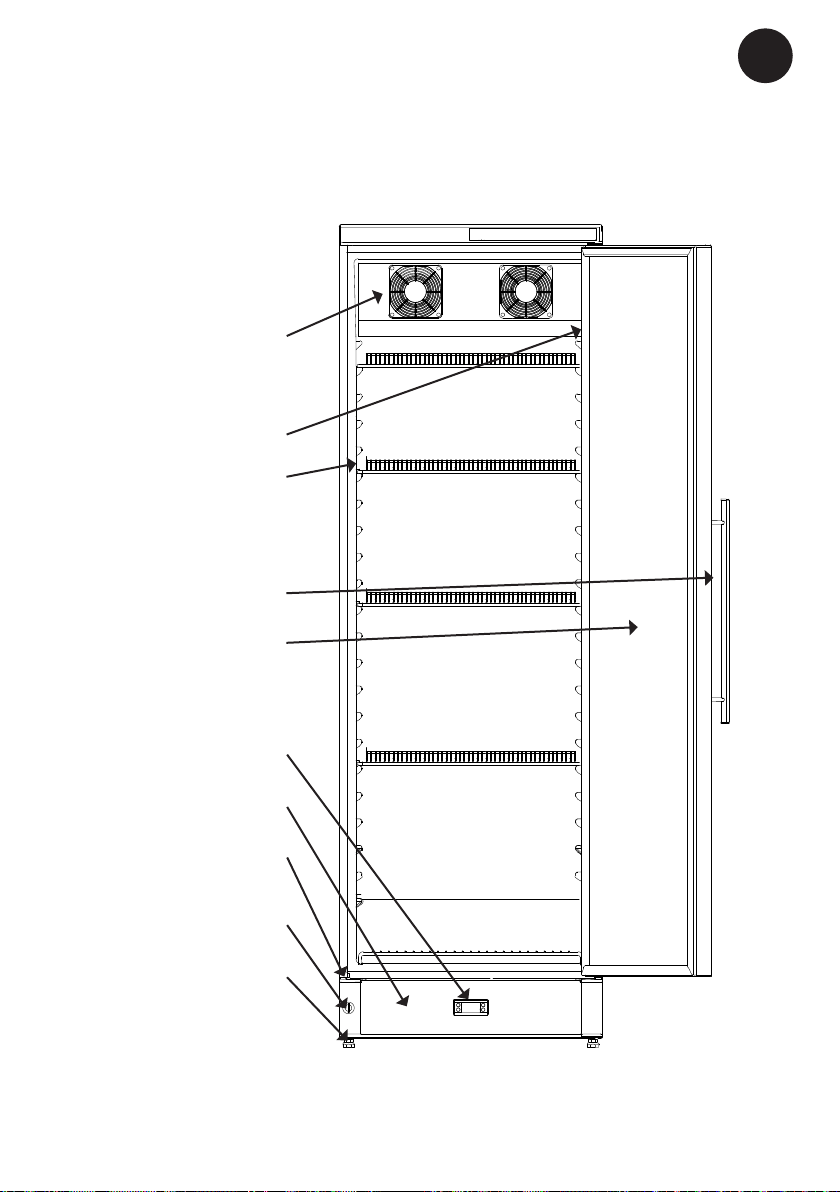

Get to know your wine or bottle cooler:
Lock
Control panel
Name plate
Shelf
Door handle
Glass door
Kick plate
Adjustable feet
Fan
g. 1
Transport protection

6
GB
Electrical connection
Wiring and connections in power supply
systems must been all applicable (local and
national) electrical codes. Consult these
codes lengths and sizes prior to cabinet
installation.
This device complies with relevant EU
directives including Low Voltage Directive
2014/35/EU and Electromagnetic Compat-
ibility Directive 2014/30/EU
The socket should be freely accessible.
Connect the appliance only to 220/240 V
/ 50Hz alternating current via a correctly
installed earthed socket.
The socket must be fused with a 10-13 A
fuse.
If the appliance is to be operated in a non-
European country, check on the rating plate
whether the indicated voltage and current
type correspond to the values of your mains
supply.
Information regarding voltage, current or
power are given on the rating plate
The power cord may be replaced by a
technician only.

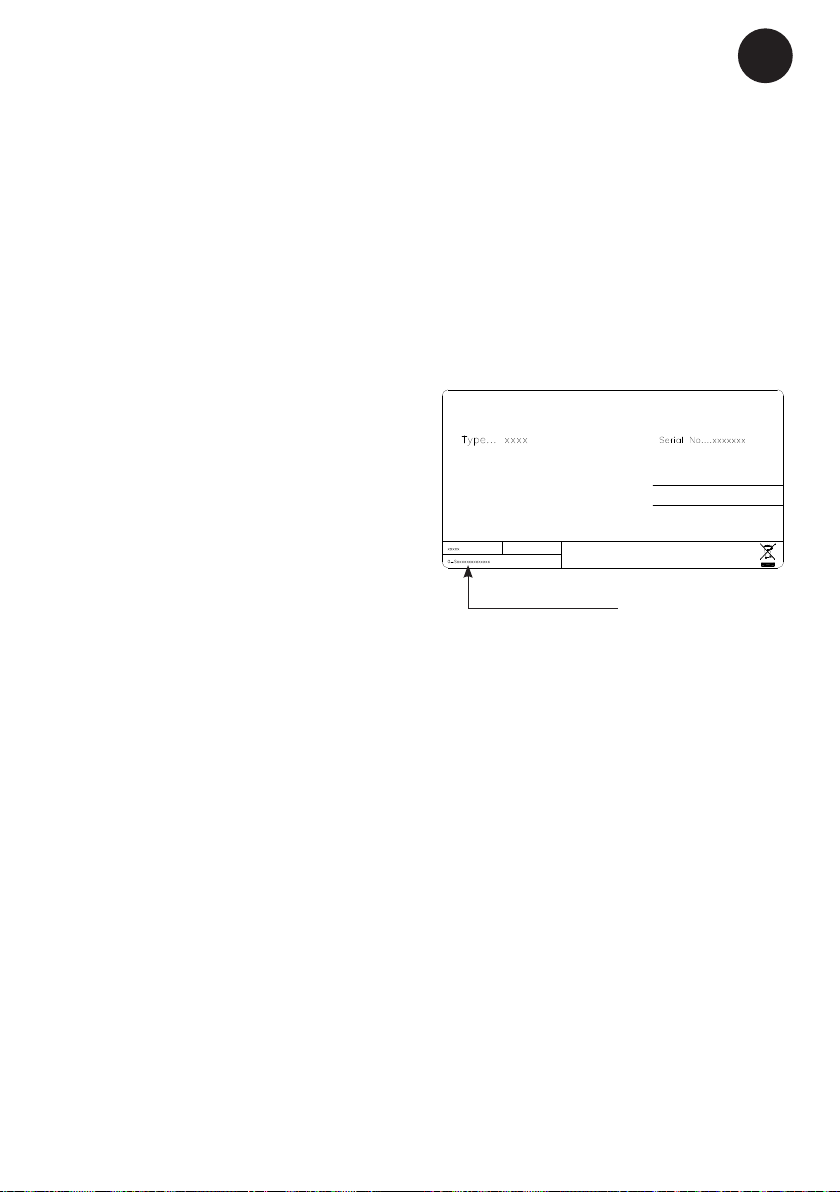

The rating plate provides various techni-
cal information as well as type and serial
number.
Placement
For safety and operational reasons, the ap-
pliance shall not be exposed to rain.
The appliance should be placed on a level
surface in a dry, well ventilated room (max.
70% relative air humidity). Never place
the appliance close to sources of heat and
avoid placing it in direct sunlight.
The surface on which the appliance is to be
placed must be level. Do not use a frame or
similar.
The appliance can be installed as a free-
standing unit against a wall or side-by-side
with other appliances (see g. 4)
Room temperature
The climate class is stated on the name
plate (see g. 1). This species the optimum
room temperature.
Note that the appliance operates best at
room temperatures from 10°C to 32°C.
Installation and start-up
g. 2
Close the two ventilationguards placed on
the rear of the appliance, to ensure suf-
cient air circulation
Installation of ventilation quard

7
GB
Ventilation
It is important that the appliance be well
ventilated and that air can circulate unhin-
dered above, below and around it. Keep
ventilation openings, in the appliance
enclosure or in the built-in structure, clear

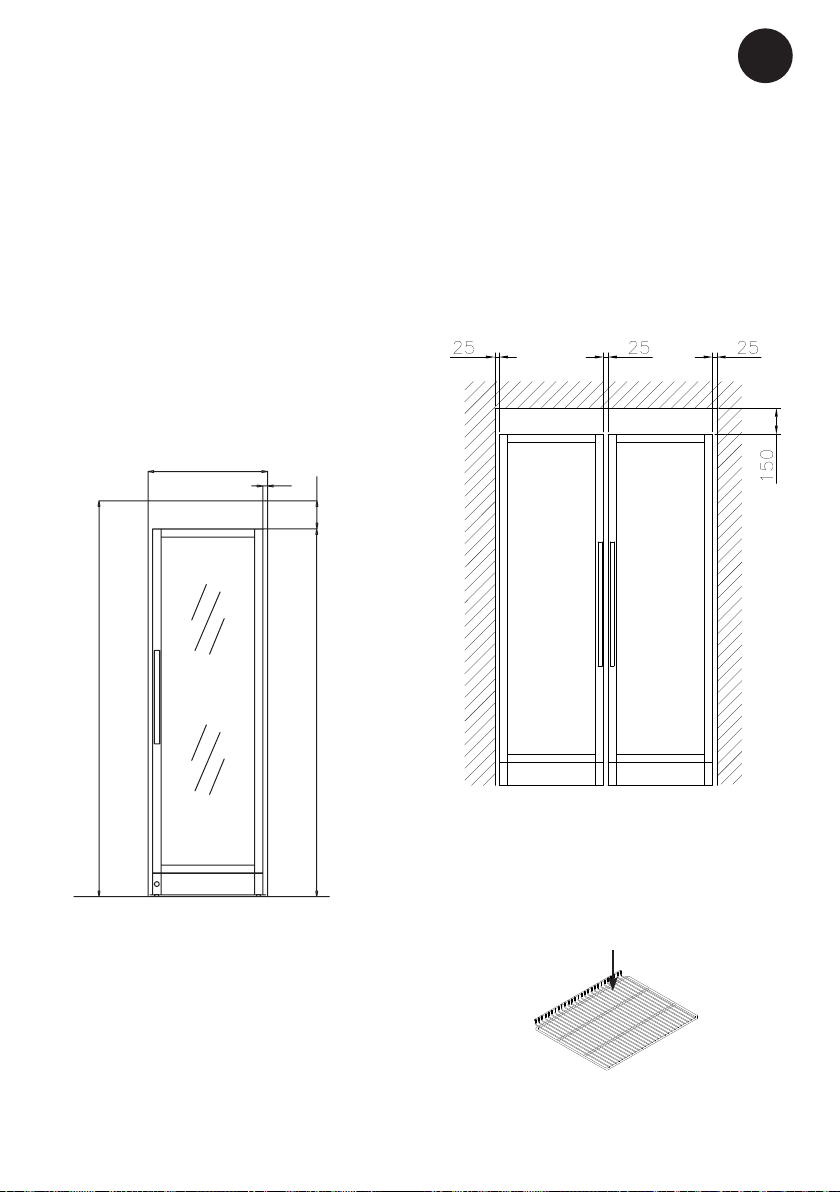

of obstruction. The gures below illustrate
the clearance necessary to achieve the
required air circulation.
OBS: There must be at least 30 mm be-
tween the cabinet and the wall behind it.
g. 3
2000 150
Min. 2150
650
25
Side by side
In side-by-side arrangement, there must be
at least 25 mm between and at the sides of
the cabinets, so the doors can be opened
freely
g.4
Max. 36 kg

8
GB
Controller - Operation and function
g. 5

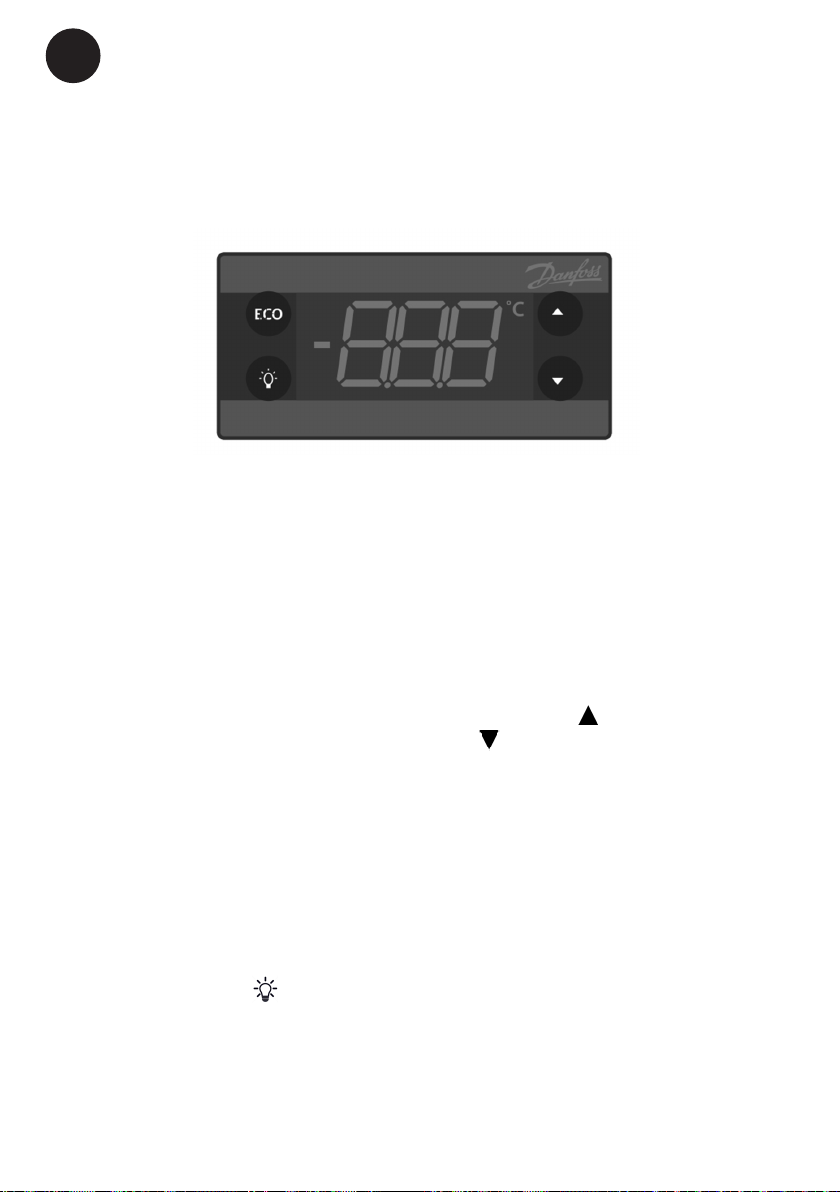

Electronic controls
The electronic controls ensure that the set
temperature is maintained.
Following any power failure, the tempera-
ture settings are automatically recalled.
On/off
ECO Temperature +
Temperature display
The display shows the actual temperature
in the cabinet, and indicates that power is
connected.
Temperature setting
Push the buttom to increase set point
and to decrease the set point.
Manual defrosting
If there is a need for manual defrosting,
push the ECO button for more than 2 sec-
ond and a manual defrost will start.
After 30 min. the electronic control will
return to normal mode.
ON/OFF
Push and hold the buttom for more than
2 sec. to switch the appliance on and off.
Temperature -
ECO mode:
In ECO mode the set point is higher than in
serving mode.
ECO mode is switched ON/OFF by pushing
the ECO button
ECO mode is also switched ON when the
door has not been opened for 3 hours,
and switched OFF again at the rst door
opening.

9
GB
Reversing the door
If reversing the door with the unit in normal position, then it is recommended to be two people.
Else the unit can be placed on its back on the oor. If this method is used the unit must be
placed in normal upright position at least two hours before connecting to power.
Left door hinge is optional. (See p.18)

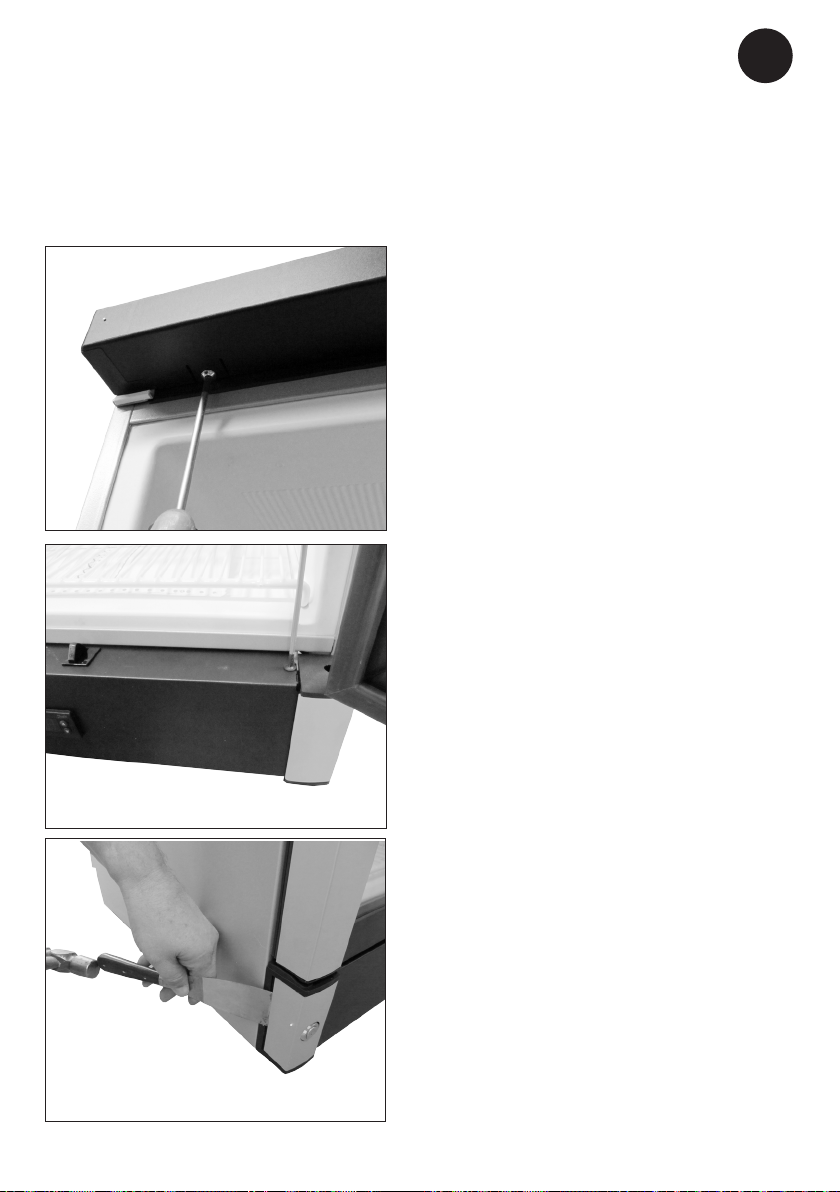

1. Disconnect the power supply
Loosen the two screws in the top panel.
Pull out carefully the top panel without pul-
ling in the wires.
2. Unscrew the two screws in the lower panel.
3. Remove the cover by using suitable tool
and a hammer

10
GB
4. Remove the lower panel by use of a
suitable tool.
Place the lower panel in front of the unit
without pulling in the wires
4. Remove the black and red wire from the
connector by pressing down the clips.
5. Unscrew the bracket in the top.
NOTE: The door is now loose!
Be careful that the door does not fall
down!

11
GB

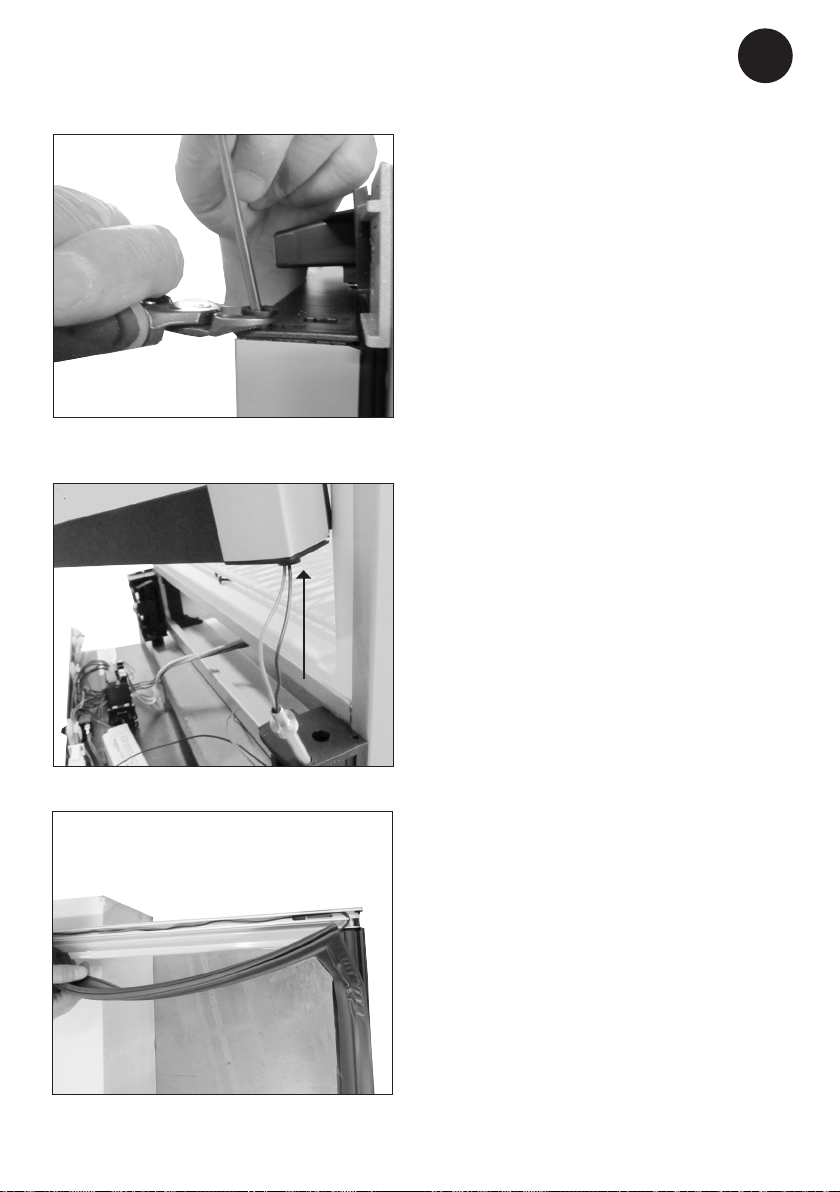

7. Lift up the door. The wires from the door
are pulled up together with the door pin.
Place the door pin in the opposite side of
the cabinet.
8. Rotate the door 180 degrees. Place the
door, with the front facing down, on a soft
surface.

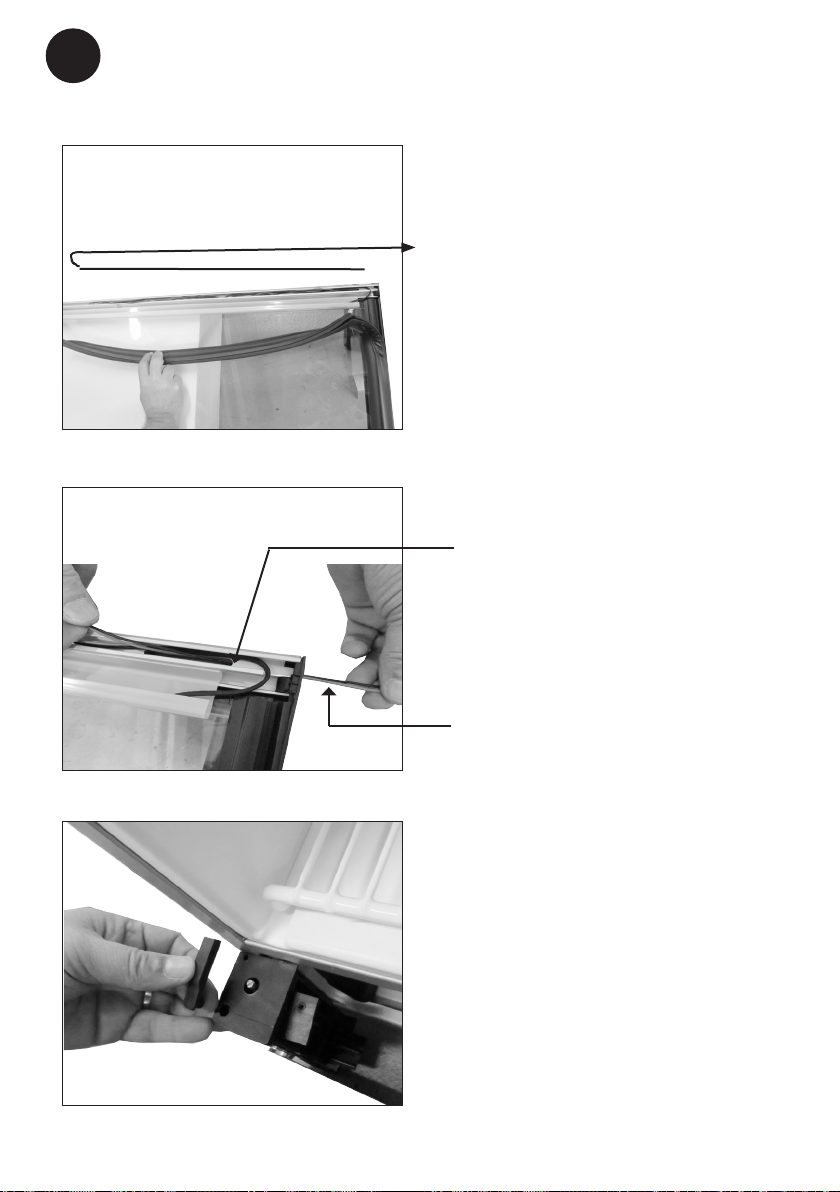

Remove the gasket in the left side and
pull out the wires for the door light.
6. Remome the bush and door closer by
use of a pincher.
Place the bush in the opposite side of
the door. Do not place the door closer
yet.

12
GB
9. Fold the wires on the middle and place
them in the door prole.
10. Push the wires through the hole and
pull out 65cm
11. 65 cm wire.
Mount the gasket again

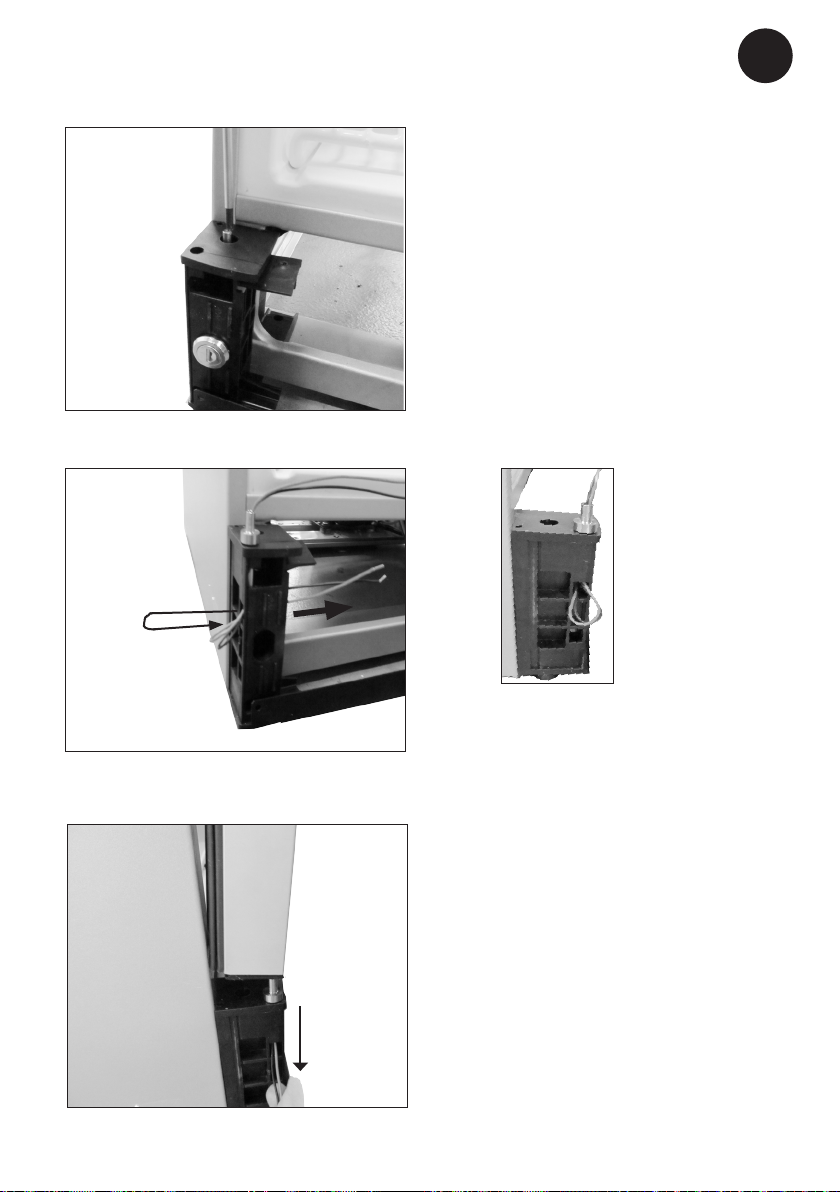

12. Lift up the sliding part and move it to the
opposite side

13
GB
14. Push the wires from the door down
into the door pin and drag them
through the door support.
15. Mount the door on the top of the
door pin and at the same time draw
the wires gently down so that it are
not pinched.
Press the door completely down
over the door pin!
13. Unscrew the locking pin.
Pull the lock out.
Ret both parts on the opposite side.

14
GB
16. Put the door closer back in the door
in the opposite side.
The door closer must be positioned
as shown in the picture.
17. Place the left hinge on the top of the
door closer.
The hinge is optional.
Twist the hinge ( a quarter turn) in place
with a wrench and tighten it with the two
screws.
The door is now xed again.
19. Click the wires to the door light onto the
wire retainers and mount them in the
connector.
20. Mount the lower panel and top panel.
If the unit has been laid down, it must
stand upright for at least 2 hours before
reconnecting to power.

15
GB
Fault nding
Fault Possible cause Remedy
The unit does not
work
The appliance is switched off.
Power failure; the fuse is blown;
the appliance is not plugged in
correctly.
Press the on/off switch.
Check that power is connected.
Reset the fuse.
Water collects in
the bottom of the
cabinet.
The defrost water pipe is
blocked.
Clean the defrost water channel
and the drain hole on the rear
wall of the cabinet.
Vibration or
bothersome noise.
The appliance is not level.
The appliance is resting against
other kitchen elements.
Containers or bottles inside the
cabinet are rattling against one
another.
Level the appliance using a spirit
level.
Move the appliance away from
the kitchen elements or appli-
ances it is in contact with.
Move containers and/or bottles
apart.
Compressor runs
continuously.
High room temperature. Ensure adequate ventilation.

16
GB
Automatic defrosting.
The unit is defrosted automatically. Defrost
water runs through a pipe and is collected
in a tray above the compressor where the
heat generated by the compressor causes it
to evaporate. The defrost water tray should
be cleaned at intervals.
Cleaning.
Before cleaning the appliance, unplug it
from the main supply. The cabinet is best
cleaned using warm water (max. 65°C) with
a little mild detergent. Never use cleaning
agents that scour. Use a soft cloth. Rinse
with clean water and dry thoroughly.
The defrost water channel, in which
condensation from the evaporator runs, is
located at the bottom of the rear inside wall
of the cabinet and must be kept clean. Add
a few drops of disinfectant, e.g. Rodalon,
to the defrost water drain a couple of times
a year, and clean the drain using a pipe
cleaner or similar. Never use sharp or
pointed implements.
The sealing strip around the door must be
cleaned regularly to prevent discolouration
and prolong service life. Use clean water.
After cleaning the sealing strip, check that it
continues to provide a tight seal.
Dust collecting on the condenser on the
rear of the cabinet, the compressor and
in the compressor compartment is best
removed using a vacuum cleaner.
Defrosting, cleaning and maintenance

17
GB
Warranty, spare parts and service
Warranty disclaimer
Faults and damage caused directly or
indirectly by incorrect operation, misuse,
insufcient maintenance, incorrect building,
installation or mains connection. Fire, ac-
cident, lightening, voltage variation or other
electrical interference, including defective
fuses or faults in mains installations.
Repairs performed by others than approved
service centres and any other faults and
damage that the manufacturer can sub-
stantiate are caused by reasons other than
manufacturing or material faults are not
covered by the warranty.
Please note that changes to the construc-
tion of the appliance or changes to the
component equipment of the appliance will
invalidate warranty and product liability, and
the appliance cannot be used lawfully. The
approval stated on rating plate will also be
invalidated.
Transport damage discovered by the buyer
is primarily a matter to be settled between
the buyer and the distributor, i.e. the dis-
tributor must ensure that such complaints
are resolved to the buyer’s satisfaction.
Before calling for technical assistance,
please check whether you are able to
rectify the fault yourself. If your request for
assistance is unwarranted, e.g. if the appli-
ance has failed as a result of a blown fuse
or incorrect operation, you will be charged
the costs incurred by your call for technical
assistance.
Spare parts
When ordering spare parts, please state
the type, serial and product numbers of
your appliance. This information is given on
the rating plate. The rating plate contains
various technical information, including type
and serial numbers.
Product number.

18
GB
Disposal
Information for Users on Collection
and Disposal of Old Equipment and
used Batteries
These symbols on the products,
packaging, and/or accompanying
documents mean that used electri-
cal and electronic products and
batteries should not be mixed with
general household waste. For proper
treatment, recovery and recycling
of old products and used batteries,
please take them to applicable collec-
tion points, in accordance with your
national legislation and the Directives
2002/96/EC and 2006/66/EC.
By disposing of these products and
batteries correctly, you will help to
save valuable resources and prevent
any potential negative effects on
human health and the environment
which could otherwise arise from
inappropriate waste handling.
For more information about collec-
tion and recycling of old products and
batteries, please contact your local
municipality, your waste disposal
service or the point of sale where you
purchased the items.
Penalties may be applicable for incor-
rect disposal of this waste, in accord-
ance with national legislation.
For business users in the Euro-
pean Union.
If you wish to discard electrical and
electronic equipment, please contact
your dealer or supplier for further
information.
Information on Disposal in other
Countries outside the European
Union
These symbols are only valid in the
European Union. If you wish to dis-
card this product, please contact your
local authorities or dealer and ask for
the correct method of disposal.
Note for the battery symbol :
This symbol might be used in combi-
nation with a chemical symbol. In this
case it complies with the requirement
set by the Directive for the chemical
involved.

2
DE
WARNUNG:
Verwenden Sie keine anderen
mechanischen Geräte oder
Hilfsmittel um den Entfrostungs-
prozess zu beschleunigen, als
die Geräte, die vom Hersteller
empfohlen sind.
WARNUNG:
Beschädigen Sie nicht den Kühl-
kreislauf.
WARNUNG:
Verwenden Sie keine elektri-
schen Geräte im Gerät, es sei
denn, dass die Geräte vom Her-
steller empfohlen sind.
WARNUNG:
Das Gerät nicht dem Regen
aussetzen.
WARNUNG:
Dieses Gerät ist nicht zur Ver-
wendung durch Personen
(einschließlich Kinder) mit ein-
geschränkten physischen, sen-
sorischen oder geistigen Fähig-
keiten oder fehlender Erfahrung
und Wissen bestimmt, es sei
denn, eine angemessene Auf-
sicht oder Anleitung zur Benut-
zung des Geräts durch eine für
Falls dieses Gerät Kohlenwas-
serstoff-Kältemittel enthält, se-
hen Sie bitte die untenstehenden
Richtlinien.
Da ein brennbares Gas als Käl-
temittel in diesem Gerät dient, ist
es wichtig sicherzustellen, dass
kein Teil des Kühlkreislaufs oder
der Röhren beschädigt ist.
Der Standard EN378 speziziert,
dass der Raum, in dem das Ge-
rät installiert wird, ein Volumen
von 1m³ pro 8 g Kohlenwasser
stoff-Kältemittel, das im Gerät
verwendet ist, haben soll. Dies
ist zu beachten, um die Bildung
von leicht entzündlichen Gas-
gemischen in dem Raum, wo
das Gerät installiert ist, zu ver-
meiden, falls eine Undichtigkeit
des Kuhlkreislaufs entsteht. Die
Menge von Kältemittel im Gerät
ist auf dem Typenschild angege-
ben.
WARNUNG:
Decken Sie die Lüftungsöffnun-
gen am Geräte oder am Einbau-
modul nicht ab.
Warnung
