Before operating this oven, please read these instructions completely.
OPERATING INSTRUCTIONS
& COOK BOOK
MICROWAVE OVEN
KOR-6Q6R

1
PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO
EXCESSIVE MICROWAVE ENERGY.........................................................................................................1
IMPORTANT SAFETY INSTRUCTIONS ....................................................................................................2
EARTHING INSTRUCTIONS.......................................................................................................................3
INSTALLATION .............................................................................................................................................3
FEATURES DIAGRAM.............................................................................................................................4~5
OPERATION PROCEDURE ........................................................................................................................6
HOW TO SET THE OVEN CONTROLS...............................................................................................7~10
HOW TO STOP THE OVEN WHILE THE OVEN IS OPERATING.........................................................11
CARE AND CLEANING..............................................................................................................................11
SPECIFICATIONS.......................................................................................................................................12
IMPORTANT NOTE....................................................................................................................................12
BEFORE YOU CALL FOR SERVICE........................................................................................................13
QUESTIONS AND ANSWERS............................................................................................................13~14
COOKING INSTRUCTIONS.......................................................................................................................15
COOKING UTENSILS.................................................................................................................................15
USE YOUR MICROWAVE OVEN SAFELY..............................................................................................16
ARCING........................................................................................................................................................16
MICROWAVING PRINCIPLES ..................................................................................................................17
HOW MICROWAVES COOK FOOD.........................................................................................................17
CONVERSION CHARTS............................................................................................................................17
COOKING TECHNIQUES..........................................................................................................................18
DEFROSTING GUIDE................................................................................................................................19
DEFROSTING CHART...............................................................................................................................20
COOKING & REHEATING CHART...........................................................................................................21
VEGETABLE CHART...........................................................................................................................22~23
RECIPES...............................................................................................................................................24~26
TABLE OF CONTENTS
PRECAUTIONS TO AVOID POSSIBLE EXPOSURE
TO EXCESSIVE MICROWAVE ENERGY
(a) Do not attempt to operate this oven with the door open since open-door operation can result in
harmful exposure to microwave energy. It is important not to defeat or tamper with the safety
interlocks.
(b) Do not place any object between the oven front face and the door or allow soil or cleaner residue
to accumulate on sealing surfaces.
(c) WARNING : If the door or door seals are damaged, the oven must not be operated until it has been
repaired by a competent person : (1) door (bent), (2) hinges and latches(broken or loosened), (3)
door seals and sealing surfaces.
(d) WARNING : It is hazardous for anyone other than a competent person to carry out any service or
repair operation which involves the removal of a cover which gives protection against exposure to
microwave energy.
(e) WARNING : Liquids or other foods must not be heated in sealed containers since they are liable to
explode.
(f) The appliance is not intended for use by young children or infirm person without supervision. Young
children should be supervised to ensure that they do not play with the appliance.
(g) WARNING : Only allow children to use the oven without supervision when adequate instructions
have been given so that the child is able to use the oven in a safe way and understands the hazards
of improper use.

2
IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS
READ CAREFULLY AND KEEP FOR FUTURE REFERENCE.
WARNING : To prevent fire, burns, electric shock and other warnings:
Listed below are, as with all appliances, certain rules to follow and safeguards to assure high
performance from this oven:
1. Do not use the oven for any reason other than
food preparation, such as for drying clothes,
paper, or any other nonfood items or for
sterilizing purposes.
2. Do not use the oven when empty, this could
damage the oven.
3. Do not use the oven cavity for any type of
storage, such as papers, cookbook, cookware,
etc.
4. Do not operate the oven without the glass tray in
place. Be sure it is properly sitting on the rotating
base.
5. Make sure you remove caps or lids prior to
cooking when you cook food sealed in bottles.
6. Do not put foreign material between the oven
surface and door. It could result in excessive
leakage of microwave energy.
7. Do not use recycled paper products for cooking.
They may contain impurities which could cause
sparks and/or fires when used during cooking.
8. Do not pop popcorn unless popped in a
microwave approved popcorn popper or unless
it's commercially packaged and recommended
especially for microwave ovens. Microwave
popped corn produces a lower yield than
conventional popping; there will be a number of
unpopped kernels. Do not use oil unless
specified by the manufacturer.
9. Do not cook any food surrounded by a
membrane, such as egg yolks, potatoes,
chicken livers, etc., without first piercing them
several times with a fork.
10. Do not pop popcorn longer than the
manufacturer's directions. (popping time is
generally below 3 minutes). Longer cooking
does not yield more popped corn, it can cause
scorchings and fire.
Also, the cooking tray can become too hot to
handle or may break.
11. If smoke is observed, switch off or unplug the
appliance and keep the door closed in order to
stifle any flames.
12. When heating food in plastic or paper
containers, keep an eye on the oven due to the
possibility of ignition.
13. The contents of feeding bottles and baby food
jars shall be stirred or shaken and the
temperature checked before consumption, in
order to avoid burns.
14. Always test the temperature of food or drink
which has been heated in a microwave oven
before you give it to somebody, especially to
children or elderly people. This is important
because things which have been heated in a
microwave oven carry on getting hotter even
though the microwave oven cooking has
stopped.
15. Eggs in their shell and whole hard-boiled
should shall not be heated in microwave ovens
since they may explode, even after microwave
heating has ended;
16. Keep the waveguide cover clean at all times.
Wipe the oven interior with a soft damp cloth
after each use. If you leave grease or fat
anywhere in the cavity it may overheat, smoke
or even catch fire when next using the oven.
17. Never heat oil or fat for deep frying as you
cannot control the temperature and doing so
may lead to overheating and fire.
18. Microwave heating of beverages can result in
delayed eruptive boiling, therefore care must to
be taken when handling the container.

3
EARTHING INSTRUCTIONS
This appliance must be earthed. In the event of an electrical short circuit, earthing reduces the risk of electric
shock by providing an escape wire for the electric current. This appliance is equipped with a cord having a
earthing wire with a earthing plug. The plug must be plugged into an outlet that is properly installed and earthed.
WARNING : Improper use of the earthing plug can result in a risk of electric shock. Consult a qualified
electrician or serviceman if the earthing instructions are not completely understood, or if
doubt exists as to whether the appliance is properly earthed. If it is necessary to use an
extension cord, use only a 3-wire extension cord that has a 3-blade earthing plug, and a
3-slot receptacle that will accept the plug on the appliance. The marked rating of the
extension cord should be equal to or greater than the electrical rating of the appliance.
INSTALLATION
1. Ventilation
Do not block air vents. If they are blocked
during operation, the oven may overheat and
eventually cause a failure. For proper
ventilation, allow above 3 inches of space
between oven sides, rear and the minimum
height of free space necesary above the top
surface of the oven is 100mm.
2. Steady, flat location
This oven should be set on a steady, flat
surface. This oven is designed for counter top
use only.
3. Leave space behind and side
All air vents should be kept a clearance. If all
vents are covered during operation, the oven
may overheat and, eventually, oven failure.
4. Away from radio and TV sets
Poor television reception and radio
interference may result if the oven is located
close to a TV, Radio antenna, feeder and so
on. Position the oven as far from them as
possible.
5. Away from heating appliance and water
taps
Keep the oven away from hot air, steam or
Splash when choosing a place to position it,
or the insulation might be adversely affected
and breakdowns occur.
6. Power supply
• Check your locla power source. This oven
requires a current of approximately 6
amperes, 230V 50Hz.
• Power supply cord is about 0.8 meters long.
• The voltage used must be the same as
specified on this oven. Using a higher
voltage may result in a fire or other accident
causing oven damage. Using low voltage
will cause slow cooking. We are not
responsible for damage resulting from use
of this oven with a voltage of ampere fuse
other than those specified.
• If the supply cord is damaged, it must be
replaced by the manufacturer or its service
agent or a similarly qualified person in order
to avoid a hazard.
7. Examine the oven after unpacking for any
damage such as:
A misaligned door, Broken door, A dent in
cavity. If any of the above are visible, DO
NOT INSTALL, and notify dealer immediately.
8. Do not operate the oven if it is colder than
room temperature.
(This may occur during delivery in cold
weather.) Allow the oven to become room
temperature before operating.

4
11Door latch-When the door is closed it will
automatically shut off. If the door is opened
while the oven is operating, the magnetron will
automatically shut off.
22Door seal-The door seal surfaces prevent
microwaves escaping from the oven cavity.
33Oven cavity
44Spatter shield-Protects the microwave outlet
from splashes of cooking foods.
55Safety interlock system-Prevents the oven
from operating while the door is opened.
The oven will only operate with the door fully
closed. When the door is open, the oven turns
off and will only start again after the door is
closed.
66Glass cooking tray-Made of special heat
resistant glass. The tray can be easily
removed for cleaning. Make sure it is correctly
positioned (indentation) before operating.
Place food in a suitable container (dish) on the
tray.
77Roller guide-Supports the glass cooking tray.
88Door screen-Allows viewing of food.
The screen is transparent to light, but
prevents microwaves escaping.

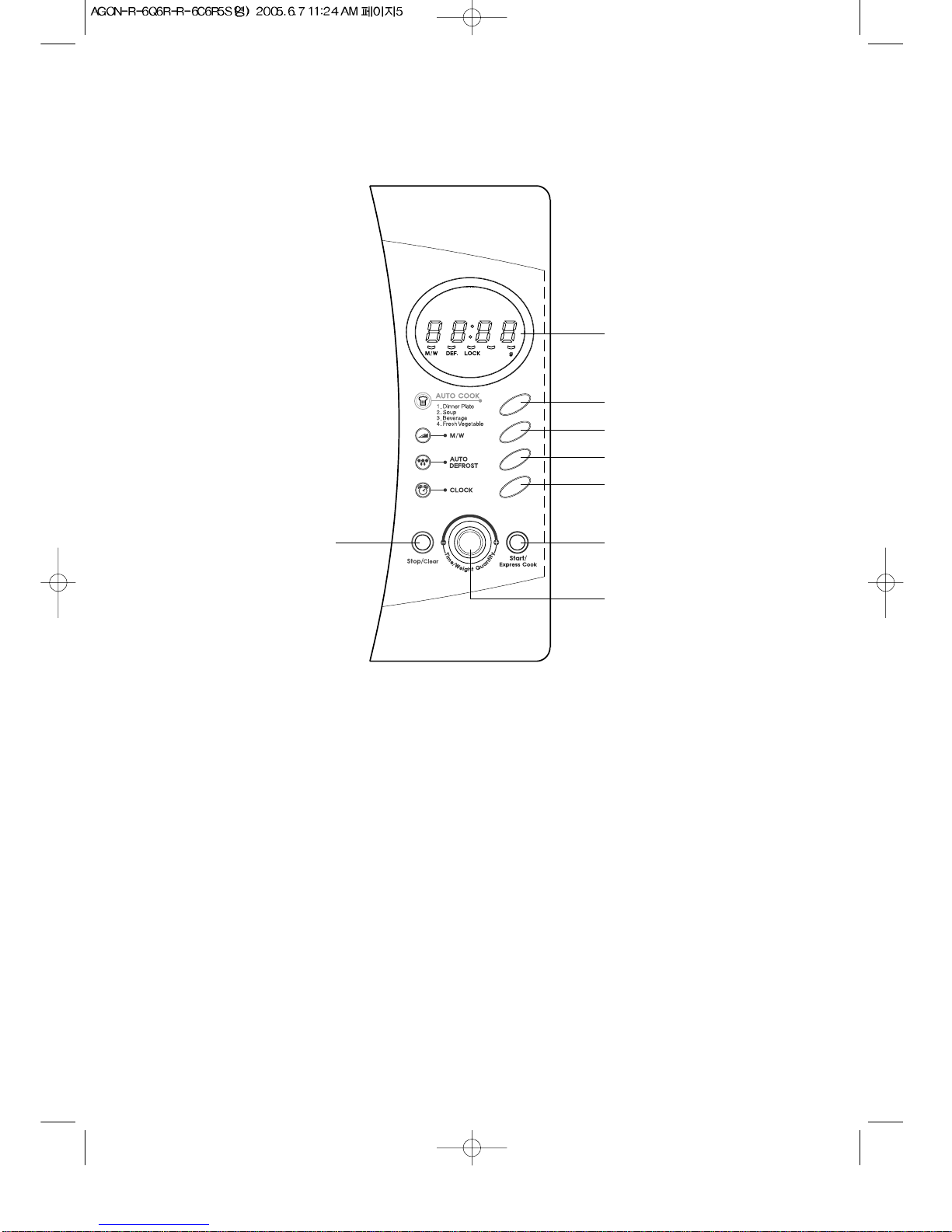

FEATURES DIAGRAM
12 3 4 5
86
7

5
99Auto cook - Used to cook using a program
or to reheat.
00Auto Defrost - Used to defrost foods by
weight or time.
qqM/W - Used to set power level.
wwClock - Used to set clock.
eeDisplay - Cooking time, power level,
indicators and present time are displayed.
rrStop/Clear - Used to stop the oven
operation or to erase all entries.
ttStart/Express cook - Used to start the oven
operation and also increase the reheat time
by 30 seconds.
yyDial knob - Used to set the time and weight.
FEATURES DIAGRAM (continued)
e
9
q
0
w
tr
y

6
Plug power supply cord into 230V AC 50Hz
power outlet.
After placing the food in a suitable container,
open the oven door and put it on the glass tray.
The glass tray and roller guide must always be
in place during cooking.
Shut the door. Make sure that it is firmly closed.
When the oven door is closed, the light turns off.
The oven door can be opened at any time during
operation by pressing the door release button on
the control panel. The oven will automatically
shut off. To restart the oven, close the door and
then touch START.
The oven automatically cooks on full power
unless set to a lower power level.
The display will show “ : 0” when the oven is
plugged in.
Time clock returns to the present time when the
cooking time ends.
When the STOP/CLEAR is touched during the
oven operation, the oven stops cooking and all
information retained. To erase all
information(except the present time), touch the
STOP/CLEAR once more. If the oven door is
opened during the oven operation, all information
is retained.
If the START is touched and the oven does not
operate, check the area between the door and
door seal for obstructions and make sure the door
is closed securely. The oven will not start cooking
until the door is completely closed or the program
has been reset.
OPERATION PROCEDURE
This section includes useful information about oven operation.
1
2
3
4
5
6
7
8
9
Make sure the oven is properly installed
and plugged into the electrical outlet.
WATTAGE OUTPUT CHART
•The power-level is set by pressing the Power pad. The chart shows the display, the power level
and the percentage of power.
Touch Power pad Power level (Display) Approximate Percentage of Power
once P-HI 100%
twice P-80 80%
3 times P-60 60%
4 times P-40 40%
5 times P-20 20%

7
CONTROLS
SETTING THE CLOCK
When the oven is first plugged in, the display will flash “ :0” and a tone will sound. If the AC power
ever turns off, the display shows “ :0” when the power comes back on.
1. Press Clock button.
This is a 12 hour clock system.
2. Press Clock button once more.
This is a 24 hour clock system.
4. Press Clock button.
5. Turn the dial knob to adjust minute.
6. Press Clock button.
3. Turn the dial knob to adjust hour. If you selected 12 hour system, the display will
show the hours from “1” to “12”.
If you selected 24 hour system, the display will
show the hours from “0” to “23”.
The adjusted hour starts blinking.
The minute stops blinking and “00” starts
blinking.
The display will show the minutes from “0” to
“59”. The adjusted minute starts blinking.
NOTE : This oven has multiple clock
systems. If you want 12 hour
clock system, omit this step.
Clock
Clock
Clock
When you press Clock button, the minute stops blinking, and the colon starts blinking. If you selected 12
hour clock system, this digital clock allows you to set from 1:00 to 12:59. If you selected 24 hour clock
system, this digital clock allows you to set from 0:00 to 23:59.

8
WEIGHT DEFROSTING
WEIGHT DEFROST lets you easily defrost food by eliminating guesswork in determining defrosting
time. The minimum weight for WEIGHT DEFROST is 200 gram and the maximum weight is 3,000
gram. Follow the steps below for easy defrosting.
1. Press Auto Defrost button.
2. Turn the dial knob to adjust the defrosting weight.
3. Press Start button.
The DEF. indicator & “0” appear and the g
indicator starts blinking.
The display will show what you selected.
Auto Defrost
Start
When you press Start button, the g indicator disappears and the DEF. indicator starts blinking to show
the oven is in the DEFROST mode. The display counts down the time to show you how much
defrosting time is left in the DEFROST mode. The oven beeps during the defrosting cycle to signal that
the food needs to be turned or rearranged. When the defrosting time ends, you will hear 3 beeps.
TIME DEFROSTING
When TIME DEFROST is selected, the automatic cycle divides the defrosting time into periods of
alternating defrost and stand times by cycling on and off.
1. Press Auto Defrost button.
2. Press Auto Defrost button once more.
3. Turn the dial knob to adjust the defrosting time.
4. Press Start button.
The DEF. indicator & “0” appear and the g
indicator starts blinking.
The g indicator disappears and “:0” is
displayed.
The display will show what you selected.
Auto Defrost
Start
When you press Start button, the DEF. indicator starts blinking to show the oven is the DEFROST
mode. The display counts down the time to show you how much defrosting time is left in the DEFROST
mode. The oven beeps during the defrosting cycle to signal that the food needs to be turned or
rearranged.
When the defrosting time ends, you will hear 3 beeps.
NOTE: Your oven can be programmed
for 60 miutes 00 seconds. (60:00)
