Overview 1
1 Overview
Introduction1.1
This off-grid integrated solar power system (the “System”) consists of solar panel, lithium
battery pack, maximum power point tracking (MPPT) charge controller, and mounting bracket.
The System can be used in places without power supply and network connection. Specifically, it
is applicable to the following scenarios:
Supplying power for surveillance devices installed at places such as small construction
sites, mobile toilets, mobile waste stations, street vendor markets, temporary traffic control
zones.
Supplying power for surveillance devices installed at public places in parks, office areas,
residential buildings, and so on to prevent potential damages to infrastructures and
landscaping.
Features1.2
All-in-one design, easy to install, remove, and maintain.
Aluminum alloy frame brings attractive appearance and excellent anti-corrosion
performance.
IP66 protection level.
RS-485 communications port and standard Modbus protocol, meeting communications
requirements in various scenarios.
MPPT controller helps significantly improve the energy utilization efficiency of the System,
and raise the charging efficiency by 10%–30% compared with conventional PWM method.
Comprehensive electronic protection: Current limiting, short circuit, and reverse current
protection of solar panel; reverse connection, overcurrent, overdischarge, and
overtemperature protection of lithium battery; overload and short circuit protection for
device that consumes power.

Packing List 2
2 Packing List
After opening the packing box, check whether there is any obvious damage to the System, and
make sure all the items included in the packing list are provided.

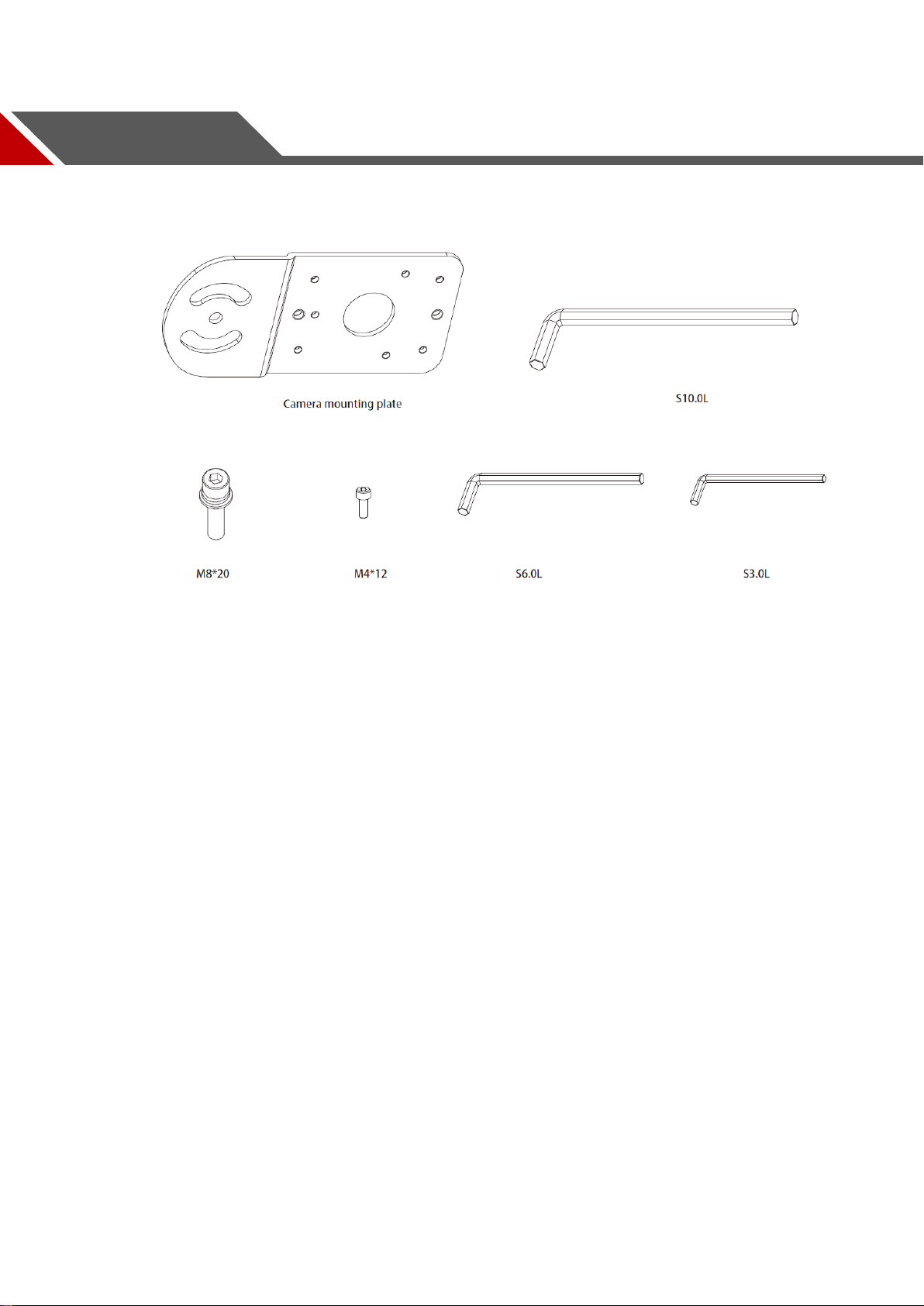

Packing listFigure 2-1

Structure 3
3 Structure
Appearance3.1

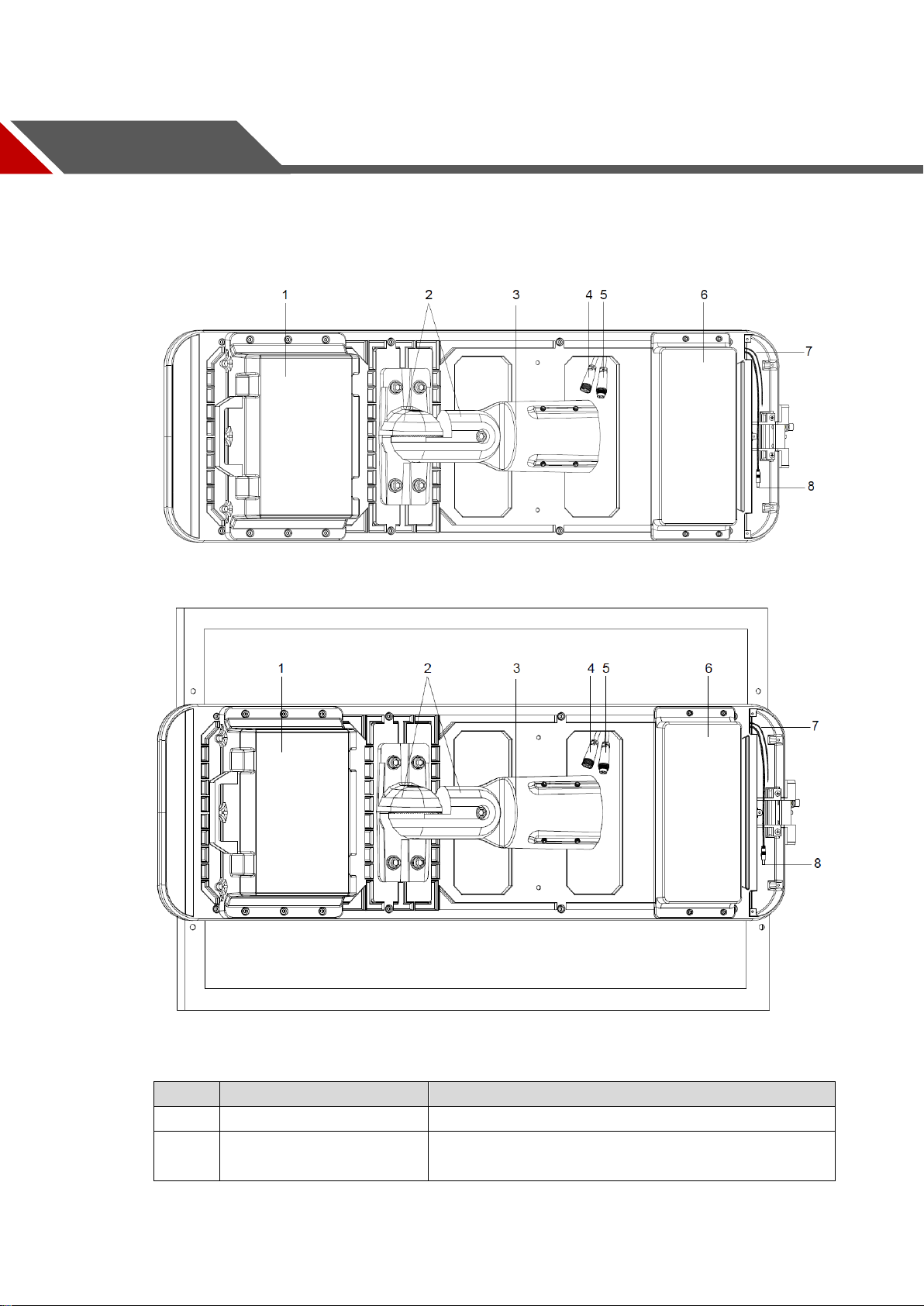

Components (DH-PFM364L-D1)Figure 3-1
Components (DH-PFM363L-D1)Figure 3-2
Table 3-1 Component description (DH-PFM364L-D1 and DH-PFM363L-D1)
No.
Name
Description
1
Battery holder
Holds batteries.
2
Gear for adjusting angle
Gear for adjusting horizontal and vertical angles. 5
degrees will be adjusted by rotating each slot.

Structure 4
No.
Name
Description
3
Mounting sleeve
Attach the mounting sleeve to the pole, and then tighten
the sleeve.
4
Female circular connector
Connector socket
5
Male circular connector
Connector pin
6
Controller holder
Holds the controller.
7
RS-485 serial line
Used for communications between the System and
another device.
8
Power output interface
Supplies power to another device.
Components (DH-PFM363L-SD1)Figure 3-3
Table 3-2 Component description
No.
Name
Description
1
Battery holder
Holds batteries.
2
Gear for adjusting angle
Gear for adjusting horizontal and vertical angles. 5°will
be adjusted by rotating each slot.
3
Mounting sleeve
Attach the mounting sleeve to the pole, and then tighten
the sleeve.
4
Female circular connector
Connector socket.
5
Male circular connector
Connector pin.
6
Power output interface
12 V DC /1A power output.
7
LAN port
Used for data transmission of surveillance device.
8
Controller holder
Holds the controller.
9
PoE output port
12 V non-standard PoE output, usually supplying power
for wireless CPE (customer premises equipment) device.
10
RS-485 port (serial port to
network interface)
Used for communications between the System and
another device..

Structure 5
Dimensions3.2
3.2.1 DH-PFM364L-D1
Front view (mm[inch])Figure 3-4
Side view (mm[inch])Figure 3-5
Top view (mm[inch])Figure 3-6

Structure 6
3.2.2 DH-PFM363L-D1 and DH-PFM363L-SD1
Front view (mm[inch])Figure 3-7
Side view (mm[inch])Figure 3-8
Top view (mm[inch])Figure 3-9

Installation 7
4 Installation
Preparation4.1
4.1.1 Installation Site Requirements
The installation site shall meet the requirements of electrical and relevant fire prevention
codes.
Choose an installation site with sufficient sunshine all the year round, and make sure no
shelter around the site to ensure natural lighting.
If there is shelter at the installation site, make sure the lowest installation position of the
System is at least 1 meter above the shelter, otherwise, it will lead to decline in power
generation and battery power loss, which will finally damage the battery.
Avoid public facilities such as underground cables, optical cables to ensure smooth
installation.
Make sure the back side of the System is well-ventilated.
4.1.2 Tools
Tools included in the packing list are provided. Besides, you need to prepare the tools shown in

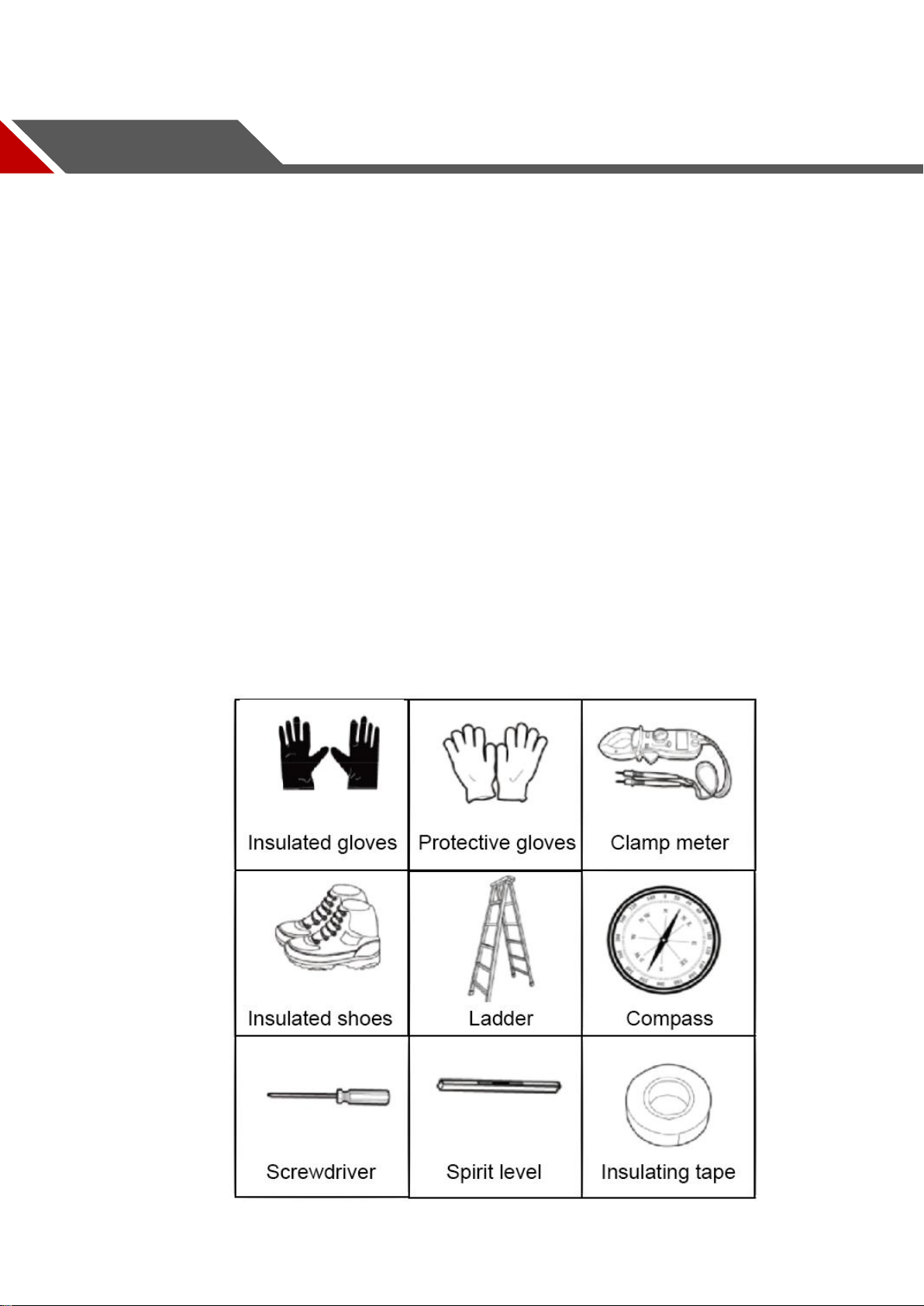

Figure 4-1. ToolsFigure 4-1

Installation 8
4.1.3 Cables
We recommend you to ground all the devices, and you need to prepare the cables for
grounding connection.
Select cables that comply with requirements on cables for surveillance industry. Cable length
depends on pole length and height of drilled holes. Select proper cable by referring to the
following table and combining with your actual needs.
Table 4-1 Grounding cable requirements
Cable type
Description
Grounding
cable
It is recommended to use stranded bare copper flexible cable with ground
impedance less than 4 Ω and cable length not more than 10 m. Use green wire
with yellow stripe for the protective ground.
Installation Procedures4.2
Installation steps have minor differences for the three models. The Manual takes installation of
DH-PFM364L-D1 for example.

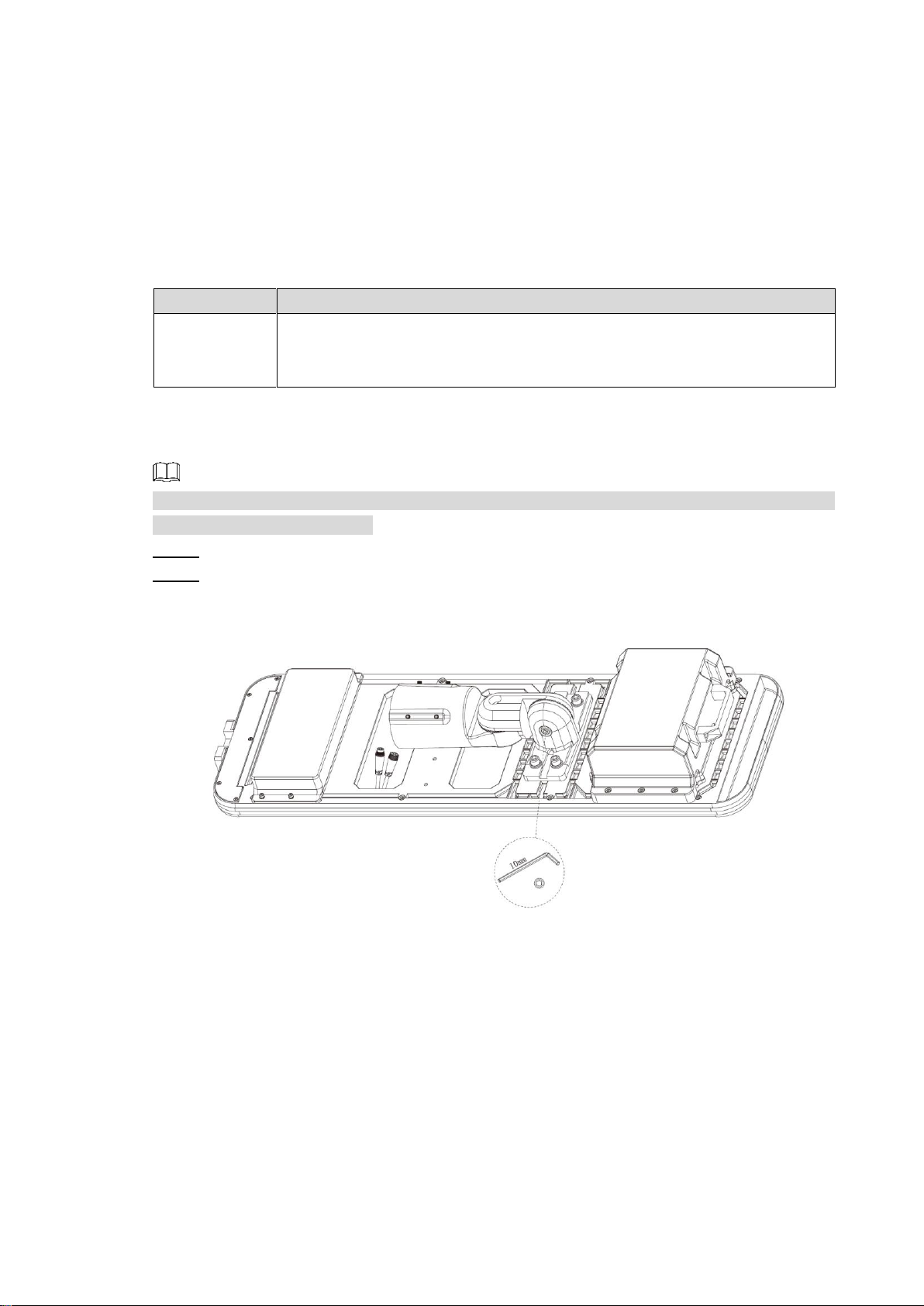

Open the package, and place the System on a flat surface.Step 1 Adjust the horizontal angle.Step 2 1) Use a S10.0L wrench to loosen M12 screw. See Figure 4-2.

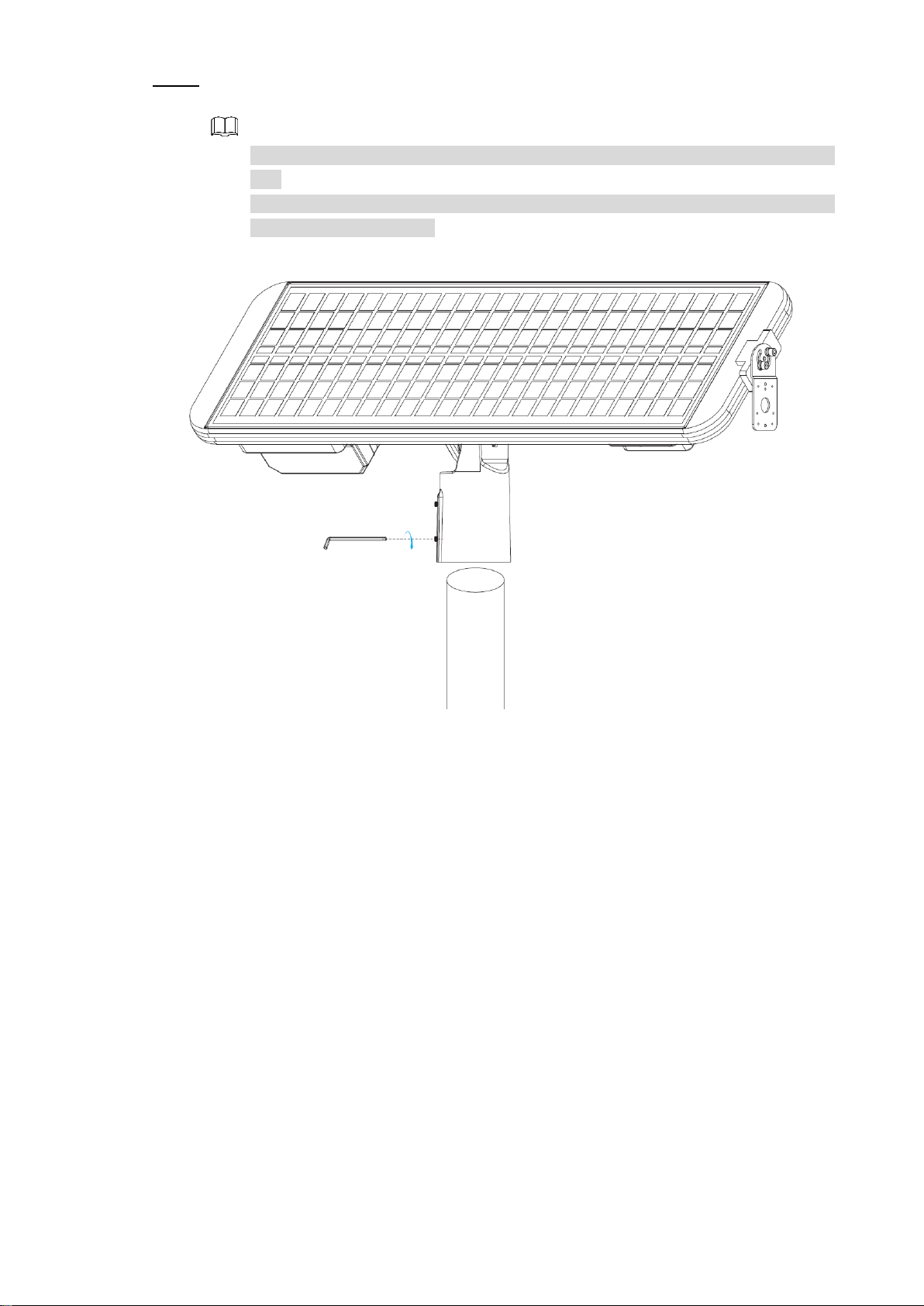

Installation diagram (1)Figure 4-2
2) Rotate the mounting sleeve 90°. See Figure 4-3.

Installation 9
Installation diagram (2)Figure 4-3
You can know the rotated angle according to the quantity of slots that have been
rotated. See Figure 4-4.
5°will be adjusted by rotating each slot.
The System is designed with gear for adjusting horizontal or vertical angle.
Installation diagram (3)Figure 4-4
3) Use a S10.0L wrench to tighten the screw.
Adjust the vertical angle.Step 3 1) Use a S10.0L wrench to loosen M12 screw. See Figure 4-5.

Installation 10
Installation diagram (4)Figure 4-5
2) Adjust angle of mounting sleeve until β equals to local latitude. See Figure 4-6.
Installation diagram (5)Figure 4-6
3) Use a S10.0L wrench to to tighten the screw.
Install camera mounting plate.Step 4 Make the mounting plate parallel with the mounting sleeve, and then use a S6.0L
wrench to tighten the plate. See Figure 4-7.

Installation 11
Installation diagram (6)Figure 4-7
Use a screwdriver to remove the cover of cable tray. See Figure 4-8.Step 5 Installation diagram (7)Figure 4-8
Connect cables, and then close the cover of cable tray.Step 6 1) Wire through the cable tray, and pull the cable out of the camera mounting plate.
See Figure 4-9. Installation diagram (8)Figure 4-9
2) Connect RS-485 serial line.
Connect RS-485_A to port A of camera, and RS-485_B to port B.
3) Connect 12.8 V DC power output line of the System to power input line of camera.

Installation 12
4) After connecting the cables, use the screwdriver to close the cover of cable tray.
See Figure 4-10. Installation diagram (9)
Figure 4-10
Align the female circular connector with the male one, and then connect the connectors.Step 7 See Figure 4-11. Installation diagram (10)Figure 4-11
Fix the connecter with tape, and then insert the connector into the holder for connector.Step 8 See Figure 4-12. Installation diagram (11)Figure 4-12

Installation 13
Raise the System to mounting height, and then attach the mounting sleeve to the pole,Step 9 and finally use a S6.0L wrench to tighten the sleeve. See Figure 4-13.
Adjust the solar panel according to local longitude and latitude to make it face the
sun.
Make the solar panel south-facing in the northern hemisphere and north-facing in
the southern hemisphere. Installation diagram (12)Figure 4-13

Daily Maintenance 14
5 Daily Maintenance
Notes5.1
Tools: Ladder, screwdriver, multimeter, bucket, mop, and insulated gloves.
Attention:
Do not maintain the System when it is raining.
Wear insulated gloves during maintenance.
Maintenance interval: Twice a year.
Instructions
5.2
It is recommended to check the following items to keep the long-term high performance of the
System:
Check whether the insulation layers of all exposed cables have been damaged because of
sunlight, contact with objects around the cable, dry rot, or destruction by insects or rats. If
damaged, maintain or replace the cable immediately.
Check whether the terminal blocks have signs of corrosion, insulation damage, burning or
discoloration, and whether they are tightened.
Check whether there is dirt, nesting insect, or corrosion. If yes, clean them in time.
In areas with special weather conditions, it is recommended to do necessary maintenance
to keep the System work properly. For dry, dusty and rainless areas, dust on the System
will influence its power generation efficiency. For cold, snowy, and frozen areas, snow and
ice covered on the System will lead to decline in power generated and even failure of the
System. You need to clean the dust regularly, and clean up the snow in time.
Check regularly the plants around the System. If any plant has grown to shade the System,
clean it in time.
Replace the batteries of decreased performance every 3–5 years, depending on the actual
conditions of the battery.

Lightning and Surge Protection 15
Lightning and Surge ProtectionAppendix 1
The System adopts TVS lightning protection technology. It can effectively prevent damages
from various pulse signals below 6000V, such as sudden and indirect lighting strike. But, when
installing the System in the outdoor environment, you still need to take necessary precaution
measures while maintaining your local electrical safety code.
The distance between the signal transmission cable and high-voltage device (or
high-voltage cable) shall be at least 50 meters.
Outdoor cable layout should go under the penthouse if possible.
For open field, please use sealing steel tube under the land to implement cable layout and
make sure that each end of the steel tube are grounded in an equipotential way. It is
absolutely forbidden to set the cable overhead.
In area of strong thunderstorm hit or near high sensitive voltage (such as near high-voltage
transformer substation), additional high-power thunder protection device or lightning rod
should be installed.
The thunder protection and earth grounding of the outdoor device and cable, shall be
considered based on the whole thunder protection of the building and conform to your local
or industry standard.
Equal-potential wiring should be adopted in the system. The grounding device must meet
the demand of anti-jamming and also conforms to your local electrical safety code. The
grounding device shall not form short circuit to N (neutral) line of high voltage power grid or
be mixed with other wires. When connected to the ground alone, grounding resistance of
the system shall not be more than 4Ω. And cross-sectional area of grounding cable shall
be no less than 25 mm2.
Appendix figure 1-1 Lightning protection
