Daikin VRV Series Instruction manual

• VRV Systems • Outdoor Units 1
• Outdoor Units • VRV HEAT PUMP • RXYHQ12-36P(8)
TABLE OF CONTENTS
RXYHQ12-36P(8)
1 Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Independent Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Technical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Electrical Specifications (50Hz) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
2 Electrical data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
3 Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
4 Selection procedure. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
5 Capacity tables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Combination table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Cooling capacity tables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Heating capacity tables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Capacity correction factor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
6 Dimensional drawing & centre of gravity . . . . . . . . . . . . . . . . . . . . . . . 65
Dimensional drawing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
Centre of gravity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
7 Piping diagram. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
8 Wiring diagram. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
Wiring diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
External connection diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
9 Sound data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
Sound pressure spectrum . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
Sound power spectrum . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
10 Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Service space . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Fixation and foundation of units . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
Refrigerant pipe selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
11 Operation range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77

• Outdoor Units • VRV HEAT PUMP • RXYHQ12-36P(8)
1
1
• VRV Systems • Outdoor Units
1
1 Specifications
OutdoorUni VRVSystems RXYHQ12-36P(8 VRVHeatPu
1-1 INDEPENDENT UNIT RXYHQ12P8W1B RXYHQ16P8W1B RXYHQ18P8W1B RXYHQ20P8W1B RXYHQ22P8W1B RXYHQ24P8W1B
Outdoor Unit RXYHQ12P8W1
BRXYQ8P8W1B RXYQ8P8W1B RXYQ8P8W1B RXYQ10P7W1B RXYQ8P8W1B
RXYQ8P8W1B RXYQ10P7W1B RXYHQ12P8W1
BRXYHQ12P8W1 BRXYQ8P8W1B
RXYQ8P8W1B
1-1 INDEPENDENT UNIT RXYHQ26P8W1B RXYHQ28P8W1B RXYHQ30P8W1B RXYHQ32P8W1B RXYHQ34P8W1B RXYHQ36P8W1B
Outdoor Unit RXYQ8P8W1B RXYQ8P8W1B RXYQ8P8W1B RXYQ8P8W1B RXYQ10P7W1B RXYHQ12P8W1
B
RXYQ8P8W1B RXYQ10P7W1B RXYQ10P7W1B RXYHQ12P8W1
BRXYHQ12P8W1 BRXYHQ12P8W1 B
RXYQ10P7W1B RXYQ10P7W1B RXYHQ12P8W1
BRXYHQ12P8W1 BRXYHQ12P8W1 BRXYHQ12P8W1 B
1-2 TECHNICAL SPECIFICATIONS RXYHQ12P8W1B RXYHQ16P8W1B RXYHQ18P8W1B RXYHQ20P8W1B RXYHQ22P8W1B RXYHQ24P8W1B
Capacity Cooling kW 33.5 45.00 49.00 55.90 61.50 67.00
Heating kW 37.5 50.00 56.50 62.50 69.00 75.00
COPCooling 3.894.294.004.053.844.29
Heating 4.374.504.274.424.244.50
Capacity range HP 12 16 18 20 22 24
Power input
(nominal)(50Hz
)
Cooling kW 8.61 10.49 12.25 13.80 16.02 15.62
Heating kW 8.58 11.11 13.23 14.14 16.27 16.67
PED category Category II Category II Category II Category II Category II
Max n× of indoor units to be connected 19 26 29 32 35 39
Indoor index
connection Minimum 150 200 225 250 275 300
Maximum 390 520 565 650 715 780
Casing Colour Daikin White
Material Painted galvanised steel
Dimensions Packing Height mm 1,855
Width mm 1,365
Depth mm 860
Unit Height mm 1,680
Width mm 1,240
Depth mm 765
Weight Unit kg 281
Packed Unit kg 312
Packing Material Carton
Weight kg 4.72
Material Wood
Weight kg 20.85
Material Plastic
Weight kg 0.265
Heat
Exchanger Dimensions Length mm 2,088 1,778+1,778 1,778+1,778 1,778+2,088 1,778+2,088 1,778+1,778+1,7 78
Nr of Rows 54 54+54 54+54 54+54 54+54 54+54+54
Fin Pitch mm 2.00 2.00 2.00 2.00 2.00 2.00
Nr of Passes 21 18+18 18+18 18+21 18+21 18+18+18
Face
Area m² 2.481 2.112+2.112 2.112+2.112 2.112+2.481 2.112+2.481 2.112+2.112+2.1 12
Nr of Stages 2 2+2 2+2 2+2 2+2 2+2+2
Tube type Hi-XSS (8)
Fin Fin type Non-symmetric waffle louvre
Treatment Hydrophylic and anti corrosion resistant
Fan Type Propeller
Quantity 2 1+1 1+1 1+2 1+2 1+1+1
AirFlow Rate
(nominal at
230V)
Cooling m³/min 233 171+171 171+185 171+233 185+233 171+171+171
Heating m³/min 233 171+171 171+185 171+233 185+233 171+171+171

3
1
1
• VRV Systems • Outdoor Units 2
• Outdoor Units • VRV HEAT PUMP • RXYHQ12-36P(8)
1 Specifications
Fan External static pressure Pa 78 Pa in high static pressure
Discharge direction Vertical
Motor Quantity 2 1+1 1+1 1+2 1+2 1+1+1
Model Brushless DC
Output
motor W 2 X 350 750+750 750+750 750+(2x350) 750+(2x350) 750+750+750
Compressor Quantity 2 1+1 1+2 1+2 2+2 3
Motor Quantity 1 1+1 1+1 1+1 1+1 1+1+1
Model Inverter
Type Hermetically sealed scroll compressor
Speed rpm 6,300 7,980+7,980 7,980+6,300 7,980+6,300 6,300+6,300 7,980+7,980+7,9
80
Motor
Output kW 2.8 3.8+3.8 3.8+1.2 3.8+2.8 1.2+2.8 3.8+3.8+3.8
Crankcas
e Heater W333333333333
Quantity 1 1 1 1+1
Model ON-OFF ON-OFF ON-OFF ON-OFF ON-OFF
Type Hermetically
sealed scroll
compressor
Hermetically
sealed scroll
compressor
Hermetically
sealed scroll
compressor
Hermetically
sealedscroll
compressor
Hermetically
sealed scroll
compressor
Speed rpm 2,900 2,900 2,900 2,900 2,900
Motor
Output kW 4.5 4.5 4.5 4.5 4.5
Crankcas
e Heater W33 33333333
Cooling Standard Min ×CDB -5.0 -5.0 -5.0 -5.0 -5.0 -5.0
Operation
Range Cooling Max ×CDB 43.0 43.0 43.0 43.0 43.0 43.0
Heating Min ×CWB -20.0 -20.0 -20.0 -20.0 -20.0 -20.0
Max ×CWB 15.0 15.0 15.0 15.0 15.0 15.0
Sound level Cooling Sound
Power
(Nominal)
dBA 80
Sound
Pressure
(Nominal)
dBA 60
Refrigerant Name R-410A
Charge kg 10 7.7+7.7 7.7+8.4 7.7+10 8.4+10 7.7+7.7+7.7
Control Expansion valve (electronic type)
NrofCircuits 111111
Maximum total refrigerant charge in the
system kg Less than 100 (calculated
charge lessthan
95)
Refrigerant Oil Name Synthetic (ether) oil
Charged Volume l 4.8 2.1+2.1 2.1+4.3 2.1+4.8 4.3+4.8 2.6+2.6+2.6
Piping
connections Liquid (OD) Type Brazing/Brazing connection Braze connection Braze connection Braze connection Braze connection Braze connection
Diameter
(OD) mm 12.7 12.7 15.9 15.9 15.9 15.9
Gas Type Brazing/Brazing
connection Braze connection Braze connection Braze connection Braze connection Braze connection
Diameter
(OD) mm 28.6 28.6 28.6 28.6 28.6 34.9
Heat Insulation Both liquid and gas pipes
Max total length m 1,000 1,000 1,000 1,000 1,000 ~1000
Defrost Method Reversed cycle
Defrost Control Sensor for outdoor heat exchanger temperature
Capacity Control Method Inverter controlled
Capacity Control ~ 100
1-2 TECHNICAL SPECIFICATIONS RXYHQ12P8W1B RXYHQ16P8W1B RXYHQ18P8W1B RXYHQ20P8W1B RXYHQ22P8W1B RXYHQ24P8W1B

• Outdoor Units • VRV HEAT PUMP • RXYHQ12-36P(8)
1
1
• VRV Systems • Outdoor Units
3
1 Specifications
Safety devices PC board fuse HPS HPS HPS HPS HPS
Inverteroverload
protector Fan motor driver overload
protector
Fan motor driver
overload
protector
Fan motor driver
overload
protector
Fan motor driver
overload
protector
Fanmotordriver
overload
protector
HPS Over current
relay Over current relay Over current relay Overcurrent relay Over current relay
Fan motor driver
overload
protector
Inverteroverload
protector Inverteroverload protector Inverteroverload protector Inverteroverload protector Inverteroverload protector
Over current
relay PC board fuse PC board fuse PC board fuse PC board fuse PC board fuse
Standard
Accessories Standard Accessories Installation manual
Quantity 111111
Standard Accessories Operation manual
Quantity 111111
Standard Accessories Connection pipes
Quantity 444444
Notes Nominal cooling capacities are based on : indoor temperature : 27×CDB, 19×CWB, outdoor temperature : 35×CDB,
equivalent refrigerant piping : 7.5m, level difference : 0m.
Nominal heating capacities are based on : indoor temperature : 20×CDB, outdoor temperature : 7×CDB, 6×CWB,
equivalent refrigerant piping : 7.5m, level difference : 0m
Sound pressure Sound level of a
multi system is
determinedby
the individual
outdoor unit and
installation
condition
Sound level of a
multi system is
determined by
the individual
outdoor unit and
installation
condition
Sound level of a
multi system is
determined by
the individual
outdoor unit and
installation
condition
Sound level of a
multi system is
determined by
the individual
outdoor unit and
installation
condition
Sound level of a
multi system is
determined by
the individual
outdoor unit and
installation
condition
Sound values The refrigerant
charge of the
system must be
less than 100 kg.
This means that
incase the
calculated
refrigerant
chargeisequalto
or more than 95
kg, you must
divide your
multiple outdoor
system into
smaller
independent
systems, each
containing less th
Sound values are measured in a semi-anechoic room.
1-2 TECHNICAL SPECIFICATIONS RXYHQ26P8W1B RXYHQ28P8W1B RXYHQ30P8W1B RXYHQ32P8W1B RXYHQ34P8W1B RXYHQ36P8W1B
Capacity Cooling kW 71.40 77.00 82.50 89.00 94.00 98.00
Heating kW 81.50 88.00 94.00 102.00 107.00 113.00
COPCooling 4.094.123.963.993.853.89
Heating 4.344.444.314.404.294.37
Capacity range HP 26 28 30 32 34 36
Power input
(nominal)(50Hz
)
Cooling kW 17.46 18.69 20.83 22.31 24.42 25.19
Heating kW 18.78 19.82 21.81 23.18 24.94 25.86
PED category Category II
Max n× of indoor units to be connected 42 45 48 52 55 58
Indoor index
connection Minimum 325 350 375 400 425 450
Maximum 845 910 975 1,040 1,105 1,170
Casing Colour Daikin White
Material Painted galvanised steel
1-2 TECHNICAL SPECIFICATIONS RXYHQ12P8W1B RXYHQ16P8W1B RXYHQ18P8W1B RXYHQ20P8W1B RXYHQ22P8W1B RXYHQ24P8W1B

3
1
1
• VRV Systems • Outdoor Units 4
• Outdoor Units • VRV HEAT PUMP • RXYHQ12-36P(8)
1 Specifications
Heat
Exchanger Dimensions Length mm 1,778+1,778+1,7 78 1,778+1,778+1,7 78 1,778+1,778+2,0 88 1,778+2,088+2,0 88 1,778+2,088+2,0 88 2,088+2,088+2,0 88
Nr of Rows 54+54+54
Fin Pitch mm 2.00 2.00 2.00 2.00 2.00 2.00
Nr of Passes 18+18+18 18+18+18 18+18+21 18+21+21 18+21+21 21+21+21
Face
Area m² 2.112+2.112+2.1 12 2.112+2.112+2.1 12 2.112+2.112+2.4 81 2.112+2.481+2.4 81 2.112+2.481+2.4 81 3x2.481
Nr of Stages 2+2+2
Tube type Hi-XSS (8)
Fin Fin type Non-symmetric waffle louvre
Treatment Hydrophylic and anti corrosion resistant
Fan Type Propeller
Quantity 1+1+1 1+1+1 1+1+2 1+2+2 1+2+2 2+2+2
AirFlow Rate
(nominal at
230V)
Cooling m³/min 171+171+185 171+185+185 185+185+233 171+233+233 185+233+233 233+233+233
Heating m³/min 171+171+185 171+185+185 185+185+233 171+233+233 185+233+233 233+233+233
Fan External static pressure Pa 78 Pa in high static pressure
Discharge direction Vertical
Motor Quantity 1+1+1 1+1+1 1+1+2 1+2+2 1+2+2 2+2+2
Model Brushless DC
Output
motor W 750+750+750 750+750+750 750+750+2x350 750+2x350+2x35 0750+2x350+2x35 02x350+2x350+2x 350
CompressorQuantity 456566
Motor Quantity 1+1+1
Model Inverter
Type Hermetically sealed scroll compressor
Speed rpm 7,980+7,980+6,3
00 7,980+6,300+6,3 00 7,980+6,300+6,3 00 7,980+6,300+6,3 00 6,300+6,300+6,3 00 6,300+6,300+6,3 00
Motor
Output kW 3.8+3.8+1.2 3.8+1.2+1.2 3.8+1.2+2.8 3.8+2.8+2.8 1.2+2.8+2.8 2.8+2.8+2.8
Crankcas
e Heater W333333333333
Quantity 1 2 2 2 3 3
Model ON-OFF
Type Hermetically sealed scroll compressor
Speed rpm 2,900
Motor
Output kW 4.5 4.5 4.5 4.5 4.5 4.5
Crankcas
e Heater W333333333333
Cooling Standard Min ×CDB -5.0 -5.0 -5.0 -5.0 -5.0 -5.0
Operation
Range Cooling Max ×CDB 43.0 43.0 43.0 43.0 43.0 43.0
Heating Min ×CWB -20.0 -20.0 -20.0 -20.0 -20.0 -20.0
Max ×CWB 15.0 15.0 15.0 15.0 15.0 15.0
Refrigerant Name R-410A
Charge kg 7.7+7.7+8.4 7.7+8.4+8.4 7.7+8.4+10 7.7+10+10 8.4+10+10 10+10+10
Control Expansion valve (electronic type)
NrofCircuits 111111
Maximum total refrigerant charge in the
system kg Less than 100 (calculated charge less than 95)
Refrigerant Oil Name Synthetic (ether) oil
Charged Volume l 2.6+2.6+4.3 2.6+4.3+4.3 2.6+4.3+4.8 2.6+4.8+4.8 4.3+4.8+4.8 3x4.8
Piping
connections Liquid (OD) Type Braze connection
Diameter
(OD) mm 19.1 19.1 19.1 19.1 19.1 19.1
Gas Type Braze connection
Diameter
(OD) mm 34.9 34.9 34.9 34.9 34.9 41.3
Heat Insulation Both liquid and gas pipes
Max total length m ~1000
Defrost Method Reversed cycle
1-2 TECHNICAL SPECIFICATIONS RXYHQ26P8W1B RXYHQ28P8W1B RXYHQ30P8W1B RXYHQ32P8W1B RXYHQ34P8W1B RXYHQ36P8W1B

• Outdoor Units • VRV HEAT PUMP • RXYHQ12-36P(8)
1
1
• VRV Systems • Outdoor Units
5
1 Specifications
Defrost Control Sensor for outdoor heat exchanger temperature
Capacity Control Method Inverter controlled
Capacity Control ~ 100
Safety devices HPS
Fan motor driver overload protector
Over current relay
Inverter overload protector
PC board fuse
Standard
Accessories Standard Accessories Installation manual
Quantity 111111
Standard Accessories Operation manual
Quantity 111111
Standard Accessories Connection pipes
Quantity 444444
Notes Nominal cooling capacities are based on : indoor temperature : 27×CDB, 19×CWB, outdoor temperature : 35×CDB,
equivalent refrigerant piping : 7.5m, level difference : 0m.
Nominal heating capacities are based on : indoor temperature : 20×CDB, outdoor temperature : 7×CDB, 6×CWB,
equivalent refrigerant piping : 7.5m, level difference : 0m
Sound level of a multi system is determined by the individual outdoor unit and installation condition
The refrigerant charge of the system must be less than 100 kg. This means that in case the calculated refrigerant
charge is equal to or more than 95 kg, you must divide your multiple outdoor system intosmaller independent
systems, each containing less th
1-3 ELECTRICAL SPECIFICATIONS
(50HZ) RXYHQ12P8W1B RXYHQ16P8W1B RXYHQ18P8W1B RXYHQ20P8W1B RXYHQ22P8W1B RXYHQ24P8W1B
Power Supply Name W1
Phase 3N~
Frequency Hz 50 50 50 50 50 50
Voltage V 400 400 400 400 400 400
Current Nominal
runningcurrent
(RLA)
Cooling A 19.1 15.0 18.8 26.6 30.4 22.5
Heating A 12.9 16.4 19.3 21.1 24.0 24.6
Starting current (MSC) A 75 4 78 79 88 7
Z-max Text 0.27 - 0.27 0.27 0.25 -
Minimum Ssc value kVa 1,114 2,436 2,146 2,332 2,042 3,654
Minimum circuit amps
(MCA) A 22.7 37.0 40.1 41.2 44.3 55.5
Maximum fuse amps (MFA) A 25 50 50 50 50 63
Full load amps (FLA) A 1.2 1.4 1.6 1.9 2.1 2.1
Voltage range Minimum V 360 360 360 360 360 360
Maximum V 440 440 440 440 440 440
Wiring
connections For Power Supply Quantity 5 5 5 5 5 5
Remark Earth wire include
For connection
with indoor Quantity 2 2 2 2 2 2
Remark F1-F2
Power Supply Intake Both indoor and outdoor unit
1-2 TECHNICAL SPECIFICATIONS RXYHQ26P8W1B RXYHQ28P8W1B RXYHQ30P8W1B RXYHQ32P8W1B RXYHQ34P8W1B RXYHQ36P8W1B

3
1
1
• VRV Systems • Outdoor Units 6
• Outdoor Units • VRV HEAT PUMP • RXYHQ12-36P(8)
1 Specifications
Notes MFA is used to
select the circuit
breaker and the
ground fault
circuitinterrupter
(earth leakage
circuit breaker)
MCA/MFA:MCA
= 1.25 x
maximumRLA+
other RLA + EA
FLA, MFA is
smaller than or
equal to 2.25 x
maximumRLA+
other RLA + EA
FLA, next lower
standard fuse
rating minimum
16A
MCA/MFA:MCA
= 1.25 x
maximum RLA +
other RLA + EA
FLA, MFA is
smaller than or
equal to 2.25 x
maximum RLA +
other RLA + EA
FLA, next lower
standard fuse
rating minimum
16A
MCA/MFA :MCA
= 1.25x
maximum RLA+
other RLA + EA
FLA, MFA is
smaller than or
equal to 2.25 x
maximum RLA+
other RLA + EA
FLA, next lower
standard fuse
rating minimum
16A
MCA/MFA:MCA
= 1.25 x
maximum RLA +
other RLA + EA
FLA, MFA is
smaller thanor
equal to 2.25 x
maximum RLA +
other RLA + EA
FLA, next lower
standard fuse
rating minimum
16A
MFA is used to
select the circuit
breaker and the
ground fault
circuitinterrupter
(earth leakage
circuit breaker)
MSC means the
maximumcurrent
duringstart up of
the compressor
MFA is used to
select the circuit
breaker and the
ground fault
circuitinterrupter
(earth leakage
circuit breaker)
MFA is used to
select the circuit
breaker and the
ground fault
circuitinterrupter
(earth leakage
circuit breaker)
MFA is used to
select the circuit
breaker and the
ground fault
circuit interrupter
(earth leakage
circuit breaker)
MFA is used to
select the circuit
breaker and the
ground fault
circuitinterrupter
(earth leakage
circuit breaker)
MSC means the
maximumcurrent
during start up of
the compressor
Maximum
allowablevoltage
range variation
between phases
is 2%
MSC means the
maximumcurrent
during start up of
the compressor
MSC means the
maximumcurrent
during start up of
thecompressor
MSC means the
maximumcurrent
during start up of
the compressor
MSC means the
maximumcurrent
during start up of
the compressor
Maximum
allowablevoltage
range variation
between phases
is 2%
RLA is based on following conditions : indoor temperature : 27×CDB/19×CWB , outdoor temperature : 35×CDB
Select wire size
based on MCA Voltage range : unitsaresuitable
for use on
electrical
systems where
voltage supplied
tounitterminalis
not below or
above listed
range limits
Voltage range :
unitsaresuitable
for use on
electrical
systems where
voltage supplied
to unit terminal is
not below or
above listed
range limits
Voltage range :
units aresuitable
for use on
electrical
systems where
voltage supplied
tounitterminalis
not below or
above listed
range limits
Voltage range :
units aresuitable
for use on
electrical
systems where
voltage supplied
tounit terminal is
notbelowor
above listed
range limits
Voltage range :
unitsaresuitable
for use on
electrical
systems where
voltage supplied
tounitterminalis
not below or
above listed
range limits
Voltage range :
unitsaresuitable
for use on
electrical
systems where
voltage supplied
tounit terminalis
not below or
above listed
range limits
In accordance
with EN/IEC
61000-3-11(1),
respectively EN/
IEC 61000-3-
12(2), it may be
necessary to
consult the
distribution
networkoperator
toensurethatthe
equipment is
connectedonlyto
a supply with
Zsys(4)<=Zmax,
respectively
Ssc(3) >=
minimum Ss
Inaccordance
with EN/IEC
61000-3-11(1),
respectivelyEN/
IEC 61000-3-
12(2), itmaybe
necessary to
consult the
distribution
network operator
toensurethatthe
equipment is
connectedonlyto
a supply with
Zsys(4)<=Zmax,
respectively
Ssc(3) >=
minimum Ss
In accordance
with EN/IEC
61000-3-11(1),
respectively EN/
IEC 61000-3-
12(2), it may be
necessary to
consult the
distribution
networkoperator
toensurethatthe
equipment is
connectedonlyto
a supply with
Zsys(4)<=Zmax,
respectively
Ssc(3) >=
minimum Ss
In accordance
with EN/IEC
61000-3-11(1),
respectively EN/
IEC 61000-3-
12(2), it may be
necessary to
consult the
distribution
networkoperator
toensurethatthe
equipment is
connectedonlyto
a supply with
Zsys(4)<=Zmax,
respectively
Ssc(3) >=
minimum Ss
In accordance
with EN/IEC
61000-3-11(1),
respectively EN/
IEC 61000-3-
12(2), it may be
necessary to
consult the
distribution
networkoperator
toensurethatthe
equipment is
connectedonlyto
a supply with
Zsys(4)<=Zmax,
respectively
Ssc(3) >=
minimum Ss
In accordance
with EN/IEC
61000-3-11(1),
respectively EN/
IEC 61000-3-
12(2), it may be
necessary to
consult the
distribution
networkoperator
toensurethatthe
equipment is
connectedonlyto
a supply with
Zsys(4)<=Zmax,
respectively
Ssc(3) >=
minimum Ss
Maximum
allowablevoltage
range variation
between phases
is 2%
Maximum
allowablevoltage
range variation
between phases
is2%
Maximum
allowablevoltage
range variation
between phases
is 2%
Maximum
allowablevoltage
range variation
between phases
is 2%
Select wire size
based on MCA
1-3 ELECTRICAL SPECIFICATIONS
(50HZ) RXYHQ12P8W1B RXYHQ16P8W1B RXYHQ18P8W1B RXYHQ20P8W1B RXYHQ22P8W1B RXYHQ24P8W1B

• Outdoor Units • VRV HEAT PUMP • RXYHQ12-36P(8)
1
1
• VRV Systems • Outdoor Units
7
1 Specifications
1-3 ELECTRICAL SPECIFICATIONS
(50HZ) RXYHQ26P8W1B RXYHQ28P8W1B RXYHQ30P8W1B RXYHQ32P8W1B RXYHQ34P8W1B RXYHQ36P8W1B
Power Supply Name W1
Phase 3N~
Frequency Hz 50 50 50 50 50 50
Voltage V 400 400 400 400 400 400
Current Nominal
runningcurrent
(RLA)
Cooling A 26.3 30.1 37.9 45.7 49.5 57.3
Heating A 27.5 30.4 32.2 34.0 36.9 38.7
Starting current (MSC) A 82 91 91 92 101 101
Z-maxText 0.270.250.250.250.240.24
Minimum Ssc value kVa 3,364 3,074 3,260 3,446 3,156 3,342
Minimum circuit amps
(MCA) A 58.6 61.7 62.8 63.9 67.0 68.1
Maximum fuse amps (MFA) A 80 80 80 80 80 80
Full load amps (FLA) A 2.3 2.5 2.8 3.1 3.3 3.6
Voltage range Minimum V 360 360 360 360 360 360
Maximum V 440 440 440 440 440 440
Wiring
connections For Power Supply Quantity 5 5 5 5 5 5
Remark Earth wire include
For connection
with indoor Quantity 2 2 2 2 2 2
Remark F1-F2
Power Supply Intake Both indoor and outdoor unit
Notes MFA is used to select the circuit breaker and the ground fault circuit interrupter (earth leakage circuit breaker)
MSC means the maximum current during start up of the compressor
Maximum allowable voltage range variation between phases is 2%
RLA is based on following conditions : indoor temperature : 27×CDB/19×CWB , outdoor temperature : 35×CDB
Voltage range : units are suitable for use on electrical systems where voltage supplied to unit terminal is not below or
above listed range limits
In accordance with EN/IEC 61000-3-11(1), respectively EN/IEC 61000-3-12(2), it may be necessary to consult the
distribution network operator to ensure that the equipment is connected only to a supply with Zsys(4) <= Zmax,
respectively Ssc(3) >= minimum Ss
Select wire size based on MCA

3
1
2
• VRV Systems • Outdoor Units 8
• Outdoor Units • VRV HEAT PUMP • RXYHQ12-36P(8)
2 Electrical data
RXYHQ-P
NOTES
1 In accordance with EN/IEC 61000-3-11(1) , respectively EN/IEC 61000-3-11(2), it may be necessary to consult the distribution network
operator to ensure that the equipment is connected only to a supply with Zsys(4) Zmax, respectively Ssc(3) minimum Ssc value
2(1) European/International technical standard setting the limits for voltage changes, voltage fluctuations and flicker in public low-voltage
supply systems for equipment with rated 75A.
(2) European/International technical standard setting the limits for harmonic currents produced by equipment connected to public low-
voltage system with input current  16A and  75A per phase .
(3) Short-circuit power
(4) System impedance.
Combination of Minimum Ssc value
[kVA]
Zmax
[]
RXYHQ12 1114 0.27
RXYHQ16 RXYQ8 + RXYQ8 2436 -
RXYHQ18 RXYQ8 + RXYQ10 2146 0.27
RXYHQ20 RXYQ8 + RXYHQ12 2332 0.27
RXYHQ22 RXYQ10 + RXYHQ12 2042 0.25
RXYHQ24 RXYQ8 + RXYQ8 + RXYQ8 3654 -
RXYHQ26 RXYQ8 + RXYQ8 + RXYQ10 3364 0.27
RXYHQ28 RXYQ8 + RXYQ10 + RXYQ10 3074 0.25
RXYHQ30 RXYQ8 + RXYQ10 + RXYHQ12 3260 0.25
RXYHQ32 RXYQ8 + RXYHQ12 + RXYHQ12 3446 0.25
RXYHQ34 RXYQ10 + RXYHQ12 + RXYHQ12 3156 0.24
RXYHQ36 RXYHQ12 + RXYHQ12 + RXYHQ12 3342 0.24
4TW31461-4A

• Outdoor Units • VRV HEAT PUMP • RXYHQ12-36P(8)
1
3
• VRV Systems • Outdoor Units
9
3 Options
RXYHQ-P
3TW31469-2A
NOTES
1 All options are kits.
2 Central drain pan kit shall be combined based on the outdoor multi connection table..
3 Only 1 operation per installation is needed.
4 1 Option per module is required.
5 The option should be installed inside the outdoor unit.
Nr. Item RXYHQ12P8 RXYHQ16P8
RXYHQ18P8 RXYHQ20P~36P
1 Cool/Heat Selector KRC19-26A6
2Fixingbox KJB111A
3 Refnet header KHRQ22M29H
KHRQ22M64H
KHRQ22M75H
4 Refnet joint KHRQ22M20T
KHRQ22M29T9
KHRQ22M64T
KHRQ22M75T
5 Outdoor multi connection kit for 2 outdoor units ... BHFQ22P1007
6 Outdoor multi connection kit for 3 outdoor units ... ... BHFQ22P1517
7 Central drain pan kit KWC26B450 See note 2
8 Digital pressure gauge kit BHGP26A1 See note 3
9 Increase height difference between indoor & outdoor to 90m (see note 5) EKLD90P12 See note 4

3
1
4
• VRV Systems • Outdoor Units 10
• Outdoor Units • VRV HEAT PUMP • RXYHQ12-36P(8)

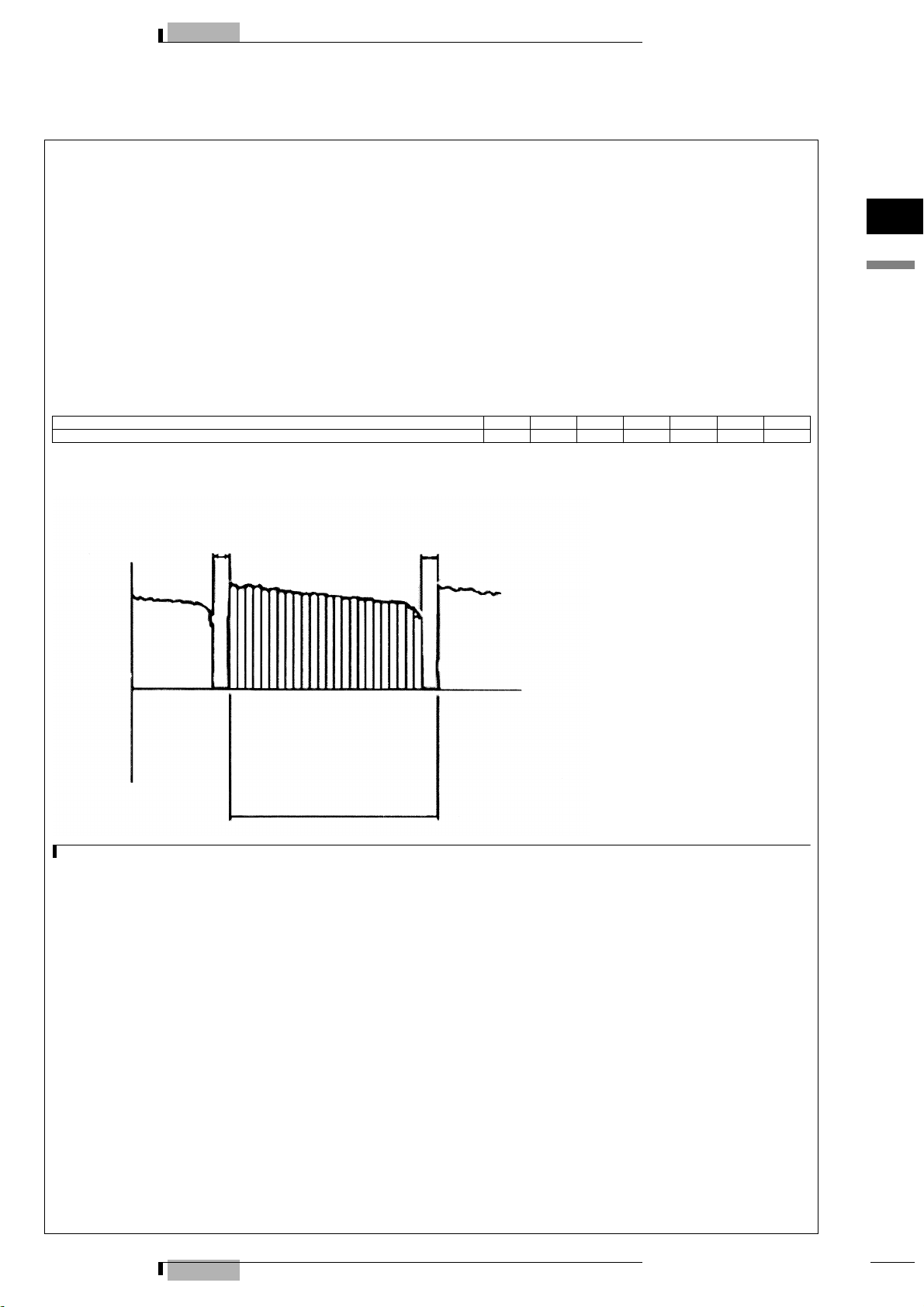

4 Selection procedure
INTEGRATED HEATING CAPACITY COEFFICIENT
The heating capacity tables do not take account of the reduction in capacity, when frost has accumulated or while the defrosting operation is in progress.
The capacity values, which take these factors into account, in other words, the integrated heating capacity values, can be calculated as follows:
Formula:
Integrated heating capacity = A
Value given in table of capacity characteristics = B
Integrating correction factor for frost accumulation (kW) = C
A = B x C
Integrating correction factor for finding integrated heating capacity
3TW27232-7
NOTE
1 The figure shows that the integrated heating capacity expresses the integrated capacity for a single cycle ( from defrost operation to defrost
operation) in terms or time.
Please note that, when there is an accumulation of snow against the outside surface of the outdoor unit heat exchanger, there will always be a
temporary reduction in capacity, although this will of course vary in degree in accordance with a number of other factors, such as the outdoor
temperature (°CDB), relative humidity (RH) and the amount of frosting which occurs.
Inlet port temperature of heat exchanger (°C/RH 85%) -7 -5 -3 0 3 5 7
Integrating correction factor for frost accumulation 0.96 0.93 0.87 0.81 0.83 0.89 1.0
Defrosting operationDefrosting operation
1 cycle
-
+
0
Heating capacity
Time
RXYHQ12-36P8

• Outdoor Units • VRV HEAT PUMP • RXYHQ12-36P(8)
1
5
• VRV Systems • Outdoor Units
11
5 Capacity tables
5 - 1 Combination table
RXYHQ16-36P(8)
High Cop combination
4TW31469-1
RXYQ5P RXYQ8P8 RXYQ10P RXYQ12P8 RXYQ14P RXYQ16P RXYQ18P
RXYHQ16P 2
RXYHQ18P 1 1
RXYHQ20P 1 1
RXYHQ22P 1 1
RXYHQ24P 3
RXYHQ26P 2 1
RXYHQ28P 1 2
RXYHQ30P8 1 1 1
RXYHQ32P 1 2
RXYHQ34P 1 2
RXYHQ36P8 3

3
1
5
• VRV Systems • Outdoor Units 12
• Outdoor Units • VRV HEAT PUMP • RXYHQ12-36P(8)
5 Capacity tables
5 - 2 Cooling capacity tables
RXYHQ12P8
4TW31462-3
NOTES -ANMERKUNGEN - ƴLjǍdžNJǟǔdžNJǓ - NOTAS - REMARQUES - NOTE - OPMERKINGEN - ȝȞȖȚȓȥȎțȖȭ - NOTLAR
1The above table shows the average value of conditions which may occur.
Die obige Tabelle zeigt den Durchschnittswert der Bedingungen, die auftreten können.
ȈIJȠȞ ʌĮȡĮʌȐȞȦ ʌȓȞĮțĮ ĮȞĮȖȡȐijİIJĮȚ Ș ȝȑıȘ IJȚȝȒ ȖȚĮ ıȣȞșȒțİȢ ʌȠȣ ȝʌȠȡİȓ ȞĮ ʌȡȠțȪȥȠȣȞ.
La tabla de arriba muestra el valor medio de condiciones que pueden ocurrir.
Le tableau ci-dessus donne la valeur moyenne pour des conditions qui peuvent survenir.
La tabella in alto mostra il valore delle condizioni medie che si possono riscontrare.
De tabel hierboven geeft de gemiddelde waarde aan van situaties die kunnen voorvallen.
Ɍɚɛɥɢɰɚ ɪɚɫɩɨɥɨɠɟɧɧɚɹ ɜɵɲɟ ɩɨɤɚɡɵɜɚɟɬ ɫɪɟɞɧɟɟ ɡɧɚɱɟɧɢɟ ɭɫɥɨɜɢɣ,ɤɨɬɨɪɵɟ ɦɨɝɭɬ ɧɚɫɬɭɩɢɬɶ.
Yukarıdaki tablo meydana gelebilecek koúulların ortalama de÷erini göstermektedir.
TC: Total Capacity: kW ; PI: Power Input: kW (compressor + outdoor fan motor)
Combination
(%)
Capacity
index
Outdoor
air temp.
(°CDB)
Indoor air temperature: °CDB
14.0 16.0 18.0 19.0 20.0 22.0 24.0
TC PI TC PI TC PI TC PI TC PI TC PI TC PI
kW kW kW kW kW kW kW kW kW kW kW kW kW kW
130% 390.0 10 29.4 3.96 35.1 4.85 40.7 5.77 42.2 5.89 42.7 5.77 43.8 5.53 44.8 5.28
12 29.4 4.04 35.1 4.94 40.7 5.88 41.6 5.86 42.2 5.74 43.2 5.49 44.3 5.41
14 29.4 4.11 35.1 5.04 40.6 5.96 41.1 5.83 41.6 5.71 42.7 5.66 43.8 5.72
16 29.4 4.19 35.1 5.14 40.0 5.93 40.6 5.88 41.1 5.91 42.1 5.97 43.2 6.02
18 29.4 4.28 35.1 5.24 39.5 6.15 40.0 6.18 40.5 6.21 41.6 6.27 42.7 6.33
20 29.4 4.36 35.1 5.58 38.9 6.45 39.5 6.49 40.0 6.52 41.1 6.58 42.1 6.65
21 29.4 4.48 35.1 5.78 38.7 6.60 39.2 6.64 39.7 6.67 40.8 6.74 41.8 6.80
23 29.4 4.80 35.1 6.20 38.1 6.90 38.7 6.94 39.2 6.98 40.2 7.05 41.3 7.12
25 29.4 5.13 35.1 6.64 37.6 7.21 38.1 7.24 38.6 7.28 39.7 7.36 40.8 7.43
27 29.4 5.48 35.1 7.10 37.0 7.51 37.6 7.55 38.1 7.59 39.2 7.67 40.2 7.75
29 29.4 5.85 35.1 7.59 36.5 7.81 37.0 7.86 37.5 7.90 38.6 7.98 39.7 8.07
31 29.4 6.24 34.9 8.03 35.9 8.12 36.5 8.16 37.0 8.21 38.1 8.30 39.1 8.39
33 29.4 6.65 34.3 8.33 35.4 8.43 35.9 8.47 36.5 8.52 37.5 8.61 38.6 8.71
35 29.4 7.09 33.8 8.64 34.9 8.74 35.4 8.79 35.9 8.84 37.0 8.93 38.0 9.03
37 29.4 7.55 33.2 8.94 34.3 9.05 34.8 9.10 35.4 9.15 36.4 9.3 37.5 9.4
39 29.4 8.03 32.7 9.2 33.8 9.4 34.3 9.4 34.8 9.5 35.9 9.6 36.9 9.7
120% 360.0 10 27.1 3.62 32.4 4.42 37.6 5.26 40.2 5.69 42.1 5.92 43.0 5.70 44.0 5.48
12 27.1 3.69 32.4 4.51 37.6 5.36 40.2 5.79 41.5 5.90 42.5 5.67 43.5 5.44
14 27.1 3.76 32.4 4.59 37.6 5.46 40.2 5.91 41.0 5.86 41.9 5.63 42.9 5.67
16 27.1 3.83 32.4 4.68 37.6 5.57 39.9 5.95 40.4 5.88 41.4 5.93 42.4 5.98
18 27.1 3.90 32.4 4.78 37.6 5.76 39.4 6.15 39.9 6.18 40.9 6.23 41.8 6.29
20 27.1 3.98 32.4 4.97 37.6 6.19 38.8 6.45 39.3 6.48 40.3 6.54 41.3 6.60
21 27.1 4.02 32.4 5.14 37.6 6.42 38.6 6.60 39.1 6.63 40.0 6.69 41.0 6.75
23 27.1 4.29 32.4 5.51 37.5 6.87 38.0 6.90 38.5 6.93 39.5 7.00 40.5 7.06
25 27.1 4.59 32.4 5.90 37.0 7.17 37.5 7.20 38.0 7.23 38.9 7.30 39.9 7.37
27 27.1 4.90 32.4 6.30 36.4 7.47 36.9 7.50 37.4 7.54 38.4 7.61 39.4 7.69
29 27.1 5.22 32.4 6.73 35.9 7.77 36.4 7.81 36.9 7.85 37.9 7.92 38.8 8.00
31 27.1 5.57 32.4 7.19 35.4 8.07 35.8 8.11 36.3 8.15 37.3 8.24 38.3 8.32
33 27.1 5.93 32.4 7.66 34.8 8.38 35.3 8.42 35.8 8.46 36.8 8.55 37.7 8.64
35 27.1 6.31 32.4 8.17 34.3 8.68 34.8 8.73 35.2 8.77 36.2 8.86 37.2 8.96
37 27.1 6.72 32.4 8.71 33.7 8.99 34.2 9.04 34.7 9.08 35.7 9.18 36.7 9.3
39 27.1 7.15 32.2 9.20 33.2 9.3 33.7 9.3 34.2 9.4 35.1 9.5 36.1 9.6
110% 330.0 10 24.9 3.29 29.7 4.01 34.5 4.76 36.9 5.14 39.2 5.53 42.3 5.87 43.2 5.67
12 24.9 3.35 29.7 4.08 34.5 4.85 36.9 5.24 39.2 5.64 41.7 5.84 42.6 5.64
14 24.9 3.41 29.7 4.16 34.5 4.94 36.9 5.34 39.2 5.74 41.2 5.81 42.1 5.63
16 24.9 3.47 29.7 4.24 34.5 5.04 36.9 5.44 39.2 5.86 40.6 5.89 41.5 5.94
18 24.9 3.54 29.7 4.32 34.5 5.14 36.9 5.59 39.2 6.14 40.1 6.19 41.0 6.24
20 24.9 3.61 29.7 4.41 34.5 5.44 36.9 6.01 38.7 6.44 39.6 6.49 40.5 6.55
21 24.9 3.64 29.7 4.54 34.5 5.64 36.9 6.23 38.4 6.59 39.3 6.64 40.2 6.70
23 24.9 3.81 29.7 4.86 34.5 6.04 36.9 6.68 37.8 6.89 38.7 6.95 39.6 7.01
25 24.9 4.07 29.7 5.20 34.5 6.47 36.9 7.16 37.3 7.19 38.2 7.25 39.1 7.31
27 24.9 4.34 29.7 5.55 34.5 6.92 36.3 7.46 36.8 7.49 37.7 7.56 38.5 7.62
29 24.9 4.63 29.7 5.93 34.5 7.39 35.8 7.76 36.2 7.79 37.1 7.86 38.0 7.93
31 24.9 4.93 29.7 6.32 34.5 7.89 35.2 8.06 35.7 8.10 36.6 8.17 37.5 8.25
33 24.9 5.25 29.7 6.74 34.2 8.32 34.7 8.36 35.1 8.40 36.0 8.48 36.9 8.56
35 24.9 5.58 29.7 7.18 33.7 8.63 34.1 8.67 34.6 8.71 35.5 8.79 36.4 8.88
37 24.9 5.94 29.7 7.65 33.1 8.93 33.6 8.98 34.0 9.02 34.9 9.11 35.8 9.20
39 24.9 6.31 29.7 8.14 32.6 9.2 33.0 9.3 33.5 9.3 34.4 9.4 35.3 9.5
100% 300.0 10 22.6 2.97 27.0 3.60 31.3 4.26 33.5 4.61 35.7 4.95 40.0 5.66 42.4 5.86
12 22.6 3.02 27.0 3.66 31.3 4.34 33.5 4.69 35.7 5.05 40.0 5.77 41.8 5.83
14 22.6 3.07 27.0 3.73 31.3 4.42 33.5 4.78 35.7 5.14 40.0 5.88 41.3 5.80
16 22.6 3.13 27.0 3.80 31.3 4.51 33.5 4.87 35.7 5.24 39.9 5.96 40.7 5.89
18 22.6 3.19 27.0 3.88 31.3 4.60 33.5 4.97 35.7 5.35 39.4 6.15 40.2 6.19
20 22.6 3.25 27.0 3.95 31.3 4.74 33.5 5.22 35.7 5.73 38.8 6.45 39.6 6.50
21 22.6 3.28 27.0 3.99 31.3 4.91 33.5 5.41 35.7 5.93 38.5 6.60 39.4 6.65
23 22.6 3.37 27.0 4.26 31.3 5.26 33.5 5.80 35.7 6.36 38.0 6.90 38.8 6.95
25 22.6 3.59 27.0 4.55 31.3 5.62 33.5 6.20 35.7 6.81 37.4 7.20 38.3 7.26
27 22.6 3.83 27.0 4.86 31.3 6.01 33.5 6.63 35.7 7.29 36.9 7.50 37.7 7.56
29 22.6 4.08 27.0 5.18 31.3 6.42 33.5 7.09 35.5 7.74 36.4 7.80 37.2 7.87
31 22.6 4.34 27.0 5.52 31.3 6.85 33.5 7.57 35.0 8.04 35.8 8.11 36.6 8.18
33 22.6 4.61 27.0 5.88 31.3 7.30 33.5 8.07 34.5 8.34 35.3 8.42 36.1 8.49
35 22.6 4.90 27.0 6.26 31.3 7.78 33.5 8.61 33.9 8.65 34.7 8.72 35.5 8.80
37 22.6 5.21 27.0 6.66 31.3 8.29 33.0 8.91 33.4 8.95 34.2 9.03 35.0 9.11
39 22.6 5.53 27.0 7.08 31.3 8.83 32.4 9.22 32.8 9.3 33.6 9.3 34.4 9.4

• Outdoor Units • VRV HEAT PUMP • RXYHQ12-36P(8)
1
5
• VRV Systems • Outdoor Units
13
5 Capacity tables
5 - 2 Cooling capacity tables
RXYHQ12P8
4TW31462-3
TC: Total Capacity: kW ; PI: Power Input: kW (compressor + outdoor fan motor)
Combination
(%)
Capacity
index
Outdoor
air temp.
(°CDB)
Indoor air temperature: °CDB
14.0 16.0 18.0 19.0 20.0 22.0 24.0
TC PI TC PI TC PI TC PI TC PI TC PI TC PI
kW kW kW kW kW kW kW kW kW kW kW kW kW kW
90% 270.0 10 20.3 2.66 24.3 3.20 28.2 3.78 30.2 4.08 32.1 4.39 36.0 5.01 40.0 5.65
12 20.3 2.70 24.3 3.26 28.2 3.85 30.2 4.16 32.1 4.47 36.0 5.10 40.0 5.75
14 20.3 2.75 24.3 3.32 28.2 3.92 30.2 4.24 32.1 4.55 36.0 5.20 40.0 5.86
16 20.3 2.80 24.3 3.38 28.2 4.00 30.2 4.32 32.1 4.64 36.0 5.30 39.9 5.96
18 20.3 2.85 24.3 3.44 28.2 4.08 30.2 4.40 32.1 4.73 36.0 5.41 39.3 6.15
20 20.3 2.90 24.3 3.51 28.2 4.16 30.2 4.49 32.1 4.91 36.0 5.81 38.8 6.44
21 20.3 2.93 24.3 3.55 28.2 4.23 30.2 4.65 32.1 5.09 36.0 6.02 38.5 6.59
23 20.3 2.98 24.3 3.69 28.2 4.53 30.2 4.98 32.1 5.45 36.0 6.46 38.0 6.90
25 20.3 3.14 24.3 3.94 28.2 4.84 30.2 5.32 32.1 5.83 36.0 6.92 37.4 7.20
27 20.3 3.34 24.3 4.20 28.2 5.17 30.2 5.69 32.1 6.23 36.0 7.40 36.9 7.50
29 20.3 3.56 24.3 4.48 28.2 5.51 30.2 6.07 32.1 6.66 35.6 7.75 36.3 7.80
31 20.3 3.78 24.3 4.77 28.2 5.88 30.2 6.48 32.1 7.10 35.1 8.05 35.8 8.11
33 20.3 4.02 24.3 5.08 28.2 6.26 30.2 6.90 32.1 7.58 34.5 8.35 35.3 8.41
35 20.3 4.26 24.3 5.40 28.2 6.67 30.2 7.36 32.1 8.08 34.0 8.65 34.7 8.72
37 20.3 4.53 24.3 5.74 28.2 7.10 30.2 7.83 32.1 8.61 33.4 8.96 34.2 9.03
39 20.3 4.80 24.3 6.10 28.2 7.55 30.2 8.34 32.1 9.17 32.9 9.3 33.6 9.3
80% 240.0 10 18.1 2.36 21.6 2.82 25.1 3.32 26.8 3.57 28.5 3.84 32.0 4.37 35.5 4.93
12 18.1 2.40 21.6 2.87 25.1 3.38 26.8 3.64 28.5 3.91 32.0 4.45 35.5 5.02
14 18.1 2.44 21.6 2.92 25.1 3.44 26.8 3.71 28.5 3.98 32.0 4.54 35.5 5.12
16 18.1 2.48 21.6 2.97 25.1 3.50 26.8 3.78 28.5 4.06 32.0 4.63 35.5 5.22
18 18.1 2.52 21.6 3.03 25.1 3.57 26.8 3.85 28.5 4.13 32.0 4.72 35.5 5.32
20 18.1 2.56 21.6 3.09 25.1 3.64 26.8 3.92 28.5 4.22 32.0 4.89 35.5 5.69
21 18.1 2.59 21.6 3.11 25.1 3.67 26.8 3.96 28.5 4.30 32.0 5.07 35.5 5.89
23 18.1 2.63 21.6 3.18 25.1 3.85 26.8 4.22 28.5 4.61 32.0 5.43 35.5 6.32
25 18.1 2.72 21.6 3.38 25.1 4.11 26.8 4.51 28.5 4.92 32.0 5.81 35.5 6.77
27 18.1 2.89 21.6 3.60 25.1 4.39 26.8 4.81 28.5 5.26 32.0 6.21 35.5 7.24
29 18.1 3.07 21.6 3.83 25.1 4.68 26.8 5.13 28.5 5.61 32.0 6.63 35.5 7.74
31 18.1 3.26 21.6 4.08 25.1 4.98 26.8 5.47 28.5 5.98 32.0 7.08 35.0 8.04
33 18.1 3.46 21.6 4.33 25.1 5.30 26.8 5.83 28.5 6.38 32.0 7.55 34.4 8.34
35 18.1 3.67 21.6 4.60 25.1 5.64 26.8 6.20 28.5 6.79 32.0 8.05 33.9 8.65
37 18.1 3.89 21.6 4.89 25.1 6.00 26.8 6.60 28.5 7.23 32.0 8.57 33.3 8.95
39 18.1 4.13 21.6 5.19 25.1 6.38 26.8 7.02 28.5 7.69 32.0 9.14 32.8 9.3
70% 210.0 10 15.8 2.07 18.9 2.46 21.9 2.87 23.5 3.09 25.0 3.30 28.0 3.76 31.1 4.22
12 15.8 2.10 18.9 2.50 21.9 2.92 23.5 3.14 25.0 3.36 28.0 3.83 31.1 4.30
14 15.8 2.14 18.9 2.54 21.9 2.97 23.5 3.20 25.0 3.43 28.0 3.90 31.1 4.38
16 15.8 2.17 18.9 2.59 21.9 3.03 23.5 3.26 25.0 3.49 28.0 3.97 31.1 4.47
18 15.8 2.21 18.9 2.63 21.9 3.08 23.5 3.32 25.0 3.56 28.0 4.05 31.1 4.56
20 15.8 2.24 18.9 2.68 21.9 3.14 23.5 3.38 25.0 3.63 28.0 4.13 31.1 4.68
21 15.8 2.26 18.9 2.70 21.9 3.17 23.5 3.41 25.0 3.66 28.0 4.19 31.1 4.85
23 15.8 2.30 18.9 2.75 21.9 3.24 23.5 3.53 25.0 3.84 28.0 4.49 31.1 5.20
25 15.8 2.34 18.9 2.86 21.9 3.45 23.5 3.77 25.0 4.10 28.0 4.80 31.1 5.56
27 15.8 2.48 18.9 3.05 21.9 3.68 23.5 4.02 25.0 4.37 28.0 5.12 31.1 5.94
29 15.8 2.63 18.9 3.24 21.9 3.91 23.5 4.28 25.0 4.66 28.0 5.47 31.1 6.34
31 15.8 2.79 18.9 3.44 21.9 4.16 23.5 4.55 25.0 4.96 28.0 5.83 31.1 6.77
33 15.8 2.95 18.9 3.65 21.9 4.43 23.5 4.84 25.0 5.28 28.0 6.21 31.1 7.22
35 15.8 3.13 18.9 3.87 21.9 4.70 23.5 5.15 25.0 5.62 28.0 6.61 31.1 7.69
37 15.8 3.31 18.9 4.11 21.9 5.00 23.5 5.47 25.0 5.97 28.0 7.04 31.1 8.19
39 15.8 3.51 18.9 4.36 21.9 5.30 23.5 5.81 25.0 6.35 28.0 7.49 31.1 8.73
60% 180.0 10 13.6 1.80 16.2 2.12 18.8 2.45 20.1 2.62 21.4 2.80 24.0 3.17 26.6 3.55
12 13.6 1.83 16.2 2.15 18.8 2.49 20.1 2.67 21.4 2.85 24.0 3.22 26.6 3.61
14 13.6 1.86 16.2 2.18 18.8 2.53 20.1 2.71 21.4 2.90 24.0 3.28 26.6 3.68
16 13.6 1.88 16.2 2.22 18.8 2.57 20.1 2.76 21.4 2.95 24.0 3.34 26.6 3.75
18 13.6 1.91 16.2 2.25 18.8 2.62 20.1 2.81 21.4 3.00 24.0 3.41 26.6 3.82
20 13.6 1.94 16.2 2.29 18.8 2.67 20.1 2.86 21.4 3.06 24.0 3.47 26.6 3.90
21 13.6 1.96 16.2 2.31 18.8 2.69 20.1 2.89 21.4 3.09 24.0 3.51 26.6 3.94
23 13.6 1.99 16.2 2.35 18.8 2.74 20.1 2.94 21.4 3.15 24.0 3.64 26.6 4.18
25 13.6 2.02 16.2 2.40 18.8 2.85 20.1 3.09 21.4 3.35 24.0 3.89 26.6 4.47
27 13.6 2.10 16.2 2.54 18.8 3.03 20.1 3.29 21.4 3.57 24.0 4.15 26.6 4.77
29 13.6 2.22 16.2 2.70 18.8 3.22 20.1 3.50 21.4 3.80 24.0 4.42 26.6 5.09
31 13.6 2.35 16.2 2.86 18.8 3.42 20.1 3.72 21.4 4.04 24.0 4.70 26.6 5.42
33 13.6 2.49 16.2 3.03 18.8 3.63 20.1 3.95 21.4 4.29 24.0 5.00 26.6 5.78
35 13.6 2.63 16.2 3.21 18.8 3.85 20.1 4.20 21.4 4.56 24.0 5.32 26.6 6.15
37 13.6 2.78 16.2 3.40 18.8 4.09 20.1 4.45 21.4 4.84 24.0 5.66 26.6 6.54
39 13.6 2.94 16.2 3.60 18.8 4.33 20.1 4.73 21.4 5.14 24.0 6.01 26.6 6.96
50% 150.0 10 11.3 1.55 13.5 1.79 15.7 2.05 16.8 2.19 17.8 2.33 20.0 2.61 22.2 2.91
12 11.3 1.57 13.5 1.82 15.7 2.08 16.8 2.22 17.8 2.36 20.0 2.66 22.2 2.96
14 11.3 1.59 13.5 1.85 15.7 2.12 16.8 2.26 17.8 2.40 20.0 2.70 22.2 3.01
16 11.3 1.61 13.5 1.87 15.7 2.15 16.8 2.29 17.8 2.44 20.0 2.75 22.2 3.07
18 11.3 1.63 13.5 1.90 15.7 2.19 16.8 2.33 17.8 2.48 20.0 2.80 22.2 3.12
20 11.3 1.66 13.5 1.93 15.7 2.22 16.8 2.37 17.8 2.53 20.0 2.85 22.2 3.18
21 11.3 1.67 13.5 1.95 15.7 2.24 16.8 2.39 17.8 2.55 20.0 2.88 22.2 3.21
23 11.3 1.70 13.5 1.98 15.7 2.28 16.8 2.44 17.8 2.60 20.0 2.93 22.2 3.29
25 11.3 1.72 13.5 2.01 15.7 2.32 16.8 2.49 17.8 2.68 20.0 3.08 22.2 3.51
27 11.3 1.75 13.5 2.08 15.7 2.45 16.8 2.64 17.8 2.85 20.0 3.28 22.2 3.74
29 11.3 1.85 13.5 2.21 15.7 2.60 16.8 2.81 17.8 3.02 20.0 3.48 22.2 3.98
31 11.3 1.95 13.5 2.34 15.7 2.76 16.8 2.98 17.8 3.21 20.0 3.70 22.2 4.23
33 11.3 2.06 13.5 2.47 15.7 2.92 16.8 3.16 17.8 3.41 20.0 3.93 22.2 4.50
35 11.3 2.18 13.5 2.61 15.7 3.09 16.8 3.35 17.8 3.61 20.0 4.18 22.2 4.78
37 11.3 2.30 13.5 2.76 15.7 3.27 16.8 3.54 17.8 3.83 20.0 4.43 22.2 5.08
39 11.3 2.42 13.5 2.92 15.7 3.46 16.8 3.75 17.8 4.06 20.0 4.70 22.2 5.39

3
1
5
• VRV Systems • Outdoor Units 14
• Outdoor Units • VRV HEAT PUMP • RXYHQ12-36P(8)
5 Capacity tables
5 - 2 Cooling capacity tables
RXYHQ16P8
4TW31462-3
NOTES -ANMERKUNGEN - ƴLjǍdžNJǟǔdžNJǓ - NOTAS - REMARQUES - NOTE - OPMERKINGEN - ȝȞȖȚȓȥȎțȖȭ - NOTLAR
1The above table shows the average value of conditions which may occur.
Die obige Tabelle zeigt den Durchschnittswert der Bedingungen, die auftreten können.
ȈIJȠȞ ʌĮȡĮʌȐȞȦ ʌȓȞĮțĮ ĮȞĮȖȡȐijİIJĮȚ Ș ȝȑıȘ IJȚȝȒ ȖȚĮ ıȣȞșȒțİȢ ʌȠȣ ȝʌȠȡİȓ ȞĮ ʌȡȠțȪȥȠȣȞ.
La tabla de arriba muestra el valor medio de condiciones que pueden ocurrir.
Le tableau ci-dessus donne la valeur moyenne pour des conditions qui peuvent survenir.
La tabella in alto mostra il valore delle condizioni medie che si possono riscontrare.
De tabel hierboven geeft de gemiddelde waarde aan van situaties die kunnen voorvallen.
Ɍɚɛɥɢɰɚ ɪɚɫɩɨɥɨɠɟɧɧɚɹ ɜɵɲɟ ɩɨɤɚɡɵɜɚɟɬ ɫɪɟɞɧɟɟ ɡɧɚɱɟɧɢɟ ɭɫɥɨɜɢɣ,ɤɨɬɨɪɵɟ ɦɨɝɭɬ ɧɚɫɬɭɩɢɬɶ.
Yukarıdaki tablo meydana gelebilecek koúulların ortalama de÷erini göstermektedir.
TC: Total Capacity: kW ; PI: Power Input: kW (compressor + outdoor fan motor)
Combination
(%)
Capacity
index
Outdoor
air temp.
(°CDB)
Indoor air temperature: °CDB
14.0 16.0 18.0 19.0 20.0 22.0 24.0
TC PI TC PI TC PI TC PI TC PI TC PI TC PI
kW kW kW kW kW kW kW kW kW kW kW kW kW kW
130% 520.0 10 39.5 4.83 47.1 5.92 54.7 7.0 56.7 7.2 57.4 7.0 58.8 6.7 60.2 6.44
12 39.5 4.92 47.1 6.03 54.7 7.2 55.9 7.2 56.7 7.0 58.1 6.7 59.5 6.6
14 39.5 5.02 47.1 6.15 54.5 7.3 55.2 7.1 55.9 7.0 57.3 6.9 58.8 7.0
16 39.5 5.11 47.1 6.27 53.8 7.2 54.5 7.2 55.2 7.2 56.6 7.3 58.0 7.3
18 39.5 5.21 47.1 6.39 53.0 7.5 53.7 7.5 54.5 7.6 55.9 7.7 57.3 7.7
20 39.5 5.32 47.1 6.8 52.3 7.9 53.0 7.9 53.7 7.9 55.2 8.0 56.6 8.1
21 39.5 5.47 47.1 7.1 51.9 8.1 52.7 8.1 53.4 8.1 54.8 8.2 56.2 8.3
23 39.5 5.85 47.1 7.6 51.2 8.4 51.9 8.5 52.6 8.5 54.1 8.6 55.5 8.7
25 39.5 6.26 47.1 8.1 50.5 8.8 51.2 8.8 51.9 8.9 53.3 9.0 54.7 9.1
27 39.5 6.7 47.1 8.7 49.7 9.2 50.5 9.2 51.2 9.3 52.6 9.4 54.0 9.4
29 39.5 7.1 47.1 9.3 49.0 9.5 49.7 9.6 50.4 9.6 51.9 9.7 53.3 9.8
31 39.5 7.6 46.9 9.8 48.3 9.9 49.0 10.0 49.7 10.0 51.1 10.1 52.6 10.2
33 39.5 8.1 46.1 10.2 47.5 10.3 48.3 10.3 49.0 10.4 50.4 10.5 51.8 10.6
35 39.5 8.6 45.4 10.5 46.8 10.7 47.5 10.7 48.2 10.8 49.7 10.9 51.1 11.0
37 39.5 9.2 44.7 10.9 46.1 11.0 46.8 11.1 47.5 11.2 48.9 11.3 50.4 11.4
39 39.5 9.8 43.9 11.3 45.4 11.4 46.1 11.5 46.8 11.5 48.2 11.7 49.6 11.8
120% 480.0 10 36.4 4.42 43.5 5.40 50.5 6.42 54.0 6.9 56.5 7.2 57.8 7.0 59.1 6.7
12 36.4 4.50 43.5 5.50 50.5 6.54 54.0 7.1 55.8 7.2 57.1 6.9 58.4 6.6
14 36.4 4.58 43.5 5.60 50.5 6.7 54.0 7.2 55.0 7.2 56.3 6.9 57.7 6.9
16 36.4 4.67 43.5 5.71 50.5 6.8 53.6 7.3 54.3 7.2 55.6 7.2 56.9 7.3
18 36.4 4.76 43.5 5.82 50.5 7.0 52.9 7.5 53.6 7.5 54.9 7.6 56.2 7.7
20 36.4 4.85 43.5 6.06 50.5 7.6 52.2 7.9 52.8 7.9 54.1 8.0 55.5 8.0
21 36.4 4.90 43.5 6.27 50.5 7.8 51.8 8.0 52.5 8.1 53.8 8.2 55.1 8.2
23 36.4 5.23 43.5 6.7 50.4 8.4 51.1 8.4 51.7 8.5 53.0 8.5 54.4 8.6
25 36.4 5.59 43.5 7.2 49.7 8.7 50.3 8.8 51.0 8.8 52.3 8.9 53.6 9.0
27 36.4 5.97 43.5 7.7 49.0 9.1 49.6 9.2 50.3 9.2 51.6 9.3 52.9 9.4
29 36.4 6.37 43.5 8.2 48.2 9.5 48.9 9.5 49.5 9.6 50.9 9.7 52.2 9.8
31 36.4 6.8 43.5 8.8 47.5 9.8 48.1 9.9 48.8 9.9 50.1 10.0 51.4 10.1
33 36.4 7.2 43.5 9.3 46.8 10.2 47.4 10.3 48.1 10.3 49.4 10.4 50.7 10.5
35 36.4 7.7 43.5 10.0 46.0 10.6 46.7 10.6 47.3 10.7 48.7 10.8 50.0 10.9
37 36.4 8.2 43.5 10.6 45.3 11.0 46.0 11.0 46.6 11.1 47.9 11.2 49.2 11.3
39 36.4 8.7 43.2 11.2 44.6 11.3 45.2 11.4 45.9 11.5 47.2 11.6 48.5 11.7
110% 440.0 10 33.4 4.01 39.8 4.89 46.3 5.80 49.5 6.27 52.7 6.7 56.8 7.2 58.0 6.9
12 33.4 4.08 39.8 4.98 46.3 5.91 49.5 6.39 52.7 6.9 56.1 7.1 57.3 6.9
14 33.4 4.16 39.8 5.07 46.3 6.02 49.5 6.51 52.7 7.0 55.3 7.1 56.5 6.9
16 33.4 4.24 39.8 5.17 46.3 6.14 49.5 6.6 52.7 7.1 54.6 7.2 55.8 7.2
18 33.4 4.32 39.8 5.27 46.3 6.26 49.5 6.8 52.7 7.5 53.9 7.5 55.1 7.6
20 33.4 4.40 39.8 5.37 46.3 6.6 49.5 7.3 51.9 7.9 53.1 7.9 54.3 8.0
21 33.4 4.44 39.8 5.54 46.3 6.9 49.5 7.6 51.6 8.0 52.8 8.1 54.0 8.2
23 33.4 4.65 39.8 5.93 46.3 7.4 49.5 8.1 50.8 8.4 52.0 8.5 53.2 8.5
25 33.4 4.97 39.8 6.34 46.3 7.9 49.5 8.7 50.1 8.8 51.3 8.8 52.5 8.9
27 33.4 5.30 39.8 6.8 46.3 8.4 48.8 9.1 49.4 9.1 50.6 9.2 51.8 9.3
29 33.4 5.65 39.8 7.2 46.3 9.0 48.0 9.5 48.6 9.5 49.8 9.6 51.1 9.7
31 33.4 6.01 39.8 7.7 46.3 9.6 47.3 9.8 47.9 9.9 49.1 10.0 50.3 10.1
33 33.4 6.40 39.8 8.2 46.0 10.2 46.6 10.2 47.2 10.2 48.4 10.3 49.6 10.4
35 33.4 6.8 39.8 8.8 45.2 10.5 45.8 10.6 46.4 10.6 47.6 10.7 48.9 10.8
37 33.4 7.2 39.8 9.3 44.5 10.9 45.1 10.9 45.7 11.0 46.9 11.1 48.1 11.2
39 33.4 7.7 39.8 9.9 43.8 11.3 44.4 11.3 45.0 11.4 46.2 11.5 47.4 11.6
100% 400.0 10 30.4 3.62 36.2 4.39 42.1 5.20 45.0 5.62 47.9 6.04 53.8 6.9 56.9 7.1
12 30.4 3.68 36.2 4.47 42.1 5.30 45.0 5.72 47.9 6.15 53.8 7.0 56.2 7.1
14 30.4 3.75 36.2 4.55 42.1 5.40 45.0 5.83 47.9 6.27 53.8 7.2 55.4 7.1
16 30.4 3.82 36.2 4.64 42.1 5.50 45.0 5.94 47.9 6.39 53.6 7.3 54.7 7.2
18 30.4 3.89 36.2 4.73 42.1 5.61 45.0 6.06 47.9 6.52 52.9 7.5 54.0 7.6
20 30.4 3.96 36.2 4.82 42.1 5.78 45.0 6.37 47.9 7.0 52.1 7.9 53.2 7.9
21 30.4 4.00 36.2 4.87 42.1 5.98 45.0 6.6 47.9 7.2 51.8 8.0 52.9 8.1
23 30.4 4.10 36.2 5.19 42.1 6.41 45.0 7.1 47.9 7.8 51.0 8.4 52.1 8.5
25 30.4 4.38 36.2 5.55 42.1 6.9 45.0 7.6 47.9 8.3 50.3 8.8 51.4 8.8
27 30.4 4.67 36.2 5.92 42.1 7.3 45.0 8.1 47.9 8.9 49.6 9.1 50.7 9.2
29 30.4 4.97 36.2 6.31 42.1 7.8 45.0 8.6 47.7 9.4 48.8 9.5 49.9 9.6
31 30.4 5.29 36.2 6.7 42.1 8.4 45.0 9.2 47.0 9.8 48.1 9.9 49.2 10.0
33 30.4 5.62 36.2 7.2 42.1 8.9 45.0 9.8 46.3 10.2 47.4 10.3 48.5 10.4
35 30.4 5.98 36.2 7.6 42.1 9.5 45.0 10.5 45.5 10.5 46.6 10.6 47.7 10.7
37 30.4 6.35 36.2 8.1 42.1 10.1 44.3 10.9 44.8 10.9 45.9 11.0 47.0 11.1
39 30.4 6.7 36.2 8.6 42.1 10.8 43.5 11.2 44.1 11.3 45.2 11.4 46.3 11.5

• Outdoor Units • VRV HEAT PUMP • RXYHQ12-36P(8)
1
5
• VRV Systems • Outdoor Units
15
5 Capacity tables
5 - 2 Cooling capacity tables
RXYHQ16P8
4TW31462-3
TC: Total Capacity: kW ; PI: Power Input: kW (compressor + outdoor fan motor)
Combination
(%)
Capacity
index
Outdoor
air temp.
(°CDB)
Indoor air temperature: °CDB
14.0 16.0 18.0 19.0 20.0 22.0 24.0
TC PI TC PI TC PI TC PI TC PI TC PI TC PI
kW kW kW kW kW kW kW kW kW kW kW kW kW kW
90% 360.0 10 27.3 3.24 32.6 3.91 37.9 4.61 40.5 4.98 43.1 5.35 48.4 6.11 53.7 6.9
12 27.3 3.29 32.6 3.98 37.9 4.70 40.5 5.07 43.1 5.45 48.4 6.23 53.7 7.0
14 27.3 3.35 32.6 4.05 37.9 4.78 40.5 5.17 43.1 5.55 48.4 6.34 53.7 7.2
16 27.3 3.41 32.6 4.12 37.9 4.88 40.5 5.26 43.1 5.66 48.4 6.47 53.6 7.3
18 27.3 3.47 32.6 4.20 37.9 4.97 40.5 5.37 43.1 5.77 48.4 6.6 52.8 7.5
20 27.3 3.53 32.6 4.28 37.9 5.07 40.5 5.48 43.1 5.99 48.4 7.1 52.1 7.9
21 27.3 3.57 32.6 4.32 37.9 5.16 40.5 5.67 43.1 6.20 48.4 7.3 51.7 8.0
23 27.3 3.64 32.6 4.50 37.9 5.52 40.5 6.07 43.1 6.6 48.4 7.9 51.0 8.4
25 27.3 3.83 32.6 4.81 37.9 5.90 40.5 6.49 43.1 7.1 48.4 8.4 50.3 8.8
27 27.3 4.08 32.6 5.13 37.9 6.30 40.5 6.9 43.1 7.6 48.4 9.0 49.6 9.1
29 27.3 4.34 32.6 5.46 37.9 6.7 40.5 7.4 43.1 8.1 47.8 9.4 48.8 9.5
31 27.3 4.61 32.6 5.82 37.9 7.2 40.5 7.9 43.1 8.7 47.1 9.8 48.1 9.9
33 27.3 4.90 32.6 6.19 37.9 7.6 40.5 8.4 43.1 9.2 46.4 10.2 47.4 10.3
35 27.3 5.20 32.6 6.6 37.9 8.1 40.5 9.0 43.1 9.9 45.6 10.6 46.6 10.6
37 27.3 5.52 32.6 7.0 37.9 8.7 40.5 9.6 43.1 10.5 44.9 10.9 45.9 11.0
39 27.3 5.86 32.6 7.4 37.9 9.2 40.5 10.2 43.1 11.2 44.2 11.3 45.2 11.4
80% 320.0 10 24.3 2.87 29.0 3.44 33.7 4.04 36.0 4.36 38.3 4.68 43.0 5.33 47.7 6.01
12 24.3 2.92 29.0 3.50 33.7 4.12 36.0 4.44 38.3 4.76 43.0 5.43 47.7 6.12
14 24.3 2.97 29.0 3.56 33.7 4.19 36.0 4.52 38.3 4.85 43.0 5.54 47.7 6.24
16 24.3 3.02 29.0 3.63 33.7 4.27 36.0 4.60 38.3 4.95 43.0 5.64 47.7 6.36
18 24.3 3.07 29.0 3.69 33.7 4.35 36.0 4.69 38.3 5.04 43.0 5.76 47.7 6.49
20 24.3 3.13 29.0 3.76 33.7 4.44 36.0 4.79 38.3 5.14 43.0 5.97 47.7 6.9
21 24.3 3.15 29.0 3.80 33.7 4.48 36.0 4.83 38.3 5.25 43.0 6.18 47.7 7.2
23 24.3 3.21 29.0 3.87 33.7 4.70 36.0 5.15 38.3 5.62 43.0 6.6 47.7 7.7
25 24.3 3.32 29.0 4.12 33.7 5.02 36.0 5.50 38.3 6.00 43.0 7.1 47.7 8.3
27 24.3 3.53 29.0 4.39 33.7 5.35 36.0 5.87 38.3 6.41 43.0 7.6 47.7 8.8
29 24.3 3.75 29.0 4.67 33.7 5.71 36.0 6.26 38.3 6.8 43.0 8.1 47.7 9.4
31 24.3 3.98 29.0 4.97 33.7 6.08 36.0 6.7 38.3 7.3 43.0 8.6 47.0 9.8
33 24.3 4.22 29.0 5.28 33.7 6.47 36.0 7.1 38.3 7.8 43.0 9.2 46.2 10.2
35 24.3 4.48 29.0 5.61 33.7 6.9 36.0 7.6 38.3 8.3 43.0 9.8 45.5 10.5
37 24.3 4.75 29.0 5.96 33.7 7.3 36.0 8.0 38.3 8.8 43.0 10.5 44.8 10.9
39 24.3 5.03 29.0 6.33 33.7 7.8 36.0 8.6 38.3 9.4 43.0 11.1 44.0 11.3
70% 280.0 10 21.3 2.53 25.4 3.00 29.5 3.50 31.5 3.76 33.5 4.03 37.6 4.58 41.7 5.15
12 21.3 2.57 25.4 3.05 29.5 3.56 31.5 3.83 33.5 4.10 37.6 4.67 41.7 5.25
14 21.3 2.61 25.4 3.10 29.5 3.63 31.5 3.90 33.5 4.18 37.6 4.75 41.7 5.35
16 21.3 2.65 25.4 3.15 29.5 3.69 31.5 3.97 33.5 4.26 37.6 4.84 41.7 5.45
18 21.3 2.69 25.4 3.21 29.5 3.76 31.5 4.04 33.5 4.34 37.6 4.94 41.7 5.56
20 21.3 2.74 25.4 3.27 29.5 3.83 31.5 4.12 33.5 4.42 37.6 5.04 41.7 5.71
21 21.3 2.76 25.4 3.30 29.5 3.87 31.5 4.16 33.5 4.46 37.6 5.12 41.7 5.92
23 21.3 2.81 25.4 3.36 29.5 3.95 31.5 4.30 33.5 4.68 37.6 5.47 41.7 6.34
25 21.3 2.86 25.4 3.49 29.5 4.21 31.5 4.59 33.5 5.00 37.6 5.85 41.7 6.8
27 21.3 3.02 25.4 3.72 29.5 4.48 31.5 4.90 33.5 5.33 37.6 6.25 41.7 7.2
29 21.3 3.21 25.4 3.95 29.5 4.77 31.5 5.22 33.5 5.68 37.6 6.7 41.7 7.7
31 21.3 3.40 25.4 4.20 29.5 5.08 31.5 5.55 33.5 6.05 37.6 7.1 41.7 8.3
33 21.3 3.60 25.4 4.45 29.5 5.40 31.5 5.91 33.5 6.44 37.6 7.6 41.7 8.8
35 21.3 3.82 25.4 4.73 29.5 5.74 31.5 6.28 33.5 6.8 37.6 8.1 41.7 9.4
37 21.3 4.04 25.4 5.01 29.5 6.09 31.5 6.7 33.5 7.3 37.6 8.6 41.7 10.0
39 21.3 4.27 25.4 5.31 29.5 6.47 31.5 7.1 33.5 7.7 37.6 9.1 41.7 10.6
60% 240.0 10 18.2 2.20 21.7 2.58 25.2 2.99 27.0 3.20 28.8 3.41 32.3 3.86 35.8 4.33
12 18.2 2.23 21.7 2.62 25.2 3.04 27.0 3.25 28.8 3.47 32.3 3.93 35.8 4.41
14 18.2 2.26 21.7 2.66 25.2 3.09 27.0 3.31 28.8 3.53 32.3 4.00 35.8 4.49
16 18.2 2.30 21.7 2.71 25.2 3.14 27.0 3.37 28.8 3.60 32.3 4.08 35.8 4.57
18 18.2 2.33 21.7 2.75 25.2 3.19 27.0 3.43 28.8 3.66 32.3 4.15 35.8 4.66
20 18.2 2.37 21.7 2.80 25.2 3.25 27.0 3.49 28.8 3.73 32.3 4.23 35.8 4.75
21 18.2 2.39 21.7 2.82 25.2 3.28 27.0 3.52 28.8 3.77 32.3 4.27 35.8 4.80
23 18.2 2.43 21.7 2.87 25.2 3.34 27.0 3.59 28.8 3.84 32.3 4.44 35.8 5.10
25 18.2 2.47 21.7 2.92 25.2 3.47 27.0 3.77 28.8 4.08 32.3 4.74 35.8 5.45
27 18.2 2.56 21.7 3.10 25.2 3.70 27.0 4.02 28.8 4.35 32.3 5.06 35.8 5.82
29 18.2 2.71 21.7 3.29 25.2 3.93 27.0 4.27 28.8 4.63 32.3 5.39 35.8 6.21
31 18.2 2.87 21.7 3.49 25.2 4.17 27.0 4.54 28.8 4.92 32.3 5.74 35.8 6.6
33 18.2 3.03 21.7 3.70 25.2 4.43 27.0 4.82 28.8 5.23 32.3 6.10 35.8 7.0
35 18.2 3.21 21.7 3.92 25.2 4.70 27.0 5.12 28.8 5.56 32.3 6.49 35.8 7.5
37 18.2 3.39 21.7 4.15 25.2 4.98 27.0 5.43 28.8 5.90 32.3 6.9 35.8 8.0
39 18.2 3.58 21.7 4.39 25.2 5.28 27.0 5.76 28.8 6.26 32.3 7.3 35.8 8.5
50% 200.0 10 15.2 1.89 18.1 2.19 21.0 2.50 22.5 2.67 24.0 2.84 26.9 3.18 29.8 3.55
12 15.2 1.91 18.1 2.22 21.0 2.54 22.5 2.71 24.0 2.88 26.9 3.24 29.8 3.61
14 15.2 1.94 18.1 2.25 21.0 2.58 22.5 2.75 24.0 2.93 26.9 3.29 29.8 3.67
16 15.2 1.97 18.1 2.28 21.0 2.62 22.5 2.80 24.0 2.98 26.9 3.35 29.8 3.74
18 15.2 1.99 18.1 2.32 21.0 2.66 22.5 2.84 24.0 3.03 26.9 3.41 29.8 3.81
20 15.2 2.02 18.1 2.36 21.0 2.71 22.5 2.89 24.0 3.08 26.9 3.47 29.8 3.88
21 15.2 2.04 18.1 2.37 21.0 2.73 22.5 2.92 24.0 3.11 26.9 3.51 29.8 3.92
23 15.2 2.07 18.1 2.41 21.0 2.78 22.5 2.97 24.0 3.17 26.9 3.57 29.8 4.01
25 15.2 2.10 18.1 2.45 21.0 2.83 22.5 3.03 24.0 3.26 26.9 3.75 29.8 4.28
27 15.2 2.13 18.1 2.54 21.0 2.99 22.5 3.22 24.0 3.47 26.9 3.99 29.8 4.56
29 15.2 2.26 18.1 2.69 21.0 3.17 22.5 3.42 24.0 3.69 26.9 4.25 29.8 4.85
31 15.2 2.38 18.1 2.85 21.0 3.36 22.5 3.63 24.0 3.92 26.9 4.52 29.8 5.16
33 15.2 2.52 18.1 3.01 21.0 3.56 22.5 3.85 24.0 4.15 26.9 4.80 29.8 5.49
35 15.2 2.66 18.1 3.19 21.0 3.77 22.5 4.08 24.0 4.41 26.9 5.09 29.8 5.83
37 15.2 2.80 18.1 3.37 21.0 3.99 22.5 4.32 24.0 4.67 26.9 5.40 29.8 6.19
39 15.2 2.95 18.1 3.56 21.0 4.22 22.5 4.58 24.0 4.95 26.9 5.73 29.8 6.6

3
1
5
• VRV Systems • Outdoor Units 16
• Outdoor Units • VRV HEAT PUMP • RXYHQ12-36P(8)
5 Capacity tables
5 - 2 Cooling capacity tables
RXYHQ18P8
4TW31462-3
NOTES -ANMERKUNGEN - ƴLjǍdžNJǟǔdžNJǓ - NOTAS - REMARQUES - NOTE - OPMERKINGEN - ȝȞȖȚȓȥȎțȖȭ - NOTLAR
1The above table shows the average value of conditions which may occur.
Die obige Tabelle zeigt den Durchschnittswert der Bedingungen, die auftreten können.
ȈIJȠȞ ʌĮȡĮʌȐȞȦ ʌȓȞĮțĮ ĮȞĮȖȡȐijİIJĮȚ Ș ȝȑıȘ IJȚȝȒ ȖȚĮ ıȣȞșȒțİȢ ʌȠȣ ȝʌȠȡİȓ ȞĮ ʌȡȠțȪȥȠȣȞ.
La tabla de arriba muestra el valor medio de condiciones que pueden ocurrir.
Le tableau ci-dessus donne la valeur moyenne pour des conditions qui peuvent survenir.
La tabella in alto mostra il valore delle condizioni medie che si possono riscontrare.
De tabel hierboven geeft de gemiddelde waarde aan van situaties die kunnen voorvallen.
Ɍɚɛɥɢɰɚ ɪɚɫɩɨɥɨɠɟɧɧɚɹ ɜɵɲɟ ɩɨɤɚɡɵɜɚɟɬ ɫɪɟɞɧɟɟ ɡɧɚɱɟɧɢɟ ɭɫɥɨɜɢɣ,ɤɨɬɨɪɵɟ ɦɨɝɭɬ ɧɚɫɬɭɩɢɬɶ.
Yukarıdaki tablo meydana gelebilecek koúulların ortalama de÷erini göstermektedir.
TC: Total Capacity: kW ; PI: Power Input: kW (compressor + outdoor fan motor)
Combination
(%)
Capacity
index
Outdoor
air temp.
(°CDB)
Indoor air temperature: °CDB
14.0 16.0 18.0 19.0 20.0 22.0 24.0
TC PI TC PI TC PI TC PI TC PI TC PI TC PI
kW kW kW kW kW kW kW kW kW kW kW kW kW kW
130% 585.0 10 43.0 5.66 51.3 6.93 59.6 8.2 61.7 8.4 62.5 8.2 64.0 7.90 65.6 7.55
12 43.0 5.77 51.3 7.06 59.6 8.4 60.9 8.4 61.7 8.2 63.2 7.85 64.8 7.73
14 43.0 5.88 51.3 7.20 59.3 8.5 60.1 8.3 60.9 8.2 62.4 8.1 64.0 8.2
16 43.0 5.99 51.3 7.34 58.5 8.5 59.3 8.4 60.1 8.4 61.6 8.5 63.2 8.6
18 43.0 6.11 51.3 7.49 57.8 8.8 58.5 8.8 59.3 8.9 60.9 9.0 62.4 9.1
20 43.0 6.23 51.3 7.97 57.0 9.2 57.7 9.3 58.5 9.3 60.1 9.4 61.6 9.5
21 43.0 6.40 51.3 8.3 56.6 9.4 57.3 9.5 58.1 9.5 59.7 9.6 61.2 9.7
23 43.0 6.86 51.3 8.9 55.8 9.9 56.5 9.9 57.3 10.0 58.9 10.1 60.4 10.2
25 43.0 7.33 51.3 9.5 55.0 10.3 55.7 10.3 56.5 10.4 58.1 10.5 59.6 10.6
27 43.0 7.83 51.3 10.1 54.2 10.7 54.9 10.8 55.7 10.8 57.3 11.0 58.8 11.1
29 43.0 8.4 51.3 10.8 53.4 11.2 54.1 11.2 54.9 11.3 56.5 11.4 58.0 11.5
31 43.0 8.9 51.0 11.5 52.6 11.6 53.3 11.7 54.1 11.7 55.7 11.9 57.2 12.0
33 43.0 9.5 50.2 11.9 51.8 12.0 52.5 12.1 53.3 12.2 54.9 12.3 56.4 12.4
35 43.0 10.1 49.4 12.3 51.0 12.5 51.8 12.6 52.5 12.6 54.1 12.8 55.6 12.9
37 43.0 10.8 48.6 12.8 50.2 12.9 51.0 13.0 51.7 13.1 53.3 13.2 54.8 13.4
39 43.0 11.5 47.8 13.2 49.4 13.4 50.2 13.4 50.9 13.5 52.5 13.7 54.0 13.8
120% 540.0 10 39.7 5.17 47.3 6.32 55.0 7.52 58.8 8.1 61.5 8.5 62.9 8.1 64.4 7.82
12 39.7 5.27 47.3 6.44 55.0 7.66 58.8 8.3 60.7 8.4 62.1 8.1 63.6 7.77
14 39.7 5.37 47.3 6.56 55.0 7.81 58.8 8.4 59.9 8.4 61.4 8.1 62.8 8.1
16 39.7 5.47 47.3 6.69 55.0 7.96 58.4 8.5 59.1 8.4 60.6 8.5 62.0 8.5
18 39.7 5.58 47.3 6.82 55.0 8.2 57.6 8.8 58.3 8.8 59.8 8.9 61.2 9.0
20 39.7 5.69 47.3 7.09 55.0 8.8 56.8 9.2 57.5 9.3 59.0 9.3 60.4 9.4
21 39.7 5.74 47.3 7.35 55.0 9.2 56.4 9.4 57.1 9.5 58.6 9.6 60.0 9.6
23 39.7 6.13 47.3 7.87 54.9 9.8 55.6 9.9 56.3 9.9 57.8 10.0 59.2 10.1
25 39.7 6.55 47.3 8.4 54.1 10.2 54.8 10.3 55.5 10.3 57.0 10.4 58.4 10.5
27 39.7 7.00 47.3 9.0 53.3 10.7 54.0 10.7 54.7 10.8 56.2 10.9 57.6 11.0
29 39.7 7.46 47.3 9.6 52.5 11.1 53.2 11.2 53.9 11.2 55.4 11.3 56.8 11.4
31 39.7 7.95 47.3 10.3 51.7 11.5 52.4 11.6 53.1 11.6 54.6 11.8 56.0 11.9
33 39.7 8.5 47.3 10.9 50.9 12.0 51.6 12.0 52.3 12.1 53.8 12.2 55.2 12.3
35 39.7 9.0 47.3 11.7 50.1 12.4 50.8 12.5 51.6 12.5 53.0 12.7 54.4 12.8
37 39.7 9.6 47.3 12.4 49.3 12.8 50.0 12.9 50.8 13.0 52.2 13.1 53.6 13.3
39 39.7 10.2 47.1 13.1 48.5 13.3 49.2 13.4 50.0 13.4 51.4 13.6 52.8 13.7
110% 495.0 10 36.4 4.70 43.4 5.72 50.4 6.80 53.9 7.35 57.4 7.90 61.8 8.4 63.2 8.1
12 36.4 4.78 43.4 5.83 50.4 6.92 53.9 7.48 57.4 8.1 61.1 8.3 62.4 8.1
14 36.4 4.87 43.4 5.94 50.4 7.06 53.9 7.63 57.4 8.2 60.3 8.3 61.6 8.0
16 36.4 4.96 43.4 6.05 50.4 7.19 53.9 7.78 57.4 8.4 59.5 8.4 60.8 8.5
18 36.4 5.06 43.4 6.17 50.4 7.34 53.9 7.99 57.3 8.8 58.7 8.8 60.0 8.9
20 36.4 5.15 43.4 6.30 50.4 7.77 53.9 8.6 56.6 9.2 57.9 9.3 59.2 9.4
21 36.4 5.20 43.4 6.49 50.4 8.1 53.9 8.9 56.2 9.4 57.5 9.5 58.8 9.6
23 36.4 5.45 43.4 6.95 50.4 8.6 53.9 9.5 55.4 9.8 56.7 9.9 58.0 10.0
25 36.4 5.82 43.4 7.43 50.4 9.2 53.9 10.2 54.6 10.3 55.9 10.4 57.2 10.4
27 36.4 6.21 43.4 7.94 50.4 9.9 53.1 10.7 53.8 10.7 55.1 10.8 56.4 10.9
29 36.4 6.62 43.4 8.5 50.4 10.6 52.3 11.1 53.0 11.1 54.3 11.2 55.6 11.3
31 36.4 7.04 43.4 9.0 50.4 11.3 51.5 11.5 52.2 11.6 53.5 11.7 54.8 11.8
33 36.4 7.50 43.4 9.6 50.1 11.9 50.7 11.9 51.4 12.0 52.7 12.1 54.0 12.2
35 36.4 7.98 43.4 10.3 49.3 12.3 49.9 12.4 50.6 12.4 51.9 12.6 53.2 12.7
37 36.4 8.5 43.4 10.9 48.5 12.8 49.1 12.8 49.8 12.9 51.1 13.0 52.4 13.1
39 36.4 9.0 43.4 11.6 47.7 13.2 48.3 13.3 49.0 13.3 50.3 13.5 51.6 13.6
100% 450.0 10 33.1 4.24 39.4 5.14 45.8 6.09 49.0 6.58 52.2 7.08 58.6 8.1 61.9 8.4
12 33.1 4.31 39.4 5.23 45.8 6.20 49.0 6.70 52.2 7.21 58.6 8.2 61.1 8.3
14 33.1 4.39 39.4 5.33 45.8 6.32 49.0 6.83 52.2 7.35 58.6 8.4 60.4 8.3
16 33.1 4.47 39.4 5.43 45.8 6.44 49.0 6.96 52.2 7.49 58.4 8.5 59.6 8.4
18 33.1 4.55 39.4 5.54 45.8 6.57 49.0 7.10 52.2 7.64 57.6 8.8 58.8 8.8
20 33.1 4.64 39.4 5.65 45.8 6.77 49.0 7.46 52.2 8.2 56.8 9.2 58.0 9.3
21 33.1 4.68 39.4 5.70 45.8 7.01 49.0 7.73 52.2 8.5 56.4 9.4 57.6 9.5
23 33.1 4.81 39.4 6.08 45.8 7.51 49.0 8.3 52.2 9.1 55.6 9.9 56.8 9.9
25 33.1 5.13 39.4 6.50 45.8 8.03 49.0 8.9 52.2 9.7 54.8 10.3 56.0 10.4
27 33.1 5.47 39.4 6.94 45.8 8.6 49.0 9.5 52.2 10.4 54.0 10.7 55.2 10.8
29 33.1 5.82 39.4 7.40 45.8 9.2 49.0 10.1 52.0 11.1 53.2 11.2 54.4 11.2
31 33.1 6.19 39.4 7.88 45.8 9.8 49.0 10.8 51.2 11.5 52.4 11.6 53.6 11.7
33 33.1 6.59 39.4 8.4 45.8 10.4 49.0 11.5 50.4 11.9 51.6 12.0 52.8 12.1
35 33.1 7.00 39.4 8.9 45.8 11.1 49.0 12.3 49.6 12.4 50.8 12.5 52.0 12.6
37 33.1 7.44 39.4 9.5 45.8 11.8 48.2 12.7 48.8 12.8 50.0 12.9 51.2 13.0
39 33.1 7.90 39.4 10.1 45.8 12.6 47.4 13.2 48.0 13.2 49.2 13.4 50.4 13.5

• Outdoor Units • VRV HEAT PUMP • RXYHQ12-36P(8)
1
5
• VRV Systems • Outdoor Units
17
5 Capacity tables
5 - 2 Cooling capacity tables
RXYHQ18P8
4TW31462-3
TC: Total Capacity: kW ; PI: Power Input: kW (compressor + outdoor fan motor)
Combination
(%)
Capacity
index
Outdoor
air temp.
(°CDB)
Indoor air temperature: °CDB
14.0 16.0 18.0 19.0 20.0 22.0 24.0
TC PI TC PI TC PI TC PI TC PI TC PI TC PI
kW kW kW kW kW kW kW kW kW kW kW kW kW kW
90% 405.0 10 29.8 3.79 35.5 4.58 41.2 5.40 44.1 5.83 47.0 6.27 52.7 7.16 58.4 8.1
12 29.8 3.86 35.5 4.66 41.2 5.50 44.1 5.94 47.0 6.38 52.7 7.29 58.4 8.2
14 29.8 3.92 35.5 4.74 41.2 5.60 44.1 6.05 47.0 6.50 52.7 7.43 58.4 8.4
16 29.8 3.99 35.5 4.83 41.2 5.71 44.1 6.17 47.0 6.63 52.7 7.58 58.3 8.5
18 29.8 4.07 35.5 4.92 41.2 5.82 44.1 6.29 47.0 6.76 52.7 7.73 57.5 8.8
20 29.8 4.14 35.5 5.02 41.2 5.94 44.1 6.41 47.0 7.01 52.7 8.3 56.7 9.2
21 29.8 4.18 35.5 5.06 41.2 6.04 44.1 6.64 47.0 7.26 52.7 8.6 56.3 9.4
23 29.8 4.26 35.5 5.27 41.2 6.47 44.1 7.11 47.0 7.78 52.7 9.2 55.5 9.9
25 29.8 4.49 35.5 5.63 41.2 6.91 44.1 7.60 47.0 8.3 52.7 9.9 54.8 10.3
27 29.8 4.78 35.5 6.01 41.2 7.38 44.1 8.1 47.0 8.9 52.7 10.6 54.0 10.7
29 29.8 5.08 35.5 6.40 41.2 7.88 44.1 8.7 47.0 9.5 52.1 11.1 53.2 11.1
31 29.8 5.40 35.5 6.81 41.2 8.4 44.1 9.3 47.0 10.1 51.3 11.5 52.4 11.6
33 29.8 5.74 35.5 7.25 41.2 8.9 44.1 9.9 47.0 10.8 50.5 11.9 51.6 12.0
35 29.8 6.09 35.5 7.71 41.2 9.5 44.1 10.5 47.0 11.5 49.7 12.4 50.8 12.5
37 29.8 6.47 35.5 8.2 41.2 10.1 44.1 11.2 47.0 12.3 48.9 12.8 50.0 12.9
39 29.8 6.86 35.5 8.7 41.2 10.8 44.1 11.9 47.0 13.1 48.1 13.2 49.2 13.3
80% 360.0 10 26.5 3.37 31.6 4.03 36.7 4.74 39.2 5.10 41.7 5.48 46.8 6.25 51.9 7.04
12 26.5 3.42 31.6 4.10 36.7 4.82 39.2 5.20 41.7 5.58 46.8 6.36 51.9 7.17
14 26.5 3.48 31.6 4.17 36.7 4.91 39.2 5.29 41.7 5.68 46.8 6.49 51.9 7.31
16 26.5 3.54 31.6 4.25 36.7 5.00 39.2 5.39 41.7 5.79 46.8 6.61 51.9 7.45
18 26.5 3.60 31.6 4.33 36.7 5.10 39.2 5.50 41.7 5.91 46.8 6.74 51.9 7.60
20 26.5 3.66 31.6 4.41 36.7 5.20 39.2 5.61 41.7 6.02 46.8 6.99 51.9 8.1
21 26.5 3.70 31.6 4.45 36.7 5.25 39.2 5.66 41.7 6.15 46.8 7.24 51.9 8.4
23 26.5 3.76 31.6 4.54 36.7 5.50 39.2 6.03 41.7 6.58 46.8 7.75 51.9 9.0
25 26.5 3.89 31.6 4.83 36.7 5.88 39.2 6.44 41.7 7.03 46.8 8.3 51.9 9.7
27 26.5 4.13 31.6 5.14 36.7 6.27 39.2 6.88 41.7 7.51 46.8 8.9 51.9 10.3
29 26.5 4.39 31.6 5.48 36.7 6.68 39.2 7.33 41.7 8.02 46.8 9.5 51.9 11.1
31 26.5 4.66 31.6 5.82 36.7 7.12 39.2 7.82 41.7 8.5 46.8 10.1 51.1 11.5
33 26.5 4.95 31.6 6.19 36.7 7.58 39.2 8.3 41.7 9.1 46.8 10.8 50.3 11.9
35 26.5 5.25 31.6 6.58 36.7 8.1 39.2 8.9 41.7 9.7 46.8 11.5 49.6 12.4
37 26.5 5.56 31.6 6.98 36.7 8.6 39.2 9.4 41.7 10.3 46.8 12.3 48.8 12.8
39 26.5 5.90 31.6 7.41 36.7 9.1 39.2 10.0 41.7 11.0 46.8 13.1 48.0 13.2
70% 315.0 10 23.1 2.96 27.6 3.51 32.1 4.10 34.3 4.41 36.5 4.72 41.0 5.37 45.5 6.03
12 23.1 3.01 27.6 3.57 32.1 4.17 34.3 4.49 36.5 4.81 41.0 5.47 45.5 6.15
14 23.1 3.05 27.6 3.63 32.1 4.25 34.3 4.57 36.5 4.89 41.0 5.57 45.5 6.26
16 23.1 3.10 27.6 3.69 32.1 4.32 34.3 4.65 36.5 4.98 41.0 5.67 45.5 6.39
18 23.1 3.15 27.6 3.76 32.1 4.40 34.3 4.74 36.5 5.08 41.0 5.78 45.5 6.51
20 23.1 3.21 27.6 3.83 32.1 4.49 34.3 4.83 36.5 5.18 41.0 5.90 45.5 6.69
21 23.1 3.23 27.6 3.86 32.1 4.53 34.3 4.88 36.5 5.23 41.0 5.99 45.5 6.93
23 23.1 3.29 27.6 3.93 32.1 4.62 34.3 5.04 36.5 5.48 41.0 6.41 45.5 7.42
25 23.1 3.35 27.6 4.09 32.1 4.93 34.3 5.38 36.5 5.85 41.0 6.86 45.5 7.94
27 23.1 3.54 27.6 4.35 32.1 5.25 34.3 5.74 36.5 6.24 41.0 7.32 45.5 8.5
29 23.1 3.76 27.6 4.63 32.1 5.59 34.3 6.11 36.5 6.65 41.0 7.81 45.5 9.1
31 23.1 3.98 27.6 4.91 32.1 5.95 34.3 6.50 36.5 7.09 41.0 8.3 45.5 9.7
33 23.1 4.22 27.6 5.22 32.1 6.32 34.3 6.92 36.5 7.54 41.0 8.9 45.5 10.3
35 23.1 4.47 27.6 5.54 32.1 6.72 34.3 7.36 36.5 8.02 41.0 9.4 45.5 11.0
37 23.1 4.73 27.6 5.87 32.1 7.14 34.3 7.82 36.5 8.5 41.0 10.1 45.5 11.7
39 23.1 5.01 27.6 6.22 32.1 7.58 34.3 8.3 36.5 9.1 41.0 10.7 45.5 12.5
60% 270.0 10 19.8 2.58 23.7 3.02 27.5 3.50 29.4 3.75 31.3 4.00 35.1 4.52 39.0 5.07
12 19.8 2.61 23.7 3.07 27.5 3.56 29.4 3.81 31.3 4.07 35.1 4.60 39.0 5.16
14 19.8 2.65 23.7 3.12 27.5 3.62 29.4 3.87 31.3 4.14 35.1 4.69 39.0 5.26
16 19.8 2.69 23.7 3.17 27.5 3.68 29.4 3.94 31.3 4.21 35.1 4.77 39.0 5.36
18 19.8 2.73 23.7 3.22 27.5 3.74 29.4 4.01 31.3 4.29 35.1 4.86 39.0 5.46
20 19.8 2.77 23.7 3.28 27.5 3.81 29.4 4.09 31.3 4.37 35.1 4.96 39.0 5.57
21 19.8 2.80 23.7 3.30 27.5 3.84 29.4 4.13 31.3 4.41 35.1 5.01 39.0 5.62
23 19.8 2.84 23.7 3.36 27.5 3.92 29.4 4.20 31.3 4.50 35.1 5.20 39.0 5.98
25 19.8 2.89 23.7 3.42 27.5 4.07 29.4 4.42 31.3 4.78 35.1 5.55 39.0 6.39
27 19.8 2.99 23.7 3.63 27.5 4.33 29.4 4.70 31.3 5.09 35.1 5.92 39.0 6.82
29 19.8 3.17 23.7 3.85 27.5 4.60 29.4 5.00 31.3 5.42 35.1 6.31 39.0 7.27
31 19.8 3.36 23.7 4.09 27.5 4.89 29.4 5.32 31.3 5.77 35.1 6.72 39.0 7.75
33 19.8 3.55 23.7 4.33 27.5 5.19 29.4 5.65 31.3 6.13 35.1 7.15 39.0 8.3
35 19.8 3.76 23.7 4.59 27.5 5.51 29.4 6.00 31.3 6.51 35.1 7.60 39.0 8.8
37 19.8 3.97 23.7 4.86 27.5 5.84 29.4 6.36 31.3 6.91 35.1 8.1 39.0 9.3
39 19.8 4.20 23.7 5.14 27.5 6.19 29.4 6.75 31.3 7.34 35.1 8.6 39.0 9.9
50% 225.0 10 16.5 2.21 19.7 2.56 22.9 2.93 24.5 3.12 26.1 3.32 29.3 3.73 32.5 4.16
12 16.5 2.24 19.7 2.60 22.9 2.98 24.5 3.17 26.1 3.38 29.3 3.79 32.5 4.23
14 16.5 2.27 19.7 2.64 22.9 3.02 24.5 3.22 26.1 3.43 29.3 3.86 32.5 4.30
16 16.5 2.30 19.7 2.68 22.9 3.07 24.5 3.28 26.1 3.49 29.3 3.93 32.5 4.38
18 16.5 2.34 19.7 2.72 22.9 3.12 24.5 3.33 26.1 3.55 29.3 4.00 32.5 4.46
20 16.5 2.37 19.7 2.76 22.9 3.17 24.5 3.39 26.1 3.61 29.3 4.07 32.5 4.55
21 16.5 2.39 19.7 2.78 22.9 3.20 24.5 3.42 26.1 3.64 29.3 4.11 32.5 4.59
23 16.5 2.42 19.7 2.83 22.9 3.26 24.5 3.48 26.1 3.71 29.3 4.19 32.5 4.69
25 16.5 2.46 19.7 2.87 22.9 3.31 24.5 3.55 26.1 3.82 29.3 4.39 32.5 5.01
27 16.5 2.50 19.7 2.98 22.9 3.50 24.5 3.78 26.1 4.07 29.3 4.68 32.5 5.34
29 16.5 2.64 19.7 3.15 22.9 3.71 24.5 4.01 26.1 4.32 29.3 4.98 32.5 5.68
31 16.5 2.79 19.7 3.34 22.9 3.94 24.5 4.25 26.1 4.59 29.3 5.29 32.5 6.05
33 16.5 2.95 19.7 3.53 22.9 4.17 24.5 4.51 26.1 4.87 29.3 5.62 32.5 6.43
35 16.5 3.11 19.7 3.73 22.9 4.42 24.5 4.78 26.1 5.16 29.3 5.96 32.5 6.83
37 16.5 3.28 19.7 3.95 22.9 4.67 24.5 5.06 26.1 5.47 29.3 6.33 32.5 7.26
39 16.5 3.46 19.7 4.17 22.9 4.95 24.5 5.36 26.1 5.79 29.3 6.71 32.5 7.70

3
1
5
• VRV Systems • Outdoor Units 18
• Outdoor Units • VRV HEAT PUMP • RXYHQ12-36P(8)
5 Capacity tables
5 - 2 Cooling capacity tables
RXYHQ20P8
4TW31462-3
NOTES -ANMERKUNGEN - ƴLjǍdžNJǟǔdžNJǓ - NOTAS - REMARQUES - NOTE - OPMERKINGEN - ȝȞȖȚȓȥȎțȖȭ - NOTLAR
1The above table shows the average value of conditions which may occur.
Die obige Tabelle zeigt den Durchschnittswert der Bedingungen, die auftreten können.
ȈIJȠȞ ʌĮȡĮʌȐȞȦ ʌȓȞĮțĮ ĮȞĮȖȡȐijİIJĮȚ Ș ȝȑıȘ IJȚȝȒ ȖȚĮ ıȣȞșȒțİȢ ʌȠȣ ȝʌȠȡİȓ ȞĮ ʌȡȠțȪȥȠȣȞ.
La tabla de arriba muestra el valor medio de condiciones que pueden ocurrir.
Le tableau ci-dessus donne la valeur moyenne pour des conditions qui peuvent survenir.
La tabella in alto mostra il valore delle condizioni medie che si possono riscontrare.
De tabel hierboven geeft de gemiddelde waarde aan van situaties die kunnen voorvallen.
Ɍɚɛɥɢɰɚ ɪɚɫɩɨɥɨɠɟɧɧɚɹ ɜɵɲɟ ɩɨɤɚɡɵɜɚɟɬ ɫɪɟɞɧɟɟ ɡɧɚɱɟɧɢɟ ɭɫɥɨɜɢɣ,ɤɨɬɨɪɵɟ ɦɨɝɭɬ ɧɚɫɬɭɩɢɬɶ.
Yukarıdaki tablo meydana gelebilecek koúulların ortalama de÷erini göstermektedir.
TC: Total Capacity: kW ; PI: Power Input: kW (compressor + outdoor fan motor)
Combination
(%)
Capacity
index
Outdoor
air temp.
(°CDB)
Indoor air temperature: °CDB
14.0 16.0 18.0 19.0 20.0 22.0 24.0
TC PI TC PI TC PI TC PI TC PI TC PI TC PI
kW kW kW kW kW kW kW kW kW kW kW kW kW kW
130% 650.0 10 49.0 6.35 58.5 7.78 67.9 9.3 70.4 9.4 71.3 9.3 73.1 8.9 74.8 8.47
12 49.0 6.47 58.5 7.93 67.9 9.4 69.5 9.4 70.4 9.2 72.1 8.8 73.9 8.7
14 49.0 6.59 58.5 8.08 67.7 9.5 68.6 9.3 69.5 9.2 71.2 9.1 73.0 9.2
16 49.0 6.72 58.5 8.23 66.8 9.5 67.7 9.4 68.6 9.5 70.3 9.6 72.1 9.7
18 49.0 6.85 58.5 8.40 65.9 9.9 66.8 9.9 67.7 10.0 69.4 10.1 71.2 10.2
20 49.0 6.99 58.5 8.9 65.0 10.3 65.9 10.4 66.7 10.4 68.5 10.6 70.3 10.7
21 49.0 7.18 58.5 9.3 64.5 10.6 65.4 10.6 66.3 10.7 68.1 10.8 69.8 10.9
23 49.0 7.69 58.5 9.9 63.6 11.1 64.5 11.1 65.4 11.2 67.1 11.3 68.9 11.4
25 49.0 8.23 58.5 10.6 62.7 11.6 63.6 11.6 64.5 11.7 66.2 11.8 68.0 11.9
27 49.0 8.8 58.5 11.4 61.8 12.0 62.7 12.1 63.6 12.2 65.3 12.3 67.1 12.4
29 49.0 9.4 58.5 12.2 60.9 12.5 61.8 12.6 62.7 12.7 64.4 12.8 66.2 12.9
31 49.0 10.0 58.2 12.9 60.0 13.0 60.9 13.1 61.7 13.2 63.5 13.3 65.3 13.4
33 49.0 10.7 57.3 13.4 59.1 13.5 59.9 13.6 60.8 13.7 62.6 13.8 64.4 14.0
35 49.0 11.4 56.4 13.8 58.2 14.0 59.0 14.1 59.9 14.2 61.7 14.3 63.5 14.5
37 49.0 12.1 55.5 14.3 57.2 14.5 58.1 14.6 59.0 14.7 60.8 14.8 62.6 15.0
39 49.0 12.9 54.6 14.8 56.3 15.0 57.2 15.1 58.1 15.2 59.9 15.4 61.6 15.5
120% 600.0 10 45.3 5.81 54.0 7.09 62.7 8.43 67.1 9.1 70.2 9.5 71.8 9.1 73.4 8.8
12 45.3 5.91 54.0 7.23 62.7 8.59 67.1 9.3 69.3 9.4 70.9 9.1 72.5 8.7
14 45.3 6.02 54.0 7.36 62.7 8.8 67.1 9.5 68.4 9.4 70.0 9.0 71.6 9.1
16 45.3 6.14 54.0 7.51 62.7 8.9 66.6 9.5 67.4 9.4 69.1 9.5 70.7 9.6
18 45.3 6.25 54.0 7.65 62.7 9.2 65.7 9.9 66.5 9.9 68.2 10.0 69.8 10.1
20 45.3 6.38 54.0 7.96 62.7 9.9 64.8 10.3 65.6 10.4 67.3 10.5 68.9 10.6
21 45.3 6.44 54.0 8.24 62.7 10.3 64.4 10.6 65.2 10.6 66.8 10.7 68.4 10.8
23 45.3 6.88 54.0 8.8 62.6 11.0 63.4 11.1 64.3 11.1 65.9 11.2 67.5 11.3
25 45.3 7.35 54.0 9.5 61.7 11.5 62.5 11.5 63.4 11.6 65.0 11.7 66.6 11.8
27 45.3 7.85 54.0 10.1 60.8 12.0 61.6 12.0 62.4 12.1 64.1 12.2 65.7 12.3
29 45.3 8.37 54.0 10.8 59.9 12.5 60.7 12.5 61.5 12.6 63.2 12.7 64.8 12.8
31 45.3 8.9 54.0 11.5 59.0 12.9 59.8 13.0 60.6 13.1 62.3 13.2 63.9 13.3
33 45.3 9.5 54.0 12.3 58.1 13.4 58.9 13.5 59.7 13.6 61.4 13.7 63.0 13.8
35 45.3 10.1 54.0 13.1 57.2 13.9 58.0 14.0 58.8 14.1 60.4 14.2 62.1 14.4
37 45.3 10.8 54.0 14.0 56.3 14.4 57.1 14.5 57.9 14.6 59.5 14.7 61.2 14.9
39 45.3 11.5 53.7 14.7 55.4 14.9 56.2 15.0 57.0 15.1 58.6 15.2 60.3 15.4
110% 550.0 10 41.5 5.27 49.5 6.42 57.5 7.62 61.5 8.24 65.5 8.9 70.6 9.4 72.1 9.1
12 41.5 5.37 49.5 6.54 57.5 7.77 61.5 8.40 65.5 9.0 69.6 9.4 71.1 9.0
14 41.5 5.46 49.5 6.66 57.5 7.92 61.5 8.56 65.5 9.2 68.7 9.3 70.2 9.0
16 41.5 5.57 49.5 6.79 57.5 8.07 61.5 8.7 65.5 9.4 67.8 9.4 69.3 9.5
18 41.5 5.67 49.5 6.92 57.5 8.23 61.5 9.0 65.4 9.8 66.9 9.9 68.4 10.0
20 41.5 5.78 49.5 7.06 57.5 8.7 61.5 9.6 64.5 10.3 66.0 10.4 67.5 10.5
21 41.5 5.84 49.5 7.28 57.5 9.0 61.5 10.0 64.1 10.6 65.6 10.6 67.1 10.7
23 41.5 6.11 49.5 7.79 57.5 9.7 61.5 10.7 63.2 11.0 64.6 11.1 66.1 11.2
25 41.5 6.53 49.5 8.33 57.5 10.4 61.5 11.5 62.2 11.5 63.7 11.6 65.2 11.7
27 41.5 6.96 49.5 8.9 57.5 11.1 60.6 12.0 61.3 12.0 62.8 12.1 64.3 12.2
29 41.5 7.42 49.5 9.5 57.5 11.8 59.7 12.4 60.4 12.5 61.9 12.6 63.4 12.7
31 41.5 7.90 49.5 10.1 57.5 12.7 58.8 12.9 59.5 13.0 61.0 13.1 62.5 13.2
33 41.5 8.41 49.5 10.8 57.1 13.3 57.9 13.4 58.6 13.5 60.1 13.6 61.6 13.7
35 41.5 8.9 49.5 11.5 56.2 13.8 56.9 13.9 57.7 14.0 59.2 14.1 60.7 14.2
37 41.5 9.5 49.5 12.3 55.3 14.3 56.0 14.4 56.8 14.5 58.3 14.6 59.8 14.7
39 41.5 10.1 49.5 13.1 54.4 14.8 55.1 14.9 55.9 15.0 57.4 15.1 58.9 15.3
100% 500.0 10 37.7 4.76 45.0 5.77 52.3 6.83 55.9 7.38 59.5 7.94 66.8 9.1 70.7 9.4
12 37.7 4.84 45.0 5.87 52.3 6.96 55.9 7.52 59.5 8.09 66.8 9.2 69.8 9.3
14 37.7 4.92 45.0 5.98 52.3 7.09 55.9 7.66 59.5 8.24 66.8 9.4 68.8 9.3
16 37.7 5.01 45.0 6.09 52.3 7.23 55.9 7.81 59.5 8.40 66.6 9.5 67.9 9.4
18 37.7 5.11 45.0 6.21 52.3 7.37 55.9 7.97 59.5 8.57 65.7 9.9 67.0 9.9
20 37.7 5.20 45.0 6.33 52.3 7.59 55.9 8.37 59.5 9.2 64.8 10.3 66.1 10.4
21 37.7 5.25 45.0 6.40 52.3 7.86 55.9 8.7 59.5 9.5 64.3 10.6 65.7 10.7
23 37.7 5.39 45.0 6.82 52.3 8.42 55.9 9.3 59.5 10.2 63.4 11.1 64.8 11.1
25 37.7 5.75 45.0 7.29 52.3 9.0 55.9 9.9 59.5 10.9 62.5 11.5 63.8 11.6
27 37.7 6.13 45.0 7.78 52.3 9.6 55.9 10.6 59.5 11.7 61.6 12.0 62.9 12.1
29 37.7 6.53 45.0 8.30 52.3 10.3 55.9 11.4 59.3 12.4 60.7 12.5 62.0 12.6
31 37.7 6.95 45.0 8.8 52.3 11.0 55.9 12.1 58.4 12.9 59.8 13.0 61.1 13.1
33 37.7 7.39 45.0 9.4 52.3 11.7 55.9 12.9 57.5 13.4 58.9 13.5 60.2 13.6
35 37.7 7.86 45.0 10.0 52.3 12.5 55.9 13.8 56.6 13.9 57.9 14.0 59.3 14.1
37 37.7 8.35 45.0 10.7 52.3 13.3 55.0 14.3 55.7 14.4 57.0 14.5 58.4 14.6
39 37.7 8.9 45.0 11.4 52.3 14.2 54.1 14.8 54.8 14.8 56.1 15.0 57.5 15.1

• Outdoor Units • VRV HEAT PUMP • RXYHQ12-36P(8)
1
5
• VRV Systems • Outdoor Units
19
5 Capacity tables
5 - 2 Cooling capacity tables
RXYHQ20P8
4TW31462-3
TC: Total Capacity: kW ; PI: Power Input: kW (compressor + outdoor fan motor)
Combination
(%)
Capacity
index
Outdoor
air temp.
(°CDB)
Indoor air temperature: °CDB
14.0 16.0 18.0 19.0 20.0 22.0 24.0
TC PI TC PI TC PI TC PI TC PI TC PI TC PI
kW kW kW kW kW kW kW kW kW kW kW kW kW kW
90% 450.0 10 34.0 4.26 40.5 5.13 47.0 6.06 50.3 6.54 53.6 7.03 60.1 8.03 66.7 9.1
12 34.0 4.33 40.5 5.22 47.0 6.17 50.3 6.66 53.6 7.16 60.1 8.18 66.7 9.2
14 34.0 4.40 40.5 5.32 47.0 6.29 50.3 6.79 53.6 7.30 60.1 8.34 66.7 9.4
16 34.0 4.48 40.5 5.42 47.0 6.41 50.3 6.92 53.6 7.44 60.1 8.50 66.6 9.6
18 34.0 4.56 40.5 5.52 47.0 6.53 50.3 7.06 53.6 7.59 60.1 8.7 65.6 9.9
20 34.0 4.65 40.5 5.63 47.0 6.66 50.3 7.20 53.6 7.87 60.1 9.3 64.7 10.3
21 34.0 4.69 40.5 5.68 47.0 6.78 50.3 7.45 53.6 8.15 60.1 9.7 64.3 10.6
23 34.0 4.78 40.5 5.92 47.0 7.25 50.3 7.98 53.6 8.7 60.1 10.4 63.4 11.1
25 34.0 5.03 40.5 6.32 47.0 7.75 50.3 8.53 53.6 9.3 60.1 11.1 62.5 11.5
27 34.0 5.36 40.5 6.74 47.0 8.28 50.3 9.1 53.6 10.0 60.1 11.9 61.6 12.0
29 34.0 5.70 40.5 7.18 47.0 8.8 50.3 9.7 53.6 10.7 59.4 12.4 60.6 12.5
31 34.0 6.06 40.5 7.64 47.0 9.4 50.3 10.4 53.6 11.4 58.5 12.9 59.7 13.0
33 34.0 6.44 40.5 8.13 47.0 10.0 50.3 11.1 53.6 12.1 57.6 13.4 58.8 13.5
35 34.0 6.84 40.5 8.7 47.0 10.7 50.3 11.8 53.6 12.9 56.7 13.9 57.9 14.0
37 34.0 7.25 40.5 9.2 47.0 11.4 50.3 12.6 53.6 13.8 55.8 14.4 57.0 14.5
39 34.0 7.70 40.5 9.8 47.0 12.1 50.3 13.4 53.6 14.7 54.9 14.9 56.1 15.0
80% 400.0 10 30.2 3.78 36.0 4.52 41.8 5.32 44.7 5.73 47.6 6.15 53.4 7.01 59.3 7.90
12 30.2 3.84 36.0 4.60 41.8 5.41 44.7 5.83 47.6 6.26 53.4 7.14 59.3 8.05
14 30.2 3.90 36.0 4.68 41.8 5.51 44.7 5.94 47.6 6.38 53.4 7.28 59.3 8.20
16 30.2 3.97 36.0 4.77 41.8 5.61 44.7 6.05 47.6 6.50 53.4 7.42 59.3 8.36
18 30.2 4.04 36.0 4.85 41.8 5.72 44.7 6.17 47.6 6.63 53.4 7.56 59.3 8.53
20 30.2 4.11 36.0 4.95 41.8 5.83 44.7 6.29 47.6 6.76 53.4 7.84 59.3 9.1
21 30.2 4.15 36.0 4.99 41.8 5.89 44.7 6.35 47.6 6.90 53.4 8.12 59.3 9.4
23 30.2 4.22 36.0 5.09 41.8 6.17 44.7 6.76 47.6 7.38 53.4 8.7 59.3 10.1
25 30.2 4.36 36.0 5.42 41.8 6.59 44.7 7.23 47.6 7.89 53.4 9.3 59.3 10.8
27 30.2 4.64 36.0 5.77 41.8 7.04 44.7 7.72 47.6 8.43 53.4 10.0 59.3 11.6
29 30.2 4.93 36.0 6.14 41.8 7.50 44.7 8.23 47.6 9.0 53.4 10.6 59.3 12.4
31 30.2 5.23 36.0 6.53 41.8 7.99 44.7 8.8 47.6 9.6 53.4 11.3 58.3 12.9
33 30.2 5.55 36.0 6.95 41.8 8.50 44.7 9.3 47.6 10.2 53.4 12.1 57.4 13.4
35 30.2 5.89 36.0 7.38 41.8 9.0 44.7 9.9 47.6 10.9 53.4 12.9 56.5 13.9
37 30.2 6.24 36.0 7.84 41.8 9.6 44.7 10.6 47.6 11.6 53.4 13.7 55.6 14.3
39 30.2 6.61 36.0 8.32 41.8 10.2 44.7 11.3 47.6 12.3 53.4 14.6 54.7 14.8
70% 350.0 10 26.4 3.32 31.5 3.94 36.6 4.60 39.1 4.95 41.7 5.30 46.8 6.02 51.9 6.77
12 26.4 3.37 31.5 4.01 36.6 4.68 39.1 5.03 41.7 5.39 46.8 6.13 51.9 6.90
14 26.4 3.43 31.5 4.07 36.6 4.76 39.1 5.12 41.7 5.49 46.8 6.25 51.9 7.03
16 26.4 3.48 31.5 4.14 36.6 4.85 39.1 5.22 41.7 5.59 46.8 6.37 51.9 7.16
18 26.4 3.54 31.5 4.22 36.6 4.94 39.1 5.32 41.7 5.70 46.8 6.49 51.9 7.31
20 26.4 3.60 31.5 4.29 36.6 5.03 39.1 5.42 41.7 5.81 46.8 6.62 51.9 7.51
21 26.4 3.63 31.5 4.33 36.6 5.08 39.1 5.47 41.7 5.87 46.8 6.72 51.9 7.78
23 26.4 3.69 31.5 4.41 36.6 5.19 39.1 5.66 41.7 6.15 46.8 7.20 51.9 8.33
25 26.4 3.76 31.5 4.59 36.6 5.53 39.1 6.04 41.7 6.57 46.8 7.69 51.9 8.9
27 26.4 3.97 31.5 4.88 36.6 5.89 39.1 6.44 41.7 7.00 46.8 8.21 51.9 9.5
29 26.4 4.21 31.5 5.19 36.6 6.27 39.1 6.86 41.7 7.46 46.8 8.8 51.9 10.2
31 26.4 4.47 31.5 5.51 36.6 6.67 39.1 7.30 41.7 7.95 46.8 9.3 51.9 10.8
33 26.4 4.74 31.5 5.85 36.6 7.10 39.1 7.76 41.7 8.46 46.8 10.0 51.9 11.6
35 26.4 5.02 31.5 6.21 36.6 7.54 39.1 8.25 41.7 9.0 46.8 10.6 51.9 12.3
37 26.4 5.31 31.5 6.59 36.6 8.01 39.1 8.8 41.7 9.6 46.8 11.3 51.9 13.1
39 26.4 5.62 31.5 6.98 36.6 8.50 39.1 9.3 41.7 10.2 46.8 12.0 51.9 14.0
60% 300.0 10 22.6 2.89 27.0 3.39 31.4 3.93 33.5 4.20 35.7 4.49 40.1 5.08 44.4 5.69
12 22.6 2.93 27.0 3.44 31.4 3.99 33.5 4.27 35.7 4.56 40.1 5.17 44.4 5.79
14 22.6 2.97 27.0 3.50 31.4 4.06 33.5 4.35 35.7 4.64 40.1 5.26 44.4 5.90
16 22.6 3.02 27.0 3.56 31.4 4.13 33.5 4.42 35.7 4.73 40.1 5.36 44.4 6.01
18 22.6 3.06 27.0 3.61 31.4 4.20 33.5 4.50 35.7 4.81 40.1 5.46 44.4 6.13
20 22.6 3.11 27.0 3.68 31.4 4.27 33.5 4.59 35.7 4.90 40.1 5.56 44.4 6.25
21 22.6 3.14 27.0 3.71 31.4 4.31 33.5 4.63 35.7 4.95 40.1 5.62 44.4 6.31
23 22.6 3.19 27.0 3.77 31.4 4.39 33.5 4.72 35.7 5.05 40.1 5.84 44.4 6.71
25 22.6 3.24 27.0 3.84 31.4 4.56 33.5 4.96 35.7 5.36 40.1 6.23 44.4 7.17
27 22.6 3.36 27.0 4.07 31.4 4.86 33.5 5.28 35.7 5.71 40.1 6.65 44.4 7.65
29 22.6 3.56 27.0 4.32 31.4 5.16 33.5 5.61 35.7 6.08 40.1 7.08 44.4 8.16
31 22.6 3.77 27.0 4.58 31.4 5.48 33.5 5.97 35.7 6.47 40.1 7.54 44.4 8.7
33 22.6 3.99 27.0 4.86 31.4 5.82 33.5 6.34 35.7 6.88 40.1 8.02 44.4 9.3
35 22.6 4.22 27.0 5.15 31.4 6.18 33.5 6.73 35.7 7.30 40.1 8.53 44.4 9.9
37 22.6 4.46 27.0 5.45 31.4 6.55 33.5 7.14 35.7 7.76 40.1 9.1 44.4 10.5
39 22.6 4.71 27.0 5.77 31.4 6.94 33.5 7.57 35.7 8.23 40.1 9.6 44.4 11.2
50% 250.0 10 18.9 2.48 22.5 2.87 26.1 3.29 28.0 3.51 29.8 3.73 33.4 4.19 37.0 4.66
12 18.9 2.52 22.5 2.92 26.1 3.34 28.0 3.56 29.8 3.79 33.4 4.26 37.0 4.74
14 18.9 2.55 22.5 2.96 26.1 3.39 28.0 3.62 29.8 3.85 33.4 4.33 37.0 4.83
16 18.9 2.58 22.5 3.00 26.1 3.45 28.0 3.68 29.8 3.91 33.4 4.40 37.0 4.92
18 18.9 2.62 22.5 3.05 26.1 3.50 28.0 3.74 29.8 3.98 33.4 4.48 37.0 5.01
20 18.9 2.66 22.5 3.10 26.1 3.56 28.0 3.80 29.8 4.05 33.4 4.57 37.0 5.10
21 18.9 2.68 22.5 3.12 26.1 3.59 28.0 3.84 29.8 4.09 33.4 4.61 37.0 5.15
23 18.9 2.72 22.5 3.17 26.1 3.65 28.0 3.91 29.8 4.16 33.4 4.70 37.0 5.27
25 18.9 2.76 22.5 3.22 26.1 3.72 28.0 3.99 29.8 4.29 33.4 4.93 37.0 5.62
27 18.9 2.80 22.5 3.34 26.1 3.92 28.0 4.24 29.8 4.56 33.4 5.25 37.0 5.99
29 18.9 2.96 22.5 3.54 26.1 4.17 28.0 4.50 29.8 4.85 33.4 5.58 37.0 6.38
31 18.9 3.13 22.5 3.74 26.1 4.42 28.0 4.77 29.8 5.15 33.4 5.94 37.0 6.78
33 18.9 3.31 22.5 3.96 26.1 4.68 28.0 5.06 29.8 5.46 33.4 6.30 37.0 7.21
35 18.9 3.49 22.5 4.19 26.1 4.95 28.0 5.36 29.8 5.79 33.4 6.69 37.0 7.66
37 18.9 3.68 22.5 4.43 26.1 5.24 28.0 5.68 29.8 6.14 33.4 7.10 37.0 8.14
39 18.9 3.88 22.5 4.68 26.1 5.55 28.0 6.02 29.8 6.50 33.4 7.53 37.0 8.6
