Daikin Skyair fcahg71gveb User guide

Installer and user reference guide

Split system air conditioners English

Installer and user

reference guide

Split system air conditioners

FCAHG71GVEB

FCAHG100GVEB

FCAHG125GVEB

FCAHG140GVEB

3P480520-3A

CE - DECLARATION-OF-CONFORMITY CE - DECLARACION-DE-CONFORMIDAD CE - DECLARAÇÃO-DE-CONFORMIDADE CE - ERKLÆRING OM-SAMSVAR CE - IZJAVA-O-USKLAĐENOSTI CE - IZJAVA O SKLADNOSTI CE - ATITIKTIES-DEKLARACIJA

CE - KONFORMITÄTSERKLÄRUNG CE - DICHIARAZIONE-DI-CONFORMITA CE - ЗАЯВЛЕНИЕ-О-СООТВЕТСТВИИ CE - ILMOITUS-YHDENMUKAISUUDESTA CE - MEGFELELŐSÉGI-NYILATKOZAT CE - VASTAVUSDEKLARATSIOON CE - ATBILSTĪBAS-DEKLARĀCIJA

CE - DECLARATION-DE-CONFORMITE CE - ΔHΛΩΣΗ ΣΥΜΜΟΡΦΩΣΗΣ CE -

OVERENSSTEMMELSESERKLÆRING CE - PROHLÁŠENÍ-O-SHODĚ CE - DEKLARACJA-ZGODNOŚCI CE - ДЕКЛАРАЦИЯ-ЗА-СЪОТВЕТСТВИЕ CE - VYHLÁSENIE-ZHODY

CE - CONFORMITEITSVERKLARING CE - FÖRSÄKRAN-OM-

ÖVERENSTÄMMELSE CE - DECLARAŢIE-DE-CONFORMITATE CE - UYGUNLUK-BEYANI

03

06

07

declares under its sole responsibility that the air conditioning models to which this declaration

relates:

erklärt auf seine alleinige Verantwortung daß die Modelle der Klimageräte für die diese Erklärung

bestimmt ist:

déclare sous sa seule responsabilité que les appareils d'air conditionné visés par la présente

déclaration:

verklaart hierbij op eigen exclusieve verantwoordelijkheid dat de airconditioning units waarop deze

verklaring betrekking heeft:

declara baja su única responsabilidad que los modelos de aire acondicionado a los cuales hace

referencia la declaración:

dichiara sotto sua responsabilità che i condizionatori modello a cui è riferita questa dichiarazione:

δηλώνει με αποκλειστική της ευθύνη ότι τα μοντέλα των κλιματιστικών συσκευών στα οποία

αναφέρεται η παρούσα δήλωση:

declara sob sua exclusiva responsabilidade que os modelos de ar condicionado a que esta

declaração se refere:

09

10

11

12

13

14

15

16

заявляет, исключительно под свою ответственность, что модели кондиционеров воздуха, к

которым относится настоящее заявление:

erklærer under eneansvar, at klimaanlægmodellerne, som denne deklaration vedrører:

deklarerar i egenskap av huvudansvarig, att luftkonditioneringsmodellerna som berörs av denna

deklaration innebär att:

erklærer et fullstendig ansvar for at de luftkondisjoneringsmodeller som berøres av denne

deklarasjon, innebærer at:

ilmoittaa yksinomaan omalla vastuullaan, että tämän ilmoituksen tarkoittamat ilmastointilaitteiden

mallit:

prohlašuje ve své plné odpovědnosti, že modely klimatizace, k nimž se toto prohlášení vztahuje:

izjavljuje pod isključivo vlastitom odgovornošću da su modeli klima uređaja na koje se ova izjava

odnosi:

teljes felelőssége tudatában kijelenti, hogy a klímaberendezés modellek, melyekre e nyilatkozat

vonatkozik:

17

18

19

20

21

22

23

24

25

deklaruje na własną i wyłączną odpowiedzialność, że modele klimatyzatorów, których dotyczy

niniejsza deklaracja:

declară pe proprie răspundere că aparatele de aer condiţionat la care se referă această declaraţie:

z vso odgovornostjo izjavlja, da so modeli klimatskih naprav, na katere se izjava nanaša:

kinnitab oma täielikul vastutusel, et käesoleva deklaratsiooni alla kuuluvad kliimaseadmete mudelid:

декларира на своя отговорност, че моделите климатична инсталация, за които се отнася тази

декларация:

visiška savo atsakomybe skelbia, kad oro kondicionavimo prietaisų modeliai, kuriems yra taikoma ši

deklaracija:

ar pilnu atbildību apliecina, ka tālāk uzskaitīto modeļu gaisa kondicionētāji, uz kuriem attiecas šī

deklarācija:

vyhlasuje na vlastnú zodpovednosť, že tieto klimatizačné modely, na ktoré sa vzťahuje toto

vyhlásenie:

tamamen kendi sorumluluǧunda olmak üzere bu bildirinin ilgili olduǧu klima modellerinin aşaǧıdaki

gibi olduǧunu beyan eder:

are in conformity with the following standard(s) or other normative document(s), provided that these

are used in accordance with our instructions:

der/den folgenden Norm(en) oder einem anderen Normdokument oder -dokumenten entspricht/

entsprechen, unter der Voraussetzung, daß sie gemäß unseren Anweisungen eingesetzt werden:

sont conformes à la/aux norme(s) ou autre(s) document(s) normatif(s), pour autant qu'ils soient utilisés

conformément à nos instructions:

conform de volgende norm(en) of één of meer andere bindende documenten zijn, op voorwaarde dat

ze worden gebruikt overeenkomstig onze instructies:

están en conformidad con la(s) siguiente(s) norma(s) u otro(s) documento(s) normativo(s), siempre

que sean utilizados de acuerdo con nuestras instrucciones:

sono conformi al(i) seguente(i) standard(s) o altro(i) documento(i) a carattere normativo, a patto che

vengano usati in conformità alle nostre istruzioni:

είναι σύμφωνα με το(α) ακόλουθο(α) πρότυπο(α) ή άλλο έγγραφο(α) κανονισμών, υπό την

προϋπόθεση ότι χρησιμοποιούνται

σύμφωνα με τις οδηγίες μας:

estão em conformidade com a(s) seguinte(s) norma(s) ou outro(s) documento(s) normativo(s), desde

que estes sejam utilizados de

acordo com as nossas instruções:

соответствуют следующим стандартам или другим нормативным документам, при условии их

использования согласно нашим инструкциям:

overholder følgende standard(er) eller andet/andre retningsgivende dokument(er), forudsat at disse

anvendes i henhold til vore instrukser:

respektive utrustning är utförd i överensstämmelse med och följer följande standard(er) eller andra

normgivande dokument, under förutsättning att användning sker i överensstämmelse med våra

instruktioner:

respektive utstyr er i overensstemmelse med følgende standard(er) eller andre normgivende

dokument(er), under forutssetning av at disse brukes i henhold til våre instrukser:

vastaavat seuraavien standardien ja muiden ohjeellisten dokumenttien vaatimuksia edellyttäen, että

niitä käytetään ohjeidemme mukaisesti:

za předpokladu, že jsou využívány v souladu s našimi pokyny, odpovídají následujícím normám nebo

normativním dokumentům:

u skladu sa slijedećim standardom(ima) ili drugim normativnim dokumentom(ima), uz uvjet da se oni

koriste u skladu s našim uputama:

megfelelnek az alábbi szabvány(ok)nak vagy egyéb irányadó dokumentum(ok)nak, ha azokat előírás

szerint használják:

spełniają wymogi następujących norm i innych dokumentów normalizacyjnych, pod warunkiem że

używane są zgodnie z naszymi instrukcjami:

sunt în conformitate cu următorul (următoarele) standard(e) sau alt(e) document(e) normativ(e), cu

condiţia ca acestea să fie utilizate în conformitate cu instrucţiunile noastre:

skladni z naslednjimi standardi in drugimi normativi, pod pogojem, da se uporabljajo v skladu z našimi

navodili:

on vastavuses järgmis(t)e standardi(te)ga või teiste normatiivsete dokumentidega, kui neid kasutatakse

vastavalt meie juhenditele:

съответстват на следните стандарти или други нормативни документи, при условие, че се

използват съгласно нашите инструкции:

atitinka žemiau nurodytus standartus ir (arba) kitus norminius dokumentus su sąlyga, kad yra

naudojami pagal mūsų nurodymus:

tad, ja lietoti atbilstoši ražotāja norādījumiem, atbilst sekojošiem standartiem un citiem normatīviem

dokumentiem:

sú v zhode s nasledovnou(ými) normou(ami) alebo iným(i) normatívnym(i) dokumentom(ami), za

predpokladu, že sa používajú v súlade snašim návodom:

ürünün, talimatlarımıza göre kullanılması koşuluyla aşağıdaki standartlar ve norm belirten belgelerle

uyumludur:

following the provisions of:

gemäß den Vorschriften der:

conformément aux stipulations des:

overeenkomstig de bepalingen van:

siguiendo las disposiciones de:

secondo le prescrizioni per:

με τήρηση των διατάξεων των:

de acordo com o previsto em:

в соответствии с положениями:

under iagttagelse af bestemmelserne i:

enligt villkoren i:

gitt i henhold til bestemmelsene i:

noudattaen määräyksiä:

za dodržení ustanovení předpisu:

prema odredbama:

követi a(z):

zgodnie z postanowieniami Dyrektyw:

în urma prevederilor:

ob upoštevanju določb:

vastavalt nõuetele:

следвайки клаузите на:

laikantis nuostatų, pateikiamų:

ievērojot prasības, kas noteiktas:

održiavajúc ustanovenia:

bunun koşullarına uygun olarak:

Directives, as amended.

Direktiven, gemäß Änderung.

Directives, telles que modifiées.

Richtlijnen, zoals geamendeerd.

Directivas, según lo enmendado.

Direttive, come da modifica.

Οδηγιών, όπως έχουν τροποποιηθεί.

Directivas, conforme alteração em.

Директив со всеми поправками.

Direktiver, med senere ændringer.

Direktiv, med företagna ändringar.

Direktiver, med foretatte endringer.

Direktiivejä, sellaisina kuin ne ovat muutettuina.

v platném znění.

Smjernice, kako je izmijenjeno.

irányelv(ek) és módosításaik rendelkezéseit.

z późniejszymi poprawkami.

Directivelor, cu amendamentele respective.

Direktive z vsemi spremembami.

Direktiivid koos muudatustega.

Директиви, с техните изменения.

Direktyvose su papildymais.

Direktīvās un to papildinājumos.

Smernice, v platnom znení.

Değiştirilmiş halleriyle Yönetmelikler.

01Note*

02Hinweis*

03Remarque

04Bemerk*

05Nota*

as set out in <A> and judged

positively by according to the

Certificate<C>.

wie in <A> aufgeführt und von

positiv

beurteilt gemäß Zertifikat<C>.

tel que défini dans <A> et évalué

positivement par conformément

au Certificat<C>.

zoals vermeld in <A> en positief

beoordeeld door

overeenkomstig Certificaat<C>.

como se establece en <A> y es

valorado positivamente por de

acuerdo con el Certificado<C>.

06Nota*

07Σημείωση*

08Nota*

09Примечан

ие*

10Bemærk*

delineato nel <A> e giudicato

positivamente da secondo il

Certificato<C>.

όπως καθορίζεται στο <A> και κρίνεται

θετικά

από το σύμφωνα με το

Πιστοποιητικό<C>.

tal como estabelecido em <A> e com o

parecer positivo de de acordo com

o Certificado<C>.

как указано в <A> и в соответствии

сположительным решением

согласно Свидетельству<C>.

som anført i <A> og positivt vurderet af

ihenhold til Certifikat<C>.

11Informatio

12Merk*

13Huom*

14Poznámka

15Napomen

enligt <A> och godkänts av

enligt Certifikatet<C>.

som det fremkommer i <A> og

gjennom positiv bedømmelse av

ifølge Sertifikat<C>.

jotka on esitetty asiakirjassa <A> ja

jotka

on hyväksynyt Sertifikaatin<C>

mukaisesti.

jak bylo uvedeno v <A> a pozitivně

zjištěno

vsouladu sosvědčením<C>.

kako je izloženo u <A> i pozitivno

ocijenjeno odstrane prema

Certifikatu<C>.

16Megjegyz

és*

17Uwaga*

18Notă*

19Opomba*

20Märkus*

a(z) <A> alapján, a(z) igazolta a

megfelelést, a(z) <C>tanúsítvány

szerint.

zgodnie z dokumentacją <A>,

pozytywną

opinią i Świadectwem<C>.

aşa cum este stabilit în <A> şi

apreciat pozitiv de în

conformitate cu Certificatul<C>.

kot je določeno v <A> in odobreno s

strani vskladu

scertifikatom<C>.

nagu on näidatud dokumendis <A> ja

heaks kiidetud järgi vastavalt

sertifikaadile<C>.

21Забележк

а*

22Pastaba*

23Piezīmes*

24Poznámka

25Not*

както е изложено в <A> и оценено

положително от съгласно

Сертификата<C>.

kaip nustatyta <A> ir kaip teigiamai

nuspręsta pagal Sertifikatą<C>.

kā norādīts <A> un atbilstoši

pozitīvajam vērtējumam saskaņā ar

sertifikātu<C>.

ako bolo uvedené v <A> a pozitívne

zistené vsúlade s

osvedčením<C>.

<A>’da belirtildiği gibi ve

<C>Sertifikasına göre tarafından

olumlu olarak değerlendirildiği gibi.

01**

02**

03**

04**

05**

06**

DICz*** is authorised to compile the Technical Construction File.

DICz*** hat die Berechtigung die Technische Konstruktionsakte

zusammenzustellen.

DICz*** est autorisé à compiler le Dossier de Construction Technique.

DICz*** is bevoegd om het Technisch Constructiedossier samen te

stellen.

DICz*** está autorizado a compilar el Archivo de Construcción Técnica.

DICz*** è autorizzata a redigere il File Tecnico di Costruzione.

07**

08**

09**

10**

11**

12**

Η DICz*** είναι εξουσιοδοτημένη να συντάξει τον Τεχνικό φάκελο

κατασκευής.

A DICz*** está autorizada a compilar a documentação técnica de fabrico.

Компания DICz*** уполномочена составить Комплект технической

документации.

DICz*** er autoriseret til at udarbejde de tekniske konstruktionsdata.

DICz*** är bemyndigade att sammanställa den tekniska konstruktionsfilen.

DICz*** har tillatelse til å kompilere den Tekniske konstruksjonsfilen.

13**

14**

15**

16**

17**

18**

DICz*** on valtuutettu laatimaan Teknisen asiakirjan.

Společnost DICz*** má oprávnění ke kompilaci souboru technické

konstrukce.

DICz*** je ovlašten za izradu Datoteke o tehničkoj konstrukciji.

A DICz*** jogosult a műszaki konstrukciós dokumentáció összeállítására.

DICz*** ma upoważnienie do zbierania i opracowywania dokumentacji

konstrukcyjnej.

DICz*** este autorizat să compileze Dosarul tehnic de construcţie.

19**

20**

21**

22**

23**

24**

25**

DICz*** je pooblaščen za sestavo datoteke s tehnično mapo.

DICz*** on volitatud koostama tehnilist dokumentatsiooni.

DICz*** е оторизирана да състави Акта за техническа

конструкция.

DICz*** yra įgaliota sudaryti šį techninės konstrukcijos failą.

DICz*** ir autorizēts sastādīt tehnisko dokumentāciju.

Spoločnosť DICz*** je oprávnená vytvoriť súbor technickej

konštrukcie.

DICz*** Teknik Yapı Dosyasını derlemeye yetkilidir.

***DICz = Daikin Industries Czech Republic s.r.o.

Daikin Industries Czech Republic s.r.o.

FCAHG71GVEB, FCAHG100GVEB, FCAHG125GVEB, FCAHG140GVEB,

EN60335-2-40,

Machinery 2006/42/EC

Electromagnetic Compatibility 2014/30/EU

Low Voltage 2014/35/EU

CE - DECLARATION-DE-CONFORMITE CE - ΔHΛΩΣΗ ΣΥΜΜΟΡΦΩΣΗΣ CE - OVERENSSTEMMELSESERKLÆRING CE - PROHLÁŠENÍ-O-SHODĚ CE - DEKLARACJA-ZGODNOŚCI CE - ДЕКЛАРАЦИЯ-ЗА-СЪОТВЕТСТВИЕ CE - VYHLÁSENIE-ZHODY

CE - CONFORMITEITSVERKLARING CE - FÖRSÄKRAN-OM-ÖVERENSTÄMMELSE CE - DECLARAŢIE-DE-CONFORMITATE CE - UYGUNLUK-BEYANI

03

06

07

declares under its sole responsibility that the air conditioning models to which this declaration relates:

erklärt auf seine alleinige Verantwortung daß die Modelle der Klimageräte für die diese Erklärung bestimmt ist:

déclare sous sa seule responsabilité que les appareils d'air conditionné visés par la présente déclaration:

verklaart hierbij op eigen exclusieve verantwoordelijkheid dat de airconditioning units waarop deze verklaring betrekking heeft:

declara baja su única responsabilidad que los modelos de aire acondicionado a los cuales hace referencia la declaración:

dichiara sotto sua responsabilità che i condizionatori modello a cui è riferita questa dichiarazione:

δηλώνει με αποκλειστική της ευθύνη ότι τα μοντέλα των κλιματιστικών συσκευών στα οποία αναφέρεται η παρούσα δήλωση:

declara sob sua exclusiva responsabilidade que os modelos de ar condicionado a que esta declaração se refere:

09

10

11

12

13

14

15

16

заявляет, исключительно под свою ответственность, что модели кондиционеров воздуха, к которым относится настоящее заявление:

erklærer under eneansvar, at klimaanlægmodellerne, som denne deklaration vedrører:

deklarerar i egenskap av huvudansvarig, att luftkonditioneringsmodellerna som berörs av denna deklaration innebär att:

erklærer et fullstendig ansvar for at de luftkondisjoneringsmodeller som berøres av denne deklarasjon, innebærer at:

ilmoittaa yksinomaan omalla vastuullaan, että tämän ilmoituksen tarkoittamat ilmastointilaitteiden mallit:

prohlašuje ve své plné odpovědnosti, že modely klimatizace, k nimž se toto prohlášení vztahuje:

izjavljuje pod isključivo vlastitom odgovornošću da su modeli klima uređaja na koje se ova izjava odnosi:

teljes felelőssége tudatában kijelenti, hogy a klímaberendezés modellek, melyekre e nyilatkozat vonatkozik:

17

18

19

20

21

22

23

24

25

deklaruje na własną i wyłączną odpowiedzialność, że modele klimatyzatorów, których dotyczy niniejsza deklaracja:

declară pe proprie răspundere că aparatele de aer condiţionat la care se referă această declaraţie:

z vso odgovornostjo izjavlja, da so modeli klimatskih naprav, na katere se izjava nanaša:

kinnitab oma täielikul vastutusel, et käesoleva deklaratsiooni alla kuuluvad kliimaseadmete mudelid:

декларира на своя отговорност, че моделите климатична инсталация, за които се отнася тази декларация:

visiška savo atsakomybe skelbia, kad oro kondicionavimo prietaisų modeliai, kuriems yra taikoma ši deklaracija:

ar pilnu atbildību apliecina, ka tālāk uzskaitīto modeļu gaisa kondicionētāji, uz kuriem attiecas šī deklarācija:

vyhlasuje na vlastnú zodpovednosť, že tieto klimatizačné modely, na ktoré sa vzťahuje toto vyhlásenie:

tamamen kendi sorumluluǧunda olmak üzere bu bildirinin ilgili olduǧu klima modellerinin aşaǧıdaki gibi olduǧunu beyan eder:

are in conformity with the following standard(s) or other normative document(s), provided that these are used in accordance with our instructions:

der/den folgenden Norm(en) oder einem anderen Normdokument oder -dokumenten entspricht/entsprechen, unter der Voraussetzung, daß sie gemäß

unseren Anweisungen eingesetzt werden:

sont conformes à la/aux norme(s) ou autre(s) document(s) normatif(s), pour autant qu'ils soient utilisés conformément à nos instructions:

conform de volgende norm(en) of één of meer andere bindende documenten zijn, op voorwaarde dat ze worden gebruikt overeenkomstig onze

instructies:

están en conformidad con la(s) siguiente(s) norma(s) u otro(s) documento(s) normativo(s), siempre que sean utilizados de acuerdo con nuestras

instrucciones:

sono conformi al(i) seguente(i) standard(s) o altro(i) documento(i) a carattere normativo, a patto che vengano usati in conformità alle nostre istruzioni:

είναι σύμφωνα με το(α) ακόλουθο(α) πρότυπο(α) ή άλλο έγγραφο(α) κανονισμών, υπό την προϋπόθεση ότι χρησιμοποιούνται

σύμφωνα με τις οδηγίες μας:

estão em conformidade com a(s) seguinte(s) norma(s) ou outro(s) documento(s) normativo(s), desde que estes sejam utilizados de

acordo com as nossas instruções:

соответствуют следующим стандартам или другим нормативным документам, при условии их использования согласно нашим инструкциям:

overholder følgende standard(er) eller andet/andre retningsgivende dokument(er), forudsat at disse anvendes i henhold til vore instrukser:

respektive utrustning är utförd i överensstämmelse med och följer följande standard(er) eller andra normgivande dokument, under förutsättning att

användning sker i överensstämmelse med våra instruktioner:

respektive utstyr er i overensstemmelse med følgende standard(er) eller andre normgivende dokument(er), under forutssetning av at disse brukes i

henhold til våre instrukser:

vastaavat seuraavien standardien ja muiden ohjeellisten dokumenttien vaatimuksia edellyttäen, että niitä käytetään ohjeidemme mukaisesti:

za předpokladu, že jsou využívány v souladu s našimi pokyny, odpovídají následujícím normám nebo normativním dokumentům:

u skladu sa slijedećim standardom(ima) ili drugim normativnim dokumentom(ima), uz uvjet da se oni koriste u skladu s našim uputama:

megfelelnek az alábbi szabvány(ok)nak vagy egyéb irányadó dokumentum(ok)nak, ha azokat előírás szerint használják:

spełniają wymogi następujących norm i innych dokumentów normalizacyjnych, pod warunkiem że używane są zgodnie z naszymi instrukcjami:

sunt în conformitate cu următorul (următoarele) standard(e) sau alt(e) document(e) normativ(e), cu condiţia ca acestea să fie utilizate în conformitate cu

instrucţiunile noastre:

skladni z naslednjimi standardi in drugimi normativi, pod pogojem, da se uporabljajo v skladu z našimi navodili:

on vastavuses järgmis(t)e standardi(te)ga või teiste normatiivsete dokumentidega, kui neid kasutatakse vastavalt meie juhenditele:

съответстват на следните стандарти или други нормативни документи, при условие, че се използват съгласно нашите инструкции:

atitinka žemiau nurodytus standartus ir (arba) kitus norminius dokumentus su sąlyga, kad yra naudojami pagal mūsų nurodymus:

tad, ja lietoti atbilstoši ražotāja norādījumiem, atbilst sekojošiem standartiem un citiem normatīviem dokumentiem:

sú v zhode s nasledovnou(ými) normou(ami) alebo iným(i) normatívnym(i) dokumentom(ami), za predpokladu, že sa používajú v súlade snašim

návodom:

ürünün, talimatlarımıza göre kullanılması koşuluyla aşağıdaki standartlar ve norm belirten belgelerle uyumludur:

following the provisions of:

gemäß den Vorschriften der:

conformément aux stipulations des:

overeenkomstig de bepalingen van:

siguiendo las disposiciones de:

secondo le prescrizioni per:

με τήρηση των διατάξεων των:

de acordo com o previsto em:

в соответствии с положениями:

under iagttagelse af bestemmelserne i:

enligt villkoren i:

gitt i henhold til bestemmelsene i:

noudattaen määräyksiä:

za dodržení ustanovení předpisu:

prema odredbama:

követi a(z):

zgodnie z postanowieniami Dyrektyw:

în urma prevederilor:

ob upoštevanju določb:

vastavalt nõuetele:

следвайки клаузите на:

laikantis nuostatų, pateikiamų:

ievērojot prasības, kas noteiktas:

održiavajúc ustanovenia:

bunun koşullarına uygun olarak:

Directives, as amended.

Direktiven, gemäß Änderung.

Directives, telles que modifiées.

Richtlijnen, zoals geamendeerd.

Directivas, según lo enmendado.

Direttive, come da modifica.

Οδηγιών, όπως έχουν τροποποιηθεί.

Directivas, conforme alteração em.

Директив со всеми поправками.

Direktiver, med senere ændringer.

Direktiv, med företagna ändringar.

Direktiver, med foretatte endringer.

Direktiivejä, sellaisina kuin ne ovat muutettuina.

v platném znění.

Smjernice, kako je izmijenjeno.

irányelv(ek) és módosításaik rendelkezéseit.

z późniejszymi poprawkami.

Directivelor, cu amendamentele respective.

Direktive z vsemi spremembami.

Direktiivid koos muudatustega.

Директиви, с техните изменения.

Direktyvose su papildymais.

Direktīvās un to papildinājumos.

Smernice, v platnom znení.

Değiştirilmiş halleriyle Yönetmelikler.

01Note*

02Hinweis*

03Remarque*

04Bemerk*

05Nota*

as set out in <A> and judged positively by

according to the Certificate<C>.

wie in <A> aufgeführt und von positiv

beurteilt gemäß Zertifikat<C>.

tel que défini dans <A> et évalué positivement par

conformément au Certificat<C>.

zoals vermeld in <A> en positief beoordeeld door

overeenkomstig Certificaat<C>.

como se establece en <A> y es valorado

positivamente por de acuerdo con el

Certificado<C>.

06Nota*

07Σημείωση*

08Nota*

09Примечание*

10Bemærk*

delineato nel <A> e giudicato positivamente da

secondo il Certificato<C>.

όπως καθορίζεται στο <A> και κρίνεται θετικά

από το σύμφωνα με το Πιστοποιητικό<C>.

tal como estabelecido em <A> e com o parecer positivo

de de acordo com o Certificado<C>.

как указано в <A> и в соответствии сположительным

решением согласно Свидетельству<C>.

som anført i <A> og positivt vurderet af ihenhold til

Certifikat<C>.

11Information*

12Merk*

13Huom*

14Poznámka*

15Napomena*

enligt <A> och godkänts av enligt

Certifikatet<C>.

som det fremkommer i <A> og gjennom positiv

bedømmelse av ifølge Sertifikat<C>.

jotka on esitetty asiakirjassa <A> ja jotka

on hyväksynyt Sertifikaatin<C> mukaisesti.

jak bylo uvedeno v <A> a pozitivně zjištěno

vsouladu sosvědčením<C>.

kako je izloženo u <A> i pozitivno ocijenjeno odstrane

prema Certifikatu<C>.

16Megjegyzés*

17Uwaga*

18Notă*

19Opomba*

20Märkus*

a(z) <A> alapján, a(z) igazolta a megfelelést, a(z)

<C>tanúsítvány szerint.

zgodnie z dokumentacją <A>, pozytywną

opinią i Świadectwem<C>.

aşa cum este stabilit în <A> şi apreciat pozitiv de

în conformitate cu Certificatul<C>.

kot je določeno v <A> in odobreno s strani

vskladu scertifikatom<C>.

nagu on näidatud dokumendis <A> ja heaks kiidetud

järgi vastavalt sertifikaadile<C>.

21Забележка*

22Pastaba*

23Piezīmes*

24Poznámka*

25Not*

както е изложено в <A> и оценено положително от

съгласно Сертификата<C>.

kaip nustatyta <A> ir kaip teigiamai nuspręsta pagal

Sertifikatą<C>.

kā norādīts <A> un atbilstoši pozitīvajam vērtējumam

saskaņā ar sertifikātu<C>.

ako bolo uvedené v <A> a pozitívne zistené vsúlade

s osvedčením<C>.

<A>’da belirtildiği gibi ve <C>Sertifikasına göre

tarafından olumlu olarak değerlendirildiği gibi.

<A>

<C>

DEKRA (NB0344)

2178265.0551-EMC

DAIKIN.TCF.033A3/03-2017

01**

02**

03**

04**

05**

06**

DICz*** is authorised to compile the Technical Construction File.

DICz*** hat die Berechtigung die Technische Konstruktionsakte zusammenzustellen.

DICz*** est autorisé à compiler le Dossier de Construction Technique.

DICz*** is bevoegd om het Technisch Constructiedossier samen te stellen.

DICz*** está autorizado a compilar el Archivo de Construcción Técnica.

DICz*** è autorizzata a redigere il File Tecnico di Costruzione.

07**

08**

09**

10**

11**

12**

Η DICz*** είναι εξουσιοδοτημένη να συντάξει τον Τεχνικό φάκελο κατασκευής.

A DICz*** está autorizada a compilar a documentação técnica de fabrico.

Компания DICz*** уполномочена составить Комплект технической документации.

DICz*** er autoriseret til at udarbejde de tekniske konstruktionsdata.

DICz*** är bemyndigade att sammanställa den tekniska konstruktionsfilen.

DICz*** har tillatelse til å kompilere den Tekniske konstruksjonsfilen.

13**

14**

15**

16**

17**

18**

DICz*** on valtuutettu laatimaan Teknisen asiakirjan.

Společnost DICz*** má oprávnění ke kompilaci souboru technické konstrukce.

DICz*** je ovlašten za izradu Datoteke o tehničkoj konstrukciji.

A DICz*** jogosult a műszaki konstrukciós dokumentáció összeállítására.

DICz*** ma upoważnienie do zbierania i opracowywania dokumentacji konstrukcyjnej.

DICz*** este autorizat să compileze Dosarul tehnic de construcţie.

19**

20**

21**

22**

23**

24**

25**

DICz*** je pooblaščen za sestavo datoteke s tehnično mapo.

DICz*** on volitatud koostama tehnilist dokumentatsiooni.

DICz*** е оторизирана да състави Акта за техническа конструкция.

DICz*** yra įgaliota sudaryti šį techninės konstrukcijos failą.

DICz*** ir autorizēts sastādīt tehnisko dokumentāciju.

Spoločnosť DICz*** je oprávnená vytvoriť súbor technickej konštrukcie.

DICz*** Teknik Yapı Dosyasını derlemeye yetkilidir.

***DICz = Daikin Industries Czech Republic s.r.o.

Tetsuya Baba

Managing Director

Pilsen, 2nd of May 2017

Table of Contents

Installer and user reference guide

FCAHG71~140GVEB

Split system air conditioners

4P482875-1 – 2017.03

Table of Contents

1 General safety precautions 4

1.1 About the documentation .......................................................... 4

1.1.1 Meaning of warnings and symbols.............................. 4

1.2 For the user ............................................................................... 4

1.3 For the installer.......................................................................... 4

1.3.1 General ....................................................................... 4

1.3.2 Installation site ............................................................ 5

1.3.3 Refrigerant .................................................................. 6

1.3.4 Brine............................................................................ 7

1.3.5 Water .......................................................................... 7

1.3.6 Electrical ..................................................................... 7

2 About the documentation 8

2.1 About this document.................................................................. 8

For the installer 8

3 About the box 8

3.1 Overview: About the box ........................................................... 8

3.2 Indoor unit ................................................................................. 9

3.2.1 To unpack and handle the unit.................................... 9

3.2.2 To remove the accessories from the indoor unit......... 9

4 About the units and options 9

4.1 Overview: About the units and options...................................... 9

4.2 Identification .............................................................................. 9

4.2.1 Identification label: Indoor unit .................................... 9

4.3 About the indoor unit ................................................................. 9

4.4 System layout............................................................................ 10

4.5 Combining units and options ..................................................... 10

4.5.1 Possible options for the indoor unit............................. 10

5 Preparation 10

5.1 Overview: Preparation............................................................... 10

5.2 Preparing installation site .......................................................... 10

5.2.1 Installation site requirements of the indoor unit .......... 10

5.3 Preparing refrigerant piping....................................................... 11

5.3.1 Refrigerant piping requirements.................................. 11

5.3.2 Refrigerant piping insulation ....................................... 12

5.4 Preparing electrical wiring ......................................................... 12

5.4.1 About preparing electrical wiring................................. 12

6 Installation 12

6.1 Overview: Installation ................................................................ 12

6.2 Mounting the indoor unit............................................................ 12

6.2.1 Precautions when mounting the indoor unit................ 12

6.2.2 Guidelines when installing the indoor unit................... 12

6.2.3 Guidelines when installing the drain piping................. 13

6.3 Connecting the refrigerant piping .............................................. 15

6.3.1 About connecting the refrigerant piping ...................... 15

6.3.2 Precautions when connecting the refrigerant piping... 15

6.3.3 Guidelines when connecting the refrigerant piping..... 15

6.3.4 Pipe bending guidelines.............................................. 16

6.3.5 To flare the pipe end................................................... 16

6.3.6 To braze the pipe end................................................. 16

6.3.7 To connect the refrigerant piping to the indoor unit .... 16

6.4 Connecting the electrical wiring................................................. 17

6.4.1 About connecting the electrical wiring......................... 17

6.4.2 Precautions when connecting the electrical wiring ..... 17

6.4.3 Guidelines when connecting the electrical wiring ....... 17

6.4.4 Specifications of standard wiring components............ 17

6.4.5 To connect the electrical wiring on the indoor unit...... 17

7 Configuration 18

7.1 Field settings ............................................................................. 18

8 Commissioning 20

8.1 Overview: Commissioning.......................................................... 20

8.2 Precautions when commissioning .............................................. 20

8.3 Checklist before commissioning................................................. 20

8.4 To perform a test run.................................................................. 20

8.5 Error codes when performing a test run ..................................... 21

9 Hand-over to the user 21

10 Disposal 21

11 Technical data 21

11.1 Piping diagram: Indoor unit ........................................................ 22

11.2 Wiring diagram ........................................................................... 23

For the user 24

12 About the system 24

12.1 System layout............................................................................. 24

12.2 Information requirements for fan coil units ................................. 24

13 User interface 24

14 Before operation 24

15 Operation 25

15.1 Operation range ......................................................................... 25

15.2 Operating the system ................................................................. 25

15.2.1 About operating the system ......................................... 25

15.2.2 About cooling, heating, fan only, and automatic

operation ...................................................................... 25

15.2.3 About the heating operation......................................... 25

15.2.4 To operate the system ................................................. 25

15.3 Using the dry program................................................................ 25

15.3.1 About the dry program ................................................. 25

15.3.2 To use the dry program................................................ 25

15.4 Adjusting the air flow direction.................................................... 26

15.4.1 About the air flow flap .................................................. 26

16 Energy saving and optimum operation 26

17 Maintenance and service 26

17.1 Cleaning the air filter, suction grille, air outlet and outside

panels ........................................................................................ 27

17.1.1 To clean the air filter .................................................... 27

17.1.2 To clean the suction grille ............................................ 27

17.1.3 To clean the air outlet and outside panels ................... 27

17.2 Maintenance after a long stop period ......................................... 27

17.3 Maintenance before a long stop period ...................................... 28

17.4 About the refrigerant................................................................... 28

17.5 After-sales service and warranty ................................................ 28

17.5.1 Warranty period ........................................................... 28

17.5.2 Recommended maintenance and inspection............... 28

17.5.3 Recommended maintenance and inspection cycles.... 28

17.5.4 Shortened maintenance and replacement cycles........ 29

18 Troubleshooting 29

18.1 Symptoms that are NOT system malfunctions ........................... 30

18.1.1 Symptom: The system does not operate ..................... 30

18.1.2 Symptom: The fan strength does not correspond to

the setting .................................................................... 30

18.1.3 Symptom: The fan direction does not correspond to

the setting .................................................................... 30

18.1.4 Symptom: White mist comes out of a unit (Indoor

unit) .............................................................................. 30

18.1.5 Symptom: White mist comes out of a unit (Indoor

unit, outdoor unit) ......................................................... 30

18.1.6 Symptom: The user interface display reads "U4" or

"U5" and stops, but then restarts after a few minutes.. 30

18.1.7 Symptom: Noise of air conditioners (Indoor unit)......... 30

18.1.8 Symptom: Noise of air conditioners (Indoor unit,

outdoor unit)................................................................. 30

1 General safety precautions

Installer and user reference guide

FCAHG71~140GVEB

Split system air conditioners

4P482875-1 – 2017.03

18.1.9 Symptom: Noise of air conditioners (Outdoor unit)..... 30

18.1.10 Symptom: Dust comes out of the unit......................... 30

18.1.11 Symptom: The units can give off odours..................... 30

18.1.12 Symptom: The outdoor unit fan does not spin ............ 30

18.1.13 Symptom: The display shows "88".............................. 30

18.1.14 Symptom: The compressor in the outdoor unit does

not stop after a short heating operation ...................... 30

19 Relocation 30

20 Disposal 30

21 Glossary 31

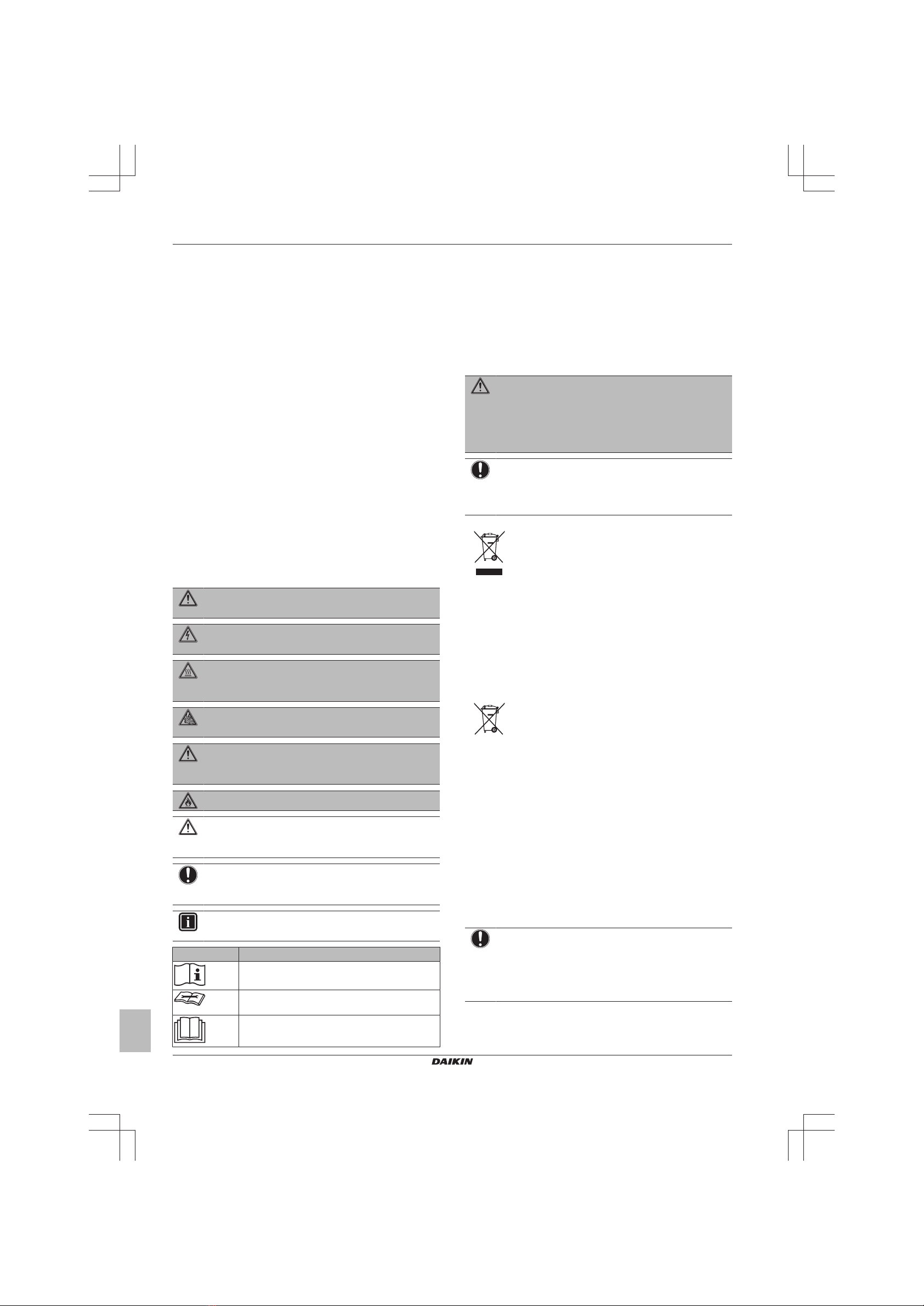

1 General safety precautions

1.1 About the documentation

▪ The original documentation is written in English. All other

languages are translations.

▪ The precautions described in this document cover very important

topics, follow them carefully.

▪ The installation of the system, and all activities described in the

installation manual and the installer reference guide must be

performed by an authorized installer.

1.1.1 Meaning of warnings and symbols

DANGER

Indicates a situation that results in death or serious injury.

DANGER: RISK OF ELECTROCUTION

Indicates a situation that could result in electrocution.

DANGER: RISK OF BURNING

Indicates a situation that could result in burning because of

extreme hot or cold temperatures.

DANGER: RISK OF EXPLOSION

Indicates a situation that could result in explosion.

WARNING

Indicates a situation that could result in death or serious

injury.

WARNING: FLAMMABLE MATERIAL

CAUTION

Indicates a situation that could result in minor or moderate

injury.

NOTICE

Indicates a situation that could result in equipment or

property damage.

INFORMATION

Indicates useful tips or additional information.

Symbol Explanation

Before installation, read the installation and

operation manual, and the wiring instruction sheet.

Before performing maintenance and service tasks,

read the service manual.

For more information, see the installer and user

reference guide.

1.2 For the user

▪ If you are not sure how to operate the unit, contact your installer.

▪ This appliance can be used by children aged from 8 years and

above and persons with reduced physical, sensory or mental

capabilities or lack of experience and knowledge if they have been

given supervision or instruction concerning use of the appliance in

a safe way and understand the hazards involved. Children shall

not play with the appliance. Cleaning and user maintenance shall

not be made by children without supervision.

WARNING

To prevent electric shocks or fire:

▪ Do NOT rinse the unit.

▪ Do NOT operate the unit with wet hands.

▪ Do NOT place any objects containing water on the unit.

NOTICE

▪ Do NOT place any objects or equipment on top of the

unit.

▪ Do NOT sit, climb or stand on the unit.

▪ Units are marked with the following symbol:

This means that electrical and electronic products may not be

mixed with unsorted household waste. Do NOT try to dismantle

the system yourself: the dismantling of the system, treatment of

the refrigerant, of oil and of other parts must be done by an

authorized installer and must comply with applicable legislation.

Units must be treated at a specialized treatment facility for reuse,

recycling and recovery. By ensuring this product is disposed of

correctly, you will help to prevent potential negative consequences

for the environment and human health. For more information,

contact your installer or local authority.

▪ Batteries are marked with the following symbol:

This means that the batteries may not be mixed with unsorted

household waste. If a chemical symbol is printed beneath the

symbol, this chemical symbol means that the battery contains a

heavy metal above a certain concentration.

Possible chemical symbols are: Pb: lead (>0.004%).

Waste batteries must be treated at a specialized treatment facility

for reuse. By ensuring waste batteries are disposed of correctly,

you will help to prevent potential negative consequences for the

environment and human health.

1.3 For the installer

1.3.1 General

If you are not sure how to install or operate the unit, contact your

dealer.

NOTICE

Improper installation or attachment of equipment or

accessories could result in electric shock, short-circuit,

leaks, fire or other damage to the equipment. Only use

accessories, optional equipment and spare parts made or

approved by Daikin.

1 General safety precautions

Installer and user reference guide

FCAHG71~140GVEB

Split system air conditioners

4P482875-1 – 2017.03

WARNING

Make sure installation, testing and applied materials

comply with applicable legislation (on top of the

instructions described in the Daikin documentation).

CAUTION

Wear adequate personal protective equipment (protective

gloves, safety glasses,…) when installing, maintaining or

servicing the system.

WARNING

Tear apart and throw away plastic packaging bags so that

nobody, especially children, can play with them. Possible

risk: suffocation.

DANGER: RISK OF BURNING

▪ Do NOT touch the refrigerant piping, water piping or

internal parts during and immediately after operation. It

could be too hot or too cold. Give it time to return to

normal temperature. If you must touch it, wear

protective gloves.

▪ Do NOT touch any accidental leaking refrigerant.

WARNING

Provide adequate measures to prevent that the unit can be

used as a shelter by small animals. Small animals that

make contact with electrical parts can cause malfunctions,

smoke or fire.

CAUTION

Do NOT touch the air inlet or aluminium fins of the unit.

NOTICE

▪ Do NOT place any objects or equipment on top of the

unit.

▪ Do NOT sit, climb or stand on the unit.

NOTICE

Works executed on the outdoor unit are best done under

dry weather conditions to avoid water ingress.

In accordance with the applicable legislation, it might be necessary

to provide a logbook with the product containing at least: information

on maintenance, repair work, results of tests, stand-by periods,…

Also, at least, following information must be provided at an

accessible place at the product:

▪ Instructions for shutting down the system in case of an emergency

▪ Name and address of fire department, police and hospital

▪ Name, address and day and night telephone numbers for

obtaining service

In Europe, EN378 provides the necessary guidance for this logbook.

1.3.2 Installation site

▪ Provide sufficient space around the unit for servicing and air

circulation.

▪ Make sure the installation site withstands the unit's weight and

vibration.

▪ Make sure the area is well ventilated. Do NOT block any

ventilation openings.

▪ Make sure the unit is level.

Do NOT install the unit in the following places:

▪ In potentially explosive atmospheres.

▪ In places where there is machinery that emits electromagnetic

waves. Electromagnetic waves may disturb the control system,

and cause malfunction of the equipment.

▪ In places where there is a risk of fire due to the leakage of

flammable gases (example: thinner or gasoline), carbon fibre,

ignitable dust.

▪ In places where corrosive gas (example: sulphurous acid gas) is

produced. Corrosion of copper pipes or soldered parts may cause

the refrigerant to leak.

Instructions for equipment using R32 refrigerant

If applicable.

WARNING

▪ Do NOT pierce or burn.

▪ Do NOT use means to accelerate the defrosting

process or to clean the equipment, other than those

recommended by the manufacturer.

▪ Be aware that R32 refrigerant does NOT contain an

odour.

WARNING

The appliance shall be stored so as to prevent mechanical

damage and in a well-ventilated room without continuously

operating ignition sources (example: open flames, an

operating gas appliance or an operating electric heater)

and have a room size as specified below.

NOTICE

▪ Do NOT reuse joints which have been used already.

▪ Joints made in installation between parts of refrigerant

system shall be accessible for maintenance purposes.

WARNING

Make sure installation, servicing, maintenance and repair

comply with instructions from Daikin and with applicable

legislation (for example national gas regulation) and are

executed only by authorised persons.

Installation space requirements

NOTICE

▪ Pipework shall be protected from physical damage.

▪ Installation of pipework shall be kept to a minimum.

WARNING

If appliances contain R32 refrigerant, then the floor area of

the room in which the appliances are installed, operated

and stored must be larger than the minimum floor area

defined in table below A (m2). This applies to:

▪ indoor units,

▪ outdoor units installed or stored indoors (example:

winter garden, garage, machinery room),

▪ pipework in unventilated spaces.

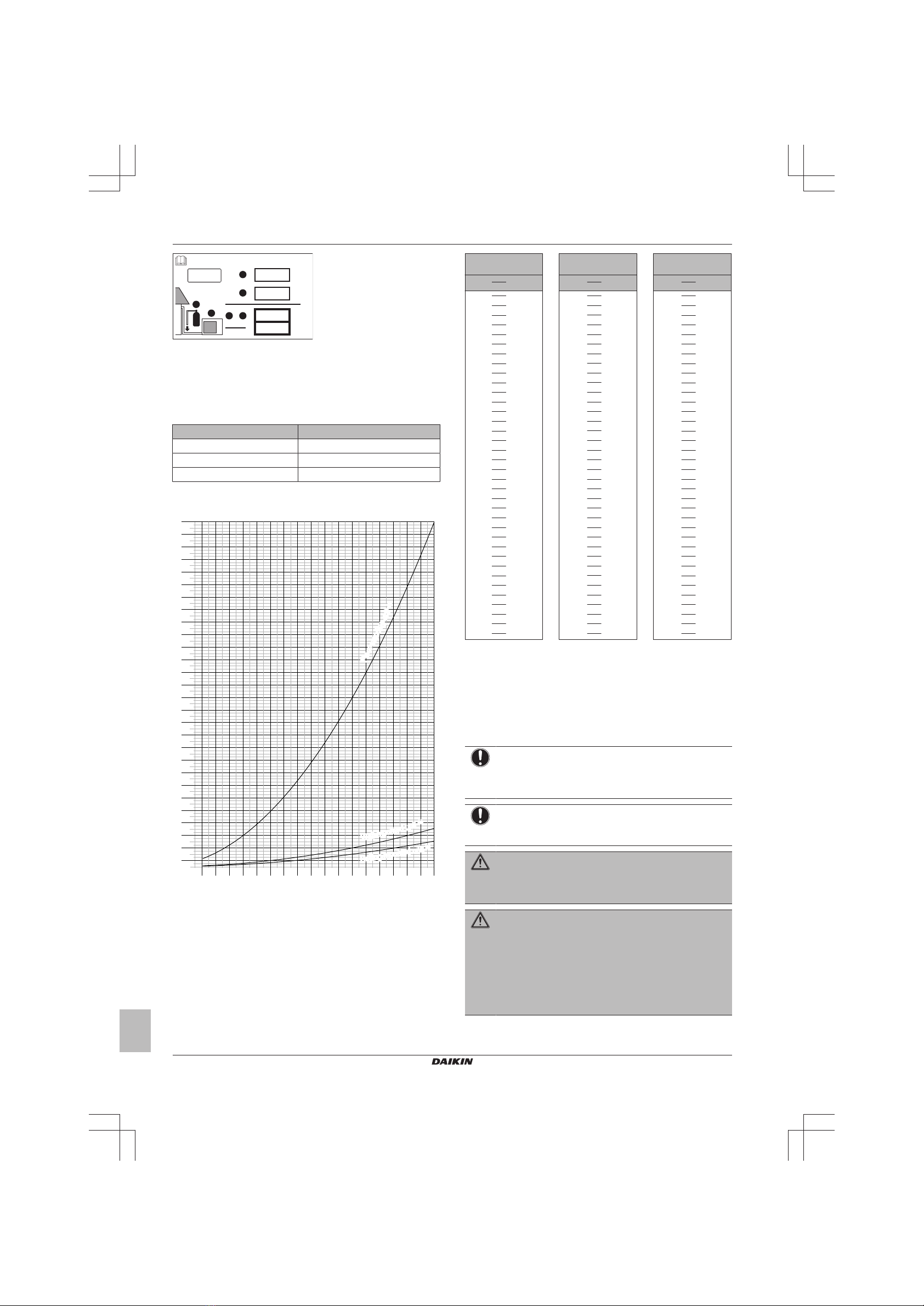

To determine the minimum floor area

1Determine the total refrigerant charge in the system (=factory

refrigerant charge + additional refrigerant amount

charged).

1 General safety precautions

Installer and user reference guide

FCAHG71~140GVEB

Split system air conditioners

4P482875-1 – 2017.03

Contains fluorinated greenhouse gases

2kg

tCO

1000

GWP × kg

GWP: xxx

R32

2Determine which graph or table to use.

▪ For indoor units: Is the unit ceiling-mounted, wall-mounted or

floor-standing?

▪ For outdoor units installed or stored indoors, and field piping

in unventilated spaces, this depends on the installation

height:

If the installation height is… Then use the graph or table for…

<1.8m Floor-standing units

1.8≤x<2.2m Wall-mounted units

≥2.2m Ceiling-mounted units

3Use the graph or table to determine the minimum floor area.

m (kg)

100

110

120

130

140

150

160

170

180

190

200

210

220

230

240

250

260

270

280

290

300

310

320

330

340

350

360

370

380

390

400

410

420

430

440

450

460

470

480

490

500

510

520

530

540

550

1.2

1.4

1.6

1.8

2.2

2.4

2.6

2.8

3.2

3.4

3.6

3.8

4.2

4.4

4.6

4.8

5.2

5.4

5.6

5.8

6.2

6.4

6.6

6.8

7.2

7.4

7.6

7.8

7.956

Amin (m2)

Floor-standing unit

(c)

Wall-mounted unit

(b)

Ceiling-mounted unit

(a)

Ceiling-mounted

unit(a)

—

4.6 13.5

<1.224 <1.224 —

4.6 182

1.225 0.956

4.8 14.7

1.225 12.9

4.8 198

1.4 1.25

5.0 16.0

1.4 16.8

5.0 215

1.6 1.63

5.2 17.3

1.6 22.0

5.2 232

1.8 2.07

5.4 18.6

1.8 27.8

5.4 250

2.0 2.55

5.6 20.0

2.0 34.3

5.6 269

2.2 3.09

5.8 21.5

2.2 41.5

5.8 289

2.4 3.68

6.0 23.0

2.4 49.4

6.0 309

2.6 4.31

6.2 24.5

2.6 58.0

6.2 330

2.8 5.00

6.4 26.1

2.8 67.3

6.4 351

3.0 5.74

6.6 27.8

3.0 77.2

6.6 374

3.2 6.54

6.8 29.5

3.2 87.9

6.8 397

3.4 7.38

7.0 31.3

3.4 99.2

7.0 420

3.6 8.27

7.2 33.1

3.6 111

7.2 445

3.8 9.22

7.4 34.9

3.8 124

7.4 470

4.0 10.2

7.6 36.9

4.0 137

7.6 496

4.2 11.3

7.8 38.8

4.2 151

7.8 522

4.4 12.4

7.956 40.8

4.4 166

7.956 549

m (kg) Amin (m2)

<1.224 —

4.6 20.2

1.225 1.43

4.8 22.0

1.4 1.87

5.0 23.8

1.6 2.44

5.2 25.8

1.8 3.09

5.4 27.8

2.0 3.81

5.6 29.9

2.2 4.61

5.8 32.1

2.4 5.49

6.0 34.3

2.6 6.44

6.2 36.6

2.8 7.47

6.4 39.1

3.0 8.58

6.6 41.5

3.2 9.76

6.8 44.1

3.4 11.0

7.0 46.7

3.6 12.4

7.2 49.4

3.8 13.8

7.4 52.2

4.0 15.3

7.6 55.1

4.2 16.8

7.8 58.0

4.4 18.5

7.956 61.0

Wall-mounted

unit(b)

m (kg) Amin (m2)

Floor-standing

unit(c)

m (kg) Amin (m2)

mTotal refrigerant charge in the system

Amin Minimum floor area

(a) Ceiling-mounted unit (= Ceiling-mounted unit)

(b) Wall-mounted unit (= Wall-mounted unit)

1.3.3 Refrigerant

If applicable. See the installation manual or installer reference guide

of your application for more information.

NOTICE

Make sure refrigerant piping installation complies with

applicable legislation. In Europe, EN378 is the applicable

standard.

NOTICE

Make sure the field piping and connections are not

subjected to stress.

WARNING

During tests, NEVER pressurize the product with a

pressure higher than the maximum allowable pressure (as

indicated on the nameplate of the unit).

WARNING

Take sufficient precautions in case of refrigerant leakage. If

refrigerant gas leaks, ventilate the area immediately.

Possible risks:

▪ Excessive refrigerant concentrations in a closed room

can lead to oxygen deficiency.

▪ Toxic gas may be produced if refrigerant gas comes

into contact with fire.

1 General safety precautions

Installer and user reference guide

FCAHG71~140GVEB

Split system air conditioners

4P482875-1 – 2017.03

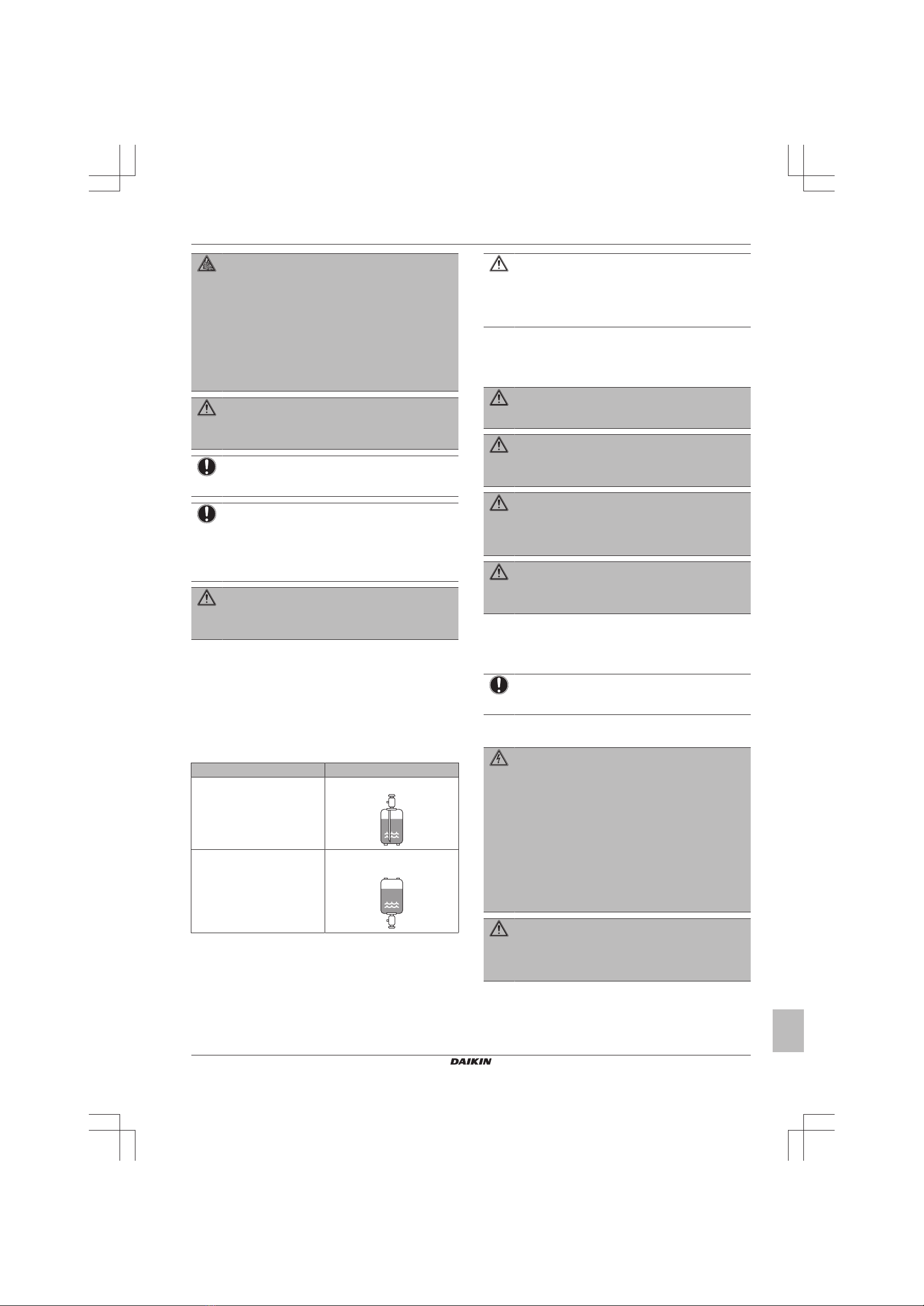

DANGER: RISK OF EXPLOSION

Pump down – Refrigerant leakage. If you want to pump

down the system, and there is a leakage in the refrigerant

circuit:

▪ Do NOT use the unit's automatic pump down function,

with which you can collect all refrigerant from the

system into the outdoor unit. Possible consequence:

Self-combustion and explosion of the compressor

because of air going into the operating compressor.

▪ Use a separate recovery system so that the unit's

compressor does NOT have to operate.

WARNING

Always recover the refrigerant. Do NOT release them

directly into the environment. Use a vacuum pump to

evacuate the installation.

NOTICE

After all the piping has been connected, make sure there is

no gas leak. Use nitrogen to perform a gas leak detection.

NOTICE

▪ To avoid compressor breakdown, do NOT charge more

than the specified amount of refrigerant.

▪ When the refrigerant system is to be opened,

refrigerant must be treated according to the applicable

legislation.

WARNING

Make sure there is no oxygen in the system. Refrigerant

may only be charged after performing the leak test and the

vacuum drying.

▪ In case re-charge is required, refer to the nameplate of the unit. It

states the type of refrigerant and necessary amount.

▪ The unit is factory charged with refrigerant and depending on pipe

sizes and pipe lengths some systems require additional charging

of refrigerant.

▪ Only use tools exclusively for the refrigerant type used in the

system, this to ensure pressure resistance and prevent foreign

materials from entering into the system.

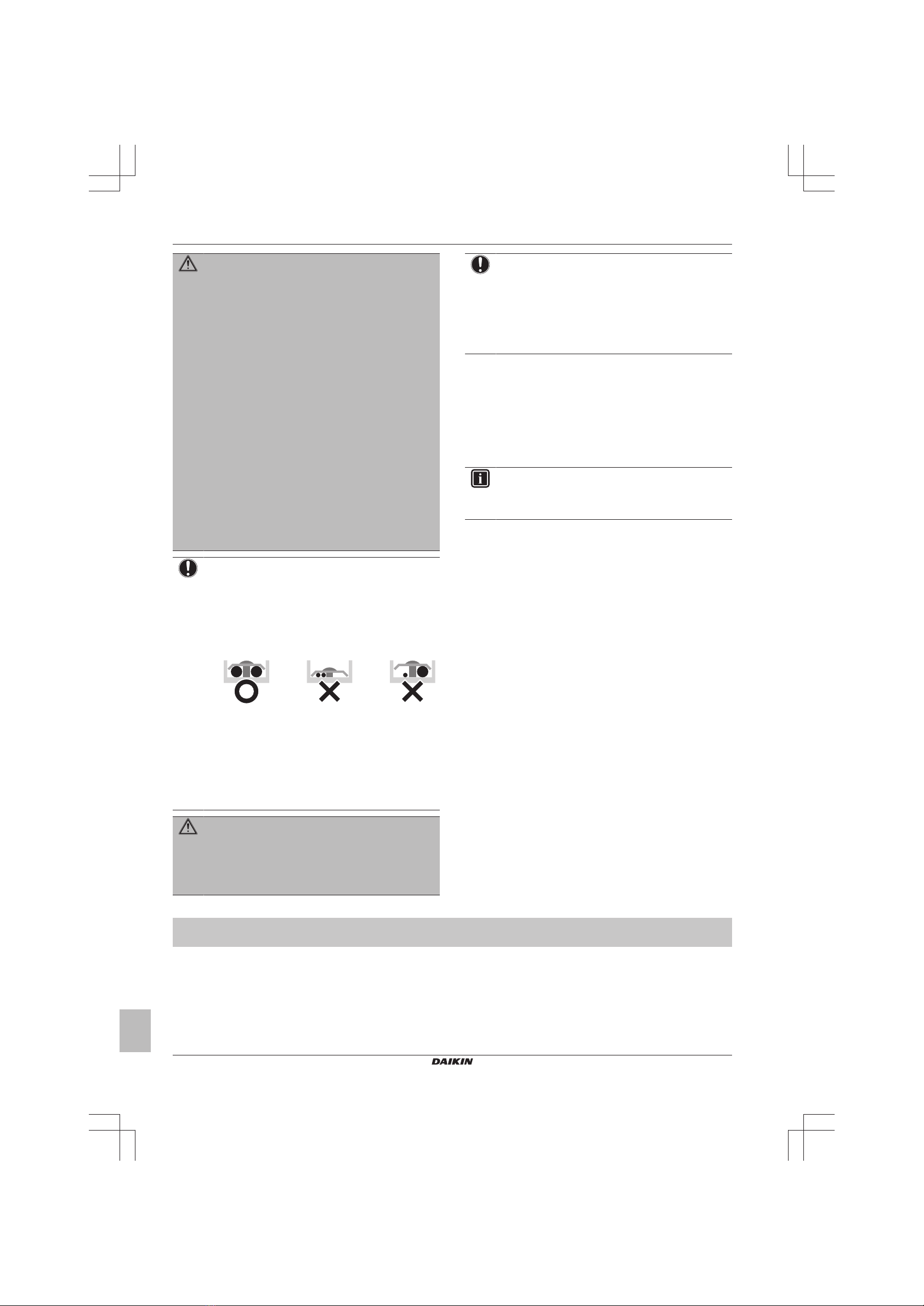

▪ Charge the liquid refrigerant as follows:

If Then

A siphon tube is present

(i.e., the cylinder is marked with

"Liquid filling siphon attached")

Charge with the cylinder upright.

A siphon tube is NOT present Charge with the cylinder upside

down.

▪ Open refrigerant cylinders slowly.

▪ Charge the refrigerant in liquid form. Adding it in gas form may

prevent normal operation.

CAUTION

When the refrigerant charging procedure is done or when

pausing, close the valve of the refrigerant tank

immediately. If the valve is not closed immediately,

remaining pressure might charge additional refrigerant.

Possible consequence: Incorrect refrigerant amount.

1.3.4 Brine

If applicable. See the installation manual or installer reference guide

of your application for more information.

WARNING

The selection of the brine MUST be in accordance with the

applicable legislation.

WARNING

Take sufficient precautions in case of brine leakage. If

brine leaks, ventilate the area immediately and contact

your local dealer.

WARNING

The ambient temperature inside the unit can get much

higher than that of the room, e.g. 70°C. In case of a brine

leak, hot parts inside the unit can create a hazardous

situation.

WARNING

The use and installation of the application MUST comply

with the safety and environmental precautions specified in

the applicable legislation.

1.3.5 Water

If applicable. See the installation manual or installer reference guide

of your application for more information.

NOTICE

Make sure water quality complies with EU directive

98/83EC.

1.3.6 Electrical

DANGER: RISK OF ELECTROCUTION

▪ Turn OFF all power supply before removing the

switch box cover, connecting electrical wiring or

touching electrical parts.

▪ Disconnect the power supply for more than 1 minute,

and measure the voltage at the terminals of main circuit

capacitors or electrical components before servicing.

The voltage MUST be less than 50 V DC before you

can touch electrical components. For the location of the

terminals, see the wiring diagram.

▪ Do NOT touch electrical components with wet hands.

▪ Do NOT leave the unit unattended when the service

cover is removed.

WARNING

If NOT factory installed, a main switch or other means for

disconnection, having a contact separation in all poles

providing full disconnection under overvoltage category III

condition, MUST be installed in the fixed wiring.

2 About the documentation

Installer and user reference guide

FCAHG71~140GVEB

Split system air conditioners

4P482875-1 – 2017.03

WARNING

▪ ONLY use copper wires.

▪ Make sure the field wiring complies with the applicable

legislation.

▪ All field wiring must be performed in accordance with

the wiring diagram supplied with the product.

▪ NEVER squeeze bundled cables and make sure they

do not come in contact with the piping and sharp

edges. Make sure no external pressure is applied to the

terminal connections.

▪ Make sure to install earth wiring. Do NOT earth the unit

to a utility pipe, surge absorber, or telephone earth.

Incomplete earth may cause electrical shock.

▪ Make sure to use a dedicated power circuit. NEVER

use a power supply shared by another appliance.

▪ Make sure to install the required fuses or circuit

breakers.

▪ Make sure to install an earth leakage protector. Failure

to do so may cause electric shock or fire.

▪ When installing the earth leakage protector, make sure

it is compatible with the inverter (resistant to high

frequency electric noise) to avoid unnecessary opening

of the earth leakage protector.

NOTICE

Precautions when laying power wiring:

▪ Do not connect wiring of different thicknesses to the

power terminal block (slack in the power wiring may

cause abnormal heat).

▪ When connecting wiring which is the same thickness,

do as shown in the figure below.

▪ For wiring, use the designated power wire and connect

firmly, then secure to prevent outside pressure being

exerted on the terminal board.

▪ Use an appropriate screwdriver for tightening the

terminal screws. A screwdriver with a small head will

damage the head and make proper tightening

impossible.

▪ Over-tightening the terminal screws may break them.

WARNING

▪ After finishing the electrical work, confirm that each

electrical component and terminal inside the electrical

components box is connected securely.

▪ Make sure all covers are closed before starting up the

unit.

NOTICE

Only applicable if the power supply is three‑phase, and the

compressor has an ON/OFF starting method.

If there exists the possibility of reversed phase after a

momentary black out and the power goes on and off while

the product is operating, attach a reversed phase

protection circuit locally. Running the product in reversed

phase can break the compressor and other parts.

2 About the documentation

2.1 About this document

Target audience

Authorised installers + end users

INFORMATION

This appliance is intended to be used by expert or trained

users in shops, in light industry, and on farms, or for

commercial and household use by lay persons.

Documentation set

This document is part of a documentation set. The complete set

consists of:

▪General safety precautions:

▪ Safety instructions that you must read before installing

▪ Format: Paper (in the box of the indoor unit)

▪Indoor unit installation and operation manual:

▪ Installation and operation instructions

▪ Format: Paper (in the box of the indoor unit)

▪Installer and user reference guide:

▪ Preparation of the installation, good practices, reference data,…

▪ Detailed step-by-step instructions and background information

for basic and advanced usage

▪ Format: Digital files on http://www.daikineurope.com/support-

and-manuals/product-information/

Latest revisions of the supplied documentation may be available on

the regional Daikin website or via your dealer.

The original documentation is written in English. All other languages

are translations.

Technical engineering data

▪ A subset of the latest technical data is available on the regional

Daikin website (publicly accessible).

▪ The full set of latest technical data is available on the Daikin

extranet (authentication required).

For the installer

3 About the box

3.1 Overview: About the box

It contains information about:

▪ Unpacking and handling the units

▪ Removing the accessories from the units

Keep the following in mind:

▪ At delivery, the unit must be checked for damage. Any damage

must be reported immediately to the carrier's claims agent.

4 About the units and options

Installer and user reference guide

FCAHG71~140GVEB

Split system air conditioners

4P482875-1 – 2017.03

▪ Bring the packed unit as close as possible to its final installation

position to prevent damage during transport.

3.2 Indoor unit

3.2.1 To unpack and handle the unit

Use a sling of soft material or protective plates together with a rope

when lifting the unit. This to avoid damage or scratches to the unit.

Lift the unit by holding on to the hanger brackets without exerting

any pressure on other parts, especially on refrigerant piping, drain

piping and other resin parts.

1 2

3.2.2 To remove the accessories from the

indoor unit

8× 4×1×1× 1×

4×1×

1×

7×

1×

e fdcb

h ji

l m

aPaper pattern for installation (upper part of packing)

bGeneral safety precautions

cIndoor unit installation and operation manual

dInstallation guide

eWashers for hanger brackets

fScrews (to temporarily attach the paper pattern for

installation to the indoor unit)

gCable ties

hMetal clamp

iInsulation piece (drain pipe)

jSealing pads: Large (drain pipe), medium 1 (gas pipe),

medium 2 (liquid pipe), small (electrical wiring)

kDrain hose

lInsulation piece: Small (liquid pipe)

mInsulation piece: Large (gas pipe)

4 About the units and options

4.1 Overview: About the units and

options

This chapter contains information about:

▪ Combining outdoor and indoor units

▪ Combining the indoor unit with options

NOTICE

Do not wipe the controller operation panel with benzine,

thinner, chemical dust cloth, etc. The panel may get

discoloured or the coating peeled off. If it is heavily dirty,

soak a cloth in water-diluted neutral detergent, squeeze it

well and wipe the panel clean. Wipe it with another dry

cloth.

4.2 Identification

NOTICE

When installing or servicing several units at the same time,

make sure NOT to switch the service panels between

different models.

4.2.1 Identification label: Indoor unit

Location

4.3 About the indoor unit

Use the system in the following temperature and humidity ranges for

safe and effective operation.

For combination with R410A outdoor unit, refer to the following table:

Outdoor units Cooling Heating

RZQG71~140 Outdoor

temperature

–15~50°CDB –19~21°CDB

–20~15.5°CWB

Indoor

temperature

18~37°CDB

12~28°CWB

10~27°CDB

RZQSG71~140 Outdoor

temperature

–15~46°CDB –14~21°CDB

–15~15.5°CWB

Indoor

temperature

20~37°CDB

14~28°CWB

10~27°CDB

For combination with R32 outdoor unit, refer to the following table:

Outdoor units Cooling Heating

RZASG71~140 Outdoor

temperature

–15~46°CDB –14~21°CDB

–15~15.5°CWB

Indoor

temperature

20~37°CDB

14~28°CWB

10~27°CDB

Indoor humidity ≤80%(a)

5 Preparation

Installer and user reference guide

FCAHG71~140GVEB

Split system air conditioners

4P482875-1 – 2017.03

(a) To avoid condensation and water dripping out of the unit. If

the temperature or the humidity is beyond these conditions,

safety devices may be put in action and the air conditioner

may not operate.

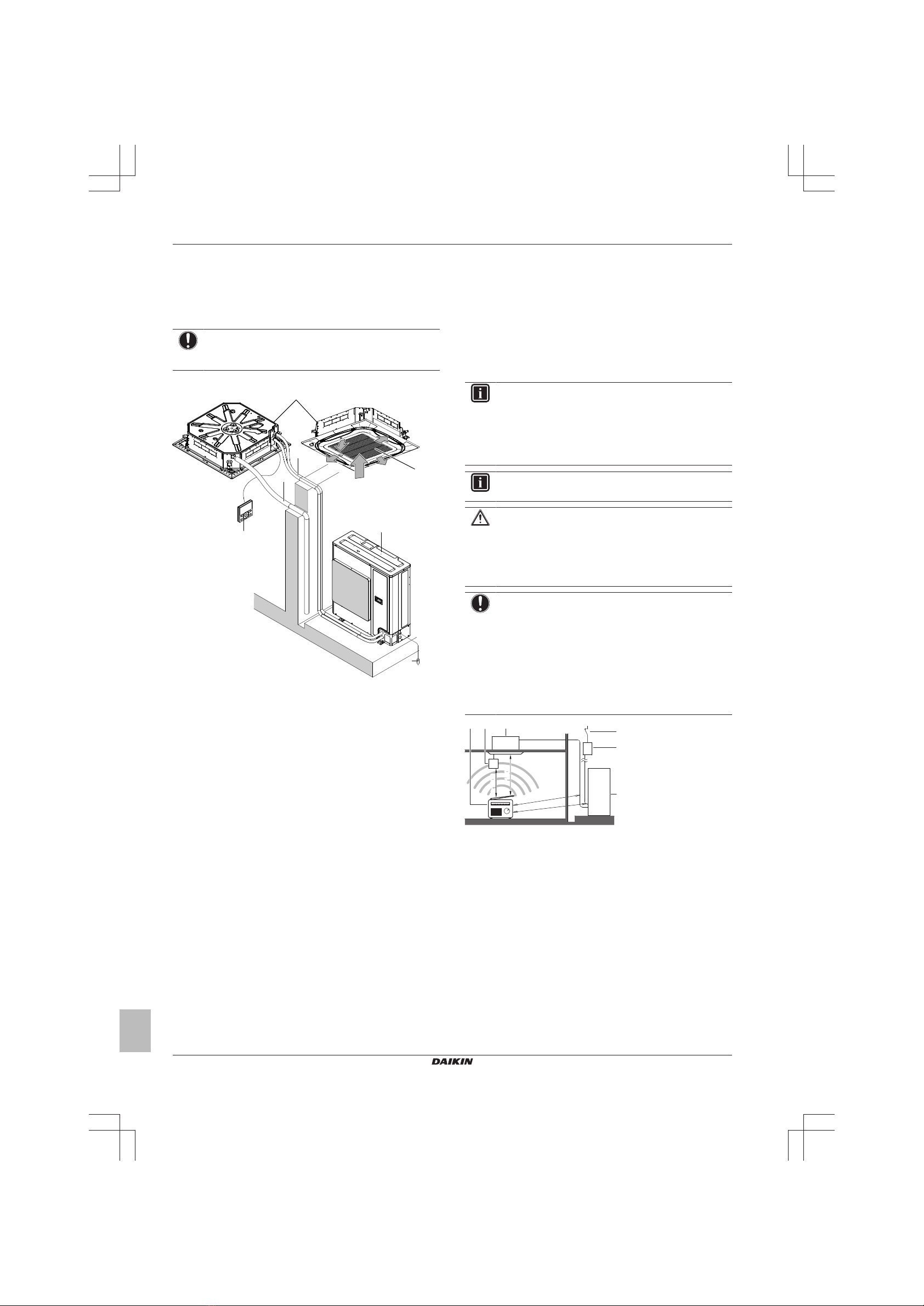

4.4 System layout

NOTICE

Design of the system must not be done at temperatures

below –15°C.

g i

aIndoor unit

bOutdoor unit

cUser interface

dSuction air

eDischarge air

fRefrigerant piping + interconnection cable

gDrain pipe

hEarth wiring

iSuction grille and air filter

4.5 Combining units and options

4.5.1 Possible options for the indoor unit

Make sure you have the following mandatory options:

▪ User interface: Wired or wireless

▪ Decoration panel: Standard or self-cleaning

5 Preparation

5.1 Overview: Preparation

This chapter describes what you have to do and know before going

on-site.

It contains information about:

▪ Preparing the installation site

▪ Preparing the refrigerant piping

▪ Preparing the electrical wiring

5.2 Preparing installation site

Do NOT install the unit in places often used as work place. In case

of construction works (e.g. grinding works) where a lot of dust is

created, the unit must be covered.

Choose the installation location with sufficient place for carrying the

unit in and out of the site.

5.2.1 Installation site requirements of the

indoor unit

INFORMATION

Also read the following requirements:

▪ General installation site requirements. See the

"General safety precautions" chapter.

▪ Refrigerant piping requirements (length, height

difference). See further in this "Preparation" chapter.

INFORMATION

The sound pressure level is less than 70dBA.

CAUTION

Appliance not accessible to the general public, install it in a

secured area, protected from easy access.

This unit, both indoor and outdoor, is suitable for

installation in a commercial and light industrial

environment.

NOTICE

The equipment described in this manual may cause

electronic noise generated from radio-frequency energy.

The equipment complies to specifications that are

designed to provide reasonable protection against such

interference. However, there is no guarantee that

interference will not occur in a particular installation.

It is therefore recommended to install the equipment and

electric wires keeping proper distances away from stereo

equipment, personal computers, etc.

df e

(mm)

≥

1500

≥

1500

≥

1000

≥

1000

≥

1000

≥

1000

aEarth leakage protector

bFuse

cOutdoor unit

dIndoor unit

eUser interface

fPersonal computer or radio

In places with weak reception, keep distances of 3 m or more to

avoid electromagnetic disturbance of other equipment and use

conduit tubes for power and transmission lines.

▪Fluorescent lights. When installing a wireless user interface in a

room with fluorescent lights, mind the following to avoid

interference:

▪ Install the wireless user interface as close as possible to the

indoor unit.

▪ Install the indoor unit as far as possible from the fluorescent

lights.

▪ Take care that in the event of a water leak, water cannot cause

any damage to the installation space and surroundings.

5 Preparation

Installer and user reference guide

FCAHG71~140GVEB

Split system air conditioners

4P482875-1 – 2017.03

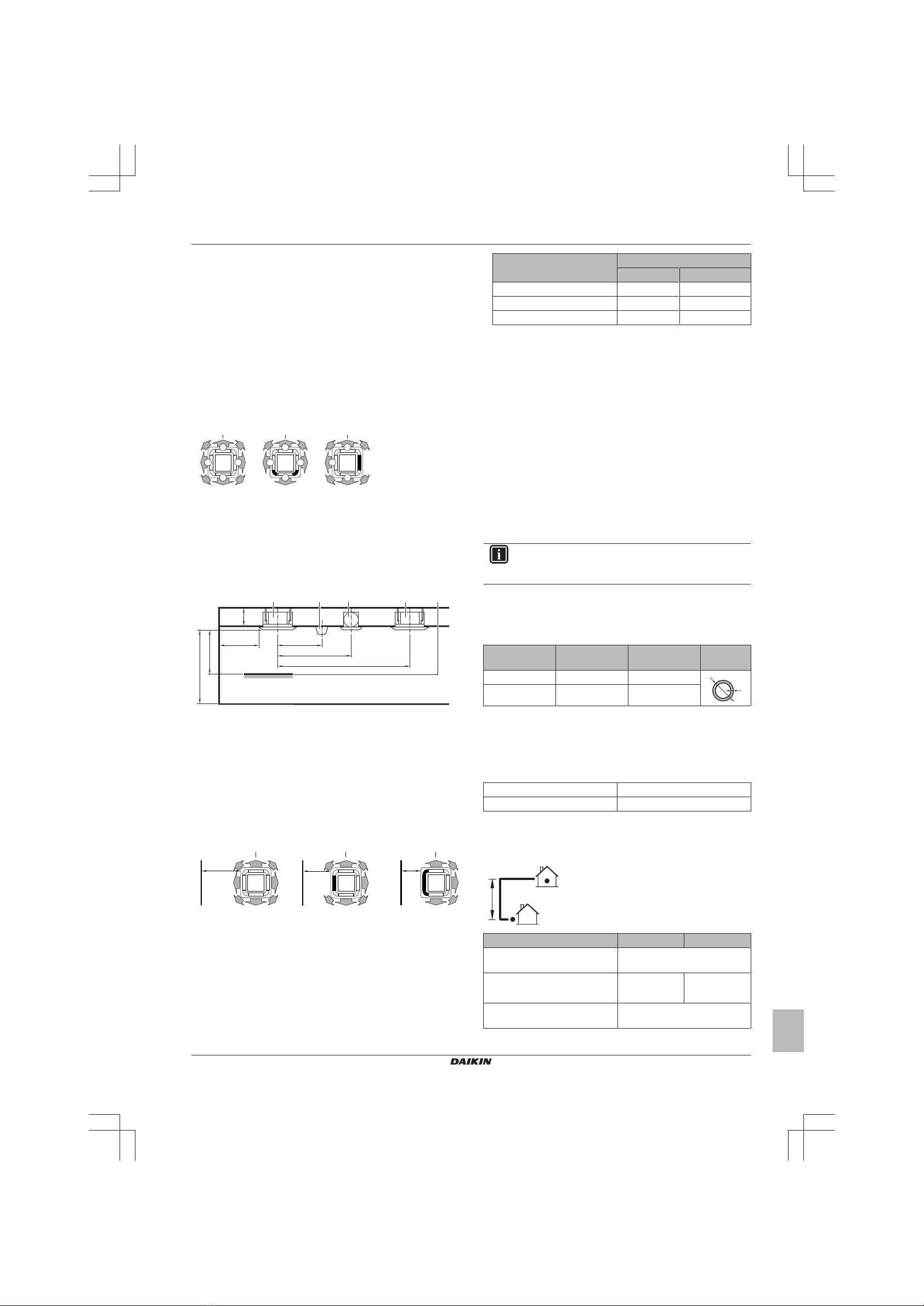

▪ Choose a location where the hot/cold air discharged from the unit

or the operation noise, will NOT disturb anyone.

▪Air flow. Make sure nothing blocks the air flow.

▪Drainage. Make sure condensation water can be evacuated

properly.

▪Paper pattern for installation (upper part of packing)

(accessory). When selecting the installation location, use the

paper pattern. It contains the dimensions of the unit and the

required ceiling opening.

▪Air flow directions. You can select different air flow directions.

Choose the one best suited for the room. Also make sure the "Air

flow direction" field setting corresponds with the actual situation

(see Field settings).

Example:

a b c

aAll-round air flow

b4-way air flow (with closed corners) (optional blocking pad

kit required)

c3-way air flow (optional blocking pad kit required)

▪Ceiling insulation. When conditions in the ceiling exceed 30°C

and a relative humidity of 80%, or when fresh air is inducted into

the ceiling, then additional insulation is required (minimum 10mm

thickness, polyethylene foam).

▪Spacing. Mind the following requirements:

(mm)

≥1500

≥

2000

≥

4000

≥1500

ba dac

AMinimum distance to the wall (see below)

BMinimum and maximum distance to the floor (see below)

C ≥298mm: In case of installation with standard decoration

panel

≥348mm: In case of installation with fresh air intake kit

≥378mm: In case of installation with self-cleaning

decoration panel

aIndoor unit

bLighting (the figure shows ceiling-mounted lighting, but

recessed lighting is also allowed)

cAir fan

dStatic volume (example: table)

▪A: Minimum distance to the wall. Depends on the air flow

directions towards the wall.

≥1500 ≥500 ≥200

A A A

b c

aAir outlet and corners open

bAir outlet closed, corners open (optional blocking pad kit

required)

cAir outlet and corners closed (optional blocking pad kit

required)

▪B: Minimum and maximum distance to the floor:

▪ Minimum: 2.5m to avoid accidental touching.

▪ Maximum: Depends on the air flow directions and the capacity

class. Also make sure the "Ceiling height" field setting

corresponds with the actual situation. See Field settings.

If air flow direction… Then B

FCAHG71 FCAHG100~140

All-round ≤3.5m ≤4.2m

4-way(a) ≤4.0m ≤4.5m

3-way(a) ≤3.5m ≤4.2m

(a) Optional blocking kit required

Do NOT install the unit in the following places:

▪ In places where a mineral oil mist, spray or vapour may be

present in the atmosphere. Plastic parts may deteriorate and fall

off or cause water leakage.

It is NOT recommended to install the unit in the following places

because it may shorten the life of the unit:

▪ Where the voltage fluctuates a lot

▪ In vehicles or vessels

▪ Where acidic or alkaline vapour is present

5.3 Preparing refrigerant piping

5.3.1 Refrigerant piping requirements

INFORMATION

Also read the precautions and requirements in the

"General safety precautions" chapter.

Refrigerant piping material

▪Piping material: Phosphoric acid deoxidised seamless copper.

▪Piping temper grade and thickness:

Outer diameter

(Ø)

Temper grade Thickness (t)(a)

9.5mm (3/8") Annealed (O) ≥0.8mm

15.9mm (5/8") Annealed (O) ≥1.0mm

(a) Depending on the applicable legislation and the unit's

maximum working pressure (see "PS High" on the unit

name plate), larger piping thickness might be required.

Refrigerant piping diameter

Use the same diameters as the connections on the outdoor units:

L1 liquid piping Ø9.5mm

L1 gas piping Ø15.9mm

Refrigerant piping length and height difference

The piping length and height difference must comply with the

following requirements:

Requirement RZAG71 RZAG100~140

Minimum total one‑way piping

length

3m≤L1

Maximum total one‑way piping

length

L1≤55m

(75m)(a)

L1≤85m

(100m)(a)

Height difference between the

indoor unit and the outdoor unit

H1≤30m

(a) Parenthesised figure represents the equivalent length.

6 Installation

Installer and user reference guide

FCAHG71~140GVEB

Split system air conditioners

4P482875-1 – 2017.03

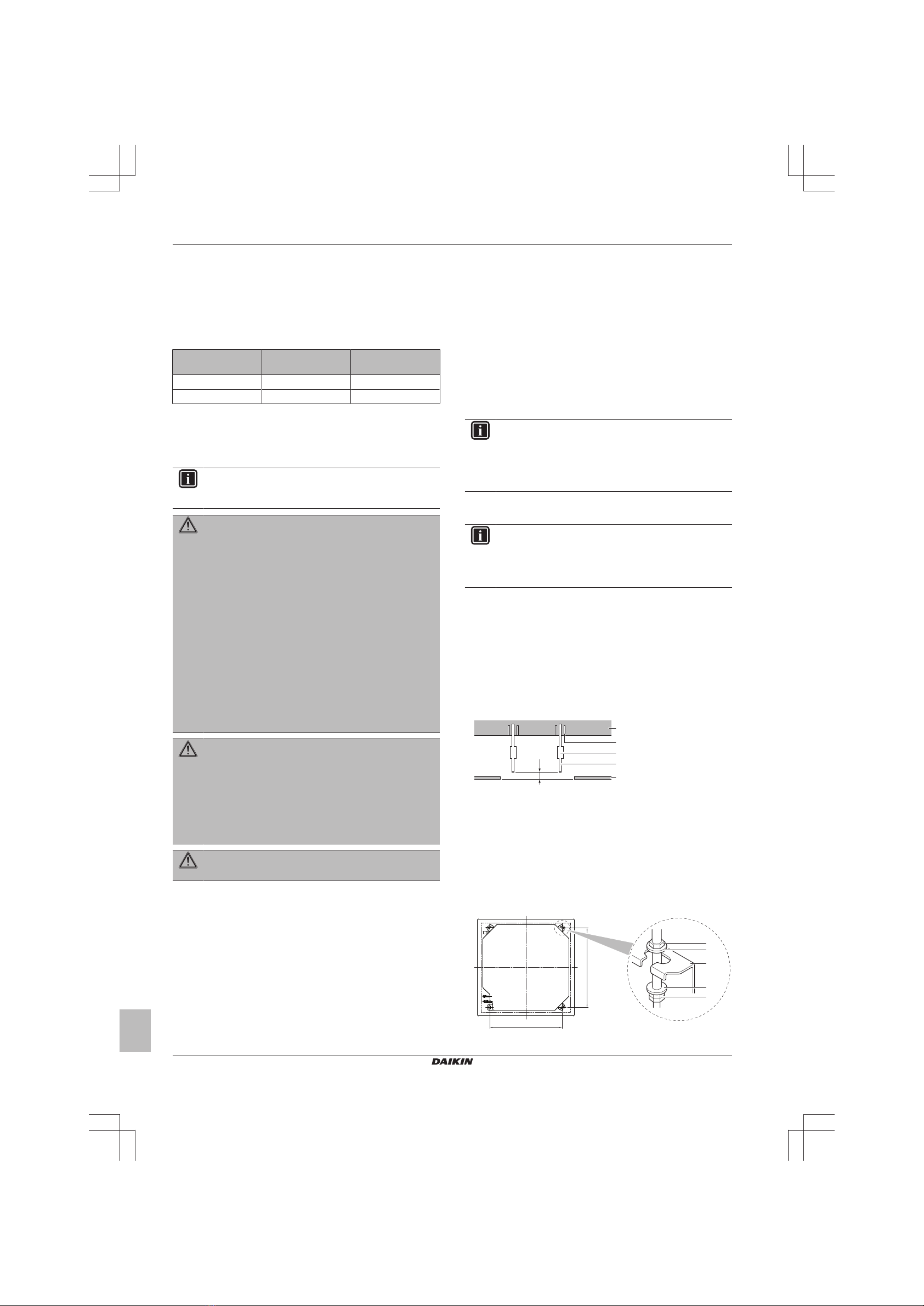

5.3.2 Refrigerant piping insulation

▪ Use polyethylene foam as insulation material:

▪ with a heat transfer rate between 0.041 and 0.052W/mK (0.035

and 0.045kcal/mh°C)

▪ with a heat resistance of at least 120°C

▪ Insulation thickness

Ambient

temperature

Humidity Minimum thickness

≤30°C 75% to 80% RH 15mm

>30°C ≥80% RH 20mm

5.4 Preparing electrical wiring

5.4.1 About preparing electrical wiring

INFORMATION

Also read the precautions and requirements in the

"General safety precautions" chapter.

WARNING

▪ If the power supply has a missing or wrong N-phase,

equipment might break down.

▪ Establish proper earthing. Do NOT earth the unit to a

utility pipe, surge absorber, or telephone earth.

Incomplete earthing may cause electrical shock.

▪ Install the required fuses or circuit breakers.

▪ Secure the electrical wiring with cable ties so that the

cables do NOT come in contact with sharp edges or

piping, particularly on the high-pressure side.

▪ Do NOT use taped wires, stranded conductor wires,

extension cords, or connections from a star system.

They can cause overheating, electrical shock or fire.

▪ Do NOT install a phase advancing capacitor, because

this unit is equipped with an inverter. A phase

advancing capacitor will reduce performance and may

cause accidents.

WARNING

▪ All wiring must be performed by an authorized

electrician and must comply with the applicable

legislation.

▪ Make electrical connections to the fixed wiring.

▪ All components procured on the site and all electrical

construction must comply with the applicable

legislation.

WARNING

ALWAYS use multicore cable for power supply cables.

6 Installation

6.1 Overview: Installation

This chapter describes what you have to do and know on-site to

install the system.

Typical workflow

Installation typically consists of the following stages:

▪ Mounting the outdoor unit.

▪ Mounting the indoor unit (+ decoration panel).

▪ Connecting the refrigerant piping.

▪ Checking the refrigerant piping.

▪ Charging refrigerant.

▪ Connecting the electrical wiring.

▪ Finishing the outdoor installation.

▪ Finishing the indoor installation.

6.2 Mounting the indoor unit

6.2.1 Precautions when mounting the indoor

unit

INFORMATION

Also read the precautions and requirements in the

following chapters:

▪ General safety precautions

▪ Preparation

6.2.2 Guidelines when installing the indoor unit

INFORMATION

Optional equipment. When installing optional equipment,

also read the installation manual of the optional equipment.

Depending on the field conditions, it might be easier to

install the optional equipment first.

▪In case of installation with a fresh air intake kit. Install the

fresh air intake kit always before installing the unit.

▪Decoration panel. Install the decoration panel always after

installing the unit.

▪Ceiling strength. Check whether the ceiling is strong enough to

support the weight of the unit. If there is a risk, reinforce the ceiling

before installing the unit.

▪ For existing ceilings, use anchors.

▪ For new ceilings, use sunken inserts, sunken anchors or other

field supplied parts.

A 50~100mm: In case of installation with standard panel

100~150mm: In case of installation with fresh air intake kit

130~180mm: In case of installation with self-cleaning

decoration panel

aCeiling slab

bAnchor

cLong nut or turnbuckle

dSuspension bolt

eSuspended ceiling

▪Suspension bolts. Use M8~M10 suspension bolts for installation.

Attach the hanger bracket to the suspension bolt. Fix it securely

using a nut and washer from the upper and lower sides of the

hanger bracket.

(mm)

780

710

4×

a1 Nut (field supply)

a2 Double nut (field supply)

6 Installation

Installer and user reference guide

FCAHG71~140GVEB

Split system air conditioners

4P482875-1 – 2017.03

bWasher (accessories)

cHanger bracket (attached to the unit)

▪Paper pattern for installation (upper part of the packing). Use

the paper pattern to determine the correct horizontal positioning. It

contains the necessary dimensions and centers. You can attach

the paper pattern to the unit.

a cb d

aCentre of the unit

bCentre of the ceiling opening

cPaper pattern for installation (upper part of the packing)

dScrews (accessories)

▪Ceiling opening and unit:

▪ Make sure the ceiling opening is within the following limits:

Minimum: 860mm to be able to fit the unit.

Maximum: 910 mm to ensure enough overlap between the

decoration panel and the suspended ceiling. If the ceiling

opening is larger, add extra ceiling material.

▪ Make sure the unit and its hanger brackets (suspension) are

centered within the ceiling opening.

(mm)

710

840

860~910

950

780

840

860~910

950

aDrain piping

bRefrigerant piping

cHanger bracket pitch (suspension)

dUnit

eCeiling opening

fDecoration panel

If A Then

B C

860mm

(= min.)

10mm 45mm

910mm

(= max.)

35mm 20mm

ACeiling opening

BDistance between the unit and the ceiling opening

COverlap between the decoration panel and the suspended

ceiling

▪Installation guide. Use the installation guide to determine the

correct vertical position.

A B C

ab c

AIn case of installation with standard decoration panel

BIn case of installation with fresh air intake kit

CIn case of installation with self-cleaning decoration panel

aSuspended ceiling

bInstallation guide (accessory)

cUnit

▪Level. Make sure the unit is level at all 4 corners using a level or a

water-filled vinyl tube.

bba

aLevel

bVinyl tube

cWater level

NOTICE

Do NOT install the unit tilted. Possible consequence: If

the unit is tilted against the direction of the condensate flow

(the drain piping side is raised), the float switch might

malfunction and cause water to drip.

6.2.3 Guidelines when installing the drain

piping

Make sure condensation water can be evacuated properly. This

involves:

▪ General guidelines

▪ Connecting the drain piping to the indoor unit

▪ Checking for water leaks

General guidelines

▪Pipe length. Keep drain piping as short as possible.

▪Pipe size. Keep the pipe size equal to or greater than that of the

connecting pipe (vinyl pipe of 25 mm nominal diameter and

32mm outer diameter).

▪Slope. Make sure the drain piping slopes down (at least 1/100) to

prevent air from being trapped in the piping. Use hanging bars as

shown.

1~1.5 m

aHanging bar

OAllowed

XNot allowed

6 Installation

Installer and user reference guide

FCAHG71~140GVEB

Split system air conditioners

4P482875-1 – 2017.03

▪Rising piping. If necessary to make the slope possible, you can

install rising piping.

▪ Drain hose inclination: 0~75mm to avoid stress on the piping

and to avoid air bubbles.

▪ Rising piping: ≤300mm from the unit, ≤675mm perpendicular

to the unit.

≤675

≤300

0~75

1000~1500

(mm)

b c

add

aMetal clamp (accessory)

bDrain hose (accessory)

cRising drain piping (vinyl pipe of 25mm nominal diameter

and 32mm outer diameter) (field supply)

dHanging bars (field supply)

▪Condensation. Take measures against condensation. Insulate

the complete drain piping in the building.

▪Combining drain pipes. You can combine drain pipes. Make

sure to use drain pipes and T-joints with a correct gauge for the

operating capacity of the units.

≥100

≤675

(mm)

aT-joint

To connect the drain piping to the indoor unit

NOTICE

Incorrect connection of the drain hose might cause leaks,

and damage the installation space and surroundings.

1Push the drain hose as far as possible over the drain pipe

connection.

2Tighten the metal clamp until the screw head is less than 4mm

from the metal clamp part.

3Check for water leaks (see "To check for water leaks" on

page14).

4Install the insulation piece (drain pipe).

5Wind the large sealing pad (= insulation) around the metal

clamp and drain hose, and fix it with cable ties.

6Connect the drain piping to the drain hose.

≤4 mm

A-A'

652

ba d

2~61

aDrain pipe connection (attached to the unit)

bDrain hose (accessory)

cMetal clamp (accessory)

dLarge sealing pad (accessory)

eInsulation piece (drain pipe) (accessory)

fDrain piping (field supply)

To check for water leaks

The procedure differs depending on whether electrical wiring is

already finished. When electrical wiring is not finished yet, you need

to temporarily connect the user interface and power supply to the

unit.

When electrical wiring is not finished yet

1Temporarily connect electrical wiring.

▪ Remove the switch box cover (a).

▪ Connect the user interface (b).

▪ Connect the power supply (1~ 220-240 V 50/60 Hz) and

earth (c).

▪ Reattach the switch box cover (a).

Forced OFF

Transm.

T1 T2

2Turn ON the power.

3Start cooling operation (see "8.4 To perform a test run" on

page20).

4Gradually pour approximately 1 l of water through the air

discharge outlet, and check for leaks.

6 Installation

Installer and user reference guide

FCAHG71~140GVEB

Split system air conditioners

4P482875-1 – 2017.03

≥100 mm

aPlastic watering can

bService drain outlet (with rubber plug). Use this outlet to

drain water from the drain pan.

cDrain pump location

dDrain pipe connection

eDrain pipe

5Turn OFF the power.

6Disconnect the electrical wiring.

▪ Remove the switch box cover.

▪ Disconnect the power supply and earth.

▪ Disconnect the user interface.

▪ Reattach the switch box cover.

6.3 Connecting the refrigerant piping

6.3.1 About connecting the refrigerant piping

Before connecting the refrigerant piping

Make sure the outdoor and indoor unit are mounted.

Typical workflow

Connecting the refrigerant piping involves:

▪ Connecting the refrigerant piping to the outdoor unit

▪ Connecting the refrigerant piping to the indoor unit

▪ Insulating the refrigerant piping

▪ Keeping in mind the guidelines for:

▪ Pipe bending

▪ Flaring pipe ends

▪ Brazing

▪ Using the stop valves

6.3.2 Precautions when connecting the

refrigerant piping

INFORMATION

Also read the precautions and requirements in the

following chapters:

▪ General safety precautions

▪ Preparation

DANGER: RISK OF BURNING

CAUTION

▪ Do NOT use mineral oil on flared part.

▪ NEVER install a drier to this unit to guarantee its

lifetime. The drying material may dissolve and damage

the system.

NOTICE

Take the following precautions on refrigerant piping into

account:

▪ Avoid anything but the designated refrigerant to get

mixed into the refrigerant cycle (e.g. air).

▪ Only use R32 or R410A1 when adding refrigerant.

▪ Only use installation tools (e.g. manifold gauge set) that

are exclusively used for R32 or R410A1 installations to

withstand the pressure and to prevent foreign materials

(e.g. mineral oils and moisture) from mixing into the

system.

▪ Install the piping so that the flare is NOT subjected to

mechanical stress.

▪ Protect the piping as described in the following table to

prevent dirt, liquid or dust from entering the piping.

▪ Use caution when passing copper tubes through walls

(see figure below).

Unit Installation period Protection method

Outdoor unit >1month Pinch the pipe

<1month Pinch or tape the pipe

Indoor unit Regardless of the

period

INFORMATION

Do NOT open the refrigerant stop valve before checking

the refrigerant piping. When you need to charge additional

refrigerant it is recommended to open the refrigerant stop

valve after charging.

6.3.3 Guidelines when connecting the

refrigerant piping

Take the following guidelines into account when connecting pipes:

▪ Coat the flare inner surface with ether oil or ester oil when

connecting a flare nut. Tighten 3 or 4 turns by hand, before

tightening firmly.

▪ Always use 2 wrenches together when loosening a flare nut.

▪ Always use a spanner and torque wrench together to tighten the

flare nut when connecting the piping. This to prevent nut cracking

and leaks.

aTorque wrench

bSpanner

cPiping union

dFlare nut

(1) Refer to the outdoor unit specifications for the type of refrigerant to be used.

6 Installation

Installer and user reference guide

FCAHG71~140GVEB

Split system air conditioners

4P482875-1 – 2017.03

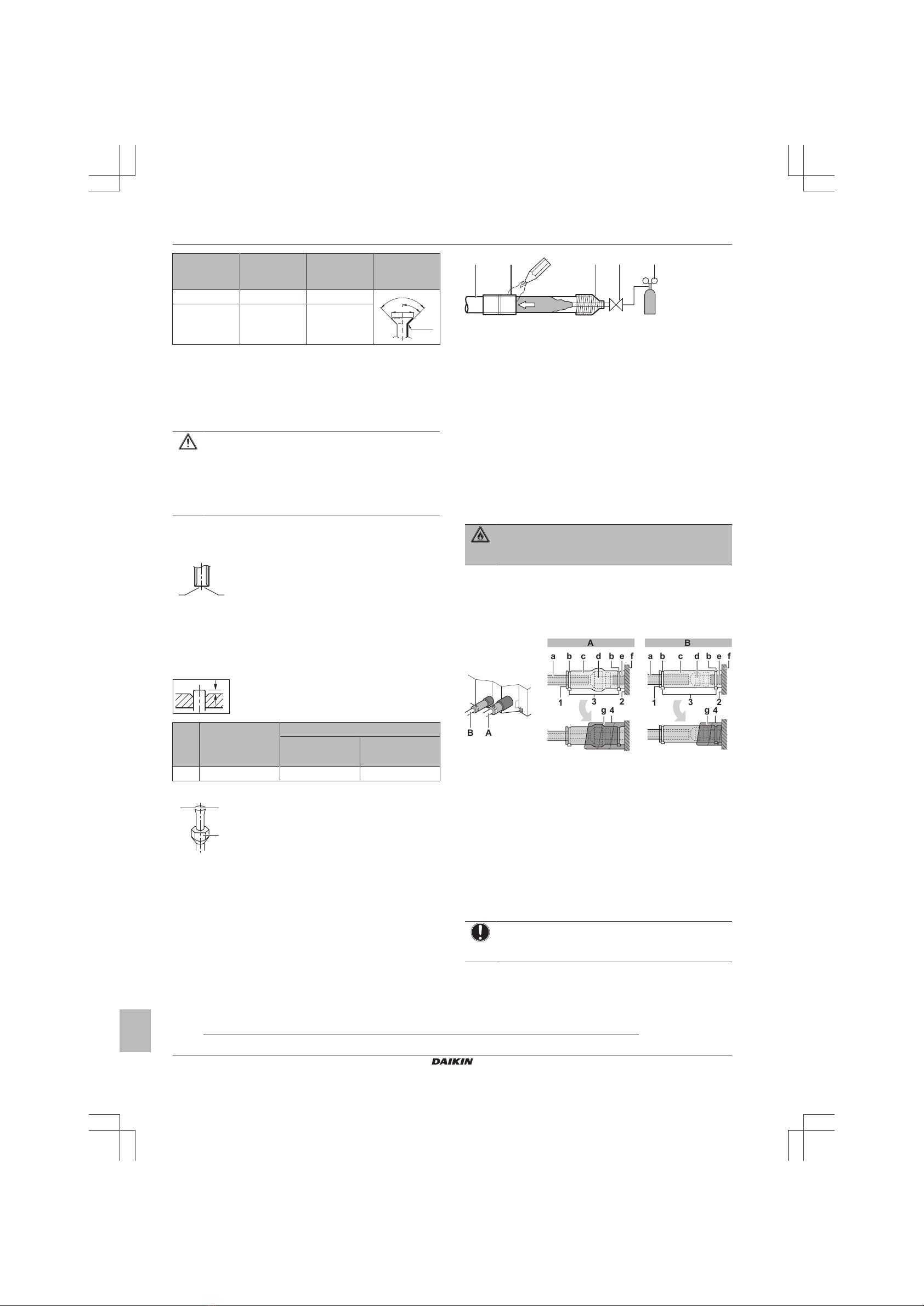

Piping size

(mm)

Tightening

torque (N•m)

Flare

dimensions (A)

(mm)

Flare shape

(mm)

Ø9.5 33~39 12.8~13.2

R=0.4~0.8

45°±2

90°±2

Ø15.9 63~75 19.3~19.7

6.3.4 Pipe bending guidelines

Use a pipe bender for bending. All pipe bends should be as gentle

as possible (bending radius should be 30~40mm or larger).

6.3.5 To flare the pipe end

CAUTION

▪ Incomplete flaring may cause refrigerant gas leakage.

▪ Do NOT re-use flares. Use new flares to prevent

refrigerant gas leakage.

▪ Use flare nuts that are included with the unit. Using

different flare nuts may cause refrigerant gas leakage.

1Cut the pipe end with a pipe cutter.

2Remove burrs with the cut surface facing down so that the

chips do not enter the pipe.

a b

aCut exactly at right angles.

bRemove burrs.

3Remove the flare nut from the stop valve and put the flare nut

on the pipe.

4Flare the pipe. Set exactly at the position as shown in the

following illustration.

Flare tool for

R410A or R32

(clutch type)

Conventional flare tool

Clutch type

(Ridgid-type)

Wing nut type

(Imperial-type)

A 0~0.5mm 1.0~1.5mm 1.5~2.0mm

5Check that the flaring is properly made.

a b

aFlare’s inner surface must be flawless.

bThe pipe end must be evenly flared in a perfect circle.

cMake sure the flare nut is fitted.

6.3.6 To braze the pipe end

The indoor unit and outdoor unit have flare connections. Connect

both ends without brazing. If brazing should be needed, take the

following into account:

▪ When brazing, blow through with nitrogen to prevent creation of

large quantities of oxidised film on the inside of the piping. This

film adversely affects valves and compressors in the refrigerating

system and prevents proper operation.

▪ Set the nitrogen pressure to 20 kPa (0.2bar) (just enough so it

can be felt on the skin) with a pressure-reducing valve.

a b c d e

aRefrigerant piping

bPart to be brazed

cTaping

dManual valve

ePressure-reducing valve

fNitrogen

▪ Do NOT use anti-oxidants when brazing pipe joints.

Residue can clog pipes and break equipment.

▪ Do NOT use flux when brazing copper-to-copper refrigerant

piping. Use phosphor copper brazing filler alloy (BCuP), which

does not require flux.

Flux has an extremely harmful influence on refrigerant piping

systems. For instance, if chlorine based flux is used, it will cause

pipe corrosion or, in particular, if the flux contains fluorine, it will

deteriorate the refrigerant oil.

6.3.7 To connect the refrigerant piping to the

indoor unit

WARNING: FLAMMABLE MATERIAL

The R32 refrigerant (if applicable) in this unit is mildly

flammable.2

▪Pipe length. Keep refrigerant piping as short as possible.

▪Flare connections. Connect refrigerant piping to the unit using

flare connections.

▪Insulation. Insulate the refrigerant piping on the indoor unit as

follows:

A B

a dc e fb b a dc e fb b

3g123

AGas piping

BLiquid piping

aInsulation material (field supply)

bCable tie (accessory)

cInsulation pieces: Large (gas pipe), small (liquid pipe)

(accessories)

dFlare nut (attached to the unit)

eRefrigerant pipe connection (attached to the unit)

fUnit

gSealing pads: Medium 1 (gas pipe), medium 2 (liquid pipe)

(accessories)

1Turn up the seams of the insulation pieces.

2Attach to the base of the unit.

3Tighten the cable ties on the insulation pieces.

4Wrap the sealing pad from the base of the unit to the top of

the flare nut.

NOTICE

Make sure to insulate all refrigerant piping. Any exposed

piping might cause condensation.

(2) Refer to the outdoor unit specifications for the type of refrigerant to be used.

6 Installation

Installer and user reference guide

FCAHG71~140GVEB

Split system air conditioners

4P482875-1 – 2017.03

6.4 Connecting the electrical wiring

6.4.1 About connecting the electrical wiring

Typical workflow

Connecting the electrical wiring typically consists of the following

stages:

1 Making sure the power supply system complies with the

electrical specifications of the units.

2 Connecting the electrical wiring to the outdoor unit.

3 Connecting the electrical wiring to the indoor unit.

4 Connecting the main power supply.

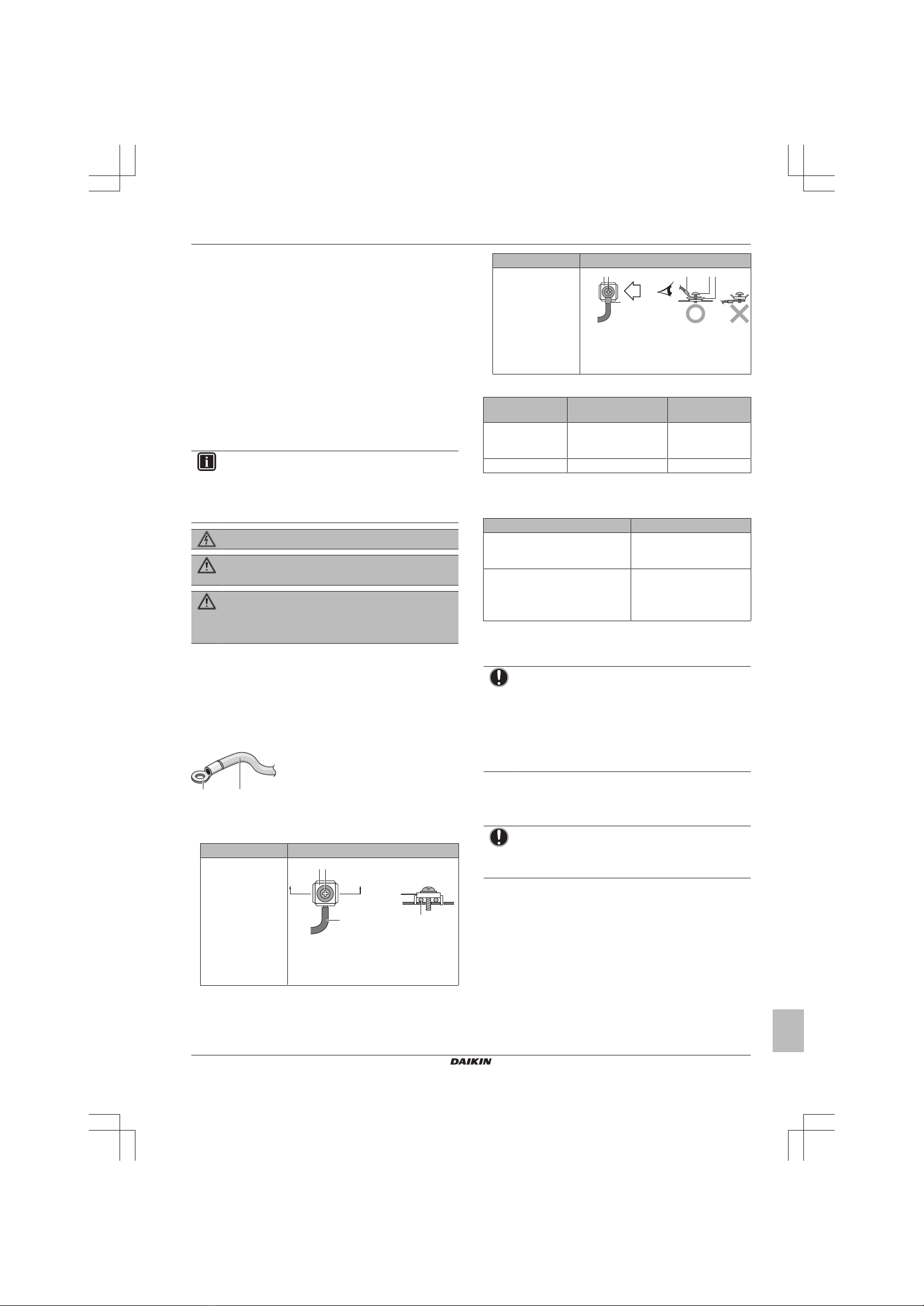

6.4.2 Precautions when connecting the

electrical wiring

INFORMATION

Also read the precautions and requirements in the

following chapters:

▪ General safety precautions

▪ Preparation

DANGER: RISK OF ELECTROCUTION

WARNING

ALWAYS use multicore cable for power supply cables.

WARNING

If the supply cord is damaged, it must be replaced by the

manufacturer, its service agent or similarly qualified

persons in order to avoid a hazard.

6.4.3 Guidelines when connecting the electrical

wiring

Keep the following in mind:

▪ If stranded conductor wires are being used, install a round crimp-

style terminal on the tip. Place the round crimp-style terminal on

the wire up to the covered part and fasten the terminal with the

appropriate tool.

b a

aStranded conductor wire

bRound crimp-style terminal

▪ Use the following methods for installing wires:

Wire type Installation method

Single core wire

c b

AA´

A´

a Curled single core wire

b Screw

c Flat washer

Wire type Installation method

Stranded conductor

wire with round

crimp-style terminal

c b ba c

a Terminal

b Screw

c Flat washer

Tightening torques

Wiring Screw size Tightening torque

(N•m)

Interconnection

cable

(indoor↔outdoor)

M4 1.18~1.44

User interface cable M3.5 0.79~0.97

6.4.4 Specifications of standard wiring

components

Component Specification

Interconnection cable

(indoor↔outdoor)

Minimum cable section of

2.5mm² and applicable for

230V

User interface cable Vinyl cords with 0.75 to

1.25mm² sheath or cables

(2‑core wires)

Maximum 500m

6.4.5 To connect the electrical wiring on the

indoor unit

NOTICE

▪ Follow the wiring diagram (delivered with the unit,

located at the inside of the service cover).

▪ For instructions on how to connect the decoration panel

and the sensor kit, see the installation manual delivered

with the panel or the kit.

▪ Make sure the electrical wiring does NOT obstruct

proper reattachment of the service cover.

It is important to keep the power supply and the transmission wiring

separated from each other. In order to avoid any electrical

interference the distance between both wiring should always be at

least 50mm.

NOTICE

Be sure to keep the power line and transmission line apart

from each other. Transmission wiring and power supply

wiring may cross, but may not run parallel.

1Remove the service cover.

2 User interface cable: Route the cable through the frame,

connect the cable to the terminal block, and fix the cable with a

cable tie.

3 Interconnection cable (indoor↔outdoor): Route the cable

through the frame, connect the cable to the terminal block

(make sure the numbers match with the numbers on the

outdoor unit, and connect the earth wire), and fix the cable with

a cable tie.

4Divide the small sealing (accessory) and wrap it around the

cables to prevent water from entering the unit. Seal all gaps to

prevent small animals from entering the system.

7 Configuration

Installer and user reference guide

FCAHG71~140GVEB

Split system air conditioners

4P482875-1 – 2017.03

WARNING

Provide adequate measures to prevent that the unit can be

used as a shelter by small animals. Small animals that

make contact with electrical parts can cause malfunctions,

smoke or fire.

5Reattach the service cover.

▪Pair type or multi-system. 1 user interface controls 1 indoor unit.

1~ 50 Hz

220-240 V

▪Simultaneous operation system. 1 user interface controls 2

indoor units (indoor units operate simultaneously)

1~ 50 Hz

220-240 V

▪Group control. 1 user interface controls up to 16 indoor units (all

indoor units operate according to the user interface).

1~ 50 Hz

220-240 V

1~ 50 Hz

220-240 V

1~ 50 Hz

220-240 V

▪2 user interface control. (2 remote controllers control 1 indoor

unit)

1~ 50 Hz

220-240 V

aInterconnection cable

bPower supply cable

cEarth leakage circuit breaker

dFuse

e1 Main user interface

e2 Optional user interface

Forced OFF

Transm.

T1 T2

70~90

10~15

70~90

10~20

(mm)

10~15

aService cover (with wiring diagram on the back)

bOpening for cables

cConnection of interconnection cable (including earth)

dCable tie

eConnection of user interface cable

7 Configuration

7.1 Field settings

Make the following field settings so that they correspond with the

actual installation setup and with the needs of the user:

▪ Ceiling height

▪ Air flow direction

▪ Air volume when thermostat control is OFF

▪ Time to clean air filter

Setting: Ceiling height

This setting must correspond with the actual distance to the floor,

capacity class and air flow directions.

▪ For 3-way and 4-way air flows (which require an optional blocking

pad kit), see the installation manual of the optional blocking pad

kit.

▪ For all-round air flow, use the table below.

7 Configuration

Installer and user reference guide

FCAHG71~140GVEB

Split system air conditioners

4P482875-1 – 2017.03

If the distance to the floor is (m) Then4

FCAHG71 FCAHG100~140 M C1 C2

≤2.7 ≤3.2 13 (23) 0 01

2.7<x≤3.0 3.2<x≤3.6 02

3.0<x≤3.5 3.6<x≤4.2 03

Setting: Air flow direction

This setting must correspond with the actual used air flow directions.

See the installation manual of the optional blocking pad kit and the

manual of the user interface.

Default: 01 (= all-round air flow)

Example:

a b c

aAll-round air flow

b4-way air flow (all air outlets open, 2 corners closed)

(optional blocking pad kit required)

c3-way air flow (1 air outlet closed, all corners open)

(optional blocking pad kit required)

Setting: Air volume when thermostat control is OFF

This setting must correspond with the needs of the user. It

determines the fan speed of the indoor unit during thermostat OFF

condition.

1If you have set the fan to operate, set the air volume speed:

If you want Then4

Outdoor unit M C1 C2

General 3MX/4MX/5M

During cooling

operation

LL512

(22)

6 01

Setup volume502

During heating

operation

LL5Monitoring 1512

(22)

3 01

Setup volume5Monitoring 2502

Setting: Time to clean air filter

This setting must correspond with the air contamination in the room.

It determines the interval at which the TIME TO CLEAN AIR FILTER

notification is displayed on the user interface. When using a wireless

user interface, you must also set the address (see the installation

manual of the user interface).

If you want an interval of…

(air contamination)

Then4

M C1 C2

±2500h (light) 10 (20) 0 01

±1250h (heavy) 02

No notification 3 02

Individual setting in a simultaneous operation system

We recommend using the optional user interface to set the slave

unit.

Perform the following steps:

2Change the second code number to 02 to perform individual

setting on the slave unit.

If you want to set the slave unit as… Then4

M C1 C2

Unified setting 21(11) 01 01

Individual setting 02

3Perform field setting for the master unit.

4Turn off the main power supply switch.

5Disconnect the remote controller from the master unit and

connect it to the slave unit.

6Change to individual setting.

7Perform field setting for the slave unit.

8Turn off the main power supply or, in case of more slave units,

repeat the previous steps for all slave units.

9Disconnect the user interface from the slave unit and reconnect

it to the master unit.

It is not necessary to rewire the remote controller from the master

unit if the optional user interface is used. (However, remove the

wires attached to the user interface terminal board of the master

unit)

1~ 50 Hz

220-240 V

A B

AMaster unit

BSlave unit

aInterconnection cable

bPower supply cable

cEarth leakage circuit breaker

dFuse

e1 Main user interface

e2 Optional user interface

(4) Field settings are defined as follows:

▪M: Mode number – First number: for group of units – Number between brackets: for individual unit

▪C1: First code number

▪C2: Second code number

▪ : Default

(5) Fan speed:

▪LL: Low fan speed

▪Setup volume: The fan speed corresponds to the speed the user has set (low, medium, high) using the fan speed button

on the user interface.

▪Monitoring 1, 2: The fan is OFF, but runs for a short time every 6minutes to detect the room temperature by Low fan

speed (1) or by Setup volume (2).

8 Commissioning

Installer and user reference guide

FCAHG71~140GVEB

Split system air conditioners

4P482875-1 – 2017.03

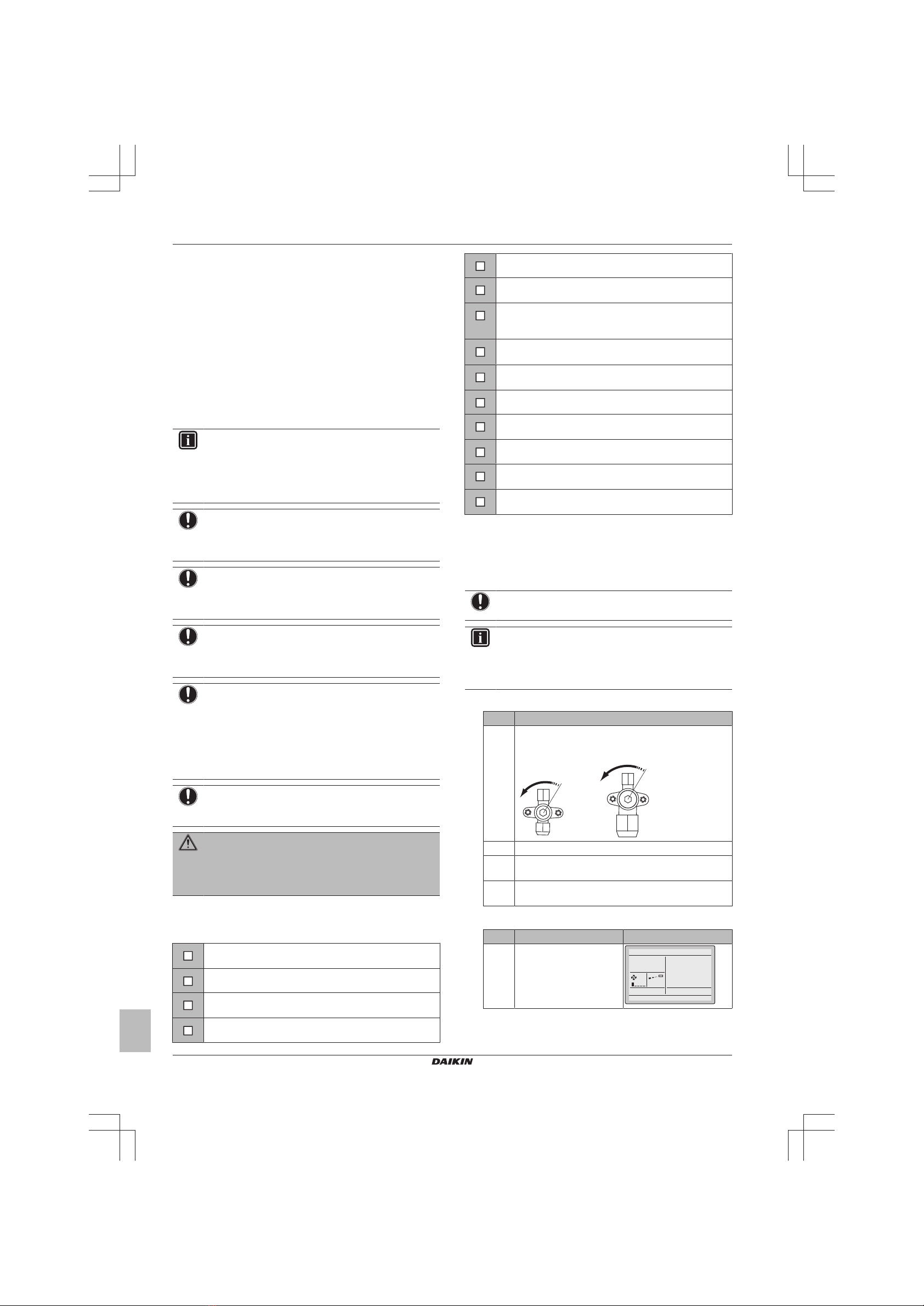

8 Commissioning

8.1 Overview: Commissioning

This chapter describes what you have to do and know to

commission the system after it is installed.

Typical workflow

Commissioning typically consists of the following stages:

1 Checking the "Checklist before commissioning".

2 Performing a test run for the system.

8.2 Precautions when commissioning

INFORMATION

During the first running period of the unit, the required

power may be higher than stated on the nameplate of the

unit. This phenomenon is caused by the compressor, that

needs a continuous run time of 50 hours before reaching

smooth operation and stable power consumption.

NOTICE

Before starting up the system, the unit MUST be energised

for at least 6hours to avoid compressor breakdown during

startup.

NOTICE

NEVER operate the unit without thermistors and/or

pressure sensors/switches. Burning of the compressor

might result.

NOTICE

Do NOT operate the unit until the refrigerant piping is

complete (when operated this way, the compressor will

break).

NOTICE

Cooling operation mode. Perform the test run in cooling

operation mode so that stop valves failing to open can be

detected. Even if the user interface was set to heating

operation mode, the unit will run in cooling operation mode

during 2‑3 minutes (although the user interface will display

the heating icon), and then automatically switch to heating

operation mode.

NOTICE

If you cannot operate the unit in test run, see "8.5 Error

codes when performing a test run"on page21.

WARNING

If the panels on the indoor units are not installed yet, make

sure to power OFF the system after finishing the test run.

To do so, turn OFF operation via the user interface. Do

NOT stop operation by turning OFF the circuit breakers.

8.3 Checklist before commissioning

Do NOT operate the system before the following checks are OK:

You read the complete installation instructions, as

described in the installer reference guide.

The indoor units are properly mounted.

In case a wireless user interface is used: The indoor unit

decoration panel with infrared receiver is installed.

The outdoor unit is properly mounted.

There are NO missing phases or reversed phases.

The system is properly earthed and the earth terminals

are tightened.

The fuses or locally installed protection devices are

installed according to this document, and have not been

bypassed.

The power supply voltage matches the voltage on the

identification label of the unit.

There are NO loose connections or damaged electrical

components in the switchbox.

The insulation resistance of the compressor is OK.

There are NO damaged components or squeezed

pipes on the inside of the indoor and outdoor units.

There are NO refrigerant leaks.

The correct pipe size is installed and the pipes are

properly insulated.

The stop valves (gas and liquid) on the outdoor unit are

fully open.

8.4 To perform a test run

This task is only applicable when using the BRC1E52 or BRC1E53

user interface. When using any other user interface, see the

installation manual or service manual of the user interface.

NOTICE

Do not interrupt the test run.

INFORMATION

Backlight. To perform an ON/OFF action on the user

interface, the backlight does not need to be lit. For any

other action, it needs to be lit first. The backlight is lit for

±30seconds when you press a button.

1Perform introductory steps.

# Action

1 Open the liquid stop valve (A) and gas stop valve (B)

by removing the stem cap and turning

counterclockwise with a hex wrench until it stops.

A B

2 Close the service cover to prevent electric shocks.

3 Turn ON power for at least 6hours before starting

operation to protect the compressor.

4 On the user interface, set the unit to cooling operation

mode.

2Start the test run

# Action Result

1 Go to the home menu.

Cool

Set to

28°C
