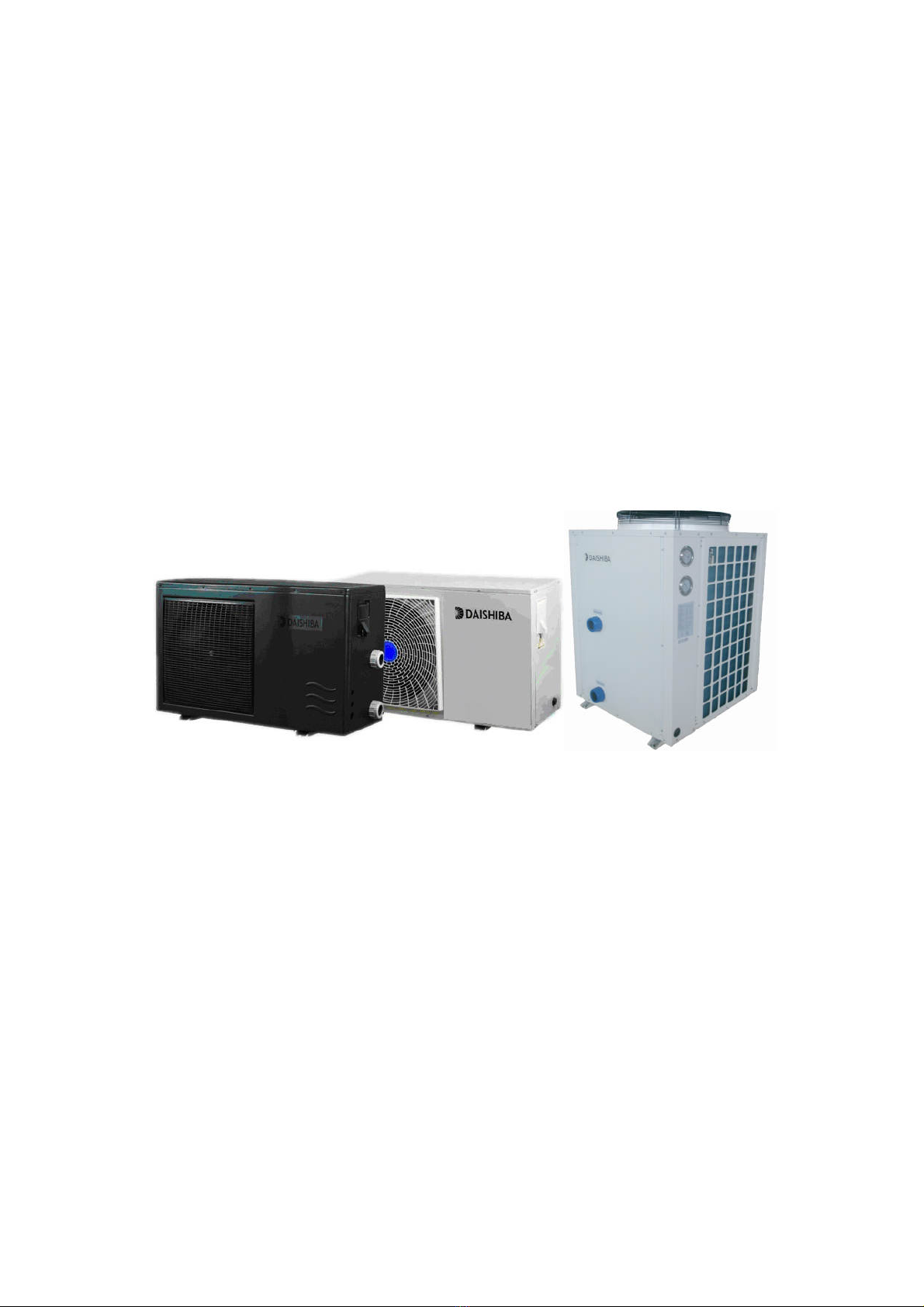

Daishiba DSP?45HCA User manual

Air Source Swimming Pool
Heat Pump
USER MANUAL
DSP-45HCA DSP-65HCA DSP-85HCA DSP-100HCA DSP-120HCA
DSP-180HCA DSP-180HCA/3 DSP-230HCA DSP-230HCA/3 DSP-260HCA/3

Swimming pool heat pump
- 1 -
To our customers
Attention
1. efore installing the heat pump, please check whether the local power supply corresponds
with the requirement of the heat pump. For details, please refer to the nameplate on the unit
or the installation and operation instruction.
2. Please install the electrical protection devices according to local regulations.
3. Connecting the heat pump to a ground wire is necessary, in order to prevent electric shock
caused by an unexpected short circuit inside the unit.
4. In wire connection, the electrician can refer to the wiring diagram in this manual. Wiring tasks
should be carried out by qualified electricians only. In addition, they should check the safety
conditions of power utilization, for example, check if the cable capacity is adequate, and check
if the power cable is damaged.
5. Do not insert any objects into the heat pump when running. It may touch the fan and damage
it or lead to accidents (especially for the children).
Do not use the unit without the grid in case it may lead to any accidents.
6. For safety reasons, please do not change or repair unit by yourself. If it is necessary, please
contact local distributor for help.
7. If there is something wrong with the unit, contact immediately with local distributor or our
factory. The unit can be reused only after check and solution by the technical staff.
8. Make sure that cut off the electric supply before maintaining the unit.
9. Please follow the instruction below when cleaning the unit.
a. efore cleaning, cut off the electric supply of the unit firstly to avoid injuries caused by fan
in operation.
b. Do not rinse the unit by water because the rinsed unit may cause electric shock.
Note!
Dear customers, thank your for your kind support to our products. Please read this
instruction carefully before the installation and application of this product. The precautions
listed below are all-important for safety. Please follow the instructions strictly.

Swimming pool heat pump
- 2 -
Content
Product brief instruction………………………….…………….……………………………………..3
Technical data....................................................................................................4
Unit dimension………………………………………………………….......................................6
Installation………………………………………………………………........................................8
Electric connection………………………………………………………………..........................13

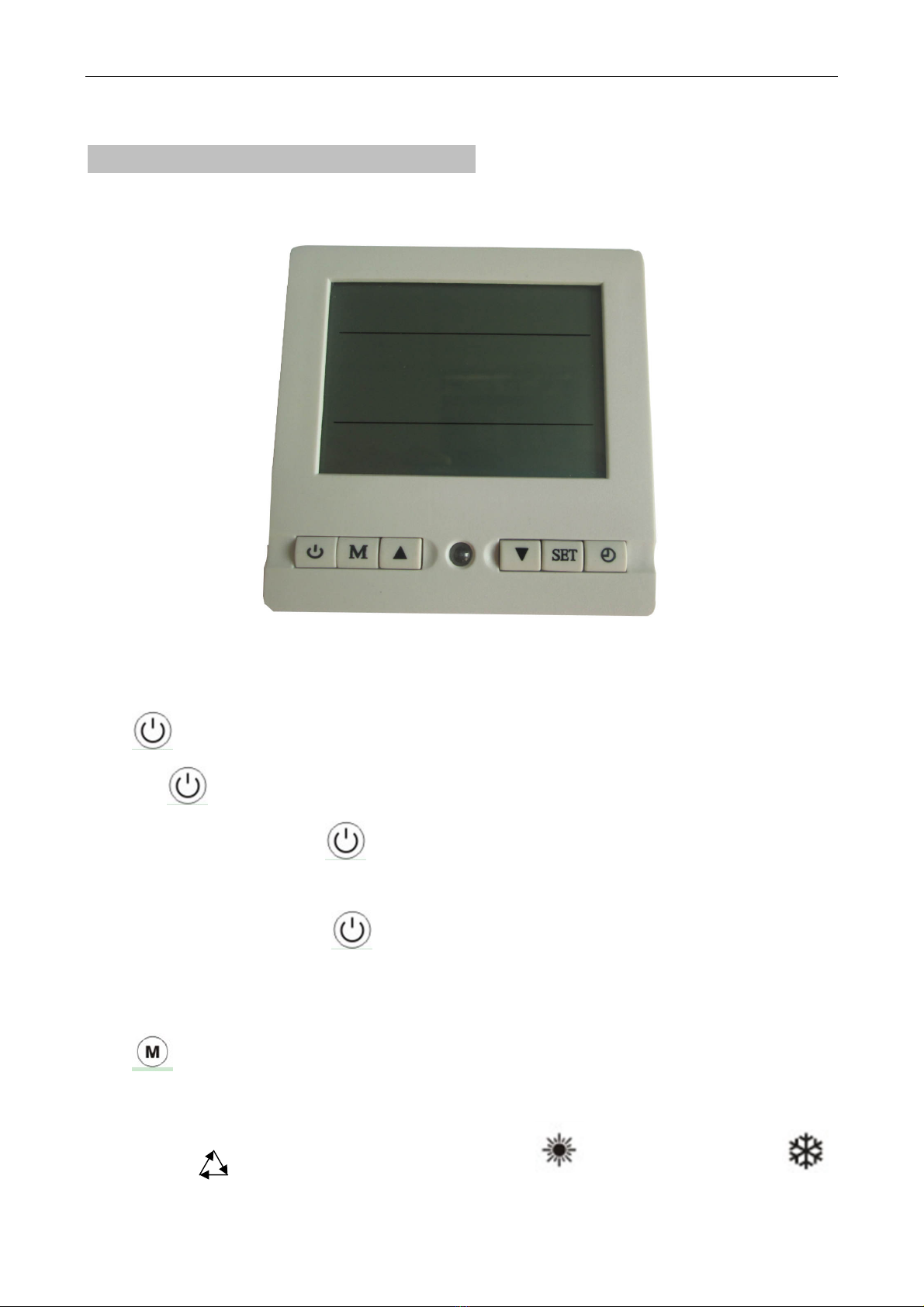

Controller operation instruction………………..………………………………………………….16
Maintenance & Troubleshooting………………………….…………………………………....…22

Swimming pool heat pump
- 3 -
PRODUCT RIEF INSTRUCTION
1.1 Performance
High efficiency
With a COP value more than 4.9, our heat pumps are very efficiency when transferring heat from
the air to the swimming pool water. It can save as much as 80% of cost compared to an electric
heater.
Long life-span
The heat exchanger is made of PVC & Titanium tube, which can withstand and prolong exposure to
swimming pool water.
Easy control and operation
The unit is very easy to operate: simply switch it on and set the desired pool water temperature.
The system includes a remote controller, allowing all operation parameters to be set. Operation
status can be displayed on the controller with LCD display.
1.2 Working principle
Heat pumps utilize the sun’s free heat by collecting and absorbing energy from the outside air.
This energy is then compressed and transferred to the pool water. Your existing water pump
circulates the water through the heat pumps heater, usually next to the pool equipment, and the
water warms up.
This pool heat pump is also of cooling function. User can choose the heating or cooling mode
through the LCD controller. The cooling mode’s working principle is opposite to the heating mode.
● The unit contains a fan that draws in outside air and directs it over the surface of the
evaporator (energy collector). The low temperature refrigerant liquid within the evaporator coil
absorbs the heat from the outside air becomes warm gas.
● The warm gas in the coil pass through the compressor, where the warm gas is concentrated
and increased to hot gas, and then pass to the condenser (water heat exchanger). It is here that
the heat exchange occurs as the hot gas give off heat to the cold swimming pool water circulating
through the coil.
● The pool water becomes warmer, and the hot gas cooling as it flows through the condenser
coil returns to liquid form, after passing on through the capillary tube, the whole process begins
again.

Swimming pool heat pump
- 4 -
TECHNICAL DATA
Swimming pool heat pump
Model DSP-45HCA DSP-65HCA
DSP-85HCA DSP-100HCA DSP-120HCA
Heating Capacity*
(KW) 4.5 6.5 8.5 10 12
Heating Input (KW) 0.86 1.32 1.55 1.98 2.44
Heating Capacity**
(KW) 5.2 7.6 9.4 11.3 13.5
Heating Input (KW) 0.91 1.35 1.61 2.1 2.49
Cooling Capacity
(KW) 3.2 4.7 6 8 9
Cooling Input (KW) 1.1 1.56 2.5 2.7 3.1
Heating Rated
Current (A) 3.9 5.5 7.2 9.36 11.8
Max. Current (A) 5.8 8.6 11.3 15.7 18.2
Power Supply
(V/Ph/Hz) 220~240/1/50
Setting Temp. Range
15℃～45℃
Running Temp.
Range -5℃～43℃
Water Inlet/Outlet
Dimension 50.8mm
Water Heat
Exchanger Titanium
Water Flow（m3/h） ≥ 3 ≥ 4 ≥ 4 ≥ 4.5 ≥ 4.5
Refrigerant R410A
Unit Dimension
W×H×D(mm) 816x306x510 995x350x552 1118×350×617
1140x460x650
Net Weight（KG） 39 46 52 62 75
Display LCD
Mode Heating/Cooling/AUTO
Housing cover Metal panel Plastic
Noise d (A) 48 50 50 54 56
NOTES：
：：
：
Capacities and power inputs based on the following conditions:
- Heating* : Outlet water temperature 27℃. Ambient air temperature 24℃(D )/19℃(W ).
- Heating** : Outlet water temperature 27℃. Ambient air temperature 27℃(D )/19℃(W ).
- Cooling: Outlet water temperature 27℃. Ambient air temperature 35℃(D )/24℃(W )

Swimming pool heat pump
- 5 -
Swimming pool heat pump
Model DSP-180HCA DSP-180HCA/3
DSP-230HCA DSP-230HCA/3 DSP-260HCA/3
Heating Capacity*
(KW) 18 23 26
Heating Input
(KW) 3.61 4.8 5.21
Heating
Capacity** (KW) 21 26 30
Heating Input
(KW) 3.8 4.9 5.4
Cooling Capacity
(KW) 13 18 20
Cooling Input
(KW) 4.5 5.9 6.6
Heating Rated
Current (A) 16.5 5.6 21 9.06 10.2
Max. Current (A) 24.5 9.7 31 13.9 15.8
Power Supply
(V/Ph/Hz) 220~240/1/50 380~415/3/50 220~240/1/50 380~415/3/50
Setting Temp.
Range 15℃～45℃
Running Temp.
Range -5℃～43℃
Water
Inlet/Outlet
Dimension
50.8mm
Water Heat
Exchanger Titanium
Water Flow
（m3/h） ≥ 7.5 ≥ 8.5
Refrigerant R410A
Unit Dimension
W×H×D(mm) 820X720X1055
Net Weight（KG）
119 119 133 133 148
Display LCD
Mode Heating/Cooling/AUTO
Housing cover Metal panel
Noise d (A) 58 58 62 62 64
NOTES：
：：
：
Capacities and power inputs based on the following conditions:
- Heating* : Outlet water temperature 27℃. Ambient air temperature 24℃(D )/19℃(W ).
- Heating** : Outlet water temperature 27℃. Ambient air temperature 27℃(D )/19℃(W ).
- Cooling: Outlet water temperature 27℃. Ambient air temperature 35℃(D )/24℃(W )
Note: The above data might change as the product improves; please refer to the details on the
product nameplate.

Swimming pool heat pump
- 6 -
UNIT DIMENSIONS
Horizontal models
Model A(mm) (mm) C(mm) D(mm) E(mm)
DSP-45 HCA 510 306 266 276 410
DSP-65(85) HCA 552 995 284 344 680
DSP-100 HCA 617 1118 350 290 660
DSP-120 HCA 650 1140 415 435 684

Swimming pool heat pump
- 7 -

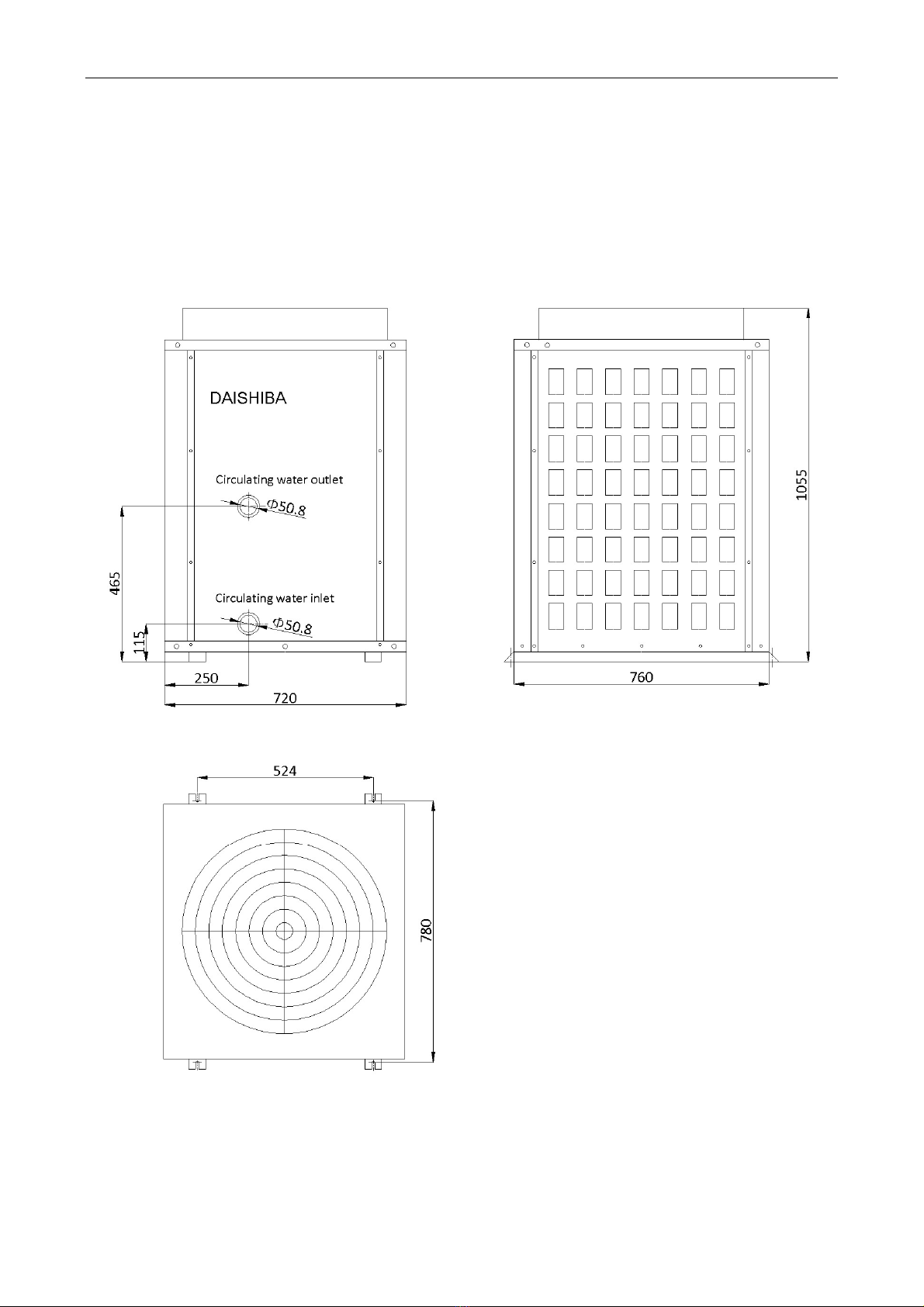

Vertical models
DSP-180HCA, DSP-180HCA/3,
DSP-230HCA, DSP-230HCA/3
DSP-260HCA/3

Swimming pool heat pump
- 8 -
INSTALLATION
Installation position
1. The unit must be installed on reliable base or framework. Weight capacity of framework
should be 3 times of the body weight, and safeguard measures should be taken to avoid
malfunction of fastenings.
2. If the unit is to be installed on the floor, its undercarriage should be heightened, to avoid
ingression of accumulated water in rainy season. In snowy areas, it is important to prevent
accumulated snow from blocking up the air-out. The recommended height is 20cm to 30cm.

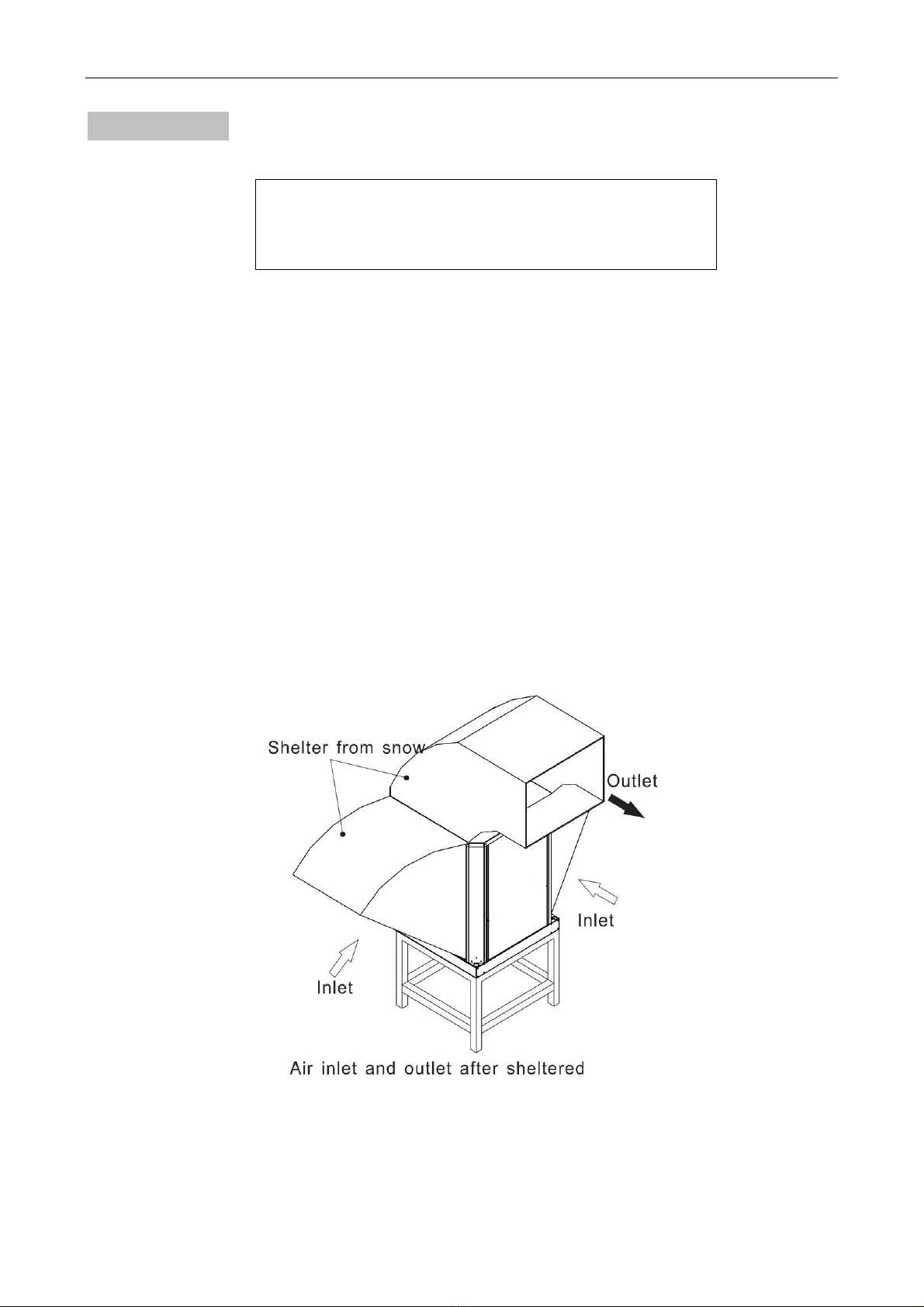

Take the vertical model as an example, see the drawing below.
3. Drain ditch or other facilities should be arranged under the outdoor unit, to avoid the influence
of water discharge.
Note!
Installation must be carried out by professional staff.

Swimming pool heat pump
- 9 -
4. To install the unit at balcony or top of building, the installation site must meet the allowable
bearing capacity of building structure, without affecting the structural safety.
5. Ensure the unit is well ventilated.

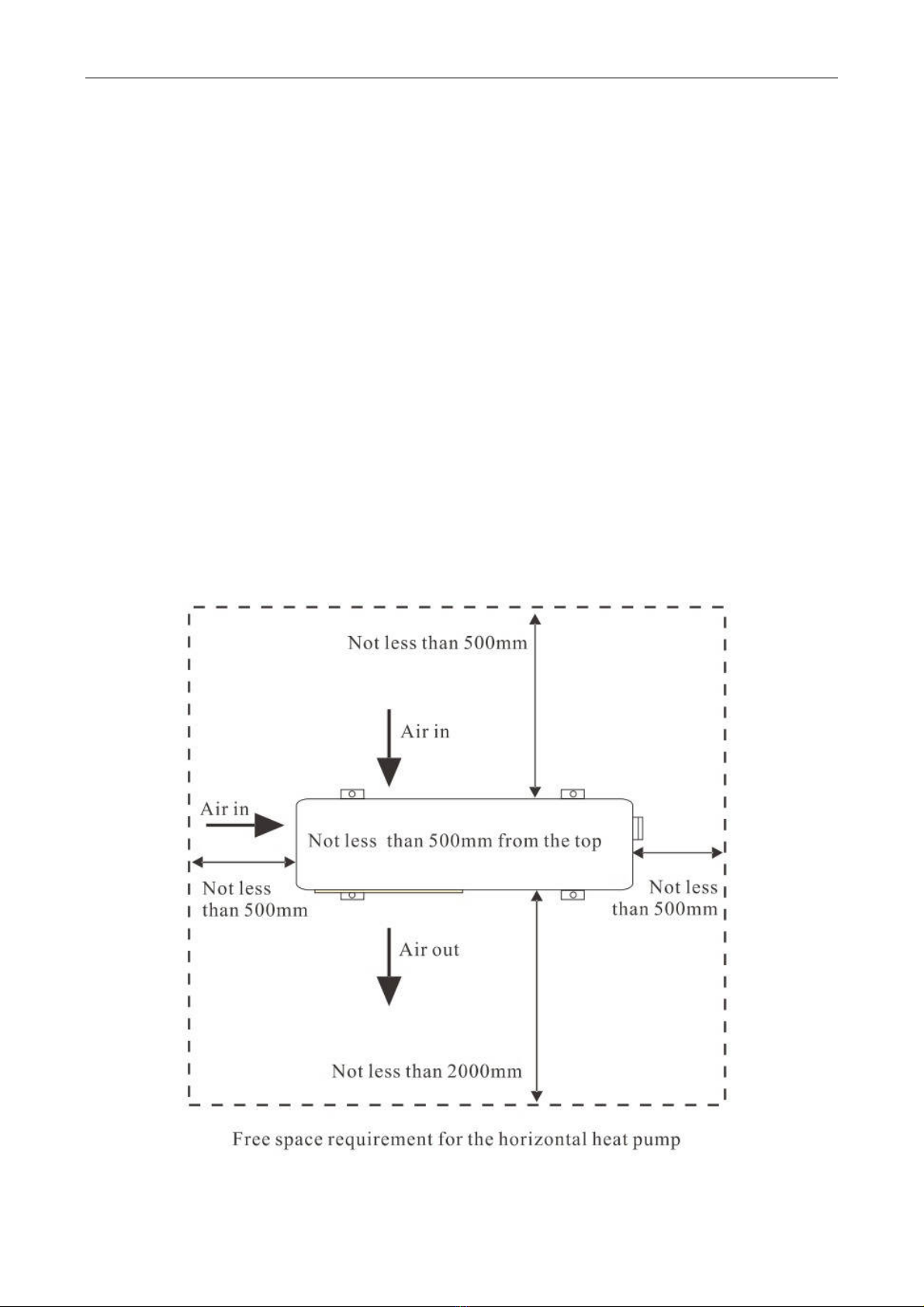

Virtually the unit may be installed anywhere outdoors providing minimum distance
requirements are met with respect to other objects.
For indoor pools please consult your installer.
Attention:
Do not place the unit in an enclosed area with a limited air volume where the unit’s discharged
air will be re-circulated or near shrubs that could block the air inlet. These locations deny the
unit a continuous fresh air supply, which reduces its efficiency and may prevent adequate heat
yield.
Model: horizontal unit

Swimming pool heat pump
- 10 -
Model: vertical unit
6. The unit should not be installed at places accompanied with oil, inflammable gas, corrosive
components e.g. sulfur compound, or high-frequency equipment.
7. The unit should not be installed at sites with typhoon/earthquake hazards. Midair installation
should be avoided as much as possible as machine falling down may result in severe accident.
Distance from the pool
Normally, the pool heat pump is installed within a 7.5 meter radius of the swimming pool. The
greater the distance is from the pool, the greater the heat loss from the piping. Since the piping is
buried for the most part, heat loss is minimal for distance of up to 30 meters (15 meters to and
from the heat pump = 30 meters total), unless the soil is wet or the water level is high. Heat loss

Swimming pool heat pump
- 11 -
per 30 meters could roughly be estimated at 0.6 kW/ hour for every 5 temperature difference ℃
between the pool water and the soil surrounding the pipe, which translates to an operation time
increase time increase of 3-5%.
Swimming pool water chemistry
Special attention should be paid to the chemical balance of the pool water. The pool water value
should always within the following limits:
Item Min Max
pH 7.0 7.4
Free chlorine (mg/l) 0.5 1.2
TAC (mg/l) 80 120
Salt (g/l) 3
Note: Failure to comply with these limits will invalidate the warranty.
Exceeding one or several limits can damage the heat pump. Always install water treatment
equipment past the heat pump’s water outlet, especially if the chemicals are automatically added
to the water.
Attention
1. The water flow can not be lower than the unit standard value (please refer to the nameplate).
2. The insulation of water pipe should be done well to prevent energy loss.
3. A suitable draining valve should be installed in the bottom point of water system.
4. For controlling the time spent to wash and clean system and preventing the dreg or sediment
in the system pipe line to enter into the heat exchanger, a by-pass pipe line should be reserved
between supply water and return water pipe.
5. When circulation water is running initially, close the inlet and outlet valves of the unit, open
the bypass valve; after water pump is running for a while, clean the water filter netting; after
confirming there is no mess in the external circulation system, then open the inlet and outlet
valve of the unit, close the bypass valve, then make the unit operated normally.
For all above demonstrations are only for your reference, the practical project should be carried
out by professional persons according to standard and design requirement.

Swimming pool heat pump
- 12 -

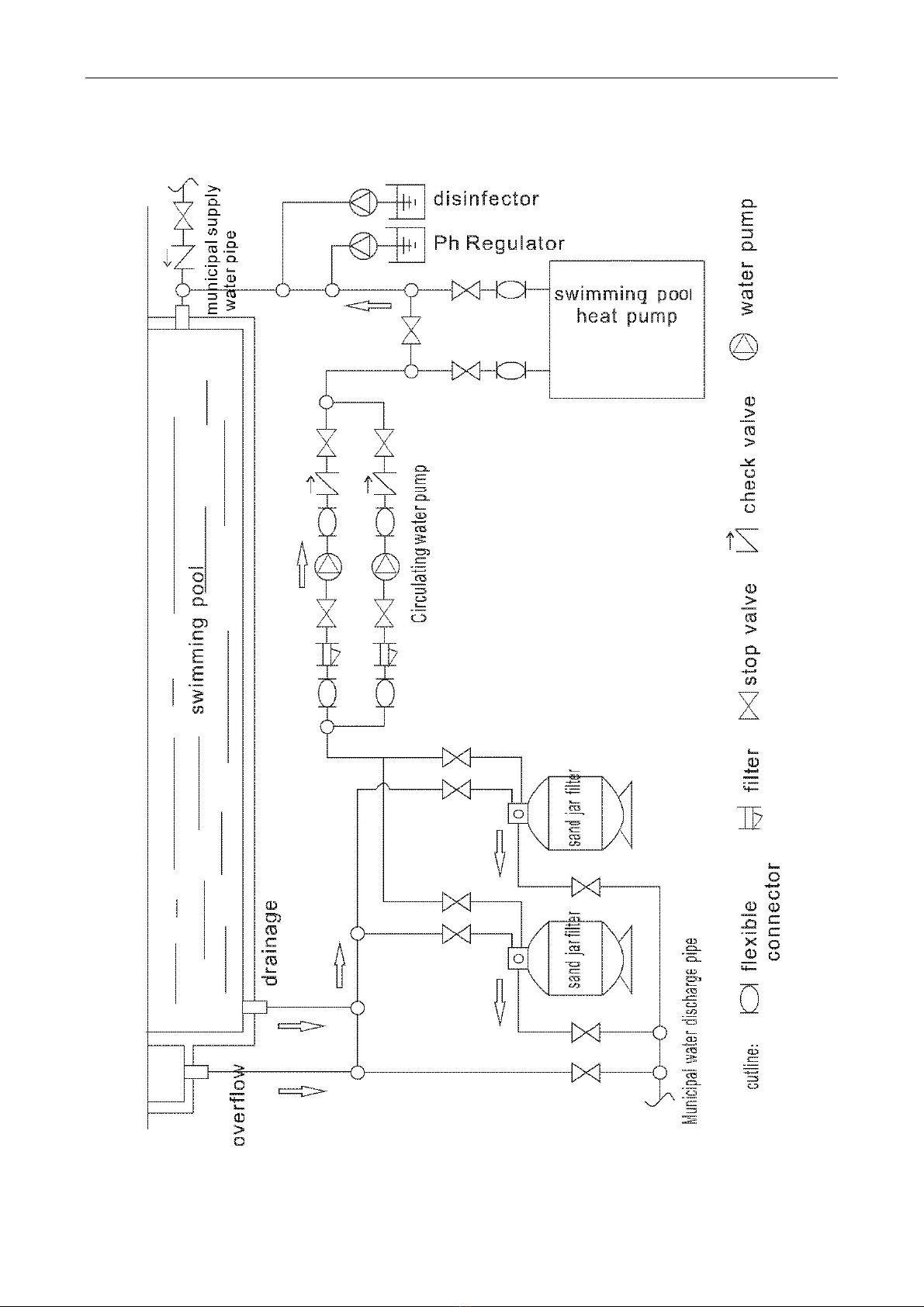

Project Installation sketch map

Swimming pool heat pump
- 13 -
ELECTRIC CONNECTION
Wires, spare parts and materials etc. must satisfy the relevant standards issued by the host
country or region.
The heat pump does not include an isolator switch on the incoming electrical supply. The power
supply cable must be connected to a circuit-breaker with at least a 3 mm breaking gap. Incoming
supply must be neutral ground, via a distribution board with fuses.
If an insulation test is to be carried out in the building, please make sure to disconnect the heat
pump.
To avoid the possibility of false action caused by electromagnetic coupling, the communication
wire must be STP (Shielded Twisted Pair).The size of communication wire should not less than
0.5mm2.
Note!
Electrical installation and service must be carried out
under the supervision of a qualified electrician. Electrical
installation and wiring must be carried out in accordance
with the stipulations in force.

Swimming pool heat pump
- 14 -
Circuit diagram
Model: DSP-45HCA, DSP-65HCA, DSP-85HCA, DSP-100HCA, DSP-120HCA

Swimming pool heat pump
- 15 -
Model: DSP-180HCA/3, DSP-230HCA/3, DSP-260HCA/3

Swimming pool heat pump
- 16 -
CONTROLLER OPERATION INSTRUCTION
Operation panel
Under standby state, the time and water temp. show on the display screen.
1. utton instruction
◆ “ ” y: ON / OFF Switch button;
Press “ ” key to switch ON or OFF at any state.
At the ON state, press the “ ” key into OFF state, it shows Clock, Working mode and Timer
status.
At the OFF state, press the “ ” key to start unit, it shows Water inlet temp, Working mode
and Timer status.
◆ “ ”: Mode key (Running automatically or manually)
Press “M” key to switch unit running as automatic, heating or cooling at any state.
It shows “ ” when running automatically, shows “ ” when heating, shows “ ”
when cooling.

Swimming pool heat pump
- 17 -
◆ “▲” and “▼”: Up and down key
◆ “SET”: Setting key
◆ “AUX”: Electric heater key
1.1 Lock and Unlock.
1.1.1 At the non-locking key state, press “▲” or “▼” key for 3 seconds, the button locks
after the buzzer rings “Di Di” twice.
1.1.2 At the locking key state, press “▲” or “▼” key for 3 seconds, the button unlocks after
the buzzer rings “Di Di” twice.
1.2 Inquiry of System parameter and state
1.2.1 Press “▲” or “▼” key directly in the main interface, it enters inquiry interface of
temperature sensor state;
1.2.2 Press “SET” to inquiry all the parameter and state;
1.2.3 At inquiry interface of parameter and state, it exits inquiry interface to enter into main
interface if there is no any operation for 8 seconds.
1.3 System parameter setting
1.3.1 At inquiry interface, if it shows system parameter at present in the “OFF” state, press
“▲” or “▼” key at the same time for 3 seconds, the buzzer rings once, it enters the present
parameter set state;
1.3.2 Press “▲” or “▼” key to modify set value of present system parameter when entering
parameter set. After setting the parameter, press “SET” again to save setting value and exit the
present parameter set state, return to inquiry interface.;
1.3.3 At parameter set state, it saves the present set value and exits parameter set state,
return to main interface if there is no any operation for 8 seconds.

Swimming pool heat pump
- 18 -
Parameter table (1100-3502 A、
、、
、 type Swimming Pool Heat Pump LCD Controller)
Parameter Meaning Range Default Remark
00 Cooling return water temp
setting value 8~28℃ 12℃ Adjustable
01 Heating return water temp
setting value 15~40℃ 40℃ Adjustable
02 Heating Defrosting period 30~90Min 40Min Adjustable
03 Enter Heating Defrosting
Temperature spots -30~0℃ -7℃ Adjustable
04 Exit Heating Defrosting
Temperature condition 2~30℃ 13℃ Adjustable
05 Exit Heating Defrosting Time
condition 1-12Min 8Min Adjustable
06 System quantity 1/2 2 Invalid
07 Power failure protection 0(No) /1(Yes) 0 Adjustable
08 Model Selection parameter 0(Only cold) /1(Heat pump)
/2(E-heater) /3(Only heat) 1 Adjustable
09 Water pump working Mode 0(Normal) /1(Special) 0 Adjustable
10 Automatic return water temp
setting value 8~60℃ 40℃ Adjustable
System state (1100-3502 A、
、、
、 type Swimming Pool Heat Pump LCD Controller)
Code Meaning Display range Remark
IN Water inlet
temp -9~90℃ Measured value
OUT Water outlet
temp -9~90℃ Measured value
P1 System pipe
temp -9~90℃ Measured value
P2 Reservation -9~90℃ Reservation
ROOM Ambient temp -9~90℃ Measured value
System fault (1100-3502 A、
、、
、 type Swimming Pool Heat Pump LCD Controller)
Protection / Fault Remote
controller
Host unit running /
Fault indicator light
Standby Extinguish
Normal starting up right
Water inlet temp. sensor fault PP 01 ☆●(1 Flash and 1 Extinguish)
Water outlet temp. sensor fault PP 02 ☆☆●(2 Flash and 1 Extinguish)

Swimming pool heat pump
- 19 -
Coil temp. sensor fault PP 03 ☆☆☆●(3 Flash and 1 Extinguish)
Ambient temp. sensor fault PP 05 ☆☆☆☆☆●(5 Flash and 1 Extinguish)
Water inlet and outlet oversize
temp. difference protection PP 06 right
Cooling anti-freezing protection PP 07 right
Winter first grade anti-freezing
protection PP 07 Extinguish
Winter second grade anti-freezing
protection PP 07 Extinguish
High pressure protection EE 01 ☆☆☆☆☆☆●(6 Flash and 1 Extinguish)
Low pressure protection EE 02 ☆☆☆☆☆☆☆●(7 Flash and 1 Extinguish)
Water flow fault EE 03 ☆☆☆☆☆☆☆☆●(8 Flash and 1
Extinguish)
Water inlet and outlet oversize
temp. difference fault EE 05 ☆☆☆☆☆☆☆☆☆☆●(10 Flash and 1
Extinguish)
Defrosting Defrosting
indication ☆☆☆☆☆☆☆☆……(Flash all the time)
Communication fault EE 08 (This fault is only valid remote controller)
Parameter table (LCD or LED)
Parameter Meaning Range Default Remark
00 or 0 Cooling return water temp
setting value 8~28℃ 12℃ Adjustable
01 or 1 Heating return water temp
setting value 15~40℃ 40℃ Adjustable
02 or 2 Heating Defrosting period 30~90Min 40Min Adjustable
03 or 3 Enter Heating Defrosting
Temperature spots 0~30℃ -7℃ Adjustable
04 or 4 Exit Heating Defrosting
Temperature condition 2~30℃ 13℃ Adjustable
05 or 5 Exit Heating Defrosting Time
condition 1-12Min 8Min Adjustable
06 or 6 System quantity 1-2 2 Invalid
07 or 7 Power failure protection 0-1 1(have
memory) Adjustable
08 or 8 Model(Only cold/heat
pump/E-heater/Hot water) 0-3 1(heat pump) Adjustable
09 or 9 Water pump working
Mode(Normal/special) 0-1 0 Adjustable
10 or A Automatic return water temp
setting value 8~60℃ 40℃ Adjustable
IN or b Water inlet temp -9~90℃ Measured
value
OUT or C Water outlet temp -9~90℃ Measured
value
