dallmeier DF3000AXS Operating and maintenance instructions

Installation and Configuration
Rev. 1.0.0 / 080508
English
Colour box camera (electr. Day/Night)
DF3000AXS

DF3000AXS
2Dallmeier electronic
Copyright © Dallmeier electronic GmbH & Co.KG
All rights reserved. This document may not be copied, photocopied, reproduced, translated,
transferred to an electronic medium or converted to a machine-readable form either whole or in
part without first receiving written permission from Dallmeier electronic GmbH & Co.KG.
We reserve the right to make technical modifications.
The manufacturer accepts no liability for damage to property or pecuniary damages arising due
to minor defects of the product or documentation, e.g. print or spelling errors, and for those not
caused by intention or gross negligence of the manufacturer.
Dallmeier electronic GmbH & Co.KG
Cranachweg 1
D 93051 Regensburg, Germany
www.dallmeier-electronic.com
[email protected]

DF3000AXS
3Dallmeier electronic
Table of contents
1 About this document.................................................................................. 5
1.1 Validity .......................................................................................................... 5
1.2 Documentation on the device ....................................................................... 5
1.3 Convention ................................................................................................... 5
2 Safety instructions ..................................................................................... 7
3 General notes.............................................................................................. 9
3.1 Scope of delivery.......................................................................................... 9
3.2 Transportation and packaging....................................................................... 9
3.3 Appropriate use............................................................................................. 9
3.4 Performance features ................................................................................... 9
3.5 Warranty ..................................................................................................... 10
3.6 Certifications............................................................................................... 10
4 Notes on operating the camera ............................................................... 11
5 Views and connection assignment......................................................... 12
5.1 Views .......................................................................................................... 12
5.2 Connection assignment .............................................................................. 13
6 Installation and commissioning.............................................................. 14
6.1 Requirements at the installation site........................................................... 14
6.2 Attaching the lens ....................................................................................... 14
6.3 Adjusting the back focus............................................................................. 15
6.4 Installation and commissioning................................................................... 16
7 Preparing to configure ............................................................................. 18
7.1 UTC Remote Box ....................................................................................... 18
7.2 DMS recorder ............................................................................................. 19
7.3 PView.......................................................................................................... 19
8 Configuration ............................................................................................ 20
8.1 Configuration for lenses with manual iris .................................................... 20
8.2 Presets........................................................................................................ 21
8.3 Basic functions............................................................................................ 22
8.3.1 Camera ID .................................................................................................. 22
8.3.2 CCTV System ............................................................................................. 23
8.3.3 Horizontal Flip............................................................................................. 24
8.3.4 Lens Select ................................................................................................. 24
8.3.5 Color ........................................................................................................... 24
8.3.6 Day / Night Setup........................................................................................ 24
8.4 Image Functions ......................................................................................... 25
8.4.1 Progressive Scan........................................................................................ 25
8.4.2 Backlight ..................................................................................................... 26
8.4.3 Digital Zoom ............................................................................................... 27
8.4.4 White Balance ............................................................................................ 27
8.5 Exit Menu.................................................................................................... 28

DF3000AXS
4Dallmeier electronic
9 Appendix ................................................................................................... 29
9.1 Menu structure ............................................................................................ 29
9.2 Technical data............................................................................................. 30
9.3 Technical drawings...................................................................................... 31
9.4 Pin assignment interfaces........................................................................... 32
9.4.1 DC auto iris interface for iris control ........................................................... 32

DF3000AXS
5Dallmeier electronic
1 About this document
1.1 Validity
This document applies to the colour box camera (electr. Day/Night) DF3000AXS. It has
been produced on the basis of version 1.7 (software).
1.2 Documentation on the device
Commissioning
The quick guide headed “Commissioning“ lists the most important steps for the connection
and commissioning of the device.
Installation and Configuration (this document)
The document entitled “Installation and Configuration“ contains detailed descriptions of the
installation, connection, commissioning and configuration of the device. Safety instructions,
general notes and technical data are additionally provided.
Thetargetaudienceisexclusively speciallytrainedandauthorized professionals(“installers“).
1.3 Convention
This document contains various warning words and symbols that indicate potential sources
of danger. Various symbols and formats are used to maintain the clarity of the document.
DANGER
The warning word DANGER denotes an immediate danger
that may cause death or serious injury if it is not averted.
WARNING
The warning word WARNING denotes a possible danger that
may cause death or serious injury if it is not averted.
CAUTION
The warning word CAUTION denotes a possible danger that
may cause minor injury if it is not averted.

DF3000AXS
6Dallmeier electronic
IMPORTANT
The word IMPORTANT denotes information for preventing
damage, incorrect configurations or incorrect actions.
NOTE
A NOTE offers information on principles, special features and
efficient procedure as well as general recommendations.
Expression Expressions in bold and italics generally indicate a control
elementon thedevice(switches orlabels)or onitsuserinterface
(buttons, menu entries).

DF3000AXS
7Dallmeier electronic
2 Safety instructions
Only use this unit if it is technically in proper working order, to the intended purpose and
whilekeeping safetyandpotential dangersinmind. Havemalfunctionsor damageseliminated
immediately!
Appoint a professional
Installation, mounting, connection, start-up and configuration of the unit may only be carried
out by trained and authorized professionals (installers).
Unless otherwise expressly specified, this also applies to the maintenance, testing and
repair. In doing so the regulations of the DIN VDE 0701 series of standards (repair,
modification and inspection of electrical appliances) must be followed in addition.
Read and pay attention to the documents
Carefully and completely read the documents included in delivery. Always pay attention to
the provided instructions, notes and warnings.
Regulations surveillance systems
The use of video and audio surveillance systems is strictly regulated in most countries.
Therefore,informyourselfonlawsand regulations that govern individual applications before
using the unit. Ensure compliance with these laws and regulations and also observe
regulations regarding data, working and environmental protection.
Do not make modifications
Do not make any modifications to the unit (neither to the software nor the hardware) without
consultingDallmeierelectronic. Improper modifications cancausemalfunctionsordamages.
Dallmeierelectronicacceptsno liability for damagesresultingfromunauthorizedor improper
modifications to the unit.
Protection against condensation water
If the unit is brought from a cold to a warm environment, condensation water can form
inside the unit. Short-circuits may then lead to damage to the system. Wait up to 8 hours for
the unit to reach room temperature before starting it up.
Observe the rated voltage
The unit can be damaged or destroyed by the application of an incorrect voltage.
The mains voltage must always match the rated voltage of the unit. The rated voltage is
specified on the rating plate of the unit.
Observe ratings
Unsuitableambientconditions andimproperinstallation(mainlytoohigh ambienttemperature
and insufficient ventilation) may reduce the unit’s life cycle. Ensure compliance with the
stated operating conditions (see technical data), requirements at the installation site and, if
applicable, maintenance regulations.
Expansion components/peripheral devices
Useonlyexpansioncomponentsconforming with the technicaldataofthe unit. Inappropriate
peripheral devices may result in the violation of local laws and regulations and damages to
the unit. In case of doubt, contact the sales partner responsible for your area.

DF3000AXS
8Dallmeier electronic
Do not open the unit
Do not open the housing of the unit. There are no components inside the unit that require
maintenance by the user. The inspection, maintenance and repair with an open housing
must only be carried out by trained and authorized professionals (installer).
Penetration of foreign bodies and liquids
No objects or liquids may be allowed to get into the device. In this case, immediately
disconnect the unit from the power supply (pull out the power plug). Please contact the
sales partner responsible for your area.
Measures to be taken in the event of damage and burnt smell
If you notice burnt smell or formation of smoke from a unit, immediately disconnect it from
the power supply (pull out the power plug). Please contact the sales partner responsible for
your area.
Disposal
Disconnect the unit from the power supply. Remove all connected units and system
components. Return the unit to your respective sales partner.

DF3000AXS
9Dallmeier electronic
3 General notes
3.1 Scope of delivery
Included in the standard scope of delivery is:
1 x DF3000AXS (w/o lens)
1 x Manual “Installation and Configuration“ (CD)
1 x Quick Guide “Commissioning“ (in print)
The scope of delivery may differ depending on the ordered equipment or device variant.
The device’s range of functions depends on the ordered equipment or device variant and
may therefore not correspond with this document’s content. Certain functions and features
may require an activation that is subject to costs.
3.2 Transportation and packaging
Store the original packaging for transportation at a later date. Dallmeier electronic is not
responsible for damage resulting from unprofessional/improper transportation. The goods
should only be shipped in their original packaging.
If the original packaging is no longer available, ensure that the packaging used sufficiently
protects the unit against damage, moisture, heat and cold.
3.3 Appropriate use
The DF3000AXS is a HiRes UWDR Cam_inPIX®colour box camera. It is designed for
indoor use.
3.4 Performance features
The DF3000AXS is especially characterised by the following functions and properties:
z1/3” DPS sensor with Cam_inPIX®technology
zDigital Pixel System® chipset
z17-bit Digital Signal Processing
zHigh sensitivity at F0.95, 50IRE: 0.5 lux
zProgressive Scan image capture
zProgressive With Segmented Frames (PsF) image data transmission
zElectronic Day/Night switching
zAdvanced noise reduction
zEnhanced image quality by means of numerous control functions like AWB, AGC, BLC
and extended slow shutter
zDC auto iris
zConfiguration via UTC commands
zPractical small size

DF3000AXS
10Dallmeier electronic
NOTE
The electronic Day/Night switching is not realized through a
mechanically switchable IR cut filter. Therefore, there is no
ICR function available and hence no IR sensitivity.
NOTE
For detailled information please see the chapter Technical
data.
3.5 Warranty
The warranty period is 36 months.
The terms and conditions valid at the signing of the contract apply.
3.6 Certifications
The following certifications were in effect at the time this document was produced:
zCE
zFCC
zUL
zACA
zUVV-Kassen
zCB

DF3000AXS
11Dallmeier electronic
4 Notes on operating the camera
zThe camera is operated at 12V DC.
zThe camera is designed for use with CS-mount lenses. A C/CS-mount adapter ring
(5 mm) is required for use with C-mount lenses. Note the lens type before using it. When
using C-mount lenses without an adapter ring, the camera could be damaged. This
applies especially for the sensor.
zLenses with DC control can be used for automatic iris control. Video signal-controlled
lenses are not supported.
zIf the camera or the cables connected to the camera are located near sources of strong
radiation, the video picture may be distorted.
zThe camera is equipped with automatic gain control (AGC). In low light the picture may
be altered (e.g. noise). This is not a camera malfunction.
zThe quality of the video picture depends on the lighting and the monitor used to display
the video picture.
zAutomatic white balance depends on the lighting used and can cause color distortions in
artificial light.
zPoor lighting can lead to faulty white balance.

DF3000AXS
12Dallmeier electronic
5 Views and connection assignment

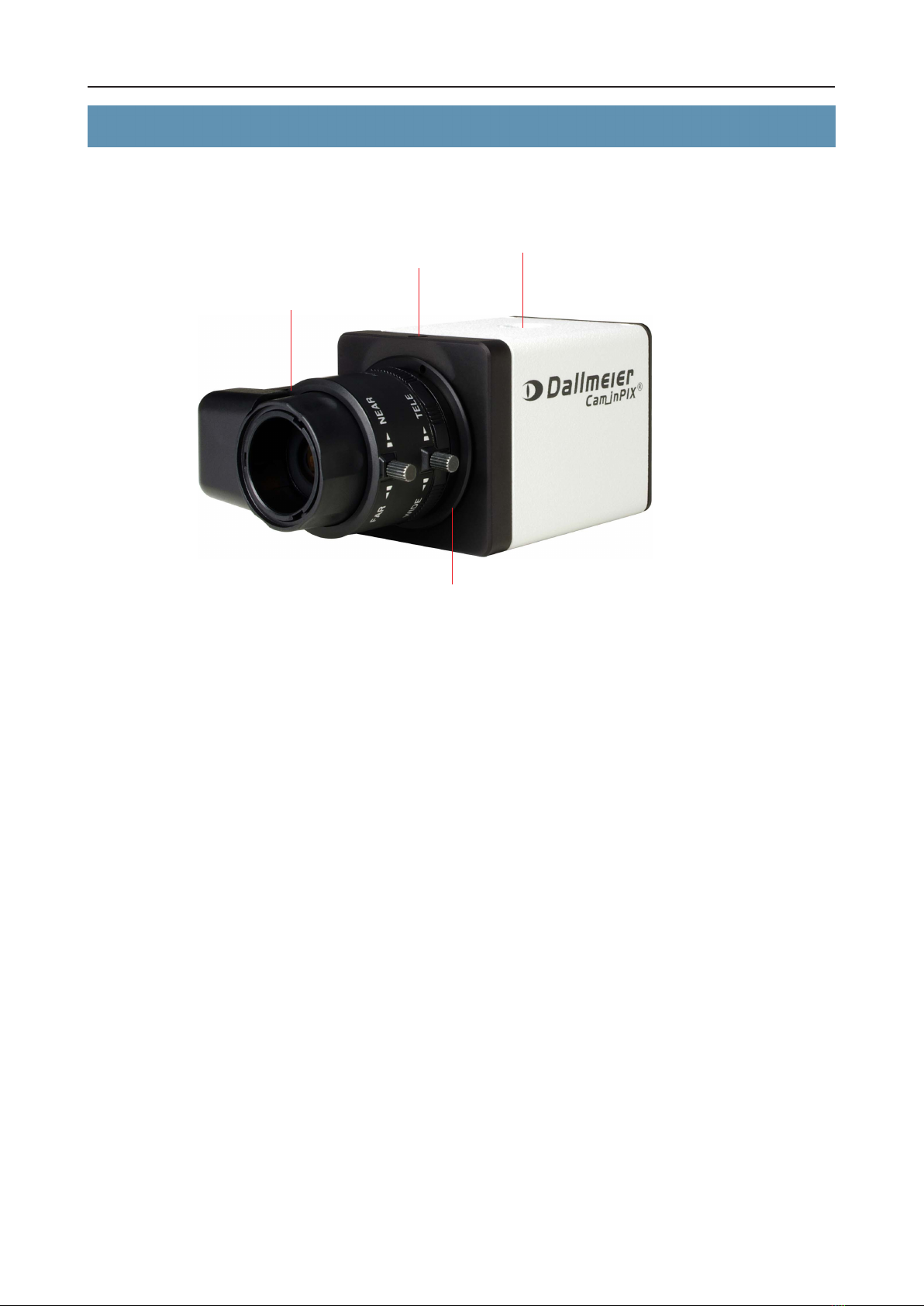

5.1 Views
ADC auto iris lens (not included in the standard scope of delivery)
BLocking screw for back focus adjustment ring (2 mm Allen screw)
C¼’’ tripod socket (on top and bottom side)
DCS lens mount and back focus adjustment ring
A
BC
D
Fig.5-1

DF3000AXS
13Dallmeier electronic
5.2 Connection assignment
E12V DC input terminal (internal inverse-polarity protection)
FRS232 interface (for service purposes only)
GVideo output (CVBS, BNC)
HPower LED
IDC auto iris interface for iris control
JSelector (4-way joystick)
KEnter button
G
F
E
H
I
J
K
Fig.5-2

DF3000AXS
14Dallmeier electronic
6 Installation and commissioning
6.1 Requirements at the installation site
The camera is designed for indoor use. If used outdoors, the camera has to be mounted
into a corresponding weather-proof housing.
Unfavorable local conditions may shorten the life of the product or lead to malfunctions.
Do not install/operate the camera in places:
zwith large scale dust and dirt
zwith steam or oil vapors (e.g. kitchen)
zwith direct sunlight
zwith improper ambient temperatures (see technical data)
znear sources of strong radiation (i.e. X-rays, radio transmitters or magnetic fields)
zwith corrosive surroundings (e.g. gases or salt water).
6.2 Attaching the lens
MLens
NLens thread
IMPORTANT
Possible damage to the sensor.
The length of the lens thread plus any protruding parts must
not exceed 5 mm (L).
If using a C-mount lens, you have to screw a C/CS-mount
adapter ring (5 mm) between the lens and the camera.
L= max. 5 mm
MN
Fig.6-1

DF3000AXS
15Dallmeier electronic
NOTE
The camera is by default configured for use with DC auto iris
lenses.
If using a lens with manual iris control, you have to reconfigure
the camera accordingly (see section 8.1).
Video signal-controlled lenses are not supported.
IMPORTANT
Possible damage to the sensor caused by improper cleaning.
Only use approved methods and products for sensor cleaning.
For more information please contact the Dallmeier support.
¾Remove the rear lens cap and the camera body cap.
¾Screw the lens carefully into the CS lens mount (D).
¾If using a DC auto iris lens, connect the lens cable to the DC auto iris interface (I).
6.3 Adjusting the back focus
The back focus is the distance between the lens support on the camera and the image
sensor. Optimum focus is only possible when the correct distance is set.
Itmaybenecessaryto adjust the back focus inindividualcasesduetoproductiontolerances
of the lens. The iris of the lens must be open as wide as possible (smallest iris value) to
adjust the back focus.
For lenses with automatic iris control, you will require a ND filter (gray filter) to prevent the
iris from closing in bright light.
Adjustment for lenses with a fixed focal distance
If the focus cannot be set exactly by turning the focus ring (lens), please proceed as follows:
1Point the camera at an object with sufficient contrast. The distance to the object should
be greater than 1000 x the focal distance.
2Open the iris on the lens.
3Set the distance at the lens to infinity (∞).
4Loosen the locking screw (B) on the camera with an adequate Allen wrench.
5Turn the back focus adjustment ring (D) until the optimum focus is achieved.
6Tighten the locking screw (B).

DF3000AXS
16Dallmeier electronic
Adjustment for lenses with a variable focal distance (zoom)
If the focus changes as the focal distance changes, please proceed as follows:
1Point the camera at an object with sufficient contrast at a distance of approx. 2 m.
2Open the iris on the lens.
3Set the maximum focal distance (tele end) at the lens.
4Set the optimum focus with the focus ring.
5Set the smallest focal distance (wide end).
6Loosen the locking screw (B) on the camera with an adequate Allen wrench.
7Turn the back focus adjustment ring (D) until the optimum focus is achieved.
You may need to repeat steps 3, 4, 5, and 7 several times to obtain the best results.
8Tighten the locking screw (B).
6.4 Installation and commissioning
The camera has a ¼’’ tripod socket located on the top and bottom side.
IMPORTANT
Possible damage to the camera caused by inappropriate
mounting equipment.
The length of the tripod screw must not exceed 7 mm.
IMPORTANT
Possibledamageto thecameracausedby incorrect installation.
Pay attention to the manufacturer’s documentation when
installing the camera into a weather-proof housing.
CAUTION
Danger of injury from camera falling down.
Before initial startup, ensure that the camera is securely
mounted.
¾Mount the camera on a wall/ceiling bracket or on a pan/tilt head etc. using the ¼’’tripod
socket (C) and an appropriate tripod screw.
WARNING
Danger of death from lightning strike.
Do not connect/disconnect the video cable during a
thunderstorm.

DF3000AXS
17Dallmeier electronic
¾Connect the video output (G) via video cable (coaxial) to the monitor.
WARNING
Danger of death from electric shock.
Disconnectthepowersupplyunitfromthemainssocketbefore
connecting the camera.
IMPORTANT
Possible damage to the camera caused by an inadequate po-
wer supply unit.
If used in North America, you must use a UL-certified, limited-
power Class 2 power supply unit (12V DC / 0.42A).
NOTE
Thecamerais provided with internalinverse-polarityprotection.
¾Connect the camera via 12V DC input terminal (E) to the power supply unit.
¾Connect the power supply unit to the mains socket.
The Power LED (H) illuminates and the camera is ready for operation

DF3000AXS
18Dallmeier electronic
7 Preparing to configure
The camera is supplied with factory settings which enable it to be used for most scenarios
without further configuration. However, if required, certain camera properties can be
configured using the camera menu.
The camera can be configured directly using the Enter button (K) / Selector (J) or by means
of the UTC Remote Box, the recorder or PView.
NOTE
There must be no video distributor or signal amplifier between
the camera and the UTC Remote Box (or recorder or PView).
NOTE
Refer to the separate operator’s manuals for the devices or
software used.
7.1 UTC Remote Box
Direct
Camera UTC Remote Box CVBS monitor
Via recorder
Camera UTC Recorder Monitor
Remote Box
Fig.7-1
Fig.7-2

DF3000AXS
19Dallmeier electronic
7.2 DMS recorder
Camera Recorder Monitor
NOTE
This method requires a recorder with software version 5.3.1 or
higher and a built-in FG-11 frame grabber card.
7.3 PView
Camera Recorder PView station Monitor
NOTE
This method requires a recorder with software version 5.3.1 or
higher and a built-in FG-11 frame grabber card, using PView
version 5.6.0 or higher.
Fig.7-3
Fig.7-4

DF3000AXS
20Dallmeier electronic
8 Configuration
The configuration dialog is opened as follows:
Direct: ¾Press the Enter button (K) for approx. 2 seconds.
UTC Remote Box: ¾Press the OK button for approx. 2 seconds.
DMS Recorder: ¾Select Camera control > Open / Close menu
PView: ¾Select Camera control > Open / Close menu
Navigating the configuration menu is always by means of 4 directions keys, which are
referred to as Selector in the following. The button for input confirmation and calling a
submenu is called Enter button.
Twodotsaftera menuentryindicatethatadditionalconfiguration
options are available in a submenu.
One dot means that the selected entry (command) is executed
by pressing the Enter button.
¾Press the Selector up or down (cd) to select a menu item from the list.
¾Press the Enter button to call up the selected submenu or to execute the command.
¾Press the Selector to the left or right (ef) to change the respective setting value.
¾To return from a submenu to the higher-order menu, select Previous Page and press
the Enter button.
NOTE
Please pay attention to chapter 8.5 Exit Menu when saving/
resetting settings already made or leaving the configuration.
8.1 Configuration for lenses with manual iris
If you use a lens with manual iris control, the factory preset must be changed before any
further configuration occurs.
¾Choose Basic Functions in the main menu and set Lens Select to Manual.
Now you can make further settings or leave the configuration.
----------------- 3000------------------
>Presets..
Basic Functions..
Image Functions..
Save / Exit Menu..
