Danby DDY040D4WDB User manual

*
*
*Trademark of Danby Products
* Marque de commerce de Danby Products
* Marca comerciales de Danby Products
Danby Products Limited, Guelph, Ontario, Canada N1H 6Z9
Danby Products Inc. Findlay, Ohio, U.S.A. 45840
www.Danby.com
Printed in Turkey
Imprimé en Turquie
Impreso en Turquía
MODEL •MODELO
DDY040D4WDB
VENTLESS FRONT LOAD DRYER
Owner’s Manual............................1 - 21
SECADORA DE CARGA FRONTAL SIN
VENTILACIÓN
Manuel du propriétaire.................22 - 42
2023.10.05

1
Welcome to the Danby family.
We are proud of our quality products and we believe in dependable service. We suggest
that you read this owner’s manual before plugging in your new appliance as it contains
important operation information, safety information, troubleshooting, and maintenance tips
to ensure the reliability and longevity of your appliance.
You are entitled to the warranty coverage as described in the owner’s manual provided with
your new appliance.
1. Please write down your appliance information below. You must keep the original proof
of purchase receipt to validate and receive warranty services.
2. Register your product online and receive a FREE 2 MONTH WARRANTY EXTENSION
after filling out a product survey, at www.danby.com/support/product-registration/
Need Help?
1. Read your Owner’s Manual for installation help, troubleshooting, and maintenance
assistance.
2. Visit www.Danby.com to access self-service tools, FAQs and much more by searching
your model number in the search bar.
3. For the Quickest Customer Service, please fill out the web form at www.danby.com/
support. Your submission will go directly to an expert on your particular appliance.
Our average response times are between 20 minutes and 2 hours, during EST business
hours.
4. Call 1-800-263-2629 - please note that during peak hours, hold times can exceed one
hour.
Model Number: ____________________________________________________
Serial Number: ____________________________________________________
Date of Purchase: __________________________________________________

SAVE THESE INSTRUCTIONS!
IMPORTANT WARNING
DANGER: Risk of child entrapment. Before
thowing away an old appliance:
• Remove the door or lid.
• Leave the shelves in place so that children
cannot easily climb into the appliance.
GROUNDING INSTRUCTIONS
This appliance must be grounded. In the event of an
electrical short circuit, grounding reduces the risk of
electrical shock by providing an escape wire for the
electrical current.
ELECTRICAL INSTALLATION
The clothes dryer installation must be performed by
a qualified installer.
• Install the appliance according to the
manufacturer’s instructions and local codes.
• To reduce the risk of severe injury or death,
follow all installation instructions.
• If local codes do not permit the 3-wire power
supply cord connection, only 4-wire power
supply cord must be used.
WARNING - Improper use of the grounding
plug can result in a risk of electric shock.
Consult a qualified electrician or service agent
if the grounding instructions are not completely
understood, or if doubt exists as to whether the
appliance is properly grounded.
DO NOT USE AN EXTENSION CORD
Do not connect your appliance to extension cords
or together with another appliance in the same wall
outlet. Do not splice the power cord. Do not under
any circumstances cut or remove the third ground
prong from the power cord.
If the power supply cord is damaged, it must be
replaced by the manufacturer, its service agent or
similar qualified person in order to avoid hazard.
SAFETY REQUIREMENTS
Ensure that component parts are replaced with like
components and that servicing is done by factory
authorized service personnel, to minimize the risk of
possible ignition due to incorrect parts or improper
service.
This appliance is not intended for use by persons
(including children) whose physical, sensory or
mental capabilities may be different or reduced,
or who lack experience or knowledge, unless such
persons receive supervision or training to operate
the appliance by a person responsible for their
safety.
Children should be supervised to ensure that they
do not play with the appliance.
Do not place items exposed to cooking oils in the
dryer. Items contaminated with cooking oils may
contribute to a chemical reaction that could cause
a load to catch fire. To reduce the risk of fire due
to contaminated loads, the final part of a tumble
dry cycle occurs without heat as a cool down
period. Avoid stopping the dryer before the end of
the drying cycle unless items can be immediately
removed and spread out to allow the accumulated
heat to dissipate.
Important Safety Information
READ AND FOLLOW ALL SAFETY INSTRUCTIONS
Items that have been soiled with oil products can ignite spontaneously, especially
when exposed to heat sources such as in a tumble dryer. The items become
warm, causing an oxidation reaction in the oil. Oxidation creates heat. If the heat
cannot escape, the items can become hot enough to catch fire. Piling, stacking or
storing items that have been soiled with oil can prevent heat from escaping and
create a fire hazard.
2

Important Safety Information
READ AND FOLLOW ALL SAFETY INSTRUCTIONS
• Do not dry articles that have been previously
cleaned in, washed in, soaked in or spotted
with gasoline, dry-cleaning solvents, or other
flammable or explosive substances, as they give
off vapours that could ignite or explode.
• Do not reach into the appliance if the drum is
moving.
• Do not install or store this appliance where it will
be exposed to the weather. This appliance is not
intended for use outdoors.
• Do not tamper with the controls.
• Do not use heat to dry articles containing
foam rubber or similarly textured rubber-like
materials.
• Clean the lint screen before and after each load.
• The interior of the appliance should be cleaned
periodically by qualified service personnel.
• Do not place the appliance or power cord near
heat sources such as radiators, heaters, air ducts
or direct sunlight. Do not place open flames such
as candles on or near the appliance.
• Do not block any ventilation openings. Ensure
that vents are not covered by newspapers,
tablecloths, curtains, carpeting, etc.
• Do not run the power cord under floor
coverings. Keep the power cord away from high
traffic areas where it can become a tripping
hazard.
• Do not misuse the power cord. Never carry or
pull the appliance by the power cord. Never
pull the power cord to unplug it from the outlet,
instead, grasp the plug and pull to remove from
outlet.
• Do not operate the appliance if it has a
damaged power cord or plug. If the power
cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly
qualified persons in order to avoid hazard.
SAVE THESE INSTRUCTIONS!
• Do not attempt to repair, disassemble or modify
the appliance. The warranty becomes void if
the unit is not serviced or repaired by qualified
personnel. There are no user-serviceable parts
inside.
• Do not over load the appliance.
• Ensure foreign objects do not find their way into
the appliance. Remove all objects from pockets
such as lighters, matches, hairpins, coins, etc.
• The door window may be hot after a long
drying cycle. Ensure that children are kept away
from the appliance.
• Opening the door before the cooling process is
finished may expose you to hot air.
• If the dryer is not stack mounted using the
provided kit, ensure that it is placed on a flat,
firm surface in a dry, well-ventilated place. Use
the adjustable front legs to assist in leveling
the appliance if necessary. Do not place the
appliance on any soft material such as foam,
plastic or carpeting.
• After turning the power off, wait 2 minutes
before attempting to turn the unit back on.
• Remove the transport packaging from the back
of the unit before first use.
• Do not install this appliance behind a lockable
door, a sliding door or in such a way that
opening the dryer door is restricted. Do not
install in a tight fitting cabinet.
• Use this appliance only for laundry with a label
that indicates it is suitable for drying.
• Never spray or pour water onto the dryer to
clean it.
3

INSTALLATION INSTRUCTIONS
4

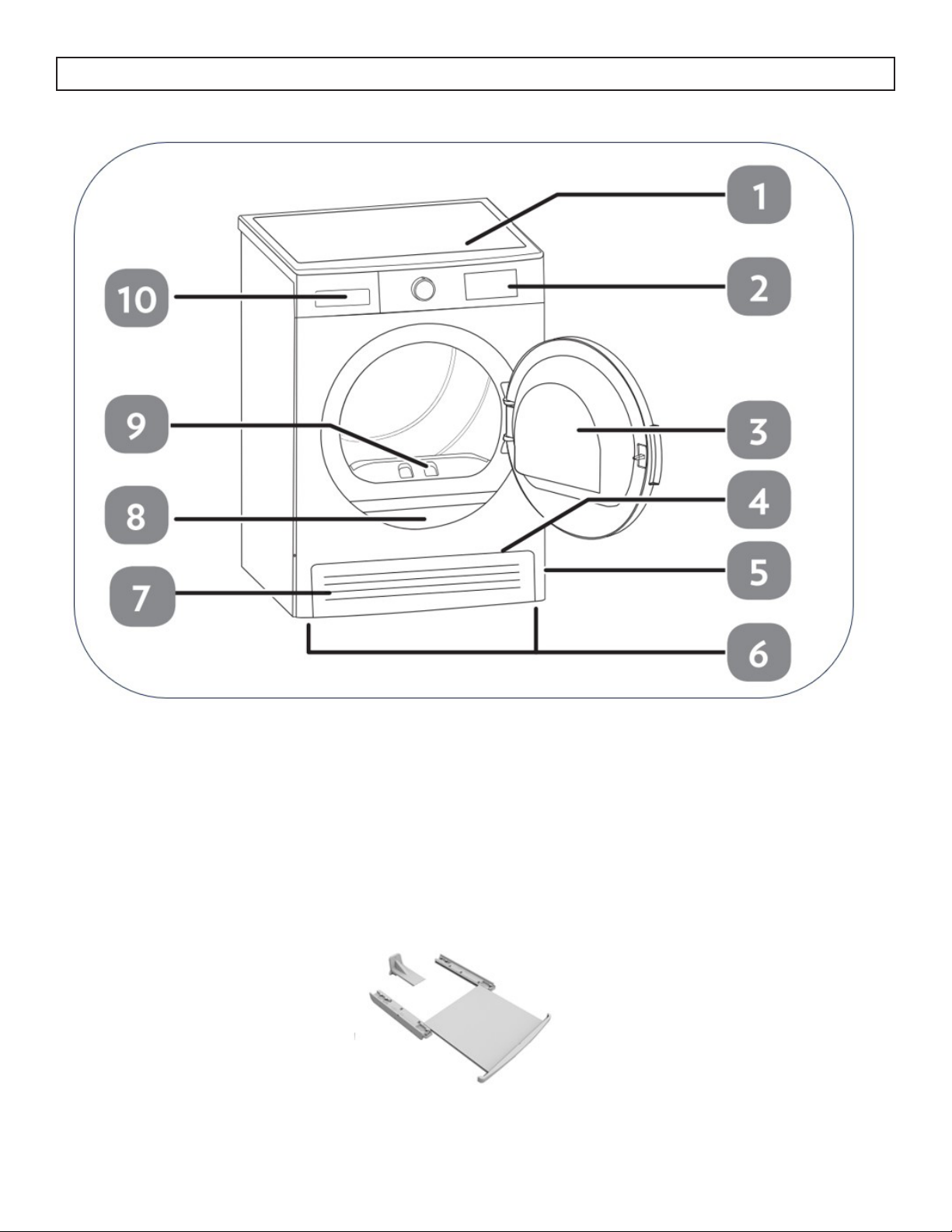

1. Dryer Top
2. Control Panel
3. Dryer Door
4. Ventilation Grills
5. Plinth Opening Slot
6. Leveling Legs
7. Plinth
8. Ratings Plate
9. Lint Filter
10.Drawer Cover
Stacking Kit with Drawer/Shelf
See instruction guide for more details

Under Counter Installation
• Leave at least 1 inch (3 cm) of space between
the side and rear walls of the product and the
underside of the worktop when installing the
dryer under a counter.
• Assembly/disassembly under the counter if
necessary must be done by authorized servicers.
INSTALLATION INSTRUCTIONS
LOCATION
Check the information in the user manual to make
sure that th electrical installation and water outlet is
suitable. If they are not, call a qualified electrician
and a plumber to have the necessary adjustments
made.
It is the customer’s responsibility to prepare the
dryer’s installation place, as well as the electricity
and waste water installation. Before installation,
check the dryer for damage. If damaged to not
have it installed. Damaged products may endanger
your health.
• Install the dryer on a stable and flat surface.
• Run the dryer in a dust-free environment where
the air ventilation is good.
• The clearance between the dryer and the floor
should not be reduced with objects such as
carpets, wood or tape.
• Do not block the ventilation grills found on the
plinth of the tumble dryer.
• The appliance must not be installed behind a
lockable door, a sliding door or a door with a
hinge on the opposite side of the dryer, in such
a way that blocks the full opening of the dryer
door.
• Once installed, the connections must remain
stable. When installing the dryer, make sure
that the rear surface is not leaning on anything
(e.g. tap, socket).
• The operating temperature of the dryer is 41°F
to 95°F (5°C to 35°C). If operated out of this
temperature range, the performance of the dryer
will be affected negatively and the product will
be damaged.
• Be careful when carrying the product as it is
heavy. Always were safety gloves.
• Always install the product against a wall. The
rear surface of the product should be placed
against the wall.
• Leave at least 1 inch (3 cm) of space between
the sides and rear of the appliance.
5
• The dryer must be level to operate more quietly
and without vibration. Use a level when
adjusting the leveling legs.
• When the dryer is placed on a stable surface,
to ensure stability, use a level. If not level, adjust
the leveling legs to level the appliance. Repeat
this process every time you relocate the product.
• Do not place the dryer onto the power cable.
• Install the clothes dryer according to the
manufacturer’s instructions and local codes.
IMPORTANT
To stack the dryer on the washing machine, use
the stacking kit with drawer/shelf included with the
dryer, between the two appliances. The stacking kit
with drawer/shelf must be attached following the
instructions provided.
For stacked installation, ONLY the provided stacking
kit & instructions, MUST be used. If a stacking kit
with instructions, was not included in the dryer
package, contact customer service to acquire.

INSTALLATION INSTRUCTIONS
6
CONNECTION TO WATER OUTLET (with
optional drain hose)
In appliances with a condenser unit, water
accumulates in the water tank during the drying
process. The accumulated water must be emptied
after each drying cycle. There is an option of using
a water drain hose to directly drain the water which
replaces the requirement to manually drain the
water tank.
Connecting the Water Drain Hose
Pull and take out the end of the hose at the back of
the dryer. Do not use any tools to take out the hose.
Fit one end of water drain hose to the slot where
you removed the hose.
Fix the other end of the water drain hose directly to
the water oulet or sink.
NOTE:
The hose must be connected in a manner that it
cannot be displaced. If the hose is displaced while
draining it can result in flooding in the home.
NOTE:
The water drain hose must be installed at a height
of 31.5 inches(80 cm) maximum.
NOTE:
The water drain hose must not be bent, folded or
stepped over.
LEVEL THE APPLIANCE
There are four leveling legs, one the each of the four
corners of the appliance.
Adjust each leveling leg by turning it to the left or
right until the dryer is level and balanced.
The applianced should not be placed on sloping,
crooked or uneven floors.

INSTALLATION INSTRUCTIONS
4-WIRE POWER SUPPLY CORDELECTRICAL CONNECTION
The dryer is set to 208-240 V and 60 Hz.
The dryer requires a special plug. This plug must
be connected to a grounded outlet protected by a
16 Amp fuse or breaker as indicated on the ratings
plate. The fuse/breaker rating of the power line to
which the outlet is connected must also be 16 Amps.
Consult a qualified electrician if you do not have the
correct outlet, fuse, or breaker.
Our company cannot be held responsible for
damages resulting from usage with grounding.
PLUG AND POWER CORD SELECTION
Select receptacle type.
4-WIRE RECEPTACLE
Requires UL listed NEMA 14-30P 240V / 30A
4-wire supply cord with ring terminals or spade
terminals with upturned ends. Supply cord must be
type SRDT and at least 5 feet (152.4 cm) in length.
3-WIRE RECEPTACLE
Requires UL listed NEMA 10-30P 240V / 30A
3-wire supply cord with ring terminals or spade
terminals with upturned ends. Supply cord must be
type SRDT and at least 5 feet (152.4 cm) in length.
WARNING
• Before the connection, disconnect the power.
• Use UL listed 240V / 30A power supply cord.
The dryer is equipped with strain relief. Use this
strain relief for the connection.
1. Remove the screw and terminal box cover.
2. Remove the clamp of the strain relief which is
attached on our machine. Pass the clamp through
the supply cord and put the supply cord through
the main body of the strain relieve. Ensure the wire
insulation of the cord is inside the strain relief.
3. Remove the terminal block screws which are
indicated by A and the grounding screw which is
indicated by B. Neutral ground conductor (central
terminal) is provided in the dryer as a closed loop.
7 8

INSTALLATION INSTRUCTIONS
4. Connect the ground conductor (green wire)
under the terminal B. Then connect the neutral
wire (white wire) to center of the terminal. Neutral
ground conductor of the dryer should remain on
the center terminal. Ensure the neutral ground
conductor of the dryer and neutral wire of the
supply cord are connected to the center terminal
together. Tighten all screws.
5. Connect remaining wires under the outer
terminals of the block and tighten all screws. After
every connection is completed, tighten the strain
relief clamp in order to secure the supply cord.
Finally, cover up the box cover.
3-WIRE POWER SUPPLY CORD
WARNING
• Before the connection, disconnect the power.
• Use UL listed 240V / 30A power supply cord.
The dryer is equipped with strain relief. Use this
strain relief for the connection.
1. Remove the screw and terminal box cover.
2. Remove the clamp of the strain relief which is
attached on the machine. Pass the clamp through
the supply cord and put the supply cord through
the main body of the strain relief. Ensure the wire
insulation of the cord is inside the strain relief.
3. Remove the terminal block screws which are
indicated by A and the grounding screw which is
indicated by B. Neutral ground conductor (central
terminal) is provided in the dryer as a closed loop.
4. Remove the neutral ground conductor from the
central terminal and connect the neutral wire of the
supply cord under the central terminal of the block.
Tighten the screw.
5. Connect the neutral ground conductor under the
screw B. Then connect the remaining supply cord
wires under the outer terminals of the block. Tighten
all screws. After every connection is completed,
tighten the strain relief clamp in order to secure the
supply cord. Finally, cover up the box cover.
8

9
OPERATING INSTRUCTIONS
OPERATING INSTRUCTIONS
• Dry items of similar fabric & fabric weight for
more even drying performance. If you must dry
a mixed fabric load, timed dry is recommended
for better drying performance.
• For best drying performance, do not dry small
items with bulky items such as duvets etc. It is
best to dry these in separate loads.
• It is recommended that items be added to the
dryer one at a time to avoid tangling which can
result in uneven drying.
• Check the pockets of all items to be dried,
ensure that foreign objects do not enter the unit
such as lighters, hair pins, coins, etc.
• Tie fabric belts, apron laces etc. to each other or
use a laundry bag.
• To get the best drying result, sort the laundry
according to the textile type and drying
program.
• Dryer heat may permanently set stains, ensure
all stains are removed prior to putting items in
the dryer.
• Woven goods such as t-shirts and knit clothes
generally shrink in the first drying. Use a
protective program.
• Do not over-dry synthetics. This will cause
creases.
• Do not add items to the dryer when it is in
operation.
• If drying large items such as blankets or heavy
loads of laundry, it is recommended that you
periodically pause the program, open the dryer
door, shake the large item or turn over the heavy
load and then restart the drying cycle. This will
ensure even drying.
• The appliance cannot function while the door is
open. Once the door is closed, press the Start/
Pause button to resume operation.
IMPORTANT
Delicate fabrics, embroidered fabrics, woolen/silk
fabrics, clothes made of delicate and expensive
fabrics, airtight clothes and tulle curtains are not
suitable for drying in the dryer.
LOAD CAPACITY
It is not recommended to load the dryer with more
laundry than the amount shown in the figure below.
When overloaded, the drying performance of the
dryer will decrease resulting in possible damage to
the dryer and the laundry.

OPERATING INSTRUCTIONS
10

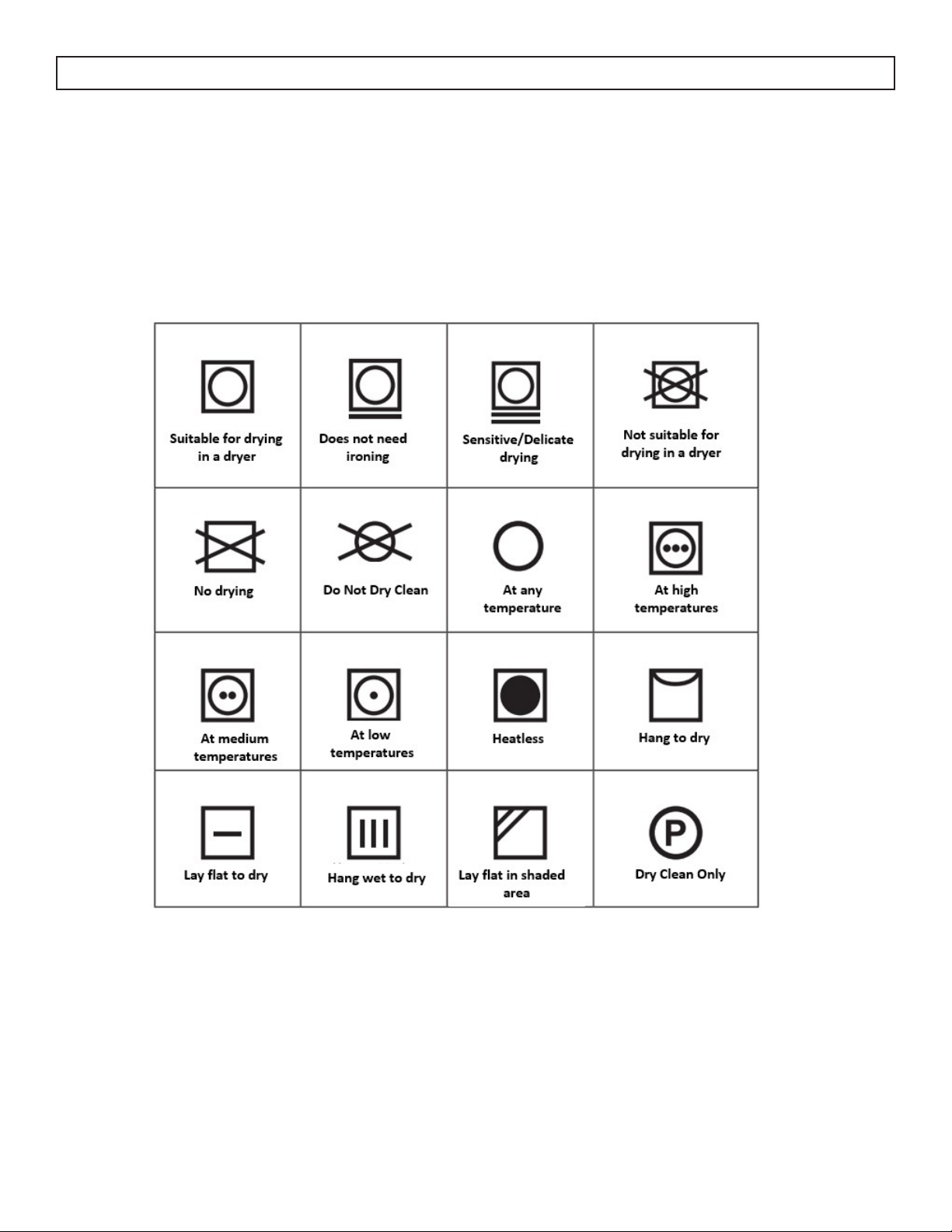

Follow the instructions on the labels of the laundry to be dried. Only dry items that have a statement/
symbol that indicates they can be dried in a dryer.

11

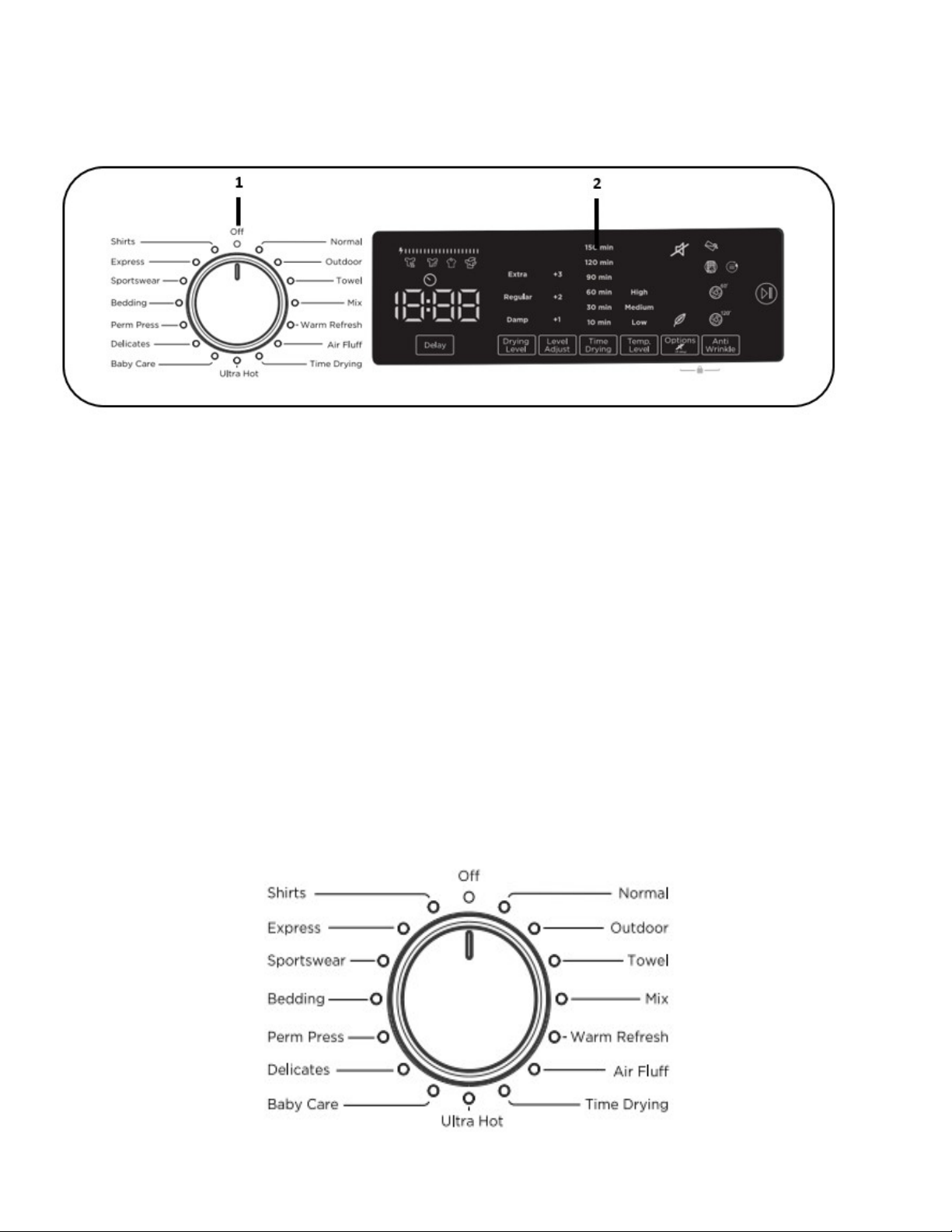

CONTROL PANEL
1. Program Selection Knob
• Use the program selection knob to select the desired drying program.

12
OPERATING INSTRUCTIONS
2. Electronic Indicator Display

OPERATING INSTRUCTIONS
13
Program Selection and Consumption Table
Press the Start/Pause button to start the program. The Start/Pause LED that indicates the program has
started and the Drying LED will come on.
NOTE
Not all programs listed available on all dryers
Auxiliary Functions
Drying Level
Select the drying target suitable for your laundry.
• Select Extra Dry for thick and multilayer laundry that takes time to dry.
• Select Regular Dry for regular, single-layer laundry.
• Select Damp Dry for laundry that you wish to leave damp, ready for ironing.
Level Adjustment
The dampness level obtained after drying can be increased by another 3 levels in addition to the standard
setting. This way, it is ensured that the laundry is drier. Levels can be selected apart from the standard
setting.
+1 (low)
+2 (medium)
+3 (high)
After selection, the light of the relevant drying level illuminates.

14
OPERATING INSTRUCTIONS
Delicate Drying
Delicate fabrics are dried in a longer time at a low temperature.
Delayed Start
Delay the start of a program by selecting a time between 1 and 23 hours. You can press Start/Pause to
activate the desired delay time. When this time has elapsed, the selected program will start automatically.
During the delay time, options compatible with the program can be activated/deactivated. If you press
and hold the Delayed Start button, the delay time will change continuously.
Cancel Audible Warning
The dryer will give an audible warning when the buttons are pressed, when the program selection knob
is turned and when the program ends. To cancel the audible warnings, press and hold the “Antiwrinkle
Option” for 3 seconds. When you press this button, you will hear an audible warning that indicates that
the option has ben activated and the audible warnings stated will be cancelled.
Time Drying
If the program knob is turned to Time Drying, press the Time Drying option button to select it, pres Start/
Pause to start the program.
Child Lock
There is a child lock option to avoid changes in the selected program when keys are pressed during
the program cycle. To activate the child lock feature, press “Options” and “Anti-wrinkle” buttons
simultaneiously for 3 seconds. When the child lock is activated, all keys will be deactivated. Child lock is
not automatically deactivated at the end of the program.
To deactivate the child lock at the end of the program, set the program selection knob to the “Off”
position, then to the first position. Child Lock is still active. To deactivate , press “Options” and “Anti-
wrinkle” buttons simultaneously for 3 seconds. When activating/deactivating “CL will appeare on the
display for 2 seconds and then turns off. An audible warning will sound.
WARNING
When the dryer is running or the child lock is active, if you turn the program selection knob, you will hear
an audible warning and “CL” will visualize on the display for 2 seconds and then turn off. If you turn the
program selection knob, you will hear an audible warning. Even if you set the program knob to another
program, the previous program will continue to run. To select a new program, deactivate the child lock
and then set the program selection knob.
Anti-wrinkle
If you do not open the door of the dryer at the end of the program, the anti-wrinkle option will be active
for 60 minutes except for the normal program. When the anti-wrinkle option is selected it, will be active
for 120 minutes.
Temperature Level
For the laundry to be dried, temperature level can be adjusted with low, medium and high options.
NOTE
Not all options listed are available on all models

OPERATING INSTRUCTIONS
15
Starting the Program
The Start/Pause LED will flash during program
selection. Press the Start/Pause button to start the
program. The Start/Pause LED indicates that the
program has started and the drying LED will come
on.
NOTE
Not all programs listed available on all dryers
Normal
Suitable for cotton laundry including bedsheets,
pillowcases, pajamas, underwear, tablecloths etc.
Outdoor
Suitable for outdoor clothing, waterproof jackets,
jackets with inner insulation, etc.
Towels
Suitable for thick cotton laundry such as towels,
bathrobe, etc.
Mix
Suitable for cotton-synthetic mixed garments that do
not discolour to make them ready to wear.
Warm Refresh
Helps wool textiles to remove excess water after
washing by applying low temperature and gentle
tumbling of the drum.
Air Fluff
Used to remove bad odors with 10 minutes of
tumbling without heat.
Time Drying
To reach the required drying level at a low
temperature, you can use the time programs of 10
min. to 150 min. Regardless of the drying level, the
program stops at the desired time.
Ultra Hot
Suitable for fabrics which need hygiene
requirements.
Baby Care
Provides hygienic drying for delicate infant clothes
at a low temperature.
Delicates
This program dries delicate clothing/fabrics
like shirts, blouses, and silk garments at a low
temperature to make them ready to wear.
Perm Press
Dries synthetics such as shirts, t-shirts, blouses
at a lower temperature compared to the cottons
program.
Bedding
Used to dry single duvet with feathers, down or
synthetic fillings.
Sports Wear
Used for synthetic sport garments like shorts, t-shirts
at low temperature.
Express
2 Kg (4.4 lbs) of cotton shirts spun at a high speed
in the washing machine are dried in 29 minutes.
Shirts
2 - 3 shirts are ready to be ironed in 12 minutes.
IMPORTANT
Do not open the dryer door while the program is
running. If you have to open the door, do not keep
it open for a long time.

16
OPERATING INSTRUCTIONS
Selection Stand By
After 15 minutes without user action in selection
mode, the dryer goes to energy-saving mode due to
decreased energy consumption. No LED activation
on display. While in energy saving mode, dial
LED remains on while selection will not appear in
Display.
To restart the dryer it will be necessary to move
turn the knob to the OFF position and re-select the
program.
During the Program
If the door is opened while a program is running,
the dryer will switch to standby mode. Once the
door is closed, press the Start/Pause key to resume
the program.
Do not open the dryer door when the program is
running. If you have to open the door, do not keep
it open for a long time.
Program End
At the end of the drying cycle, the warning LEDs for
Start/Pause, water tank level, filter cleaning and
condenser cleaning will turn on and an audible
warning will sound. The laundry can now be
removed from the dryer.
NOTE
Clean the filter and empty the water tank after each
use.
NOTE
If the laundry is not removed from the dryer after
the program has ended, the 1-hour Anti-wrinkle
cycle will automatically be activated. This program
roates the drum at regular intervals to prevent
creases.
Drum Light Information
This product includes an LED Drum Light. The light
works automatically when you open the door. It will
turn off automatically if door is left open.
NOTE
• The dryer light cannot be turned on or off by
user.
• Do not try to replace or modify the LED light.

17
DOOR REVERSAL
1. Remove door and door hinge
2. Remove door closing mechanism
3. Install door hinge and closing mechanism on
opposite sides of door opening
4. Remove inner glass from door
5. Turn door 180 degrees and re-install the inner
glass
6. Re-install door

18
Cleaning the Inner Surface of the Dryer
Emptying the Water Tank
1. Pull the drawer cover, carefully take out the tank.
2. Empty the water in the tank.
3. If there is lint accumulated on the discharge cap
in the tank, clean it with water.
4. Replace the tank.
NOTE
• Do not remove the water tank when a program
is running. The water in the water tank is not
suitable for human consumption.
• The water tank MUST be emptied after each use.
NOTE
• Do not use industrial chemicals to clean your
dryer.
• Do not use a dryer that has been cleaned with
industrial chemicals.
Cleaning the Lint Filter
1. Open the dryer door.
2. Pull up the lint filter to remove it.
3. Use your hands or a soft cloth to clean the lint.
4. Replace the lint filter and close the dryer door.
NOTE
The lint filter MUST be cleaned after every use.
After continued use, a build-up on the surface of the
lint filter that reduces airflow, may occur. Wash the
filter with warm water to remove build-up.
CARE & MAINTENANCE
Open the dryer door and clean all of the inner
surfaces including the gasket with a soft, damp
cloth.

19
CARE & MAINTENANCE
Cleaning the Condenser
If the drying process is completed, open the dryer
door and wait for it to cool down.
1. Open the plinth and release the 2 cover locks.
2. Hold the condenser by the plastic part and pull
it out.
3. Clean with a showerhead and wait for the water
to drain off.
4. Fully insert the condenser into its seat and lock
the 2 cover locks.
5. Close the plinth cover.
NOTE
Clean the condenser when you see the warning
“Condenser Cleaning”.
NOTE
The condenser should be cleaned after every 30
completed drying programs or once a month even if
the warning has not activated.
Cleaning the Humidity Sensor
Inside the dryer, there are humidity sensors that
detect whether the laundry is or is not dry.
1. Open the dryer door.
2. If the dryer is still hot due to the drying process,
wait for it to cool down.
3. Using a soft cloth soaked in vinegar, wipe the
metal surfaces of the sensor and dry them.
4. Replace the lint filter and close the dryer door.
NOTE
Clean the metal surfaces of the sensor 4 times per
year.
NOTE
Do not use metal tools to clean the metal surfaces of
the sensor.
WARNING
Due to the risk of fire and explosion, do not use
solution agents, cleaning agents or similar products
when cleaning the sensors.
