Daniela DANDW45BS User manual
Appliance User Manual
45CM STAINLESS STEEL
ELECTRONIC DISHWASHER
DANDW45BS
danielaappliances.com.au
PAGE 3
PAGE 2
Daniela Appliances started in 1988. Formally known as Italnova,
the company began operating by selling other major leading brands.
Since then, Daniela Appliances has it’s own range, continuously
evolving, striving on delivering leading-edge quality products at
very competitive prices.
From an Italian heritage our brand Daniela was then established in
2005 from a father’s love to a daughter and naming it after Daniela,
now the new proprietor. Daniela has worked closely with her father for
many years learning from his decades of industry experience. Daniela
with her extensive knowledge and understanding of appliances, now
continues her father’s legacy with a modern flare.
Our products are extensively tested and come with ISO certification
certificates prior to importation. Daniela Appliances continuously
designs and sources the best parts, to bring you an elegant feel that
will last the test of time and for a third of the cost from a major brand.
Daniela Appliances is dedicated to offering our customers exceptional
products with exceptional service. Our commitment is to provide our
valuable customers the very best in technology with the very best in
safety that combines both the values that brings us market success.
DANDW45BS
STAINLESS STEEL ELECTRONIC DISHWASHER
TECHNICAL SPECIFICATIONS
MODEL DANDW45BS
Standard place settings 10
Energy eciency class ★ ★ ★ 3 Star Rating
Water consumption class ★ ★ ★ ★ 4.5 Star Rating
Standard cleaning cycle ECO
Energy consumption of the standard cleaning cycle 0.73 kWh
Water consumption of the standard cleaning cycle 10.8 litre
Program duration of the standard cleaning cycle 185 min
Noise level 54 dB(A) re 1 pW
Mounting Free standing
Dimensions W x H X D 448mm x 845mm x 600mm
Power consumption 1760-2100W
Rated voltage / frequency AC 220-240V/50Hz
Water pressure (flow pressure) 0.04-1.0MPa=0.4-10 bar
1818
Technical InformationTechnical Information
Height : 845mm
Width : 448m m
Depth : 600mm(with the door closed)
Water pressure: 0.04-1.0MPa
Power supply: see rating label
Capacity: 10 place settings
448448
845845
11751175
600(with the door closed)600(with the door closed)
PAGE 5
PAGE 4
IMPORTANT SAFETY INFORMATION
THESE WARNINGS ARE PROVIDED IN THE INTEREST OF SAFETY. PLEASE READ THEM
CAREFULLY BEFORE INSTALLING OR USING THE APPLIANCE.
• Installation and repair can only be carried out by a qualified technician.
• This appliance is intended to be used in domestic household applications.
• This appliance can be used by children aged from 12 years and above and persons with
reduced physical, sensory or mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning use of the appliance in a safe
way and understand the hazards involved.
• Children shall not play with the appliance. Cleaning and user maintenance shall not be done
by children without supervision.
• This appliance is not intended for use by persons (including children ) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless they
have been given supervision or instruction concerning use of the appliance by a person
responsible for their safety.
• Packaging material could be dangerous for children!
• This appliance is for indoor household use only.
• To protect against the risk of electrical shock, do not immerse the unit, cord or plug in water
or other liquid.
• Please unplug before cleaning and performing maintenance on the appliance. Use a soft
cloth moistened with mild soap, and then use a dry cloth to wipe it again.
SAVE THIS INSTRUCTION IN A SAFE PLACE FOR FUTURE REFERENCE
Thank you for choosing Daniela appliances!
Please read all instructions before using this appliance. This book contains valuable
information about operation, care and service. Keep it in a safe place for future
reference. Should the appliance be sold or transferred to another owner, or should
you move house and leave the appliance, always ensure that the book is supplied with
the appliance in order that new owner can be acquainted with the functioning of the
appliance and relevant warnings.
The manufacturer cannot be held responsible for any inaccuracies due to printing or
transcription errors that may be found in this handbook.
N.B.: the pictures shown in the figures in this handbook are purely indicative.
EARTHING INSTRUCTIONS.
• This appliance must be earthed. In the event of a malfunction or breakdown, earthing
will reduce the risk of an electric shock by providing a path of least resistance of electric
current. This appliance is equipped with an earthing conductor plug.
• The plug must be plugged into an appropriate outlet that is installed and earthed in
accordance with all local codes and ordinances. Improper connection of the equipment-
earthing conductor can result in the risk of an electric shock.
• Check with a qualified electrician or service representative if you are in doubt whether the
appliance is properly earthed.
• Do not modify the plug provided with the appliance; If it does not fit the outlet.
Have a proper outlet installed by a qualified electrician.
• Do not abuse, sit on, or stand on the door or dish rack of the dishwasher.
• Do not operate your dishwasher unless all enclosure panels are properly in place.
• Open the door very carefully if the dishwasher is operating, there is a risk of water squirting out.
• Do not place any heavy objects on or stand on the door when it is open. The appliance
could tip forward.
• When loading items to be washed:
1. Locate sharp items so that they are not likely to damage the door seal;
2. Warning: Knives and other utensils with sharp points must be loaded in the basket with
their points facing down or placed in a horizontal position.
• Some dishwasher detergents are strongly alkaline. They can be extremely dangerous
if swallowed. Avoid contact with the skin and eyes and keep children away from the
dishwasher when the door is open.
• Check that the detergent powder is empty after completion of the wash cycle. Do not wash
plastic items unless they are marked “dishwasher safe” or the equivalent.
• For unmarked plastic items not so marked, check the manufacturer’s recommendations.
• Use only detergent and rinse agents recommended for use in an automatic dishwasher.
Never use soap, laundry detergent, or hand washing detergent in your dishwasher.
• The door should not be left open, since this could increase the risk of tripping. If the supply
cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly
qualified person in order to avoid a hazard.
• During installation, the power supply must not be excessively or dangerously bent or
flattened. Do not tamper with controls.
• The appliance needs to be connected to the main water valve using new hose sets.
Old sets should not be reused.
PAGE 7
PAGE 6
QUICK OPERATION GUIDE
For detailed operating method read the corresponding content on the instruction manual.
22
2.Quick operation guide2.Quick operation guide
For detailed operating method read the corresponding content on the instruction manual.
Compartment A:
Compartment A:
For each wash cycle.
Compartment B:
B:
For programs with pre-wash only.
(Follow the user instructions)
Mechanical indicator C.
Mechanical indicator C.
Electric indicator on control panel (if provided).
Check the rinse aid level
Load the baskets
Select a program
Running the dishwasher
Switch off the appliance
Turn off the water tap,
unload the baskets
Fill the detergent dispenser
Warning: wait a few minutes (about 15 minutes) before unloading the dishwasher to avoid scald,as
the dishes and utensils are still hot and more susceptible to break.
They could also dry better.Unload the appliance, starting from the lower basket.
Changing the program
Add forgotten dishes in the
dishwasher.
Scrape off any large food particles. Soften remnants of burnt food in pans,
then load the baskets. Refer to the dishwasher loading instructions.
When the working cycle is finished, the buzzer of the
dishwasher will sound 8 times, then stop.
Turn off the appliance using the On/Off Button.
If the appiance was under standby mode, it will be power off automaticly after 30 minutes without any operation.
If the appliance is switched
off during a wash cycle.
Open the door carefully.
Hot steam may escape
when the door is opened!
WARNING!
If the appliance is switched off during a wash cycle, when switched
on again, please re-select the washing cycle and operate the dishwasher
according to the original Power-on state ).
Switch on the appliance
Open the door, press the On/Off button to switch on the appliance.
T urn on the water tap and press the Start/Pause Button. The machine will start working
after about 10 seconds.
Close the door,press the Program Button until the selected program lights up.
( See the section entitled Operation instruction )
1. A running cycle can only be modified if it has been running for a short time. Otherwise the detergent
may have already been released and the water already drained. If in this case, the detergent
dispenser must be refilled.
2. Press the Start/Pause button, the machine will be in standby state, press the program
button more than 3 seconds then you can change the program to the desired cycle setting.
3. Press the Start/Pause Button, the dishwasher will run after 10 seconds.
1.Press the Start/Pause Button to stop the washing.
2.Open the door a little.
3.After the spray arms stop working, you can open the door
completely.
4.Add forgotten dishes.
5.Close the door.
6.Press the Start/Pause Button, the dishwasher will run
after 10 seconds.
AB
C
OPERATION INSTRUCTION
IMPORTANT
To get the best performance from your dishwasher, read all operating instructions before using it
for the first time.
CONTROL PANEL
1. On/O Button:
To turn on/o the power supply.
2. Strong Wash function Button:
improve the cleaning ecienc
(only Intensive, Heavy, ECO, Glass and
90 min have this function).
3. Extra Drying function Button:
improve the drying eciency
(only Intensive, Heavy, ECO, Glass and
90 min have this function).
4. Alt Button:
Dual zone wash function, press the button
to select either upper basket or lower
basket loaded. The response indicator
will light (only Intensive Heavy, ECO, Glass
and 90 min can be used).
33
3.Operation Instruction3.Operation Instruction
before using it for the first time.
To get the best performance from your dishwasher, read all operating instructions
IMPORTANTIMPORTANT
Control PanelControl Panel
Dishwasher FeaturesDishwasher Features
11223344556677991010
88
1.On/Off Button: To turn on/off the power supply.
2. Strong Wash function Button: improve the cleaning
efficiency(only Intensive, Heavy, ECO, Glass and
90 min have this function)
5.Display screen: to show the reminding time, program
error code, Rinse Aid indicator etc.
4.Alt Button: Dual zone wash function, press the button
to select either upper basket or lower basket loaded.
And the response indicator will light(only Intensive
Heavy, ECO, Glass and 90 min can be used.)
3.Extra Drying function Button: improve the drying
efficiency(only Intensive, Heavy, ECO, Glass and
90 min have this function )
7.Delay Button: Press the button to increase dealay time.
10.Start /Pause button: To start the selected
washing program or pause the washing program
when the machine is working.
6.Program Button: To Press the button to select.
8.Child lock button: press the two buttons for 3 seconds
simultaneously to lock the all button.
9.Delay Button: Press the button to decrease dealay time.
Faucet is not open
Rinse detergent need to be refilled
Child lock
Back View
1
2
3
4
5
7
8
910
Front view
Lower basket
Salt container
Dispenser
Cup shelf
Spray arms
Filter assembly
Inlet pipe connector
Drain pipe
Upper basket
Cutlery rack
Top spray arm
1Inner pipe
5
6
7
8
9
10
12
11
3
2
4
6
Adjuster
13
13
11
12
33
3.Operation Instruction3.Operation Instruction
before using it for the first time.
To get the best performance from your dishwasher, read all operating instructions
IMPORTANTIMPORTANT
Control PanelControl Panel
Dishwasher FeaturesDishwasher Features
11223344556677991010
88
1.On/Off Button: To turn on/off the power supply.
2. Strong Wash function Button: improve the cleaning
efficiency(only Intensive, Heavy, ECO, Glass and
90 min have this function)
5.Display screen: to show the reminding time, program
error code, Rinse Aid indicator etc.
4.Alt Button: Dual zone wash function, press the button
to select either upper basket or lower basket loaded.
And the response indicator will light(only Intensive
Heavy, ECO, Glass and 90 min can be used.)
3.Extra Drying function Button: improve the drying
efficiency(only Intensive, Heavy, ECO, Glass and
90 min have this function )
7.Delay Button: Press the button to increase dealay time.
10.Start /Pause button: To start the selected
washing program or pause the washing program
when the machine is working.
6.Program Button: To Press the button to select.
8.Child lock button: press the two buttons for 3 seconds
simultaneously to lock the all button.
9.Delay Button: Press the button to decrease dealay time.
Faucet is not open
Rinse detergent need to be refilled
Child lock
Back View
1
2
3
4
5
7
8
910
Front view
Lower basket
Salt container
Dispenser
Cup shelf
Spray arms
Filter assembly
Inlet pipe connector
Drain pipe
Upper basket
Cutlery rack
Top spray arm
1Inner pipe
5
6
7
8
9
10
12
11
3
2
4
6
Adjuster
13
13
11
12
5. Display screen:
To show the reminding time, program
error code, Rinse Aid indicator etc.
Rinse detergent need to be refilled.........
Faucet is not open.........................................
Child lock..........................................................
6. Program Button:
To Press the button to select.
7. Delay Button:
Press the button to increase delay time.
8. Child lock button:
press the two buttons for 3 seconds
simultaneously to lock the all button.
9. Delay Button:
Press the button to decrease delay time.
10. Start /Pause button:
To start the selected washing program
or pause the washing program when the
machine is working.
PAGE 9
PAGE 8
ATTENTION
Only use branded rinse aid for dishwasher. Never fill the rinse aid dispenser with any other
substances (e.g. Dishwasher cleaning agent, liquid detergent). This would damage the appliance.
WHEN TO REFILL THE RINSE AID DISPENSER
If there is no rinse-aid warning light in the control panel, you can judge the amount of rinse-aid by
the colour of the optical level indicator “C” located next to the cap. When the rinse-aid container
is full, the whole indicator will be dark. As the rinse-aid diminishes, the size of the dark dot
decreases. You should never let the rinse aid get below 1/4 full.
HOW TO FILL THE RINSE AID DISPENSER
1. To open the dispenser, turn the cap to the “open” (left) arrow and lift it out.
2. Pour the rinse aid into the dispenser, being careful not to overfill.
3. Replace the cap by inserting it aligned with “open” arrow and turning it to the closed (right) arrow.
Be careful not to overfill the dispenser, because this could cause over sudsing. Wipe away any
spills with a damp cloth. Don’t forget to replace the cap before you close dishwasher door.
ATTENTION!
Clean up any rinse aid spill during filling with an absorbent cloth to avoid excess foaming during
the next wash. Don’t forget to replace the cap before you close dishwasher door.
DISHWASHER FEATURES
BEFORE USING FOR THE FIRST TIME
Before using your dishwasher for the first time:
A. Fill the rinse aid dispenser AND B. Fill with detergent
FRONT VIEW BACK VIEW
33
3.Operation Instruction3.Operation Instruction
before using it for the first time.
To get the best performance from your dishwasher, read all operating instructions
IMPORTANTIMPORTANT
Control PanelControl Panel
Dishwasher FeaturesDishwasher Features
11223344556677991010
88
1.On/Off Button: To turn on/off the power supply.
2. Strong Wash function Button: improve the cleaning
efficiency(only Intensive, Heavy, ECO, Glass and
90 min have this function)
5.Display screen: to show the reminding time, program
error code, Rinse Aid indicator etc.
4.Alt Button: Dual zone wash function, press the button
to select either upper basket or lower basket loaded.
And the response indicator will light(only Intensive
Heavy, ECO, Glass and 90 min can be used.)
3.Extra Drying function Button: improve the drying
efficiency(only Intensive, Heavy, ECO, Glass and
90 min have this function )
7.Delay Button: Press the button to increase dealay time.
10.Start /Pause button: To start the selected
washing program or pause the washing program
when the machine is working.
6.Program Button: To Press the button to select.
8.Child lock button: press the two buttons for 3 seconds
simultaneously to lock the all button.
9.Delay Button: Press the button to decrease dealay time.
Faucet is not open
Rinse detergent need to be refilled
Child lock
Back View
1
2
3
4
5
7
8
910
Front view
Lower basket
Salt container
Dispenser
Cup shelf
Spray arms
Filter assembly
Inlet pipe connector
Drain pipe
Upper basket
Cutlery rack
Top spray arm
1Inner pipe
5
6
7
8
9
10
12
11
3
2
4
6
Adjuster
13
13
11
12
A. FILL THE RINSE AID DISPENSER
RINSE AID DISPENSER
The rinse aid is released during the final rinse to prevent water from forming droplets on your
dishes, which can leave spots and streaks. It also improves drying by allowing water to roll o the
dishes. Your dishwasher is designed to use liquid rinse aids. The rinse aid dispenser is located
inside the door next to the detergent dispenser. To fill the dispenser, open the cap and pour the
rinse aid into the dispenser until the level indicator turns completely black. The volume of the
rinse aid container is about 110ml.
FUNCTION OF RINSE AID
Rinse aid is automatically added during the last rinse, ensuring thorough rinsing, and spot and
streak free drying.
As the rinse aid diminishes, the size
of the black dot on the rinse aid level
indicator changes, as illustrated below.
Full
3/4 full
1/2 full
1/4 full - Should refill to eliminate spotting
Empty
44
4.Prior using for the first time4.Prior using for the first time
Before using your dishwasher for the first time:
A. Fill the rinse aid dispenser
B. Fill in detergent
A. Rinse Aid DispenserA. Rinse Aid Dispenser
The rinse aid is released during the final rinse to prevent water from forming droplets on your dishes, which can
leave spots and streaks. It also improves drying by allowing water to roll off the dishes. Your dishwasher is
designed to use liquid rinse aids. The rinse aid dispenser is located inside the door next to the detergent dispenser.
To fill the dispenser, open the cap and pour the rinse aid into the dispenser until the level indicator turns completely
black. The volume of the rinse aid container is about 110ml.
Rinse Aid Dispenser
Function of Rinse Aid
Rinse aid is automatically added during the last rinse, ensuring thorough rinsing, and spot and streak free drying.
Attention!
Only use branded rinse aid for dishwasher. Never fill the rinse aid dispenser with any other substances
(e.g. Dishwasher cleaning agent, liquid detergent). This would damage the appliance.
As the rinse aid diminishes, the size of the black dot
on the rinse aid level indicator changes, as illustrated below.
Full
3 / 4 fu ll
1 / 2 fu ll
1 / 4 full - Should refill to eliminate spotting
Empty
If there is no rinse-aid warning light in the control panel, you can judge the amount of rinse-aid by the color of the
optical level
indicator "C" located next to the cap. When the rinse-aid container is full, the whole indicator will be dark .As the
rinse-aid
diminishes, the size of the dark dot decreases. You should never let the rinse aid get below 1 / 4 full.
When to Refill the Rinse Aid Dispenser
How to fill the Rinse Aid Dispenser
To open the dispenser, turn the cap to the "open" (left) arrow and lift it out.
Pour the rinse aid into the dispenser, being careful not to overfill.
Replace the cap by inserting it aligned with "open" arrow and turning it to the closed (right) arrow.
Be careful not to overfill the dispenser, because this could cause over sudsing. Wipe away any spills
with a damp cloth. Don't forget to replace the cap before you close dishwasher door.
Attention!
Clean up any rinse aid spill during filling with an absorbent cloth to avoid excess foaming
during the next wash.
1
2
3
C (Rinse-Aid indicator)C
44
4.
Prior using for the first time
4.
Prior using for the first time
Before using your dishwasher for the first time:
A. Fill the rinse aid dispenser
B. Fill in detergent
A. Rinse Aid DispenserA. Rinse Aid Dispenser
The rinse aid is released during the final rinse to prevent water from forming droplets on your dishes, which can
leave spots and streaks. It also improves drying by allowing water to roll off the dishes. Your dishwasher is
designed to use liquid rinse aids. The rinse aid dispenser is located inside the door next to the detergent dispenser.
To fill the dispenser, open the cap and pour the rinse aid into the dispenser until the level indicator turns completely
black. The volume of the rinse aid container is about 110ml.
Rinse Aid Dispenser
Function of Rinse Aid
Rinse aid is automatically added during the last rinse, ensuring thorough rinsing, and spot and streak free drying.
Attention!
Only use branded rinse aid for dishwasher. Never fill the rinse aid dispenser with any other substances
(e.g. Dishwasher cleaning agent, liquid detergent). This would damage the appliance.
As the rinse aid diminishes, the size of the black dot
on the rinse aid level indicator changes, as illustrated below.
Full
3 / 4 fu ll
1 / 2 fu ll
1 / 4 full - Should refill to eliminate spotting
Empty
If there is no rinse-aid warning light in the control panel, you can judge the amount of rinse-aid by the color of the
optical level
indicator "C" located next to the cap. When the rinse-aid container is full, the whole indicator will be dark .As the
rinse-aid
diminishes, the size of the dark dot decreases. You should never let the rinse aid get below 1 / 4 full.
When to Refill the Rinse Aid Dispenser
How to fill the Rinse Aid Dispenser
To open the dispenser, turn the cap to the "open" (left) arrow and lift it out.
Pour the rinse aid into the dispenser, being careful not to overfill.
Replace the cap by inserting it aligned with "open" arrow and turning it to the closed (right) arrow.
Be careful not to overfill the dispenser, because this could cause over sudsing. Wipe away any spills
with a damp cloth. Don't forget to replace the cap before you close dishwasher door.
Attention!
Clean up any rinse aid spill during filling with an absorbent cloth to avoid excess foaming
during the next wash.
1
2
3
C (Rinse-Aid indicator)C
44
4.
Prior using for the first time
4.
Prior using for the first time
Before using your dishwasher for the first time:
A. Fill the rinse aid dispenser
B. Fill in detergent
A. Rinse Aid DispenserA. Rinse Aid Dispenser
The rinse aid is released during the final rinse to prevent water from forming droplets on your dishes, which can
leave spots and streaks. It also improves drying by allowing water to roll off the dishes. Your dishwasher is
designed to use liquid rinse aids. The rinse aid dispenser is located inside the door next to the detergent dispenser.
To fill the dispenser, open the cap and pour the rinse aid into the dispenser until the level indicator turns completely
black. The volume of the rinse aid container is about 110ml.
Rinse Aid Dispenser
Function of Rinse Aid
Rinse aid is automatically added during the last rinse, ensuring thorough rinsing, and spot and streak free drying.
Attention!
Only use branded rinse aid for dishwasher. Never fill the rinse aid dispenser with any other substances
(e.g. Dishwasher cleaning agent, liquid detergent). This would damage the appliance.
As the rinse aid diminishes, the size of the black dot
on the rinse aid level indicator changes, as illustrated below.
Full
3 / 4 fu ll
1 / 2 fu ll
1 / 4 full - Should refill to eliminate spotting
Empty
If there is no rinse-aid warning light in the control panel, you can judge the amount of rinse-aid by the color of the
optical level
indicator "C" located next to the cap. When the rinse-aid container is full, the whole indicator will be dark .As the
rinse-aid
diminishes, the size of the dark dot decreases. You should never let the rinse aid get below 1 / 4 full.
When to Refill the Rinse Aid Dispenser
How to fill the Rinse Aid Dispenser
To open the dispenser, turn the cap to the "open" (left) arrow and lift it out.
Pour the rinse aid into the dispenser, being careful not to overfill.
Replace the cap by inserting it aligned with "open" arrow and turning it to the closed (right) arrow.
Be careful not to overfill the dispenser, because this could cause over sudsing. Wipe away any spills
with a damp cloth. Don't forget to replace the cap before you close dishwasher door.
Attention!
Clean up any rinse aid spill during filling with an absorbent cloth to avoid excess foaming
during the next wash.
1
2
3
C (Rinse-Aid indicator)C
PAGE 11
PAGE 10
ADJUSTING RINSE AID DISPENSER
The rinse aid dispenser has six or four settings.
Always start with the dispenser set on “4”.
If spots and poor drying are a problem, increase the amount
of rinse aid dispensed by removing the dispenser lid and
rotating the dial to “5”. If the dishes still are not drying
properly or are show spots, adjust the dial to the next higher
lever until your dishes are spot-free. The recommended
setting is “4”. (Factory value is “4”.)
NOTE: Increase the dose if there are drops of water or lime
spots on the dishes after washing. Reduce it if there are sticky
whitish stains on your dishes or a bluish film on glassware or
knife blades.
B. FILL WITH DETERGENT
DETERGENTS
Detergents have chemical ingredients that are necessary to remove dirt, crush dirt and transport
it out of the dishwasher. Most of the commercial quality detergents are suitable for this purpose.
There are 3 sorts of detergents
1. With phosphate and with chlorine
2. With phosphate and without chlorine
3. Without phosphate and without chlorine
Normally new pulverised detergent is without phosphate. Thus the water softener function of
phosphate is not given. If detergents without phosphate are used in the case of hard water
often white spots appear on dishes and glasses. In this case please add more detergent to reach
better results. Detergents without chlorine do only bleach a little. Strong and coloured spots will
not be removed completely. In this case please choose a program with a higher temperature.
CONCENTRATED DETERGENT
Based on their chemical composition, detergents can be split in two basic types:
• Conventional, alkaline detergents with caustic components
• Low alkaline concentrated detergents with natural enzymes
The use of normal washing programs in combination with concentrated detergents reduces
pollution and is good for your dishes; these wash programs are specifically matched to the dirt-
dissolving properties of the enzymes of the concentrated detergent. For this reason normal wash
programs in which concentrated detergents are used can achieve the same results that can
otherwise only be achieved using intensive programs.
DETERGENT TABLETS
Detergent tablets of dierent brands dissolve at dierent speeds. For this reason some detergent
tablets cannot dissolve and develop their full cleaning power during short programs. Therefore,
please use long programs when using detergent tablets, to ensure the complete removal of
detergent residuals.
DETERGENT DISPENSER
The dispenser must be refilled before the start of each wash cycle following the instructions
provided in the wash cycle table. Your dishwasher uses less detergent and rinse aid than a
conventional dishwasher. Generally, only one tablespoon of detergent is needed for a normal
wash load. More heavily soiled items need more detergent. Always add the detergent just before
starting the dishwasher, otherwise it could get damp and will not dissolve properly.
PROPER USE OF DETERGENT
Use only detergent specifically made for the use in dishwashers. Keep your detergent fresh and
dry. Don’t put powdered detergent into the dispenser until you’re ready to wash dishes.
ADDING DETERGENT TO DISPENSER
55
Adjusting Rinse Aid Dispenser
The rinse aid dispenser has six or four settings. Always start with the dispenser
set on "4". If spots and poor drying are a problem, increase the amount of rinse
aid dispensed by removing the dispenser lid and rotating the dial to "5". If the
dishes still are not drying properly or are show spots, adjust the dial to the next
higher lever until your dishes are spot-free. The recommended setting is "4".
(Factory value is "4".)
Incre
ase the dose if there are drops of water or lime spots on the dishes after washing.
Reduce it if there are sticky whitish stains on your dishes or a bluish film on glassware or
knife blades.
Adjust lever
(Rinse)
Adjust lever
(Rinse)
during the next wash. Don't forget to replace the cap before you close dishwasher door.
Clean up any rinse aid spilled while during filling with an absorbent cloth to avoid excessive foaming
NOTE:NOTE:
NOTE:NOTE:
Detergents have chemical ingredients that are necessary to remove dirt, crush dirt and transport it out of the dishwasher.
Most of the commercial quality detergents are suitable for this purpose.
B. DetergentB. Detergent
Detergents
There are 3 sorts of detergents
1.With phosphate and with chlorine
2.With phosphate and without chlorine
3.Without phosphate and without chlorine
MAX
MAX
Based on their chemical composition, detergents can be split in two basic types:
The use of normal washing programs in combination with concentrated detergents
reduces pollution and is good for your dishes; these wash programs are specifically matched
to the dirt-dissolving properties of the enzymes of the concentrated detergent. For this reason
normal wash programs in which concentra te d dete rgents are use d can achie ve t he sa me
results that can otherwise only be achieved using intensive programs.
Detergent tablets of different brands dissolve at different speeds. For this reason some
detergent tablets cannot dissolve and develop their full cleaning power during short
programs. Therefore please use long programs when using detergent tablets, to
ensure the complete removal of detergent residuals.
The dispenser must be refilled before the start of each wash cycle following the instructions
provided in the wash cycle table . Your dishwasher uses less detergent and rinse aid than
Conventional dishwasher. Generally, only one tablespoon of detergent is needed for
a normal wash load. More heavily soiled items need more detergent. Always add the
detergent just before starting the dishwasher, otherwise it could get damp and will not
dissolve properly.
Concentrated Detergent
Detergent Tablets
Detergent Dispenser
Conventional, alkaline detergents with caustic components
Low alkaline concentrated detergents with natural enzymes
Normally new pulverised detergent is without phosphate. Thus the water softener function of
phosphate is not given. If detergents without phosphate are used in the case of hard water
often white spots appear on dishes and glasses. In this case please add more detergent to reach
better results. Detergents without chlorine do only bleach a little. Strong and coloured spots will not
be removed completely. In this case please choose a program with a higher temperature.
66
Adding detergent to dispenser
Proper Use of Detergent
Use only detergent specifically made for the use in dishwashers. Keep your detergent fresh and dry.
Don't put powdered detergent into the dispenser until you're ready to wash dishes.
Dishwasher detergent is corrosive!
Take care to keep it out of reach of children.
WARNING! WARNING!
Always add the detergent just before starting each wash cycle.
Only use branded detergent and rinse aid for dishwasher.
If the lid is closed: push the latch to open.
NOTE:NOTE:
Fill the detergent dispenser with detergent.
The marking indicates the dosing levels , as
illustrated on the right:
For main wash detergent.
For pre-wash detergent.
Please observe the manufacturers dosing and storage
Recommendations as stated on the detergent packaging.
Close the lid and press until it locks in place.
If the dishes are heavily soiled, place an additional
detergent dose in the pre-wash detergent chamber. This detergent will take effect during the pre-wash phase.
A
B
Fill in Detergent
You see information about the amount of detergent for the single programme on the last page.
Please be aware that soiling levels and water hardness can effect wash results.
Please observe the manufacturer's recommendations on the detergent packaging.
Push latch to open
Push latch to open
AABB
66
Adding detergent to dispenser
Proper Use of Detergent
Use only detergent specifically made for the use in dishwashers. Keep your detergent fresh and dry.
Don't put powdered detergent into the dispenser until you're ready to wash dishes.
Dishwasher detergent is corrosive!
Take care to keep it out of reach of children.
WARNING! WARNING!
Always add the detergent just before starting each wash cycle.
Only use branded detergent and rinse aid for dishwasher.
If the lid is closed: push the latch to open.
NOTE:NOTE:
Fill the detergent dispenser with detergent.
The marking indicates the dosing levels , as
illustrated on the right:
For main wash detergent.
For pre-wash detergent.
Please observe the manufacturers dosing and storage
Recommendations as stated on the detergent packaging.
Close the lid and press until it locks in place.
If the dishes are heavily soiled, place an additional
detergent dose in the pre-wash detergent chamber. This detergent will take effect during the pre-wash phase.
A
B
Fill in Detergent
You see information about the amount of detergent for the single programme on the last page.
Please be aware that soiling levels and water hardness can effect wash results.
Please observe the manufacturer's recommendations on the detergent packaging.
Push latch to openPush latch to open
A
A
B
B
FILL IN DETERGENT
Fill the detergent dispenser
with detergent. The marking
indicates the dosing levels.
A. For main wash detergent
B. For pre-wash detergent
Please observe the manufacturers dosing and storage recommendations as stated on the
detergent packaging.
Close the lid and press until it locks in place.
If the dishes are heavily soiled, place an additional detergent dose in the pre-wash detergent
chamber. This detergent will take eect during the pre-wash phase.
NOTE:
• If the lid is closed: push the latch to open.
• Always add the detergent just before starting each wash cycle.
• Only use branded detergent and rinse aid for dishwasher.
• See information about the amount of detergent for the single programme.
• Please be aware that soiling levels & water hardness can eect wash results.
• Please observe the manufacturer’s recommendations on the
detergent packaging.
WARNING!
Dishwasher
detergent is
corrosive!
Keep it out
of reach of
children.
PAGE 13
PAGE 12
LOADING THE DISHWASHER BASKETS
RECOMMENDATION
• Consider buying utensils which are identified as dishwasher-proof.
• Use a mild detergent that is described as ‘kind to dishes’.
If necessary, seek further information from the detergent manufacturers.
• For particular items, select a program with as low a temperature as possible.
• To prevent damage, do not take glass and cutlery out of the dishwasher immediately after the
programme has ended.
FOR WASHING IN THE IN THE DISHWASHER THE FOLLOWING
CUTLERY/DISHES:-
ATTENTION BEFORE OR AFTER LOADING THE DISHWASHER BASKETS
For best performance of the dishwasher, follow these loading guidelines. Features and appearance
of baskets and cutlery baskets may vary from your model.
Scrape o any large amounts of leftover food. Soften remnants of burnt food in pans. It is not
necessary to rinse the dishes under running water.
Place objects in the dishwasher in following way:
1. Items such as cups, glasses, pots/pans, etc. are faced downwards.
2. Curved items, or ones with recesses, should be loaded aslant so that water can run o.
3. All utensils are stacked securely and can not tip over.
4. All utensils are placed in the way that the spray arms can rotate freely during washing.
ATTENTION BEFORE OR AFTER LOADING THE DISHWASHER BASKETS
For best performance of the dishwasher, follow these loading guidelines. Features and appearance
of baskets and cutlery baskets may vary from your model.
Scrape o any large amounts of leftover food. Soften remnants of burnt food in pans. It is not
necessary to rinse the dishes under running water.
Place objects in the dishwasher in following way:
1. Items such as cups, glasses, pots/pans, etc. are faced downwards.
2. Curved items, or ones with recesses, should be loaded aslant so that water can run o.
3. All utensils are stacked securely and can not tip over.
4. All utensils are placed in the way that the spray arms can rotate freely during washing.
NOTE:
Very small items should not be washed in the dishwasher as they could easily fall out of the basket.
• Load hollow items such as cups, glasses, pans etc. With the opening facing downwards so
that water cannot collect in the container or a deep base.
• Dishes and items of cutlery must not lie inside one another, or cover each other.
• To avoid damage to glasses, they must not touch.
• Load large items which are most dicult to clean into the lower basket.
• The upper basket is designed to hold more delicate and lighter dishware such as glasses,
coee and tea cups
• Long bladed knives stored in an upright position are a potential hazard!
• Long and/or sharp items of cutlery such as carving knives must be positioned horizontally in
the upper basket.
• Please do not overload your dishwasher. This is important for good results and for reasonable
consumption of energy.
REMOVING THE DISHES
To prevent water dripping from the upper basket into the lower basket, we recommend that you
empty the lower basket first and then the upper basket.
ARE NOT SUITABLE
• Cutlery with wooden, horn china or
mother-of-pearl handles
• Plastic items that are not heat resistant
• Older cutlery with glued parts that are
not temperature resistant
• Bonded cutlery items or dishes
• Pewter or copper items
• Crystal glass
• Steel items subject to rusting
• Wooden platters
• Items made from synthetic fibres
ARE OF LIMITED SUITABILITY
• Some types of glasses can become dull
after a large number of washes
• Silver and aluminum parts have a
tendency to discolour during washing
• Glazed patterns may fade if machine
washed frequently.
PAGE 15
PAGE 14
88
The upper basket is designed to hold more delicate
and lighter dishware such as glasses, coffee and
tea cups and saucers, as well as plates, small bowls
and shallow pans (as long as they are not too dirty).
Position the dishes and cookware so that they will
not get moved by the spray of water.
Loading the Upper BasketLoading the Upper Basket
We suggest that you place large items and the most
difficult to clean items are to be placed into the lower
basket: such as pots, pans, lids, serving dishes and
bowls, as shown in the figure below. It is preferable to
place serving dishes and lids on the side of the racks
in order to avoid blocking the rotation of the top spray
arm.
Loading the Lower BasketLoading the Lower Basket
Pots, serving bowls, etc, must always be placed top down.
Deep pots should be slanted to allow water to flow out.
Please be reminded that:
The Bottom Basket features folding spikes so that larger or more pots and pans can be loaded.
The Method Loading Normal DishwareThe Method Loading Normal Dishware
IN
Folding back the cup shelives
For better stacking of pots and pans,
the spikes can be folded down as
show in the picture right.
Cutlery should be placed in the cutlery rack separately
from each other in the appropriate positions, and do
make sure the utensils do not nest together, this may
cause bad performance.
Cutlery BasketCutlery Basket
For a top quality cleaning, place the silverware in the basket
making sure that:
For a top quality cleaning, place the silverware in the basket
making sure that:
They do not nest together.They do not nest together.
Silverware is placed with the male face up.Silverware is placed with the male face up.
Long utensils in the middle. Long utensils in the middle.
IN
THE METHOD OF LOADING NORMAL DISHWARE
LOADING THE UPPER BASKET
The upper basket is designed to hold more delicate and lighter dishware
such as glasses, coee and tea cups and saucers, as well as plates, small
bowls and shallow pans (as long as they are not too dirty). Position the
dishes and cookware so that they will not get moved by the spray of water.
ADJUSTING THE
UPPER BASKET
The height of the upper basket
can be adjusted in order to create
more space for large utensils both
for the upper and lower basket.
The height of the upper basket
can be adjusted by lifting up the
basket for the upper position,
and up press the handle to
lower the upper basket.
FOLDING BACK
THE CUP SHELVES
For better stacking
of pots and pans,
the spikes can be
folded down.
CUTLERY BASKET
Cutlery should be placed in the
cutlery rack separately from each
other in the appropriate positions,
and do make sure the utensils do
not nest together, this may cause
bad performance.
For a top quality cleaning, place
the silverware in the basket
making sure that:
- They do not nest together.
- Silverware is placed with the
male face up.
- Long utensils in the middle.
LOADING THE LOWER BASKET
We suggest that you place large items and the most dicult to
clean items are to be placed into the lower basket:
such as pots, pans, lids, serving dishes and bowls, as shown in
the figure below. It is preferable to place serving dishes and lids
on the side of the racks in order to avoid blocking the rotation
of the top spray arm.
REMINDER:
• Pots, serving bowls, etc, must always be placed top down.
• Deep pots should be slanted to allow water to flow out.
• The Bottom Basket features folding spikes so that larger or more pots and pans can be loaded.
88
The upper basket is designed to hold more delicate
and lighter dishware such as glasses, coffee and
tea cups and saucers, as well as plates, small bowls
and shallow pans (as long as they are not too dirty).
Position the dishes and cookware so that they will
not get moved by the spray of water.
Loading the Upper BasketLoading the Upper Basket
We suggest that you place large items and the most
difficult to clean items are to be placed into the lower
basket: such as pots, pans, lids, serving dishes and
bowls, as shown in the figure below. It is preferable to
place serving dishes and lids on the side of the racks
in order to avoid blocking the rotation of the top spray
arm.
Loading the Lower BasketLoading the Lower Basket
Pots, serving bowls, etc, must always be placed top down.
Deep pots should be slanted to allow water to flow out.
Please be reminded that:
The Bottom Basket features folding spikes so that larger or more pots and pans can be loaded.
The Method Loading Normal DishwareThe Method Loading Normal Dishware
IN
Folding back the cup shelives
For better stacking of pots and pans,
the spikes can be folded down as
show in the picture right.
Cutlery should be placed in the cutlery rack separately
from each other in the appropriate positions, and do
make sure the utensils do not nest together, this may
cause bad performance.
Cutlery BasketCutlery Basket
For a top quality cleaning, place the silverware in the basket
making sure that:
For a top quality cleaning, place the silverware in the basket
making sure that:
They do not nest together.They do not nest together.
Silverware is placed with the male face up.Silverware is placed with the male face up.
Long utensils in the middle. Long utensils in the middle.
IN
88
The upper basket is designed to hold more delicate
and lighter dishware such as glasses, coffee and
tea cups and saucers, as well as plates, small bowls
and shallow pans (as long as they are not too dirty).
Position the dishes and cookware so that they will
not get moved by the spray of water.
Loading the Upper BasketLoading the Upper Basket
We suggest that you place large items and the most
difficult to clean items are to be placed into the lower
basket: such as pots, pans, lids, serving dishes and
bowls, as shown in the figure below. It is preferable to
place serving dishes and lids on the side of the racks
in order to avoid blocking the rotation of the top spray
arm.
Loading the Lower BasketLoading the Lower Basket
Pots, serving bowls, etc, must always be placed top down.
Deep pots should be slanted to allow water to flow out.
Please be reminded that:
The Bottom Basket features folding spikes so that larger or more pots and pans can be loaded.
The Method Loading Normal DishwareThe Method Loading Normal Dishware
IN
Folding back the cup shelives
For better stacking of pots and pans,
the spikes can be folded down as
show in the picture right.
Cutlery should be placed in the cutlery rack separately
from each other in the appropriate positions, and do
make sure the utensils do not nest together, this may
cause bad performance.
Cutlery BasketCutlery Basket
For a top quality cleaning, place the silverware in the basket
making sure that:
For a top quality cleaning, place the silverware in the basket
making sure that:
They do not nest together.They do not nest together.
Silverware is placed with the male face up.Silverware is placed with the male face up.
Long utensils in the middle. Long utensils in the middle.
IN
88
The upper basket is designed to hold more delicate
and lighter dishware such as glasses, coffee and
tea cups and saucers, as well as plates, small bowls
and shallow pans (as long as they are not too dirty).
Position the dishes and cookware so that they will
not get moved by the spray of water.
Loading the Upper BasketLoading the Upper Basket
We suggest that you place large items and the most
difficult to clean items are to be placed into the lower
basket: such as pots, pans, lids, serving dishes and
bowls, as shown in the figure below. It is preferable to
place serving dishes and lids on the side of the racks
in order to avoid blocking the rotation of the top spray
arm.
Loading the Lower BasketLoading the Lower Basket
Pots, serving bowls, etc, must always be placed top down.
Deep pots should be slanted to allow water to flow out.
Please be reminded that:
The Bottom Basket features folding spikes so that larger or more pots and pans can be loaded.
The Method Loading Normal DishwareThe Method Loading Normal Dishware
IN
Folding back the cup shelives
For better stacking of pots and pans,
the spikes can be folded down as
show in the picture right.
Cutlery should be placed in the cutlery rack separately
from each other in the appropriate positions, and do
make sure the utensils do not nest together, this may
cause bad performance.
Cutlery BasketCutlery Basket
For a top quality cleaning, place the silverware in the basket
making sure that:
For a top quality cleaning, place the silverware in the basket
making sure that:
They do not nest together.They do not nest together.
Silverware is placed with the male face up.Silverware is placed with the male face up.
Long utensils in the middle. Long utensils in the middle.
IN
88
The upper basket is designed to hold more delicate
and lighter dishware such as glasses, coffee and
tea cups and saucers, as well as plates, small bowls
and shallow pans (as long as they are not too dirty).
Position the dishes and cookware so that they will
not get moved by the spray of water.
Loading the Upper BasketLoading the Upper Basket
We suggest that you place large items and the most
difficult to clean items are to be placed into the lower
basket: such as pots, pans, lids, serving dishes and
bowls, as shown in the figure below. It is preferable to
place serving dishes and lids on the side of the racks
in order to avoid blocking the rotation of the top spray
arm.
Loading the Lower BasketLoading the Lower Basket
Pots, serving bowls, etc, must always be placed top down.
Deep pots should be slanted to allow water to flow out.
Please be reminded that:
The Bottom Basket features folding spikes so that larger or more pots and pans can be loaded.
The Method Loading Normal DishwareThe Method Loading Normal Dishware
IN
Folding back the cup shelives
For better stacking of pots and pans,
the spikes can be folded down as
show in the picture right.
Cutlery should be placed in the cutlery rack separately
from each other in the appropriate positions, and do
make sure the utensils do not nest together, this may
cause bad performance.
Cutlery BasketCutlery Basket
For a top quality cleaning, place the silverware in the basket
making sure that:
For a top quality cleaning, place the silverware in the basket
making sure that:
They do not nest together.They do not nest together.
Silverware is placed with the male face up.Silverware is placed with the male face up.
Long utensils in the middle. Long utensils in the middle.
IN
88
The upper basket is designed to hold more delicate
and lighter dishware such as glasses, coffee and
tea cups and saucers, as well as plates, small bowls
and shallow pans (as long as they are not too dirty).
Position the dishes and cookware so that they will
not get moved by the spray of water.
Loading the Upper BasketLoading the Upper Basket
We suggest that you place large items and the most
difficult to clean items are to be placed into the lower
basket: such as pots, pans, lids, serving dishes and
bowls, as shown in the figure below. It is preferable to
place serving dishes and lids on the side of the racks
in order to avoid blocking the rotation of the top spray
arm.
Loading the Lower BasketLoading the Lower Basket
Pots, serving bowls, etc, must always be placed top down.
Deep pots should be slanted to allow water to flow out.
Please be reminded that:
The Bottom Basket features folding spikes so that larger or more pots and pans can be loaded.
The Method Loading Normal DishwareThe Method Loading Normal Dishware
IN
Folding back the cup shelives
For better stacking of pots and pans,
the spikes can be folded down as
show in the picture right.
Cutlery should be placed in the cutlery rack separately
from each other in the appropriate positions, and do
make sure the utensils do not nest together, this may
cause bad performance.
Cutlery BasketCutlery Basket
For a top quality cleaning, place the silverware in the basket
making sure that:
For a top quality cleaning, place the silverware in the basket
making sure that:
They do not nest together.They do not nest together.
Silverware is placed with the male face up.Silverware is placed with the male face up.
Long utensils in the middle. Long utensils in the middle.
IN
STARTING A WASHING PROGRAM
WASH CYCLE TABLE
6.Starting a washing program6.Starting a washing program
Wash Cycle TableWash Cycle Table
NOTE:NOTE:
Means: Rinse-aid dispenser needs to be filled.
( )
NOTE:
NOTE:
*: This program is the test cycle. The information for comparability test
in accordance with , as follows:
Capacity: 10 settings
Position Upper basket: upper wheels on rails
Rinse aid setting: 6
PI:0.49w;Po:0.45w
Heavy
Rapid
Glass
Detergent
pre/main
Detergent
pre/main
Cycle Selection
Information
Cycle Selection
Information
ProgramProgram Running
time(min)
Running
time(min) Water
(L)
Water
(L)
Energy
(Kwh)
Energy
(Kwh)
Rinse
Aid
Rinse
Aid
5/22.5g
1 piece
5/22.5g
1 piece
5/22.5g
1 piece
For heavily soiled loads,
such as pots, plates, glasses
and lightly soiled pans.
For heaviest soiled crockery,
and normally soiled pots
pans dishes etc with dried
on soiling.
A shorter wash for lightly
soiled loads and quick
wash.
Pre-wash(50 )
Wash (60 )
Rinse
Rinse
Rinse(70 )
Drying
Pre-wash(45 )
Wash (55 )
Rinse
Rinse (65 )
Drying
Pre-wash
Wash (45 )
Rinse(45 )
Drying
Wash (45 )
Rinse(50 )
Rinse (55 )
180
180
170
30
1.1
0.51
1.4
0.7
15.5
12.0
11.2
10
Description
o f Cycle
Description
o f Cycle
wash(65 )
Rinse
Rinse (65 )
Drying
90 11. 5
3.5
1.15
0.02
27g
1 piece
20g
5/22.5g
1 piece
For lightly soiled crockery
and glass.
125 0.75 12
Pre-wash
Wash (40 )
Rinse
Rinse(60 )
Drying
9.5~13.00.9~1.3
150
5/22.5g
1 piece
Pre-wash (45 )
Autowash(45-55 )
Rinse
Rinse(65 )
Drying
Auto sensing wash, lightly,
normally or heavily soiled
crockery, with or with out
dried-on food
AutoAuto
Intensive
ECO
(*AS/NZS 2007.1)
For normally soiled loads,
such as pots, plates, glasses
and lightly soiled pans.
standard daily cycle.
For normally soiled loads
that need quick wash.
90 Min
Soak
Prewash
15
To rinse dishes that you plan
to wash later that day
.
99
Turning On the ApplianceTurning On the Appliance
Starting a cycle wash
Draw out the lower and upper basket, load the dishes and push them back.
It is commended to load the lower basket first, then the upper one (see the section entitled
Loading the Dishwasher ).
Pour in the detergent (see the section entitled Detergent and Rinse Aid ).
Insert the plug into the socket. The power supply is 220-240 VAC /50 HZ, the specification
of the socket is 10A 250VAC. Make sure that the water supply is turned on to full pressure.
Close the door, press the On/Off button to switch on the machine
Press the program button , the wash program will be changed as follows direction:
ECO->Glass->90 Min->Rapid->Soak->Auto->Intensive->Heavy->ECO;
If a program is selected, the response light will light on. Then press the Start/Pause button, the
dishwasher begins to start.
1
2
3
4
5
.
/
6.Starting a washing program6.Starting a washing program
Wash Cycle TableWash Cycle Table
NOTE:
NOTE:
Means: Rinse-aid dispenser needs to be filled.
( )
NOTE:NOTE:
*: This program is the test cycle. The information for comparability test
in accordance with , as follows:
Capacity: 10 settings
Position Upper basket: upper wheels on rails
Rinse aid setting: 6
PI:0.49w;Po:0.45w
Heavy
Rapid
Glass
Detergent
pre/main
Detergent
pre/main
Cycle Selection
Information
Cycle Selection
Information
Program
Program
Running
time(min)
Running
time(min)
Water
(L)
Water
(L)
Energy
(Kwh)
Energy
(Kwh)
Rinse
Aid
Rinse
Aid
5/22.5g
1 piece
5/22.5g
1 piece
5/22.5g
1 piece
For heavily soiled loads,
such as pots, plates, glasses
and lightly soiled pans.
For heaviest soiled crockery,
and normally soiled pots
pans dishes etc with dried
on soiling.
A shorter wash for lightly
soiled loads and quick
wash.
Pre-wash(50 )
Wash (60 )
Rinse
Rinse
Rinse(70 )
Drying
Pre-wash(45 )
Wash (55 )
Rinse
Rinse (65 )
Drying
Pre-wash
Wash (45 )
Rinse(45 )
Drying
Wash (45 )
Rinse(50 )
Rinse (55 )
180
180
170
30
1.1
0.51
1.4
0.7
15.5
12.0
11.2
10
Description
o f Cycle
Description
o f Cycle
wash(65 )
Rinse
Rinse (65 )
Drying
90 11. 5
3.5
1.15
0.02
27g
1 piece
20g
5/22.5g
1 piece
For lightly soiled crockery
and glass.
125 0.75 12
Pre-wash
Wash (40 )
Rinse
Rinse(60 )
Drying
9.5~13.00.9~1.3
150
5/22.5g
1 piece
Pre-wash (45 )
Autowash(45-55 )
Rinse
Rinse(65 )
Drying
Auto sensing wash, lightly,
normally or heavily soiled
crockery, with or with out
dried-on food
Auto
Auto
Intensive
ECO
(*AS/NZS 2007.1)
For normally soiled loads,
such as pots, plates, glasses
and lightly soiled pans.
standard daily cycle.
For normally soiled loads
that need quick wash.
90 Min
Soak
Prewash
15
To rinse dishes that you plan
to wash later that day.
99
Turning On the ApplianceTurning On the Appliance
Starting a cycle wash
Draw out the lower and upper basket, load the dishes and push them back.
It is commended to load the lower basket first, then the upper one (see the section entitled
Loading the Dishwasher ).
Pour in the detergent (see the section entitled Detergent and Rinse Aid ).
Insert the plug into the socket. The power supply is 220-240 VAC /50 HZ, the specification
of the socket is 10A 250VAC. Make sure that the water supply is turned on to full pressure.
Close the door, press the On/Off button to switch on the machine
Press the program button , the wash program will be changed as follows direction:
ECO->Glass->90 Min->Rapid->Soak->Auto->Intensive->Heavy->ECO;
If a program is selected, the response light will light on. Then press the Start/Pause button, the
dishwasher begins to start.
1
2
3
4
5
.
/
PAGE 17
PAGE 16
TURNING ON THE APPLIANCE
STARTING A CYCLE WASH
• Draw out the lower and upper basket, load the dishes and push them back. It is
recommended to load the lower basket first, then the upper one (see the section entitled
Loading the Dishwasher).
• Pour in the detergent (see the section entitled Detergent and Rinse Aid).
• Insert the plug into the socket. The power supply is 220-240 VAC /50 HZ, the specification
of the socket is 10A 250VAC. Make sure that the water supply is turned on to full pressure.
• Close the door, press the On/O button to switch on the machine.
• Press the program button , the wash program will be changed as follows direction:
ECO->Glass->90 Min->Rapid->Soak->Auto->Intensive->Heavy->ECO;
If a program is selected, the response light will light on. Then press the Start/Pause button,
the dishwasher begins to start.
NOTE:
When you press the Start/Pause button to pause during washing, the LED display will
stop blinking and the dishwasher will mooing every minute unless you press the Start/Pause
button to start.
CHANGE THE PROGRAM
1. A cycle that is underway can only be modified if it has only been running for a short time.
Otherwise, the detergent may have already been released, and the appliance may have
already drained the wash water. If this is the case, the detergent dispenser must be refilled
(see the section entitled “Loading the Detergent”).
2. Press the Start/Pause button, the machine will pause, press the program button more than
three times then you can change the program to the desired cycle setting (see the section
entitled “Starting a wash cycle”).
NOTE:
If you open the door during a wash cycle, the machine will pause. The LED display will
stop blinking and the buzzer will mooing every minute unless you close the door. After you close
the door, the machine will keep on working after 10 seconds.
FORGOT TO ADD A DISH
A forgotten dish can be added any time before the detergent cup opens.
1. Press the Start/Pause Button to stop the washing.
2. Open the door a little.
3. After the spray arms stop working, you can open the door completely.
4. Add forgotten dishes.
5. Close the door
6. Press the Start/Pause Button, the dishwasher will run after 10 seconds.
AT THE END OF THE WASH CYCLE
When the working cycle has finished, the buzzer of the dishwasher will sound for 8 seconds, then
stop. Turn o the appliance using the ON/OFF button, shut o the water supply and open the
door of the dishwasher.
Wait for a few minutes before unloading the dishwasher to avoid handling the dishes and utensils
while they are still hot and more susceptible to breakage. They will also dry better.
SWITCH OFF THE DISHWASHER
The program light is on but is not blinking, only in this case the programme has ended.
1. Switch o the dishwasher by pressing the On/O Button.
2. Turn o the water tap!
OPEN THE DOOR CAREFULLY
Hot dishes are sensitive to knocks. The dishes should therefore be allowed to cool down around
15 minutes before removing from the appliance.
Open the dishwasher’s door, leave it ajar and wait a few minutes before removing the dishes.
In this way they will be cooler and the drying will be improved.
UNLOADING THE DISHWASHER
It is normal that the dishwasher is wet inside.
Empty the lower basket first and then the upper one. This will avoid water dripping from the
upper Basket onto t he dishes in the lower one.
WARNING!
It is dangerous to open the door when washing, because the hot water may scald you.
1010
When the working cycle has finished, the buzzer of the dishwasher will sound for 8 seconds, then stop. Turn off
the appliance using the ON/OFF button, shut off the water supply and open the door of the dishwasher.
Wait for a few minutes before unloading the dishwasher to avoid handling the dishes and utensils while they
are still hot and more susceptible to breakage. They will also dry better.
Switch Off the Dishwasher
The program light is on but is not blinking, only in this case the programme has ended.
1.Switch off the dishwasher by pressing the On/Off Button.
2.Turn off the water tap!
Open the door carefully.
Hot dishes are sensitive to knocks. The dishes should therefore be allowed to cool down around 15 minutes
before removing from the appliance.
Open the dishwasher's door, leave it ajar and wait a few minutes before removing the dishes. In this way they
will be cooler and the drying will be improved.
Unloading the dishwasher
It is normal that the dishwasher is wet inside.
Empty the lower basket first and then the upper one. This will avoid water dripping from the upper Basket onto
the dishes in the lower one.
Forgot to Add a DishForgot to Add a Dish
If you open the door during a wash cycle , the machine will pause. The LED display
will stop blinking and the buzzer will mooing every minute unless you close the door .
After you close the door ,the machine will keep on working after 10 seconds.
NOTE:NOTE:
At the End of the Wash CycleAt the End of the Wash Cycle
A forgotten dish can be added any time before the detergent cup opens.
Add forgotten dishes.
Close the door
After the spray arms stop working, you can open the door
completely.
2
3
Open the door a little .
14
5
6
Press the Start/Pause Button to stop the washing.
Press the Start/Pause Button, the dishwasher will run
after 10 seconds.
WARNING! WARNING!
It is dangerous to open the door when washing,
because the hot water may scald you.
Change the ProgramChange the Program
Premise:
A cycle that is underway can only be modified if it has only been running for a short time. Otherwise, the
detergent may have already been released, and the appliance may have already drained the wash water.
If this is the case, the detergent dispenser must be refilled (see the section entitled " Loading the
Detergent " ).
Press the Start/Pause button , the machine will pause, press the program button more than 3s then you
can change the program to the desired cycle setting (see the section entitled " Starting a wash cycle" ).
1
2
When you press the Start/Pause button to pause during washing, the LED display will
stop blinking and the dishwasher will mooing every minute unless you press the
Start/Pause button to start.
NOTE:NOTE:
1010
When the working cycle has finished, the buzzer of the dishwasher will sound for 8 seconds, then stop. Turn off
the appliance using the ON/OFF button, shut off the water supply and open the door of the dishwasher.
Wait for a few minutes before unloading the dishwasher to avoid handling the dishes and utensils while they
are still hot and more susceptible to breakage. They will also dry better.
Switch Off the Dishwasher
The program light is on but is not blinking, only in this case the programme has ended.
1.Switch off the dishwasher by pressing the On/Off Button.
2.Turn off the water tap!
Open the door carefully.
Hot dishes are sensitive to knocks. The dishes should therefore be allowed to cool down around 15 minutes
before removing from the appliance.
Open the dishwasher's door, leave it ajar and wait a few minutes before removing the dishes. In this way they
will be cooler and the drying will be improved.
Unloading the dishwasher
It is normal that the dishwasher is wet inside.
Empty the lower basket first and then the upper one. This will avoid water dripping from the upper Basket onto
the dishes in the lower one.
Forgot to Add a DishForgot to Add a Dish
If you open the door during a wash cycle , the machine will pause. The LED display
will stop blinking and the buzzer will mooing every minute unless you close the door .
After you close the door ,the machine will keep on working after 10 seconds.
NOTE:NOTE:
At the End of the Wash CycleAt the End of the Wash Cycle
A forgotten dish can be added any time before the detergent cup opens.
Add forgotten dishes.
Close the door
After the spray arms stop working, you can open the door
completely.
2
3
Open the door a little .
14
5
6
Press the Start/Pause Button to stop the washing.
Press the Start/Pause Button, the dishwasher will run
after 10 seconds.
WARNING! WARNING!
It is dangerous to open the door when washing,
because the hot water may scald you.
Change the ProgramChange the Program
Premise:
A cycle that is underway can only be modified if it has only been running for a short time. Otherwise, the
detergent may have already been released, and the appliance may have already drained the wash water.
If this is the case, the detergent dispenser must be refilled (see the section entitled " Loading the
Detergent " ).
Press the Start/Pause button , the machine will pause, press the program button more than 3s then you
can change the program to the desired cycle setting (see the section entitled " Starting a wash cycle" ).
1
2
When you press the Start/Pause button to pause during washing, the LED display will
stop blinking and the dishwasher will mooing every minute unless you press the
Start/Pause button to start.
NOTE:NOTE:
PAGE 19
PAGE 18
MAINTENANCE AND CLEANING
FILTERING SYSTEM
The filter prevents larger remnants of food or other objects from getting inside the pump.
The residues may block the filter, in this case they must be removed.
The filter system consists of a Coarse filter, a flat (Main filter) and a microfilter (Fine filter).
REMARKS
• Inspect the filters for blocking after every time the dishwasher has been used.
• By unscrewing the coarse filter, you can remove the filter system. Remove any food remnants
and clean the filters under running water.
NOTE
The entire filter assembly should be cleaned once a week.

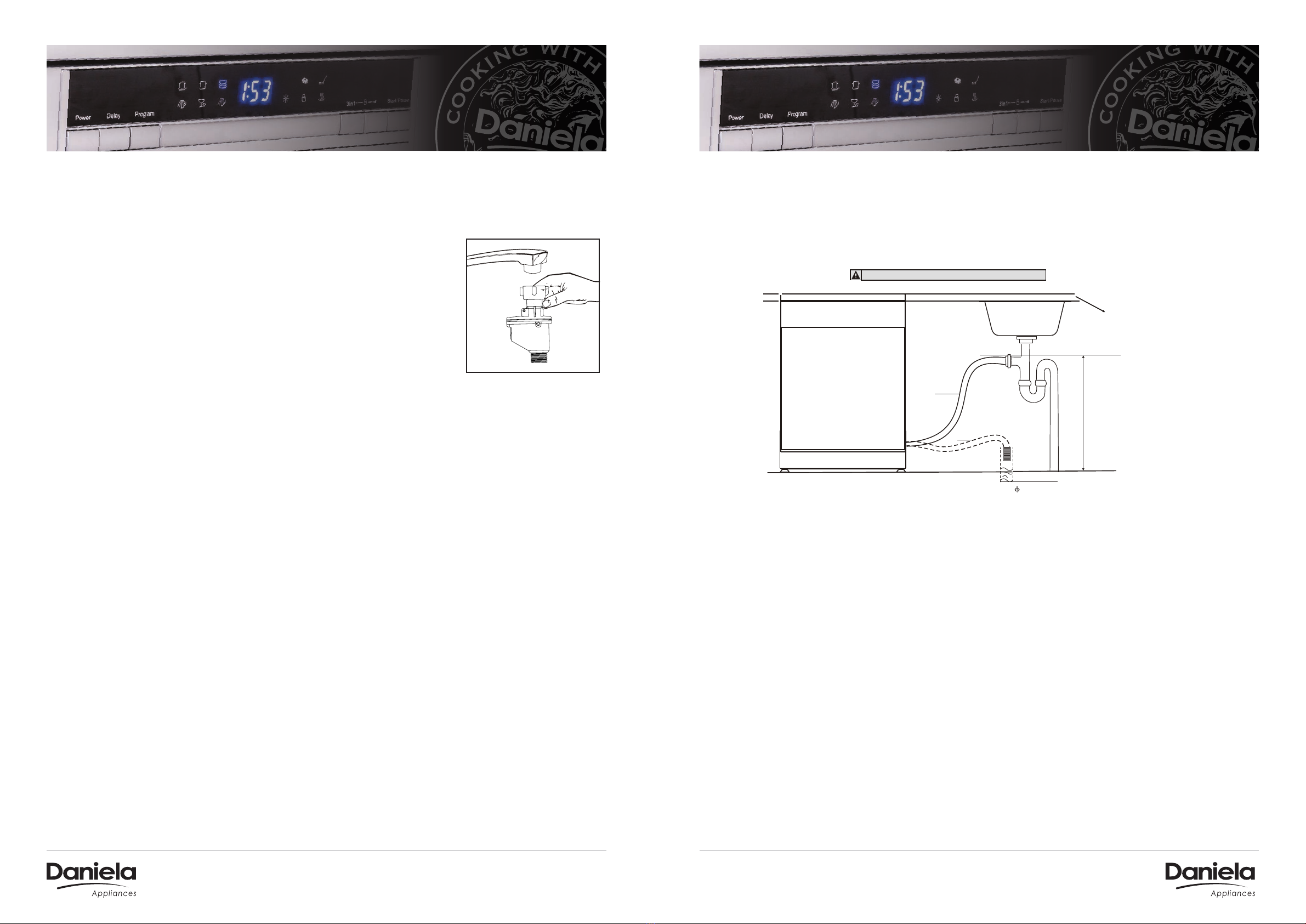

CLEANING THE FILTER
To clean the coarse filter and the fine filter, use a cleaning brush. Reassemble the filter parts
as shown in the figures on the last page and reinsert the entire assembly in the dishwasher,
positioning it in its seat and pressing downwards.
WARNING!
When cleaning the filters, don’t knock on them. Otherwise, the filters could be contorted and the
performance of the dishwasher could be decreased.
CARING FOR THE DISHWASHER
• The control panel can be cleaned by using a lightly dampened cloth.
• After cleaning, make sure to dry it thoroughly.
• For the exterior, use a good appliance polish wax.
• Never use sharp objects, scouring pads or harsh cleaners on any part of the dishwasher.
FILTER ASSEMBLY
The filter eciently removes food particles
from the wash water, allowing it to be recycled
during the cycle. For best performance and
results, the filter must be cleaned regularly.
For this reason, it is a good idea to remove
the larger food particles trapped in the
filter after each wash cycle by rinsing the
semicircular filter and cup under running
water. To remove the filter device, pull the cup
handle in the upward direction.
1. Main filter
Food and soil particles trapped in this filter are pulverized
by a special jet on the lower spray arm and washed down
to drain.
2. Coarse filter
Larger items, such as pieces of bones or glass, that could
block the drain are trapped in the coarse filter. To remove
the items caught by the filter, gently squeeze the tap on the
top of this filter and lift out.
3. Fine filter
This filter holds soil and food residues in the sump area
and prevents it from being deposited on the dishes during
wash cycle.
The filter prevents larger remnants of food or other objects from getting inside the pump.
The residues may block the filter, in this case they must be removed.
The filter system consists of a coarse filter,a flat (Main filter)
And a microfilter(Fine filter).
Food and soil particles trapped in this filter are pulverized by a
special jet on the lower spray arm and washed down to drain.
Larger items, such as pieces of bones or glass, that could block
the drain are trapped in the coarse filter. To remove the items
caught by the filter, gently squeeze the tap on the top of this
filter and lift out.
This filter holds soil and food residues in the sump area and
prevents it from being deposited on the dishes during wash cycle.
Main filter 1
Coarse filter 2
Fine filter 3
2
3
1
Filter assembly
The filter efficiently removes food particles from the wash water, allowing it to be recycled during the cycle.
For best performance and results, the filter must be cleaned regularly. For this reason, it is a good idea to
remove the larger food particles trapped in the filter after each wash cycle by rinsing the semicircular filter and
cup under running water. To remove the filter device, pull the cup handle in the upward direction.
WARNING! WARNING!
The dishwasher must never be used without the filters.
Improper replacement of the filter may reduce the performance level of the appliance
and damage dishes and utensils.
1
2
Step 1 Turn the filter in anti-clockwise direction,
Step 2 lift the filter assy up
7.Maintenance and Cleaning7.Maintenance and Cleaning
Filtering SystemFiltering System
NOTE:NOTE:
When following this procedure from step1 to step 2, the filter system will be removed;
when following it from Step 2 to Step 1, the filter system will be installed.
1111
OpenOpen
The filter prevents larger remnants of food or other objects from getting inside the pump.
The residues may block the filter, in this case they must be removed.
The filter system consists of a coarse filter,a flat (Main filter)
And a microfilter(Fine filter).
Food and soil particles trapped in this filter are pulverized by a
special jet on the lower spray arm and washed down to drain.
Larger items, such as pieces of bones or glass, that could block
the drain are trapped in the coarse filter. To remove the items
caught by the filter, gently squeeze the tap on the top of this
filter and lift out.
This filter holds soil and food residues in the sump area and
prevents it from being deposited on the dishes during wash cycle.
Main filter 1
Coarse filter 2
Fine filter 3
2
3
1
Filter assembly
The filter efficiently removes food particles from the wash water, allowing it to be recycled during the cycle.
For best performance and results, the filter must be cleaned regularly. For this reason, it is a good idea to
remove the larger food particles trapped in the filter after each wash cycle by rinsing the semicircular filter and
cup under running water. To remove the filter device, pull the cup handle in the upward direction.
WARNING! WARNING!
The dishwasher must never be used without the filters.
Improper replacement of the filter may reduce the performance level of the appliance
and damage dishes and utensils.
1
2
Step 1 Turn the filter in anti-clockwise direction,
Step 2 lift the filter assy up
7.Maintenance and Cleaning7.Maintenance and Cleaning
Filtering SystemFiltering System
NOTE:NOTE:
When following this procedure from step1 to step 2, the filter system will be removed;
when following it from Step 2 to Step 1, the filter system will be installed.
1111
Open
Open
Step 1
Turn the filter
in anti-clockwise
direction
Step 2
Lift the filter assy up
NOTE: When following
this procedure from Step 1
to Step 2, the filter system
will be removed; when
following it from Step 2
to Step 1, the filter system
will be installed.
WARNING!
The dishwasher must never be used without
the filters. Improper replacement of the filter
may reduce the performance level of the
appliance and damage dishes and utensils.
2
1
3
CLEANING THE DOOR
To clean the edge around the door, you should use only a soft
warm, damp cloth. To avoid penetration of water into the door lock
and electrical components, do not use a spray
WARNING!
Never use a spray cleaner to clean the door panel as it may
damage the door lock and electrical components. Abrasive
agents or some paper towels should not be used because of the
risk of scratching or leaving spots on the stainless steel surface.
PROTECT AGAINST FREEZING
Please take frost protection measures on the dishwasher in winter. Every time after washing cycles,
please operate as follows:-
1. Cut o the electrical power to the dishwasher.
2. Turn o the water supply and disconnect the water inlet pipe from the water valve.
3. Drain the water from the inlet pipe and water valve. (Use a pan to gather the water)
4. Reconnect the water inlet pipe to the water valve.
5. Remove the filter at the bottom of the tub and use a sponge to soak up water in the sump.
NOTE: If your dishwasher cannot work because of the ice, please contact professional service persons.
The control panel can be cleaned by using a lightly dampened cloth.
After cleaning, make sure to dry it thoroughly.
For the exterior, use a good appliance polish wax.
Never use sharp objects, scouring pads or harsh cleaners on any part of the dishwasher.
Protect Against Freezing
1.Cut off the electrical power to the dishwasher.
2.Turn off the water supply and disconnect the water inlet pipe from the water valve.
3.Drain the water from the inlet pipe and water valve. (Use a pan to gather the water)
4.Reconnect the water inlet pipe to the water valve.
5.Remove the filter at the bottom of the tub and use a sponge to soak up water in the sump.
please take frost protection measures on the dishwasher in winter. Every time after washing cycles,
please operate as follows
Caring for the DishwasherCaring for the Dishwasher
Cleaning the Filter
Cleaning the Door
To clean the coarse filter and the fine filter, use a cleaning brush. Reassemble the filter parts as shown in the figures
on the last page and reinsert the entire assembly in the dishwasher, positioning it in its seat and pressing downwards.
When cleaning the filters, don't knock on them. Otherwise, the filters could be
contorted and the performance of the dishwasher could be decreased.
WARNING! WARNING!
To clean the edge around the door, you should use only a soft warm, damp cloth.
To avoid penetration of water into the door lock and electrical components, do not
use a spray cleaner of any kind.
WARNING! WARNING!
Never use a spray cleaner to clean the door panel as it may damage the door lock
and electrical components.
Abrasive agents or some paper towels should not be used because of the risk of
scratching or leaving spots on the stainless steel surface.
Cleaning the Spray Arms
NOTE:NOTE:
If your dishwasher cannot work because of the ice,
please contact professional service persons.
It is necessary to clean the spray arms regularly for hard
water chemicals will clog the spray arm jets and bearings.
- Inspect the filters for blocking after every time the dishwasher has been used.
- By unscrewing the coarse filter, you can remove the filter system. Remove any food remnants and
clean the filters under running water.
Remarks:
The entire filter assembly should be cleaned once a week.
NOTE:NOTE:
To remove the lower spray arm, pull out the spray arm upward.
To remove the upper spray arm, hold the nut, rotate the arm
clockwise to remove it.
Wash the arms in soapy and warm water and use a soft brush to
clean the jets. Replace them after rinsing them thoroughly.
1212
OpenOpen
PAGE 21
PAGE 20
CLEANING THE SPRAY ARMS
It is necessary to clean the spray arms regularly for hard water
chemicals will clog the spray arm jets and bearings.
To remove the upper spray arm, hold the nut, rotate the arm
clockwise to remove it.
To remove the lower spray arm, pull out the spray arm upward.
Wash the arms in soapy and warm water and use a soft brush to
clean the jets. Replace them after rinsing them thoroughly.
HOW TO KEEP YOUR DISHWASHER IN SHAPE
After Every Wash
After every wash, turn o the water supply to the appliance and leave the door slightly open
so that moisture and odours are not trapped inside.
Remove the Plug
Before cleaning or performing maintenance, always remove the plug from the socket.
No Solvents or Abrasive Cleaning
To clean the exterior and rubber parts of the dishwasher, do not use solvents or abrasive cleaning
products. Only use a cloth with warm soapy water.
To remove spots or stains from the surface of the interior, use a cloth dampened with water an a
little vinegar, or a cleaning product made specifically for dishwashers.
When not in Use for a Long Time
It is recommend that you run a wash cycle with the dishwasher empty and then remove the plug
from the socket, turn o the water supply and leave the door of the appliance slightly open.
This will help the door seals to last longer and prevent odours from forming within the appliance.
Moving the Appliance
If the appliance must be moved, try to keep it in the vertical position. If absolutely necessary, it can
be positioned on its back.
Seals
One of the factors that cause odours to form in the dishwasher is food that remains trapped in the
seals. Periodic cleaning with a damp sponge will prevent this from occurring.
The control panel can be cleaned by using a lightly dampened cloth.
After cleaning, make sure to dry it thoroughly.
For the exterior, use a good appliance polish wax.
Never use sharp objects, scouring pads or harsh cleaners on any part of the dishwasher.
Protect Against Freezing
1.Cut off the electrical power to the dishwasher.
2.Turn off the water supply and disconnect the water inlet pipe from the water valve.
3.Drain the water from the inlet pipe and water valve. (Use a pan to gather the water)
4.Reconnect the water inlet pipe to the water valve.
5.Remove the filter at the bottom of the tub and use a sponge to soak up water in the sump.
please take frost protection measures on the dishwasher in winter. Every time after washing cycles,
please operate as follows
Caring for the DishwasherCaring for the Dishwasher
Cleaning the Filter
Cleaning the Door
To clean the coarse filter and the fine filter, use a cleaning brush. Reassemble the filter parts as shown in the figures
on the last page and reinsert the entire assembly in the dishwasher, positioning it in its seat and pressing downwards.
When cleaning the filters, don't knock on them. Otherwise, the filters could be
contorted and the performance of the dishwasher could be decreased.
WARNING! WARNING!
To clean the edge around the door, you should use only a soft warm, damp cloth.
To avoid penetration of water into the door lock and electrical components, do not
use a spray cleaner of any kind.
WARNING! WARNING!
Never use a spray cleaner to clean the door panel as it may damage the door lock
and electrical components.
Abrasive agents or some paper towels should not be used because of the risk of
scratching or leaving spots on the stainless steel surface.
Cleaning the Spray Arms
NOTE:NOTE:
If your dishwasher cannot work because of the ice,
please contact professional service persons.
It is necessary to clean the spray arms regularly for hard
water chemicals will clog the spray arm jets and bearings.
- Inspect the filters for blocking after every time the dishwasher has been used.
- By unscrewing the coarse filter, you can remove the filter system. Remove any food remnants and
clean the filters under running water.
Remarks:
The entire filter assembly should be cleaned once a week.
NOTE:NOTE:
To remove the lower spray arm, pull out the spray arm upward.
To remove the upper spray arm, hold the nut, rotate the arm
clockwise to remove it.
Wash the arms in soapy and warm water and use a soft brush to
clean the jets. Replace them after rinsing them thoroughly.
1212
Open
Open
INSTALLATION INSTRUCTION
POSITIONING THE APPLIANCE
Position the appliance in the desired location. The back should rest against the wall behind
it, and the sides, along the adjacent cabinets or walls. The dishwasher is equipped with water
supply and drain hoses that can be positioned either to the right or the left sides to facilitate
proper installation.
POWER CONNECTION
WARNING!
For personal safety:
• Do not use an extension cord or an adapter plug with this appliance.
• Do not, under any circumstances, cut or remove the earthing
• Connection from the power cord.
ELECTRICAL REQUIREMENTS
Please look at the rating label to know the rating voltage and connect the dishwasher to the
appropriate power supply. Use the required fuse 10 amp, time delay fuse or circuit breaker
recommended and provide separate circuit serving only this appliance.
ELECTRICAL CONNECTION
Ensure the voltage and frequency of the power being corresponds to those on the rating plate.
Only insert the plug into an electrical socket which is earthed properly. If the electrical socket
to which the appliance must be connected is not appropriate for the plug, replace the socket,
rather than using a adaptors or the like as they could cause overheating and burns.
NOTE: Ensure proper ground exists before usee.
LEVELLING THE APPLIANCE
Once the appliance is positioned for levelling, the height of the
dishwasher may be altered via adjustment of the screwing level
of the feet.
It is recommend that you run a wash cycle with the
dishwasher empty and then remove the plug from the
socket, turn off the water supply and leave the door of
the appliance slightly open. This will help the door
seals to last longer and prevent odours from forming
within the appliance.
If the appliance must be moved, try to keep it in the
vertical position. If absolutely necessary, it can be
positioned on its back.
One of the factors that cause odours to form in the
dishwasher is food that remains trapped in the seals.
Periodic cleaning with a damp sponge will prevent this
from occurring.
Before cleaning or performing maintenance, always
remove the plug from the socket.
To clean the exterior and rubber parts of the dishwasher,
do not use solvents or abrasive cleaning products.
Only use a cloth with warm soapy water.
To remove spots or stains from the surface of the
interior, use a cloth dampened with water an a little
vinegar, or a cleaning product made specifically for
dishwashers.
Remove the Plug
No Solvents or Abrasive Cleaning
Moving the Appliance
Seals
How to Keep Your Dishwasher in Shape
After every wash, turn off the water supply to the
appliance and leave the door slightly open so that
moisture and odours are not trapped inside.
After Every Wash When not in Use for a LongTime
1313
8.8.
Electrical Requirements
Ensure the voltage and frequency of the power being corresponds to
those on the rating plate. Only insert the plug into an electrical socket which is earthed
properly. If the electrical socket to which the appliance must be connected is not
appropriate for the plug , replace the socket, rather than using a adaptors or the like as
they could cause overheating and burns.
Electrical Connection
Insure proper ground
exists before use
Please look at the rating label to know the rating voltage and connect the dishwasher to the appropriate power supply.
Use the required fuse 10 amp, time delay fuse or circuit breaker recommended and provide separate circuit serving
only this appliance.
Position the appliance in the desired location. The back should rest against the wall behind it, and the sides,
along the adjacent cabinets or walls. The dishwasher is equipped with water supply and drain hoses that can
be positioned either to the right or the left sides to facilitate proper installation.
Levelling the Appliance
Once the appliance is positioned for levelling, the height of the dishwasher
may be altered via adjustment of the screwing level of the feet.
Positioning the AppliancePositioning the Appliance
About Power ConnectionAbout Power Connection
WARNING! WARNING!
For personal safety:
Do not use an extension cord or an adapter plug
with this appliance.
Do not, under any circumstances, cut or remove the
earthing
Connection from the power cord.
8.Installation instruction8.Installation instruction
PAGE 23
PAGE 22
DRAIN HOSE CONNECTION
Insert the drain hose into a drain pipe with a minimum diameter of 40mm, or let it run into the
sink, making sure to avoid bending or crimping it. The top of the hose must be less than 1000mm.
HOW TO DRAIN EXCESS WATER FROM HOSES
If the sink is 1000 higher from the floor, the excess water in hoses cannot be drained directly into
the sink. It will be necessary to drain excess water from hoses into a bowl or suitable container
that is held outside and lower than the sink.
WATER OUTLET
Connect the water drain hose. The drain hose must be correctly fitted to avoid water leaks.
Ensure that the water drain hose is not kinked or squashed.
EXTENSION HOSE
If you need a drain hose extension, make sure to use a similar drain hose.
It must be no longer than 4 metres; otherwise the cleaning eect of the dishwasher could be
reduced. Ensure that the water drain hose is not kinked or squashed.
SYPHON CONNECTION
The waste connection must be at a height less than 1000 mm (maximum) from the bottom of the
dish. The water drain hose should be fixed.
HOW TO CONNECT THE SAFETY SUPPLY HOSE
The appliance must be connected to the water mains using new hose-sets. The old hose-sets
should not be reused.
Water pressure must be between 0,04 MPa and 1 MPa.
f the pressure is below the minimum consult our Service Department.
1. Pull The safety supply hoses completely out from storage
compartment located at rear of dishwasher.
2. Tighter the screws of the safety supply hose to the faucet
with thread 3/4inch. for advice.
3. Turn water fully on before starting the dishwasher.
ABOUT THE SAFETY SUPPLY HOSE
The safety supply hose consists of the double walls. The hose’s system guarantees its
intervention by blocking the flow of water in case of the supply hose breaking and when the air
space between the supply hose itself and the outer corrugated hose is full of water.
WARNING!
A hose that attaches to a sink spray can burst if it is installed on the same water line as the
dishwasher. If your sink has one, it is recommended that the hose be disconnected and the
hole plugged.
HOW TO DISCONNECT THE SAFETY SUPPLY HOSE
1. Turn o the water.
2. Release the water pressure by depressing the pressure release button. This relieves water
pressure and protects you, and the room, from severe splashing.
3. Unscrew the safety supply hose from the faucet.
COLD WATER CONNECTION
Connect the cold water supply hose to a threaded 3/4 inch connector and make sure that it
is fastened tightly in place. If the water pipes are new or have not been used for an extended
period of time, let the water run to make sure that the water is clear and free of impurities.
If this precaution is not taken, there is a risk that the water inlet can get blocked and damage
the appliance.
Drain hose Connection
Insert the drain hose into a drain pipe with a minimum diameter of 40mm, or let it run into the sink, making sure to
avoid bending or crimping it. The top of the hose must be less than 1000mm.
MAX 1000mm
A
Counter
Front
Drain pipe
NOTE
The top of the hose
must be less than
1000mm.
40mm
B
PLEASE HANG UP THE DRAIN HOSE EITHER WAY OF A, BPLEASE HANG UP THE DRAIN HOSE EITHER WAY OF A, B
1414
A hose that attaches to a sink spray can burst if it is installed on the same water line as the dishwasher. If your sink
has one, it is recommended that the hose be disconnected and the hole plugged.
WARNING!
ABOUT THE SAFETY SUPPLY HOSE.
How to Connect the safety supply hose
Pull The safety supply hoses completely out from storage compartment located at rear of dishwasher.
Turn water fully on before starting the dishwasher.
1
Tighter the screws of the safety supply hose to the faucet with thread 3/4inch.
The safety supply hose consists of the double walls. The hose's system guarantees its intervention by blocking the
flow of water in case of the supply hose breaking and when the air space between the supply hose itself and the outer
corrugated hose is full of water.
Turn off the water.
Release the water pressure by depressing the pressure release button. This relieves water pressure and protects you, and the
room, from severe splashing.
Unscrew the safety supply hose from the faucet.
3
2
1
How to Disconnect the safety supply hose
2
3
The appliance must be connected to the water mains using new hose-sets.
The old hose-sets should not be reused.
Water pressure must be between 0,04 MPa and 1 MPa. If the pressure is below the
minimum consult our Service Department for advice.
COLD WATER CONNECTION
Connect the cold water supply hose to a threaded 3/4(inch) connector and make sure that it is fastened tightly in place.
If the water pipes are new or have not been used for an extended period of time, let the water run to make sure that the
water is clear and free of impurities. If this precaution is not taken, there is a risk that the water inlet can get blocked
and damage the appliance.
Drain hose Connection
Insert the drain hose into a drain pipe with a minimum diameter of 40mm, or let it run into the sink, making sure to
avoid bending or crimping it. The top of the hose must be less than 1000mm.
MAX 1000mm
A
Counter
Front
Drain pipe
NOTE
The top of the hose
must be less than
1000mm.
40mm
B
PLEASE HANG UP THE DRAIN HOSE EITHER WAY OF A, B
PLEASE HANG UP THE DRAIN HOSE EITHER WAY OF A, B
1414
A hose that attaches to a sink spray can burst if it is installed on the same water line as the dishwasher. If your sink
has one, it is recommended that the hose be disconnected and the hole plugged.
WARNING!
ABOUT THE SAFETY SUPPLY HOSE.
How to Connect the safety supply hose
Pull The safety supply hoses completely out from storage compartment located at rear of dishwasher.
Turn water fully on before starting the dishwasher.
1
Tighter the screws of the safety supply hose to the faucet with thread 3/4inch.
The safety supply hose consists of the double walls. The hose's system guarantees its intervention by blocking the
flow of water in case of the supply hose breaking and when the air space between the supply hose itself and the outer
corrugated hose is full of water.
Turn off the water.
Release the water pressure by depressing the pressure release button. This relieves water pressure and protects you, and the
room, from severe splashing.
Unscrew the safety supply hose from the faucet.
3
2
1
How to Disconnect the safety supply hose
2
3
The appliance must be connected to the water mains using new hose-sets.
The old hose-sets should not be reused.
Water pressure must be between 0,04 MPa and 1 MPa. If the pressure is below the
minimum consult our Service Department for advice.
COLD WATER CONNECTION
Connect the cold water supply hose to a threaded 3/4(inch) connector and make sure that it is fastened tightly in place.
If the water pipes are new or have not been used for an extended period of time, let the water run to make sure that the
water is clear and free of impurities. If this precaution is not taken, there is a risk that the water inlet can get blocked
and damage the appliance.
PAGE 25
PAGE 24
HOW TO CONNECT THE SAFETY SUPPLY HOSE
The following things should be checked before starting the dishwasher:-
1. The dishwasher is level and fixed properly
2. The inlet valve is open
3. Fill hose connections are fully tightened and not leaking
4 . The wires are tightly connected
5. The power is switched on
6. The inlet and drain hoses are knotted
7. All packing materials and printings should be taken out from the dishwasher.
TROUBLESHOOTING TIPS
BEFORE CALLING FOR SERVICE
Reviewing the charts on the following pages may save you from calling for service.
PROBLEM POSSIBLE CAUSES WHAT TO DO
Dishwasher
doesn’t start.
Fuse blown, or the circuit
break tripped.
Power supply is not
turned on.
Water pressure is low.
Door of dishwasher not
properly closed.
Replace fuse or reset circuit breaker.
Remove any other appliances sharing the same
circuit with the dishwasher.
Make sure the dishwasher is turned on and the
door is closed securely. Make sure the power cord
is properly plugged into the wall socket.
Check that the water supply is connected properly
and the water is turned on.
Make sure to close the door properly and latch it.
Water not
pumped form
dishwasher.
Twisted or trapped
drain hose.
Filter clogged.
Kitchen sink clogged.
Check the drain hose.
Check coarse the filter.
Check the kitchen sink to make sure it is draining well.
If the problem is the kitchen sink that is not draining,
you may need a plumber rather than a serviceman
for dishwashers.
PROBLEM POSSIBLE CAUSES WHAT TO DO
Suds in the tub. Wrong detergent.
Spilled rinse-aid.
Use only the special dishwasher detergent to avoid
suds. If this occurs, open the dishwasher and let suds
evaporate. Add 1 gallon of cold water to the bottom
of the dishwasher.
Close the dishwasher door, then select any cycle.
Initially, the dishwasher will drain out the water.
Open the door after draining stage is complete
and check if the suds have disappeared.
Repeat if necessary.
Always wipe up rinse-aid spills immediately.
Stained tub
interior.
Detergent with colourant
was used.
Make sure that the detergent is the one
without colourant.
White film on
inside surface.
Hard water minerals. To clean the interior, use a damp sponge with
dishwasher detergent and wear rubber gloves. Never
use any other cleaner than dishwasher detergent for
the risk of foaming or suds.
There are rust
stains on cutlery
The aected items are not
corrosion resistant.
A programme was not run
after dishwasher salt was
added. Traces of salt have
gotten into the wash cycle
The lid of the softer is loose.
Always run the quick wash programme . without any
crockery in the dishwasher and without selecting the
Turbo function (if present), after adding dishwasher salt.
Check the lid. Ensure the fix is fine.
Knocking noise in
the wash cabinet
A spray arm is knocking
against an item in a basket.
Interrupt the programme, and rearrange the items
which are obstructing the spray arm.
Rattling noise in
the wash cabinet
Items of crockery are loose
in the wash cabinet.
Interrupt the programme, and rearrange the
items of crockery.
Knocking noise in
the water pipes
This may be caused by on-
site installation or the cross-
section of the piping.
This has no influence on the dishwasher function.
If in doubt, contact a suitably qualified plumber.
PAGE 27
PAGE 26
TROUBLESHOOTING TIPS
BEFORE CALLING FOR SERVICE
Reviewing the charts on the following pages may save you from calling for service.
PROBLEM POSSIBLE CAUSES WHAT TO DO
Dishwasher
doesn’t start.
Fuse blown, or the circuit
break tripped.
Power supply is not
turned on.
Water pressure is low.
Door of dishwasher not
properly closed.
Replace fuse or reset circuit breaker.
Remove any other appliances sharing the same
circuit with the dishwasher.
Make sure the dishwasher is turned on and the
door is closed securely. Make sure the power cord
is properly plugged into the wall socket.
Check that the water supply is connected properly
and the water is turned on.
Make sure to close the door properly and latch it.
Water not
pumped form
dishwasher.
Twisted or trapped
drain hose.
Filter clogged.
Kitchen sink clogged.
Check the drain hose.
Check coarse the filter.
Check the kitchen sink to make sure it is draining well.
If the problem is the kitchen sink that is not draining,
you may need a plumber rather than a serviceman
for dishwashers.
Suds in the tub. Wrong detergent. Use only the special dishwasher detergent to avoid
suds. If this occurs, open the dishwasher and let suds
evaporate. Add 1 gallon of cold water to the bottom
of the dishwasher.
Close the dishwasher door, then select any cycle.
Initially, the dishwasher will drain out the water.
Open the door after draining stage is complete
and check if the suds have disappeared.
Repeat if necessary.
PROBLEM POSSIBLE CAUSES WHAT TO DO
The dishes
are not clean.
The dishes were not
loaded correctly.
The program was not
powerful enough.
Not enough detergent
was dispensed.
Items are blocking the
movement of the spray arms.
The filter combination is
not clean or is not correctly
fitted in the base of wash
cabinet. This may cause
the spray arm jets to
get blocked.
See notes in “Loading the Dishwasher Baskets”.
Select a more intensive program.
See “Wash Cycle Table”.
Use more detergent, or change your detergent.
Rearrange the items so that the
spray can rotate freely.
Clean and/or fit the filter combination correctly.
See “Cleaning the Spray Arms”.
Cloudiness
on glassware.
Combination of soft water
and too much detergent.
Use less detergent if you have soft water and
select a shortest cycle to wash the glassware and to
get them clean.
Black or gray
marks on dishes.
Aluminum utensils have
rubbed against dishes.
Use a mild abrasive cleaner to eliminate those marks.
Detergent left in
dispenser cups.
Dishes block
detergent cups.
Re-loading the dishes properly.
The dishes are
not drying.
Improper loading.
Too little rinse-aid.
Dishes are removed
too soon.
Wrong program has
been selected.
Use of cutlery with
a low-quality coating.
Load the dishwasher as suggested in the directions.
Increase the amount of rinse-aid/refill the
rinse-aid dispenser.
Do not empty your dishwasher immediately after
washing. Open the door slightly so that the steam can
escape. Begin unloading the dishwasher only once
the dishes are barely warm to the touch. Empty the
low basket first. This prevents water form dropping
o dishes in the upper basket.
In short program the washing temperature is lower.
This also lowers cleaning performance. Choose a
program with a long washing time.
Water drainage is more dicult with these items.
Cutlery or dishes of this type are not suitable for
washing in the dishwasher.
PAGE 29
PAGE 28
CODES MEANINGS POSSIBLE CAUSES
E1 Longer inlet time. Faucet is not opened, or water intake is restricted,
or water pressure is too low.
E3 Not reaching the required
temperature.
Malfunction of heating element.
E4 Overflow. Some element of dishwasher leaks.
E8 Failure of orientation of
distributary valve.
Circuit is open or broken distributary valve.
ED Failure of communication
between main PCB with
display pcb.
Open circuit or break wiring for
the communication.
ERROR CODES
If there is a malfunction, the dishwasher will display error codes to identify these:
WARNING
• If overflow occurs, turn o the main water supply before calling a service.
• If there is water in the base pan because of an overfill or small leak, the water should be
removed before restarting the dishwasher.
For disposing of package and the appliance please go to a recycling
center. Therefore cut o the power supply cable and make the door
closing device unusable.
Cardboard packaging is manufactured from recycled paper and should
be disposed in the waste paper collection for recycling.
By ensuring this product is disposed of correctly, you will help prevent
potential negative consequences for the environment and human
health, which could otherwise be caused by inappropriate waste
handling of this product.
Disposal must be carried out in accordance with local environmental
regulations for waste disposal. For more detailed information about
treatment, recovery and recycling of this product, please contact your
local city oce, your household waste disposal service or the shop
where you purchased the product.
The packaging
materials that
are used are
environmentally
friendly and can
be recycled.
Please discard all
packaging material
with due regard for
the environment.
LOADING THE BASKET ACCORDING
TO (*AS/NZS 2007.1)
PAGE 31
PAGE 30
TERMS AND CONDITIONS
TERMS OF WARRANTY
Daniela appliances warrants to the original purchaser of appliance providing the product is installed specifically
for their intended use, under proper care, domestic/residential use and maintenance of the products supplied by
Daniela appliances, will be free from defects in workmanship and materials subject to the terms and conditions
to follow.
Daniela Appliances warranty only applies to the original owner and is not transferable. Our warranty covers
rectification free of charge for any faults arising from defective materials or components and faulty workmanship.
The product will be repaired or replaced at the discretion of Daniela Appliances.
NOTE: All costs of installation, stone benchtop replacement, cabinetry replacement or repair, sink/tapware
removal, un-installation, cartage, freight, travelling expenses and insurance are to be paid by the customer.
RETURN POLICY
Kindly inspect your goods at time of delivery.
If you notice any damage to your goods please notify our delivery team at the time of delivery. Recommend you
thoroughly inspect your goods at this time. If you notice any damage to your goods please call with in 24 hours
of receiving delivery, please notify Daniela Appliances Pty Ltd immediately. Evidence of damage will be required.
If for any reason you need to return an item please call Daniela Appliances Pty Ltd on (02 )9604-1226, within
48 hours of receiving the goods or appliances.
If your goods remain boxed and in an unopened condition, they may be returned with in 30 days of the invoice
date for a full refund. A collection fee of $50 will be charged should you require Daniela Appliances Pty Ltd to
collect the stock.
If your goods have been unboxed but otherwise are in as new condition (Have not been used or connected) a
20% restocking fee (20% of the purchase price) will apply.
Daniela Appliances Pty Ltd DOES NOT DEAL WITH FACTORY SECONDS, DAMAGES OR OPENED GOODS, and
charges restocking fees to cover the return costs. A collection fee of $50 or the delivery charge if greater than
the $50 will apply.
Please note that if you request connection of your appliance, Daniela Appliances Pty Ltd will unbox the product at
the time of delivery. We recommend you inspect your goods thoroughly at time of delivery, as to avoid extra charges.
Return of goods are to be covered by the customer, or alternatively can be returned in person to Daniela
Appliances Pty Ltd, at no extra charge. Please note that a collection fee of $50 or greater will be charged should
you wish Daniela Appliances Pty Ltd, to collect the stock on your behalf.
You as a customer have a duty of care for the product whilst in your possession. If products are damaged by you,
and subsequently returned, a charge will be made to repair the product to its original condition. Please be aware
that where repair is economically viable, no refund will be given.
All refunds will be issued when goods arrive back to Daniela Appliances warehouse and have been inspected
by a sta member of our team. Refunds will be made by the same method used for purchase. We are unable to
accept returns of any goods that you have attempted to install or have used.
If there are any further queries, please don’t hesitate to contact Daniela Appliances Pty Ltd on (02) 9604 1226.
THANK YOU.
NOTE: Model number and details are to be recorded below for future reference.
Please have the following information ready before calling our customer care team.
FURTHER INFORMATION
It is a warranty requirement that proof of purchase must be provided when booking a service call.
Please be advised that without this proof of purchase, your warranty may not be honoured.
All warranty will be voided, if not installed by a licensed technician or tradesman.
Please record their details below for future reference:
TECHNICAN / TRADESMAN WHO INSTALLED: ..............................................................................................
.......................................................................................................................................................................................
LICENSE NUMBER: ..................................................................................................................................................
DATE OF INSTALLATION:.......................................................................................................................................
INSTALLATION RECEIPT NUMBER:.....................................................................................................................
If you require more information, service, warranty or spare parts enquiries
please contact customer care.
DANIELA APPLIANCES PTY LTD
(02) 9604 1226 (9am – 5pm EST, Monday – Friday)
Table of contents
Other Daniela Dishwasher manuals
