Danube DD8 Parts list manual

DANUBE
INTERNATIONAL
INSTRUCTIONS POUR L’INSTALLATION,
L’UTILISATION ET LA MAINTENANCE /
INSTRUCTIONS FOR INSTALLATION, USE, AND
MAINTENANCE
DD8
(VERSION DD8en.1 06/03/08)
MACHINE N°/SERIAL NUMBER :
"A world market leader- Le savoir faire du constructeur"

The technical documents contain informations that are priviliged
confidential.
You are hereby notified that any disclosure copying is strictly
prohibited. We will proceed against any body copying these
documents.
Les documents techniques comportent des informations
confidentielles.
Nous tenons à porter à votre connaissance qu’il est interdit de
dévoiler et copier ces documents et que nous engagerons des
procédures contre les auteurs des dites copies.

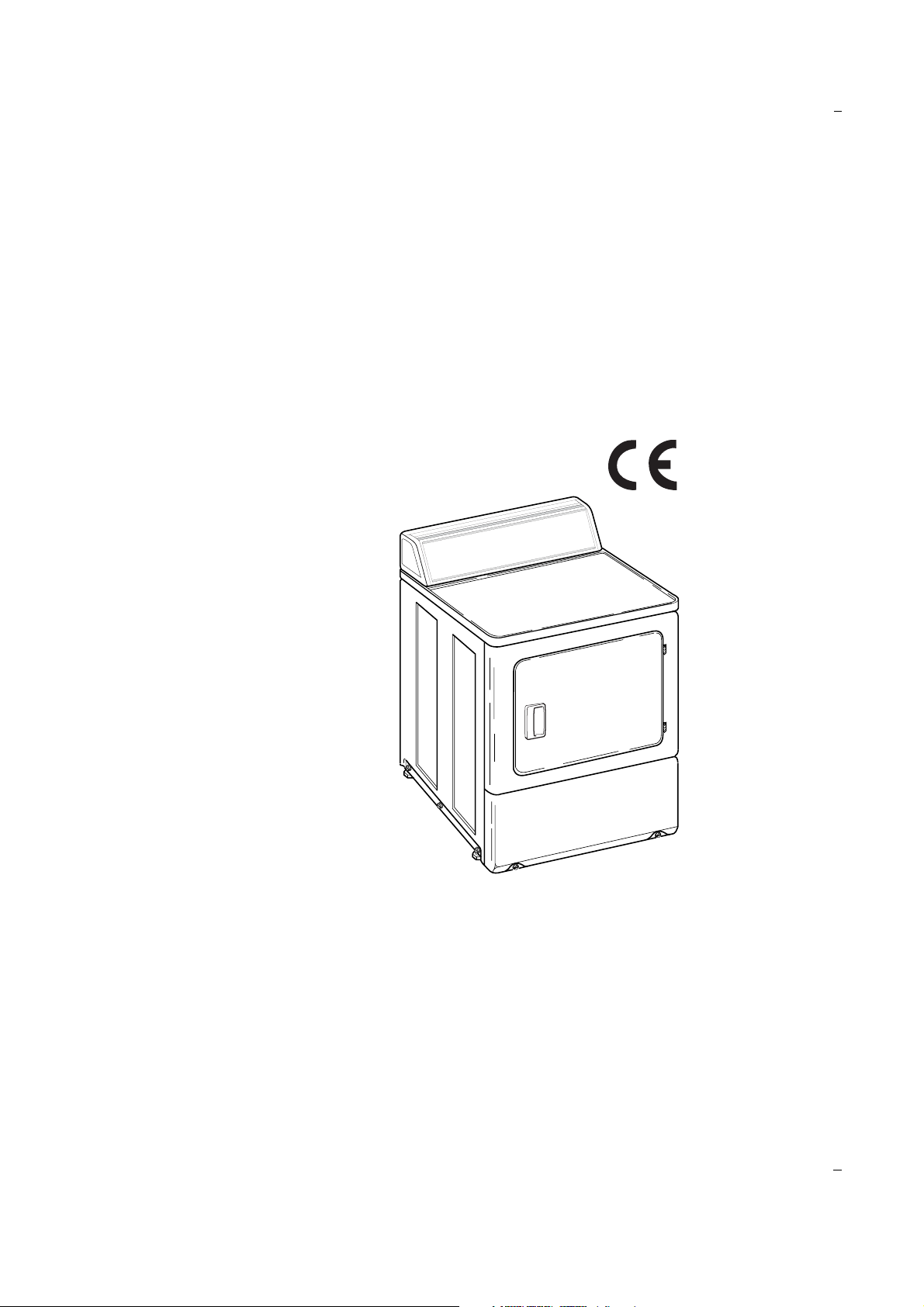

Clothes Dryers
Electric and Gas Models

©
I
)1
IMPORTANT: Purchaser must consult the local gas supplier for suggested instructions to be followed if the
dryer user smells gas. The gas utility instructions plus the SAFETY and WARNING note directly above
must be posted in a prominent location near the dryer for customer use.
• Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this
or any other appliance.
• WHAT TO DO IF YOU SMELL GAS:
– Do not try to light any appliance.
– Do not touch any electrical switch; do not use any phone in your building.
– Clear the room, building or area of all occupants.
– Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s
instructions.
– If you cannot reach your gas supplier, call the fire department.
• Installation and service must be performed by a qualified installer, service agency or the
gas supplier.
W052
FOR YOUR SAFETY, the information in this manual must be followed to minimize
the risk of fire or explosion or to prevent property damage, personal injury or
death.
W033
WARNING
FOR YOUR SAFETY
Do not store or use gasoline or other flammable vapors and liquids in the vicinity of
this or any other appliance.
W053

©
I
©
Table of
Contents
Safety Information............................................................................ 3
Explanation of Safety Messages......................................................... 3
Important Safety Instructions ............................................................. 3
Installation......................................................................................... 5

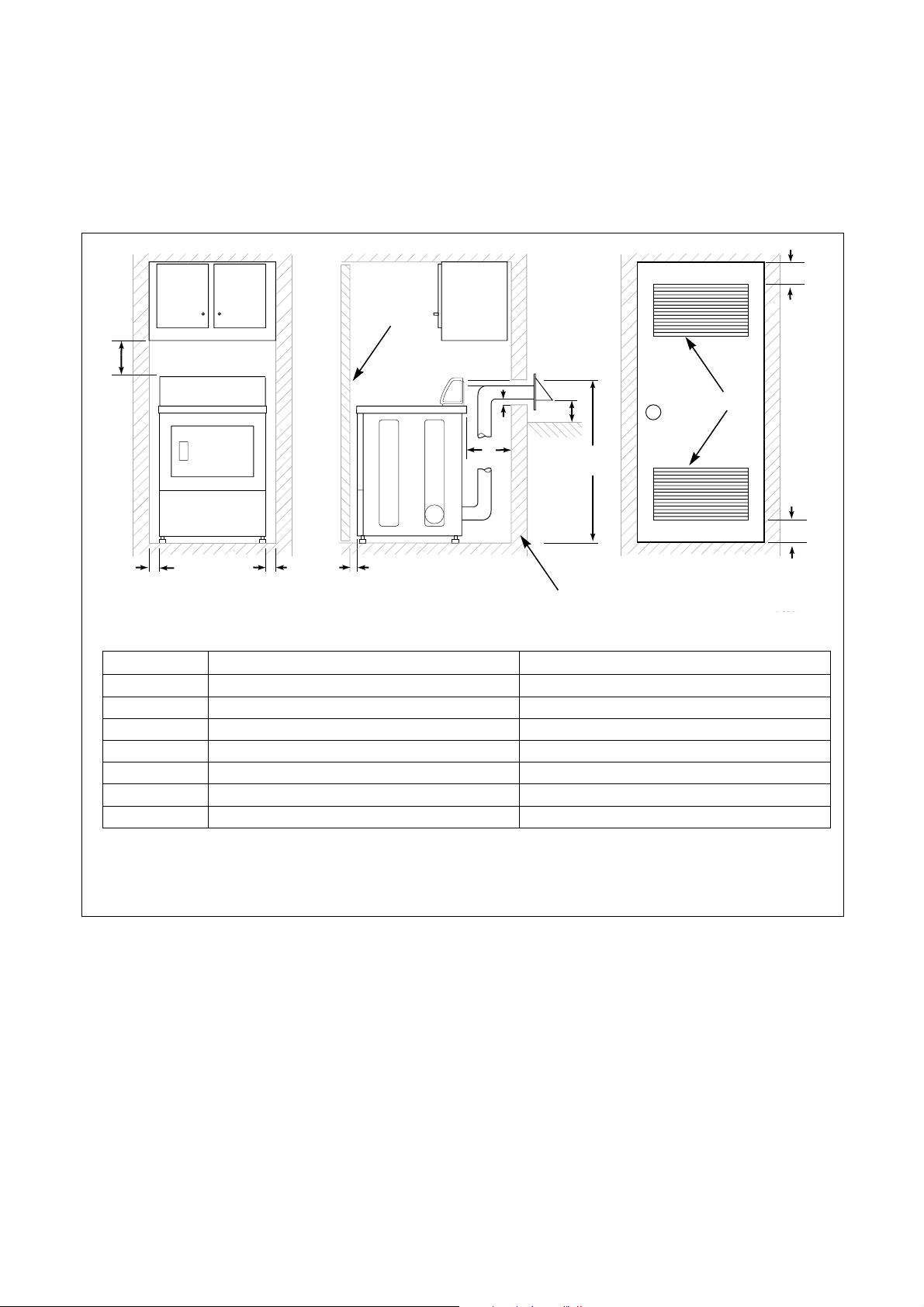

Dimensions and Specifications........................................................... 5
Installing the Dryer ............................................................................. 6
Step 1: Position and Level the Dryer ............................................. 6
Step 2: Connect Dryer Exhaust System ......................................... 6
Step 3: Connect Gas Supply Pipe
(Gas Dryer Only).......................................................................... 7
Step 4: Wipe Out Inside of Dryer .................................................. 8
Step 5: Connect the Dryer to Electrical Power .............................. 8
Step 6: Check Installation .............................................................. 8
Heat Source Check ............................................................................. 9
Electric Dryers ............................................................................... 9
Gas Dryers ..................................................................................... 9
Electrical Requirements...................................................................... 9
Electric Dryers ............................................................................... 9
Gas Dryers ................................................................................... 10
Gas Requirements............................................................................. 11
Gas Dryers ................................................................................... 11
Location Requirements..................................................................... 12
Dryer Exhaust Requirements............................................................ 13
Exhaust System Materials............................................................ 13
Make-Up Air Requirements......................................................... 13
Exhaust Direction......................................................................... 14
Dryer Airflow............................................................................... 15
Operation......................................................................................... 16
Operation Instructions ...................................................................... 16
Step 1: Clean Lint Filter............................................................... 16
Step 2: Load Laundry................................................................... 16
Step 3: Close Loading Door......................................................... 16
Step 4: Select Temperature Setting.............................................. 16
Step 5: Set Timer Knob................................................................ 17
Step 6: Start Dryer ....................................................................... 17
Step 7: Remove Laundry ............................................................. 17
End of Cycle Signal ..................................................................... 17
Disposal of Unit ............................................................................... 18

3
511472 (EN)
I
Safety Information
Explanation of Safety Messages
Throughout this manual and on machine decals, you
will find precautionary statements (“DANGER,”
“WARNING,” and “CAUTION”) followed by specific
instructions. These precautions are intended for the
personal safety of the operator, user, servicer, and
those maintaining the machine.
Additional precautionary statements (“IMPORTANT”
and “NOTE”) are followed by specific instructions.
IMPORTANT: The word “IMPORTANT” is used
to inform the reader of specific procedures where
minor machine damage will occur if the procedure
is not followed.
NOTE: The word “NOTE” is used to communicate
installation, operation, maintenance or servicing
information that is important but not hazard
related.
Important Safety Instructions
Save These Instructions
1. Read all instructions before using the dryer.
2. Refer to the EARTHING INSTRUCTIONS in
the INSTALLATION manual for the proper
earthing of the dryer.
3. Do not dry articles that have been previously
cleaned in, washed in, soaked in, or spotted with
gasoline, dry-cleaning solvents, other flammable
or explosive substances as they give off vapors
that could ignite or explode.
4. Do not allow children to play on or in the dryer.
Close supervision of children is necessary when
the dryer is used near children. This is a safety
rule for all appliances.
5. Before the dryer is removed from service or
discarded, remove the door to the drying
compartment.
6. Do not reach into the dryer if the cylinder is
revolving.
7. Do not install or store the dryer where it will be
exposed to water and/or weather.
8. Do not tamper with the controls.
9. Do not repair or replace any part of the dryer, or
attempt any servicing unless specifically
recommended in the user-maintenance
instructions or in published user-repair
instructions that you understand and have the
skills to carry out.
Indicates an imminently hazardous
situation that, if not avoided, will cause
severe personal injury or death.
DANGER
Indicates a hazardous situation that, if not
avoided, could cause severe personal
injury or death.
WARNING
Indicates a hazardous situation that, if not
avoided, may cause minor or moderate
personal injury or property damage.
CAUTION
To reduce the risk of fire, electric shock,
or injury to persons when using your
dryer, follow these basic precautions:
W034
WARNING

©
I
511472 (EN)
4
10. Do not use fabric softeners or products to
eliminate static unless recommended by the
manufacturer of the fabric softener or product.
11. To reduce the risk of fire, DO NOT DRY plastics
or articles containing foam rubber or similarly
textured rubberlike materials.
12. ALWAYS clean the lint filter after every load. A
layer of lint in the filter reduces drying efficiency
and prolongs drying time.
13. Keep area around the exhaust opening and
adjacent surrounding area free from the
accumulation of lint, dust and dirt.
14. The interior of the dryer and the exhaust duct
should be cleaned periodically by qualified
service personnel.
15. If not installed, operated and maintained in
accordance with the manufacturer’s instructions
or if there is damage to or mishandling of this
product’s components, use of this product could
expose you to substances in the fuel or from fuel
combustion which can cause death or serious
illness and which are known to the State of
California to cause cancer, birth defects or other
reproductive harm.
16. Dryer will not operate with the loading door
open. DO NOT bypass the door safety switch by
permitting the dryer to operate with the door
open. The dryer will stop tumbling when the door
is opened. Do not use the dryer if it does not stop
tumbling when the door is opened or starts
tumbling without pressing the START
mechanism. Remove the dryer from use and call
the service person.
17. Do not put articles soiled with vegetable or
cooking oil in the dryer, as these oils may not be
removed during washing. Due to the remaining
oil, the fabric may catch on fire by itself.
18. To reduce the risk of fire, DO NOT put clothes
which have traces of any flammable substances
such as machine oil, flammable chemicals,
thinner, etc., or anything containing wax or
chemicals such as in mops and cleaning cloths, or
anything dry-cleaned at home with a dry-
cleaning solvent in the dryer.
19. Use the dryer only for its intended purpose,
drying clothes.
20. Always disconnect the electrical power to the
dryer before attempting service. Disconnect the
power cord by grasping the plug, not the cord.
21. If supply cord is damaged, it must be replaced by
a special cord or assembly available from the
manufacturer or its service agent.
22. Install this dryer according to the
INSTALLATION INSTRUCTIONS. All
connections for electrical power, grounding and
gas supply must comply with local codes and be
made by licensed personnel when required. Do
not do it yourself unless you know how!
23. Remove laundry immediately after the dryer
stops.
24. Always read and follow manufacturer’s
instructions on packages of laundry and cleaning
aids. Heed all warnings or precautions. To reduce
the risk of poisoning or chemical burns, keep
them out of reach of children at all times
(preferably in a locked cabinet).
25. Do not tumble fiberglass curtains and draperies
unless the label says it can be done. If they are
dried, wipe out the cylinder with a damp cloth to
remove particles of fiberglass.
26. ALWAYS follow the fabric care instructions
supplied by the garment manufacturer.
27. Never operate the dryer with any guards and/or
panels removed.
28. DO NOT operate the dryer with missing or
broken parts.
29. DO NOT bypass any safety devices.
30. Failure to install, maintain, and/or operate this
machine according to the manufacturer’s
instructions may result in conditions which can
produce bodily injury and/or property damage.
IMPORTANT: Solvent vapors from dry-cleaning
machines create acids when drawn through the
heater of the drying unit. These acids are corrosive
to the dryer as well as to the laundry load being
dried. Be sure make-up air is free of solvent vapors.
IMPORTANT: Have your dryer installed properly.
Don’t do it yourself unless you know how!
NOTE: The WARNINGS and IMPORTANT
SAFETY INSTRUCTIONS appearing in this
manual are not meant to cover all possible
conditions and situations that may occur. Common
sense, caution and care must be exercised when
installing, maintaining, or operating the dryer.
Always contact your dealer, distributor, service agent
or the manufacturer about any problems or conditions
you do not understand.

© P 5
I
Installation
Dimensions and Specifications
DRY2199N
*With leveling legs turned into base.
DRY2200N
*With leveling legs turned into base.
13/8 in. NPT Gas Connection
DRY2199N
ELECTRIC DRYERS
597 mm
(23.5 in.)
*1022 mm (40.25 in.)
711 mm
(28 in.)
*1092 mm (43 in.)
683 mm
(26.9 in.)
11 mm
(0.4 in.)
*114 mm
(4.5 in.)
*102 mm
(4.0 in.)
391 mm
(15.4 in.)
*392 mm
(15.44 in.)
203 mm
(8.0 in.)
*914 mm (36 in.)
569 mm
(22.38 in.)
DRY2200N
1
GAS DRYERS
597 mm
(23.5 in.)
*1022 mm (40.25 in.)
711 mm
(28 in.)
*1092 mm (43 in.)
683 mm
(26.9 in.)
11 mm
(0.4 in.)
*114 mm
(4.5 in.)
*102 mm
(4.0 in.)
391 mm
(15.4 in.)
*392 mm (15.44 in.)
*70 mm
(2.8 in.)
569 mm
(22.38 in.)
60 mm (2.3 in.)
203 mm
(8.0 in.)
*914 mm (36 in.)
diameter 100mm
diameter 100mm

©
I
511472 (EN)
6
Installing the Dryer
NOTE: This manual is only a supplement. Refer to
installation/operation manual for full instructions.
Step 1: Position and Level the Dryer
F
Figure 1
Step 2: Connect Dryer Exhaust System
.
Figure 2
D707I
1Dryer Base
2Level
3Leveling Leg
D707I
1
2
3
D314I D315I
A clothes dryer produces combustible
lint. To reduce the risk of fire and
combustion gas accumulation the dryer
MUST be exhausted to the outdoors.
W116
WARNING
DO DON’T

©
I
7
511472 (EN)
Step 3: Connect Gas Supply Pipe
(Gas Dryer Only)
For further assistance, refer to section on Gas
Requirements.
1. Make certain your dryer is equipped for use with
the type of gas in your laundry room.
2. Remove the shipping cap from the gas
connection at the rear of the dryer.
3. Connect to gas supply pipe.
4. Tighten all connections securely.
5. For L.P. (Liquefied Petroleum) gas connection,
refer to section on Gas Requirements.
Figure 3
D233I
1New Stainless Steel Flexible Connector –
Use only if allowed by local codes
(Use Design CSA Certified Connector)
4Black Iron Pipe
Shorter than 6.1 m (20 ft.) – Use 9.5 mm
(3/8 in.) pipe
21/8 in. NPT Pipe Plug
(For checking inlet gas pressure)
Longer than 6.1 m (20 ft.) – Use 12.7 mm
(1/2 in.) pipe
3Equipment Shut-Off Valve – Installed within
1.8 m (6 ft.) of dryer
53/8 in. NPT Gas Connection
D233I
1
2
3
4
5

©
I
511472 (EN)
8
Step 4: Wipe Out Inside of Dryer
Figure 4
Step 5: Connect the Dryer to Electrical
Power
Figure 5
Figure 6
Step 6: Check Installation
D618I
D723I
D618I
ELECTRIC DRYERS
D210IE1C
D210IE1C
GAS DRYERS
GAS DRYERS

© P
I
9
511472 (EN)
Heat Source Check
NOTE: This manual is only a supplement. Refer to
installation/operation manual for full instructions.
Electric Dryers
Close the loading door and start the dryer in a heat
setting (refer to Operation section). After the dryer has
operated for three minutes, the exhaust air or exhaust
pipe should be warm.
Gas Dryers
IMPORTANT: This operation is to be conducted
by qualified personnel only.
Electrical Requirements
NOTE: This manual is only a supplement. Refer to
installation/operation manual for full instructions.
Electric Dryers
Refer to serial plate for requirements.
SINGLE-PHASE MODELS
(230 Volt, 50 Hertz, 2 Wire Plus Earth, 30 Amp
Installation)
THREE-PHASE MODELS
(400/240 Volt, 50 Hertz, 4 Wire Plus Earth, 10 Amp
Installation)
NOTE: Refer to Kit 756P3 for Delta to Wye
conversion instructions.
To reduce the risk of serious injury or
death, the lower front panel must be in
place during normal operation.
W158
WARNING
To reduce the risk of fire, electric shock,
severe personal injury or death, all wiring
and earthing MUST abide with local
electrical codes. It is the customer’s
responsibility to have the wiring and
fuses checked by a qualified electrician to
make sure the laundry room has adequate
electrical power to operate the dryer.
W458
WARNING

©
I
511472 (EN)
10
To attach customer-supplied three-phase power cord
(400 Volt WYE):
1. Remove electrical access panel on rear of
machine.
2. Attach power cord wires as shown in Figure 7.
3. Attach strain relief, supplied with machine, to
power cord in accordance with all local codes
and ordinances.
4. Reinstall access panel.
Figure 7
Grounding and Wiring Instructions
The dryer must be connected to an earthed metal,
permanent wiring system; or an equipment-earthing
conductor must be run with the circuit conductors and
connected to the equipment-earthing terminal or lead
on the dryer.
NOTE: Electrical receptacle must be located so
that it is easily accessible with machine in place. If
machine is hard wired, an intermediate shut-off
box with a 3 mm gap is required [335-1 (22.2)].
Gas Dryers
NOTE: This manual is only a supplement. Refer to
installation/operation manual for full instructions.
(230 Volt, 50 Hertz, 2 Wire Plus Earth, 10 Amp
Installation)
The dryer is designed to be operated on a two-wire
plus earth, 230 Volt, 50 Hertz, single-phase supply
circuit fused at amperage found on serial plate.
Figure 8
NOTE: Electrical receptacle must be located so
that it is easily accessible with machine in place.
DRY1931N
L 1 L 2 L 3 N
400 Volt
400 Volt
400 Volt
230 Volt
230 Volt
230 Volt
D210I
113 Amp Fuse
To reduce the risk of fire, electric shock,
severe personal injury or death, the
electrical service to a gas dryer must
abide with local electrical codes. The gas
service to a gas dryer must conform with
the local codes and ordinances, or in the
absence of local codes and ordinances,
with the latest edition of the National Fuel
Gas Code ANSI Z223.1.
W238
WARNING
1

©
I
11
511472 (EN)
Gas Requirements
NOTE: This manual is only a supplement. Refer to
installation/operation manual for full instructions.
Gas Dryers
(6.2 kW)
Gas Rate = 0.55 m3/hr
NOTE: This appliance must be installed in
accordance with regulations in force.
NOTE: This machine is supplied from the factory
for operation on Natural Gas [2nd Family, Group H
(E)] at nominal inlet pressure of 20 mbar for use in
the countries of GB/IE/PT/ES/IT. For installation in
other EU Countries, and/or for conversion to
L.P. (Liquefied Petroleum) gas, consult the
distributor. DO NOT connect the dryer to L.P. gas
without consulting the distributor and/or without
performing the proper conversion according to the
conversion instructions (Conversion Kit 599P3).
The unit must be isolated from the gas supply piping
system by closing the equipment shut-off valve during
any pressure testing of the gas supply piping system at
test pressures equal to or less than 50 mbar.
Natural Gas Altitude Adjustments
Altitude Orifice Size Part No.
mft.#mmin.
915 3000 43 2.26 0.0890 503778
1830 6000 44 2.18 0.0860 58719
2440 8000 45 2.08 0.0820 503779
2740 9000 46 2.06 0.0810 503780
3050 10,000 47 1.99 0.0785 503781
Table 1
To reduce the risk of gas leaks, fire or
explosion:
• The dryer must be connected to the type
of gas as shown on nameplate located
in the door recess.
• Use a new flexible stainless steel
connector.
• Use pipe joint compound insoluble in
L.P. (Liquefied Petroleum) Gas, or Teflon
tape, on all pipe threads.
• Purge air and sediment from gas supply
line before connecting it to the dryer.
Before tightening the connection, purge
remaining air from gas line to dryer until
odor of gas is detected. This step is
required to prevent gas valve
contamination.
• Do not use an open flame to check for
gas leaks. Use a non-corrosive leak
detection fluid.
• Any disassembly requiring the use of
tools must be performed by a suitably
qualified service person.
W316
WARNING

©
I
511472 (EN)
12
Location Requirements
NOTE: This manual is only a supplement. Refer to
installation/operation manual for full instructions.
Figure 9
D823I
1Closet Door 3Outer Wall of Enclosure
2Centered Air Openings
(2 openings minimum)
FRONT VIEW
(w/o Closet Door)
SIDE VIEW
(Closet Door)
FRONT VIEW
(Closet Door)
B
1
2(G)
3
AA C
F
F
E
A
D
1066.8 mm
(42 in.)
Area Free Standing/Alcove Installation Closet Installation
A 0 mm (0 in.) minimum 0 mm (0 in.) minimum
B 304.8 mm (12 in.) minimum 304.8 mm (12 in.) minimum
C Not Applicable 50.8 mm (2 in.) minimum
D 50.8 mm (2 in.) minimum 50.8 mm (2 in.) minimum
E 304.8 mm (12 in.) minimum 304.8 mm (12 in.) minimum
F Not Applicable 76.2 mm (3 in.)
G Not Applicable 1016 mm2/open (40 in2)

©
I
13
511472 (EN)
Dryer Exhaust Requirements
NOTE: This manual is only a supplement. Refer to
installation/operation manual for full instructions.
IMPORTANT: Failure to exhaust dryer properly
will void warranty.
Exhaust System Materials
NOTE: Venting materials are not supplied with the
dryer (obtain locally).
Rigid metal duct is recommended. Non-combustible
flexible metal duct is acceptable.
Make-Up Air Requirements
A dryer exhausts 85 liters/second (180 cfm) (measured
at back of dryer) and sufficient make-up air must be
supplied to replace air exhausted by each dryer.
Figure 10
A clothes dryer produces combustible lint.
To reduce the risk of fire and combustion
gas accumulation the dryer MUST be
exhausted to the outdoors.
W116
This gas appliance contains or produces a
chemical or chemicals which can cause
death or serious illness and which are
known to the State of California to cause
cancer, birth defects, or other reproductive
harm. To reduce the risk from substances
in the fuel or from fuel combustion, make
sure this appliance is installed, operated,
and maintained according to the
instructions in this manual.
W115
To reduce the risk of fire and the
accumulation of combustion gases, DO
NOT exhaust dryer air into a window well,
gas vent, chimney or enclosed,
unventilated area, such as an attic, wall,
ceiling, crawl space under a building or
concealed space of a building.
W045
To reduce the risk of fire, DO NOT use
plastic or thin foil ducting to exhaust the
dryer.
W354
WARNING
D314I D315I
DO DON’T

©
I
511472 (EN)
14
Exhaust Direction
The dryer can be exhausted to the outdoors through the
back, left, right or bottom of the dryer. EXCEPTION:
Gas dryers cannot be vented out the left side
because of the burner housing.
Number of
90° Elbows
Weather Hood Type
Recommended Use Only for Short Run Installations
Maximum length of 102 mm (4 in.) diameter rigid metal duct
0 19.8 m (65 ft.) 16.8 m (55 ft.)
1 16.8 m (55 ft.) 14.3 m (47 ft.)
2 14.3 m (47 ft.) 12.5 m (41 ft.)
3 11.0 m (36 ft.) 9.1 m (30 ft.)
4 8.5 m (28 ft.) 6.7 m (22 ft.)
Maximum length of 102 mm (4 in.) diameter flexible metal duct
0 13.7 m (45 ft.) 10.7 m (35 ft.)
1 10.7 m (35 ft.) 8.2 m (27 ft.)
2 9.1 m (30 ft.) 6.4 m (21 ft.)
3 7.6 m (25 ft.) 5.2 m (17 ft.)
4 6.1 m (20 ft.) 4.5 m (15 ft.)
NOTE: Deduct 1.8 m (6 ft.) for each additional elbow.
Table 2
102 mm
(4 in.)
102 mm
(4 in.)
D673I
64 mm
(2-1/2 in.)
D802I

©
I
15
511472 (EN)
Dryer Airflow
Figure 11
D012IE0A
1Manometer
2Exhaust Duct
D012IE0A
MANOMETER
EXHAUST
DUCT
Measuring Static Pressure
MAXIMUM STATIC PRESSURE
IN WATER COLUMN
50 Hertz 10 mm (0.4 in.)
1
2
MEASURING STATIC PRESSURE

©IT 511472 (EN)
16
I
Operation
Operation Instructions
NOTE: This manual is only a supplement. Refer to
installation/operation manual for full instructions.
Step 1: Clean Lint Filter
Figure 12
Step 2: Load Laundry
Load dryer half full with laundry (7.8 kg maximum
dry clothes load).
Figure 13
Step 3: Close Loading Door
Figure 14
Step 4: Select Temperature Setting
D689I
D716I
D689I
D716i
D688I
DRY472N
No Heat
DRY473N
Medium Temperature/Delicates
DRY474N
High Temperature/Regular –
Permanent Press
D688I

©
I
17
511472 (EN)
Step 5: Set Timer Knob
Select Fabric/Temperature setting.
Step 6: Start Dryer
Press timer knob to start dryer.
Figure 15
Step 7: Remove Laundry
Figure 16
End of Cycle Signal
DRY477N
Permanent Press
DRY481N
Normal
DRY484N
Delicates
DRY485N
Time Dry
DRY478N
Heat
DRY479N
No Heat
DRY482N
Less Dry
DRY483N
More Dry
CPD608C
D718I
DRY475N
Sound Level
DRY476N
Sound Range (Low to High)
D718i
