DAPAudio LIVE 16 User manual

LIVE 16
ORDERCODE D2211

Congratulations!
You have bought a great, innovative product from DAP Audio.
The DAP Audio LIVE 16 brings excitement to any venue. Whether you want simple plug-&-play action or a
sophisticated show, this product provides the effect you need.
You can rely on DAP Audio, for more excellent audio products.
We design and manufacture professional audio equipment for the entertainment industry.
New products are being launched regularly. We work hard to keep you, our customer, satisfied.
For more information: [email protected]
You can get some of the best quality, best priced products on the market from DAP Audio.
So next time, turn to DAP Audio for more great audio equipment.
Always get the best -- with DAP Audio !
Thank you!

1
2
2
3
4
4
4
5
5
5
6
8
10
12
13
14
14
15
16
DAP Audio
DAP Audio LIVE 16™Product Guide
Warning..…...................................................................................…………………………………………..
Safety-instructions………………………………………………………………………………………….….
Operating Determinations…………………………………………………………………………………….
Description..…..............................................................................……….…………………………………
Features………………………………………………………………………………….………………….….
Overview ..…………………………………………………………………………………….………....…….
Installation...............................................................................…...……………………………………..….
Installation....................................................………………………………………..……….....................
Set Up and Operation.....................................................................……..…………………………….…..
Input Channel Section..............................................................................................…...........……......
Stereo Channel Section…........................................................................................................……....

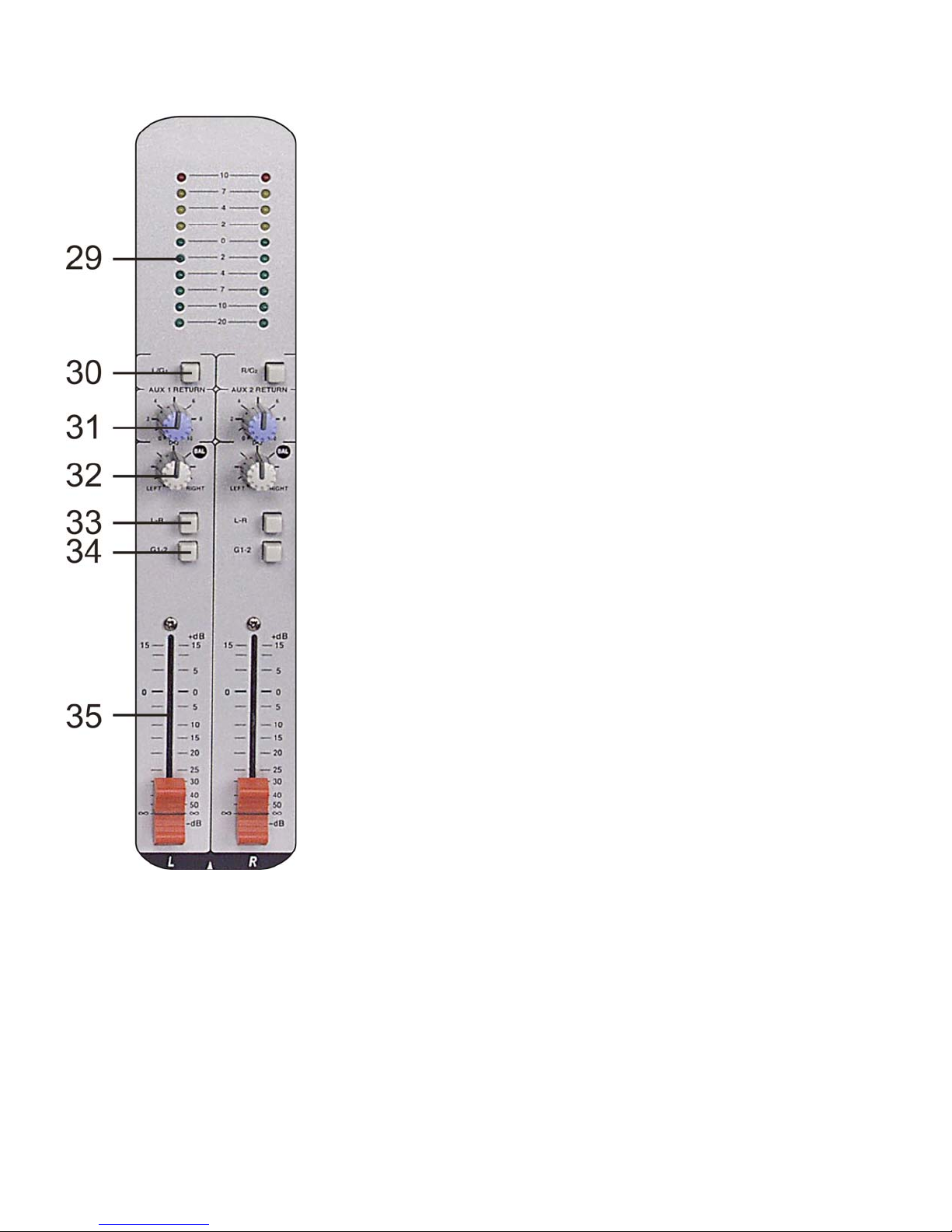

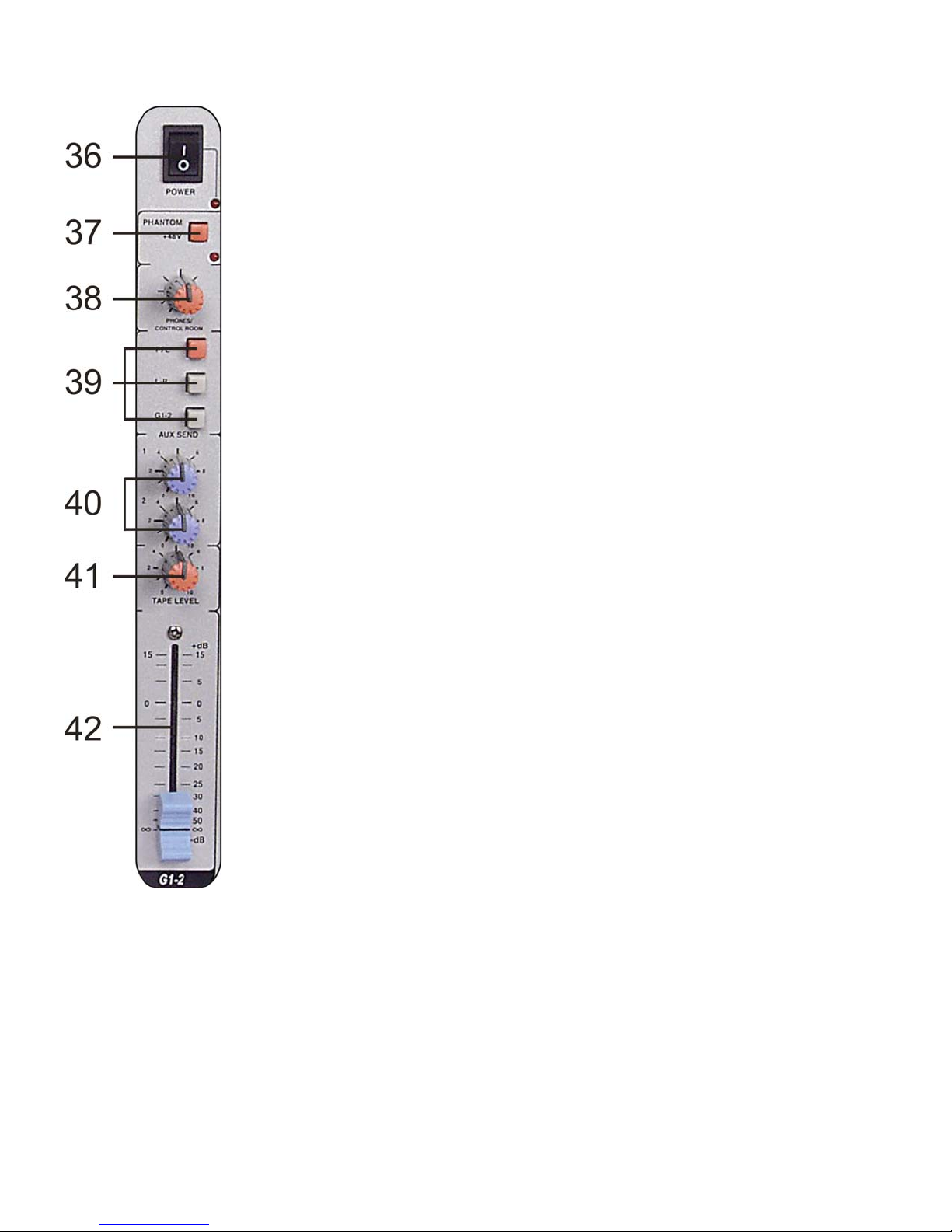

Master Section.….................................................................................................................……….....

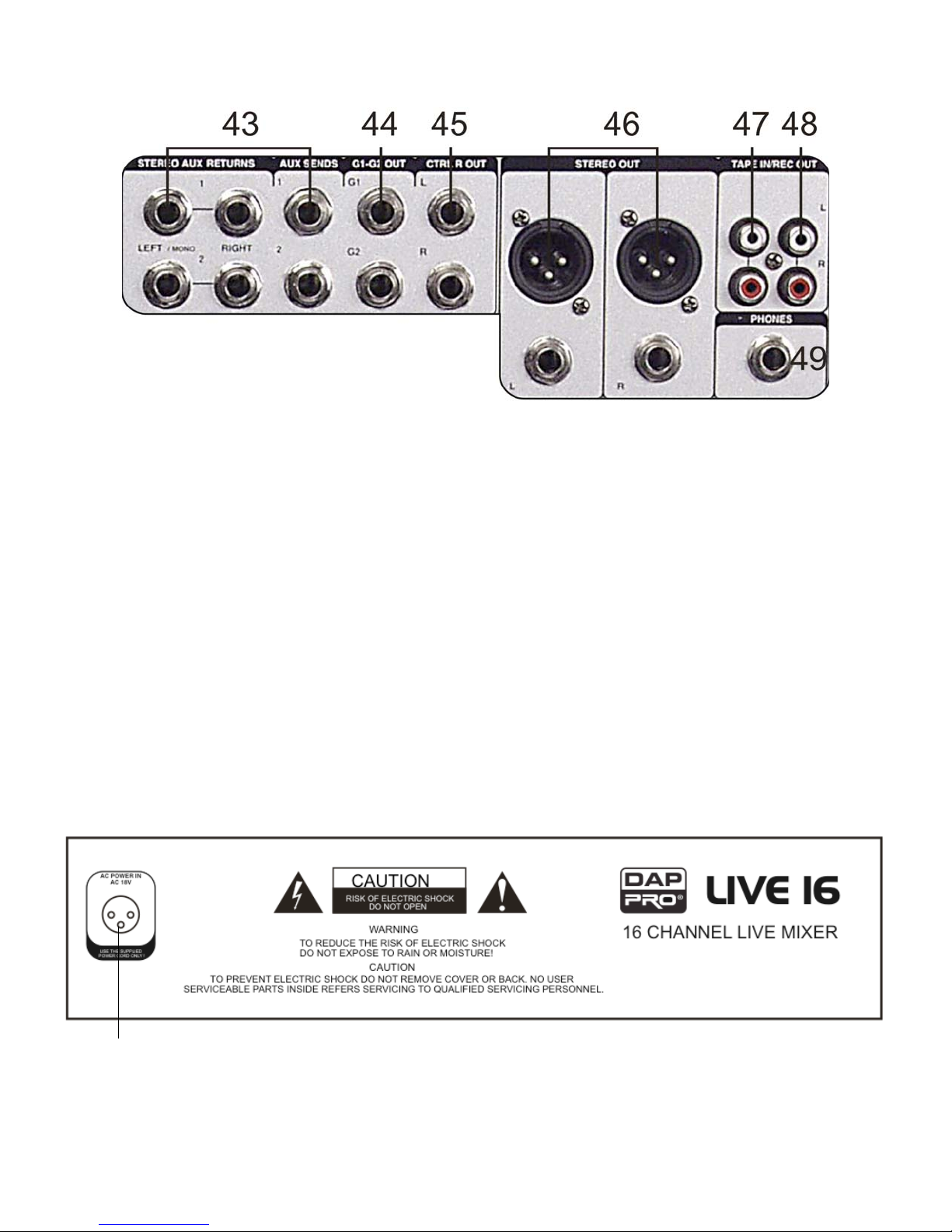

Mixer output section...............................................…………………………………...................…….....
Connection Cables..............................….......................................………..………….…….………….….
Maintenance………..............................….......................................………..………….…….………….….
Troubleshooting………..............................…................................………..………….…….………….…..
Block Diagram………..............................…................................………..………….…….………….……..
Product Specifications.................................................................……………….…….…………………..

2
WARNING
FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY
BEFORE YOUR INITIAL START-UP!
SAFETY INSTRUCTIONS
Every person involved with the installation, operation and maintenance of this system has to:
-be qualified
-follow the instructions of this manual
Before you initial start-up, please make sure that there is no damage caused by transportation. Should there
be any, consult your dealer and do not use the system.
To maintain perfect condition and to ensure a safe operation, it is absolutely necessary for the user to follow
the safety instructions and warning notes written in this manual.
Please consider that damages caused by manual modifications to the system are not subject to warranty.
This system contains no user-serviceable parts. Refer servicing to qualified technicians only.
IMPORTANT:
The manufacturer will not accept liability for any resulting damages caused by the non-observance of
this manual or any unauthorized modification to the system.
•Never let the power-cord come into contact with other cables! Handle the power-cord and all
connections with the mains with particular caution!
•Never remove warning or informative labels from the unit.
•Never use anything to cover the ground contact.
•Never leave any cables lying around.
•Do not insert objects into air vents.
•Do not connect this system to a dimmerpack.
•Do not switch the system on and off in short intervals, as this would reduce the system’s life.
•Do not open the device and do not modify the device.
•Do not drive the inputs with a signal level bigger, than required to drive the equipment to full output.
•Only use system indoor, avoid contact with water or other liquids.
•Avoid flames and do not put close to flammable liquids or gases.
•Always disconnect power from the mains, when system is not used. Only handle the power-cord by
the plug. Never pull out the plug by tugging the power-cord.
•Always operate the unit with the AC ground wire connected to the electrical system ground.
•Make sure you don’t use the wrong kind of cables or defective cables.
•Make sure that the signals into the mixer are balanced, otherwise hum could be created.
•Make sure you use DI boxes to balance unbalanced signals; All incoming signals should be clear.
CAUTION!
Keep this system away from rain and moisture!
CAUTION! Be careful with your operations.
With a dangerous voltage you can suffer
a dan
g
erous electric shock when touchin
g
the wires!

3
•Make sure that the available voltage is not higher than stated on the rear panel.
•Make sure that the power-cord is never crimped or damaged. Check the system and the power-cord
from time to time.
•In system setup, the amplifier's output power must be 50%-100% more than the loaded
loudspeakers rated power.
•Please turn off the power switch, when changing the power cord or signal cable, or select the input
mode switch.
•Extreme frequency boosts in connection with a high input signal level may lead to overdriving your
equipment. Should this occur, it is necessary to reduce the input signal level by using the INPUT
control.
•To emphasize a frequency range, you don’t necessarily have to move its respective sliding control
upward; try lowering surrounding frequency ranges instead. This way, you avoid causing the next
piece of equipment in your sound path to overdrive. You also preserve valuable dynamic reserve
(“headroom”)
•Avoid ground loops! Always be sure to connect the power amps and the mixing console to the same
electrical circuit to ensure the same phase!
•If system is dropped or struck, disconnect mains power supply immediately. Have a qualified
engineer inspect for safety before operating.
•If the system has been exposed to drastic temperature fluctuation (e.g. after transportation), do not
switch it on immediately. The arising condensation water might damage your system. Leave the
system switched off until it has reached room temperature.
•If your Dap Audio device fails to work properly, discontinue use immediately. Pack the unit securely
(preferably in the original packing material), and return it to your Dap Audio dealer for service.
•Repairs, servicing and electric connection must be carried out by a qualified technician.
•For replacement use fuses of same type and rating only.
•WARRANTY: Till one year after date of purchase.
OPERATING DETERMINATIONS
If this system is operated in any other way, than the one described in this manual, the product may suffer
damages and the warranty becomes void.
Any other operation may lead to dangers like short-circuit, burns, electric shock, etc.
You endanger your own safety and the safety of others!
Improper installation can cause serious damage to people and property !

4
Description of the device
Features
The LIVE 16 is a mixer from Dap Audio.
• 8 Mono Input Channels with goldplated XLR connectors and balanced Line Inputs
• Ultra-low noise Mic pre-amps with +48 V Phantom Power
• 4 Stereo Input channels with balanced TRS jacks
• 8 additional multi-functional stereo Line inputs
• Extremely high headroom, offering a more dynamic range
• Balanced inputs for highest signal integrity
• Ultra musical 3-band EQ on all channels
• Peak LEDs all Mono and Stereo channels
• 2 AUX Sends per channel for external effects and monitoring
• Separate Master Mix, Control Room and Headphone outputs
• 2-Track inputs assignable to Master Mix, Control Room and Headphone outputs
• Highly accurate 10 LEDs output level indicator
• Rugged design power supply ensures superior signal integrity
Overview
Fig. 1

5
Installation
Remove all packing materials from the LIVE 16. Check that all foam and plastic padding is removed.
Connect all cables.
Always disconnect from electric mains power supply before cleaning or servicing.
Damages caused by non-observance are not subject to warranty.
Set Up and Operation
Before plugging the unit in, always make sure that the power supply matches the product specification
voltage. Do not attempt to operate a 120V specification product on 230V power, or vice versa.

6
Input-Channel-Section
1) MIC
Electronically balanced XLR-connector input socket. For connecting low signal
sources such as microphones or other low impedance devices. +48V Phantom Power
on each input MIC socket.
2) LINE
Balanced or unbalanced 1/4 (Ø 6.35mm) Stereo jack input socket. For connection
with high level sound sources, such as keyboards, electric guitars, electronic musical
instruments or audio playback units. Mono-connectors can also be used for automatic
signal unbalancing. When connecting a turntable, only use an external R.I.A.A. Pre-
amplifier.
3) INSERT
Stereo-Jack-connector (Ø 6,3 mm). For connecting the input and output of a remote
device such as a noise gate, compressor or equalizer in series with the channel. The
command is only available in mono channels. TIP = Signal input, Ring = MIC Signal
output
4) TRIM)
With this function you can adjust the input sensitivity (-∞ to +20 dB) of each channel in
order to get a constant level signal.
5) HIGH:
Controls the high range of signals (+15 dB). When the knob is centrally positioned
(zero point), sound tone remains unchanged. Turn the knob anti-clockwise to
gradually reduce high frequencies (vocals with less hiss, reduction of background
noise, cymbals less cutting, etc.). Turn the knob clockwise to boost high frequencies
(sound are highlighted, vocals are more intelligible, signal harmonics are
emphasized).
6) MID:
Controls the mid range of signals (+15 dB). When the knob is centrally positioned
(zero point), sound tone remains unchanged. Turn the knob anti-clockwise to
gradually reduce mid frequencies (reduction of mid part of sound, tones at extremes
of high and low ranges are emphasized, typical of dance music tones). Turn the knob
clockwise to boost mid frequencies (sound body is highlighted, greater overall sound
power and more nasal tone).
7) LOW:
Controls the low range of signals (+15 dB). When the knob is centrally positioned
(zero point), sound tone remains unchanged. Turn the knob anti-clockwise to
gradually reduce low frequencies (boom is neutralized, excessively low sounds are
removed). Turn the knob clockwise to boost low frequencies (more full-bodied sound,
highlighting of main signal frequencies, percussive sound more pronounced).

7
8) AUX1
This is normally placed after the EQ section and before the channel fader (PRE-
FADE, POST-EQ), and is therefore unaffected by the fader position and routing
status. This makes it particularly suitable for foldback or monitor feeds, which need to
be controlled separately from the main PA Mix.
9) AUX2
This is normally placed after the EQ section and before the channel fader (PRE-
FADE, POST-EQ), and therefore follows any changes in the fader level. This is
normally used to drive effect-processing units, which are fed back into the mixer and
which must fade out with the input channel.
10) PAN
Use this control if you want to adjust the signal stereo position. Turn the knob to the
left (L) or right (R) to vary the proportion of the signals send to the Left or Right and
G1 or G2.
11) PEAK. 0dB-10dB
The red LED lights up, when the signal level of the tone control is 5dB below clipping
point.
12) PFL
Used for headphone monitoring of each channel, regardless of the main mix. The PFL
(Pre-Fader-Listen)-function allows the user to listen to the level before fader control;
subsequent adjustment of the fader control (15) will not modify the level. This control
is useful during channel gain adjustment.
13) L-R
When you push this button, you can route the signal to the L/R fader.
14) G1-2
When you push this button, you can route the signal to the Group 1/2 fader.
15) Channel Fader
The fader adjusts channel signal level to be sent to the master Fader-Control L-R
(35). Set the slider to 0dB for maximum signal level; slide downwards to lower and
eventually eliminate the signal. For the best result, set the slide control to 3/4 of travel
upwards.

8
Stereo-Channel Section
16) LINE L / R
1/4 jack line input for L/R balanced stereo line level signals.status. When using mono
line signal, use the L side. When using stereo line signal, use the L and R side.
17) TRIM)
With this function you can adjust the input sensitivity (-∞ to +20 dB) of each channel in
order to get a constant level signal.
18) HIGH:
Controls the high range of signals (+15 dB). When the knob is centrally positioned
(zero point), sound tone remains unchanged. Turn the knob anti-clockwise to
gradually reduce high frequencies (vocals with less hiss, reduction of background
noise, cymbals less cutting, etc.). Turn the knob clockwise to boost high frequencies
(sound are highlighted, vocals are more intelligible, signal harmonics are
emphasized).
19) MID:
Controls the mid range of signals (+15 dB). When the knob is centrally positioned
(zero point), sound tone remains unchanged. Turn the knob anti-clockwise to
gradually reduce mid frequencies (reduction of mid part of sound, tones at extremes
of high and low ranges are emphasized, typical of dance music tones). Turn the knob
clockwise to boost mid frequencies (sound body is highlighted, greater overall sound
power and more nasal tone).
20) LOW:
Controls the low range of signals (+15 dB). When the knob is centrally positioned
(zero point), sound tone remains unchanged. Turn the knob anti-clockwise to
gradually reduce low frequencies (boom is neutralized, excessively low sounds are
removed). Turn the knob clockwise to boost low frequencies (more full-bodied sound,
highlighting of main signal frequencies, percussive sound more pronounced).

9
21) AUX1
This is normally placed after the EQ section and before the channel fader (PRE-
FADE, POST-EQ), and is therefore unaffected by the fader position and routing
status. This makes it particularly suitable for foldback or monitor feeds, which need to
be controlled separately from the main PA Mix.
22) AUX2
This is normally placed after the EQ section and before the channel fader (PRE-
FADE, POST-EQ), and therefore follows any changes in the fader level. This is
normally used to drive effect-processing units, which are fed back into the mixer and
which must fade out with the input channel.
23) BAL
The BAL control sends the post fader signal to either the Left or Right and G1 or G2.
When the knob is centrally positioned (zero point), an equal amount of signal is sent
to the Left or Right and G1 or G2.
24) PEAK. 0dB-10dB
The red LED lights up, when the signal level of the tone control is 5dB below clipping
point.
25) PFL
Used for headphone monitoring of each channel, regardless of the main mix. The PFL
(Pre-Fader-Listen)-function allows the user to listen to the level before fader control;
subsequent adjustment of the fader control (15) will not modify the level. This control
is useful during channel gain adjustment.
26) L-R
When you push this button, you can route the signal to the L/R fader.
27) G1-2
When you push this button, you can route the signal to the Group 1/2 fader.
28) STEREO Channel Fader
The fader adjusts channel signal level to be sent to the master Fader-Control L-R
(35). Set the slider to +15dB for maximum signal level; slide downwards to lower and
eventually eliminate the signal. For the best result, set the slide control to 3/4 of travel
upwards.

10
MASTER-Section
29) Output Level Indicator
This is a level indicator, which shows the output level of the Left &
Right channel and G1 & G2.
30) Output Level Indicator Switch L/G1 and R/G2
With this switch you can select L/R and G1/G2.
31) AUX 1 RETURN / AUX 2 RETURN
Return level of AUX 1/2 into the mixer.
32) BAL
The BAL control sends the post fader signal to either the Left or Right
and G1 or G2. When the knob is centrally positioned (zero point), an
equal amount of signal is sent to the Left or Right and G1 or G2.
33) L-R
When you push this button, you can route the signal to the L/R fader.
34) G1-2
When you push this button, you can route the signal to the Group 1/2
fader.
35) Output Master Fader (L/R)
This is the master fader for adjusting the channel signal level of the
Left / Right output. Set the slider to +15dB for maximum signal level;
slide downwards to lower and eventually eliminate the signal. For the
best result, set the slide control to 3/4 of travel upwards.

11
36) POWER Switch
The Power LED will illuminate when you push this switch.
37) PHANTOM POWER Switch
The Power LED will illuminate when you push this switch. Pressing this switch applies
48V DC to all microphone input channel connectors, for remote powering of
condenser microphones.
38) HEADPHONES / CONTROL ROOM Level
This is a single volume control, which controls the level to the headphones and main
monitors.
39) HEADPHONE Function Select Switch (PFL / L-R / G1-2)
With this switch you can determine, which signal you wish to listen on the headphone.
You can select PFL, L-R or G1-2.
40) AUX SEND 1 / 2
This is used for adjusting the volume of AUX sound, when sending an AUX signal to a
jack.
41) TAPE LEVEL
You can adjust the volume of TAPE in signal when connecting TAPE in.
42) OUTPUT G1-2 FADERS
With this fader you can adjust the G1-2 output level.

12
MIXER Output-Section
43) STEREO AUX RETURNS & AUX SENDS
These can be used to connect all kinds of effects.
44) G1-G2 OUT
On these outputs is connected, the signal which is set with the G1-2 faders. These can be used to connect
all kinds of effects.
45) CTRL R OUT
The phone signal follows the control room output.
46) STEREO OUT JACK (L / R)
The sound can be send to a main amplifier through XLR & 1/4 jack.
47) TAPE INPUT JACK
You can connect i.e. a cassette deck or other 2 track playback equipment on this jack.
48) REC OUT JACK
This jack is to be connected with a cassette deck when recording the mixed output.
49) PHONES JACK
This is used for monitoring the master signal and individually monitoring each channel with PFL, L / R and
G1-2.
50
50) POWER JACK
This is power supply jack (2xAC 18 ~ 20V)

13
Connection Cables
Take care of the connector cables, always holding them by the connectors and avoiding knots and twists
when coiling them: This gives the advantage of increasing their life and reliability, which is always to your
advantage.
Periodically check that your cables are in good condition, that they are correctly wired and that all their
contacts are perfectly efficient: a great number of problems (faulty contacts, ground hum, discharges, etc.)
are caused entirely by using unsuitable or faulty cables.
Headphones Unbalanced mono 1/4” jack plug Balanced mono 1/4” jack plug
Compensation of interference with balanced connections

14
Maintenance
The DAP Audio LIVE 16 requires almost no maintenance. However, you should keep the unit clean.
Disconnect the mains power supply, and then wipe the cover with a damp cloth. Do not immerse in liquid.
Do not use alcohol or solvents.
Keep connections clean. Disconnect electric power, and then wipe the DMX and audio connections with a
damp cloth. Make sure connections are thoroughly dry before linking equipment or supplying electric power.
Troubleshooting
DAP Audio Mixer LIVE 16
This troubleshooting guide is meant to help solve simple problems. If a problem occurs, carry out the steps
below in sequence until a solution is found. Once the unit operates properly, do not carry out following
steps.
1. If the device does not operate properly, unplug the device.
2. Check power from the wall, all cables, the fuse, etc.
3. If all of the above appears to be O.K., plug the unit in again.
4. If nothing happens after 30 seconds, unplug the device.
5. Return the device to your DAP Audio dealer.

15
Block Diagram

16
Product Specification
Model: DAP Audio LIVE 16
Inputs
Mic Input electronically balanced
Bandwidth 10 Hz to 60 KHz ±3 dB
Distortion (THD & N) 0.01% at +4dBu, 1Khz, Bandwidth 80 KHz
Mic E.I.N. (22 Hz – 22Khz) -129.5 dBu, 150 Ohm source
-117.3 dBqp, 150 Ohm source
-132 dBu, input shorted
-122 dBqpu, input shorted
TRIM Range +10 dB to + 60 dB
Line Input electronically balanced
Bandwidth 10 Hz to 60 KHz ±3 dB
Distortion (THD & N) 0.01% at +4dBu, 1Khz, Bandwidth 80 KHz
Line level range +10 dBu to –40 dBu
Equalization
Hi Shelving 12 KHz +/-15 dB
Mid Shelving 2.5 KHz +/-15 dB
Low Shelving 80 Hz +/-15 dB
Stereo Inputs
Line Input unbalanced
Bandwidth 10 Hz to 55 KHz ±3 dB
Distortion (THD & N) 0.01% at +4dBu, 1Khz, Bandwidth 80 KHz
Line level range +10 dBu to –40 dBu
Equalization
Hi Shelving 12 KHz +/-15 dB
Mid Shelving 2.5 KHz +/-15 dB
Low Shelving 80 Hz +/-15 dB
Master Mix Section
Max Output +22 dBu balanced
Aux Send Max Out +22 dBu unbalanced
Control Room Out +22 dBu unbalanced
Signal-To-Noise-Ratio 112 dB all channels at Unity Gain
Power 230 V
Design and product specifications are subject to change without prior notice.

2004 DapAudio.
