DARK SPACEWALKER User manual

Design by Constantin Wortmann
Assembly doctor for SPACEWALKER
Dark at night
Vliegplein 43 - 9991 Maldegem
Belgium - Europe
tel [phone]
+32(0)50/71.81.38
[e-mail]
www.dark.be
fax
mail
kg
40
m
0.2
IP20
°C850
V0 7/01/2021
ATTENTION !!
DO NOT PLACE THE SPACEWALKER
BODY ON HIS HEAD !!
1
2
3
4
5
5
1
6
3X
5

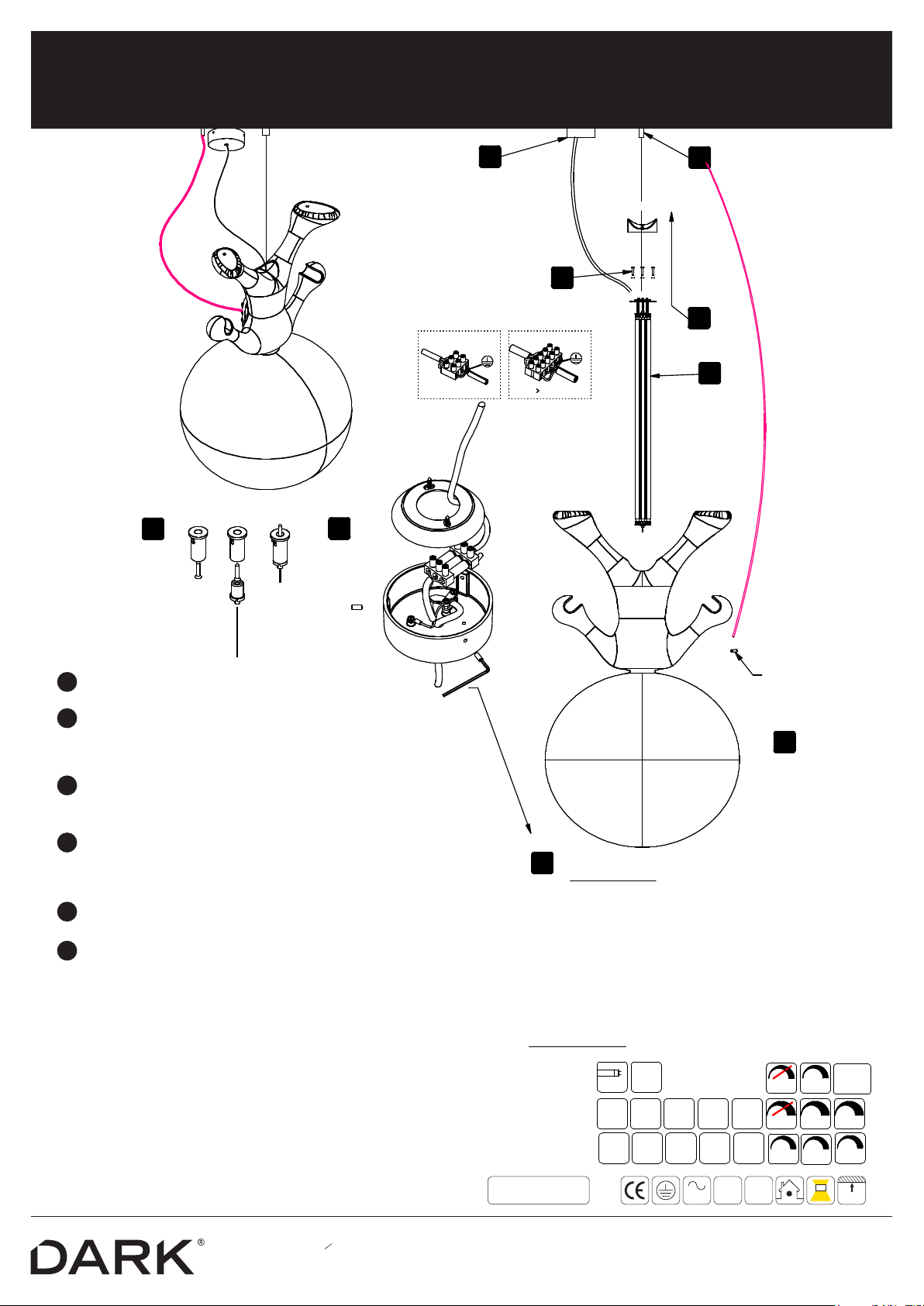

1. Screw the gripper on the ceiling.
2. Put the steelcable through the lamp rod and plastic bottom cap.
Fixate the cable in the gripper.
Lock the cable on the preferred height.
3. Insert 3 T5-lamps in the fixture. Respect the wattage of the gear.
(not for LED frame)
4. Place the T5/LED frame into the body and fasten the 3 bolds and washers
(Max force: 1,5N/m).
Lower the bottom cap between the legs.
5. Place the connection box on the ceiling and connect the power supply.
6. Place the fluo pink cable into backpack body
and fixate the other end on the ceiling.
lamp possibilities:
CONNECTION Standard version
Green/Yellow
Brown (L )
Blue (N)
Green/yellow (ground)
CONNECTION Dimmable version
Green/Yell ow
Red (-) or
Bla c k (-)
White (+) Dimmer (1-10V)
LED 80+
CRI mA
276 8000
Lm Watt
>100
DALI1 ... 10VNO DIM
WW
RGB(W)
T5 NO DIM 1 ... 10V ONE4ALL Watt
max
2211//3399
standalone DMX
DALI
LED 80+
CRI mA
350 3500
Lm Watt
>70
Design by Constantin Wortmann
Assembly doctor for SPACEWALKER
Dark at night
Vliegplein 43 - 9991 Maldegem
Belgium - Europe
tel [phone]
+32(0)50/71.81.38
[e-mail]
www.dark.be
fax
mail
kg
40
m
0.2
IP20
°C850
V0 7/01/2021
ATTENTION !!
DO NOT PLACE THE SPACEWALKER
BODY ON HIS HEAD !!
1
2
3
4
5
5
1
6
3X
5
1. Screw the gripper on the ceiling.
2. Put the steelcable through the lamp rod and plastic bottom cap.
Fixate the cable in the gripper.
Lock the cable on the preferred height.
3. Insert 3 T5-lamps in the fixture. Respect the wattage of the gear.
(not for LED frame)
4. Place the T5/LED frame into the body and fasten the 3 bolds and washers
(Max force: 1,5N/m).
Lower the bottom cap between the legs.
5. Place the connection box on the ceiling and connect the power supply.
6. Place the fluo pink cable into backpack body
and fixate the other end on the ceiling.
lamp possibilities:
CONNECTION Standard version
Green/Yellow
Brown (L )
Blue (N)
Green/yellow (ground)
CONNECTION Dimmable version
Green/Yell ow
Red (-) or
Bla c k (-)
White (+) Dimmer (1-10V)
LED 80+
CRI mA
276 8000
Lm Watt
>100
DALI1 ... 10VNO DIM
WW
RGB(W)
T5 NO DIM 1 ... 10V ONE4ALL Watt
max
2
2
1
1
/
/
3
3
9
9
standalone DMX
DALI
LED 80+
CRI mA
350 3500
Lm Watt
>70
© DARK 2021 DARK has the right to change any technical data, dimensions,
colors and characteristics without prior notice. All rights reserved.
Please always check the latest technical data sheet on www.dark.be.
DARK at night nv
Vliegplein 43 / 9991 Maldegem / Belgium
[phone] / [email protected] / www.dark.be
ASSEMBLY DOCTOR SpAcEwAlKeR design Constantin Wortmann for dark
V—22/08/22
1Screw the gripper on the ceiling.
2Put the steelcable through the lamp rod and plastic
bottom cap. Fixate the cable in the gripper. Lock the
cable on the preferred height.
3Insert 3 T5-lamps in the xture. Respect the wattage of the gear.
(not for LED frame)
4Place the T5/LED frame into the body and fasten the 3 bolds and
washers (Max force: 1,5N/m).
Lower the bottom cap between the legs.
5Place the connection box on the ceiling and connect the power supply.
6Place the uo pink cable into backpack body and xate the other end on
the ceiling.
!!! Never connect the xture on 220-240V ac without driver.
Lighting xture is constant current driven.
For drivers purchase, contact your sales contact.
Always connect constant current leds in serial connection.
Check catalogue P 488-489 (Installation of LED)
LIGHT SOURCE
Touching the LED can result in permanent damage of the light source.
The light source contained in this luminaire shall only be replaced by the
manufacturer or his service agent or a similar qualied person.
Always be properly grounded when touching leads or circuitry inside the luminaire.
PE-Metal 230 V IP20850°

Design by Constantin Wortmann for DARKAssembly doctor for SPACEWALKER FLOOR
ATTENTION !!
DO NOT PLACE THE SPACEWALKER BODY ON HIS HEAD !!
V5 16/08/2016
4
1
2
3
4
5
m
0,2
kg
40
IP40 °C
850
G5
Watt
39
Watt
21
T16
230 V
3X
LED
6
1. Insert 3 T5-lamps in the fixture. Respect the wattage of the gear.
2. Fixate the lamp rod in the body with the 3 bolds and washers
(Max. force: 1,5N/m).
3. Place the 2 rubbers between the feet and floor plate.
Fixate with the 4 screws.
4. Screw 1 headless screw in the backpack of the body and a second
one into the floor plate. Mount the pink cable over the screws.
5. Lock the bottom cap between the legs with the cable grommet.
6. Plug in and switch on.
NO DIM
NO DIM
T16
G5
3X
+32(0)50/71.81.40
+32(0)50/71.81.38
[e-mail]
mail
Dark at night
Vliegplein 43 - 9991 Maldegem
Belgium - Europe
fax
tel
www.dark.be
DARK
Design by Constantin Wortmann for DARKAssembly doctor for SPACEWALKER FLOOR
ATTENTION !!
DO NOT PLACE THE SPACEWALKER BODY ON HIS HEAD !!
V5 16/08/2016
4
1
2
3
4
5
m
0,2
kg
40
IP40 °C
850
G5
Watt
39
Watt
21
T16
230 V
3X
LED
6
1. Insert 3 T5-lamps in the fixture. Respect the wattage of the gear.
2. Fixate the lamp rod in the body with the 3 bolds and washers
(Max. force: 1,5N/m).
3. Place the 2 rubbers between the feet and floor plate.
Fixate with the 4 screws.
4. Screw 1 headless screw in the backpack of the body and a second
one into the floor plate. Mount the pink cable over the screws.
5. Lock the bottom cap between the legs with the cable grommet.
6. Plug in and switch on.
NO DIM
NO DIM
T16
G5
3X
+32(0)50/71.81.40
+32(0)50/71.81.38
[e-mail]
mail
Dark at night
Vliegplein 43 - 9991 Maldegem
Belgium - Europe
fax
tel
www.dark.be
DARK
© DARK 2021 DARK has the right to change any technical data, dimensions,
colors and characteristics without prior notice. All rights reserved.
Please always check the latest technical data sheet on www.dark.be.
DARK at night nv
Vliegplein 43 / 9991 Maldegem / Belgium
[phone] / [email protected] / www.dark.be
ASSEMBLY DOCTOR SpAcEwAlKeR FlOoR design Constantin Wortmann for dark
V—22/08/22
1Insert 3 T5-lamps in the xture. Respect the wattage of the gear.
2Fixate the lamp rod in the body with the 3 bolds and washers
(Max. force: 1,5N/m).
3Place the 2 rubbers between the feet and oor plate.
Fixate with the 4 screws.
4Screw 1 headless screw in the backpack of the body and a second
one into the oor pate. Mount the pink cable over the screws.
5Lock the bottom cap between the legs with the cable grommet.
6Plug in and switch on.
!!! Never connect the xture on 220-240V ac without driver.
Lighting xture is constant current driven.
For drivers purchase, contact your sales contact.
Always connect constant current leds in serial connection.
Check catalogue P 488-489 (Installation of LED)
LIGHT SOURCE
Touching the LED can result in permanent damage of the light source.
The light source contained in this luminaire shall only be replaced by the
manufacturer or his service agent or a similar qualied person.
Always be properly grounded when touching leads or circuitry inside the luminaire.
ATTENTION !!
DO NOT PLACE THE SPACEWALKER BODY ON HIS HEAD !!
PE-Metal 230 V IP20850°

- Het toestel dient geplaatst, aangesloten en uitgetest te worden door een
erkend installateur en volgens de plaatselijk geldende reglementering.
- De klant wordt verondersteld onze algemene verkoopsvoorwaarden te kennen.
- De lampen dienen steeds met zorg te worden ge nstalleerd of vervangen.
- Overschrijdt nooit de maximum aangeduide wattage op het toestel.
- Voor installatie of onderhoud van het toestel de voedingsspanning afsluiten.
- Bij lampvervanging het toestel afzetten en volledig laten afkoelen.
- Het toestel kan worden onderhouden met een zachte doek en eventueel een
standaard pH-neutraal detergent. Voor goederen met een inox oppervlak moet
dit op geregelde tijdstippen gebeuren. Het toestel moet hiervoor worden
afgezet en volledig afgekoeld.
- Elk verkeerd gebruik of aanpassing van het toestel maakt de garantie nietig.
Kinderen moeten buiten het bereik van de toestellen worden gehouden,
aangezien de temperatuur van het toesteloppervlak hoog kan oplopen.
- De toestellen mogen nooit worden bedekt zoals bijvoorbeeld met een isolerend
materiaal of iets dergelijks.
ER KUNNEN WIJZIGINGEN OPTREDEN QUA ONTWERP,
SPECIFICATIES EN MONTAGE-INSTRUCTIES.
- Das Gerät soll von einem anerkannten Installateur und den örtlich geltenden
Satzungen gemäß aufgestellt, angeschlossen und getestet werden.
- Der Kunde soll unsere allgemeinen Verkaufsbedingungen kennen.
- Die Lampen sollen immer sorgfältig installiert oder ersetzt werden.
- Sie sollen die angegebene maximale Wattleistung, die auf dem Gerät angegeben ist,
nie überschreiten.
- Für die Installation oder die Wartung des Geräts sollen Sie die Spannung abschließen.
- Wenn Sie Lampen ersetzen, sollen Sie das Gerät ausschalten und völlig abkühlen lassen.
- Für die Wartung des Geräts benutzen Sie ein weiches Tuch und eventuell ein
 regulärespH-neutralesReinigungsmittel.FürGütermiteinerOberächeaus 
Edelstahl soll dies regelmäßig gemacht werden. Dafür soll das Gerät ausgeschaltet und
völlig abgekühlt werden.
- Jede falsche Benutzung oder Anpassung des Geräts macht die Garantie ungültig.
- Diese Geräte sollen außer Reichweite von Kindern gehalten werden, da die Temperatur
 derOberächedesGerätsstarkansteigenkann.
- Die Geräte dürfen nie mit zum Beispiel einem isolierendem Material oder etwas
Ähnlichem bedeckt werden.
ÄNDERUNGEN IM ENTWURF, IN SPEZIFIZIERUNGEN UND
MONTAGEANWEISUNGEN SIND MÖGLICH.
- L’appareil doit être placé, raccordé et testé par un installateur agréé et selon les
réglementations locales en vigueur.
- Le client est censé connaître nos conditions générales de vente.
- Les lampes doivent en tout temps être installées ou remplacées avec soin.
- Ne jamais excéder le wattage maximum indiqué sur l’appareil.
- Déconnecter la tension d’alimentation de l’appareil avant installation ou entretien.
- Déconnecter l’appareil et le laisser refroidir enti rement avant de remplacer
une lampe.
- L’appareil s’entretient à l’aide d’un chiffon doux et, éventuellement, d’un
détergent au PH neutre. Pour les appareils à surface en inox, cet entretien doit
s’effectuer à des intervalles réguliers. A cet effet, déconnecter l’appareil et le
laisser refroidir entièrement.
- Toute utilisation erronée ou adaptation de l’appareil annule la garantie.
- Ne pas laisser les appareils à portée de main des enfants, étant donné que la
température de la surface de l’appareil peut être élevée.
- Les appareils ne peuvent jamais être recouverts, comme par exemple d’un
matériau isolant ou équivalent.
NOUS NOUS RÉSERVONS LE DROIT DE MODIFICATIONS AU NIVEAU
CONCEPT, SPÉCIFICATIONS ET INSTRUCTIONS DE MONTAGE.
- Theapplianceshouldbeinstalled,connectedandtestedbyacertiedinstaller,
and in accordance with the local regulations.
- The customer is supposed to know our general sales conditions.
- Lamps should always be installed or replaced with care.
- Never use a wattage higher than the maximum wattage mentioned on the appliance.
- Turn off the power supply before installation or maintenance of the appliance.
- Whenalampistobereplaced:switchofftheappliancerstandletitcooldown 
completely.
- Clean the appliance with a soft cloth and a standard pH neutral detergent.
Stainless steel surfaces should be maintained regularly. Therefore the appliance
should be switched off and cooled down.
- Misuse of, or changes to the appliance shall nullify the guarantee.
- Keep children away from the appliances; the appliance’s surface can be very hot.
- Never cover the appliances with e.g. insulating material.
THE MANUFACTURER IS FREE TO CHANGE THE DESIGN,
SPECIFICATIONS AND INSTRUCTIONS FOR ASSEMBLY.
- L’apparecchio deve essere installato, collegato e testato da un tecnico autorizzato,
e seondo le regolazioni locali.
- Il cliente deve conoscere le nostre condizioni generali di vendita .
- Le lampadine devono sempre essere installate o sostituite con molta attenzione.
- Non usare mai una potenza in watt superiore a quella massima menzionata
sull’apparecchio.
- dell’installazione o della manutenzione dell’apparecchio: interrompere l’alimentazione.
- Per sostituire una lampadina: disattivare l’apparecchio e lasciar raffreddare
completamente.
- Mantenere l’apparecchio con un panno morbido, ed eventualmente imbevuto di un
 normaledetergenteconpHneutro.Lesuperciinoxdevonoesseremantenutecon 
regolarità, perciò l’apparecchio deve essere disattivato e raffreddato completamente.
- Ogniusodell’apparecchiononconformealleistruzionidatee/oognimodica 
apportato ad esso, annulla la garanzia.
- Tenergliapparecchifuoridallaportatadibambini,poichélasuperciedell’apparecchio
può essere molto calda.
- Non coprire mai gli apparecchi: p.e. con un materiale isolante.
IL FABBRICANTE HA IL DIRITTO DI CAMBIARE IL PROGETTO,
LE SPECIFICHE TECNICHE E LE ISTRUZIONI PER IL MONTAGGIO.
NEDERLANDS
ALGEMENE GEBRUIKSVOORWAARDEN
DEUTSCH
ALLGEMEINE GEBRAUCHSBEDINGUNGEN
FRANCAIS
CONDITIONS GÉNÉRALES D’UTILISATION
ENGLISH
GENERAL CONDITIONS FOR USE
ITALIANO
CONDIZIONI GENERALI D’USO
- El aparato tiene que ser colocado, conectado y probado por un técnico reconocido,
respetando el reglamento local vigente.
- Se supone que el cliente conoce nuestras condiciones generales de venta.
- Las lámparas siempre tienen que ser instaladas o reemplazadas con cuidado.
- No se puede nunca sobrepasar el vataje máximo que está indicado en el aparato.
- Corte la alimentación eléctrica antes de instalar o mantener el aparato.
- Desconecte el aparato y déjelo enfriar completamente antes de reemplazar las
lámparas.
- Para el mantenimiento del aparato se puede utilizar un pano suave o, eventualmente,
 undetergenteest ndardepH-neutro.Cuandosetratadeaparatosconunasupercie
de acero inoxidable, el mantenimiento tiene que ser afectuado con regularidad. Para la
limpieza hay que desconectar y dejar enfriar el aparato completamente.
- Todo uso impropio o toda adaptación impropia del aparato implica la anulación de la
garantía.
- Como el aparato puede alcanzar temperaturas considerables, los aparatos deben
mantenerse fuera del alcance de los ninos.
- No se puede cubrir nunca los aparatos con, por ejemplo, algún tipo de material aislante.
SON POSIBLES LAS MODIFICACIONES EN CUANTO AL DISENO,
LAS ESPECIFICACIONES Y LAS INSTRUCCIONES DE MONTAJE.
~
~
~
~
ESPANOL
CONDICIONES GENERALES DE USO
