Datecs Infinea Tab M Lite User manual

1 DATECS
Infinea Tab M Lite
User Manual

1 DATECS INFINEA TAB M LITE USER MANUAL
2
THE INFORMATION IN THIS DOCUMENT CANNOT BE REPRODUCED IN ANY MECHANICAL, ELECTRICAL
OR ELECTRONIC WAY AND UNDER ANY CIRCUMSTANCES WITHOUT THE WRITTEN CONSENT FROM DATECS LTD.
Address: 4 Datecs Street, Sofia 1592, Bulgaria
Phone: [phone]
Fax: [phone]
E-mail: [e-mail]

1 DATECS INFINEA TAB M LITE USER MANUAL
3
REVISION HISTORY
Version
Data
Change description
1.0.0
19.07.2018
First Release
2.0.0
28.06.2019
Added Section “REGULATORY”

1 DATECS INFINEA TAB M LITE USER MANUAL
4
REGULATORY
FCC ID: YRWITML
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
No changes shall be made to the equipment without the manufacturer’s permission as this may void
the user’s authority to operate the equipment.
This device has been designed and complies with the safety requirements for portable RF exposure in
accordance with FCC rule part 2.1093 and KDB 447498 D01.

1 DATECS INFINEA TAB M LITE USER MANUAL
5
LEGAL NOTICE
“Made for iPhone” mean that an electronic accessory has been designed to connect specifically to the
iPhone and has been certified by the developer to meet Apple performance standards. Apple is not
responsible for the operation of this device or its compliance with safety and regulatory standards.
Please note that the use of this accessory with an iPhone may affect wireless performance

1 DATECS INFINEA TAB M LITE USER MANUAL
6
CONTENTS
TECHNICAL SPECIFICATIONS ................................................................................................................................................... 7
GENERAL VIEW........................................................................................................................................................................ 9
GETTING STARTED................................................................................................................................................................. 10
PERIODIC INSPECTION AND MAINTENANCE ........................................................................................................................ 11
ATTACHING APPLE DEVICE TO INFINEA TAB M LITE ............................................................................................................ 12
OPERATION MODES .............................................................................................................................................................. 13
APPLICATION DOWNLOAD MODE AND SYSTEM MODE.................................................................................................................... 13
STATUS LEDS........................................................................................................................................................................ 13
MAGNETIC CARDS READING ..................................................................................................................................................... 15

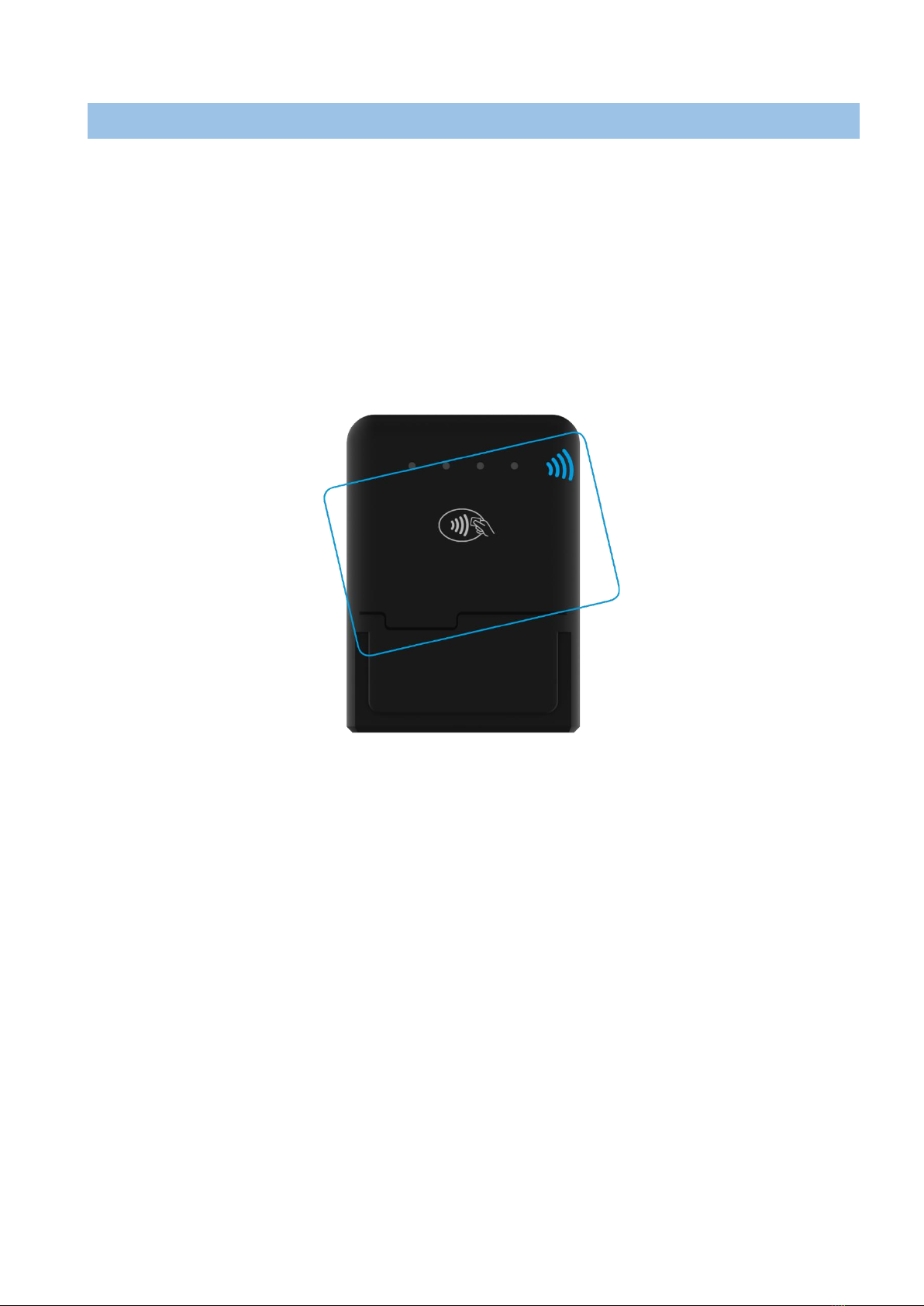

CONTACTLESS CARDS READING.................................................................................................................................................. 16
POWER MANAGEMENT ........................................................................................................................................................... 17
CARE, MAINTENANCE AND WARRANTY............................................................................................................................... 18
SERVICE AND SUPPORT......................................................................................................................................................... 18

1 DATECS INFINEA TAB M LITE USER MANUAL
7
TECHNICAL SPECIFICATIONS
Processor
ARM Cortex® M3 Security Microcontroller
Memory
64KB Internal ROM
256KB Internal RAM
1MB Internal Flash
Application Memory
4MB Serial Flash
Keypad
• 1 button for device turning ON/OFF
Magnetic Card Reader
• 3-track bi-directional reading
• ISO 7810, 7811 and 7813
Contactless Card Reader
(option)
ISO/IEC 14443 Type-A/MIFARE:
- MIFARE MINI
- MIFARE CLASSIC-1K, MIFARE CLASSIC-4K
- MIFARE ULTRALIGHT, ULTRALIGHT-C
- MIFARE PLUS 2K/4K
- MIFARE DESFire
- and others
ISO/IEC 14443 Type-B
- supports most of the cards
ISO/IEC 15693
- supports most of the cards
JIS X 6319-4
- compatible with FeliCa
Contactless Card Reader
for payment applications
(option)
• AMEX ExpressPay MagStripe and EMV
• Discover ZIP and D-PAS
• MasterCard PayPass MagStripe and M/Chip
• VISA PayWave MSD and qVSDC
Battery
Rechargeable Li-Po Battery 3.7V / 500 mAh
Connectivity
• Serial communication (with Apple device)
• Pass-through sync through Lightning connector
• USB (via Lightning Receptacle)
Audio indication
Electro-Magnetic Buzzer
Apple devices
compatibility
iPhone 8 Plus
Reliability
• 1 000 000 magnetic card swipes
Certifications
PCI PTS 5.x
Dimensions (LxWxH),
mm
102.5 x 75 x 25
Weight, g
95
Environmental
Operating: -10℃ to +40℃ / 5 to 90% RH
Storage: -15℃ to +50℃/ 5 to 90% RH
Drop Test
1.5 m, 6 faces + 4 edges on concrete
Power Supply
• 5V through Lightning connector
• 5V through single or 5 station charger
Accessories
• Single station charger - SC-1
• 5 stations charger - GC-5
• Holster
* Specification can be change without any notice.
Use only original Apple cable Lightning to USB Cable
Use only UL approved USB adapters. The minimum requirements of USB
adapter is 5V/1.5A.

1 DATECS INFINEA TAB M LITE USER MANUAL
8
Waste Electrical & Electronic Equipment
The symbol means that according to local laws and regulations your product
shall be disposed of separately from household waste at the end of its working
life. To prevent possible harm to the environment or human health from
uncontrolled waste disposal, please separate this from other types of wastes
and recycle it responsibly to promote the sustainable reuse of material
resources.

1 DATECS INFINEA TAB M LITE USER MANUAL
9

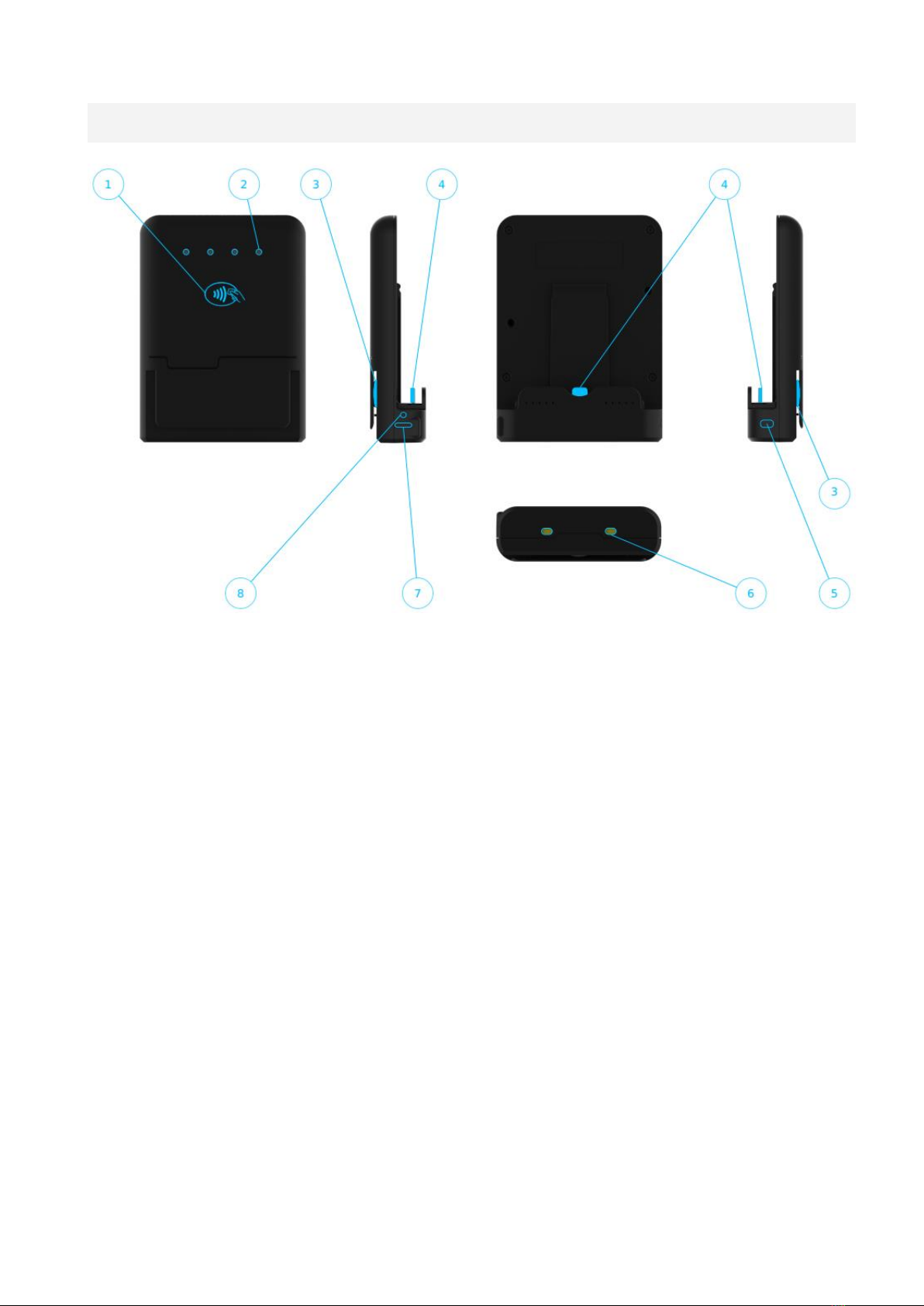

GENERAL VIEW
Fig. 1
1. Contactless reader
2. Indication for Contactless transaction / LEDs indication for device status
3. Magnetic Card Reader
4. Lightning connector
5. On/Off button
6. Charging pads
7. USB communication port (Lightning Receptacle port)
8. Indication for battery charging

1 DATECS INFINEA TAB M LITE USER MANUAL
10
GETTING STARTED
Infinea Tab M Lite has rechargeable Li-Po battery. Battery can be recharged from Lightning Receptacle
port or charging pads.
Before first use, battery must be fully charged.
If the device is fully discharged, charging time to fully charged would be less
than 1 hour and 30min.
Charging form USB adapter:
Fig. 2
Main battery replacement:
To replace the main battery of Infinea Tab M Lite, please contact with your
local Datecs Ltd. representative or service provider.
