Davoline Telescopic Lux 1144 User manual

MODEL
COOKER HOOD
INSTRUCTIONS MANUAL
1144

-2-
In order to use the cooker hood efficiently;
*Pay attention to aluminum filters' cleaning periods and changing periods of carbon filters.
*Use the product at middle speed if high suction power is not necessary.
* In order to ensure that ventilation occurs correctly, windows of the kitchen should be kept closed.
-11-

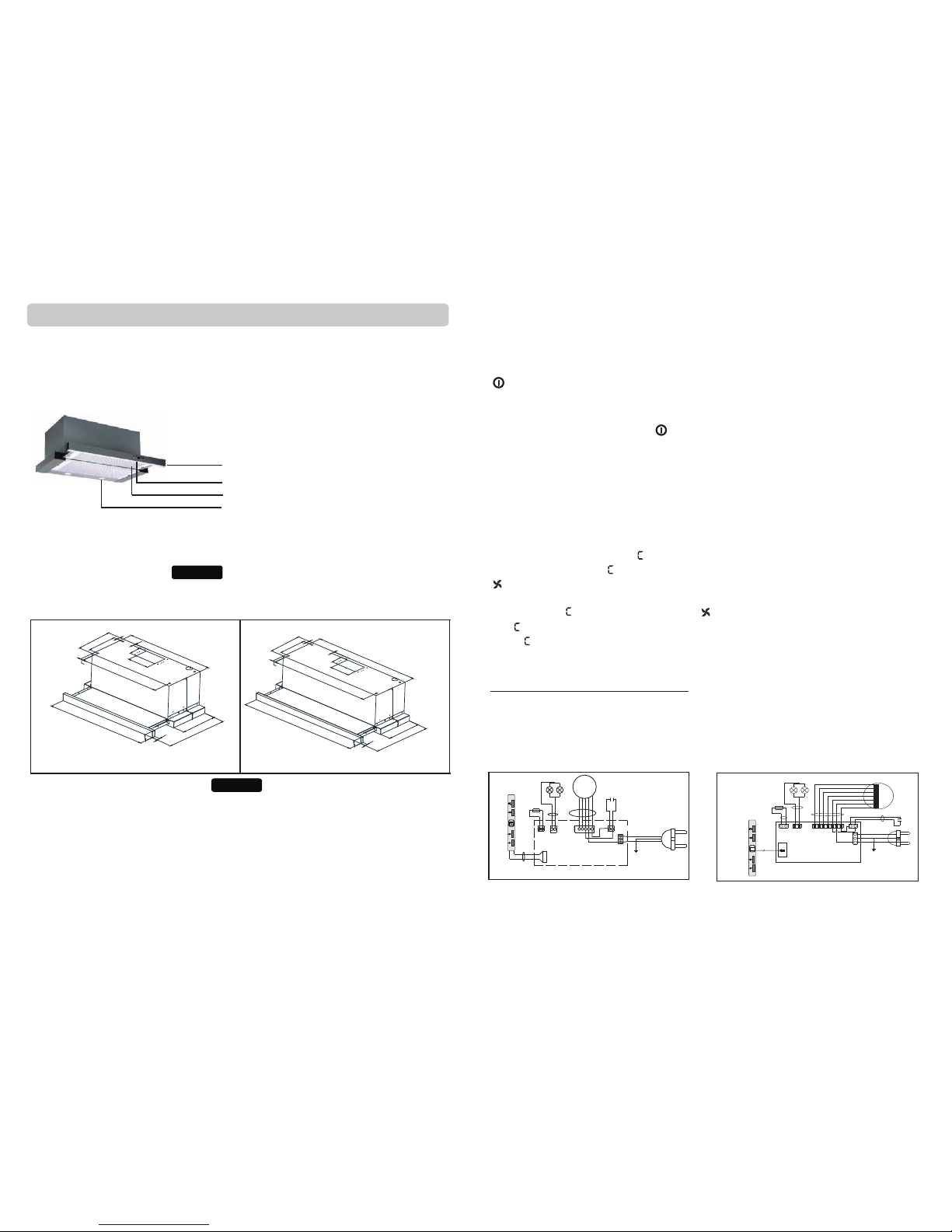

1) Front panel
2) Comand panel
3)
4) Illumination
Aluminum Cassette Oil Filter
Picture 1
INTRODUCTION OF DEVICE
Touch control product
1144 - 60
Figure 1
1144
(5 SPD)
1144
(3 SPD)
1
2
3
4
YELLOW/GREEN
BROWN
BLUE
WHITE
FUSE
WHITE
LAMP
ELECTRONIC CIRCUIT
BLACK
BROWN
WHITE
BLUE
RED
CAPASITOR
5 µf/400 V
INPUT : 220 - 240 V AC / 50 Hz
M
FUSE
CONTROL PANEL
FUSE
BLACK
GREY
YELLOW
WHITE
BLUE
RED
BROWN
5µF/400 V
BROWN
YELLOW/GREEN
BLUE
10 10
10
M1~
CAP
N M1 M2 M3 M4
M5
LAMP
BUTTON BOX
ELECTRONIC CIRCUIT (FOR 5 SPEED)
CONTROL PANEL
WHITE
WHITE
INPUT : 220 - 240 V AC / 50 Hz
Cleaning Periods of Aluminum Filter
Filter should be cleaned when “C” signal appears on the Display or each 2-3 weeks (in
accordance with the usage frequency).After cleaning and replacing filters to their places,
button should be pressed for more than 3 seconds (when the product is off) in order to
remove the “C” signal. “E” signal will appear on Display and product will start working at normal
position. If you want to continue using your product without removing “C” signal, active speed will
appear for 1 second when you press button, then “C” signal will appear once more and the
motor will continue operating.
NOTE: “C” signal will appear after you use the product for 60 hours.
Cleaning Periods of the Aluminum Filters:
Filters should be cleaned when “ ” signal appears on Display or (according to usage) each 2-3
weeks. In order to remove “ ” signal, after the filters are cleaned and replaced to their place, press
button more than 3 seconds (when the product is at off position). Letter “E” will appear on
Display and the product will operate as normal. If you would like to continue using the product
without deleting “ ” signal, when you press the button active speed will appear for 1 second,
then “ ” signal will appear once more and the motor will continue operating.
NOTE: “ ” signal will appear after usage of the product for 60 hours.
5 Speed Digital Control
3 Speed Digital Control
50
40
41
20
600
Max475 Min310
284
223
280
28
22
100
500
148
220
456
20
50
40
20
900
Max475 Min325
284
223
280
28
22
90
800
148
220
755
26
41
1144 - 90

-3-
*Before you take pot, fry-pan etc. from the
hob, put their lids on.
*Do not leave hot oil on the hob. Pots that
have hot oil in them may cause selfignition.
*Pay attention to curtains and covers during
cooking of meals like frying because oil may
flare up.
*Make sure that filters are changed in
convenience. Filters that are not changed at
appropriate time has risk of causing fire due
to oil that will be gathered on them.
*Do not use filter materials that are not flame
resistant instead of filter.
*Do not operate your product without
aluminum filter; do not remove filters when
the product is on.
*In case of flame, cut power of the product
and the cooking appliances. (Cut power of
the product by plugging it off the socket).
*Your product may cause fire risk if cleaning
is not applied periodically.
*Cut power of the product before
maintenance process. (Cut power of the
device by unplugging it)
*When chimney hood and the appliances
working with energy other than electricity
are operated at the same time, negative
pressure in the room should not be more
than 4 Pa (4 x 10 bar)
*If there is an appliance working with fuel or
gaseous fuel at the same place with your
hood, this appliance's exhaust should be
isolated from its volume totally and the
appliance should be hermetic type.
*When chimney connection is applied to
your product, use ducts of 150mm or
120mm diameter. Duct connection should
be as short as possible and should include
few bends.
*This product is designed for usage at
home.
*Your products usage voltage is 220-240
Volts~50Hz
*Grounded plug is used at your product's
electric network cable. This cable should
definitely be plugged in a grounded socket.
*All electrical networks should be set by a
qualified electrician.
*Installation applied by unauthorized
people may cause the product to operate at
low performance, damage of the product
and accidents.
*Power supply cable should not be exposed
to press or smash during montage. Network
cordon should not be placed near the
cookers; it may cause fire if it melts.
*Do not plug into the socket before
installation of the product is completed.
*Keep the plug at a reachable place so that
you can unplug it in case of any danger.
*Do not touch the lamps when they are on
for long time. Lamps may hurt your hand as
they will be hot.
*Kitchen cooker hoods are designed for
usage during normal and home-style
cooking. If it is used for other purposes,
failure risk occurs and it will be out of
warranty.
*Follow applicable rules and directions for
passing out outlet air. (This warning is not
valid for usage without chimney.)
*Flaming foods should not be cooked under
the product.
*Start your product after you put pot, fry-pan
etc. on the hob. Otherwise high
temperature may cause some parts of your
product to get deformed.
Illumination
The product has 2 lamps and one lamp button to operate illumination. Press lamp
button in order to start illumination.

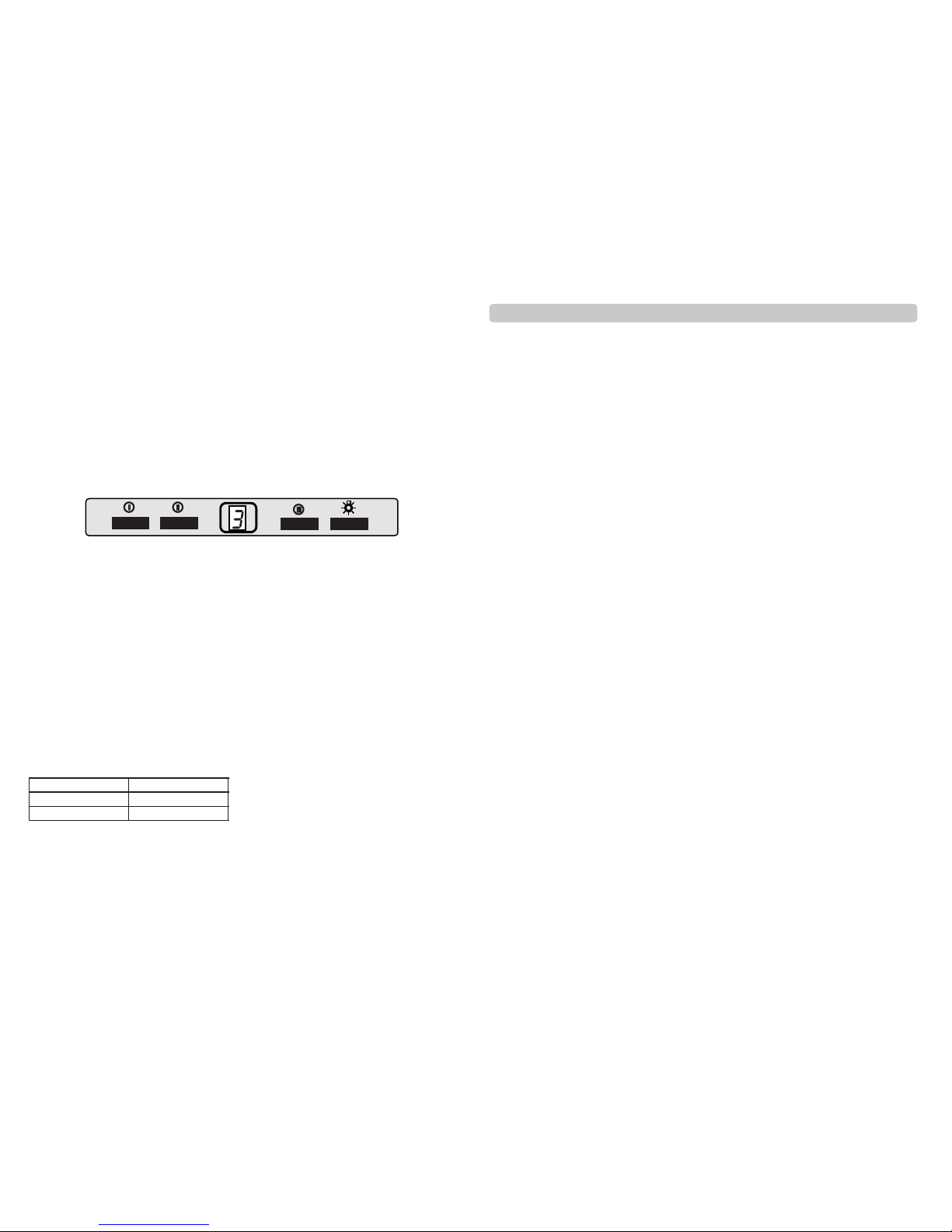

USAGE TOUCH BUTTON
Remove protective foil on your inox product after installation.
Speed Selection The product has 3 ventilation speed choice. Ventilation speed is selected in
accordance with steam of cooking or fry. You may switch on your product by pressing control
buttons on the front panel. Automatic timer (TIMER) is available at all models with electronic
control. When pressed on any of the motor control buttons for more than 2 seconds, timer
function will be set for 15 minutes. When the timer is on, Display will signal and the motor will be
off automatically in 15 minutes. Please use the cooker and the product at the same time to enable
air circulation. This will have positive effect on air suction power. We recommend you to operate
your product for few minutes more after the cooking is completed to enable absorption rest of
smell and steam.
TOUCH BUTTON POSITIONS
-10-
-5
WARNINGS AND SAFETY PRECAUTIONS
Efficient Ventilation
In order to ensure correct ventilation, keep your kitchen windows closed.
IMPORTANT NOTE
Please pay attention when the product is operated at the same time with a product which
operates using air and fuel (for instance; heater, water heater etc. which operates using gas,
diesel fuel, coal or wood), since cooker hood may affect burning negatively as it directs the air out.
This warning is not valid for usage without chimney.
TECHNICAL SPECIFICATIONS
Feeding Voltage 220-240 V 50Hz
Motor Isolation Class
Isolation Class
F
CLASS I

-4-
*Keep package materials away from
children as they may be dangerous for
them.
*Be sure that your child does not play with
the product. Do not allow kids to use your
product.
*If power supply cable is damaged, this
cable should be changed by its producer or
its service agency or a personnel who is a
specialist at the same level in order to
prevent a dangerous situation.
If the product does not work:
Before you contact the technical service:
Make sure that the product is plugged in and the electric fuse of the electric wiring is running. Do not
take any action that will damage the product. Before you contact with technical service, check your
cooker hood according to Table 1. If the problem goes on, contact the seller or the most authorized
service.
Cooker-hood does not work
X
X
X
X
X
X
X
XX
X
-9-
Illumination Lamp
does not work
Check electric connection (Voltage of the electric network should be between 220-240V, cooker hood should be connected to grounded plug.) Check motor switch (Motor switch should be at on position) Check lamp switch (Lamp switch should be at on position) Check aluminum filter (Aluminum Cassette Filter should be washed once a month at normal conditions.) Check lamps (Lamps should be firm.) Check outlet (Outlet should be open) Check Carbon Filter (Carbon filter should be replaced with a new one each 2-3 months at the models with Carbon Filter at normal conditions)
Warning about Transportation and Carriage
*All the materials used at package of your product are suitable for recycling.
*Please comply with the signs on the product's box during transportation.
*Hold the holders placed at sides of the box in order to carry your product.
If you need transportation;
*Keep the original box.
*Carry your product in its original box; comply with the carrying signs on the product's box.
If there is no original package;
*Do not put heavy material on the chimney hood.
*Keep the external surface from bash.
*Pack your product to avoid damages.
Installation, taking off your product from its package:
*Check if there is any deformation on your product.
*Transportation damages and failures should immediately be reported to the transportation
responsible.
*If you notice any damage please report to the seller.
*Do not allow children to play with packing material!!!
Cooker-hoods air
suction is weak
Cooker-hood does not
direct air out
(at places without chimney)
*In case of flame, cut power of the cooker
hood and the cooking appliances, cover the
flame. Never use water in order to
extinguish it.
Use “MAX 6 A” fuse at cooker hood
installment for your security.
“CAUTION: Accessible parts may become hot when used with cooking appliances”
''The appliance is not to be used by children or persons with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have
been given supervision or instruction''
Please use the cooker and the product at the same time to enable air circulation. This will have
positive effect on air suction power. We recommend you to operate your product for few minutes
more after the cooking is completed to enable absorption rest of smell and steam.

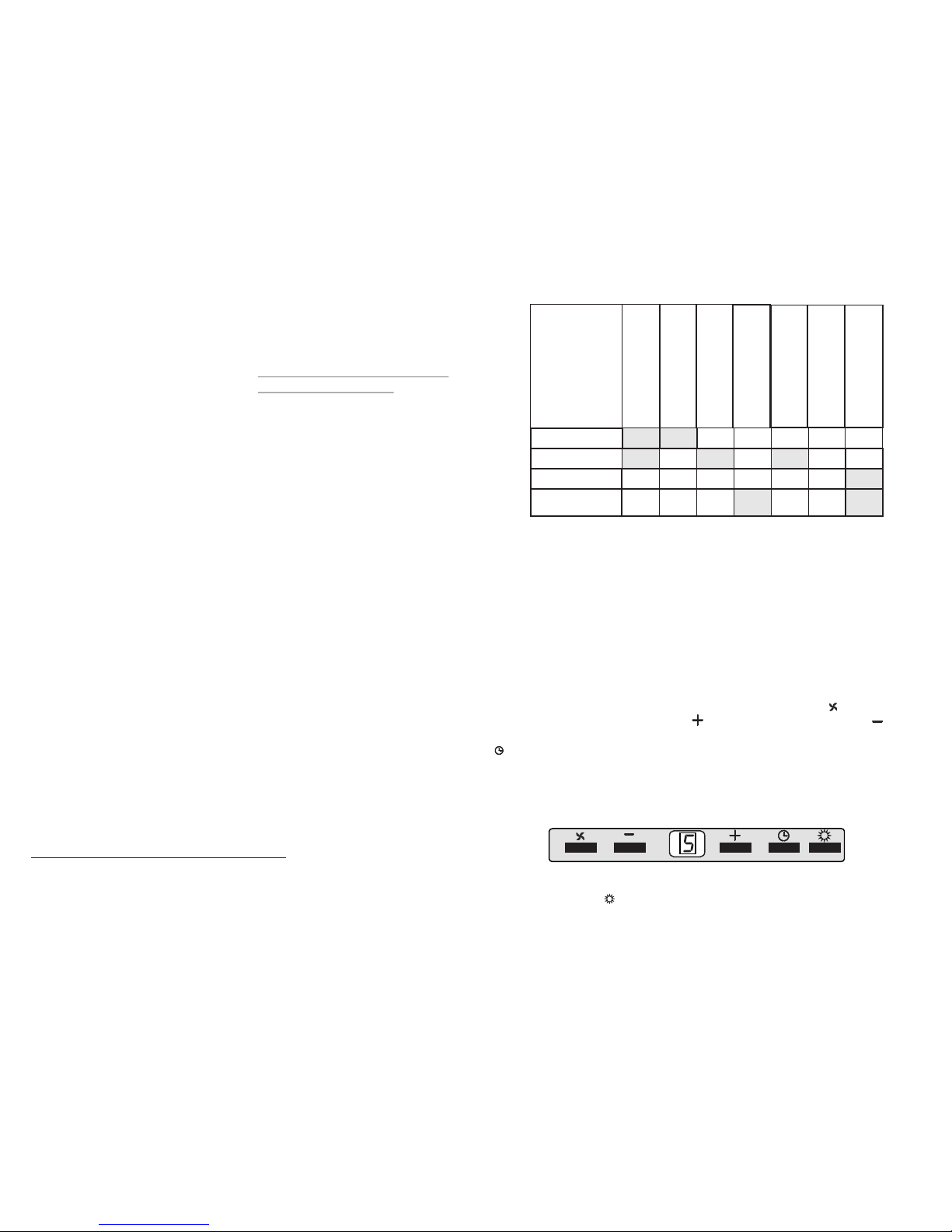

Usage of 5 Speed Digital Control
Remove protective folio on the inox product after installation.
Speed Selection The product has 5 speeds of ventilation level. One of 1,2,3,4,5 speeds is
selected in accordance with steam of cooking or fry. Motor is started pressing control button on
the front panel. Speed is increased pressing button, and decreased by pressing button.
Automatic timer (TIMER) is available at the models with electronic remote control. When you press
button more than 2 seconds, timer function will be on for 15 minutes. When the timer is on,
Display will signal and the motor will be off automatically 15 minutes later. Please use the cooker
and the product at the same time to enable circulation. Doing so, air suction power will be affected
positively. We recommend you to operate your product for few minutes more after the cooking is
completed to enable absorption rest of smell and steam.
TOUCH BUTTON POSITIONS
Illumination
The product has 2 lamps and one lamp button to operate illumination. Press lamp button in
order to start illumination.

-5-
Washable Aluminum
Cassette Filter
Picture 7
Picture 6
-8-
Standard Accessories
Plastic Outlet (Picture 2)
Plastic outlet mounted to air outlet of the cooker hood
Picture 2
Min.65 cm
Min.75 cm
Figure 2
Place of the Product:
After installation of your product, distance between
range hood and electrical hob should be at least 65
cm and gas hobs at least 75cm. Figure 2
Installation, taking off your product from its package:
*Check if there is any deformation on your product.
*Transportation damages and failures should immediately be reported to the transportation
responsible.
*If you notice any damage please report to the seller.
*Do not allow children to play with packing material!!!
ASSEMBLY UNDER CLOSET
4 Holes are bored on the wooden plate under yhe closet by using assembly pattern.
Achimney outlet hole larger 130 mm is bored on this wooden plate by using assembly pattern.
INSATLLATION TO THE CUPBOARD
Use the 3,5 x 45 screws which are in the mounting set
to fix the cooker hood to the cupboard. Be sure that
when you draw out the slide set that the front panel
doesnt gad to the cupboard door. (Figure 3-3a)
MAINTENANCE
*Disconnect electricity connection before maintenance
and cleaning process.
*Aluminum cassette filter holds the dust and the oil in the
air.
*Metal filter should be washed once in a month with hot
and soaped water or, if possible, at dishwasher (60C).
*Take off aluminum cassette filter pressing on springy
latches on end point. After cleaning, do not replace before
it dries.
*Outer surface of the cooker hood should be wiped with a
wet cloth that is wetted with water or alcohol.
*Please avoid contact of electronic parts with water or
similar materials.
*Using Inox cleaning and maintenance products available
in the market will help your product to perform longer.
Warning: Aluminum filters may be washed in the
dishwasher. Color of aluminum filters may change after
several washings. This is normal and it is not necessary to
change the filters.
Figure 3
Figure 3a
Efficient Ventilation
In order to ensure correct ventilation, keep your kitchen windows closed.
IMPORTANT NOTE
Please pay attention when the product is operated at the same time with a product which
operates using air and fuel (for instance; heater, water heater etc. which operates using gas,
diesel fuel, coal or wood), since cooker hood may affect burning negatively as it directs the air
out.
This warning is not valid for usage without chimney.

-6- -7-
Functions of the Product
Your hood is compatible for use with our without chimney.
Usage with chimney
The product should be connected to a chimney that will direct the air out during usage with
chimney. In order to achieve best performance, pay attention that the duct system follows the
shortest way for connection to the chimney. Your product is produced as it will be appropriate for
usage with chimney.
Attention!!!
Outlet of the product should not be connected to air canals that have other smoke as well.
Active Carbon Filter
To provide air recirculation where product's chimney air outlet cannot be connected to exterior, it is
necessary to use active carbon filter with your product. You may purchase this accessory from
authorized sellers and after sales services.
Carbon Filter Usage
Your product is compatible with two types of carbon filters.
You may see following information on how to use carbon filters.
Before installing or replacing carbon filter, first you should cut your product's power off.Carbon
filters should be replaced with a new one each 3-5 months because it is used at kitchens that does
not have chimney outlet.Carbon filter should never be washed.Grease filters should be installed on
the product even when carbon filter is not in use. Do not use your product without grease filter.
ATTACHING THE PLASTIC CHÝMNEY:
Attache the plastic chimney wich is in your cooker hood.
(Picture 3)
Picture 3
Picture 4
Picture 5
Figure 4
Replacing the Lamps
Cut off the connection of the cooker hood with electricity.
Take off the aluminum cassette filter. Take off the failed
lamp and replace it with a new one that is of the same
rating. (Please wait for the lamps to cool as they might hurt
your hand.)
Replacing 50W Halogen Lamp
In order to change halogen lamps, take the lamp
downwards pushing back of lamp holder downwards and
then turning it a little bit anti-clockwise take it off
downwards. Figure 5
Figure 5
Provide an aluminum pipe and connect one end of this
pipe to the plastic chimney of the device and the other end
to the kitchen chimney. Check that these two connections
are in a frequency not causing maximal cycle in the hood.
(Picture 4)
Flections and bends at the aluminium pipe reduce the
air absorbtion power, because of that use less flections
and bends as possible.
Correct False
Replacing Carbon Filter
It is necessary to install 2 carbon filters to your product.
To place the carbon filter, place your filter on connection
channels on motor and turn it clockwise.
In order to remove filter, turn it anti-clockwise. Figure 6
Figure 6
