Dawlance Econo Plus 15 User manual

INVERTER SPLIT TYPE
ROOM AIR CONDITIONER
Owner’s Manual
Econo Plus Inverter 15/30/45
Model#
Before using your Dawlance air conditioner, please read this manual carefully and keep it
for future reference.
Read This Manual
Keep this manual where the operator can easily nd them. Inside you will nd many helpful hints on
how to use and maintain your air conditioner properly. Just a little preventative care on your part can
save you a great deal of time and money over the life of your air conditioner. You'll nd many answers
to common problems in the chart of troubleshooting tips. If you review the chart of Troubleshooting
Tips rst, you may not need to call for service.
The design and specications are subject to change without prior notice for product
improvement. Consult with the sales agency or manufacturer for details.
SERIAL NO.
Notices for installation
Install indoor unit
Install outdoor unit
Check after installation and test operation
1
6
8
10
12
15
18
21
Installation service
9
CONTENTS
Operation and maintenance
Safety Precautions
Notices for use
Names of each part
Clean and care
Troubleshooting
Note: All the pictures in this manual are just schematic diagrams,
the actual is the standard.
Safety Precautions
Incorrect installation or operation by not following these
instructions may cause harm or damage to people,
properties etc.
The seriousness is classified by the following indications:
CAUTION
This symbol indicates the
possibility of injury or
damage to properties.
This symbol indicates
the possibility of death
or serious injury.
WARNING
WARNING !
!
!
This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning
use of the appliance in a safe way and understand the
hazards involved. Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by
children without supervision.
(Only for the AC with CE-MARKING)
This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning
use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not
play with the appliance.
(Except for the AC with CE-MARKING)
1
The air conditioner
must be grounded.
Incomplete ground-
ing may result in
electric shocks.
Do not connect the earth wire
to the gas pipeline, water
pipeline, lightning rod, or
telephone earth wire.
Pull out the plug
(or cut off the main
power switch) when
the unit is not in use
for long time so as
to ensure safety.
Before the connector
is plugged in, please
make sure that there
is no dust on it and
that it is plugged fully
in place.
If the power supply
cord is damaged, it
must be replaced by
the manufacturer or
its service agent or
a similar qualified
person.
Don't pull out the
power plug during
operating or with
wet hands.
It may cause electric
shock or fire.
NO!
Take care not to let
the remote control
and the indoor unit
watered or being
too wet.
Otherwise, it may cause
short circuit and even fire.
Otherwise, it may cause
short circuit and even fire.
SETTEMPERATURE()
自 自自 
制冷 制冷制 冷
除湿 除湿除 湿
制 制制 
SET
ON/OFF
MODE
CLEAN
SPEED
SLEEP
HEALTH
STRONG
SWING
DUST
FEELING
FUNGUSPROOF
SCREEN
TIMER
AUTO FAN
COOL HIGH
DRY MID
HEAT LOW
NO!
Don't pull the
power cord when
pulling out the
power plug.
The damage of pulling power
cord will cause serious electric
shock.
NO!
Don't share the
socket with other
electric appliance.
NO!
OFF
Always switch off
the device and cut
the power supply
before performing
any maintenance
or cleaning.
Otherwise, it may cause
electric shock or damage.
OFF
Safety precautions
2
Don't install air
conditioner in a
place where there is
flammable gas or
liquid. The distance
between them
should be above 1m.
It may cause fire.
above 1m
Don't use liquid or
corrosive cleaning
agent to wipe the air
conditioner and
sprinkle water or
other liquid either.
NO!
Doing this may cause electric
shock or damage to the unit.
Don't attempt to
repair the air
conditioner by
yourself.
Incorrect repairs may cause
electric shock or fire. Contact
a qualified service technician
for all service requirement.
Don't use air
conditioner in
lightning storm
weather.
Lightning
Power supply should be cut
in time to prevent the
occurrence of danger.
The appliance
shall be installed
in accordance with
national wiring
regulations.
An earth leakage
breaker with rated
capacity must be
installed to avoid
possible electric
shocks.
Don't block air inlet
or air outlet.
Otherwise, the cooling or
heating capacity will be
weakened, even cause
system stop operating.
Please note whether
the installed stand is
firm enough or not.
If it is damaged, it may lead
to the fall of the unit and
cause the injury.
NO!
Don't put hands or
any objects into the
air inlets or outlets.
NO!
This may cause personal
injury or damage to the unit.
OFF
Don’t let the air
conditioner blow
against the heater
appliance.
Otherwise it will lead to
incomplete combustion, thus
causing poisoning.
Safety Precautions
NO!
3
Safety Precautions
WEEE Warning
Do not dispose of electrical appliances as
unsorted municipal waste, use separate
collection facilities.
Contact your local government for information
regarding the collection systems available.
If electrical appliances are disposed of in
landfills or dumps, hazardous substances
can leak into the groundwater and get into
the food chain, damaging your health and
well-being.
When replacing old appliances with new ones, the retailer
is legally obligated to take back your old appliance for
disposals at least free of charge.
Meaning of crossed out wheeled dustbin:
UNIT MODEL
Refrigerant
gas type R410A
Quantity
R410A refrig.
gas (kg)
1.00 1.30 1.30 1.56
CAUTION !
Don't apply the cold
air to the body for a
long time.
It will deteriorate your
physical conditions and
cause health problems.
Don’t stand on the
top of the outdoor
unit or place heavy
things on it.
This could cause personal
injuries or damage the unit.
Don’t use the air
conditioner for other
purposes, such as
drying clothes,
preserving foods,etc.
NO!
NO!
NO!
Don’t open the
windows and doors
for long time when
the air conditioner
is running.
Otherwise, the cooling or heating
capacity will be weakened.
Set the suitable
temperature.
If your air
conditioner is not
fitted with a supply
cord and a plug, an
all-pole switch must
be installed in the
fixed wiring and the
distance between
contacts should be
no less than 3.0 mm.
The power supply circuit should have leakage protector and air
switch of which the capacity should be more than 1.5 times of
the maximum current.
Appropriate adjustments of the
setting temperature can prevent
the waste of electricity.
If your air conditioner is permanently connected to the fixed
wiring, a residual current device (RCD) having rated residual
operating current not exceeding 30 mA should be installed in
the fixed wiring.
It is recommended
that the temperature
difference between
indoor and outdoor
temperature
should not be
too large.
Safety Precautions
4 5
Classic Plus 15 Classic Plus 30
Notes for heating
*
The fan of the indoor unit will not start running immediately after the heating is
started to avoid blowing out cool air.
*
When it is cold and wet outside, the outdoor unit will develop frost over the heat
exchanger which will compromise the heating capacity. This is when the air
conditioner will start defrost.
*
During defrost, the air conditioner will stop heating for about 5-12 minutes.
*
Vapor may come out from the outdoor unit during defrost. This is not a malfunction,
but a result of fast defrost.
* Heating will resume after defrost is complete.
Notes for turning off
* When the air conditioner is turned off, the main controller will automatically decide
whether to stop immediately or after running for dozens of seconds with lower
frequency and lower air speed.
Notices for use
The conditions of unit can'tnormally run
*Within the temperature range provided in following table, the air conditioner may
stop running and other anomalies may arise.
*
When the temperature is too high, the air conditioner may activate the automatic
protection device, so that the air conditioner could be shut down.
*
When the temperature is too low, the heat exchanger of the air conditioner may
freeze, leading to water leakage or other malfunction.
*
In long-term cooling or dehumidification with a relative humidity of above 80%
(doors and windows are open), there may be water condenses or dripping near
the air outlet.
Cooling
Heating
Indoor
Outdoor
Indoor
Outdoor
<16℃
>30℃
<-10℃
>32℃
>52℃
* If the remote controller is lost or broken,
use force switch button to operate the
air conditioner.
* If this button is pushed with the unit OFF,
the air conditioner will operate in Auto mode.
* If this button is pushed with the unit ON,
the air conditioner will stop running.
Emergency operation
1. Use up-down swing and left-right swing
buttons on the remote controller to adjust
the airflow direction. Refer to the operation
manual of the remote controller for detail.
2. For models without left-right swing function,
the fins has to be moved manually.
Force switch
Airflow direction adjustment
Note: Move the fins before the unit is in operation,
or your finger might be injured.
Never place your hand into the air inlet or
outlet when the air conditioner is in operation.
Notices for use
6 7
iFEEL
Force switch
Power cord
Pipe protection
ring
Air inlet
Indoor unit
Panel
Air inlet grill
Air filter
Air louver
Air vent Air outlet
Connecting pipe
Drain hose
Air inlet
Air outlet
Air outlet
grill
Outdoor unit
Remote controller
Note: All the pictures in this manual are just schematic diagrams,
the actual is the standard.
Names of each part
Clean the panel
When the panel of the indoor unit is contaminated, clean it
gently with a wrung towel using tepid water below 45˚C,
and do not remove the panel while cleaning.
Clean the air filter
■Remove the air filter
1. Use both hands to open the panel for an angle from both ends of the panel in
accordance with the direction of the arrow.
2. Release the air filter from the slot and remove it.
● Before the cleaning of the air conditioner, it must be shut down and the
electricity must be cut off for more than 5 minutes, otherwise there might
be the risk of electric shocks.
● Do not wet the air conditioner, which can cause an electric shock. Make
sure not to rinse the air conditioner with water under any circumstances.
● Volatile liquids such as thinner or gasoline will damage the air conditioner
housing, therefore please clean the housing of air conditioner only with soft
dry cloth and damp cloth moistened with neutral detergent.
● In the course of usage, pay attention to cleaning the filter regularly, to
prevent the covering of dust. If the service environment of the air conditioner
is dusty, correspondingly increase the number of times of cleaning. After
removing the filter, do not touch the fin part of the indoor unit with the finger,
so as to avoid scratching it.
Warning
■Clean the Air Filter
Use a vacuum cleaner or water to rinse filter, and
if the filter is very dirty (for example, with greasy dirt),
clean it with warm water (below 45) with mild
detergent dissolved in, and then put the filter in
the shade to dry in the air.
Clean and care
8 9
■Mount the Filter
1. Check whether all the air inlets and outlets of the units are unblocked.
2. Check whether there is blocking in the water outlet of the drain pipe and
immediately clean it up if any.
3. Check if the ground wire is reliably grounded.
4. Check whether the remote control batteries are installed and if the power
is sufficient.
5. Check whether there is damage in the mounting bracket of the outdoor unit and,
if any, please contact our local service center.
Check before use
1. Reinstall the dried filter in reverse order of removal, then cover and lock the panel.
Clean and care
* Do not repair the air conditioner by yourself as wrong maintenance may cause electric
shock or fire, please contact the authorized service center and let the professionals
conduct the maintenance. Checking the following items prior to contacting for
maintenance can save your time and money.
Caution
Troubleshooting
Maintain after use
1. Cut off the power source of the air conditioner, turn off the circuit breaker and remove
the batteries from the remote control.
2. Clean the filter and the unit body.
3. Remove the dust and debris from the outdoor unit.
4. Check whether there is damage in the mounting bracket of the outdoor unit and, if
any, please contact our local service center.
Clean the air filter
Remote controller
is not working.
●Is the remote controller out of effective distance to the indoor unit?
●Are there any obstructions between the controller and the
signal receptor? ●Is the battery exhausted?
Indoor unit does not operate
immediately when the air
conditioner is restarted.
There is an unusual smell
blowing from the outlet
after operation is started.
Cooling/Heating
efficiency is not
good.
●Is the set temperature suitable? ●Are the air filters dirty?
●Is the air inlet or outlet obstructed?
●Is indoor fan speed set at low speed?
●Is there any heat source in your room?
Air conditioner can
not operate at all.
●Has the power been shut down? ● Is the wiring loose?
●Is the voltage too high or too low? (measured by professionals)
●Does it reach the set time for start up?
●Did the circuit protection device trip?
If the air conditioner is turned on immediately after it is
turned off, the protective delay switch will delay the
operation for 3 to 5 minutes.
The air conditioner itself does not have undesirable
odor. If there is odor, it may be due to accumulation
of the odor in the environment. Please clean the air
filter or activate the cleaning function.
There is sound of running
water during the running
of air conditioner.
Sometimes the "hissing" sound of running water
can be heard. This is the sound of the flow of the
refrigerant, not a malfunction.
A slight "click" sound is
heard at the of start-up or
shut-down.
Due to temperature changes, panel and other parts
will swell, causing the sound of friction. This is normal,
not a fault.
During the cooling operation,
the indoor unit outlet
sometimes will blow out mist.
This is because the indoor air is cooled rapidly. After it
runs for some time, the indoor temperature and
humidity will be reduced and the mist will disappear.
▲Shrill sound is heard or unpleasant odor is emitted during the operation.
▲There is an abnormal heat in power supply cord and power plug.
▲Accidentally pour impurities or water into the machine or the remote control.
▲Air switch or protection switch often breaks.
Immediately stop all operations and cut off the power supply ,
contact our local Service Center in following situations.
Troubleshooting
Phenomenon
Troubleshooting
10 11
Important Notices
■Before installating, please contact a local authorized
maintenance center, if unit is not installed by the authorized
maintenance center, the malfunction may not get solved,due to
discommodious contact.
■
The air conditioner must be installed by professionals according
to the national wiring rules and this manual.
■To move and install air conditioner to another place, please
contact our local special service center.
Requirements For Installation Position
●Avoid places with inflammable or explosive gas leakage or where
there are strongly aggressive gases.
●Avoid places subject to strong artificial electric/magnetic fields.
●Avoid places subject to noise and resonance.
●Avoid severe natural conditions (e.g. heavy lampblack, strong
sandy wind, direct sunshine or high temperature heat sources).
●Avoid places within the reach of children.
●Shorten the connection between the indoor and outdoor units.
●Select where it is easy to perform service and repair and
where the ventilation good.
●The outdoor unit shall not be installed in any way that could
occupy an aisle, stairway, exit, fire escape, catwalk or any other
public area.
●The outdoor unit shall be installed as far as possible from the
doors and windows of the neighbors as well as the green plants.
Requirements for Operations at Raised Height
●When carrying out installation at 2m or higher above the base
level, safety belts must be worn and ropes of sufficient strength
be securely fastened to the outdoor unit, to prevent falling that
could cause personal injury or death as well as property loss.
Notices for installation
Electrical Safety Requirements
●Be sure to use the rated voltage and air conditioners dedicated
circuit for the power supply, and the power cord diameter must
meet the national requirements.
●
When the maximum current of air conditioner is
≥
16A, it must use
the air switch or leakage protection switch equipped with
protection devices.
●
The normal operating range is 90%-110% of the local rated voltage.
●
The minimum clearance between the air conditioner and the
combustibles is 1.5 m.
●The air conditioner is the type Ielectrical appliance and must
ensure a reliable grounding.
●Do not connect the grounding wire to a gas pipe, water pipe,
lightning rod, telephone line, or a circuit poorly grounded to
the earth.
●The grounding wire is specially designed and shall not be used
for other purpose, nor shall it be fastened with a common
tapping screw.
Grounding Requirements
Requirements of the Mounting Structure
●The mounting rack must meet the relevant national or industrial
standards in terms of strength with welding and connection
areas rustproofed.
●The mounting rack and its load carry surface shall be able to
withstand 4 times or above the weight of the unit or 200kg -
whichever is heavier.
●The mounting rack of the outdoor unit shall be fastened with an
expansion bolt.
●Ensure the secure installation regardless of what type of wall
on which it is installed, to prevent potential dropping that could
hurt people.
Notices for installation
12 13
●The connection method of the air conditioner and the power cord
and the interconnection method of each independent element
shall be subject to the wiring diagram affixed to the machine.
●The model and rating value of the fuse shall be subject to the
silkscreen on corresponding controller or fuse sleeve.
Others
PC
Drain pipe
1
5
Plastic Strap
Pipe Protection Ring
Luting (putty)
NOTE: All accessories shall be subject to actual packaging material, and if there
is any difference, please understand.
Packing list of the indoor unit
Packing list of the outdoor unit
No. Name
1
2
3
1
Indoor Unit Set
Quantity
2
Remote Controller
Batteries(7#)PC
PC
1
Instructions
4
Outdoor Unit
Connecting pipe
Packing list
1
Notices for installation
5
No. Name
1
2
3
ROLL
4
Unit
PC
1
1
1 Set
Quantity
PC
1
2
Unit
PACKET
Set
1. Make a hole with an electric hammer or a
water drill at the predetermined position on
the wall for piping, which shall slant outwardly
by 5°-10°.
2. To protect the piping and the cables from
being damaged running through the wall,
and from the rodents that may inhabit in
the hollow wall, a pipe protecting ring shall
be installed and sealed with putty.
1. The wall for installation of the indoor unit shall
be hard and firm, so as to prevent vibration.
2. Use the "+" type screw to fasten the peg board;
horizontally mount the peg board on the wall, and
ensure the lateral horizontal and longitudinal vertical.
3. Pull the peg board by hand after the installation,
to confirm whether it is solid.
Space to the ceiling
Space to the wall
20cm right
Mounting plate
Wall-through Hole
15cm below
200cm above
Space to the floor
Pipe protection ring
Putty
Dimension drawing of indoor unit installation
Space to the wall
20cm left
Note: Usually, the wall hole is Φ60mm~Φ80mm.
Avoid pre-buried power wire and hard wall
when making the hole.
Install indoor unit
1514
1. Depending on the position of the unit, the piping may be routed sideways from the
left or the right ( Fig 1 ), or vertically from the back( Fig 2 )(depending on the pipe
length of the indoor unit). In the case of sideway routing, cut off the outlet cutting
stock of the opposite side.
2. The power cord may be routed separately from the piping. Cut off the outlet cutting
stock and then run the power cord through the hole, keeping the remaining part as
a protection from rodents.
Route of Pipeline
Connecting Pipe
Drain Hose
and Cables
Connecting Pipe
Drain Hose
and Cables
Power cord
Φ6/Φ6.35
Φ9.52
Φ12/Φ12.7
Φ15.8 8
Φ19.057 5~80
Tightening torque table
The size of pipe(mm)
Torque(N·m)
1. Remove the mountings and pull the indoor unit pipe out of the housing.
2. Connect the connecting pipe to the indoor unit:
Aim at the pipe center, tighten the Taper nut with fingers, and then tighten the Taper
nut with a torque wrench, and the direction
is shown in diagram on the right. The torque
used is shown in the following table.
Drain pipe connection
Spanner
Indoor unit pipe
Taper nut
Torque wrench
connecting pipe
Wrap the Piping
1. Use the insulation sleeve to wrap the joint part,
the indoor unit and the connection pipe, and then
use insulating material to pack and seal insulation
pipe to prevent generation of condensate water on
the joint part.
2. Connect the water outlet with drain pipes, and make
the connection pipe, cables and the drain hose straight.
3. Use plastic cable ties to wrap the connecting pipes, cables
and drain hose. Run the pipe sloping downward.
Connecting Pipe
Drain Hose
and Cables
Plastic Strap
Fig 1 Fig 2
Install indoor unit
Hole material preparation Outlet material preparation
Fixing the Indoor Unit
1. Hang the indoor unit on the peg board
and move the unit from left to right to
ensure that the hook is properly positioned
in the peg board.
2. Push toward the lower left side and the
upper right side of the unit toward the peg
board until the hook is embedded in the
slot and makes a "click" sound.
Wiring diagram
●If your air conditioner is provided with a power cable, the wiring of the indoor
unit is connected in the factory and there is no need of connection.
●If the power cable is not provided, connection is needed in accordance with
the wiring diagram.
Connector
If there is a connector,
connect it directly.
To Outdoor unit
1
2(N)
To Outdoor unit
4
1(L)
53
2(N)
To Outdoor unit
4
1(L)
53
2(N)
To Outdoor unit
1
2(N)
4
5
constant speed
Heat-pump type
To Outdoor unit
LNS
Variable speed
Cooling Only
Install Indoor Unit
NOTE:
※This manual usually includes the wiring mode for different kinds of A/Cs.
We cannot exclude the possibility that some special type of wiring diagrams
are not included.
※The diagrams are for reference only. If the entity is different from this wiring
diagram, please refer to the detailed wiring diagram adhered on the unit which
you purchased.
16 17
A
Left installation feet Right installation feet
Air inlet
H
W1
B
D
Air outlet
W2
Dimension drawing of outdoor unit installation
20cm Above
Space to the obstruction
10cm Above
Air in side
30cm Above
Space to the obstruction
200cm Above
Air out side
30cm Above
Connect the Outdoor Unit with Connecting Pipe:
Aim the counter-bore of the connecting pipe at the
stop valve and tighten the Taper nut with fingers.
Then tighten the Taper nut with a torque wrench.
Stop valve
Spanner
Gas side pipe
liquid side pipe
Connecting pipe
Taper nut
Install the connection pipe
When prolonging the piping, extra amount of refrigerant
must be added so that the operation and performance
of the air conditioner will not be compromised.
Not needed
≤7M
Piping length
Amount of refrigerant to be added
7-20M
CC≤12000Btu
CC≥18000Btu
20g/m
30g/m
Note: This table is for reference only.
665(710)×420×280 430 280
Outdoor Unit Size of Shape
W1(W2)*H*D) (mm)
A (mm) B (mm)
Installation outdoor unit bolt
600(645)×485×260 400 290
660(710)×500×240 500 260
700(745)×500×255 460 260
730(780)×545×285 540 280
760(810)×545×285 540 280
800(860)×545×315 545 315
800(850)×590(690)×310 540 325
825(880)×655×310 540 335
900(950)×700×350 630 350
900(950)×795×330 535 350
790(840)×550×290
545
300
Install outdoor unit
Space to the obstruction
1.Loosen the screws and remove E-parts cover from the unit.
2.Connect the cables respectively to the corresponding terminals
of the terminal board of the outdoor unit (see the wiring diagram),
and if there are signals connected to the plug, just conduct butt joint.
3.Ground wire: Remove the grounding screw out of the electric
bracket, cover the grounding wire end onto the grounding screw
and screw it into the grounding hole.
4.Fix the cable reliably with fasteners (Pressing board).
5.Put the E-parts cover back in its original place and fasten
it with screws.
E-parts cover
12L
N
Wiring Connection
Wiring diagram
Connector
If there is a connector,
connect it directly.
constant speed
Heat-pump type
Variable speed
Cooling Only
1
2(N)
1
2
3
To Indoor unit
To Indoor unit
1
2(N)
4
5
To Indoor unit
5
34
1
2
To Indoor unit
To Indoor unit
1(
L
)
2(N)
4(S)
Install outdoor unit
18 19
NOTE:
※This manual usually includes the wiring mode for different kinds of A/Cs.
We cannot exclude the possibility that some special type of wiring diagrams
are not included.
※The diagrams are for reference only. If the entity is different from this wiring
diagram, please refer to the detailed wiring diagram adhered on the unit which
you purchased.
Expelling the air
After the pipe side connection is complete, proceed as follows.
★Outdoor unit refrigerant discharging method
Quickly tighten and
connect the nut.
The installing torque
is the same as that
of the gas end of
the indoor unit.
Fully open the
spindles of the
liquid end and of
the other two ends.
Check that all indoor
and outdoor
connections are free
of air leakage.
Wait for
8 second
Loosen the
temporarily fastened
nut by half turn.
Loosen the Hex
wrench by half turn.
Gas part
Liquid part
Before working on the air conditioner, remove the cover of the stop valve(gas and
liquid valves)and be sure to retighten it afterwards (to prevent the potential air leakage).
1. To prevent air leakage and spilling tighten
all connecting nut of all flare tubes.
2. Connect the stop valve, charge hose, manifold
valve and vacuum pump.
3. Fully open the handle Lo of the manifold valve
and apply vacuum for at least 15 minutes and
check that the compound vacuum gauge reads
-0.1MPa(-76cmHg).
4. After applying vacuum, fully open the stop
valve with a hex wrench.
5. Check that both indoor and outdoor
connections are free of air leakage.
Pressure gauge
Charge hose
-76cmHg manifold valve
Compound meter
Handle Hi
Handle Lo
Vacuum pump
(liquid valve) (gas valve)
Stop valve Stop valve
When the unit is heating, the condensing water and defrosting
water can be out reliably through the drain house.
Installation:
Install the outdoor drain elbow in Φ25 hole on the base
plate, and joint the drain hose to the elbow, so that the
waste water formed in the outdoor unit can be drained
out to a proper plate.
Chassis
Outdoor drain elbow
Outdoor condensation drainage(Heat pump type only)
★Vacuum Pumping Method (R410A refrigerant evacuation must use the vacuum
pumping method)
Charge hose
Install outdoor unit
Test Operation preparation
※Verify that all piping and connection cables are well connected.
※Confirm that the values at the gas side and the liquid-side are fully open.
※Connect the power cord to an independent power socket.
※Install batteries in remote control.
Test Operation method
1. Turn on the power and push the ON/OFF switch button of the remote controller to
start the air conditioner.
2. Select COOL, HEAT (not available on cool-only models), SWING and other
operation modes with the remote controller and see if the operation is ok.
Check after installation and test operation
Check after installation
Test Operation
★Electrical Safety Check
1. If the supply voltage is as required.
2. If there is any faulty connection or misconnection in each of the power, signal and
grounding wires.
3. If the grounding wire of the air conditioner is securely grounded.
★Installation Safety Check
1. If the installation is secure.
2. If the water drain is smooth.
3. If the wiring and piping are correctly installed.
4. Check that no foreign matter or tools are left inside the unit.
★Leak test of the refrigerant
Depending on the installation method, the following methods may be used to check
for suspect leak, on areas such as the four connections of the outdoor unit and the
cores of the cut-off valves and t-valves:
1.Bubble method: Apply or spray a uniform layer of soap water over the suspected
leak spot and observe carefully for bubble.
2.Instrument method: Checking for leak by pointing the probe of the leak detector
according to the instruction to the suspect points of leak.
20 21

This manual suits for next models

4

Other Dawlance Air Conditioner manuals

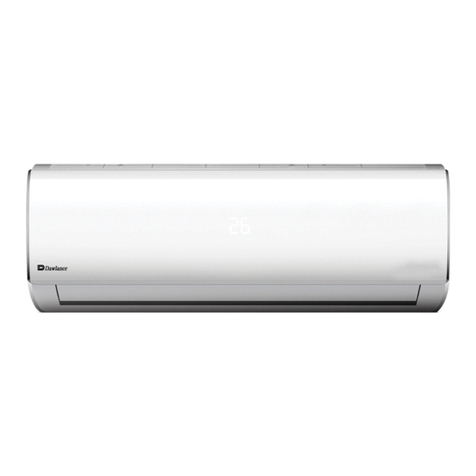

Dawlance Chrome User manual

Dawlance

Dawlance Chrome User manual

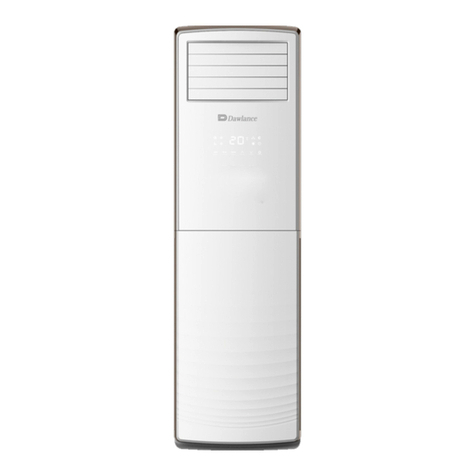

Dawlance GLAMOUR INVERTER 45 FS User manual

Dawlance

Dawlance GLAMOUR INVERTER 45 FS User manual

Popular Air Conditioner manuals by other brands

Lloyd LS18HC user manual

Lloyd

Lloyd LS18HC user manual

Toshiba RAS-13SKHP-E Service manual

Toshiba

Toshiba RAS-13SKHP-E Service manual

LG L5UC728FA0 installation manual

LG

LG L5UC728FA0 installation manual

Samsung AM***FN*D series user manual

Samsung

Samsung AM***FN*D series user manual

Hitachi RAS-E10HB instruction manual

Hitachi

Hitachi RAS-E10HB instruction manual

Carrier ASBFE600BA owner's manual

Carrier

Carrier ASBFE600BA owner's manual

Panasonic CS-KE12NB41 installation instructions

Panasonic

Panasonic CS-KE12NB41 installation instructions

Hitachi RAK-18PSPA installation manual

Hitachi

Hitachi RAK-18PSPA installation manual

Technibel KPAFP125R5IA Series instruction manual

Technibel

Technibel KPAFP125R5IA Series instruction manual

Mitsubishi Electric Mr.Slim MS-GK36VA operating instructions

Mitsubishi Electric

Mitsubishi Electric Mr.Slim MS-GK36VA operating instructions

Panasonic CS-LZ9ZKA operating instructions

Panasonic

Panasonic CS-LZ9ZKA operating instructions

Hitachi RAS-70YHA1 instruction manual

Hitachi

Hitachi RAS-70YHA1 instruction manual

Frigidaire GHWQ103WC1 use & care

Frigidaire

Frigidaire GHWQ103WC1 use & care

Haier HSU-18LEK03/R2 Service manual

Haier

Haier HSU-18LEK03/R2 Service manual

Pro-Elec PELL0060 manual

Pro-Elec

Pro-Elec PELL0060 manual

Sharp Plasmacluster GS-XP07ER Operation manual

Sharp

Sharp Plasmacluster GS-XP07ER Operation manual

Mitsubishi Electric Mr. SLIM PKA-M-LAL Series installation manual

Mitsubishi Electric

Mitsubishi Electric Mr. SLIM PKA-M-LAL Series installation manual

ElectrIQ SF12000 user manual

ElectrIQ

ElectrIQ SF12000 user manual

manuals.online logo
manuals.online logoBrands
  • About & Mission
  • Contact us
  • Privacy Policy
  • Terms and Conditions

Copyright 2025 Manuals.Online. All Rights Reserved.
