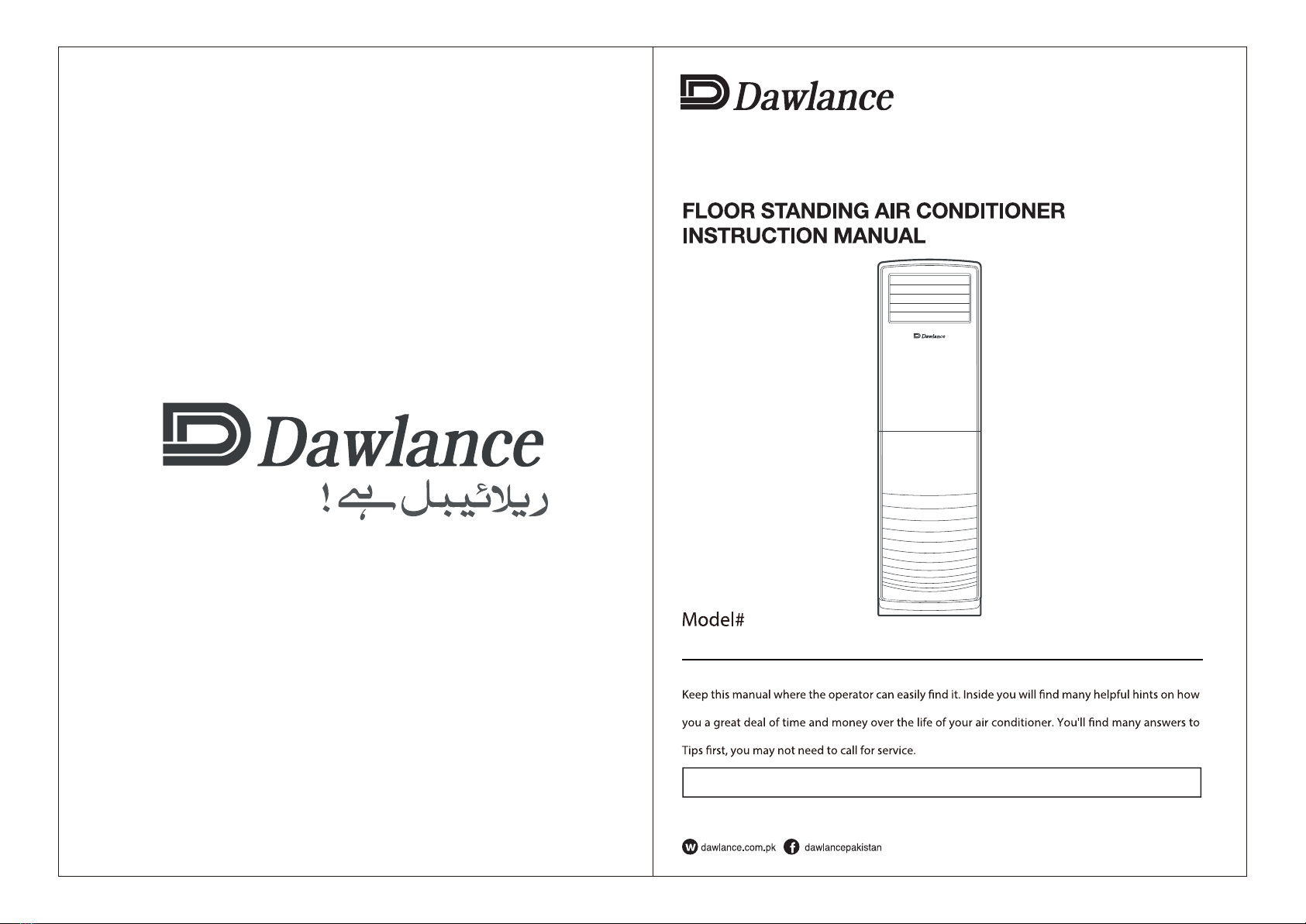

Dawlance GLAMOUR INVERTER 45 FS User manual

Before using your Dawlance air conditioner, please read this manual carefully and keep it
for future reference.
Read This Manual
to use and maintain your air conditioner properly. Just a little preventative care on your part can save
common problems in the chart of Troubleshooting Tips. If you review the chart of Troubleshooting
SERIAL NO.
GLAMOUR INVERTER 45 FS

CONTENTS
SAFETY PRECAUTIONS
NAMES OF PARTS
INDOOR UNIT DISPLAY
OPERATING INSTRUCTIONS
PROTECTION
INSTALLATION MANUAL
MAINTENANCE
TROUBLESHOOTING
REMOTE CONTROLLER
....................................................................................................1
................................................................................................................4
.........................................................................................................5
.......................................................................................................8
............................................................................................12
.........................................................................................................................18
....................................................................................................19
....................................................................................................................28
..........................................................................................................29
INDOOR UNIT CONTROL PANEL .........................................................................................7

SAFETY RULES AND RECOMMENDATIONS FOR THE INSTALLER
1
During the installation of the indoor and outd-
oor units the access to the working area should
be forbidden to children.
Unforeseeable accidents could happen.
Make sure that the base of the outdoor unit is
firmly fixed.
Check that air cannot enter the refrigerant sys-
tem and check for refrigerant leaks when mo-
ving the air con ditioner.
Carry out a test cycle after installing the air co-
nditioner and record the operating data.
The ratings of the fuse installed in the built in-
control unit are T 5A / 250V .
The user must protect the indoor unit with a
fuse of suitable capacity for the maximum in-
put current or with another overload protection
device.
Ensure that the mains voltage corresponds to
that stamped on the rating plate . Keep the sw-
itch or power plug clean. Insert the power plug
correctly and firmly into the socket, thereby a-
voiding the risk of electric shock or fire due to
insufficient contact.
Check that the socket is suitable for the plug ,
otherwise have the socket changed.
Do not install the appliance at a distance of
less than 50 cm from inflammable substances
(alcohol, etc.) Or from pressurised containers
(e.g. spray cans).
If the appliance is used in areas without the
possibility of ventilation, precautions must be
taken to prevent any leaks of refrigerant gas
from remaining in the environment and creat-
ing a danger of fire
The packaging materials are recyclable and
should be disposed of in the separate waste
bins .Take the air conditioner at the end of its
useful life to a special waste collection centre
for disposal.
Only use the air conditioner as instructed in
this booklet . These instructions are not inten-
ded to cover every possible condition and
situation . As with any electrical household
appliance , common sense and caution are
therefore always recommended for installat-
ion, operation and maintenance.
The appliance must be installed in accordance
with applicable national regulations.
Before accessing the terminals , all the power
circuits must be disconnected from the power
supply.
Read this guide before installing and using the
appliance.
The appliance must be fitted with means for
disconnection from the supply mains having
a contact separation in all poles that provide
full disconnection under overvoltage
category III conditions, and these means
must be incorporated in the fixed wiring in
accordance with the wiring rules.
The appliance shallbe installed inaccord-
ance with nationalwiring regulations.
This appliance canbe used bychildren a-
ged from 8 years and aboveand persons
with reduced physical,sensory or mental
capabilities or lackof experience andkn-
owledge if theyhave been givensupervis-
ion or instructionconcerning use ofthe a-
ppliance in asafe way andunderstand the
hazards involved. Childrenshall not play
with the appliance.Cleaning and userma-
intenance shall not be made bychildren
without supervision.
The air conditionermust be installedby
professional or qualifiedpersons.

SAFETY RULES AND RECOMMENDATIONS FOR THE USER
2
Do not try to install the conditioner alone;
always contact specialized technical personnel.
Cleaning and maintenance must be carried out
by specialised technical personnel. In any case
disconnect the appliance from the mains elect-
ricity supply before carrying out any cleaning
or maintenance.
Ensure that the mains voltage corresponds to
that stamped on the rating plate. Keep the swi-
tch or power plug clean. Insert the power plug
correctly and firmly into the socket , thereby
avoiding the risk of electric shock or fire due
to insufficient contact.
Do not pull out the plug to switch off the app-
liance when it is in operation, since this could
create a spark and cause a fire, etc.
If the appliance gives off smoke or there is a
smell of burning, immediately cut off the pow
er supply and contact the Service Centre.
Have repairs carried out only by an authoris-
ed Service Centre of the manufacturer . Inco-
rrect repair could expose the user to the risk
of electric shock, etc.
The prolonged use of the device in such
conditions could cause fire or electrocution.
Never remain directly exposed to the flow of
cold air for a long time. The direct and prolo-
nged exposition to cold air could be dangero-
us for your health .Particular care should be
taken in the rooms where there are children ,
old or sick people.
This appliance has been made for air conditi-
oning domestic environments and must not be
used for any other purpose , such as for drying
clothes, cooling food, etc.
The packaging materials are recyclable and
should be disposed of in the sparate waste
bins . Take the air conditioner at the end of its
useful life to a special waste collection centre
for disposal.
Only use the air conditioner as instructed in
this booklet.These instructions are not int end-
ed to cover every possible condition and situ-
ation.As with any electrical household applia-
nce, common sense and caution are therefore
always recommended for installation , operat-
ion and maintenance.
Always use the appliance with the air filter
mounted . The use of the conditioner without
air filter could cause an excessive accumulation
of dust or waste on the inner parts of the device
with possible subsequent failures.
Unhook the automatic switch if you foresee
not to use the device for a long time.
The airflow direction must be properly adjus-
ted.
The user is responsible for having the appliance
installed by a qualified technician , who must
check that it is earthed in accordance with curr-
ent legislation and insert a thermomagnetic cir-
cuit breaker.
Ensure that the appliance is disconnected from
the power supply when it will remain inoperat-
ive for a long period and before carrying out
any cleaning or maintenance.
Selecting the most suitable temperature can pr-
event damage to the appliance.
The flaps must be directed downwards in
the heating mode and upwards in the cooling
mode.
The batteries inremote controller mustbe
recycled or disposedof properly.
Disposal of ScrapBatteries --- Pleasedisca-
rd the batteriesas sorted municipalwaste at
the accessible collectionpoint.

SAFETY RULES AND PROHIBITIONS
3
Do not bend , tug or compress the power cord
since this could damage it. Electrical shocks or
fire are probably due to a damaged power cord.
Specialised technical personnel only must repl-
ace a damaged power cord.
Do not use extensions or gang modules.
Do not touch the appliance when barefoot or
parts of the body are wet or damp.
Do not obstruct the air inlet or outlet of the in-
door or the outdoor unit.
The obstruction of these openings causes a re-
duction in the operative efficiency of the con-
ditioner with possible consequent failures or
damages.
In no way alter the characteristics of the appli-
ance.
Do not install the appliance in environments
where the air could contain gas , oil or sulphur
or near sources of heat.
Do not climb onto or place any heavy or hot
objects on top of the appliance.
Do not leave windows or doors open for long
when the air conditioner is operating.
Do not direct the airflow onto plants or anim-
als.
Along direct exposition to the flow of cold
air of the conditioner could have negative
effects on plants and animals.
Do not put the conditioner in contact with
water.
The electrical insulation could be damaged
and thus causing electrocution.
Do not climb onto or place any objects on the
outdoor unit
Never insert a stick or similar object into the
appliance. It could cause injury.
This appliance is not intended for use by
persons (including children ) with reduced
physical, sensory or mental capabilities,
or lack of experience and knowledge, un-
less they have been given supervision or in-
struction concerning use of the appliance
by a person responsible for their safety.
Children should be supervised to ensure
that they do not play with the appliance.
If the supply cord is damaged, it must be
replaced by the manufacturer,its service
agent or similarly qualified persons in
order to avoid a hazard.

NAMES OF THE PARTS
Note: the above figures are only intended to be a
simple diagram of the appliance and may not
correspond to the appearance of the units that
have been purchased.
No. Description
12
Air outlet grille
Terminal block cover
13
Gas valve
14
liquid valve
15
11
Outdoor unit rating label
11
13
14
15
4
OUTDOOR UNIT
12
OUTDOOR UNIT
1
2
3
4
5
6
7
8
9
No. Description
1
Air filter
2
Front panel
3
4LED Display
5
Airflow direction flaps
6
Deflectors
7
8
9
Indoor unit rating label
INDOOR UNIT

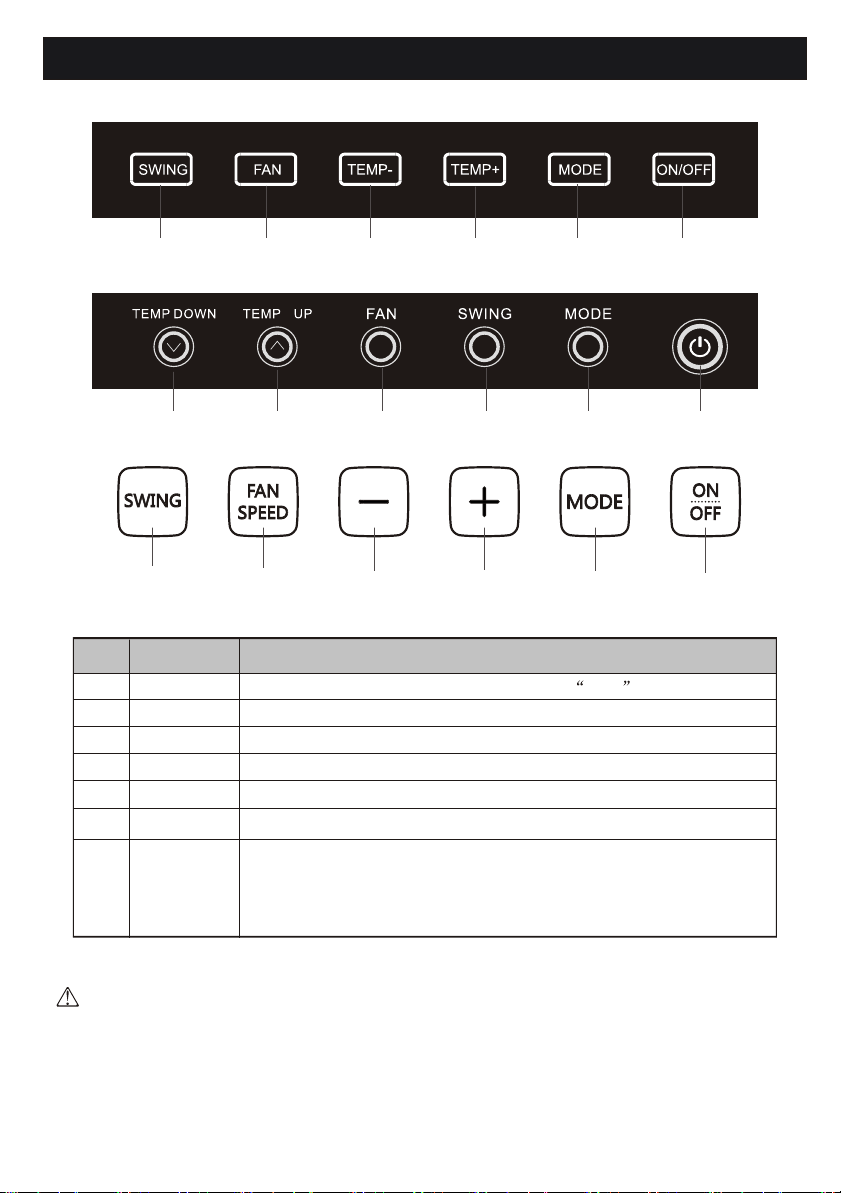

Touch panel
Front panel
Remote controller
INDOOR UNIT

INDOOR UNIT DISPLAY
5
No.
Led Function
Shows that the unit is powered
1
2
3
4
5Indicates the set temperature in or F or time in Hour
1 2
3
45 6 789
Signal
receptor Signal
receptor
4
3 576
6
7
8
9
TIMER mode
FEEL mode indicator
DEHUMIDIFYING indicator
COOLING indicator
HEATING indicator flashes in defrost circle and Anti-Cold Air function
FAN ONLY OPERATION indicator
HEALTHY indicator
Timer on
Timer off
2
3
46
75
8 18
8
10 11
14-13-121516
17
Timer on
Timer off
10
11
12
13
14
15
16
17
ECO indicator
SUPER indicator
LOW FAN SPEED indicator
MIDDLE FAN SPEED indicator
HIGH FAN SPEED indicator
FLAP SWING indicator
SLEEP indicator
The shape and position of indicators may
vary according to the model, but their
functionis the same.
DEFLECTORS SWING indicator
18 ANTI-MILDEW indicator

INDOOR UNIT DISPLAY
The shape and position of indicators may
vary according to the model, but their
functionis the same.
No.
Led Function
1
2
3
4
5
Indicates the set temperature in or For time in Hour
6
7
FEEL mode indicator
WiFi indicator(Optional)
COOLING indicator
HEATING indicator flashes in defrost circle and Anti-Cold Air function
FAN ONLY OPERATION indicator
HEALTHY indicator
FAN SPEED indicator
DEHUMIDIFYING indicator
8
9
10
TURBO indicator
11
12
13
6
SLEEP indicator
Electric heater indicator(need to reserve)
TIMER indicator

INDOOR UNIT CONTROL PANEL
7
The shape and position of the button may be different according to the model, but their
function is the same.
No.
Function
1
2
3
4
5
6
Button
SWING
FAN
TEMP-
TEMP+
MODE
ON/OFF
To activate or deactivate of the movement of the Flaps and deflectors .
To select the fan speed of auto/low/mid/high
Decrease the temperature or time by 1 unit
Increase the temperature or time by 1 unit
To switch the conditioner on and off.
To select the mode of operation
7COMPOSITE
BUTTON
Keep pressing the SWING button on the control panel for 3 seconds
( two beeps ), then press the button "TEMP UP" activates the "flaps" the
air flow is directed from up to down and press the button "TEMP DOWN"
activates the "deflectors" the air flow is dir ected from rightward or
leftward.
Remark: the externalstatic pressure ofheat pumps is0 Pa forall models.
65
124
3
123456
6
5
4321

8

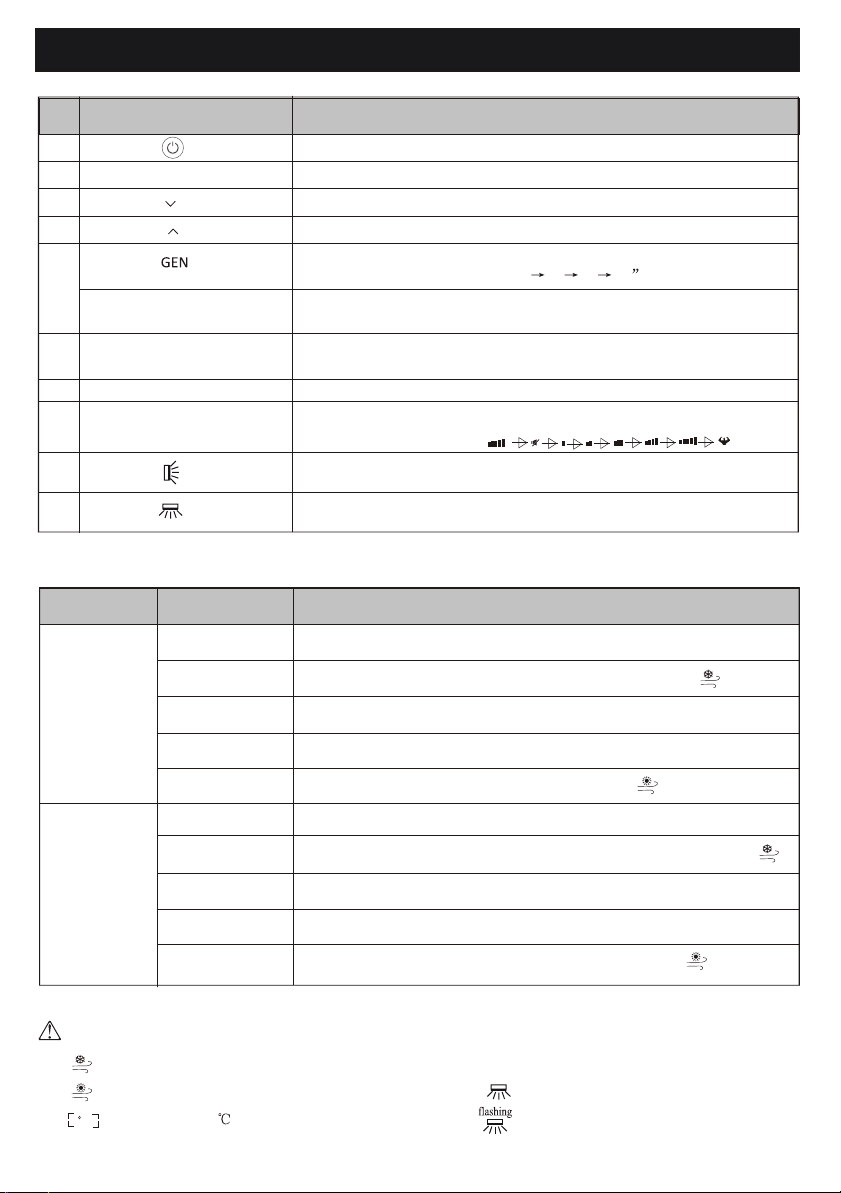

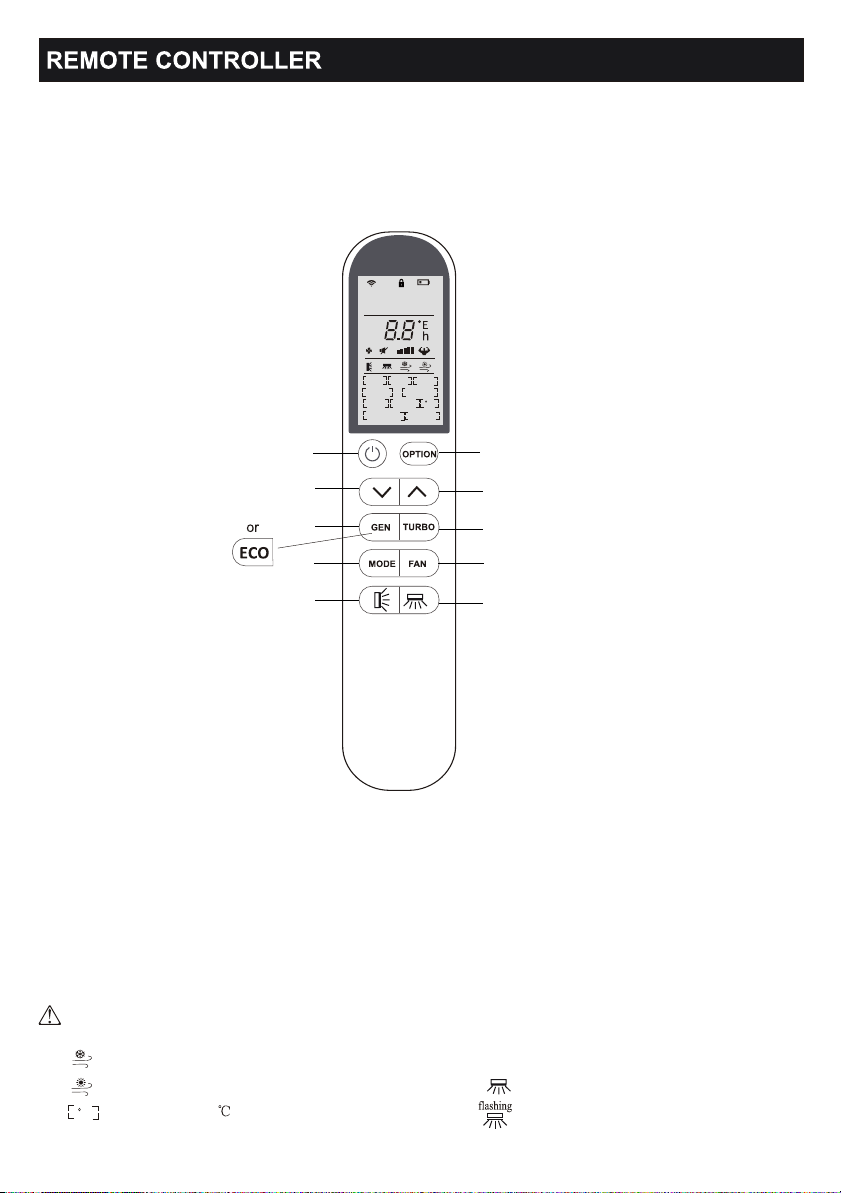

REMOTE CONTROLLER
To select the mode of operation(AUTO COOL DRY FAN HEAT)
To activate/deactivate the GEN function which enables the unit run in the
set current level,cycle as below OFF L3 L2 L1
Press this button to activate/deactivate the Super function which enables the
unit to reach the preset temperature in the shortest time.
To decrease temperature, time setting or choose the function.
To increase temperature , time setting or choose the function.
To turn on or off the air conditioner .
To select the fan speed of auto/mute/low/mid-low/mid/mid-high/high/
turbo , cycle as below.
8
10
6
7
9
MODE
TURBO
1
2
3
4
FAN
5
No.
Button Function
OPTION To activate or deactivate optional function(Check below table).
ON/OFF
Mode OPTIONS
AUTO
COOL
DRY
FAN
HEAT
AUTO
COOL
DRY
FAN
HEAT
ON
OFF
To activate the swing of horizontal flap(up/down) or deactivate it.
Youwill hear abeep when youpress thefollowing buttons orselect the followingoptional functions,
though the actualmodel haven't thisfunction, we express our apologies:
(Optional Function: COMFORTABLE COOLING airflow)
(Optional Function: COMFORTABLE HEATING airflow)
HEALTH (Optional Function: generate the ionizer)
(button: SWING LEFT/RIGHT)
To activate the swing of vertical flap(left/right) or deactivate it.
Flashing
Press this button to activate/deactivate the ECO function .
ECO
(Optional Function: 8 Heating)
8 CH (Optional Function: Wide-angle air supply)
O
TIMER DISPLAY HEALTH I FEEL 8 C H
O
TIMER DISPLAY HEALTH SLEEP MILDEW I FEEL 8 C H
O
TIMER DISPLAY HEALTH MILDEW I FEEL 8 C H
O
TIMER DISPLAY HEALTH I FEEL 8 C H
O
TIMER DISPLAY HEALTH SLEEP I FEEL 8 C H
O
CLEAN TIMER DISPLAY HEALTH I FEEL 8 C H
O
CLEAN TIMER DISPLAY HEALTH SLEEP MILDEW I FEEL 8 C H
O
CLEAN TIMER DISPLAY HEALTH MILDEW I FEEL 8 C H
O
CLEAN TIMER DISPLAY HEALTH I FEEL 8 C H
O
CLEAN TIMER DISPLAY HEALTH SLEEP I FEEL 8 C H

9
AUTO COOL DRY
FAN HEAT ECO
SLEEP TIMER I FEEL
HEALTH MILDEW
CLEAN DISPLAY 8 CH
WIND FREE
GEN MODE
7
3
1
9
5
8
4
2
10
6
Youwill hear abeep when youpress thefollowing buttons orselect the followingoptional functions,
though the actualmodel haven't thisfunction, we express our apologies:
(Optional Function: COMFORTABLE COOLING airflow)
(Optional Function: COMFORTABLE HEATING airflow)
HEALTH (Optional Function: generate the ionizer)
(button: SWING LEFT/RIGHT)
(Optional Function: 8 Heating)
8 CH (Optional Function: Wide-angle air supply)

REMOTE CONTROLLER

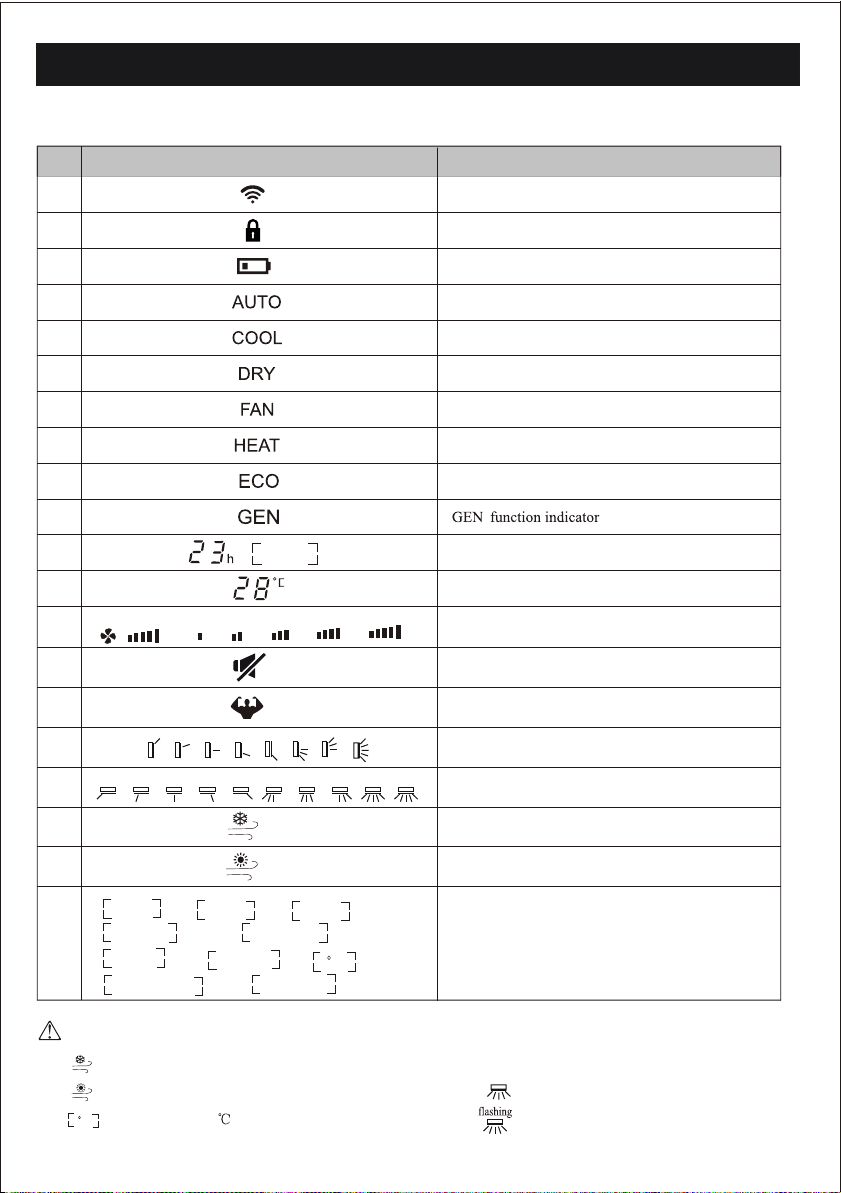

Remote controller DISPLAY
Meaning of symbols on the liquid crystal display
10
1
2
3
4
5
6
7
8
10
11
12
13
14
15
Mode Cooling indicator
Mode Dry indicator
Mode Fan indicator
Mode Heating indicator
Fan speed indicator:
Auto/low/mid-low/mid/mid-high/high
16
SUPER indicator
17
18
Mute indicator
19
Flap swing angle indicator
20
Temperature indicator
Meaning
No. Symbols
Deflector swing angle indicator
Comfortable cooling airflow indicator
I FEEL
SLEEP
HEALTH
DISPLAY
MILDEW
8 CH
CLEAN
WIND FREE
GEN MODE
Timer indicator
Single indicator
Child Lock function indicator
Battery indicator
Mode Auto function indicator
Flashing
TIMER
Comfortable heating airflow indicator
Optional functions indicator
flashing
Youwill hear abeep when youpress thefollowing buttons orselect the followingoptional functions,
though the actualmodel haven't thisfunction, we express our apologies:
(Optional Function: COMFORTABLE COOLING airflow)
(Optional Function: COMFORTABLE HEATING airflow)
HEALTH (Optional Function: generate the ionizer)
(button: SWING LEFT/RIGHT)
(Optional Function: 8 Heating)
8 CH (Optional Function: Wide-angle air supply)
TIMER
9ECO function indicator

REMOTE CONTROLLER
11
Replacement of Batteries
Remove the battery cover plate from the rear of the remote controller,
by sliding it in the direction of the arrow.
Install the batteries according the direction (+and -)shown on the Remote
Controller.
Reinstall the battery cover by sliding it into place.
Use 2 LRO 3 AAA (1.5V) batteries . Do not use rechargeable
batteries . Replace the old batteries with new ones of the same
type when the display is no longer legible.
Do not dispose batteries as unsorted municipal waste. Collection
of such waste separately for special treatment is necessary.
1. Direct the remote controller toward the Air conditioner.
2. Check that there are no objects between the remote control
and the Signal receptor in the indoor unit.
3. Never leave the remote controller exposed to the rays of the sun.
4. Keep the remote controller at a distance of at least 1m from the
television or other electrical appliances.
Note
Child-lock:
Press and
Togetherto active
DisplayON/OFF:
Longpress ECO b-
utton.
Pleaseremove ba-
Tteriesto avoid le-
akagedamage w-
Hennot using for
Along time.
Note
Child-lock:Press and
together to active.
Display ON/OFF:
Long press ECObutton.
Please remove batteries
to avoid leakagedamage
when not usingfor a long
time.
When you insert the batteries for the first time in the remote
controller or if you change them, you can program the remote
controller of only cooling or cooling and heating.
1. Long press MODE button over 5s to get into the change mode
within 3minutes;
2. Press MODE button to change COOL or HEAT.
NOTE: If you adjust the remote controller in cooling mode,
it will not be possible to activate the heating function in units with
heating pump . you need to take out the batteries and repeat the
procedure described above.
When you insert the batteries for the first time in the remote
controller or if you change them, you can program the temperature
OO
display switchover function between C and F.
1. Long press TURBO button over 5s to get into the change mode
within 3minutes;
OO
2. Press TURBO button to change C and F.
Signal
receptor

flaps
Deflectors
Deflectors
movement
Filter
Heat
Fan
Exchanger
OPERATING INSTRUCTIONS
12
“SWING”CONTROL OF THE AIR FLOW
The deflectors are positioned manually and placed un-
der the flaps .They allow to direct the air flow rightw-
ard or leftward.
Never position Flaps manually, the delicate mech-
anism might seriously damaged!
Never poke fingers, sticks or other objects in the air
inlet or outlet vents. Such accidental contact with live
pants might cause unforeseeable damage or hurt.
This adjustment must be done while the appliance
is switched off.
1.Press the button to activate the FLAP ,
(1) If press time interval is in 2 seconds, the swing will cycle as
below:
(2) If long press the button,the swing angle range of horizontal
flap will cycle as below:
(3) If press time interval is over 2 seconds, it will be deactivate
the air flow is directed alternatively from up to down .In
order to guarantee an even diffusion of the air in the room.
2.Press the button to activates the motorized deflectors ,
(1) If press time interval is in 2 seconds, the swing will cycle as
below:
(2) If long press the button,the swing will cycle as below:
(3) If press time interval is over 2 seconds, it will be deactivate
the air flow is directed alternatively from left to right.
(Optional function, depends on the models)
The direction of the air outlet is motorized up and down
by flaps, and manually moved right and left by the vertical
deflectors, for some models, the vertical deflectors could be
controlled by motor as well.
The air sucked by the fan enters from the grill and
passes through the filter, then it is cooled/dehumidified
or heated through the heat exchanger.
deactivate
deactivate

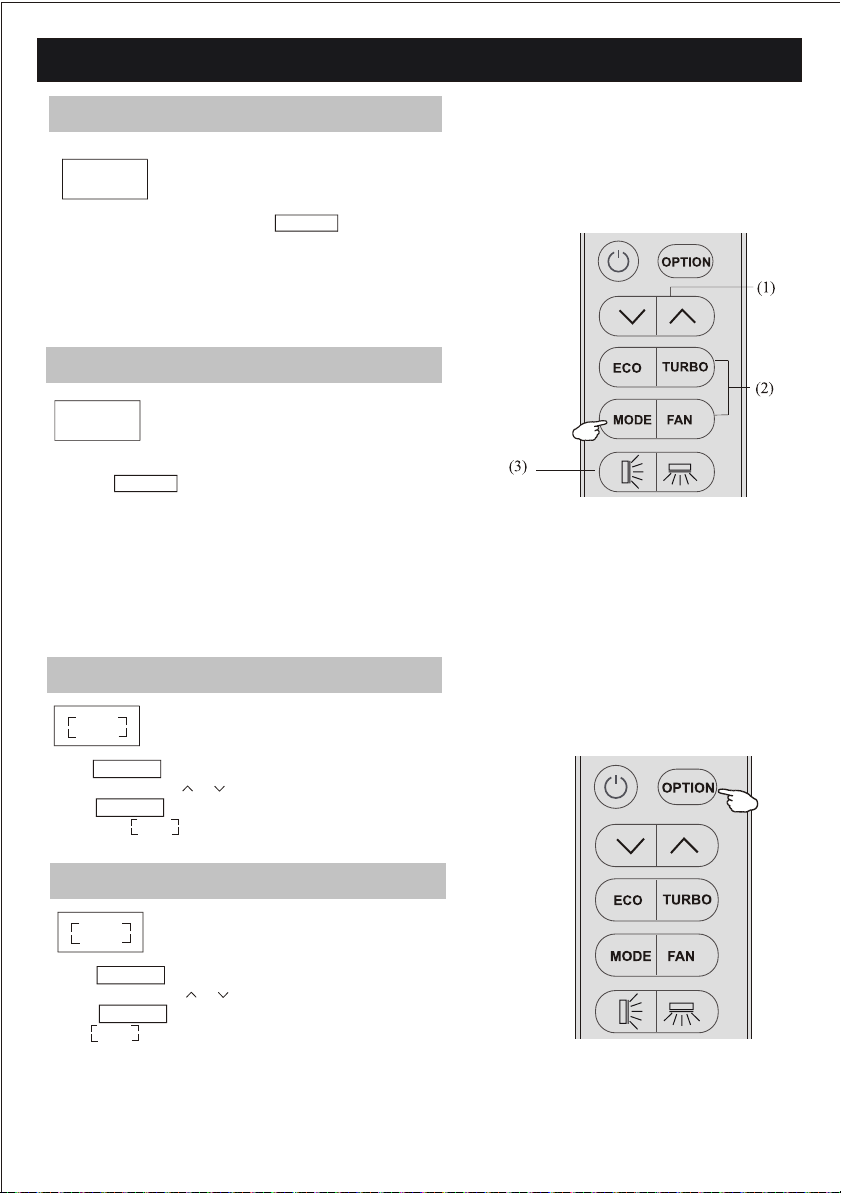

MODES OF OPERATION
13
COOLING MODE
The cooling function allows the air condit-
ioner to cool the room and at the same time
reduces Air humidity.
COOL
To activate the cooling function ( COOL ) , press the
MODE button until the symbol COOL
appears on the display.
HEATING MODE
The cooling function is activated by setting the button
or at a temperature lower than that of the room.
To optimize the function of the Air conditioner, adjust
the temperature (1) , the speed (2) and the direction
of the air flow (3) by pressing the button indicated.
HEAT
The heating function allows the air conditi-
oner to heat the room.
To activate the heating function ( HEAT ) , press the
MODE button until the symbol HEAT
appears on the display.
With the button or set a temperature higher than
that of the room..
To optimize the function of the Air conditioner adjust
the temperature ( 1 ), the speed ( 2 ) and the direction
of the air flow ( 3 ) by pressing the button indicated
In HEATING operation, the appliance can automatically
activate a defrost cycle, which is essential to clean the
frost on the condenser so as to recover its heat exchange
function.This procedure usually lasts for 2-10 minutes
during defrosting,indoor unit fan stop operation.
After defrosting ,it resumes to HEATING mode
automatically.
This function reduces the humidity of the
air to make the room more comfortable.
To set the DRY mode , Press MODE until
DRY appears in the display .An automatic
function of alternating cooling cycles and air
fan is activated.
DRY
DRY MODE

MODES OF OPERATION
14
FAN
The air conditioner works in only
ventilation.
To set the FAN mode , Press MODE until
FAN appears on the display.
FAN MODE(Not FAN button)
To optimize the function of the air conditioner, adjust
the temperature(1), the speed (2) and the direction of the
air flow (3) by pressing the buttons indicated.
AUTO MODE
Automatic mode.
To activate the AUTO mode of operation,
press the MODE button on the remote controller until
the symbol AUTO appears on the display.
In AUTO mode the run mode will be set automatically
according to the room temperature.
To optimize the function of the air conditioner, adjust
the temperature(1), the speed (2) and the direction of the
air flow (3) by pressing the buttons indicated.
AUTO
DISPLAY
DISPLAY function (Indoor display)
Switch on/off the LED display on panel
SLEEP
SLEEP function
Press OPTION at the fist time , select the DISPLAY by
pressing the button or until symbol DISPLAY is flashing;
Press OPTION again to switch off the LED display on the
panel, and appears on the remote controller display.
Do it again to switch on the LED display.
DISPLAY
Press OPTION at the first time , select the SLEEP by
pressing the button or until symbol SLEEP is flashing;
Press OPTION again to activate the SLEEP function,
and appears on the display.
Do it again to deactivate this function.
SLEEP
After 10 hours running in sleep mode, the air conditioner
will change to the previous setting mode.

MODES OF OPERATION
15
The air conditioner works in GEN mode
To activate GEN function,pressing the button GEN and
the unit current level will cycle as below
OFF L3 L2 L1
To cancel this function,press the GEN until code OFF
appers on the display.
Turbo function
To activate turbo function,pressing the button TURBO
or pressing the button FAN until symbol appears
on the display.
In AUTO/HEAT/COOL/FANmode,
When you selectTURBO feature, it will use
the highest fansetting to blowstrong airflow.
To cancel this function, pressing the FAN to switch
other fan speed or pressing the TURBO button again.
Through GEN mode,you can choose the current level of
the unit.There are three levels (L1,L2,L3) in this mode,
and the current increases in turn.
(Optional)
ECO
In this mode the appliance automatically sets the operation to
achieve energy savings.
1. Press the "ON / OFF" button to turn on appliance and select
a COOLING / HEATING mode.
2. Press the "ECO" button, the appliance will run in ECO mode.
3. Pressing the "ECO" button again will cancel the mode, "ECO"
will no longer be shown on the LCD screen.
NOTE:
The ECO function is available in COOLING and HEATING modes.
ECO function

MODES OF OPERATION
16
TIMER
TIMER function
To set the automatic switch-on /off
of the air conditioner
Note:
All processing should be operated in 5 seconds,
otherwise the processing will be cancelled.
1. Press OPTION at the first time , select the Timer by
pressing the button or until symbol TIMER
is flashing;
TIMER
SLEEP TIMER I FEEL
DISPLAY 8 CH
HEAT
SLEEP TIMER I FEEL
DISPLAY 8 CH
TIMER
CLEAN DISPLAY
HEAT
TIMER
CLEAN DISPLAY
Timer setting/change/cancel:
3. To set the timer or change the timer:
(1)Press the button or to set the expected timer
(Increase or decrease at half-hour intervals)
the symbols hand TIMER both are flashing.
(2) Press OPTION or waiting for 5 seconds without any
operation to confirm the timer , the pre-setting
timer like and symbol will be on the display.
4. To cancel the timer(if TIMER is on)
Repeat step 1, step 2, then press OPTION or waiting for 5
seconds without any operation to cancel the timer .
A sample for the Timer-on as Figure1, Timer-off as Figure2
Figure1,Timer-on
when switch off
Figure2,Timer-off
when switch on
I FEEL function (Optional)
I FEEL
Press OPTION at the first time , select the I FEEL by
pressing the button or until symbol I FEEL
is flashing; Press OPTION again to activate the
I FEEL function, and appears on the display.
Do it again to deactivate this function.
I FEEL
This function enablethe remote controlto measure
the temperature atits current locationand send this
signal 7 timesin 2 hoursto the airconditioner to
enable the airconditioner to optimizethe temperature
around you andensure maximum comfort.
It will automaticallydeactivate 2 hourslater.
2. Press OPTIONagain, the datasymbol like
and TIMER willbe flashing;

1. This function help carry away the accumulated
dirt, bacteria, etc from the evaporator.
2. This function will run about 30 minutes, and it will return to the
pre-setting mode .You can press to cancel this function during
the process. You will hear 2 beeps when it's finished or cancelled.
3. It's normal if there are some noise during this function process,
as plastic materials expand with heat and contract with cold.
4. We suggest operate this function as the following ambient
condition to avoid certain safety protection features.
5. We suggest operate this function per 3 months.
OPERATING INSTRUCTIONS
SELF-CLEAN function (Optional)
Indoor unit
Outdoor unit
Temp<30
5 <Temp<30
17
MILDEW function (Optional)
MILDEW
Press OPTION at the first time , select the MILDEW by
pressing the button or until symbol MILDEW
is flashing; Press OPTION again to activate the
MILDEW function, and appears on the display.
Do it again to deactivate this function.
MILDEW
This function enablethe air conditionerstill blow
airflow about 15minutes to drythe indoor innerparts
to avoid mildew, when the air conditioner is off.
Note: MILDEW functiononly available inDRY/COOLING mode
Press OPTION at the first time , select the CLEAN by pressing the
button or until symbol CLEAN is flashing; Press OPTION again
to activate the CLEAN function, and appears on the display.
Do it again to deactivate this function.
CLEAN
CLEAN
8heating function (Optional)
8H
1.Press OPTION at the first time , select the 8 H by
pressing the button or until symbol 8 H
is flashing; Press OPTION again to choose the
8 heating function, and appears on the display.
Do it again or change the mode to deactivate this function.
2.If the airconditioner is standby, this function enable the
air conditioner automaticallystart heating whenthe
indoor temperature isequal or lowerthan 8 , it willreturn
standby if thetemperature is equalor higher than18 .
8H
It can beset in Cool/Heat/Dry/Fan/Automode,
but you needto turn off the unit toactivate it.
Switch off the air conditionerby pressing

PROTECTION
18
The air conditioner is programmed for comfortable and suitable living conditions, if it is used in abnormal
conditioner as below, certain safety protection features might come into effect.
Outdoor temperature is over 24
2
Room temperature is over 27
Outdoor temperature is below -7
1
3
Heating
Cooling
Dry
Outdoor temperature is over 43
Room temperature is below 21
Room temperature is below 18 C
For T1 Climate condition models:
For Tropical (T3) Climate condition models:
The unit does not operate immediately if it is turned on after being turned off or after changing the
mode during operation. this is a normal self-protection action, you need wait for about 3 minutes.
No.
MODE
2
1
3
Heating
Cooling
Dry
No.
MODE
Outdoor temperature is over 24
Room temperature is over 27
Outdoor temperature is below -7
Outdoor temperature is over 52
Room temperature is below 21
Room temperature is below 18 C
Ambient temperature
Ambient temperature
The capacity and efficiency are according to the test conducted at full-load operation*.
*The highest speed of indoor fan motor and the maximum open angle of the flaps and deflectors
are requested.
