CONTENTS
1 INSTRUCTIONS FOR SAFETY
AND ENVIRONMENT 4
General safety .......................................4
Intended use..........................................4
Children’s safety....................................5
Disposing of packaging material ........5
Transportation of the product............5
Compliance with WEEE Directive and
Disposing of the Waste Product.........6
Compliance with RoHS Directive........6
Package information ............................6
2 DISHWASHER 7
Overview ................................................7
Fan drying system.................................8
.......................8
3 INSTALLATION 9
Appropriate installation location .......9
Connecting water supply.....................9
Connection to the drain .................... 10
Adjusting the feet.............................. 10
Aquasafe+ ...........................................11
Electrical connection..........................11
Initial use..............................................11
4 PREPARATION 12
Tips for energy saving........................12
Water softening system ....................12
Adjusting the water softening
system ..................................................12
Adding salt ...........................................14
Detergent.............................................15
Tablet detergents ...............................16
Rinse aid ...............................................17
Items not suitable for washing in the
dishwasher.......................................... 18
Placing the dishes into the
dishwasher.......................................... 18
Cutlery basket .................................... 20
Cutlery basket .................................... 20
Collapsible lower basket tines ..........21
Collapsible lower basket tines ..........21
Tray Wash Supports........................... 22
SoftTouch Accessory......................... 22
Lower Basket Glass Holder............... 22
Lower basket multipurpose / height
adjustable service rack ..................... 23
Lower basket bottle wire.................. 24
Upper basket height adjustable rack24
Upper basket multipurpose service
rack....................................................... 24
Adjusting the height of the upper
basket .................................................. 25
Collapsible upper basket wires........ 26
Height setting with empty basket.. 26
Ceiling cutlery basket.........................27
Ceiling cutlery basket.........................27
5 OPERATING THE PRODUCT28
Keys...................................................... 29
Preparing the machine...................... 29
Programme selection........................ 29
Auxiliary functions .............................31
Programming the washing time...... 32
Cancelling the programme ............... 34
Adjusting the amount of rinse aid... 34
End of programme ............................. 35
......................... 35
InnerClean........................................... 35
6 MAINTENANCE AND
CLEANING 36
Cleaning the outer surface of the
product ................................................ 36
Cleaning the interior of the machine36
............................ 36
......................37
Cleaning the impellers ...................... 38
Lower impeller.................................... 38
Upper impeller ................................... 38
7 TROUBLESHOOTING 39
Explanation of symbols
Throughout this User Manual the following symbols are used:
C
Important information or useful
hints about usage.
A
Warning for hazardous
situations with regard to life and
property.
B
Warning for electric shock.
Packaging materials of the
product are manufactured
from recyclable materials in
accordance with our National
Environment Regulations.
Do not dispose of the packaging materials together with the domestic or other
wastes. Take them to the packaging material collection points designated by the local
authorities.
Please read this user manual rst!
Dear Customer,
We hope that you get the best results from your product which has been manufactured
with high quality and state-of-the-art technology. Therefore, please read this entire
user manual and all other accompanying documents carefully before using the product
and keep it as a reference for future use. If you handover the product to someone else,
give the user manual as well. Follow all warnings and information in the user manual.
Remember that this user manual is also applicable for several other models. Dierences
between models will be identied in the manual.
This product was manufactured using the latest technology in environmentally friendly conditions.

instructions for safety and environment
1
This section contains safety
instructions that will help to get
protected from risk of personal
injury or property damage. Failure
to follow these instructions shall
void all warranties.
General safety
• Never place the product
on a carpet-covered oor;
otherwise, lack of airow
beneath the product will
cause electrical parts to
overheat. This will cause
problems with your product.
• Do not operate the product
if the power cable / plug is
damaged! Call the Authorised
Service Agent.
• Connect the product to a
grounded outlet protected
by a fuse complying with
the values in the “Technical
specications” table. Do
not neglect to have the
grounding installation made
by a qualied electrician.
Our company shall not be
liable for any damages that
will arise when the product
is used without grounding
in accordance with the local
regulations.
• The water supply and
draining hoses must be
securely fastened and remain
undamaged.
• Unplug the product when not
in use.
• Never wash the product by
spreading or pouring water
onto it! There is the risk of
electric shock!
• Never touch the plug with
wet hands! Never unplug by
pulling on the cable, always
pull out by grabbing the plug.
• The product must be
unplugged during installation,
maintenance, cleaning and
repairing procedures.
• Always have the installation
and repairing procedures
carried out by the Authorised
Service Agent. Manufacturer
shall not be held liable for
damages that may arise from
procedures carried out by
unauthorised persons.
• Never use chemical solvents
in the product. They bring
forth the risk of explosion.
• When you pull the upper and
lower baskets out completely,
the door of the product will
bear all the weight of the
baskets. Do not put other
loads on the door; otherwise,
the product may tilt.
• Never leave the door of
the product open apart
from loading and unloading
procedures.
• Do not to open the door
of the product when it is
running unless necessary.
Be careful for the rush of hot
vapour when you need to
open the door.
Intended use
• This product has been
designed for domestic use.
• It must be used to do the
domestic type dishes only.
instructions for safety and environment
• This appliance is intended
to be used in household and
similar applications such as:
- Sta kitchen areas in shops,
oces and other working
environments;
- Farm houses;
- By clients in hotels, motels
and other residential type
environments;
- Bed and breakfast type
environments
• Only dishwasher safe
detergents, rinse aids and
additives must be used.
• The manufacturer waives
any responsibility arisen
from incorrect usage or
transportation.
• The service life of your
product is 10 years. During
this period, original spare
parts will be available to
operate the product properly.
• This appliance can be used
by children aged from 8 years
and above and persons with
reduced physical,sensory
or mental capabilities or
lack of experience and
knowledge if they have
been given supervision or
instruction concerning use
of the appliance in a safe
way and understand the
hazards involved. Children
shall not play with the
appliance. Cleaning and user
maintenance shall not be
made by children without
supervision.
• Electrical products are
dangerous for the children.
Keep children away from the
product when it is in use. Do
not let them to tamper with
the product.
• Do not forget to close the
door of the product when
leaving the room where it is
located.
• Store all detergents and
additives in a safe place
away from the reach of the
children.
Packaging materials are
dangerous to children. Keep
packaging materials in a safe
place away from reach of the
children.
Packaging materials of the
product are manufactured from
recyclable materials. Dispose
of them properly and sort in
accordance with recycled waste
instructions. Do not dispose
of them with normal domestic
waste.
product
AIf you need to move the
product, do it in upright
position and hold from
the rear side. Slanting
the product onto its
front side may cause the
electronic parts in it get
wet and damaged.
04 05

instructions for safety and environment
1. Unplug the product before
transporting it.
2. Remove water drainage and
water supply connections.
3. Drain the remaining water in
the product completely.
Waste Product
This product complies with
EU WEEE Directive
(2012/19/EU). This product
bears a classication
symbol for waste electrical and
electronic equipment (WEEE).
This product has been
manufactured with high quality
parts and materials which can be
reused and are suitable for
recycling. Do not dispose of the
waste product with normal
domestic and other wastes at the
end of its service life. Take it to
the collection center for the
recycling of electrical and
electronic equipment. Please
consult your local authorities to
learn about these collection
centers.
The product you have purchased
complies with EU RoHS Directive
(2011/65/EU). It does not contain
harmful and prohibited materials
specied in the Directive.
Packaging materials of the
product are manufactured
from recyclable materials in
accordance with our National
Environment Regulations. Do
not dispose of the packaging
materials together with the
domestic or other wastes. Take
them to the packaging material
collection points designated by
the local authorities.
Dishwasher
2
1. Upper basket
2. Upper impeller
3. Lower impeller
4. Silverware basket
5. Door
6. Rating Label
7. Control panel
8. Detergent dispenser
9. Lower basket
10. Filters
11. Salt reservoir lid
12. Upper basket rail
13. Upper cutlery basket
14. Tabletop (depends on model)
15. Fan drying system (depends on model)
15
06 07

Dishwasher
Compliance to standards and test data / EC declaration of conformity
This product complies with the following EU directives;
Development, production and sales stages of this product comply with the safety
rules included in all pertaining European Community regulations.
2014/35/EU, 2014/30/EU, 93/68/EC, IEC 60436/DIN 44990, EN 50242
Power input 220-240 V, 50 Hz (see rating label)
Total power consumption 1800-2100 W (see rating label)
Heater power consumption 1800 W (see rating label)
Total current (depends on the model) 10 A (see rating label)
Drain pump power consumption 30 W (see rating label)
Water pressure
Mpa)
C
Technical specications may be changed without prior notice to improve the
quality of the product.
C
Figures in this manual are schematic and may not match the product exactly.
C
Values stated on the markings of the product or in the printed documents
accompanying the product are obtained in the laboratory on basis of the
relevant standards. Depending on operational and environmental conditions of
the product, these values may vary.
Note for test institutions:
Data required for performance tests shall be provided upon request. Requests can be
e-mailed to the following address:
dishw[email protected]om
Do not forget to provide the code, stock and serial numbers of the product to be tested in
your request e-mail along with your contact information. Code, stock and serial numbers of
the product may be found on the type label attached to the side wall of the door.
(depends on model)
Fan drying system ensures ecient drying of your dishes.
It is normal to hear a dierent sound than that of washing cycle during fan operation.
3Installation
Refer to the nearest Authorised Service
Agent for installation of your product. To
make the product ready for use, make sure
that the electricity, tap water supply and
water drainage systems are appropriate
before calling the Authorised Service Agent.
If they are not, call a qualied technician
and plumber to have any necessary
arrangements carried out.
C
Preparation of the location
and electrical, tap water and
waste water installations at the
place of installation is under
customer's responsibility.
B
Installation and electrical
connections must be carried
out by the Authorised Service
Agent. Manufacturer shall
not be held responsible
for damages arising from
processes carried out by
unauthorised persons.
A
Prior to installation, visually
check if the product has any
defects on it. If so, do not have
it installed. Damaged products
cause risks for your safety.
C
Make sure that the water inlet
and discharge hoses are not
folded, pinched or crushed
while pushing the product into
its place after installation or
cleaning procedures.
When placing the product, pay attention
not to damage the oor, walls, piping, etc.
Do not hold the product from its door or
panel to move it.
•Place the product on a solid and at
oor that has sucient load carrying
capacity! The product must be
installed on a at surface in order for
the door to be closed comfortably and
securely.
•Do not install the product at places
where temperature may fall below 0ºC.
•Place the product at least 1 cm away
from the edges of other furniture.
•Place the product on a rigid oor. Do
not place it on a long pile rug or similar
surfaces.
B
Do not place the product on the
power cable.
•Make sure that you select a location
that will allow you to load and unload
the dishes in a fast and comfortable
manner.
•Install the product in a place close to
the tap and the drain hole. Select the
installation location by considering
that it will not be changed after the
connections are made.
C
We recommend attaching a
lter on the house/apartment
supply water inlet to protect
the machine from damages
that may arise from impurities
(sand, dirt, rust, etc.) coming
from the urban water supply
system or from your own water
system as well as to prevent
complaints such as yellowing or
sludge accumulation at the end
of washing.
08 09

Installation
Permitted water temperature: up
to 25°C
The dishwasher may not be connected to
open warm water devices or ow-through
water heaters.
•Do not use old or used water inlet
hose on the new product. Use the new
water inlet hose supplied with the
product.
•Connect the water inlet hose directly
to the water tap. Pressure coming
from the tap should be minimum 0.3
and maximum 10 bars. If the water
pressure exceeds 10 bars, a pressure
relief valve should be installed in
between.
•Open the taps completely after making
the connections to check for water
leaks.
C
Use a screw-on hose connector
to connect the water inlet hose
to a water tap with a ¾ inch
external thread. If required, use
a lter insert to lter deposits
from the pipes.
A
For your safety, close the water
inlet tap completely after the
washing programme is over.

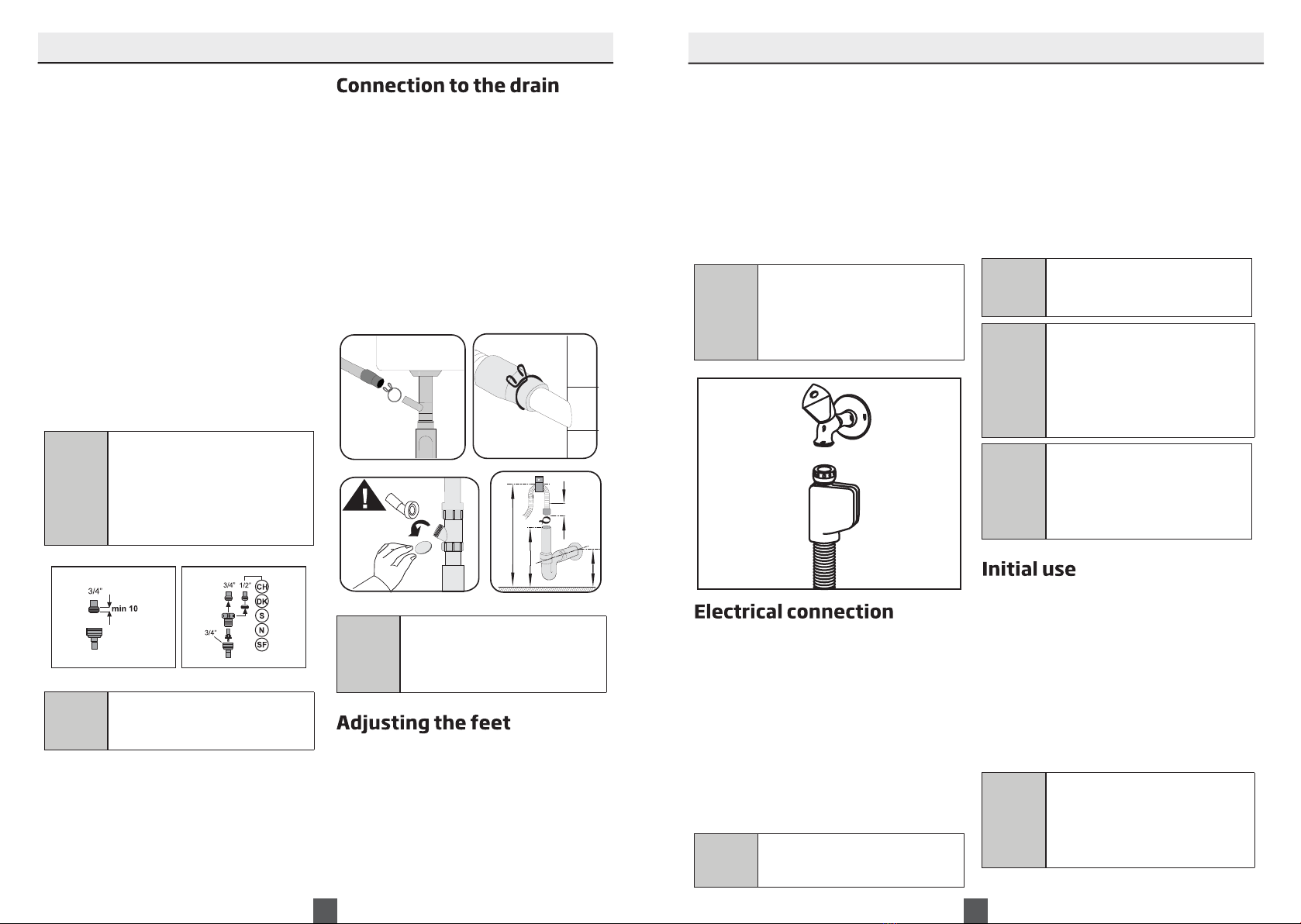

Water discharge hose can directly be
connected to the drain hole or sink’s
drainage. The length of this connection
must be min. 50 cm and max. 100 cm from
the oor. A discharge hose longer than 4
meters causes dirty washing.
Attach the water discharge hose to the
drainpipe without bending it. Tightly x
the water discharge hose to the drainpipe
in order to prevent any dislocation of the
water discharge hose during operation of
the product.
min 300
min 120
max 1000
min 500
C
Drainpipe must be connected
to the sewage system and it
should not be connected to any
surface water.
If the door of the product cannot be closed
properly or if the product swings when you
push it slightly, then you need to adjust
the feet of the product. Adjust the feet of
the product as illustrated in the installation
manual supplied with the product.
Installation
•The voltage and allowed fuse or breaker
protection are specied in the “Technical
specications” section. If the current
value of the fuse or breaker in the house
is less than 16 Amps, have a qualied
electrician install a 16 Amp fuse.
•The specied voltage must be equal to
your mains voltage.
•Do not make connections via extension
cables or multi-plugs.
B
Damaged power cables must
be replaced by the Authorised
Service Agent.
B
If your dishwasher is equipped
with internal illumination, lamp
should only be replaced by the
Authorised Service Agent in
case of failures that may occur
on the lamp.
B
If the product has a failure, it
should not be operated unless
it is repaired by the Authorised
Service Agent! There is the risk
of electric shock!
Before starting to use the product, make sure
that all preparations are made in accordance
with the instructions in sections “Important
safety instructions” and “Installation”.
•To prepare the product to do the dishes,
perform rst operation in the shortest
programme with detergent while the
machine is empty. During the initial use,
ll the salt reservoir with 1 litre of water
prior to lling it with salt.
A
There might be a small amount
of water left in the product
after factory quality control
tests. This has no harm on the
product.
Aquasafe+
(depends on model)
The Aquasafe+ system protects against
water leaks that may occur at the hose
inlet.Water contact with the valve box of
the system must be avoided to prevent
damage to the electrical system. If the
Aquasafe+ system is damaged, unplug the
product and call the Authorised Service
Agent.
A
As the hose set contains
electrical connections and
assemblies, never shorten
or lengthen the hose with
extension hoses.
Connect the product to a grounded outlet
protected by a fuse complying with the
values in the “Technical specications”
table. Our company shall not be liable for
any damages that will arise when the
product is used without grounding in
accordance with the local regulations.
•Connection must comply with national
regulations.
•Power cable plug must be within easy
reach after installation.
B
Unplug the product after the
washing programme is over.
10 11

Preparation
4
Following information will help you use
the product in an ecological and energy-
ecient manner.
Wipe away any coarse food remnants on
the dishes before putting them in the
product.
Operate the product after lling it
completely.
When selecting a programme, consider
the table of "Programme data and average
consumption values".
Do not put more detergent than suggested
on the detergent package.
The product is equipped with a water
softening system which reduces the
hardness of incoming water. This system
softens the supply water to a level that will
allow washing the dishes with the required
quality.
C
The mains water hardness must
be softened if it is over 7°dH.
Otherwise, hardness ions will
accumulate on the dishes that
are washed and may aect the
washing, rinsing and drying
performances of the machine.
Cleaning, rinsing and drying performance of
your dishwasher will increase when water
softening system is adjusted properly.
Adjust the new water hardness level
according to the Water hardness level
instruction in this booklet.
Use the test strip supplied with the product
according to the steps given below to
determine hardness level of your supply
water.
Preparation
a b cd e f
Remove the test
strip from the
packet.
Turn on the tap and
let the water run for
about a minute.
Hold the test strip in
the water for about
a second.
Remove the test
strip from the water
and shake it.
Wait for 1 minute. The test strip shows
you the hardness
level.
1 Second
1 Minute
1 min.
After determining hardness level of the supply water:
1. Turn on the machine, press Time Delay and P+/P keys simultaneously. After the countdown
(3,2,1) is displayed keep the keys pressed for a while.
2. Press P+/P key to activate the (r..) position.
3. Using Time Delay key, adjust water hardness level according to the hardness of the supply
water. See “Water hardness level adjustment table” for correct setting.
4. Press On / O key to save the setting.
Water hardness level adjustment table
Hardness
Level
English Water
Hardness °dE
German Water
Hardness °dH
French Water
Hardness °dF Water Hardness Level Indicator
0th Level 0-5 0-4 0-8 Press the Time Delay key to switch the water hardness
level to position 1. (r1)
1st Level 6-9 5-7 9-13
2nd Level 10-15 8-12 14-22 Press the Time Delay key to switch the water hardness
level to position 2. (r2)
3rd Level 16-19 13-15 23-27 Press the Time Delay key to switch the water hardness
level to position 3. (r3)
4th Level 20-24 16-19 28-34 Press the Time Delay key to switch the water hardness
level to position 4. (r4)
5th Level 25-62 20-50 35-90 Press the Time Delay key to switch the water hardness
level to position 5. (r5)
Perform the same hardness level adjustment that you have set on the control panel also with
the regeneration adjustment switch. For example, if you have adjusted to “3rd level” in the
control panel, also set the regeneration adjustment switch to 3rd level.
Regeneration Adjustment Switch
0th Level 1st Level 2nd Level 3rd Level 4th Level 5th Level
1 1 2 3 4 5
12 13

Preparation
C
It is recommended to use
granule- or powder-formed
softening salts in the water
softening system. Do not use
salts that do not completely
dissolve in water such as table
salt or rock salt. Otherwise the
performance of the system may
deteriorate in time.
C
Salt reservoir will be lled
with water when you start
the product. For this reason,
add salt before operating the
machine.
1. Firstly, take the lower basket out to add
softening salt.
2. Turn the salt reservoir lid counter-
clockwise to open it (A, B).
If the hardness level of the supply water
is above 90 °dF or if you are using well
water, then it is recommended to use water
purication devices and special lters.
If the hardness level of the supply water is
below 13°dF, there is no need to use salt
in your dishwasher. If this is the case, “No
Salt Warning Indicator” (if any) illuminates
continuously on the panel of your machine.
If the water hardness level adjustment is
set to level 1, the “No salt warning indicator”
will illuminate continuously although it
is not necessary to use salt. If you use
salt under this condition, salt will not be
consumed and the Salt indicator will not
illuminate.
C
If you move your house, it is
necessary to readjust water
hardness level of your machine
by considering the information
given above according to the
hardness level of the supply
water in your new location.
Your machine will display the
most recently adjusted water
hardness level.
Water softening system needs to be
regenerated in order for the product
operates with the same performance
continuously. Dishwasher salt is used for
this purpose.
C
Use only special softening salts
produced particularly for the
dishwashers in your machine.
Preparation
C
Since dierent salt brands in the
market have dierent particle
sizes and since the water
hardness may vary, dissolution
of the salt in water may take
a couple of hours. Therefore,
Salt Indicator remains on for a
while after adding salt into the
machine.
Detergent
You can use powder, liquid/gel or tablet
detergents in the machine.
A
Only use in the machine
the detergents produced
particularly for use with
dishwashers. We recommend
you not to use detergents that
contain chlorine and phosphate
as they are harmful for the
environment.
Adding detergent
C
Pay attention to the warnings
on the detergent packaging
to get better washing and
drying results. Contact the
manufacturer of the detergent
for further questions.
A
Do not put solvents into the
detergent dispenser. There is
the risk of explosion!
Put the detergent into the detergent
dispenser just before operating the
machine as illustrated below.
3. Add 1 litre of water to salt reservoir of
your machine only in initial use (C).
4. Fill the salt reservoir with salt by
using the salt funnel (D). To speed up
dissolution rate of salt in water, stir it
with a spoon.
C
You can put about 2 kg of
softening salt into the salt
reservoir.
5. Replace the lid and tighten it when the
reservoir is full.
C
You need to add salt right before
starting the machine. Thus, the
overowing salty water will be
ushed immediately, preventing
the risk of corrosion in machine.
In cases where you would not
start washing immediately,
run your machine empty in the
shortest program.
14 15

Preparation

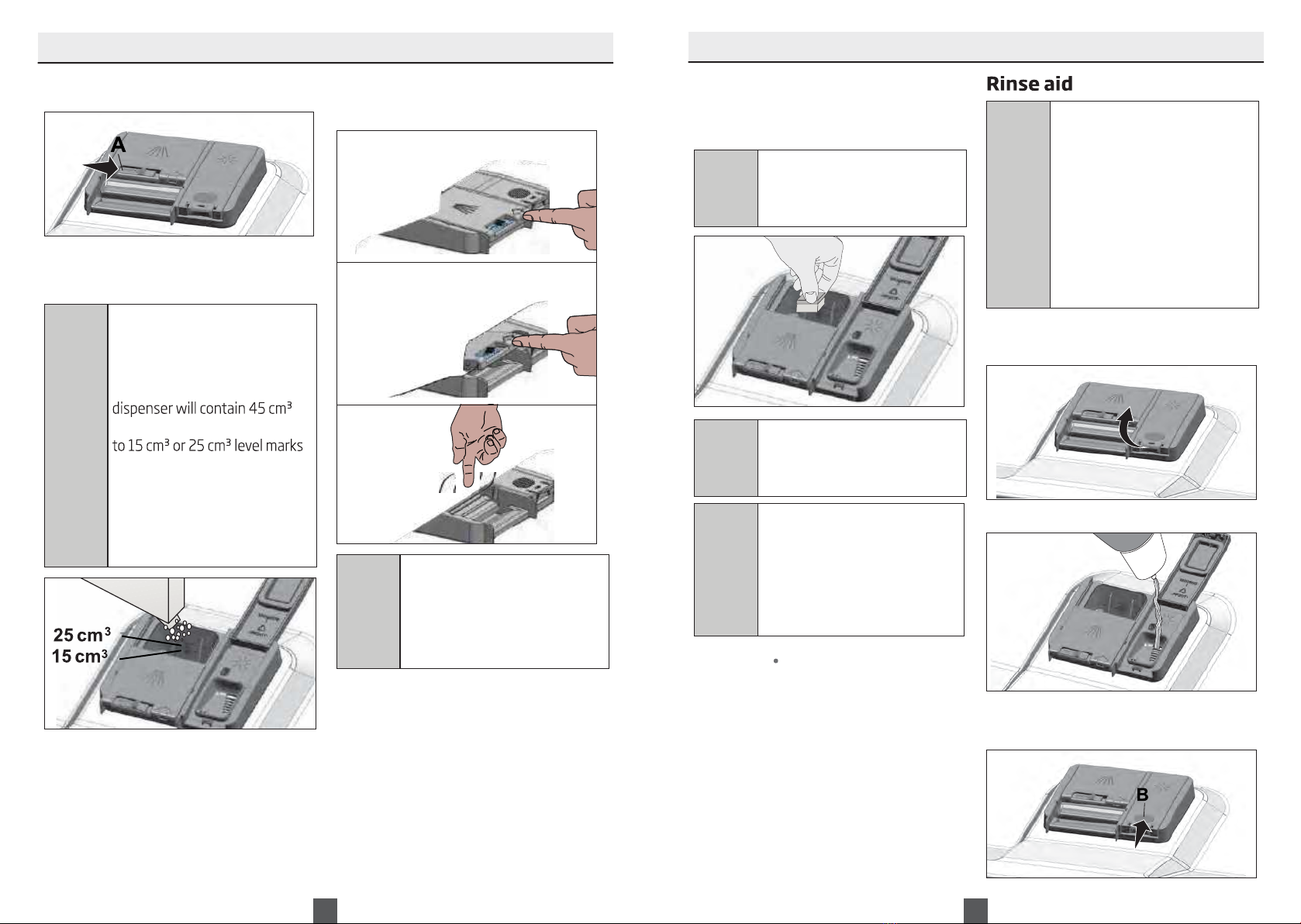

3. Push the lid of the detergent dispenser
to close it. A "click" will be heard when
the lid is closed.
1
2
3
C
Use powder or liquid/gel
detergent in short programmes
without prewash since the
solubility of the tablet detergent
changes depending on the
temperature and time.
Tablet detergents
In addition to the conventional tablet
detergents, there are also commercially
available detergent tablets that show water
softening salt and/or rinse aid eect. Some
types of these detergents contain special-
purpose components such as glass and
stainless steel protectors. These tablets
show their eects up to a certain water
1. Push the latch to right to open the
detergent dispenser lid (A).
2. Put suggested amount of powder,
liquid/gel or tablet detergent in the
reservoir.
C
Inside the detergent dispenser
there are level markings that
help you use appropriate
amount of powder detergent.
When brimful, detergent
of detergent. Fill detergent up
in the detergent dispenser
according to fullness of the
machine and/or soiling degree
of the dishes. One tablet
is enough if you are using
detergent tablets.
Preparation
hardness level (21°dH). Water softening
salt and rinse aid must also be used
together with the detergent if the water
hardness level is above the mentioned level.
C
The best washing performance
in dishwashers is obtained by
using detergent, rinse aid and
water softening salt individually.
C
Observe the instructions of the
detergent manufacturer on
the package when using tablet
detergents.
C
Contact the detergent
manufacturer if your dishes
are wet and/or if you notice
limescale spots particularly on
your glasses after the washing
programme is over when using
a tablet detergent.
When you switch to powder
detergent from tablet detergent:
1. Make sure that salt and rinse aid
reservoirs are full.
2. Set the water hardness to the highest
level and perform an empty run.
3. After the empty washing cycle, review
the user manual and readjust the water
hardness level so as to suit the water
supply.
4. Make the appropriate rinse aid settings.
C
The rinse aid used in
dishwashers is a special
combination that aims to
increase drying eciency and
prevent water or lime stains
on the washed items. For this
reason, care must be paid
to have rinse aid in the rinse
aid reservoir and to use rinse
aids produced specially for
dishwashers only.
1. Open the lid of the rinse aid reservoir
with the help of the latch.
2. Fill the reservoir until “MAX” level.
3. Slightly press the point (B) of the
reservoir lid to close it.
1716

Preparation
4. If there are stains on tableware items
after washing, level must be increased
and if there is a blue trace after wiping
them by hand, it must be decreased.
This is set to position 3 as factory
default.
C
The rinse aid adjustment is
described under "Adjusting
the amount of rinse aid" in
the section for operating the
machine.
C
Wipe clean any spilled rinse
aid outside the reservoir. Rinse
aid that spilled accidentally
will cause foaming and it will
eventually decrease washing
performance.
•Never wash dishes soiled by cigarette
ash, candle remnants, polish, dyestu,
chemicals, etc. in your dishwasher.
•Do not wash silverware and cutlery
with wooden or bone stems, glued
pieces, or pieces that are not resistant
to heat, as well as copper and tin-
plated containers in the dishwasher.
C
Decorative prints of chinaware
as well as aluminum and silver
items may get discoloured or
tarnished after washing in the
dishwasher just as it happens
in handwashing as well. Some
delicate glass types and crystals
may become dull in time. We
strongly recommend you to
check if the tableware you are
going to purchase is suitable
for washing especially in the
dishwasher.
You can use your dishwasher in the
optimum way with respect to energy
consumption and washing and drying
performance only if you place the dishes in
an orderly way.
•Wipe away any coarse food remnants
(bones, seeds, etc.) on the dishes
before placing them in the dishwasher.
•Place thin, narrow pieces in the middle
sections of baskets if possible.
•Place the heavily soiled and bigger
items in the lower basket and smaller,
delicate and light items in the upper
basket.
•Place the hollowed dishes such as
bowls, glasses and pans upside down
in the dishwasher. Thus, accumulation
of water in deep hollows is prevented.
A
To prevent possible injuries,
always place the sharp and
pointed dishes such as service
fork, bread knife, etc. upside
down so as their pointed ends
will face down or they will lie
horizontally in the dish basket.
Unload dishes in the lower basket rst and
then the dishes in the upper basket.
Preparation

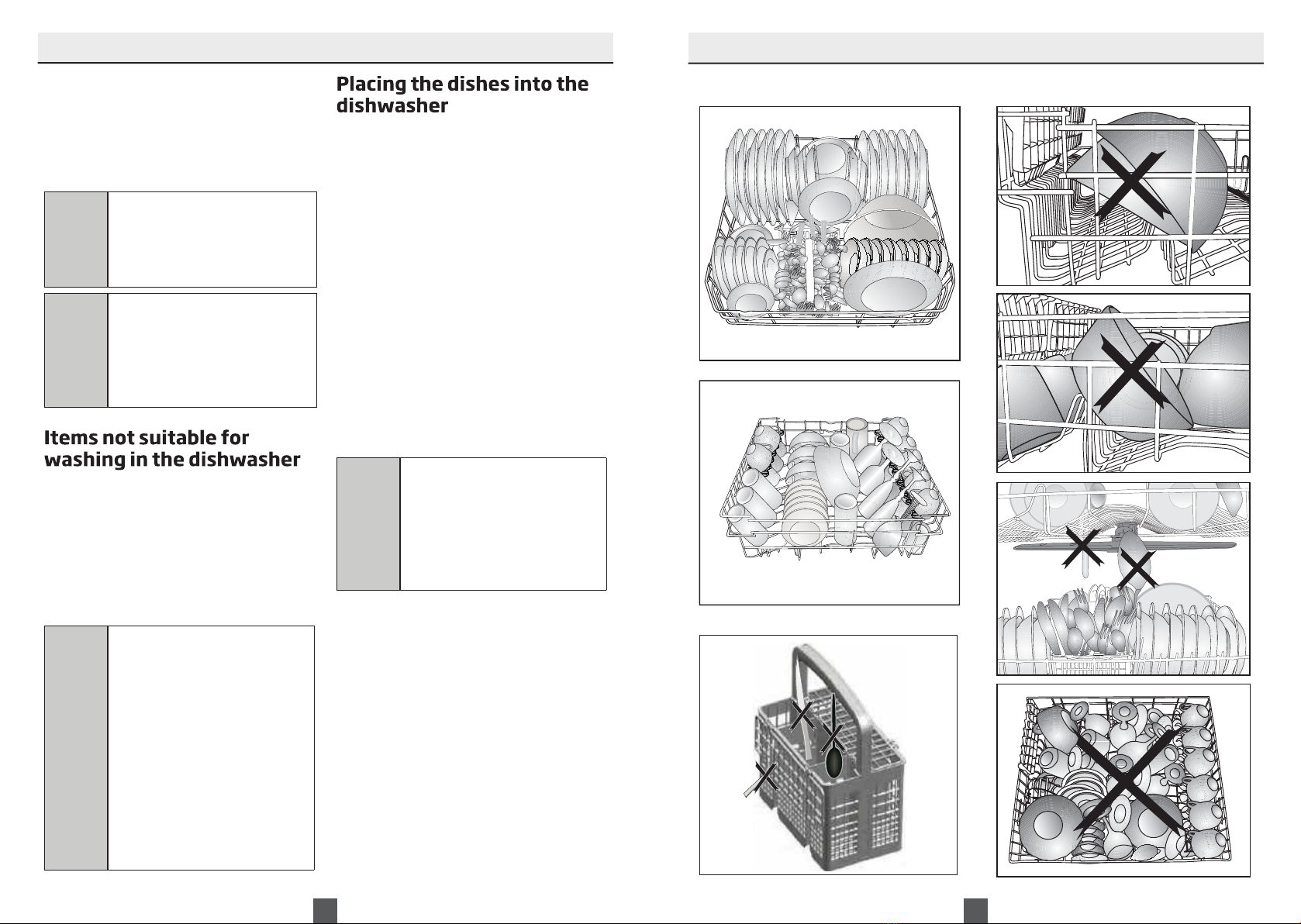

Suggestions for loading the dishwasher
Lower basket
Upper basket
Improper Loading Of Dishware
Improper Loading Of Dishware
1918

Preparation

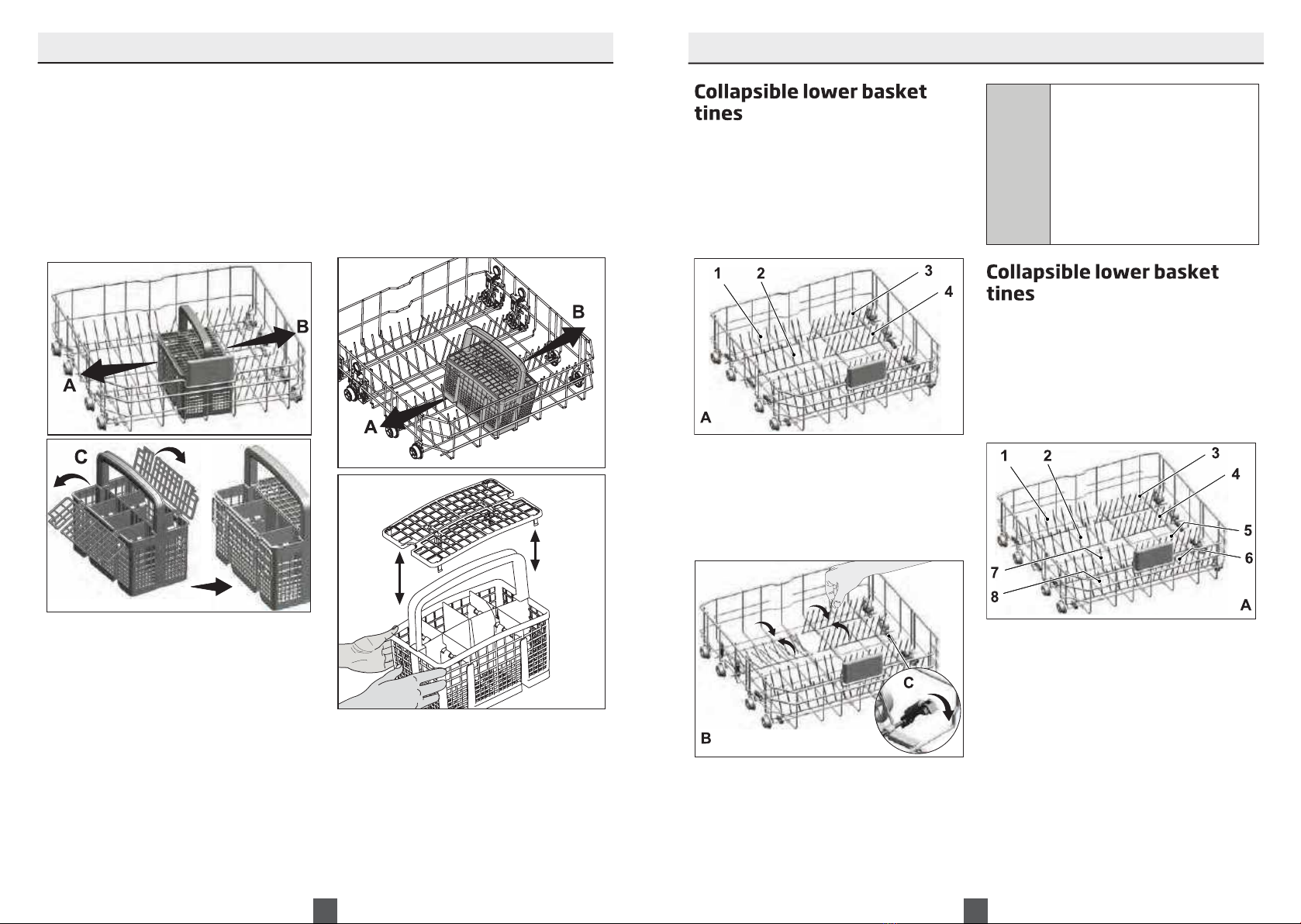

Cutlery basket
(depends on model)
Cutlery basket is designed to wash your
dishes such as knife, fork, spoon, etc. in an
ecient manner.
Since the cutlery basket can be moved (A,
B), you can create more space while placing
your dishes in the lower basket and free up
space for your dishes of dierent sizes.
Cutlery basket
(depends on model)
Cutlery basket is designed to wash your
dishes such as knife, fork, spoon, etc. in an
ecient manner.
Since the cutlery basket can be moved (A,
B), you can create more space while placing
your dishes in the lower basket and free up
space for your dishes of dierent sizes..
Preparation
(depends on model)
There are foldable tines (A) located at the
lower basket of the machine are designed
for an easier placement of large pieces such
as pans, bowls, etc. You can create larger
spaces by folding each tines individually or
all of them at once.
To bring the collapsible tines into horizontal
position, grab the tines from mid position
and push them in the directions of arrows
(B). To bring the tines back to vertical
position, just lift them up. Collapsible tines
will click into the latch again (C).
C
Bringing the tines to the
horizontal position by holding
them from the tips may cause
them to bend. Therefore, it
will be appropriate to bring the
tines in the middle to horizontal
or vertical position by holding
them from their stems and
pushing in the direction of
arrow.
(depends on model)
There are foldable tines (A) located at the
lower basket of the machine are designed
for an easier placement of large pieces such
as pans, bowls, etc. You can create larger
spaces by folding each tines individually or
all of them at once.
To bring the collapsible tines into horizontal
position, grab the tines from mid position
and push them in the directions of arrows
(B). To bring the tines back to vertical
position, just lift them up. Collapsible tines
will click into the latch again (C).
20 21

Preparation
Tray Wash Supports
(depends on model)
Use the supports to wash trays in the
bottom basket.
See the Auxiliary functions section for
appropriate programme and function
selection.
C
Bringing the tines to the
horizontal position by holding
them from the tips may cause
them to bend. Therefore, it
will be appropriate to bring the
tines in the middle to horizontal
or vertical position by holding
them from their stems and
pushing in the direction of
arrow.
SoftTouch Accessory
(depends on model)
The SoftTouch Accessory found in the
lower basket of your machine enables a
safe washing for your fragile glasses.
Lower Basket Glass Holder
(depends on model)
Lower Basket Glass Holder found in the
lower basket of your machine enables a
safe washing for your oversized and tall
glasses.
Preparation
rack
(depends on model)
This accessory located at the lower basket
of your machine allows you to easily wash
pieces such as extra glasses, long ladles
and bread knives.
C

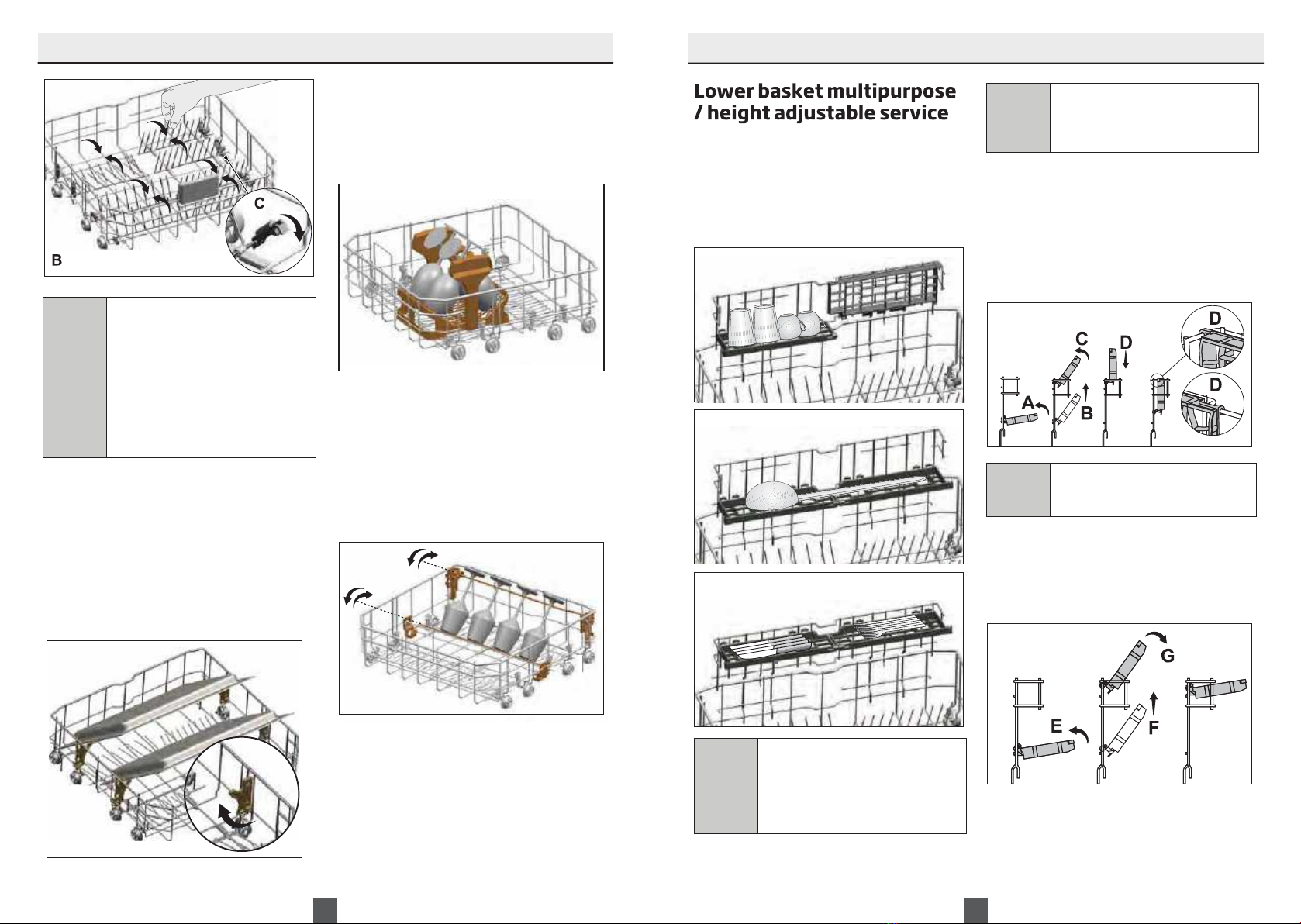

You may use the racks as
required by moving them to
lower or upper position, or close
them to create a wider space in
your lower basket.
A
Make sure that the impeller
does not touch the dishes you
placed on the racks.
To close the racks:
1. Fold the rack (A).
2. Slide the rack up (B).
3. Put the rack in vertical position (C).
4. Slide the rack down and lock it by the
tabs (D).
C
You may open the racks in the
same process in reverse order.
To adjust the height of the racks:
1. Fold the rack (E).
2. Slide the rack up (F).
3. Open the rack at the desired level (G).
22 23

Preparation
You can lift up the upper basket
multipurpose service rack to remove it if
you do not want to use it.
If you want to use the upper basket
multipurpose service rack again, you can
easily attach it to the side section of your
upper basket.
adjustable rack
(depends on model)
Use the lower and upper parts of the height
adjustable racks in the upper basket of
the machine by sliding them down or up
according to the heights of the glasses,
cups or etc. (A, B, C).
(depends on model)
The bottle wire is designed for easier
washing of long pieces with wide mouths.
You may take out the bottle wire from the
basket when not in use by pulling it out
from both sides (H).
(depends on model)
This accessory located at the upper basket
of your machine allows you to easily wash
pieces such as extra long ladles and bread
knives.
Preparation
To lower the basket, while it is in the
uppermost position;
1. Hold the upper basket wires with both
hands, slightly lift up the basket and
simultaneously push and release the
latches shown in the gure (B).
2. Lower the basket from its current
position to the lower one.
3. Release the basket after it has reached
one level down.
Repeat the process if the height is not
sucient.
1
2
3
C
The movement mechanism
may not function properly if the
upper basket is overloaded or
if the weight distribution is not
balanced. In heavier conditions,
there is the risk of falling one
level down.
C
Make sure that the adjustment
mechanism has the same
positions on the right and left
sides of the upper basket.
upper basket
(depends on model)
The upper basket height adjustment
mechanism has been designed for you to
create large spaces in the lower or upper
sections of your machine depending on
your needs by adjusting the height in the
upper or lower direction while your basket
is empty or loaded.
Thanks to this mechanism, you can use
your basket in three dierent positions,
namely lower, middle and upper positions
(1, 2, 3).
1. To raise your basket, hold the upper
basket wires with both hands while the
basket is in the lowermost position and
pull them up (A).
2. You will hear a "Click" from the right
and left mechanisms, indicating that
the basket has reached the next level.
Release the basket.
Repeat the process if the height is not
sucient.
1
2
3
24 25

Preparation
Pull out the basket out completely.
Place the basket back into the tracks at the
desired height
Push the latches back into the correct
position.
(depends on model)
You can use collapsible wires when you
need a larger space for your dishes in the
upper basket of your machine.
To bring the collapsible wires into horizontal
position, grab the wire from the middle
position and push them in the direction of
arrow in the gure. Place your larger dishes
into the area created. To bring the wires
back to vertical position, just lift them up.
C
Bringing the wires to the
horizontal position by holding
them from the tips may cause
them to bend. Therefore, hold
the wires from their stems while
bringing them to the horizontal
or vertical positions.
basket
(depends on model)
In this model, the height setting of the
upper basket may be changed using the
wheels which are mounted at two dierent
heights.
Release the latches on both the right and
left tracks of the upper basket by pushing
them outwards
Preparation
(depends on model)
Ceiling cutlery basket is designed to wash
your cutlery items such as forks, spoons
and etc. by placing them between the bars
on the basket.
(depends on model)
Ceiling cutlery basket is designed to wash
your cutlery items such as forks, spoons
and etc. by placing them between the bars
on the basket.
1
In models with partial movement feature,
pushing the bar (1) on the handle enables
the central tray of the basket to get to
the lower position and the system gets
unlocked. Thus right and left side trays can
be used as moving parts.
The free space enabled by the side trays
allows long parts to be loaded in the upper
basket.
When the central tray is in the lower
position, you can load long/high items such
as coee cups, ladles, etc. on the tray. When
the side trays lean on two side walls, the
handle can be pulled to allow the central
tray to rise and the system to be locked.
26 27

5
5Operating the product

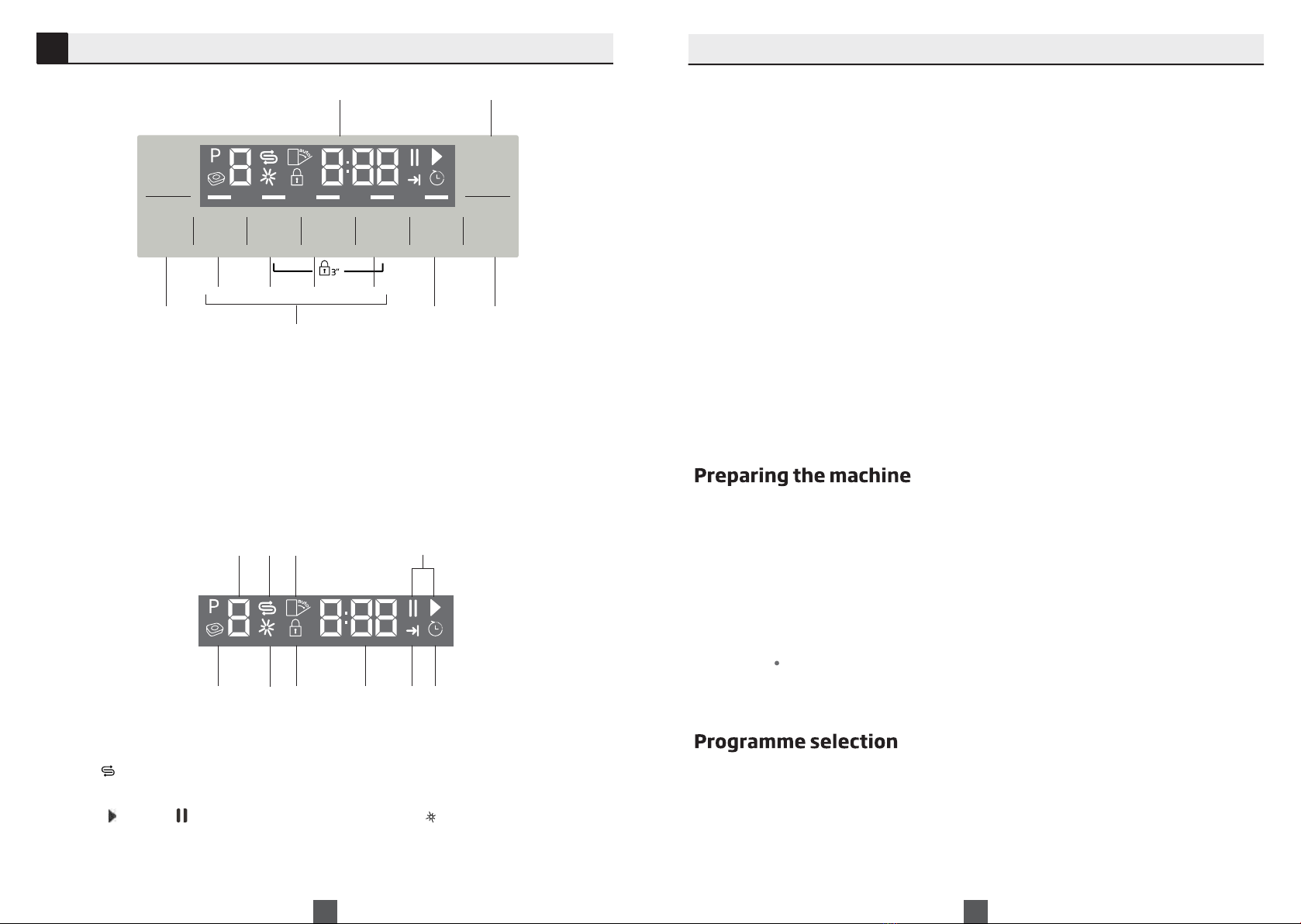

1. Display
2. On/O key
3. Start/Pause/Cancel key
4. Time Delay key
7. Programme indicator
8. Salt ( ) indicator
9.
10. Start ( ) / Pause ( ) indicator
11. Time Delay indicator
5
5. Function keys
a)
b)
c)
d)
6. Programme Selection keys
12. End of Programme indicator
13. Screen information line
14. Child Lock indicator
15. Rinse aid ( ) indicator
16.
1 2
34
5
6
a b c d
7 8 9 10
111213141516
Half Load Function
AquaIntense Function
Fast+ Function
SteamGloss Function
Not in use
Not in use
Operating the product
Keys
On / O key
It is used to turn on or o the machine.
Press On / O Key to switch ON.
Machine will turn on with economy
programme in On mode and the number
of the economy programme will appear on
the programme indicator. In O position,
indicators on the display will turn o.
Start / Pause / Cancel key
It is used to start, pause or cancel a selected
programme or function.
Programme Selection keys
They are used to select the washing
programme you determined from the
table of “Programme data and average
consumption values”.
Delayed Start key
It should be pressed to make the time delay
settings.
1. Open the door of the dishwasher.
2. Place the dishes in accordance with the
instructions in the user manual.
3. Make sure that the upper and lower
impellers rotate freely.
4. Put adequate amount of detergent into
the detergent dispenser.
5. Check if the Salt and Rinse Aid
indicators light and add salt and/or
rinse aid if needed.
6. Close the door of the dishwasher.
1. Press the On/O button to turn on
your machine.
2. Refer to the table of "Programme data
and average consumption values"
to determine a washing programme
suitable for your dishes.
3. Press Programme Selection keys until
the number of the programme you
selected appears on the Programme
indicator. Use P+ to switch to the next
programme, and P- to switch to the
previous one.
28 29

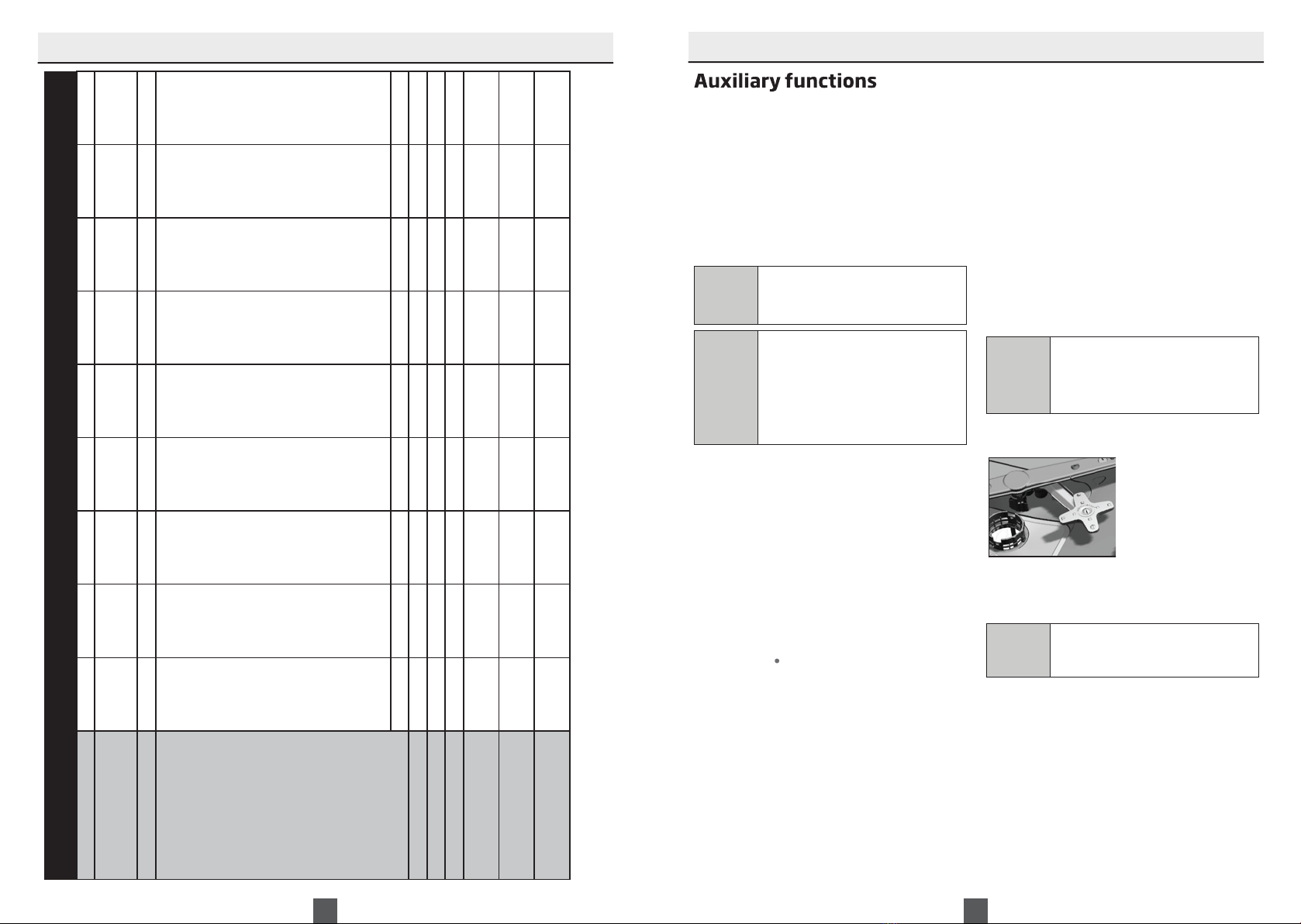

Operating the product
01234567
8
InnerClean Eco * Auto AquaFlex Intensive Quick&Shine GlassCare Mini 30 Prewash
-50 ºC 40-65 ºC 55 ºC 70 ºC 60 ºC 40 ºC 35 ºC -
This programme is
recommendedto be
operated on every 1-
2
months for machine
cleaning and
necessary hygiene.
The programme
should be operated
while the machine is
empty.
In order to achieve
an efficient result
use together with
special machine
cleaning agents
Most economical
washing
programmefor the
medium soiled daily
dishes that are kept
waiting.
Determines the
soiling degree of
the dishes and sets
the temperature
and amount of the
washing water as
well as the washing
time automatically.
Suitable for all
types of dishes.
It is the most
suitable washing
programmefor daily
mixed dishes
including plastic
items. While
delicate glass items
are washed in the
upper basket, pans
and trays can be
washed in the lower
basket.
Suitable for heavily
soiled dishes, pots
and pans.
Daily washing
programmefor
normally soiled
dishes in the fastest
way.
Special programme
for gentle cleaning
of delicate
glassware.
Suitable for lightly
soiled daily dishes
that are scraped or
pre-cleaned.
Suitable for
removing the
remnants on the
soiled dishes that
will be kept waiting
in the machine for a
few days, and thus,
for preventing the
bad odour buildup.
- Medium Mediumto high MediumHigh MediumLowLow -
-++++ - + - + -
++++++
+ -
-++++++ - -
75 220 110-178203170 58 120 30 15
15,2 9,5 9,4-12,4 19 16,8 10,6 13,6 10,8 4
0,70 0,93 0,90-1,45 1,53 1,51 1,18 1,20 0,80 -
Degree of Soiling Energy (kWh)
Prewash Wash Dry Duration (min)
Water (I)
Programme Table
The consumption values shown in the table were determined under standard conditions. Differences may therefore occur under practical conditions. * Reference programme for testing
institutes. The tests in accordance with EN 50242 must be carried out with a full water softener salt dispenser and a full rinse aid reservoir, and using the test programme.
Programme number
Programme name Cleaning temperature
Operating the product
Washing programmes of your dishwasher
are designed to obtain the best cleaning
eect, considering the type of the soil,
soiling degree and properties of the dishes
to be washed.
Auxiliary functions are provided in order to
enable you to save time, water and energy
and to perform a more comfortable washing
with conditions specic to you.
C
Auxiliary functions may cause
changes in the programme
duration.
C
Auxiliary functions are not
suitable for all washing
programmes. Indicator of the
auxiliary function that is not
compatible with the programme
will not be active.
To add auxiliary function to the
programme:
1. Select the desired washing programme
by pressing the programme selection
key.
2. In the selected washing programme,
if auxiliary function is selected, its
symbol will be displayed on the screen.
If the function button is pressed again
the symbol will disappear and selection
is cancelled.
3. Selection will be cancelled when you
press the function key again.
Half Load function
It is used to operate the machine without
loading it completely.
1. Load your dishes in the machine as you
like.
2. Turn the machine on with On/O key.
3. Select the desired programme and
press the Half Load key. The Half Load
indicator will light on the display in the
Function Selected indicator.
4. Start the programme by pressing Start
/ Pause / Cancel key.
C
With the Half Load function you
can save both water and power
while using the lower and upper
baskets of the machine.
AquaIntense Function
AquaIntense impeller
located under the
lower impeller helps
washing your heavily
soiled dishes places in
the right side of the
lower basket. It will give better results to
place the most soiled dish to the right front
side.
C
Do not try to remove the
AquaIntense impeller!
SteamGloss Function
It provides superior drying performance.
Fast+ Function
It shortens the time of the washing cycle
selected and decreases water consumption
by enabling washing under higher pressure.
30 31

Operating the product
Time Delay
If an economical electricity tari is applied
in your region, you can use the Time
Delay function to wash your dishes during
appropriate hours.
You can delay the start of the selected
programme until 24 hours. Time Delay
cannot be set after the programme starts.
1. Press the Time Delay function key after
selecting the washing programme and
other auxiliary functions.
2. Once you press the Time Delay key,
Display Information Line will show
"0:30" and Time Delay indicator will
start ashing.
3. Set the desired time by pressing the
Time Delay key. Time will increase with
increments of 30 minutes up to 6 hours
and after that in 1 hour increments up
to 24 hours every time you press the
key.
Auto Tablet Feature
Auto Tablet is a feature which detects
the use of combined tablet detergents
automatically.
C
Drying performance of these
type of detergents is improved
by adjusting temperature and
duration accordingly.
Owing to this feature, there is no need
to press any button in case of a tablet
detergent use.
Feature can be activated if automatic
detection is not desired.
To activate / to deactivate:
1. After turning on the machine,
press Time Delay and P+ keys
simultaneously. Keep them pressed
until the countdown 3, 2, 1 is completed
on the display.
2. Press P+ key to activate the a: option.
Automatic detergent detection feature
is disabled at “a:0” option and enabled
at "a:1" option. Set the desired option by
pressing the Time Delay key.
3. Turn o the machine with On/O key
to save the changes.
Interior Lighting
(Depends on the model)
Some models have interior lighting to
illuminate the interior when the door is
opened.
Changing the interior lighting
setting
1. After turning on the machine,
press Time Delay and P+ keys
simultaneously. Continue to press until
the countdown 3, 2, 1 is completed on
the display.
2. Press P+ key to activate the L: option.
The interior lighting is turned o at
"L:0" option and turned on at "L:1"
option. Set the desired option with the
Time Delay key.
3. Turn o the machine with On/O key
to save the changes.
Floor illumination
Warning to show that machine is
in washing phase
(depends on the model)
Your machine reects a light to the oor
during the washing process. This light turns
o after the washing process is complete.
C
Floor illumination is activated
automatically when the
washing programme starts and
remains lit until the end of the
programme.
C
Floor illumination cannot be
cancelled by the user.
Operating the product
4. Press Start / Pause / Cancel key to
start countdown for the Time Delay.
Time Delay indicator and Start / Pause
indicator will light continuously until
the end of the period. Time Delay is
displayed on the Display Information
Line. Selected programme will start as
soon as the countdown is over.
Changing the settings while Time
Delay function is enabled
While the Time Delay function is activated,
you cannot make changes in the washing
programme, auxiliary functions or the
duration of delay time.
C
Programme and auxiliary
functions cannot be set/
changed after the programme
has started.
To cancel the Time Delay function
1. Press and hold Start / Pause / Cancel
key for 3 seconds.
2. When the Start / Pause / Cancel key
is pressed and hold, "3", "2", "1" appear
on the Display Information Line. Time
Delay indicator will turn o at the
end of the cancellation process and
delaying process is cancelled.
C
You can select and start a
new programme following the
cancellation of Time Delay
function.
C
Time Delay function can not be
set after the programme starts.
Starting the programme
To start your machine after selecting the
programme and auxiliary functions, press
Start / Pause / Cancel key.
Once the programme starts a tune is
played and the estimated time remained
to the end of the programme will appear
on the Display Information Line. Start /
Pause / Cancel indicator starts lighting
continuously.
C
Your machine performs water
softening depending on the
hardness level of the supply
water. Remaining time displayed
towards the end in some
programmes can be dierent
from the time indicated at
the beginning due to this
process. The total time can also
change while the programme
is running depending on the
ambient temperature where
your machine is installed,
temperature of the supply
water and amount of the dishes.
C
Pay attention not to open the
door of the machine when it is
running. Stop the machine by
pressing Start / Pause / Cancel
key if you have to open the
door. Then, open the door of
the machine. There may be a
rush of vapour when you open
the door of your machine; be
careful. Close the door of your
machine and press Start/Pause/
Cancel key again. Programme
will resume running.
C
The machine will remain silent
in pause mode for some time
in order to remove the water in
the machine and on the dishes
completely and to have the
water softener cleaned, and
then it will resume running in
drying mode.
3332

Operating the product
Child (Key) Lock
You may prevent other people from
interrupting and changing the programme
cycle and time delay while the machine is
running.
To activate the Child Lock:
1. Pres Child (Key) Lock keys
simultaneously and hold for 3 seconds.
2. "3", "2", "1" is displayed on Display
Information Line and key lock is
activated.
C
Child Lock prevents the selected
programme or functions from
being changed and disables the
Start / Pause / Cancel key.
C
Child Lock does not lock the
door of the machine.
C
If you turn your machine o
by using On/O key at the
end of the programme, the
Child Lock will be deactivated
automatically.
C
For energy saving, the product
is automatically turned o
following the completion of the
programme or if the programme
is not started.
To deactivate the Child Lock:
1. Pres Child (Key) Lock keys
simultaneously and hold for 3 seconds.
2. "3", "2", "1" is displayed on Display
Information Line and key lock is
cancelled.
1. Press Start/Pause/Cancel key for 3
seconds to cancel the programme.
2. Release the key when the Start / Pause
indicator starts ashing. For a couple
of minutes the machine will fulll
the necessary operations required to
cancel the programme.
C
There might be residues of
detergent or rinse aid left in the
machine and / or on the pieces
being washed depending on the
step the programme you have
cancelled was in.
Salt indicator ( )
Please check the salt indicator on the
display to see whether there is adequate
amount of softening salt in the dishwasher
or not. You need to rell the salt reservoir
with salt whenever salt warning indicator
appears on the display of your machine.
C
Adjusting the water hardness
level is explained in Water
Softening System section.
Rinse Aid indicator ( )
Please check the rinse aid indicator on the
display to see whether there is adequate
amount of rinse aid in the dishwasher or
not. You need to rell the rinse aid reservoir
with rinse aid whenever rinse aid warning
indicator appears on the display of your
machine.
1. After turning on the machine,
press Time Delay and P+ keys
simultaneously. Keep them pressed
until the countdown 3, 2, 1 is completed
on the display.
2. Press P+ to move to position P on the
display.
Operating the product
InnerClean
This programme is recommended to be
operated on each 1-2 months for machine
cleaning and necessary hygiene. The
programme should be operated while the
machine is empty.
In order to achieve an ecient result, it is
recommended to use together with special
machine cleaning agents.
C
Do not use this programme to
clean dishes. As it operates in
high temperatures, it is harmful
for the dishes.
If mains water is cut or water inlet tap is
turned o the machine cannot take water
in and E:02 icon will ash on the programme
indicator. As long as the problem continues,
washing programme is paused and the
water inlet is checked regularly by the
machine; when the water is restored E:02
icon will disappear after a while and the
washing programme resumes.
If the machine intakes too much water or
there is leakage at any of the components
then the machine will detect this and E:01
icon will ash on the Programme indicator.
As long as the overowing continues safety
algorithm will be active and try to discharge
the water. If overowing stops and safety
is assured, E:01 icon will disappear. If E:01
does not disappear, there is a permanent
fault. In this case the authorised service
should be contacted.
3. Set to the appropriate level with the
Time Delay key.
4. Turn o the machine with On/O key
to save the changes.
No rinse aid dispensed in P:0 wash position.
1 dose of rinse aid is dispensed in P:1
position.
2 doses of rinse aid are dispensed in P:2
position.
3 doses of rinse aid are dispensed in P:3
position.
4 doses of rinse aid are dispensed in P:4
position.
End of programme
End of Programme indicator will light up
once the washing programme is over.
1. Press the On/O button to turn o
your machine.
2. Close the tap.
3. Unplug the machine from the socket.
C
For energy saving, the product
is automatically turned o
following the completion of the
programme or if the programme
is not started.
C
Leave your dishes in the
machine for about 15 minutes
to cool down after they are
washed. Your dishes will dry
in a shorter time if you leave
the door of your machine
ajar during this period. This
process will increase the drying
eectiveness of your machine.
3534

Maintenance and cleaning
6
Service life of the product extends and
frequently faced problems decrease if it is
cleaned at regular intervals.
A
Unplug the product and turn o
the tap before attempting any
cleaning procedures.
C
Do not use abrasive substances
for cleaning.
C
Clean the lter and impellers
at least once a week in order
for the machine operates
eciently.
of the product
Wipe the outer surface and door gaskets
of the product gently with a mild cleaning
material and damp cloth. Wipe the "Control
panel" only with a slightly damp cloth.
•Clean the interior of the machine and
the tank by running a programme with
or without detergent based on the
degree of soil.
•If water has remained in the machine,
drain the water by performing the
procedures under the topic "Canceling
a programme". If the water cannot
be discharged, remove the lters
as specied in the "Cleaning the
lters" section and check if there
are any leftover deposits that have
accumulated at the bottom of the
machine, blocking the water path.
Clean if necessary.
Clean the lters at least once a week in
order for the machine operates eciently.
Check if food residues are left on the lters.
If there are food residues on lters, take
them out and clean well under running
water.
1. Turn the micro lter (1) and coarse lter
(2) assembly counter clockwise and pull
it out from its seating.
2. Pull out the metal/plastic lter (3) from
the seating.
3. Press the two pawls on the coarse lter
inwards and separate the coarse lter
from the assembly.
Maintenance and cleaning
4. Clean all three lters under tap water
by means of a brush.
5. Place the metal/plastic lter.
6. Place the coarse lter into the micro
lter. Make sure that it is properly
seated. Turn the coarse lter clockwise
until a "click" sound is heard.
C
Do not use the dishwasher
without lter.
C
Incorrect placement of the lters
will reduce washing eciency.
Damages on the machine that may be
caused by impurities coming from the
urban supply water or your own water
installation (such as sand, dirt, rust, etc.)
can be prevented by means of the lter
attached to the water inlet hose. Check the
lter and the hose regularly and clean them
if necessary.
1. Turn o the tap and remove the hose.
2. After taking out the lter, clean it
under running tap water.
3. Place the cleaned lter back to its seat
in the hose.
4. Install the hose to tap.
(depends on model)
36 37

Maintenance and cleaning
Clean the impellers at least once a week in
order for the machine operates eciently.
Check if the holes on the lower impeller (1)
are clogged. If they are clogged, remove and
clean the impeller. You can pull the lower
impeller up to remove it.
Check if the holes on the upper impeller (1)
are clogged. If they are clogged, remove
and clean the impeller. Turn its nut to left to
remove the upper impeller.
Make sure that the nut is tightened well
when installing the upper impeller.
7Troubleshooting
Machine does not start.
• Power cable is unplugged. >>> Check if the power cable is plugged in.
• Fuse is blown. >>> Check the fuses in your house.
• Water is cut. >>> Make sure that the water inlet tap is open.
• Door of the machine is open. >>> Make sure that you have closed the door of the
machine.
• On / O button is not pressed. >>> Make sure that you have turned on the machine by
pressing the On / O button.
Dishes are not washed clean
• Dishes are not placed orderly in the machine. >>> Load the dishes as described in the
user manual.
• Selected programme is unsuitable. >>> Select a programme with a higher temperature
and cycle time.
• Impellers are stuck. >>> Prior to starting the programme, turn the lower and upper
impellers by hand to make sure that they rotate freely.
• Impeller holes are clogged. >>> Lower and upper impeller holes might be clogged with
food remnants such as lemon pips. Clean the impellers regularly as illustrated in section
“Cleaning and Care”.
• Filters are clogged. >>> Check if the lter system is clean. Clean the lter system
regularly as illustrated in section “Cleaning and Care”.
• Filters are installed incorrectly. >>> Check the lter system and make sure that it is
installed correctly.
• Baskets are overloaded. >>> Do not overload the baskets in excess of their capacity.
• Detergent is stored under unsuitable conditions. >>> If you are using powder
detergent, do not store the detergent package in humid places. Keep it in a closed
container if possible. For ease-of-storing, we recommend you to use tablet detergents.
• Detergent is not sucient. >>> If you are using powder detergent, adjust the amount
of detergent according to the soiling degree of your dishes and/or programme
denitions. We recommend you to use tablet detergents for optimum results.
• Rinse aid is not sucient. >>> Check the rinse aid indicator and add rinse aid if
necessary. Increase the rinse aid setting if there is enough amount of rinse aid in the
machine.
• Detergent dispenser lid is left open. >>> Make sure that the detergent dispenser lid is
closed tightly after adding detergent.
Dishes are not dry at the end of cycle
• Dishes are not placed orderly in the machine. >>> Place your dishes in a way that no
water will accumulate in them.
38 39
