dbx DriveRack PX User manual

®
Quick Start Guide
An illustrated guide to setting up your DriveRack®PX
PX

2
GND
SUB OUTPUTS
Manufactured under the following U.S. Patents:
3,789,143; 4,182,993; 6,195,029; 7,203,324.
PX
R
UL 60065 IEC 60065
120V - 60Hz
Right
Main
Pan
Mute
-10
0
+5
+10
-20
-30
-
-5
L / R
Mute
L / R
Mute
L / R
Mute
L / R
-5
-4
-3
-2
-1 0+1
+2
+3
+4
+5 Pan -5
-4
-3
-2
-1 0+1
+2
+3
+4
+5 Pan -5
-4
-3
-2
-1 0+1
+2
+3
+4
+5 Pan -5
-4
-3
-2
-1 0+1
+2
+3
+4
+5 Pan -5
-4
-3
-2
-1 0+1
+2
+3
+4
+5 Pan -5
-4
-3
-2
-1 0+1
+2
+3
+4
+5 Pan -5
-4
-3
-2
-1 0+1
+2
+3
+4
+5 Pan -5
-4
-3
-2
-1 0+1
+2
+3
+4
+5
1234
-10
0
+5
+10
-20
-30
-
-5
-10
0
+5
+10
-20
-30
-
-5
-10
0
+5
+10
-20
-30
-
-5
Mute
L / R
5
-10
0
+5
+10
-20
-30
-
-5
Mute
L / R
6
-10
0
+5
+10
-20
-30
-
-5
Mute
L / R
-10
0
+5
+10
-20
-30
-
-5
Aux 1
0
2
46
8
10
Aux 2
0
2
46
8
10
Aux 1
0
2
46
8
10
Aux 2
0
2
46
8
10
Aux 1
0
2
46
8
10
Aux 2
0
2
46
8
10
Aux 1
0
2
46
8
10
Aux 2
0
2
46
8
10
Aux 1
0
2
46
8
10
Aux 2
0
2
46
8
10
Aux 1
0
2
46
8
10
Aux 2
0
2
46
8
10
Aux 1
0
2
46
8
10
Aux 2
0
2
46
8
10
Aux 1
0
2
46
8
10
Aux 2
0
2
46
8
10
Mute
L / R
-10
0
+5
+10
-20
-30
-
-5
Mixer
JBL PRX515
JBL PRX518
Left
Main
Right
Sub
Left/Mono
Sub
Left/Mono
Input
Right
Input
JBL PRX515
JBL PRX518
This Quick Start Guide will walk you through your first and subsequent setups, step by step. To keep things
simple, we’ll use a common powered speaker setup: two mains and two subwoofers, shown below. (For dia-
grams of additional setups, refer to your User’s Manual.) If you’re not using subwoofers, just disregard instruc-
tions that refer to subwoofers. For this example, we’ll use JBL PRX515’s and JBL PRX518’s, but you can use
almost any powered speakers and powered subwoofers with the DriveRack PX.
If you’re using the DriveRack PX for the first time, begin on page 3.
If you’ve already set up and saved a preset for your powered speakers, and just want to optimize your powered
speakers for a new room or venue, begin on page 14.

3
First-time Setup - Creating a New Preset

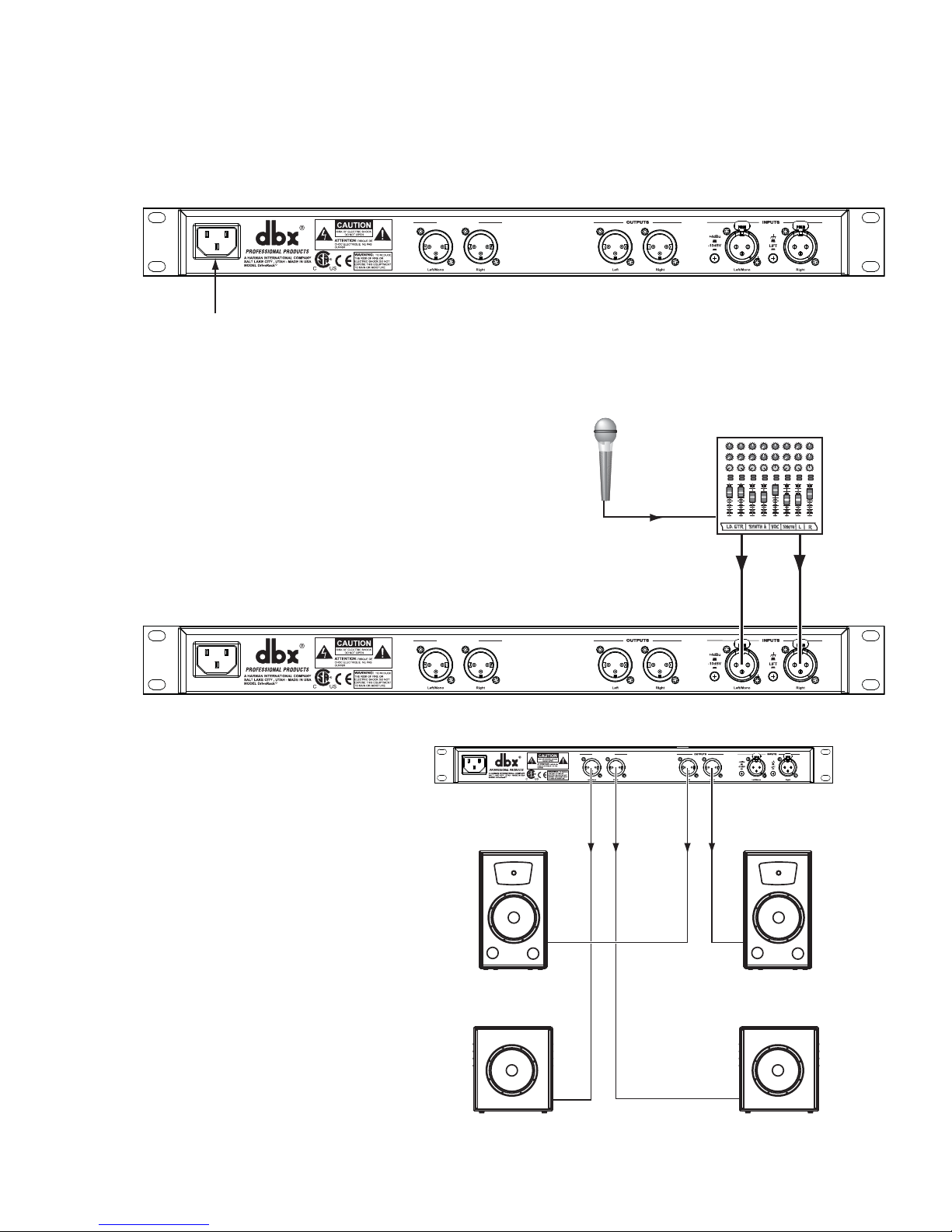

Remove the DriveRack PX from its box.
Rack mount the DriveRack PX and connnect the power cord.
GND
SUB OUTPUTS
Manufactured under the following U.S. Patents:
3,789,143; 4,182,993; 6,195,029; 7,203,324.
PX
R
UL 60065 IEC 60065
120V - 60Hz
Attach power cord here.
Connect the mixer left and right outputs to the DriveRack PX Left/Mono and Right Inputs.
GND
SUB OUTPUTS
Manufactured under the following U.S. Patents:
3,789,143; 4,182,993; 6,195,029; 7,203,324.
PX
R
UL 60065 IEC 60065
120V - 60Hz
Pan
Mute
-10
0
+5
+10
-20
-30
-
-5
L/ R
Mute
L/ R
Mute
L/ R
Mute
L/ R
-5
-4
-3
-2
-1 0+1
+2
+3
+4
+5 Pan -5
-4
-3
-2
-1 0+1
+2
+3
+4
+5 Pan -5
-4
-3
-2
-1 0+1
+2
+3
+4
+5 Pan -5
-4
-3
-2
-1 0+1
+2
+3
+4
+5 Pan -5
-4
-3
-2
-1 0+1
+2
+3
+4
+5 Pan -5
-4
-3
-2
-1 0+1
+2
+3
+4
+5 Pan -5
-4
-3
-2
-1 0+1
+2
+3
+4
+5 Pan -5
-4
-3
-2
-1 0+1
+2
+3
+4
+5
1234
-10
0
+5
+10
-20
-30
-
-5
-10
0
+5
+10
-20
-30
-
-5
-10
0
+5
+10
-20
-30
-
-5
Mute
L/ R
5
-10
0
+5
+10
-20
-30
-
-5
Mute
L/ R
6
-10
0
+5
+10
-20
-30
-
-5
Mute
L/ R
-10
0
+5
+10
-20
-30
-
-5
Aux1
0
2
46
8
10
Aux2
0
2
46
8
10
Aux1
0
2
46
8
10
Aux2
0
2
46
8
10
Aux1
0
2
46
8
10
Aux2
0
2
46
8
10
Aux1
0
2
46
8
10
Aux2
0
2
46
8
10
Aux1
0
2
46
8
10
Aux2
0
2
46
8
10
Aux1
0
2
46
8
10
Aux2
0
2
46
8
10
Aux1
0
2
46
8
10
Aux2
0
2
46
8
10
Aux1
0
2
46
8
10
Aux2
0
2
46
8
10
Mute
L/ R
-10
0
+5
+10
-20
-30
-
-5
Mixer
Left/Mono
Input
Right
Input
Make sure your powered speakers and
subwoofers are turned off.
Connect the Left and Right “OUTPUTS” to
the left and right main powered speakers.
Connect the Left/Mono and Right “SUB
OUTPUTS” to the left and right subwoof-
ers.
1.
2.
3. GND
SUB OUTPUTS
Manufactured under the following U.S. Patents:
3,789,143; 4,182,993; 6,195,029; 7,203,324.
PX
R
UL 60065 IEC60065
120V- 60Hz
Right
Main
JBL PRX515
JBL PRX518
Left
Main
Right
Sub
Left/Mono
Sub
JBL PRX515
JBL PRX518

4
Turn the mixer master faders down. Turn on the mixer.
Make sure the controls on your powered speakers are set the same on both speakers. For example, if
you’re using subs, and they have a polarity setting, make sure they’re both set to the same polarity.
Also, if your powered speakers have a Mic/Line setting, make sure they’re both set to Line, and if they
have their own EQ settings, disable the EQ settings on the powered speakers. Turn the level control
knobs on your powered speakers all the way down. Turn on your powered speakers and subwoofers now.
Now let’s create a preset to match your powered speakers. This preset is based on JBL PRX515’s and
JBL PRX518’s for illustration purposes.
SETUP
AFS
RECALL
SUBHARMONIC
COMP/LIMITER
UTILITY
PRESET
NEXT PG
STORE
EQ
WIZARD
UTILITY
PREV PG
WIZARD
Press and hold the SETUP button
until“System Setup WIZARD” appears
in the display.
E
LP
L
R
OUT
SUB
L
PL
Q
R
C
A
F
S
S
U
B
StOutwStSub
1
USER
L
R
SETUP
AFS
RECALL
SUBHARMONIC
COMP/LIMITER
UTILITY
PRESET
NEXT PG
STORE
EQ
WIZARD
UTILITY
PREV PG
WIZARD
Press the NEXT PG button.

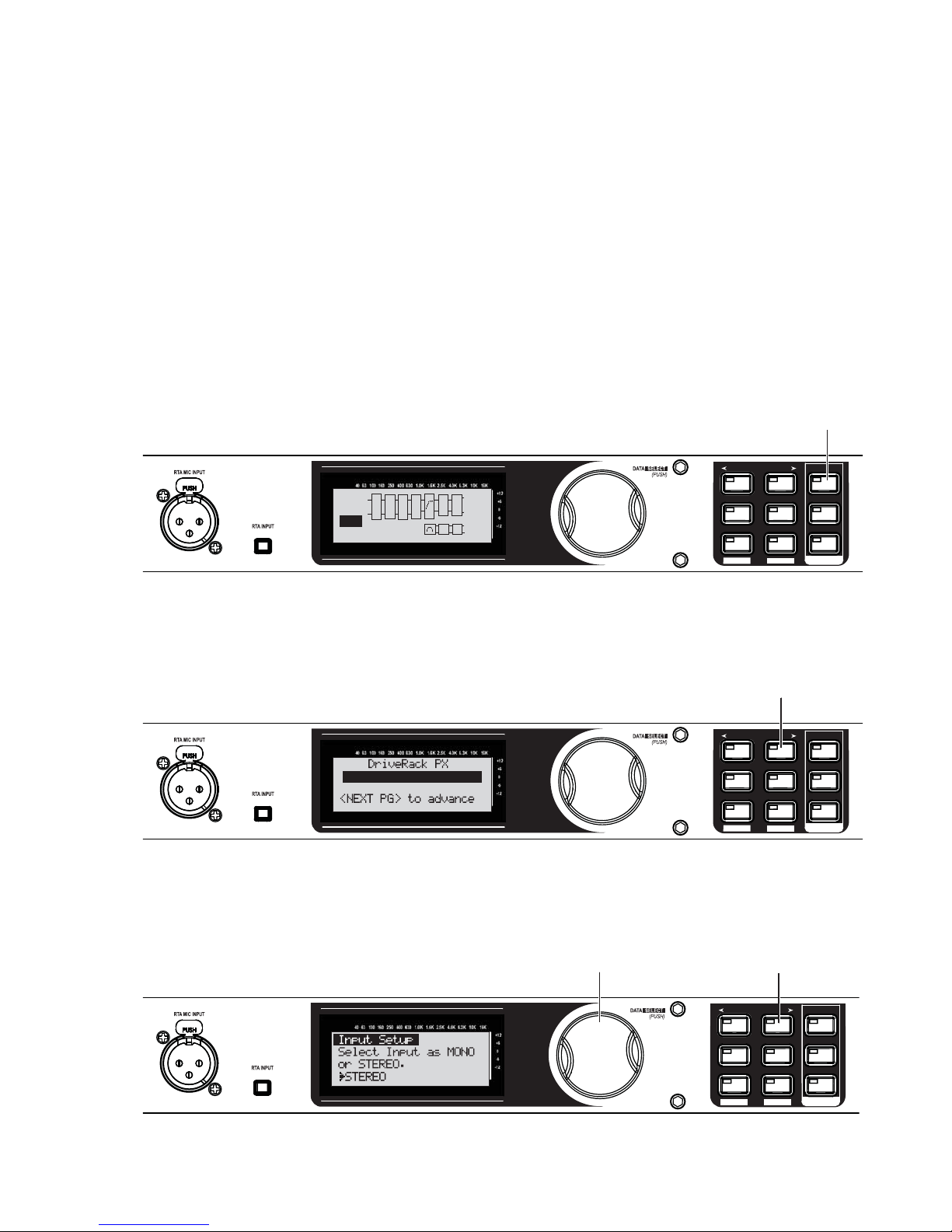

System Setup WIZARD
SETUP
AFS
RECALL
SUBHARMONIC
COMP/LIMITER
UTILITY
PRESET
NEXT PG
STORE
EQ
WIZARD
UTILITY
PREV PG
WIZARD
A. For this example, turn the
Data Wheel to select STEREO. B. Press the NEXT PG button.
4.
5.
6.
7.

5
SETUP
AFS
RECALL
SUBHARMONIC
COMP/LIMITER
UTILITY
PRESET
NEXT PG
STORE
EQ
WIZARD
UTILITY
PREV PG
WIZARD
A.Turn the Data Wheel to select your
main speakers (for our example,
select PRX515).
B. Press the NEXT PG button.
PRX515
JBL PRX500
Main Speakers
SETUP
AFS
RECALL
SUBHARMONIC
COMP/LIMITER
UTILITY
PRESET
NEXT PG
STORE
EQ
WIZARD
UTILITY
PREV PG
WIZARD
A.Turn the Data Wheel to select your
subwoofer speakers (for our example,
select PRX518S STEREO).
B. Press the NEXT PG button.
PRX518S STEREO
JBL PRX500
Sub Speakers
Sub(s)
SETUP
AFS
RECALL
SUBHARMONIC
COMP/LIMITER
UTILITY
PRESET
NEXT PG
STORE
EQ
WIZARD
UTILITY
PREV PG
WIZARD
B. Press the NEXT PG button.
A. Set the level knobs on your main speakers
to match the position shown on the display.
(Note that you also have the option to turn the Data
Wheel to adjust the level shown on the display
to match a preferred setting on your speakers.)
Adjust speaker
levels as shown
> 36% Level
Main Speaker Levels
8.
9.
10.

6
SETUP
AFS
RECALL
SUBHARMONIC
COMP/LIMITER
UTILITY
PRESET
NEXT PG
STORE
EQ
WIZARD
UTILITY
PREV PG
WIZARD
B. Press the NEXT PG button.
A. Set the level knobs on your subwoofer speakers
to match the position shown on the display.
(Note that you also have the option to turn the Data
Wheel to adjust the level shown on the display
to match a preferred setting on your speakers.)
Adjust speaker
levels as shown
> 21% Level
Sub Speaker Levels
SETUP
AFS
RECALL
SUBHARMONIC
COMP/LIMITER
UTILITY
PRESET
NEXT PG
STORE
EQ
WIZARD
UTILITY
PREV PG
WIZARD
Press the Data Wheel to load the preset you just created.
Press Select to Load
> New Preset
Load New Preset
SETUP
AFS
RECALL
SUBHARMONIC
COMP/LIMITER
UTILITY
PRESET
NEXT PG
STORE
EQ
WIZARD
UTILITY
PREV PG
WIZARD

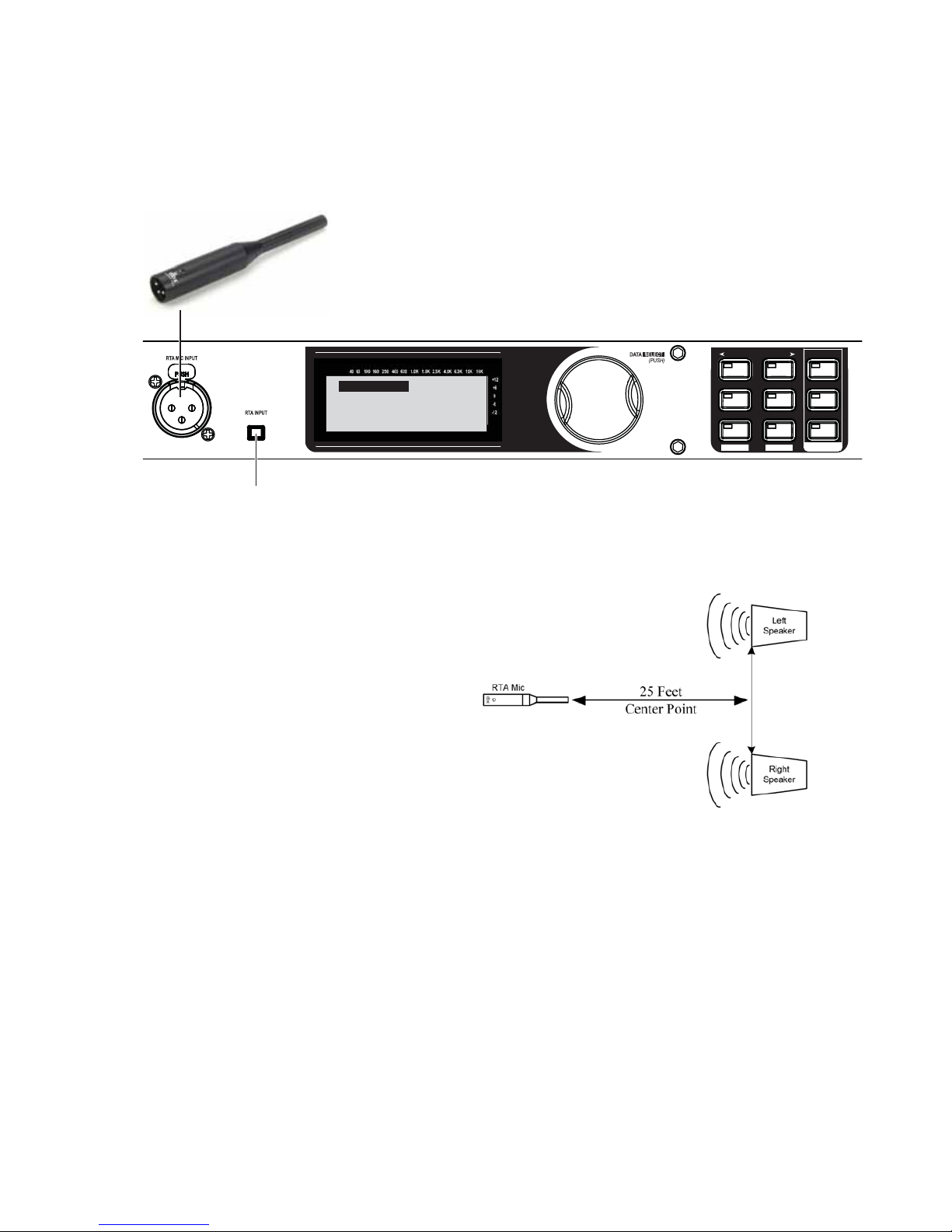

A. Connect the included dbx M2 RTA mic to the
RTA MIC INPUT using an XLR cable at least 25’ long.
B. Press the RTA INPUT button.
Connect mic to RTA
input. Press RTA
input button.
Auto Level
11.
12.
13.

7
With the RTA mic connected, place the RTA
mic on a mic stand and aim it between the
left and right main speakers approximately
25’ away.

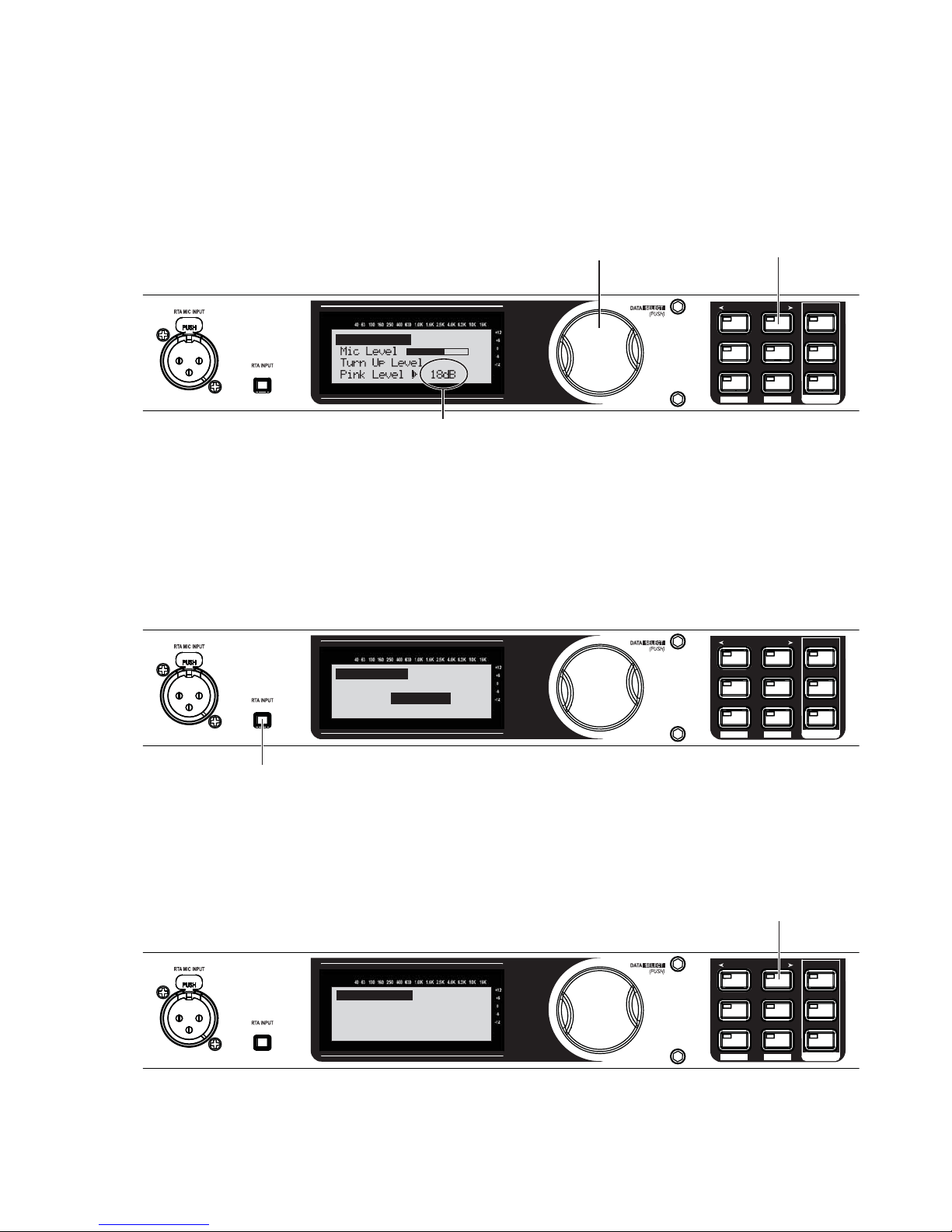

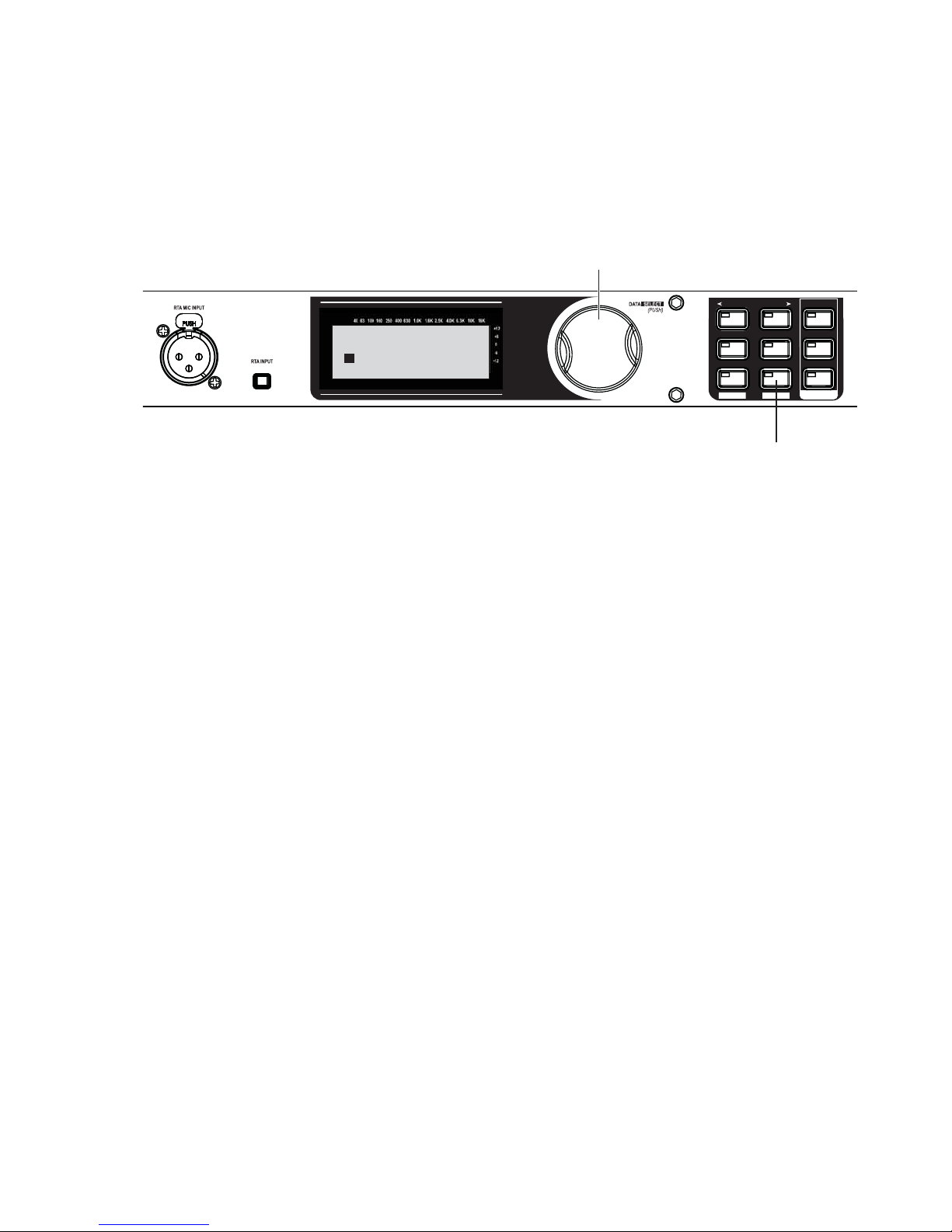

Turn the Data Wheel until pink noise is playing through your speakers at performance level (the same
volume you intend to use during your performance). The words “SET TO PERFORMANCE LEVEL” will ap-
pear in the display when you have passed the minimum threshold. Set level higher as needed.
SETUP
AFS
RECALL
SUBHARMONIC
COMP/LIMITER
UTILITY
PRESET
NEXT PG
STORE
EQ
WIZARD
UTILITY
PREV PG
WIZARD
A.Turn the Data Wheel to adjust pink noise level.
B. Press the NEXT PG button
when your performance
level is reached.
0 dB to 6 dB typical.
Auto Level
When performance level is reached, press the NEXT PG button. The DriveRack PX will now adjust the
balance between left/right levels for your main speakers (and your subs, if you have them). Note that
you may be prompted to readjust your speaker knob settings if needed.
When the display reads “Auto Level Complete,” release the RTA INPUT button.
SETUP
AFS
RECALL
SUBHARMONIC
COMP/LIMITER
UTILITY
PRESET
NEXT PG
STORE
EQ
WIZARD
UTILITY
PREV PG
WIZARD
Press the RTA INPUT button to release.
Auto Level Complete
Release RTA INPUT
button to exit.
14.
15.
16.

8
SETUP
AFS
RECALL
SUBHARMONIC
COMP/LIMITER
UTILITY
PRESET
NEXT PG
STORE
EQ
WIZARD
UTILITY
PREV PG
WIZARD
PRX515 wSub Loaded
and levels balanced.
<NEXT PG>-Auto EQ
<PRESET)-Exit Wizard
Press the NEXT PG button.
Now the Auto-EQ wizard will begin.
SETUP
AFS
RECALL
SUBHARMONIC
COMP/LIMITER
UTILITY
PRESET
NEXT PG
STORE
EQ
WIZARD
UTILITY
PREV PG
WIZARD
Press the NEXT PG button.
DriveRack PX
Auto EQ WIZARD
<NEXT PG> to advance

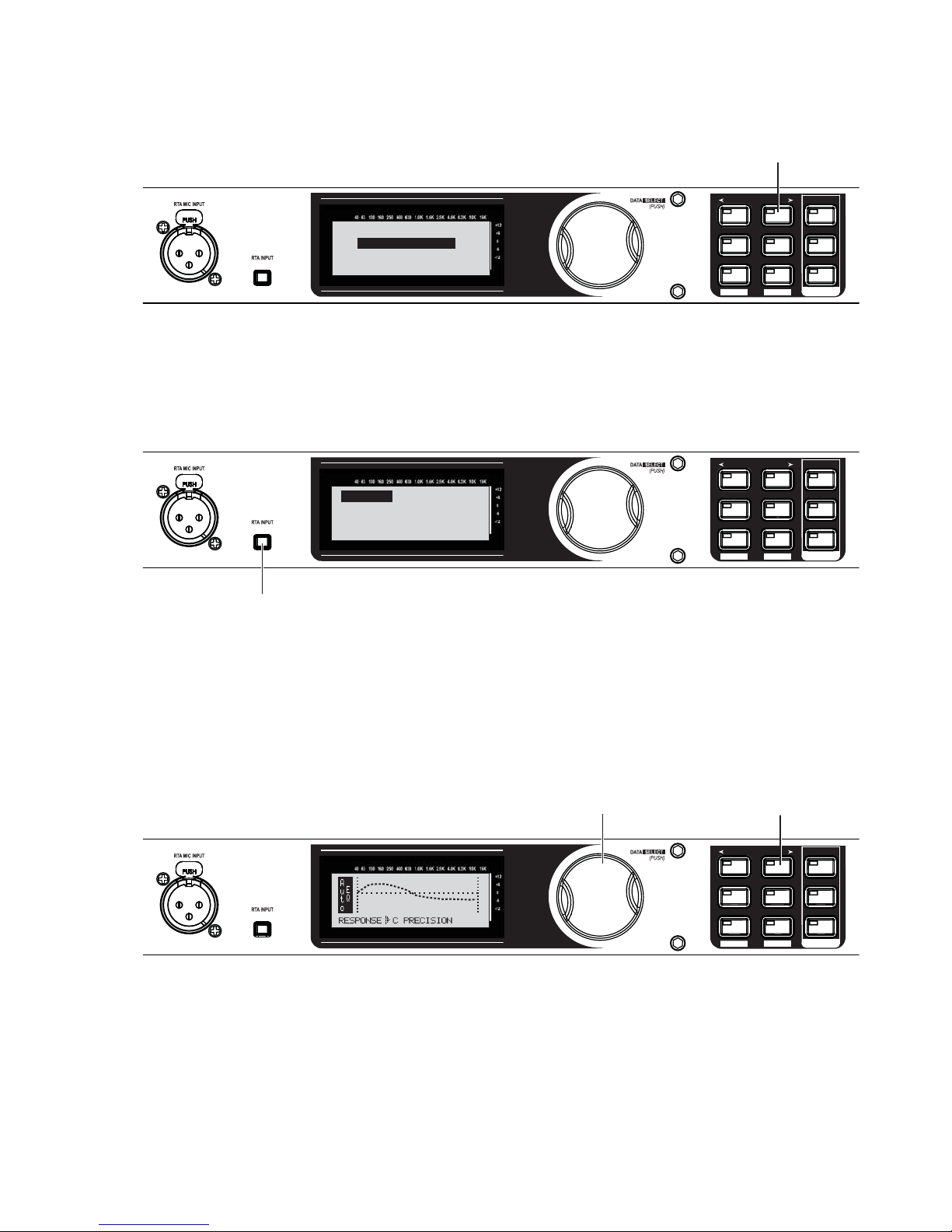

With the RTA microphone still connected and in the same position as in step 14, press the RTA INPUT
button.
SETUP
AFS
RECALL
SUBHARMONIC
COMP/LIMITER
UTILITY
PRESET
NEXT PG
STORE
EQ
WIZARD
UTILITY
PREV PG
WIZARD
Press the RTA INPUT button.
Connect mic to RTA
input. Press RTA
input button.
Auto EQ
17.
18.
19.

9

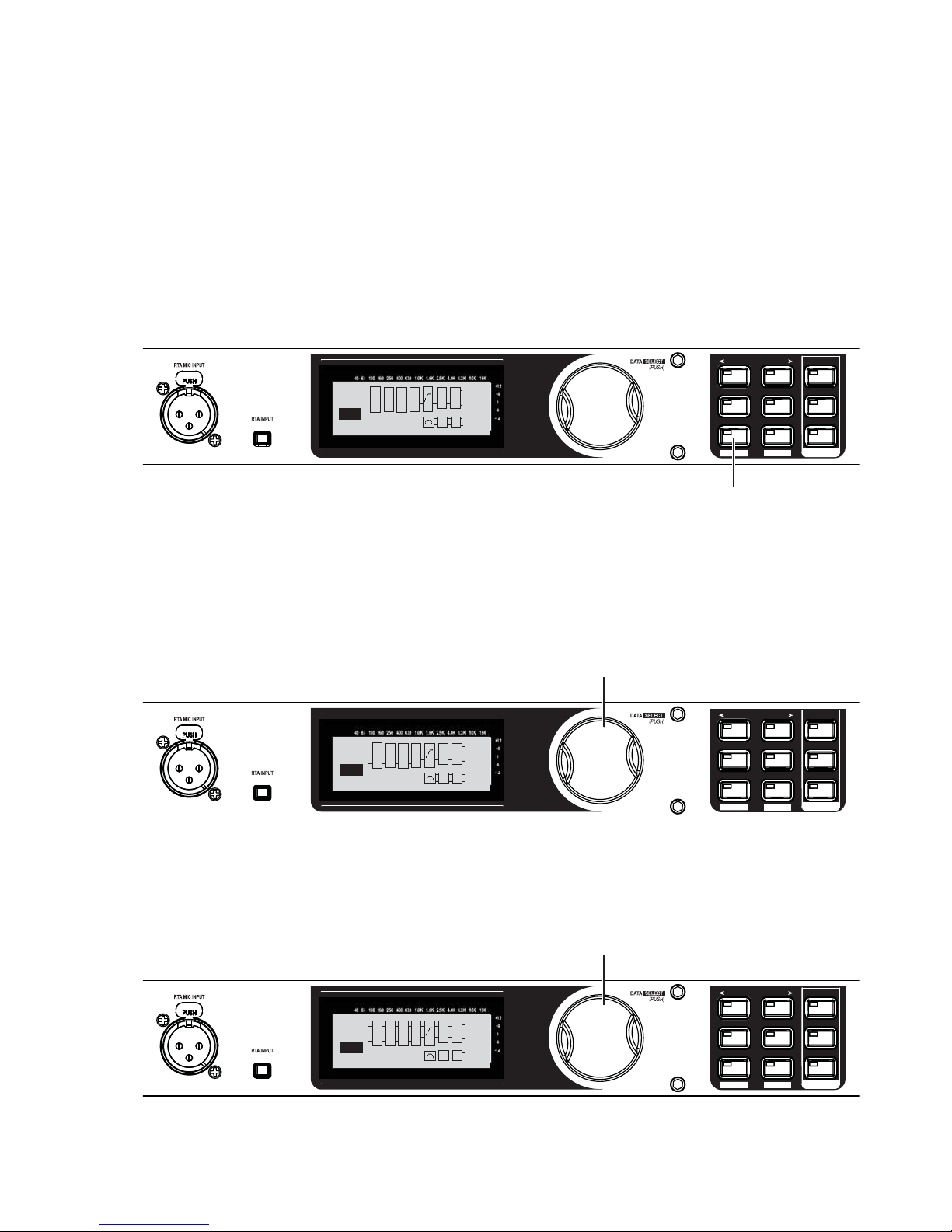

Turn the Data Wheel to select a frequency response for the Auto-EQ. For our example, select Response
C. Then press the <Next pg> button to continue. Auto-EQ will match the curve selected.
SETUP
AFS
RECALL
SUBHARMONIC
COMP/LIMITER
UTILITY
PRESET
NEXT PG
STORE
EQ
WIZARD
UTILITY
PREV PG
WIZARD
MED
B. Press the
NEXT PG button.
A.Turn the Data Wheel
to select a frequency
response for the Auto-EQ.
Turn the Data Wheel until pink noise is playing through your speakers at performance level. The words
“SET TO PERFORMANCE LEVEL” will appear in the Display when you have passed the minimum threshold.
Set level higher as needed. Press the <Next pg> button to continue.
SETUP
AFS
RECALL
SUBHARMONIC
COMP/LIMITER
UTILITY
PRESET
NEXT PG
STORE
EQ
WIZARD
UTILITY
PREV PG
WIZARD
A.Turn the Data Wheel to adjust pink noise level.
B. Press the NEXT PG button
when your performance
level is reached.
0 db to 6 dB typical.
Auto EQ
The Auto-EQ will go through some audible changes as it tunes the speakers to the room. This may take
a few minutes.
SETUP
AFS
RECALL
SUBHARMONIC
COMP/LIMITER
UTILITY
PRESET
NEXT PG
STORE
EQ
WIZARD
UTILITY
PREV PG
WIZARD
20.
21.
22.

10

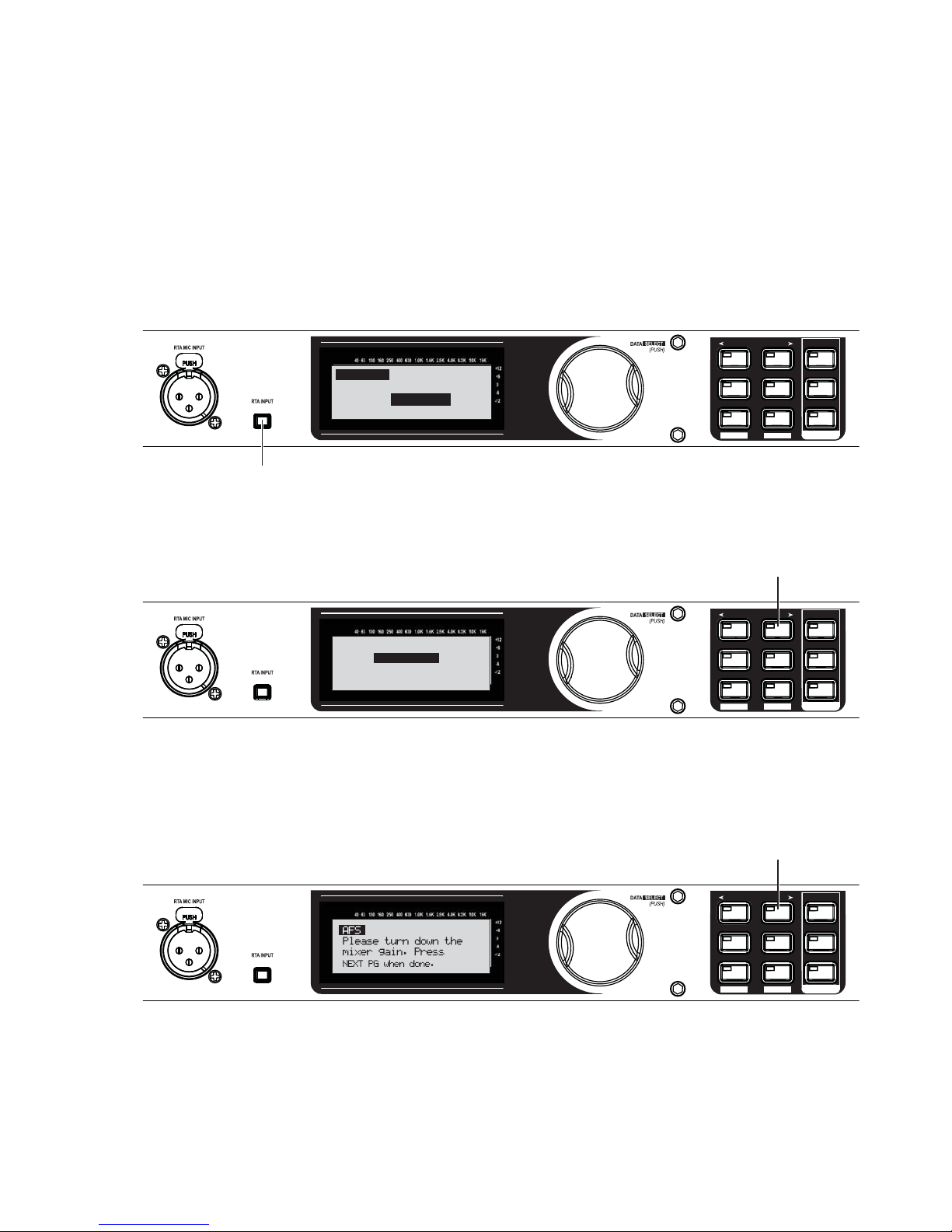

Auto-EQ will complete or finish sending pink noise once it has come as close as possible to matching
the Frequency response you selected earlier. Press the RTA INPUT button to release it and continue on
to the AFS wizard.
NOTE: If the Auto-EQ doesn’t complete after several minutes, you may need to press the RTA INPUT
button to release it and continue on the AFS wizard. You can do this during the Auto-EQ process, or
when the Auto-EQ wizard prompts you.
SETUP
AFS
RECALL
SUBHARMONIC
COMP/LIMITER
UTILITY
PRESET
NEXT PG
STORE
EQ
WIZARD
UTILITY
PREV PG
WIZARD
Press the RTA INPUT button.
Auto EQ Complete
Release RTA INPUT
button to exit.
Now the AFS wizard will begin.
SETUP
AFS
RECALL
SUBHARMONIC
COMP/LIMITER
UTILITY
PRESET
NEXT PG
STORE
EQ
WIZARD
UTILITY
PREV PG
WIZARD
Press the NEXT PG button.
DriveRack PX
AFS WIZARD
<NEXT PG> to advance
SETUP
AFS
RECALL
SUBHARMONIC
COMP/LIMITER
UTILITY
PRESET
NEXT PG
STORE
EQ
WIZARD
UTILITY
PREV PG
WIZARD
B. Press the NEXT PG button.
A.Turn down the mixer Master or
Main level faders on your mixer.
23.
24.
25.

11

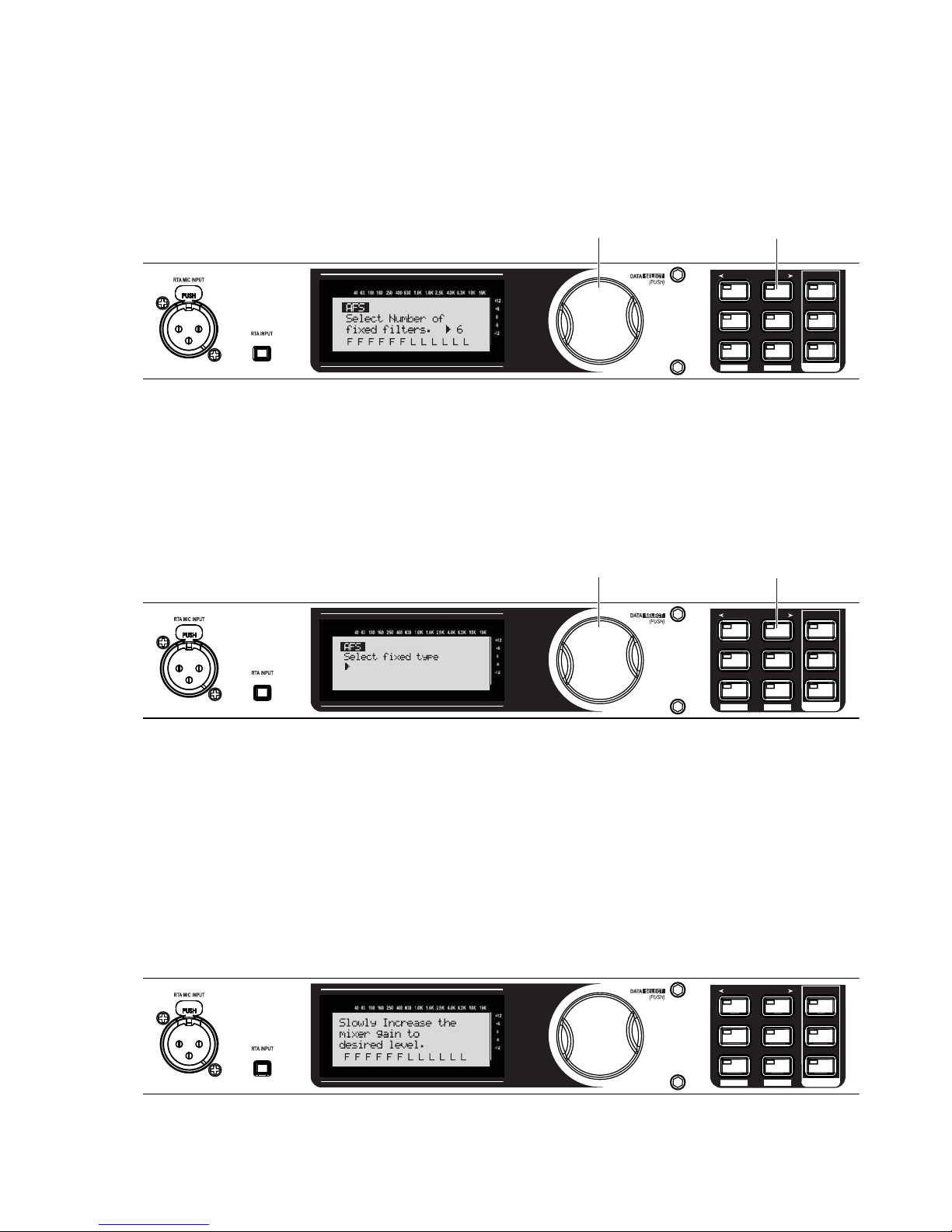

Turn the Data Wheel to choose the number of fixed filters to use with Advanced Feedback Suppression.
These filters, once populated or FIXED, will stay at the set frequency and level. LIVE “L” filters will
change as needed during a performance.
SETUP
AFS
RECALL
SUBHARMONIC
COMP/LIMITER
UTILITY
PRESET
NEXT PG
STORE
EQ
WIZARD
UTILITY
PREV PG
WIZARD
A.Turn the Data Wheel to select the number of fixed filters.
B. Press the
NEXT PG button.
Turn the Data Wheel to choose the EQ notch filter width appropriate for your needs. Speech is a wide
filter, Music Low is a narrow filter, Music Medium is a very narrow filter, and Music High is an ultra nar-
row filter. We’ll use Music High for our example.
SETUP
AFS
RECALL
SUBHARMONIC
COMP/LIMITER
UTILITY
PRESET
NEXT PG
STORE
EQ
WIZARD
UTILITY
PREV PG
WIZARD
A.Turn the Data Wheel to select the EQ notch filter type.
B. Press the
NEXT PG button.
Music High
Ultra Narrow Notch
With the channel faders down, set the mixer’s master level to zero (0 dB). With the microphones you’ll
be using during the performance in place and connected, turn up microphone channel levels until feed-
back begins. The AFS will start to populate the Advanced Feedback Suppression fixed filters.
NOTE: Do not talk into any of the microphones or play music. This is only a search for feedback at this
point.
SETUP
AFS
RECALL
SUBHARMONIC
COMP/LIMITER
UTILITY
PRESET
NEXT PG
STORE
EQ
WIZARD
UTILITY
PREV PG
WIZARD
A. Slowly increase the channel gain on your mixer to the desired level.
26.
27.
28.

12

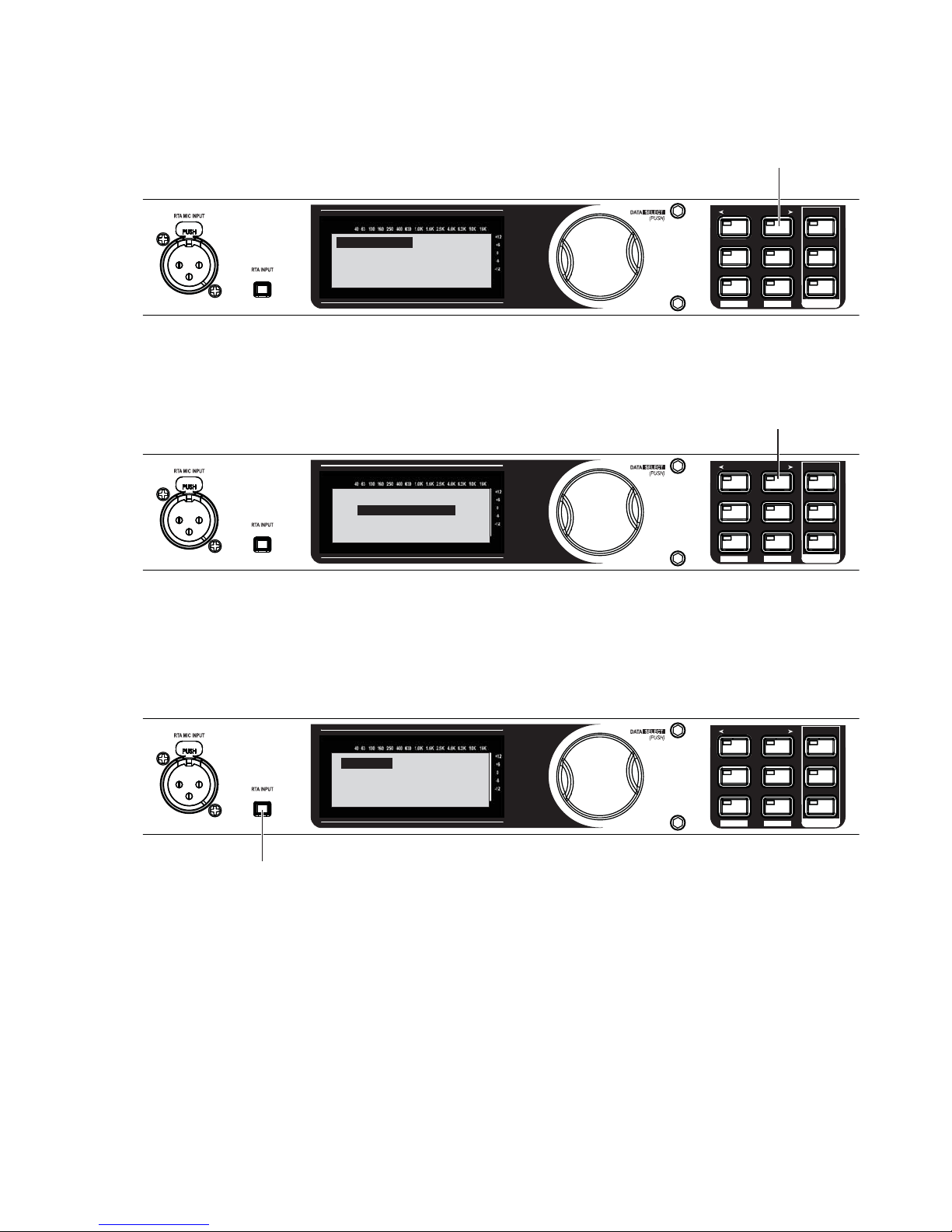

Advanced Feedback Suppression has completed when “Fixed Filter Setup Done. In LIVE mode” appears
on the Display.
NOTE: Out of control feedback is not advised. Please keep this under control manually with the mixer’s
channel or main faders.
SETUP
AFS
RECALL
SUBHARMONIC
COMP/LIMITER
UTILITY
PRESET
NEXT PG
STORE
EQ
WIZARD
UTILITY
PREV PG
WIZARD
Fixed Filter Setup
Done. In LIVE mode.
Press the NEXT PG button.

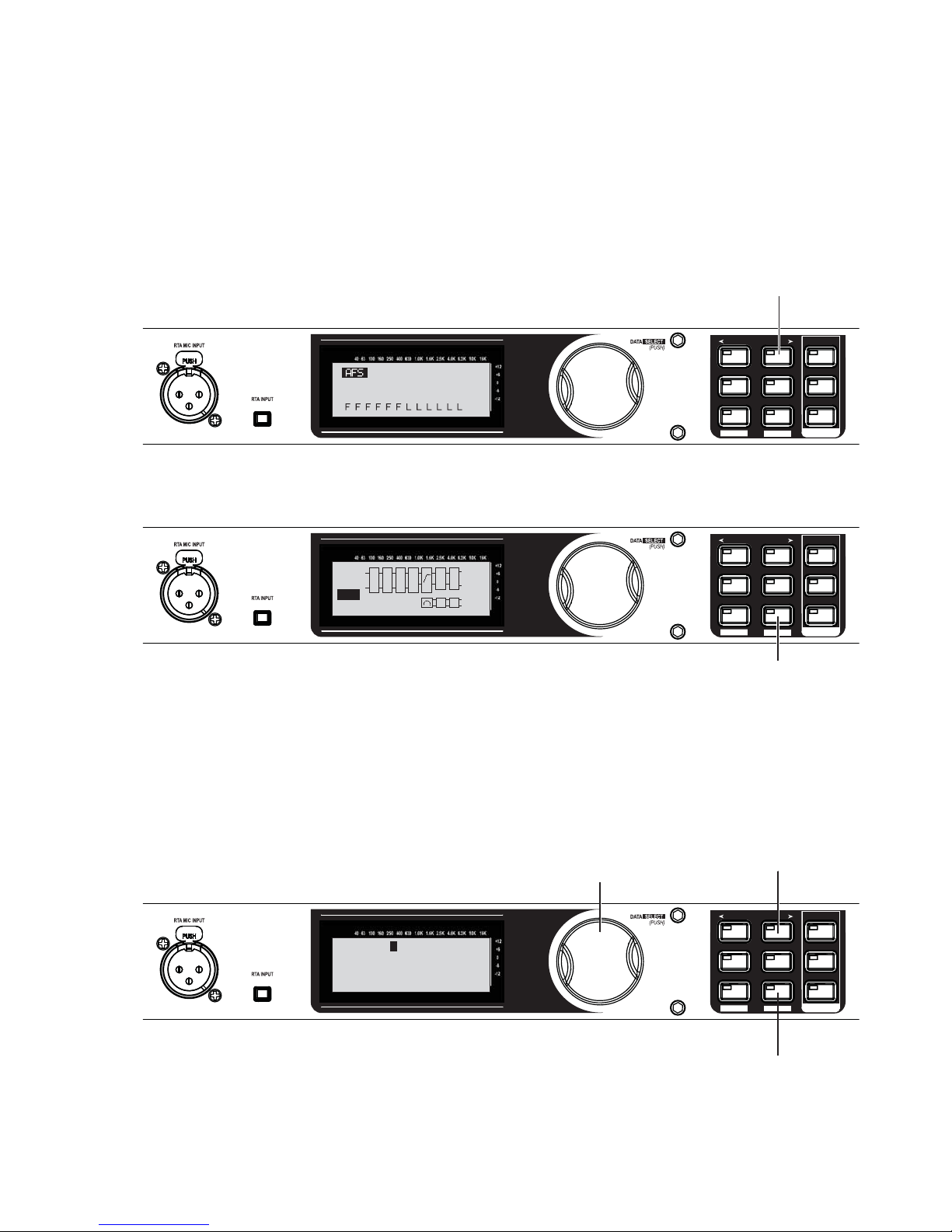

Store your new preset by pressing the STORE button.
SETUP
AFS
RECALL
SUBHARMONIC
COMP/LIMITER
UTILITY
PRESET
NEXT PG
STORE
EQ
WIZARD
UTILITY
PREV PG
WIZARD
E
LP
L
R
OUT
SUB
L
PL
Q
R
C
A
F
S
S
U
B
PRX515 wSub
1
USER
L
R
Press the STORE button once.
Edit the preset’s name. For this example, name it “MY PRESET”.
SETUP
AFS
RECALL
SUBHARMONIC
COMP/LIMITER
UTILITY
PRESET
NEXT PG
STORE
EQ
WIZARD
UTILITY
PREV PG
WIZARD
DATA - SELECTS CHAR
PREV/NEXTPG - LEFT/RIGHT:
PRESS STORE TO ADVANCE
NAME: PRX515 wSub
A.Turn the Data Wheel to
change numbers and letters.
B. Press the NEXT or PREV
buttons to move between
characters. Repeat step
“A.” to change the next
letter.
C. Press the STORE button
to advance.
29.
30.
31.

13
Choose the preset’s location.
SETUP
AFS
RECALL
SUBHARMONIC
COMP/LIMITER
UTILITY
PRESET
NEXT PG
STORE
EQ
WIZARD
UTILITY
PREV PG
WIZARD
A.Turn the Data Wheel to
change the user preset
number where your new
program will reside.
NOTE:This will replace
the program that currently
resides in that location.
B. Press the STORE button
to advance.
Replacing
PRESS STORE TO ADVANCE
STORE: MY PRESET
U1 DJ Setup
Your new preset has now been stored. Congratulations and enjoy.
32.
33.

14
Subsequent Setup - Based on an Existing Preset
Remove the DriveRack PX from its box.
Rack mount the DriveRack PX and connnect the power cord.
GND
SUB OUTPUTS
Manufactured under the following U.S. Patents:
3,789,143; 4,182,993; 6,195,029; 7,203,324.
PX
R
UL 60065 IEC 60065
120V - 60Hz
Attach power cord here.
Connect the mixer left and right outputs to the DriveRack PX Left/Mono and Right Inputs.
GND
SUB OUTPUTS
Manufactured under the following U.S. Patents:
3,789,143; 4,182,993; 6,195,029; 7,203,324.
PX
R
UL 60065 IEC 60065
120V - 60Hz
Pan
Mute
-10
0
+5
+10
-20
-30
-
-5
L/ R
Mute
L/ R
Mute
L/ R
Mute
L/ R
-5
-4
-3
-2
-1 0+1
+2
+3
+4
+5 Pan -5
-4
-3
-2
-1 0+1
+2
+3
+4
+5 Pan -5
-4
-3
-2
-1 0+1
+2
+3
+4
+5 Pan -5
-4
-3
-2
-1 0+1
+2
+3
+4
+5 Pan -5
-4
-3
-2
-1 0+1
+2
+3
+4
+5 Pan -5
-4
-3
-2
-1 0+1
+2
+3
+4
+5 Pan -5
-4
-3
-2
-1 0+1
+2
+3
+4
+5 Pan -5
-4
-3
-2
-1 0+1
+2
+3
+4
+5
1234
-10
0
+5
+10
-20
-30
-
-5
-10
0
+5
+10
-20
-30
-
-5
-10
0
+5
+10
-20
-30
-
-5
Mute
L/ R
5
-10
0
+5
+10
-20
-30
-
-5
Mute
L/ R
6
-10
0
+5
+10
-20
-30
-
-5
Mute
L/ R
-10
0
+5
+10
-20
-30
-
-5
Aux1
0
2
46
8
10
Aux2
0
2
46
8
10
Aux1
0
2
46
8
10
Aux2
0
2
46
8
10
Aux1
0
2
46
8
10
Aux2
0
2
46
8
10
Aux1
0
2
46
8
10
Aux2
0
2
46
8
10
Aux1
0
2
46
8
10
Aux2
0
2
46
8
10
Aux1
0
2
46
8
10
Aux2
0
2
46
8
10
Aux1
0
2
46
8
10
Aux2
0
2
46
8
10
Aux1
0
2
46
8
10
Aux2
0
2
46
8
10
Mute
L/ R
-10
0
+5
+10
-20
-30
-
-5
Mixer
Left/Mono
Input
Right
Input
Make sure your powered speakers are
turned off.
Connect the Left and Right “OUTPUTS” to
the left and right main powered speakers.
Connect the Left/Mono and Right “SUB
OUTPUTS” to the left and right subwoof-
ers.
1.
2.
3.
GND
SUB OUTPUTS
Manufactured under the following U.S. Patents:
3,789,143; 4,182,993; 6,195,029; 7,203,324.
PX
R
UL 60065 IEC60065
120V- 60Hz
Right
Main
JBL PRX515
JBL PRX518
Left
Main
Right
Sub
Left/Mono
Sub
JBL PRX515
JBL PRX518

15
Turn the mixer master faders down. Turn on the mixer.
Make sure the controls on your powered speakers are set the same on both speakers. For example, if
you’re using subs, and they have a polarity setting, make sure they’re both set to the same polarity.
Also, if your powered speakers have a Mic/Line setting, make sure they’re both set to Line, and if they
have their own EQ settings, disable the EQ settings on the powered speakers. Turn the level control
knobs on your powered speakers all the way down. Turn on your powered speakers and subwoofers now.
Now let’s load the preset you created to match your powered speakers (from the first half of this quick
start guide).
SETUP
AFS
RECALL
SUBHARMONIC
COMP/LIMITER
UTILITY
PRESET
NEXT PG
STORE
EQ
WIZARD
UTILITY
PREV PG
WIZARD
Press and hold the
PRESET/RECALL button
until“--Loaded--” is
flashing in the display.
E
LP
L
R
OUT
SUB
L
PL
Q
R
C
A
F
S
S
U
B
--Loaded--
1
USER
L
R
Turn the Data Wheel until the preset titled “MY PRESET” appears in the display.
SETUP
AFS
RECALL
SUBHARMONIC
COMP/LIMITER
UTILITY
PRESET
NEXT PG
STORE
EQ
WIZARD
UTILITY
PREV PG
WIZARD
Turn the Data Wheel until
MY PRESET appears in the display.
E
LP
L
R
OUT
SUB
L
PL
Q
R
C
A
F
S
S
U
B
MY PRESET
1
USER
L
R
Press the Data Wheel to load “MY PRESET.”
SETUP
AFS
RECALL
SUBHARMONIC
COMP/LIMITER
UTILITY
PRESET
NEXT PG
STORE
EQ
WIZARD
UTILITY
PREV PG
WIZARD
Press the Data Wheel to load MY PRESET
E
LP
L
R
OUT
SUB
L
PL
Q
R
C
A
F
S
S
U
B
MY PRESET
1
USER
L
R
4.
5.
6.
7.

16
Now let’s run the System Setup wizard for this preset.
SETUP
AFS
RECALL
SUBHARMONIC
COMP/LIMITER
UTILITY
PRESET
NEXT PG
STORE
EQ
WIZARD
UTILITY
PREV PG
WIZARD
Press and hold the SETUP button
until“System Setup WIZARD” appears
in the display.
E
LP
L
R
OUT
SUB
L
PL
Q
R
C
A
F
S
S
U
B
StOutwStSub
1
USER
L
R
SETUP
AFS
RECALL
SUBHARMONIC
COMP/LIMITER
UTILITY
PRESET
NEXT PG
STORE
EQ
WIZARD
UTILITY
PREV PG
WIZARD
Press the NEXT PG button.
System Setup WIZARD
SETUP
AFS
RECALL
SUBHARMONIC
COMP/LIMITER
UTILITY
PRESET
NEXT PG
STORE
EQ
WIZARD
UTILITY
PREV PG
WIZARD
Make sure STEREO is already
selected, then press the
NEXT PG button.
SETUP
AFS
RECALL
SUBHARMONIC
COMP/LIMITER
UTILITY
PRESET
NEXT PG
STORE
EQ
WIZARD
UTILITY
PREV PG
WIZARD
Make sure PRX515 is already
selected, then press the
NEXT PG button.
PRX515
JBL PRX500
Main Speakers
8.
9.
10.
11.

17
SETUP
AFS
RECALL
SUBHARMONIC
COMP/LIMITER
UTILITY
PRESET
NEXT PG
STORE
EQ
WIZARD
UTILITY
PREV PG
WIZARD
Make sure PRX518S STEREO
is already selected, then
press the NEXT PG button.
PRX518S STEREO
JBL PRX500
Sub Speakers
Sub(s)
SETUP
AFS
RECALL
SUBHARMONIC
COMP/LIMITER
UTILITY
PRESET
NEXT PG
STORE
EQ
WIZARD
UTILITY
PREV PG
WIZARD
B. Press the NEXT PG button.
A. Set the level knobs on your main speakers
to match the position shown on the display.
(Note that you also have the option to turn the Data
Wheel to adjust the level shown on the display
to match a preferred setting on your speakers.)
Adjust speaker
levels as shown
> 36% Level
Main Speaker Levels
SETUP
AFS
RECALL
SUBHARMONIC
COMP/LIMITER
UTILITY
PRESET
NEXT PG
STORE
EQ
WIZARD
UTILITY
PREV PG
WIZARD
B. Press the NEXT PG button.
A. Set the level knobs on your subwoofer speakers
to match the position shown on the display.
(Note that you also have the option to turn the Data
Wheel to adjust the level shown on the display
to match a preferred setting on your speakers.)
Adjust speaker
levels as shown
> 21% Level
Sub Speaker Levels
12.
13.
14.

18
When the display reads “Load New Preset,” connect the RTA mic and press the RTA INPUT button. This
will avoid overwriting settings in your existing preset.
SETUP
AFS
RECALL
SUBHARMONIC
COMP/LIMITER
UTILITY
PRESET
NEXT PG
STORE
EQ
WIZARD
UTILITY
PREV PG
WIZARD
A. Connect the included dbx M2 RTA mic to the
RTA MIC INPUT using an XLR cable at least 25’ long.
B. Press the RTA INPUT button.
Connect mic to RTA
input. Press RTA
input button.
Auto Level
With the RTA mic connected, place the RTA
mic on a mic stand and aim it between the
left and right main speakers approximately
25’ away.
15.
16.

19
Turn the Data Wheel until pink noise is playing through your speakers at performance level (the same
volume you intend to use during your performance). The words “SET TO PERFORMANCE LEVEL” will ap-
pear in the display when you have passed the minimum threshold. Set level higher as needed.
SETUP
AFS
RECALL
SUBHARMONIC
COMP/LIMITER
UTILITY
PRESET
NEXT PG
STORE
EQ
WIZARD
UTILITY
PREV PG
WIZARD
A.Turn the Data Wheel to adjust pink noise level.
B. Press the NEXT PG button
when your performance
level is reached.
0 dB to 6 dB typical.
Auto Level
When performance level is reached, press the NEXT PG button. The DriveRack PX will now adjust the
balance between left/right levels for your main speakers (and your subs, if you have them). Note that
you may be prompted to readjust your speaker knob settings if needed.
When the display reads “Auto Level Complete,” release the RTA INPUT button.
SETUP
AFS
RECALL
SUBHARMONIC
COMP/LIMITER
UTILITY
PRESET
NEXT PG
STORE
EQ
WIZARD
UTILITY
PREV PG
WIZARD
Press the RTA INPUT button to release.
Auto Level Complete
Release RTA INPUT
button to exit.
SETUP
AFS
RECALL
SUBHARMONIC
COMP/LIMITER
UTILITY
PRESET
NEXT PG
STORE
EQ
WIZARD
UTILITY
PREV PG
WIZARD
PRX515 wSub Loaded
and levels balanced.
<NEXT PG>-Auto EQ
<PRESET)-Exit Wizard
Press the NEXT PG button.
17.
18.
19.

20
Now the Auto-EQ wizard will begin.
SETUP
AFS
RECALL
SUBHARMONIC
COMP/LIMITER
UTILITY
PRESET
NEXT PG
STORE
EQ
WIZARD
UTILITY
PREV PG
WIZARD
Press the NEXT PG button.
DriveRack PX
Auto EQ WIZARD
<NEXT PG> to advance
With the RTA microphone still connected and in the same position as in step 14, press the RTA INPUT
button.
SETUP
AFS
RECALL
SUBHARMONIC
COMP/LIMITER
UTILITY
PRESET
NEXT PG
STORE
EQ
WIZARD
UTILITY
PREV PG
WIZARD
Press the RTA INPUT button.
Connect mic to RTA
input. Press RTA
input button.
Auto EQ
Turn the Data Wheel to select a frequency response for the Auto-EQ. For our example, select Response
C. Then press the <Next pg> button to continue. Auto-EQ will match the curve selected.
SETUP
AFS
RECALL
SUBHARMONIC
COMP/LIMITER
UTILITY
PRESET
NEXT PG
STORE
EQ
WIZARD
UTILITY
PREV PG
WIZARD
MED
B. Press the
NEXT PG button.
A.Turn the Data Wheel
to select a frequency
response for the Auto-EQ.
20.
21.
22.
