DeDietrich DME 112 Specification sheet

Operating and installing instructions
Microwave Ovens DME 112 / 113

3
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Important instructions . . . . . . . . . . . . . . . . . . . . . . . .4
General description . . . . . . . . . . . . . . . . . . . . . . . . .5
Control panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
The display & the selector knob . . . . . . . . . . . . . . . . . . . .7
Setting the clock / Microwave power settings . . . . . . . . . . .8
Setting a microwave programme/ Express programme . .9
The grilling racks . . . . . . . . . . . . . . . . . . . . . . . . . .10
The grill function / Programming the grill function . . . .11
The microwave + grill function / Programming
the microwave + grill function . . . . . . . . . . . . . . . . .12
The Pizza function . . . . . . . . . . . . . . . . . . . . . . . . .13
The Pizza dish* . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Memory keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Linked programs . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Preprogramming START . . . . . . . . . . . . . . . . . . . . . .18
Troubleshooting guide . . . . . . . . . . . . . . . . . . . . . .19
Care & cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . .20
Pointers / After-sales service . . . . . . . . . . . . . . . . . . .21
Please read this user manual carefully. It contains important
instructions concerning installation, use and security measures.
CONTENTS
* (only available on DME 113)

4
INSTALLATION
Leave sufficient space around the oven :
- 5 cm between the sides of the oven
and any walls or objects
- 14 cm above the oven
- 10 cm behind the oven.
LOCATION
BEFORE CONNECTION
• The oven must be set on a work surface at least 85 cm above floor level.
• Place the oven on a flat and horizontal surface, away from any source of heat or
steam. To ensure the stability of the microwave oven, the front left foot is
adjustable (5 positions). Turn it to raise or lower the appliance.
• Make sure that air may circulate freely around the oven.
• Allow nothing to obstruct the ventilation
louvers at the back of the appliance.
• Make sure the electrical plug will be accessible
after installation.
• Check whether your oven has suffered any damage during transport (deformed door or
door seal, etc.). If you see any signs of damage, contact your dealer before use.
• Verify the power voltage. If there is a PERMANENT undervoltage (200-210 volts), consult your
electrical installer.
• Your installation must be protected by a 13 Amp thermal fuse.
• It is mandatory to use a power point with a ground terminal, connected in accordance with
current safety regulations.
• In your electrical installation, provide a device that is accessible to the installer, capable of
separating the appliance from the mains power and whose contact opening is at least 3 mm
at all of the poles.
• Never operate the oven if the supply cord and/ or its plug are damaged. In case of damage,
call in a specialised technician trained by the manufacturer.
ELECTRICAL CONNECTION
5 cm
14 cm
10 cm
5 cm

5
• Your appliance is designed exclusively for the domestic purposes of defrosting, heating or cooking
foods. The manufacturer bears no responsibility in the case of improper usage.
• Before use, make sure that the containers are appropriate for microwave usage (e.g.: heat resis-
tant glass, porcelain, etc.) and are non-metallic.
• To avoid deterioration of your microwave oven, never operate it without food or liquid in it or
without the turntable.
• Never tamper with the lock mechanism of your microwave oven; you could cause damage
requiring repair by an authorised technician.
• Be sure to watch closely when heating or cooking foods in disposable plastic or paper containers
or any other combustible material, due to fire hazard.
• It is not advisable to use metal recipients, forks, spoons, knives, metal ties or staples for deep-
freeze bags.
• It is advisable to use an oven glove to handle dishes.
• For baby food and children’s food, it is essential :
- to remove the teat before heating up baby bottles, shake the contents and test
the temperature on the back of your hand before feeding.
- to stir and verify the temperature of children’s foods before serving to avoid causing
serious internal burns.
• WARNING : Do not allow children to use the microwave oven without supervision unless they
have been thoroughly instructed in the proper use and the dangers of improper operation.
• It is advisable to cover food in most cases. It will be tastier and your oven will stay cleaner.
However, be sure to remove the cap or lid before cooking foods or heating liquids in a sealed
bottle or container, which could otherwise explode. You must not cover when using the grill, micro-
wave and grill or pizza functions.
• The heating or cooking of boiled, coddled eggs or fried eggs by microwave is prohibited. They
can burst and cause serious burns or irreparable damage to your oven.
• When heating liquids, the boiling point may be reached without the typical bubbles appearing
on the surface. To prevent liquids from boiling over and possible burns, wait 20 seconds before
removing the containers from the appliance or adding anything to the liquids, to avoid sudden
spurting of the liquid.
• For small amounts (one sausage, a single croissant, etc.), place a glass of water alongside the food
item.
• Time settings that are too long may dry out and burn the food. To avoid such incidents, never
use the same cooking times as those recommended for traditional ovens.
• If smoke appears, keep the oven door closed and disconnect the oven or turn it off.
IMPORTANT INSTRUCTIONS

6
• THE TURNTABLE :
ensures equal cooking of food throughout with no need to intervene.
- It may be used as a cooking dish.
- Rotation is controlled by the drive shaft and the wheel support.
- The turntable rotates in both directions.
- If it does not turn, verify that all components are properly positioned.
•TURNTABLE OFF :
stops the turntable from revolving in order to use platters which require the entire oven
space. When stopped, remember to stir the contents or turn the dish midway through
the programme.
• THE WHEEL SUPPORT :
Do not try to rotate the roller ring manually, as you could damage the drive system.
If it does not turn smoothly, make sure that there is nothing in the well beneath the
turntable.
GENERAL DESCRIPTION
TurntableDrive shaft Wheel
support
Identification
label

7
CONTROL PANEL
ADisplay window :
to simplify programming, the display indi-
cates : the time of day, the programme
length, the functions or cooking tem-
perature programmed and microwave
level.
BSelector knob :
to set the clock, the programme length
or the end-time of a programme and the
temperature for the fan heat functions.
CDefrost key :
to defrost all frozen food.
DMicrowave key :
to set the microwave power level.
ESTART key :
to start all programmes.
FMemory key :
for rapid access to 3 preprogrammed
operations.
GGrill + Microwave / pizza key :
to program the microwave + grill and
pizza functions.
HGrill key :
to select the desired level of grill.
ICLEAR/STOP key :
to interrupt (press once) or cancel a pro-
gramme (press twice).
JClock key :
to set the clock or preprogramme START.
KStop-Turntable key :
to stop the turntable from revolving
(press once) to start the turntable revol-
ving (press again).
LDoor open button :
to open the door or stop the oven.
C/STOP
M
START
C/STOP
M
M1 M2 M3
W
G
F
DE
H
B
C
A
KJ
I
L
12:30

8

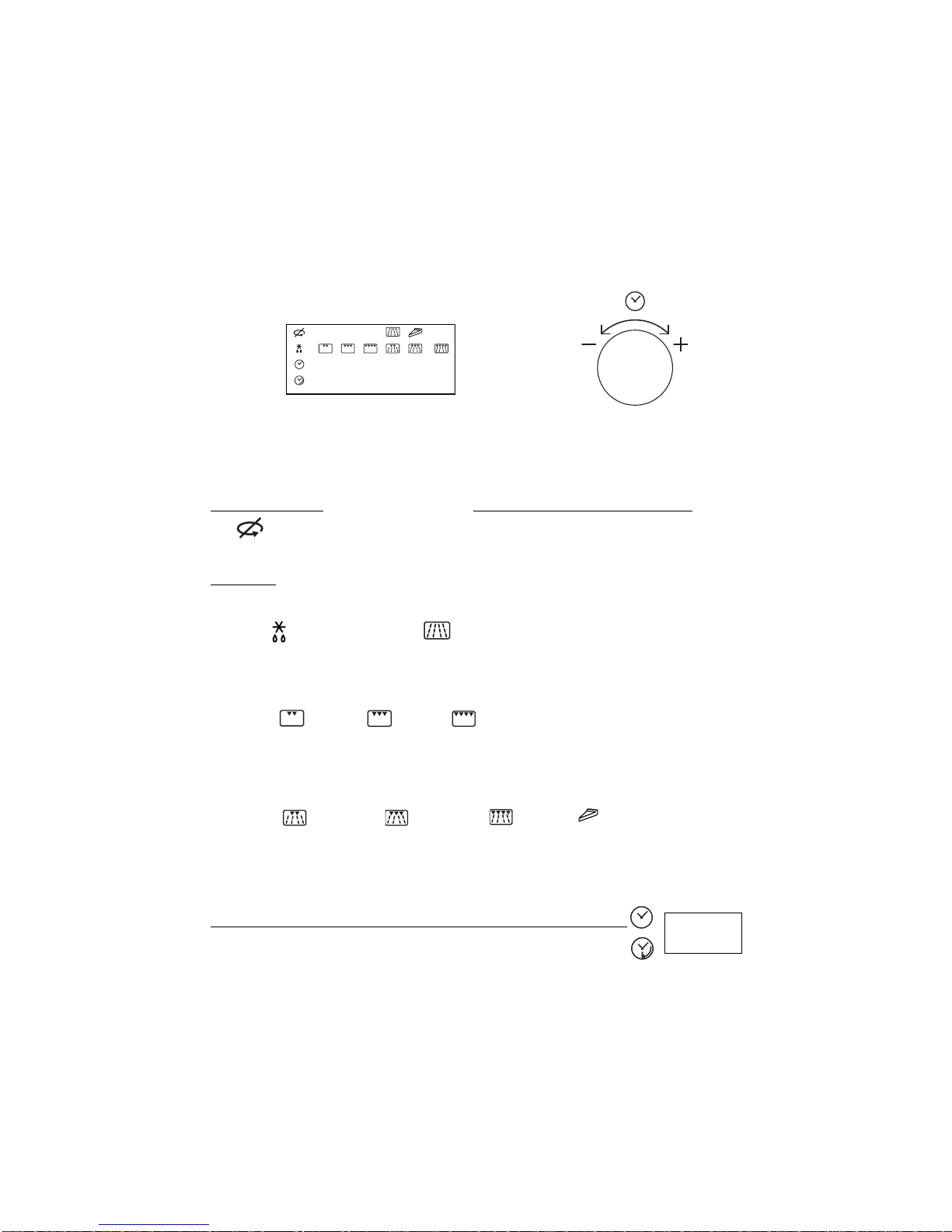

THE DISPLAY & THE SELECTOR KNOB
The display and the selector knobs guide you in your choice of :
turntable option : memorized programme settings :
STOP TURNTABLE
functions :
Microwave power levels
DEFROST VERY LOW COOK / LOW COOK / SIMMER / REHEAT / HIGH COOK
Grill levels
LOW GRILL MEDIUM GRILL HIGH GRILL
Microwave + grill levels
LOW GRILL MEDIUM GRILL HIGH GRILL PIZZA
+MICROWAVE +MICROWAVE +MICROWAVE
the programme length, clock or preprogrammed start time 1122::0000
M3
M2
M1
W
M1 M2 M3
W
12:30

9
SETTING THE CLOCK
MICROWAVE POWER SETTINGS
After first plugging in your microwave oven or after a power
cut, the clock appears in the display and 0000::0000flashes,
inviting you to set the time.
To set the clock :
- Press the CLOCK key for 5 seconds.
- Turn the time selector knob to the correct time
(ex. twelve o'clock).
- Validate by pressing the CLOCK key .
Your clock is set.
To cook fish and poultry. To finish programmes
begun with the HIGH COOK power setting such
as beans, lentils or milk-based dishes.
0000::0000
1122::0000
POWER SETTING APPLICATION
DEFROST 150W
VERY LOW
COOK 250W
To top off cooking of delicate dishes or to
cook very slowly.
SIMMER 500W
REHEAT 700W To reheat all fresh, frozen pre-cooked dishes
and plated meals and frozen vegetables.
LOW COOK 350W
To defrost meat, fish, fruit, bread or delicate
dishes.
HIGH COOK 1000W To cook fresh vegetables and soup
. To heat
up all liquids.
MICROWAVE OUTPUT POWER : 1000W
To finish programmes begun with the HIGH
COOK power setting
which might otherwise over
cook on the outside, for instance veal or pork roast.

10
SETTING A MICROWAVE PROGRAMME
Your microwave oven is now plugged in and the clock is set.
Open the door, set the dish inside on the turntable, close the door. If the door is not properly shut,
the appliance will not operate.
If the dish is too large to turn freely inside the oven, press the STOP TURNTABLE key before
or during the programme.
6 microwave power levels are available :
(150 [defrost] - 250 - 350 - 500 - 700 - 1000 W).
Example : Set a microwave programme at the HIGH COOK
power level (1000 W).
①①Press the MICROWAVE POWER KEY to select
1000W :
is displayed.
②②Set the programme time with the selector knob, ex. five minutes :
is displayed.
③③Press START.
The programme begins : the turntable revolves, the oven light comes on.
3 beeps announce the end of a programme. The beeps are repeated
every minute for 10 minutes until you open the door.
To defrost, proceed similarly, using the defrost key to select the 150W power level.
If there is an error in the programming, press the CLEAR/STOP key twice.
EXPRESS PROGRAMME
①①Set the programme time with the selector knob, ex. three minutes :
is displayed.
②②Press START.
The HIGH COOK programme (1000W) begins automatically : the turntable revolves, the oven light
comes on.
0033::0000
11000000WW
0055::0000
START
C/STOP
M
M1 M2 M3
W
2
13

11
The rack :
to brown shallow dishes with the grill
or microwave + grill functions
For use when grilling or during combination grilling and microwaving.
Make sure that the rack is always well centered on the turntable. Set the dish on top
of the rack.
Never use any metal dish with the rack with the microwave or grill + microwave func-
tions.
THE GRILLING RACK

12

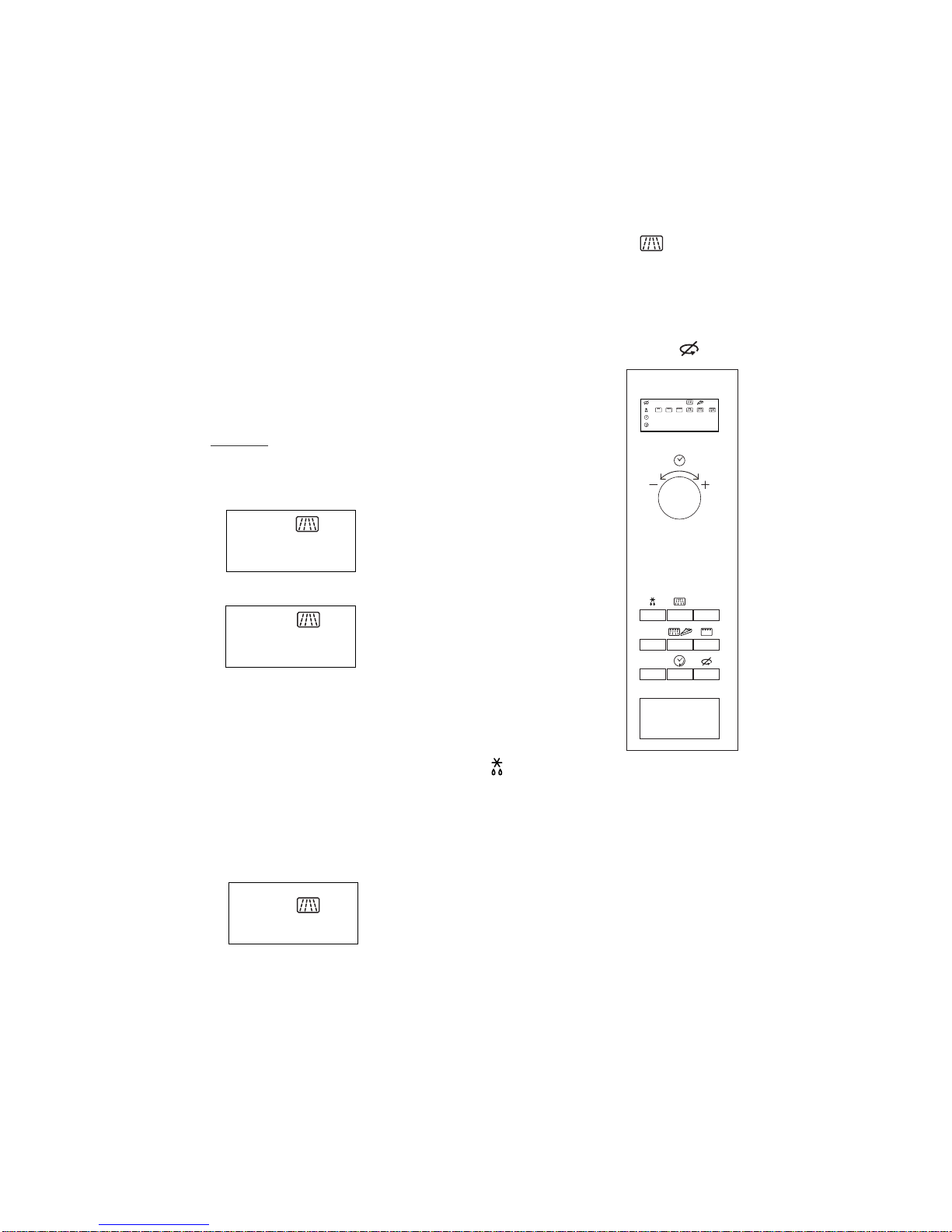

Example : Use the grill key to set a programme
using the HIGH GRILL level.
①①Press the GRILL key
3 times ,
is displayed.
②②Set the programme time with the selector knob, ex. ten minutes :
is displayed.
③③Press START.
The programme begins : the turntable revolves, the oven light
comes on, the timer counts down.
This function enables you to grill meat and brown dishes such as gratins. It may be used before
or after microwave cooking, as called for in the recipe.
•Use only ovenproof cookware such as ceramic dishes or heat resistant glass. After grilling make
sure to use an oven glove to handle dishes.
•WARNING : Do not allow children to approach the microwave oven during use of the grill as cer-
tain exposed parts may become hot.
•Three grill levels are available : LOW GRILL (press the GRILL key once), MEDIUM GRILL
(press the GRILL key twice), and HIGH GRILL (press the GRILL key 3 times).
➣As a general rule, use the HIGH GRILL level for the grill function, for example to grill meat and fish.
The HIGH, MEDIUM & LOW GRILL levels are used with the combined microwave + grill function.
THE GRILL FUNCTION
PROGRAMMING THE GRILL FUNCTION
1100::0000
GGii
-ii11
START
C/STOP
M
M1 M2 M3
W
2
1
3

13
THE MICROWAVE + GRILL FUNCTIONS
PROGRAMMING THE MICROWAVE + GRILL FUNCTION
This function enables you to use the microwaves and grill simultaneously, for rapid cooking.
•You may combine each of the 3 grill levels (LOW-MEDIUM-HIGH) with any of the 5 micro-
wave power settings (150-350-500-700-1000 W), allowing you to tailor a programme to
your specific cooking needs.
➣ Sample programmes to obtain best results :
- beef & lamb : high grill + 150W microwave level
- turkey / pork / veal : high grill + 350W
- poultry : high grill + 500W
- fish : medium grill + 500W
- potatoes au gratin : medium grill + 1000W
- lasagna : low grill + 1000W
Example : use the grill key + microwave key to set a microwave + grill programme
using the MEDIUM GRILL level + LOW COOK microwave power setting.
①①Press the GRILL + MICROWAVE / PIZZA key 2 times ,
is displayed.
②②Set the microwave power level with the microwave key ,
ex. press once for LOW COOK, 350W :
is displayed.
③③Set the programme time with the selector knob,
ex. ten minutes :
is displayed.
④④Press START.
The programme begins : the turntable revolves,
the oven light comes on.
115500WW
335500WW
1100::0000
START
C/STOP
M
M1 M2 M3
W
3
1
24

14
THE PIZZA FUNCTION
(only available on DME 113)
2 cooking methods :
• Without preheating - by using the Pizza function you can cook and brown most
frozen meals and fresh, dough-based dishes without preheating the Pizza dish. They
turn out as crispy as if cooked in a traditional oven.
• With preheating - the Pizza dish can be preheated using the Pizza key for a maxi-
mum of 2 minutes. Preheating is recommended to cook or brown small pieces of
meat or fish and some dough-based, frozen and take-away dishes.
•Take foods out of their metallic or plastic packaging before cooking or reheating
them with the Pizza function.
•It is advisable to programme shorter cooking times and extend if necessary.
•All foods with a skin or wrapping, such as potatoes and sausages, must be pierced
before cooking.
•Make sure pieces of meat are completely thawed out and dried off before searing
with the Pizza function.
•Keep an eye on the food’s coloring, just as you would with a traditional oven.
•Protect your hands when taking out the dish because it can be extremely hot.
•Do not serve stuffed foods (apple pie for example) too quickly because they can be
warm on the surface and the filling is extremely hot.
•Cooking or reheating of eggs with the Pizza function is prohibited.
•If you wish to cook several dishes consecutively with the Pizza function, allow the
oven to cool 10 minutes between dishes for better browning.
Recommendations :
With the Pizza function and Pizza dish you can save time and energy cooking your
favourite dishes which you require to be crispy, tasty and golden brown as if cooked in
a traditional oven, e.g. pizza and sausages.
The Pizza function uses the microwave and grilling functions simultaneously. The Pizza
dish must always be used with this function. The dish features a special coating that
absorbs microwaves through its base and therefore radiates heat from below the food to
cook it and reheat it, giving the base of the food the required colour and crispness while
the grill browns the top, making it ideal for pizza, sausages, etc.

15
THE PIZZA FUNCTION
Example : to cook a frozen pizza (350 g)
Place the frozen pizza directly on the Pizza dish, place the Pizza dish on the middle of
the turntable.
①①Press the MICROWAVE + GRILL / PIZZA key four times.
is displayed.
②②Set the programme time with the selector knob,
ex. six minutes :
is displayed.
③③Press START.
The programme begins : the turntable revolves, the oven
light comes on, the timer counts down.
➤Be sure and use an oven glove to remove the pizza dish.
11000000WW
66::0000
START
C/STOP
M
M1 M2 M3
W
2
1
3

16
Care of the Pizza dish
•The inside of the dish is covered with a non-stick coating,
so it is not necessary to grease it before use.
•Do not cut foods directly in the Pizza dish as this damages
the non-stick coating.
•The Pizza dish is dishwasher-safe.
•Use a sponge, hot water and washing up liquid
to wash the dish. Do not use a metallic sponge
or scouring powder.
Recommendations
•Do not place the Pizza dish on the rack; this could
cause irremediable damage to your oven.
•Do not place the Pizza dish in a traditional oven, on
gas, electric or other stoves or on any very hot surface.
•Do not leave any utensils in a hot Pizza dish as the
high temperature may damage them.
The Pizza dish
(only available on DME 113)
THE PIZZA DISH

17
The Memory function allows you to store 3 frequently used programmes
which you can then access simply by pressing M. You may memorize any pro-
gramme you wish.
Example : Use the Memory key to preprogramme heating up a plate of food.
Proceed as if setting the programme for immediate use :
①①Press the microwave power key to select HIGH COOK (1000W)
is displayed.
②②Set the programme time with the selector knob, ex. 2 minutes :
is displayed.
③③Instead of START, press the MEMORY key M; after several
seconds you will hear a tone confirming that the personalized
programme has been memorized.
is displayed.
You may memorize two more programmes by pressing the Memory
key two or three times.
To call up a programme, press the MEMORY key M once/twice/three times; the pre-
programmed information is displayed.
Press START, the memorized programme begins.
If you wish to reprogramme the memory keys, follow steps 1 to 3.
MEMORY KEY M
11000000WW
0022::0000
0022::0000
M1
2
START
C/STOP
M
M1 M2 M3
W
1
3

18
You may link 2 different programmes, combining any of the available
functions amongst : defrost / microwave / grill / microwave + grill
/ pizza.
Example : Using linked programming to defrost ten minutes followed by
simmer level microwave + medium grill programme for 20 minutes
①①Proceed as if setting only a defrost programme :
- press the defrost key
- set the programme time (ex. 10 min).
is displayed.
②②Instead of pressing START, programme the next operation :
- press the microwave + grill key to select microwave + medium gril
is displayed.
③③Set the microwave level, ex.
SIMMER
is displayed.
- set the programme length (ex. 20 min), adding it to the defrost time.
is displayed.
④④Press START.
is displayed.
The linked microwave + grill programme will automatically begin at the end of the defrost
programme.
LINKED PROGRAMMES
1100::0000
3300::0000
550000WW
3300::0000
115500WW
START
C/STOP
M
M1 M2 M3
W
4
13
2

19
PREPROGRAMMING START
Before programming, check that the clock is set to the correct time.
Example : 1166::0000
①①
Proceed as if setting the desired programme for immediate use :
select your function and programme length (ex. high cook 10 minutes).
is displayed.
②②
③③
Instead of START, press the CLOCK key .
The programme length (10 min) is automatically added to the clocktime
(16:00) and this hour flashes in the display, together with the clock symbol
and the selected function.
is displayed.
④④
Set the hour at which you wish the programme to finish with the
time selector knob, ex. you would like the dish to be ready at
2200::0000
.
is displayed,
2200::0000
flashes
⑤⑤
Press the clock key again. The clock symbol and the preprogrammed end of the cooking
time are displayed.
➣ You may preprogramme START with whichever functions you like except for defrosting; you may
even preprogramme the start of 2 linked programmes.
➣ A minimum programme length of 1 minute is required to preprogramme START.
➣ You can cancel a preprogrammed START by pressing once.
C/STO
P
11000000WW
1166::1100
2200::0000
START
C/STOP
M
M1 M2 M3
W
4
1
35
1100::0000
2

20
TROUBLESHOOTING GUIDE
Problem
▼The time counts down, but the appliance
does not function (the turntable does
not rotate, the light does not come on
and the food is not heated).
▼The microwave oven is noisy when
operating.
▼Condensation forms on the door glass.
▼The turntable does not revolve correctly.
▼The microwave programmes do not pro-
duce the desired results.
▼The appliance produces sparks.
Suggestion
▲Press the TURNTABLE OFF key and
the
DEFROST key for 5 seconds.
▲Adjust the front left foot.
Clean the wheels and the well area
beneath the turntable.
▲Clean the vents under the appliance.
▲Clean the wheels and the well beneath
the turntable.
▲Clean the vents under the appliance.
Make sure that you use only containers
which are suitable for microwave cooking.
▲Check whether the wheel support is
correctly positioned.
Thoroughly clean the appliance :
remove any greasy deposits, cooking
residue, etc...
Move any metal objects away from
the oven walls.
Never use metallic containers.
