DeDietrich DME329BE1 Instruction Manual

Operating and installing instructions
Microwave Oven
UK

3
Important safety instructions. Read careffully
and keep for future reference.
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Warning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
General description . . . . . . . . . . . . . . . . . . . . . . . . .11
Control panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
The display & the selector knob . . . . . . . . . . . . . . . . . . .13
Setting the clock / Microwave power settings . . . . . . . . . . .14
Setting a microwave programme/ Express programme .15
The grilling rack . . . . . . . . . . . . . . . . . . . . . . . . . . .16
The grill function / Programming the grill function . . . .17
The microwave + grill function / Programming
the microwave + grill function . . . . . . . . . . . . . . . . . .18
The Pizza function . . . . . . . . . . . . . . . . . . . . . . . . . .19
The Pizza dish . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
Memory keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
Linked programs . . . . . . . . . . . . . . . . . . . . . . . . . . .23
Preprogramming START . . . . . . . . . . . . . . . . . . . . . . .24
Troubleshooting guide . . . . . . . . . . . . . . . . . . . . . . .25
Care & cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
Pointers / After-sales service . . . . . . . . . . . . . . . . . . .27
After-sales service . . . . . . . . . . . . . . . . . . . . . . . . . . .27
In the unlikely event of there being a problem please call the number below
quoting the model number of your appliance - this can be found on your
appliance or on the front of this instruction manual. Our trained staff are avai-
lable to advise or book you a servie call to one of our authorised service agents.
SERVICE LINE: O115 9766937
MON -SAT 9am -6pm
SUN 10am - 4pm
For any other information on our products please contact us at:
Brandt UK Ltd.
Intec 4
Wade Rd
Basingstoke
RG24 8NE
Tel: [phone]
CONTENTS

4
INSTALLATION
Leave sufficient space around the oven :
- 5 cm between the sides of the oven
and any walls or objects
- 14 cm above the oven
- 10 cm behind the oven.
LOCATION
BEFORE CONNECTION
• Check whether your oven has suffered any damage during transport (deformed door or
door seal, etc.). If you see any signs of damage, contact your dealer before use.
• Verify the power voltage. If there is a PERMANENT undervoltage (200-210 volts), consult your
electrical installer.
ELECTRICAL CONNECTION
5 cm
14 cm
10 cm
5 cm
• The appliance should be installed at a distance of 85 cm above floor.
• Place the oven on a flat and horizontal surface, away from any source of heat or
steam. To ensure the stability of the microwave oven, the front left foot is
adjustable (5 positions). Turn it to raise or lower the appliance.
• Make sure that air may circulate freely around the oven.
• Make sure that nothing obstructs the ventilation louvers at the back of the appliance.
• Make sure the electrical plug will be accessible after installation.
•
Do not use your appliance immediatly (wait approx. 1-2 hours) after transfer from a cold
place to a warm place as condensation may cause a malfunction.
•
Your installation must be protected by a 13 Amp thermal fuse.
• It is mandatory to use a power point with a ground terminal, connected in accordance with
current safety regulations.
• In your electrical installation, provide a device that is accessible to the installer, capable of
separating the appliance from the mains power and whose contact opening is at least 3 mm
at all of the poles.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or
similarly qualified persons in order to avoid a hazard.

5
INSTALLATION

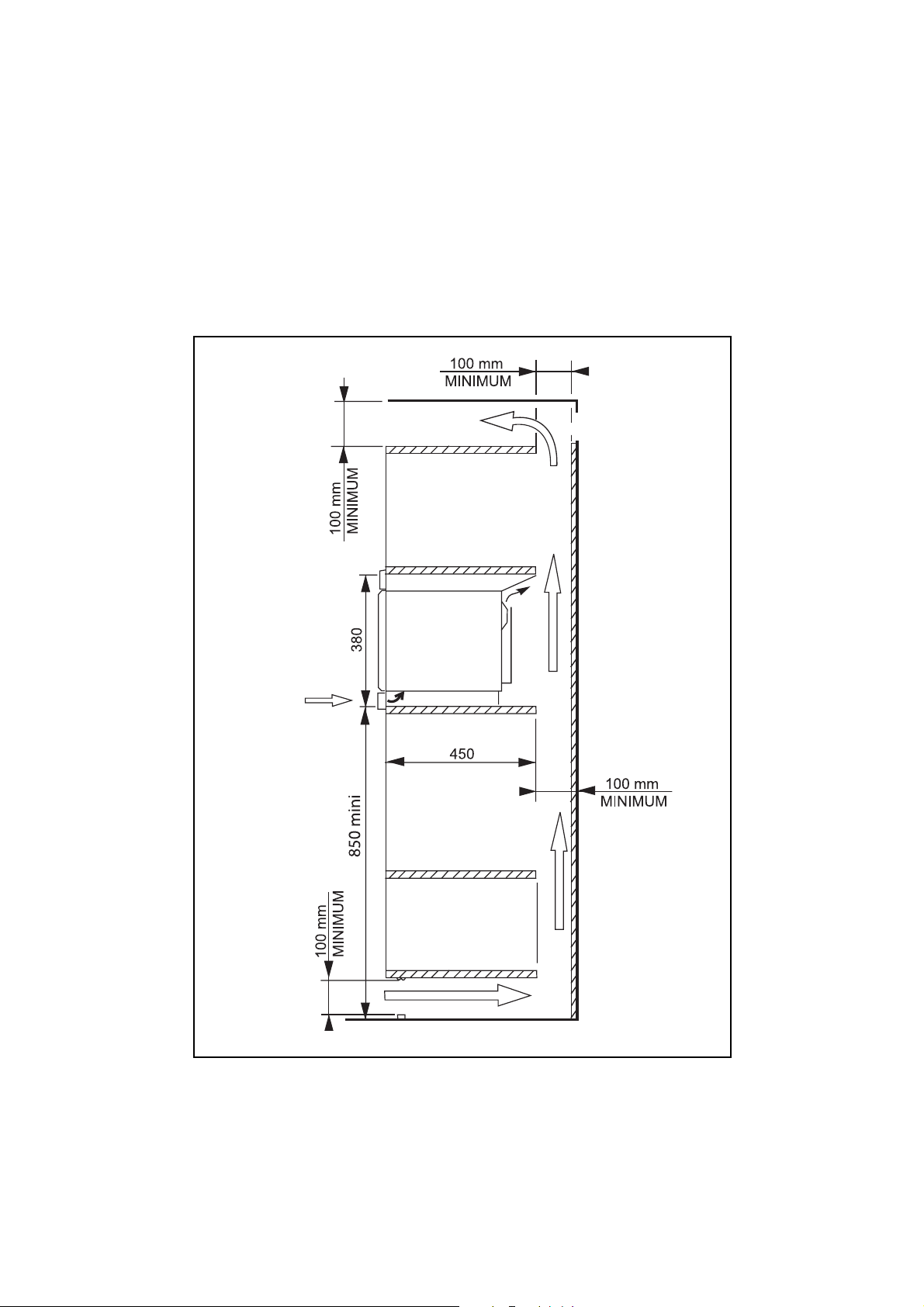

BUILT IN KIT

6
INSTALLATION
BUILT IN KIT

7
INSTALLATION
BUILT IN KIT
76
5
4
123

8
INSTALLATION
BUILT IN KIT
8
9

9
INSTALLATION
BUILT IN KIT

10
WARNING
• Your appliance is designed exclusively for the domestic purposes of defrosting, heating or
cooking foods. The manufacturer bears no responsibility in the case of improper usage.
• Only use ustensils that are suitable for use in microwave ovens.
• To avoid deterioration of your microwave oven, never operate it empty or without the
turntable.
• Never tamper with the lock mechanism of your microwave oven; you could cause damage
requiring repair by an authorised technician.
• When heating food in plastic or paper containers, keep an eye on the oven due to the
possibility of ignition.
• It is not advisable to use metal recipients, forks, spoons, knives, metal ties or staples for
deep-freeze bags.
• The contents of feeding bottles are baby food jars shall be stirred or shaken and the
temperature checked before consumption in order to avoid burns.
• Only allow children to use the oven without supervision when adequate instructions
have been given so that the child is able to use the oven in a safe way and understands
the hazards of improper use.
• Liquids and other foods must not be heated in sealed containers they are liable to explode.
• Eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens
since they may explode, even after microwave heating has ended.
• Microwave heating of beverages can result in delayed eruptive boiling, therefore care
must be taken when handling the container.
• For small amounts (one sausage, a single croissant, etc.), place a glass of water along-
side the food item.
• Time settings that are too long may dry out and burn the food. To avoid such incidents,
never use the same cooking times as those recommended for traditional ovens.
• If smoke is observed, switch off or unplug the appliance and keep the door closed in
order to stifle any flames.
• In order to evacuate moisture, your appliance is fitted with a delayed ventilation func-
tion. Depending on the applied cooking mode (solo/grill/combination), the oven venti-
lation will continue to operate after the cooking end.

11
• THE TURNTABLE :
Ensures equal cooking of food throughout with no need to intervene.
- It may be used as a cooking dish.
- Rotation is controlled by the drive shaft and the wheel support.
- The turntable rotates in both directions.
- If it does not turn, verify that all components are properly positioned.
•TURNTABLE OFF :
Stops the turntable from revolving in order to use platters which require the entire oven
space. When stopped, remember to stir the contents or turn the dish midway through
the programme.
• THE WHEEL SUPPORT :
Do not try to rotate the roller ring manually, as you could damage the drive system.
If it does not turn smoothly, make sure that there is nothing in the well beneath the
turntable.
GENERAL DESCRIPTION
TurntableDrive shaft Wheel
support
Identification
label

12
CONTROL PANEL
ADisplay window :
to simplify programming, the display indi-
cates : the time of day, the programme
length, the functions or cooking tem-
perature programmed.
BSelector knob :
to set the clock, the programme length
or the end-time of a programme .
CDefrost key :
to defrost all frozen food.
DMicrowave key :
to set the microwave power level.
ESTART key :
to start all programmes.
FMemory key M:
for rapid access to 3 preprogrammed
operations.
GGrill + Microwave / pizza key
to program the microwave + grill and
pizza functions.
HGrill key :
to select the desired level of grill.
ICLEAR/STOP key C/STOP:
to interrupt (press once) or cancel a pro-
gramme (press twice).
JClock key :
to set the clock or preprogramme START.
KStop-Turntable key :
to stop the turntable from revolving.
LDoor open button :
to open the door or stop the oven.
G
F
DE
H
B
C
A
K
J
I
L

13
THE DISPLAY & THE SELECTOR KNOB
The display and the selector knobs guide you in your choice of :
turntable option : memorized programme settings :
STOP TURNTABLE
functions :
Microwave power levels
DEFROST VERY LOW COOK / LOW COOK / SIMMER /
REHEAT / HIGH COOK
Grill levels Microwave + grill levels
LOW GRILL MEDIUM GRILL HIGH GRILL LOW GRILL MEDIUM GRILL HIGH GRILL
+MICROWAVE +MICROWAVE +MICROWAVE
the programme length, clock or preprogrammed start time 1122::0000
M3
M2
M1
W
W

14
SETTING THE CLOCK
MICROWAVE POWER SETTINGS
After first plugging in your microwave oven or after a power
outage, the clock appears in the display and 0000::0000flashes,
inviting you to set the time.
To set the clock :
- Press the CLOCK key for 5 seconds.
- Turn the time selector knob to the correct time
(ex. twelve o'clock).
- Validate by pressing the CLOCK key .
Your clock is set.
To cook fish and poultry. To finish programmes
begun with the HIGH COOK power setting such
as beans, lentils or milk-based dishes.
0000::0000
1122::0000
POWER SETTING APPLICATION
DEFROST 150W
VERY LOW
COOK 250W
To top off cooking of delicate dishes or to
cook very slowly.
SIMMER 500W
REHEAT 700W To reheat all fresh or frozen pre-cooked dishes
and frozen vegetables.
LOW COOK 350W
To finish programmes begun with the HIGH
COOK power setting
which might otherwise over
cook on the outside, for instance veal or pork roast.
To defrost meat, fish, fruit, bread or delicate
dishes.
HIGH COOK 1000W To cook fresh vegetables and soup
. To heat
up all liquids.
MICROWAVE OUTPUT POWER : 1000W

15
SETTING A MICROWAVE PROGRAMME
Your microwave oven is now plugged in and the clock is set.
Open the door, set the dish inside, close the door. If the door is nor properly shut,
the appliance will not operate.
If the dish is too large to turn freely inside the oven, press the STOP TURNTABLE key before
or during the programme.
6 microwave power levels are available :
(150 [defrost] - 250 - 350 - 500 - 700 - 1000 W).
Example : Set a microwave programme at the HIGH COOK
power level (1000 W).
①①Press the MICROWAVE POWER KEY to select
1000W :
is displayed.
②②Set the programme time with the selector knob, ex. five minutes :
is displayed.
③③Press START.
The programme begins : the turntable revolves, the oven light comes on.
3 beeps announce the end of a programme. The beeps are repeated
every minute for 10 minutes until you open the door.
To defrost, proceed similarly, using the defrost key to select the 150W power level.
If there is an error in the programming, press the CLEAR/STOP key twice.
EXPRESS PROGRAMME
①①Set the programme time with the selector knob, ex. three minutes :
is displayed.
②②Press START.
The HIGH COOK programme begins automatically : the turntable revolves, the oven light comes on.
0033::0000
11000000WW
0055::0000
2
13

16
The rack
for models featuring
the grill function
The rack :
to brown shallow dishes with the grill
or microwave + grill functions
Make sure that the rack is always well centered on the turntable.
Never use any metal dish with the rack with the microwave, grill + microwave functions.
THE GRILLING RACK

17
Example : Use the grill key to set a programme
using the HIGH GRILL level.
①①Press the GRILL
3 times ,
is displayed.
②②Set the programme time with the selector knob, ex. ten minutes :
is displayed.
③③Press START.
The programme begins : the turntable revolves, the oven light
comes on, the timer counts down.
This function enables you to grill meat and brown dishes such as gratins. It may be used before
or after cooking, as called for in the recipe.
•WARNING : Accessible parts may become hot when the grill is in use. Children should be kept away.
•WARNING : When the appliance is operated in the combination mode, children should only use
the oven under adult supervision due to the temperatures generated.
•Three grill levels are available : LOW GRILL (press the GRILL key once), MEDIUM GRILL
(press the GRILL key twice), and HIGH GRILL (press the GRILL key 3 times).
➣As a general rule, use the HIGH GRILL level for the grill function, for example to grill meat and fish.
The HIGH, MEDIUM & LOW GRILL levels are used with the combined microwave + grill function.
THE GRILL FUNCTION
PROGRAMMING THE GRILL FUNCTION
1100::0000
GGii
-ii11
2
1
3

18
THE MICROWAVE + GRILL FUNCTIONS
PROGRAMMING THE MICROWAVE + GRILL FUNCTION
This function enables you to use the microwaves and grill simultaneously, for rapid cooking.
•You may combine each of the 3 grill levels (LOW-MEDIUM-HIGH) with any of the 5
microwave power settings (150-350-500-700-1000 W), allowing you to tailor a pro-
gramme to your specific cooking needs.
➣ Sample programmes to obtain best results :
- beef & lamb : high grill + 150W microwave level
- turkey / pork / veal : high grill + 350W
- poultry : high grill + 500W
- fish : medium grill + 500W
- potatoes au gratin : medium grill + 1000W
- lasagna : low grill + 1000W
Example : use the grill key + microwave key to set a microwave + grill programme
using the MEDIUM GRILL level + LOW COOK microwave power setting.
①①Press the GRILL + MICROWAVE / PIZZA key 2 times ,
is displayed.
②②Set the microwave power level with the microwave key ,
ex. press once for LOW COOK, 350W :
is displayed.
③③Set the programme time with the selector knob,
ex. ten minutes :
is displayed.
④④Press START.
The programme begins : the turntable revolves, the oven
115500WW
335500WW
1100::0000
3
1
4
2

19
THE PIZZA FUNCTION
2 cooking methods :
• Without preheating - by using the Pizza function you can cook and brown most
frozen meals and fresh, dough-based dishes without preheating the Pizza dish. They
turn out as crispy as if cooked in a traditional oven.
• With preheating - the Pizza dish can be preheated using the Pizza key for a maxi-
mum of 2 minutes. Preheating is recommended to cook or brown small pieces of
meat or fish and some dough-based, frozen and take-out dishes.
•Take foods out of their metallic or plastic packaging before cooking or reheating
them with the Pizza function.
•It is advisable to program shorter cooking times and extend if necessary.
•All foods with a skin or wrapping, such as potatoes and sausages, must be pierced
before cooking.
•Make sure pieces of meat are completely thawed out and dried off before searing
with the Pizza function.
•Keep an eye on the food’s coloring, just as you would with a traditional oven.
•Protect your hands when taking out the dish because it can be extremely hot.
•Do not serve stuffed foods (apple pastry for example) too quickly because they can
be warm on the surface whereas the filling is extremely hot.
•Cooking or reheating of eggs with the Pizza function is prohibited.
•If you wish to cook several dishes consecutively with the Pizza function, allow the
oven to cool 10 minutes between dishes for better browning.
Recommendations :
With the Pizza function you can save time and energy cooking your favorite dishes and
have them turn out as crispy, tasty and golden brown as if cooked in a traditional oven.
•Use of the Pizza key together with the Pizza dish, allows you to use the grill and
microwave functions simultaneously.
•The Pizza dish features a special coating that absorbs microwaves through its bot-
tom.
•It radiates heat from below the food to cook or reheat it, giving it the required color
and crispness while the grill browns the top.

20
THE PIZZA FUNCTION
Example : to cook a frozen pizza (350 g)
Place the frozen pizza directly on the Pizza dish, place the Pizza dish on the middle of
the turntable.
①①Press the MICROWAVE + GRILL / PIZZA key ,
is displayed.
②②Set the programme time with the selector knob,
ex. six minutes :
is displayed.
③③Press START.
The programme begins : the turntable revolves, the oven
light comes on, the timer counts down.
➤Be sure and use an oven mitt to remove the pizza dish.
11000000WW
66::0000
2
1
3
