Defy Maximaid 850 User manual

Owner’s
Manual
LAUNDROMAIN ELECTRLOGIC 850
TOP
LOADING
AUTOMATIC
WASHING
MACHINE
CONTENTS
2 Features
2 Accessories
3 Safety Precautions
4 Installation
6 Electrical Installation
6 Loading the Machine
7 Functions of the Controls
8 Programme Selections
9 Time Delayed Start
9 Customising Programmes.
11 Operating Procedure
12 Maintenance
13 Technical Specification
14 Trouble Shooting
www.defy.co.za

CONGRATULATIONS
You are now the proud owner of one of the finest and most modern washing machines
that today’s technology can produce. You and your machine are going to make a great
team together. But first it will pay if you really get to know each other. This book will tell
you all you need to know about your machine, what it will do and how to do it. Please
read all the instructions carefully before operating the machine.
FEATURES
HOT WATER TAP
Close the tap when
the wash cycle has
been completed.
SOFTENER INLET.
CONTROL PANEL.
POWER ON / OFF
SWITCH.
PULSATOR.
ADJUSTABLE
LEVELLING FOOT.
COLD WATER TAP
Close the tap when
the wash cycle has
been completed.
DETERGENT BOX
LINT FILTER
POWER CORD
AND PLUG
DRAIN HOSE
ACCESSORIES
BASE
COVER
DRAIN
HOSE
DRAIN
HOSE
CLAMP
WATER TAP
ADAPTOR
INLET
HOSE
INLET
ADAPTOR

SAFETY PRECAUTIONS
Do not reach inside the tub while the machine is working.
Wait until all motion stops.
Before washing, check all clothes for loose buttons and
tears.
Check pockets for coins, pins or other small articles.
Close zips and fasteners.
Wash small articles inside a pillow slip.
Do not wash clothes soaked in petrol, thinners, vegetable
oil or any other flammable liquids. Nor should any of
these liquids be added to the wash water as they constitute
a fire hazard.
Only use the machine for washing fabrics. Do not attempt
to wash plastic leather or fibreglass. Sort and separate
clothes by fabric, colour and degree of dirt.
Avoid spraying water on to the control panel and back of
the machine.
Do not use detergents which are not specifically designed
for top loading automatic washing machines.
Do not allow children to play with or crawl inside the
machine.
Supervise them closely when the washer is in use.
Always unplug the machine from the wall socket when it
requires cleaning or service. Only permit qualified
persons to repair or install parts in the washer.
Do not use water which is hotter than 65 degrees Celsius
as this may deform plastic parts of the machine.

INSTALLATION
UNPACKING
• Remove all packaging and dispose of it in a responsible manner.
• Open the wash-tub lid and remove all the accessories stored in the drum.
• Do not attempt to operate the machine while any of the packaging is still in place.
POSITIONING
• The machine should be installed in a well ventilated place, away
from direct sunlight.
• Hot and cold water taps should be located within 1 metre of the
inlet valves.
• Positioned the machine on a flat and stable uncarpeted floor
capable of supporting the fully loaded washer.
• An adjustable levelling foot is located at the right
front of the machine and may be turned in or out to
achieve stability. An unstable machine will vibrate
and generate excessive noise.
DRAIN HOSE
• Connect the drain hose to the drain outlet at the rear
of the machine and secure it with the hose clamp
supplied.
• Hook the outlet end of the drain hose over the lip of a
sink or outlet pipe.
SINK OR LAUNDRY TUB DRAIN
• The top lip of the sink must be at least 860mm (A)
above floor level and not higher than 1300mm.
PIPE DRAIN
• The minimum inside diameter of the pipe drain
should be 30mm and the pipe should be able to
drain 30 litres per minute.
• The top lip of the pipe should be at least 860mm
(B) above floor level and not higher than 1300mm.
Drain hose Hose clamp
Drain
outlet
A
B

INSTALLATION - CONTINUED
INLET HOSES
• Connect the respective inlet hoses to the hot and cold water taps and to the machine’s inlet
fittings. (see sketches below). The hot water inlet is on the left and the cold water inlet on
the right.
CONVENTIONAL TAPS
1
Pull down the collar of the
inlet valve to separate it
from the water tap adaptor.
2
Loosen the four screws
in the water tap adaptor.
3
Fit the tap adaptor to the
tap so that the rubber seal
fits snugly. Then tighten
the four screws evenly.
4
Remove the tape and
screw (B) into (A).
5
Connect the inlet hose to
the water tap adaptor.
6
Attach the other end of
the hose to the machine
inlet by turning it clock-
wise until tight.
FOR THREADED TAPS
HOSE
CONNECTOR WASHER CONNECTOR INLET
CONNECTOR
HOSE
WASHER
Open the water taps and check for any leaks. Tighten fittings if necessary.

ELECTRICAL INSTALLATION
• The washing machine is designed to operate on a 230 Volt, 50 Hz, 15 Amp, AC power
supply.
• The machine should be connected to an earthed 3 pin wall socket.
• If the power-cord should ever need replacing, use only a genuine cord available from
the nearest Defy Service Centre.
The appliance must be earthed and the manufacturer and seller do not
accept responsibility for any damage due to incorrect electrical connection.
LOADING THE MACHINE
PREPARATION
• Close all zippers, snaps and hooks to prevent them from snagging other articles.
• Remove pins, and other hard items to prevent them from scratching the machine.
• Empty all pockets and turn them inside out.
• Turn down cuffs and turn synthetic knits inside out.
• Tie strings and sashes so they will not tangle.
• Treat spots and stains before washing.
SORTING
• Mix large and small items in each load.
• Separate heavily soiled items from lightly soiled ones.
• Separate dark colours from light colours.
• Separate colourfast items from non-colourfast ones.
• Separate robust fabrics from delicate.
• Separate whites from colours.
LOADING
• Lift and fold the lid.
• Arrange the articles to be washed loosely round the perimeter of the tub.
• Load evenly as an off balance load may cause unnecessary vibrations.
• Use a large load programme when washing permanent press garments. These items
need more space to move than heavy items such as jeans and towels.
• Do not overload the machine as this will result in poor cleaning, increased creasing
and excessive lint formation.

FUNCTIONS OF THE CONTROLS
WASH
TEMP.
DETERGENT
HOT
COLD
HIGH
MED.
LOW
SMALL
FUZZY
HEAVY
ECONOMY
WOOL
REMAIN
TIME
MIN. WASH
RINSE
SPIN
CONTROL
SPIN ONLY
START
HOLD
POWER
WASH
TEMP
SOAK
WATER
LEVEL CYCLE DELAY MODE
ON / OFF
FUZZY POWER
Press this pad to turn the power on or off.
WASH
TEMP
Press this pad to select the water temperature. Repeated pressing will
highlight COLD COLD + HOT HOT.
WATER
LEVEL
Press this pad to select the water level. Repeated pressing will highlight
MEDIUM HIGH SMALL LOW.
Press this pad to engage the time delay function.( 2— 48 hours )
The wash will be completed at the end of the selected time.
Press this pad to select a partial wash cycle or any combination of:
WASH, RINSE, SPIN.
CONTROL
SPIN ONLY
Press this pad to change the WASH TIME, RISE TIME, or SPIN TIME.
The pad is also used for selecting SPIN ONLY.
CYCLE
Press this pad to select the required wash cycle.
FUZZY BLANKET ECONOMY WOOL SOAK.
START
HOLD
Press this pad to commence operation. Pressing it a second time will
cause the machine to pause, during which time any settings may be
altered. Pressing it again will cause the machine to resume the wash cycle
at the new settings.
NOTE:
Always refer to garment care labels for the manufacturer's recommendations.
MODE

PROGRAMME SELECTION
FUZZY LOGIC PROGRAMME
This machine has Fuzzy Logic sensors. These enable it to evaluate each load placed in
the drum and to select and modify a wash programme to suit the load.
Do not use the FUZZY programme for woollen or delicate garments.
POWER START
HOLD
To select Fuzzy, simply press the
POWER On pad and then the START /
HOLD pad.
HEAVY PROGRAMME
Use this programme for washing blankets, curtains and small rugs.
CYCLE START
HOLD
Select BLANKET. Select water level and temp.
ECONOMY PROGRAMME
This programme saves water and is ideal for washing lightly soiled clothes.
CYCLE START
HOLD
Select ECONOMY. Select water level and tem
p
.
WOOL PROGRAMME
Wash 1.5 kg maximum. Do not wash chamois or leather.
CYCLE
START
HOLD
Select WOOL.
After the detergent has dissolved, a buzzer will sound. Put the clothes into the tub
after the buzzer has sounded. Close the lid and push the start / hold pad.
SOAK PROGRAMME
Use this programme for blue jeans, overalls and heavy duty wear.
CYCLE START
HOLD
Select SOAK. Select water level and temp.

REMAIN
TIME DELAYED START
The wash cycle completion time may be delayed by 2 to 48 hours. This feature is
particularly useful when you are at work and only want the machine to finish washing
just before you arrive home.
To cancel the “time Delayed Start” press the power button. Wait five seconds before
pressing the power button once more to resume.
EXAMPLE: To set a completion time 8 hours from the present, proceed as follows:
CUSTOMISING PROGRAMMES
MODE
CONTROL
SPIN ONLY
MODE
CONTROL
SPIN ONLY
MODE
CONTROL
SPIN ONLY
START
HOLD
Press the POWER ON pad.
SELECTING THE WASH TIME
Press the Mode pad and the WASH light will illuminate.
Repeatedly press the CONTROL pad to select 14, 18, 0, 6 or 10
minutes.
If you do not want a wash cycle, select the time at 0 minutes.
SELECTING THE NUMBER OF RINSES
Press the Mode pad and the RINSE light will illuminate.
Repeatedly press the CONTROL pad to select 2, 3, 4, 0, or 1 rinse.
If you do not want a rinse cycle, select the time at 0 rinse.
SELECTING THE SPIN TIME
Press the Mode pad and the SPIN light will illuminate.
Repeatedly press the CONTROL pad to select 5, 7, 9, 0, 1 or 3
minutes.
If you do not want a spin cycle, select the time at 0.
Press the START / HOLD pad.
8
REMAIN START
HOLD
Display
DELAY
MODE
Set to 8 Display

CONVENIENT SPIN ONLY SELECTION
Press the POWER ON pad.
Press the CONTROL pad.
Press the START HOLD pad.
BEFORE ANY OF THE WASH OPTIONS ARE SELECTED YOU MUST FIRST:
• Insert the power plug into an earthed wall socket and switch on.
• Open the hot and cold water taps.
• Load the washing into the machine. (see Loading)
• Add detergent and if necessary softener and bleach. (See Adding detergents)
• Close the lid.
• NOTE: DO NOT OPEN THE HOT WATER TAP BY ITSELF.
• IT IS ESSENTIAL TO OPEN THE COLD WATER TAP FOR ALL
PROGRAMMES. THE MACHINE RINSES IN COLD WATER EVEN WHEN
USING A HOT WASH.
HOT
OPTIONAL
COLD
CONTROL
SPIN ONLY
START
HOLD

OPERATING PROCEDURE
LOADING DETERGENT
• Only use detergents specifically designed for top loading automatic washing
machines.
• Gently pull the detergent drawer open.
• Pour the detergent, the quantity of which is dependent on the wash load, into the
detergent drawer and close the drawer.
ADDING BLEACH
• If desired, liquid chlorine bleach may be added
to the bleach inlet as marked on the machine.
• Do not allow bleach to spill onto clothing in the
tub as undiluted bleach will damage the fabrics.
• The machine will automatically dispense the
bleach at the appropriate time during the wash
cycle.
ADDING SOFTENER
• If desired liquid fabric softener may be added
to the softener dispense located on the rim of
the tub.
• Pour an amount of softener, as recommended
by the manufacturer, into the dispenser.
• Avoid spilling the softener on fabrics in the
wash tub.
• The machine will automatically dispense the softener at the appropriate time during
the final rinse.
STARTING THE MACHINE
• Close the lid.
• Press the POWER ON pad.
• Select the desired wash cycle (either fully automatic FUZZY or any of the pre-
programmed washes BLANKET, ECONOMY, WOOL, SOAK or any customised
programme).
• Press the START / HOLD pad.
• The machine will complete the selected programme.

MAINTENANCE
CLEANING THE EXTERIOR
• Wipe up any detergent, bleach and other spills as they occur with a soft damp cloth.
• Periodically clean the cabinet with a damp warm soapy cloth, rinse and dry.
CLEANING THE interior
• Clean the interior with 250ml of chlorine bleach mixed with 500ml of detergent.
• Run the washer through a complete cycle.
• Repeat the process if necessary.
CARE
• Do not put sharp metal objects in the washer.
• Check all pockets for pins, paper clips coins, bolts, screws and such.
• Do not lay these items on top of the washer after emptying the pockets.
HOLIDAY CARE
• If the washer will not be used for an extended period it is advisable to:
• Remove the electric plug from the wall socket.
• Turn off the water supply to the washer.

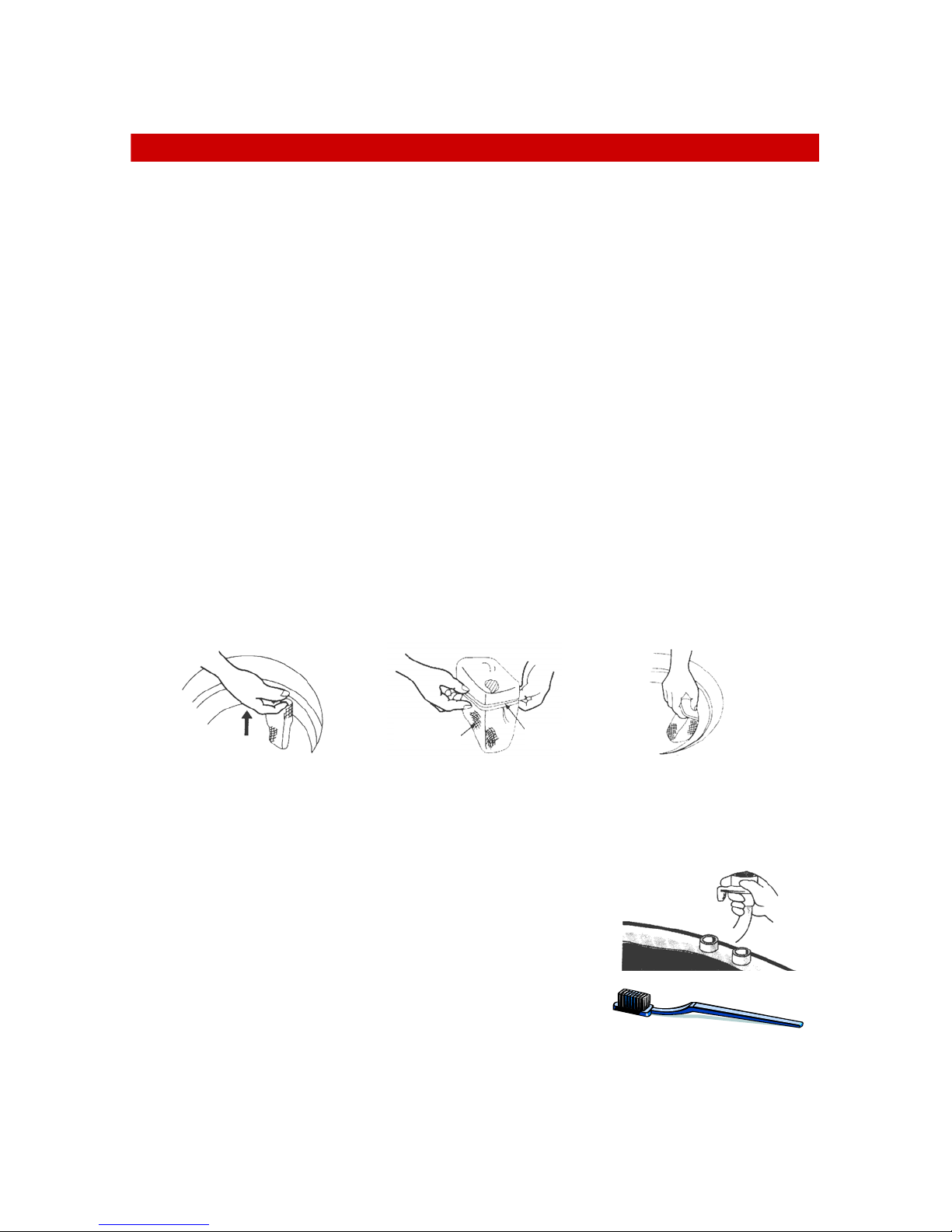

CLEANING THE LINT FILTER
Pull the filter frame upwards. Turn the filter inside out and
remove any lint and dirt
under running water.
Filter Frame
Re-shape the filter mesh
and fit the filter frame
back in it’s slot.
1 2 3
CLEANING THE WATER INLET FILTER
• Periodically clean the water inlet filter.
• Remove the power plug from the wall socket.
• Turn off the water taps.
• Separate the inlet hose and remove the mesh filter.
• Clean the filter with an old toothbrush and re-fit.

MAINTENANCE CONTINUED

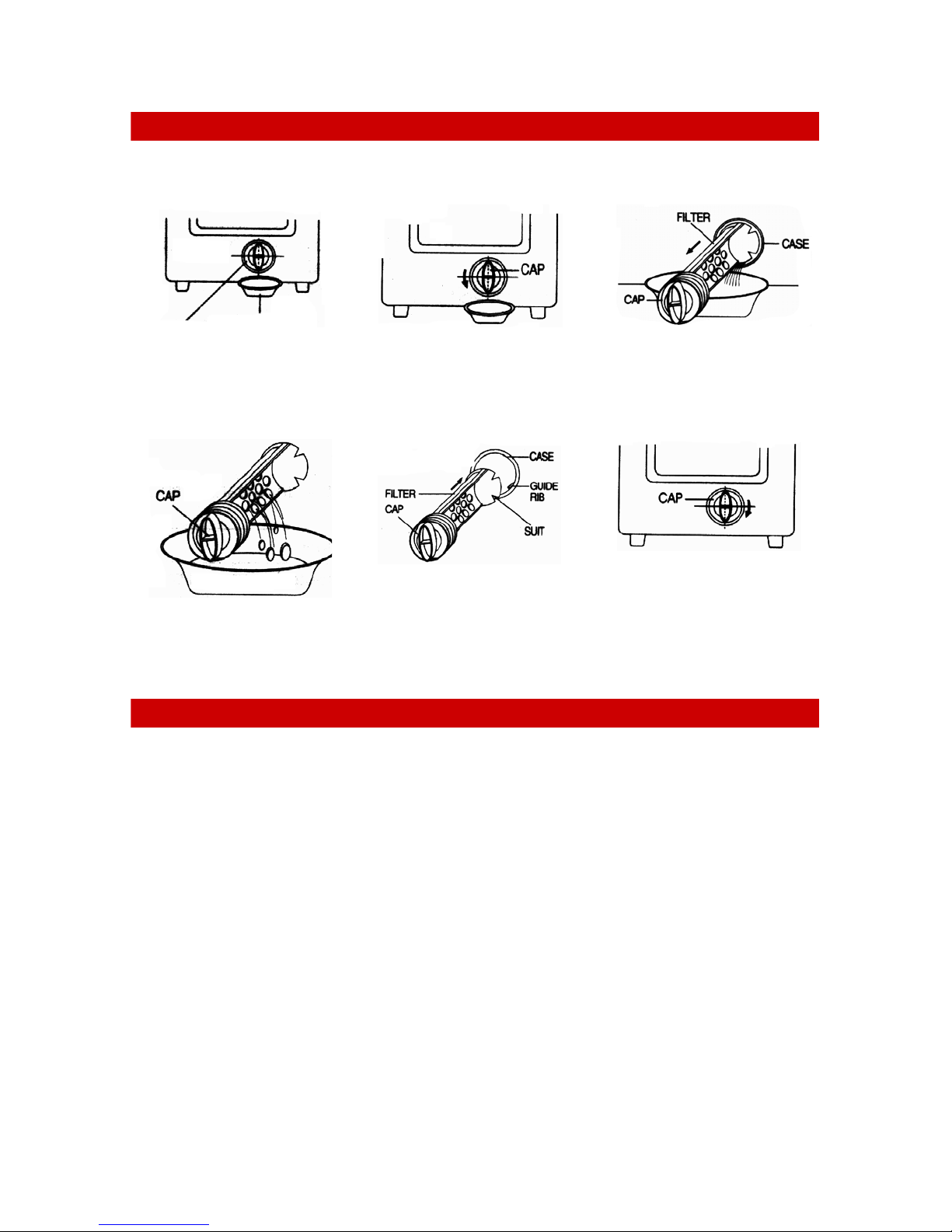

CLEANING THE DRAIN FILTER
Place a shallow con-
tainer under the drain-
filter to collect any
residual water spillage.
Turn the filter cap in an
anticlockwise direction.
Pull the filter assembly
out.
Clean the drain filter.
Re-fit the filter along the
guides ensuring that
the groove in the filter
aligns with the guide rib.
Tighten the cap by turn-
ing it in a clockwise
direction.
TECHNICAL SPECIFICATIONS
Dry weight capacity 8.5 kg.
Power source AC 220-240V / 50 Hz
Power consumption 430 W
Dimensions ( W x H x D ) in mm. 598 x 956 x 643
Unit weight 43kg
Standard water consumption 207 litres
Water level for High, Medium, Low, Small 88, 75, 61, 48 litres
Wash mode Double action type Air bubble + Pulsator.

TROUBLE SHOOTING
Most problems are easily solved if the cause is known.
BEFORE CALLING A SERVICE TECHNICIAN PLEASE CHECK THE
FOLLOWING:
PROBLEM CHECK
The machine will not operate at all. Is there a power failure?
Has the power pad been pressed?
Has the start / hold pad been pressed?
Is there water in the tub?
There is a restricted or no water supply.
If the water flow has not stopped after 20
minutes the fault code IE will be displayed
and a buzzer will sound to indicate a
problem.
See if the tap is open?
Are the water pipes frozen?
Has the water supply been cut off?
Is the inlet filter blocked?
The machine will not drain.
If draining is not completed in a specified
time limit the fault code OE will be
displayed and a buzzer will sound to
indicate a problem.
Is the drain hose blocked or frozen?
Is the drain hose kinked or deformed?
Is the end of the drain hose immersed in
water?
Is there excessive dirt in the drain filter?
The machine will not spin.
If the load is unbalanced the spin cycle will
be interrupted and the machine will stop.
The unbalanced condition may be corrected
by re-filling the tub, rinsing and then
draining. If the unbalanced condition
remains, the fault code UE will be
displayed and a buzzer will sound
indicating a problem.
Is the wash load located all to one side?
Has the machine been installed on an
uneven floor?
Is the lid open? The fault code LE will be
displayed if this is the case.
The Manufacturer strives for continuous improvements. For this reason, the text and
illustrations in this book are subject to change without notice.
Part Number 062 959
