Delcam Audio MR. FOX MK2 User manual

Input Impedance
Output Impedance
Switch
Power Suply
Power Consumption
Dimensions
Weight
Accessory
: 20k Ohm
: 50k Ohm
: TRUE BYPASS ON/OFF
: DC 9V (Center Negative)
: 10mA Max. / 9VDC
: 120(W)x 95(D)x 53(H) mm
: 370g
: Ruber Feet, Manual

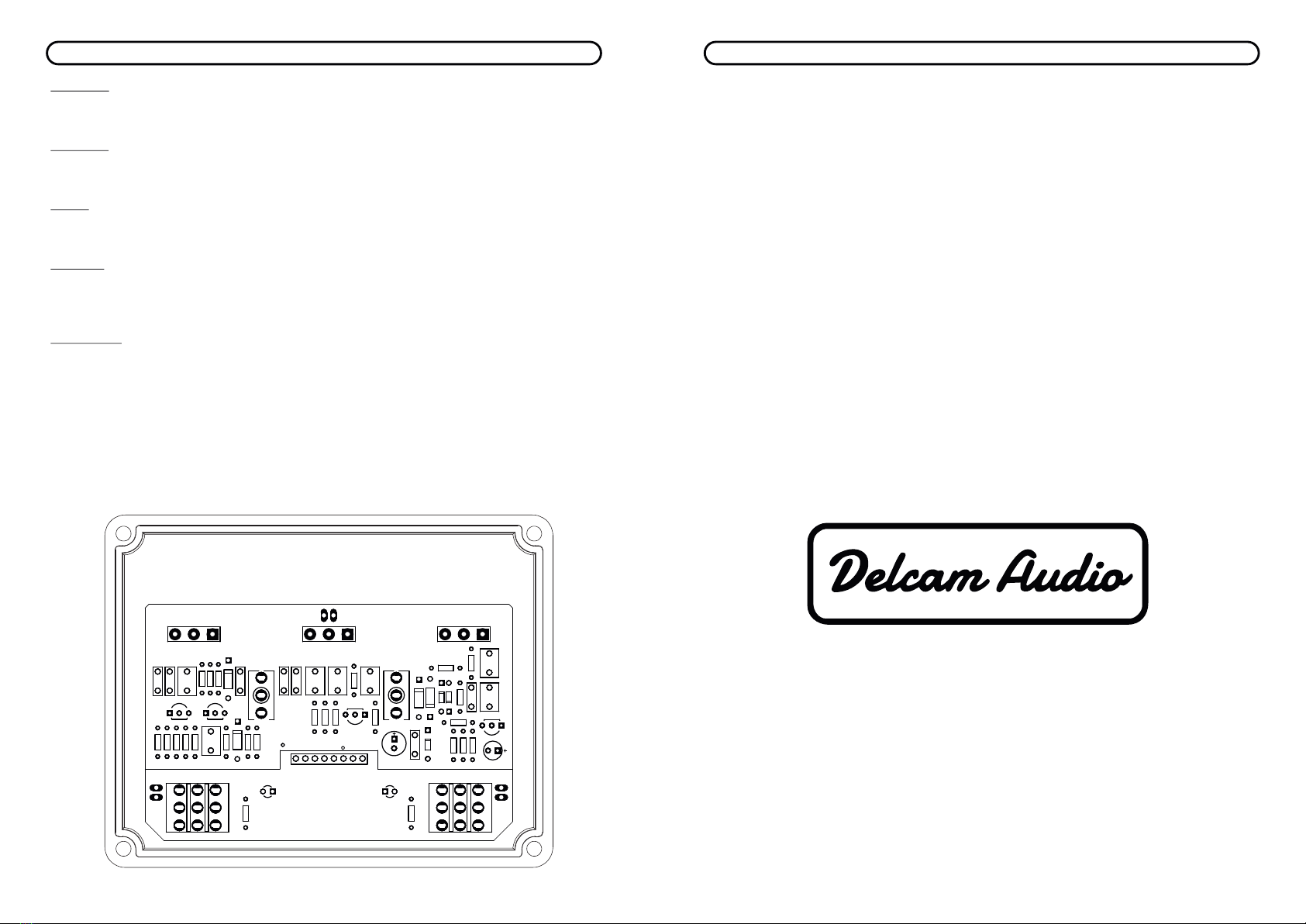

SPECIFICATIONS
User’s Guide
MR. FOX MK2
Handmade In Spain
www.delcamaudio.com
Stop The Use In Case Of a Problem
· Stop using the equipment and unplug immediately if you notice smoke and/or a strange odor emanating from it.
Beware Of Heat Build-up
· Never cover AC adaptor with cloth or other objects.
Use Specified AC adaptor Only
· Be sure to use an AC adpator that complies with the Power Specifications and polarity.
Unplugging AC Adaptor
· Never try to unplug AC adaptor while your hands are wet.
· When unplugging AC adaptor from the power source, be sure to grasp the adaptor. Never pull on the cord.
Water, Humidity, Dust and High Temp.
· Never leave or use the equipment in areas subject to water, high humidity, dust and high temperature.
Leaving the Equipment Unattended
· Whenever leaving the equipment unattended for long periods, be sure to unplug AC adaptor from the power source.
WARNING
FEATURES & CONTROLS
3
77
1
546
CONTROLS
1
Sustain, Volume and
Tone. Easy.
FAT
2Controls the amount of
bass and deepnees.
INPUT
FOOTSWITCH A/B
4
7
Input Jack from Guitar
or other effects.
Turn ON and OFF the selected part of the pedal. FUZZ must be ON for the OCTAVE to work.
OUTPUT
5
Output Jack to Amp or
other effects.
CLIP
3Controls the saturation
range. More/None/Less
DC INPUT
6External power suply.
Center Negative. 9V DC
POWER
Always use an External Regulated 9V
DC Power Supply, with the center
pole Negative and the outside barrel
Positive. Use a quality and Low Noise
power supply for best tonal results.
9VDC
+-
IN
9V
OUT
FUZZ
I’m Not a Web Browser but the Bringer of Chaos
MR. FOX
MK2
VOLUME
TONESUSTAIN
OCTAVE
CLIP FAT
2

FEATURES & CONTROLS MAIN FUNCTIONS & OVERVIEW
This is the MR. FOX MK2, our approach to a hell of a classic FUZZ/OCTAVE ever created, the
FOXX Tone Machine. All the good vibes and weirdness awaits !!
The circuit is a straight FUZZ with a lot of classic vibe. It has the right amount of controls to get
things done easy but also to be versatile enough. It also has an Octave Up addition to get all the
funkiness and weird tunes out of your guitar.
The external switches make this design very versatile. You can eliminate the clipping stage of
the FUZZ, to get a fuller and louder sound. You can create a mid-cut and almost a high pass
filter with the FAT switch. A lot of options for a variety of sounds... Oh and the Octave is very
sensible so all the adjustments in the FUZZ sections will affect the fidelity of the octave
modulator.
If you only need a FUZZ, this is gonna blow your mind of how good it sounds. But it also have an
Octave Up circuit so... win-win situation !
Anyway, from bassier saturated sounds to slight crunchiness or straight bass-cut machine gun
Fuzz sounds... this is awesome to have in your pedalboard.
VOLUME
Adjusts the overall Volume of the pedal. You can get a lot of boosted signal through this effect
so this helps to keep it at safe levels.
SUSTAIN
Adjust the overall Gain or Fuzz Effect in to the signal. The more you turn Clockwise, the more
clipping you add to the signal.
TONE
Passive tone control. Clockwise will add more mids and highs, CounterClockise will cut those
frequencies and the bass freq. will remain.
OCTAVE
This set ON/OFF the Octave section of the circuit. This is classic Octave Up effect and it has
no controls off how to shape this modulation. This part is very responsive to the FUZZ
parameters and options.
FAT & CLIP
This selectors let you adjust the overall bass of the effect and set the saturation range of the
clipping stage. The mid Positions de-activates the switchs, so in the BASS: the lows will vanish
an in the CLIP: the saturation will dissapear and the volumen will rise.
User’s Guide
MR. FOX MK2
Handmade In Spain
www.delcamaudio.com
