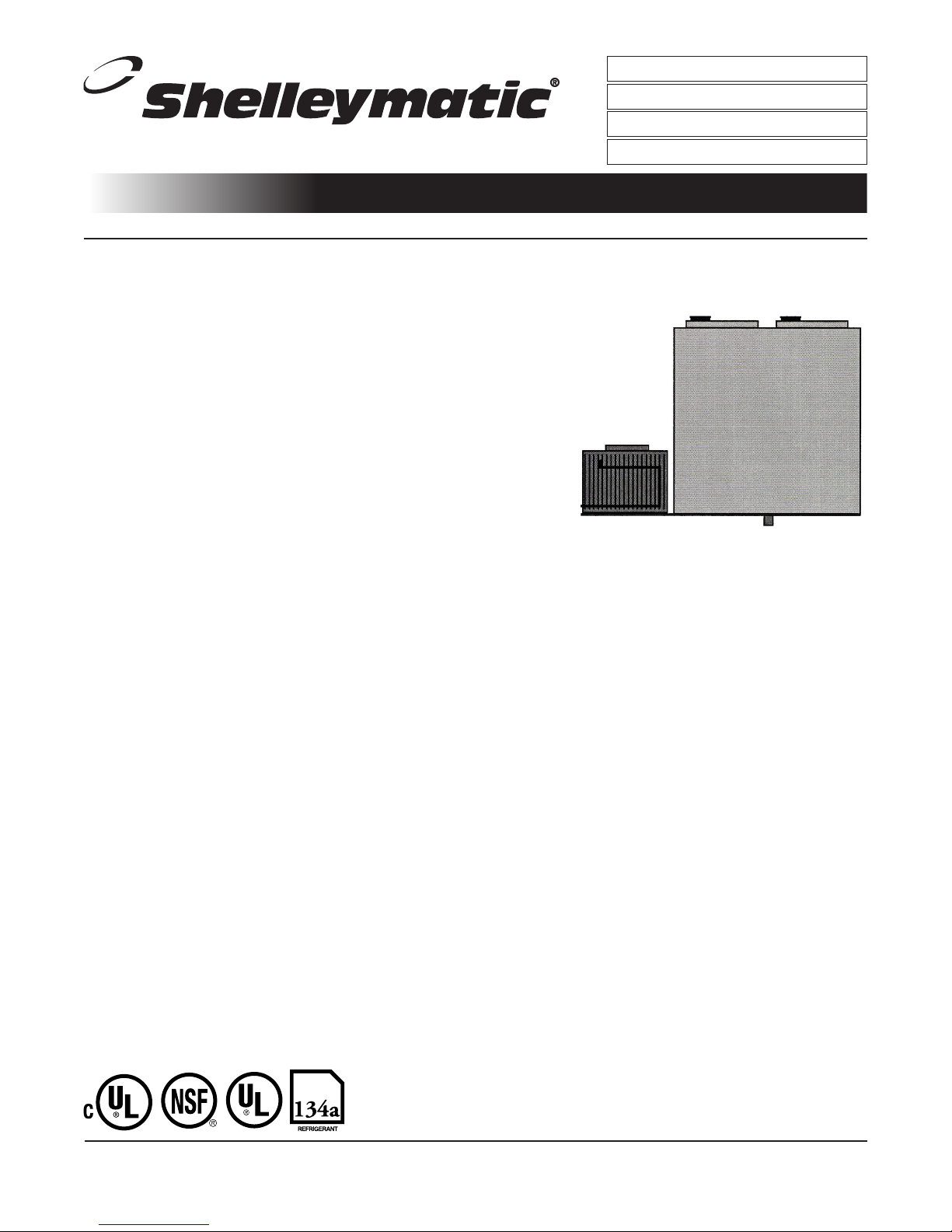

Short form specifications
The exterior sides and top edge shall be 20-gauge galvanized steel.
Exterior bottom to be 14-gauge galvanized steel.
Inner liner shall be water tight and constructed of 22-gauge
stainless steel with a 1.25” (3.2cm) I.P.S. drain. Opening(s) shall
have throat liners constructed of high impact plastic. Unit to be
insulated with foamed-in-place polyurethane insulation with a non-
conductive breaker strip.
Each opening shall have an insulated, stainless steel folding lid
with high impact plastic liner, molded rubber edge and black plastic
handles.
(1) stainless steel louver shall be provided for installation in the
cabinet to allow proper airflow to the condensing unit.
Each self-leveling mechanism shall be field adjustable by adding or
removing stainless steel extension springs in the elevator housing
inside the unit. The elevators shall be connected by removable
platform carriers constructed of 18-gauge stainless steel.
Refrigeration system shall use HFC-134a refrigerant. Refrigerant
flow shall be controlled by an expansion value. Cabinet shall
maintain 36°F to 40°F (2°C to 4°C) temperature with lids closed
for storage. Refrigeration system shall be controlled by a pressure
control, located near the condensing unit.
Electrical connections shall be 115 volt, 60 cycle, and single phase.
Unit shall have a 9’ (2.7m) long electrical cord and NEMA 5-15P
installed at the mechanical end.
THE FOLLOWING APPLIES TO MODELS MFSC-2821,
MFSC-31, MFSC-44 AND MFSC-57 ONLY:
(6) anodized aluminum divider trays will be supplied per opening.
NOTE: See chart on back for milk storage capacity.
Optional Accessories & Modifications
• Lid locking device
• Wire baskets (not available on MFSC-2020)
• Lexan® covers
• Special voltages (contact factory)
MFSC
Built-in self contained milk or beverage dispensers
Model MFSC-31

The Delfield Company, 980 S. Isabella Rd., Mt. Pleasant, MI 48858, U.S.A. • [phone] • Fax [phone] • www.delfield.com
Delfield reserves the right to make changes in design or specifications without prior notice. ©2002 The Delfield Company. All rights reserved. Printed in U.S.A.
MSMFSC 05/02
PLAN VIEW MODELS MFSC-2020
INSTALLATION NOTE:
Refrigeration system
is designed so that
air will ow into
the compressor
area through the
provided louver. Any
restriction to this air
ow path will void the
warranties.
MFSC
Built-in self contained milk or beverage dispensers
PLAN VIEW
MODELS MFSC-2821
PLAN VIEW MODELS MFSC-31
RIGHT END VIEW
MODEL MFSC-2821,
MFSC-31, MFSC-44,
& MFSC-57
PLAN VIEW MODELS MFSC-44
PLAN VIEW MODELS MFSC-57
ELEVATION VIEW MODELS MFSC-44 ELEVATION VIEW MODELS MFSC-57
LID OPENING DETAIL
MODELS MFSC-2821,
MGSC-31, MFSC-44 &
MFSC-57
MODEL CUT OUT HORSE BTU SHIP
NUMBER DIMENSIONS(LxD) CAPACITY POWER AMPS BTU LOAD CAPACITY WEIGHT
MFSC-2020 (1) 25.25” x 22.25” n/a 1/4 5.0 300 1225 303lbs
(1) 64.1cm x 56.5cm 137kg
MFSC-2821 (1) 10.75 x 21.00” 126 half pint 1/4 5.0 260 1170 267lbs
(1) 27.3cm x 53.3cm cartons 121kg
MFSC-31 (2) 10.75 x 21.00”* 252 half pint 1/4 5.0 300 1210 306lbs
(2) 27.3cm x 53.3cm* cartons 139kg
MFSC-44 (3) 10.75 x 21.00”* 378 half pint 1/4 5.0 410 1350 413lbs
(3) 27.3cm x 53.3cm* cartons 187kg
MFSC-57 (4) 10.75 x 21.00”* 504 half pint 1/4 5.0 520 1450 461lbs
(3) 27.3cm x 53.3cm* cartons 209kg
*requires 2.75 (7.0cm) between each cutout
RIGHT END VIEW
MODEL MFSC-2020
43.25”
109.85cm
28.50”
72.39cm
29.25”
74.29cm
26.68”
67.77cm
26.68”
67.77cm
14.50”
36.83cm
ELEVATION VIEW
MODEL MFSC-2020
ELEVATION VIEW
MODEL MFSC-2821
ELEVATION VIEW
MODEL MFSC-31
28.25”
71.75cm
55.50”
140.97cm 41.50”
105.4cm
26.68”
67.77cm
69.00”
175.3cm 55.50”
140.97cm
26.68”
67.77cm
28.25”
71.75cm 28.25”
71.75cm
12.50”
31.8cm
42.00”
106.68cm
28.00”
71.12cm
