DELLA 050-HA-50138 User manual

36”WALL MOUNTED FIREPLACE
INSTRUCTION MANUAL
Item No: 050-HA-50138
**WARNING: READ THIS INSTRUCTION MANUAL CAREFULLY BEFORE USE.
www.dellaproductsusa.com 909. 344. 2588

2

OUR BRAND
3
TABLE OF CONTENT
Thank you for choosing a DELLA Infrared Zone Heating System. This owner’s manual will
provide you with valuable information necessary for the proper care and maintenance
of your new product. Please take a few moments to thoroughly read the instructions and
familiarize yourself with all the operational aspects of your new heater.
IMPORTANT INSTRUCTIONS
SPECIFICATIONS
SAFETY FEATURE
PRODUCT OPERATION METHOD
IN THE BOX
PRODUCT DIAGRAM
CONTROL PANEL
REMOTE CONTRAL
WLL-MOUNTED INSTALLATION
TABLE TOP INSTALLATION INSTRUCTIONS
OPERATION INSTRUCTIONS
MAINTENANCE
STORAGE
BASIC TROUBLESHOOTING
WARRANTY
PLEASE LIKE, COMMENT AND SUBSCRIBE
04
05
05
06
06
06
07
07
10
12
12
14
14
14
15

4
IMPORTANT INSTRUCTIONS
When using this electric unit, basic safety precautions should always be followed to reduce the
risk of re, electric shock, and injury to persons, including the following:
01. Read ALL instructions before using this unit.
02. CAUTION: Risk of Electric Shock. DO NOT open or try to repair the heater yourself.
03. This heater may get hot when in use. To avoid burns, DO NOT let bare skin touch hot
surfaces. If provided, use handles when moving this heater.
04. Keep combustible materials, such as furniture, pillows, bedding, paper, clothes, and cur
tains at least 3 ft from the front of the heater and keep them away from the sides, top,
and rear. DO NOT place towels or other objects on the heater.
05. Extreme caution is necessary when any heater is used by or near children or the disabled,
or when the heater is left operating and unattended.
06. DO NOT operate any heater with a damaged cord or after the heater malfunctions, has
been dropped or damaged in any manner. Return heater to authorized service facility for
examination, electrical or mechanical adjustment, or repair.
07. This heater is not intended for use in bathrooms, laundry areas and similar indoor lo
cations. NEVER locate heater where it may fall into a bathtub or other water container. To
protect against electrical hazards, DO NOT immerse in water or other liquids.
08. DO NOT touch the control panel or plug with a wet hand.
09. DO NOT run cord under carpeting. DO NOT cover cord with throw rugs, runners, or similar
coverings. Arrange cord away from trac area and where it will not be tripped over.
10. DO NOT insert or allow foreign objects to enter any ventilation or exhaust opening as this
may cause an electric shock or re, or damage the heater.
11. To prevent a possible re, DO NOT block the air intakes or exhaust in any manner. DO
NOT use on soft surfaces, like a bed, where openings may become blocked.
12. A heater has hot and arcing or sparking parts inside. DO NOT use in areas where gasoline,
paint, explosive and/or ammable liquids are used or stored. Keep unit away from heated
surfaces and open ames.
13. Always plug heaters directly into a wall outlet/receptacle. Never use with an extension
cord or relocatable power tap (outlet/power strip).
14. To avoid re or shock hazard, plug the unit directly into a 120 V AC electrical outlet.
15. To disconnect heater, turn controls to OFF, then remove plug from outlet. Pull rmly on
the plug, DO NOT unplug by pulling on the cord.
16. Always unplug the unit before moving or cleaning, or whenever the heater is not in use.

5
IMPORTANT INSTRUCTIONS
17. Use only for intended household use as described in this manual. Any other use not
recommended by the manufacturer may cause re, electric shock, or injury to persons. The
use of attachments not recommended or sold by unauthorized dealers may cause hazards.
18. Always use on a dry, level surface. Use on oor only.
19. DO NOT use outdoors.
20. WARNING: To reduce the risk of re or electric shock, DO NOT use this unit with any
solid-state speed control device.
21. DO NOT attempt to repair or adjust any electrical or mechanical functions on this unit. Doing
so will void your warranty. The inside of the unit contains no user serviceable parts. Qualied
personnel should perform all servicing only.
SPECIFICATIONS
SAFETY FEATURE
OVERHEAT SAFETY FEATURE
This heater is equipped with a overheat safety feature. When the heater’s internal components
reach a certain temperature that could cause overheat or possible re, the heater will automati-
cally shut o.
WARNING: It is normal for the power cord to feel warm to the touch; however, a loose t
between the outlet and the plug may cause overheating of the plug. If this occurs, try inserting
the plug into a dierent outlet. Contact a qualied electrician to inspect the original outlet
for damage.
Voltage Rating 120 V (60Hz)
Power Consumption 1500W
Unit Size 37.4 in. (W) x 3.7 in. (D) x 22.4 in. (H)

OUR BRAND
6
PRODUCT OPERATION METHOD
01. WALL-MOUNTED
02. TABLETOP
IN THE BOX
• ELECTRIC FIREPLACE
• REMOTE CONTROL (INCLUDE BATTERIES)
• INSTRUCTION MANUAL
• ROCK
• WALL HANGING HOLDER
• TWO STANDING LEGS
• EIGHT 4*16MM SCREWS (TO FIX STANDING LEGS)
• FIVE 4*45MM SCREWS (TO FIX WALL HANGING HOLDER)
• FIVE SCREW EXPANSION TUBES (TO FIX WALL HANGING HOLDER)
PRODUCT DIAGRAM
4
Eight 4*16mm screws (to fix standing legs)
Five 4*45mm screws (to fix wall hanging holder)
Five screw expansion tubes (to fix wall hanging holder)
PRODUCT DIAGRAM







rock
Control panel
Power switch
Air outlet
Glass
Wall mounted bracket

7
CONTROL PANEL
REMOTE CONTROL
5

 
 
Control Panel
Remote control
Power switch: Power switch of the fireplace

High Heat button: To turn on/off high mode
heating
Low Heat button: To turn on/off low mode
heating
Flame button: To adjust the flame brightness
Power switch: To turn on/off the fireplace
Flame button: To turn on/off flame function, and adjust the flame
brightness
High heat button: To turn on/off high mode heating
Low heat button: To turn on/off low mode heating
Indicate light: function indicate light
5

 
 
Control Panel
Remote control
Power switch: Power switch of the fireplace

High Heat button: To turn on/off high mode
heating
Low Heat button: To turn on/off low mode
heating
Flame button: To adjust the flame brightness
Power switch: To turn on/off the fireplace
Flame button: To turn on/off flame function, and adjust the flame
brightness
High heat button: To turn on/off high mode heating
Low heat button: To turn on/off low mode heating
Indicate light: function indicate light

8
PREPARATION
The heater can be wall-mounted or placed on the ground, which can be used in the living room or
bedroom. Plug the unit into a 120 V 60 Hz electrical outlet, and open the switching power supply.

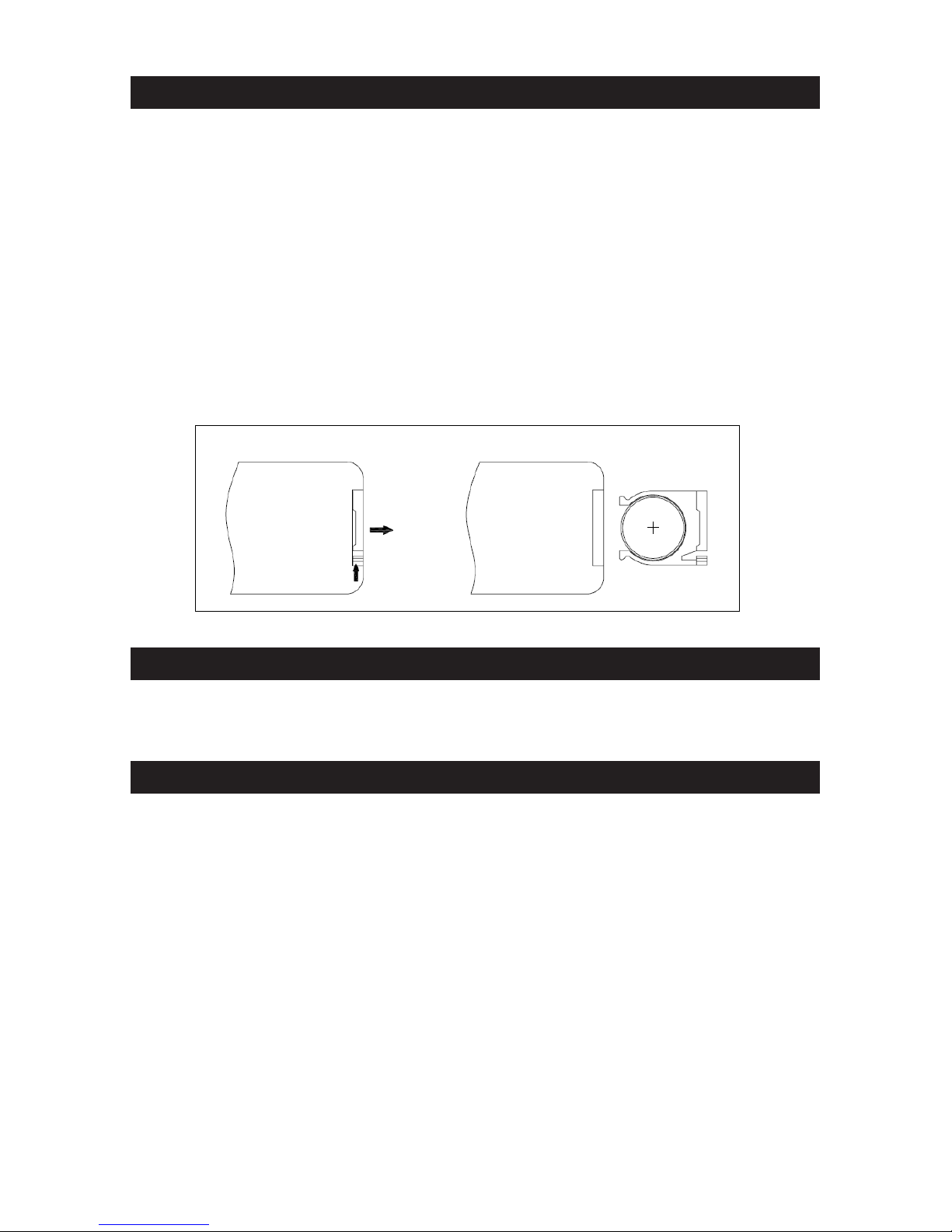

Bring out the insulating lm when used the remote control, see as the following steps.
WALL-MOUNTED INSTALLATION INSTRUCTIONS
Your new electric replace may be installed virtually anywhere in your home. However,
when choosing a location be sure to follow the general instructions included. For best
results install out of direct sunlight. Power supply service must be either completed or
placed within the electric replace prior to nishing to avoid reconstruction.
6
PREPARATION
The heater can be wall-mounted or placed on the ground, which can be used in the living room or
bedroom. Plug the unit into a 120 V 60 Hz electrical outlet, and open the switching power supply.
Bring out the insulating film when used the remote control, see as the following steps.
Wall-mounted installation instructions
Your new electric fireplace may be installed virtually anywhere in your home. However,
when choosing a location be sure to follow the general instructions included. For best
results install out of direct sunlight. Power supply service must be either completed or
placed within the electric fireplace prior to finishing to avoid reconstruction.
PULL
Remote control
Insulating film
Battery cover
6
PREPARATION
The heater can be wall-mounted or placed on the ground, which can be used in the living room or
bedroom. Plug the unit into a 120 V 60 Hz electrical outlet, and open the switching power supply.
Bring out the insulating film when used the remote control, see as the following steps.
Wall-mounted installation instructions
Your new electric fireplace may be installed virtually anywhere in your home. However,
when choosing a location be sure to follow the general instructions included. For best
results install out of direct sunlight. Power supply service must be either completed or
placed within the electric fireplace prior to finishing to avoid reconstruction.
PULL
Remote control
Insulating film
Battery cover

9
WALL-MOUNTED INSTALLATION
7
Warning: to prevent fire, there is no other furniture on
the top of the fireplace, the following are the minimum distance
from the front and side of the heater to the wall.
Up
1.0m
down
0.5m
left
0.5m
right
0.5m
Warning: check the wall to ensure that there are no wires, pipes, etc. when drilled holes in this area.
Warning: the product is not plugged in before hanging wall.
Warning: the heater cannot be fixed in the hollow wall. The heater must be installed on the solid wall.
A

10
WALL-MOUNTED INSTALLATION
8
Heater hook position
screw 4*10�
B
C
D
Push in this direction after hanging on.
Exactly align to hole and hang on the
fireplace.

11
WALL-MOUNTED INSTALLATION
9
1.Fix the wall hanging holder on the wall by using the 4*45mm screws and screw expansion tubes.
(As shown in figure A)
2, the heater hanging on the wall above the bracket (as shown in Figure b), then to about two screws
loosen (as shown in Figure CD), the glass components to take down, pebble is placed inside the slot
(as shown in Figure E), then glass component mounted back to the original place (figure f shown),
lock screw, plug in the power.
Put in the rock
E
F
01. Fix the wall hanging holder on the wall by using the 4*45mm screws and screw expansion
tubes. (As shown in gure A)
02. the heater hanging on the wall above the bracket (as shown in Figure b), then to about two
screws loosen (as shown in Figure CD), the glass components to take down,
pebble is placed inside the slot (as shown in Figure E), then glass component
mounted back to the original place (gure f shown), lock screw, plug in the power.
03, Note: if you choose to hang on the wall, you can no longer be xed to the support
of the product.

12
TABLETOP INSTALLATION INSTRUCTIONS
OPERATING INSTRUCTIONS
01. Firstly, turn on the power switch on the right side of the replace, which can provide the
power supply to all the function of the replace. Only in the state of mode I, the function will
be operated, including the using of remote control.
02. ADJUST THE FLAME BRIGHTNESS
In standby mode, press the re key, you can appreciate the ame eect.
1, Use 4*16mm screws to support the foot xed on the product, as shown above.
2, Note: if you choose to put on the ground, don’t need the hanging bracket is xed on the wall.
10
3,Note: if you choose to hang on the wall, you can no longer be fixed to the support of the product.
Tabletop installation instructions
1, Use 4*16mm screws to support the foot fixed on the product, as shown above.
2, Note: if you choose to put on the ground, don't need the hanging bracket is fixed on the wall.
OPERATING INSTRUCTIONS
1. Firstly, turn on the power switch on the right side of the fireplace, which can provide the power
supply to all the function of the fireplace. Only in the state of mode I, the function will be operated,
including the using of remote control.
 
Press the power key on the remote control, at this time is to open
the heating function and flame effect. Then press the power key,
the heating function and flame effect will stop work (fan will
close after delaying 30 seconds), and enter standby state.
2. Adjust the flame brightness
In standby mode, press the fire key, you can appreciate the flame effect.
10
3,Note: if you choose to hang on the wall, you can no longer be fixed to the support of the product.
Tabletop installation instructions
1, Use 4*16mm screws to support the foot fixed on the product, as shown above.
2, Note: if you choose to put on the ground, don't need the hanging bracket is fixed on the wall.
OPERATING INSTRUCTIONS
1. Firstly, turn on the power switch on the right side of the fireplace, which can provide the power
supply to all the function of the fireplace. Only in the state of mode I, the function will be operated,
including the using of remote control.
 
Press the power key on the remote control, at this time is to open
the heating function and flame effect. Then press the power key,
the heating function and flame effect will stop work (fan will
close after delaying 30 seconds), and enter standby state.
2. Adjust the flame brightness
In standby mode, press the fire key, you can appreciate the flame effect.
Press the power key on the remote control, at this time
is to open the heating function and ame eect. Then
press the power key, the heating function and ame
eect will stop work (fan will close after delaying 30
seconds), and enter standby state.
11
Or
In standby mode, press the fire key, it is opened the brightest flame
(the heating indicator will light up). The charcoal component will
light up, and presses the flame key again, the brightness of the
flame decrease. You can set up the whole five gears flame
brightness, including close, by pressing the flame key circularly.
3. heating the low mode
In standby mode, press the heat key of the first gear and can be opened the heating function.
Or 
In standby mode, press the heat key on the control panel or remote
control, the heating function is turned on (the heat indicator will light
up). Then press the heat key on the control panel or remote control
again, the heat function and the heat indicator are closed, at
meanwhile, the fan will close after delaying 30 seconds.
4. heating the high mode
In standby mode, press the heat key of the second gear and can be opened the heating function.
Or 
In standby mode, press the heat key on the control panel or remote
control, the heating function is turned on (the heat indicator will light
up). Then press the heat key on the control panel or remote control
again, the heat function and the heat indicator are closed, at
meanwhile, the fan will close after delaying 30 seconds.
In standby mode, press the re key, it is opened the
brightest ame (the heating indicator will light up).
The charcoal component will light up, and presses the
ame key again, the brightness of the ame decrease.
You can set up the whole ve gears ame brightness,
including close, by pressing the ame key circularly.

13
OPERATING INSTRUCTIONS
11
Or
In standby mode, press the fire key, it is opened the brightest flame
(the heating indicator will light up). The charcoal component will
light up, and presses the flame key again, the brightness of the
flame decrease. You can set up the whole five gears flame
brightness, including close, by pressing the flame key circularly.
3. heating the low mode
In standby mode, press the heat key of the first gear and can be opened the heating function.
Or 
In standby mode, press the heat key on the control panel or remote
control, the heating function is turned on (the heat indicator will light
up). Then press the heat key on the control panel or remote control
again, the heat function and the heat indicator are closed, at
meanwhile, the fan will close after delaying 30 seconds.
4. heating the high mode
In standby mode, press the heat key of the second gear and can be opened the heating function.
Or

In standby mode, press the heat key on the control panel or remote
control, the heating function is turned on (the heat indicator will light
up). Then press the heat key on the control panel or remote control
again, the heat function and the heat indicator are closed, at
meanwhile, the fan will close after delaying 30 seconds.
03. HEATING THE LOW MODE
In standby mode, press the heat key of the rst gear and can be opened the
heating function.
4. HEATING THE HIGH MODE
In standby mode, press the re key, you can appreciate the ame eect.
In standby mode, press the heat key on the control pan-
el or remote control, the heating function is turned on
(the heat indicator will light up). Then press the heat key
on the control panel or remote control again, the heat
function and the heat indicator are closed, at mean-
while, the fan will close after delaying 30 seconds.
In standby mode, press the heat key on the control pan-
el or remote control, the heating function is turned on
(the heat indicator will light up). Then press the heat key
on the control panel or remote control again, the heat
function and the heat indicator are closed, at mean-
while, the fan will close after delaying 30 seconds.

14
MAINTENANCE
01. Turn o the heater of the power switch.
02. Unplug the unit and let it cool completely.
03. To keep the heater clean, the outer shell may be cleaned with a soft, damp cloth. You may
use a mild detergent if necessary. After cleaning, dry the unit with a soft cloth. CAUTION: DO
NOT let liquid enter the heater.
04. DO NOT use alcohol, gasoline, abrasive powders, furniture polish, or rough brushes to clean
the heater. This may cause damage or deterioration to the surface of the heater.
05. DO NOT immerse the heater in water.
06. Wait until the unit is completely dry before use.
07. If won’t use the unit for a long time, please take out battery in remote control according to
following steps, then take care of the remote control.
STORAGE
Store the heater in a cool, dry location when not in use. To prevent dust and dirt build-up, use
the original packaging to repack the unit.
TROUBLE SHOOTING
If the heater will not operate, please check the following before seeking repair advice:
01. Check if the power cord is plugged into an electrical outlet, if not, plug in.
02. Check if electricity to the main power switch (in the back) is working.
03. Check the power switch is on
12
MAINTENANCE
1. Turn off the heater of the power switch.
2. Unplug the unit and let it cool completely.
3. To keep the heater clean, the outer shell may be cleaned with a soft, damp cloth. You may use a
mild detergent if necessary. After cleaning, dry the unit with a soft cloth. CAUTION: DO NOT
let liquid enter the heater.
4. DO NOT use alcohol, gasoline, abrasive powders, furniture polish, or rough brushes to clean the
heater. This may cause damage or deterioration to the surface of the heater.
5. DO NOT immerse the heater in water.
6. Wait until the unit is completely dry before use.
7. If won’t use the unit for a long time, please take out battery in remote control according to
following steps, then take care of the remote control.
STORAGE
Store the heater in a cool, dry location when not in use. To prevent dust and dirt build-up, use the
original packaging to repack the unit.
TROUBLE SHOOTING
If the heater will not operate, please check the following before seeking repair advice:
1. Check if the power cord is plugged into an electrical outlet, if not, plug in.
2. Check if electricity to the main power switch (in the back) is working.
3. Check the power switch is on

15
LIMITED TERM WARRANTY
ONE (1) YEAR FROM DATE OF PURCHASE
WARRANTY TERMS ADDITIONAL CONDITIONS
ADDITIONAL CONDITIONS
DELLA warrants that its merchandise are free from
manufacturing defects (workmanship and/or mate-
rial) and will either give credit or replace defective
parts for a period of up to one (1) year from the
date of purchase in accordance with the conditions
set forth below. If a manufacturing defect is found,
DELLA should be notied promptly of the defect
and supplied a copy of the invoice and delivery
ticket. Inspection by a DELLA employee or repre-
sentative may be necessary to verify that a man-
ufacturing defect exists, or you may be required
to submit samples to DELLA along with a digital
image of the defects. If replacement is required in
accordance with this warranty and the defective
material or merchandise has been discontinued or
unavailable, DELLA reserves the right to select and
supply similar merchandise or offer full credit for
the merchandise; otherwise the same material or
merchandise will be supplied for replacement pur-
poses. This warranty is made solely to the retailer
and is not transferable under any circumstances.
It is the retailer’s responsibility to contact DELLA
with a claim. We will not handle claims from con-
sumers directly; all requests must go through the
retailer who sold the merchandise to the consum-
er. We advise all retailers to retain invoices for a
minimum of one (1) year for warranty purposes.
This warranty supersedes and replaces all implied
warranties of merchantability and use for particular
purpose. No representative, employee, or agent of
DELLA or any other person is authorized to assume
for DELLA any additional liability or responsibility in
connection with DELLAs merchandise except as
described above. Implied warranties or merchant-
ability and tness of the merchandise are limited to
a period of one (1) year from the date of purchase.
In no event shall DELLA be liable for indirect, con-
sequential or incidental damages of any kind.
The following examples are not
manufacturer’s defects:
• Colors may vary slightly from the photo because
of photography and printing tolerances.
• Sizes are stated in U.S. standard measurements
while the actual sizes are manufactured using
the metric system. Therefore the sizes may
vary slightly.
• There are no exchanges or refunds on any
pillows or toppers sold.
• No returns for buyer’s remorse.
* No returns - other than stated above -
will be accepted
Warranty is void for any of the following conditions:
1 Improper maintenance or improper use resulting
in damage.
2 Any product modications by dealer, consumer,
or other parties not authorized by DELLA will
void this warranty.
3 Floor samples sold or products designated “AS
IS” at the time of purchase are not covered by
the warranty.
4 Warranty does not cover minor variations or
differences be tween oor samples or printed
illustrations and your furniture.
5 Cost of packaging and shipping to and from
DELLA is not covered by the warranty unless
expressly arranged by DELLA.
6 This warranty covers only articles of appliances
intended for residential use only, does not cover
any industrial, commercial, institutional, or
rental use.
7 Dissatisfaction due to buyer’s remorse.
8 Normal wear and tear.
9 Damages incurred during transportation.
10 Damages incurred during assembling
or maintenance.
11 Damages incurred by accidents or abuse.
Additional conditions for warranty on upholstery
are listed on the attached addendum.

**WARNING: READ THIS INSTRUCTION MANUAL CAREFULLY BEFORE USE.
www.dellaproductsusa.com 909. 344. 2588
